Operator's Manual PB-580 H/T Power Blower - PrecisionUSA
Scan QR codes for more information. For additional literature, including safety manuals where applicable, or questions regarding terms used in this manual, ...

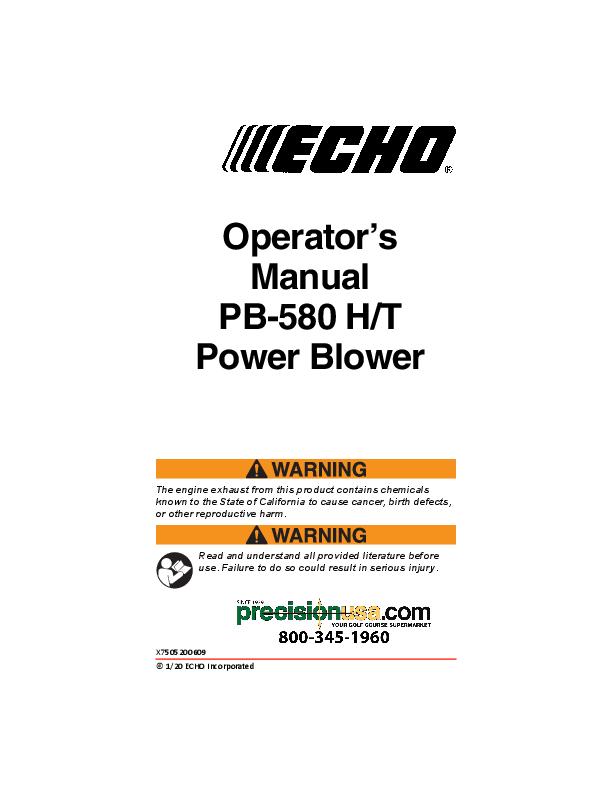

Operator's Manual PB-580 H/T Power Blower
[PDF] Operator's Manual PB-580 H/T Power Blower - PrecisionUSA
Note: (PB-760LN / PB-770 only) The alignment groove in the Front. Handle Set (E) must align within the area of metal strips on top of the Swivel Blower Tube (D) ...
Extracted Text
Operator's Manual PB-580 H/T Power Blower The engine exhaust from this product contains chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. Read and understand all provided literature before use. Failure to do so could result in serious injury. X7505200609 � 1/20 ECHO Incorporated TABLE OF CONTENTS PB-580H/T TABLE OF CONTENTS Table of Contents....................................................................................... 2 Introduction ................................................................................................. 3 Servicing Information .................................................................................. 3 Parts/Serial Number............................................................................. 3 Service ................................................................................................. 4 ECHO Consumer Product Support ...................................................... 4 Product Registration ............................................................................ 4 Additional Literature ............................................................................. 4 Safety .......................................................................................................... 4 Manual Safety Symbols and Important Information ............................. 4 International Symbols .......................................................................... 5 Personal Condition and Safety Equipment .......................................... 7 Equipment.......................................................................................... 12 Emission Control (Exhaust & Evaporative) .............................................. 13 CARB And EPA Emissions Control Information ................................ 13 Description ................................................................................................ 14 Contents.................................................................................................... 18 Assembly................................................................................................... 19 Install Blower Pipes and Stick Handle .............................................. 19 Install Blower Pipes ........................................................................... 20 Operation .................................................................................................. 23 Fuel .................................................................................................... 24 Starting Warm Engine........................................................................ 28 Stopping Engine ................................................................................ 28 Operating Blower ............................................................................... 29 Cold Weather Operation .................................................................... 31 Adjust the Harness ............................................................................ 32 Maintenance ............................................................................................. 33 Skill Levels ......................................................................................... 33 Maintenance Intervals........................................................................ 34 Spark Plug ......................................................................................... 36 Cooling System.................................................................................. 37 Exhaust System ................................................................................. 38 Carburetor Adjustment....................................................................... 40 Throttle Cable Adjustment ................................................................. 41 Troubleshooting ........................................................................................ 42 Storage ..................................................................................................... 44 Long Term Storage (Over 30 Days)................................................... 44 Specifications ............................................................................................ 45 Product Registration ..................................................................................46 2 X7505200609 � 1/20 ECHO Incorporated PB-580H/T INTRODUCTION INTRODUCTION Specifications, descriptions and illustrative material in this literature are as accurate as known at the time of publication, but are subject to change without notice. Illustrations may include optional equipment and accessories, and may not include all standard equipment. Read and understand all provided literature. Literature contains specifications and information for safety, operation, maintenance, storage and assembly specific to this product. Scan QR codes for more information. For additional literature, including safety manuals where applicable, or questions regarding terms used in this manual, visit: https://www.echo-usa.com/manuals OR https://www.shindaiwa-usa.com/manuals SERVICING INFORMATION Parts/Serial Number Genuine ECHO Parts and Assemblies for your ECHO products are available only from an Authorized ECHO Dealer. When you do need to buy parts always have the Model Number and Serial Number of the unit with you. For future reference write them in the space provided below. Model No. _______________ Serial No. _______________ X7505200609 3 � 1/20 ECHO Incorporated SAFETY PB-580H/T Service Service of this product during the warranty period must be performed by an Authorized ECHO Service Dealer. For the name and address of the Authorized ECHO Service Dealer nearest you, ask your retailer or call: 1-800-432-ECHO (3246). Dealer information is also available on our Web Site www.echo-usa.com. When presenting your unit for Warranty service/ repairs, proof of purchase is required. ECHO Consumer Product Support If you require assistance or have questions concerning the application, operation, or maintenance of this product, call the ECHO Consumer Product Support Department at 1-800-432-ECHO (3246) from 8:00 am to 5:00 pm (Central Standard Time) Monday through Friday. Before calling, please know the model and serial number of your unit. Product Registration Register your ECHO equipment on-line at www.echo-usa.com or by filling out the product registration sheet included in this manual. Registering your product confirms warranty coverage and provides a direct link to ECHO if we find it necessary to contact you. Additional Literature In addition to finding information online, information is available from your Authorized ECHO Service Dealer, or by contacting ECHO Inc., 400 Oakwood Road, Lake Zurich, IL 60047 (1-800-432-ECHO (3246)). SAFETY Manual Safety Symbols and Important Information Throughout this manual and on the product itself, you will find safety alerts and helpful, informational messages preceded by symbols or key words. The following is an explanation of those symbols and key words and what they mean to you. The safety alert symbol accompanied by the word "DANGER" calls attention to an act or condition which WILL lead to serious personal injury or death if not avoided. 4 X7505200609 � 1/20 ECHO Incorporated PB-580H/T SAFETY The safety alert symbol accompanied by the word "WARNING" calls attention to an act or condition which CAN lead to serious personal injury or death if not avoided. The safety alert symbol accompanied by the word "CAUTION" calls attention to an act or condition which may lead to minor or moderate personal injury if not avoided. The enclosed message provides information necessary for the protection of the unit. Note: This enclosed message provides tips for use, care and maintenance of the unit. CIRCLE AND SLASH SYMBOL This symbol means the specific action shown is prohibited. Ignoring these prohibitions can result in serious or fatal injury. International Symbols Symbol Description Read and Understand the Operator's Manual Wear Eye, Ear and Head Protection Wear Hand Protection Symbol H T L Description Carburetor Adjustment - High Speed Mixture Carburetor Adjustment - Idle Speed Carburetor Adjustment - Low Speed Mixture Safety/Alert Emergency Stop X7505200609 5 � 1/20 ECHO Incorporated SAFETY Symbol Description Hot Surface Symbol PB-580H/T Description Fuel and Oil Mixture Idle speed Fast speed Finger severing Primer Bulb DO NOT Allow Flames or Sparks Near Fuel DO NOT Smoke Near Fuel Choke Control "RUN" Position (Choke Open) Ignition ON / OFF Choke Control "COLD START" Position (Choke Closed) Wear Slip Resistant Footwear Beware of thrown objects Keep Bystanders and Helpers Away 15 m (50 ft.). 6 X7505200609 � 1/20 ECHO Incorporated PB-580H/T SAFETY Personal Condition and Safety Equipment Cancer and Reproductive Harm www.P65Warnings.ca.gov The muffler or catalytic muffler and surrounding cover may become extremely hot. Always keep clear of exhaust and muffler area, otherwise serious personal injury may occur. Users of this product risk injury to themselves and others if the unit is used improperly and/or safety precautions are not followed. Proper clothing and safety gear must be worn when operating unit. Physical Condition Your judgment and physical dexterity may not be good: � If you are tired or sick � If you are taking medication � If you have taken alcohol or drugs Operate unit only if you are physically and mentally well. X7505200609 7 � 1/20 ECHO Incorporated SAFETY Eye Protection PB-580H/T Eye protection that meets ANSI Z87.1 or CE requirements must be worn whenever you operate the unit. For additional safety, a full-face shield may be worn over safety glasses or goggles to provide protection from sharp branches or flying debris. Hand Protection Wear sturdy, no-slip, rubber work gloves to improve your grip on the handles. Gloves also provide protection against cuts and scratches, cold environments, and reduce the transmission of machine vibration to your hands. Hearing/Ear Protection ECHO recommends wearing personal protection whenever unit is used. Breathing Protection Operators who are sensitive to dust or other common airborne allergens may need to wear a dust mask to prevent inhaling these materials while operating unit. Dust masks can provide protection against dust, plant debris, and other plant matter such as pollen. Make sure the mask does not impair your vision, and replace the mask as needed to prevent air restrictions. Proper Clothing Wear snug-fitting, durable clothing: � Pants should have long legs, shirts should have long sleeves. � DO NOT WEAR SHORTS. � DO NOT WEAR TIES, SCARVES, JEWELRY, or clothing with loose or hanging items that could become entangled in moving parts or surrounding growth. � Keep clothing buttoned or zipped, and keep shirt tails tucked in. � Wear sturdy work shoes with nonskid rubber soles: � DO NOT WEAR OPEN TOED SHOES. � DO NOT OPERATE UNIT BAREFOOTED. Keep long hair away from engine and air intake. Retain hair with cap or net. 8 X7505200609 � 1/20 ECHO Incorporated PB-580H/T SAFETY Heavy protective clothing can increase operator fatigue, which may lead to heat stroke. Schedule heavy work for early morning or late afternoon hours when temperatures are cooler. The components of this machine generate an electromagnetic field during operation, which may interfere with some pacemakers. To reduce the risk of serious or fatal injury, persons with pacemakers should consult with their physician and the pacemaker manufacturer before operating this machine. In the absence of such information, ECHO does not recommend the use of this machine by anyone who has a pacemaker. Extended Operation / Extreme Conditions Prolonged exposure to cold and/or vibration may result in injury. Read and follow all safety and operation instructions to minimize risk of injury. Failure to follow instructions may result in painful wrist/hand/arm injuries. It is believed that a condition called Raynaud's Phenomenon, which affects the fingers of certain individuals, may be brought about by exposure to vibration and cold. Exposure to vibration and cold may cause tingling and burning sensations, followed by loss of color and numbness in the fingers. The following precautions are strongly recommended, because the minimum exposure, which might trigger the ailment, is unknown. � Keep your body warm, especially the head, neck, feet, ankles, hands, and wrists. � Maintain good blood circulation by performing vigorous arm exercises during frequent work breaks, and also by not smoking. � Limit the hours of operation. Try to fill each day with jobs where operating the unit or other hand-held power equipment is not required. � If you experience discomfort, redness, and swelling of the fingers followed by whitening and loss of feeling, consult your physician before further exposing yourself to cold and vibration. X7505200609 9 � 1/20 ECHO Incorporated SAFETY PB-580H/T Repetitive Stress Injuries (RSI) It is believed that overusing the muscles and tendons of the fingers, hands, arms, and shoulders may cause soreness, swelling, numbness, weakness, and extreme pain in those areas. Certain repetitive hand activities may put you at a high risk for developing a Repetitive Stress Injury (RSI). An extreme RSI condition is Carpal Tunnel Syndrome (CTS), which could occur when your wrist swells and squeezes a vital nerve that runs through the area. Some believe that prolonged exposure to vibration may contribute to CTS. CTS can cause severe pain for months or even years. To reduce the risk of RSI/CTS, do the following: � Avoid using your wrist in a bent, extended, or twisted position. Instead try to maintain a straight wrist position. Also, when grasping, use your whole hand, not just the thumb and index finger. � Take periodic breaks to minimize repetition and rest your hands. � Reduce the speed and force with which you do the repetitive movement. � Do exercises to strengthen the hand and arm muscles. � Immediately stop using all power equipment and consult a doctor if you feel tingling, numbness, or pain in the fingers, hands, wrists, or arms. The sooner RSI/CTS is diagnosed, the more likely permanent nerve and muscle damage can be prevented. All over head electrical conductors and communications wires can have electricity flow with high voltages. This unit is not insulated against electrical current. Never touch wires directly or indirectly, otherwise serious injury or death may result. 10 X7505200609 � 1/20 ECHO Incorporated PB-580H/T SAFETY Do not operate this product indoors or in inadequately ventilated areas. Engine exhaust contains poisonous emissions and can cause serious injury or death. Read the Manual � Provide all users of this equipment with literature for instructions on safe operation. Clear the Work Area � Clear the area of children, bystanders, and pets. At a minimum, keep all children, bystanders, and pets outside a 15 m (50 ft.) radius; outside the 15 m (50 ft.) zone, there is still a risk of injury from thrown objects. Bystanders should be encouraged to wear eye protection. If you are approached, stop the engine. � Avoid blowing debris towards people, pets, open windows, or vehicles when using unit. � Review area to be cleared. Look for potential hazards such as stones or metal objects. Keep a Firm Grip � To prevent from dropping the unit, hold the handle in one hand, with thumb and fingers encircling the handle. Keep a Solid Stance � Maintain footing and balance at all times. Do not stand on slippery, uneven or unstable surfaces. Do not work in odd positions or on ladders. Do not over reach. Avoid Hot Surfaces � Keep exhaust area clear of flammable debris. Avoid contact during and immediately after operation. X7505200609 11 � 1/20 ECHO Incorporated SAFETY Equipment PB-580H/T Use only approved attachments. Serious injury may result from the use of a non-approved attachment combination. ECHO, INC. will not be responsible for the failure of cutting devices, attachments or accessories which have not been tested and approved by ECHO. Read and comply with all safety instructions listed in this manual. Do not attempt to modify this product. Serious injury can result from the use of any modified product. Check unit for loose/missing nuts, bolts, and screws. Tighten and/or replace as needed. Do not use blower if any part is missing or damaged. Have repairs done only by an authorized service dealer. Moving parts can amputate fingers or cause severe injuries. Keep hands, clothing and loose objects away from all openings. ALWAYS stop engine, disconnect spark plug, and make sure all moving parts have come to a complete stop before removing obstructions, clearing debris, or servicing unit. DO NOT start or operate unit unless all guards and protective covers are properly assembled to unit. NEVER reach into any opening while the engine is running. Moving parts may not be visible through openings. Periodically Check fuel system (fuel lines, vent, grommet, fuel tank, and fuel cap) for leaks especially if the unit is dropped. If damage or leaks are found, do not use unit, otherwise serious personal injury or property damage may occur. Have unit repaired by an authorized servicing dealer before using. 12 X7505200609 � 1/20 ECHO Incorporated PB-580H/T EMISSION CONTROL EMISSION CONTROL (EXHAUST & EVAPORATIVE) CARB And EPA Emissions Control Information The emission control system for the engine is EM (engine modification) and, if the second to last character of the Engine Family on the Emission Control Information label (sample below) is "B", "C", "K", or "T", the emission control system is EM and TWC (3way catalyst). The fuel tank/fuel line emission control system is EVAP (evaporative emissions). Evaporative emissions for California models are only applicable to fuel tanks and fuel feed lines. An Emission Control Label is located on the engine. (This is an EXAMPLE ONLY, information on label varies by engine FAMILY). Product Emission Durability (Emission Compliance Period) The 50 or 300 hour emission compliance period is the time span selected by the manufacturer certifying the engine emissions output meets applicable emissions regulations, provided that approved maintenance procedures are followed as listed in the Maintenance Section of this manual. X7505200609 13 � 1/20 ECHO Incorporated DESCRIPTION PB-580H/T DESCRIPTION PB-580 H Locate the safety decal(s) on your unit. Make sure the decal(s) is legible and that you understand and follow the instructions on it. If a decal cannot be read, a new one can be ordered from your ECHO dealer. The safety decal is for example only. Your label may appear slightly different. 3 2 1 4 6 5 13 7 12 11 8 10 9 70dB(A) per ANSI B175.2 14 15 14 X7505200609 � 1/20 ECHO Incorporated PB-580H/T DESCRIPTION 1. Handle 2. Throttle Position Lever/stop Switch 3. Spark Plug 4. Shoulder Harness 5. Safety Decal 6. Stick Handle 7. Blower Pipes 8. Flexible Pipes 9. Spark Arrestor Muffler (with or without Catalyst) 10. Fuel Tank 11. Fuel Tank Cap 12. Recoil Starter Handle 13. Air Cleaner 14. Choke 15. Purge Bulb X7505200609 15 � 1/20 ECHO Incorporated DESCRIPTION PB-580H/T PB-580T Locate the safety decal(s) on your unit. Make sure the decal(s) is legible and that you understand and follow the instructions on it. If a decal cannot be read, a new one can be ordered from your ECHO dealer. The safety decal is for example only. Your label may appear slightly different. 12 13 1 11 10 14 15 3 4 2 9 8 5 7 6 70dB(A) per ANSI B175.2 16 X7505200609 � 1/20 ECHO Incorporated PB-580H/T DESCRIPTION 1. Shoulder Harness 2. Safety Decal 3. Throttle Control 4. Blower Pipes 5. Flexible Pipes 6. Spark Arrestor Muffler (with or without Catalyst) 7. Fuel Tank 8. Fuel Tank Cap 9. Recoil Starter Handle 10. Air Cleaner 11. Spark Plug 12. Choke 13. Purge Bulb 14. Throttle Position Lever 15. Throttle Switch X7505200609 17 � 1/20 ECHO Incorporated CONTENTS PB-580H/T CONTENTS The ECHO product you purchased has been factory pre-assembled for your convenience. Due to packaging restrictions, some assembly may be necessary. After opening the carton, check for damage. Immediately notify your retailer or ECHO Dealer of damaged or missing parts. Use the contents list to check for missing parts. PB-580 H 1 Power Head 1 Flex Pipe 1 Pipe With Swivel 1 Straight Pipe 1 Straight Pipe With Decal 1 Quick Start Guide 1 Warranty Statement 2 Clamps With Screws 1 Stick Handle 1 Bolt 6 x 45 mm 1 Washer 6 mm 1 Wing nut PB-580 T 1 Power Head 1 Flex Pipe 1 Pipe With Swivel 1 Straight Pipe 1 Straight Pipe With Decal 1 Quick Start Guide 1 Warranty Statement 2 Clamps With Screws 18 X7505200609 � 1/20 ECHO Incorporated PB-580H/T ASSEMBLY PB-580 H ASSEMBLY Never perform maintenance or assembly procedures with engine running or serious personal injury may result. Install Blower Pipes and Stick Handle 1. Assemble clamps (A) onto both ends of flexible pipe (B). A B A 2. Assemble straight pipe with swivel (C) into flexible pipe (B). 3. Assemble flexible pipe (B) to elbow (D) on blower and tighten clamps (A). Note: A light lubricant may be used to ease assembly of flexible pipe to blower D A C elbow. B A C 4. Loosen wing nut (E) completely and expand stick handle clamp (F). Align notches (G) in handle F clamp with tabs (H). H 5. Slide stick handle onto swivel G C pipe (C). Stick handle (F) should be angled away from operator. 6. Position stick handle (F) for H G comfortable operation. Tighten E wing nut (E). X7505200609 19 � 1/20 ECHO Incorporated ASSEMBLY PB-580H/T 7. Assemble straight pipe (J) onto swivel pipe (C), until you feel light resistance. Hold swivel pipe and turn straight pipe clockwise, engaging positive locking channels, until connection is firm. Do not force C connection. 8. Assemble straight pipe with decal (K) to straight pipe (J) as in step 7. J K Note: Blower use will eventually loosen pipe connections. Exclusive positive locking system allows pipes to be tightened. If loosening occurs, remove two straight pipes and install according to instructions 7 & 8. PB-580T Never perform maintenance or assembly procedures with engine running or serious personal injury may result. Install Blower Pipes 1. Assemble clamps (A) and (G) onto both ends of flexible pipe (B). Note: Clamp with cable guide G loop (G) fits elbow end of flexible pipe. G A B 20 X7505200609 � 1/20 ECHO Incorporated PB-580H/T Note: Anti-static wire before installation. ASSEMBLY 2. Route anti-static wire below fan housing and clip wire into throttle cable retaining clip (X). Position wire outside blower elbow. 3. Insert anti-static wire through flex tube. Leave enough slack in anti-static wire to allow for full rotation of elbow. Note: A light lubricant may be used to ease assembly of flexible pipe to blower elbow. 4. Assemble flexible pipe to elbow (D) on blower. Position clamp with cable guide loop (G) on outside of flexible pipe and tighten clamp. Note: Hang handle freely from blower to assure throttle cable is not twisted before installing handle (E). X7505200609 � 1/20 ECHO Incorporated X D G 21 ASSEMBLY PB-580H/T 5. Position throttle cable along the outside of elbow. Loosen knob (H) on handle (E). Align notches in D handle with tabs (F) G and install onto swivel pipe (C) past long ridges in pipe. 6. Insert anti-static wire through swivel pipe (wire will hang freely in pipe). E B A H CF 7. Assemble swivel pipe into flexible pipe and tighten clamp (A). 8. Clip throttle cable into throttle cable guide loop. 9. Move handle (E) to desired position. Tighten knob (H) hand tight. 10. Assemble straight pipe (K) onto swivel pipe, until you feel light resistance. Hold swivel pipe and turn straight pipe clockwise, engaging positive locking channels, until C K connection is firm. Do not force J connection. 11. Assemble straight pipe with decal (J) to straight pipe as in step 10. Note: Blower use will eventually loosen pipe connections. Exclusive positive locking system allows pipes to be tightened. If loosening occurs, remove two straight pipes and install according to instructions 10 & 11. 22 X7505200609 � 1/20 ECHO Incorporated PB-580H/T OPERATION OPERATION Moving parts can amputate fingers or cause severe injuries. Keep hands, clothing and loose objects away from all openings. Always stop engine, disconnect spark plug, and make sure all moving parts have come to a complete stop before removing obstructions, clearing debris, or servicing unit. Blower housing may contain shredder blades and other sharp edges that can cause serious injuries if touched, even if engine is off and blades are not moving. Wear gloves to protect hands from sharp edges and hot surfaces. Operation of this equipment may create sparks that can start fires around dry vegetation. This unit is equipped with a spark arrestor to prevent discharge of hot particles from the engine. Contact local fire authorities for laws or regulations regarding fire prevention requirements. Engine exhaust IS HOT, and contains Carbon Monoxide (CO), a poison gas. Breathing CO can cause unconsciousness, serious injury, or death. Exhaust can cause serious burns. ALWAYS position unit so that exhaust is directed away from your face and body. This blower should be used for clearing leaves, grass, debris, and dust in yards, gardens, driveways, and parking lots only. Always maintain a direct, clear line of site to the unit and the work being performed. Always be alert for changes in operation of unit. Always shut engine off before transporting unit to new location. Always secure the unit during transportation to prevent turnover, fuel spillage, and damage to the unit. X7505200609 23 � 1/20 ECHO Incorporated OPERATION Fuel PB-580H/T Diesel fuels and alternative fuels, such as E-15 (15% ethanol), E -85 (85% ethanol) or any fuels not meeting ECHO requirements are NOT approved for use in ECHO 2-stroke gasoline engines. Use of diesel or alternative fuels may cause performance problems, loss of power, overheating, fuel vapor lock, and unintended machine operation, including, but not limited to, improper clutch engagement. Diesel or alternative fuels may also cause premature deterioration of fuel lines, gaskets, carburetors and other engine components. Fuel Requirements Gasoline - Use 89 Octane [R+M/2] (mid grade or higher) gasoline known to be good quality. Gasoline may contain up to 10% Ethanol (grain alcohol) or 15% MTBE (methyl tertiary-butyl ether). Gasoline containing methanol (wood alcohol) is NOT approved. Use of ECHO branded fuel is recommended to extend engine life in all air-cooled 2-stroke and 2/4-stroke hybrid engines. Two Stroke Oil - A two-stroke engine oil, such as ECHO branded 2-stroke oils, meeting ISO-L-EGD (ISO/CD 13738) and J.A.S.O. FD Standards must be used. ECHO branded 2-stroke oils meet these standards. Engine problems due to inadequate lubrication caused by failure to use an ISO-LEGD (ISO/CD 13738) and J.A.S.O. M345-FD certified oil will void the twostroke engine warranty. 2-Stroke engine oil contains petroleum distillates and other additives that may be harmful if swallowed. Heated oil can release vapors that can cause flash fire, or ignite with explosive force. Read and follow the oil manufacturer's instructions, and observe all safety warnings and precautions for handling flammable liquids. For more detailed safety and first aid information, visit www.echo-usa.com for a copy of the Material Safety Data Sheet. KEEP OUT OF REACH OF CHILDREN. If swallowed, do not induce vomiting. CALL PHYSICIAN OR A POISON CONTROL CENTER IMMEDIATELY. WEAR SAFETY GLASSES when mixing or handling. 24 X7505200609 � 1/20 ECHO Incorporated PB-580H/T OPERATION AVOID repeated or prolonged skin contact. AVOID inhaling oil mists or vapors. ECHO branded 2-stroke oils may be mixed at 50:1 ratio for application in all ECHO engines sold in the past regardless of ratio specified in those manuals. Handling Fuel Fuel is VERY flammable. Use extreme care when mixing, storing or handling, or serious personal injury may result. Use an approved fuel container. Mark fuel containers as containing 2-stroke mixture fuel. DO NOT smoke near fuel. DO NOT allow flames or sparks near fuel. Fuel tanks/cans may be under pressure. Always loosen fuel caps slowly allowing pressure to equalize. NEVER refuel a unit when the engine is HOT or RUNNING! DO NOT fill fuel tanks indoors. ALWAYS fill fuel tanks outdoors over bare ground. DO NOT overfill fuel tank. Wipe up spills immediately. Securely tighten fuel tank cap and close fuel container after refueling. Inspect for fuel leakage. If fuel leakage is found, do not start or operate unit until leakage is repaired. Move at least 3 m (10 ft.) from refueling location before starting the engine. Gasoline vapor is heavier than air, and can travel along the ground to nearby sources of ignition such as electrical motors, pilot lights, and hot or running engines. Vapors ignited by an ignition source can flash back to the fuel container, resulting in an explosion, fire, serious or fatal injuries, and extensive property damage. X7505200609 25 � 1/20 ECHO Incorporated OPERATION Mixing Instructions 1. Fill an approved fuel container with half of the required amount of gasoline. 2. Add the proper amount of 2-stroke oil to gasoline. 3. Close container and shake to mix oil with gasoline. 4. Add remaining gasoline, close fuel container, and remix. PB-580H/T Fuel to Oil Mix � 50:1 Ratio US Metric Gas Oil Gas Oil gal. fl.oz. L cc 1 2.6 5 100 2 5.2 10 200 5 13 25 500 Spilled fuel is a leading cause of hydrocarbon emissions. Some locations may require the use of automatic fuel shut-off containers to reduce fuel spillage. Storage - Fuel storage laws vary by locality. Contact your local government for the laws affecting your area. As a precaution, store fuel in an approved, airtight container. Store in a well-ventilated, unoccupied building, away from sparks and flames. � Empty the fuel tank prior to storing the unit. Return unused fuel to an approved fuel storage container. Stored fuel ages. Do not mix more fuel than you expect to use in 30 days, 90 days when a fuel stabilizer is added. Stored two-stroke fuel may separate. ALWAYS shake fuel container thoroughly before each use. Used oil and gasoline, and soiled towels are hazardous waste materials. Disposal laws vary by locality. 26 X7505200609 � 1/20 ECHO Incorporated PB-580H/T OPERATION Starting Cold Engine � Recoil starter: Use short pulls - only 1/2- 2/3 of rope length for starting. Do not allow the rope to snap back in. Always hold the unit firmly. � (PB-580H): Rotate spring loaded throttle arm downward to a comfortable operating position. 1. Throttle Lever PB-580 H Move throttle lever (A) to IDLE A position. 2. Choke Move choke (B) UP to COLD START ( ) position. 3. Purge Bulb Pump purge bulb (C) until fuel is visible. Pump bulb an additional 4 or 5 times. PB-580 T A 4. Recoil Starter Pull recoil starter handle (D) until engine fires, or a maximum of 5 pulls 5. Choke After engine fires (or 5 pulls), move choke lever back to RUN ( ) position, then pull starter handle/rope until engine starts and runs. Allow unit to warm up at idle for several minutes. B C Note: If engine does not start with choke in "RUN" D position after 5 pulls, move choke to COLD START ( ) position, and repeat steps 3- 5. 6. Throttle Lever Allow engine to warm up for several minutes before use. 7. Throttle Lever After engine warm-up, move throttle lever gradually to increase engine RPM to desired operating speed. X7505200609 27 � 1/20 ECHO Incorporated OPERATION PB-580H/T Starting Warm Engine The starting procedure is the same as Cold Start except DO NOT close the choke.v 1. Throttle Lever PB-580 H Move throttle lever (A) to IDLE A position. 2. Purge Bulb Pump purge bulb (C) until fuel is visible. Pump bulb an additional 4 or 5 times. PB-580 T A 3. Recoil Starter Pull recoil starter handle (D) and engine should start. Do not use choke (B) Note: If engine does not start after 5 pulls, use cold start procedures. B C D Stopping Engine - PB-580 H PB-580 H A 1. Throttle Lever Move throttle lever (A) to IDLE position and allow engine to return to idle before shutting off engine. 2. Throttle Lever Move throttle lever (A) to "O" (STOP) position. PB-580 T A 28 X7505200609 � 1/20 ECHO Incorporated PB-580H/T OPERATION - PB-580 T 1. Throttle Lever Release throttle trigger. Move Throttle Lever (A) forward to idle position and allow engine to return to idle before shutting off engine. 2. Throttle Lever Move Throttle Lever (A) all the way forward to STOP position. If engine does not stop when stop switch is moved to STOP position, close choke - COLD START position - to stall engine. Have your dealer repair stop switch before using unit again. Operating Blower Engine exhaust IS HOT, and contains Carbon Monoxide (CO), a poison gas. Breathing CO can cause unconsciousness, serious injury, or death. Exhaust can cause serious burns. ALWAYS position unit so that exhaust is directed away from your face and body. Always wear safety glasses, hearing protection and a face filter mask or serious personal injury may result. Do not point the blower pipe in the direction of people or pets. Use reduced speed only when performing light-duty tasks or to comply with local noise regulations. Continuous low speed operation may allow fuel/oil residue to build-up on the piston and cause rapid build-up of carbon on the spark arrestor screen, resulting in overheating and engine damage. To reduce harmful build-up, run engine at wide open throttle for at least 5 minutes every hour, and inspect/clean the spark arrestor screen after approximately 40 hours of operation. Read the Safety Section carefully. X7505200609 29 � 1/20 ECHO Incorporated OPERATION PB-580H/T To avoid engine damage due to over-revving, do not block blower pipe. 1. Use only during appropriate hours. Contact your local government for the ordinances affecting your area. 2. To reduce sound levels, limit the number of pieces of equipment used at any one time. 3. Allow the engine to warm up at a fast idle for a few minutes. 4. PB-580 H PB-580 H Set engine speed with throttle A lever (A). PB-580 T Control engine speed with throttle trigger (B), or for continuous use, set engine speed with throttle lever (A). PB-580 T A 5. Use lower speed to blow dry leaves from walks, patios and drives. Use rakes and brooms B to loosen debris before blowing. 6. Additional speed may be necessary to clean grass and leaves from a lawn or flower bed. 7. Higher speed may be necessary to move gravel, dirt, snow, bottles or cans from a driveway, street, parking lot or stadium. 8. Always stop unit using stop engine procedure. Note: Never use a higher speed setting than necessary to perform a task. Remember, the higher the engine speed, the louder the blower noise. 9. Minimize dust by using blower at lower speeds or dampen surface with water. Blower can be used to clean most surfaces when water conservation is desired. 10. Use the full blower pipe configuration when blowing. 11. After using blowers and other equipment, CLEAN UP! Dispose of debris in trash receptacles. 30 X7505200609 � 1/20 ECHO Incorporated PB-580H/T OPERATION Contacting blower pipe tip on abrasive surfaces can create sharp cutting edges and can result in personal injury if touched. Do not scrape or drag blower pipe tip when operating or transporting unit. Replace blower pipe assembly if protective metal ring is worn, cracked or deformed. Cold Weather Operation Plug For operation in cold weather, install plug in cold weather position (C), otherwise icing can occur. For operation in normal weather, install plug in warm weather position (D), otherwise over heating can occur. D C Intake Cover (optional) In cold weather, intake cover can be installed for operator comfort. Intake cover is not included. 1. Remove back cushion (A) from A frame. X7505200609 31 � 1/20 ECHO Incorporated OPERATION 2. Install intake cover (B) on frame over air intake. 3. Install back cushion (A) to frame over intake cover. Note: Blower performance may B be reduced slightly. PB-580H/T Adjust the Harness 1. Loosen upper and lower buckles (A), then put blower on your back. 2. Pull strap (B) downward to adjust position of blower. 3. Pull (C) to adjust angle between your back and the blower. A A C A A B 32 X7505200609 � 1/20 ECHO Incorporated PB-580H/T MAINTENANCE MAINTENANCE Moving parts can amputate fingers or cause severe injuries. Keep hands, clothing and loose objects away from all openings. Always stop engine, disconnect spark plug, and make sure all moving parts have come to a complete stop before removing obstructions, clearing debris, or servicing unit. Allow unit to cool before performing service. Wear gloves to protect hands from sharp edges and hot surfaces. Operating a poorly maintained unit can result in serious injuries to operator or bystanders. Always follow all maintenance instructions as written, otherwise serious personal injury may result. Your unit is designed to provide many hours of trouble free service. Regular scheduled maintenance will help your unit achieve that goal. If you are unsure or are not equipped with the necessary tools, we recommend that you take your unit to a Servicing Dealer for maintenance. To help you decide whether you want to DO-IT-YOURSELF or have the Dealer do it, each maintenance task has been graded. If the task is not listed, see your Dealer for repairs. The use of emission control components other than those specifically designed for this unit is a violation of federal law. Skill Levels Level 1 = Easy to do. Common tools may be required. Level 2 = Moderate difficulty. Some specialized tools may be required. Level 3 = See your dealer. Click HERE or go to http://www.echo-usa.com/products/maintenance-kit or HERE https://www.shindaiwa-usa.com/you-can.aspx For information about maintenance kits. X7505200609 33 � 1/20 ECHO Incorporated MAINTENANCE PB-580H/T Maintenance Intervals COMPONENT/SYSTEM MAINTENANCE PROCEDURE Daily or Before Use Air Filter Choke Shutter Fuel System Cooling System Recoil Starter Rope Screws/Nuts/Bolts Every Refuel Fuel System Cooling System 3 Months Air Filter Fuel Filter Fuel Cap Gasket Spark Plug Muffler Spark Arrestor Cylinder Exhaust Port Yearly Fuel Filter Fuel Cap Gasket Inspect/Clean 1 Inspect Inspect/Clean Inspect/Clean 1 Inspect/Tighten/Replace 1 Inspect 1 Inspect/Clean Replace 1 Inspect 1 Inspect/Clean/Replace 1 Inspect/Clean/De-carbon Inspect/Replace1 Replace 1 SKILL LEVEL 1 2 1 1 2 1 2 1 IMPORTANT NOTE - Time intervals shown are maximum. Actual use and your experience will determine the frequency of required maintenance. MAINTENANCE PROCEDURE NOTES: 1. Replacement is recommended based on the finding of damage or wear during inspection. 34 X7505200609 � 1/20 ECHO Incorporated PB-580H/T Air Filter Level 1. Parts Required: Tune Up Kit. 1. CLOSE choke (COLD START [ ] position). This prevents dirt from entering the carburetor throat when the air filter is removed. Brush accumulated dirt from air cleaner area. 2. Remove air filter cover. Brush dirt from inside cover. 3. Remove air filter and lightly brush debris from filter. Replace filter if it is damaged, fuel soaked, very dirty, or the rubber sealing edges are deformed. 4. If filter can be reused, be certain it: � Fits tightly in the air filter cavity � Is installed with the original side out 5. Install air filter cover. MAINTENANCE X7505200609 35 � 1/20 ECHO Incorporated MAINTENANCE Fuel Filter Level 1. Parts Required: Tune Up Kit. PB-580H/T Fuel is VERY flammable. Use extreme care when mixing, storing or handling, or serious personal injury may result. 1. Use a clean rag to remove loose dirt from around fuel cap and empty fuel tank. 2. Pull the fuel line and filter from the tank. 3. Remove the filter from the line and install the new filter. Note: Federal EPA regulations require all model year 2012 and later gasoline powered engines produced for sale in the United States to be equipped with a special low permeation fuel supply hose between the carburetor and fuel tank. When servicing model year 2012 and later equipment, only fuel supply hoses certified by EPA can be used to replace the original equipment supply hose. Fines up to $37,500 may be enforced for using an un-certified replacement part. Spark Plug Level 2. Parts Required: Tune Up Kit. Use only NGK BPM8Y spark plug (BPMR8Y in Canada) otherwise severe engine damage may occur. 36 X7505200609 � 1/20 ECHO Incorporated PB-580H/T MAINTENANCE 1. Remove spark plug and check for fouling, worn and rounded center electrode. 2. Clean the plug or replace with a new one. DO NOT sand blast to clean. Remaining sand will damage engine. 3. Adjust spark plug gap by bending outer electrode. 0.65 mm (0.026 in.) 4. Tighten spark plug to 150-170 kgf � cm (130-150 in � lbf). Cooling System Level 2. To maintain proper engine operating temperatures, cooling air must pass freely through the cylinder fin area. This flow of air carries combustion heat away from the engine. Overheating and engine seizure can occur when: � Air intakes are blocked, preventing cooling air from reaching the cylinder. � Dust and grass build up on the outside of the cylinder. This build up insulates the engine and prevents the heat from leaving. Removal of cooling passage blockages or cleaning of cooling fins is considered "Normal Maintenance." Any failure attributed to lack of maintenance is not warranted. Cleaning Grill 1. Brush accumulated debris from intake grill between backpack frame and blower housing. X7505200609 37 � 1/20 ECHO Incorporated MAINTENANCE Cleaning Cylinder Fins 1. Remove spark plug. 2. Remove starter 3. Remove engine cover. 4. Clean cylinder fins (A) to allow cooling air to pass freely 5. Assemble components in reverse order. PB-580H/T A Exhaust System Spark Arrestor Screen Level 2. Parts Required: Spark Arrestor Screen, Gasket Carbon deposits in muffler will cause a drop in engine output and overheating. Spark arrestor screen must be checked periodically. 1. Remove spark plug. 2. Remove starter. 3. Remove engine cover. 4. Place piston at Top Dead Center (TDC) to prevent carbon/dirt from entering cylinder. 5. Remove spark arrestor cover (A), gasket (B) and spark arrestor screen (C) from muffler. 6. Clean carbon deposits from muffler components. Note: When cleaning carbon deposits, be careful not to damage the catalytic element inside muffler. 7. Replace screen if it is cracked, plugged, or has holes burned through. C B A 38 X7505200609 � 1/20 ECHO Incorporated PB-580H/T MAINTENANCE 8. Replace gasket. 9. Assemble components in reverse order. Exhaust Port Cleaning Level 2. Parts Required: Heat Shield 1. Remove spark plug. 2. Remove starter 3. Remove engine cover. B A 4. Place piston at top dead center. Remove muffler (A) heat shield (B). 5. Use a wood or plastic scraping tool to clean deposits from cylinder exhaust port. Never use a metal tool to scrape carbon from the exhaust port. Do not scratch the cylinder or piston when cleaning the exhaust port. Do not allow carbon particles to enter the cylinder. 6. Replace heat shield. X7505200609 39 � 1/20 ECHO Incorporated MAINTENANCE PB-580H/T Assure heat shield is installed correctly behind rib (A) and in front of rib (B) in fan case. A 7. Install muffler. 8. Tighten muffler mounting bolts (or nuts) to 90-110 kgf � cm (80-95 in � lbf). 9. Assemble components in B reverse order. 10. Start engine, and warm to operating temperature. 11. Stop engine, and re-tighten mounting bolts (or nuts) to specifications. Carburetor Adjustment Engine Break-In New engines must be operated a minimum duration of two tanks of fuel break-in before carburetor adjustments can be made. During the break-in period your engine performance will increase and exhaust emissions will stabilize. Idle speed can be adjusted as required. High Altitude Operation This engine has been factory adjusted to maintain satisfactory starting, emission, and durability performance up to 1,100 feet above sea level (ASL) (96.0 kPa). To maintain proper engine operation and emission compliance above 1,100 feet ASL the carburetor may need to be adjusted by an authorized service dealer. If the engine is adjusted for operation above 1,100 feet ASL, the carburetor must be re-adjusted when operating the engine below 1,100 feet ASL, otherwise severe engine damage may result. Level 2. Note: Every unit is run at the factory and the carburetor is set in compliance with emission regulations. Carburetor adjustments, other than idle speed, must be performed by an authorized dealer. 40 X7505200609 � 1/20 ECHO Incorporated PB-580H/T MAINTENANCE Idle Adjustment Before adjustment make sure that: � Air filter is clean and properly installed. � Spark arrestor screen and muffler are free of carbon. � Blower pipes are installed. 1. Start engine, run at idle for one minute. 2. Complete warm up by running at full throttle for 5 minutes, operating choke twice to clear A air from carburetor chambers. 3. Check idle speed and reset if necessary. If a tachometer is available, idle speed screw (A) should be set to the specifications found on "Specifications" Page of this manual. Turn idle screw (A) clockwise to increase idle speed; counter clockwise to decrease idle speed. Throttle Cable Adjustment Level 1 If engine idle speed changes when blower pipe is moved, or engine will not reach full wide open throttle speed, adjust throttle cable. 1. Loosen handle adjustment knob (C) and tilt Tube Throttle handle forward to expose Adjustment Screw (D). D C X7505200609 41 � 1/20 ECHO Incorporated TROUBLESHOOTING 2. Turn Adjustment Screw until Throttle Trigger free play is 4 - 6 mm (3/16-1/4 in.). 3. After adjustment, squeeze and release Throttle Trigger several times to verify Carburetor Throttle Shaft has full range of movement from idle to wide open throttle positions. TROUBLESHOOTING PB-580H/T 4-6 mm Fuel vapors are extremely flammable and may cause fire and/or explosion. Never test for ignition spark by grounding spark plug near cylinder plug hole, otherwise serious personal injury may result. ENGINE PROBLEM TROUBLESHOOTING CHART Problem Check Status Cause Remedy Engine starts hard Fuel at or Engine carburetor does not start No fuel at carburetor Clean or replace Fuel strainer or fuel line See your dealer obstructed 42 X7505200609 � 1/20 ECHO Incorporated PB-580H/T TROUBLESHOOTING ENGINE PROBLEM TROUBLESHOOTING CHART Problem Check Status Cause Remedy No fuel at cylinder Carburetor See your dealer OPEN choke Fuel at cylinder Engine starts hard Muffler wet with fuel or Engine does not start Spark at end of plug wire No spark Spark at plug Fuel mixture too rich Clean or replace air filter Adjust carburetor See your dealer Ignition at Move ignition STOP position away from STOP position. Electrical prob- lem See your dealer Interlock switch Incorrect gap - Adjust to Covered with 0.65mm (0.026 carbon - in.) Fouled with fuel - Plug Clean or replace defective plug Air filter Air filter dirty Normal wear Clean or replace Engine runs, but dies or Fuel filter Fuel vent Spark plug Fuel filter dirty Fuel vent plugged Plug dirty or worn Contaminants or Replace filter or residue in fuel replace fuel Contaminated fuel Clean or replace Normal wear Clean and adjust or replace Engine does not accelerate properly Carburetor Cooling system Spark arrestor screen Improper adjustment Cooling system dirty or plugged Spark arrestor screen plugged Vibration Adjust Extended operation in dirty or Clean dusty locations Normal wear Replace Engine does not crank N/A Internal engine problem See your dealer X7505200609 43 � 1/20 ECHO Incorporated STORAGE STORAGE PB-580H/T During operation the muffler or catalytic muffler and surrounding cover become hot. Always keep exhaust area clear of flammable debris during transportation or when storing, otherwise serious property damage or personal injury may result. Long Term Storage (Over 30 Days) Do not store your unit for a prolonged period of time (30 days or longer) without performing protective storage maintenance which includes the following: 1. Store unit in a dry, dust free place, out of the reach of children. Do not store in enclosure where fuel fumes may accumulate or reach an open flame or spark. 2. Place the stop switch or lever in the "OFF" position. 3. Remove accumulation of grease, oil, dirt and debris from exterior of unit. 4. Perform all periodic lubrication and services that are required. 5. Tighten all the screws and nuts. 6. Drain fuel tank completely. Press purge bulb 6 -7 times to remove remaining fuel from carburetor then drain the tank again. Close choke, start and run the engine until it stops due to lack of fuel. 7. Allow engine to cool. Remove the spark plug lead from the spark plug. Remove the spark plug. Pour 7 cc (0.25 oz.) of fresh, clean, two-stroke engine oil into the cylinder through the spark plug hole. 8. Pull the recoil starter handle 2-3 times to distribute the oil inside the engine. 9. Observe the piston location through the spark plug hole. Pull the recoil handle slowly until the piston reaches the top of its travel and leave it there. 10. Install the spark plug. Connect the spark plug lead to the spark plug. 11. Remove blower pipe assembly from unit. 44 X7505200609 � 1/20 ECHO Incorporated PB-580H/T SPECIFICATIONS SPECIFICATIONS MODEL Length (w/o pipes) Width (w/o pipes) Height (w/o pipes) Weight (dry) (w/o pipes) Engine Type Bore Stroke Displacement Exhaust Carburetor Ignition System Spark Plug Fuel Gasoline/Oil Ratio Gasoline Oil Fuel Tank Capacity Starter System Idle Speed Wide Open Throttle Speed (W.O.T.) Maximum Air Speed w/ pipes Air Volume Sound Level at 50 ft. dB(A) scale per ANSI B175.2 X7505200609 � 1/20 ECHO Incorporated PB-580 H PB-580 T 379 mm (14.92in.) 379 mm (14.92 in.) 537 mm (21.14 in.) 478 mm (18.82 in.) 459 mm (18.07 in.) 9.4 kg (20.7 lb.) 9.3 kg (20.5 lb.) Air cooled, two-stroke, single cylinder gasoline engine 46.0 mm (1.81 in.) 35.0 mm (1.38 in.) 58.2 cc (3.55 cu. in.) Spark arrestor muffler or spark arrestor muffler with catalyst Diaphragm w/purge pump Flywheel magneto, capacitor discharge ignition type NGK BPM8Y (NGK BPMR8Y in Canada) (Gap 0.65 mm [0.026 in.]) Mixed (Gasoline and Two-stroke Oil) 50:1 Use 89 Octane unleaded. Do not use fuel containing methyl alcohol, more than 10% ethyl alcohol or 15% MTBE. Do not use alternative fuels such as E-15 or E-85. ISO-L-EGD (ISO/CD 13738) and J.A.S.O. M345- FD, two-stroke, air-cooled engine oil. 1.83 L (62 US fl. oz.) Automatic Recoil Starter, centrifugal type 2,700 RPM 6,550 RPM 96.4 m/sec (216 mph) 14.7 m3/min. (517 ft.3 /min.) 70 dB(A) 45 PRODUCT REGISTRATION PRODUCT REGISTRATION PB-580H/T Thank you for choosing ECHO Power Equipment Please go to http://www.echo-usa.com/Warranty/Register-Your-ECHO to register your new product on-line. It's FAST and EASY! NOTE: your information will never be sold or misused by ECHO, Inc. Registering your purchase enables us to contact you in the unlikely event of a service update or product recall, and verifies your ownership for warranty consideration. If you do not have access to the Internet, you can complete the form below and mail to: ECHO Incorporated, Product Registration, PO Box 1139, Lake Zurich IL 60047. 46 X7505200609 � 1/20 ECHO Incorporated PB-580H/T PRODUCT REGISTRATION X7505200609 47 � 1/20 ECHO Incorporated (H) P44514001001 - P44514999999 P48314001001 - P48314999999 (T) P44614080845 - P44614999999 P48414080845 - P48414999999 ECHO INCORPORATED 400 Oakwood Road Lake Zurich, IL 60047 www.echo-usa.com Quick Start Guide Gu�a de inicio r�pido Guide de d�marrage rapide BACKPACK BLOWER / SOPLADORA DE MOCHILA / SOUFFLANTE DORSALE PB-265LN / PB-580 H/T / PB-755S H/T / PB-760LN H/T / PB-770 H/T INTRODUCTION: This ECHO Quick Start Guide is designed to provide you with details about safety warning symbols, necessary assembly steps, and operational instructions to use your product without delay. INTRODUCCI�N: Esta gu�a de inicio r�pido de ECHO est� dise�ada para proporcionarle detalles sobre los s�mbolos de advertencia de seguridad, los pasos necesarios para el ensamblaje y las instrucciones de operaci�n para usar el producto sin demora. INTRODUCTION: Ce Guide de d�marrage rapide ECHO est con�u pour vous fournir les d�tails sur les signaux de s�curit� et d'avertissement, les �tapes de montage n�cessaires et les instructions op�rationnelles qui vous permettront d'utiliser votre produit dans les plus brefs d�lais. Scan QR Code or visit the web link www.echo-usa.com/manuals or call 1-800-432-ECHO (3246) for the Operators Manual, additional literature including safety manual, a copy of the product warranty, or to register your product. Before calling or accessing the website, know the model and serial number of your unit. Escanee el c�digo QR o visite el enlace al sitio web www.echo-usa.com/manuals o llame al 1-800-432- ECHO (3246) para obtener el Manual del operador, la bibliograf�a adicional incluido un manual de seguridad, una copia de la garant�a del producto, o para registrar el producto. Antes de llamar o acceder al sitio web, conozca el modelo y el n�mero de serie de su unidad. Scannez le code QR ou visitez le lien www.echo-usa.com/manuals ou appelez au 1 800 432-ECHO (3246) pour avoir le Manuel de l'utilisateur, une documentation compl�mentaire tels que le manuel de s�curit�, une copie de la garantie du produit, ou encore pour enregistrer votre produit. Avant d'appeler ou d'acc�der au site Web, connaissez le mod�le et le num�ro de s�rie de votre appareil. INTERNATIONAL SAFETY SYMBOLS / S�MBOLOS DE SEGURIDAD INTERNACIONALES / SYMBOLES INTERNATIONAUX DE S�CURIT� Symbols / S�mbolos / Symboles International Symbols S�mbolos internacionales Symboles internationaux Warning, See Operator's Manual Lea y entienda el manual del operador Lire et veiller � bien comprendre les instructions du manuel d'utilisation Wear Eye, Ear and Head Protection Prot�jase los ojos, o�dos y cabeza Porter des protections pour les yeux, les oreilles et la t�te Wear Hand and Foot Protection Use proteccion para pies y manos Usure protection de main et de pied Safety / Alert DO NOT Allow Flames or Sparks Near Fuel DO NOT Smoke Near Fuel Seguridad / alerta NO permita que haya llamas o chispas cerca del combustible NO fume cerca del combustible S�curit� / alerte le carburant de flammes ou d'�tincelles NE PAS fumer pr�s du carburan Hot Surface Superficie caliente Surface br�lante Fuel and Oil Mixture Choke Control "RUN" Position (Choke Open) Choke Control "COLD START" Position (Choke Closed) Finger Sever Mezcla de combustible y aceite Control del estrangulador "marcha" posici�n (estrangulador abierto) Control del estrangulador "arranque en frio" posici�n (estrangulador cierre) Dedo severo M�lange huile et essence Starter volet de d�part position RUN (ouvert) Starter volet de d�part position START (ferm�) Doigt s�v�re X7155200000 �12/2019 ECHO Incorporated Thrown Objects Wear Slip Resistant Footwear Keep Bystanders and Helpers Away 15 m (50 ft.) Objetos lanzados Projection d'objets Lleve calzado resistente a las resbaladuras. No permita a nadie que se acerque m�s de 15 metros (50 pies) de la m�quina Porter des chaussures antid�rapantes Ne laisser personne approcher � moins de 15 m (50 pi) 1 Quick Start Guide Gu�a de inicio r�pido Guide de d�marrage rapide MANUAL SAFETY SYMBOLS AND IMPORTANT INFORMATION Throughout this manual and on the product itself, you will find safety alerts and helpful, informational messages preceded by symbols or key words. The following is an explanation of those symbols and key words and what they mean to you. The safety alert symbol accompanied by the word "DANGER" calls attention to an act or condition which WILL lead to serious personal injury or death if not avoided. The safety alert symbol accompanied by the word "WARNING" calls attention to an act or condition which CAN lead to serious personal injury or death if not avoided. The enclosed message provides information necessary for the protection of the unit. Note: This enclosed message provides tips for use, care and maintenance of the unit. GENERAL SAFETY REQUIRMENTS Read and understand all provided literature before use. Failure to do so could result in serious injury. Additional operating instructions are available from your Authorized ECHO Dealer. � Operating a poorly maintained unit can result in serious injuries to operator or bystanders. Always follow all maintenance instructions as written, otherwise serious personal injury can result. � Use only approved attachments. Serious injury can result from the use of a non-approved attachment combination. � Do not attempt to modify this product. Serious injury can result from the use of any modified product. � Do not operate this unit when tired, ill, or under the influence of alcohol, drugs, or medication. Serious injury can result from the use of this product in an impaired state. � Moving parts can amputate fingers or cause severe injuries. Keep hands, clothing and loose objects away from all openings. Always stop engine, disconnect spark plug, and make sure all moving parts have come to a complete stop before removing obstructions, clearing debris, or servicing unit. � Eye protection that meets ANSI Z87.1 or CE requirements must be worn whenever you operate the unit. � Operators who are sensitive to dust or other common airborne allergens may need to wear a dust mask to prevent inhaling these materials while operating unit. Dust masks can provide protection against dust, plant debris, and other plant matter such as pollen. Make sure the mask does not impair your vision, and replace the mask as needed to prevent air restrictions. � This blower should be used for clearing leaves, grass, and dust in yards, gardens, driveways, and parking lots only. Use The Correct Personal Protection ALWAYS WEAR Hearing Protection Eye Protection Heavy, Long Pants Boots Gloves Long-Sleeve Shirt NEVER WEAR Loose Clothing Jewelry Short Pants, Short Sleeve Shirt Sandals Barefoot Long Hair Below Shoulders Before Each Use Inspect: � For damaged parts. � Loose or missing fasteners. � Guards are installed correctly. � For fuel leaks from any point of the fuel system (tank to carburetor). Proper Operating Position � Keep a firm grip on all handles. � Keep firm footing and balance. � Adjust the straps according to instructions. Use both straps at all times. � Do not over-reach. � Keep all body parts away from hot surfaces. � Do not operate from ladders, maintaining balance will be difficult and could result in serious injury. � Read and understand all provided literature before use. Failure to do so could result in serious injury. � Operate power equipment only at reasonable hours, not early in the morning or late at night when people might be disturbed. Comply with times listed in local ordinances. � To reduce sound levels, limit the number of pieces of equipment used at any one time. � Operate blowers at the lowest possible engine speed to do the job. � Use rakes and brooms to loosen debris before blowing. � In dusty conditions, slightly dampen surfaces when water is available. � Conserve water by using blowers instead of hoses for many lawn and garden applications, including areas such as gutters, screens, patios, grills, porches, and gardens. � Avoid blowing debris towards people, pets, open windows, or cars when using unit. � Use the full blower nozzle extension when blowing. � After using blowers and other equipment, CLEAN UP! Dispose of debris in trash receptacles. Exhaust Gases Do not operate this product indoors or in inadequately ventilated areas. Engine exhaust contains poisonous emissions and can cause serious injury or death. Fuel Handling � Fuel is VERY flammable. Use extreme care when mixing, storing or handling, or serious personal injury can result. � Mix and pour fuel outdoors where there are no sparks and flames. � Slowly remove the fuel cap only after stopping the engine. � Do not smoke while fueling or mixing fuel. � Wipe spilled fuel from the unit. � Move at least 3 m (10 ft) away from the fueling source and site before starting engine. Work Area � Review the area to be cleared. Remove potential hazzards such as rocks, broken glass, nails, wire, or metal objects, which can be thrown. � Clear the area of children, bystanders and pets. � At a minimum, keep all children, bystanders and pets outside a 15m (50 ft) radius. � Outside the 15 m (50 ft) zone, there is still a risk of injury from thrown objects. � Bystanders should be encouraged to wear eye protection. � Avoid blowing debris towards people, pets, open windows, or vehicles when using unit. If you are approached, stop the engine. 2 X7155200000 �12/2019 ECHO Incorporated Quick Start Guide Gu�a de inicio r�pido Guide de d�marrage rapide MANUAL DE S�MBOLOS DE SEGURIDAD E INFORMACI�N IMPORTANTE A lo largo de este manual, y en el producto mismo, encontrar� alertas de seguridad y mensajes informativos de gran utilidad precedidos por s�mbolos o palabras clave. A continuaci�n, se enumera una explicaci�n de dichos s�mbolos y palabras clave y su significado. El s�mbolo de alerta de seguridad acompa�ado por la palabra "PELIGRO" destaca un acto o condici�n que LLEVAR� a que se produzcan lesiones personales graves o la muerte si no se evita. El s�mbolo de alerta de seguridad acompa�ado por la palabra "ADVERTENCIA" destaca un acto o condici�n que PUEDE llevar a que se produzcan lesiones personales graves o la muerte si no se evita. El mensaje adjunto proporciona informaci�n necesaria para proteger la unidad. Nota: Este mensaje adjunto proporciona sugerencias para el uso, cuidado y mantenimiento de la unidad. REQUISITOS DE SEGURIDAD GENERALES Lea y comprenda toda la bibliograf�a provista antes del uso. De lo contrario, pueden producirse lesiones graves. Su concesionario de mantenimiento autorizado de ECHO le proporcionar� instrucciones de funcionamiento adicionales. � La operaci�n de una unidad en condiciones de mantenimiento deficientes puede ocasionar lesiones graves en el operador o las dem�s personas presentes. Siempre siga todas las instrucciones de mantenimiento como est�n escritas; de lo contrario, pueden producirse lesiones personales graves. � Use solo los accesorios aprobados. Pueden producirse lesiones graves si se usa una combinaci�n no aprobada de accesorios. � No intente modificar este producto. Pueden producirse lesiones graves si se usa una modificaci�n de este producto. � No opere esta unidad cuando est� cansado, enfermo, o si est� bajo los efectos del alcohol, las drogas o medicamentos. Pueden producirse lesiones graves si se usa este producto en un estado de deterioro. � Las piezas m�viles pueden amputar dedos o causar lesiones graves. Mantenga las manos, la vestimenta y los objetos sueltos alejados de todas las aberturas. Siempre apague el motor, desconecte la buj�a y aseg�rese de que todas las partes m�viles se hayan detenido por completo antes de eliminar obstrucciones, limpiar suciedad o realizar tareas de reparaci�n en la unidad. � Cada vez que haga funcionar la unidad, debe utilizar protecci�n ocular conforme a los requisitos de ANSI Z87.1 o CE. � Los operadores que tengan sensibilidad al polvo o a otros al�rgenos comunes transportados por el aire pueden necesitar una m�scara antipolvo para prevenir la inhalaci�n de estos materiales mientras ponen en funcionamiento la unidad. Las m�scaras antipolvo pueden brindar protecci�n contra el polvo, los residuos de las plantas y otros componentes de las plantas, como el polen. Aseg�rese de que la m�scara no altere su visi�n y reempl�cela seg�n sea necesario para prevenir restricciones de aire. � Este soplador debe usarse para limpiar hojas, c�sped y polvo �nicamente de patios, jardines, entradas para el autom�vil y estacionamientos. Utilice la protecci�n personal adecuada USE SIEMPRE Protecci�n auditiva Protecci�n ocular Pantalones largos y gruesos Botas Guantes Camisa de mangas largas NO USE NUNCA Ropa suelta Joyas Pantalones cortos y camisa de mangas cortas Sandalias Descalzo Cabello largo por debajo de los hombros Antes de cada uso, inspeccione lo siguiente: � Si hay piezas da�adas. � Si hay sujetadores sueltos o faltantes. � Los protectores est�n instalados correctamente. � Si hay p�rdidas de combustible de alg�n punto del sistema de combusti- ble (del tanque al carburador). Recomendaciones de funcionamiento � Agarre con firmeza todos los mangos. � Mantenga una posici�n estable y un equilibrio firme. � Ajuste las correas de acuerdo con las instrucciones. Use ambas correas en todo momento. � No se estire. � Mantenga todas las partes del cuerpo alejadas de las superficies calientes. � No opere desde las escaleras, ya que ser� dif�cil mantener el equi- librio y podr�a sufrir lesiones graves. � Lea y comprenda toda la bibliograf�a provista antes del uso. De lo contrario, pueden producirse lesiones graves. � Ponga en funcionamiento el equipo el�ctrico solo a un horario razonable: no lo haga temprano a la ma�ana ni tarde a la noche cuando podr�a molestar a las personas. Cumpla con los horarios que figuran en las ordenanzas locales. � Para reducir los niveles de ruido, restrinja el n�mero de piezas del equipo que utiliza al mismo tiempo. � Ponga en funcionamiento los sopladores a la velocidad del motor m�s baja para realizar el trabajo. � Antes de utilizar el soplador, utilice rastrillos y escobas para que los desechos sean m�s f�ciles de soplar luego. � En condiciones donde haya mucho polvo, humedezca un poco las superficies o use un accesorio atomizador cuando tenga agua disponible. � Ahorre agua usando sopladores en lugar de mangueras para muchas aplicaciones de c�sped y jard�n, incluidas �reas como canaletas, pantallas, patios, parrillas, porches y jardines. � Cuando utilice la unidad, no sople residuos en direcci�n hacia personas, mascotas, ventanas abiertas o autom�viles. � Cuando realice el soplado, utilice toda la extensi�n de la boquilla del soplador. � Luego de usar los sopladores y otros equipos, �L�MPIELOS! Quite los desechos de los recept�culos de basura. Gases del escape No haga funcionar este producto en interiores o en �reas mal ventiladas. El sistema de escape del motor contiene emisiones t�xicas que pueden producir lesiones graves o la muerte. X7155200000 3 �12/2019 ECHO Incorporated Quick Start Guide Gu�a de inicio r�pido Guide de d�marrage rapide Manipulaci�n del combustible � El combustible es MUY inflamable. Tenga extremo cuidado al mezclar, almacenar o manipular el combustible, o pueden producirse lesiones personales graves. � Mezcle y vierta el combustible en exteriores donde no haya chispas ni llamas. � Retire lentamente la tapa del combustible solo despu�s de detener el motor. � No fume mientras abastece o mezcla el combustible. � Limpie el combustible derramado de la unidad. � Al�jese al menos 3 m (10 ft) de la fuente y del sitio de abastec- imiento de combustible antes de arrancar el motor. �rea de trabajo � Revise el �rea que se limpiar�. Elimine potenciales peligros, como rocas, vidrio roto, clavos, cables u objetos met�licos, que pueden volar por el aire. � Despeje el �rea de ni�os, otras personas presentes y mascotas. � Como m�nimo, mantenga a todos los ni�os, otras personas presentes y mascotas fuera de un radio de 15 m (50 ft). � Fuera de la zona de 15 m (50 ft), a�n hay riesgo de sufrir lesiones a causa de los objetos lanzados. � Se debe alentar a las personas presentes a usar protecci�n ocular. Cuando utilice la unidad, no sople residuos en direcci�n hacia personas, mascotas, ventanas abiertas o veh�culos. Si alguien se le acerca, detenga el motor. SYMBOLES DE S�CURIT� MANUELS ET INFORMATIONS IMPORTANTES Tout au long de ce manuel et sur le produit lui-m�me, vous trouverez des alertes de s�curit� et des messages d'information, pr�c�d�s par des symboles ou des mots cl�s. Voici une explication des symboles et des mots cl�s et ce qu'ils signifient pour vous. Le symbole d'alerte de s�curit� accompagn� du mot � DANGER � attire l'attention d'un acte ou condition qui M�NERA � des blessures graves ou d�c�s, si non �vit�. Le symbole d'alerte de s�curit� accompagn� du mot � AVERTISSEMENT � vise � attirer l'attention sur une action ou situation susceptible D'ENTRA�NER des blessures graves ou mortelles, si elle n'est pas �vit�e. Le message ci-joint fournit les informations n�cessaires � la protection de l'unit�. Remarque : Ce message ci-joint fournit des conseils pour l'utilisation, soins et maintenance de l'unit�. EXIGENCES G�N�RALES DE S�CURIT� Lire et comprendre toute la documentation � votre disposition avant utilisation. Ne pas le faire pourrait entra�ner des blessures graves. Des instructions d'utilisation suppl�mentaires sont disponibles aupr�s de votre concessionnaire ECHO agr��. � L'utilisation d'un appareil mal entretenu peut causer de graves blessures � l'utilisateur ou aux curieux. Toujours suivre les instructions d'entretien telles que prescrites, sinon de graves blessures peuvent �tre caus�es. � N'utiliser que des attaches approuv�es. L'utilisation de combinaisons d'accessoires non-approuv�s peut causer de graves blessures. � Ne pas essayer de modifier ce produit. L'utilisation d'un produit modifi� peut causer de graves blessures. � Ne pas manipuler ce dispositif lorsque fatigu�, malade ou sous l'influence de l'alcool, de drogues ou de m�dicaments. L'utilisation du produit lorsqu'on est en �tat affaibli ou affect� peut causer de graves blessures. � Les pi�ces mobiles peuvent amputer les doigts et causer de graves blessures. Garder les mains, les v�tements et les objets libres hors de port�e de toute ouverture. Toujours arr�ter le moteur, d�brancher la bougie, et s'assurer que toutes les pi�ces mobiles sont compl�tement arr�t�es avant d'enlever les obstructions, faire le nettoyage des d�bris, ou faire l'entretien de l'unit�. � Une protection oculaire qui r�pond aux exigences ANSI Z87.1 ou CE doit �tre port�e � chaque fois que vous faites fonctionner l'unit�. � Operadores sens�veis ao p� e a outros alerg�nicos a�reos comuns podem precisar de uma m�scara anti-p� para prevenir inala��o durante o uso da unidade. M�scaras anti-p� podem proteger contra p�, restos de plantas e outros mateirais, como o p�len. Certifiquese de que a m�scara n�o prejudique sua vis�o e a troque conforme necess�rio para evitar restri�es a�reas. � Ce souffleur devrait �tre utilis� pour enlever les feuilles, l'herbe et la poussi�re dans les cours, les jardins, les all�es et les stationnements uniquement. 4 X7155200000 �12/2019 ECHO Incorporated Quick Start Guide Gu�a de inicio r�pido Guide de d�marrage rapide Utiliser la protection personnelle ad�quate Manutention du carburant TOUJOURS PORTER Protection auditive Protection oculaire Pantalons �pais et longs Bottes Gants Chemises � manches longues NE JAMAIS PORTER V�tements amples Bijoux Pantalons courts, chemises � manches courtes Sandales Pieds nus Cheveux dont la longueur d�passe les �paules Avant chaque utilisation, inspecter qu'il n'y a pas: � de pi�ces endommag�es. � d'attaches manquantes ou mal fix�es. � Les gardes sont install�s correctement. � de fuites de carburant par n'importe quel point du syst�me d'alimentation (du r�servoir au carburateur). Recommandations op�rationnelles � Tenir fermement toutes les poign�es. � Bien placer ses pieds et garder l'�quilibre. � Ajustez les sangles conform�ment aux instructions. Utilisez les deux sangles en tout temps. � Ne pas trop se pencher pour atteindre. � Tenir toutes les parties du corps �loign�es des surfaces chaudes � Ne pas travailler � partir d'une �chelle, auquel cas le maintien de l'�quilibre sera difficile et pourrait entra�ner des blessures graves. � Lire et comprendre toute la documentation � votre disposition avant utilisation. Ne pas le faire pourrait entra�ner des blessures graves. � Faire fonctionner l'�quipement �lectrique � des heures raisonnables uniquement-- pas t�t le matin ou tard le soir lorsque la tranquillit� des gens pourrait �tre troubl�e. Respecter les d�lais indiqu�s dans la r�glementation locale. � Pour r�duire les niveaux sonores, limiter le nombre de pi�ces d'�quipement utilis�es en m�me temps. � Faire fonctionner les souffleurs au r�gime moteur le plus bas pour effectuer une t�che. � Utiliser des r�teaux et des balais pour d�gager les d�bris avant de souffler. � Dans des conditions poussi�reuses, humidifier l�g�rement les surfaces ou utiliser le brumisateur lorsqu'il y a de l'eau. � Conserver l'eau en utilisant des souffleurs au lieu de tuyaux pour de nombreuses applications dans les pelouses et les jardins, y compris les goutti�res, les �crans, les patios, les grilles, les porches et les jardins. � �viter de souffler des d�bris vers les personnes, les animaux domestiques, les fen�tres ouvertes ou les voitures pendant l'utilisation de l'appareil. � Utiliser la rallonge de la buse du souffleur pendant l'utilisation de l'appareil. � Apr�s avoir utilis� des souffleurs et d'autres �quipements, NETTOYER! Jeter les d�bris dans les poubelles. Les gaz d'�chappement � Le carburant est TR�S inflammable. Faire tr�s attention pendant le m�lange, la conservation et la manipulation; sinon des blessures graves peuvent survenir. � M�langer et verser le carburant � l'ext�rieur, loin des flammes et des �tincelles. � Retirer lentement le bouchon de r�servoir du carburant uniquement apr�s avoir arr�t� le moteur. � Ne pas fumer lorsqu'on ravitaille le moteur ou lorsqu'on m�lange le carburant. � Essuyer le carburant d�vers� sur l'appareil. � Se tenir � une distance d'au moins 3 m (10 pi) de la source et du site de ravitaillement avant de d�marrer le moteur. Aire de travail � S'assurer que l'aire de travail est libre. Enlever les objets qui repr�sentent un danger potentiel tels que les roches, le verre bris�, les clous, les fils de fer ou les objets m�talliques qui peuvent �tre jet�s dans l'herbe. � �viter de travailler en pr�sence des enfants, de curieux et d'animaux domestiques. � Au mieux, garder les enfants, les curieux et les animaux domestiques en dehors d'un rayon de 15 m (50 pi). � Il y a encore des risques de blessures en dehors de la zone de 15 m (50 pi) avec les objets rejet�s. � Les curieux doivent porter des lunettes protectrices. � �viter de souffler des d�bris vers les personnes, les animaux domes- tiques, les fen�tres ouvertes ou les v�hicules pendant l'utilisation de l'appareil. � l'approche d'une personne, couper le moteur. Ne pas utiliser ce produit � l'int�rieur ou dans des zones mal ventil�es. L'�chappement du moteur contient des �missions toxiques et pourrait causer des blessures graves ou la mort. X7155200000 5 �12/2019 ECHO Incorporated Quick Start Guide Gu�a de inicio r�pido Guide de d�marrage rapide ASSEMBLY / MONTAJE / ASSEMBLAGE 1 T MODEL / T MODELO / T MOD�LE Note: PB-580T Model shown. Your model may be slightly different. Nota: Se muestra el modelo PB-580T. Su modelo puede ser ligeramente diferente. Remarque: le mod�le PB-580T est illustr�. Votre mod�le peut �tre l�g�rement diff�rent. PB-770T H A B H F B C D G K E PB-580T H I J L K F H G C G C L A M Figure 1 Legend / Figura 1 Leyenda / Figure 1 L�gende A Cable Clip / Clip de cable / Clip de c�ble B Clamp / Abrazadera / Serrer C Flexible Blower Tube / Tubo de soplador flexible / Tube Souffleur Flexible D Clamp / Abrazadera / Serrer E Swivel Blower Tube / Tubo de soplador giratorio / Tube de ventilateur pivotant F Throttle Control / Control del acelerador / Commande d'acc�l�rateur G Static Discharge Wire / Cable de descarga est�tica / Fil de d�charge statique H Elbow Blower Tube / Tubo soplador de codo / Tube de soufflante coud� I Straight Blower Tube / Tubo de soplador recto / Tube de ventilateur droit J Nozzle Blower Tube / Boquilla Tubo Soplador / Tube de souffleur de buse K Screw Knob / Perilla de tornillo / Bouton � vis L Throttle Cable / Cable del acelerador / C�ble d'acc�l�rateur M Air Intake Cover / Tapa de entrada de aire / Couverture d'admission d'air 6 X7155200000 �12/2019 ECHO Incorporated Quick Start Guide Gu�a de inicio r�pido Guide de d�marrage rapide 1A. Assemble "T" Model blower tubes: (a) Assemble Cable Clip (A) onto Clamp (B). (b) Install Clamp Assembly (A+B) onto upper end of Flexible Blower Tube (C). (c) Assemble Clamp (D) onto lower end of Flexible Blower Tube (C). Note: Before installing Throttle Control (F), allow it to hang freely from blower to make sure Throttle Cable (L) is not twisted. 1B. Assemble Throttle Control (F): (a) Position Throttle Cable (L) along outside of Elbow Blower Tube (H). (b) Loosen Screw Knob (K) and install Throttle Control (F) onto Swivel Blower Tube (E) as shown. Tighten Screw Knob finger tight only. 1C. Assemble Static Discharge Wire (If Equipped): (a) Unwrap and fully extend the Static Discharge Wire (G) to insert it through Flexible Blower Tube (C) as shown in Step 1C. Note: On PB-580 Leave enough slack in Static Discharge Wire to allow for full rotation of Elbow Blower Tube (H). Static Discharge Wire will hang freely inside tubes. Refer to Figure1A. again to Assemble "T" Model blower tubes: Note: A light lubricant can be used to ease the assembly of Flexible Blower Tube (C) to Elbow Blower Tube (H). (b) Assemble Flexible Blower Tube (C) to Elbow Blower Tube (H). Position Clamp Assembly (B) with Cable Clip (A) on outside of Flexible Blower Tube (C) and tighten Clamp. (c) Assemble Swivel Blower Tube (E) onto lower end of Flexible Blower Tube (C) and tighten Clamp (D). 1D. Secure Throttle Cable: (a) Secure Throttle Cable (L) into Cable Clip (A). (b) Position Throttle Control (F) to desired position and tighten Screw Knob (K) hand tight. 1E. Assemble straight blower tubes: (a) Assemble Straight Blower Tube (I) onto Swivel Blower Tube (E) until light resistance is felt. Hold Swivel Blower Tube and turn Straight Blower Tube clockwise to engage Posi-LocTM channels, until connection is firm. Do not force connection. (b) Assembly Nozzle Blower Tube (J) to Straight Blower Tube (I) as shown in previous step. Note: Blower tube use can eventually loosen connections. Exclusive Posi-LocTM tube design allows tubes to be re-tightened. Remove straight tubes and reinstall per instructions. 1F. Install Air Intake Cover (M), if needed for cold weather operation: (a) Refer to on-line Operators Manual for installation. 1A. Ensamblar los tubos del soplador del "T" Modelo : (a) Coloque el Agarre del cable (A) sobre la Abrazadera (B). (b) Instale en Conjunto de la abrazadera (A+B) sobre el extremo superior del Tubo flexible del soplador (C). (c) Coloque la Abrazadera (D) sobre el extremo inferior del Tubo flexible del soplador (C). Nota: Antes de instalar el Control del acelerador (F), permita que cuelgue libremente desde el soplador para asegurarse de que el Cable del acelerador (L) no est� enroscado. 1B. Ensamblar el Control del acelerador (F): (a) Coloque el Cable del acelerador (L) a lo largo de la parte externa del Tubo codo del soplador (H). (b) Afloje la Perilla con rosca (K) e instale el Control del acelerador (F) sobre el Tubo oscilante del soplador (E) como se muestra. Ajuste solo con los dedos la Perilla con rosca. X7155200000 �12/2019 ECHO Incorporated 1C. Ensamblar el Cable de descarga est�tica (Si est� equipado): (a) Desenrolle y extienda completamente el cable de descarga est�tica (G) para insertarlo a trav�s del tubo flexible del ventilador (C). Nota: PB-580 Deje suficiente holgura en el Cable de descarga est�tica para permitir un giro completo del Tubo codo del soplador (H). El Cable de descarga est�tica colgar� libremente dentro de los tubos. Consulte la Figura1A. nuevamente para ensamblar los tubos del soplador "T" Modelo: Nota: Se puede utilizar un lubricante liviano para facilitar el ensamble del Tubo flexible del soplador (C) al Tubo codo del soplador (H). (b) Ensamble el Tubo flexible del soplador (C) con el Tubo codo del soplador (H). Coloque el ensamble de la abrazadera (B) con el Agarre del cable (A) en la parte exterior del Tubo flexible del soplador (C) y ajuste la Abrazadera. (c) Ensamble el Tubo oscilante del soplador (E) sobre el extremo inferior del Tubo flexible del soplador (C) y ajuste la Abrazadera (D). 1D. Sujetar el Cable del acelerador: (a) Sujete el Cable del acelerador (L) dentro del Agarre del cable (A). (b) Coloque el Control del acelerador (F) en la posici�n deseada y ajuste con la mano la Perilla con rosca (K). 1E. Ensamblar los tubos rectos del soplador: (a) Ensamble el Tubo recto del soplador (I) sobre el Tubo oscilante del soplador (E) hasta sentir una leve resistencia. Sostenga el Tubo oscilante del soplador y gire el Tubo recto del soplador en sentido horario hasta conectar los canales Posi-LocTM, hasta que la conexi�n quede firme. No fuerce la conexi�n. (b) Ensamble el Tubo de boquilla del soplador (J) al Tubo recto del soplador (I) como se muestra en el paso anterior. Nota: El uso del tubo del soplador puede eventualmente aflojar las conexiones. El dise�o exclusivo del tubo Posi-LocTM permite que los tubos se puedan volver a ajustar. Retire los tubos rectos y vuelva a instalar seg�n las instrucciones. 1F. Instalar la Cubierta de admisi�n de aire (M), si es necesario para el funcionamiento en clima fr�o: (a) Consulte el Manual para operadores en l�nea para la instalaci�n. 1A. Assemblez les tubes du souffleur en "T " mod�le: (a) Assemblez l'attache-c�ble (A) sur la bride de serrage (B). (b) Installez l'ensemble de bride de serrage (A+B) sur l'extr�mit� sup�rieure du tube flexible (C) du souffleur. (c) Assemblez la bride de serrage (D) sur l'extr�mit� inf�rieure du tube flexible (C) du souffleur. Remarque: Avant d'installer la commande d'acc�l�rateur (F), laissez la bride pendre librement du souffleur pour vous assurer que le c�ble d'acc�l�rateur (L) ln'est pas enroul�. 1B. Assemblez la commande d'acc�l�rateur (F): (a) Placez le c�ble d'acc�l�rateur (L) le long de l'ext�rieur du coude du tube du souffleur (H). (b) Desserrez le bouton de serrage (K) et installez la commande d'acc�l�rateur (F) sur le pivot (E) du tube du souffleur comme indiqu�. Serrez le bouton de serrage � la main uniquement. 1C. Assemblez le fil de d�charge statique (Si �quip�): (a) D�ballez et d�ployez compl�tement le fil de d�charge statique (G) pour l'ins�rer dans le tube flexible de soufflante (C). Remarque: PB-580 Laissez suffisamment de mou dans le fil de d�charge statique pour permettre une rotation compl�te du coude du tube (H) du souffleur. Le fil de d�charge statique pend librement � l'int�rieur des tubes. 7 Quick Start Guide Gu�a de inicio r�pido Guide de d�marrage rapide Reportez-vous de nouveau � la Figure 1A. pour assembler les tubes du souffleur en "T" mod�le: Remarque : Un lubrifiant l�ger peut �tre utilis� pour faciliter l'assemblage du tube flexible (C) du souffleur sur le coude du tube (H) du souffleur. (b) Assemblez le tube flexible (C) du souffleur sur le coude du tube (H) du souffleur. Placez l'ensemble bride (B) et l'attache-c�ble (A) sur la partie externe du tube flexible (C) du souffleur et resserrez la bride. (c) Assemblez le tube pivotant (E) du souffleur sur l'extr�mit� inf�rieure du tube flexible (C) du souffleur et resserrez la bride (D). 1D. Fixez le c�ble de la commande d'acc�l�rateur: (a) Fixez le c�ble d'acc�l�rateur (L) dans l'attache-c�ble (A). (b) Placez la commande d'acc�l�rateur (F) dans la position de votre choix et serrez � la main le bouton de serrage (K). 1E. Assemblez les tubes droits du souffleur: (a) Assemblez le tube droit (I) du souffleur sur le tube pivotant (E) du souffleur jusqu'� ressentir une l�g�re r�sistance. Maintenez le tube pivotant du souffleur et tournez le tube droit du souffleur dans le sens horaire pour engager les canaux Posi-LocTM, jusqu'� ce que le raccordement soit fixe. Ne forcez pas le raccordement. (b) Assemblez la buse (J) du tube du souffleur sur le tube droit (I) du souffleur comme indiqu� � l'�tape pr�c�dente. Remarque: L'utilisation d'un tube de souffleur peut �ventuellement desserrer les raccordements. Gr�ce � la conception exclusive du tube propos�e par Posi-LocTM, les tubes peuvent �tre resserr�s. Retirez les tubes droits et r�installez-les suivant les instructions. 1F. Installez le couvercle d'admission � air (M), si vous en avez besoin pour une utilisation par temps froid: (a) Reportez-vous au manuel d'utilisation en ligne pour l'installation. ASSEMBLY / MONTAJE / ASSEMBLAGE H MODEL / H MODELO / H MOD�LE & PB-265LN F A C B D PB-770H AF G 2C H J C Note: PB-580 H Model shown. Your model may be slightly different. Nota: Se muestra el modelo PB-580. Su modelo puede ser ligeramente diferente. Remarque: le mod�le PB-580 est illustr�. Votre mod�le peut �tre l�g�rement diff�rent. E D I Figure 2 Legend / Figura 2 Leyenda / Figure 2 L�gende A Clamp / Abrazadera / Serrer B Clamp / Abrazadera / Serrer C Flexible Blower Tube / Tubo de soplador flexible / Tube Souffleur Flexible D Swivel Blower Tube / Tubo de soplador giratorio / Tube de ventilateur pivotant E Front Handle Set / Juego de manijas delanteras / Jeu de poign�e avant/ F Elbow Blower Tube / Tubo soplador de codo / Tube de soufflante coud� G Straight Blower Tube / Tubo de soplador recto / Tube de ventilateur droit H Nozzle Blower Tube / Boquilla Tubo Soplador / Tube de souffleur de buse I Wing Nut / Tuerca de mariposa / �crou papillon J Static Discharge Wire 8 X7155200000 �12/2019 ECHO Incorporated Quick Start Guide Gu�a de inicio r�pido Guide de d�marrage rapide 2A. Assemble "H" Model blower tubes: (a) Assemble Clamps (A & B) onto both ends of Flexible Blower Tube (C). (b) Assemble Swivel Blower Tube (D) onto Flexible Blower Tube (C) and tighten Clamp (B). 2B. Assemble Static Discharge Wire (If Equipped): (a) Unwrap and fully extend the Static Discharge Wire (J) to insert it through Flexible Blower Tube (C). (b) Assemble Flexible Blower Tube (C) onto Elbow Blower Tube (F) and tighten Clamp (A). Note: A light lubricant can be used to ease the assembly of Flexible Blower Tube (C) to Elbow Blower Tube (F), and Swivel Blower Tube (D). 2C. Assemble "H" Model Front Handle Set (E): (a) Loosen Wing Nut (I) on bottom of Front Handle Set (E) and expand clamp to allow it to slide over Swivel Blower Tube (D). Front Handle Set (E) should be angled slightly away from operator and positioned for comfortable operation. Tighten Wing Nut (I). Note: (PB-760LN / PB-770 only) The alignment groove in the Front Handle Set (E) must align within the area of metal strips on top of the Swivel Blower Tube (D). 2D. Assemble Straight Tubes: (a) Assemble Straight Blower Tube (G) onto Swivel Blower Tube (D) until light resistance is felt. Hold Swivel Blower Tube and turn Straight Blower Tube clockwise to engage Posi-LocTM channels, until connection is firm. Do not force connection. (b) Assembly Nozzle Blower Tube (H) to Straight Blower Tube (G) as shown in previous step. Note: Blower tube use can eventually loosen connections. Exclusive Posi-LocTM tube design allows tubes to be re-tightened. Remove straight tubes and reinstall per instructions. 2A. Ensamblar los tubos del soplador "H" Modelo : (a) Ensamble las Abrazaderas (A y B) en ambos extremos del Tubo flexible del soplador (C). (b) Ensamble el Tubo oscilante del soplador (D) en el Tubo flexible del soplador (C) y ajuste la Abrazadera (B). (c) Ensamble el Tubo flexible del soplador (C) sobre el Tubo codo del soplador (F) y ajuste la Abrazadera (A). Nota: Se puede utilizar un lubricante liviano para facilitar el montaje del Tubo flexible del soplador (C) al Tubo codo del soplador (F) y al Tubo oscilante del soplador (D). 2B. Ensamblar el Cable de descarga est�tica (Si est� equipado): (a) Desenrolle y extienda completamente el cable de descarga est�tica (J) para insertarlo a trav�s del tubo flexible del ventilador (C) como se muestra en el paso 2B. (b) Ensamble el tubo flexible del ventilador (C) en el tubo del ventilador del codo (F). 2C. Ensamblar el Conjunto de la manija delantera "H" Modelo (E): (a) Afloje la Tuerca con alas (I) en la parte inferior del Conjunto del mango delantero (E) y agrande la abrazadera para permitir que se deslice sobre el Tubo oscilante del soplador (D). El Conjunto del mango delantero (E) se debe alejar apenas en �ngulo del operador y se debe colocar de manera que se obtenga una operaci�n c�moda. Ajuste la Tuerca con alas (I). Nota: (Solo para PB-760LN / PB-770) La ranura de alineaci�n en el Conjunto del mango delantero (E) debe estar en l�nea dentro del �rea de las tiras met�licas en la parte superior del Tubo oscilante del soplador (D). 2D. Ensamblar los Tubos rectos: (a) Ensamble el Tubo recto del soplador (G) en el Tubo oscilante del soplador (D) hasta sentir una leve resistencia. Sostenga el Tubo oscilante del soplador y gire el Tubo recto del soplador en sentido horario hasta conectar los canales Posi-LocTM, hasta que la conexi�n quede firme. No fuerce la conexi�n. (b) Ensamble el Tubo de boquilla del soplador (H) al Tubo recto del soplador (G) como se muestra en el paso anterior. Nota: El uso del tubo del soplador puede eventualmente aflojar las conexiones. El dise�o exclusivo del tubo Posi-LocTM permite que los tubos se puedan volver a ajustar. Retire los tubos rectos y vuelva a instalar seg�n las instrucciones. 2A. Assemblez les tubes du souffleur en "H" mod�le: (a) Assemblez les brides de serrage (A et B) sur les deux extr�mit�s du tube flexible (C) du souffleur. (b) Assemblez le tube pivotant (D) du souffleur sur le tube flexible (C) du souffleur et resserrez la bride (B). (c) Assemblez le tube flexible (C) du souffleur sur le coude du tube (F) du souffleur et resserrez la bride (A). Remarque : Un lubrifiant l�ger peut �tre utilis� pour faciliter l'assemblage du tube flexible (C) du souffleur sur le coude du tube (F) du souffleur et sur le tube pivotant (D) du souffleur. 2B. Assemblez le fil de d�charge statique (Si �quip�): (a) D�ballez et d�ployez compl�tement le fil de d�charge statique (G) pour l'ins�rer dans le tube flexible de soufflante (C) comme indiqu� � l'�tape 2C. (b) Assembler le tube flexible de soufflante (C) au tube de soufflante coud� (F). 2C. Assemblez l'ensemble de poign�e avant (E) du en "H" mod�le: (a) Desserrez l'�crou � oreilles (I) sur la partie inf�rieure de l'ensemble de poign�e avant (E) et �largir la bride de sorte qu'elle puisse glisser sur le tube pivotant (D) du souffleur. L'ensemble de poign�e avant (E) doit �tre l�g�rement inclin� loin de l'utilisateur et plac� de mani�re � permettre une utilisation facile. Resserrez l'�crou � oreilles (I). Remarque: (PB-760LN/PB-770 uniquement) La rainure d'alignement de l'ensemble de poign�e avant (E) doit s'aligner dans l'espace entre les bandes m�talliques au-dessus du tube pivotant (D) du souffleur. 2D. Assemblez les tubes droit: (a) Assemblez le tube droit (G) du souffleur sur le tube pivotant (D) du souffleur jusqu'� ressentir une l�g�re r�sistance. Maintenez le tube pivotant du souffleur et tournez le tube droit du souffleur dans le sens horaire pour engager les canaux Posi-LocTM, jusqu'� ce que le raccordement soit fixe. Ne forcez pas le raccordement. (b) Assemblez la buse du tube (H) du souffleur sur le tube droit (G) du souffleur comme indiqu� � l'�tape pr�c�dente. Remarque: L'utilisation d'un tube de souffleur peut �ventuellement desserrer les raccordements. Gr�ce � la conception exclusive du tube propos�e par Posi-LocTM, les tubes peuvent �tre resserr�s. Retirez les tubes droits et r�installez-les suivant les instructions. X7155200000 9 �12/2019 ECHO Incorporated Quick Start Guide Gu�a de inicio r�pido Guide de d�marrage rapide FUEL HANDLING / MANIPULACI�N DEL COMBUSTIBLE / MANIPULATION DU CARBURANT Use fresh fuel (purchased within the last 30 days from the pump) when fueling your ECHO product. Stored fuel ages. Do not mix more fuel than you expect to use in 30 days. To extend the life of your fuel beyond 90 days, use Red ArmorTM Fuel Treatment mixed with ECHO Powerblend� Gold oil. Alternatively, use Red ArmorTM Pre-mixed Fuel. Utilice combustible nuevo (comprado en los �ltimos 30 d�as desde el bombeo) cuando recargue combustible al producto ECHO. El combustible almacenado envejece. No mezcle m�s combustible del que espere utilizar en 30 d�as. Para prolongar la vida �til del combustible por m�s de 90 d�as, utilice Tratamiento para combustible Red ArmorTM mezclado con aceite ECHO Powerblend� Gold. De manera alternativa, utilice combustible premezclado Red ArmorTM. Lorsque vous faites le plein du r�servoir de votre produit ECHO, utilisez du carburant neuf (c'est-�-dire achet� au cours des 30 derniers jours d'une station d'essence). Le carburant entrepos� se d�t�riore. Ne m�langez pas plus de carburant que vous pr�voyez d'utiliser en 30 jours. Pour prolonger de plus de 90 jours la dur�e de vie de votre carburant, utilisez Red ArmorTM Fuel Treatment m�lang� � ECHO Powerblend� Gold oil. Vous pouvez �galement utiliser Red ArmorTM Pre-mixed Fuel. + 89 E10 50 : 1 Pre-Mixed Premezclado Pr�-m�lang� Red ArmorTM Fuel OR / O / OU 10 X7155200000 �12/2019 ECHO Incorporated Quick Start Guide Gu�a de inicio r�pido Guide de d�marrage rapide COLD START / ARRANQUE EN FR�O / D�MARRAGE � FROID PB-265LN "H" Models "H" Modelos "H" Mod�les "T" Models "T" Modelos "T" Mod�les & PB-265LN A AB PB-580/PB-755S PB-760LN/PB-770 C D 8X C D 8X C D 8X Note: After engine starts, move Choke Lever (C) to RUN position. Allow engine to warm up with Throttle Position Lever (A) in IDLE [ ] position, for 3 minutes before use. After engine warm up: � "H" Model move Throttle Lever (A) to desired speed. � "T" Model use Throttle Trigger (B) to select a desired variable speed. Alternatively, you can move Throttle Lever (A) to IDLE [ ] or set to a FAST [ ] speed. Note: If after 5 pulls, the engine does not start, move Choke Lever (C) to COLD START position, push Purge (D) again, and repeat step 4. Nota: Luego de arrancar el motor, mueva la Palanca de cebador (C) a la posici�n RUN . Permita que el motor se caliente con la Palanca de posici�n del acelerador (A) en posici�n IDLE [ ] durante 3 minutos antes de usar. Luego de calentar el motor: � "H" Modelomueva la Palanca del acelerador (A) a la velocidad deseada. � "T" Modelo use el Gatillo del acelerador (B) para seleccionar la velocidad variable deseada. De manera alternativa, puede mover la Palanca del acelerador (A) a IDLE [ ] o ajustar a una velocidad FAST [ ]. Nota: Si despu�s de 5 intentos, el motor no arranca, mueva la Palanca de cebador (C) a la posici�n COLD START , presione Purgar (D) nuevamente y repita el paso 4. Remarque: Une fois le moteur d�marr�, placez le levier de l'�trangleur (C) en position MARCHE. Laissez le moteur se pr�chauffer avec le levier de position de l'acc�l�rateur (A) en position de RALENTI [ ], pendant 3 minutes avant utilisation. Apr�s pr�chauffage du moteur: � Sur les en "H" mod�les, placez le levier d'acc�l�rateur (A) sur la vitesse souhait�e. � Sur les en "T" mod�les, utilisez la g�chette d'acc�l�rateur (B) pour s�lectionner la vitesse variable d�sir�e. Sinon, vous pouvez placer le levier d'acc�l�rateur (A) sur RALENTI [ ] ou le r�gler sur vitesse RAPIDE [ ]. Remarque: Si, apr�s 5 tractions, le moteur ne d�marre pas, placez le levier de l'�trangleur (C) en position D�MARRAGE � FROID , puis poussez la purge (D) � nouveau et r�p�tez l'�tape 4. X7155200000 11 �12/2019 ECHO Incorporated Quick Start Guide Gu�a de inicio r�pido Guide de d�marrage rapide WARM START / ARRANQUE EN CALIENTE / D�MARRAGE � CHAUD PB-265LN C "H" Models "H" Modelos "H" Mod�les "T" Models "T" Modelos "T" Mod�les & PB-265LN A AB PB-580 / PB-755S PB-760LN / PB-770 C D 8X D 8X C D 8X STOP ENGINE / DETENER MOTOR / ARR�T MOTEUR 6 A "T" Models "T" Modelos "T" Mod�les & PB-265LN "H" Models "H" Modelos "H" Mod�les A B Note: Move Throttle Lever (A) to IDLE [ ] position and allow engine to return to idle before shutting off engine. Nota: Mueva la palanca del acelerador (A) a la posici�n de reposo [ ] y permita que el motor regrese a ralent� antes de apagar el motor. Remarque: Placez le levier de l'acc�l�rateur (A) sur la position de ralenti [ ] et laissez le moteur revenir au ralenti avant de couper le moteur. 12 X7155200000 �12/2019 ECHO Incorporated Quick Start Guide Gu�a de inicio r�pido Guide de d�marrage rapide MAINTENANCE INTERVALS / INTERVALOS DE MANTENIMIENTO / INTERVALLES D'ENTRETIEN Daily Or Before Use / Diariamente O Antes De Usar / Quotidienn Ou Avant Utilisation Air Filter, Choke Shutter Filtro de aire, Estrangulador Filtre � air, Volet de d�part Inspect-Clean* Inspeccionar-Limpiar* Inspection-Nettoyage* Recoil Starter Rope Cuerda del motor de arranque Cordon lanceur Inspect-Clean* Inspeccionar-Limpiar* Inspection-Nettoyage* Cooling System Sistema de enfriamiento Syst�me de refroidissement See Dealer for maintenance Consulte al concesionario para el mantenimiento Voir le concessionnaire pour la maintenance Screws, Nuts, Bolts Tornillos, tuercas, pernos Vis, �crous, boulons Inspect-Tighten-Replace* Inspeccionar-Apretar-Reemplazar * Inspection-Serrage-Remplacement* 3 Months / 3 Meses / 3 Mois Air Filter Filtro de aire Filtre � air Replace* Reemplazar* Remplacement* Fuel Filter, Fuel Cap Gasket Inspect* Filtro de combustible, Empaquetadura de la cubierta del combustible Inspeccionar* Filtre � carburant, Joint de couverture de carburant Inspection* Spark Plug Buj�a Bougie Inspect-Tighten-Replace* Inspeccionar-Apretar-Reemplazar* Inspection-Serrage-Remplacement* Muffler Spark Arrestor Apagachispas del silenciador Pare-�tincelles See Dealer for maintenance Consulte al concesionario para el mantenimiento Voir le concessionnaire pour la maintenance Yearly / Anualmente / Annuellement Fuel Filter Filtro de combustible Filtre � carburant Inspect-Replace* Inspeccionar-Reemplazar * Inspection-Remplacement* IMPORTANT NOTE - Time intervals shown are maximum. Actual use and your experience will determine the frequency of required maintenance. * Replacement is recommended based on the finding of damage or wear during inspection. NOTA IMPORTANTE - Los intervalos indicados son m�ximos. El uso real y su experiencia determinar�n la frecuencia del mantenimiento requerido. * Todas las recomendaciones de reemplazo se basan en encontrar piezas da�adas o desgastadas durante la inspeccion. REMARQUE IMPORTANTE - Intervalles de temps sont maximales. Utilisation r�elle et votre exp�rience d�termineront la fr�quence d'entretien requis. * Toutes les recommandations de remplacement de pi�ces sont bas�es sur la d�couverte de dommages ou d'usure lors de l'inspection. MAINTENANCE Emissions Control Components Transportation � The use of emission control components other than those specifically designed for this unit is a violation of federal law. 1. Air Filter: Close choke, remove air filter cover, clean air cleaner area, clean or replace filter (if damaged). 2. Spark Plug: (a) PB-256LN / PB-580 / PB-755LN / PB-770 � Use only NGK BPM8Y (BPMR8Y in Canada) spark plug otherwise severe engine damage may occur. Adjust spark plug gap by bending outer electrode to a 0.65 mm (0.026 in) gap. (b) PB-760LN � Use only NGK BPM6Y (BPMR6Y in Canada) spark plug otherwise severe engine damage may occur. Adjust spark plug gap by bending outer electrode to a 0.65 mm (0.026 in) gap. � During operation the muffler or catalytic muffler and surrounding cover become hot. Always keep exhaust area clear of flammable debris during transportation or when storing, otherwise serious property damage or personal injury may result. � Always secure the unit during transportation to prevent turnover, fuel spillage, and damage to the unit. Short-term Storage � Store unit in a dry, dust free place, out of the reach of children. � Do not store in enclosure where fuel fumes may accumulate or reach an open flame or spark. Long-term Storage (Over 30 Days) � Fuel is VERY flammable. Use extreme care when mixing, storing or handling, or serious personal injury may result. 1. Fuel Filter replacement: Use a clean rag to remove loose dirt from around fuel cap and empty fuel tank. Pull the fuel filter from the fuel tank. Remove the filter from the line and install the new filter (do not damage fuel line when removing the fuel filter from the tank). � Place the stop switch in the "OFF" position. � Clean the exterior of the product. � Perform all periodic maintenance. � Tighten all the screws and nuts. � Drain the fuel and run the unit until it stops. � Allow engine to cool. � Store unit in a dry, dust free place, out of the reach of children. X7155200000 13 �12/2019 ECHO Incorporated Quick Start Guide Gu�a de inicio r�pido Guide de d�marrage rapide EMISSION CONTROL (Exhaust & Evaporative) � CARB and EPA Emissions Control Information. � The emission control system for the engine is EM (engine modification) and, if the second to last character of the Engine Family on the Emission Control Information label (sample below) is "B", "C", "K", or "T", the emission control system is EM and TWC (3-way catalyst). The fuel tank/ fuel line emission control system is EVAP (evaporative emissions). Evaporative emissions for California models are only applicable to fuel tanks and fuel feed lines. EMISSION CONTROL INFORMATION ENGINE FAMILY: #EHXS.0364KC DISPLACEMENT: 35.8 cc EMISSION COMPLIANCE PERIOD: 300 Hours THIS ENGINE MEETS * * * * U.S. EPA EXH/EVP & CALIFORNIA EXH/EVP EMISSION REGULATIONS FOR S.O.R.E. REFER TO OWNER'S MANUAL FOR MAINTENANCE SPECIFICATIONS AND ADJUSTMENTS. ***XXXX � An Emission Control Label is located on the engine. (This is an EXAMPLE ONLY, information on label varies by ENGINE FAMILY). � Product Emission Durability (Emission Compliance Period). � The 50 or 300 hour emission compliance period is the time span selected by the manufacturer certifying the engine emissions output meets applicable emissions regulations, provided that approved maintenance procedures are followed as listed in the Maintenance Section of this manual. SERVICE � Service of this product during the warranty period must be performed by an Authorized ECHO Service Dealer. For the name and address of the Authorized ECHO Service Dealer nearest you, ask your retailer or call 1800-432-ECHO (3246). Dealer information is also available on our Web Site www.echo-usa.com. When presenting your unit for Warranty service/repairs, proof of purchase is required. Cancer and Reproductive Harm. www.P65Warnings.ca.gov Note: This product complies with CAN ICES-2/NMB-2. MANTENIMIENTO Ajuste de la velocidad de ralent� 2. Buj�a: (a) PB-256LN, PB-580, PB-755LN, PB-770 � Use solamente una buj�a BPM8Y (BPMR8Y in Canada) , pues de lo contrario el motor podr�a sufrir graves da�os. Ajuste la separaci�n de la buj�a doblando el electrodo exterior para formar una separaci�n de 0.65 mm (0.026 in). (b) PB-760LN � Use solamente una buj�a BPM6Y (BPMR6Y in Canada) , pues de lo contrario el motor podr�a sufrir graves da�os. Ajuste la separaci�n de la buj�a doblando el electrodo exterior para formar una separaci�n de 0.35 mm (0.014 in). � El combustible es MUY inflamable. Tenga extremo cuidado al mezclar, almacenar o manipular el combustible, o pueden producirse graves lesiones personales. 1. Reemplazo del filtro de combustible: Use un trapo limpio para eliminar la suciedad suelta alrededor de la tapa del combustible y vac�e el tanque de combustible. Retire el filtro de combustible del tanque de combustible. Retire el filtro de la l�nea e instale el nuevo filtro (no da�e la l�nea de combustible cuando retire el filtro de combustible del tanque). Transporte � Durante el funcionamiento, el silenciador o el silenciador catal�tico y la cubierta circundante pueden calentarse. Durante el transporte o el almacenamiento, siempre mantenga despejada el �rea del escape de residuos inflamables; de lo contrario, pueden producirse graves lesiones personales o da�os a la propiedad. � Durante el transporte, proteja siempre la unidad para prevenir el vuelco, el derrame de combustible y el da�o de la unidad. Almacenamiento a corto plazo � Almacene la unidad en un lugar seco y sin polvo, fuera del alcance de los ni�os. � No almacene la unidad en recintos donde los gases del combustible se puedan acumular o alcanzar una llama abierta o una chispa. Almacenamiento a largo plazo (m�s de 30 d�as) � Cada unidad se pone en marcha en la f�brica y el carburador se ajusta de acuerdo con las reglamentaciones de emisiones. Los ajustes al carburador, distinto a la velocidad de ralent�, debe realizarlos un concesionario de ECHO autorizado. � Si tiene disponible un tac�metro, el tornillo de ajuste de ralent� (Figura 6A) debe establecerse en 3000 RPM. Gire el tornillo de ralent� en sentido horario para aumentar la velocidad de ralent�, y en sentido antihorario para disminuirla. Componentes de control de emisiones � El uso de componentes de control de emisiones diferentes de aquellos dise�ados espec�ficamente para esta unidad viola la ley federal. 1. Filtro de aire: Cierre el estrangulador, retire la cubierta del filtro de aire, limpie el �rea del limpiador de aire, limpie o reemplace el filtro (si est� da�ado). 14 � Coloque el interruptor de parada en la posici�n "OFF" (APAGADO). � Limpie el exterior del producto. � Realice todo el mantenimiento peri�dico. � Ajuste todos los tornillos y las tuercas. � Drene el combustible y ponga en marcha la unidad hasta que se detenga. � Permita que el motor se enfr�e. � Almacene la unidad en un lugar seco y sin polvo, fuera del alcance de los ni�os. CONTROL DE EMISIONES (escape y evaporativas) � Informaci�n sobre el control de emisiones de CARB y EPA. � El sistema de control de emisiones del motor es EM (modificaci�n del motor) y, si el pen�ltimo car�cter de la familia de motores que aparece en la etiqueta de informaci�n sobre el control de emisiones (ejemplo a continuaci�n) es "B", "C", "K" o "T", el sistema de control de emisiones es EM y TWC (catalizador de 3 v�as). El sistema de control de emisiones del tanque y tuber�a de combustible es EVAP (emisiones evaporativas). Las emisiones evaporativas para los modelos de California solo se aplican a tanques de combustible y a l�neas de alimentaci�n de combustible. X7155200000 �12/2019 ECHO Incorporated Quick Start Guide Gu�a de inicio r�pido Guide de d�marrage rapide EMISSION CONTROL INFORMATION ENGINE FAMILY: #EHXS.0364KC DISPLACEMENT: 35.8 cc EMISSION COMPLIANCE PERIOD: 300 Hours THIS ENGINE MEETS * * * * U.S. EPA EXH/EVP & CALIFORNIA EXH/EVP EMISSION REGULATIONS FOR S.O.R.E. REFER TO OWNER'S MANUAL FOR MAINTENANCE SPECIFICATIONS AND ADJUSTMENTS. ***XXXX � Puede encontrarse una etiqueta de control de emisiones en el motor. (Este es SOLO UN EJEMPLO, la informaci�n en la etiqueta var�a seg�n la FAMILIA de MOTOR). � Durabilidad de las emisiones del producto (per�odo de cumplimiento de las emisiones). � El per�odo de cumplimiento de las emisiones de 50 o 300 horas es el intervalo de tiempo seleccionado por el fabricante por el que se certifica que la salida de emisiones del motor cumple con las reglamentaciones correspondientes, siempre que se sigan los procedimientos de mantenimiento aprobados seg�n lo establecido en la secci�n Mantenimiento de este manual. SERVICIO � Durante el per�odo de garant�a, el mantenimiento de este producto lo debe realizar un concesionario de mantenimiento de ECHO autorizado. Para conocer el nombre y el domicilio del concesionario de mantenimiento de ECHO autorizado m�s cercano, preg�nteselo a su revendedor o llame al 1-800-432-ECHO (3246). La informaci�n sobre el concesionario tambi�n est� disponible en nuestro sitio web www.echousa.com. Cuando presente su unidad para que le realicen mantenimiento o reparaciones bajo la garant�a, deber� mostrar comprobante de comra. (b) PB-760LN � Utiliser seulement la bougie d'allumage BPM6Y (BPMR6Y in Canada). Sinon, de graves dommages au moteur pourraient se produire. R�gler l'�cart de la bougie d'allumage en pliant l'�lectrode ext�rieure � un �cart de 0,35 mm (0,014 po). . � Le carburant est TR�S inflammable. Demeurer extr�mement prudent lors du m�lange, du rangement ou de la manipulation; l'ignorer peut causer des l�sions corporelles graves. 1. Remplacement du filtre � carburant: Utiliser un linge propre pour retirer la salet� autour du bouchon du r�servoir et vider le r�servoir de carburant. Retirer le filtre � carburant du r�servoir. Retirer le filtre de la conduite et installer un nouveau (ne pas endommager la conduite de carburant en retirant filtre � carburant du r�servoir). Moyens de transport � En cours d'utilisation, le silencieux ou le silencieux catalytique et le bo�tier l'entourant deviennent tr�s chauds. Toujours garder la zone d'�chappement � l'abri de d�bris inflammables durant le transport ou lors de l'entreposage, sinon de graves dommages ou blessures pourraient en r�sulter. � Toujours s�curiser l'appareil pendant le transport afin d'�viter tout retournement, tout d�versement de carburant et tout dommage � l'appareil. Rangement � court terme C�ncer y da�o reproductivo. www.P65Warnings.ca.gov Nota: Este producto cumple con CAN ICES-2/NMB-2. ENTRETIEN R�glage de la vitesse de ralenti � Chaque dispositif est test� � l'usine et le carburateur est r�gl� conform�ment aux r�glements sur les �missions. Les r�glages du carburateur, autres que le r�gime au ralenti, doivent �tre effectu�s par un concessionnaire ECHO agr��. � Si l'on dispose d'un tachym�tre, il convient de r�gler la vis de r�gime de ralenti (Figure 6A) � 3 000 tr/min. Tourner la vis de r�gime de ralenti dans le sens horaire pour augmenter la vitesse de ralenti, et dans le sens antihoraire pour diminuer la vitesse de ralenti. �l�ments antipollution � L'utilisation d'�l�ments antipollution diff�rents de ceux qui ont �t� sp�cialement con�us pour ce dispositif constitue une infraction � la loi f�d�rale. 1. Filtre � air: Volet ferm�; retirer le capot du filtre � air; nettoyer la zone du filtre � air; nettoyer ou remplacer le filtre (si endommag�). 2. Bougie d'allumage: (a) PB-256LN, PB-580, PB-755LN, PB-770 � Utiliser seulement la bougie d'allumage BPM8Y (BPMR8Y in Canada) . Sinon, de graves dommages au moteur pourraient se produire. R�gler l'�cart de la bougie d'allumage en pliant l'�lectrode ext�rieure � un �cart de 0,65 mm (0,026 po). X7155200000 �12/2019 ECHO Incorporated � Ranger le dispositif dans un endroit sec, � l'abri de la poussi�re et hors de port�e des enfants. � Ne pas ranger dans une enceinte o� les �missions de carburant peuvent s'accumuler et atteindre une flamme ou une �tincelle. Rangement � long terme (Plus de 30 jours) � Placer l'interrupteur d'arr�t en position "OFF". � Nettoyer l'ext�rieur du produit. � Effectuer toutes les proc�dures de maintenance p�riodique. � Resserrer toutes les vis et �crous. � Drainer le carburant et d�marrer le dispositif jusqu'� ce qu'il s'arr�te de marcher. � Laisser le moteur se refroidir. � Ranger le dispositif dans un endroit sec, � l'abri de la poussi�re et hors de port�e des enfants. CONTR�LE DES �MISSIONS (�chappement et �vaporation) � Informations sur le contr�le des �missions du CARB et de l'EPA. � Le syst�me antipollution du moteur est EM (modification du moteur) et, si l'avant-dernier caract�re de la famille de moteurs sur l'�tiquette d'informations antipollution (�chantillon ci-dessous) est "B", "C", "K" ou "T", le syst�me antipollution est EM et TWC (catalyseur � 3 voies). Le syst�me de contr�le des �missions du r�servoir de carburant/conduite de carburant est EVAP (�missions par �vaporation). Les �missions par �vaporation des mod�les californiens ne s'appliquent qu'aux r�servoirs de carburant et aux conduites d'alimentation en carburant. EMISSION CONTROL INFORMATION ENGINE FAMILY: #EHXS.0364KC DISPLACEMENT: 35.8 cc EMISSION COMPLIANCE PERIOD: 300 Hours THIS ENGINE MEETS * * * * U.S. EPA EXH/EVP & CALIFORNIA EXH/EVP EMISSION REGULATIONS FOR S.O.R.E. REFER TO OWNER'S MANUAL FOR MAINTENANCE SPECIFICATIONS AND ADJUSTMENTS. ***XXXX 15 Quick Start Guide Gu�a de inicio r�pido Guide de d�marrage rapide � Une �tiquette d'information sur la r�duction des �missions est appos�e sur le moteur. (Ceci n'est qu'un EXEMPLE SEULEMENT, l'information sur l'�tiquette varie par FAMILLE de MOTEUR). � Durabilit� des �missions du produit (p�riode de conformit� des �missions). � La p�riode de conformit� de 50 ou 300 heures est la p�riode de temps choisie par le fabricant pour certifier que les �missions du moteur sont conformes aux r�glements sur les �missions applicables, � condition que les proc�dures d'entretien approuv�es soient suivies comme indiqu� dans la section Entretien du pr�sent manuel. SERVICE � L'entretien de ce produit pendant la p�riode de garantie doit �tre effectu� par un distributeur agr�� ECHO. Pour obtenir le nom et l'adresse du distributeur agr�� ECHO le plus pr�s de chez vous, demandez � votre revendeur ou appelez le 1 800 432-ECHO (3246). Des renseignements sur les concessionnaires sont �galement disponibles sur notre site Web � www.echo-usa.com. Lors de la pr�sentation de l'appareil pour r�paration/entretien couvert par la garantie, la preuve d'achat est requise. Cancer et dommages � la reproduction. www.P65Warnings.ca.gov Remarque : Ce produit est conforme � la norme CAN ICES-2/ NMB-2. NOTES / NOTAS / REMARQUES 16 X7155200000 �12/2019 ECHO Incorporated
