Introduction. TWX LED wall pack family, a ground-up design that has the low initial cost customers demand while providing superior performance and.
Lithonia Lighting TWX3 LED ALO 50K MVOLT DDBTXD 194994620549 0194994620549 1006264279

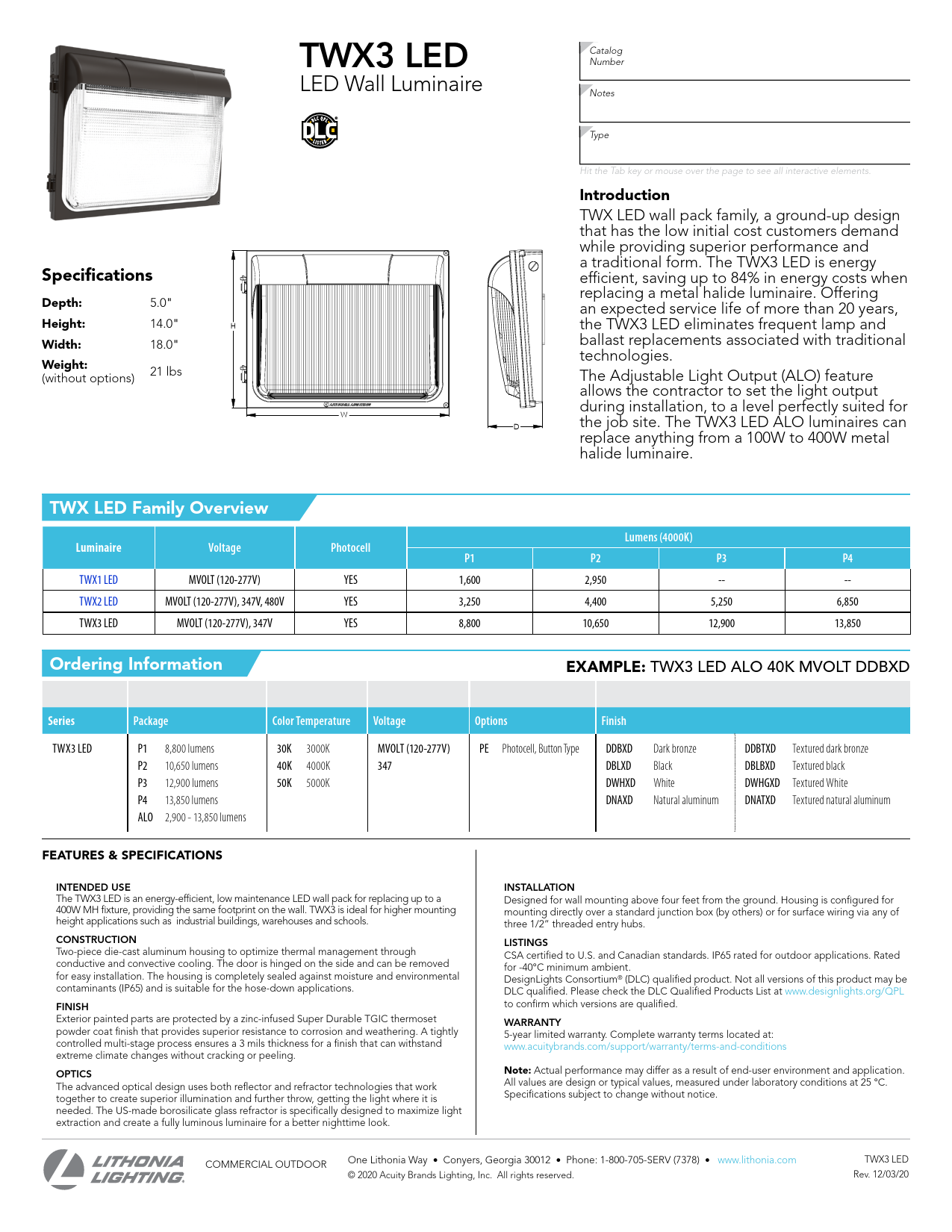

Specifications Depth: 5.0" Height: 14.0" H Width: 18.0" Weight: (without options) 21 lbs TWX3 LED LED Wall Luminaire W D Catalog Number Notes Type Hit the Tab key or mouse over the page to see all interactive elements. Introduction TWX LED wall pack family, a ground-up design that has the low initial cost customers demand while providing superior performance and a traditional form. The TWX3 LED is energy efficient, saving up to 84% in energy costs when replacing a metal halide luminaire. Offering an expected service life of more than 20 years, the TWX3 LED eliminates frequent lamp and ballast replacements associated with traditional technologies. The Adjustable Light Output (ALO) feature allows the contractor to set the light output during installation, to a level perfectly suited for the job site. The TWX3 LED ALO luminaires can replace anything from a 100W to 400W metal halide luminaire. TWX LED Family Overview Luminaire TWX1 LED TWX2 LED TWX3 LED Voltage MVOLT (120-277V) MVOLT (120-277V), 347V, 480V MVOLT (120-277V), 347V Ordering Information Photocell YES YES YES Lumens (4000K) P1 P2 P3 P4 1,600 2,950 -- -- 3,250 4,400 5,250 6,850 8,800 10,650 12,900 13,850 EXAMPLE: TWX3 LED ALO 40K MVOLT DDBXD Series TWX3 LED Package P1 8,800 lumens P2 10,650 lumens P3 12,900 lumens P4 13,850 lumens ALO 2,900 - 13,850 lumens Color Temperature 30K 3000K 40K 4000K 50K 5000K Voltage MVOLT (120-277V) 347 Options PE Photocell, Button Type Finish DDBXD DBLXD DWHXD DNAXD Dark bronze Black White Natural aluminum DDBTXD DBLBXD DWHGXD DNATXD Textured dark bronze Textured black Textured White Textured natural aluminum FEATURES & SPECIFICATIONS INTENDED USE The TWX3 LED is an energy-efficient, low maintenance LED wall pack for replacing up to a 400W MH fixture, providing the same footprint on the wall. TWX3 is ideal for higher mounting height applications such as industrial buildings, warehouses and schools. CONSTRUCTION Two-piece die-cast aluminum housing to optimize thermal management through conductive and convective cooling. The door is hinged on the side and can be removed for easy installation. The housing is completely sealed against moisture and environmental contaminants (IP65) and is suitable for the hose-down applications. FINISH Exterior painted parts are protected by a zinc-infused Super Durable TGIC thermoset powder coat finish that provides superior resistance to corrosion and weathering. A tightly controlled multi-stage process ensures a 3 mils thickness for a finish that can withstand extreme climate changes without cracking or peeling. OPTICS The advanced optical design uses both reflector and refractor technologies that work together to create superior illumination and further throw, getting the light where it is needed. The US-made borosilicate glass refractor is specifically designed to maximize light extraction and create a fully luminous luminaire for a better nighttime look. INSTALLATION Designed for wall mounting above four feet from the ground. Housing is configured for mounting directly over a standard junction box (by others) or for surface wiring via any of three 1/2" threaded entry hubs. LISTINGS CSA certified to U.S. and Canadian standards. IP65 rated for outdoor applications. Rated for -40°C minimum ambient. DesignLights Consortium® (DLC) qualified product. Not all versions of this product may be DLC qualified. Please check the DLC Qualified Products List at www.designlights.org/QPL to confirm which versions are qualified. WARRANTY 5-year limited warranty. Complete warranty terms located at: www.acuitybrands.com/support/warranty/terms-and-conditions Note: Actual performance may differ as a result of end-user environment and application. All values are design or typical values, measured under laboratory conditions at 25 °C. Specifications subject to change without notice. COMMERCIAL OUTDOOR One Lithonia Way · Conyers, Georgia 30012 · Phone: 1-800-705-SERV (7378) · www.lithonia.com © 2020 Acuity Brands Lighting, Inc. All rights reserved. TWX3 LED Rev. 12/03/20 Performance Data Lumen Output Lumen values are from photometric tests performed in accordance with IESNA LM-79-08. Data is considered to be representative of the configurations shown, within the tolerances allowed by Lighting Facts. Contact factory for performance data on any configurations not shown here. Performance Package System Watts 30K (3000K, 80 CRI) Lumens LPW 40K (4000K, 80 CRI) Lumens LPW P1 65W 8,450 130 8,800 135 P2 79W 10,200 129 10,650 135 P3 97W 12,300 127 12,900 133 P4/ALO 108W 13,250 123 13,850 128 50K (5000K, 80 CRI) Lumens LPW 8,800 135 10,650 135 12,900 133 13,850 128 Electrical Load Performance Package P1 P2 P3 P4/ALO System Watts 65W 79W 97W 108W Current (A) 120V 208V 240V 277V 347V 0.538 0.310 0.269 0.233 0.186 0.656 0.379 0.328 0.284 0.227 0.806 0.465 0.403 0.349 0.279 0.900 0.519 0.450 0.390 0.311 Adjustable Lumen Output (ALO) Table Setting System Watts 8* 108W 7 102W 6 85W 5 71W 4 57W 3 44W 2 29W 1 18W * Factory default setting is #8 Lumen Output 13,850 13,250 11,400 9,900 8,200 6,450 4,500 2,900 Replaces Metal Halide 400W 250W 150/175W 100W Lumen Ambient Temperature (LAT) Multipliers Use these factors to determine relative lumen output for average ambient temperatures from 0-40°C (32-104°F). Ambient 0°C 32°F 10°C 50°F 20°C 68°F 25°C 77°F 30°C 86°F 40°C 104°F Lumen Multiplier 1.04 1.03 1.01 1.00 0.99 0.97 Projected LED Lumen Maintenance Data references the extrapolated performance projections for the platforms noted in a 25°C ambient, based on 10,000 hours of LED testing (tested per IESNA LM-80-08 and projected per IESNA TM-21-11). To calculate LLF, use the lumen maintenance factor that corresponds to the desired number of operating hours below. For other lumen maintenance values, contact factory. Operating Hours 0 25,000 50,000 60,000 100,000 Lumen Maintenance Factor 1.0 >0.95 >0.90 >0.88 >0.81 Photometric Diagrams LEGEND 0.25 fc 0.5 fc 1.0 fc 3.0 fc MH = 18ft Grid = 18ft x 18ft ISO lines = 0.25fc, 0.5fc, 1.0fc, 3.0fc To see complete photometric reports or download .ies files for this product, visit the Lithonia Lighting TWX LED homepage. Tested in accordance with IESNA LM-79 and LM-80 standards TWX3 LED ALO COMMERCIAL OUTDOOR One Lithonia Way · Conyers, Georgia 30012 · Phone: 1-800-705-SERV (7378) · www.lithonia.com © 2020 Acuity Brands Lighting, Inc. All rights reserved. TWX3 LED Rev. 12/03/20Adobe PDF Library 15.0 Adobe InDesign 16.0 (Macintosh)
