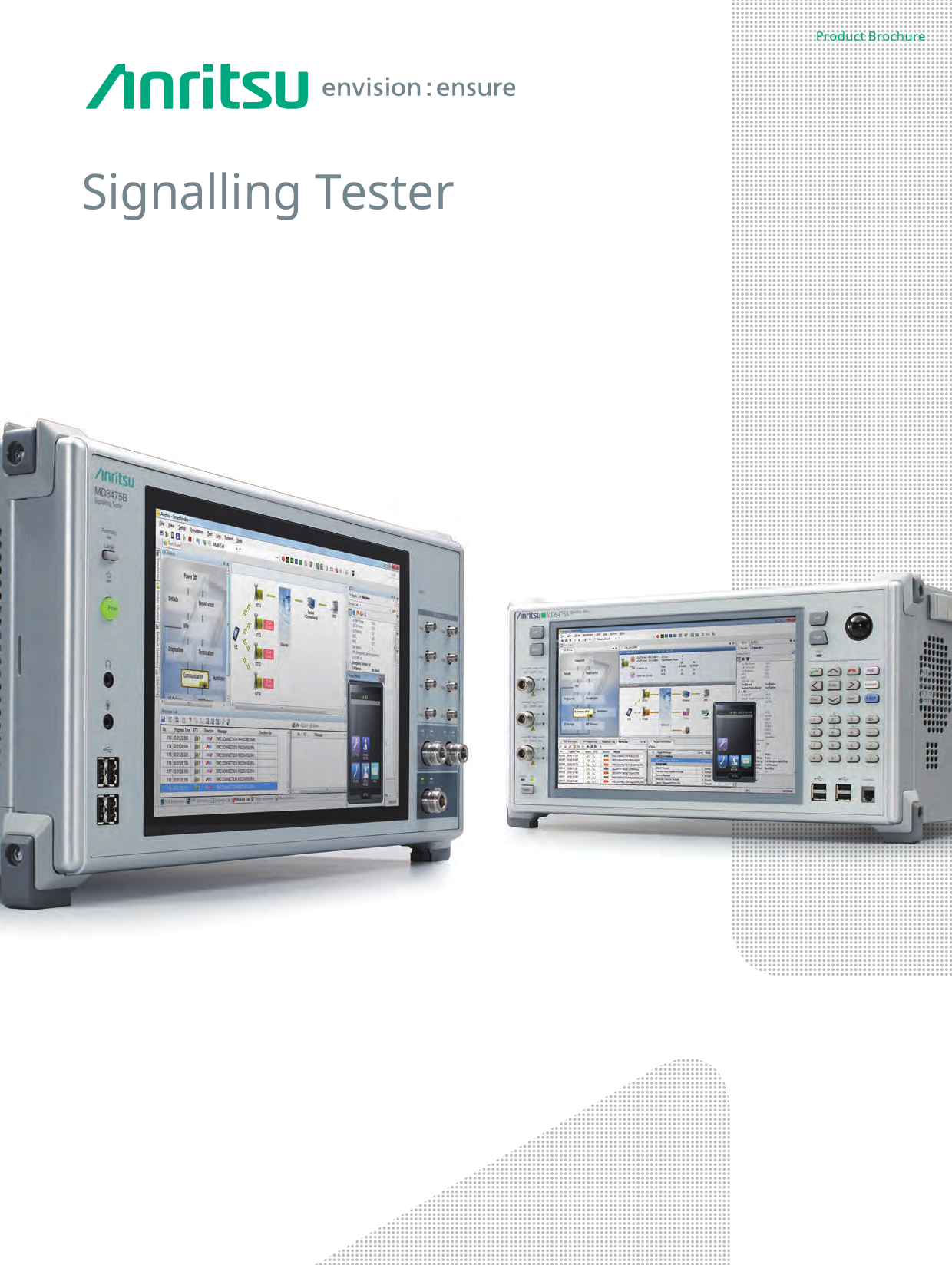

Signalling Tester
MD8475A MD8475B
Product Brochure
2
3
4
5
6
7
Here's the Base Station Simulator It Answers All Your Questions.
Reproduce the world's communications systems in a small workbench.
As mobile terminals, such as smartphones, become increasingly high performance and diversified to enhance the user experience, carriers are starting to deploy LTE-Advanced technology as the next stage after LTE in speeding-up networks and meeting the needs of smartphone users. Additionally, the automotive world is pushing forward with new innovations, such as the connected car and self-driving vehicles, based on wireless communications technologies. The Signalling Tester MD8475A/MD8475B is a base station simulator reproducing communications between base stations and UEs. It supports the full range of communication standards including LTE, and the Anritsu SmartStudio user interface, eliminates the need to create complex test scenarios, assuring efficient tests of complex UEs.
For R&D of New Mobile Terminals Signalling Tester / Base Station Simulator
MD8475B
BAns.
RF CA IMS 8TX/4RX 3CC/4CC VoLTE
See page 40 for more details
8
For R&D of Automotive Solutions and Wireless Connectivity
Signalling Tester / Base Station Simulator
MD8475A
eCall Telema AllRAT
ERAGLONASS
tics
forCellular See page 28 for more details
AAns.
POINT 1
Scenario-less UE Function Tests using SmartStudio
See page 10
for more details
POINT 2
Automated Confirmation of Existing Mobile Functions using SmartStudio Manager
See page 12
for more details
POINT 3
All-in-One Support for LTE and Other Communications Systems
See page 12
for more details
9
10
11
12
Signalling Tester MD8475A/MD8475B Applications
Configuring Multi-cell Test Environment
Performing UE tests between communications systems (handover tests) usually requires set-up of several measuring instruments and creation of complex scenarios. SmartStudio eliminates these problems by providing a simple test environment for fast and efficient testing.
Multi System Configuration
Roaming and power consumption tests of UEs require multi-cell connections. The MD8475A supports dual-RF tests. And MD8475B supports up to 8RF tests. The SmartStudio GUI makes it easy to set multi-system test environments, especially for the latest Carrier Aggregation (CA) wireless standards.
Multi-cell Test Configurations
Tests of UEs moving between cells take the Selection, Redirection, Handover, and other conditions into consideration, depending on the UE and base station conditions. SmartStudio can register these UE and base station conditions, including the RF power, as a test case, making it quick and easy to evaluate UE behaviors and reproduce failures. Test cases are also useful for general UE evaluations when reproducing Handover failures.
Selection Reselection Redirection Measurement* PS Handover
Small-cell Switching Tests
Macrocell, small-cell, and femtocell base stations are being installed to provide wide coverage for people moving freely between base stations; SmartStudio provides easy test sequences for preferential capture of small-cells.
2-cell Testing Support by SmartStudio (MD8475A)
Cell 1
Cell 2
LTE FDD/TDD
LTE FDD/TDD
*1,*2
W-CDMA/HSPA/HSPA Evolution/DC-HSDPA
GSM/GPRS/EGPRS
TD-SCDMA/TD-HSPA
WLAN
*3
*1: Two MD8475A units are required for MIMO connection. *2: LTE-FDD/TDD Joint CA test is not supported. *3: The WLAN Offload test requires a separate WLAN access point.
2-cell Testing Support by SmartStudio (MD8475B)
W-CDMA/HSPA/ HSPA Evolution/
DC-HSDPA
-- *3
Cell 1
Cell 2
LTE FDD/TDD
W-CDMA/HSPA/ HSPA Evolution/
DC-HSDPA
LTE FDD/TDD
W-CDMA/HSPA/HSPA Evolution/DC-HSDPA
GSM/GPRS/EGPRS
TD-SCDMA/TD-HSPA*
--
WLAN
*
*
*: The WLAN Offload test requires a separate WLAN access point.
Multi-cell Testing Support by SmartStudio (MD8475B)
Cell 1 LTE LTE LTE LTE LTE
Cell 2 LTE LTE LTE LTE LTE
GSM/GPRS/EGPRS TD-SCDMA/TD-HSPA
--
*3
*3
: Supported
WLAN
*3 *3 *3 *3 *3
GSM/GPRS/EGPRS TD-SCDMA/TD-HSPA*2
--
*
*
: Supported
WLAN
* * * * --
Cell 3 LTE W-CDMA GSM TD-SCDMA LTE
Cell 4 -- -- -- -- LTE
13
Signalling Tester MD8475A/MD8475B Applications
Configuring Multi-cell Test Environment
Carrier Aggregation Tests
The MD8475A/MD8475B supports LTE CA 2CC/3CC/4CC/5CC for throughput performance tests of UEs, such as smartphones using high-speed data networks.
MD8475A
MD8475B
Configuration
Operation Software
SmartStudio
Required CA Option
MX847550A-040
MX847550B-040 MX847550B-041 (3CC) MX847550B-042 (4CC) MX847550B-043 (5CC)
MX847570B-051
RF
1TX/1RX (standard), 2TX/2RX (option)
4TX/2RX (standard), 8TX/4RX (option)
Support for DL CA
2CC SISO 2CC MIMO (2�2)*
2CC SISO 2CC MIMO (2�2) 2CC MIMO (4�4)
3CC SISO 3CC MIMO (2�2) 3CC MIMO (4�4)
4CC SISO 4CC MIMO (2�2) 4CC MIMO (4�4) 5CC MIMO (4�4)
UE Category
Cat.4, Cat.6
Cat.4, Cat.6, Cat.9, Cat.11, Cat.16, Cat.18, Cat.19
*: Two MD8475A units are required.
Simple Throughput Test Environment (MD8475B)
Throughput testing until now � It needs to be adjusted for each application about radio layer
settings and server settings. � Performance depends on the PC specification and the load of
Ethernet.
SIM Connectivity Test
Dual SIM Dual Standby (DSDS) and Dual SIM Dual Active (DSDA) tests of dual-SIM UE can be performed using two sets of MD8475A/ MD8475B. Additionally, Single SIM Dual Standby (SSDS) and Single SIM Dual Active (SSDA) of single-SIM UE can be performed using one MD8475A/MD8475B. These test environments can be fully automated using SmartStudio Manager.
Test Example: The power consumption and throughput of a dual-SIM UE can be confirmed while the UE is making a voice call using SIM1 and transferring packet data using SIM2.
Shield Box
SIM-A SIM-B
RF for SIM-A RF for SIM-B
Throughput testing using MD8475B
� Single GUI supports to adjust for each application about radio layer settings and server settings.
� Performance is independent from PC specification and the load of Ethernet.
FTP server iPerf app
Ethernet
IP traffic generator
For the transmission and reception of the UE, use iPerf application which is widely used for throughput testing.
14
Signalling Tester MD8475A/MD8475B Applications
Data Packet Communications
Data packet communication environments are complex, but SmartStudio makes it easy to resolve troublesome packet bottlenecks, shortening evaluation times. Versatile Server Environment Because the MD8475A/MD8475B pre-installs Windows 7, commercial application servers can be easily installed.
Voice Call Video Call Packet Call SMS
MMS
SMS-CB
Browsing Contents WAP/HTTP Download
Streaming
DRM
E-Mail
SyncML
Status Evaluation
A full line of function tools can be used to check communication status, including throughput, ACK/NACK counts, and RF monitoring. Simultaneous checking of multiple layers allows quick troubleshooting during data communications.
Throughput Monitor Checks data communications each layer for each BTS
Counter Displays detailed information, including ACK/NACK and MCS
RF Monitor Displays TRx power for frequency and channels
Genuine Application Test Environment Connecting the MD8475A/MD8475B to the Internet supports Web application tests using UEs under development to verify actual in-use power consumption and throughput before market release.
Web Application
RF
Ethernet
MD8475B
15
Signalling Tester MD8475A/MD8475B Applications
Voice Call Evaluation Environment
The need for voice-call evaluations has not changed even with the spread of LTE services. However, some voice-call test items, such as the access barred condition and emergency calls, are not easily evaluated on live networks. SmartStudio supports comprehensive evaluation of UE under high-load conditions, such as testing of simultaneous voice calls and other functions.
3G/2G Voice Calling Test Just making voice settings using SmartStudio is all that is necessary for voice tests with the MD8475A/MD8475B.
Loopback (MD8475A/MD8475B) RF
Voice call (Handset*, MD8475A)
Handset
RF
Interface
MD8475B
Multimedia Interface Software MX847508B
*: Not supported for LTE.
MD8475A
Handset
Voice call (Headset, MD8475B)
RF
MD8475B
Headset (generic products)
Setting Roaming and Registering Address Book
When performing incoming-call tests of W-CDMA/GSM UE, SmartStudio can display any of `Public', `National', `International', and `Unknown' on the UE. Additionally, when the incoming call number matches a preregistered number in the address book, the name associated with the number is displayed.
Setting Identify Type
When performing incoming call tests of W-CDMA/GSM UEs, either IMSI or TMSI can be chosen for the UE Caller ID using Paging.
Voice Call (IMSI or TMSI)
MD8475B
16
Signalling Tester MD8475A/MD8475B Applications
Voice Call Evaluation Environment
Voice over LTE Tests Since LTE uses the data network, Voice over LTE (VoLTE) communications also use the data network; SmartStudio simplifies VoLTE tests.
Loopback Tests of VoLTE/Video
The SmartStudio CSCF function supports VoLTE tests (AMR/W-AMR Codec, etc.) in the loopback mode. In addition to an IMS server, VoLTE tests require a variety of LTE settings about multi-PDN. Not only does SmartStudio support multi-PDN*1, but it it also supports packet filter and QoS settings. Additionally, loopback audio data can be changed using the RTP function. At VoLTE loopback testing, as well as looping voice data sent to the terminal from the network back from the terminal, the voice data can be changed to the MUTE status or to a fixed pattern to perform communications quality tests and battery consumption measurements requiring good reproducibility.*2
End-to-End Tests of VoLTE and Video Call Voice over LTE can be tested between two LTE UEs in both directions using two MD8475A units to benchmark and evaluate calls between actual UEs.
CSCF (SIP) Server
RF Interface
U-Plane Data (IP/Ethernet)
Hub
Packet Service
CSCF (SIP) Server
VoLTE Client
MD8475A
RF Interface
VoLTE Client
MD8475B
U-Plane Data (IP/Ethernet)
RF Interface
VoLTE Client
MD8475A
U-Plane Data (IP/Ethernet)
UE-to-UE Case
Sets RoHC*3 and TFT filter at Default Bearer and Dedicated Bearer
*1: GSM and TD-SCDMA are not supported. *2: Requires MX847570A-086 or MX847570B-086. *3: RoHC settings require the MX847550A-060 or MX847550B-060 option.
The RTP/VDP/IP (0x0001) and UDP/IP RoHC (0x0002) profiles are supported.
17
Signalling Tester MD8475A/MD8475B Applications
Voice Call Evaluation Environment
Testing Voice Calls from LTE to 3G/2G
A variety of technologies are used when a UE moves between systems from an LTE to 3G/2G cell. Configuring a 2-cell test environment using SmartStudio supports LTE and 2G/3G system voice call tests such as CS Fallback and SV-LTE (Simultaneous Voice and LTE).
CS Fallback
SRVCC
LTE: Communications by PS Receive call by CS and notify UE of incoming call via LTE from 2G/3G system Connect voice call by CS
LTE: Calling over VoLTE Transfer 3G/2G information from base station before moving between systems Continue voice call without interruption
SMS Tests
SMS and MMS are popular messaging services used worldwide. Exchanges between UEs as well as the number of verification items are both increasing because more direct control of UE is being attempted now.
Sending/Receiving SMS Text Messages
SmartStudio has a dedicated SMS server supporting sending and receiving of SMS messages at any PS or CS network setting. Multiple SMS messages can be preregistered for continuous sending and CBS messages can be sent too.
Sending Binary SMS
The MD8475A/MD8475B can send binary messages as SMS supporting remote control of the UE. Additionally, general evaluations, such as behavior when receiving an SMS during a voice call, can be evaluated to help prevent problems occurring in the field.
Hello Hello, I'm Fine.
Lock
Lock XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX
Binary SMS
MD8475B
18
Signalling Tester MD8475A/MD8475B Applications
IMS Service Tests
SmartStudio has a built-in standard server environment for running IMS server functions for easy service tests, including VoLTE, SMS over IMS, etc.
SIP Registration of a Non-IMS UE
IMS Core
CSCF Server
Regular UE (SIP Client)
1. PS Attach
2. SIP Regist � Always ON
MD8475B
Typical Connection Procedure 1. PS Attach: Connect to Data server.
Get address using DNS, etc. 2. SIP Regist:
Depends on application.
One PDN is required.
Gateway Data Server
Internet Core
SIP Server
SIP Registration of an IMS UE
IMS UE
1. IMS Regist (SIP)
2. Data
� IMS ON
Communication
� Always ON
IMS Core CSCF Server
Internet Core Data Server
Typical Connection Procedure 1. IMS Regist: Connect to CSCF server using SIP. 2. Data Communication: Connect to Data server.
Consequently, two or more PDN required.
Standard IMS Server Function
CSCF (Call Session Control Function) Supports standard server function for VoLTE and SMS over IMS tests as well as voice data loopback function. IPsec is supported too.
DHCPv6 (Dynamic Host Configuration Protocol v6) Allocates IPv6 address and notifies DNS/SIP server address to network node.
DNS (Domain Name Server) Operates as DNS cache server.
NDP (Neighbor Discovery Protocol) Supports function to transmit RA (Router Advertisement) and periodically transmit RA to RS (Router Solicitation).
NTP (Network Time Protocol) The UE and MD8475A times are synchronized by sending time data in response to an NTP request.
PSAP (Public Safety Answering Point) The UA (User Agent) and voice data loopback function support PSAP simulation for running IMS Emergency tests.
XCAP (XML Configuration Access Protocol) This function supports updating, referencing, and deleting of XML format file data (XCAP documents).
SMS over IMS Setting UE can register with CSCF server, and can transmit and receive SMS over IMS.
Ping Sending Function The Ping sending function is used to verify the connection of the device under test to the network.
19
Signalling Tester MD8475A/MD8475B Applications
IMS Options
Extended CSCF Option MX847570A-080/MX847570B-080 Various conditions can be set for VoLTE/Video quasi-normal and abnormal tests. Moreover, VoLTE call and hang-up sequences can both be confirmed from SmartStudio. In addition, VoLTE/Video audio codec switchover tests are supported as well. Virtual UA Calling/Release VoLTE calling from the SmartStudio simulated UE (Virtual UA) is supported. In addition, any Virtual UA response can be set.
Virtual UA
ID: user@anritsu-cscf.com
Calling/Release
MD8475B
Network Fault The occurrence of a server or network fault can be created.
Calling
Network Fault
Error Message
IMS Supplementary Service Option MX847570A-081/MX847570B-081
This option adds functions for simulating VoLTE/Video caller ID, call transfer and call hold. Various CSCF and XCAP service settings as well as supplementary service functions can be set.
Caller ID Display ON/OFF Function
After a call from the test UE, the caller ID (telephone number) display/block function can be checked at the Virtual UA status display field.
Virtual UA
ID: user@anritsu-cscf.com
Calling
MD8475B
Forwarding Function
At calling from the test UE to the
Virtual UA, the call can be forwarded
unconditionally to the specified
destination. Further, using XCAP
Service designates setting of
forwarding conditions and the
destination.
Calling to Virtual UA 1
Virtual UA 1
Forward to Virtual UA 2
Hub Virtual UA 2
MD8475B
Message Blocking Ignore and Reply responses to specific messages can be changed arbitrarily.
SIP Message Changed Message
MD8475B
Multi-P-CSCF Settings Up to three types of P-CDCF addresses can be notified to UE by one PDN to confirm correct UE operation for multiple addresses.
Three Addresses
MD8475B
Call Hold/Resume Function Both test UE and Virtual UA hold operations can be verified. In addition, the call can be resumed by pressing the Resume button.
In Call/Hold
Virtual UA
MD8475B
VoLTE Conference Test
The 3GPP TS 24.605 defined VoLTE Conference Call functions can
be tested.
Virtual UA Virtual UA Virtual UA
MD8475B
Voice Codec Switchover Any codec can be sent from the MD8475A/MD8475B to the UE, and switchover tests, such as VoLTE Video, are supported too.
20
4.5.2.1.1 4.5.2.1.2 4.5.2.1.3 4.5.2.1.4 4.5.2.1.5 4.5.2.2.1 4.5.2.2.2 4.5.2.7 4.6.1 4.6.3 4.6.5
MD8475B
3GPP TS 24.605 User joining a conference User inviting another user to a conference User leaving a conference User creating a conference Subscription for the conference event package Conference focus Conference notification service Actions at the destination UE Communication HOLD (HOLD) Terminating Identification Restriction (TIR) Originating Identification Restriction (OIR)
Signalling Tester MD8475A/MD8475B Applications
IMS Options
RCS Basic Option MX847570A-083/MX847570B-083
Rich Communication Suite (RCS) is the next evolutionary step in deploying existing simple voice and messaging (SMS, MMS) services on various networks and UEs with "rich" communications. Installing this software supports RCS defined tests of Instant Messaging (IM), Address Book, and Contents sharing.
Item Configuration & Registration Capability Discovery Standalone Messaging 1-to-1 Chat Group Chat File Transfer Content Sharing Social Presence Information
IP Voice Call
IP Video Call (IR.94)
Note HTTP (S) based support
Geolocation service not supported IR.92 based support Interaction with other RCS services not supported IR.94 based support
RCS Service Image
GBA Authentication Option MX847570A-084/MX847570B-084 The software option references the 3GPP GBA Authentication algorithm to simulate the authentication procedure required when connecting to the Internet via networks other than Home Networks.
Internet
HSS BSF
Home Network
NAF
Visited Network (e.g. Mobile, WLAN, ..)
HSS: Home Subscriber Server BSF: Bootstrapping Server Function NAF: Network Application Function
090-xxxx-xxxx OK 090-xxxx-yyyy xxxx@xxx.xx.xx
090-yyyy-xxxx OK
090-yyyy-yyyy
When are you coming? Soon. OK. I go to ticket gate!
Look!
Presence Sharing
Instant Message
Content Sharing during IM
RCS Server IMS Core
3GPP Network
MX847570A-083 MX847570B-083 RCS Basic Option
Configuration
Presence
Instant Messaging
Virtual UA
IMS Early Media Option MX847570A-085/MX847570B-085
The software option simulates the IMS Early Media sequence. It supports MRFC, MRFP, etc., nodes and can authenticate service functions such as customized ringtones from the network side.
NRBT: Function for recovering RBT (ring back tone) from network rather than from UE
The recovery status (recovery possible/not possible/recovering/ stopped) for each session is displayed on the Information screen.
UE Originator
NW (CSCF/MRFC/MRFP)
INVITE
INVITE
183 Session Progress Bearer Establishment
Ring Back Tones Bearer Release
200 OK Bearer Establishment
Term VUA 180 Ringing
200 OK
Alert-Info: Provides substitute ring back tone using Alert-Info, one of the Early Media switching function
UE Originator
NW (CSCF/MRFC/MRFP)
Term VUA
INVITE
180 Ringing Alert-Info: <http://www/sample.wav> Play the media of Alert Info
INVITE
180 Ringing
Addition the Alet-Info Header
21
Signalling Tester MD8475A/MD8475B Applications
IMS Options
RTP Frame Control Option MX847570A-086/MX847570B-086
This software controls the media data (RTP packets) during VoLTE communications. In addition to the MUTE condition and Fixed pattern, the data itself can be delayed; it can be used to configure the static stage required at audio evaluation and battery consumption measurement.
Packet Service
CSCF (SIP) Server
RF Interface
VoLTE Client
MD8475B
U-Plane Data (IP/Ethernet)
IMS Script Basic Option MX847570A-060/MX847570B-060 XCAP Script Option MX847570A-061/MX847570B-061
The software option can be used to edit and create SIP messages/ XCAP messages using a ladder sequence to simulate the CSCF server/XCAP server behavior. Not only can configure a test environment from the service designing specification stage, but also user-specific tests, such as quasi-normal and abnormal conditions, can also be tested to easily support every test requirement.
Property Field: Network parameters such as IP address are set here.
Scripting Field: Sequence messages between the UE and CSCF are edited and executed here.
Scripting Field
Property Field
Script Sequence
Script Message
Script Message
IMS Log Import Option MX847570B-062 This software option enables importing Wireshark logs, and create IMS script automatically. This Script is editable using Add-in Sever window. This option help flexible evaluation of IMS.
22
Signalling Tester MD8475A/MD8475B Applications
IMS Options
IMS Options (MD8475A/MD8475B)
Section
Function
Outline
GUI Option
: Supported
Scripting Option*2
MX847570A MX847570B MX847570A-080 MX847570B-080 MX847570A-081 MX847570B-081 MX847570A-083 MX847570B-083 MX847570A-084 MX847570B-084 MX847570A-085 MX847570B-085 MX847570A-086 MX847570B-086 MX847570A-060 MX847570B-060 MX847570A-061 MX847570B-061
SIP REGIST Test IPsec DNS Server
Function for verifying CSCF server Bind/Unbind operation Function for on/off of IPsec (3DES, AES). Function for resolving address using DNS
------------ -- ------------ -- ----------------
General
NTP Server PSAP Server X-CAP Server BSF Server
Function for synchronizing time using NTP Function for looping-back voice for IMS Emergency Function for verifying service using XML file Function for verifying GBA
---------------- ------------ -- -------------- -------- --------
No Server (Network) Response Test
Function for verifying operation when no response due to error at server or network
-- ----------
Server Error Test
Function for verifying operation when error response received from server due to the error at server
-- ----------
Multi P-CSCF Calling Sequence Test Incoming Call Sequence Test Voice Loopback Test
Function for reporting up to three P-CSCF servers to UE Function for verifying call sequence from UE Function for verifying call sequence to UE Function for looping-back and sending uplink voice data to verify call at UE side
-- -------------- ------------ -- -- *1 -- -- -- -- -- -- ------------ --
Voice Loopback Test (fixed pattern)
Function for configuring the static stage required at audio evaluation and battery consumption measurement
--
--
--
--
--
--
--
Early media Test Disconnection (from UE) Sequence Test Disconnection (from NW) Sequence Test
Function for verifying early media sequence and Ring Back Tone Function for verifying disconnection sequence from UE Function for verifying disconnection sequence from network
---------- ------ ------------ -- -- *1 -- -- -- -- -- --
VoLTE/ Video Telephony
Called Party Busy Test Called Party Not Found Test Called Party No Response Test Codec Selection
Function for verifying operation when called party busy
-- ---------- --
Function for verifying operation when called party not found
-- ---------- --
Function for verifying operation when no response from called party
-- ---------- --
Function for confirming VoLTE/VT traffic with any codec; also performs loopback -- -- -- -- -- -- --
VoLTE/Video Telephony Upgrade/Downgrade
Switches VoLTE/Video Telephony during call
-- ---------- --
Call ID Display/Block Incoming Call ID Display/Block
TS 24.607 verifies IMS test UE caller ID display ON/OFF TS 24.608 verifies IMS test UE incoming caller ID display ON/OFF
---- -------- ---- --------
Call Forwarding, Holding, Catchphone
Function for simulating TS 24.604, TS 24.610, TS 24.615 call forwarding, call holding, and catchphone functions
---- ----------
VoLTE Conference Environment
Message Waiting Indication Configuration
Function for verifying TS 24.605 VoLTE Conference related tests (Event message, HOLD, etc.)
--
--
--------
Function for notifying users of voice mail services about arriving voice mail
---- --------
Function for creating and updating UE configuration data using XML file
------ ----------
Presence Instant Messaging RCS Address Book RCS 1 to 1 Chat (CPM) Group Chat
Function for referring UE configuration data using XML file Function for sending and receiving Instant Message using XML file Function for registering and saving UE contacts using RCS Function for 1 to 1 chat by connecting with CPM mode Function for multi party chat (Maximum 5 users)
------ ---------- ------ ---------- ------ ---------- ------ ---------- ------ ----------
File Transfer
Contents Sharing
SMS over IMS
SMS Message Send Test SMS Message Receive Test
IPv6
IP Address Allocation Test (RA)
Addressing IP Address Allocation Test (DHCPv6)
Function for sending and receiving same files between users Function for sharing same files between users Function for verifying UE SMS message sending Function for verifying UE SMS message receiving Function for verifying IP address setting at RA receiving Function for verifying IP address setting allocated from DHCPv6 server
------ ---------- ------ ---------- ------------ ------------ ---------------- ----------------
VoLTE Emergency VoLTE Emergency Call (Voice) Call
Function for verifying IP VoLTE Emergency Call
-- --------------
**12::
This The
option is unnecessary when a separate network-side user must create the test message script
UE
is
prepared.
23
Signalling Tester MD8475A/MD8475B Applications
New Services
New network services are being deployed at an increasing rate, requiring more-and-more tests for UEs supporting such new services. The MD8475A/MD8475B makes it easy to support new mobile test environments.
WLAN Offload Tests
Offloading data traffic to WLAN networks is being deployed as a technology for preventing traffic congestion on mobile networks. The MD8475A/MD8475B supports a WLAN data offload test environment.
WLAN Offload Basic Option MX847570A-070/MX847570B-070 The software option provides functions for forwarding packets between the UE and networks with both Trusted non-3GPP Access and Untrusted non-3GPP Access authentication functions, as well as for monitoring packets graphically.
ePDG Option MX847570A-071/MX847570B-071 The software option supports the IKEv2 key exchange procedure and IPsec communications functions for Untrusted non-3GPP Access network authentication.
ANDSF Option MX847570A-072/MX847570B-072 The software option supports the function for setting and distributing the system selection policy between 3GPP and WLAN (distributes Policy and Discovery Information according to request from UE, and receives Location and Profile reports from UE).
Extended ePDG Option MX847570A-073/MX847570B-073 The software option supports configuration of an ePDG status fault test environment for inserting errors into the ePDG sequence, setting timeouts, etc. Additionally, this option can be used to support Fast Re-Authentication (EAP-SIM/EAP-AKA) tests without the need to generate UE-side authentication keys.
Voice, SMS
3GPP Network 3G/4G Core
MD8475A/MD8475B IMS Server SmartStudio
Packet Data
WLAN
Wireless Services Gateway
WLAN Offload Option
Wi-Fi Calling Evaluation Environment
Wi-Fi Calling is a function for making voice calls and sending/ receiving SMS over WLAN. Using this function, voice calls can be made using the telephone number registered inside the SIM card. Combining the MD8475A/MD8475B with the WLAN option supports verification of Wi-Fi Calling voice calls as well as handover tests from VoLTE to Wi-Fi Calling and vice versa.
CSCF
ePDG Server
MD8475B Shield Box
To LTE network Hub
WLAN AP Voice call IPsec Tunneling
HSS PCRF
3GPP Access
S-GW
P-GW
S2b S2a
ePDG
Operator's IP Services
SWn
Trusted Non-3GPP
Access
Untrusted
SWa
Non-3GPP
Access
S2c
S2c
STa
S2c UE
SWu
AAA
24
Signalling Tester MD8475A/MD8475B Applications
Power Consumption Test
SmartStudio supports detailed settings such as changes to the UE RF output and stopping packet communications.
Base Station Settings Any messages, such as Paging Cycle, UL TPC, etc., can be sent to the UE*.
Support W-CDMA CPC, Ec/lor, etc.
Packets Communication State (RRC State Change) Settings
When packets stop passing over the network during data packet communications, the Cell Status can be transitioned at a specific timing to switch the UE to any RRC State. This is useful for configuring a test environment simulating a real network when testing battery life.
*: The settable items differ by the systems.
Check UE Tx RF Power
RF Measurement MX847506A Quick TRX Diagnosis MX847506B
Adding RF Measurement supports verification of UE Tx RF power. A UE power consumption test environment can be configured easily by combined use with SmartStudio base station settings from the UE. Further, BLER can be verified using graphical or tabulated data.
Power Consumption Test using SmartStudio Manager
The MX847503A SmartStudio Manager software is bundled with test cases for measuring the UE power consumption. In addition, the MX847503A can also control peripheral devices simultaneously, shortening the time required for configuring UE test environments.
RF Cable
SmartStudio
SmartStudio Manager
Power Supply
USB Cable
25
Signalling Tester MD8475A/MD8475B Applications
Flexible Base Station Settings
Base station settings are essential for testing UE connections. Not only does SmartStudio support frequency band and Tx and Rx power settings, it can also be set to behave as a real base station.
Setting Base Station Parameters
Cell Parameter Settings Up to 32 base station parameters can be saved in one file to prevent setting errors and assure fast, smooth testing when making slight changes to frequency and bandwidth before retesting.
Base Station Power Settings
The Tx/Rx power of the base station can be changed during testing to simulate Out-of-Service tests by stopping RF on Smartstudio.
Cell1 Cell2 Cell3
Cell1 Cell2 Cell3
Cell1 Cell2 Cell3
Cell1 Cell2 Cell3
At-a-Glance Confirmation of UE Performance
Moving the mouse cursor over the SmartStudio UE icon displays a summary of the UE capability information for easy confirmation of the categories, bands, etc., supported by the UE under test.
Setting Neighbor Cells
Neighbor cells can be set to display the mix of multiple cells for a UE graphically.
UE Capability Information LTE
Access Stratum Release = Rel.10 UE Category = 4, 6 Supported Band = 1, 3, 5, 7, 17 Band Combinations:
3A-5A, 5A-3A, 1A, 3A, 5A, 7A, 17A
System LTE
W-CDMA TD-SCDMA GSM/GPRS
26
Information Element Access Stratum Release UE Category Supported Band Band Combination Band Combination (Rel.11) Access Stratum Release HSDPA Category (Rel.7/Rel.8) HSUPA Category Supported Band Access Stratum Release HSDPA Category HSUPA Category Supported Band GPRS Multislot Class EGPRS Multislot Class Supported Band
Example Rel.12 4, 6, 9 1, 2, 3, 4 1A-2A, 3C 1A-2A, 3C Rel.10 10 (14/24) 6 I, II Rel.9 15 6 a, f 12 12 GSM E
Signalling Tester MD8475A/MD8475B Applications
Creating Environment for Difficult Tests on Live Network
Some UE tests cannot be run on a commercial live network and are difficult on a test network. SmartStudio makes it easy to support these tests.
Reject Tests
Attach Reject/Ignore
By setting specific messages, UE connection request can be rejected when the UE tries to connect the base station. In addition, the base station ignores messages from the UE by setting `Ignore', enabling confirmation of the UE behavior when messages are ignored.
APN Reject By setting specific messages, UE connection request can be rejected when the UE connects to the network.
Operator
Operator: A
Attach
NG
Reject
Operator: B
APN Attach
NG APN Reject
Barred Call and Emergency Call Tests
Access Class Control Sometimes, carriers limit access at events where there are too many people trying to call at once or during abnormally busy times like New Year. SmartStudio can configure an access control test environment, which is difficult to do on a live network.
Emergency Call Test Obviously, emergency calls cannot be tested on a live network but this is an essential test that must be performed. SmartStudio offers emergency call test settings and execution.
System
W-CDMA/ GSM
Control Method
Operation
Not Barred
No Access Control
Barred
Call barring for all communications
Emergency
Call barring for communications except emergency call
Emergency Alerts Tests Using the built-in SmartStudio PWS center function supports sending of emergency alerts like earthquake and tsunami warnings to the UE*. ETWS/CMAS messages can be sent at any timing simply by selecting created/edited messages.
� ETWS (Earthquake and Tsunami Warning System used in Japan) � CMAS (Commercial Mobile Alert System) North American Federal
and state government system for sending standard-format text and audio messages to TV broadcast stations
*: Supports LTE/W-CDMA/GSM.
Earthquake and Tsunami Warning
27
Signalling Tester MD8475A/MD8475B Applications
Configuring eCall Compliance to Application Test Environments
This solution makes it easy to configure an environment for emulating the eCall emergency rescue information system for automatically transmitting traffic accident information, including accident location, as well as for making voice calls to an emergency assistance Public Safety Answering Point (PSAP). Since emergency calls cannot be tested on live communications networks, combining the Signalling Tester MD8475A/B and eCall Tester MX703330E software is the perfect answer to testing IVS (In Vehicle System) communications functions.
eCall Tester MX703330E
The MX703330E emulates the eCall system IVS and PSAP communications sequence. It supports quasi-normal test of MSD timeout that are hard to simulate on a live network, as well as comparison of reference MSD (expected) and received data.
EU eCall Compliance Test
European Commission regulation (EU) 2017/79 approved sale of new M1 and N1 category in-vehicle eCall equipment from 31 March 2018. eCall is an emergency rescue information system for automatically transmitting traffic accident information, including accident location, as well as for making voice calls to an emergency assistance centre, or Public Safety Answering Point (PSAP). The eCall Tester with EN 16454 PSAP server function supports configuration of the type-certification test environment. Additionally, the interactive GUI simplifies parameter changes, while display of real-time MSD analysis data improves the efficiency of pre-compliance testing, including debugging.
*
M1 N1
Category: Category:
Passenger vehicles with driver and 8 or less Trucks up to 3.5 tonnes max. load weight
seats
Received MSD Lists
Set DL-Reference Power
PSAP Status Off Hook: Makes call with IVS unit
via SmartStudio On HooK: Terminates call with
IVS unit via SmartStudio
ERA-GLONASS Option SMS function tab
MSD Condition and Settings MSD Pull: Transmission to signal PSAP
modem (pull mode) Manual Reset: Force idle Enable Timeout Test: Timeout setting
Audio Level Meter: Input/Output
MSD Result (sequence and decode) Save: MSD result save at XML file
eCall Application Testing
Some IVS have requirements for both calling and Telematics functions while driving. Figure shows the handover between base stations during driving.
W-CDMA
GSM
Features
� EN16454-compliant � I mplements communications sequence tests between IVS and PSAP � Trace-displays status of eCall communications (MSD-Voice) and
MSD communications (in-band modem) � D isplays in-band modem sequence and MSD decode data (conversion
to meaningful data) execution results and outputs as data file � Sets reference MSD (expected values) and displays results of
comparison with received MSD � Simulates base station operation in eCall Tester background,
making specialist mobile protocol knowledge unnecessary for eCall evaluation � Performs external control of eCall tester using SmartStudio Manager automation tool to perform PSAP operations
28
Figure shows the situation when the IVS switches from a 4G network connection used by Telematics services during driving to a 2G/3G network connection for eCall functions when an accident occurs. To emulate this type of test environment, the MD8475A and eCall Tester software perform the handover and CS Fallback switching tests in combination with the eCall function test.
Requires Multi-Cell Option MX703330E-061.
LTE (for telematics) E112
GSM (for eCall)
One-touch handover test settings save time and eliminate user worries. The following cells are supported.
LTE
W-CDMA
GSM
LTE*
--
W-CDMA
GSM
*: VoLTE not supported
These tests help to greatly improve IVS quality and reliability.
Signalling Tester MD8475A Applications
eSIM OTA Verification Solution eUICC Profile Manager Z2002A
MD8475A with COMPRION's software eUICC Profile Manager can performing eSIM (Embedded SIM) test. eSIM allows the communication protocol information on a SIM to be changed via an OTA (Over the Air) environment.
Telematics/Infotainment CAN-FD/Flexray ECU ECU ECU ECU CAN-Body NW ECU ECU ECU ECU CAN-Control NW ECU ECU ECU ECU
Central Gateway Central Gateway
PLC ITS BT WiFi TCU
UL DL
RF Cable
Signalling Tester MD8475A Ethernet
eSIM
COMPRION
Sequence Flow COMPRION
Subscription Manager
Anritsu Test network
eUICC SIM Profile
Control Send SMS Command
Open PDP context and (SCP81) Profile download/enable Confirmation
Z2002A include following Software and USB dongle 1pc made by COMPRION.
Model No. 31000111 31000204 31000134 31000057 31000205 31000113 31000114 #3100 0171
Model name eUICC Profile Manager Network Simulation Control Connection Package Anritsu MD8475A Network Simulation Control Connection SMSC Simulation Anritsu MD8475A Signaling Control Profile Explorer Profile Loader M2M Dongle
Quantity 1
1
1 1 1
29
Signalling Tester MD8475A/MD8475B Automation Functions
Regression Tests Necessity
Verification of existing functions and regression testing are key elements of software update testing during UE development. Automated and repeated testing of known items to confirm the absence of new software bugs plays a major role in improving development efficiency and cutting costs.
Software Update
Feedback
UE Feature Development
Attach Test
Voice Test
SMS Test
Software Update
Attach Test
Analyze &
Modify Buliid
Run
Voice Test
Analyze &
Modify Buliid
Run
SMS Test
Analyze &
Modify Buliid
Run
Automated Testing with SmartStudio: SmartStudio Manager MX847503A
The SmartStudio Manager MX847503A software is for editing test sequences and running created test sequences automatically and continuously. This software automates manual testing using the SmartStudio MX847570A software. Automated, unmanned operation test improves efficiency. Additionally, Pass/Fail results can be reported along with the continuous test.
Test Sequence Editing Screen
1. Configure RAT & Network (SimParameters)
Test Sequence Continuous Execution Screen
2. Configure BTS (Cell Parameters)
3. Start Simulation 44..WUEaitUE response
Test Sequence Continuous Execution Results Display
30
Signalling Tester MD8475A/MD8475B Automation Functions
Regression Tests Necessity
UE Operation Auto-Recording/Auto-Executing: Smartphone Control Platform MX847504A
The MX847504A software option can records Android OS smartphone operations and offers an environment for creating, editing and running UE automated control scripts. Regression and stable operation confirmation testing of UE are easy using the intuitive editing environment with pre-installed scripts and GUI.
Current UE Type
Play & Record
Actual Display on UE and Virtual Control (taps and swipes)
Scriptlet List
Record Actions on physical UE Screen
AndroidTM is a trademark of Google Inc.
UE Control Method
Regression Tests and Test Sequences
SmartStudio Manager has various test sequences over 180. These test sequences can be used to confirm basic UE operations, such as making and answering voice calls and SMS messages, as well as measuring throughput. Users can use the AT command interface and Smartphone Control Platform MX847504A to control the UE remotely and perform continuous testing without hands-on UE operation.
Test Sequences (extract)
Category Registration Voice/Packet/SMS
PWS Cell Barred CS Emergency Stress Test Mobility WLAN Offload IMS/RCS
TS 09
Procedure Attach Out of Service Voice Packet SMS over SGs MOMR/ MTNR CSFB ETWS Primary + Secondary Notification CMAS Concurrent Notification CMAS Cell Barred Access Class Barred CS emergency CS emergency CSFB Voice Handover Throughput testing Cell Selection/Reselection Handover MOMR/MTNR SRVCC Untrusted non-3GPP access Trusted non-3GPP access MO/ MT SMS over IMS MOMR: Voice/Video Call Establishment/Release RCS Registration Stand-by test MOMR: Talk time Test MTNR: Talk time Test Packet Switch Transfer Test Browsing Test Streaming Content Test (Video/Audio) Video Telephony Test FTP Download Test
Comment Testing UE and base station registration, etc. Basic UE tests such as voice, data, CFSB, etc.
Emergency message tests Network restriction tests Emergency call tests Basic function tests and throughput tests Handover tests WLAN Offload tests IMS/RCS tests
TS 09 power consumption tests
31
Signalling Tester MD8475A
Signalling Tester MD8475A SmartStudio Test Functions
Function
Description
General
Position Registration*1
Connects UE and creates test environment
L1/L2 Counter
Counts values for each L1/L2 channel every second
Throughput Counter
Simultaneously displays PHY layer and IP Throughput (SDU)
Trace
Displays events for each layer as arrows
Reject
Returns arbitrary reject message when UE connected
Neighbor Cell Setting
Reports information to UE about BTS adjacent to BTS under test
RF Related
TRx Power Setting
Changes TRx power of BTS during Idle Communication
No Network Setting
Sets BTS Power output to OFF and switches UE to no network status
RF Monitor
Displays frequency, frequency error, and power for each channel such as PDSCH, PUSCH, etc.
TPC Setting
Changes TPC (Transmit Power Control) arbitrarily
AWGN
Sends AWGN in conjunction with normal signal
RF Measurement Options
Measures UE RF power at each second
External Control
Ethernet
Controls SmartStudio operation (parameter selection, start, etc.) from external PC
GPIB
Controls SmartStudio setting parameters from external PC
Voice/Video Communications
LTE FDD/TDD
VoLTE/Video Telephony Calling/Answering (Loopback) Executes call test for UE supporting Voice over LTE/Video over LTE
Emergency Call/Originating System
Sets emergency call, and VoLTE/Video call control at LTE
Codec Change
Changes audio and video codecs arbitrarily and executes UE switchover test
LTE FDD/TDD, W-CDMA, GSM, TD-SCDMA
CSFB/eCSFB*2
Auto-switches communication method when other system voice call received during LTE call
SRVCC*2
Performs seamless switch to CS voice call during VoLTE call
W-CDMA, GSM, TD-SCDMA
Voice Call/Answer/On-hook (Loopback/Echoback)
Performs loopback call test*3
Voice Call/Answer/On-hook (Handset)
Performs call test using headset
Emergency Call/Originating
Performs emergency call test with and without Test SIM
Caller ID Setting
Sets Caller ID notification/non-notification/notification disabled/public phone/ international call answer
Call Blocking (Release99) <Barred>
Sets call conditions for Release99 for W-CDMA, GSM, TD-SCDMA and bars all calls
Call Blocking (Release99) <Emergency>
Sets call conditions for Release99 for W-CDMA, GSM, TD-SCDMA and bars all calls except emergency calls
W-CDMA, TD-SCDMA
Videophone Call/Answer/On-hook (Loopback)
Performs loopback call test*3
Packet Data Communications
IPv4 Packet Test
Performs data TRx using IPv4
IPv6 Packet Test
Performs data TRx using IPv6
Packet Preservation/Dormant Test
Releases RRC Connection while preserving PDP Context
Multiple PDP Context/PDN Connect
Connects multiple PDN and performs multisession packet data test
State Change
Changes state from BTS during packet data communications
LTE FDD/TDD
SISO/MIMO Packet Calling/Answering
SISO/MIMO Packet UE Side Disconnect
Connects server and performs application test using packet data communications
SISO/MIMO Packet Network Side Disconnect
DL2CC Carrier Aggregation
Performs DL2CC carrier application tests
DL3CC Carrier Aggregation
Performs DL3CC carrier application tests
UL2CC Carrier Aggregation
Performs UL2CC carrier application tests
FDD/TDD Joint Operation
Performs FDD and TDD Joint Operation test
W-CDMA
W-CDMA/HSPA/HSPA Evolution Packet Calling/Answering
W-CDMA/HSPA/HSPA Evolution Packet UE Side Disconnect Connects server and performs application test using packet data communications
W-CDMA/HSPA/HSPA Evolution Packet Network Side Disconnect
PPP Packet Calling
Performs DL2CC carrier application tests
PPP Packet UE Side Disconnect
Performs DL3CC carrier application tests
PPP Packet Network Side Disconnect
Performs UL2CC carrier application tests
GSM
GPRS/EGPRS Packet Calling/Answering
GPRS/EGPRS Packet UE Side Disconnect
Connects server and performs application test using packet data communications
GPRS/EGPRS Packet Network Side Disconnect
TD-SCDMA TD-SCDMA/HSPA*7 Packet Calling/Answering TD-SCDMA/HSPA*7 Packet UE Side Disconnect
Connects server and performs application test using packet data communications
TD-SCDMA/HSPA*7 Packet Network Side Disconnect
Messaging
ETWS Message Sending
Performs ETWS message send test during Idle or Communication state
CMAS Message Sending
Performs CMAS message send test during Idle or Communication state
CBS Message Sending
Performs CBS message send test during Idle or Communication state
SMS Message Sending/Receiving
Performs SMS (7 bit-ASCII, Unicode, Binary) test using PS and CS networks*3
SMS over IMS Test
Performs SMS send/receive test via IMS server
SMS Message Continuous Sending MMS Sending/Receiving*8
Sends selected multiple SMS to UE continuously Performs MMS send/receive test
: Supported
MD 8475 A LTE W-CDMA GSM TD-SCDMA
-
-
-
-
-
-
-
-
-
*4
*6 *5
-
-
-
-
-
-
-
-
-
*1: Ciphering function not supported *2: Only dual system configuration is supported *3: Two-way tests using two UEs not supported *4: Requires two MD8475A sets for 2CC MIMO tests
32
*5: LTE-FDD/TDD Joint CA test is not supported. *6: Throughput limited up to 50 Mbps *7: DCH Measurement Occasion/Idle Interval Measurement Function are not supported *8: Requires separate MMS server
Signalling Tester MD8475A
Signalling Tester MD8475A Panel Layout
to
Power switch [RF Main] N-type Main I/O connector (N) [RF Aux1] N-type auxiliary I/O connector 1 (N) [RF Aux2] N-type auxiliary I/O connector 2 (N)
Left keys
Right keys [Pointer] Pointer
Cursor keys Enter key Off-hook key On-hook key Prev key Next key Help key Keyboard key Shift key [HDD] Hard disk access lamp Backspace key Numeric keypad, symbol keys [Handset] Handset connector [USB] USB connectors
[Trigger I/O Input] Trigger input connector (BNC) [Trigger I/O Output] Trigger output connector (BNC) [Call Proc Timing I/O A to F] Timing I/O connectors for call processing (15 Pin Mini D-Sub) Shared connectors D/E [Call Proc Serial I/O A to F] Serial I/O connectors for call processing (9 Pin Mini D-Sub) Shared connectors D/E
[eSATA] eSATA connector Microphone connector (�3.5 mm) Headphone connector (�3.5 mm) [Ethernet 1] Ethernet 1 connector (RJ-45) [Ethernet 0] Ethernet 0 connector (RJ-45) [ISDN] ISDN connector (RJ-45) <Option> [VGA] VGA connector (15 Pin Mini D-Sub) [RS-232C] RS-232C connector (9 Pin Mini D-Sub) [10 MHz Ref Input] Reference signal input connector (BNC) [10 MHz Buff Output] Reference signal input connector (BNC) [Freq Adj] Frequency adjustment [GPIB] GPIB connector [Call Proc Ethernet] Call Proc Ethernet I/O Port (RJ-45) Fading IO connector <Option> Power inlet (100 Vac to 120 Vac/200 Vac to 240 Vac)
33
Signalling Tester MD8475A
Signalling Tester MD8475A System Configurations/Option/Software
Main Frame Options 2nd RF MD8475A-001 This option is required for tests using two RF signals, such as 2-cell and MIMO tests.
Multi-cell Software MX847502A
This option is required when simultaneously activating two cells such as at handover tests within the same system, Inter-RAT tests between different systems, LTE Carrier Aggregation tests, etc.
RF Measurement MX847506A
Installing combinations of the MX847510A, MX847520A, and MX847550A software options supports extended RF Tx power accuracy, RF Rx power, and BLER measurements for each system.
Multimedia Interface Software MX847508A
This software is required for end-to-end voice tests between microphones and speakers (headsets) connected to the MD8475A and the mobile equipment. The W-CDMA and GSM AMR-NB (AMR Narrowband), GSM EFR (Enhanced Full Rate Speech), FR (Full Rate Speech), and HR (Half Rate Speech) codec can be used.
AMR-WB MX847508A-001
This option supports the W-CDMA AMR-WB (AMR Wideband) codecs. The MX847508A is required.
Supported voice codec list
Supported Codecs
AMR-NB (W-CDMA/GSM) GSM-EFR (GSM) GSM-FR (GSM) GSM-HR (GSM) AMR-WB (W-CDMA)
Multimedia Interface Software
MX847508A --
AMR-WB MX847508A-001
-- -- -- --
SmartStudio MX847570A
This software supports the user interface for scenario-less testing In addition to offering functions such as sending and receiving SMS messages, sending and receiving ETWS/CMAS messages, making and receiving voice calls, and sending and receiving data packets, it also supports CSCF server functions required for IMS service tests.
Automation Tool
SmartStudio Manager MX847503A This option increases the efficiency of evaluations by automating manual tests performed by the MX847570A SmartStudio software. In addition, the package includes test sequences required for evaluating basic functions.
eCall Tester Control Library MX847503A-923 This library option is for remote control of tests using the MX703330E eCall tester. Test automation without manual operation increases test efficiency.
Smartphone Control Platform MX847504A Recorded via ADB and UE automated control scripts can be created, edited and run. As well as supporting automated control from the MX847503A, two-way automatic control of the measuring instrument and UE supports an operator-free test environment for higher test efficiency.
W-CDMA
� Basic Configuration (Voice/Video/Packet)
Multi-signalling Unit MD8475A-070 W-CDMA Simulation Software MX847510A W-CDMA Option MX847570A-010 These are for basic W-CDMA configuration. These tests support voice, videophone, packet, and SMS tests.
� Options
HSPA Option MX847510A-001 This option supports HSPA UE categories defined by the 3GPP Release 5/Release 6 standards.
HSPA Evolution/DC-HSDPA Option MX847510A-011
HSPA Evolution/DC-HSDPA Option MX847570A-011
These options support HSPA Evolution and DC-HSPA packet communications tests for high-speed packet services used by W-CDMA systems.
3GPP TS 25.306 Category List for MX847570A
HSDPA
Total
HS-DSCH Category
HS-DSCH Codes
Minimum Inter-TTI
TB-Sizes
Number of Soft
Channel Bits
Modulation
Maximum Throughput
[bps]
5*
5
1
7298 57600 QPSK/16QAM 3649000
6
5
7*
10
8
10
1
7298 67200 QPSK/16QAM 3649000
1 14411 115200 QPSK/16QAM 7205500
1 14411 134400 QPSK/16QAM 7205500
9
15
1 20251 172800 QPSK/16QAM 10125500
10
15
1 27952 172800 QPSK/16QAM 13976000
12
5
1
3630 28800
QPSK
1815000
13
15
14
15
1 35280 259200 Not Applicable 17640000 (dual cell operation
1 42192 259200 not supported) 21096000
21
15
22
15
23
15
24
15
1 23370 345600 QPSK/16QAM 23370000
1 27952 345600 QPSK/16QAM 27952000
1 35280 518400 QPSK (16QAM) 35280000
1 42192 518400
64QAM
42192000
HSUPA
E-DCH E-DCH Category Codes
Minimum Spreading Factor
Support for TTI EDCH
3
2
SF4
10 ms TTI
5
2
SF2
10 ms TTI
6
4
SF2
10 ms TTI
*: Not supported when UE specifies a category.
TB-Sizes E-DCH TTI
14484 20000 14484
Maximum Throughput
[bps]
1459500
2918500
5760000
� Support Service
MX847510A 1Year Support Service MX847510A-SS110
This service contract offers customers 1 year of support for technical enquiries as well as updates to the latest software versions adding extra functionality and bug fixes via downloads from the web page.
34
Signalling Tester MD8475A
Signalling Tester MD8475A System Configurations/Option/Software
LTE
� Basic Configuration
Multi-signalling Unit MD8475A-070 LTE Simulation Software MX847550A LTE FDD Option MX847550A-010 LTE TDD Option MX847550A-015 LTE FDD Option MX847570A-050 LTE TDD Option MX847570A-055
These are for basic LTE FDD/TDD configuration. It supports both FDD and TDD technologies. These tests support confirmation of connections with LTE UEs during SISO, packet communications, and SMS sending/receiving. In addition, 2-cell tests are supported by installing the 2-cell Software MX847502A.
3GPP TS 36.306 V12.5.0 (2015-06) Category List Downlink physical layer parameter values set by the field ue-Category
UE DL Category Category 0 Category 1 Category 2 Category 3 Category 4 Category 5 Category 6
Category 7 Category 8 Category 9
Category 10
Category 11
Category 12
Maximum number of DL-SCH transport block bits received within a TTI
1000 10296 51024 102048 150752 299552 301504
301504 2998560
452256
452256
603008
603008
Maximum number of bits of a DL-SCH transport block
received within a TTI
1000
10296
51024
75376
75376
149776
149776 (4 layers, 64QAM) 75376 (2 layers, 64QAM)
149776 (4 layers, 64QAM) 75376 (2 layers, 64QAM)
299856
149776 (4 layers, 64QAM) 75376 (2 layers, 64QAM)
149776 (4 layers, 64QAM) 75376 (2 layers, 64QAM)
149776 (4 layers, 64QAM) 195816 (4 layers, 256QAM) 75376 (2 layers, 64QAM) 97896 (2 layers, 256QAM)
149776 (4 layers, 64QAM) 195816 (4 layers, 256QAM) 75376 (2 layers, 64QAM) 97896 (2 layers, 256QAM)
Total number of soft channel
bits
Maximum number of supported layers for spatial multiplexing
in DL
25344
1
250368
1
1237248
2
1237248
2
1827072
2
3667200
4
3654144
2 or 4
3654144 35982720
5481216
2 or 4 8
2 or 4
5481216
2 or 4
7308288
2 or 4
7308288
2 or 4
Uplink physical layer parameter values set by the field ue-Category
UE UL Category
Maximum number of Maximum number of bits of UL-SCH transport block an UL-SCH transport block bits transmitted within a TTI transmitted within a TTI
Category 0
1000
1000
Category 1
5160
5160
Category 2
25456
25456
Category 3
51024
51024
Category 4
51024
51024
Category 5
75376
75376
Category 6
51024
51024
Category 7
102048
51024
Category 8
1497760
149776
Category 9
51024
51024
Category 10
102048
51024
Category 11
51024
51024
Category 12
102048
51024
Support for 64QAM in UL No No No No No Yes No No Yes No No No No
� Options
LTE 2�2 MIMO Option MX847550A-020
This option adds 2�2 MIMO to the MX847550A. Supported LTE 2�2 MIMO Functions.*
LTE Carrier Aggregation Option MX847550A-040
This software options supports LTE 2CC Carrier Aggregation. It supports the 2CC SISO test environment. Additionally, installing the MX847550A-020 software supports the 2CC MIMO test environment.
Fading IO Option MD8475A-003
This hardware option is required for connecting two MD8475A sets or the combination of one MD8475A and one MD8430A. In addition, combining one MD8475A and one MF6900A Fading Simulator supports configuration of LTE FDD Fading test environment.
LTE RoHC Option MX847550A-060
This option adds better compression algorithms to improve LTE IP packet transfer efficiency.
Supported Profiles
IP 0x0000 0x0001 0x0002
Profile No compression (LTE)/Uncompressed (UMTS) RTP/UDP/IP UDP/IP
� Support Service
MX847550A 1Year Support Service MX847550A-SS110 This service contract offers customers 1 year of support for technical enquiries as well as updates to the latest software versions adding extra functionality and bug fixes via downloads from the web page.
*: Handover tests not supported when testing 2�2 MIMO.
35
Signalling Tester MD8475A
Signalling Tester MD8475A System Configurations/Option/Software
GSM
� Basic Configuration
GSM Signalling Unit MD8475A-020 GSM/GPRS Simulation Software MX847520A GSM Option MX847570A-020
This is the basic configuration for performing GSM/GPRS tests. It supports voice and packet communications tests, SMS sending and receiving, etc.
� Options
EGPRS Option MX847520A-001
This option supports EGPRS evaluation -- a GPRS high-speed, data communication method. Application tests using EGPRS communications are supported.
Supported EGPRS Specifications
Layer 1
Frequency Bandwidth Modulation & Coding Scheme
Number of Slots
Layer 2, 3 Standard
Channel Combination Broadcasting Control Channel ARQ Type Window Size
850, 900, 1800, 1900 MHz MCS 1, 2, 3, 4 (GMSK) MCS 5, 6, 7, 8, 9 (8PSK) Up to Multi Slot Class 12 (DL: 4/UL: 4/SUM: 5) Combination 11 & 13
BCCH/CCCH, PBCCH/PCCH
Type 1 64 to 192 3GPP Release 99
� Support Service
MX847520A 1Year Support Service MX847520A-SS110
This service contract offers customers 1 year of support for technical enquiries as well as updates to the latest software versions adding extra functionality and bug fixes via downloads from the web page.
TD-SCDMA
� Basic Configuration
TD-SCDMA Signalling Unit MD8475A-040 TD-SCDMA Simulation Software MX847540A TD-SCDMA Option MX847570A-040 These are for basic TD-SCDMA configuration which support voice, videophone, packet, and SMS tests.
� Options
TD-HSPA Option MX847540A-001 This is for evaluating all 3GPP TS 25.306 HSPA UE categories*1.
3GPP TS 25.306 TD-HSDPA
HS-DSCH category
Maximum number
of HSDSCH codes per timeslot
Maximum number
of HSDSCH timeslots per TTI
Maximum number of
HSDSCH transport channel bits can be received within an HSDSCH TTI
Total number of soft channel
bits
Maximum Throughput
[bps]
Category 1 to 3
16
2
2788
11264
557600
Category 4 to 6
16
2
5600
22528 1120000
Category 7 to 9
16
3
8416
33792 1688200
Category 10 to 12
16
4
11226
45056 2245200
Category 13 to 15
16
5
14043
56320 2808600
TD-HSUPA
E-DCH category
Maximum number of E-DCH timeslots per TTI
Maximum number of E-DCH transport channel bits that can be received
within an E-DCH TTI
Maximum Throughput
[bps]
Category 1
2*2
2754
550800
Category 2
3*2
4162
832400
Category 3
2*2
5532
1106400
Category 4
3*2
8348
1669600
Category 5
4*2
11160
2232000
Category 6
5*2
11160
2232000
*1: MX847570A supports Category 6 only. *2: One timeslot supports two physical channels when 16QAM not used.
� Support Service
MX847540A 1Year Support Service MX847540A-SS110
This service contract offers customers 1 year of support for technical enquiries as well as updates to the latest software versions adding extra functionality and bug fixes via downloads from the web page.
36
Signalling Tester MD8475A
Signalling Tester MD8475A System Configurations/Option/Software
IMS Options
IMS Script Basic Option MX847570A-060 This software supports scripting of the communication procedure between the test UE and CSCF server using a ladder sequence to provide a very flexible and expandable test environment.
XCAP Script Option MX847570A-061 This option provides a test environment with high flexibility and expandability for creating scripts using a ladder sequence to edit XCAP messages between the UE and server without the need to prepare an actual server.
Extended CSCF Option MX847570A-080 This software option adds functions for calling from the network to the UE as well as extended functions for CSCF-server-side network congestion and no response status.
IMS Supplementary Service Option MX847570A-081 This software option adds other service tests, including VoLTE caller ID display, call forwarding, call holding, etc.
RCS Basic Option MX847570A-083 This software option simulates RCS services. It is used to perform tests including RCS Configuration, Registration, Instant Messaging, etc.
GBA Authentication Option MX847570A-084 This option has the 3GPP GBA Authentication algorithm, authentication procedure and parameter settings for simulating GBA operations.
IMS Early Media Option MX847570A-085 This software supports IMS Early Media sequence tests. It can be used to confirm customized call tone services at the network side, such as NRBT (Network Ring Back Tone) and CAT (Customized Alerting Tone).
RTP Frame Control Option MX847570A-086 This option is for controlling media data (RTP packets) during VoLTE communications. It can be used to configure a voice environment in the MUTE status and with fixed data; a measurement environment can be configured for abnormal audio quality verification and battery power consumption tests in a fixed state.
� Support Service
MX847570A-060 1-Year Technical Support Service MX847570A-TS160 This contract offers customers support for technical enquiries for 1 year.
MX847570A-061 1-Year Technical Support Service MX847570A-TS161 This contract offers customers support for technical enquiries for 1 year.
WLAN Offload Options
WLAN Offload Basic Option MX847570A-070 This software option provides an EAP authentication server for performing EAP over RADIUS communications (EAP-SIM/EAP-AKA) between a WLAN access point and the EAP authentication server. Additionally, data access by the physical bearers is displayed to verify the 3GPP/WLAN switchover.
ePDG Option MX847570A-071 This software option provides an ePDG server for testing the UE functions at Untrusted non-3GPP Access by running IKEv2 key exchanges and IPsec communications between the UE and ePDG. It requires the MX847570A-070 option as well.
ANDSF Option MX847570A-072 This software option provides the ANDSF function for testing the UE functions after ANDSF policy distribution to the UE. It requires the MX847570A-070 options as well.
Extended ePDG Option MX847570A-073 This software option supports configuration of an ePDG status fault test environment for inserting errors into the ePDG sequence, setting timeouts, etc. Additionally, this option can be used to support Fast Re-Authentication (EAP-SIM/EAP-AKA) tests without the need to generate UE-side authentication keys. It requires the MX847570A-070/MX847570A-071.
37
Signalling Tester MD8475A
Signalling Tester MD8475A System Configurations/Option/Software
eCall Options
eCall Tester (Perpetual License) MX703330E-PL010
This option simulates the PSAP used by eCall services to support the eCall sequence (MSD call Voice call) between the IVS and PSAP at a road accident. The following test standards are supported:
� TS 26 .267 V8.6.0 (2011-03) � TS 26 .268 V8.6.0 (2011-03) � EN15722: 2015 � EN16062: 2015 � EN16454: 2015 � ISO3779: 2009
This option can be used as a test environment for model authentication in accordance with the EN16454 recommendations. This option provides audio replay and record functions.
MSD ERA GLONASS Option MX703330E-031
This option supports the MSD data communications function over SMS used by the ERA-GLONASS system The following test standards are supported:
� GOST R 54619-2011 � GOST R 54620-2011 � GOST R 54721-2011 � GOST R 55530-2013
EGTS Server ERA GLONASS Option MX703330E-032
This option provides a test environment to send/receive and encode/decode EGTS messages defined in the GOST R 54619/54620. MX703330E-031 is separately required.
NG112 LTE eCall Option MX703330E-041
This option provides functional tests for MSD data communication and voice call over IMS defined in the RFC8147 standard.
Multi-Cell Option MX703330E-061
This option provides the handover test environment required when setting two or more cells as well as the CS Fallback test environment at the eCall environment. Practical eCall module tests are supported using this option. The cell combinations are as follows:
LTE
LTE*
--
W-CDMA
GSM
*: VoLTE is not supported
W-CDMA
GSM
� Support Service
MX703330E 1-Year Support Service MX703330E-SS110
This service contract offers customers 1 year of support for technical enquiries as well as updates to the latest software versions adding extra functionality and bug fixes via downloads from the web page.
SSM Test PKG European eCall MX847503A-601
This test package provides automated test environment. Opening the test case on the SSM, it shows test procedures of test items defined in the (EC) 2017/79 and EN16454, and automatically configures the setting of MD8475A/MD8475B and eCall tester. This test package also has report functions for each standards.
SSM Test PKG GOST 33467 MX847503A-701
This test package provides automated test environment. Opening the test case on the SSM, it shows test procedures of test items defined in the GOST33457, and automatically configures the setting of MD8475A/MD8475B and eCall tester. This test package also has report functions for each standards.
38
Scenario Tools SIDE Software MX847580A SIP Option MX847580A-018 These software are for executing scenarios created using the MX843080A Scenario Integrated Development Environment in combination with the MX847510A, MX847520A, and MX847550A software.
Ciphering Option W-CDMA Ciphering Option MX847510A-050 This option adds the W-CDMA ciphering function*1, *2 and supports for KASUMI (3GPP-recommended algorithm).
GSM/GPRS Ciphering Option MX847520A-050 This option adds the GSM/GPRS ciphering function*1, *2 and supports both the GSM A5/1, A5/2, and A5/3 ciphering algorithms as well as the GPRS GEA/1, GEA/2, and GEA/3 ciphering algorithms.
TD-SCDMA Ciphering Option MX847540A-050 This option adds the TD-SCDMA ciphering function*1, *2 and supports SNOW 3G (3GPP-recommended algorithm).
LTE Ciphering Option MX847550A-050 This option adds the LTE ciphering function*1, *2 and supports SNOW 3G (3GPP-recommended algorithm) and AES.
*1: Does not work with MX847570A. *2: The Integrity Algorithm does not require this option.
Signalling Tester MD8475A
Signalling Tester MD8475A SmartStudio System Configuration
System Unit Unit Option Platform Software
Hardware Basic Configuration
Software
Options
Support Service User Interface
System Option
IMS SmartStudio License
WLAN Scripting Option Technical Support Service RF Measurement Remote Interface
eCall Option
LTE
FDD
TDD
W-CDMA
TD-SCDMA
GSM
Signalling Tester MD8475A
2nd RF MD8475A-001
Fading IO Option MD8475A-003
Multi-cell Software MX847502A
--
Multimedia Interface Software MX847508B
--
AMR-WB MX847508B-001
--
--
Multi Signalling Unit MD8475A-070
TD-SCDMA/HSPA Signalling Unit MD8475A-040
GSM Signalling Unit MD8475A-020
LTE Simulation Software MX847550A
LTE FDD Option MX847550A-010
LTE TDD Option MX847550A-015
W-CDMA Simulation Software
MX847510A
TD-SCDMA Simulation Software
MX847540A
GSM/GPRS Simulation Software
MX847520A
LTE 2�2 MIMO Option MX847550A-020
LTE Carrier Aggregation Option MX847550A-040
LTE RoHC Option MX847550A-060
HSPA Option MX847510A-001
HSPA Evolution/ DC-HSDPA Option MX847510A-011
TD-HSPA Option MX847540A-001
EGPRS Option MX847520A-001
LTE Ciphering Option MX847550A-050
W-CDMA Ciphering Option MX847510A-050
TD-SCDMA Ciphering Option MX847540A-050
GSM/GPRS Ciphering Option MX847520A-050
MX847550A 1Year Support Service
MX847550A-SS110
MX847510A 1Year Support Service
MX847510A-SS110
MX847540A 1Year Support Service
MX847540A-SS110
MX847520A 1Year Support Service
MX847520A-SS110
SmartStudio MX847570A
LTE FDD Option MX847570A-050
LTE TDD Option MX847570A-055
W-CDMA Option MX847570A-010
HSPA Evolution/ DC-HSDPA Option MX847570A-011
TD-SCDMA Option MX847570A-040
GSM Option MX847570A-020
Extended CSCF Option MX847570A-080
IMS Supplementary Service Option MX847570A-081
RCS Basic Option MX847570A-083
GBA Authentication Option MX847570A-084
IMS Early Media Option MX847570A-085
RTP Frame Control Option MX847570A-086
WLAN Offload Basic Option MX847570A-070
ePDG Option MX847570A-071
ANDSF Option MX847570A-072
Extended ePDG Option MX847570A-073
IMS Script Basic Option MX847570A-060
XCAP Script Option MX847570A-061
MX847570A-060 1 Year Technical Support Service MX847570A-TS160
MX847570A-061 1 Year Technical Support Service MX847570A-TS161
RF Measurement MX847506A
--
RF Measurement MX847506A
SmartStudio Manager MX847503A
eCall Tester Control Library MX847503A-923
Smartphone Control Platform MX847504A
eCall Tester (Perpetual License) MX703330E-PL010
eCall Tester
eCall Tester
(Perpetual License)
--
(Perpetual License)
MX703330E-PL010
MX703330E-PL010
MSD ERA GLONASS
MSD ERA GLONASS
--
Option
--
Option
MX703330E-031
MX703330E-031
EGTS Server ERA
EGTS Server ERA
--
GLONASS Option
--
GLONASS Option
MX703330E-032
MX703330E-032
NG112 LTE eCall Option MX703330E-041
Multi-Cell Option MX703330E-061
--
Multi-Cell Option MX703330E-061
MX703330E 1-Year Support Service
MX703330E-SS110
MX703330E
MX703330E
1-Year Support Service
--
1-Year Support Service
MX703330E-SS110
MX703330E-SS110
39
Signalling Tester MD8475A
Signalling Tester MD8475A Specifications
RF Connector Transmission Characteristics Reception Characteristics
General
Power Supply
Dimensions and Mass
Temperature Range & Humidity
EMC
CE
LVD
RoHS
RF Input/Output connector (Main, Aux 1, Aux 2) Connector: N type, Impedance: 50, VSWR: 1.5 (500 MHz to 3 GHz)
Reference oscillator Frequency: 10 MHz Level: TTL level Connector: BNC type Startup characteristics: �5 � 10�8 (10 minutes after power-on, referenced to frequency 24 hours after power-on) Aging rate: 2 � 10�8/day, 1 � 10�7/year (referenced to frequency 24 hours after power-on) Temperature characteristics: �2 � 10�8
External reference input Frequency: 10 MHz, Acceptable frequency range: �0.5 ppm, Level: 0 dBm, Impedance: 50, Connector: BNC type
Frequency Frequency range: 350 MHz to 3.6 GHz Setting resolution: 100 kHz (Depending on MX847501A used) Accuracy: Based on reference oscillator accuracy
Output level Level range: �130 to �10 dBm (Main, Aux1, Aux2) Resolution: 0.1 dB Transmission level �1.0 dB (�120 dBm Output level, 350 MHz Frequency 3 GHz, +20� to +30�C, after CAL) �1.2 dB (�120 dBm Output level, 3 GHz < Frequency 3.6 GHz, +20� to +30�C, after CAL)
Signal purity Non-harmonic spurious: �40 dBc (at 500 kHz frequency offset) Harmonics: �25 dBc
Frequency Frequency range: 350 MHz to 3.6 GHz Setting resolution: 100 kHz (Depending on MX847501A used)
Level Maximum input level: +35 dBm (Average) Input level range: �60 to +35 dBm (with MD8475A-010, MD8475A-011, MD8475A-030, MD8475A-032, MD8475A-050, MD8475A-070) �30 to +40 dBm (in-burst average power) (with MD8475A-020) Reference level: �60 to +35 dBm Reception level (with MX847506A) MX847510A �1.1 dB (�60 to +35 dBm, 350 MHz Frequency 3 GHz, +20� to +30�C, after CAL) �1.3 dB (�60 to +35 dBm, 3 GHz < Frequency 3.6 GHz, +20� to +30�C, after CAL) MX847520A �1.1 dB (�30 to +40 dBm, 350 MHz Frequency 3 GHz, +20� to +30�C, after CAL) �1.3 dB (�30 to +40 dBm, 3 GHz < Frequency 3.6 GHz, +20� to +30�C, after CAL) MX847550A �1.1 dB (�50 to +35 dBm, 350 MHz Frequency 3 GHz, +20� to +30�C, after CAL) �1.3 dB (�50 to +35 dBm, 3 GHz < Frequency 3.6 GHz, +20� to +30�C, after CAL) �2.0 dB (�60 to +35 dBm, 350 MHz Frequency 3.6 GHz, after CAL)
Variable range Rx level setting resolution: 1 dB
Display: Color TFT LCD screen, 12.1 inches (wide type), 1280 � 800 dots External interface
Trigger I/O: BNC Call Proc Timing I/O: 15-pin mini D-Sub connector Call Proc Serial I/O: D-sub connector, RS-232C level Call Proc Ethernet A/B: RJ-45 connector, 10Base-T/100Base-TX/1000Base-T Handset: RJ-11 connector Headphone: 3.5-mm dia. headphone jack Microphone: 3.5-mm dia. microphone jack USB: Type A, 4 ports RS-232C: D-sub connector, conforms to RS-232C GPIB: IEEE488 connector VGA: Mini D-Sub connector Ethernet 0/1: RJ-45 connector 10Base-T/100Base-TX/1000Base-T
100 Vac to 120 Vac (�10%)/200 Vac to 240 Vac (�15%/+10%, Max.: 250 Vac), 50 Hz to 60 Hz (Rating), 600 VA (Max.)
426 (W) � 221.5 (H) � 398 (D) mm (excl. protrusions), <25 kg (with all options)
Operation: +5� to +40�C, Storage: �20� to +60�C, 90% (no condensation)
2014/30/EU, EN61326-1, EN61000-3-2
2014/35/EU, EN61010-1
2011/65/EU, EN50581
40
Signalling Tester MD8475A Ordering Information
Signalling Tester MD8475A
Please specify the model/order number, name and quantity when ordering. The names listed in the chart below are Order Names. The actual name of the item may differ from the Order Name.
Model/Order No.
MD8475A
MX847500A MX847501A J0017F
P0035B P0035B7 J1440A Z0541A Z0975A A0058A
MD8475A-001 MD8475A-003
MX847502A MX847506A MX847508A MX847508A-001
MX847570A MX847570A-010 MX847570A-011 MX847570A-020 MX847570A-040 MX847570A-050 MX847570A-055 MX847570A-060 MX847570A-061 MX847570A-070 MX847570A-071 MX847570A-072 MX847570A-073 MX847570A-080 MX847570A-081 MX847570A-083 MX847570A-084 MX847570A-085 MX847570A-086
MD8475A-070 MX847550A MX847550A-010 MX847550A-015 MX847550A-020 MX847550A-040 MX847550A-060
MD8475A-070 MX847510A MX847510A-001 MX847510A-011
MD8475A-020 MX847520A MX847520A-001
MD8475A-040 MX847540A MX847540A-001
Name
Main frame Signalling Tester
Standard accessories Platform Software (Factory-installed) Control Software (Factory-installed) Power Cord, 2.6 m MD8475A CD-ROM (Operation manual) W-CDMA/GSM Test USIM (Standard UICC size) W-CDMA/GSM Test USIM (Micro UICC Size) LAN Cable (3 m) USB Mouse Keyboard (USB) Handset
Hardware options 2nd RF Fading IO Option
Software options Multi-cell Software RF Measurement Multimedia Interface Software AMR-WB
User interface SmartStudio W-CDMA Option HSPA Evolution/DC-HSDPA Option GSM Option TD-SCDMA Option LTE FDD Option LTE TDD Option IMS Script Basic Option XCAP Script Option WLAN Offload Basic Option ePDG Option ANDSF Option Extended ePDG Option Extended CSCF Option IMS Supplementary Service Option RCS Basic Option GBA Authentication Option IMS Early Media Option RTP Frame Control Option
LTE system Multi-signalling Unit LTE Simulation Software LTE FDD Option LTE TDD Option LTE 2�2 MIMO Option LTE Carrier Aggregation Option LTE RoHC Option
W-CDMA system Multi-signalling Unit W-CDMA Simulation Software HSPA Option HSPA Evolution/DC-HSDPA Option
GSM system GSM Signalling Unit GSM/GPRS Simulation Software EGPRS Option
TD-SCDMA system TD-SCDMA Signalling Unit TD-SCDMA Simulation Software TD-HSPA Option
Model/Order No.
MX847503A MX847503A-601 MX847503A-701 MX847503A-923 MX847504A Z1813A
MX847580A MX847580A-018
MX703330E-PL010 MX703330E-031 MX703330E-032 MX703330E-041 MX703330E-061
MX847510A-050 MX847520A-050 MX847540A-050 MX847550A-050
MX847510A-SS110 MX847520A-SS110 MX847540A-SS110 MX847550A-SS110 MX702600B-SS110 MX703330E-SS110
MX847570A-TS160 MX847570A-TS161 MX703330E-TS110
MD8475A-ES210 MD8475A-ES310 MD8475A-ES510
Name
Automation tools SmartStudio Manager SSM Test PKG European eCall SSM Test PKG GOST 33467 eCall Tester Control Library Smartphone Control Platform USB Dongle (Automation)
Scenario tools SIDE Execution Software SIP Execution Option
Automotive applications eCall Tester (Perpetual License) MSD ERA GLONASS Option EGTS Server ERA GLONASS Option NG112 LTE eCall Option Multi-Cell Option
Ciphering Options W-CDMA Ciphering Option GSM/GPRS Ciphering Option TD-SCDMA Ciphering Option LTE Ciphering Option
Software support services MX847510A 1Year Support Service MX847520A 1Year Support Service MX847540A 1Year Support Service MX847550A 1Year Support Service MX702600B 1Year Support Service MX703330E 1Year Support Service
Technical support services MX847570A-060 1 Year Technical Support Service MX847570A-061 1Year Technical Support Service MX703330E 1 Year Technical Support Service
Warranty 2 Years Extended Warranty Service 3 Years Extended Warranty Service 5 Years Extended Warranty Service
41
Signalling Tester MD8475A Ordering Information
Signalling Tester MD8475A
Model/Order No.
41KC-3 B0655A J0004 J0127A J0127B J0576B J0576D J0658 J1262A J1262B J1263 J1287 J1333A J1416A J1440A J1524A J1549A J1605A J1609A J1610A J1651A J1674A J1674E J1674K MN8150A P0035B P0035B7 P0135A6 P0135A7 P0135B6 P0135B7 P0250A6 P0250A7 P0250B6 P0250B7 P0260A6 P0260A7 P0260B6 P0260B7 Z0749 Z1908D Z1919B Z2002A
Name
Application parts Fixed Attenuator 3 dB Rack Mount Kit Coaxial Adaptor (N (male)-SMA (female)) Coaxial Cord, 1.0 m (BNC-P � RG58A/U � BNC-P) Coaxial Cord, 2.0 m (BNC-P � RG58A/U � BNC-P) Coaxial Cord, 1.0 m (N-P � 5D-2W � N-P) Coaxial Cord, 2.0 m (N-P � 5D-2W � N-P) Adapter (SMA male-female L-type) RS-232C Cable (Straight 2 m, male-female) RS-232C Cable (Crossover 2 m, male-female) W-CDMA Interface Cable (UE connection cable) HDD-SUB15P Cable (milli-inch, for connecting MN8110B) HDD-SUB15P Crossover Cable (inch) LVDS Cable LAN Cable Dsub15-BNC Conversion Cable LTE-C2K Sync Cable MD8475A 3GPP Sync Cable Signal Divider MD8475A 2CC MIMO Connect Cable Kit MD8475A Sync In Cable (for 3CC Test) SMA/P-SMA/P Soft Rigid Cable SMA/P-SMA/P Soft Rigid Cable (5 pcs) SMA/P-SMA/P Soft Rigid Cable (10 pcs) RF Combiner Unit W-CDMA/GSM Test USIM (Standard UICC Size) W-CDMA/GSM Test USIM (Micro UICC Size) Anritsu Test UICC GA (nano UICC Size) Anritsu Test UICC GA (Micro UICC Size) Anritsu Test UICC GA (nano UICC Size) Anritsu Test UICC GA (Micro UICC Size) Anritsu Test UICC GT (nano UICC Size) Anritsu Test UICC GT (Micro UICC Size) Anritsu Test UICC GT (nano UICC Size) Anritsu Test UICC GT (Micro UICC Size) Anritsu Test UICC GM (nano UICC Size) Anritsu Test UICC GM (Micro UICC Size) Anritsu Test UICC GM (nano UICC Size) Anritsu Test UICC GM (Micro UICC Size) MN8110B + Inch Screw Cable (for call processing I/O) Standard Laptop for SSM Standard Desktop for WLAN eUICC Profile Manager
42
Signalling Tester MD8475B
Signalling Tester MD8475B SmartStudio Test Functions
Function
Description
General Position Registration*1 L1/L2 Counter Throughput Counter Trace Reject Neighbor Cell Setting RF Related TRx Power Setting No Network Setting RF Monitor TPC Setting AWGN RF Measurement Options External Control Ethernet GPIB
Voice/Video Communications LTE FDD/TDD VoLTE/Video Telephony Calling/Answering (Loopback) Emergency Call/Originating System Codec Change LTE FDD/TDD, W-CDMA, GSM, TD-SCDMA
CSFB/eCSFB*3
SRVCC*3 W-CDMA, GSM, TD-SCDMA
Voice Call/Answer/On-hook (Loopback/Echoback) Voice Call/Answer/On-hook (Handset) Emergency Call/Originating
Caller ID Setting
Call Blocking (Release99) <Barred>
Call Blocking (Release99) <Emergency>
W-CDMA, TD-SCDMA Videophone Call/Answer/On-hook (Loopback)
Packet Data Communications IPv4 Packet Test IPv6 Packet Test Packet Preservation/Dormant Test Multiple PDP Context/PDN Connect State Change
IP Data Traffic Functions
LTE FDD/TDD SISO/MIMO Packet Calling/Answering SISO/MIMO Packet UE Side Disconnect SISO/MIMO Packet Network Side Disconnect DL2CC Carrier Aggregation DL3CC Carrier Aggregation DL4CC Carrier Aggregation DL5CC Carrier Aggregation UL2CC Carrier Aggregation FDD/TDD Joint Operation
W-CDMA W-CDMA/HSPA/HSPA Evolution Packet Calling/Answering W-CDMA/HSPA/HSPA Evolution Packet UE Side Disconnect W-CDMA/HSPA/HSPA Evolution Packet Network Side Disconnect PPP Packet Calling PPP Packet UE Side Disconnect PPP Packet Network Side Disconnect
GSM GPRS/EGPRS Packet Calling/Answering GPRS/EGPRS Packet UE Side Disconnect GPRS/EGPRS Packet Network Side Disconnect
TD-SCDMA TD-SCDMA/HSPA*7 Packet Calling/Answering TD-SCDMA/HSPA*7 Packet UE Side Disconnect TD-SCDMA/HSPA*7 Packet Network Side Disconnect
Messaging ETWS Message Sending CMAS Message Sending CBS Message Sending SMS Message Sending/Receiving SMS over IMS Test SMS Message Continuous Sending MMS Sending/Receiving*8
Connects UE and creates test environment Counts values for each L1/L2 channel every second Simultaneously displays PHY layer and IP Throughput (SDU) Displays events for each layer as arrows Returns arbitrary reject message when UE connected Reports information to UE about BTS adjacent to BTS under test
Changes TRx power of BTS during Idle Communication Sets BTS Power output to OFF and switches UE to no network status Displays frequency, frequency error, and power for each channel such as PDSCH, PUSCH, etc. Changes TPC (Transmit Power Control) arbitrarily Sends AWGN in conjunction with normal signal Measures UE RF power at each second
Controls SmartStudio operation (parameter selection, start, etc.) from external PC Controls SmartStudio setting parameters from external PC
Executes call test for UE supporting Voice over LTE/Video over LTE Sets emergency call, and VoLTE/Video call control at LTE Changes audio and video codecs arbitrarily and executes UE switchover test
Auto-switches communication method when other system voice call received during LTE call Performs seamless switch to CS voice call during VoLTE call
Performs loopback call test*4 Performs call test using headset Performs emergency call test with and without Test SIM Sets Caller ID notification/non-notification/notification disabled/public phone/ international call answer Sets call conditions for Release99 for W-CDMA, GSM, TD-SCDMA and bars all calls Sets call conditions for Release99 for W-CDMA, GSM, TD-SCDMA and bars all calls except emergency calls
Performs loopback call test*4
Performs data TRx using IPv4 Performs data TRx using IPv6 Releases RRC Connection while preserving PDP Context Connects multiple PDN and performs multisession packet data test Changes state from BTS during packet data communications Uses built-in packet generator to implement simple measurement system with automated high-reproducibility data throughput test
Connects server and performs application test using packet data communications
Performs DL2CC carrier application tests Performs DL3CC carrier application tests Performs DL4CC carrier application tests Performs DL5CC carrier application tests Performs UL2CC carrier application tests Performs FDD and TDD Joint Operation test
Connects server and performs application test using packet data communications
Performs DL2CC carrier application tests Performs DL3CC carrier application tests Performs UL2CC carrier application tests
Connects server and performs application test using packet data communications
Connects server and performs application test using packet data communications
Performs ETWS message send test during Idle or Communication state Performs CMAS message send test during Idle or Communication state Performs CBS message send test during Idle or Communication state Performs SMS (7 bit-ASCII, Unicode, Binary) test using PS and CS networks*4 Performs SMS send/receive test via IMS server Sends selected multiple SMS to UE continuously Performs MMS send/receive test
: Supported
MD 8475 B LTE W-CDMA*2 GSM*2 TD-SCDMA*2
-
-
-
-
-
-
-
-
-
*5 *6
-
-
-
-
-
-
-
-
-
*1: Ciphering function not supported *2: Support for installing the Enhanced Multi-signalling Unit (MD8475B-071) is expected
in future.
*3: Only dual system configuration supported *4: Two-way tests using two UEs not supported
*5: Limited to 50 Mbps throughput when MD8475B-070 installed *6: Requires MD8475B-071 *7: DCH Measurement Occasion/Idle Interval Measurement function not supported *8: Requires separate MMS server
43
Signalling Tester MD8475B
Signalling Tester MD8475B Panel Layout
to
Remote lamp Local key Power switch Headphone jack Microphone jack USB connectors Display Hard disk access lamp SMA-type DL Output 1/2/5/6 connector SMA-type DL Output 3/4/7/8 connector N-type Main I/O connector N-type auxiliary I/O 1/2 connector Power inlet Ethernet I/O connector for Measure Call Proc Ethernet I/O connectors USB connectors
44
Ethernet 1 connector Ethernet 0 connector Hard disk Sync Input connector Sync Output connectors VGA connector Reference signal input connector Reference signal output connector GPIB connector Trigger output connector Trigger input connector ARB I/O connector Timing I/O connectors for call processing Enhanced Baseband Interface connectors Safety label
Signalling Tester MD8475B
Signalling Tester MD8475B System Configurations/Option/Software
Main Frame Options
Extended RF MD8475B-002 This option is required to simulate the operation of three or more base-station cells. It supports 8Tx/4RX using the MD8475B.
Fading IO Option MD8475B-004 Combining the Signalling Tester MD8430A with the fading option and the MD8475B supports configuration of a fading test environment.
IP Extension Option MD8475B-005 This option enables FTP throughput testing with multiple external servers.
Multi-cell Software MX847502B This option is required when simultaneously activating two or more cells such as at handover tests within the same system, Inter-RAT tests between different systems, LTE Carrier Aggregation tests, etc.
Multimedia Interface Software MX847508B This option is required when performing end-to-end voice tests with microphones and speakers (headset) connected to the MD8475B. It can be used for W-CDMA and GSM AMR-NB (AMR Narrowband), GSM EFR (Enhanced Full Rate Speech), FR (Full Rate Speech), and HR (Half Rate Speech) codecs.
AMR-WB MX847508B-001 This option supports the W-CDMA AMR-WB (AMR Wideband) codec. It requires the MX847508B.
Supported voice codec list
Supported Codecs
AMR-NB (W-CDMA/GSM) GSM-EFR (GSM) GSM-FR (GSM) GSM-HR (GSM) AMR-WB (W-CDMA)
Multimedia Interface Software
MX847508B --
AMR-WB MX847508B-001
-- -- -- --
SmartStudio MX847570B
This software supports the user interface for scenario-less testing. In addition to offering functions such as sending and receiving SMS messages, sending and receiving ETWS/CMAS messages, making and receiving voice calls, and sending and receiving data packets, it also supports CSCF server functions required for IMS service tests.
� Support Service
MX847570B 1Year Support Service MX847570B-SS110
This service contract offers customers 1 year of support for technical enquiries as well as updates to the latest software versions adding extra functionality and bug fixes via downloads from the web page.
W-CDMA
� Basic Configuration (Voice/Video/Packet)
Multi-signalling Unit MD8475B-070 W-CDMA Simulation Software MX847510B W-CDMA Option MX847570B-010
These are for basic W-CDMA configuration. These tests support voice, videophone, packet, and SMS tests.
� Options
HSPA Evolution/DC-HSDPA Option MX847510B-011 HSPA Evolution/DC-HSDPA Option MX847570B-011
These options support HSPA Evolution and DC-HSPA packet communications tests for high-speed packet services used by W-CDMA systems.
3GPP TS 25.306 Category List for MX847570A HSDPA
Total
HS-DSCH Category
HS-DSCH Codes
Minimum Inter-TTI
TB-Sizes
Number of Soft
Channel Bits
Modulation
Maximum Throughput
[bps]
5*
5
1
7298 57600 QPSK/16QAM 3649000
6
5
1
7298 67200 QPSK/16QAM 3649000
7*
10
1 14411 115200 QPSK/16QAM 7205500
8
10
1 14411 134400 QPSK/16QAM 7205500
9
15
1 20251 172800 QPSK/16QAM 10125500
10
15
1 27952 172800 QPSK/16QAM 13976000
12
5
1
3630 28800
QPSK
1815000
13
15
14
15
1 35280 259200 Not Applicable 17640000 (dual cell operation
1 42192 259200 not supported) 21096000
21
15
1 23370 345600 QPSK/16QAM 23370000
22
15
1 27952 345600 QPSK/16QAM 27952000
23
15
1 35280 518400 QPSK/16QAM 35280000
24
15
1 42192 518400
64QAM
42192000
HSUPA
E-DCH E-DCH Category Codes
3
2
5
2
6
4
Minimum Spreading Factor
SF4
SF2
SF2
Support for TTI EDCH
10 ms TTI 10 ms TTI 10 ms TTI
*: Not supported when UE specifies a category
TB-Sizes E-DCH TTI
14484 20000 14484
Maximum Throughput
[bps]
1459500
2918500
5760000
45
Signalling Tester MD8475B
Signalling Tester MD8475B System Configurations/Option/Software
LTE
� Basic Configuration
Multi-signalling Unit MD8475B-070 Enhanced Multi-signalling Unit MD8475B-071 LTE Simulation Software MX847550B LTE Option MX847570B-050
These are for basic LTE FDD/TDD configuration. It supports both FDD and TDD technologies. These tests support confirmation of connections with LTE UEs during SISO, packet communications, and SMS sending/receiving. In addition, multi-cell tests are supported by installing the Multi-cell Software MX847502B.
3GPP TS 36.306 V14.10.0 (2019-03) Category List Downlink physical layer parameter values set by the field UE-Category
UE DL Category DL Category M1 DL Category M2 DL Category 0 DL Category 1 bis DL Category 4 DL Category 6 DL Category 7 DL Category 9 DL Category 10 DL Category 11 DL Category 12 DL Category 13 DL Category 14
DL Category 15
DL Category 16
DL Category 17
DL Category 18
46
Maximum number of
DL-SCH transport block bits received within a TTI
Maximum number of bits of a DL-SCH transport block received within a TTI
1000
1000
4008
4008
1000
1000
10296
10296
150752
75376
301504
149776 (4 layers, 64QAM) 75376 (2 layers, 64QAM)
301504
149776 (4 layers, 64QAM) 75376 (2 layers, 64QAM)
452256
149776 (4 layers, 64QAM) 75376 (2 layers, 64QAM)
452256
149776 (4 layers, 64QAM) 75376 (2 layers, 64QAM)
603008
149776 (4 layers, 64QAM) 195816 (4 layers, 256QAM) 75376 (2 layers, 64QAM) 97896 (2 layers, 256QAM)
603008
149776 (4 layers, 64QAM) 195816 (4 layers, 256QAM) 75376 (2 layers, 64QAM) 97896 (2 layers, 256QAM)
391632
195816 (4 layers, 256QAM) 97896 (2 layers, 256QAM)
3916560 391656 (8 layers, 256QAM)
749856807744
149776 (4 layers, 64QAM) 195816 (4 layers, 256QAM, if alternativeTBS-Index-r14 is not supported) 201936 (4 layers, 256QAM, if alternativeTBS-Index-r14 is supported) 75376 (2 layers, 64QAM) 97896 (2 layers, 256QAM, if alternativeTBS-Index-r14 is not supported) 100752 (2 layers, 256QAM, if alternativeTBS-Index-r14 is supported)
9789601051360
149776 (4 layers, 64QAM) 195816 (4 layers, 256QAM, if alternativeTBS-Index-r14 is not supported) 201936 (4 layers, 256QAM, if alternativeTBS-Index-r14 is supported) 75376 (2 layers, 64QAM) 97896 (2 layers, 256QAM, if alternativeTBS-Index-r14 is not supported) 100752 (2 layers, 256QAM, if alternativeTBS-Index-r14 is supported)
25065984 391656 (8 layers, 256QAM)
11747521211616
[299856 (8 layers, 64QAM) 391656 (8 layers, 256QAM)] 149776 (4 layers, 64QAM) 195816 (4 layers, 256QAM, if alternativeTBS-Index-r14 is not supported) 201936 (4 layers, 256QAM, if alternativeTBS-Index-r14 is supported) 75376 (2 layers, 64QAM) 97896 (2 layers, 256QAM, if alternativeTBS-Index-r14 is not supported) 100752 (2 layers, 256QAM, if alternativeTBS-Index-r14 is supported)
Total number of soft channel
bits 25344 73152 25344
250368 1827072 3654144 3654144 5481216 5481216 7308288
7308288 3654144 47431680
9744384
12789504
303562752
14616576
Maximum number of supported layers for
spatial multiplexing
in DL 1 1 1 1 2
2 or 4 2 or 4 2 or 4 2 or 4 2 or 4
2 or 4 2 or 4
8
2 or 4
2 or 4
8
2 or 4 [or 8]
UE DL Category DL Category 19 DL Category 20 DL Category 21
Maximum number of
DL-SCH transport block bits received within a TTI
15663361658272
19480642019360
13489601413120
Maximum number of bits of a DL-SCH transport block received within a TTI
[299856 (8 layers, 64QAM) 391656 (8 layers, 256QAM)] 149776 (4 layers, 64QAM) 195816 (4 layers, 256QAM, if alternativeTBS-Index-r14 is not supported) 201936 (4 layers, 256QAM, if alternativeTBS-Index-r14 is supported) 75376 (2 layers, 64QAM) 97896 (2 layers, 256QAM, if alternativeTBS-Index-r14 is not supported) 100752 (2 layers, 256QAM, if alternativeTBS-Index-r14 is supported)
[299856 (8 layers, 64QAM) 391656 (8 layers, 256QAM)] 149776 (4 layers, 64QAM) 195816 (4 layers, 256QAM, if alternativeTBS-Index-r14 is not supported) 201936 (4 layers, 256QAM, if alternativeTBS-Index-r14 is supported) 75376 (2 layers, 64QAM) 97896 (2 layers, 256QAM, if alternativeTBS-Index-r14 is not supported) 100752 (2 layers, 256QAM, if alternativeTBS-Index-r14 is supported)
149776 (4 layers, 64QAM) 195816 (4 layers, 256QAM, if alternativeTBS-Index-r14 is not supported) 201936 (4 layers, 256QAM, if alternativeTBS-Index-r14 is supported) 75376 (2 layers, 64QAM) 97896 (2 layers, 256QAM, if alternativeTBS-Index-r14 is not supported) 100752 (2 layers, 256QAM, if alternativeTBS-Index-r14 is supported)
Total number of soft channel
bits
19488768
24360960
17052672
Maximum number of supported layers for
spatial multiplexing
in DL
2 or 4 [or 8]
2 or 4 [or 8]
2 or 4
Uplink physical layer parameter values set by the field UE-Category
UE UL Category
UL Category M1 UL Category M2 UL Category 0 UL Category 1 bis UL Category 3 UL Category 5 UL Category 7 UL Category 8 UL Category 13 UL Category 14 UL Category 15 UL Category 16 UL Category 17 UL Category 18 UL Category 19 UL Category 20 UL Category 21
Maximum number of UL-SCH transport
block bits transmitted within a TTI
Maximum number of bits of an UL-SCH transport block
transmitted within a TTI
Support for Support for
64QAM 256QAM
in UL
in UL
1000 or 2984
1000 or 2984
No
No
6968
6968
No
No
1000
1000
No
No
5160
5160
No
No
51024
51024
No
No
75376
75376
Yes
No
102048
51024
No
No
1497760
149776
Yes
No
150752
75376
Yes
No
9585664
149776
Yes
No
226128
75376
Yes
No
105528
105528
Yes
Yes
2119360
211936
Yes
Yes
211056
105528
Yes
Yes
13563904
211936
Yes
Yes
316584
105528
Yes
Yes
301504
75376
Yes
No
* These UE Category tables show the case when MD8475B-071 is installed.
Signalling Tester MD8475B
Signalling Tester MD8475B System Configurations/Option/Software
� Options
LTE 2�2 MIMO Option MX847550B-020 This option adds 2�2 MIMO to the MX847550B.
LTE 4�4 MIMO Option MX847550B-021 This option adds 4�4 MIMO to the MX847550B.
LTE Licensed Assisted Access (LAA) Option MX847550B-030
This software option provides LTE Licensed Assisted Access (LAA) capability that can be used with the MIMO options and the Carrier Aggregation Options.
LTE Carrier Aggregation Option MX847550B-040
This software option supports LTE 2CC Carrier Aggregation. It supports the 2CC SISO test environment. Additionally, installing the MX847550B-020 software supports the 2CC MIMO test environment.
LTE Carrier Aggregation DL3CCs Option MX847550B-041
This software option supports LTE 3CC Carrier Aggregation. It supports the 3CC SISO test environment. Additionally, installing the MX847550B-020 software supports the 3CC MIMO test environment.
LTE Carrier Aggregation DL4CCs Option MX847550B-042
This software option supports LTE 4CC Carrier Aggregation. It supports the 4CC SISO test environment. Additionally, installing the MX847550B-020 software supports the 4CC MIMO test environment.
LTE Carrier Aggregation DL5CCs Option MX847550B-043
This software option supports LTE 5CC Carrier Aggregation. It supports the 5CC SISO test environment. Additionally, installing the MX847550B-020 software supports the 5CC MIMO test environment.
LTE RoHC Option MX847550B-060
This option adds better compression algorithms to improve LTE IP packet transfer efficiency.
Supported Profiles
IP 0x0000 0x0001 0x0002
Profile No compression (LTE)/Uncompressed (UMTS) RTP/UDP/IP UDP/IP
GSM
� Basic Configuration
GSM Signalling Unit MD8475B-020 GSM/GPRS Simulation Software MX847520B GSM Option MX847570B-020
This is the basic configuration for performing GSM/GPRS tests. It supports voice and packet communications tests, SMS sending and receiving, etc. Additionally, it can be used for evaluating application functions using EGPRS communications for EGPRS highspeed data communications.
Supported EGPRS Specifications
Layer 1
Layer 2, 3 Standard
Frequency Bandwidth Modulation & Coding Scheme
Number of Slots
Channel Combination Broadcasting Control Channel ARQ Type Window Size
850, 900, 1800, 1900 MHz MCS 1, 2, 3, 4 (GMSK) MCS 5, 6, 7, 8, 9 (8PSK) Up to Multi Slot Class 12 (DL: 4/UL: 4/SUM: 5) Combination 11 & 13
BCCH/CCCH, PBCCH/PCCH
Type 1 64 to 192 3GPP Release 99
LTE 20 Layers Extension Option MX847550B-070
This option enables LTE 20 Layers (LTE 5CC, 4�4 MIMO) testing. If this option is not installed, LTE 16 Layers (4�4 MIMO for 3CCs and 2�2 MIMO for 2CCs out of LTE 5CCs) is maximum.
47
Signalling Tester MD8475B
Signalling Tester MD8475B System Configurations/Option/Software
TD-SCDMA
� Basic Configuration
TD-SCDMA Signalling Unit MD8475B-040 TD-SCDMA Simulation Software MX847540B TD-SCDMA Option MX847570B-040
These are for basic TD-SCDMA/TD-HSUPA*1 configuration which support voice, videophone, packet, and SMS tests.
3GPP TS 25.306 TD-HSDPA
HS-DSCH category
Maximum number
of HSDSCH codes per timeslot
Maximum number
of HSDSCH timeslots per TTI
Maximum number of
HSDSCH transport channel bits can be received within an HSDSCH TTI
Total number of soft channel
bits
Maximum Throughput
[bps]
Category 1 to 3
16
2
2788
11264
557600
Category 4 to 6
16
2
5600
22528 1120000
Category 7 to 9
16
3
8416
33792 1688200
Category 10 to 12
16
4
11226
45056 2245200
Category 13 to 15
16
5
14043
56320 2808600
TD-HSUPA
E-DCH category
Maximum number of E-DCH timeslots per TTI
Maximum number of E-DCH transport channel bits that can be received
within an E-DCH TTI
Maximum Throughput
[bps]
Category 1
2*2
2754
550800
Category 2
3*2
4162
832400
Category 3
2*2
5532
1106400
Category 4
3*2
8348
1669600
Category 5
4*2
11160
2232000
Category 6
5*2
11160
2232000
*1: MX847570B supports Category 6 only. *2: One timeslot supports two physical channels when 16QAM not used.
IMS Options
IMS Script Basic Option MX847570B-060 This software supports scripting of the communication procedure between the test UE and CSCF server using a ladder sequence to provide a very flexible and expandable test environment.
XCAP Script Option MX847570B-061 This option provides a test environment with high flexibility and expandability for creating scripts using a ladder sequence to edit XCAP messages between the UE and server without the need to prepare an actual server.
IMS Log Import Option MX847570B-062 This software option enables importing Wireshark logs, and create IMS script automatically. This Script is editable using Add-in Sever window. This option help flexible evaluation of IMS.
Extended CSCF Option MX847570B-080 This software option adds functions for calling from the network to UE as well as extended functions for CSCF-server-side network congestion and no response status.
IMS Supplementary Service Option MX847570B-081 This software option adds other service tests, including VoLTE caller ID display, call forwarding, call holding, etc.
RCS Basic Option MX847570B-083 This software option simulates RCS services. It is used to perform tests including RCS Configuration, Registration, Instant Messaging, etc.
GBA Authentication Option MX847570B-084 This option has the 3GPP GBA Authentication algorithm, authentication procedure and parameter settings for simulating GBA operations.
IMS Early Media Option MX847570B-085 This software supports IMS Early Media sequence tests. It can be used to confirm customized call tone services at the network side, such as NRBT (Network Ring Back Tone) and CAT (Customized Alerting Tone).
RTP Frame Control Option MX847570B-086 This option is for controlling media data (RTP packets) during VoLTE communications. It can be used to configure a voice environment in the MUTE status and with fixed data; a measurement environment can be configured for abnormal audio quality verification and battery power consumption tests in a fixed state.
� Support Service (IMS options)
MX847570B-060 1-Year Technical Support Service MX847570B-TS160 This contract offers customers support for technical enquiries for 1 year.
MX847570B-061 1 Year Technical Support Service MX847570B-TS161 This contract offers customers support for technical enquiries for 1 year.
48
Signalling Tester MD8475B
Signalling Tester MD8475B System Configurations/Option/Software
WLAN Offload Options
WLAN Offload Basic Option MX847570B-070 This software option provides an EAP authentication server for performing EAP over RADIUS communications (EAP-SIM/EAP- AKA) between a WLAN access point and the EAP authentication server. Additionally, data access by the physical bearers is displayed to verify the 3GPP/WLAN switchover.
ePDG Option MX847570B-071 This software option provides an ePDG server for testing the UE functions at Untrusted non-3GPP Access by running IKEv2 key exchanges and IPsec communications between the UE and ePDG. It requires the MX847570B-070 option as well.
ANDSF Option MX847570B-072 This software option provides the ANDSF function for testing the UE functions after ANDSF policy distribution to the UE. It requires the MX847570B-070 options as well.
Extended ePDG Option MX847570B-073 This software option supports configuration of an ePDG status fault test environment for inserting errors into the ePDG sequence, setting timeouts, etc. Additionally, this option can be used to support Fast Re-Authentication (EAP-SIM/EAP-AKA) tests without the need to generate UE-side authentication keys. It requires the MX847570B-070/ MX847570B-071.
eCall Options
eCall Tester (Perpetual License) MX703330E-PL010
This option simulates the PSAP used by eCall services to support the eCall sequence (MSD call Voice call) between the IVS and PSAP at a road accident. The following test standards are supported:
� TS 26 .267 V8.6.0 (2011-03) � TS 26 .268 V8.6.0 (2011-03) � EN15722: 2015 � EN16062: 2015 � EN16454: 2015 � ISO3779: 2009
This option can be used as a test environment for model authentication in accordance with the EN16454 recommendations. This option provides audio replay and record functions.
MSD ERA GLONASS Option MX703330E-031
This option supports the MSD data communications function over SMS used by the ERA-GLONASS system The following test standards are supported:
� GOST R 54619-2011 � GOST R 54620-2011 � GOST R 54721-2011 � GOST R 55530-2013
EGTS Server ERA GLONASS Option MX703330E-032
This option provides a test environment to send/receive and encode/decode EGTS messages defined in the GOST R 54619/54620. MX703330E-031 is separately required.
NG112 LTE eCall Option MX703330E-041
This option provides functional tests for MSD data communication and voice call over IMS defined in the RFC8147 standard.
Multi-Cell Option MX703330E-061
This option provides the handover test environment required when setting two or more cells as well as the CS Fallback test environment at the eCall environment. Practical eCall module tests are supported using this option. The cell combinations are as follows:
LTE
LTE*
--
W-CDMA
GSM
*: VoLTE is not supported
W-CDMA
GSM
� Support Service
MX703330E 1-Year Support Service MX703330E-SS110
This service contract offers customers 1 year of support for technical enquiries as well as updates to the latest software versions adding extra functionality and bug fixes via downloads from the web page.
SSM Test PKG European eCall MX847503A-601
This test package provides automated test environment. Opening the test case on the SSM, it shows test procedures of test items defined in the (EC) 2017/79 and EN16454, and automatically configures the setting of MD8475A/MD8475B and eCall tester. This test package also has report functions for each standards.
SSM Test PKG GOST 33467 MX847503 A-701
This test package provides automated test environment. Opening the test case on the SSM, it shows test procedures of test items defined in the GOST33467, and automatically configures the setting of MD8475A/MD8475B and eCall tester. This test package also has report functions for each standards.
49
Signalling Tester MD8475B
Signalling Tester MD8475B System Configurations/Option/Software
Scenario Tools SIDE Software MX847580B SIP Option MX847580B-018 These software are for executing scenarios created using the MX843080A Scenario Integrated Development Environment in combination with the MX847510B, MX847520B, and MX847550B software.
Ciphering Option W-CDMA Ciphering Option MX847510B-050 This option adds the W-CDMA ciphering function*1, *2 and supports for KASUMI (3GPP-recommended algorithm).
GSM/GPRS Ciphering Option MX847520B-050 This option adds the GSM/GPRS ciphering function*1, *2 and supports both the GSM A5/1, A5/2, and A5/3 ciphering algorithms as well as the GPRS GEA/1, GEA/2, and GEA/3 ciphering algorithms.
TD-SCDMA Ciphering Option MX847540B-050 This option adds the TD-SCDMA ciphering function*1, *2 and supports SNOW 3G (3GPP-recommended algorithm).
LTE Ciphering Option MX847550B-050 This option adds the LTE ciphering function*1, *2 and supports SNOW 3G (3GPP-recommended algorithm) and AES.
*1: Does not work with MX847570B. *2: The Integrity Algorithm does not require this option.
Upgrade Kits*
MD8475A to MD8475B Upgrade MD8475B-UG101 MD8475A to MD8475B Upgrade (with Ciphering) MD8475B-UG102 MD8475A to MD8475B Upgrade (with SIDE) MD8475B-UG103 MD8475A to MD8475B Upgrade (with Ciphering/SIDE) MD8475B-UG104 MD8475A to MD8475B Upgrade MD8475B-UG201 MD8475A to MD8475B Upgrade (with Ciphering) MD8475B-UG202 MD8475A to MD8475B Upgrade (with SIDE) MD8475B-UG203 MD8475A to MD8475B Upgrade (with Ciphering/SIDE) MD8475B-UG204 These retrofit kits upgrade the MD8475A in use to the MD8475B.
MSU Upgrade MD8475B-UG170 MSU Upgrade MD8475B-UG270 When upgrading the MD8475A in use to the MD8475B specifications, if a legacy unit such as the MD8475A-010 or MD8475A-040 is installed that cannot be transferred to the MD8475B-070 Multisignalling Unit, the legacy unit must be changed to the MD8475B-070 with these retrofit kits.
*: Upgrade kit models vary according to the configuration of the MD8475A
options in use; contact our sales section for more details.
eMSU Upgrade MD8475B-UG171 eMSU Upgrade MD8475B-UG271 The MD8475A-011, MD8475A-050 and MD8475A-070 can be changed to the MD8475B-071 when upgrading the MD8475A to the MD8475B.
eMSU Upgrade MD8475B-UG179 eMSU Upgrade MD8475B-UG279 The MD8475B-070 can be changed to the MD8475B-071.
Automation Tool
SmartStudio Manager MX847503A This option increases the efficiency of evaluations by automating manual tests performed by the MX847570B SmartStudio software. In addition, the package includes test sequences required for evaluating basic functions.
Smartphone Control Platform MX847504A Using this option, Android OS smartphone operations can be recorded via ADB and UE automated control scripts can be created, edited and run. As well as supporting automated control from the MX847503A, two-way automatic control of the measuring instrument and UE supports an operator-free test environment for higher test efficiency.
50
Signalling Tester MD8475B
Signalling Tester MD8475B SmartStudio System Configuration
System Unit Unit Option Platform Software
Hardware Basic Configuration
Software
Options
Support Service User Interface
System Option
SmartStudio IMS Licence
WLAN Scripting Option Technical Support Service Remote Interface
eCall Option
LTE
LTE-A
LTE
W-CDMA
TD-SCDMA
GSM
Signalling Tester MD8475B
Extended RF MD8475B-002
Fading IO Option MD8475B-004
Multi-cell Software MX847502B
--
Multimedia Interface Software MX847508B
--
AMR-WB MX847508B-001
--
--
Multi Signalling Unit MD8475B-070
GSM Signalling Unit MD8475B-020
Enhanced Multi-signalling Unit MD8475B-071
--
--
--
LTE Simulation Software MX847550B
W-CDMA Simulation Software
MX847510B
TD-SCDMA Simulation Software
MX847540B
GSM/GPRS Simulation Software
MX847520B
LTE 2�2 MIMO Option MX847550B-020
LTE 4�4 MIMO Option MX847550B-021
LAA Option MX847550B-030
LTE Carrier Aggregation Option
MX847550B-040
LTE Carrier Aggregation
HSPA Evolution/
DL3CCs Option MX847550B-041
--
DC-HSDPA Option MX847510B-011
--
--
LTE Carrier Aggregation DL4CCs Option MX847550B-042
LTE Carrier Aggregation DL5CCs Option MX847550B-043
LTE RoHC Option MX847550B-060
MX847570B 1 Year Support Service MX847570B-SS110
SmartStudio MX847570B
LTE Option MX847570B-050
W-CDMA Option MX847570B-010
LTE Carrier
Aggregation Option
MX847570B-051 LTE Licensed Assisted
--
Access (LAA) Option
MX847570B-052
HSPA Evolution/ DC-HSDPA Option MX847570B-011
TD-SCDMA Option MX847570B-040
GSM Option MX847570B-020
Extended CSCF Option MX847570B-080
IMS Supplementary Service Option MX847570B-081
RCS Basic Option MX847570B-083
GBA Authentication Option MX847570B-084
IMS Early Media Option MX847570B-085
RTP Frame Control Option MX847570B-086
WLAN Offload Basic Option MX847570B-070
ePDG Option MX847570B-071
ANDSF Option MX847570B-072
Extended ePDG Option MX847570B-073
IMS Script Basic Option MX847570B-060
XCAP Script Option MX847570B-061
MX847570B-060 1 Year Technical Support Service MX847570B-TS160
MX847570B-061 1 Year Technical Support Service MX847570B-TS161
Quick TRX Diagnosis MX847506B
SmartStudio Manager MX847503A
Smartphone Control Platform MX847504A
eCall Tester (Perpetual License) MX703330E-PL010
eCall Tester
eCall Tester
(Perpetual License)
--
(Perpetual License)
MX703330E-PL010
MX703330E-PL010
MSD ERA GLONASS
MSD ERA GLONASS
--
Option
--
Option
MX703330E-031
MX703330E-031
EGTS Server ERA
EGTS Server ERA
--
GLONASS Option
--
GLONASS Option
MX703330E-032
MX703330E-032
NG112 LTE eCall Option MX703330E-041
Multi-Cell Option MX703330E-061
--
Multi-Cell Option MX703330E-061
MX703330E
MX703330E
MX703330E
1-Year Support Service
1-Year Support Service
--
1-Year Support Service
MX703330E-SS110
MX703330E-SS110
MX703330E-SS110
51
Signalling Tester MD8475B
Signalling Tester MD8475B Specifications
RF Connector
Transmission Characteristics
Reception Characteristics
General
Power Supply
Dimensions and Mass
Temperature Range & Humidity
EMC
CE
LVD
RoHS
RF Input/Output connector (Main, Aux 1, Aux 2) Connector: N (j) type, Impedance: 50 VSWR (Main): 1.9 (350 MHz to 3.8 GHz), 2.0 (3.8 GHz to 6.0 GHz) VSWR (Aux1, 2): 1.5 (350 MHz to 3.8 GHz), 1.6 (3.8 GHz to 6.0 GHz)
Output connector (DL Output 1 to 8) Connector: SMA (j) type, Impedance: 50 VSWR: 1.5 (350 MHz to 3.8 GHz), 1.6 (3.8 GHz to 6.0 GHz)
Reference oscillator Frequency: 10 MHz Level: TTL level Connector: BNC (j) type Startup characteristics: 5 � 10�8 (10 minutes after power-on, referenced to frequency 24 hours after power-on) Aging rate: 2 � 10�8/day, 1 � 10�7/year (referenced to frequency 24 hours after power-on) Temperature characteristics: 5 � 10�8 Frequency Accuracy at Shipment: �2.2 � 10�8 (At +20� to +30�C, 1 hour after power-up)
External reference input Frequency: 10 MHz, Acceptable frequency range: �1.0 ppm, Level: 0 dBm, Impedance: 50, Connector: BNC (j) type
Frequency Frequency range: 350 MHz to 6.0 GHz Setting resolution: 100 kHz (Depending on MX847501B used) Accuracy: Based on reference oscillator accuracy
Output level Level range: (Main, Aux1, Aux2): L TE : �130 to �27 dBm (350 MHz to 3.8 GHz), �130 to �32 dBm (3.8 GHz to 6.0 GHz) W-CDMA : �130 to �27 dBm (350 MHz to 3.6 GHz) Others: �130 to �25 dBm (350 MHz to 3.6 GHz) Level Range (DL Output 1 to 8): L TE : �115 to �5 dBm (350 MHz to 3.8 GHz), �115 to �10 dBm (3.8 GHz to 6.0 GHz) W-CDMA: �115 to �5 dBm (350 MHz to 3.6 GHz) Others: �115 to �3 dBm (350 MHz to 3.6 GHz) Resolution: 0.1 dB Level Accuracy (Main): � 120 dBm Output Level, after CAL, excluding other effects of internal signal generator �1.7 dB (350 MHz to 3.8 GHz, +20� to +30�C) �2.0 dB (3.8 GHz to 6.0 GHz, +20� to +30�C) Level Accuracy (Aux 1, Aux 2): �120 dBm Output Level, after CAL, excluding other effects of internal signal generator �1.0 dB �1.0 dB (350 MHz to 3.8 GHz, +20� to +30�C) �1.3 dB (3.8 GHz to 6.0 GHz, +20� to +30�C) Level Accuracy (DL Output 1 to 8): � 110 dBm Output Level, after CAL �1.0 dB (350 MHz to 3.8 GHz, +20� to +30�C) �1.3 dB (3.8 GHz to 6.0 GHz, +20� to +30�C)
Signal purity Non-harmonic spurious: �30 dBc (at 100 kHz frequency offset) Harmonics: �25 dBc
Modulation Accuracy : At +20� to +30�C W-CDMA: 3.5%rms (350 MHz to 2.7 GHz) GSM: 1.5�rms (350 MHz to 2.7 GHz) LTE: 3.5%rms (400 MHz to 6.0 GHz)
Frequency Frequency range: 350 MHz to 6.0 GHz Setting resolution: 100 kHz (Depending on MX847501B used)
Level Maximum input level: +35 dBm (Average)
Display: Color TFT LCD screen, 12.1 inches (WXGA), 1280 � 800 dots External interface
Trigger I/O: BNC (j) Call Processing Timing I/O: 15-pin mini D-Sub (f) connector Call Processing Ethernet A/B: RJ-45 connector, 10Base-T/100Base-TX/1000Base-T Measure Ethernet: RJ-45 connector, 10Base-T/100Base-TX/1000Base-T Headphone: 3.5-mm dia. headphone jack Microphone: 3.5-mm dia. microphone jack USB (Type-A) � 2 (Back Panel) USB (Type-A) � 4 (Front Panel) GPIB: IEEE488 connector VGA: Mini D-Sub connector Ethernet 0/1: RJ-45 connector, 10Base-T/100Base-TX/1000Base-T ARB : Mini D-sub connector Sync Input: BNC (j) x 1, Output : BNC (j) �2
100 Vac to 120 Vac (�10%)/200 Vac to 240 Vac (�10%/+10%, Max.: 250 Vac), 50 Hz to 60 Hz (Rating), 1350 VA (Max.)
426 (W) � 221.5 (H) � 578 (D) mm (excl. protrusions), <40 kg (with all options)
Operation: +5� to +40�C, Storage: �20� to +60�C, 90% (no condensation)
2014/30/EU, EN61326-1, EN61000-3-2
2014/35/EU, EN61010-1
2011/65/EU, EN50581
52
Signalling Tester MD8475B Ordering Information
Signalling Tester MD8475B
Please specify the model/order number, name and quantity when ordering. The names listed in the chart below are Order Names. The actual name of the item may differ from the Order Name.
Model/Order No.
MD8475B
MX847500B MX847501B J1211 P0031A P0035B P0035B7 J1440A Z0541A Z0975A A0131A
MD8475B-002 MD8475B-004 MD8475B-005
MX847502B MX847506B MX847508B MX847508B-001
MX847570B MX847570B-010 MX847570B-011 MX847570B-020 MX847570B-050 MX847570B-051 MX847570B-052 MX847570B-060 MX847570B-061 MX847570B-062 MX847570B-070 MX847570B-071 MX847570B-072 MX847570B-073 MX847570B-080 MX847570B-081 MX847570B-083 MX847570B-084 MX847570B-085 MX847570B-086
MD8475B-070 MD8475B-071 MX847550B MX847550B-020 MX847550B-021 MX847550B-030 MX847550B-040 MX847550B-041 MX847550B-042 MX847550B-043 MX847550B-060 MX847550B-070
MD8475B-070 MX847510B MX847510B-011
Name
Main frame Signalling Tester
Standard accessories Platform Software Control Software POWER CORD.3M USB Memory W-CDMA/GSM Test USIM (Standard UICC size) W-CDMA/GSM Test USIM (Micro UICC Size) LAN Cable (3 m) USB Mouse Keyboard (USB) Handset
Hardware options Extended RF Fading IO Option IP Extension Option
Software options Multi-cell Software Quick TRX Diagnosis Multimedia Interface Software AMR-WB
User interface SmartStudio W-CDMA Option HSPA Evolution/DC-HSDPA Option GSM Option LTE Option LTE Carrier Aggregation Option LTE Licensed Assisted Access (LAA) Option IMS Script Basic Option XCAP Script Option IMS Log Import Option WLAN Offload Basic Option ePDG Option ANDSF Option Extended ePDG Option Extended CSCF Option IMS Supplementary Service Option RCS Basic Option GBA Authentication Option IMS Early Media Option RTP Frame Control Option
LTE system Multi-signalling Unit Enhanced Multi-signalling Unit LTE Simulation Software LTE 2�2 MIMO Option LTE 4�4 MIMO Option LTE Licensed Assisted Access (LAA) Option LTE Carrier Aggregation Option LTE Carrier Aggregation DL3CCs Option LTE Carrier Aggregation DL4CCs Option LTE Carrier Aggregation DL5CCs Option LTE RoHC Option LTE 20 Layers Extension Option
W-CDMA system Multi-signalling Unit W-CDMA Simulation Software HSPA Evolution/DC-HSDPA Option
Model/Order No.
MD8475B-020 MX847520B
MD8475B-070 MX847540B
MX847503A MX847503A-601 MX847503A-701 MX847503A-923 MX847504A Z1813A
MX847580B MX847580B-018
MX703330E-PL010 MX703330E-031 MX703330E-032 MX703330E-041 MX703330E-061
MX847510B-050 MX847520B-050 MX847540B-050 MX847550B-050
MX847570B-SS110 MX703330E-SS110
MX847570B-TS160 MX847570B-TS161 MX703330E-TS110
MD8475B-UG 01 MD8475B-UG 02 MD8475B-UG 03 MD8475B-UG 04 MD8475B-UG 70 MD8475B-UG 71 MD8475B-UG 79
MD8475B-ES210 MD8475B-ES310 MD8475B-ES510
Name
GSM system GSM Signalling Unit GSM/GPRS Simulation Software
TD-SCDMA system Multi-signalling Unit TD-SCDMA Simulation Software
Automation tools SmartStudio Manager SSM Test PKG European eCall SSM Test PKG GOST 33467 eCall Tester Control Library Smartphone Control Platform USB Dongle (Automation)
Scenario tools SIDE Execution Software SIP Execution Option
Automotive applications eCall Tester (Perpetual License) MSD ERA GLONASS Option EGTS Server ERA GLONASS Option NG112 LTE eCall Option Multi-Cell Option
Ciphering Options W-CDMA Ciphering Option GSM/GPRS Ciphering Option TD-SCDMA Ciphering Option LTE Ciphering Option
Software support services MX847570B 1 Year Support Service MX703330E 1 Year Support Service
Technical support services MX847570B-060 1 Year Technical Support Service MX847570B-061 1 Year Technical Support Service MX703330E 1 Year Technical Support Service
Upgrade kits* MD8475A to MD8475B Upgrade MD8475A to MD8475B Upgrade (with Ciphering) MD8475A to MD8475B Upgrade (with SIDE) MD8475A to MD8475B Upgrade (with Ciphering/SIDE) MSU Upgrade eMSU Upgrade (MD8475A to MD8475B) eMSU Upgrade (MD8475B-070 to MD8475B-071)
Warranty 2 Years Extended Warranty Service 3 Years Extended Warranty Service 5 Years Extended Warranty Service
*: MD8475B-UG ##
: Select from the following according to the option type. 1: Retrofit option (Must be returned to factory in Japan) 2: Retrofit option (Must be returned to service center outside of Japan)
53
Signalling Tester MD8475B Ordering Information
Signalling Tester MD8475B
Model/Order No.
B0703A B0726A J0004 J0127A J0127B J0322B J0322D J0658 J0576B J0576D J1263 J1287
J1333A J1398A J1416A J1440A J1489A J1524A J1609A J1651A J1674A J1674E J1674K MN8150A P0035B P0035B7 P0135A6 P0135A7 P0250A6 P0250A7 P0260A6 P0260A7 Z0749 Z1858A Z1859A Z1908D Z1919B
Name
Application parts Rack Mount Kit Carrying Case Coaxial Adaptor (N (male)-SMA (female)) Coaxial Cord, 1.0 m (BNC-P � RG58A/U � BNC-P) Coaxial Cord, 2.0 m (BNC-P � RG58A/U � BNC-P) Coaxial Cord, 1.0 m Coaxial Cord, 2.0 m Adapter (SMA male-female L-type) Coaxial Cord, 1.0 m (N-P � 5D-2W � N-P) Coaxial Cord, 2.0 m (N-P � 5D-2W � N-P) W-CDMA Interface Cable (UE connection cable) HDD-SUB15P Cable (milli-inch, for connecting MN8110B) HDD-SUB15P Crossover Cable (inch) N-SMA ADAPTOR LVDS Cable LAN Cable PP2S OUTPUT CABLE Dsub15-BNC Conversion Cable Signal Divider MD8475A Sync In Cable (for 3CC Test) SMA/P-SMA/P Soft Rigid Cable SMA/P-SMA/P Soft Rigid Cable (5 pcs) SMA/P-SMA/P Soft Rigid Cable (10 pcs) RF Combiner Unit W-CDMA/GSM Test USIM (Standard UICC Size) W-CDMA/GSM Test USIM (Micro UICC Size) Anritsu Test UICC GA (nano UICC Size) Anritsu Test UICC GA (Micro UICC Size) Anritsu Test UICC GT (nano UICC Size) Anritsu Test UICC GT (Micro UICC Size) Anritsu Test UICC GM (nano UICC Size) Anritsu Test UICC GM (Micro UICC Size) MN8110B + Inch Screw Cable (for call processing I/O) Divider (2 way) Divider (3 way) Standard Laptop for SSM Standard Desktop for WLAN
54
Note
55
Specifications are subject to change without notice.
� United States Anritsu Americas Sales Company
450 Century Parkway, Suite 190, Allen, TX 75013, U.S.A. Phone: +1-800-Anritsu (1-800-267-4878)
� Canada Anritsu Electronics Ltd.
700 Silver Seven Road, Suite 120, Kanata, Ontario K2V 1C3, Canada Phone: +1-613-591-2003 Fax: +1-613-591-1006
� Brazil Anritsu Eletronica Ltda.
Pra�a Amadeu Amaral, 27 - 1 Andar 01327-010 - Bela Vista - Sao Paulo - SP Brazil Phone: +55-11-3283-2511 Fax: +55-11-3288-6940
� Mexico Anritsu Company, S.A. de C.V.
Blvd Miguel de Cervantes Saavedra #169 Piso 1, Col. Granada Mexico, Ciudad de Mexico, 11520, MEXICO Phone: +52-55-4169-7104
� United Kingdom Anritsu EMEA Ltd.
200 Capability Green, Luton, Bedfordshire, LU1 3LU, U.K. Phone: +44-1582-433200 Fax: +44-1582-731303
� France Anritsu S.A.
12 avenue du Qu�bec, B�timent Iris 1- Silic 612, 91140 VILLEBON SUR YVETTE, France Phone: +33-1-60-92-15-50 Fax: +33-1-64-46-10-65
� Germany Anritsu GmbH
Nemetschek Haus, Konrad-Zuse-Platz 1 81829 M�nchen, Germany Phone: +49-89-442308-0 Fax: +49-89-442308-55
� Italy Anritsu S.r.l.
Via Elio Vittorini 129, 00144 Roma, Italy Phone: +39-6-509-9711 Fax: +39-6-502-2425
Printed on Recycled Paper
� Sweden Anritsu AB
Isafjordsgatan 32C, 164 40 KISTA, Sweden Phone: +46-8-534-707-00
� Finland Anritsu AB
Teknobulevardi 3-5, FI-01530 VANTAA, Finland Phone: +358-20-741-8100 Fax: +358-20-741-8111
� Denmark Anritsu A/S
Torveporten 2, 2500 Valby, Denmark Phone: +45-7211-2200 Fax: +45-7211-2210
� Russia Anritsu EMEA Ltd. Representation Office in Russia
Tverskaya str. 16/2, bld. 1, 7th floor. Moscow, 125009, Russia Phone: +7-495-363-1694 Fax: +7-495-935-8962
� Spain Anritsu EMEA Ltd. Representation Office in Spain
Edificio Cuzco IV, Po. de la Castellana, 141, Pta. 5 28046, Madrid, Spain Phone: +34-915-726-761 Fax: +34-915-726-621
� United Arab Emirates Anritsu EMEA Ltd. Dubai Liaison Office
902, Aurora Tower, P O Box: 500311- Dubai Internet City Dubai, United Arab Emirates Phone: +971-4-3758479 Fax: +971-4-4249036
� India Anritsu India Private Limited
6th Floor, Indiqube ETA, No.38/4, Adjacent to EMC2, Doddanekundi, Outer Ring Road, Bengaluru � 560048, India Phone: +91-80-6728-1300 Fax: +91-80-6728-1301
� Singapore Anritsu Pte. Ltd.
11 Chang Charn Road, #04-01, Shriro House Singapore 159640 Phone: +65-6282-2400 Fax: +65-6282-2533
� P.R. China (Shanghai) Anritsu (China) Co., Ltd.
Room 2701-2705, Tower A, New Caohejing International Business Center No. 391 Gui Ping Road Shanghai, 200233, P.R. China Phone: +86-21-6237-0898 Fax: +86-21-6237-0899
� P.R. China (Hong Kong) Anritsu Company Ltd.
Unit 1006-7, 10/F., Greenfield Tower, Concordia Plaza, No. 1 Science Museum Road, Tsim Sha Tsui East, Kowloon, Hong Kong, P.R. China Phone: +852-2301-4980 Fax: +852-2301-3545
� Japan Anritsu Corporation
8-5, Tamura-cho, Atsugi-shi, Kanagawa, 243-0016 Japan Phone: +81-46-296-6509 Fax: +81-46-225-8352
� Korea Anritsu Corporation, Ltd.
5FL, 235 Pangyoyeok-ro, Bundang-gu, Seongnam-si, Gyeonggi-do, 13494 Korea
Phone: +82-31-696-7750 Fax: +82-31-696-7751
� Australia Anritsu Pty. Ltd.
Unit 20, 21-35 Ricketts Road, Mount Waverley, Victoria 3149, Australia Phone: +61-3-9558-8177 Fax: +61-3-9558-8255
� Taiwan Anritsu Company Inc.
7F, No. 316, Sec. 1, NeiHu Rd., Taipei 114, Taiwan Phone: +886-2-8751-1816 Fax: +886-2-8751-1817
1811 Printed in Japan 27/JUN/2019 ddcm/CDT Catalog No. MD8475A/B-E-A-1-(5.00)
