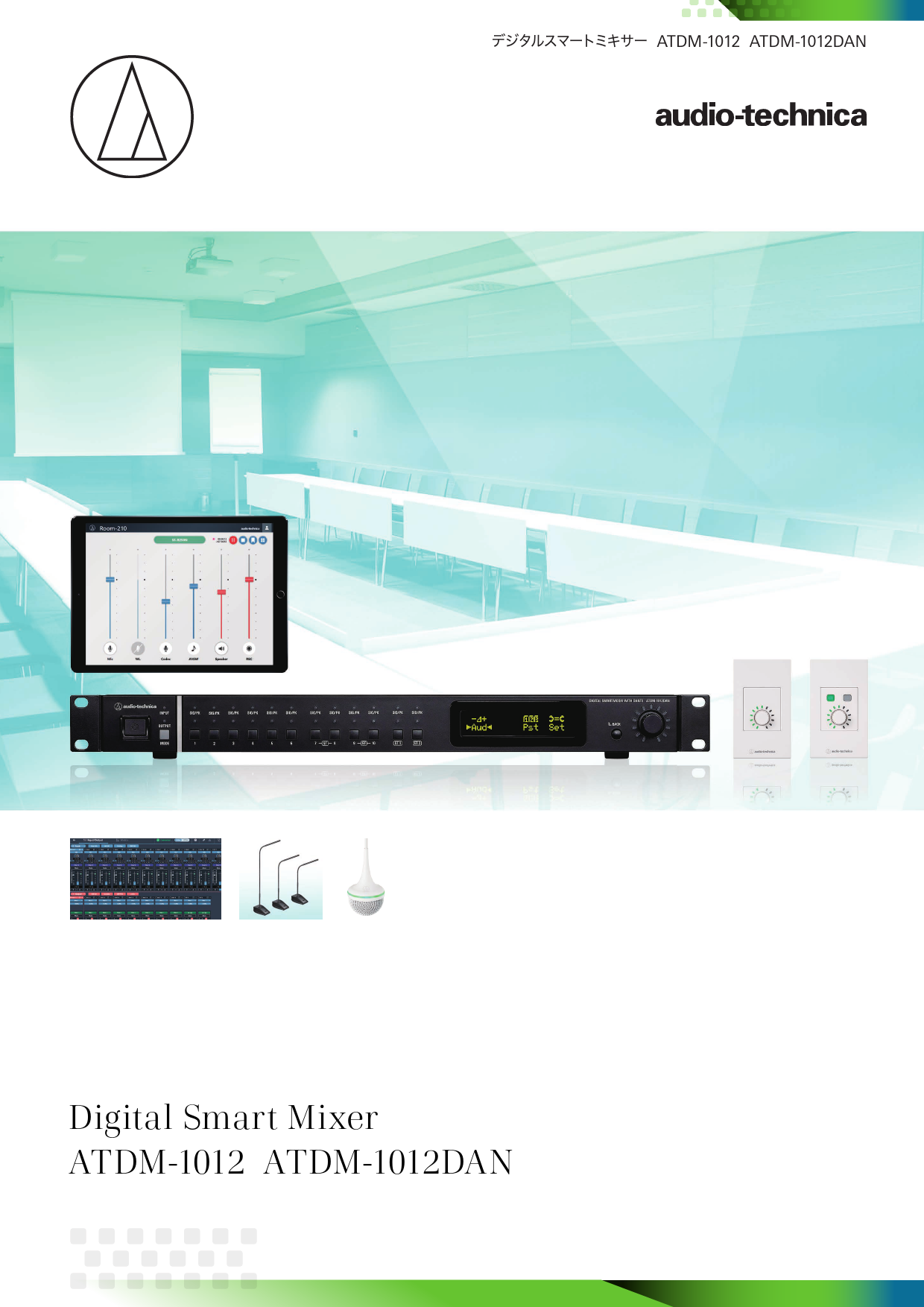

Audio-Technica ATDM-1012 / ATDM-1012DAN Digital Smart Mixer
The Audio-Technica ATDM-1012 and ATDM-1012DAN are digital smart mixers designed for professional audio applications, offering advanced features, versatile connectivity, and intelligent control for various environments.
Digital Smart Mixer ATDM-1012 / ATDM-1012DAN
Overview
These digital smart mixers provide a comprehensive audio solution for installations requiring high-quality sound, flexible routing, and smart control. They are suitable for a wide range of applications, including conference rooms, lecture halls, event spaces, and broadcast studios.
Key Features
- Versatile input/output channels supporting MIC/LINE, unbalanced stereo, and balanced outputs.
- USB audio interface (2-in/2-out, 24-bit) for PC connectivity, compatible with web conferencing systems.
- Dante network audio support (16-in/22-out) for expanded system integration and long-distance audio transmission.
- Audio-Technica LINK for smart, low-latency connection and control of multiple units (up to 8) and control panels.
- Integrated Acoustic Echo Canceller (AEC) and Noise Canceller (NC) for clear, artifact-free communication.
- Smart Mix functions (Gain Sharing, Gate Mode) for automatic gain control and intelligent microphone management.
- Preset and Partial Preset functions for saving and recalling up to 8 and 40 configurations, respectively.
- Web Remote and Smart Mixer Manager (SMM) application for remote control, system management, and detailed setup.
Connectivity and Input/Output
Rear Panel Overview
The rear panels of the ATDM-1012 and ATDM-1012DAN feature a comprehensive array of connectors. These include Euroblock terminals for MIC/LINE inputs and analog outputs, RJ45 ports for Dante network audio (dual ports on the ATDM-1012DAN for redundancy), an RJ45 port for Audio-Technica LINK, and a USB Type-B port for PC connection.
Input Channels
- 10 x MIC/LINE (Balanced Euroblock)
- 2 x Stereo (Unbalanced Euroblock)
- 1 x USB Audio (Stereo In, 24-bit)
Output Channels
- 8 x Balanced (Euroblock)
- 2 x Stereo Unbalanced (Euroblock)
- 1 x USB Audio (Stereo Out, 24-bit)
Network Audio
The mixers support Dante network audio, allowing for up to 16 input channels and 22 output channels over a standard IP network. This enables flexible and scalable audio distribution across large installations. The ATDM-1012DAN model includes primary and secondary Dante ports for network redundancy.
Smart Features
Acoustic Echo Canceller (AEC) & Noise Canceller (NC)
The integrated Acoustic Echo Canceller (AEC) effectively removes echo from conference calls, ensuring clear communication. The Noise Canceller (NC) reduces ambient noise such as air conditioning or projector fans, improving speech intelligibility. Visual representations show the reduction of echo and noise across different frequencies.
Smart Mix Functions
Gain Sharing Mode
In Gain Sharing Mode, the mixer automatically adjusts the gain of active input channels to maintain a consistent overall audio level. This is illustrated by diagrams showing how the system balances audio when one or multiple microphones are active.
Gate Mode
Gate Mode allows for limiting the number of open microphones and controlling output levels. Users can set priority and threshold levels, with group management options (G1-G4) for flexible acoustic control. Diagrams show how the number of active microphones is managed.
Presets and Settings
Preset / Partial Preset
The mixers offer 8 Preset slots for saving and recalling complete system configurations, and 40 Partial Preset slots for specific parameter adjustments. These settings can be easily exported and imported.
System Integration and Control
Audio-Technica LINK
Audio-Technica LINK is a proprietary format for low-latency signal transmission, enabling seamless integration with other Audio-Technica products. It supports daisy-chaining up to 8 mixers and connecting control panels like the ATCP-W01R/W02R for enhanced operational control.
Smart Mixer Manager (SMM)
Smart Mixer Manager (SMM) is a dedicated application for Windows 10 (64-bit) and later, providing detailed setup and centralized management of multiple ATDM-1012/1012DAN units over a network. It allows for intuitive parameter adjustment and system monitoring.
Web Remote
The Web Remote feature provides browser-based control of the mixer, accessible from PCs, Macs, Android, and iOS devices without requiring dedicated software installation. It offers control over essential functions like volume, mute, and settings.
System Diagrams and Use Cases
System diagrams illustrate various application scenarios:
- Video Conferencing: The ATDM-1012 acts as a central mixer for microphones, video, and audio equipment in conference rooms.
- Multi-purpose Rooms: Multiple ATDM-1012 units can be cascaded and controlled via ATCP panels, allowing for flexible room merging and splitting.
- Web Conferencing: Integration with virtual microphones (like the ES954) and PC audio via USB for web-based meetings.
- Mic Activation + Camera Sync: Smart Mix functions and IP commands can be used to trigger external systems, such as camera presets, based on microphone activity.
Expandability and Network Audio
The mixers support IP control protocols, allowing integration with third-party control systems like AMX and Crestron. Dante network audio provides a robust, scalable, and high-quality audio transport solution. Input and output routing diagrams show how Dante channels can be assigned to mixer inputs and outputs, including direct outputs for individual channels.
Specifications
| Parameter | Value |
|---|---|
| Dynamic Range / SN Ratio | 112dB or more (A-weighted) / 92dB or more (A-weighted) |
| Max Input Level | MIC: -20dBu, LINE: +24dBu, ST: +20dBV |
| Max Output Level | Outputs 1-8 (Balanced): +24dBu / +20dBV / +10dBV; Output ST (Unbalanced): +20dBV / +10dBV / -13dBV |
| Max Gain | 64dB |
| Input/Output Terminals | MIC/LINE Inputs 1-10: 3-pin Euroblock; ST Inputs 1/2: 3-pin Euroblock; Outputs 1-8, ST Outputs 1/2: 3-pin Euroblock; USB: Type-B (Device) for 1 stereo input/output (24-bit) |
| Network Terminals | NETWORK port: RJ-45x1 (ATDM-1012); NETWORK port: RJ-45x2 (Dante Primary/Secondary) (ATDM-1012DAN) |
| Audio-Technica LINK Terminals | RJ-45x4 (A/B/C/D) |
| AEC | Echo Cancellation: Max 90dB; Tail Length: Max 400msec |
| Power Supply | AC 100V-240V, 50/60Hz |
| Power Consumption | 65W |
| Operating Temperature | 0°C to 40°C |
| Dimensions (W x D x H) | 482.6 x 324.3 x 44 mm |
| Weight | 3.6 kg |
| Accessories | Power cord, Euroblock connectors x22 |
