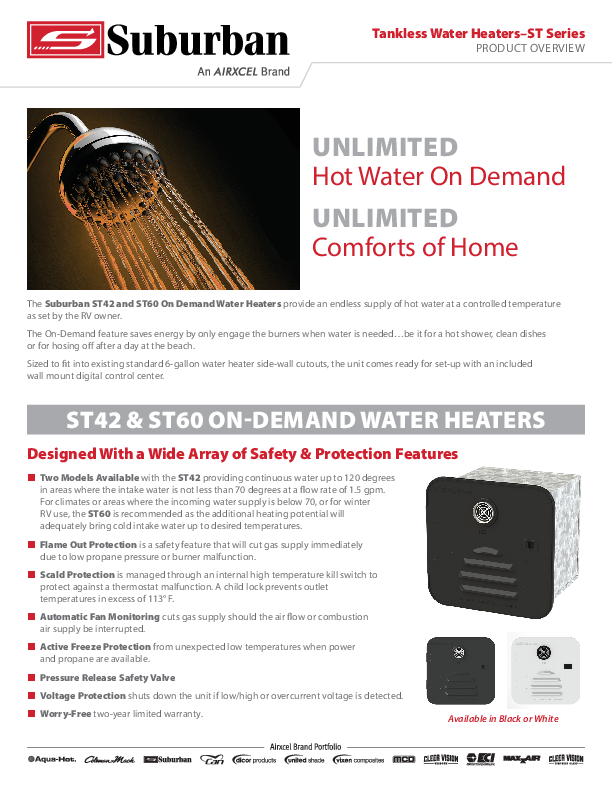

Suburban Tankless Water Heaters - ST Series
An AIRXCEL Brand - PRODUCT OVERVIEW
UNLIMITED Hot Water On Demand
UNLIMITED Comforts of Home
The Suburban ST42 and ST60 On Demand Water Heaters provide an endless supply of hot water at a controlled temperature as set by the RV owner.
The On-Demand feature saves energy by only engaging the burners when water is needed – be it for a hot shower, clean dishes, or for hosing off after a day at the beach.
Sized to fit into existing standard 6-gallon water heater side-wall cutouts, the unit comes ready for set-up with an included wall mount digital control center.
A visual representation of the product's output: a showerhead spraying hot water.
ST42 & ST60 ON-DEMAND WATER HEATERS
Designed With a Wide Array of Safety & Protection Features
- Two Models Available: The ST42 provides continuous water up to 120 degrees in areas where the intake water is not less than 70 degrees at a flow rate of 1.5 GPM. For climates or areas where the incoming water supply is below 70°F, or for winter RV use, the ST60 is recommended as its additional heating potential will adequately bring cold intake water up to desired temperatures.
- Flame Out Protection: A safety feature that cuts gas supply immediately due to low propane pressure or burner malfunction.
- Scald Protection: Managed through an internal high-temperature kill switch to protect against a thermostat malfunction. A child lock prevents outlet temperatures in excess of 113°F.
- Automatic Fan Monitoring: Cuts gas supply should the air flow or combustion air supply be interrupted.
- Active Freeze Protection: Protects from unexpected low temperatures when power and propane are available.
- Pressure Release Safety Valve: ✔️
- Voltage Protection: Shuts down the unit if low/high or overcurrent voltage is detected.
- Warranty: Worry-Free two-year limited warranty.
The Suburban ST42/ST60 tankless water heater unit, front view, featuring a digital control panel and ventilation openings. Smaller images show the unit available with black and white exterior doors.
Door Color Options: Black, White
Technical Specifications
| DESCRIPTION | VALUE |
|---|---|
| Max. / Nominal Heat Input | 42,000 BTU (ST42); 60,000 BTU (ST60) |
| Minimum Heat Input | 8,000 BTU (ST42); 8,000 BTU (ST60) |
| Max. Inlet Gas Pressure | 3.49 kPa (14" wc) |
| Min. Inlet Gas Pressure | 2.62 kPa (10.5" wc) |
| Rated Gas Inlet Pressure | 2.74 kPa (11" wc) |
| Electrical Supply | 12VDC |
| Total Input Current | <10A |
| Ignition Method | Automatic Ignition |
| Min. Water Flow Rate | 0.7 GPM |
| Gas Inlet Connection | 3/8" Male Flare |
| Water Inlet/Outlet Connections | 1/2" Male NPT |
| Dimensions (Casing, HxWxD) | 12 1/2" x 12 3/4" x 13" |
| Max Outlet Temperature | 131°F (55°C) |
| Weight (unit only) | 19 lbs. |
| Weight (with door) | 23.5 lbs. |
| Door Color Options | Black, White |
Model & Part Numbers
| DESCRIPTION | PART NO. |
|---|---|
| Model ST42 Water Heater, 42,000 BTU | 5381A |
| Model ST60 Tankless Water Heater, 60,000 BTU | 5382A |
| Exterior Access Door for ST Water Heaters, Black | 6285AEB |
| Exterior Access Door for ST Water Heaters, White | 6285APW |
Product Dimensions
Detailed diagrams illustrate the unit's dimensions. The front view shows the casing height of 12 1/2 inches, width of 12 3/4 inches, and depth of 13 inches, with a warning to "DO NOT BLOCK ANY OPENINGS". Side views provide more detailed measurements of the unit's overall structure and internal components.
