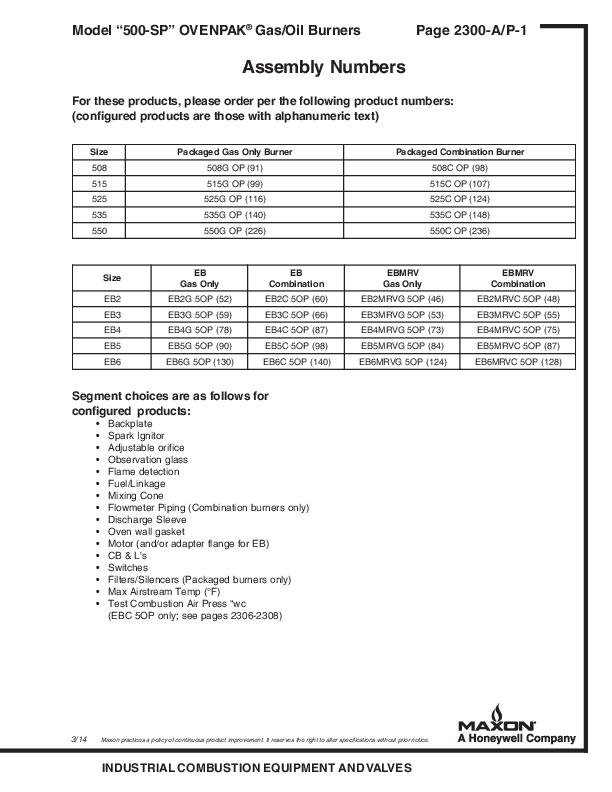

Model "500-SP" OVENPAK� Gas/Oil Burners Page 2300-A/P-1 Assembly Numbers For these products, please order per the following product numbers: (configured products are those with alphanumeric text) Size 508 515 525 535 550 Packaged Gas Only Burner 508G OP (91) 515G OP (99) 525G OP (116) 535G OP (140) 550G OP (226) Packaged Combination Burner 508C OP (98) 515C OP (107) 525C OP (124) 535C OP (148) 550C OP (236) Size EB2 EB3 EB4 EB5 EB6 EB Gas Only EB2G 5OP (52) EB3G 5OP (59) EB4G 5OP (78) EB5G 5OP (90) EB6G 5OP (130) EB Combination EB2C 5OP (60) EB3C 5OP (66) EB4C 5OP (87) EB5C 5OP (98) EB6C 5OP (140) EBMRV Gas Only EB2MRVG 5OP (46) EB3MRVG 5OP (53) EB4MRVG 5OP (73) EB5MRVG 5OP (84) EB6MRVG 5OP (124) EBMRV Combination EB2MRVC 5OP (48) EB3MRVC 5OP (55) EB4MRVC 5OP (75) EB5MRVC 5OP (87) EB6MRVC 5OP (128) Segment choices are as follows for configured products: � Backplate � Spark Ignitor � Adjustable orifice � Observation glass � Flame detection � Fuel/Linkage � Mixing Cone � Flowmeter Piping (Combination burners only) � Discharge Sleeve � Oven wall gasket � Motor (and/or adapter flange for EB) � CB & L's � Switches � Filters/Silencers (Packaged burners only) � Max Airstream Temp (�F) � Test Combustion Air Press "wc (EBC 5OP only; see pages 2306-2308) 3/14 Maxon practices a policy of continuous product improvement. It reserves the right to alter specifications without prior notice. INDUSTRIAL COMBUSTION EQUIPMENT AND VALVES Page 2300-A/P-2 Model "500-SP" OVENPAK� Gas/Oil Burner Assembly Numbers Configured Solenoid Valve Kits Configured Burner No. Solenoid Valve Kits Up Down Horizontal 508C OP 508C USVK 508C DSVK 508C HSVK 515C OP 508C USVK 508C DSVK 508C HSVK 525C OP 525C USVK 525C DSVK 525C HSVK 535C OP 535C USVK 535C DSVK 535C HSVK 550C OP 525C USVK 550C DSVK 535C HSVK EB2C 5OP 508C USVK 508C DSVK 508C HSVK EB3C 5OP 508C USVK 508C DSVK 508C HSVK EB4C 5OP 525C USVK 525C DSVK 525C HSVK EB5C 5OP 535C USVK 535C DSVK 535C HSVK EB6C 5OP 525C USVK 550C DSVK 535C HSVK Configured Replacement Blower Kits Burner Size 535 Configured Replacement Blower Kit No. 535 RBK 550 550 RBK Spare Parts Combination Model "500" OVENPAK� Burner Gas Only Combination Model EB-SP OVENPAK� Burner Gas Only Pilot Gas Adjustable Orifice Replacement Oil Nozzle Assembly 508-SP 515-SP 508G-SP 515-G-SP EBC-2SP EBC-3SP EBG-2SP EBG-3SP 38009 (2) 1058277 1058281 for up-firing applications Flowmeter Piping Option for down-firing applications EBC-SP versions with 29362 upper tube with 29361 lower tube 500-SP versions EBC-SP versions 500-SP versions with 29362 upper tube with 29361 lower tube with 28984 lower tube with 28985 upper tube with 28984 lower tube with 28986 upper tube with 28984 lower tube with 28985 upper tube 525-SP 525-GSP EBC-4SP EBG-4SP 1058283 with 29362 upper tube with 31602 lower tube with 29362 upper tube with 31602 lower tube with 28984 lower tube with 31547 upper tube with 28984 lower tube with 28986 upper tube 535-SP 535G-SP EBC-5SP EBG-5SP 50431 (3) 1058284 550-SP 550-GSP EBC-6SP EBG-6SP 1058285 with 29362 upper tube with 31603 lower tube with 29362 upper tube with 31602 lower tube with 29362 upper tube with 29363 lower tube with 28984 lower tube with 31548 upper tube with 28984 lower tube with 31547 upper tube with 28984 lower tube with 28987 upper tube Approximate net weight (in pounds) shown in parentheses Maxon practices a policy of continuous product improvement. It reserves the right to alter specifications without prior notice. INDUSTRIAL COMBUSTION EQUIPMENT AND VALVES Model "500-SP" OVENPAK� Gas/Oil Burners Page 2300-A/P-3 Assembly Numbers Spare Parts Model "500" OVENPAK� Burners Combination Gas Only 508-SP 508G-SP 515-SP 525-SP 515G-SP 525G-SP 535-SP 535G-SP 550-SP 550G-SP Model EB-SP OVENPAK� Burners Combination Gas Only EBC-2SP EBC-3SP EBC-4SP EBC-5SP EBC-6SP EBG-2SP EBG-3SP EBG-4SP EBG-5SP EBG-6SP Low Fire Start Switches (1 SPDT) General Purpose NEMA 1 (Omron) (indoors, non-hazardous locations) Hazardous Duty/Weatherproof NEMA 1,3,3R,4,7,9,12, & 13 (outdoors, hazardous duty locations) 35949 (for electric CB&L or no CB&L) 1073848 for air CB&L 46648 35950 High and Low Fire Position Switch (2 SPDT) General Purpose NEMA 1 (Omron) (indoors, non-hazardous locations) Weatherproof NEMA 1,3,3R,4,12, & 13 (outdoors, non-hazardous locations) 46649 35616 46649 35617 Replacement Spark Ignitor 47663 Alternate UV Scanner Adapter Plate 30321 Discharge Diameter (in inches) 6" 8" 10" 12" 8" long sleeve (#310SS) 32730 32731 32732 32733 [1] 12" long sleeve (#310SS) 27019 27020 27021 27022 8" long sleeve (RA330) 34660 34661 34662 34663 [2] 12" long sleeve (RA330) 47339 47346 47353 47360 8" long high back pressure sleeve (#310SS) 34022 34023 34024 34025 [3] Discharge Sleeve and 12" long high back pressure sleeve (#310SS) Mounting 8" long refractory lined sleeve Gasket 6" long sleeve (#310SS) Options 6" long sleeve (RA330) 47337 1115382 ----- 47344 38292 ----- 47351 38293 ----- 47358 38294 29860 34664 DIS SLV/BRNR HSG GSKT 28475 28476 28477 28478 Standard flange discharge sleeve gasket set 34027 34028 34029 34030 DIS SLV/OVEN WALL GSKT 33975 33976 33977 33978 6" long HBP sleeve (#310SS) --- --- --- 34026 HBP DIS SLV/OVEN WALL GSKT 34018 34019 34020 34021 REF LND DIS SLV/OVEN WALL GSKT 1050556 1050557 1050558 1050559 Linkage Maintenance Kits 33636 33637 33638 33639 [1] For propane or propane air service with 500-SP or EB-SP OVENPAK� Burners, use #29860 discharge sleeve (length 6") [2] For propane or propane air service (as above), use #34664 (length 6") [3] For propane or propane air service (as above), use #34026 (length 6") 3/14 Maxon practices a policy of continuous product improvement. It reserves the right to alter specifications without prior notice. INDUSTRIAL COMBUSTION EQUIPMENT AND VALVES Page 2300-A/P-4 Model "500-SP" OVENPAK� Gas/Oil Burners Assembly Numbers Spare Parts Connecting base and linkage assemblies This listing of CB & L assemblies shows only a sampling of the more popular control motors. We may be able to furnish CB & L for other operators not cataloged (supply manufacturer's name and model number). Type Manufacturer Model No. EA51-58, also Barber-Colman with prefix MC, MP, or MF Electric Honeywell M6184D, A, F M6194D, B, E M9184D M7284A, C, Q M9484D, E M9494D M9184D, A, F M9484E, F, D M6294D, B M6284A, D, F M9194D, E Herculine CB & L Assembly 28560 (7) 28562 (8) 1071318 Combustion Air Filters and Silencers Model "500" OVENPAK� Burner> A Standard Air Filter Assembly includes (2) replaceable elements I R Replaceable filter elements for above 508-SP, 508G-SP, 525-SP, 525G-SP, 550-SP, 515-SP, 515G-SP 535-SP, 535G-SP 550G-SP 24672 (12) 24334 (27) 24335 (35) 28045 (.5) 28047 (1) 24337 (1) F I Air Filter Assembly with (2) permanent elements L T Permanent Filter Elements for direct replacement providing E burner originally supplied with permanent elements. R NOTE: See Product Information Sheet 2000-3 for details involving S field modifications S I Air Inlet Silencer Assembly includes housing and inlet guard L Air Inlet Filter Assembly for Silencer Assembly above includes E (1) replaceable element N C Replaceable Filter Element for Silencer/Filter Assembly E above R Air Inlet Filter Assembly for Silencer Assembly above includes S (1) permanent element 50827 50833 34652 (4) 34654 (6) 31243 (35) 31244 (100) 29742 (3) 31062 (2) 35567 (15) 50834 34655 (8) 1073425 (100) 29743 (6) 31051 (4) 35568 (20) Approximate net weight (in pounds) shown in parentheses Maxon practices a policy of continuous product improvement. It reserves the right to alter specifications without prior notice. INDUSTRIAL COMBUSTION EQUIPMENT AND VALVES
