TRÅDFRI

IKEA
Design and Quality
IKEA of Sweden

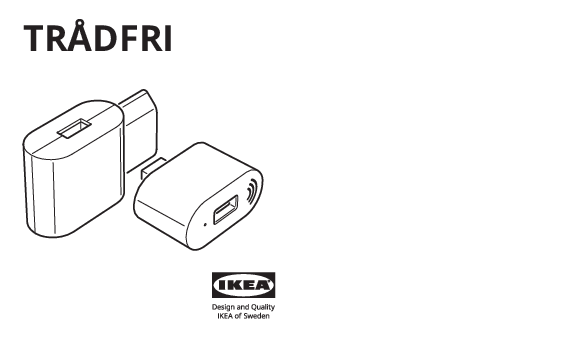

Diagram: The TRÅDFRI Signal Repeater system consists of two main components. One is a rectangular unit with a slot on its top surface. The second is a smaller, rounded unit featuring a USB port and radiating lines on its side, indicating wireless connectivity.

WIRELESS SIGNAL REPEATER FUNCTIONS

The TRÅDFRI signal repeater expands the signal reach of your IKEA Home smart products.

Pairing

Add IKEA Home smart products to your system. See instructions below.

ADDING STEERING DEVICE TO YOUR SIGNAL REPEATER

If the Signal Repeater is sold with another IKEA Home smart product (in the same package), they are already paired.

You cannot add IKEA Home smart products directly to your signal repeater. A TRÅDFRI steering device is required.

To add steering devices, follow these steps:

• Ensure the signal repeater is plugged in and the main power is on.
• Place the steering device close to the signal repeater (within 5 cm).
• Press and hold the pairing button (located under the rear cover) for at least 10 seconds.
• A steady red light will appear on the steering device.

Then, approach the product you wish to control and repeat the pairing process. On your IKEA Home smart product, a white light will dim and flash once to confirm successful pairing.

FACTORY RESET YOUR DEVICE

For the wireless signal repeater: Use a pointed object to press the pinhole on the bottom of the signal repeater for at least 5 seconds.

After resetting, you must re-pair your steering device to the signal repeater, and then pair the steering device to your IKEA Home smart product.

IMPORTANT!

• The Signal Repeater is for indoor use only, within temperatures of 0°C to 40°C (32°F to 104°F).
• To prevent overheating, keep the Signal Repeater away from direct sunlight, open flames, and heat sources.
• The operational range between the Signal Repeater and the receiver is measured in open air. Building materials and unit placement can affect wireless connectivity range.

WARNING:

• The wall socket must be near the equipment and easily accessible.
• Use only in dry locations.
• Children should be supervised to prevent them from playing with the product.
• If the product is damaged, it must be destroyed.
• Never use a damaged or faulty USB cable for charging, as it may damage the appliance and your electrical system.

TECHNICAL DATA

• Type: E1746 wireless Signal Repeater
• Input: 5.0V DC
• Range: 10 m in open air
• For indoor use only
• Operating frequency: 2405-2480Mhz
• Output power: 3 dBm

Instructions for use

• Connect the power adapter to the wall socket and insert the Signal Repeater into the free slot.
• For charging, use only a USB cable suitable for your device and replace faulty cables immediately.

Good to know

• Can be used to charge the wireless roller blind battery-cell.
• USB cable length and quality affect charging speed and performance.
• Devices may warm up during charging; this is normal and they will cool down gradually once fully charged.
• Storage temperature: -20°C to 25°C (4°F to 77°F).
• Operating temperature: 0°C to 40°C (32°F to 104°F).
• Unplug the power adapter from the power source before cleaning and when not in use.

Refer to the back of the power adapter for recommended precautionary measures and technical data.

CARE INSTRUCTIONS

To clean the Signal Repeater and Power Adapter, wipe with a soft, dry cloth.

NOTE!

Never use abrasive cleaners or chemical solvents, as they can damage the product.

Save these instructions for future use.

Product servicing

Do not attempt to repair this product yourself. Opening or removing covers may expose you to dangerous voltage points or other risks.

ADDITIONAL TECHNICAL DATA

• Type: ICPSW5-5NA-1
• Input: 100-240VAC, 0.2A, 7.0W
• Output: 5.0V DC, 1.0A, 5.0W
• Indoor use only
• Max total load: 1.0A

Manufacturer: IKEA of Sweden AB

Address: Box 702, SE-343 81 Älmhult, SWEDEN

This device complies with Part 15 of the FCC Rules. This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation Science and Economic Development Canada's licence-exempt RSS standard(s).

Operation is subject to the following two conditions:

• (1) this device may not cause harmful interference, and
• (2) this device must accept any interference received, including interference that may cause undesired operation of the device.

WARNING:

Any changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

NOTE:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses, and can radiate radio frequency energy. If not installed and used according to instructions, it may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment causes harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

License rights and limitations: NO RIGHTS OR LICENSES, EXPRESS OR IMPLIED, ARE GRANTED TO USE THIRD-PARTY DEVICES IN COMBINATION WITH THESE PRODUCTS IN A WIRELESS MESH NETWORK, OR TO USE THIRD-PARTY SERVICES TO ACCESS, MONITOR OR CONTROL THESE PRODUCTS IN A WIRELESS MESH NETWORK VIA THE INTERNET OR ANOTHER EXTERNAL WIDE AREA NETWORK.

For use pursuant to U.S. Patent Nos.: US 6,914,893, US 7,697,492, US 8,964,708

The crossed-out wheeled bin symbol ♻️ indicates that the item must be disposed of separately from household waste. It should be recycled according to local environmental regulations for waste disposal. By separating items with this symbol, you help reduce the volume of waste sent to incinerators or landfills and minimize negative impacts on human health and the environment. For more information, please contact your IKEA store.
