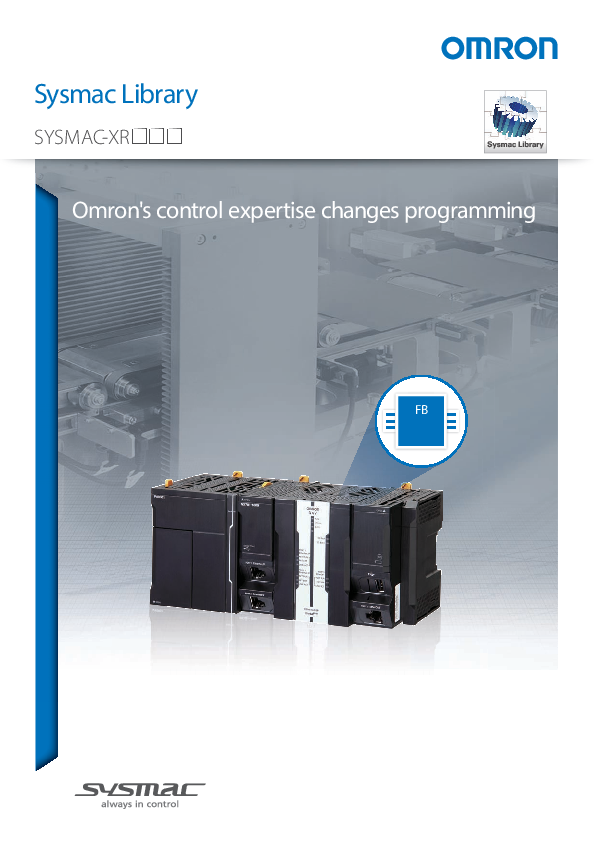

Omron's Control Expertise Changes Programming
The Sysmac Library is a collection of software functional components that can be used in programs for the NJ/NX Machine Automation Controllers or Industrial PC Platform NY IPC Machine Controller. Packed with Omron's rich technical know-how on control programs, the Sysmac Library makes advanced control easy. Install the Sysmac Library to use it in the Sysmac Studio.
Components for Various Devices
Omron offers Function Blocks for a wide range of applications: advanced control such as vibration suppression and temperature control, motion control such as PID feedforward, and connection to servo drives or sensors.
Advanced Control
Vibration Suppression: Vibration suppression during and after high-speed material handling prevents vibration, slides, and spilling, significantly reducing machine cycle time.
Temperature Control: In-furnace temperature variations can be reduced (temperature uniformity control), and the temperature can be distributed unevenly (temperature gradient control). A rapid increase in the temperature (rapid temperature increase) without overshooting stabilizes quality and reduces cycle time.
Various Motion Control
Integration of the controller, EtherCAT, and Sysmac Library makes various motion control possible.
Productivity Improvement
Device Operation Monitoring: You can easily monitor devices such as air cylinders, sensors, and servo systems that often cause intermittent stoppages. Detecting deterioration over time or errors of devices prevents machines from stopping suddenly in advance, improving operating efficiency. The status of devices before and after the occurrence of an error can be stored on an SD memory card. This allows you to identify the cause of the error.
Reduction of Setup, Changeover, and Maintenance Times: Function Blocks facilitate the connection of devices to the controller and provide Backup and Restoration functions for quick setting change and recovery.
Easy-to-Obtain Library
The Sysmac Library is freely available to download from Omron's website. These software components can be used for the NJ/NX/NY Controller without debugging.
Download from: http://www.ia.omron.com/sysmac_library/
High Quality Products with Reliable Global Support
With our worldwide network for support, Omron will support you to meet your control requirements and solve your problems by using the Sysmac Library. We will provide technical support even after the shipment of your products using the Sysmac Library.
OMRON technical offices across the World
- Automation Center: Kusatsu (JPN), Shanghai (CHN), Barcelona (ESP), Hoffman Estates IL(USA), Mumbai(IND), Jakarta (IDN), Bangkok (THA), Singapore (SGP), Seoul (KOR)
- Technical office
Sysmac Library for Advanced Control
The Sysmac Library for the NJ/NX Machine Automation Controller or Industrial PC Platform NY IPC Machine Controller provides Function Blocks packed with know-how that makes advanced control easy.
Features:
- For a wide range of applications: advanced control such as vibration suppression and temperature control, motion control such as PID feedforward, and connecting to servo drives or sensors.
- Available to download from OMRON's website. Install the library to use in the Sysmac Studio.
- Library specially designed for the NJ/NX Machine Automation Controller or Industrial PC Platform NY IPC Machine Controller reduces programming and debugging time.
- High quality product with reliable global support.
Ordering Information
Sysmac Library is POU Libraries (Function Block and Function) provided for NJ/NX/NY-series Controller. Please download it from following URL and install to Sysmac Studio: http://www.ia.omron.com/sysmac_library/
| Product | Features | Model | Standards |
|---|---|---|---|
| MC Test Run Library | The MC Test Run Library is used to perform a test run that the MC Function Module is used. In this library, a processing to operate axes that an MPG (i.e. a manual pulse generator) was used is provided. You can use this library to reduce manpower of programming when creating a test run program that an MPG was used. | SYSMAC-XR001 | |
| MC Command Table Library | The MC Command Table Library is used to continuously perform positioning that the MC Function Module is used. You can use this library together with motion control instructions of the NJ/NX/NY-series Controller. The program that multiple motion control instructions are used will be unnecessary by using this library. | SYSMAC-XR002 | |
| MC Tool Box Library | The MC Tool Box Library is used to implement a program to perform motor control in the user program. The processings such as PID processing and filter processing are provided in this library. You can use this library to reduce manpower of programming when creating a program to perform motor control. | SYSMAC-XR003 | |
| EtherCAT G5 Series Library | The EtherCAT G5 Series Library is used to initialize the absolute encoder, back up and restore the parameters for an OMRON G5-series Servo Drive with built-in EtherCAT communications. You can use this library to reduce manpower of programming when implementing the processing for a Servo Drive. | SYSMAC-XR004 | |
| EtherCAT N-Smart Series Library | The EtherCAT N-Smart Series Library is used to back up and restore the parameters for an OMRON E3NW Sensor Communications Unit (an EtherCAT type). You can use this library to reduce manpower of programming when implementing the processing for a Sensor Communications Unit. | SYSMAC-XR005 | |
| Vibration Suppression Library | The Vibration Suppression Library is used to suppress residual vibration caused by the operation of machines. You can use this library together with motion control instructions of the NJ/NX/NY-series Controller. | SYSMAC-XR006 | |
| Temperature Control Library | The Temperature Control Library is used to perform a high-level temperature control. You can use this library together with analog control instructions of the NJ/NX/NY-series Controller. | SYSMAC-XR007 | |
| Device Operation Monitor Library | The Device Operation Monitor Library is used to monitor the operation of devices such as air cylinders, sensors, motors, and other devices. | SYSMAC-XR008 | |
| Adept Robot Control Library | The Adept Robot Control Library is used to directly control Adept Robots from NJ/NX-series CPU Unit or NY-series Industrial PC. You can use this library to control any types of robots like parallel, SCARA and articulated from PLC with common instructions and a common programming method. | SYSMAC-XR009 | |
| Weighing Control Library | The Weighing Control Library is used to perform weighing control of raw materials for industrial products with NX-series Load Cell Input Unit NX-RS1201. Also, functions that are used to display and correct measurement values are included. You can use this Weighing Control Library to reduce programming work when you implement processing for weighing in each device. | SYSMAC-XR010 | |
| EtherCAT 1S Series Library | The EtherCAT 1S Series Library is used to initialize the absolute encoder, back up and restore the parameters for an OMRON 1S-series Servo Drive with built-in EtherCAT communications. You can use this library to reduce manpower of programming when implementing the processing for a Servo Drive. | SYSMAC-XR011 | |
| Packaging Machine Library | The Packaging Machine Library is used to control various packaging machines with NJ/NX-series CPU Unit or NY-series Industrial PC. The Packaging Machine Library enables accurate and high-speed packaging processing, and reduction of programming man-hour as well as man-hour to start up packaging system. The use of PackML-compliant PackML Support Function Blocks facilitates compliance with the PackML standard. | SYSMAC-XR012 | |
| Servo Press Library | The Servo Press Library is used to generate the operation commands and monitor the operations of actuator for servo presses with NJ/NX-series CPU Unit or NY-series Industrial PC. You can use the Servo Press Library to realize the high-speed and high precision servo press control and reduce programming work. | SYSMAC-XR013 | |
| Dimension Measurement Library | Dimension Measurement Library is the system which connects the NJ/NX-series CPU Unit or NY-series Industrial PC, ZW-8000/7000/5000 Confocal Fiber Displacement Sensor Controller, and E9NC-TA0 Contact-Type Smart Sensor through EtherCAT communications. It is used when you perform various dimension measurements. When you use the Dimension Measurement Library, you can improve measurement accuracy, enlarge measurement range, and reduce programming work. | SYSMAC-XR014 | |
| Safety System Monitor Library | The Safety System Monitor Library is used to monitor the safety system information. You can use this library to manage the information of the running safety system. | SYSMAC-XR015 | |
| High-Speed Analog Inspection Library | The High-speed Analog Inspection Library records analog input values acquired by the NX-series High-speed Analog Input Units in time. This library provides functions required for product inspections during production processes, including calculation of feature values (e.g., maximum, minimum, and mean), comparison with master data, and data file storage. | SYSMAC-XR016 | |
| SLMP Communications Library | The SLMP Communications Library is a collection of functional objects that uses the SLMP communications protocol for the Sequencer made by Mitsubishi Electric to carry out communications control. Various FB types (Device Read, Device Write) are provided for easy incorporation of the OMRON Machine Automation Controller in networks configured by the Sequencer. | SYSMAC-XR017 | |
| Visual Feedback Alignment Library | The Visual Feedback Alignment Library is a set of software function components for alignment applications employing visual feedback. | SYSMAC-XR018 | |
| RFID Communications Library | The RFID Communications Library is used to perform traceability management with NX-series V680 RFID unit. You can use this library to reduce programming work when implement processing for large data communication with RF tags, communication multiple RF tags. | SYSMAC-XR019 |
Version Information
The following tables show the version information for each library and the applicable models.
| Product Name | Model | Version | Bundled library File | NJ/NX-series CPU Unit | NY-series Industrial PC | Sysmac Studio | Related Products | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| NX701-1000 | NX102-150 | NJ501-150 | NJ301-150 | NJ101-10 | NJ101-90 | NY532-1500 | NY532-1400 | NY532-1300 | ||||||
| MC Test Run Library | SYSMAC-XR001 | Ver.1.1 | OmronLib_MC_Test_Run_V1_1.slr | Ver.1.10 or later | Ver.1.30 or later | Ver.1.10 or later | Ver.1.10 or later | Ver.1.10 or later | Ver.1.10 or later | Ver.1.12 or later | Ver.1.18 or later | Ver.1.14 or higher | *1 | • Incremental Encoder Input Unit (NX-EC, GX-EC0211/EC0241) Ver.1.1 or later • G5-series Servo Drive (R88D-KN-ECT) Ver.2.10 or later • NX-series Pulse Output Unit (NX-PG0) Ver.1.1 or later |
| MC Command Table Library | SYSMAC-XR002 | Ver.1.1 | OmronLib_MC_Cmd_Tbl_V1_1.slr | Ver.1.10 or later | Ver.1.30 or later | Ver.1.10 or later | Ver.1.10 or later | Ver.1.10 or later | Ver.1.10 or later | Ver.1.12 or later | Ver.1.18 or later | Ver.1.14 or higher | *1*2*3*4 | • G5-series Servo Drive (R88D-KN-ECT) Ver.2.10 or later |
| MC Tool Box Library | SYSMAC-XR003 | Ver.1.1 | OmronLib_MC_Toolbox_V1_1.slr | Ver.1.10 or later | Ver.1.30 or later | Ver.1.08 or later | Ver.1.08 or later | Ver.1.10 or later | Ver.1.10 or later | Ver.1.12 or later | Ver.1.18 or later | Ver.1.14 or higher | *1*2*3*4 | • G5-series Servo Drive (R88D-KN-ECT) Ver.2.10 or later |
| EtherCAT G5 Series Library | SYSMAC-XR004 | Ver.1.1 | OmronLib_EC_G5_V1_1.slr | Ver.1.10 or later | Ver.1.30 or later | Ver.1.01 or later | Ver.1.01 or later | Ver.1.10 or later | Ver.1.10 or later | Ver.1.12 or later | Ver.1.18 or later | Ver.1.14 or higher | *1*3 | • G5-series Servo Drive (R88D-KN-ECT) Ver.2.10 or later • SD Memory Card (HMC-SD) • N-Smart Sensor Communications Unit (E3NW-ECT) Ver.1.03 or later (The E3NX-CA0 is supported for Ver.1.06 or later.) • Distributed Sensor Unit (E3NW-DS) • Smart Fiber Amplifier Unit (E3NX-FA0) • Smart Laser Amplifier Unit (E3NC-LA0) • Smart Laser Amplifier Unit (CMOS type) (E3NC-SA0) • Contact-Type Smart Amplifier Unit (E9NC-TA0) |
| EtherCAT N-Smart Series Library | SYSMAC-XR005 | Ver.1.2 | OmronLib_EC_E3NW_V1_2.slr | Ver.1.10 or later | Ver.1.30 or later | Ver.1.01 or later | Ver.1.01 or later | Ver.1.10 or later | Ver.1.10 or later | Ver.1.12 or later | Ver.1.18 or later | Ver.1.14 or higher | *1 | • G5-series Servo Drive (R88D-KN-ECT) Ver.2.10 or later • SD Memory Card (HMC-SD) • N-Smart Sensor Communications Unit (E3NW-ECT) Ver.1.03 or later • Distributed Sensor Unit (E3NW-DS) • Smart Fiber Amplifier Unit (E3NX-FA0) • Smart Laser Amplifier Unit (E3NC-LA0) • Smart Laser Amplifier Unit (CMOS type) (E3NC-SA0) • Contact-Type Smart Amplifier Unit (E9NC-TA0) |
| Vibration Suppression Library | SYSMAC-XR006 | Ver.1.0 | OmronLib_VS_Toolbox_V1_0.slr | Ver.1.10 or later | Ver.1.30 or later | Ver.1.10 or later | Ver.1.10 or later | Ver.1.10 or later | Ver.1.10 or later | Ver.1.12 or later | Ver.1.18 or later | Ver.1.14 or higher | *1*3 | • G5-series Servo Drive (R88D-KN-ECT) Ver.2.10 or later |
| Temperature Control Library | SYSMAC-XR007 | Ver.1.0 | OmronLib_TC_Toolbox_V1_0.slr | Ver.1.10 or later | Ver.1.30 or later | Ver.1.02 or later | Ver.1.02 or later | Ver.1.10 or later | Ver.1.10 or later | Ver.1.12 or later | Ver.1.18 or later | Ver.1.14 or higher | ||
| Device Operation Monitor Library | SYSMAC-XR008 | Ver.1.0 | OmronLib_BC_DeviceMonitor_V1_0.slr | Ver.1.10 or later | Ver.1.30 or later | Ver.1.01 or later | Ver.1.01 or later | Ver.1.10 or later | Ver.1.10 or later | Ver.1.12 or later | Ver.1.18 or later | Ver.1.14 or higher | • N-Smart Sensor Communications Unit (E3NW-ECT) Ver.1.03 or later • Distributed Sensor Unit (E3NW-DS) • Smart Fiber Amplifier Unit (E3NX-FA0) • Smart Laser Amplifier Unit (E3NC-LA0) • Smart Laser Amplifier Unit (CMOS type) (E3NC-SA0) • Contact-Type Smart Amplifier Unit (E9NC-TA0) • SD Memory Card (HMC-SD) |
|
| Adept Robot Control Library | SYSMAC-XR009 | Ver.2.0 | OmronLib_EIP_Adept_V2_0.slr | Ver.1.10 or later | Ver.1.30 or later | Ver.1.01 or later | Ver.1.01 or later | Ver.1.10 or later | Ver.1.10 or later | Ver.1.12 or later | Ver.1.18 or later | Ver.1.14 or higher | *1*5 | • SCARA Robot Cobra 450/500/650, eCobra 600/800 Ver.2.3.C or later • Parallel Robot Hornet 565 Ver.2.3.C or later, Quattro 650H/HS Ver.2.3.C or later, 800H Ver.2.3.C or later • Articulated Robot Viper 650/850 Ver.2.3.C or later • SmartController EX Ver.2.3.C or later • T20 Pendant Ver.2.2.2.1 or later |
| Weighing Control Library | SYSMAC-XR010 | Ver.1.0 | OmronLib_WC_Toolbox_V1_0.slr | Ver.1.10 or later | Ver.1.30 or later | Ver.1.05 or later | Ver.1.05 or later | Ver.1.10 or later | Ver.1.10 or later | Ver.1.12 or later | Ver.1.18 or later | Ver.1.14 or higher | *1*3 | • NX-series LoadCell I/F Unit (NX-RSO) Ver.1.0 or later • 1S-series Servo Drive (R88D-1SN-ECT) Ver.1.0 or later (R88D-1SAN-ECT) Ver.1.0 or later • SD Memory Card (HMC-SD) |
| EtherCAT 1S Series Library | SYSMAC-XR011 | Ver.1.0 | OmronLib_EC_1S_V1_0.slr | Ver.1.10 or later | Ver.1.30 or later | Ver.1.01 or later | Ver.1.01 or later | Ver.1.10 or later | Ver.1.10 or later | Ver.1.12 or later | Ver.1.18 or later | Ver.1.16 or higher | *1*3 | • 1S-series Servo Drive (R88D-1SN-ECT) Ver.1.0 or later • SD Memory Card (HMC-SD) |
| Packaging Machine Library | SYSMAC-XR012 | Ver.2.0 | OmronLib_PKG_WU_V1_0.slr OmronLib_PKG_RK_V1_0.slr OmronLib_PackML3_0_V1_0.slr OmronLib_PackML3_0_V2_0.slr |
Ver.1.10 or later | Ver.1.30 or later | Ver.1.10 or later | Ver.1.10 or later | Ver.1.10 or later | Ver.1.10 or later | Ver.1.12 or later | Ver.1.18 or later | Ver.1.14 or higher | *1*3 | • G5-series Servo Drive (R88D-KN-ECT) Ver.2.10 or later • 1S-series Servo Drive (R88D-1SN-ECT) Ver.1.0 or later • G5-series Servo Drive (R88D-KN-ECT) Ver.2.10 or later |
| Servo Press Library | SYSMAC-XR013 | Ver.2.0 | OmronLib_ServoPress_V2_0.slr OmronLib_ServoPress_V1_0.slr |
Ver.1.18 or later | Ver.1.30 or later | Ver.1.18 or later | Ver.1.18 or later | Ver.1.10 or later | Ver.1.10 or later | Ver.1.12 or later | Ver.1.18 or later | Ver.1.14 or higher | *1*3 | • G5-series Servo Drive (R88D-KN-ECT) Ver.2.10 or later • 1S-series Servo Drive (R88D-1SN-ECT) Ver.1.0 or later |
| Dimension Measurement Library | SYSMAC-XR014 | Ver.2.0 | OmronLib_DIM_LineMeasure_V1_1.slr OmronLib_DIM_PointMeasure_V1_1.slr OmronLib_DIM_LineMeasure_V1_0.slr |
Ver.1.10 or later | Ver.1.30 or later | Ver.1.08 or later | Ver.1.08 or later | Ver.1.10 or later | Ver.1.10 or later | Ver.1.12 or later | Ver.1.18 or later | Ver.1.15 or higher | *5 | • N-Smart Sensor Communications Unit (E3NW-ECT) Ver.1.03 or later • Contact-Type Smart Amplifier Unit (E9NC-TA0) • ZW-8000 Series Confocal Fiber Type Displacement Sensor Ver.3.00 or later • ZW-7000 Series Confocal Fiber Type Displacement Sensor Ver.2.03 or later • ZW-5000 Series Confocal Fiber Type Displacement Sensor Ver.2.10 or later |
| Safety System Monitor Library | SYSMAC-XR015 | Ver.1.0 | OmronLib_SF_Monitor_V1_0.slr | Ver.1.10 or later | Ver.1.30 or later | Ver.1.07 or later | Ver.1.07 or later | Ver.1.10 or later | Ver.1.10 or later | Ver.1.12 or later | Ver.1.18 or later | Ver.1.14 or higher | • NX-series Safety Control Unit (NX-SL3) Ver.1.00 or later • NX-series Communications Coupler Unit (NX-ECC201) Ver.1.2.1 or later • Communications Coupler Unit (NX-ECC202) Ver.1.2.1 or later • Communications Coupler Unit (NX-ECC203) Ver.1.3 or later |
|
| High-Speed Analog Inspection Library | SYSMAC-XR016 | Ver.1.0 | OmronLib_NX_HADC_V1_0.slr OmronLib_DataRec_V1_0.slr |
Ver.1.18 or later | Ver.1.30 or later | Ver.1.18 or later | Ver.1.18 or later | Ver.1.18 or later | Ver.1.18 or later | Ver.1.18 or later | Ver.1.18 or later | Ver.1.23 or higher | • NX-series High-speed Analog Input Unit (NX-HAD) Ver.1.0 or later • Vision System FH-series (FH-) Ver.5.50 or later |
|
| SLMP Communications Library | SYSMAC-XR017 | Ver.1.0 | OmronLib_SLMP_Comm_V1_0.slr | Ver.1.18 or later | Ver.1.30 or later | Ver.1.18 or later | Ver.1.18 or later | Ver.1.18 or later | Ver.1.18 or later | Ver.1.18 or later | Ver.1.18 or later | Ver.1.23 or higher | • Mitsubishi Electric Sequencer | |
| Visual Feedback Alignment Library | SYSMAC-XR018 | Ver.1.0 | OmronLib_VF_Alignment_V1_0.slr | Ver.1.10 or later | Ver.1.30 or later | Ver.1.08 or later | Ver.1.08 or later | Ver.1.10 or later | Ver.1.10 or later | Ver.1.12 or later | Ver.1.18 or later | Ver.1.18 or higher | *1*2 | • Vision System FH-series |
| RFID Communications Library | SYSMAC-XR019 | Ver.1.0 | OmronLib_NX_V680_V1_0.slr | Ver.1.18 or later | Ver.1.30 or later | Ver.1.18 or later | Ver.1.18 or later | Ver.1.18 or later | Ver.1.18 or later | Ver.1.18 or later | Ver.1.18 or later | Ver.1.23 or higher | • NX-series RFID Unit (NX-V680C) Ver.1.0 or later | |
*1. This Library is not available for NJ101-90 CPU Units.
*2. When you use this function block with NJ101-10, you can use a maximum of two real servo axes.
*3. This Library is not available for NX1P2-90 CPU Units.
*4. When you use this function block with NX1P2-10, you can use a maximum of two real servo axes.
*5. When you use ZW-5000, Sysmac studio is supported for Ver.1.18 or higher. When you use ZW-8000, Sysmac studio is supported for Ver.1.22 or higher.
Related Catalogs
| Product Name | Models | Cat. No. |
|---|---|---|
| MC Test Run Library | SYSMAC-XR001 | P093 |
| MC Command Table Library | SYSMAC-XR002 | P092 |
| MC Tool Box Library | SYSMAC-XR003 | P098 |
| EtherCAT G5 Series Library | SYSMAC-XR004 | P095 |
| EtherCAT N-Smart Series Library | SYSMAC-XR005 | P094 |
| Vibration Suppression Library | SYSMAC-XR006 | P099 |
| Temperature Control Library | SYSMAC-XR007 | P100 |
| Device Operation Monitor Library | SYSMAC-XR008 | P101 |
| Adept Robot Control Library | SYSMAC-XR009 | P106 |
| Weighing Control Library | SYSMAC-XR010 | P109 |
| EtherCAT 1S Series Library | SYSMAC-XR011 | P110 |
| Packaging Machine Library | SYSMAC-XR012 | P111 |
| Servo Press Library | SYSMAC-XR013 | P112 |
| Dimension Measurement Library | SYSMAC-XR014 | P113 |
| Safety System Monitor Library | SYSMAC-XR015 | P119 |
| High-Speed Analog Inspection Library | SYSMAC-XR016 | P132 |
| SLMP Communications Library | SYSMAC-XR017 | P131 |
| Visual Feedback Alignment Library | SYSMAC-XR018 | P135 |
| RFID Communications Library | SYSMAC-XR019 | P136 |
Related Manuals
| Cat. No. | Model number | Manual | Application | Description |
|---|---|---|---|---|
| W546 | SYSMAC-XR001 | Sysmac Library User's Manual for MC Test Run Library | Learning about the specifications of the function blocks in the MC Test Run Library | Describes the information that is necessary to use the function blocks in the MC Test Run Library. |
| W545 | SYSMAC-XR002 | Sysmac Library User's Manual for MC Command Table Library | Learning about the specifications of the function blocks in the MC Command Table Library | Describes the information that is necessary to use the function blocks in the MC Command Table Library. |
| W547 | SYSMAC-XR003 | Sysmac Library User's Manual for MC Tool Box Library | Learning about the specifications of the function blocks in the MC Tool Box Library | Describes the information that is necessary to use the function blocks in the MC Tool Box Library. |
| W548 | SYSMAC-XR004 | Sysmac Library User's Manual for EtherCAT G5 Series Library | Learning about the specifications of the function blocks in the EtherCAT G5 Series Library | Describes the information that is necessary to use the function blocks in the EtherCAT G5 series Library. |
| W549 | SYSMAC-XR005 | Sysmac Library User's Manual for EtherCAT N-Smart Series Library | Learning about the specifications of the function blocks in the EtherCAT N-Smart Series Library | Describes the information that is necessary to use the function blocks in the EtherCAT N-Smart series Library. |
| W550 | SYSMAC-XR006 | Sysmac Library User's Manual for Vibration Suppression Library | Learning about the specifications of the function blocks in the Vibration Suppression Library | Describes the information that is necessary to use the function blocks in the Vibration Suppression Library. |
| W551 | SYSMAC-XR007 | Sysmac Library User's Manual for Temperature Control Library | Learning about the specifications of the function blocks in the Temperature Control Library | Describes the information that is necessary to use the function blocks in the Temperature Control Library. |
| W552 | SYSMAC-XR008 | Sysmac Library User's Manual for Device Operation Monitor Library | Learning about the specifications of the function blocks in the Device Operation Monitor Library | Describes the information that is necessary to use the function blocks in the Device Operation Monitoring Library. |
| W575 | SYSMAC-XR009 | Sysmac Library User's Manual for Adept Robot Control Library | Learning about the specifications of the function blocks in the Adept Robot Control Library | Describes the information that is necessary to use the function blocks in the Adept Robot Control Library |
| W569 | SYSMAC-XR010 | Sysmac Library User's Manual for Weighing Control Library | Learning about the specifications of the function blocks in the Weighing Control Library | Describes the information that is necessary to use the function blocks in the Weighing Control Library. |
| W571 | SYSMAC-XR011 | Sysmac Library User's Manual for EtherCAT 1S Series Library | Learning about the specifications of the function blocks in the EtherCAT 1S Series Library | Describes the information that is necessary to use the function blocks in the EtherCAT 1S series Library. |
| W572 | SYSMAC-XR012 | Sysmac Library User's Manual for Packaging Machine Library | Learning about the specifications of the function blocks in the Packaging Machine Library | Describes the information that is necessary to use the function blocks in the Packaging Machine Library. |
| W573 | SYSMAC-XR013 | Sysmac Library User's Manual for Servo Press Library | Learning about the specifications of the function blocks in the Servo Press Library | Describes the information that is necessary to use the function blocks in the Servo Press Library. |
| W574 | SYSMAC-XR014 | Sysmac Library User's Manual for Dimension Measurement Library | Learning about the specifications of instructions for the function blocks in the Dimension Measurement Library | Describes the information that is necessary to use the function blocks in the Dimension Measurement Library. |
| W582 | SYSMAC-XR015 | Sysmac Library User's Manual for Safety System Monitor Library | Learning about the specifications of the function blocks in the Safety System Monitor Library | Describes the information that is necessary to use the function blocks in the Safety System Monitor Library. |
| W607 | SYSMAC-XR016 | Sysmac Library User's Manual for High-Speed Analog Inspection Library | Learning about the specifications of instructions for the function blocks in the High-Speed Analog Inspection Library | Describes the information that is necessary to use the function blocks in the High-Speed Analog Inspection Library. |
| W597 | SYSMAC-XR017 | Sysmac Library User's Manual for SLMP Communications Library | Learning about the specifications of instructions for the function blocks in the SLMP Communications Library | Describes the information that is necessary to use the function blocks in the SLMP Communications Library. |
| W608 | SYSMAC-XR018 | Sysmac Library User's Manual for Visual Feedback Alignment Library | Learning about the specifications of instructions for the function blocks in the Visual Feedback Alignment Library | Describes the information that is necessary to use the function blocks in the Visual Feedback Alignment Library. |
| W501 | SYSMAC-XR019 | Sysmac Library User's Manual for RFID Communications Library | Learning about the specifications of instructions for the function blocks in the RFID Communications Library | Describes the information that is necessary to use the function blocks in the RFID Communications Library. |
| W500 | NJ701-1, NX102-1, NX102-90, NX1P2-1, NX1P2-90, NJ501-150, NJ301-1, NJ101-10, NJ101-90 | NJ/NX-series CPU Unit Software User's Manual | Learning how to program and set up an NJ/NX-series CPU Unit. Mainly software information is provided. | The following information is provided on a Controller built with an NJ/NX-series CPU Unit. • CPU Unit operation • CPU Unit features • Initial settings • Programming language specifications and programming with the IEC 61131-3 standard. Use this manual together with the NJ-series CPU Unit Hardware User's Manual (Cat. No. W500) and NJ/NX-series CPU Unit Software User's Manual (Cat. No. W501). |
| W502 | NX701-1, NX102-1, NX102-90, NX1P2-1, NX1P2-90, NJ501-150, NJ301-1, NJ101-10, NJ101-90 | NJ/NX-series Instructions Reference Manual | Learning about the specifications of the instruction set that is provided by OMRON | The instructions in the instruction set (IEC 61131-3 specifications) are described. Use this manual together with the NJ-series CPU Unit Hardware User's Manual (Cat. No. W500) and NJ/NX-series CPU Unit Software User's Manual (Cat. No. W501). |
| W504 | NX701-1, NX102-1, NX102-90, NX1P2-1, NX1P2-90, NJ501-150, NJ301-1, NJ101-10, NJ101-90 | Sysmac Studio Version 1 Operation Manual | Learning about the operating procedures and functions of the Sysmac Studio. | Describes the operating procedures of the Sysmac Studio. |
| W507 | NX701-1, NX102-1, NX102-90, NX1P2-1, NX1P2-90, NJ501-150, NJ301-1, NJ101-10, NJ101-90 | NJ/NX-series Motion Control User's Manual | Learning about motion control settings and programming concepts | The settings and operation of the CPU Unit and programming concepts for motion control are described. Use this manual together with the NJ-series CPU Unit Hardware User's Manual (Cat. No. W500) and NJ/NX-series CPU Unit Software User's Manual (Cat. No. W501). |
| W508 | NX701-1, NX102-1, NX102-90, NX1P2-1, NX1P2-90, NJ501-150, NJ301-1, NJ101-10, NJ101-90 | NJ/NX-series Motion Control Instructions Reference Manual | Learning about the specifications of the motion control instructions that are provided by OMRON | The motion control instructions are described. Use this manual together with the NJ-series CPU Unit Hardware User's Manual (Cat. No. W500), NJ/NX-series CPU Unit Software User's Manual (Cat. No. W501) and NJ/NX-series CPU Unit Motion Control User's Manual (Cat. No. W507). |
| W558 | NY532-1500, NY532-1400, NY532-1300, NY532-5400, NY512-1500, NY512-1400, NY512-1300 | NY-series IPC Machine Controller Industrial Panel PC / Industrial Box PC Software User's Manual | Learning how to program and set up the Controller functions of an NY-series Industrial PC. | The following information is provided on NY-series Machine Automation Control Software. • Controller operation • Controller features • Controller settings • Programming based on IEC 61131-3 language specifications |
| W560 | NY532-1500, NY532-1400, NY532-1300, NY532-5400, NY512-1500, NY512-1400, NY512-1300 | NY-series Instructions Reference Manual | Learning detailed specifications on the basic instructions of an NY-series Industrial PC. | The instructions in the instruction set (IEC 61131-3 specifications) are described. |
| W559 | NY532-1500, NY532-1400, NY532-1300, NY532-5400, NY512-1500, NY512-1400, NY512-1300 | NY-series IPC Machine Controller Industrial Panel PC / Industrial Box PC Motion Control User's Manual | Learning about motion control settings and programming concepts of an NY-series Industrial PC. | The settings and operation of the Controller and programming concepts for motion control are described. |
| W561 | NY532-1500, NY532-1400, NY532-1300, NY532-5400, NY512-1500, NY512-1400, NY512-1300 | NY-series Motion Control Instructions Reference Manual | Learning about the specifications of the motion control instructions of an NY-series Industrial PC. | The motion control instructions are described. |
| 1586 | R88M-1, R88D-1SN-ECT, R88M-K | AC Servomotors/Servo Drives 1S-series with Built-in EtherCAT® Communications User's Manual | Learning how to use the Servomotors/Servo Drives with built-in EtherCAT Communications. | Describes the hardware, setup methods and functions of the Servomotors/Servo Drives with built-in EtherCAT Communications. |
| 1576 | R88D-KN-ECT | G5-series AC Servomotors/Servo Drives (Built-in EtherCAT® Communications User's Manual | Learning how to use the AC Servomotors/Servo Drives with built-in EtherCAT® Communications. | Describes the hardware, setup methods and functions of the AC Servomotors/Servo Drives with built-in EtherCAT Communications. |
| E429 | E3NW-ECT | E3NW-ECT EtherCAT® Digital Sensor Communication Unit Operation Manual | Learning how to use E3NW-ECT EtherCAT® Digital Sensor Communication Unit | Provides the specifications of and describes application methods for E3NW-ECT EtherCAT® Digital Sensor Communication Unit. |
| Z362 | ZW-8000/7000/5000 | Confocal Fiber Type Displacement Sensor ZW-8000/7000/5000 series User's Manual | To learn how to set-up of Confocal Fiber Type Displacement Sensor of ZW-8000/7000/5000 series | Describes how to set-up of Confocal Fiber Type Displacement Sensor of ZW-8000/7000/5000 series. |
| Z930 | NX-SL, NX-SI, NX-SO | NX-series Safety Control Unit User's Manual | Learning how to use the NX-series Safety Control Units. | Describes the hardware, setup methods, and functions of the NX-series Safety Control Units. |
