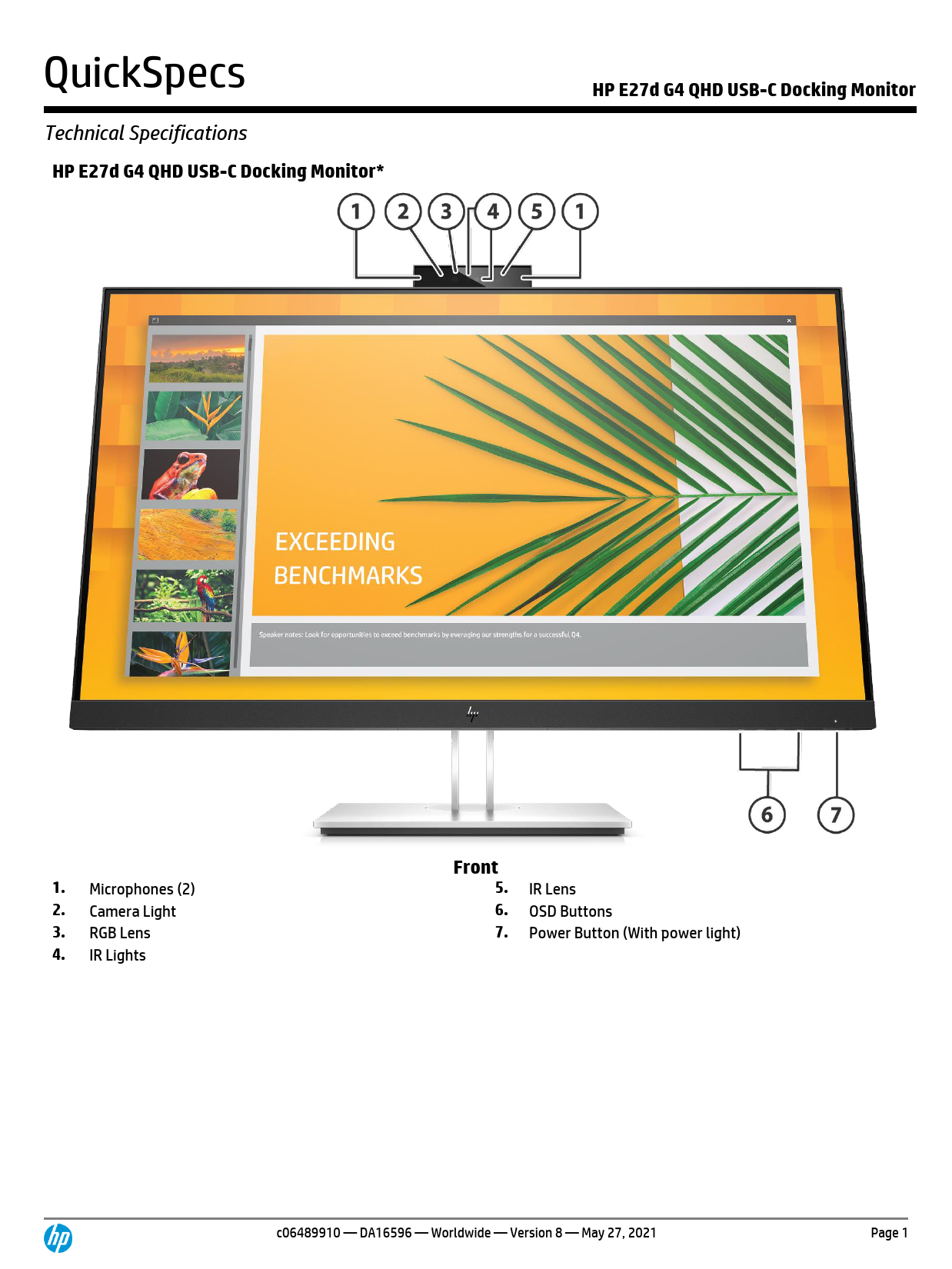

QuickSpecs
Technical Specifications HP E27d G4 QHD USB-C Docking Monitor*
HP E27d G4 QHD USB-C Docking Monitor
1. Microphones (2) 2. Camera Light 3. RGB Lens 4. IR Lights
Front
5.
6. 7.
IR Lens OSD Buttons Power Button (With power light)
c06489910 -- DA16596 -- Worldwide -- Version 8 -- May 27, 2021
Page 1
QuickSpecs
Technical Specifications HP E27d G4 QHD USB-C Docking Monitor*
HP E27d G4 QHD USB-C Docking Monitor
1. Security Cable Slot 2. Master Power Switch 3. Power Connector 4. HDMI Port 5. DisplayPortTM connector 6. USB Type-CTM Port (Connect to Notebook)
Back
7.
8. 9. 10. 11. 12.
DisplayPortTM OUT connector USB Type-CTM downstream port RJ-45 (Network) Jack USB SuperSpeed Ports (2) USB SuperSpeed Ports (2) Audio-Out (Headphone)/Audio-in (Microphone) Combo Jack
c06489910 -- DA16596 -- Worldwide -- Version 8 -- May 27, 2021
Page 2
QuickSpecs
HP E27d G4 QHD USB-C Docking Monitor
Technical Specifications
Models: *Product Reference 6PA56AA HP E27D G4 QHD Advanced Docking Monitor was changed by December 2020 to
6PA56A4 HP E27D G4 QHD USB-C Docking Monitor.
Panel Specifications
Display Size (Diagonal) Display Panel Type Micro-Edge Bezel Native Resolution/Timing Native Resolution Panel Bit Depth Aspect Ratio Brightness - Typical Static Contrast Ratio - Typical Static Contrast Ratio - Minimum Dynamic Contrast Ratio (DCR) Flicker Free Pixel Pitch Pixels Per Inch (PPI) Backlight Lamp Life (to half brightness - in hours) Anti-Glare Panel Response Time - Typical Horizontal Viewing Angle (typical CR>10) Vertical Viewing Angle (typical CR>10) Panel Active Area (w x h) Preset Graphic Modes/Supported Resolutions
Maximum Resolution Recommended Resolution Vertical Scan Range Horizontal Scan Range Default Color Temperature
27-in IPS Yes, 3-sided 2560 x 1440 @60HZ USB Type CTM 8-bit (16.7million color) 16:9 300 cd/m� 1000:1 700:1 5M:1 Yes 0.2331(H) x 0.2331(V) 109 30k minimum
Yes 5 ms 178�
178� 596.736(H) x 335.664(V) mm 640 x 480 @60Hz 720 x 400 @70Hz 800 x 600 @60Hz 1024 x 768 @60Hz 1280 x 720 @60Hz 1280 x 800 @60 HZ 1280 x 1024@60Hz 1440 x 900 @60Hz 1600 x 900 @60Hz 1680 x 1050 @60Hz 1920 x 1080 @60Hz 2560 x 1080 @60Hz 2560 x 1440 @60Hz 2560 x 1440 @60Hz 2560 x 1440 @60Hz 48-75 Hz 30-90 kHz Neutral (6500K)
NOTE: Performance specifications represent the typical specifications provided by HP's component manufacturers; actual performance may vary either higher or lower.
Color Gamut Coverage sRGB
99% sRGB
c06489910 -- DA16596 -- Worldwide -- Version 8 -- May 27, 2021
Page 3
QuickSpecs
Technical Specifications
Color Management
Factory Color Presets Color Space / Subsampling Support Default Color Temperature Low Blue Light Modes RGB Channel Adjust
Monitor Specifications
Exterior Color of Monitor Bezel and Stand Plug & Play Tilt Swivel Pivot Height Adjustment Range VESA Mounting Security Lock Ready Detachable Base Warranty
Low Blue Light
Multimedia
On Screen Display (OSD)
Webcam Infra-Red Sensors Windows Hello Compatible Microphone
On Screen Display User Controls
Monitor Control Buttons or Switches
User-Assignable Function Buttons Languages
Connector Types
USB Port Specifications
DisplayPortTM
HDMI USB Type-CTM
HDCP support Audio Output Ethernet
USB Version USB Hub Downstream Ports
HP E27d G4 QHD USB-C Docking Monitor
Neutral RGB 4:4:4, YCBCR 4:4:4, YCBCR 4:2:2 Neutral (6500 K) Yes Yes, Gain
Black
Yes �5� to +20� +/-30� +/-90� 150 mm 100mm x 100mm Yes Yes, ships detached 3-3-0 US/JP/AP/EU 3-3-3 AP/PRC Yes, HP Eye Ease (TUV Low Blue Light Hardware Solution Certified)* *Product Reference 6PA56AA HP E27d G4 QHD Advanced Docking Monitor is built-in software low blue light, only 6PA56A4 HP E27d G4 QHD USB-C Docking Monitor is built-in HP Eye Ease.
Yes, 1080p FHD Yes, 1 Yes Yes
Brightness+, Color, Image, Input, Power, Menu, Management, Information Menu, Minus ("-")/Information, Plus ("+") /Viewing Mode, OK/Next Active Input, Power Yes, 3 (6 Options)
10 (German, Dutch, T-Chinese and S-Chinese, English, Spanish, French, Italian, Japanese, Portuguese)
1 DisplayPortTM 1.2 in 1 DisplayPortTM 1.2 out 1 HDMI 1.4 1 USB Type CTM upstream (Power delivery up to 100 W) 1 USB Type CTM downstream (Power delivery up to 15 W) Yes 1 Headset / Microphone Yes
3.0 Yes 5 Ports
c06489910 -- DA16596 -- Worldwide -- Version 8 -- May 27, 2021
Page 4
QuickSpecs
HP E27d G4 QHD USB-C Docking Monitor
Technical Specifications
Upstream Ports Fast Charging USB Ports Power Output Maximum
1 Port 4 Ports (Rear, Side) (USB-A) Fast Charging: 7.5 W
USB-Type CTM Port Specifications
USB-Type CTM Version
USB-Type CTM Hub Downstream USB-Type CTM Ports Upstream USB-Type CTM Ports Video Support Power Output Power Output Maximum
USB 3.1 Gen2 / 10G bps
Yes 1 Port 1 Port USB-CTM Alt mode - DisplayPortTM v1.4 / v1.2 5V/9V/12V/15V/20V, 5A Up to 100 W
Special Features
User Presets
Yes
User Updateable Firmware
Yes
Power & Operating Specs
Power Supply Power Source Power Consumption - Maximum Energy Saving/Standby Mode Power Consumption - Typical Power cable length
Internal 100 � 240 VAC 50/60 Hz 175 W 0.5 W 80 W 1.9 m
EU Energy Efficiency Class (ERP Lot-5)
On-mode Power Consumption
Annual Power Consumption Energy Efficiency Class Visible Screen Size
30 W
43 kWh E 27" / 68,6 cm Diagonal
Operating Conditions
Operating Temperature - Celsius Operating Temperature - Fahrenheit Non-operating Temperature - Celsius Non-operating Temperature Fahrenheit Operating Humidity Non-operating Humidity Operating Altitude Non-operating Altitude
5o � 35oC 41oC � 95oF �20� � 60�C �4� - 140�F
20 � 80% Relative Humidity (non-condensing) 5 � 95% 0 � 5,000 m (16,400 ft.) 0 � 12,192 m (40,000 ft.)
Environmental Features and Certifications
Mercury-free LED display backlighting Arsenic-Free Display Glass Low Halogen*
Agency Approvals and Certifications
Yes, Mercury-free LED backlighting Yes Yes GSE HP-00011-01B, table 2 defines low-halogen (BFR, CFR, PVC) NOTE: External power supplies, power cords, cables and peripherals are not Low Halogen. Service parts obtained after purchase may not be Low Halogen. WW certificate CE, CB, KC/KCC/NOM/ISO 9241-307/ EAC/TUVGS/cTUVus/PSB/CCC/CEL/ISC/VCCI/FCC/BSMI/Vietnam
c06489910 -- DA16596 -- Worldwide -- Version 8 -- May 27, 2021
Page 5
QuickSpecs
HP E27d G4 QHD USB-C Docking Monitor
Technical Specifications
Microsoft WHQL Certification China Energy Label SmartWay Transport Partnership - NA only
MEPS/Australian-New Zealand MEPS/WEEE/BIS/CEC/EStandby/Low Blue Light/CECP/TUV-S/CECP Win 10, Win 8, Win 7 CEL Grade 1 Yes (NA SKU)
*External power supplies, power cords, cables and peripherals are not Low Halogen. Service parts obtained after purchase may not be Low Halogen.
NOTE: DisplayPortTM and the DisplayPortTM logo are trademarks owned by the Video Electronics Standards Association (VESA�) in the United States and other countries.
Unit Product/Package Specifications
Metric
Imperial
Product Dimensions
(Unpacked with stand) (W x D x H)
61.36 x 21.56 x 52.59cm 24.16 x 8.49 x 20.7 in
Product Dimensions
(Packed) (W x D x H)
69.6 x 27.5 x 46.9 cm
27.4 x 10.83 x 18.46 in
Display Head Dimensions
(Unpacked without stand) (W x D x H)
61.36 x 4.85 x 36.6cm
24.16 x 1.91 x 14.41 in
Base Area Footprint**
(w x d mm)
239.9 x 200 mm
9.44 x 7.87 in
**Base Area Footprint sizes for "6PA56AA HP E27d G4 QHD Advanced Docking Monitor" are:
287.8 x 215.6 (mm) / 11.3 x 8.49 (in)
Bezel Measurements
Bottom 21.0 mm
Bottom 0.83 in
(display chin)
(display chin)
Product Weight
(Unpacked with stand)
8.2 kg
18.08 lb
Product Weight
(Packed)
13.3 kg
29.3 lb
Product Weight
(Head Only)
5.5 kg
12.1 lb
Pallet Information
Pallet Dimensions
(L x W x H)
Pallet Total Weight
(L x W x H)
Pallet Layers
Pallet Product per Layer Total Products per Pallet
Container Load, 20-Foot
Container Load, 40-Foot
Container Load, 40-Foot HighQ
1140 x 730 x 120 mm
40" GQ: 223 kg 40" HQ: 276 kg GQ: 4 HQ: 5 4 GQ: 16 HQ: 20 Wood pallet: 256 Slip sheet: 256 Wood pallet: 512 Slip sheet: 512 Wood pallet: 640 Slip sheet: 640
44.88 x 28.74 x 4.72 in
40" GQ: 492 lbs 40" HQ: 609 lbs
Software Included
HP Display Assistant
c06489910 -- DA16596 -- Worldwide -- Version 8 -- May 27, 2021
Page 6
QuickSpecs
Technical Specifications
What's in the box?
User Guide and Warranty Languages
1 HDMI 2.0 1 DisplayPortTM (DisplayPortTM 1.2) 1 USB-C (USB3 Gen2) 1 Power Cord 1 QSP 1 Doc-Kit
User Guide Languages
Warranty Languages
HP E27d G4 QHD USB-C Docking Monitor
(1.8 m) 5.9 ft (1.8 m) 5.9 ft (1 m) (1.9 m) 6.2 ft
English, Arabic, S. Chinese, T. Chinese, Czech, Danish, Dutch, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Kazakh, Korean, Norwegian, Polish, Brazilian Portuguese, Russian, Slovenian, Spanish, Swedish and Turkish. English, Arabic, S. Chinese, T. Chinese, Czech, Danish, Dutch, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Kazakh, Korean, Norwegian, Polish, Brazilian Portuguese, Russian, Slovenian, Spanish, Swedish and Turkish.
c06489910 -- DA16596 -- Worldwide -- Version 8 -- May 27, 2021
Page 7
QuickSpecs
Technical Specifications
HP E27d G4 QHD USB-C Docking Monitor
Copyright � 2021 HP Development Company, L.P. The information contained herein is subject to change without notice. The only warranties for HP products are set forth in the express limited warranty statements accompanying such products. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein. Microsoft and Windows are registered trademarks or trademarks of Microsoft Corporation in the U.S. and/or other countries. ENERGY STAR is a registered trademark owned by the U.S. Environmental Protection Agency.
c06489910 -- DA16596 -- Worldwide -- Version 8 -- May 27, 2021
Page 8
QuickSpecs
Summary Change Log
HP E27d G4 QHD USB-C Docking Monitor
February 21, 2020 September 2, 2020 March 15, 2021 March 17, 2021 April 1, 2021 April 13, 2021 May 27, 2021
V1 to V2 V2 to V3 V3 to V4 V4 to V5 V5 to V6 V6 to V7 V7 to V8 V8 to V9
Updated Updated Added Update Update Update Update
Panel and What's in the box sections Webcam Low Blue Light Energy Efficiency Class Product Dimension VESA Mounting Specs Product Description and Base Area Footprint/ Add HP Blue Light Eye footnote
