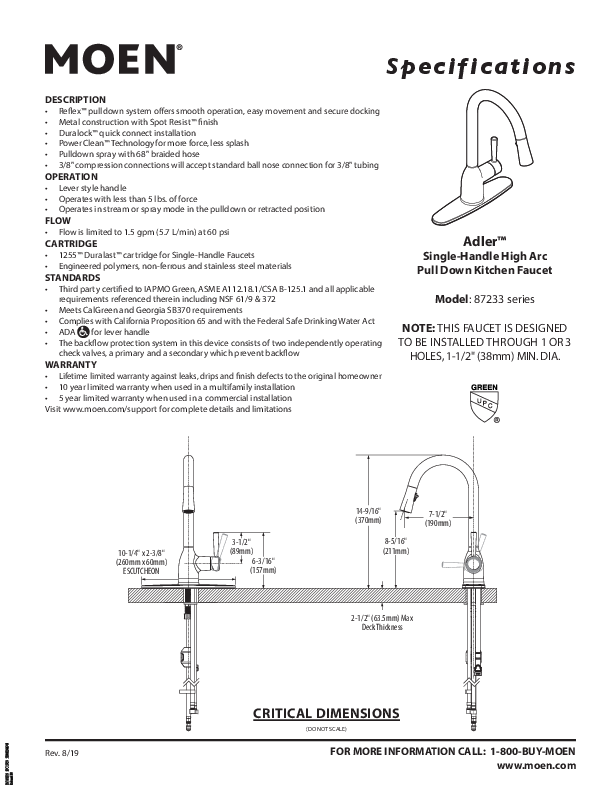

Specifications

DESCRIPTION � ReflexTM pulldown system offers smooth operation, easy movement and secure docking � Metal construction with Spot ResistTM finish � DuralockTM quick connect installation � Power CleanTM Technology for more force, less splash � Pulldown spray with 68" braided hose � 3/8" compression connections will accept standard ball nose connection for 3/8" tubing OPERATION � Lever style handle � Operates with less than 5 lbs. of force � Operates in stream or spray mode in the pulldown or retracted position FLOW � Flow is limited to 1.5 gpm (5.7 L/min) at 60 psi CARTRIDGE � 1255TM DuralastTM cartridge for Single-Handle Faucets � Engineered polymers, non-ferrous and stainless steel materials STANDARDS � Third party certified to IAPMO Green, ASME A112.18.1/CSA B-125.1 and all applicable
requirements referenced therein including NSF 61/9 & 372 � Meets CalGreen and Georgia SB370 requirements � Complies with California Proposition 65 and with the Federal Safe Drinking Water Act � ADA for lever handle � The backflow protection system in this device consists of two independently operating
check valves, a primary and a secondary which prevent backflow WARRANTY � Lifetime limited warranty against leaks, drips and finish defects to the original homeowner � 10 year limited warranty when used in a multifamily installation � 5 year limited warranty when used in a commercial installation Visit www.moen.com/support for complete details and limitations

AdlerTM
Single-Handle High Arc Pull Down Kitchen Faucet
Model: 87233 series
NOTE: THIS FAUCET IS DESIGNED TO BE INSTALLED THROUGH 1 OR 3
HOLES, 1-1/2" (38mm) MIN. DIA.

10-1/4" x 2-3/8" (260mm x 60mm)
ESCUTCHEON

3-1/2" (89mm)
6-3/16" (157mm)

14-9/16" (370mm)
8-5/16" (211mm)

7-1/2" (190mm)

2-1/2" (63.5mm) Max Deck Thickness

Rev. 8/19

CRITICAL DIMENSIONS
(DO NOT SCALE)
FOR MORE INFORMATION CALL: 1-800-BUY-MOEN www.moen.com
