TrafiSense2 V2X is an intelligent thermal sensor for vehicle, pedestrian, and bike detection. Integrated V2X technology allows simultaneous thermal detection and V2X message

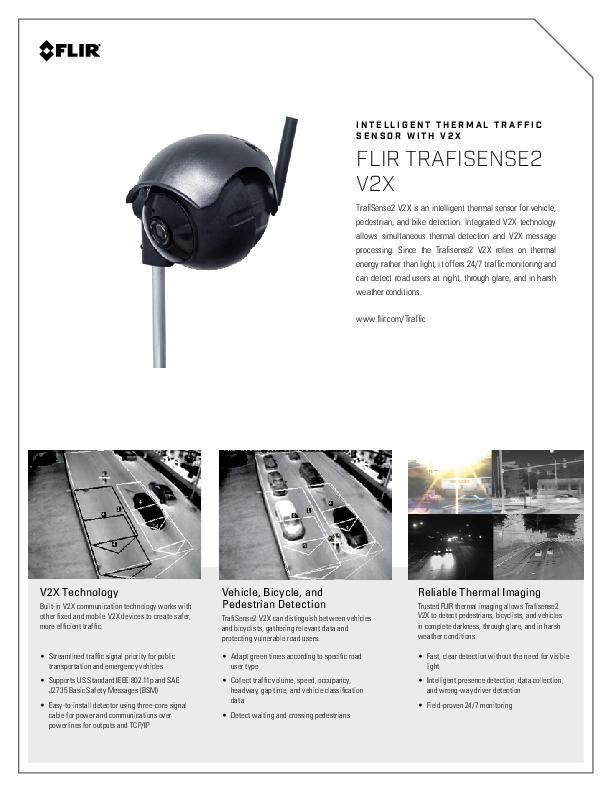

INTELLIGENT THERMAL TRAFFIC SENSOR WITH V2X FLIR TRAFISENSE2 V2X TrafiSense2 V2X is an intelligent thermal sensor for vehicle, pedestrian, and bike detection. Integrated V2X technology allows simultaneous thermal detection and V2X message processing. Since the Trafisense2 V2X relies on thermal energy rather than light, it offers 24/7 traffic monitoring and can detect road users at night, through glare, and in harsh weather conditions. www.flir.com/Traffic V2X Technology Built-in V2X communication technology works with other fixed and mobile V2X devices to create safer, more efficient traffic. · Streamlined traffic signal priority for public transportation and emergency vehicles · Supports US Standard IEEE 802.11p and SAE J2735 Basic Safety Messages (BSM) · Easy-to-install detector using three-core signal cable for power and communications over powerlines for outputs and TCP/IP Vehicle, Bicycle, and Pedestrian Detection TrafiSense2 V2X can distinguish between vehicles and bicyclists, gathering relevant data and protecting vulnerable road users. · Adapt green times according to specific road user type · Collect traffic volume, speed, occupancy, headway, gap time, and vehicle classification data · Detect waiting and crossing pedestrians Reliable Thermal Imaging Trusted FLIR thermal imaging allows Trafisense2 V2X to detect pedestrians, bicyclists, and vehicles in complete darkness, through glare, and in harsh weather conditions. · Fast, clear detection without the need for visible light · Intelligent presence detection, data collection, and wrong-way driver detection · Field-proven 24/7 monitoring TECHNICAL SPECIFICATIONS System Overview Detection functionalities # detection zones Configuration Camera Type Resolution Frame Rate Compression Streaming Video Product Types TrafiSense2 V2X 690 TrafiSense2 V2X 645 TrafiSense2 V2X 632 Housing Material Dimensions (incl. mounting bracket) Part Number 10-7450 10-7454 10-7456 Power, outputs, communication Input power Power consumption Output contacts Ethernet PoE BPL Wi-Fi V2X V2X Access Layer Transport & Network layer Facilities Layer Environmental Schock & Vibration Materials IP Rating Temperature Range Regulatory FCC / EU Directives Vehicle and bicycle presence detection at the stop bar and in advance Pedestrian presence detection Traffic flow monitoring in free flow traffic (counts, occupancy, classification, speeds, headway, gap, level of service) Wrong way driver detection (optional license) Traffic data collection at the stop bar: counts, occupancy, classification (optional license) ITS-IQ Wi-Fi travel time monitoring (optional license) ITS-IQ cloud communication (optional license) V2X traffic signal priority (optional license) 24 vehicle detection zones \ 8 bicycle detection zones \ 8 pedestrian zones \ 6 traffic data zones \ 6 wrong way driver zones Web page setup via secure Wi-Fi, Ethernet or BPL Focal Plane Array (FPA), uncooled VOx microbolometer Long wave Infrared (7 14 µm) VGA (640x480) 30 fps H.264, MPEG-4, MJPEG RTSP Resolution VGA VGA VGA Focal distance 7.5mm 7.5mm 9mm Field of view Horizontal: 90° Vertical: 69° Horizontal: 45° Vertical: 35° Horizontal: 32° Vertical: 26° Detection distance for vehicle presence 2 30 m / 6 - 100ft 10 75 m / 32 - 245ft 15 75 m / 100 - 300ft Aluminum housing with integrated polycarbonate sunshield Vertically mounted: 45 cm x 16 cm x 12 cm (9.8 in x 6.3 in x 4.7 in) Horizontally mounted: 41 cm x 18cm x 12cm (16.2 in x 7.1 in x 4.7 in) 24 42 V AC/DC < 11 W 1 N/O and 1 N/C dry contacts direct 16 N/C dry contacts via TI BPL2 EDGE interface 16 output channels via TI BPL2 EDGE and PIM module (SDLC) 10/100 Mbps for configuration, video streaming, monitoring, JSON public API PoE mode A 50 Mbps Broadband over Powerline communication via TI BPL2 EDGE interface IEEE 802.11 for configuration and Wi-Fi travel time monitoring DSRC IEEE 802.11p WSMP IEEE 1609.3 WAVE SAE J2735 BSM, SPaT, MAP NEMA TS2 specs All weatherproof UV resistant IP 67 -34°C to + 74°C / -29°F to +165°F FCC part 15 class A, EMC 2014/30/EU, RoHS 2011/65/EU, LVD 2014/35/EU, RED 2014/53/EU Specifications are subject to change without notice. For the most up-to-date specs, go to www.flir.com CORPORATE HEADQUARTERS FLIR Systems, Inc. 27700 SW Parkway Ave. Wilsonville, OR 97070 PH: +1 877.773.3547 FLIR ITS Hospitaalweg 1B B-8510 Marke Belgium PH: +32 (0)56 37 22 00 www.flir.com NASDAQ: FLIR Equipment described herein may require US Government authorization for export purposes. Diversion contrary to US law is prohibited. Imagery for illustration purposes only. Specifications are subject to change without notice. ©2018 FLIR Systems, Inc. All rights reserved. (REV 09/18) 18 - 0 5 8 6 - ITS _ EME AAdobe PDF Library 15.0 Adobe InDesign CC 14.0 (Macintosh)
