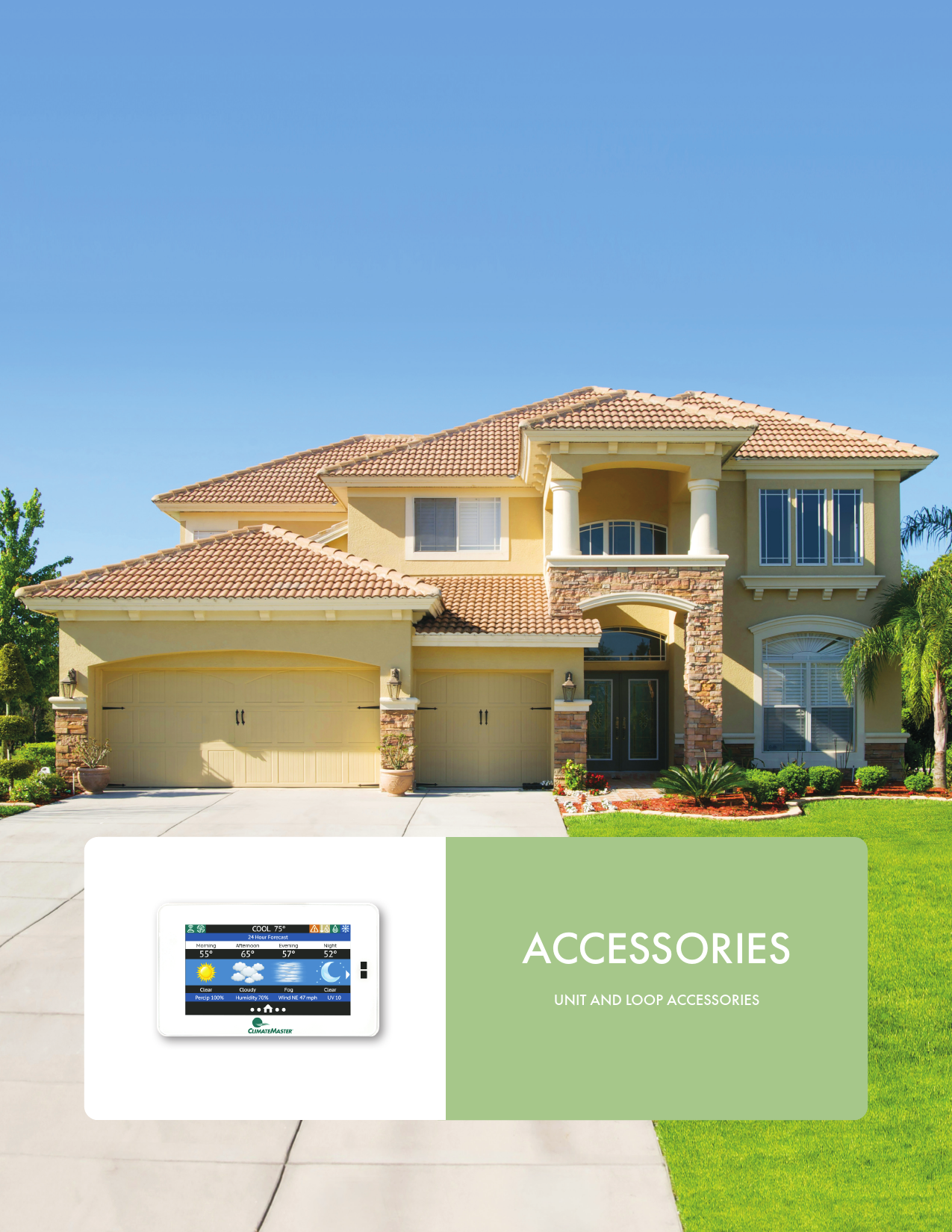

ACCESSORIES
ACCESSORIES - Climate Master
ClimateMaster: Declare your personal energy independence. Table of Contents. Accessory Description . ... conditioning the home in smaller zones.
Full PDF Document
If the inline viewer fails, it will open the original document in compatibility mode automatically. You can also open the file directly.
Extracted Text
ACCESSORIES UNIT AND LOOP ACCESSORIES Accessories Table of Contents Accessory Description..............................................................................3 Accessory Compatability........................................................................4 Thermostats and Service Tools..........................................................5 AWC99U01R iGate� Connect, Two-Way Communicating Thermostat.................................................................6 ATC32U03 iGate� Communicating Thermostat...................7 ATP32U03 Thermostat...........................................................................9 ATP32U04 Thermostat........................................................................11 ATA21U01 Thermostat........................................................................13 ATA3201 Thermostat............................................................................14 AVB32V02R Thermostat.....................................................................15 AVB32V03R Thermostat.....................................................................16 AZ06CAR iGate� ClimaZoneTM Zoning Panel.......................17 iGate� Smart Tank....................................................................................18 Unit Accessories.........................................................................................20 Loop Accessories......................................................................................21 Extra Large Loop Accessories..........................................................23 Installation Accessories..........................................................................24 Geothermal Loop Pipe..........................................................................25 Geothermal Fittings..................................................................................26 Socket Fusion Tools..................................................................................28 Service Tools.................................................................................................29 Service Parts Kit..........................................................................................29 Cabinet Samples.........................................................................................29 Filters..................................................................................................................30 Revision History.........................................................................................32 2 ClimateMaster: Declare your personal energy independence. ClimateMaster Geothermal Heating and Cooling To further improve comfort and convenience, ClimateMaster offers the following accessories Water-to-Air EarthPure� Electronic Air Cleaner ClimateMaster's EarthPure� Polarized Media Electronic Air Cleaner installs directly into the 2"/1" filter rack of your ClimateMaster heat pump or air handler. The electronically enhanced media combines elements of both electronic and media air cleaners. It efficiently removes particles down to 0.3 microns and REMOVES ODORS. Tranquility� Secondary Drain Pan The ClimateMaster Secondary Drain Pan was designed specifically for Tranquility� Horizontal foot prints. This drain pan matches the unit perfectly for open ceiling applications and to meet required mechanical codes. iGate� Smart Tank Industry's first Communicating water storage tank, allows full-time year-round hot water by communicating water temperature to the Trilogy� Q-Mode� unit. The control on the Smart tank controls the Titanium electric elements to minimize use. The Seamless polybutene tank is designed for a lifetime of highly efficient use and is impervious to corrosion. The thick polyurethane foam offers superior insulation compared to other storage tanks. The tough, molded polyethylene exterior resists dents, scratches, and salt air. iGate� ClimaZoneTM Zoning Panel This optional panel allows a single Trilogy unit to be controlled by muliple thermostats, conditioning the home in smaller zones instead of one large single zone. One unit accommodates up to 6 zones with a single panel or up to 12 zones with two panels. Tranquility� Unit Vibration Isolation Pad High density rubber pad for quiet operation. The sound/vibration isolation pad is ideal for second floor, pier and beam construction and attic installations. Tranquility� Unit Stand Compliment the ClimateMaster Tranquility� product line with a matching unit stand. This stand is ideal for areas that must have raised equipment to meet required mechanical codes. Auxiliary/Electric Heater Internally mounted in vertical cabinets. Externally mounted on horizontal cabinets. Sizes 15-20 kW AGM*A and 4-20 kW AGM*C include internal circuit breaker. ETL listed. Circuit fusing per UL/NEC. Wiring harness connections included in residential units. Flow Controller Small Compact, proven design, easy to mount, urethane foam insulated to prevent condensation, includes factory supplied full flow service valves for easy loop charging, Uses double o-ring adaptor fittings for unit and loop connections. Gray polystyrene cabinet with black pumps. Composite 3-way valves. 230VAC pump(s). Remote Thermostat Sensor Outdoor or Remote Temperature Sensor SecureStartTM Compressor Soft Start Kit Single phase compressors typically have starting inrush currents that range from five to seven times their normal running current. The SecureStartTM module is designed to reduce inrush current to the compressor by up to 75% and prevents lights dimming when the compressor starts up. Water-to-Water Anti-Scald Valve Anti-scald valve be used in DHW systems where HWG setpoint is 150�F Accessory Pump Slaving Module Allows a single flow controller to be controlled by 2 different units. Eliminates additional field wiring and extra relays. Residential Products Technical Guide 3 Accessories Accessory Compatibility Accessories iGate� Smart Tank iGate� ClimaZoneTM AWC iGate� 2.0 thermostat ATC thermostat/ ACD service tool ATP/ATA Thermostats AVB32V02R AVB32V03R EarthPure� Polarized Media Electronic Air Cleaner Secondary Drain Pan Tranquility� Unit Vibration Isolation Pad Tranquility� Unit Stand Auxiliary Electric Heater Remote/Outdoor Temperature Sensor ClimaDry Potentiometer Kit Anti Scald Valve Accessory Pump Slaving Module Secure Start Compressor Soft Start Kit Remote Mount HWG (Desuperheater) Kit Trilogy� QE VE X X X X X X X X X X X X X X X X X X Packaged Tranquility� Digital TE TZ X X X X X X X X X X X X X X X X X X X X X X Split Tranquility� Tranquility� Digital TS TES, TEP TAH, TAC X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X Water-toWater Tranquility� TBW, TCW X X X 4 ClimateMaster: Declare your personal energy independence. ClimateMaster Geothermal Heating and Cooling Thermostats and Service Tools Thermostats--Communicating AWC99U01R Internet-connected, Digital, communicating, programmable, variable stage heat � cool. Configure, monitor and diagnose system from thermostat or myUplink dealer portal on internet. ONLY USED WITH TRILOGY�. May require optional wall plate ASW002CVR Service Tools--Communicating ATC32U03 Digital, communicating, programmable, 3-stage heat, 2-stage cool. Configure, monitor and diagnose system from thermostat. ACDU02 Configuration diagnostic tool. For use when communicating thermostat is not used. ASVCTOOL01 For Trilogy� units only. Connect to the Trilogy�'s EXM board to configure, diagnose and update Trilogy� software. Thermostats--Non-Communicating ATP32U03/ATP32U04 Programmable, digital, 3 stage heat, 2 stage cool, auxiliary, fault LED. Use 04 with ClimaDry� units. ATA22U01 Non-programmable 2 stage heat, 2 stage cool; aux, emergency, fault LED. AVB32V02R WiFi, programmable, 3 stage heat, 2 stage cool, humidity control, remotely accessible via mobile app and web portable. AVB32V03R WiFi, color touch screen, programmable, 4 stage heat, 2 stage cool, humidity control, remotely accessible via mobile app and web portable. Residential Products Technical Guide 5 Accessories AWC99U01R iGate� Connect, Two-Way Communicating Thermostat Variable Stage Heating and Cooling Programmable Diagram 1: Thermostat Connections Thermostat DUXnMit2 Control Gnd A+ B- B- A+ C 24V R S1 Remote S2 Sensor Thermostat Connections A+ Communications (Positive) B� Communications (Negative) C 24V Common for Control Circuit R 24V Supply for Control Circuit S1 Remote Sensor S2 Remote Sensor APPLICATION: Internet connected, digital, two-way communicating, programmable, variable stage heat-cool. Configure, monitor and diagnose system from thermostat or dealer portal on internet. The thermostat is only compatible with Trilogy� units. FEATURES: Web-Enabled Home Thermostat � Communicates personal settings and reminders through the iGate� communication system � Easy to use, full color, high resolution interface � Receives notification for routine maintenance � Sleek, intuitive button control � Secure internet connection keeps your information private � Contains Trilogy� unit model, serial number and dealer contact information � Service and system performance information is stored in the thermostat, increasing the accuracy of diagnosis Web Portal Accessible Any Time, Any Where � Remote login from anywhere, anytime from any device and adjust settings � Set personal schedule by day, week or month including those times when you will be away from home on vacation or business FEATURES (cont.): � Information is remotely available (if you wish) to your dealer through a dealer portal for remote troubleshooting and diagnosis � Secure internet connection keeps your information private � Easy-to-use, high-resolution color display and intuitive interface � Key features: �Precision +/-1�F (0.5�C) temperature control �Vacation programming �Seven-day programming �Humidity sensing �Intelligent algorithms that adapt to your home and preferences �Fan control �Hot water control � Dealer can receive alerts regarding maintenance, inefficient operations or faults � Alerts and warning data are viewable from the thermostat and homeowner/dealer portal � Real time system performance is stored, which increases the accuracy of diagnosing issues and results in faster repairs � "Service Needed" alert displays dealer name, phone number, model unit/serial number, fault condition and possible causes � Secure internet portal keeps your information private � Accessible with Android and iPhone mobile app CONTROLS: � Heat pump control � Auxiliary heat � Programmable fan control � Auto-changeover � Humidity control � Intelligent setback recovery � On-screen contractor information � Configurable min/max set temperature � Switch between Farenheit and Celsius � Configurable upstaging and downstaging � Wireless protocol: B/G/N � Wi-Fi security encryption � Encryption communication over internet � 365-day scheduling/7-day programming SPECIFICATIONS: TEMPERATURE SETTINGS: � Heat: 55 to 80�F (12 to 27�C) � Cool: 65 to 95�F (18 to 35�C) � Display: 40 to 100�F (5 to 37�C) � Sensitivity: +/-1�F (0.5�C) � Operating: 32 to 130�F (0 to 55 �C) HUMIDITY RANGE: � Display: 20 to 90% R.H. � Sensitivity: +/-5% R.H. � Operating: 5 to 95% R.H. (non-condensing) POWER: � Power 24 VAC (3VA maximum) 6 ClimateMaster: Declare your personal energy independence. ClimateMaster Geothermal Heating and Cooling ATC32U03 iGate� Communicating Thermostat Three-Stage Heat / Two-Stage Cool Programmable 6.25 in [158.8mm] 4.25 in [108.0mm] 1.1 in Depth [27.9mm] MOUNTING: UP C R - 1.50" [38mm] 3.12" [80mm] 3.25" [83mm] 3.00" [76mm] 0.62" [16mm] 2.12" [54mm] FEATURES (cont.): - Service mode: Once on site, in installer mode service personnel can see fault conditions, possible causes and temperature/flow/i/o conditions at the time of fault - Demand reduction - Programmed or triggered by external signal from utility company � 7-day programming � Programmable or non-programmable operation � Four periods per day � �F or �C temperature display � 12 or 24 hour clock � Individual heat and cool set points � Zero temperature droop performance � Automatic (program mode) or manual (HOLD) operation � Convenient overrides allow temporary set point changes � Selectable differential or proportional integral operation � Set points are permanently held in memory (no batteries used) and retained during power outages � Room temperature offset adjustment � Progressive Recovery anticipates the time required to bring the space temperature to the next programmed event, and brings on the heat pump accordingly � Large backlit dot matrix display is activated whenever a key is pressed and remains on for 25 seconds � Menu-driven programming with five navigation buttons (UP/DOWN/LEFT/RIGHT/SELECT) for ease of use � Fault indication with red backlight display � Configurable service interval messages and servicing contractor contact information A+ � Keypad lockout B- GND � Back-plate wiring connections for easy installation OD � Compatible with AST008 sensor for use as remote and/or ID GND outdoor sensor � Dual fuel capable SPECIFICATIONS: ELECTRICAL RATING: � Input Power: 18 to 30 VAC, 50/60 Hz APPLICATION: The ATC32U03 iGate� Communicating Thermostat provides 3 stages heating, 2 stages of cooling, and programmable temperature control of 24V water-source heat pump equipment. Allows 4-wire installation with communicating digital units and advanced configuration, monitoring, control and diagnostics on the thermostat. OPERATING CONDITIONS: � 32�F to 104�F [0�C to 40�C] � 10% to 95% non-condensing TEMPERATURE SETTINGS: � Set point range: 55�F to 95�F [12�C to 35�C], +/- 2�F [1�C] � Dehumidification set point range: 15% to 95% RH � Humidification set point range: 10% to 45% RH FEATURES: � 4-Wire Communication with DXM2 or AXM2 UNITS � Exclusive iGate� System - Configuration, monitoring and diagnostics at thermostat: - Configure airflow, entering/leaving water, T, accessories, unit type - Service warning: Fault condition, current system status (temp/flow) and possible causes displayed to home owner, to better inform dealer before site visit OUTPUT RATINGS: � Maximum current for each output is 1.0 Amp (2.0 max. output total). Residential Products Technical Guide 7 Accessories ATC32U03 iGate� Communicating Thermostat Three-Stage Heat / Two-Stage Cool Programmable Packaged Units FiGigauter�eC2o4ma:mCuonmicmatuinngicTahtienrgmTohsteartmCoosntnaet ction to DXM2 ContrCool nnection to DXM2 Control Split Units Connection to iGate� Communicating Thermostat & AXM Communicating Control in Tranquility� Digital Air Handler iGate� Thermostat ATC32U03C 24Vac Common C 24Vac Hot R Comm + A+ Comm - B- OD GND ID DXM2 Gnd BA+ 24V Outdoor Sensor (Optional) Remote Indoor Sensor (Optional) iGateTM Thermostat ATC3203 C A+ R B- Communicating TAH with AXM Control C C A+ A+ B- B- R 24V DXM2 in Compressor Section C A+ B- 24V Figure 24b: ConventionaSl 3eHeeaetq/ u2 iCpomol eThnetrmwoisrtiantg diagram for more details. Connection to DXM2 Control Thermostat Compressor Y1 Compressor Stage 2 Y2 Auxiliary Heat W Dehumidification DH Reversing Valve O Fan G 24Vac Hot R 24Vac Common C Fault LED L DXM2 Board Y1 Y2 W H O G R C AL1 Notes: 1) ECM automatic dehumidification mode operates with dehumidification airflows in the cooling mode when the dehumidification output from thermostat is active. Normal heating and cooling airflows are not affected. 2) DXM2 board DIP switch S2-7 must be in the auto dehumidification mode for automatic dehumidification. 3) DH connection not possible with units with internal variable speed pump. Use ATC32U03C. 4) Only use ATC Communicating Thermostat when using Humidifier (H Input) in units with internal variable speed pump. 8 ClimateMaster: Declare your personal energy independence. ClimateMaster Geothermal Heating and Cooling 6.25 in [158.8mm] 4.25 in [108.0mm] 1.1 in Depth [27.9mm] MOUNTING: UP C R - 1.50" [38mm] 3.12" [80mm] 3.25" [83mm] 3.00" [76mm] 0.62" [16mm] 2.12" [54mm] ATP32U03 Thermostat Three Heat / Two Cool, Manual / Auto Changeover Programmable FEATURES (cont.): � Set points are permanently held in memory (no batteries used) and retained during power outages � Room temperature offset adjustment � Progressive Recovery anticipates the time required to bring the space temperature to the next programmed event, and brings on the heat pump accordingly � Large backlit dot matrix display is activated whenever a key is pressed and remains on for 25 seconds � Menu-driven programming with five navigation buttons (UP/DOWN/LEFT/RIGHT/SELECT) for ease of use � Fault indication with red backlight display � Configurable service interval messages and servicing contractor contact information � Keypad lockout � Back-plate wiring connections for easy installation � Exclusive fault identification (When used with CXM or DXM) displays fault from CXM/DXM board (e.g. condensate overflow) and suggests possible causes � Compatible with AST008 sensor for use as remote and/or outdoor sensor � Dual fuel capable SPECIFICATIONS: ELECTRICAL RATING: � Input Power: 18 to 30 VAC, 50/60 Hz OPERATING CONDITIONS: � 32�F to 104�F [0�C to 40�C] A+ � 10% to 95% non-condensing B- GND OD TEMPERATURE SETTINGS: ID � Set point range: 40�F to 90�F [4�C to 32�C], +/- 2�F [1�C] GND � Dehumidification set point range: 15% to 95% RH � Humidification set point range: 10% to 45% RH OUTPUT RATINGS: � Maximum current for each output is 1.0 Amp (2.0 max. output total). APPLICATION: The ATA32U03 Thermostat provides 3 stages heating, 2 stages of cooling, and programmable temperature control of 24V water-source heat pump equipment. FEATURES: � 7-day programming � Programmable or non-programmable operation � Four periods per day � �F or �C temperature display � 12 or 24 hour clock � Individual heat and cool set points � Zero temperature droop performance � Automatic (program mode) or manual (HOLD) operation � Convenient overrides allow temporary set point changes � Selectable differential or proportional integral operation Residential Products Technical Guide 9 Accessories ATP32U03 Thermostat Three Heat / Two Cool, Manual / Auto Changeover Programmable Single-Stage Units Two-Stage Units with ECM Fan Connection to CXM Control ATP32U03 Thermostat CXM Compressor Y1 Y Reversing Valve O O Fan G G 24Vac Hot R R 24Vac Common C C Fault LED L AL1 Electric Heat W1 W Connection to DXM Control ATP32U03 Thermostat DXM Compressor Y1 Y1 Y2 Note 1 Y2 Reversing Valve O Fan G 24Vac Hot R 24Vac Common C Fault LED L Electric Heat W1 O/W2 G R C AL1 W Single stage unit with PSC or belt drive fan motor Note 1: Y2 may be used for High Speed fan for units with direct drive motor Connection to ECM Control ATP32U03 Thermostat ECM Compressor Y1 Y1 Compressor Stage 2 Y2 Y2 Reversing Valve O O Fan G G 24Vac Hot R R 24Vac Common C C Fault LED L AL1 Electric Heat W1 W Units with CXM or DXM board and ECM fan motor Field Wiring Factory Wiring Two-Stage Units See equipment wiring diagram for more details Connection to CXM Control ATP32U03 Thermostat CXM 1 Compressor Y1 Y Compressor Stage 2 Y2 Reversing Valve O O Fan G G 24Vac Hot R R 24Vac Common C C Fault LED L AL1 Two compressor unit with CXM boards CXM 2 Y O G R C AL1 Connection to DXM Control ATP32U03 Thermostat DXM 1 Compressor Y1 Y1 Compressor Stage 2 Y2 Y2 DXM 2 Y1 Y2 Reversing Valve O Fan G 24Vac Hot R 24Vac Common C Fault LED L Two compressor unit with DXM boards O/W2 G R C AL1 COM 1 C O/W2 G R C AL1 COM 1 C 10 ClimateMaster: Declare your personal energy independence. ClimateMaster Geothermal Heating and Cooling ATP32U04 Thermostat Three Heat / Two Cool, Manual / Auto Changeover Programmable (7 Day) - With Humidity Control 6.25 in [158.8mm] 4.25 in [108.0mm] 1.1 in Depth [27.9mm] MOUNTING: UP C R - 1.50" [38mm] 3.12" [80mm] 3.25" [83mm] 3.00" [76mm] 2.12" [54mm] A+ BGND OD ID GND 0.62" [16mm] APPLICATION: The ATP32U04 Thermostat provides 3 stages heating, 2 stages of cooling, and programmable temperature/humidity control of 24V water-source heat pump equipment. FEATURES (cont.): � 12 or 24 hour clock � Individual heat and cool set points � Zero temperature droop performance � Automatic (program mode) or manual (HOLD) operation � Convenient overrides allow temporary set point changes � Set points are permanently held in memory (no batteries used) and retained during power outages � Room temperature offset adjustment � Progressive Recovery anticipates the time required to bring the space temperature to the next programmed event, and brings on the heat pump accordingly � Large backlit dot matrix display is activated whenever a key is pressed and remains on for 25 seconds � Menu-driven programming with five navigation buttons (UP/DOWN/LEFT/RIGHT/SELECT) for ease of use � Fault indication with red backlight display � Configurable service interval messages and servicing contractor contact information � Keypad lockout � Back-plate wiring connections for easy installation � Exclusive fault identification (When used with CXM or DXM) displays fault from CXM/DXM board (e.g. condensate overflow) and suggests possible causes � Compatible with AST008 sensor for use as remote and/or outdoor sensor � Dual fuel capable SPECIFICATIONS: ELECTRICAL RATING: � Input Power: 18 to 30 VAC, 50/60 Hz OPERATING CONDITIONS: � 32�F to 104�F [0�C to 40�C] � 10% to 95% non-condensing TEMPERATURE SETTINGS: � Set point range: 40�F to 90�F [4�C to 32�C], +/- 2�F [1�C] � Dehumidification set point range: 15% to 95% RH � Humidification set point range: 10% to 45% RH OUTPUT RATINGS: � Maximum current for each output is 1.0 Amp (2.0 max. output total). FEATURES: � 7-day programming � Dehumidification output is designed to work with Whole House Dehumidification Modulating Reheat option or with ECM fan motor dehumidification mode � Integrated control of both temperature and relative humidity � Integrated control eliminates separate thermostat and dehumidistat/humidistat � Thermostat can be programmed to use humidification output to control a humidifier � Selectable differential or proportional integral operation � Four periods per day � �F or �C temperature display Residential Products Technical Guide 11 Accessories ATP32U04 Thermostat Three Heat / Two Cool, Auto / Manual Changeover Programmable (7 Day) - Non-Programmable, With Humidity Control Units with Whole House Dehumidification Reheat Connection to DXM2 Control (PSC Fan) ATP32U04 Thermostat Compressor Y1 Dehumidification DH Reversing Valve O Fan G 24Vac Hot R 24Vac Common C Fault LED L Electric Heat W1 DXM2 P1 Y1 H O/W2 G R C AL1 W Single stage unit with ClimaDry Modulating Reheat Option and PSC fan Connection to DXM2 Control ATP32U04 Thermostat Compressor Y1 Compressor Stage 2 Y2 Dehumidification DH Reversing Valve O Fan G 24Vac Hot R 24Vac Common C Fault LED L Electric Heat W1 DXM2 P1 Y1 Y2 H O/W2 G R C AL1 W Two-stage unit with ClimaDry Modulating Reheat Option and DXM board Field Wiring Factory Wiring Units with ECM Fan Connection to ECM Control ATP32U04 Thermostat ECM ConCnomecprteiossnorto EYC1 M Control Y1 ATP32CUo0m4pTrehsesormr Sotasgtaet2 Y2 Dehumidification DH CompRreesvseorrsingYV1alve O Compressor Stage 2 Y2Fan G Dehumidification24VDacHHot R Reversing2V4aVlavec ComOmon C FanFaulGt LED L 24Vac HEolet ctricRHeat W1 24Vac Common C ECM Y2 DH Y1 O Y2 G DH R O C G AL1 R W C UnFitasuwlitthLCEXDM or DXLM board and ECM fan motor, utilizinAg L1 ElEeCcMtrdicehHumeiaditficatiWon1mode (w/o ClimaDry option) W Notes: 1) ECM dehumidification mode slows down fan speed in the Units with CXM ocroDolXinMg bmooadred wanhdenECdeMhufamnidmifoictaotri,ountioliuzitnpgut from thermostat is ECM dehumidificaactitoivne.mNoodrem(awl/hoeCaltimngaDanrydocpotoiolin)g fan speeds are not affected. Notes: 2) ECM board DIP switch SW9 must be in dehumid. mode. 1) ECM dehumidification mode slows down fan speed in the cooling mode when dehumidification output from thermostat is active. Normal affected. heating andCcooolninng feancstpieoedns atroe nEot CM & DXM Control Units2)wEiCtMhboWardhDoIPleswiHtchoSuWs9 emuDst beehinudemhuimdidi.fmicodaet. ion Reheat & ECM Fan ATP3C2oUn0n4eTchteiormn otostaEtCM & Terminal DBXlMocCk ontrol ECM Compressor Y1 2 ATP32CUo0m4pTrehsesormr Sotasgtaet2 Dehumidification DYH2 TeBrlmocinkal 1 CompRreesvseorrsingYV1alve O 2 4 Compressor Stage 2 Y2Fan G 1 3 Dehumidification24VDacHHot R 7 Reversing2V4aVlavec ComOmon C 4 6 FanFaulGt LED L 3 8 24Vac HEolet ctricRHeat W 7 5 24Vac Common C 6 SiFngaleuoltr LtwEo-Dstage uLnit with ClimaDry Modu8lating Reheat ElOepctitornicanHdeDaXtM boaWrd (ECM fan motor) 5 ECM Y1 R C AL1 W Y1 DXM Y2 RH C O/W2 AL1 G W DXM Y2 H O/W2 G Single or two-stage unit with ClimaDry Modulating Reheat Option and DXM board (ECM fan motor) See equipment wiring diagram for more details 12 ClimateMaster: Declare your personal energy independence. ClimateMaster Geothermal Heating and Cooling ATA21U01 Thermostat Two Heat / One Cool, Auto / Manual Changeover - Non-Programmable For use with Single-Stage Units 4.55 in [115.6mm] Fan: turns continuous fan OFF or ON Fault Light Temperature: increase 3.30 in [83.8mm] Temperature: decrease FEATURES (cont.): � Setup feature allows either "current room temp" or the "current setpoint" to be displayed. � Optional safety setpoints ensure that heating and cooling will occur even if thermostat is in "Off" mode. � Backplate wiring for easy installation. SPECIFICATIONS: ELECTRICAL RATING: � Input Power: 18 to 30 Vac, 50/60 Hz. TEMPERATURE SETTINGS: � Setpoint Range: 50�F to 90�F [10�C to 32�C]. � The default setpoint for heating is 70�F [21�C] and for cooling is 74�F [23�C]. Press the or keys to change the setting. To change between heat and cool settings, press the mode key until the setting to be changed appears. 0.8 in Depth [20.3mm] Mode: Selects system mode - OFF, HEAT, COOL, EMHEAT, or AUTO DISPLAY RANGE: � Display Updates: Controlled: updated every 12 seconds. � Differential (autochangeover model): 3�F [1.5�C] minimum. MOUNTING: OUTPUT RATINGS: � Maximum current for each output is 1 Amp. APPLICATION: The ATA21U01 electronic thermostat provides two-stage heat / one stage cool, non-programmable temperature control for 24V water-source heat pump systems. FEATURES: � Heat-Off-Cool-Em Heat-Auto System selections. � Fan-On-Auto selections. � �F or �C temperature display. � Configurable automatic or manual changeover operation. � Light emitting diode (LED) for alarm status. � Installer setup options allow for customized applications. � Zero temperature droop performance. � Temperature display adjustment feature provides display offset for custom applications. � Setpoints are permanently held in memory (no batteries used) and retained during power outages. � Extended fan operation feature can be used to operate fan for 90 seconds after "Y" turns off. WIRING: Connection to CXM Control ATA21U01 Thermostat CXM Compressor Y Y Heating Stage 2 Y2/W Reversing Valve O Note 1 W O Fan G G 24Vac Hot R R 24Vac Common C C Fault LED L AL1 Note 1: Optional Connection for Heating Stage 2 operation, Thermostat "Y2" option must be configured as "Y2 - Off".This configuration uses the compressor only for 1st stage heating and compressor plus auxilliary heat for 2nd stage operation. The thermostat is configured as a two stage heat / one stage cool thermostat for single speed units with PSC fan and backup heat. For two-stage units with backup heat or units with ECM fan and backup heat, a 3 stage heat / 2 stage cool thermostat is required. Residential Products Technical Guide 13 Accessories ATA32V01 Thermostat Three Heat / Two Cool ClimateMaster CM100 Thermostat 3.1 in [79 mm] 3.1 in [79 mm] 1.0 in Depth [25 mm] MOUNTING: FEATURES (cont.): � Setpoints and programming held in memory during power outages (time clock does not advance) � Backlight feature selectable � Large number display easy to read � Optional wall plate available for replacement applications � Dual setpoints with adjustable dead band ELECTRICAL RATING: � 20 � 28 VAC 50/60Hz, 5VA max OUTPUT RATING: � Y1, Y2, G � 0.8 Amp, all others 0.4 Amp, total max on all outputs - 3 Amp. SETPOINT RANGE � 35�F to 99�F (2�C to 37�C) Note: User must maintain temperature settings within proper unit operating temperature range. See specific unit IOM for details. WIRING: Thermostat Single Stage Unit, CXM Y W O G R C AL1 AL2 A R G Y1 W OY2 C Thermostat FEATURES: � 24 volt thermostat for use with water source heat pump � HEAT-OFF-COOL-AUTO system selection � FAN-ON-AUTO selection � �F or �C temperature display � Keypad lockout feature selectable � Bi-color LED indicates heating or cooling demand � Time clock with day of the week � Space temperature and setpoint display � Quick Start and advanced setup menus Two Stage Unit, DXM Y Y2 W1 O/W2 G R C AL1 R G Y1 W OY2 C 14 ClimateMaster: Declare your personal energy independence. ClimateMaster Geothermal Heating and Cooling 3.2 in [83 mm] 3.2 in [83 mm] 0.9" Depth [23 mm] MOUNTING: AVB32V02R Thermostat Three Heat / Two Cool, Programmable (7 Day), Wi-Fi ClimateMaster CM300 Thermostat FEATURES (cont.): � HEAT-OFF-COOL-AUTO system selection � Time clock with day of week � Humidity control for use with ClimaDry� equipped units � Override button for unoccupied periods with adjustable override timer (1-4 hours) � Backlight/Nightlight feature ELECTRICAL RATING: � 20 � 28 VAC 50/60Hz, 5VA max OUTPUT RATING: � Y1, Y2, G � 0.8 Amp, all others 0.4 Amp, total max on all outputs - 3 Amp. SETPOINT RANGE: � 35�F to 99�F (2�C to 37�C) Note: User must maintain temperature settings within proper unit operating temperature range. See specific unit IOM for details. CONNECTIVITY: � Integrated 2.4 GHz b/g/n Wi-Fi radio for remote monitor and control. WIRING: Thermostat D/H RS R G Y1 W O Y2 C CK1 Single Stage Unit, CXM Y * W O G R C AL1 AL2 A *W only available with aux heat. Thermostat FEATURES: � Heat pump or DX with gas or electric heat � 3 heat, 2 cool multi-stage � 7-day programmable � Wi-Fi - free mobile apps available � Bi-color LED indicates heating or cooling demand � Keypad lockout feature � Programming and setpoints stored in non-volatile memory (time clock does not advance) � Optional wall plate available � Optional remote wireless temperature sensors D/H RS R G Y1 W O Y2 C CK1 Two Stage Unit, DXM2 H Y1 Y2 W1 O/W2 G R C AL1 NOTE: H only available with Climadry; W1 only available with aux heat and Y2 only available with 2 stage heating/cooling. For one or two compressor units, refer to that unit's installation manual. Residential Products Technical Guide 15 Accessories AVB32V03R Thermostat Touch Screen Wi-Fi ClimateMaster CM500 Thermostat 5.2 in [132.6 mm] 3.9 in [99 mm] 1.0 in Depth [25 mm] MOUNTING: FEATURES (cont.): � Override for unoccupied periods with adjustable override timer (1-4 hours) � Customizable display � Smart fan � Remote access � View and change setpoints, temperatures, equipment function, view or change schedule, SA, RA, OA (with additional sensor), change setpoint limits � Web portal provides daily, weely runtime graphs � Current weather and forecast screen � English, Spanish or French ELECTRICAL RATING: � 0 � 28 VAC 50/60Hz, 5VA max OUTPUT RATING: � Y1, Y2, G � 0.8 Amp, all others 0.4 Amp, total max on all outputs - 3 Amp. SETPOINT RANGE � 35�F to 99�F (2�C to 37�C) Note: User must maintain temperature settings within proper unit operating temperature range. See specific unit IOM for details. CONNECTIVITY: � Integrated 2.4 GHz b/g/n Wi-Fi radio for remote monitor and control. WIRING: Single Stage Heat Pump with AUX Heat Dip Switch Settings GAS/EL O GAS HP B ELEC D/H W O ON 123 SENSOR FEATURES: � LCD Hi resolution touch screen display � Heat pump or DX with gas or electric heat � Up to 4 heat and 2 cool stages � Humidity sensor included � Internet enabled � Can monitor any number of Wi-Fi sensors � 7-day programmable � Wi-Fi � free mobile apps available � Lockout feature � Programming and setpoints stored in non-volatile memory (time clock does not advance) � Optional wall plate available � HEAT-OFF-COOL-AUTO system selection � Humidity control for use with ClimaDry� equipped units Y W O G R C AL1 AL2 A Note: Do not clip jumper JW1 on CXM board Dual Stage Heat Pump with AUX Heat and ClimaDry Dip Switch Settings GAS/EL O GAS HP B ELEC D/H W O ON 123 SENSOR H Y1 Y2 W1 O/W2 G R C AL1 Note 1: Make sure to select 2 compressor stages via MENU > Settings > Installation Settings > Heat & Cool Stages > Compressor Stages Note 2: If using the integral c-on densate overflow sensing in the heatpump, an overflow condition generates a FAULT signal which halts equipment operation. Br-ing ing that signal into the right most SENSOR terminal and setting Installation Settings > Sensor Settings > AUX in USE to Fault Detection Equipment FDD Error alert will show on Condensate Overflow 16 ClimateMaster: Declare your personal energy independence. 12.0 in 12.0 in 2.25 in Depth ClimateMaster Geothermal Heating and Cooling AZC06CAR iGate� ClimaZoneTM Zoning Panel Use with Trilogy Only APPLICATION: iGate� ClimaZoneTM is the zoning panel for use with the Trilogy Q-mode System and the iGate� Connect Thermostat. FEATURES: � Designed for use with Trilogy� Q-Mode� System � Compatible with new and existing Trilogy systems � Accommodates up to six zones with a single zone panel or up to twelve zones with two zone panels � Each zone may have up to 3 dampers (Field Supplied) � iGate� Connect thermostat controls each zone and provides internet-connected communications � System configuration and diagnostics available via ClimateMaster Trilogy PC Service Tool SPECIFICATIONS: POWER SUPPLY: � Zone Panel: 24 VAC Device powered by the Trilogy Unit � Zone Dampers & Zone Thermostat: Separate 24 VAC Class 2 18-30 VAC 50/60Hz transformer AMBIENT TEMPERATURE/HUMIDITY: � Operating: -40F to 176F � Storage: -40F to 185F � 5% to 95% RH non-condensing ZONE THERMOSTATS: � iGate� Connect thermostat is required for each zone ZONE DAMPERS: � 24VAC 3-Wire power open/close type dampers required. Field supplied WIRING: � Wire Gauge: 18AWG 20AWG � Maximum Total Length: 128ft(38m) 80ft(24m) 22AWG 50ft(15m) MOUNTING: Screw holes provided on enclosure for either wall or stud mounting with installer-supplied fasteners. 6.0 6.0 Field wiring access Knock outs for field wiring Field wiring access Residential Products Technical Guide 17 Accessories iGate� Smart Tank APPLICATION: iGate� Smart Tank is the geothermal heating and cooling industry's first communicating hot water storage tank. FEATURES: � All titanium elements for long life and superior corrosion resistance � Water temperature sensors (2) continuously monitor water temperature. When water temperature falls below desired settings, the iGate� communication controls signal the heat pump to generate hot water. � Polyurethane tank is impervious to rust � Inlet port for incoming water from the heat pump � Bowl-shaped bottom for more complete sediment draining � Full-port ball valve for fast water drainage � Polyethylene outer jacket � Well insulated for reduced standby heat loss � Three capacities: 50 gallon, 85 gallon, 10 gallon � Watts: 4500 SPECIFICATIONS: C 1 1/4" NPT 3/4" NPT (50 gallon tank) 1" NPT (85 & 105 gallon tank) AB 5 3/4" 18 ClimateMaster: Declare your personal energy independence. ClimateMaster Geothermal Heating and Cooling Unit Accessories Item/Description TE, TT, TS Models TZ Models TAH Models Auxiliary/ Emergency Heaters Part Auxiliary Number 018 024- 036030 038 042072 024 030042 048060 Electric Heat 026 038 049064 Model* Internally mounted in vertical cabinets. Externally mounted on horizontal cabinets. Sizes 1520 kW AGM*A and 4-20 kW AGM*C include internal circuit breaker. ETL listed. Circuit fusing per UL/NEC. Wiring harness connections included in residential units. AGM4A AGM5A AGM8A AGM10A AGM12A AGL10A AGL15A AGL20A AGM4C AGM5C AGM8C AGM10C AGL10C AGL15C AGL20C Grey area denotes compatibility Note: Horizontal units rated for zero clearance unit and 1" clearance for the first three feet of duct, Vertical units rated for zero clearance for both unit and duct. * Can be used on corresponding TZ, TE, TS and TT models Unit Vibration Isolation Pad High density rubber pad for quiet operation. AUQSP2732 TE, TT, TS and TES, TTS Models 018-030 036-072 TZ Models 024-030 036-060 Packaged Unit Stand Ideal for areas that must have raised equipment to meet required mechanical codes. ACSVAMBS ACSVALBS TE, TT, TS, and TES, TTS Models 018-030 036-072 Packaged Secondary Horizontal Unit Drain Pan Designed specifically for Tranquility� Horizontal footprints. Matches the unit for open ceiling applications and to meet mechanical codes. ASDPADBS ASDPACBS ASDPABBS ASDPAABS 018-030 TE, TT, TS 036-038 042-049 060-072 Residential Products Technical Guide 19 Accessories Unit Accessories Pump Slaving Module Module w/NEMA enclosure - Allows a single flow controller to be controlled by 2 different units. Eliminates additional field wiring and extra relays. APSM For use with TS, TBW & TCW models. Not applicable with Tranquility� Digital units. SecureStartTM Compressor Soft Start Kit Item Description Single phase compressors typically have starting inrush currents that range from five to seven times their normal running current. The SecureStartTM module is designed to reduce inrush current to the compressor by up to 75% and prevents lights dimming when the compressor starts up. Part # Used With Models 13B0045N01 All except QE Remote Thermostat Sensor Item Description Outdoor Temperature Sensor Part # AST008 Used with Models ATA21U01, ATP, ATC thermostats only Anti-Scald Valve Item Description Anti-scald valve be used in DHW systems where HWG setpoint is 150�F Part # AVAS4 Used With Models All except QE Communicating Thermostat Configuration Diagnostic Tool (includes case) Item Description Part # Used With Models For use when communicating thermostat is not used. ACDU02 TE, TZ, TES, TEP Remote Mount HWG (Desuperheater) TEP TTP Kit for Tranquility� Outdoor 026 038 049 064 026 038 049 064 AHWG1BASS (115 VAC) *Desuperheater coil, pump & controller, mounted in conditioned space. AHWG1BGSS (230 VAC) AHWG1AASS (115 VAC) AHU1BASS (230 VAC) *Dealer supplied line set required 20 ClimateMaster: Declare your personal energy independence. ClimateMaster Geothermal Heating and Cooling Loop Accessories Closed Loop Accessories AFC4I AFC4C AFC6F AFC4T AFC5F Extra Large Closed Loop Accessories Flow Controller Double O-Ring Connections Hose Kit AHK5EC Hose Kit AHK5PE AFCG2B3 AFCG2B4 Open Loop Accessories Plastic Solenoid Valve - AVSP5 Brass Motorized Valve - AVMB5 Flow Regulator AFRV* P/T Plug 70022002 & 70022003 Residential Products Technical Guide 21 Accessories Loop Accessories Closed Loop Accessories Open Loop Accessories Description Flow Controllers Composite 3-way valves Brass 3-way valves Double O-ring Adaptor fittings, Set of Two (One set Required for All Flow Controllers for Loop Connection) Fusion Insert Cam Thread Hose Kit Flow Controller - Hose Kits & Fittings Additional Hose Elbows with PT Ports vFlow Hose Kits Hose Kit Solenoid & Motorized Valves Flow regulators Pressure/Tempature Ports Loop Accessories Part Number Accessory Includes AFCG1C1 1-GRUNDFOS UP26-99 PUMP AFCG1C2 1-GRUNDFOS UP26-116 PUMP AFCG2C1 2-GRUNDFOS UP26-99 PUMP AFCG2C2 2-GRUNDFOS UP26-116 PUMP AFCG1B1 1-GRUNDFOS UP26-99 PUMP AFCG1B2 1-GRUNDFOS UP26-116 PUMP AFCG2B1 2-GRUNDFOS UP26-99 PUMP AFCG2B2 2-GRUNDFOS UP26-116 PUMP AFC5F 1.00" PE SOCKET FUSION AFC6F 1.25" PE SOCKET FUSION AFC4I 1.00" BRASS BARD INSERT AFC6I 1.25" BRASS BARD INSERT AFC4C 1.00" CAM LEVER - for flush connections AFC4T 1.00" MPT BRASS THREAD AHK5EC ARH510 ARH550 Includes double O-ring x 1.00" barb insert for connection to Flow Controller, 1.00" MPT x 1.00" barb insert el w/PT port for unit connection, & 10' of 1.00" rubber hose. 10' of 1.00" Rubber Hose 50' of 1.00" Rubber Hose AFCM55F Set of 1" MPT x 1" FPT Elbows with PT ports AHK5PE AVSP5 AVMB4 AVMB5 AVMB-PH AFRV* 70022002 70022003 Includes(2) 1/4" PT Plugs, (12') 1" ID Black Hose, (8) Stainless steel hose clamps, (2) Elbow, 1" MPT x 1" Hose Barb w/PT Port, (1) Fitting Set (2 Fittings), 1-1/4" PE Fusion x 1" Hose Barb Brass, Crimped, (2) Elbow Insulating Boots w/sealing caps 1.00" FTP, 24 VAC-Solenoid Valve, Plastic 0.75" FTP, 24 VAC-Motorized Valve, Brass w/end switch safety controls 1" SWT, 24 VAC- Motorized Valve, Brass w/end switch safety controls Powerhead 2 GPM-10 GPM are Brass 0.75" FPT *Specify GPM when ordering. Example 6gpm = AFR6 Call Factory for pricing and availibility for larger than 9 gpm- Brass 0.25" MPT - Qty.1 Brass 0.50" MPT - Qty.1 22 ClimateMaster: Declare your personal energy independence. ClimateMaster Geothermal Heating and Cooling Extra Large Loop Accessories New Geo Loop Pumps are for larger residential projects or small commercial applications where smaller flow controllers can not deliver desired flow rates. All pumps are 3 speed models for field flow adjustment and are 230 / 1 phase power. GPM and feet of head ratings are at high speed / maximum capacity. Closed Loop Accessories Extra Large Loop Accessories Description Part Number Flow Controllers Brass 3-way valves AFCG1B3 AFCG2B3 AFCG2B4 Double O-ring Adaptor fittings, Set of Two (One set Required for All Flow Controllers for Loop Connection) Fusion Cam Thread AFC7F AFC7C AFC8T Flow Controller - Hose Kits & Fittings Hose Kit AHK8ES AHK8E Accessory Includes 1-GRUNDFOS UP32-160 PUMP 2-GRUNDFOS UP32-160 PUMP 2-GRUNDFOS UP60-150 PUMP 2.00" PE SOCKET FUSION 1.50" CAM LEVER - for flush connections 2.00" FPT BRASS THREAD 2" Hose Kit w/ Strainer 2" Hose Kit Residential Products Technical Guide 23 Accessories Installation Accessories Part Number AFC93 AFCG1PT AFCG2PT AGOFL AFCG1BT AGOFC AG1DC Installation Accessories Description 1" MPT x 1" Aluminum Cam Fitting for the Flush Cart Geo-Prime TankTM Pressure Battery Expansion Tank Geo-Gooser Kit Geo-Booster Flush Cart Functional Geo Display Cart for use at trade show and training events. This display is intended only for 2 and 3 ton vertical upflow units with an internal pump. Heat pump not included. This is a drop ship item Geo-Prime Tank The Geo Prime Tank allows the use of normal pressurized flow controllers as a "nonpressurized" ground loop system. The Prime Tank installs above the normal flow controller and maintains a column of liquid at the pump's inlet. Pressure Battery Geo-Gooser Kit w/Elbows Pressure Battery/ Expansion Tank is designed to allow for expansion and contraction of the loop. The tank expands using an internal diaphragm in summer and contracts in the winter to exert/absorb pressure in the loop. Geo Gooser Kit provides an easy means to repressurize the loop field by adding liquid into the loop field through a pressure / temperature port without a flush and fill process. Geo-Booster Flush Cart Geo Display Cart Geo Booster is designed to maintain a minimum pressure on ground loop systems that uses an antifreeze solution. The internal pump forces fluid into the loop system from a one gallon internal storage tank if static pressure drops below 35 PSI. Flush Cart is used during initial loop fill and flush procedure to fill the loop and then circulated to remove any air or debris in the loop system. Functional Geo Display Cart for use at trade show and training events. This display is intended only for 2 and 3 ton vertical upflow units with an internal pump. Heat pump not included. This is a drop ship item. 24 ClimateMaster: Declare your personal energy independence. ClimateMaster Geothermal Heating and Cooling Geothermal Loop Pipe GEOTHERMAL LOOP PIPE FEATURES: � Designed for socket or butt fusion connection � Internal banding for easy handling and control � 160 psi � 50 year warranty � Coils marked in 2 foot increments � NSF Geothermal Certification Specifications for ClimateMaster Geothermal Loop Pipe & Fittings General: All pipe and heat fused materials are manufactured from a virgin, high density, polyethylene 3408 material manufactured in accordance with ASTM D-2513 sections 4.1 and 4.2. Pipe shall be manufactured to outside diameters, wall thickness, and respective tolerances as specified in ASTM D-3035, D-2447 or F-714. Material: The material shall maintain a 160 psi Hydrostatic Design Basis at 73.4�F per ASTM D-2837. This material shall be a high density, polyethylene 3408 having a cell classification of PE345434C as specified in ASTM D-3350. ClimateMaster acknowledges Solvay Polymers, Inc.,Houston, TX, as the primary supplier of high density polyethylene resin (K44-15-23) specifically for this use. U-Bend Coils 100' Pipe Bundle Spaced Pond Loop Coils Part Number GP4L100 GP4C200 GP4C300 GP4C500 GP4C600 GP4C800 GP5L100 GP5C300 GP5C500 GP6L100 GP6C100 GP6C300 GP8L100 GP8C100 GP8C300 GP4C350U GP4C410U GP4C510U GP5C410U GP5C510U GP5C610U GP5C710U GP5C810U GP4S300 Geothermal Loop Pipe Pipe Diameter Pipe Length Package Type 0.75" IPS 100 Bundle 5x20' 0.75" IPS 200 Coil 0.75" IPS 300 Coil 0.75" IPS 500 Coil 0.75" IPS 600 Coil 0.75" IPS 800 Coil 1.00" IPS 100 Bundle 5x20' 1.00" IPS 300 Coil 1.00" IPS 500 Coil 1.25" IPS 100 Bundle-5x 20' 1.25" IPS 100 Coil 1.25" IPS 300 Coil 2.00" IPS 100 Bundle-5x20' 2.00" IPS 100 Coil 2.00" IPS 300 Coil Coils with U-Bend Attached 0.75" IPS 350 2-175' Coils 0.75" IPS 410 2-205' Coils 0.75" IPS 510 2-255' Coils 1.00" IPS 410 2-205' Coils 1.00" IPS 510 2-255' Coils 1.00" IPS 610 2-305' Coils 1.00" IPS 710 2-355' Coils 1.00" IPS 810 2-405' Coils Spaced Pond Loop Coil 0.75" IPS 300 Coil Pipe Type SDR11 SDR11 SDR11 SDR11 SDR11 SDR11 SDR11 SDR11 SDR11 SDR11 SDR11 SDR11 SDR11 SDR11 SDR11 SDR11 SDR11 SDR11 SDR11 SDR11 SDR11 SDR11 SDR11 SDR11 Coils Per Pallet N/A 13 10 8 8 8 N/A 10 6 N/A 14 14 N/A 10 7 12 10 8 8 8 8 8 8 5 Residential Products Technical Guide 25 Accessories Geothermal Fittings Part Number GFC44 GFC55 GFC64 GFC65 GFC66 GFC85 GFC86 GFC88 GFE44 GFE54 GFE55 GFE64 GFE66 GFE88 GFT444 GFT555 GFT644 GFT655 GFT664 GFT665 GFT884 GFT885 GFT888 GFEU44 GFEU55 GFEU66F GFEU66M GFU44 GFU55 GFU66 GFCP4 GFCP5 GFCP6 GFCP8 GFK644K02 GFK644K03 GFK644K04 GFK644K05 Description Fusion Coupling 0.75" x 0.75" 1.00" x 1.00" 1.25" x 0.75" 1.25" x 1.00" 1.25" x 1.25" 2.00" x 1.00" 2.00" x 1.25" 2.00" x 2.00" Fusion Elbow 90 degrees 0.75" x 0.75" 1.00" x 0.75" 1.00" x 1.00" 1.25" x 0.75" 1.25" x 1.25" 2.00" x 2.00" Fusion Tee 0.75" x 0.75" x 0.75" 1.00" x 1.00" x 1.00" 1.25" x 0.75" x 0.75" 1.25" x 1.00" x 1.00" 1.25" x 1.25" x 0.75" 1.25" x 1.25" x 1.00" 2.00" x 2.00" x 0.75" 2.00" x 2.00" x 1.00" 2.00" x 2.00" x 2.00" Fusion U-Bend Fitting 0.75" x 0.75" Street el 1.00" x 1.00" Street el 1.25" x 1.25" Short female 1.25" x 1.25" Short male 0.75" U-Bend Bullet 1.00" U-Bend Bullet 1.25" U-Bend Bullet Fusion Cap 0.75" 1.00" 1.25" 2.00" Fusion Header - Pre Assembled 1.25" Inlet x (3) 0.75" Outlets 1.25" Inlet x (4) 0.75" Outlets 1.25" Inlet x (5) 0.75" Outlets 1.25" Inlet x (6) 0.75" Outlets Box Quantity 120 80 50 50 40 30 30 30 70 50 50 100 90 30 75 50 70 60 60 60 25 25 25 120 200 90 90 1 1 1 160 160 100 30 15 20 20 20 Coupling Elbow Tee U-Bend Fitting Cap Bullet Fitting Header 26 ClimateMaster: Declare your personal energy independence. ClimateMaster Geothermal Heating and Cooling Geothermal Fittings Part Number Description Box Quantity Fusion X Male Nominal Thread X FPT GFMT453 0.75" x 1.00" MNT x 0.50" FPT 40 GFMT553 1.00" x 1.00" MNT x 0.50" FPT 50 Fusion X Male Swivel Adapter - For use w/90B0001N02 GFMC56S 1.00" Fusion x 1.25" Brass Swivel NPT 30 GFMC66S 1.25" Fusion x 1.25" Brass Swivel NPT 20 Fusion X Male Adapter GFMA44 0.75" x 0.75" MPT Brass 30 GFMA55 1.00" x 1.00" MPT Brass 20 GFMA65 1.25" x 1.00" MPT Brass 25 GFMA66 1.25" x 1.25" MPT Brass 30 GFMA88 2.00" x 2.00" MPT Brass 30 Fusion Adaptor, Hose Barb GFFA65H 1.25" Socket Fusion x 1" Hose Barb 30 Swivel Adaptor Male Adaptor Male Adaptor Tee Residential Products Technical Guide 27 Accessories Socket Fusion Tools Socket Fusion Tools Part Number Description Heating Tool HVTD48 Fusion Tool, Double Socket Face Socket Face HSF4P 0.75" IPS HSF5P 1.00" IPS HSF6P 1.25" IPS HSF8P 2.00" IPS Cold Ring HCR4P 0.75" IPS HCR5P 1.00" IPS HCR6P 1.25" IPS HCR8P 2.00" IPS Combo Depth Gauge and Chamfer Tool HDC4P 0.75" IPS HDC5P 1.00" IPS HDC6P 1.25" IPS HDC8P 2.00" IPS Fusion Tool Accessories HMB Fusion Tool Mounting Bracket HFT Fusion Timer HHB Fusion Tool Cover HS500 Tempstik 500*F HS525 Tempstik 525*F Complete Fusion Kits HHAK46WDP 0.75" & 1.25" IPS - Double HHAK468WDP 0.75", 1.00", 1.25" & 2.00" IPS - Double Kits Include: Heating tool, socket face set, depth gauge, cold rings, hex keys, tubing cutter, screwdriver, tempsticks, timer, tool bag cover, cotton wipe bag. 28 ClimateMaster: Declare your personal energy independence. ClimateMaster Geothermal Heating and Cooling Service Tools Item Temperature Measurement Pressure Measurement Gauge Probe Adapter Alcohol Antifreeze Tester (.9-1) Glycol Antifreeze Tester (1-1.07) Water Pressure Gauge Control Checker AC Magnetic Field Indicator Part Number ADT160 APG100 APTGA AHYDA AHYDG AG1PG ATS007 AACMFI Description Digital Thermometer for use with P/T Ports Pressure Gauge, 0-100 psi P/T Port Adapter for use with APG100 Specific Gravity Hydrometer Specific Gravity Hydrometer Water Pressure Gauge for use with Digital units Monitor/checks safety controls Check pump operation Digital Thermometer Antifreeze Tester Pressure Gauge and Adapter Service Parts Kit Item Residential Service Parts Kit Residential Service Parts Kit Residential Service Parts Kit Residential Service Parts Kit Part Number ASPK ASPK1 ASPK2 ASPK3 Description Designed to provide inexpensive parts for dealers. Contains emergency installation and service parts for Residential units and Flow Controllers. ASPK plus DXM2 and related harnesses ASPK plus DXM2 and related harnesses plus ACDU02 Service tool kit for Trilogy� (QE) Cabinet Samples Part Number SAMPLECABTZV036 SAMPLECABTEV038 SAMPLECABTTV026 SAMPLECABTTV049 SAMPLECABTBW060 Description Low cost, lightweight display unit to take to home shows, county fairs, or for use in a showroom. Cabinet Sample Residential Products Technical Guide 29 Accessories Filters MERV 11 Replacement Filters TEH, TTH & TSH - Horizontal Units 018 - 030 2 - 18 x 18 76B0005N01 036 - 038 1 - 12 x 20 1 - 20 x 25 76B0005N02 76B0005N09 042 - 049 1 - 18 x 20 1 - 20 x 24 76B0005N04 76B0005N07 060 - 072 2 - 20 x 24 76B0005N07 TEV/D, TTV/D & TSV/D - Vertical Units 018 1 - 24 x 24 76B0005N08 024 - 030 1 - 24 x 28 76B0005N14 036 - 038 1 - 28 x 30 76B0005N15 042 - 049 1 - 30 x 32 76B0005N19 060 - 072 1 - 30 x 36 76B0005N20 MERV 8 Replacement Filters 024 - 030 036 - 042 048 - 060 TZH - Horizontal Units 1 - 18 x 24 76B0015N07 1 - 14 x 20 76B0015N05 Qty 2 1 - 20 x 38 76B0015N06 and 76B0015N05 024 - 030 036 - 042 TZV - Vertical Units 1 - 20 x 20 76B0015N01 1 - 24 x 24 76B0015N02 048 - 060 1 - 28 x 28 76B0015N03 These are nominal sizes: actual sizes are slightly smaller. 30 ClimateMaster: Declare your personal energy independence. ClimateMaster Geothermal Heating and Cooling Notes: Residential Products Technical Guide 31 Accessories Revision History Date 27 Sept, 21 03 Nov, 17 02 Nov., 17 03 Feb., 16 01 Sept., 15 08 June, 15 03 Oct., 14 20 Feb. 13 16 July 12 28 May, 10 12 May, 09 05 June, 08 04 Mar, 07 04 Mar, 07 01 Oct, 06 Page # Various Various 16 Various 4 3 All All 553-554 558 556, ATP32U04 Page All 560 561 All Description Introduced iGate 2.0 thermostat Updated to ATC32U03 Removed unit Vibration Isolation Pads AUQSP2424, AUQSSP2477 iGate ClimaZone Added Updated Water-to-Water Section of Table Updated IAQ Filter Photo Updated Updated ATC32U01 Added New Rev. C Auxiliary/Emergency Heaters Added New Thermostat Model Added Reformatted Document Size Changed Part Number and Description for Outdoor Split Flow Controller Transition Fittings Discontinued 90B0001N02 Fitting First Published 7300 S.W. 44th Street Oklahoma City, OK 73179 Phone: 405-745-6000 Fax: 405-745-6058 climatemaster.com RP1008 ClimateMaster works continually to improve its products. As a result, the design and specifications of each product at the time for order may be changed without notice and may not be as described herein. Please contact ClimateMaster's Customer Service Department at 1-405-745-6000 for specific information on the current design and specifications. Statements and other information contained herein are not express warranties and do not form the basis of any bargain between the parties, but are merely ClimateMaster's opinion or commendation of its products. � ClimateMaster, Inc. 2008 32 ClimateMaster: Declare your personal energy independence.
