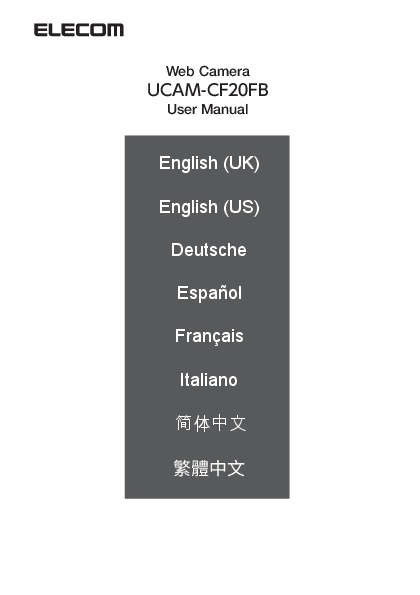

Web Camera
UCAM-CF20FB
User Manual
English (UK) English (US)
Deutsche Espa�ol Fran�ais Italiano
English (UK)
Web Camera
UCAM-CF20FB
User Manual
Before using
Please read through the following contents before using.
Safety Precautions
� Please connect this to a USB-A port supplying 5V, 500mA power. � This product's stand may not be able to fit on your laptop or display screen. � If you are unable to fit the stand on, please place it on a flat surface. � Please ensure that this product is placed such that the cable is not pulled taut when using. If the
cable is pulled taut, this product may fall off when the cable is caught and pulled. This may cause damage to the product and surrounding devices. � When changing the direction of the camera, please ensure that you hold down the stand portion while moving it. Moving it forcibly may cause the product to fall from where it is placed. This may cause damage to the product and surrounding devices. � Please do not place the camera on an uneven or slanted place. This product may fall off the unstable surface. This may cause damage to the product and surrounding devices. � Please do not attach the camera to soft items or structurally weak parts. This product may fall off the unstable surface. This may cause damage to the product and surrounding devices.
Precautions
� Please do not touch the lens using your fingers. If there is dust on the lens, use a lens blower to remove it. � Video calls above VGA size may not be possible depending on the chat software you use. � Depending on the internet environment you are using, you may not be able to use every software. � Sound quality and video processing may not perform well depending on your hardware's
processing capabilities. � Due to the nature of this product and depending on your computer, your computer may stop
recognising this product when it enters standby, hibernation or sleep mode. When in use, cancel settings for standby, hibernation or sleep mode. � If the PC does not recognise this product, disconnect it from the PC and try connecting it again. � When using the camera, please do not set the computer to battery-saving mode. When switching your computer to battery-saving mode, please end the application that the camera is using first. � This product is made for Japanese domestic use. Warranty and support services are not available for use of this product outside of Japan. * This product uses USB2.0. It does not support USB1.1 interface.
Cleaning the Product
If the product body becomes dirty, wipe it with a soft, dry cloth.
Use of a volatile liquid (such as paint thinner, benzene or alcohol) may affect the material quality and colour of the product.
1
Name and function of each part
Joint Can move vertically.
Camera lens Captures images.
LED Blinks white during video recording.
Built-in Microphone Picks up audio.
Infra-red light for face recognition Blinks during face recognition. Infra-red light may or may not be visible depending on the individual.
Multistand Attaches to a display or place on a flat surface.
USB connector Connect to the PC USB-A port.
2
How to use the camera
1Step Attaching the camera
Attach the camera and adjust the vertical angle. * Recommend attaching above the display.
When attaching to the display of a laptop
When placing it on a flat surface or the table
Front
Step
2 Connecting the camera
Insert the USB connector of the camera into the USB-A port of the PC.
� You can insert or remove the USB even when the PC is switched on. � Please ensure that the USB connector is the right side up and connect it correctly.
The driver will be installed automatically. This product can now be used. Continue on to applications you want to use it with. ( Set up Windows Hello Face ( Use with other chat software
3
Set up Windows Hello Face
Before setting up
� To use face recognition, you must update to the newest version of Windows 10 from Windows Update. Manually carry out Windows Update if it is deactivated. * Please refer to the Microsoft support information for how to carry out Windows Update.
� To use face recognition with the following editions of Windows 10, you must download the driver installer from the ELECOM website. Windows 10 Enterprise 2016 LTSB Windows 10 IoT Enterprise 2016 LTSB Windows 10 Enterprise 2015 LTSB Windows 10 IoT Enterprise 2015 LTSB When using these editions, please install the drivers before setting up face recognition. ( Set up Windows Hello Face: Install the driver
* The following steps are for Windows version "20H2". The display may be different for other versions, but the operation is the same.
Set up face recognition
� To set up Windows Hello face recognition, you must first set a PIN. � Please refer to the Microsoft support information for how to set a PIN.
Click on "Start" on the lower left of the screen and click on the "Settings"
icon .
4
Click on "Accounts". The "Accounts" page will appear.
Click on "Sign-in options".
Click on "Windows Hello Face" and click on the displayed
.
"Windows Hello setup" will be displayed.
5
Click on
.
Key in your PIN.
The image captured by the camera will appear. Follow the instructions on the screen and keep looking directly at the screen. Wait until registration is done.
6
Face recognition is complete when "All set!" appears.
Click on
.
The image captured by the camera will be displayed again when "Improve recognition" is clicked. If you wear glasses, improving recognition will allow your PC to recognise you whether you are wearing them or not.
Click on "Windows Hello Face" and go through steps - .
Face recognition is correctly set up when "You're all set up to sign in to Windows, apps and services with your face." appears.
7
To unlock the screen
Face the camera directly when the lock screen is on. When your face is
recognised, "Welcome back, (User Name)!" is shown.
Click using your mouse or press the "Enter" key on your keyboard. The lock screen will be unlocked and your desktop will be displayed.
8
Install the driver
* The driver is in Japanese only.
The driver is specifically for the following editions. For other editions, face recognition can be used without installing a driver.
� Windows 10 Enterprise 2016 LTSB � Windows 10 IoT Enterprise 2016 LTSB � Windows 10 Enterprise 2015 LTSB � Windows 10 IoT Enterprise 2015 LTSB
Download the driver
Download the installer program for the face recognition driver from the ELECOM website shown below.
https://www.elecom.co.jp/r/220
* The driver is in Japanese only.
Install the driver
Before reinstalling � Connect the camera to your PC and ensure that it can be used. � Please logon using a user account with administrative rights. � It is recommended to end all Windows programs (application software).
Unzip the downloaded "UCAM-CF20FB_Driver_vX.Xzip" onto your desktop. Double click on "Setup(.exe)" found in the unzipped folder.
The installer will start up.
Click on "Yes" when the "User Account Control" window appears.
Click on
.
Driver installation will start.
9
Click on
.
Check " (Restart now)" and click on
.
Restart may not be necessary depending on your PC. Installation will be completed without restarting in this case.
Preparation for face recognition set up is complete once Windows restarts. Continue with face recognition set up. ( Set up Windows Hello Face: Set up face recognition
10
Use with other chat software
Please use the chat software camera settings. The set up instructions for a representative chat software is shown here as an example. For other software, please refer to the manual for the software that you are using.
Use with SkypeTM
The following images are the instructions for "Skype for Windows Desktop". The display for the Microsoft Store application is different, but the steps are the same.
Check that the camera is connected to your PC before starting up Skype. Click on "User profile".
Click on "Settings".
11
Set up "Audio & Video" as below. If multiple cameras are connected, select "ELECOM 2MP Webcam" from
"Camera" under "VIDEO".
If you can see the image taken by the camera, this indicates that it is operating correctly.
Select the audio device from "Microphone" under "AUDIO".
Select the following if you are using the camera built-in microphone. �Microphone (Webcam Internal Mic) You can now use this product with Skype.
12
Use with Zoom
Check that the camera is connected to your PC before starting up Zoom. Click on the (Settings) icon.
Select "Video". If multiple cameras are connected, select "ELECOM 2MP Webcam" from
"Camera".
If you can see the image taken by the camera, this indicates that it is operating correctly.
13
Select "Audio". Select the audio device from "Microphone".
Select the following if you are using the camera built-in microphone. �Microphone (Webcam Internal Mic) You can now use this product with Zoom.
14
Basic Specifications
Camera main body
Camera parts
Image receiver
1/6" CMOS sensor
Effective pixel count Approx. 2.0 megapixels
Focus type
Fixed focus
Recording pixel count Max 1920�1080 pixels
Max frame rate
30FPS
Number of colours 16.7 million colours (24bit)
Angle of view
80 degrees diagonally
Built-in Microphone
Type
Digital silicon MEMS (Monaural)
Directionality
Omnidirectional
Common
Interface
USB2.0 (Type A male)
Cable length
Approx. 1.5m
Dimensions
Approx. Length 100.0 mm x Width 64.0 mm x Height 26.5 mm * Cable not included.
Supported OS
Windows 10 * To use face recognition, you must update to the newest version of
Windows 10 from Windows Update. * To use face recognition with the following editions of Windows 10, you
must download the driver installer from the ELECOM website. (Support is only available in Japanese)
� Windows 10 Enterprise 2016 LTSB � Windows 10 IoT Enterprise 2016 LTSB � Windows 10 Enterprise 2015 LTSB � Windows 10 IoT Enterprise 2015 LTSB * For the list of supported editions, please refer to our website for the most recent information not included in this manual. (Support is only available in Japanese) * Compatibility information is retrieved during operation confirmation in our verification environment. There is no guarantee of full compatibility with all devices, OS versions and applications.
Hardware operating environment
The following environment requirements must be met to use this product.
CPU
Equivalent to Intel� CoreTM i3 1.2GHz and above
Main memory
More than 1GB
HDD free space
More than 1GB
* In addition to the above, the environment requirements for each software should be met.
15
Regarding user support
Contact for enquiry on product
A customer who purchases outside Japan should contact the local retailer in the country of purchase for enquiries. In" ELECOM CO., LTD. (Japan)", no customer support is available for enquiries about purchases or usage in/from any countries other than Japan. Also, no foreign language other than Japanese is available. Replacements will be made under stipulation of the Elecom warranty, but are not available from outside of Japan.
Limitation of Liability
� In no event will ELECOM Co., Ltd be liable for any lost profits or special, consequential, indirect, punitive damages arising out of the use of this product.
� ELECOM Co., Ltd will have no liability for any loss of data, damages, or any other problems that may occur to any devices connected to this product.
Compliance status www.elecom.co.jp/global/certification/
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. In order to make improvements to this product, the design and specifications are subject to change without prior notice.
(Pb)
Hg
Cd Cr (VI)
PBB
PBDE
SJ/T 11363-2006
� SJ/T 11363-2006
WEEE Disposal and Recycling Information This symbol means that waste of electrical and electronic equipment (WEEE) should not be disposed as general household waste. WEEE should be treated separately to prevent possible harm to the environment or human health. Consult your retailer or local municipal office for collection, return, recycle or reuse of WEEE.
Trademark and name of the manufacturer:
ELECOM CO., LTD.
www.elecom.co.jp/global/
Importer UK Contact : Around the World Trading, Ltd. Afon Building 223, Worthing Road Horsham, RH12 1TL, United Kingdom
Importer EU Contact : Around the World Trading, Ltd. 5th floor, Koenigsallee 2b, Dusseldorf, Nordrhein-Westfalen, 40212, Germany
ELECOM Korea Co., Ltd. Dome-Bldg 5F, 60, Nambusunhwan-ro 347-gil, Seocho-gu, Seoul, 06730, South Korea TEL : +82 (0) 2 - 1588 - 9514 FAX : +82 (0) 2 - 3472 - 5533 www.elecom.co.kr
ELECOM (SHANGHAI) TRADING Co.,Ltd Room 208-A21, 2nd floor, 1602 Zhongshanxi Road, Xuhui District, Shanghai, China, 200235 TEL : +86 021-33680011 FAX : +86 755 83698064
ELECOM Sales Hong Kong Ltd. 2/F, Block A, 2-8 Watson Road, Causeway Bay, Hong Kong TEL : +852 2806 - 3600 FAX : +852 2806 - 3300 email : info@elecom.asia
ELECOM Singapore Pte. Ltd Blk 10, Kaki Bukit Avenue 1, #02-04 Kaki Bukit Industrial Estate, Singapore 417942 TEL : +65 6347 - 7747 FAX : +65 6753 - 1791
A customer who purchases outside Japan should contact the local retailer in the country of purchase for enquiries. In "ELECOM CO., LTD. (Japan)", no customer support is available for enquiries about purchases or usage in/from any countries other than Japan. Also, no language other than Japanese is available. Replacements will be made under stipulation of the Elecom warranty, but are not available from outside of Japan.
� Unauthorised copying and/or reproducing of all or part of this manual is prohibited. � Specifications and external appearance of the product may be changed without prior notice for the purpose of product improvements. � When exporting this product, check the export regulations for the country of origin. � Windows, Windows Hello and Skype are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries. � Zoom is a either registered trademark or a trademark of Zoom Video Communications, Inc.. � All products and company names on the product and the package are trademarks or registered trademarks of their respective holders.
Web Camera Manual, Safety precautions, and Compliance with regulations 1st edition, July 29, 2021
�2021 ELECOM Co., Ltd. All Rights Reserved.
16
MSC-UCAM-CF20FB_enuk ver.111
English (US)
Web Camera
UCAM-CF20FB
User Manual
Before using
Please read through the following contents before using.
Safety Precautions
� Please connect this to a USB-A port supplying 5V, 500mA power. � This product's stand may not be able to fit on your laptop or display screen. � If you are unable to fit the stand on, please place it on a flat surface. � Please ensure that this product is placed such that the cable is not pulled taut when using. If the
cable is pulled taut, this product may fall off when the cable is caught and pulled. This may cause damage to the product and surrounding devices. � When changing the direction of the camera, please ensure that you hold down the stand portion while moving it. Moving it forcibly may cause the product to fall from where it is placed. This may cause damage to the product and surrounding devices. � Please do not place the camera on an uneven or slanted place. This product may fall off the unstable surface. This may cause damage to the product and surrounding devices. � Please do not attach the camera to soft items or structurally weak parts. This product may fall off the unstable surface. This may cause damage to the product and surrounding devices.
Precautions
� Please do not touch the lens using your fingers. If there is dust on the lens, use a lens blower to remove it. � Video calls above VGA size may not be possible depending on the chat software you use. � Depending on the internet environment you are using, you may not be able to use every software. � Sound quality and video processing may not perform well depending on your hardware's
processing capabilities. � Due to the nature of this product and depending on your computer, your computer may stop
recognizing this product when it enters standby, hibernation or sleep mode. When in use, cancel settings for standby, hibernation or sleep mode. � If the PC does not recognize this product, disconnect it from the PC and try connecting it again. � When using the camera, please do not set the computer to battery-saving mode. When switching your computer to battery-saving mode, please end the application that the camera is using first. � This product is made for Japanese domestic use. Warranty and support services are not available for use of this product outside of Japan. * This product uses USB2.0. It does not support USB1.1 interface.
Cleaning the Product
If the product body becomes dirty, wipe it with a soft, dry cloth.
Use of a volatile liquid (such as paint thinner, benzene or alcohol) may affect the material quality and color of the product.
1
Name and function of each part
Joint Can move vertically.
Camera lens Captures images.
LED Blinks white during video recording.
Built-in Microphone Picks up audio.
Infra-red light for face recognition Blinks during face recognition. Infra-red light may or may not be visible depending on the individual.
Multistand Attaches to a display or place on a flat surface.
USB connector Connect to the PC USB-A port.
2
How to use the camera
1Step Attaching the camera
Attach the camera and adjust the vertical angle. * Recommend attaching above the display.
When attaching to the display of a laptop
When placing it on a flat surface or the table
Front
Step
2 Connecting the camera
Insert the USB connector of the camera into the USB-A port of the PC.
� You can insert or remove the USB even when the PC is switched on. � Please ensure that the USB connector is the right side up and connect it correctly.
The driver will be installed automatically. This product can now be used. Continue on to applications you want to use it with. ( Set up Windows Hello Face ( Use with other chat software
3
Set up Windows Hello Face
Before setting up
� To use face recognition, you must update to the newest version of Windows 10 from Windows Update. Manually carry out Windows Update if it is deactivated. * Please refer to the Microsoft support information for how to carry out Windows Update.
� To use face recognition with the following editions of Windows 10, you must download the driver installer from the ELECOM website. Windows 10 Enterprise 2016 LTSB Windows 10 IoT Enterprise 2016 LTSB Windows 10 Enterprise 2015 LTSB Windows 10 IoT Enterprise 2015 LTSB When using these editions, please install the drivers before setting up face recognition. ( Set up Windows Hello Face: Install the driver
* The following steps are for Windows version "20H2". The display may be different for other versions, but the operation is the same.
Set up face recognition
� To set up Windows Hello face recognition, you must first set a PIN. � Please refer to the Microsoft support information for how to set a PIN.
Click on "Start" on the lower left of the screen and click on the "Settings"
icon .
4
Click on "Accounts". The "Accounts" page will appear.
Click on "Sign-in options".
Click on "Windows Hello Face" and click on the displayed
.
"Windows Hello setup" will be displayed.
5
Click on
.
Key in your PIN.
The image captured by the camera will appear. Follow the instructions on the screen and keep looking directly at the screen. Wait until registration is done.
6
Face recognition is complete when "All set!" appears.
Click on
.
The image captured by the camera will be displayed again when "Improve recognition" is clicked. If you wear glasses, improving recognition will allow your PC to recognize you whether you are wearing them or not.
Click on "Windows Hello Face" and go through steps - .
Face recognition is correctly set up when "You're all set up to sign in to Windows, apps, and services with your face." appears.
7
To unlock the screen
Face the camera directly when the lock screen is on. When your face is
recognized, "Welcome back, (User Name)!" is shown.
Click using your mouse or press the "Enter" key on your keyboard. The lock screen will be unlocked and your desktop will be displayed.
8
Install the driver
* The driver is in Japanese only.
The driver is specifically for the following editions. For other editions, face recognition can be used without installing a driver.
� Windows 10 Enterprise 2016 LTSB � Windows 10 IoT Enterprise 2016 LTSB � Windows 10 Enterprise 2015 LTSB � Windows 10 IoT Enterprise 2015 LTSB
Download the driver
Download the installer program for the face recognition driver from the ELECOM website shown below.
https://www.elecom.co.jp/r/220
* The driver is in Japanese only.
Install the driver
Before reinstalling � Connect the camera to your PC and ensure that it can be used. � Please logon using a user account with administrative rights. � It is recommended to end all Windows programs (application software).
Unzip the downloaded "UCAM-CF20FB_Driver_vX.Xzip" onto your desktop. Double click on "Setup(.exe)" found in the unzipped folder.
The installer will start up.
Click on "Yes" when the "User Account Control" window appears.
Click on
.
Driver installation will start.
9
Click on
.
Check " (Restart now)" and click on
.
Restart may not be necessary depending on your PC. Installation will be completed without restarting in this case.
Preparation for face recognition set up is complete once Windows restarts. Continue with face recognition set up. ( Set up Windows Hello Face: Set up face recognition
10
Use with other chat software
Please use the chat software camera settings. The set up instructions for a representative chat software is shown here as an example. For other software, please refer to the manual for the software that you are using.
Use with SkypeTM
The following images are the instructions for "Skype for Windows Desktop". The display for the Microsoft Store application is different, but the steps are the same.
Check that the camera is connected to your PC before starting up Skype. Click on "User profile".
Click on "Settings".
11
Set up "Audio & Video" as below. If multiple cameras are connected, select "ELECOM 2MP Webcam" from
"Camera" under "VIDEO".
If you can see the image taken by the camera, this indicates that it is operating correctly.
Select the audio device from "Microphone" under "AUDIO".
Select the following if you are using the camera built-in microphone. �Microphone (Webcam Internal Mic) You can now use this product with Skype.
12
Use with Zoom
Check that the camera is connected to your PC before starting up Zoom. Click on the (Settings) icon.
Select "Video". If multiple cameras are connected, select "ELECOM 2MP Webcam" from
"Camera".
If you can see the image taken by the camera, this indicates that it is operating correctly.
13
Select "Audio". Select the audio device from "Microphone".
Select the following if you are using the camera built-in microphone. �Microphone (Webcam Internal Mic) You can now use this product with Zoom.
14
Basic Specifications
Camera main body
Camera parts
Image receiver
1/6" CMOS sensor
Effective pixel count Approx. 2.0 megapixels
Focus type
Fixed focus
Recording pixel count Max 1920�1080 pixels
Max frame rate
30FPS
Number of colors
16.7 million colors (24bit)
Angle of view
80 degrees diagonally
Built-in Microphone
Type
Digital silicon MEMS (Monaural)
Directionality
Omnidirectional
Common
Interface
USB2.0 (Type A male)
Cable length
Approx. 4.92 ft
Dimensions
Approx. Length 3.94 x Width 2.52 x Height 1.04 in * Cable not included.
Supported OS
Windows 10 * To use face recognition, you must update to the newest version of
Windows 10 from Windows Update. * To use face recognition with the following editions of Windows 10, you
must download the driver installer from the ELECOM website. (Support is only available in Japanese)
� Windows 10 Enterprise 2016 LTSB � Windows 10 IoT Enterprise 2016 LTSB � Windows 10 Enterprise 2015 LTSB � Windows 10 IoT Enterprise 2015 LTSB * For the list of supported editions, please refer to our website for the most recent information not included in this manual. (Support is only available in Japanese) * Compatibility information is retrieved during operation confirmation in our verification environment. There is no guarantee of full compatibility with all devices, OS versions and applications.
Hardware operating environment
The following environment requirements must be met to use this product.
CPU
Equivalent to Intel� CoreTM i3 1.2GHz and above
Main memory
More than 1GB
HDD free space
More than 1GB
* In addition to the above, the environment requirements for each software should be met.
15
Regarding user support
Contact for enquiry on product
A customer who purchases outside Japan should contact the local retailer in the country of purchase for enquiries. In "ELECOM CO., LTD. (Japan)", no customer support is available for enquiries about purchases or usage in/from any countries other than Japan. Also, no foreign language other than Japanese is available. Replacements will be made under stipulation of the Elecom warranty, but are not available from outside of Japan.
Limitation of Liability
� In no event will ELECOM Co., Ltd be liable for any lost profits or special, consequential, indirect, punitive damages arising out of the use of this product.
� ELECOM Co., Ltd will have no liability for any loss of data, damages, or any other problems that may occur to any devices connected to this product.
Compliance status www.elecom.co.jp/global/certification/
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. In order to make improvements to this product, the design and specifications are subject to change without prior notice.
(Pb)
Hg
Cd Cr (VI)
PBB
PBDE
SJ/T 11363-2006
� SJ/T 11363-2006
WEEE Disposal and Recycling Information This symbol means that waste of electrical and electronic equipment (WEEE) should not be disposed as general household waste. WEEE should be treated separately to prevent possible harm to the environment or human health. Consult your retailer or local municipal office for collection, return, recycle or reuse of WEEE.
For a customer in the US Customer support
1-(800)-572-6665
support@elecom.com
Facebook www.facebook.com/elecomusa
Website (US) elecomus.com
Trademark and name of the manufacturer:
ELECOM CO., LTD.
www.elecom.co.jp/global/
Importer UK Contact : Around the World Trading, Ltd. Afon Building 223, Worthing Road Horsham, RH12 1TL, United Kingdom
Importer EU Contact : Around the World Trading, Ltd. 5th floor, Koenigsallee 2b, Dusseldorf, Nordrhein-Westfalen, 40212, Germany
ELECOM Korea Co., Ltd. Dome-Bldg 5F, 60, Nambusunhwan-ro 347-gil, Seocho-gu, Seoul, 06730, South Korea TEL : +82 (0) 2 - 1588 - 9514 FAX : +82 (0) 2 - 3472 - 5533 www.elecom.co.kr
ELECOM (SHANGHAI) TRADING Co.,Ltd Room 208-A21, 2nd floor, 1602 Zhongshanxi Road, Xuhui District, Shanghai, China, 200235 TEL : +86 021-33680011 FAX : +86 755 83698064
ELECOM Sales Hong Kong Ltd. 2/F, Block A, 2-8 Watson Road, Causeway Bay, Hong Kong TEL : +852 2806 - 3600 FAX : +852 2806 - 3300 email : info@elecom.asia
ELECOM Singapore Pte. Ltd Blk 10, Kaki Bukit Avenue 1, #02-04 Kaki Bukit Industrial Estate, Singapore 417942 TEL : +65 6347 - 7747 FAX : +65 6753 - 1791
A customer who purchases outside Japan should contact the local retailer in the country of purchase for enquiries. In "ELECOM CO., LTD. (Japan)", no customer support is available for enquiries about purchases or usage in/from any countries other than Japan. Also, no language other than Japanese is available. Replacements will be made under stipulation of the Elecom warranty, but are not available from outside of Japan.
� Unauthorised copying and/or reproducing of all or part of this manual is prohibited. � Specifications and external appearance of the product may be changed without prior notice for the purpose of product improvements. � When exporting this product, check the export regulations for the country of origin. � Windows, Windows Hello and Skype are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries. � Zoom is a either registered trademark or a trademark of Zoom Video Communications, Inc.. � All products and company names on the product and the package are trademarks or registered trademarks of their respective holders.
Web Camera Manual, Safety precautions, and Compliance with regulations 1st edition, July 29, 2021
�2021 ELECOM Co., Ltd. All Rights Reserved.
16
MSC-UCAM-CF20FB_enus ver.111
Deutsche
Webcam
UCAM-CF20FB
Bedienungsanleitung
Vor der Verwendung
Bitte lesen Sie vor der Verwendung folgende Punkte.
Sicherheitsvorkehrungen
� Bitte an einen USB-A-Anschluss, der 5 V, 500 mA, liefert, anschlie�en. � Das Stativ dieses Produkts l�sst sich unter Umst�nden nicht an Ihrem Laptop oder Bildschirm befestigen. � Sollten Sie das Stativ nicht anbringen k�nnen, auf eine ebene Fl�che stellen. � Dieses Produkt so platzieren, dass das Kabel bei Verwendung nicht unter Zug ist. Ist das Kabel
unter Zug, kann das Produkt herunterfallen, wenn das Kabel eingeklemmt und gezogen wird. Dadurch k�nnen Sch�den an Ger�t und Zubeh�r entstehen. � Bei �nderung der Kameraausrichtung sorgen Sie daf�r, dass Sie das Stativteil beim Bewegen der Kamera festhalten. Gewaltsame Bewegungen k�nnen dazu f�hren, dass das Ger�t von der Stelle f�llt, auf der es steht. Dadurch k�nnen Sch�den an Ger�t und Zubeh�r entstehen. � Die Kamera nicht auf eine unebene oder schr�ge Fl�che stellen. Das Ger�t kann von der instabilen Oberfl�che herunterfallen. Dadurch k�nnen Sch�den an Ger�t und Zubeh�r entstehen. � Die Kamera nicht an weichen oder baulich schwachen Teilen befestigen. Das Ger�t kann von der instabilen Oberfl�che herunterfallen. Dadurch k�nnen Sch�den an Ger�t und Zubeh�r entstehen.
Vorsichtsma�nahmen
� Das Objektiv nicht mit den Fingern ber�hren. Staub auf dem Objektiv mit einem Objektivbl�ser entfernen. � Videoanrufe �ber VGA-Gr��e sind je nach verwendeter Chat-Software unter Umst�nden nicht m�glich. � Je nach verwendeter Internetumgebung l�sst sich u. U. nicht jede Software einsetzen. � Tonqualit�t und Videoverarbeitung sind je nach den Verarbeitungsm�glichkeiten Ihrer Hardware u.
U. nicht optimal. � Aufgrund der Beschaffenheit dieses Ger�ts und abh�ngig von Ihrem Computer kann Ihr Computer
dieses Ger�t u. U. nicht mehr erkennen, wenn es in den Standby-, Ruhezustand oder Schlafmodus wechselt. Bei Betrieb die Einstellungen f�r Standby, Ruhezustand oder Schlafmodus aufheben. � Erkennt der PC dieses Produkt nicht, vom PC entfernen und erneut anschlie�en. � Bei Betrieb der Kamera Computer nicht in den Batteriesparmodus versetzen. Vor Aktivieren des Batteriesparmodus am PC zuerst die Anwendung, die die Kamera verwendet, beenden. � Dieses Produkt ist f�r den Einsatz in Japan bestimmt. Au�erhalb Japans sind keine Garantie- und Supportleistungen f�r dessen Verwendung verf�gbar. * Dieses Produkt verwendet USB2.0. Es unterst�tzt keine USB1.1-Schnittstelle.
Reinigung des Produkts
Wird das Geh�use schmutzig, mit einem weichen und trockenen Tuch abwischen.
Die Nutzung von fl�chtigen Fl�ssigkeiten (wie Farbverd�nner, Benzol oder Alkohol) kann die Materialqualit�t und die Farbe des Produkts ver�ndern.
1
Name und Funktion des jeweiligen Teils
Gelenk Kann sich vertikal bewegen.
Kameraobjektiv Nimmt Bilder auf.
LED Blinkt w�hrend der Videoaufnahme wei�.
Eingebautes Mikrofon Nimmt den Ton auf.
Infrarotlicht zur Gesichtserkennung Blinkt w�hrend der Gesichtserkennung. Infrarotlicht kann je nach Person sichtbar sein oder nicht.
Mehrfachstativ Wird an einem Display befestigt oder auf eine ebene Fl�che gestellt.
USB-Verbindung Anschluss an den USB-A-Port des PCs.
2
Umgang mit der Kamera
1Schritt Anbringen der Kamera
Kamera befestigen und vertikalen Winkel einstellen. * Vorzugsweise oberhalb des Displays befestigen.
Beim Anbringen an das Display eines Laptops
Beim Platzieren auf einer ebenen Fl�che oder dem Tisch
Vorne
Schritt
2 Kamera anschlie�en
USB-Anschluss der Kamera in den USB-A-Port des PCs stecken.
� Auch wenn der PC eingeschaltet ist, k�nnen Sie den USB einstecken oder entfernen. � Vergewissern Sie sich, dass der USB-Stecker mit der richtigen Seite nach oben liegt.
Richtig anschlie�en.
Der Treiber wird automatisch installiert. Das Ger�t kann jetzt verwendet werden. Mit den Anwendungen fortfahren, mit denen Sie es verwenden m�chten. ( Windows Hello Face einrichten ( Verwendung mit anderer Chat-Software 3
Windows Hello Face einrichten
Vor der Einrichtung
� F�r den Einsatz von Gesichtserkennung auf die neueste Version von Windows 10 �ber Windows Update aktualisieren. F�hren Sie Windows Update manuell aus, wenn es deaktiviert ist. * Die Durchf�hrung des Windows-Updates entnehmen Sie den Support-Hinweisen von Microsoft.
� F�r den Einsatz von Gesichtserkennung mit den folgenden Editionen von Windows 10 den TreiberInstaller von der ELECOM Website herunterladen. Windows 10 Enterprise 2016 LTSB Windows 10 IoT Enterprise 2016 LTSB Windows 10 Enterprise 2015 LTSB Windows 10 IoT Enterprise 2015 LTSB Bei Einsatz dieser Editionen installieren Sie die Treiber vor Einrichten der Gesichtserkennung. ( Windows Hello Face einrichten: Treiber installieren
* Die folgenden Schritte gelten f�r die Windows-Version ,,20H2". Die Anzeige kann bei anderen Versionen anders sein, die Bedienung ist jedoch gleich.
Gesichtserkennung einrichten
� Zum Einrichten der Windows Hello-Gesichtserkennung zun�chst eine PIN festlegen. � Die Support-Hinweise von Microsoft erl�utern, wie man eine PIN festlegt.
Klicken Sie links unten im Bildschirm auf ,,Start" , dann auf das Symbol
,,Einstellungen" .
4
Klicken Sie auf ,,Konten". Die Seite ,,Konten" wird angezeigt.
Klicken Sie auf ,,Anmeldeoptionen".
Klicken Sie auf ,,Windows Hello-Gesichtserkennung" und dann auf die
angezeigte
.
,,Windows Hello-Setup" wird angezeigt.
5
Klicken Sie auf
.
Geben Sie Ihre PIN ein.
Das von der Kamera aufgenommene Bild wird angezeigt. Befolgen Sie die Anweisungen auf dem Bildschirm und schauen Sie weiterhin direkt auf den Bildschirm. Warten Sie, bis die Registrierung abgeschlossen ist.
6
Die Gesichtserkennung ist abgeschlossen, wenn ,,Fertig!" erscheint.
Klicken Sie auf
.
Das von der Kamera aufgenommene Bild wird erneut angezeigt, wenn Sie ,,Erkennung verbessern" anklicken. Wenn Sie eine Brille tragen, kann Ihr PC Sie dank der verbesserten Erkennung erkennen, ob Sie eine Brille tragen oder nicht.
Klicken Sie auf ,,Windows Hello-Gesichtserkennung", und f�hren Sie die
Schritte - durch.
Die Gesichtserkennung ist korrekt eingerichtet, wenn die Meldung ,,Sie k�nnen sich jetzt per Gesichtserkennung bei Windows, Apps und Diensten anmelden." erscheint.
7
So entsperren Sie den Bildschirm
Blicken Sie direkt in Kamera, wenn der Sperrbildschirm eingeschaltet ist. Wird
Ihr Gesicht erkannt, wird ,,Willkommen zur�ck, (User Name)!" angezeigt.
Klicken Sie mit der Maus, oder bet�tigen Sie die ,,Enter"-Taste auf der Tastatur. Der Sperrbildschirm wird entsperrt und Ihr Desktop angezeigt.
8
Treiber installieren
* Der Treiber ist nur auf Japanisch.
Der Treiber ist speziell f�r die folgenden Editionen. Bei anderen Editionen kann die Gesichtserkennung ohne Installation eines Treibers verwendet werden.
� Windows 10 Enterprise 2016 LTSB � Windows 10 IoT Enterprise 2016 LTSB � Windows 10 Enterprise 2015 LTSB � Windows 10 IoT Enterprise 2015 LTSB
Treiber herunterladen
Laden Sie das Installationsprogramm f�r den Gesichtserkennungstreiber von der unten angegebenen ELECOM-Website herunter.
https://www.elecom.co.jp/r/220
* Der Treiber ist nur auf Japanisch.
Treiber installieren
Vor der Neuinstallation � Kamera an den PC anschlie�en und sicherstellen, dass sie verwendet werden kann. � Bei einem Benutzerkonto mit Administratorrechten anmelden. � Wir empfehlen, alle Windows-Programme (Anwendungssoftware) zu beenden.
Die heruntergeladene Datei ,,UCAM-CF20FB_Driver_vX.Xzip" auf Ihren Desktop
entpacken.
Doppelklick auf ,,Setup(.exe)", das sich in dem entpackten Ordner befindet. Das Installationsprogramm wird gestartet.
Klicken Sie auf ,,Ja", wenn das Fenster ,,Benutzerkontensteuerung" erscheint.
Klicken Sie auf
.
Die Treiberinstallation wird gestartet.
9
Klicken Sie auf
.
Markieren Sie ,, (Restart now)", und klicken Sie auf
.
Ein Neustart ist je nach PC m�glicherweise nicht erforderlich. Die Installation wird in diesem Fall ohne Neustart abgeschlossen.
Die Vorbereitung f�r die Einrichtung der Gesichtserkennung ist nach dem Neustart von Windows abgeschlossen.
Fahren Sie mit der Einrichtung der Gesichtserkennung fort. ( Windows Hello Face einrichten: Gesichtserkennung einrichten
10
Verwendung mit anderer Chat-Software
Bitte verwenden Sie die Kameraeinstellungen der Chat-Software. Die Einrichtungsanleitung f�r eine repr�sentative Chatsoftware ist hier als Beispiel dargestellt. F�r andere Software schlagen Sie bitte im Handbuch der verwendeten Software nach.
Mit SkypeTM verwenden
Die folgenden Bilder zeigen die Anleitung f�r ,,Skype f�r Windows Desktop". Die Anzeige f�r die Microsoft Store-Anwendung ist anders, die Schritte sind jedoch die gleichen.
Vergewissern Sie sich, dass die Kamera am PC angeschlossen ist, bevor Sie
Skype starten.
Klicken Sie auf ,,Benutzerprofil".
Klicken Sie auf ,,Einstellungen".
11
Stellen Sie ,,Audio und Video" wie unten beschrieben ein. Sind mehrere Kameras angeschlossen, w�hlen Sie ,,ELECOM 2MP Webcam"
aus ,,Kamera" unter ,,VIDEO".
K�nnen Sie das von der Kamera aufgenommene Bild sehen, zeigt dies an, dass die Kamera korrekt funktioniert.
W�hlen Sie das Audioger�t aus ,,Mikrofon" unter ,,AUDIO" aus.
W�hlen Sie Folgendes, wenn Sie das eingebaute Mikrofon der Kamera verwenden. �Mikrofon (Webcam Internal Mic) Sie k�nnen dieses Produkt jetzt mit Skype verwenden.
12
Mit Zoom verwenden
Vergewissern Sie sich, dass die Kamera am PC angeschlossen ist, bevor Sie
Zoom starten.
Klicken Sie auf das Symbol (Einstellungen).
W�hlen Sie ,,Video". Sind mehrere Kameras angeschlossen, w�hlen Sie ,,ELECOM 2MP Webcam"
aus ,,Kamera".
K�nnen Sie das von der Kamera aufgenommene Bild sehen, zeigt dies an, dass die Kamera korrekt funktioniert.
13
W�hlen Sie ,,Audio". W�hlen Sie das Audioger�t aus ,,Mikrofon" aus.
W�hlen Sie Folgendes, wenn Sie das eingebaute Mikrofon der Kamera verwenden. �Mikrofon (Webcam Internal Mic) Sie k�nnen dieses Produkt jetzt mit Zoom verwenden.
14
Grundlegende technische Daten
Kamerageh�use
Teile der Kamera
Bildempf�nger
1/6" CMOS-Sensor
Effektive Pixelanzahl
Ca. 2,0 Megapixel
Fokustyp
Fixfokus
Aufzeichnung der Pixelanzahl Maximal 1920�1080 Pixel
Maximale Bildrate
30 FPS
Anzahl der Farben
16,7 Millionen Farben (24 Bit)
Blickwinkel
80 Grad diagonal
Eingebautes Mikrofon
Typ
Digitales Silizium MEMS (Monaural)
Richtungsabh�ngigkeit
Omnidirektional
Common
Interface
USB2.0 (Typ A-Stecker)
L�nge des Kabels
Ca. 1,5 m
Abmessungen
Ca. L�nge 100,0 mm x Breite 64,0 mm x H�he 26,5 mm * Kabel nicht im Lieferumfang enthalten.
Windows 10 * Um die Gesichtserkennung zu verwenden, aktualisieren Sie auf
die neueste Version von Windows 10 �ber Windows Update. * Um die Gesichtserkennung mit den folgenden Editionen von
Windows 10 zu nutzen, laden Sie den Treiber-Installer von der ELECOM Website herunter. (Support ist nur auf Japanisch verf�gbar)
� Windows 10 Enterprise 2016 LTSB � Windows 10 IoT Enterprise 2016 LTSB Unterst�tzte Betriebssysteme � Windows 10 Enterprise 2015 LTSB � Windows 10 IoT Enterprise 2015 LTSB * Die Liste der unterst�tzten Editionen entnehmen Sie bitte unserer Website, die die aktuellsten Informationen enth�lt, die nicht in diesem Handbuch enthalten sind. (Support ist nur auf Japanisch verf�gbar) * Informationen zur Kompatibilit�t wird w�hrend der Best�tigung des Vorgangs in unserer �berpr�fungsumgebung abgerufen. Es gibt keine Garantie f�r die vollst�ndige Kompatibilit�t mit allen Ger�ten, Betriebssystemversionen und Anwendungen.
Betriebsumgebung f�r die Hardware
Die folgenden Umgebungsanforderungen m�ssen erf�llt sein, um dieses Produkt zu verwenden.
CPU
�quivalent zu Intel� CoreTM i3 1,2GHz und h�her
Hauptspeicher
Mehr als 1 GB
Freier Festplattenspeicher Mehr als 1 GB
* Neben den oben genannten Punkten sollten die Umgebungsanforderungen f�r jede Software erf�llt sein.
15
Zur Benutzerunterst�tzung
Kontakt f�r Produktanfragen
Ein Kunde, der au�erhalb Japans kauft, sollte sich f�r R�ckfragen an den �rtlichen H�ndler im jeweiligen Erwerbsland wenden. Bei ,,ELECOM CO., LTD. (Japan)" ist kein Kundensupport f�r Anfragen zum Kauf oder zur Nutzung in/aus anderen L�ndern als Japan verf�gbar. Zudem ist keine andere Fremdsprache als Japanisch verf�gbar. Ersatz wird im Rahmen der Elecom-Garantie geleistet, ist jedoch au�erhalb Japans nicht erh�ltlich.
Haftungsbeschr�nkungen
� ELECOM Co., Ltd. ist keinesfalls haftbar f�r besonderen und zus�tzlichen Schadensanspruch, Folgesch�den, indirekte Sch�den, Strafschadenersatz oder entgangenen Gewinn, die auf die Verwendung dieses Produkts zur�ckzuf�hren sind.
� ELECOM Co., Ltd. gew�hrt keine Garantien in Bezug auf Datenverlust, Fehler oder jegliche anderen Probleme, die auf Grund von Ger�ten eingetreten sind, welche an dieses Produkt angeschlossen wurden.
Compliance status www.elecom.co.jp/global/certification/
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. In order to make improvements to this product, the design and specifications are subject to change without prior notice.
(Pb)
Hg
Cd Cr (VI)
PBB
PBDE
SJ/T 11363-2006
� SJ/T 11363-2006
WEEE Disposal and Recycling Information This symbol means that waste of electrical and electronic equipment (WEEE) should not be disposed as general household waste. WEEE should be treated separately to prevent possible harm to the environment or human health. Consult your retailer or local municipal office for collection, return, recycle or reuse of WEEE.
Trademark and name of the manufacturer:
ELECOM CO., LTD.
www.elecom.co.jp/global/
Importer UK Contact : Around the World Trading, Ltd. Afon Building 223, Worthing Road Horsham, RH12 1TL, United Kingdom
Importer EU Contact : Around the World Trading, Ltd. 5th floor, Koenigsallee 2b, Dusseldorf, Nordrhein-Westfalen, 40212, Germany
ELECOM Korea Co., Ltd. Dome-Bldg 5F, 60, Nambusunhwan-ro 347-gil, Seocho-gu, Seoul, 06730, South Korea TEL : +82 (0) 2 - 1588 - 9514 FAX : +82 (0) 2 - 3472 - 5533 www.elecom.co.kr
ELECOM (SHANGHAI) TRADING Co.,Ltd Room 208-A21, 2nd floor, 1602 Zhongshanxi Road, Xuhui District, Shanghai, China, 200235 TEL : +86 021-33680011 FAX : +86 755 83698064
ELECOM Sales Hong Kong Ltd. 2/F, Block A, 2-8 Watson Road, Causeway Bay, Hong Kong TEL : +852 2806 - 3600 FAX : +852 2806 - 3300 email : info@elecom.asia
ELECOM Singapore Pte. Ltd Blk 10, Kaki Bukit Avenue 1, #02-04 Kaki Bukit Industrial Estate, Singapore 417942 TEL : +65 6347 - 7747 FAX : +65 6753 - 1791
A customer who purchases outside Japan should contact the local retailer in the country of purchase for enquiries. In "ELECOM CO., LTD. (Japan)", no customer support is available for enquiries about purchases or usage in/from any countries other than Japan. Also, no language other than Japanese is available. Replacements will be made under stipulation of the Elecom warranty, but are not available from outside of Japan.
� Das unerlaubte Kopieren und/oder Vervielf�ltigen dieses Handbuchs, ganz oder teilweise, ist untersagt. � Die technischen Daten und das �u�ere Erscheinungsbild des Produkts k�nnen zum Zweck der Produktverbesserung ohne vorherige Ank�ndigung
ge�ndert werden. � Pr�fen Sie bei Ausfuhr dieses Ger�ts die Ausfuhrbestimmungen f�r das Herkunftsland. � Windows, Windows Hello und Skype sind eingetragene Marken oder Marken der Microsoft Corporation in den Vereinigten Staaten und/oder anderen L�ndern. � Zoom ist eine eingetragene Marke oder eine Marke der Zoom Video Communications, Inc. � Alle Produkt- und Firmennamen auf dem Produkt und der Verpackung sind Marken oder eingetragene Marken der jeweiligen Inhaber.
Web Camera Manual, Safety precautions, and Compliance with regulations 1st edition, July 29, 2021
�2021 ELECOM Co., Ltd. All Rights Reserved.
16
MSC-UCAM-CF20FB_de ver.111
Espa�ol
C�mara web
UCAM-CF20FB
Manual de usuario
Antes de usar
Lea detenidamente el siguiente contenido antes de su uso.
Precauciones de seguridad
� Con�ctela a un puerto USB-A con una alimentaci�n de 5 V, 500 mA. � Es posible que el soporte de este producto no se adapte a su ordenador port�til o pantalla. � Si el soporte no se adapta perfectamente, col�quelo sobre una superficie plana. � No olvide colocar el producto de forma que el cable no se tense durante su uso. Si se tensa
el cable, se podr�a caer el producto cuando se engancha y tira del cable. Esto podr�a da�ar el producto y los dispositivos que se encuentren alrededor. � Cuando cambie la direcci�n de la c�mara, deber� presionar la parte del soporte mientras la mueve. Si la mueve a la fuerza, se podr�a caer el de donde est� colocado. Esto podr�a da�ar el producto y los dispositivos que se encuentren alrededor. � No coloque la c�mara en una superficie irregular o inclinada. Este producto se podr�a caer de la superficie inestable. Esto podr�a da�ar el producto y los dispositivos que se encuentren alrededor. � No fije la c�mara en objetos blandos o partes estructuralmente d�biles. Este producto se podr�a caer de la superficie inestable. Esto podr�a da�ar el producto y los dispositivos que se encuentren alrededor.
Precauciones
� Evite tocar la lente con los dedos. Si la lente tiene polvo, l�mpiela un soplador de lentes. � Es posible que no se puedan realizar videollamadas con un tama�o superior a VGA, en funci�n
del software de chat que utilice. � Seg�n el entorno de Internet en el que se encuentre, es posible que no pueda utilizar todos los programas. � Es posible que la calidad del sonido y el procesamiento de video no funcionen bien si las
capacidades de procesamiento de su hardware no son suficientes. � Debido a las caracter�sticas de este producto y en funci�n de su ordenador, es posible que su ordenador
deje de reconocer este producto cuando entra en modo de espera, hibernaci�n o suspensi�n. Cuando lo est� utilizando, cancele el modo de espera, hibernaci�n o suspensi�n en configuraci�n. � Si el PC no reconoce este producto, descon�ctelo del PC e intente conectarlo de nuevo. � Cuando utilice la c�mara, no configure el ordenador en modo de ahorro de bater�a. Cuando cambie su ordenador al modo de ahorro de bater�a, en primer lugar, cierre aplicaci�n que est� usando la c�mara. � Este producto est� dise�ado para uso dom�stico japon�s. No se encuentran disponibles servicios de garant�a y asistencia cuando se utilice este producto fuera de Jap�n. * Este producto utiliza USB2.0. No es compatible con la interfaz USB1.1.
Limpieza del producto
Si se ensucia la carcasa del producto, l�mpiela con un pa�o seco y suave, etc.
El uso de l�quido vol�til (como disolvente, benceno o alcohol) puede afectar a la calidad del material y el color del producto.
1
Nombres y funciones de cada parte
Lente de la c�mara Captura de im�genes.
Uni�n Se puede mover de forma vertical.
LED Parpadea en blanco durante la grabaci�n de v�deo.
Micr�fono incorporado Graba sonido.
Luz infrarroja para reconocimiento facial
Parpadea durante el reconocimiento facial. Luz infrarroja se podr� ver o no seg�n la persona.
Multistand Se fija a una pantalla o se coloca en una superficie plana.
Conector USB Con�ctelo al puerto USB-A del PC.
2
C�mo usar la c�mara
1Paso Colocaci�n de la c�mara
Coloque la c�mara y ajuste el �ngulo vertical. * Se recomienda colocarla encima de la pantalla.
Al conectarlo a la pantalla de un ordenador port�til
Cuando la coloque sobre una superficie plana o la mesa
Parte frontal
Paso
2 Conexi�n de la c�mara
Introduzca el conector USB de este producto en el puerto USB-A del PC.
� Puede insertar o extraer el USB incluso cuando el PC est� encendido. � Compruebe que el conector USB est� en el lado derecho hacia arriba y con�ctelo
correctamente.
El controlador se instalar� autom�ticamente. Este producto se puede utilizar en este momento. Contin�e con las aplicaciones con las que quiere usarlo. ( Configuraci�n de Windows Hello Face ( Usar con otro software de chat 3
Configuraci�n de Windows Hello Face
Antes de configurar
� Para usar el reconocimiento facial, debe actualizar a la versi�n m�s reciente de Windows 10 desde Windows Update. Si est� desactivado, actualice Windows Update de forma manual. * Consulte la informaci�n de asistencia de Microsoft para saber c�mo realizar la actualizaci�n de Windows Update.
� Para utilizar el reconocimiento facial con las siguientes ediciones de Windows 10, debe descargar el instalador del controlador de la p�gina web de ELECOM. Windows 10 Enterprise 2016 LTSB Windows 10 IoT Enterprise 2016 LTSB Windows 10 Enterprise 2015 LTSB Windows 10 IoT Enterprise 2015 LTSB Cuando utilice estas ediciones, debe instalar los controladores antes de configurar el reconocimiento facial. ( Configuraci�n de Windows Hello Face: Instalaci�n del controlador
* Los pasos que se indican a continuaci�n son para la versi�n de Windows "20H2". Es posible que la pantalla pueda ser diferente en otras versiones, pero el funcionamiento es el mismo.
Configurar el reconocimiento facial
� Para configurar el reconocimiento facial de Windows Hello, en primer lugar, debe establecer un PIN.
� Consulte la informaci�n de asistencia de Microsoft para saber c�mo establecer un PIN.
Haga clic en "Inicio" en la parte inferior izquierda de la pantalla y haga clic
en el icono "Configuraci�n" .
4
Haga clic en "Cuentas". Aparecer� la p�gina "Cuentas".
Haga clic en "Opciones de inicio de sesi�n".
Haga clic en "Rostro de Windows Hello" y haga clic en el Aparecer� "Configuraci�n de Windows Hello".
que aparece.
5
Haga clic en
.
Introduzca su PIN.
Aparecer� la imagen capturada por la c�mara. Siga las instrucciones que aparecen en pantalla y contin�e mirando directamente a la pantalla. Espere hasta que termine el registro.
6
El reconocimiento facial se completa cuando aparece "Listo.".
Haga clic en
.
La imagen que captura la c�mara aparecer� de nuevo cuando se haga clic en "Mejorar el reconocimiento". Si lleva gafas, mejorar el reconocimiento permitir� que su PC lo reconozca con las gafas puestas y quitadas.
Haga clic en "Rostro de Windows Hello" y siga los pasos - .
El reconocimiento facial se ha configurado correctamente cuando aparece "Ya est� todo listo para que puedas usar tu cara para iniciar sesi�n en Windows, las aplicaciones y los servicios.".
7
Para desbloquear la pantalla
Mire a la c�mara directamente cuando se encienda la pantalla de bloqueo.
Cuando se reconozca su cara, aparece "�Te damos la bienvenida de nuevo, (User Name)! ".
Haga clic con el rat�n o pulse la tecla "Enter" en su teclado. La pantalla de bloqueo se desbloquear� y aparecer� su escritorio.
8
Instalaci�n del controlador
* El controlador est� solo en idioma japon�s.
El controlador se puede utilizar espec�ficamente con siguientes ediciones. Para otras ediciones, es posible utilizar reconocimiento facial sin instalar un controlador.
� Windows 10 Enterprise 2016 LTSB � Windows 10 IoT Enterprise 2016 LTSB � Windows 10 Enterprise 2015 LTSB � Windows 10 IoT Enterprise 2015 LTSB
Descargar el controlador
Descargue el programa de instalaci�n del controlador de reconocimiento facial de la p�gina web de ELECOM que aparece a continuaci�n.
https://www.elecom.co.jp/r/220
* El controlador est� solo en idioma japon�s.
Instalaci�n del controlador
Antes de reinstalar � Conecte la c�mara a su PC y verifique que se pueda utilizar. � Inicie sesi�n con una cuenta de usuario con derechos administrativos. � Se recomienda que cierre todos los programas de Windows (software de la aplicaci�n).
Descomprima el "UCAM-CF20FB_Driver_vX.Xzip" descargado en su escritorio. Haga doble clic en "Configuraci�n(.exe)" que se encuentra en la carpeta
descomprimida. Se iniciar� el instalador.
Haga clic en "S�" cuando aparezca la ventana "Control de cuentas de usuario".
Haga clic en
.
Se iniciar� la instalaci�n del controlador.
9
Haga clic en
.
Compruebe " (Restablecer ahora)" y haga clic en
.
Es posible que no sea necesario reiniciar seg�n su PC. La instalaci�n se completar� sin reiniciar en este caso.
La preparaci�n para la configuraci�n del reconocimiento facial se completa cuando se reinicia Windows.
Contin�e con la configuraci�n del reconocimiento facial. ( Configuraci�n de Windows Hello Face: Configurar el reconocimiento facial
10
Usar con otro software de chat
Utilice la configuraci�n de la c�mara del software de chat. Las instrucciones de configuraci�n para un software de chat representativo aparecen aqu� como ejemplo. Para otro software, consulte el manual del software que est� utilizando.
Usar con SkypeTM
Las siguientes im�genes son las instrucciones para "Skype para escritorio de Windows". La pantalla de la aplicaci�n Microsoft Store es diferente, pero los pasos son los mismos.
Compruebe que la c�mara est� conectada a su PC antes de iniciar Skype. Haga clic en "Perfil de usuario".
Haga clic en "Configuraci�n".
11
Configure "Audio y v�deo" como se indica a continuaci�n. Si se conectan varias c�maras, seleccione "ELECOM 2MP Webcam" de
"C�mara" en "V�DEO".
Si puede ver la imagen tomada por la c�mara, quiere decir que est� funcionando correctamente.
Seleccione el dispositivo de audio de "Micr�fono" en "AUDIO".
Seleccione lo que se indica a continuaci�n si est� utilizando el micr�fono integrado de la c�mara. �Micr�fono (Webcam Internal Mic) Ahora puede utilizar este producto con Skype.
12
Usar con Zoom
Compruebe que la c�mara est� conectada a su PC antes de iniciar el Zoom. Haga clic en el icono (Configuraci�n).
Seleccione "V�deo". Si se conectan varias c�maras, seleccione "ELECOM 2MP Webcam" de
"C�mara".
Si puede ver la imagen tomada por la c�mara, quiere decir que est� funcionando correctamente.
13
Seleccione "Audio". Seleccione el dispositivo de audio de "Micr�fono".
Seleccione lo que se indica a continuaci�n si est� utilizando el micr�fono integrado de la c�mara. �Micr�fono (Webcam Internal Mic) Ahora puede utilizar este producto con Zoom.
14
Especificaciones b�sicas
Cuerpo principal de la c�mara
Partes de la c�mara
Receptor de imagen
Sensor CMOS de 1/6"
Recuento efectivo de p�xeles
Aprox. 2.0 megap�xeles
Tipo de enfoque
Foco fijo
Registro de recuento de p�xeles M�x 1920�1080 p�xeles
Velocidad m�xima de fotogramas 30FPS
Numero de colores
16,7 millones de colores (24 bit)
Punto de visi�n
80 grados en diagonal
Micr�fono incorporado
Tipo
MEMS de silicio digital (monoaural)
Direccionalidad
Omnidireccional
Com�n
Interfaz
USB2.0 (Macho tipo A)
Longitud de cable
Aprox. 1,5 m
Dimensiones
Aprox. Largo 100,0 mm x Ancho 64,0 mm x Alto 26,5 mm * Cable no incluido.
Windows 10 * Para usar el reconocimiento facial, debe actualizar a la versi�n
m�s reciente de Windows 10 desde Windows Update. * Para utilizar el reconocimiento facial con las siguientes
ediciones de Windows 10, debe descargar el instalador del controlador de la p�gina web de ELECOM. (El soporte solo se encuentra disponible en japon�s)
� Windows 10 Enterprise 2016 LTSB � Windows 10 IoT Enterprise 2016 LTSB Sistemas operativos compatibles � Windows 10 Enterprise 2015 LTSB � Windows 10 IoT Enterprise 2015 LTSB * Para obtener la lista de ediciones compatibles, consulte nuestra p�gina web para ver la informaci�n m�s reciente que no viene incluida en este manual. (El soporte solo se encuentra disponible en japon�s) * Se ha recuperado la informaci�n de compatibilidad durante la confirmaci�n de funcionamiento en nuestro entorno de verificaci�n. No se garantiza la completa compatibilidad con todos los dispositivos, versiones del sistema operativo y aplicaciones.
Entorno de funcionamiento de hardware
Se deben cumplir los siguientes requisitos medioambientales para usar este producto.
CPU
Equivalente a Intel� Core TM i3 1,2 GHz y superior
Memoria principal
M�s de 1GB
Espacio libre en disco duro
M�s de 1GB
* Adem�s de lo mencionado anteriormente, se deben cumplir los requisitos medioambientales de cada software.
15
Relativo a la atenci�n al usuario
Contacto para consultas sobre producto
Un cliente que compra fuera de Jap�n debe ponerse en contacto con el minorista local en el pa�s de compra para cualquier consulta. In "ELECOM CO., LTD. (Jap�n)", no hay disponible un servicio de atenci�n al cliente para consultas sobre compras o uso en/desde cualquier pa�s que no sea Jap�n. Adem�s, no se encuentra disponible ning�n idioma extranjero que no sea japon�s. Las sustituciones se deber�n realizar siguiendo las estipulaciones de la garant�a de Elecom, pero no se encuentran disponibles fuera de Jap�n.
Limitaci�n de responsabilidad
� ELECOM Co., Ltd. no se har� de ninguna manera responsable de cualquier indemnizaci�n por da�os especiales, da�os emergentes, da�os indirectos, da�os punitivos o lucro cesante derivados de la utilizaci�n de este producto.
� ELECOM Co., Ltd. no ofrece ninguna garant�a relativa a la p�rdida de datos, errores o cualquier otro problema que pudiera ocurrir en los dispositivos conectados a este producto.
Compliance status www.elecom.co.jp/global/certification/
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. In order to make improvements to this product, the design and specifications are subject to change without prior notice.
(Pb)
Hg
Cd Cr (VI)
PBB
PBDE
SJ/T 11363-2006
� SJ/T 11363-2006
WEEE Disposal and Recycling Information This symbol means that waste of electrical and electronic equipment (WEEE) should not be disposed as general household waste. WEEE should be treated separately to prevent possible harm to the environment or human health. Consult your retailer or local municipal office for collection, return, recycle or reuse of WEEE.
Trademark and name of the manufacturer:
ELECOM CO., LTD.
www.elecom.co.jp/global/
Importer UK Contact : Around the World Trading, Ltd. Afon Building 223, Worthing Road Horsham, RH12 1TL, United Kingdom
Importer EU Contact : Around the World Trading, Ltd. 5th floor, Koenigsallee 2b, Dusseldorf, Nordrhein-Westfalen, 40212, Germany
ELECOM Korea Co., Ltd. Dome-Bldg 5F, 60, Nambusunhwan-ro 347-gil, Seocho-gu, Seoul, 06730, South Korea TEL : +82 (0) 2 - 1588 - 9514 FAX : +82 (0) 2 - 3472 - 5533 www.elecom.co.kr
ELECOM (SHANGHAI) TRADING Co.,Ltd Room 208-A21, 2nd floor, 1602 Zhongshanxi Road, Xuhui District, Shanghai, China, 200235 TEL : +86 021-33680011 FAX : +86 755 83698064
ELECOM Sales Hong Kong Ltd. 2/F, Block A, 2-8 Watson Road, Causeway Bay, Hong Kong TEL : +852 2806 - 3600 FAX : +852 2806 - 3300 email : info@elecom.asia
ELECOM Singapore Pte. Ltd Blk 10, Kaki Bukit Avenue 1, #02-04 Kaki Bukit Industrial Estate, Singapore 417942 TEL : +65 6347 - 7747 FAX : +65 6753 - 1791
A customer who purchases outside Japan should contact the local retailer in the country of purchase for enquiries. In "ELECOM CO., LTD. (Japan)", no customer support is available for enquiries about purchases or usage in/from any countries other than Japan. Also, no language other than Japanese is available. Replacements will be made under stipulation of the Elecom warranty, but are not available from outside of Japan.
� Se proh�be la copia y/yo reproducci�n no autorizadas de todo o parte de este manual. � Las especificaciones y la apariencia externa del producto se podr�an modificar sin previo aviso con el objetivo de mejorar el producto. � Si exporta este producto, debe revisar las normas de exportaci�n del pa�s de origen. � Windows, Windows Hello y Skype son marcas comerciales registradas o marcas comerciales de Microsoft Corporation en los Estados Unidos y/o en otros pa�ses. � Zoom es una marca comercial registrada o una marca comercial de Zoom Video Communications, Inc.. � Todos los productos y nombres de empresas que aparecen en el producto y el paquete son marcas comerciales o marcas comerciales registradas
de sus respectivos propietarios.
Web Camera Manual, Safety precautions, and Compliance with regulations 1st edition, July 29, 2021
�2021 ELECOM Co., Ltd. All Rights Reserved.
16
MSC-UCAM-CF20FB_es ver.111
Fran�ais
Cam�ra Web
UCAM-CF20FB
Mode d'emploi
Avant utilisation
Veuillez lire le contenu suivant avant de l'utiliser.
Consignes de s�curit�
� Veuillez le connecter � un port USB-A fournissant une alimentation de 5V, 500mA. � Le support de ce produit peut ne pas s'adapter � votre ordinateur portable ou � votre �cran. � Si vous ne pouvez pas installer le support, veuillez le placer sur une surface plane. � Veillez � ce que ce produit soit plac� de mani�re � ce que le c�ble ne soit pas tendu lors de son
utilisation. Si le c�ble est tendu, ce produit peut tomber au moment de saisir et tirer ledit c�ble. Cela pourrait endommager le produit et les appareils environnants. � Lorsque vous changez la direction de l'appareil, assurez-vous de tenir la partie du support tout en le d�pla�ant. En le d�pla�ant de force, le produit risque de tomber de l'endroit o� il est plac�. Cela pourrait endommager le produit et les appareils environnants. � Ne placez pas la cam�ra sur une surface in�gale ou inclin�e. Ce produit peut tomber d'une surface instable. Cela pourrait endommager le produit et les appareils environnants. � Ne fixez pas la cam�ra sur des objets mous ou des parties structurellement faibles. Ce produit peut tomber d'une surface instable. Cela pourrait endommager le produit et les appareils environnants.
Consignes
� Veillez � ne pas toucher la lentille avec vos doigts. S'il y a de la poussi�re sur la lentille, utilisez un souffleur pour l'enlever.
� Les appels vid�o d'une taille sup�rieure � VGA peuvent ne pas �tre possibles selon le logiciel de chat que vous utilisez.
� Selon l'environnement internet que vous utilisez, il se peut que vous ne puissiez pas utiliser tous les logiciels.
� La qualit� du son et le traitement vid�o peuvent ne pas �tre performants selon les capacit�s de traitement de votre mat�riel.
� En raison de la nature de ce produit et en fonction de votre ordinateur, il se peut que votre ordinateur cesse de reconna�tre ce produit lorsqu'il passe en mode veille, hibernation ou sommeil. En cours d'utilisation, annulez les r�glages du mode veille, hibernation ou sommeil.
� Si le PC ne reconna�t pas ce produit, d�connectez-le du PC et essayez de le connecter � nouveau. � Lorsque vous utilisez la cam�ra, ne r�glez pas l'ordinateur en mode �conomie de batterie. Lorsque
vous passez votre ordinateur en mode �conomie de batterie, veuillez d'abord fermer l'application utilis�e par la cam�ra. � Ce produit est destin� � un usage domestique japonais. La garantie et les services d'assistance ne sont pas disponibles pour l'utilisation de ce produit en dehors du Japon. * Ce produit utilise l'USB2.0 Il n'est pas compatible avec l'interface USB1.1.
Nettoyage du produit
Si le corps du produit est sale, nettoyez-le avec un chiffon doux et sec.
L'usage d'un liquide volatile (diluant � peinture, benz�ne, alcool, etc.) peut affecter la qualit� du mat�riau et la couleur du produit.
1
Nom et fonction de chaque pi�ce
Articulation Peut se d�placer � la verticale.
Lentille de cam�ra Capture les images.
LED Clignote blanc pendant l'enregistrement vid�o.
Microphone int�gr� Capte l'audio.
Lumi�re infrarouge pour la reconnaissance faciale
Clignote pendant la reconnaissance faciale. La lumi�re infrarouge peut �tre visible ou non selon les individus.
Support adaptable Se fixe sur un �cran ou se pose sur une surface plane.
Connecteur USB � connecter au port USB-A du PC
2
Comment utiliser cette cam�ra
1�tape Fixation de la cam�ra
Fixez la cam�ra et r�glez l'angle vertical. * Il est recommand� de la fixer au-dessus de l'�cran.
Lors de la fixation sur l'�cran d'un ordinateur portable
Lorsque vous la posez sur une surface plane ou sur la table
Avant
�tape
2 Connexion de la cam�ra
Ins�rez le connecteur USB de la cam�ra dans le port USB-A du PC.
� Vous pouvez ins�rer ou retirer le c�ble USB m�me lorsque le PC est allum�. � Assurez-vous que le connecteur USB est du bon c�t� et connectez-le correctement.
Le pilote est automatiquement install�. Le produit peut maintenant �tre utilis�. Passez ensuite aux applications avec lesquelles vous voulez l'utiliser. ( Configurer Windows Hello Face ( Utilisation avec d'autres logiciels de chat
3
Configurer Windows Hello Face
Avant la configuration
� Pour utiliser la reconnaissance faciale, vous devez effectuer une mise � jour vers la version la plus r�cente de Windows 10 � partir de Windows Update. Ex�cuter manuellement la mise � jour de Windows si elle est d�sactiv�e. * Veuillez vous r�f�rer aux informations du support Microsoft pour savoir comment effectuer la mise � jour de Windows.
� Pour utiliser la reconnaissance faciale avec les �ditions suivantes de Windows 10, vous devez t�l�charger le programme d'installation du pilote sur le site Web d'ELECOM. Windows 10 Enterprise 2016 LTSB Windows 10 IoT Enterprise 2016 LTSB Windows 10 Enterprise 2015 LTSB Windows 10 IoT Enterprise 2015 LTSB Lorsque vous utilisez ces �ditions, veuillez installer les pilotes avant de configurer la reconnaissance faciale. ( Configurer Windows Hello Face : Installez le pilote
* Les �tapes suivantes concernent la version � 20H2 � de Windows. La configuration peut �tre diff�rente pour d'autres versions, mais le fonctionnement est le m�me.
Configurer la reconnaissance faciale
� Pour configurer la reconnaissance faciale de Windows Hello, vous devez d'abord d�finir un code PIN.
� Veuillez vous r�f�rer aux informations du support Microsoft pour savoir comment d�finir un code PIN.
Cliquez sur le bouton � D�marrer � en bas � gauche de l'�cran et cliquez sur
l'ic�ne � Param�tres � .
4
Cliquez sur � Comptes �. La page � Comptes � s'affiche.
Cliquez sur � Options de connexion �.
Cliquez sur � Reconnaissance des visages Windows Hello � et cliquez sur le
affich�. Le message � Configuraion de Windows Hello � s'affiche.
5
Cliquez sur
.
Saisissez votre code PIN.
L'image captur�e par la cam�ra s'affiche. Suivez les instructions � l'�cran et continuez � fixer l'�cran. Attendez que l'enregistrement soit termin�.
6
La reconnaissance faciale est termin�e lorsque le message � Termin� ! �
s'affiche.
Cliquez sur
.
L'image captur�e par la cam�ra s'affiche � nouveau lorsque vous cliquez sur � Am�liorer la reconnaissance �. Si vous portez des lunettes, l'am�lioration de la reconnaissance permettra � votre PC de vous reconna�tre, que vous les portiez ou non.
Cliquez sur � Reconnaissance des visages Windows Hello � et suivez les
�tapes � .
La reconnaissance faciale est correctement configur�e lorsque le message � Vous avez termin� la configuration permettant de vous connecter � Windows, aux applications et aux services avec votre visage. � s'affiche.
7
Pour d�verrouiller l'�cran
Faites directement face � la cam�ra lorsque l'�cran de verrouillage est activ�.
Lorsque votre visage est reconnu, � Nous sommes contents de vous revoir, (User Name) !
Cliquez � l'aide de votre souris ou appuyez sur la touche � Entr�e � de votre
clavier. L'�cran de verrouillage est d�verrouill� et votre bureau s'affiche.
8
Installez le pilote
* Le pilote n'est disponible qu'en japonais.
Le pilote est sp�cifique aux �ditions suivantes. Pour les autres �ditions, la reconnaissance faciale peut �tre utilis�e sans installer de pilote.
� Windows 10 Enterprise 2016 LTSB � Windows 10 IoT Enterprise 2016 LTSB � Windows 10 Enterprise 2015 LTSB � Windows 10 IoT Enterprise 2015 LTSB
T�l�charger le pilote
T�l�chargez le programme d'installation du pilote de reconnaissance faciale sur le site Web d'ELECOM indiqu� ci-dessous.
https://www.elecom.co.jp/r/220
* Le pilote n'est disponible qu'en japonais.
Installez le pilote
Avant la r�installation � Connectez la cam�ra � votre PC et assurez-vous qu'elle peut �tre utilis�e. � Veuillez vous connecter en utilisant un compte d'utilisateur avec des droits d'administration. � Il est recommand� de fermer tous les programmes Windows (logiciels d'application).
D�zippez le fichier t�l�charg� � UCAM-CF20FB_Driver_vX.Xzip � sur votre bureau. Double-cliquez sur � Setup(.exe) � qui se trouve dans le dossier d�zipp�.
L'installateur d�marre.
Cliquez sur � Oui � lorsque la fen�tre � Contr�le de compte d'utilisateur � appara�t.
Cliquez sur
.
L'installation du pilote d�marre.
9
Cliquez sur
.
Cochez � (Red�marrer maintenant)� et cliquez sur
.
Le red�marrage peut ne pas �tre n�cessaire en fonction de votre PC. Dans ce cas, l'installation est termin�e sans red�marrage.
La pr�paration de la configuration de la reconnaissance faciale est termin�e lorsque Windows red�marre.
Continuez avec la configuration de la reconnaissance faciale. ( Configurer Windows Hello Face : Configurer la reconnaissance faciale
10
Utilisation avec d'autres logiciels de chat
Veuillez utiliser les param�tres de la cam�ra du logiciel de chat. Les instructions de configuration d'un logiciel de chat repr�sentatif sont pr�sent�es ici � titre d'exemple. Pour les autres logiciels, veuillez vous reporter au manuel du logiciel que vous utilisez.
Utilisation avec SkypeTM
Les images suivantes sont les instructions pour � Skype pour Windows Desktop �. La configuration pour l'application Microsoft Store est diff�rente, mais les �tapes sont les m�mes.
V�rifiez si la cam�ra est connect�e � votre PC avant de lancer Skype. Cliquez sur � Profil de l'utilisateur �.
Cliquez sur � Param�tres �.
11
Configurez � Audio et vid�o � comme suit. Si plusieurs cam�ras sont connect�es, s�lectionnez � ELECOM 2MP Webcam �
dans � Cam�ra � sous � VID�O �.
Si vous pouvez voir l'image prise par la cam�ra, cela indique qu'elle fonctionne correctement.
S�lectionnez le p�riph�rique audio dans � Micro � sous � AUDIO �.
S�lectionnez les options suivantes si vous utilisez le microphone int�gr� de la cam�ra. �Microphone (Webcam Internal Mic) Vous pouvez d�sormais utiliser ce produit avec Skype.
12
Utilisation avec Zoom
V�rifiez si la cam�ra est connect�e � votre PC avant de lancer Zoom. Cliquez sur l'ic�ne (Param�tres).
S�lectionnez � Vid�o �. Si plusieurs cam�ras sont connect�es, s�lectionnez � ELECOM 2MP Webcam �
dans � Cam�ra �.
Si vous pouvez voir l'image prise par la cam�ra, cela indique qu'elle fonctionne correctement.
13
S�lectionnez � Audio �. S�lectionnez le p�riph�rique audio dans � Micro �.
S�lectionnez les options suivantes si vous utilisez le microphone int�gr� de la cam�ra. �Microphone (Webcam Internal Mic) Vous pouvez d�sormais utiliser ce produit avec Zoom.
14
Caract�ristiques de base
Corps principal de la cam�ra
Parties de la cam�ra
R�cepteur d'images
Capteur CMOS 1/6"
Nombre effectif de pixels Env. 2,0 m�gapixels
Type de mise au point
Mise au point fixe
Nombre de pixels d'enregistrement Max 1920�1080 pixels Fr�quence d'images maximale 30 FPS
Nombre de couleurs
16,7 millions de couleurs (24 bits)
Angle de vue
80 degr�s en diagonale
Microphone int�gr�
Type
Silicium num�rique MEMS (Monophonique)
Directionnalit�
Omnidirectionnel
Commun
Interface
USB 2.0 (Type A m�le)
Longueur de c�ble
Env. 1,5 m
Dimensions
Longueur approximative 100,0 mm x Largeur 64,0 mm x Hauteur 26,5 mm * C�ble non inclus.
Syst�mes d'exploitation compatibles
Windows10 * Pour utiliser la reconnaissance faciale, vous devez effectuer une
mise � jour vers la version la plus r�cente de Windows 10 � partir de Windows Update. * Pour utiliser la reconnaissance faciale avec les �ditions suivantes de Windows 10, vous devez t�l�charger le programme d'installation du pilote sur le site Web d'ELECOM. (L'assistance est uniquement disponible en japonais)
� Windows10 Enterprise 2016 LTSB � Windows10 IoT Enterprise 2016 LTSB � Windows10 Enterprise 2015 LTSB � Windows10 IoT Enterprise 2015 LTSB * Pour la liste des �ditions compatibles, veuillez vous r�f�rer � notre site Web pour obtenir les informations les plus r�centes non incluses dans ce manuel. (L'assistance est uniquement disponible en japonais) * Les informations de compatibilit� ont �t� r�cup�r�es lors de la confirmation de l'op�ration dans notre environnement de v�rification. Il n'y a aucune garantie de compatibilit� compl�te avec tous les appareils, versions de syst�me d'exploitation et applications.
Environnement d'exploitation du mat�riel
Les conditions d'environnement suivantes doivent �tre remplies pour utiliser ce produit.
UC (unit� centrale)
�quivalent � Intel� CoreTM i3 1.2GHz et sup�rieur
M�moire centrale
Plus de 1 Go
Espace libre sur le disque dur Plus de 1 Go
* En plus de ce qui pr�c�de, les exigences en mati�re d'environnement pour chaque logiciel doivent �tre respect�es.
15
En ce qui concerne l'aide aux utilisateurs
Contact pour les demandes de renseignements sur les produits
Un client qui ach�te en dehors du Japon doit contacter le d�taillant local dans le pays d'achat pour toute question. � � ELECOM CO., LTD. (Japon) �, aucune assistance � la client�le n'est disponible pour les questions relatives aux achats ou � l'utilisation dans/� partir de tout pays autre que le Japon. En outre, aucune langue �trang�re autre que le japonais n'est disponible. Les remplacements seront effectu�s conform�ment aux dispositions de la garantie Elecom, mais ne sont pas disponibles en dehors du Japon.
Clause de non-responsabilit�
� ELECOM Co., Ltd ne peut �tre tenue de verser des d�dommagements pour des dommages sp�ciaux, immat�riels, indirects, dommages-int�r�ts ou pertes de profit r�sultant de l'utilisation de ce produit.
� ELECOM Co., Ltd. n'�met aucune garantie quant � la perte de donn�es, les erreurs ou tout autre probl�me pouvant survenir sur les appareils branch�s sur ce produit.
Compliance status www.elecom.co.jp/global/certification/
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. In order to make improvements to this product, the design and specifications are subject to change without prior notice.
(Pb)
Hg
Cd Cr (VI)
PBB
PBDE
SJ/T 11363-2006
� SJ/T 11363-2006
WEEE Disposal and Recycling Information This symbol means that waste of electrical and electronic equipment (WEEE) should not be disposed as general household waste. WEEE should be treated separately to prevent possible harm to the environment or human health. Consult your retailer or local municipal office for collection, return, recycle or reuse of WEEE.
Trademark and name of the manufacturer:
ELECOM CO., LTD.
www.elecom.co.jp/global/
Importer UK Contact : Around the World Trading, Ltd. Afon Building 223, Worthing Road Horsham, RH12 1TL, United Kingdom
Importer EU Contact : Around the World Trading, Ltd. 5th floor, Koenigsallee 2b, Dusseldorf, Nordrhein-Westfalen, 40212, Germany
ELECOM Korea Co., Ltd. Dome-Bldg 5F, 60, Nambusunhwan-ro 347-gil, Seocho-gu, Seoul, 06730, South Korea TEL : +82 (0) 2 - 1588 - 9514 FAX : +82 (0) 2 - 3472 - 5533 www.elecom.co.kr
ELECOM Sales Hong Kong Ltd. 2/F, Block A, 2-8 Watson Road, Causeway Bay, Hong Kong TEL : +852 2806 - 3600 FAX : +852 2806 - 3300 email : info@elecom.asia
ELECOM (SHANGHAI) TRADING Co.,Ltd Room 208-A21, 2nd floor, 1602 Zhongshanxi Road, Xuhui District, Shanghai, China, 200235 TEL : +86 021-33680011 FAX : +86 755 83698064
ELECOM Singapore Pte. Ltd Blk 10, Kaki Bukit Avenue 1, #02-04 Kaki Bukit Industrial Estate, Singapore 417942 TEL : +65 6347 - 7747 FAX : +65 6753 - 1791
A customer who purchases outside Japan should contact the local retailer in the country of purchase for enquiries. In "ELECOM CO., LTD. (Japan)", no customer support is available for enquiries about purchases or usage in/from any countries other than Japan. Also, no language other than Japanese is available. Replacements will be made under stipulation of the Elecom warranty, but are not available from outside of Japan.
� La copie et/ou la reproduction non autoris�e de tout ou partie de ce manuel est interdite. � Les sp�cifications et l'aspect ext�rieur du produit peuvent �tre modifi�s sans pr�avis dans le but d'am�liorer le produit. � Lorsque vous exportez ce produit, v�rifiez les r�glements d'exportation du pays d'origine. � Windows, Windows Hello et Skype sont des marques d�pos�es ou des marques commerciales de Microsoft Corporation aux �tats-Unis et/ou dans
d'autres pays. � Zoom est une marque d�pos�e ou une marque commerciale de Zoom Video Communications, Inc.. � Tous les produits et noms de soci�t� figurant sur le produit et l'emballage sont des marques commerciales ou des marques d�pos�es de leurs
d�tenteurs respectifs.
Web Camera Manual, Safety precautions, and Compliance with regulations 1st edition, July 29, 2021
�2021 ELECOM Co., Ltd. All Rights Reserved.
16
MSC-UCAM-CF20FB_fr ver.111
Italiano
Web Cam
UCAM-CF20FB
Manuale utente
Prima dell'uso
Si prega di leggere quanto segue prima dell'uso.
Precauzioni di Sicurezza
� Collegare il prodotto a una porta USB-A che fornisca alimentazione a 5V e 500mA. � Il supporto del prodotto potrebbe non essere adatto al computer o allo schermo. � In caso di impossibilit� ad adattare il supporto, collocare il prodotto su una superficie piana. � Assicurarsi che il prodotto sia posizionato in modo tale da impedire l'estrazione accidentale del
cavo durante l'uso. Se il cavo viene accidentalmente impigliato ed estratto, il prodotto pu� cadere. Ci� pu� provocare danni al prodotto stesso e ai dispositivi vicini. � Mantenere fermo il supporto durante l'orientamento della web cam. Un movimento forzato pu� provocare la caduta del prodotto. Ci� pu� provocare danni al prodotto stesso e ai dispositivi vicini. � Non posizionare la webcam su una superficie non livellata o inclinata. Se la superficie � instabile, il prodotto pu� cadere. Ci� pu� provocare danni al prodotto stesso e ai dispositivi vicini. � Non collegare la web cam a oggetti morbidi o strutturalmente deboli. Se la superficie � instabile, il prodotto pu� cadere. Ci� pu� provocare danni al prodotto stesso e ai dispositivi vicini.
Precauzioni
� Non toccare la lente con le dita. Se sulla lente � presente della polvere, rimuoverla con un soffiatore. � Potrebbe non essere possibile effettuare videochiamate con risoluzione maggiore di VGA a
seconda del software utilizzato. � A seconda dell'ambiente Internet utilizzato, potrebbe non essere possibile utilizzare tutti i software. � La qualit� del suono e l'elaborazione video potrebbero offrire scarse prestazioni a seconda delle
capacit� di elaborazione dell'hardware. � Data la natura del prodotto, e a seconda del computer utilizzato, il computer stesso potrebbe
smettere di riconoscere il prodotto quando passa in modalit� standby, ibernazione o sospensione. Durante l'uso del prodotto, nascondere le impostazioni delle modalit� standby, ibernazione e sospensione. � Se il PC non riconosce il prodotto, scollegarlo dal PC e provare a collegarlo di nuovo. � Durante l'uso della web cam, non impostare il computer in modalit� risparmio energetico. Prima di impostare il computer in modalit� risparmio energetico, disattivare l'applicazione usata dalla web cam. � Questo prodotto � destinato ad uso domestico per il Giappone. La garanzia e il servizio di assistenza non sono disponibili in caso di uso del prodotto al di fuori del Giappone. * Il prodotto utilizza lo standard USB 2.0. Non supporta l'interfaccia USB 1.1.
Pulizia del prodotto
Se il prodotto si sporca, pulirlo con un panno morbido e asciutto.
L'utilizzo di liquidi pericolosi (diluente, benzene, alcool, ecc.) pu� intaccare la qualit� del materiale e il colore del prodotto.
1
Nome e funzione di ciascun componente
Snodo Consente il movimento verticale.
Lente Acquisisce le immagini.
LED Emette luce bianca lampeggiante durante la registrazione di video.
Microfono integrato Registra l'audio.
Luce a infrarossi per riconoscimento facciale
Lampeggia durante il riconoscimento del viso. La luce a infrarossi potrebbe essere o meno visibile a seconda dell'individuo.
Multisupporto Da attaccare allo schermo o posizionare su una superficie piana.
Connettore USB Collegare alla porta USB-A del PC.
2
Come utilizzare la web cam
1Passo Aggancio della web cam
Collegare la web cam e regolare l'angolo verticale. * Si consiglia il collegamento alla parte superiore dello schermo.
Collegamento allo schermo di un laptop
Posizionamento su un tavolo o su una superficie piana
Parte anteriore
Passo
2 Collegamento della web cam
Inserire il connettore USB della web cam nella porta USB-A del PC.
� � possibile inserire o rimuovere il connettore USB anche quando il PC � acceso. � Assicurarsi che il connettore USB sia posizionato e collegato correttamente.
Il driver viene installato automaticamente. Ora � possibile utilizzare il prodotto. Procedere con le applicazioni che si desidera utilizzare. ( Installazione di Windows Hello Face ( Utilizzo con altri software
3
Installazione di Windows Hello Face
Prima dell'installazione
� Per utilizzare il riconoscimento facciale occorre aggiornare il sistema all'ultima versione di Windows 10 da Windows Update Avviare manualmente Windows Update se disattivato. * Consultare le informazioni di supporto Microsoft su come avviare Windows Update.
� Per utilizzare il riconoscimento facciale con le seguenti edizioni di Windows 10, occorre scaricare l'installer del driver dal sito web ELECOM: Windows 10 Enterprise 2016 LTSB Windows 10 IoT Enterprise 2016 LTSB Windows 10 Enterprise 2015 LTSB Windows 10 IoT Enterprise 2015 LTSB Se si utilizzano queste edizioni, installare i driver prima della funzione di riconoscimento facciale. ( Installazione di Windows Hello Face: Installare il driver
* I seguenti passi riguardano la versione "20H2" di Windows. La schermata pu� essere diversa per altre versioni, ma le operazioni sono le stesse.
Installazione del riconoscimento facciale
� Per installare la funzione di riconoscimento facciale Windows Hello face, occorre impostare un PIN.
� Consultare le informazioni di supporto Microsoft su come impostare il PIN.
Cliccare sul pulsante "Start" in basso a sinistra dello schermo e fare clic
sull'icona "Impostazioni" .
4
Cliccare su "Account". Apparir� la pagina "Account".
Cliccare su "Opzioni di accesso".
Cliccare su "Volto di Windows Hello" e sul pulsante Apparir� il messaggio "Configurazione Windows Hello".
visualizzato.
5
Cliccare su
.
Digitare il PIN.
Apparir� l'immagine acquisita dalla web cam. Seguire le istruzioni sullo schermo senza smettere di guardarlo. Attendere fino al termine della registrazione.
6
Quando appare il messaggio "Fatto!", il riconoscimento facciale � stato
completato.
Cliccare sul pulsante
.
Cliccando su "Migliora riconoscimento" l'immagine acquisita verr� visualizzata nuovamente. Se si indossano occhiali, il miglioramento del riconoscimento permetter� al PC di riconoscere il viso sia con che senza occhiali.
Cliccare su "Volto di Windows Hello" ed eseguire i passi - .
Il riconoscimento facciale � installato correttamente quando appare il messaggio "� tutto pronto per l'accesso a Windows, alle app e ai servizi con il tuo volto".
7
Come sbloccare lo schermo
Guardare direttamente la web cam mentre la schermata di blocco � attiva. Una
volta che il viso � stato riconosciuto, apparir� il messaggio "Bentornato, (User Name)!"
Cliccare o premere il tasto "Invio". La schermata di blocco verr� sbloccata e apparir� il desktop.
8
Installare il driver
* Il driver � esclusivamente in giapponese.
Il driver � destinato specificamente alle seguenti edizioni: Per altre edizioni, � possibile utilizzare il riconoscimento facciale senza installare il driver.
� Windows 10 Enterprise 2016 LTSB � Windows 10 IoT Enterprise 2016 LTSB � Windows 10 Enterprise 2015 LTSB � Windows 10 IoT Enterprise 2015 LTSB
Scaricare il driver
Scaricare il programma di installazione per il driver del riconoscimento facciale dal sito web ELECOM sotto riportato.
https://www.elecom.co.jp/r/220
* Il driver � esclusivamente in giapponese.
Installare il driver
Prima di reinstallare � Collegare la web cam al PC e assicurarsi che sia utilizzabile. � Eseguire l'accesso con un account dotato di permessi di amministratore. � Si consiglia di chiudere tutti i programmi Windows (applicazioni software).
Estrarre il file "UCAM-CF20FB_Driver_vX.Xzip" sul desktop. Fare doppio clic sull'icona "Setup(.exe)" nella cartella decompressa.
Si avvier� l'installer.
Quando apparir� la finestra "Controllo dell'account utente", cliccare su "S�".
Cliccare su
.
L'installazione del driver avr� inizio.
9
Cliccare su
.
Spuntare la casella " (Riavvia ora)" e cliccare su
.
A seconda del PC, potrebbe non essere necessario eseguire il riavvio. In tal caso, l'installazione sar� completata senza il riavvio.
Una volta riavviato Windows, la preparazione all'installazione del riconoscimento facciale � completa.
Continuare con l'installazione del riconoscimento facciale. ( Installazione di Windows Hello Face: Installazione del riconoscimento facciale
10
Utilizzo con altri software
Utilizzare le impostazioni della web cam del software di chat: Di seguito, come esempio, sono mostrate le istruzioni di configurazione per un software di chat indicativo. Per altri software, consultare il manuale del programma che si sta utilizzando.
Utilizzo con SkypeTM
Le seguenti immagini costituiscono le istruzioni per "Skype for Windows Desktop". La schermata dell'app del Microsoft Store � diversa, ma i passi sono gli stessi.
Prima di avviare Skype, verificare che la web cam sia collegata al PC. Cliccare su "Profilo utente".
Cliccare su "Impostazioni".
11
Configurare "Audio e video" come segue. Se sono collegate pi� web cam, selezionare "ELECOM 2MP Webcam" dalla
scheda "Videocamera" sotto la voce "VIDEO".
Se � possibile visualizzare l'immagine acquisita dalla web cam, questo ne indica il corretto funzionamento.
Selezionare il dispositivo audio dalla scheda "Microfono" sotto la voce "AUDIO".
Se si utilizza il microfono integrato nella web cam, selezionare la seguente opzione: �Microfono (Webcam Internal Mic) Ora � possibile utilizzare il prodotto con Skype.
12
Utilizzo con Zoom
Prima di avviare Zoom, verificare che la web cam sia collegata al PC. Cliccare sull'icona "Impostazioni" .
Selezionare "Video". Se sono collegate pi� web cam, selezionare "ELECOM 2MP Webcam" dalla
scheda "Videocamera".
Se � possibile visualizzare l'immagine acquisita dalla web cam, questo ne indica il corretto funzionamento.
13
Selezionare "Audio". Selezionare il dispositivo audio dalla scheda "Microfono".
Se si utilizza il microfono integrato nella web cam, selezionare la seguente opzione: �Microfono (Webcam Internal Mic) Ora � possibile utilizzare il prodotto con Zoom.
14
Specifiche di base
Corpo principale della web cam
Componenti della web cam
Ricevitore di immagini
Sensore CMOS da 1/6"
Conteggio dei pixel effettivi 2.0 megapixel circa
Tipo di focus
Fuoco fisso
Conteggio dei pixel di registrazione Massimo 1920x1080 pixel
Frequenza massima dei fotogrammi 30 FPS
Numero di colori
16,7 milioni di colori (24 bit)
Angolo di visione
80 gradi in diagonale
Microfono integrato
Tipo
MEMS digitale in silicone (Monaurale)
Direzionalit�
Omnidirezionale
Comune
Interfaccia
USB 2.0 (Tipo A maschio)
Lunghezza del cavo
1,5 m circa
Dimensioni
Lungh. 100 mm x Largh. 64 mm x Alt. 26,5 mm circa * Cavo non incluso.
Sistemi operativi supportati
Windows 10 * Per utilizzare il riconoscimento facciale occorre aggiornare il
sistema all'ultima versione di Windows 10 da Windows Update. * Per utilizzare il riconoscimento facciale con le seguenti edizioni di
Windows 10, occorre scaricare l'installer del driver dal sito web ELECOM: (Assistenza disponibile esclusivamente in giapponese)
� Windows 10 Enterprise 2016 LTSB � Windows 10 IoT Enterprise 2016 LTSB � Windows 10 Enterprise 2015 LTSB � Windows 10 IoT Enterprise 2015 LTSB * Per vedere la lista delle edizioni supportate, consultare il nostro sito che offre le informazioni pi� aggiornate non incluse nel presente manuale. (Assistenza disponibile esclusivamente in giapponese) * I dati sulla compatibilit� sono stati ottenuti durante la conferma del funzionamento nel nostro ambiente di prova. Non vi � alcuna garanzia della completa compatibilit� con tutti i dispositivi, le applicazioni e le versioni dei sistemi operativi.
Ambiente di funzionamento
Per utilizzare il prodotto occorre rispettare i seguenti requisiti:
CPU
Equivalente a Intel� CoreTM i3 1,2GHz o superiore
Memoria centrale
Oltre 1 GB
Spazio libero sull'hard disk Oltre 1 GB
* Oltre a quanto sopra, occorre rispettare i requisiti richiesti da ciascun software.
15
Assistenza al cliente
Contatti per richieste relative al prodotto
Il cliente che acquisti il prodotto fuori dal Giappone deve contattare il rivenditore locale del Paese di acquisto per qualsiasi richiesta. Alla ELECOM CO., LTD. (Giappone) il servizio di assistenza non � disponibile per richieste relative all'acquisto o all'utilizzo in/da Paesi diversi dal Giappone. Inoltre, non sono disponibili lingue diverse dal giapponese. Le sostituzioni verranno effettuate dietro garanzia Elecom, ma non sono effettuabili da Paesi al di fuori del Giappone.
Limitazione di responsabilit�
� ELECOM Co., Ltd. non sar� in alcun modo ritenuta responsabile di alcun risarcimento per danni speciali, consequenziali, indiretti, punitivi o perdita di profitto derivanti dall'utilizzo di questo prodotto.
� ELECOM Co., Ltd. non rilascia alcuna garanzia in merito a perdita di dati, errori o a qualsiasi altro problema che possa verificarsi su dispositivi connessi a questo prodotto.
Compliance status www.elecom.co.jp/global/certification/
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. In order to make improvements to this product, the design and specifications are subject to change without prior notice.
(Pb)
Hg
Cd Cr (VI)
PBB
PBDE
SJ/T 11363-2006
� SJ/T 11363-2006
WEEE Disposal and Recycling Information This symbol means that waste of electrical and electronic equipment (WEEE) should not be disposed as general household waste. WEEE should be treated separately to prevent possible harm to the environment or human health. Consult your retailer or local municipal office for collection, return, recycle or reuse of WEEE.
Trademark and name of the manufacturer:
ELECOM CO., LTD.
www.elecom.co.jp/global/
Importer UK Contact : Around the World Trading, Ltd. Afon Building 223, Worthing Road Horsham, RH12 1TL, United Kingdom
Importer EU Contact : Around the World Trading, Ltd. 5th floor, Koenigsallee 2b, Dusseldorf, Nordrhein-Westfalen, 40212, Germany
ELECOM Korea Co., Ltd. Dome-Bldg 5F, 60, Nambusunhwan-ro 347-gil, Seocho-gu, Seoul, 06730, South Korea TEL : +82 (0) 2 - 1588 - 9514 FAX : +82 (0) 2 - 3472 - 5533 www.elecom.co.kr
ELECOM (SHANGHAI) TRADING Co.,Ltd Room 208-A21, 2nd floor, 1602 Zhongshanxi Road, Xuhui District, Shanghai, China, 200235 TEL : +86 021-33680011 FAX : +86 755 83698064
ELECOM Sales Hong Kong Ltd. 2/F, Block A, 2-8 Watson Road, Causeway Bay, Hong Kong TEL : +852 2806 - 3600 FAX : +852 2806 - 3300 email : info@elecom.asia
ELECOM Singapore Pte. Ltd Blk 10, Kaki Bukit Avenue 1, #02-04 Kaki Bukit Industrial Estate, Singapore 417942 TEL : +65 6347 - 7747 FAX : +65 6753 - 1791
A customer who purchases outside Japan should contact the local retailer in the country of purchase for enquiries. In "ELECOM CO., LTD. (Japan)", no customer support is available for enquiries about purchases or usage in/from any countries other than Japan. Also, no language other than Japanese is available. Replacements will be made under stipulation of the Elecom warranty, but are not available from outside of Japan.
� � vietata qualsiasi copia e/o riproduzione di tutto o parte del presente manuale. � Le specifiche e l'aspetto del prodotto possono subire modifiche senza preavviso al fine di migliorare il prodotto stesso. � Prima di esportare il prodotto, verificare le normative in materia di esportazioni del Paese di origine. � Windows, Windows Hello e Skype e sono marchi commerciali o marchi registrati di Microsoft Corporation negli Stati Uniti e in altri Paesi. � Zoom � un marchio registrato o marchio commerciale di Zoom Video Communications, Inc. � Tutti i nomi di prodotti e aziende che compaiono sul prodotto e sulla confezione sono marchi commerciali o marchi registrati dai rispettivi
proprietari.
Web Camera Manual, Safety precautions, and Compliance with regulations 1st edition, July 29, 2021
�2021 ELECOM Co., Ltd. All Rights Reserved.
16
MSC-UCAM-CF20FB_it ver.111
UCAM-CF20FB
� 5V500mAUSB-A � � �
�
�
�
� � VGA � � �
� �
� * USB2.0USB1.1
1
LED
USB USB-A
2
*
USBUSB-A
� USB � USB
( Windows Hello (
3
Windows Hello
� Windows UpdateWindows 10Windows Update * Windows
� Windows 10ELECOM Windows 10 Enterprise 2016 LTSB Windows 10 IoT Enterprise 2016 LTSB Windows 10 Enterprise 2015 LTSB Windows 10 IoT Enterprise 2015 LTSB ( Windows Hello
* "20H2"Windows
� Windows HelloPIN � PIN
"" ""
4
"" ""
""
"Windows Hello"
"Windows Hello "
5
PIN
6
""
""
"Windows Hello" -
"Windows"
7
"
(User Name)"
8
* � Windows 10 Enterprise 2016 LTSB � Windows 10 IoT Enterprise 2016 LTSB � Windows 10 Enterprise 2015 LTSB � Windows 10 IoT Enterprise 2015 LTSB
ELECOM
https://www.elecom.co.jp/r/220
*
� � � Windows
"UCAM-CF20FB_Driver_vX.Xzip" "Setup(.exe)"
""""
9
""
Windows ( Windows Hello
10
SkypeTM
"WindowsSkype"
Skype ""
""
11
"" """""ELECOM 2MP
Webcam"
""""
� (Webcam Internal Mic) Skype
12
Zoom
Zoom
"" """ELECOM 2MP Webcam"
13
"" ""
� (Webcam Internal Mic) Zoom
14
1/6" CMOS 200 1920�1080 30 167024 80
MEMS
USB2.0Type A 1.5 100.0x 64.0x 26.5 * Windows10 * Windows UpdateWindows 10
* Windows 10ELECOM
� Windows10 Enterprise 2016 LTSB � Windows10 IoT Enterprise 2016 LTSB � Windows10 Enterprise 2015 LTSB � Windows10 IoT Enterprise 2015 LTSB
* *
CPU
Intel� CoreTM i3 1.2GHz
1GB
1GB
*
15
ELECOM Elecom
� ELECOM Co., Ltd.
� ELECOM Co., Ltd.
Compliance status www.elecom.co.jp/global/certification/
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. In order to make improvements to this product, the design and specifications are subject to change without prior notice.
(Pb)
Hg
Cd Cr (VI)
PBB
PBDE
SJ/T 11363-2006
� SJ/T 11363-2006
WEEE Disposal and Recycling Information This symbol means that waste of electrical and electronic equipment (WEEE) should not be disposed as general household waste. WEEE should be treated separately to prevent possible harm to the environment or human health. Consult your retailer or local municipal office for collection, return, recycle or reuse of WEEE.
Trademark and name of the manufacturer:
ELECOM CO., LTD.
www.elecom.co.jp/global/
Importer UK Contact : Around the World Trading, Ltd. Afon Building 223, Worthing Road Horsham, RH12 1TL, United Kingdom
Importer EU Contact : Around the World Trading, Ltd. 5th floor, Koenigsallee 2b, Dusseldorf, Nordrhein-Westfalen, 40212, Germany
ELECOM Korea Co., Ltd. Dome-Bldg 5F, 60, Nambusunhwan-ro 347-gil, Seocho-gu, Seoul, 06730, South Korea TEL : +82 (0) 2 - 1588 - 9514 FAX : +82 (0) 2 - 3472 - 5533 www.elecom.co.kr
ELECOM (SHANGHAI) TRADING Co.,Ltd Room 208-A21, 2nd floor, 1602 Zhongshanxi Road, Xuhui District, Shanghai, China, 200235 TEL : +86 021-33680011 FAX : +86 755 83698064
ELECOM Sales Hong Kong Ltd. 2/F, Block A, 2-8 Watson Road, Causeway Bay, Hong Kong TEL : +852 2806 - 3600 FAX : +852 2806 - 3300 email : info@elecom.asia
ELECOM Singapore Pte. Ltd Blk 10, Kaki Bukit Avenue 1, #02-04 Kaki Bukit Industrial Estate, Singapore 417942 TEL : +65 6347 - 7747 FAX : +65 6753 - 1791
ELECOM Elecom
� � � � WindowsWindows Hello Skype Microsoft Corporation / � Zoom Zoom Video Communications Inc �
Manual, Safety precautions, and Compliance with regulations 1st edition, July 29, 2021
�2021 ELECOM Co., Ltd. All Rights Reserved.
16
MSC-UCAM-CF20FB_zhcn ver.111
UCAM-CF20FB
� USB-A5V500mA � � �
�
�
�
� � VGA � � �
� �
� * USB2.0USB2.0USB1.1
1
LED
USB USB-A
2
*
USB PC USB-A
� PCUSB � USB
( Windows Hello (
3
Windows Hello
� Windows UpdateWindows 10Windows Windows * Windows Microsoft
� Windows 10ELECOM Windows 10 Enterprise 2016 LTSB Windows 10 IoT Enterprise 2016 LTSB Windows 10 Enterprise 2015 LTSB Windows 10 IoT Enterprise 2015 LTSB ( Windows Hello
* Windows20H2
� Windows HelloPIN � PIN
4
Windows Hello
Windows Hello
5
6
!
Windows Hello -
Windows
7
User Name
Enter
8
* � Windows 10 Enterprise 2016 LTSB � Windows 10 IoT Enterprise 2016 LTSB � Windows 10 Enterprise 2015 LTSB � Windows 10 IoT Enterprise 2015 LTSB
ELECOM
https://www.elecom.co.jp/r/220
*
� � � Windows
UCAM-CF20FB_Driver_vX.Xzip Setup(.exe)
9
()
Windows ( Windows Hello
10
SkypeTM
Skype for Windows DesktopMicrosoft Store
Skype
11
ELECOM 2MP
Webcam
� (Webcam Internal Mic) Skype
12
Zoom
Zoom
ELECOM 2MP Webcam
13
� (Webcam Internal Mic) Zoom
14
1/6" CMOS 200 1920�1080 30FPS 167024 80
USB2.0A 1.5 100.0mm�64.0mm�26.5mm * Windows10 * Windows Update
Windows 10 * Windows 10ELECOM
� Windows10 Enterprise 2016 LTSB � Windows10 IoT Enterprise 2016 LTSB � Windows10 Enterprise 2015 LTSB � Windows10 IoT Enterprise 2015 LTSB
*
*
CPU
Intel� CoreTM i3 1.2GHz
1GB
1GB
*
15
ELECOM CO., LTD. (Japan) Elecom
� ELECOM Co., Ltd.
� ELECOM Co., Ltd.
Compliance status www.elecom.co.jp/global/certification/
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. In order to make improvements to this product, the design and specifications are subject to change without prior notice.
(Pb)
Hg
Cd Cr (VI)
PBB
PBDE
SJ/T 11363-2006
� SJ/T 11363-2006
WEEE Disposal and Recycling Information This symbol means that waste of electrical and electronic equipment (WEEE) should not be disposed as general household waste. WEEE should be treated separately to prevent possible harm to the environment or human health. Consult your retailer or local municipal office for collection, return, recycle or reuse of WEEE.
Trademark and name of the manufacturer:
ELECOM CO., LTD.
www.elecom.co.jp/global/
Importer UK Contact : Around the World Trading, Ltd. Afon Building 223, Worthing Road Horsham, RH12 1TL, United Kingdom
Importer EU Contact : Around the World Trading, Ltd. 5th floor, Koenigsallee 2b, Dusseldorf, Nordrhein-Westfalen, 40212, Germany
ELECOM Korea Co., Ltd. Dome-Bldg 5F, 60, Nambusunhwan-ro 347-gil, Seocho-gu, Seoul, 06730, South Korea TEL : +82 (0) 2 - 1588 - 9514 FAX : +82 (0) 2 - 3472 - 5533 www.elecom.co.kr
ELECOM (SHANGHAI) TRADING Co.,Ltd Room 208-A21, 2nd floor, 1602 Zhongshanxi Road, Xuhui District, Shanghai, China, 200235 TEL : +86 021-33680011 FAX : +86 755 83698064
ELECOM Sales Hong Kong Ltd. 2/F, Block A, 2-8 Watson Road, Causeway Bay, Hong Kong TEL : +852 2806 - 3600 FAX : +852 2806 - 3300 email : info@elecom.asia
ELECOM Singapore Pte. Ltd Blk 10, Kaki Bukit Avenue 1, #02-04 Kaki Bukit Industrial Estate, Singapore 417942 TEL : +65 6347 - 7747 FAX : +65 6753 - 1791
ELECOM CO., LTD. (Japan) Elecom
� � � � WindowsWindows Hello Skype / � Zoom Zoom Video Communications, Inc. �
Manual, Safety precautions, and Compliance with regulations 1st edition, July 29, 2021
�2021 ELECOM Co., Ltd. All Rights Reserved.
16
MSC-UCAM-CF20FB_zhtw ver.111
