Manual User Manual is for the CR-10 Series of 3D printers. It is also applicable for the CR-10S/CR-10 S4/CR-10 S5. But CR-10 mini without T-Bracket (Right) & Decoration Strip. Due to the different types of devices ,Hardware and software upgrade. the devices have little different, it is normal phenomenon. Subject to actual device received.
Manual. User Manual is for the CR-10 Series of 3D printers. It is also applicable for the CR-10S/CR-10 S4/CR-10 S5. But CR-10 mini without T-Bracket (Right) ...

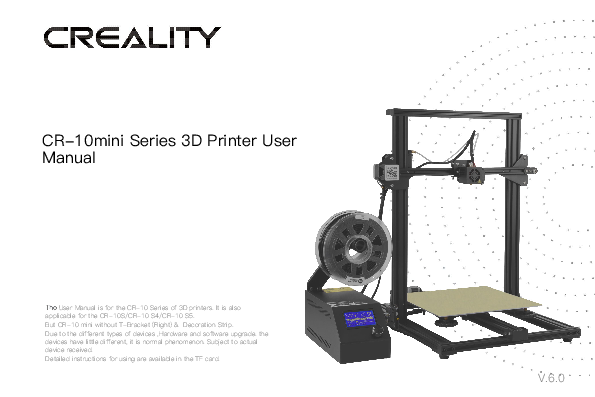

CR-10mini Series 3D Printer User Manual User Manual is for the CR-10 Series of 3D printers. It is also applicable for the CR-10S/CR-10 S4/CR-10 S5. But CR-10 mini without T-Bracket (Right) & Decoration Strip. Due to the different types of devices ,Hardware and software upgrade. the devices have little different, it is normal phenomenon. Subject to actual device received. Detailed instructions for using are available in the TF card. V.6.0 Parameters Basic Parameters Model Printing Size Molding Tech. Nozzle Number Slice Thickness Nozzle Diameter Precision Fliament File Format Working Mode Slice Software CR-10 300*300*400mm Power Supply Total Power Bed Temp. Nozzle Temp. Resume Print Filament Detector Daul Z-Axis language Selection Operating System Printing Speed 270W 100 NO NO NO NO CR-10S CR-10 S4 CR-10 S5 300*300*400mm 400*400*400mm 500*500*500mm FDM 1 0.1mm-0.4mm Standard 0.4mm ±0.1mm 1.75mm PLA STL/OBJ/AMF Online or TF card offline Creality Slicer/Cura/Repetier-Host/Simplify3D Input:AC 115V/230V 50/60Hz Output:DC 12V 270W 250W 270W 100 60 60 250 Yes Yes Yes Yes Yes Yes Yes Yes Yes EN/CN Windows XP/Vista//7/8/10 MAC/Linux 180mm/sNormal 30-60mm/s CR-10mini 300*220*300mm 270W 100 Yes NO NO CONTENTS Dear consumers, Thank you for choosing our products. For the best experience, please read the instructions before operating the Printer. Our 3D team will always be ready to give you the best service. Please contact us via the phone number or e-mail address provided at the end when you encounter any problem with the Printer. For a better experience in using our product, you may learn how to use the Printer in the following ways: View the accompanied instructions and videos in the TF card. Visit our official website www.creality3d.cn You will find relevant software/hardware information, contact details and operation and maintenance instructions on the website. Introduction................................1 General List................................2 Device Installion.........................3 Cable Connection......................4 Screen Information....................5 Loading Filament.....................6 Platform Adjustment.................7 Software Installation.................8 For the First Printing................9 NOTES 1. Do not use the printer any way other than described herein in order to avoid personal injury or property damage. 2. Do not place the printer near any heat source or flammable or explosive objects. We suggest placing it in a well-ventilated, low-dust environment. 3. Do not expose the printer to violent vibration or any unstable environment, as this may cause poor print quality. 4. Before using experimental or exotic filaments, we suggest using standard filaments such as ABS or PLA to calibrate and test the machine. 5. Do not use any other power cable except the one supplied. Always use a grounded three-prong power outlet. 6. Do not touch the nozzle or printing surface during operation as they may be hot. Keep hands away from machine while in use to avoid burns or personal injury. 7. Do not wear gloves or loose clothing when operating the printer. Such cloths may become tangled in the printers moving parts leading to burns, possible bodily injury, or printer damage. 8. When cleaning debris from the printer hotend, always use the provided tools. Do not touch the nozzle directly when heated. This can cause personal injury. 9. Clean the printer frequently. Always turn the power off when cleaning, and wipe with a dry cloth to remove dust, adhered printing plastics or any other material off the frame, guide rails, or wheels . Use glass cleaner or isopropyl alcohol to clean the print surface before every print for consistent results. 10. Children under 10 years of age should not use the printer without supervision. A Introduction Z Gantry Frame Nozzle Kit TF Slot and USB Port Display Screen Control Knob Voltage Selection Base Frame Platform Filament Holder Control Box Nozzle Assembly Connection Platform Connection Power Cable Connection Extruder (E) Stepper X Limit Switch X Stepper Z Stepper Z Limit Switch Y Limit Switch Y Stepper 1 BGeneral List uTool list Tool Box No. Image Name Control Box Qty No. Image 1 Spool & Nuts 1set 7 2 3 4 5 6 2 Spool Holder 1 8 TF Card & Card Reader 1set 9 T-Bracket (Right) 1 10 T-Bracket & Z Limit Switch 1 11 (Left) M5X25 Bolt & Lock Washer 4 sets 12 Base Frame Gantry Frame Name Qty No. Image Name Qty Power Cable 1 13 Spade 1 USB Cable 1 14 PTFE Tubing (spare part) 1 15 Nozzle Cleaner 1 16 Cable Ties 1set Hex keys, Wrench & Screwdriver 1set Spare Parts 1set Filament200g 1 17 Decorative Strip 1 Diagonal Pliers 1 18 Thumb Screw 3 *CR-10 mini without T-Bracket (Right) & Decoration Strip. CDevice Installtion u Install the Gantry Frame u Install the T-shaped fixing block. M5X25 4pcs Note: Make sure that the nut for profile has been turned by 90° before fastening the T-shaped fixing block. *CR-10 mini without T-Bracket (right). 3 Install the Rack Install decoration strip Attach the Bracket with two thumb screws. Attach Spool Holder with included Nuts Finished Install decoration belt into the notch, starting from one end. Cut off the excess material with the diagonal pliers *The decoration Strip is available in various colors. The pictures above are for reference only. *CR-10mini without Decoration Strip. 4 Attach the Decorative Trim to all parts needing to be decorated. DIntroduction Connect the Stepper Motors according to the yellow labels on the 6pin (4-wire) side. Y Stepper and Limit Switch Extruder (E) Stepper X Stepper and Limit Switch Z Stepper and Limit Switch Connect the Limit Switches according to the yellow labels on the 3pin (2-wire) side. Connect the aviation connectors to the ports with corresponding pins · Select the correct input voltage to match your local mains (230V or 115V) · Damage can occur if voltage is set incorrectly. · Make sure the power cable is connected. 5 E Screen Information Print Speed Device Model 6 PushOK/Enter Sub Menu TurnChange Option/Value Set Temperature of the Nozzle Current Temperature of the Nozzle Set Temperature of the Hot Bed Current Temperature of the Hot Bed Part Cooling Fan Speed Current Location of the nozzle Print Time Print Progress Prompt Message FLoading Filament 1Preheat Method 1 7 Method 2 2Feed Filament Press and hold the extruder lever then insert the1.75mm filament through the small hole of the extruder. Continue feeding until you see filament come out the nozzle. TipHow to Replace the Filament 1Cutting filament near the Extruder and slowly feed new filament until they are fed into the new filament. 2Preheating the nozzle and withdraw the filament quickly and feed the new filament. 7 GBed Leveling 1. Prepare Auto Home. Waiting for the nozzle to move to the left/front of the platform. PrepareDisable Steppers(Close stepper driverelease motor 1111111 4 3 11111 The nozzle is too far away from the platform, so the consumables can not adhere to the platform. 1 2 2. Move the nozzle the front/left leveling screw and adjust the platform height by turning the knob underneath. Use a piece of A4 paper (standard printer paper) to assist with the adjustment, making sure that the nozzle lightly scratches the paper. 3. Complete the adjustment of the screw on all 4 corners. 4. Repeat above steps 1-2 times if necessary. 8 Filament are extruded evenly, just sticking on the platform. The nozzle is too close to the platform, and the filament are not extruded enough, even scraping the platform. HSoftware Installation 1. Double click to install the software. 2Double click to open the software. 3. Select languageNextSelect your machineNextFinish. 9 IFirst Printing 1.Slicing Open the softwareLoadSelect the fileWait for slicing to finish ,and save the gcode file to TF card. 2.Printing 10 Insert the TF card Print Select the file to be printed. After- Sales Service Service 1, The printer can be returned within seven days, 15 days replacement, one year warranty, lifetime maintenance. Replacement requirement 1. The appearance of the product is intact, without damage, scratches, smudges, cracks, deformation, etc.; 2. Machine parts, tools and others are complete; 3. Provide a complete and valid purchase invoice and warranty, product number should be the same. Warranty coverage 1. The following accessories are not included in the warranty coverage if they are not damaged by transportation: platform sticker; platform forming plate; acrylic cover; card reader and TF card; platform glass; USB cable; filament; rack and tools,etc. 2. Profile: Before we deliver the goods, we will do the machine test, so maybe there will be light scratch, or due to long-distance transportation, which scratch the profile a little bit. in the premise of not affecting the normal use, in principle, not within the scope of warranty; 3. Nozzle assembly (nozzle, heating block, throat pipe,heat sink, Teflon tube, etc.) warranty period is 3 months, if it is damage after the warranty expires, you need to purchase another one; 4. Motherboard, LCD display, power supply, hot bed,warranty period is 12 months, if there are quality problems, you can get free maintenance; over the warranty period, can be sent back to the original factory maintenance, the users need to bear the return shipping and maintenance costs; 5. Not included in warranty coverage: (1) It is not possible to provide an effective after-sales service card or serial number; (2) The whole machine and components exceed the warranty period; (3) Equipment failure or damage caused by unauthorized modification of the equipment (private modification includes: 1. modification of the nozzle assembly; 2. modification of the machine structure; 3. use of third-party components; 4. use of third-party firmware procedures or change the original Factory firmware program, etc.); (4) Equipment failure or damage due to incorrect installation and use; (5) Equipment failure or damage caused by the use of the equipment in a working environment not specified by the product; (6) Equipment failure or damage due improper use (beyond workload, etc.) or maintenance (moisture, etc.); (7) Equipment failure or damage due to the use of other branded components or low quality consumables. Statement: For better highlighting the function and effectiveness of 3d printer and promoting the development of global market economic, strengthening the user self-discipline of 3d industry and establishing a good image of 3d printing, since Creality 3d printer have passed all kinds of authorized product certificates and quality management system.hereby we declare that it is strictly forbidden to use our printer to print any products or equipment that are in violation of the specific country and regions legislation. The revision date: April 24,2019 SHENZHEN CREALITY 3D TECHNOLOGY CO.,LTD. 11F & Room 1201,Block 3,JinChengYuan,Tongsheng Community,Dal ang,Longhua District,Shenzhen,China,518109 Official Website: www.creality3d.cn Tel: +86 755-2105 9455 E-mail: info@creality3d.cn cs@creality3d.cnWPS 演示
