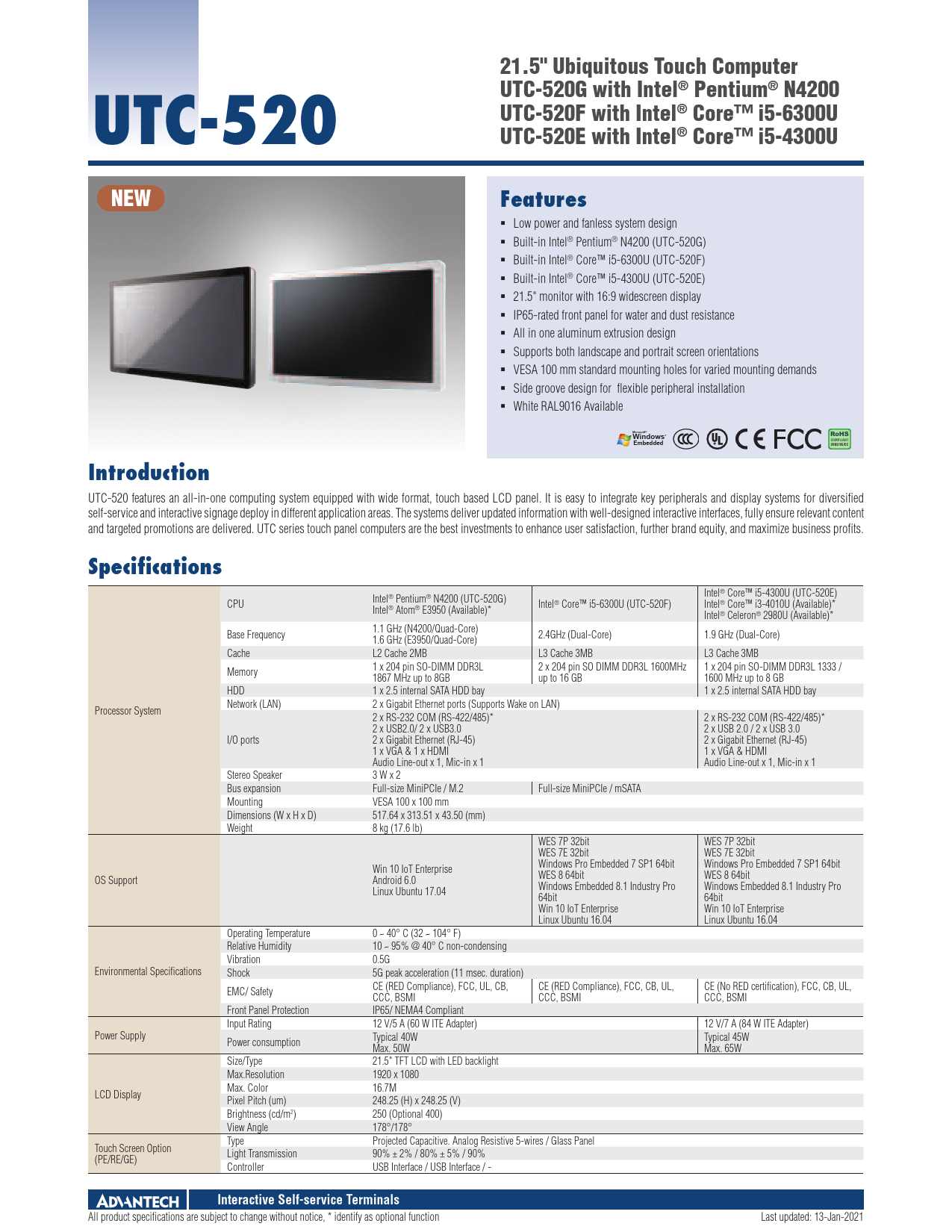

ADVANTECH UTC-520 21.5" Ubiquitous Touch Computer Datasheet
File info: application/pdf · 2 pages · 630.34KB
UTC-520
Скачать
Панельный компьютер UTC-520E-PE купить со склада в СПб | Advantech
Full PDF Document
If the inline viewer fails, it will open the original document in compatibility mode automatically. You can also open the file directly.
Extracted Text
UTC-520 21.5" Ubiquitous Touch Computer UTC-520G with Intel� Pentium� N4200 UTC-520F with Intel� CoreTM i5-6300U UTC-520E with Intel� CoreTM i5-4300U NEW Features Low power and fanless system design Built-in Intel� Pentium� N4200 (UTC-520G) Built-in Intel� CoreTM i5-6300U (UTC-520F) Built-in Intel� CoreTM i5-4300U (UTC-520E) 21.5" monitor with 16:9 widescreen display IP65-rated front panel for water and dust resistance All in one aluminum extrusion design Supports both landscape and portrait screen orientations VESA 100 mm standard mounting holes for varied mounting demands Side groove design for flexible peripheral installation White RAL9016 Available Microsoft� Windows� Embedded RoHS COMPLIANT 2002/95/EC Introduction UTC-520 features an all-in-one computing system equipped with wide format, touch based LCD panel. It is easy to integrate key peripherals and display systems for diversified self-service and interactive signage deploy in different application areas. The systems deliver updated information with well-designed interactive interfaces, fully ensure relevant content and targeted promotions are delivered. UTC series touch panel computers are the best investments to enhance user satisfaction, further brand equity, and maximize business profits. Specifications Processor System CPU Base Frequency Cache Memory HDD Network (LAN) I/O ports Stereo Speaker Bus expansion Mounting Dimensions (W x H x D) Weight OS Support Environmental Specifications Power Supply LCD Display Touch Screen Option (PE/RE/GE) Operating Temperature Relative Humidity Vibration Shock EMC/ Safety Front Panel Protection Input Rating Power consumption Size/Type Max.Resolution Max. Color Pixel Pitch (um) Brightness (cd/m2) View Angle Type Light Transmission Controller Intel� Pentium� N4200 (UTC-520G) Intel� Atom� E3950 (Available)* Intel� CoreTM i5-6300U (UTC-520F) 1.1 GHz (N4200/Quad-Core) 1.6 GHz (E3950/Quad-Core) 2.4GHz (Dual-Core) L2 Cache 2MB L3 Cache 3MB 1 x 204 pin SO-DIMM DDR3L 1867 MHz up to 8GB 2 x 204 pin SO DIMM DDR3L 1600MHz up to 16 GB 1 x 2.5 internal SATA HDD bay 2 x Gigabit Ethernet ports (Supports Wake on LAN) 2 x RS-232 COM (RS-422/485)* 2 x USB2.0/ 2 x USB3.0 2 x Gigabit Ethernet (RJ-45) 1 x VGA & 1 x HDMI Audio Line-out x 1, Mic-in x 1 3 W x 2 Full-size MiniPCIe / M.2 Full-size MiniPCIe / mSATA VESA 100 x 100 mm 517.64 x 313.51 x 43.50 (mm) 8 kg (17.6 lb) WES 7P 32bit Win 10 IoT Enterprise Android 6.0 Linux Ubuntu 17.04 WES 7E 32bit Windows Pro Embedded 7 SP1 64bit WES 8 64bit Windows Embedded 8.1 Industry Pro 64bit Win 10 IoT Enterprise Linux Ubuntu 16.04 0 ~ 40� C (32 ~ 104� F) 10 ~ 95% @ 40� C non-condensing 0.5G 5G peak acceleration (11 msec. duration) CE (RED Compliance), FCC, UL, CB, CCC, BSMI CE (RED Compliance), FCC, CB, UL, CCC, BSMI IP65/ NEMA4 Compliant 12 V/5 A (60 W ITE Adapter) Typical 40W Max. 50W 21.5" TFT LCD with LED backlight 1920 x 1080 16.7M 248.25 (H) x 248.25 (V) 250 (Optional 400) 178�/178� Projected Capacitive. Analog Resistive 5-wires / Glass Panel 90% � 2% / 80% � 5% / 90% USB Interface / USB Interface / - Intel� CoreTM i5-4300U (UTC-520E) Intel� CoreTM i3-4010U (Available)* Intel� Celeron� 2980U (Available)* 1.9 GHz (Dual-Core) L3 Cache 3MB 1 x 204 pin SO-DIMM DDR3L 1333 / 1600 MHz up to 8 GB 1 x 2.5 internal SATA HDD bay 2 x RS-232 COM (RS-422/485)* 2 x USB 2.0 / 2 x USB 3.0 2 x Gigabit Ethernet (RJ-45) 1 x VGA & HDMI Audio Line-out x 1, Mic-in x 1 WES 7P 32bit WES 7E 32bit Windows Pro Embedded 7 SP1 64bit WES 8 64bit Windows Embedded 8.1 Industry Pro 64bit Win 10 IoT Enterprise Linux Ubuntu 16.04 CE (No RED certification), FCC, CB, UL, CCC, BSMI 12 V/7 A (84 W ITE Adapter) Typical 45W Max. 65W Interactive Self-service Terminals All product specifications are subject to change without notice, * identify as optional function Last updated: 13-Jan-2021 Dimensions 517.64 UTC-520 308.82 208.82 132.17 Unit: mm 27.96 101.96 201.96 VESA Hole M4 Depth=5mm 313.51 75.36 40 43.50 420 517.64 Ordering Information Fully- Integrated I/O Part No. Description UTC-520GP-ATB0E 21.5" Intel� Pentium� N4200 Based fanless UTC with PCT.T/S. 4 GB RAM UTC-520GP-ATW0E 21.5" PCT.T/S w Pentium N4200, 4GB RAM,RAL 9016 ABC D E FGH I J K UTC-520GR-ATB0E 21.5" Intel� Pentium� N4200 Based fanless UTC with Resi.T/S. 4 GB RAM UTC-520GG-ATB0E 21.5" Intel� Pentium� N4200 Based fanless UTC with Glass. 4 GB RAM UTC-520FR-ATB0E 21.5" Intel� CoreTM i5-6300U Based fanless UTC with Resi.T/S. 4 GB RAM UTC-520F-PE 21.5" Intel� CoreTM i5-6300U Based fanless UTC with PCT.T/S. 4 GB RAM UTC-520E-RE 21.5" Intel� CoreTM i5-4300U Based fanless UTC with Resi.T/S. 4 GB RAM UTC-520E-PE 21.5" Intel� CoreTM i5-4300U Based fanless UTC with PCT.T/S. 4 GB RAM A. Antenna Port G. HDMI UTC-520E-GE 21.5" Intel� CoreTM i5-4300UBased fanless UTC with Glass. 4 GB RAM B. Line-out H. VGA 1702002605 Power cord 2P FRANCE 10A/16A 220V 1.83M 90D C. Mic-in I. LAN Ports x 2 1702002600 Power Cord 3P UL/CSA(USA) 125V 10A 1.83M 180D D. COM2 J. DC Input 1700000596 Power Cord (China) CCC,10A 250V, 3P 1830mm E. COM1 K. Power switch 1700018704 Power Cord UK BSI 2P 10A 250V 180cm 18AWG F. USB 3.0 x 2, USB 2.0 x 2 1960069544N001 IO Cover for UTC-520 series (USB 3.0 x 1, USB 2.0 x 3 for UTC-520D) Side groove design for Flexible peripheral device Peripherals for UTC-500 series Part No. UTC-P01-A1E UTC-P02-A0E UTC-P03-A0E UTC-P06-A0E UTC-P07-A4E UTC-P09-A0E UTC-P21-A0E Description 5M Camera Module For UTC-5XX (USB connection) Magnet Strip Reader For UTC-5XX (USB connection) RFID Reader For UTC-5XX (USB connection) Smart Card Reader For UTC-5XX (USB connection) 2D Barcode Module (Honeywell) for UTC-500 Series (USB connection) Fingerprint reader for UTC-5xx (USB connection) 4 in 1 Modules Barcode reader + RFID + Card reader + MSR Installation Accessory Part No. UTK-500F-A0E UTK-500S-A0E UTK-500G-A0E UTC-520-STAND1E UTC-H01-STANDE UTC-S01-STAND UTC-T01-STANDE UTC-WALL-MOUNT1E UTC-WALL-MOUNT3E Description Floor stand with SNBC BTP-U81 thermal printer (for China only) Floor stand without thermal printer Floor stand with thermal printer bracket Desktop stand for UTC-515/520 H-shaped floor stand Desk Stand for 100 X 100 / 75 X 75 mm Triangle shape floor stand Wall Mount kit for UTC-515/520 Wall Mount kit for UTC-515/520 Online Download www.advantech.com/products
