Ballasts, LED driver and related electrical components are hard mounted to the die-cast housing for optimal heat sinking and operating efficiency. Wiring is.
Specifications and dimensions subect to change without notice. ooper Lighting Solutions 1121 Highway 74 South Peachtree City, GA 30269 P: 770-486-4800

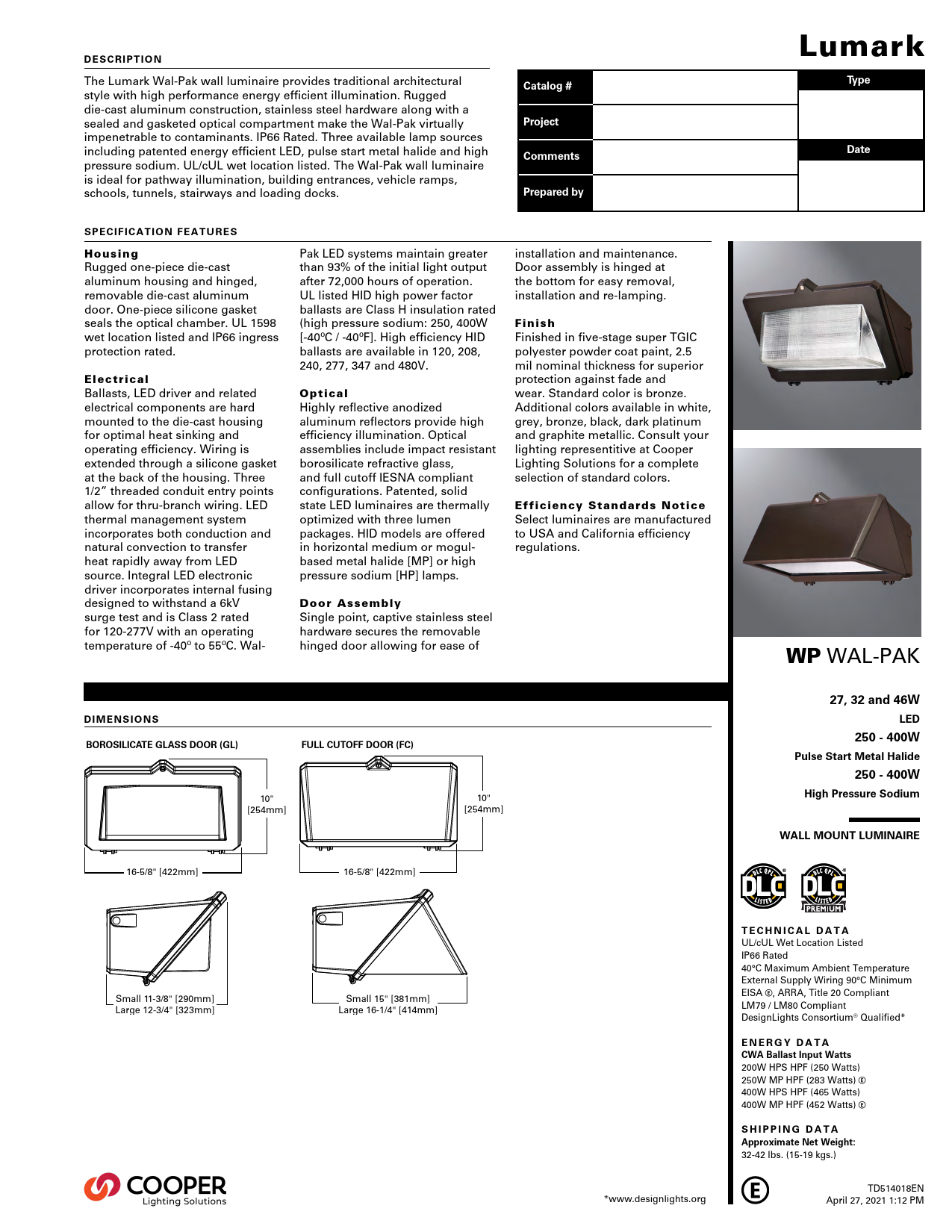

DESCRIPTION The Lumark Wal-Pak wall luminaire provides traditional architectural style with high performance energy efficient illumination. Rugged die-cast aluminum construction, stainless steel hardware along with a sealed and gasketed optical compartment make the Wal-Pak virtually impenetrable to contaminants. IP66 Rated. Three available lamp sources including patented energy efficient LED, pulse start metal halide and high pressure sodium. UL/cUL wet location listed. The Wal-Pak wall luminaire is ideal for pathway illumination, building entrances, vehicle ramps, schools, tunnels, stairways and loading docks. Catalog # Project Comments Prepared by SPECIFICATION FEATURES Housing Rugged one-piece die-cast aluminum housing and hinged, removable die-cast aluminum door. One-piece silicone gasket seals the optical chamber. UL 1598 wet location listed and IP66 ingress protection rated. Electrical Ballasts, LED driver and related electrical components are hard mounted to the die-cast housing for optimal heat sinking and operating efficiency. Wiring is extended through a silicone gasket at the back of the housing. Three 1/2" threaded conduit entry points allow for thru-branch wiring. LED thermal management system incorporates both conduction and natural convection to transfer heat rapidly away from LED source. Integral LED electronic driver incorporates internal fusing designed to withstand a 6kV surge test and is Class 2 rated for 120-277V with an operating temperature of -40º to 55ºC. Wal- Pak LED systems maintain greater than 93% of the initial light output after 72,000 hours of operation. UL listed HID high power factor ballasts are Class H insulation rated (high pressure sodium: 250, 400W [-40ºC / -40ºF]. High efficiency HID ballasts are available in 120, 208, 240, 277, 347 and 480V. Optical Highly reflective anodized aluminum reflectors provide high efficiency illumination. Optical assemblies include impact resistant borosilicate refractive glass, and full cutoff IESNA compliant configurations. Patented, solid state LED luminaires are thermally optimized with three lumen packages. HID models are offered in horizontal medium or mogulbased metal halide [MP] or high pressure sodium [HP] lamps. Door Assembly Single point, captive stainless steel hardware secures the removable hinged door allowing for ease of installation and maintenance. Door assembly is hinged at the bottom for easy removal, installation and re-lamping. Finish Finished in five-stage super TGIC polyester powder coat paint, 2.5 mil nominal thickness for superior protection against fade and wear. Standard color is bronze. Additional colors available in white, grey, bronze, black, dark platinum and graphite metallic. Consult your lighting representitive at Cooper Lighting Solutions for a complete selection of standard colors. Efficiency Standards Notice Select luminaires are manufactured to USA and California efficiency regulations. DIMENSIONS BOROSILICATE GLASS DOOR (GL) FULL CUTOFF DOOR (FC) 10" [254mm] 10" [254mm] 16-5/8" [422mm] 16-5/8" [422mm] Lumark Type Date WP WAL-PAK 27, 32 and 46W LED 250 - 400W Pulse Start Metal Halide 250 - 400W High Pressure Sodium WALL MOUNT LUMINAIRE Small 11-3/8" [290mm] Large 12-3/4" [323mm] Small 15" [381mm] Large 16-1/4" [414mm] *www.designlights.org TECHNICAL DATA UL/cUL Wet Location Listed IP66 Rated 40°C Maximum Ambient Temperature External Supply Wiring 90°C Minimum EISA G, ARRA, Title 20 Compliant LM79 / LM80 Compliant DesignLights Consortium® Qualified* ENERGY DATA CWA Ballast Input Watts 200W HPS HPF (250 Watts) 250W MP HPF (283 Watts) G 400W HPS HPF (465 Watts) 400W MP HPF (452 Watts) G SHIPPING DATA Approximate Net Weight: 32-42 lbs. (15-19 kgs.) TD514018EN April 27, 2021 1:12 PM page 2 POWER AND LUMENS Catalog Number Borosilicate Glass Door (GL) LDWP-GL-3B-ED-7040 LDWP-GL-4B-ED-7040 LDWP-GL-6B-ED-7040 LDWP-GL-3B-ED LDWP-GL-4B-ED LDWP-GL-6B-ED Full Cutoff Door (FC) LDWP-FC-3B-ED-7040 LDWP-FC-4B-ED7040 LDWP-FC-6B-ED-7040 LDWP-FC-3B-ED LDWP-FC-4B-ED LDWP-FC-6B-ED CURRENT DRAW Light Engine Nominal Power (Watts) Input Current @ 120V (A) Input Current @ 208V (A) Input Current @ 240V (A) Input Current @ 277V (A) Input Current @ 347V (A) Input Current @ 480V (A) 3B 27W 0.24 0.14 0.13 0.11 0.09 0.10 WP WAL-PAK Lumens 3,270 4,160 5,828 3,333 4,199 5,883 1,884 2,239 3,137 1,912 2,279 3,192 Power Consumption (Watts) 27W 32W 46W 27W 32W 46W 27W 32W 47W 27W 32W 46W B.U.G. Rating B1-U3-G1 B1-U3-G2 B1-U4-G4 B1-U3-G1 B1-U3-G3 B1-U4-G4 B1-U0-G1 B1-U0-G1 B1-U0-G1 B1-U0-G1 B1-U0-G1 B1-U0-G1 Correlated Color Temperature CCT (Kelvin) 4000K 4000K 4000K 5000K 5000K 5000K 4000K 4000K 4000K 5000K 5000K 5000K Color Rendering Index (CRI) 73 73 73 72 73 73 72 73 73 72 73 73 4B 32W 0.28 0.16 0.15 0.13 0.11 0.12 6B 46W 0.40 0.23 0.20 0.18 0.15 0.14 LUMEN MAINTENANCE LUMEN MULTIPLIER Ambient Temperature 25°C 40°C * Per TM-21 data. TM-21 Lumen Maintenance (72,000 Hours)* > 93% > 92% Theoretical L70 (Hours) > 340,000 > 316,000 Ambient Temperature 10°C 15°C 25°C 40°C Lumen Multiplier 1.07 1.04 1.00 0.94 Cooper Lighting Solutions 1121 Highway 74 South Peachtree City, GA 30269 P: 770-486-4800 www.cooperlighting.com Specifications and dimensions subject to change without notice. TD514018EN April 27, 2021 1:13 PM page 3 ORDERING INFORMATION Sample Number: LDWP-FC-4B-120V Lamp Type LD=Solid State Light-Emitting Diodes (LED) 1, 2 HP=High Pressure Sodium MP=Pulse Start Metal Halide Product Family 3 WP=Wal-Pak Door Type 4 GL=Borosilicate Glass Door FC=Full Cutoff Door Lamp Wattage 5 LED 3B=(3 Package), 27W 4B=(4 Package), 32W 6B=(6 Package), 46W HP 250=250W 400=400W MP 250=250W 400=400W WP WAL-PAK Voltage 6 120V=120V 208V=208V 240V=240V 277V=277V 347V=347V 7 480V=480V 7 DT=Dual-Tap MT=Multi-Tap TT=Tri-Tap ED=Electronic LED Dimming (0-10V) Driver Options (Add as Suffix) 8 Accessories (Order Separately) F1=Single Fuse (Must Specify Voltage. 120, 277 or 347V) PE=Button Type Photocontrol (Must Specify Voltage. 120, 208, 240 or 277V) LL=Lamp Included Q=Quartz Restrike T4 Lamp 9 EM=Emergency Quartz Restrike T4 Lamp 9 EMLED-CD=LED Battery Backup Cold Temperature 10 7040=72 CRI / 4000K CCT AP=Grey BK=Black DP=Dark Platinum GM=Graphite Metallic WH=White WG/WPGL=Wire Guard Borosilicate Glass Lens Door WG/WPFC=Wire Guard Full Cutoff Door TR/WP=Tamper-resistant Screw and Bit VS/WPGL=Polycarbonate Vandal Shield for Borosilicate Glass Lens Door NOTES: 1. DesignLights Consortium® Qualified and classified for DLC Standard and DLC Premium, refer to www.designlights.org for details. 2. Five-year warranty. 3. Fixture color is standard bronze unless optional color is specified. 4. Small housing offered for LED models. Large housing for 250W-400W. Clear glass is standard for full cutoff door types except for LD. LD full cutoff door is standard with Solite® glass. 5. LED packages based on 70 CRI / 5000K package at 25°C ambient. 6. See voltage chart for descriptions. 105°C Rated wire required for thru-branch wiring for units above 250W. Thru-branch wiring is rated for 40°C for LD. Higher wattage thru-branch wiring is rated for use in 25°C ambient operating environments. 7. Not available with thru-branch wiring. LED will be supplied with integral step down transformer. 8. Not all options can be combined. Only one emergency or battery back-up option available within the fixture. LD models utilize EMLED-CD options only for battery back-up. 9. Q or EM not available with LD or E electronic ballast. 10. EMLED-CD available with B models only. For use in 25°C ambient operating temperature environments. Specify 120V or 277V. EMLED-CD minimum -20°C/-4°F. Battery pack is a UL recognized component. STOCK ORDERING INFORMATION - LAMP INCLUDED Sample Number: WPL4BC Product Family Lamp Type Lamp Wattage WP=Wal-Pak L=LED 1, 2 P=Pulse Start Metal Halide S=High Pressure Sodium LED 3B=27W 4B=32W 6B=46W Pulse Start Metal Halide 25=250W 40=400W High Pressure Sodium 25=250W 40=400W NOTE: 1 Five-year warranty. 2. DesignLights Consortium® Qualified and classified for DLC Standard and DLC Premium, refer to www.designlights.org for details. Door/Glass Type [Blank]=Standard C=Full Cutoff Door VOLTAGE CHART MT=Multi-Tap TT=Triple-Tap ED=Electronic LED Driver 120, 208, 240, 277V (Wired 277V) 120, 277, 347V (Wired 347V) 120-277V (Universal - 50-60Hz) Cooper Lighting Solutions 1121 Highway 74 South Peachtree City, GA 30269 P: 770-486-4800 www.cooperlighting.com Specifications and dimensions subject to change without notice. TD514018EN April 27, 2021 1:13 PMAdobe PDF Library 15.0
