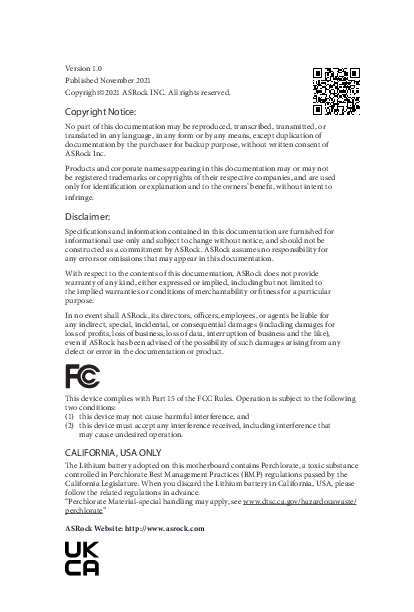

Version 1.0 Published November 2021 Copyright�2021 ASRock INC. All rights reserved.
Copyright Notice:
No part of this documentation may be reproduced, transcribed, transmitted, or translated in any language, in any form or by any means, except duplication of documentation by the purchaser for backup purpose, without written consent of ASRock Inc.
Products and corporate names appearing in this documentation may or may not be registered trademarks or copyrights of their respective companies, and are used only for identification or explanation and to the owners' benefit, without intent to infringe.
Disclaimer:
Specifications and information contained in this documentation are furnished for informational use only and subject to change without notice, and should not be constructed as a commitment by ASRock. ASRock assumes no responsibility for any errors or omissions that may appear in this documentation.
With respect to the contents of this documentation, ASRock does not provide warranty of any kind, either expressed or implied, including but not limited to the implied warranties or conditions of merchantability or fitness for a particular purpose.
In no event shall ASRock, its directors, officers, employees, or agents be liable for any indirect, special, incidental, or consequential damages (including damages for loss of profits, loss of business, loss of data, interruption of business and the like), even if ASRock has been advised of the possibility of such damages arising from any defect or error in the documentation or product.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that
may cause undesired operation.
CALIFORNIA, USA ONLY
The Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance controlled in Perchlorate Best Management Practices (BMP) regulations passed by the California Legislature. When you discard the Lithium battery in California, USA, please follow the related regulations in advance. "Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/ perchlorate"
ASRock Website: http://www.asrock.com
AUSTRALIA ONLY
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage caused by our goods. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. If you require assistance please call ASRock Tel : +886-2-28965588 ext.123 (Standard International call charges apply)
The terms HDMI� and HDMI High-Definition Multimedia Interface, and the HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.
INTEL END USER SOFTWARE LICENSE AGREEMENT IMPORTANT - READ BEFORE COPYING, INSTALLING OR USING.
LICENSE. Licensee has a license under Intel's copyrights to reproduce Intel's Software only in its unmodified and binary form, (with the accompanying documentation, the "Software") for Licensee's personal use only, and not commercial use, in connection with Intel-based products for which the Software has been provided, subject to the following conditions:
(a) Licensee may not disclose, distribute or transfer any part of the Software, and You agree to prevent unauthorized copying of the Software.
(b) Licensee may not reverse engineer, decompile, or disassemble the Software.
(c) Licensee may not sublicense the Software.
(d) The Software may contain the software and other intellectual property of third party suppliers, some of which may be identified in, and licensed in accordance with, an enclosed license.txt file or other text or file.
(e) Intel has no obligation to provide any support, technical assistance or updates for the Software.
OWNERSHIP OF SOFTWARE AND COPYRIGHTS. Title to all copies of the Software remains with Intel or its licensors or suppliers. The Software is copyrighted and protected by the laws of the United States and other countries, and international treaty provisions. Licensee may not remove any copyright notices from the Software. Except as otherwise expressly provided above, Intel grants no express or implied right under Intel patents, copyrights, trademarks, or other intellectual property rights. Transfer of the license terminates Licensee's right to use the Software.
DISCLAIMER OF WARRANTY. The Software is provided "AS IS" without warranty of any kind, EITHER EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION, WARRANTIES OF MERCHANTABILITY OR FITNESS FOR ANY PARTICULAR PURPOSE.
LIMITATION OF LIABILITY. NEITHER INTEL NOR ITS LICENSORS OR SUPPLIERS WILL BE LIABLE FOR ANY LOSS OF PROFITS, LOSS OF USE, INTERRUPTION OF BUSINESS, OR INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAG
ES OF ANY KIND WHETHER UNDER THIS AGREEMENT OR OTHERWISE, EVEN IF INTEL HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
LICENSE TO USE COMMENTS AND SUGGESTIONS. This Agreement does NOT obligate Licensee to provide Intel with comments or suggestions regarding the Software. However, if Licensee provides Intel with comments or suggestions for the modification, correction, improvement or enhancement of (a) the Software or (b) Intel products or processes that work with the Software, Licensee grants to Intel a non-exclusive, worldwide, perpetual, irrevocable, transferable, royalty-free license, with the right to sublicense, under Licensee's intellectual property rights, to incorporate or otherwise utilize those comments and suggestions.
TERMINATION OF THIS LICENSE. Intel or the sublicensor may terminate this license at any time if Licensee is in breach of any of its terms or conditions. Upon termination, Licensee will immediately destroy or return to Intel all copies of the Software.
THIRD PARTY BENEFICIARY. Intel is an intended beneficiary of the End User License Agreement and has the right to enforce all of its terms.
U.S. GOVERNMENT RESTRICTED RIGHTS. The Software is a commercial item (as defined in 48 C.F.R. 2.101) consisting of commercial computer software and commercial computer software documentation (as those terms are used in 48 C.F.R. 12.212), consistent with 48 C.F.R. 12.212 and 48 C.F.R 227.7202-1 through 227.7202-4. You will not provide the Software to the U.S. Government. Contractor or Manufacturer is Intel Corporation, 2200 Mission College Blvd., Santa Clara, CA 95054.
EXPORT LAWS. Licensee agrees that neither Licensee nor Licensee's subsidiaries will export/re-export the Software, directly or indirectly, to any country for which the U.S. Department of Commerce or any other agency or department of the U.S. Government or the foreign government from where it is shipping requires an export license, or other governmental approval, without first obtaining any such required license or approval. In the event the Software is exported from the U.S.A. or re-exported from a foreign destination by Licensee, Licensee will ensure that the distribution and export/re-export or import of the Software complies with all laws, regulations, orders, or other restrictions of the U.S. Export Administration Regulations and the appropriate foreign government.
APPLICABLE LAWS. This Agreement and any dispute arising out of or relating to it will be governed by the laws of the U.S.A. and Delaware, without regard to conflict of laws principles. The Parties to this Agreement exclude the application of the United Nations Convention on Contracts for the International Sale of Goods (1980). The state and federal courts sitting in Delaware, U.S.A. will have exclusive jurisdiction over any dispute arising out of or relating to this Agreement. The Parties consent to personal jurisdiction and venue in those courts. A Party that obtains a judgment against the other Party in the courts identified in this section may enforce that judgment in any court that has jurisdiction over the Parties.
Licensee's specific rights may vary from country to country.
Motherboard Layout
H670 PG Riptide
Ps2 Keyboard
/Mouse
USB 3.2 Gen1 T: USB3_0 B: USB3_1
12
ATX12V1
ATX12V2
3
45
6
CPU_FAN1
CPU_FAN2/WP
CHA_FAN3/WP
11
BOOT CPU
DRAM VGA
ADDR_LED3 ADDR_LED2
7 8
9 10
DP1 HDMI1
ATXPWR1
H670 PG
RIPTIDE DDR4_A1 (64 bit, 288-pin module) DDR4_A2 (64 bit, 288-pin module) DDR4_B1 (64 bit, 288-pin module) DDR4_B2 (64 bit, 288-pin module)
USB 3.2 Gen1 T: USB3_2 B: USB3_3
BIOS _FB1
USB 3.2 Gen2 T:USB32_TA_1 B: USB32_TC_1
USB 2.0 T: USB_0 B: USB_1
Top: RJ-45
Top: LINE IN
Center: FRONT
Bottom: MIC IN
M2_1
28
CHA_FAN2/WP
CT2
CT3
PCIE1
CHA_FAN1 /WP
1
F_USB32_TC_1
USB3_6_7
USB3_4_5
M2_WIFI1 M2_2
CT4
CT5
CT11
PCIE2
T B1
CMOS Battery
Intel H670
SATA3_2 SATA3_3
SATA3_0 SATA3_1
27
AUDIO CODEC
PCIE3
PCIE4
SUPER I/O
CT7
CT8
CT9
HD_AUDIO1 1
PCIE5
ADDR_LED1 1
RGB_LED1 1
USB_2_3 1
M2_3
RoHS
SPI_TPM_J1
CLRMOS1 1 1
SPK_PLED1
PANEL1 PLED PWRBTN
CHA_FAN4/WP
1
1
HDLED RESET
26
25
24
23
22 21
20 19 18
11
12 13 14
15 16 17
English
1
No. Description 1 8 pin 12V Power Connector (ATX12V1) 2 4 pin 12V Power Connector (ATX12V2) 3 CPU Fan Connector (CPU_FAN1) 4 2 x 288-pin DDR4 DIMM Slots (DDR4_A1, DDR4_B1) 5 2 x 288-pin DDR4 DIMM Slots (DDR4_A2, DDR4_B2) 6 CPU/Water Pump Fan Connector (CPU_FAN2/WP) 7 Addressable LED Header (ADDR_LED3) 8 Addressable LED Header (ADDR_LED2) 9 Post Status Checker (PSC) 10 Chassis/Water Pump Fan Connector (CHA_FAN3/WP) 11 ATX Power Connector (ATXPWR1) 12 USB 3.2 Gen1 Header (USB3_6_7) 13 Chassis/Water Pump Fan Connector (CHA_FAN1/WP) 14 Front Panel Type C USB 3.2 Gen2x2 Header (F_USB32_TC_1) 15 USB 3.2 Gen1 Header (USB3_4_5) 16 SATA3 Connectors (SATA3_2)(Upper), (SATA3_3)(Lower) 17 SATA3 Connectors (SATA3_0)(Upper), (SATA3_1)(Lower) 18 Chassis/Water Pump Fan Connector (CHA_FAN4/WP) 19 System Panel Header (PANEL1) 20 Power LED and Speaker Header (SPK_PLED1) 21 SPI TPM Header (SPI_TPM_J1) 22 Clear CMOS Jumper (CLRMOS1) 23 USB 2.0 Header (USB_2_3) 24 RGB LED Header (RGB_LED1) 25 Addressable LED Header (ADDR_LED1) 26 Front Panel Audio Header (HD_AUDIO1) 27 5-pin Thunderbolt AIC Connector (TB1) 28 Chassis/Water Pump Fan Connector (CHA_FAN2/WP)
2
English
I/O Panel
1
2
H670 PG Riptide
5
3
4
6
13
12
11
No. Description 1 PS/2 Mouse/Keyboard Port
2 DisplayPort 1.4
3
USB 3.2 Gen2 Type-A Port (USB32_TA_1)
4 LAN RJ-45 Port*
5 Line In (Light Blue)** 6 Front Speaker (Lime)** 7 Microphone (Pink)**
10
9
8
7
No. Description
8 USB 2.0 Ports (USB_0_1)
9
USB 3.2 Gen2 Type-C Port (USB32_TC_1)
10 BIOS Flashback Button
11 USB 3.2 Gen1 Ports (USB3_2_3)***
12 HDMI Port 13 USB 3.2 Gen1 Ports (USB3_0_1)
* There are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications. ACT/LINK LED
SPEED LED
LAN Port
Activity / Link LED
Status
Off Blinking On
Description
No Link Data Activity Link
Speed LED
Status Off Orange Green
Description
10Mbps connection 100Mbps connection 1Gbps connection
3
English
** Function of the Audio Ports in 7.1-channel Configuration:
Port Light Blue (Rear panel) Lime (Rear panel) Pink (Rear panel) Lime (Front panel)
*** USB3_2_3 are the Lightning Gaming Ports.
Function
Rear Speaker Out Front Speaker Out Central /Subwoofer Speaker Out Side Speaker Out
English
4
H670 PG Riptide
Chapter 1 Introduction
Thank you for purchasing ASRock H670 PG Riptide motherboard, a reliable motherboard produced under ASRock's consistently stringent quality control. It delivers excellent performance with robust design conforming to ASRock's commitment to quality and endurance.
Because the motherboard specifications and the BIOS software might be updated, the content of this documentation will be subject to change without notice. In case any modifications of this documentation occur, the updated version will be available on ASRock's website without further notice. If you require technical support related to this motherboard, please visit our website for specific information about the model you are using. You may find the latest VGA cards and CPU support list on ASRock's website as well. ASRock website http://www.asrock.com.
1.1 Package Contents
� ASRock H670 PG Riptide Motherboard (ATX Form Factor) � ASRock H670 PG Riptide Quick Installation Guide � ASRock H670 PG Riptide Support CD � 2 x Serial ATA (SATA) Data Cables (Optional) � 4 x Screws for M.2 Sockets (Optional) � 1 Standoff for M.2 Socket (Optional) � 1 x I/O Panel Shield
5
English
1.2 Specifications
Platform
� ATX Form Factor � Solid Capacitor design
CPU
� Supports 12th Gen Intel� CoreTM Processors (LGA1700) � 9 Power Phase design � Supports Intel� Hybrid Technology � Supports Intel� Turbo Boost Max 3.0 Technology
Chipset
� Intel� H670
Memory
� Dual Channel DDR4 Memory Technology � 4 x DDR4 DIMM Slots � Supports DDR4 non-ECC, un-buffered memory up to
5000+(OC)* * Supports DDR4 3200 natively. * Please refer to Memory Support List on ASRock's website for more information. (http://www.asrock.com/) � Supports ECC UDIMM memory modules (operate in non-
ECC mode) � Max. capacity of system memory: 128GB � Supports Intel� Extreme Memory Profile (XMP) 2.0
Expansion Slot
� 2 x PCIe x16 Slots (PCIE1/PCIE3: single at Gen5x16 (PCIE1); dual at Gen5x16 (PCIE1) / Gen4x4 (PCIE3))*
* Supports NVMe SSD as boot disks � 3 x PCIe Gen3x1 Slots � Supports AMD CrossFireTM � 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe
WiFi module and Intel� CNVi (Integrated WiFi/BT)
Graphics
� Intel� UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
� Intel� Xe Graphics Architecture (Gen 12)
English
6
H670 PG Riptide
� Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers
� Supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
� Supports DisplayPort 1.4 with DSC (compressed) max. resolution up to 8K (7680x4320) @ 60Hz / 5K (5120x3200) @ 120Hz
� Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible and DisplayPort 1.4 Ports
Audio
� 7.1 CH HD Audio (Realtek ALC897 Audio Codec) � Supports Surge Protection � Nahimic Audio
LAN
� Gigabit LAN 10/100/1000 Mb/s � Giga PHY Intel� I219V � Supports Wake-On-LAN � Supports Lightning/ESD Protection � Supports Energy Efficient Ethernet 802.3az � Supports UEFI PXE
Rear Panel I/O
� 3 x Antenna Mounting Points � 1 x PS/2 Mouse/Keyboard Port � 1 x HDMI Port � 1 x DisplayPort 1.4 � 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (ReDriver) (Supports
ESD Protection) � 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (ReDriver) (Supports
ESD Protection) � 4 x USB 3.2 Gen1 Ports (Support ESD Protection)
* USB3_2_3 are the Lightning Gaming Ports. � 2 x USB 2.0 Ports (Support ESD Protection) � 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED
LED) � 1 x BIOS Flashback Button � HD Audio Jacks: Line in / Front Speaker / Microphone
English
7
Storage
� 4 x SATA3 6.0 Gb/s Connectors � 1 x Hyper M.2 Socket (M2_1, Key M), supports type
2260/2280 PCIe Gen4x4 (64 Gb/s) mode* � 1 x Hyper M.2 Socket (M2_2, Key M), supports type
2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode* � 1 x Hyper M.2 Socket (M2_3, Key M), supports type
2260/2280/22110 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes* * Supports Intel� OptaneTM Technology (M2_2 and M2_3 only) * Supports Intel� Volume Management Device (VMD) * Supports NVMe SSD as boot disks * Supports ASRock U.2 Kit
RAID
� Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
� Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices
Connector
� 1 x SPI TPM Header � 1 x Power LED and Speaker Header � 1 x RGB LED Header * Supports in total up to 12V/3A, 36W LED Strip � 3 x Addressable LED Headers * Support in total up to 5V/3A, 15W LED Strip � 1 x CPU Fan Connector (4-pin) * The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. � 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan
Speed Control) * The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. � 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan
Speed Control) * The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. * CPU_FAN2/WP and CHA_FAN1~4/WP can auto detect if 3-pin or 4-pin fan is in use.
English
8
H670 PG Riptide
BIOS Feature
Hardware Monitor
OS Certifications
� 1 x 24 pin ATX Power Connector � 1 x 8 pin 12V Power Connector (Hi-Density Power
Connector) � 1 x 4 pin 12V Power Connector (Hi-Density Power
Connector) � 1 x Front Panel Audio Connector � 1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock
Thunderbolt 4 AIC Card) � 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports
ESD Protection) � 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
(ASMedia ASM1074 hub) (Supports ESD Protection) � 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)
(Supports ESD Protection)
� AMI UEFI Legal BIOS with multilingual GUI support � ACPI 6.0 Compliant wake up events � SMBIOS 2.7 Support � CPU Core/Cache, CPU GT, DRAM, VCCIN AUX, +1.05V
PROC, +1.8V PROC, +0.82V PCH , +1.05V PCH Voltage Multi-adjustment
� Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans
� Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans
� Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/ Water Pump Fans
� Voltage monitoring: CPU Vcore, PCH, DRAM, VCCIN AUX, +1.05V PROC, +1.8V PROC, +0.82V PCH, +12V, +5V, +3.3V
� Microsoft� Windows� 10 64-bit / 11 64-bit
� FCC, CE � ErP/EuP ready (ErP/EuP ready power supply is required)
English
9
* For detailed product information, please visit our website: http://www.asrock.com Please realize that there is a certain risk involved with overclocking, including adjusting the setting in the BIOS, applying Untied Overclocking Technology, or using third-party overclocking tools. Overclocking may affect your system's stability, or even cause damage to the components and devices of your system. It should be done at your own risk and expense. We are not responsible for possible damage caused by overclocking.
10
English
H670 PG Riptide
Chapter 2 Installation
This is an ATX form factor motherboard. Before you install the motherboard, study the configuration of your chassis to ensure that the motherboard fits into it.
Pre-installation Precautions
Take note of the following precautions before you install motherboard components or change any motherboard settings. � Make sure to unplug the power cord before installing or removing the motherboard
components. Failure to do so may cause physical injuries and damages to motherboard components. � In order to avoid damage from static electricity to the motherboard's components, NEVER place your motherboard directly on a carpet. Also remember to use a grounded wrist strap or touch a safety grounded object before you handle the components. � Hold components by the edges and do not touch the ICs. � Whenever you uninstall any components, place them on a grounded anti-static pad or in the bag that comes with the components. � When placing screws to secure the motherboard to the chassis, please do not overtighten the screws! Doing so may damage the motherboard.
11
English
2.1 Installing the CPU
1. Before you insert the 1700-Pin CPU into the socket, please check if the PnP cap is on the socket, if the CPU surface is unclean, or if there are any bent pins in the socket. Do not force to insert the CPU into the socket if above situation is found. Otherwise, the CPU will be seriously damaged.
2. Unplug all power cables before installing the CPU.
1
A B
2
3
English
12
H670 PG Riptide
4
5
6
7
English
13
Please save and replace the cover if the processor is removed. The cover must be placed if you wish to return the motherboard for after service.
14
English
2.2 Installing the CPU Fan and Heatsink
H670 PG Riptide
1
2
CPU_FAN
15
English
2.3 Installing Memory Modules (DIMM)
This motherboard provides four 288-pin DDR4 (Double Data Rate 4) DIMM slots, and supports Dual Channel Memory Technology.
1. For dual channel configuration, you always need to install identical (the same brand, speed, size and chip-type) DDR4 DIMM pairs.
2. It is unable to activate Dual Channel Memory Technology with only one or three memory module installed.
3. It is not allowed to install a DDR, DDR2 or DDR3 memory module into a DDR4 slot; otherwise, this motherboard and DIMM may be damaged.
Dual Channel Memory Configuration
Priority
1 2
DDR4_A1 Populated
DDR4_A2
Populated Populated
DDR4_B1 Populated
DDR4_B2
Populated Populated
The DIMM only fits in one correct orientation. It will cause permanent damage to the motherboard and the DIMM if you force the DIMM into the slot at incorrect orientation.
English
16
H670 PG Riptide 1 2
3 17
English
2.4 Expansion Slots (PCIe Slots)
There are 5 PCIe slots on the motherboard.
Before installing an expansion card, please make sure that the power supply is switched off or the power cord is unplugged. Please read the documentation of the expansion card and make necessary hardware settings for the card before you start the installation.
PCIe slots:
PCIE1 (PCIe 5.0 x16 slot) is used for PCIe x16 lane width graphics cards. PCIE2 (PCIe 3.0 x1 slot) is used for PCIe x1 lane width cards. PCIE3 (PCIe 4.0 x16 slot) is used for PCIe x4 lane width graphics cards. PCIE4 (PCIe 3.0 x1 slot) is used for PCIe x1 lane width cards. PCIE5 (PCIe 3.0 x1 slot) is used for PCIe x1 lane width cards.
PCIe Slot Configurations
Single Graphics Card
PCIE1 Gen5x16
PCIE3 N/A
Two Graphics Cards in CrossFireXTM Mode
Gen5x16
Gen4x4
For a better thermal environment, please connect a chassis fan to the motherboard's chassis fan connector (CHA_FAN1/WP, CHA_FAN2/WP, CHA_FAN3/WP or CHA_FAN4/WP) when using multiple graphics cards.
English
18
H670 PG Riptide
2.5 Jumpers Setup
The illustration shows how jumpers are setup. When the jumper cap is placed on the pins, the jumper is "Short". If no jumper cap is placed on the pins, the jumper is "Open".
Clear CMOS Jumper (CLRMOS1) (see p.1, No. 22)
2-pin Jumper
CLRMOS1 allows you to clear the data in CMOS. To clear and reset the system parameters to default setup, please turn off the computer and unplug the power cord from the power supply. After waiting for 15 seconds, use a jumper cap to short the pins on CLRMOS1 for 5 seconds. However, please do not clear the CMOS right after you update the BIOS. If you need to clear the CMOS when you just finish updating the BIOS, you must boot up the system first, and then shut it down before you do the clear-CMOS action. Please be noted that the password, date, time, and user default profile will be cleared only if the CMOS battery is removed. Please remember toremove the jumper cap after clearing the CMOS.
English
19
2.6 Onboard Headers and Connectors
Onboard headers and connectors are NOT jumpers. Do NOT place jumper caps over these headers and connectors. Placing jumper caps over the headers and connectors will cause permanent damage to the motherboard.
System Panel Header (9-pin PANEL1) (see p.1, No. 19)
PLED+ PLEDPWRBTN# GND
1 GND
RESET# GND HDLEDHDLED+
Connect the power button, reset button and system status indicator on the chassis to this header according to the pin assignments below. Note the positive and negative pins before connecting the cables.
PWRBTN (Power Button): Connect to the power button on the chassis front panel. You may configure the way to turn off your system using the power button.
RESET (Reset Button): Connect to the reset button on the chassis front panel. Press the reset button to restart the computer if the computer freezes and fails to perform a normal restart.
PLED (System Power LED): Connect to the power status indicator on the chassis front panel. The LED is on when the system is operating. The LED keeps blinking when the system is in S1/S3 sleep state. The LED is off when the system is in S4 sleep state or powered off (S5).
HDLED (Hard Drive Activity LED): Connect to the hard drive activity LED on the chassis front panel. The LED is on when the hard drive is reading or writing data.
The front panel design may differ by chassis. A front panel module mainly consists of power button, reset button, power LED, hard drive activity LED, speaker and etc. When connecting your chassis front panel module to this header, make sure the wire assignments and the pin assignments are matched correctly.
English
Power LED and Speaker Header (7-pin SPK_PLED1) (see p.1, No. 20)
20
SPEAKER DUMMY DUMMY +5V
1
PLED+ PLED+ PLED-
Please connect the chassis power LED and the chassis speaker to this header.
H670 PG Riptide
Serial ATA3 Connectors Right-Angle: (SATA3_0: see p.1, No. 17)(Upper) (SATA3_1: see p.1, No. 17)(Lower) (SATA3_2: see p.1, No. 16)(Upper) (SATA3_3: see p.1, No. 16)(Lower)
SATA3_0 SATA3_2 SATA3_1 SATA3_3
These four SATA3 connectors support SATA data cables for internal storage devices with up to 6.0 Gb/s data transfer rate.
USB 2.0 Header (9-pin USB_2_3) (see p.1, No. 23)
USB_PWR PP+ GND DUMMY
1 GND
P+ PUSB_PWR
There is a USB 2.0 header on this motherboard. This USB 2.0 header can support two ports.
USB 3.2 Gen1 Headers Vertical: (19-pin USB3_6_7) (see p.1, No. 12)
Right-Angle: (19-pin USB3_4_5) (see p.1, No. 15)
Vbus IntA_PA_SSRXIntA_PA_SSRX+
GND IntA_PA_SSTXIntA_PA_SSTX+
GND IntA_PA_DIntA_PA_D+
Vbus IntA_PB_SSRXIntA_PB_SSRX+ GND IntA_PB_SSTXIntA_PB_SSTX+ GND IntA_PB_DIntA_PB_D+ Dummy 1
There are two headers on this motherboard. Each USB 3.2 Gen1 header can support two ports.
1 Dummy IntA_PB_D+ IntA_PB_D-
GND IntA_PB_SSTX+ IntA_PB_SSTX-
GND IntA_PB_SSRX+ IntA_PB_SSRX-
Vbus
IntA_PA_D+ IntA_PA_DGND IntA_PA_SSTX+ IntA_PA_SSTXGND IntA_PA_SSRX+ IntA_PA_SSRX-
Vbus
Front Panel Type C USB 3.2 Gen2x2 Header (20-pin F_USB32_TC_1) (see p.1, No. 14)
There is one Front Panel Type
C USB 3.2 Gen2x2 Header
on this motherboard. This
header is used for connecting
a USB 3.2 Gen2x2 module
USB Type-C Cable
for additional USB 3.2 Gen2x2 ports.
21
English
Front Panel Audio Header (9-pin HD_AUDIO1) (see p.1, No. 26)
GND PRESENCE# MIC_RET OUT_RET
1 OUT2_L
J_SENSE OUT2_R MIC2_R MIC2_L
This header is for connecting audio devices to the front audio panel.
1. High Definition Audio supports Jack Sensing, but the panel wire on the chassis must support HDA to function correctly. Please follow the instructions in our manual and chassis manual to install your system.
2. If you use an AC'97 audio panel, please install it to the front panel audio header by the steps below: A. Connect Mic_IN (MIC) to MIC2_L. B. Connect Audio_R (RIN) to OUT2_R and Audio_L (LIN) to OUT2_L. C. Connect Ground (GND) to Ground (GND). D. MIC_RET and OUT_RET are for the HD audio panel only. You don't need to connect them for the AC'97 audio panel. E. To activate the front mic, go to the "FrontMic" Tab in the Realtek Control panel and adjust "Recording Volume".
Chassis/Water Pump Fan Connectors (4-pin CHA_FAN1/WP) (see p.1, No. 13) (4-pin CHA_FAN2/WP) (see p.1, No. 28) (4-pin CHA_FAN3/WP) (see p.1, No. 10) (4-pin CHA_FAN4/WP) (see p.1, No. 18)
4 3 21
FAN_SPEED_CONTROL CHA_FAN_SPEED FAN_VOLTAGE GND
This motherboard provides four 4-Pin water cooling chassis fan connectors. If you plan to connect a 3-Pin chassis water cooler fan, please connect it to Pin 1-3.
CPU Fan Connector (4-pin CPU_FAN1) (see p.1, No. 3)
FAN_SPEED_CONTROL CPU_FAN_SPEED +12V GND
1 2 34
This motherboard provides a 4-Pin CPU fan (Quiet Fan) connector. If you plan to connect a 3-Pin CPU fan, please connect it to Pin 1-3.
English
22
H670 PG Riptide
CPU/Water Pump Fan Connector (4-pin CPU_FAN2/WP) (see p.1, No. 6)
4 3 21
GND FAN_VOLTAGE CPU_FAN_SPEED FAN_SPEED_CONTROL
This motherboard provides a 4-Pin water cooling CPU fan connector. If you plan to connect a 3-Pin CPU water cooler fan, please connect it to Pin 1-3.
ATX Power Connector (24-pin ATXPWR1) (see p.1, No. 11)
ATX 12V Power Connector (8-pin ATX12V1) (see p.1, No. 1)
12
24
1
13
8
5
4
1
This motherboard provides a 24-pin ATX power connector. To use a 20-pin ATX power supply, please plug it along Pin 1 and Pin 13.
This motherboard provides an 8-pin ATX 12V power connector. To use a 4-pin ATX power supply, please plug it along Pin 1 and Pin 5.
*Warning: Please make sure that the power cable connected is for the CPU and not the graphics card. Do not plug the PCIe power cable to this connector.
ATX 12V Power Connector (4-pin ATX12V2) (see p.1, No. 2)
Please connect an ATX 12V power supply to this connector.
*The power supply plug fits into this connector in only one orientation.
*Connecting an ATX 12V 4-pin cable to ATX12V2 is optional.
*For advanced overclocking
we suggest using this
connector together with
ATX12V1.
23
English
SPI TPM Header (13-pin SPI_TPM_J1) (see p.1, No. 21)
SPI_DQ3 SPI_PWR Dummy CLK SPI_MOSI RST# TPM_PIRQ
1
SPI_TPM_CS# GND RSMRST# SPI_MISO SPI_CS0 SPI_DQ2
This connector supports SPI Trusted Platform Module (TPM) system, which can securely store keys, digital certificates, passwords, and data. A TPM system also helps enhance network security, protects digital identities, and ensures platform integrity.
Thunderbolt AIC Connector (5-pin TB1) (see p.1, No. 27)
RGB LED Header (4-pin RGB_LED1) (see p.1, No. 24)
Addressable LED Headers (3-pin ADDR_LED1) (see p.1, No. 25)
(3-pin ADDR_LED2) (see p.1, No. 8) (3-pin ADDR_LED3) (see p.1, No. 7) 24
1 +12V G R B
1 GND
DO_ADDR VOUT
GND DO_ADDR VOUT 1
Please connect a ThunderboltTM add-in card (AIC) to this connector via the GPIO cable. *Please install the ThunderboltTM AIC card to PCIE3 (default slot).
This RGB header is used to connect RGB LED extension cable which allow users to choose from various LED lighting effects. Caution: Never install the RGB LED cable in the wrong orientation; otherwise, the cable may be damaged. *Please refer to page 40 for further instructions on this header.
These headers are used to connect Addressable LED extension cables which allow users to choose from various LED lighting effects. Caution: Never install the Addressable LED cable in the wrong orientation; otherwise, the cable may be damaged. *Please refer to page 41 for further instructions on this header.
English
H670 PG Riptide
2.7 Smart Button
The motherboard has a smart button: BIOS Flashback Button, allowing users to flash the BIOS.
BIOS Flashback Button (BIOS_FB1) (see p.3, No. 10)
BIOS Flashback Switch allows users to flash the BIOS.
ASRock BIOS Flashback feature allows you to update BIOS without powering on the system, even without CPU.
Before using the BIOS Flashback function, please suspend BitLocker and any encryption or security relying on the TPM. Make sure that you have already stored and backup-ed the recovery key. If the recovery key is missing while encryption is active, the data will stay encrypted and the system will not boot into the operating system. It is recommended to disable fTPM before updating the BIOS. Otherwise an unpredictable failure may occur.
To use the USB BIOS Flashback function, Please follow the steps below.
1. Download the latest BIOS file from ASRock's website : http://www.asrock.com. 2. Copy the BIOS file to your USB flash drive. Please make sure the file system of
your USB flash drive must be FAT32. 3. Extract BIOS file from the zip file. 4. Rename the file to "creative.rom" and save it to the root directory of X: USB flash drive. 5. Plug the 24 pin power connector to the motherboard. Then turn on the power supply's AC
switch. *There is no need to power on the system. 6. Then plug your USB drive to the USB BIOS Flashback port. 7. Press the BIOS Flashback Switch for about three seconds. Then the LED starts to blink. 8. Wait until the LED stops blinking, indicating that BIOS flashing has been completed. *If the LED light turns solid green, this means that the BIOS Flashback is not operating properly. Please make sure that you plug the USB drive to the USB BIOS Flashback port. **If the LED does not light up at all then please disconnect power from the system and remove/ disconnect the CMOS battery from the motherboard for several minutes. Reconnect power and battery and try again.
English
USB BIOS Flashback port 25
2.8 Post Status Checker
Post Status Checker (PSC) diagnoses the computer when users power on the machine. It emits a red light to indicate whether the CPU, memory, VGA or storage is dysfunctional. The lights go off if the four mentioned above are functioning normally.
26
English
H670 PG Riptide
2.9 M.2 WiFi/BT PCIe WiFi Module and Intel� CNVi (Integrated WiFi/BT) Installation Guide
The M.2, also known as the Next Generation Form Factor (NGFF), is a small size and versatile card edge connector that aims to replace mPCIe and mSATA. The M.2 Socket (Key E) supports type 2230 WiFi/BT PCIe WiFi module and Intel� CNVi (Integrated WiFi/BT). * The M.2 socket does not support SATA M.2 SSDs.
Before you install Intel� Integrated Connectivity (CNVi) module, be sure to turn off the AC power.
Installing the WiFi/BT module or Intel� CNVi (Integrated WiFi/BT)
Step 1 Prepare a type 2230 WiFi/BT PCIe WiFi module or Intel� CNVi (Integrated WiFi/BT) and the screw.
PCB Length: 3cm Module Type: Type2230
Step 2 Find the nut location to be used.
A
English
27
A
A
20o
A
Step 3 Gently insert the WiFi/BT PCIe WiFi module or Intel� CNVi (Integrated WiFi/BT) into the M.2 slot. Please be aware that the module only fits in one orientation.
Step 4 Tighten the screw with a screwdriver to secure the module into place. Please do not overtighten the screw as this might damage the module.
English
28
H670 PG Riptide
2.10 M.2_SSD (NGFF) Module Installation Guide (M2_1)
The M.2, also known as the Next Generation Form Factor (NGFF), is a small size and versatile card edge connector that aims to replace mPCIe and mSATA. The Hyper M.2 Socket (M2_1, Key M) supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode.
Installing the M.2_SSD (NGFF) Module
Step 1 Prepare a M.2_SSD (NGFF) module and the screw.
2
Step 2
1
Depending on the PCB type and
length of your M.2_SSD (NGFF)
module, find the corresponding nut
location to be used.
B
A
No. Nut Location PCB Length Module Type
1 A 6cm Type 2260
2 B 8cm Type 2280
English
29
1
2
Step 3 1
Depending on the PCB type and length of your M.2_SSD (NGFF) module, find the corresponding nut location to be used.
B
A
B
A
20o
B
NUT2
NUT1
Step 4 Prepare the M.2 standoff that comes with the package. Then hand tighten the standoff into the desired nut location on the motherboard. Align and gently insert the M.2 (NGFF) SSD module into the M.2 slot. Please be aware that the M.2 (NGFF) SSD module only fits in one orientation.
Step 5 Tighten the screw that come with the package with a screwdriver to secure the module into place.
30
English
H670 PG Riptide
Step 6
2 Tighten the screw with a screwdriver
to secure the M.2 heatsink into place.
Please do not overtighten the screw
2 1
as this might damage the module and M.2 heatsink.
English
31
M.2_SSD (NGFF) Module Support List (M2_1)
Vendor ADATA ADATA ADATA ADATA ADATA Apacer Corsair Intel Intel Kingston Kingston OCZ PATRIOT Plextor Plextor Plextor Plextor Plextor Plextor Samsung Samsung Samsung Samsung Samsung Samsung Samsung Samsung Samsung SanDisk SanDisk TEAM TEAM WD WD
Interface PCIe3 x4 PCIe3 x4 PCIe3 x4 PCIe3 x4 PCIe3 x4 PCIe3 x4 PCIe3 x4 PCIe3 x4 PCIe3 x4 PCIe3 x4 PCIe2 x4 PCIe3 x4 PCIe3 x4 PCIe3 x4 PCIe3 x4 PCIe3 x4 PCIe3 x4 PCIe PCIe PCIe3 x4 PCIe3 x4 PCIe3 x4 PCIe3 x4 PCIe3 x4 PCIe3 x4 PCIe3 x4 PCIe3 x4 PCIe x4 PCIe PCIe PCIe3 x4 PCIe3 x4 PCIe3 x4 PCIe3 x4
P/N ASX7000NP-128GT-C ASX8000NP-256GM-C ASX7000NP-256GT-C ASX8000NP-512GM-C ASX7000NP-512GT-C AP240GZ280 CSSD-F240GBMP500 SSDPEKKF256G7 SSDPEKKF512G7 SKC1000/480G SH2280S3/480G RVD400 -M2280-512G (NVME) PH240GPM280SSDR NVME PX-128M8PeG PX-1TM8PeG PX-256M8PeG PX-512M8PeG PX-G256M6e PX-G512M6e SM961 MZVPW128HEGM (NVM) PM961 MZVLW128HEGR (NVME) 960 EVO (MZ-V6E250) (NVME) 960 EVO (MZ-V6E250BW) (NVME) SM951 (NVME) SM951 (MZHPV256HDGL) SM951 (MZHPV512HDGL) SM951 (NVME) XP941-512G (MZHPU512HCGL) SD6PP4M-128G SD6PP4M-256G TM8FP2240G0C101 TM8FP2480GC110 WDS256G1X0C-00ENX0 (NVME) WDS512G1X0C-00ENX0 (NVME)
For the latest updates of M.2_SSD (NFGG) module support list, please visit our website for details: http://www.asrock.com
English
32
H670 PG Riptide
2.11 M.2_SSD (NGFF) Module Installation Guide (M2_2)
The M.2, also known as the Next Generation Form Factor (NGFF), is a small size and versatile card edge connector that aims to replace mPCIe and mSATA. The Hyper M.2 Socket (M2_2, Key M) supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode.
Installing the M.2_SSD (NGFF) Module
Step 1 Prepare a M.2_SSD (NGFF) module and the screw.
3 2
1
Step 2
Depending on the PCB type and length of your M.2_SSD (NGFF) module, find the corresponding nut location to be used.
C
B
A
No. Nut Location PCB Length Module Type
1 A 4.2cm Type2242
2 B 6cm Type2260
3 C 8cm Type 2280
English
33
English
C
B
A
C
B
A
C
B
A
C
B
A
20o
34
C
NUT2
NUT1
Step 3 Move the standoff based on the module type and length. The standoff is placed at the nut location A by default. Skip Step 3 and 4 and go straight to Step 5 if you are going to use the default nut. Otherwise, release the standoff by hand.
Step 4 Peel off the yellow protective film on the nut to be used. Hand tighten the standoff into the desired nut location on the motherboard.
Step 5 Gently insert the M.2 (NGFF) SSD module into the M.2 slot. Please be aware that the M.2 (NGFF) SSD module only fits in one orientation.
Step 6 Tighten the screw with a screwdriver to secure the module into place. Please do not overtighten the screw as this might damage the module.
H670 PG Riptide
M.2_SSD (NGFF) Module Support List (M2_2)
Vendor ADATA ADATA ADATA ADATA ADATA Apacer Corsair Intel Intel Kingston Kingston OCZ PATRIOT Plextor Plextor Plextor Plextor Plextor Plextor Samsung Samsung Samsung Samsung Samsung Samsung Samsung Samsung Samsung SanDisk SanDisk TEAM TEAM WD WD
Interface PCIe3 x4 PCIe3 x4 PCIe3 x4 PCIe3 x4 PCIe3 x4 PCIe3 x4 PCIe3 x4 PCIe3 x4 PCIe3 x4 PCIe3 x4 PCIe2 x4 PCIe3 x4 PCIe3 x4 PCIe3 x4 PCIe3 x4 PCIe3 x4 PCIe3 x4 PCIe PCIe PCIe3 x4 PCIe3 x4 PCIe3 x4 PCIe3 x4 PCIe3 x4 PCIe3 x4 PCIe3 x4 PCIe3 x4 PCIe x4 PCIe PCIe PCIe3 x4 PCIe3 x4 PCIe3 x4 PCIe3 x4
P/N ASX7000NP-128GT-C ASX8000NP-256GM-C ASX7000NP-256GT-C ASX8000NP-512GM-C ASX7000NP-512GT-C AP240GZ280 CSSD-F240GBMP500 SSDPEKKF256G7 SSDPEKKF512G7 SKC1000/480G SH2280S3/480G RVD400 -M2280-512G (NVME) PH240GPM280SSDR NVME PX-128M8PeG PX-1TM8PeG PX-256M8PeG PX-512M8PeG PX-G256M6e PX-G512M6e SM961 MZVPW128HEGM (NVM) PM961 MZVLW128HEGR (NVME) 960 EVO (MZ-V6E250) (NVME) 960 EVO (MZ-V6E250BW) (NVME) SM951 (NVME) SM951 (MZHPV256HDGL) SM951 (MZHPV512HDGL) SM951 (NVME) XP941-512G (MZHPU512HCGL) SD6PP4M-128G SD6PP4M-256G TM8FP2240G0C101 TM8FP2480GC110 WDS256G1X0C-00ENX0 (NVME) WDS512G1X0C-00ENX0 (NVME)
For the latest updates of M.2_SSD (NFGG) module support list, please visit our website for details: http://www.asrock.com
English
35
2.12 M.2_SSD (NGFF) Module Installation Guide (M2_3)
The M.2, also known as the Next Generation Form Factor (NGFF), is a small size and versatile card edge connector that aims to replace mPCIe and mSATA. The Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280/22110 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes.
Installing the M.2_SSD (NGFF) Module
Step 1 Prepare a M.2_SSD (NGFF) module and the screw.
3 2 1
Step 2
Depending on the PCB type and length of your M.2_SSD (NGFF) module, find the corresponding nut location to be used.
C
B
A
No. Nut Location PCB Length Module Type
1 A 6cm Type 2260
2 B 8cm Type 2280
3 C 11cm Type 22110
English
36
C
B
A
C
B
A
C
B
A
H670 PG Riptide
Step 3 Move the standoff based on the module type and length. The standoff is placed at the nut location C by default. Skip Step 3 and 4 and go straight to Step 5 if you are going to use the default nut. Otherwise, release the standoff by hand.
Step 4 Peel off the yellow protective film on the nut to be used. Hand tighten the standoff into the desired nut location on the motherboard.
Step 5 Gently insert the M.2 (NGFF) SSD module into the M.2 slot. Please be aware that the M.2 (NGFF) SSD module only fits in one orientation.
English
C
B
A
20o
C
NUT2
NUT1
Step 6 Tighten the screw with a screwdriver to secure the module into place. Please do not overtighten the screw as this might damage the module.
37
M.2_SSD (NGFF) Module Support List (M2_3)
Vendor ADATA ADATA ADATA ADATA ADATA ADATA ADATA ADATA ADATA ADATA Apacer Corsair Crucial Crucial Intel Intel Intel Kingston Kingston Kingston OCZ PATRIOT Plextor Plextor Plextor Plextor Plextor Plextor Samsung Samsung Samsung Samsung Samsung Samsung Samsung Samsung Samsung SanDisk SanDisk Team Team Team
Interface SATA3 SATA3 SATA3 SATA3 SATA3 PCIe3 x4 PCIe3 x4 PCIe3 x4 PCIe3 x4 PCIe3 x4 PCIe3 x4 PCIe3 x4 SATA3 SATA3 SATA3 PCIe3 x4 PCIe3 x4 SATA3 PCIe3 x4 PCIe2 x4 PCIe3 x4 PCIe3 x4 PCIe3 x4 PCIe3 x4 PCIe3 x4 PCIe3 x4 PCIe PCIe PCIe3 x4 PCIe3 x4 PCIe3 x4 PCIe3 x4 PCIe3 x4 PCIe3 x4 PCIe3 x4 PCIe3 x4 PCIe x4 PCIe PCIe SATA3 SATA3 SATA3
P/N AXNS330E-32GM-B AXNS381E-128GM-B AXNS381E-256GM-B ASU800NS38-256GT-C ASU800NS38-512GT-C ASX7000NP-128GT-C ASX8000NP-256GM-C ASX7000NP-256GT-C ASX8000NP-512GM-C ASX7000NP-512GT-C AP240GZ280 CSSD-F240GBMP500 CT120M500SSD4 CT240M500SSD4 Intel SSDSCKGW080A401/80G SSDPEKKF256G7 SSDPEKKF512G7 SM2280S3 SKC1000/480G SH2280S3/480G RVD400 -M2280-512G (NVME) PH240GPM280SSDR NVME PX-128M8PeG PX-1TM8PeG PX-256M8PeG PX-512M8PeG PX-G256M6e PX-G512M6e SM961 MZVPW128HEGM (NVM) PM961 MZVLW128HEGR (NVME) 960 EVO (MZ-V6E250) (NVME) 960 EVO (MZ-V6E250BW) (NVME) SM951 (NVME) SM951 (MZHPV256HDGL) SM951 (MZHPV512HDGL) SM951 (NVME) XP941-512G (MZHPU512HCGL) SD6PP4M-128G SD6PP4M-256G TM4PS4128GMC105 TM4PS4256GMC105 TM8PS4128GMC105
English
38
H670 PG Riptide
Team TEAM TEAM Transcend Transcend Transcend V-Color V-Color V-Color V-Color WD WD WD WD
SATA3 PCIe3 x4 PCIe3 x4 SATA3 SATA3 SATA3 SATA3 SATA3 SATA3 SATA3 SATA3 SATA3 PCIe3 x4 PCIe3 x4
TM8PS4256GMC105 TM8FP2240G0C101 TM8FP2480GC110 TS256GMTS400 TS512GMTS600 TS512GMTS800 VLM100-120G-2280B-RD VLM100-240G-2280RGB VSM100-240G-2280 VLM100-240G-2280B-RD WDS100T1B0B-00AS40 WDS240G1G0B-00RC30 WDS256G1X0C-00ENX0 (NVME) WDS512G1X0C-00ENX0 (NVME)
For the latest updates of M.2_SSD (NFGG) module support list, please visit our website for details: http://www.asrock.com
English
39
2.13 ASRock Polychrome SYNC
ASRock Polychrome SYNC is a lighting control utility specifically designed for unique individuals with sophisticated tastes to build their own stylish colorful lighting system. Simply by connecting the LED strip, you can customize various lighting schemes and patterns, including Static, Breathing, Strobe, Cycling, Music, Wave and more.
Connecting the LED Strip
Connect your RGB LED strip to the RGB LED Header (RGB_LED1) on the motherboard.
RGB_LED1
1 +12V G R B
H670 PG RIPTIDE
1
B
R
12V G
1. Never install the RGB LED cable in the wrong orientation; otherwise, the cable may be damaged.
2. Before installing or removing your RGB LED cable, please power off your system and unplug the power cord from the power supply. Failure to do so may cause damages to motherboard components.
1. Please note that the RGB LED strips do not come with the package. 2. The RGB LED header supports standard 5050 RGB LED strip (12V/G/R/B), with a
maximum power rating of 3A (12V) and length within 2 meters.
40
English
H670 PG RIPTIDE
H670 PG Riptide
Connecting the Addressable RGB LED Strip
Connect your Addressable RGB LED strips to the Addressable LED Headers (ADDR_LED1 / ADDR_LED2 / ADDR_LED3) on the motherboard.
ADDR_LED2
GND DO_ADDR VOUT 1
ADDR_LED3
GND DO_ADDR VOUT 1
ADDR_LED1 1 1
GND DO_ADDR VOUT
1. Never install the RGB LED cable in the wrong orientation; otherwise, the cable may be damaged.
2. Before installing or removing your RGB LED cable, please power off your system and unplug the power cord from the power supply. Failure to do so may cause damages to motherboard components.
1. Please note that the RGB LED strips do not come with the package. 2. The RGB LED header supports WS2812B addressable RGB LED strip (5V/Data/
GND), with a maximum power rating of 3A (5V) and length within 2 meters.
41
English
ASRock Polychrome SYNC Utility
Now you can adjust the RGB LED color through the ASRock Polychrome SYNC Utility. Download this utility from the ASRock Live Update & APP Shop and start coloring your PC style your way!
Drag the tab to customize your preference.
Toggle on/off the RGB LED switch
Sync RGB LED effects for all LED regions of the motherboard
Select a RGB LED light effect from the drop-down menu.
English
42
H670 PG Riptide
1 Einleitung
Vielen Dank, dass Sie sich f�r das ASRock H670 PG Riptide entschieden haben � ein zuverl�ssiges Motherboard, das konsequent unter der strengen Qualit�tskontrolle von ASRock hergestellt wurde. Es liefert ausgezeichnete Leistung mit robustem Design, das ASRock Streben nach Qualit�t und Best�ndigkeit erf�llt.
Da die technischen Daten des Motherboards sowie die BIOS-Software aktualisiert werden k�nnen, kann der Inhalt dieser Dokumentation ohne Ank�ndigung ge�ndert werden. Falls diese Dokumentation irgendwelchen �nderungen unterliegt, wird die aktualisierte Version ohne weitere Hinweise auf der ASRock-Webseite zur Verf�gung gestellt. Sollten Sie technische Hilfe in Bezug auf dieses Motherboard ben�tigen, erhalten Sie auf unserer Webseite spezifischen Informationen �ber das von Ihnen verwendete Modell. Auch finden Sie eine aktuelle Liste unterst�tzter VGA-Karten und Prozessoren auf der ASRock-Webseite. ASRock-Webseite http://www.asrock.com.
1.1 Lieferumfang
� ASRock H670 PG Riptide-Motherboard (ATX-Formfaktor) � ASRock H670 PG Riptide-Schnellinstallationsanleitung � ASRock H670 PG Riptide-Support-CD � 2 x Serial-ATA- (SATA) Datenkabel (optional) � 4 x Schrauben f�r M.2-Sockel (optional) � 1 x Abstandhalter f�r M.2-Sockel (optional) � 1 x E/A-Blendenabschirmung
43
Deutsch
1.2 Technische Daten
Plattform
� ATX-Formfaktor � Feststoffkondensator-Design
Prozessor
� Unterst�tzt Intel� CoreTM-Prozessoren der 12. Gen. (LGA1700) � 9-Leistungsphasendesign � Unterst�tzt Intel� Hybrid-Technologie � Unterst�tzt Intel� Turbo Boost Max Technology 3.0
Chipsatz
� Intel� H670
Speicher
� Dualkanal-DDR4-Speichertechnologie � 4 x DDR4-DIMM-Steckpl�tze � Unterst�tzt ungepufferten DDR4-Non-ECC-Speicher bis
5000+(OC)* * Unterst�tzt nativ DDR4 3200. * Weitere Informationen finden Sie in der Speicherkompatibilit�tsliste auf der ASRock-Webseite. (http://www.asrock.com/) � Unterst�tzt ECC-UDIMM-Speichermodule (Betrieb im non-ECC-
Modus) � Systemspeicher, max. Kapazit�t: 128GB � Unterst�tzt Intel� Extreme Memory Profile (XMP) 2.0
Erweiterungs- � 2 x PCIe-x16-Steckpl�tze (PCIE1/PCIE3: einzeln bei Gen5x16
steckplatz
(PCIE1); doppelt bei Gen5x16 (PCIE1) / Gen4x4 (PCIE3))*
* Unterst�tzt NVMe-SSD als Bootplatte
� 3 x PCIe-Gen3x1-Steckpl�tze
� Unterst�tzt AMD CrossFireTM
� 1 x M.2-Sockel (Key E), unterst�tzt Typ-2230-WLAN-/-BT-PCIe-
WLAN-Modul und Intel� CNVi (WLAN/BT integriert)
Grafikkarte
� Integrierte Intel� UHD Graphics-Visualisierung und VGAAusg�nge k�nnen nur mit Prozessoren unterst�tzt werden, die GPU-integriert sind.
� Intel� Xe-Grafikarchitektur (12. Gen.)
Deutsch
44
H670 PG Riptide
� Dualer Grafikkartenausgang: Unterst�tzt HDMI- und DisplayPort 1.4-Ports durch unabh�ngige Monitor-Controller
� Unterst�tzt HDMI 2.1 TMDS, kompatibel mit max. Aufl�sung bis 4K x 2K (4096 x 2160) bei 60 Hz
� Unterst�tzt DisplayPort 1.4 mit DSC (komprimiert), max. Aufl�sung bis 8K (7680 x 4320) bei 60Hz / 5K (5120 x 3200) bei 120 Hz
� Unterst�tzt HDCP 2.3 mit HDMI 2.1 TMDS kompatibel und DisplayPort-1.4-Ports
Audio
� 7.1-Kanal-HD-Audio (Realtek ALC897-Audiocodec) � Unterst�tzt �berspannungsschutz � Nahimic Audio
LAN
� Gigabit LAN 10/100/1000 Mb/s � Giga PHY Intel� I219V � Unterst�tzt Wake-On-LAN � Unterst�tzt Schutz gegen Blitzschlag/elektrostatische Entladung � Unterst�tzt energieeffizientes Ethernet 802.3az � Unterst�tzt UEFI PXE
R�ckblende, E/A
� 3 x Antennenmontagepunkte � 1 x PS/2-Maus-/Tastaturanschluss � 1 x HDMI-Port � 1 x DisplayPort 1.4 � 1 x USB-3.2-Gen2-Type-A-Port (10 Gb/s) (ReDriver) (unterst�tzt
Schutz gegen elektrostatische Entladung) � 1 x USB-3.2-Gen2-Type-C-Port (10 Gb/s) (ReDriver) (unterst�tzt
Schutz gegen elektrostatische Entladung) � 4 x USB-3.2-Gen1-Ports (unterst�tzt Schutz gegen elektrostatische
Entladung) * USB3_2_3 sind die Lightning-Gaming-Ports. � 2 x USB-2.0-Ports (unterst�tzt Schutz gegen elektrostatische
Entladung) � 1 x RJ-45-LAN-Port mit LED (Aktivit�t/Verbindung-LED und
Geschwindigkeit-LED) � 1 x BIOS-Flashback-Taste � HD-Audioanschl�sse: Line-in / Vorderer Lautsprecher / Mikrofon
Deutsch
45
Speicher
RAID Anschluss
� 4 x SATA-III-6,0-Gb/s-Anschl�sse � 1 x Hyper-M.2-Sockel (M2_1, Key M), unterst�tzt Typ-2260/2280-
PCIe-Gen4x4-Modus (64 Gb/s)* � 1 x Hyper-M.2-Sockel (M2_2, Key M), unterst�tzt Typ-
2242/2260/2280-PCIe-Gen4x4-Modus (64 Gb/s)* � 1 x Hyper-M.2-Sockel (M2_3, Key M), unterst�tzt Typ-
2260/2280/22110-SATA-III-6,0-Gb/s- und PCIe-Gen4x4(64 Gb/s) Modi** * Unterst�tzt Intel� OptaneTM-Technologie (nur M2_2 und M2_3) * Unterst�tzt Intel� Volume Management Device (VMD) * Unterst�tzt NVMe-SSD als Bootplatte * Unterst�tzt ASRock U.2-Kit
� Unterst�tzt RAID 0, RAID 1, RAID 5 und RAID 10 f�r SATASpeicherger�te
� Unterst�tzt RAID 0, RAID 1 und RAID 5 f�r M.2-NVMeSpeicherger�te
� 1 x SPI-TPM-Stiftleiste � 1 x Betrieb-LED- und Lautsprecher-Stiftleiste � 1 x RGB-LED-Stiftleiste * Unterst�tzt insgesamt bis zu 12 V/3 A, 36-W-LED-Streifen � 3 x Adressierbare-LED-Stiftleiste * Unterst�tzen insgesamt bis zu 5 V/3 A, 15-W-LED-Streifen � 1 x CPU-L�fteranschluss (4-polig) * Der CPU-L�fteranschluss unterst�tzt einen CPU-L�fter mit einer maximalen L�fterleistung von 1 A (12 W). � 1 x Anschluss f�r CPU-/Wasserpumpenl�fter (4-polig)
(intelligente L�ftergeschwindigkeitssteuerung) * Der CPU-/Wasserpumpenl�fter unterst�tzt einen Wasserk�hlerl�fter mit einer maximalen L�fterleistung von 2 A (24 W). � 4 x Anschlusse f�r Geh�use-/Wasserpumpenl�fter (4-polig)
(intelligente L�ftergeschwindigkeitssteuerung) * Der Geh�use-/Wasserpumpenl�fter unterst�tzt einen Wasserk�hlerl�fter mit einer maximalen L�fterleistung von 2 A (24 W). * CPU_FAN2/WP und CHA_FAN1~4/WP k�nnen automatisch erkennen, ob ein 3- oder 4-poliger L�fter verwendet wird.
Deutsch
46
H670 PG Riptide
� 1 x 24-poliger ATX-Netzanschluss � 1 x 8-poliger 12-V-Netzanschluss (hochdichter Netzanschluss) � 1 x 4-poliger 12-V-Netzanschluss (hochdichter Netzanschluss) � 1 x Audioanschluss an Frontblende � 1 x Thunderbolt Erweiterungskartenanschluss (5-polig)
(unterst�tzt ASRock Thunderbolt 4 AIC-Karten) � 1 x USB 2.0-Stiftleiste (unterst�tzt zwei USB 2.0-Ports)
(unterst�tzt Schutz gegen elektrostatische Entladung) � 2 x USB 3.2 Gen1-Stiftleiste (unterst�tzt vier USB 3.2 Gen1-
Ports) (ASMedia ASM1074-Hub) (unterst�tzt Schutz gegen elektrostatische Entladung) � 1 x USB-3.2-Gen2x2-Type-C-Stiftleiste an der Frontblende (20 Gb/s) (unterst�tzt Schutz gegen elektrostatische Entladung)
BIOSFunktion
� AMI-UEFI-Legal-BIOS mit Unterst�tzung mehrsprachiger grafischer Benutzerschnittstellen
� ACPI 6.0-konforme Aufweckereignisse � SMBIOS 2.7-Unterst�tzung � CPU-Core/Cache, CPU GT, DRAM, VCCIN AUX, +1,05
V PROC, +1,8 V PROC, +0,82 V PCH , +1,05 V PCH / Mehrfachspannungsanpassung
Hardware�berwachung
� L�ftertachometer: CPU-, CPU-/Wasserpumpen-, Geh�use-/ Wasserpumpenl�fter
� Lautloser L�fter (automatische Anpassung der Geh�usel�ftergeschwindigkeit durch CPU-Temperatur): CPU-, CPU-/Wasserpumpen-, Geh�use-/Wasserpumpenl�fter
� Mehrfachgeschwindigkeitssteuerung: CPU-, CPU-/ Wasserpumpen-, Geh�use-/Wasserpumpenl�fter
� Spannungs�berwachung: CPU Vcore, PCH, DRAM, VCCIN AUX, +1,05 V PROC, +1,8 V PROC, +0,82 V PCH, +12 V, +5 V, +3,3 V
Betriebssystem
� Microsoft� Windows� 10 64 Bit / 11 64 Bit
Zertifizierun- � FCC, CE
gen
� ErP/EuP ready (ErP/EuP ready-Netzteil erforderlich)
Deutsch
47
* Detaillierte Produktinformationen finden Sie auf unserer Webseite: http://www.asrock.com Bitte beachten Sie, dass mit einer �bertaktung, zu der die Anpassung von BIOS-Einstellungen, die Anwendung der Untied Overclocking Technology oder die Nutzung von �bertaktungswerkzeugen von Drittanbietern z�hlen, bestimmte Risiken verbunden sind. Eine �bertaktung kann sich auf die Stabilit�t Ihres Systems auswirken und sogar Komponenten und Ger�te Ihres Systems besch�digen. Sie sollte auf eigene Gefahr und eigene Kosten durchgef�hrt werden. Wir �bernehmen keine Verantwortung f�r m�gliche Sch�den, die durch eine �bertaktung verursacht wurden.
48
Deutsch
H670 PG Riptide
1.3 Jumpereinstellung
Die Abbildung zeigt, wie die Jumper eingestellt werden. Wenn die Jumper-Kappe auf den Kontakten angebracht ist, ist der Jumper ,,kurzgeschlossen". Wenn keine Jumper-Kappe auf den Kontakten angebracht ist, ist der Jumper ,,offen".
CMOS-l�schen-Jumper (CLRMOS1) (siehe S. 1, Nr. 22)
2-poliger Jumper
CLRMOS1 erm�glicht Ihnen die L�schung der Daten im CMOS. Zum L�schen und R�cksetzen der Systemparameter auf die Standardeinrichtung schalten Sie den Computer bitte ab und ziehen das Netzkabel aus der Steckdose. Warten Sie 15 Sekunde, schlie�en Sie dann die Kontakte an CLRMOS1 5 Sekunden lang mit einer Jumper-Kappe kurz. L�schen Sie den CMOS jedoch nicht direkt nach der BIOS-Aktualisierung. Falls Sie den CMOS direkt nach Abschluss der BIOS-Aktualisierung l�schen m�ssen, starten Sie das System zun�chst; fahren Sie es dann vor der CMOS-L�schung herunter. Bitte beachten Sie, dass Kennwort, Datum, Zeit und Benutzerstandardprofil nur gel�scht werden, wenn die CMOS-Batterie entfernt wird. Bitte denken Sie daran, die Jumper-Kappe nach der CMOSL�schung zu entfernen.
Deutsch
49
1.4 Integrierte Stiftleisten und Anschl�sse
Integrierte Stiftleisten und Anschl�sse sind KEINE Jumper. Bringen Sie KEINE Jumper-Kappen an diesen Stiftleisten und Anschl�ssen an. Durch Anbringen von Jumper-Kappen an diesen Stiftleisten und Anschl�ssen k�nnen Sie das Motherboard dauerhaft besch�digen.
Systemblende-Stiftleiste (9-polig, PANEL1) (siehe S. 1, Nr. 19)
PLED+ PLEDPWRBTN# GND
1 GND
RESET# GND HDLEDHDLED+
Verbinden Sie Ein-/Austaste, Reset-Taste und Systemstatusanzeige am Geh�use entsprechend der nachstehenden Pinbelegung mit dieser Stiftleiste. Beachten Sie vor Anschlie�en der Kabel die positiven und negativen Kontakte.
PWRBTN (Ein-/Austaste): Mit der Ein-/Austaste an der Frontblende des Geh�uses verbinden. Sie k�nnen die Abschaltung Ihres Systems �ber die Ein-/Austaste konfigurieren.
RESET (Reset-Taste): Mit der Reset-Taste an der Frontblende des Geh�uses verbinden. Starten Sie den Computer �ber die Reset-Taste neu, wenn er abst�rzt oder sich nicht normal neu starten l�sst.
PLED (Systembetriebs-LED): Mit der Betriebsstatusanzeige an der Frontblende des Geh�uses verbinden. Die LED leuchtet, wenn das System l�uft. Die LED blinkt, wenn sich das System im S1/S3-Ruhezustand befindet. Die LED ist aus, wenn sich das System im S4-Ruhezustand befindet oder ausgeschaltet ist (S5).
HDLED (Festplattenaktivit�ts-LED): Mit der Festplattenaktivit�ts-LED an der Frontblende des Geh�uses verbinden. Die LED leuchtet, wenn die Festplatte Daten liest oder schreibt.
Das Design der Frontblende kann je nach Geh�use variieren. Ein Frontblendenmodul besteht haupts�chlich aus Ein-/Austaste, Reset-Taste, Betrieb-LED, Festplattenaktivit�t-LED, Lautsprecher etc. Stellen Sie beim Anschlie�en Ihres Frontblendenmoduls an diese Stiftleiste sicher, dass Kabel- und Pinbelegung richtig abgestimmt sind.
Deutsch
Betrieb-LED- und Lautsprecher-Stiftleiste (7-polig, SPK_PLED1) (siehe S. 1, Nr. 20)
50
SPEAKER DUMMY DUMMY +5V
1
PLED+ PLED+ PLED-
Bitte verbinden Sie die BetriebLED des Geh�uses und den Geh�uselautsprecher mit dieser Stiftleiste.
H670 PG Riptide
Serial-ATA-IIIAnschl�sse Winkel rechts: (SATA3_0: siehe S. 1, Nr. 17) (obere) (SATA3_1: siehe S. 1, Nr. 17) (untere) (SATA3_2: siehe S. 1, Nr. 16) (obere) (SATA3_3: siehe S. 1, Nr. 16) (untere)
SATA3_0 SATA3_2 SATA3_1 SATA3_3
Diese vier SATA-III-Anschl�sse unterst�tzen SATA-Datenkabel f�r interne Speicherger�te mit einer Daten�bertragungsgeschwin digkeit bis 6,0 Gb/s.
USB 2.0-Stiftleiste (9-polig, USB_2_3) (siehe S. 1, Nr. 23)
USB_PWR PP+ GND DUMMY
1 GND
P+ PUSB_PWR
Es gibt eine USB-2.0-Stiftleiste an diesem Motherboard. Diese USB 2.0-Stiftleiste unterst�tzt zwei Ports.
USB 3.2 Gen1-Stiftleisten Vertikal: (19-polig, USB3_6_7) (siehe S. 1, Nr. 12)
Vbus IntA_PA_SSRXIntA_PA_SSRX+
GND IntA_PA_SSTXIntA_PA_SSTX+
GND IntA_PA_DIntA_PA_D+
Vbus IntA_PB_SSRXIntA_PB_SSRX+ GND IntA_PB_SSTXIntA_PB_SSTX+ GND IntA_PB_DIntA_PB_D+ Dummy 1
Es gibt zwei Stiftleisten an diesem Motherboard. Jede USB 3.2 Gen1-Stiftleiste kann zwei Ports unterst�tzen.
Winkel rechts: (19-polig, USB3_4_5) (siehe S. 1, Nr. 15)
1 Dummy IntA_PB_D+ IntA_PB_D-
GND IntA_PB_SSTX+ IntA_PB_SSTX-
GND IntA_PB_SSRX+ IntA_PB_SSRX-
Vbus
IntA_PA_D+ IntA_PA_DGND IntA_PA_SSTX+ IntA_PA_SSTXGND IntA_PA_SSRX+ IntA_PA_SSRX-
Vbus
Type-C-USB-3.2 Gen2x2Stiftleiste f�r die Frontblende (20-polig, F_USB32_TC_1) (siehe S. 1, Nr. 14)
USB Type-C Cable
Es gibt eine Type-C-USB-3.2 Gen2x2-Stiftleiste f�r die Frontblende an diesem Motherboard. Diese Stiftleiste dient dem Anschluss eines USB3.2 Gen2x2-Moduls f�r zus�tzliche USB-3.2 Gen2x2-Ports.
51
Deutsch
Audiostiftleiste Frontblende (9-polig, HD_AUDIO1) (siehe S. 1, Nr. 26)
GND PRESENCE# MIC_RET OUT_RET
1 OUT2_L
J_SENSE OUT2_R MIC2_R MIC2_L
Diese Stiftleiste dient dem Anschlie�en von Audioger�ten an der Frontblende.
1. High Definition Audio unterst�tzt Anschlusserkennung, der Draht am Geh�use muss dazu jedoch HDA unterst�tzt. Bitte befolgen Sie zum Installieren Ihres Systems die Anweisungen in unserer Anleitung und der Anleitung zum Geh�use.
2. Bei Nutzung eines AC'97-Audiopanels dieses bitte anhand folgender Schritte an der Audiostiftleiste der Frontblende installieren: A. Mic_IN (Mikrofon) mit MIC2_L verbinden. B. Audio_R (RIN) mit OUT2_R und Audio_L (LIN) mit OUT2_L verbinden. C. Erde (GND) mit Erde (GND) verbinden. D. MIC_RET und OUT_RET sind nur f�r das HD-Audiopanel vorgesehen. Sie m�ssen sie nicht f�r das AC'97-Audiopanel verbinden. E. Rufen Sie zum Aktivieren des vorderen Mikrofons das ,,FrontMic (Vorderes Mikrofon)"Register in der Realtek-Systemsteuerung auf und passen ,,Recording Volume (Aufnahmelautst�rke)" an.
Geh�use-/WasserpumpenL�fteranschlusse (4-polig, CHA_FAN1/WP) (siehe S. 1, Nr. 13) (4-polig, CHA_FAN2/WP) (siehe S. 1, Nr. 28) (4-polig, CHA_FAN3/WP) (siehe S. 1, Nr. 10) (4-polig, CHA_FAN4/WP) (siehe S. 1, Nr. 18)
4 3 21
FAN_SPEED_CONTROL CHA_FAN_SPEED FAN_VOLTAGE GND
Dieses Motherboard bietet vier 4-polige Wasserk�hlungGeh�usel�fteranschl�sse Falls Sie einen 3-poligen Geh�useWasserk�hlerl�fter anschlie�en m�chten, verbinden Sie ihn bitte mit Kontakt 1 bis 3.
CPU-L�fteranschluss (4-polig, CPU_FAN1) (siehe S. 1, Nr. 3)
FAN_SPEED_CONTROL CPU_FAN_SPEED +12V GND
1 2 34
Dieses Motherboard bietet einen 4-poligen CPU-L�fteranschluss (lautloser L�fter). Falls Sie einen 3-poligen CPU-L�fter anschlie�en m�chten, verbinden Sie ihn bitte mit Kontakt 1 bis 3.
Deutsch
52
H670 PG Riptide
CPU-/WasserpumpenL�fteranschluss (4-polig, CPU_FAN2/WP) (siehe S. 1, Nr. 6)
ATX-Netzanschluss (24-polig, ATXPWR1) (siehe S. 1, Nr. 11)
ATX-12-V-Netzanschluss (8-polig, ATX12V1) (siehe S. 1, Nr. 1)
ATX-12-V-Netzanschluss (4-polig, ATX12V2) (siehe S. 1, Nr. 2)
4 3 21
GND FAN_VOLTAGE CPU_FAN_SPEED FAN_SPEED_CONTROL
12
24
1
13
8
5
4
1
Dieses Motherboard bietet einen 4-poligen Wasserk�hlung-CPUL�fteranschluss. Falls Sie einen 3-poligen CPU-Wasserk�hlerl�fter anschlie�en m�chten, verbinden Sie ihn bitte mit Kontakt 1 bis 3.
Dieses Motherboard bietet einen 24-poligen ATX-Netzanschluss. Bitte schlie�en Sie es zur Nutzung eines 20-poligen ATX-Netzteils entlang Kontakt 1 und Kontakt 13 an.
Dieses Motherboard bietet einen 8-poligen ATX-12-VNetzanschluss. Bitte schlie�en Sie es zur Nutzung eines 4-poligen ATX-Netzteils entlang Kontakt 1 und Kontakt 5 an. *Warnung: Bitte stellen Sie sicher, dass das Stromkabel der CPU und nicht das der Grafikkarte angeschlossen ist. Schlie�en Sie das PCIeStromkabel nicht an diesen Anschluss an.
An diesen Anschluss schlie�en Sie ein ATX-12 V-Netzteil an. *Der Netzteilstecker passt nur in einer Richtung in diesen Anschluss. *Anschluss eines 4-poligen ATX12-V-Kabels an ATX12V2 ist optional. Zur erweiterten �bertaktung sollten Sie diesen Anschluss gemeinsam mit ATX12V1 verwenden.
53
Deutsch
SPI-TPM-Stiftleiste (13-polig, SPI_TPM_J1) (siehe S. 1, Nr. 21)
ThunderboltErweiterungskartenanschluss (5-polig, TB1) (siehe S. 1, Nr. 27)
RGB-LED-Stiftleiste (4-polig, RGB_LED1) (siehe S. 1, Nr. 24)
SPI_DQ3 SPI_PWR Dummy CLK SPI_MOSI RST# TPM_PIRQ
1
SPI_TPM_CS# GND RSMRST# SPI_MISO SPI_CS0 SPI_DQ2
Dieser Anschluss unterst�tzt das SPI Trusted Platform Module(TPM) System, das Schl�ssel, digitale Zertifikate, Kennw�rter und Daten sicher aufbewahren kann. Ein TPM-System hilft zudem bei der St�rkung der Netzwerksicherheit, sch�tzt digitale Identit�ten und gew�hrleistet die Plattformintegrit�t.
Bitte verbinden Sie eine ThunderboltTM-Erweiterungskarte �ber das GPIO-Kabel mit diesem Anschluss. *Bitte installieren Sie die ThunderboltTM -AIC-Karte am PCIE3 (Standardsteckplatz).
1 +12V G R B
Diese RGB-Stiftleiste dient dem Anschlie�en eines RGB-LEDErweiterungskabels, das dem Nutzer die Auswahl zwischen verschiedenen LED-Lichteffekten erm�glicht. Achtung: Installieren Sie das RGB-LED-Kabel niemals falsch herum; andernfalls k�nnte das Kabel besch�digt werden. *Weitere Anweisungen zu dieser Stiftleiste finden Sie auf Seite 40.
Deutsch
54
H670 PG Riptide
Adressierbare-LEDStiftleisten (3-polig, ADDR_LED1) (siehe S. 1, Nr. 25)
(3-polig, ADDR_LED2) (siehe S. 1, Nr. 8) (3-polig, ADDR_LED3) (siehe S. 1, Nr. 7)
1 GND
DO_ADDR VOUT
GND DO_ADDR VOUT 1
Diese Stiftleiste dient der Verbindung des AdressierbareLED-Verl�ngerungskabels, womit Nutzer zwischen verschiedenen LED-Lichteffekten w�hlen k�nnen. Achtung: Installieren Sie das Adressierbare-LEDKabel niemals falsch herum; andernfalls k�nnte das Kabel besch�digt werden. *Weitere Anweisungen zu dieser Stiftleiste finden Sie auf Seite 41.
Deutsch
55
2.7 Intelligente Taste
Das Motherboard hat eine intelligente Taste: BIOS-Flashback-Taste erm�glicht Nutzern die Leerung des BIOS.
BIOS-Flashback-Taste (BIOS_FB1) (siehe S. 3, Nr. 10)
BIOS-Flashback-Schalter erm�glicht Nutzern die Leerung des BIOS.
ASRocks BIOS-Flashback-Funktion erm�glicht Ihnen die Aktualisierung des BIOS ohne Einschalten des Systems, sogar ohne CPU.
Bitte beenden Sie vor Verwendung der BIOS-Flashback-Funktion dBitLocker und jegliche Verschl�sselung oder Sicherheitsfunktion, die von TPM abh�ngig ist. Stellen Sie sicher, dass Sie den Wiederherstellungsschl�ssel bereits gespeichert und gesichert haben. Falls der Wiederherstellungsschl�ssel bei aktiver Verschl�sselung verlorengeht, bleiben die Daten verschl�sselt und das System kann nicht in das Betriebssystem hochfahren. Sie sollten fTPM vor Aktualisierung des BIOS deaktivieren. Andernfalls kann ein unvorhersehbarer Fehler auftreten.
Befolgen Sie zur Verwendung der USB-BIOS-Flashback-Funktion die nachstehenden Schritte.
1. Laden Sie die aktuellste BIOS-Datei von der ASRock-Webseite herunter: http://www.asrock.com. 2. Kopieren Sie die BIOS-Datei auf Ihr USB-Flash-Laufwerk. Stellen Sie sicher, dass das Dateisystem Ihres
USB-Flash-Laufwerks FAT32 ist. 3. Entpacken Sie die BIOS-Datei aus der ZIP-Datei. 4. Benennen Sie die Datei in ,,creative.rom" um und speichern Sie sie im Stammverzeichnis von X: USB-
Flash-Laufwerk. 5. Verbinden Sie den 24-poligen Stromanschluss mit dem Motherboard. Schalten Sie dann den
Netzschalter des Netzteils ein. * Sie m�ssen das System nicht einschalten. 6. Schlie�en Sie dann Ihr USB-Laufwerk am USB-BIOS-Flashback-Port an. 7. Dr�cken Sie die BIOS-Flashback-Taste etwa drei Sekunden lang. Anschlie�end beginnt die LED zu blinken. 8. Warten Sie, bis die LED aufh�rt, zu blinken; dies zeigt an, dass das BIOS-Flashing abgeschlossen ist. *Falls die LED dauerhaft gr�n leuchtet, bedeutet dies, dass der BIOS-Flashback nicht richtig funktioniert. Achten Sie darauf, dass das USB-Laufwerk an den USB-BIOS-Flashback-Port angeschlossen ist. **Falls die LED �berhaupt nicht aufleuchtet, trennen Sie bitte die Stromversrogung vom System
und entfernen/trennen Sie die CMOS-Batterie mehrere Minuten vom Motherboard. Schlie�en Sie Stromversorgung und Batterie wieder an und versuchen Sie es erneut.
Deutsch
USB-BIOS-Flashback-Port 56
H670 PG Riptide
1 Introduction
Nous vous remercions d'avoir achet� cette carte m�re ASRock H670 PG Riptide, une carte m�re fiable fabriqu�e conform�ment au contr�le de qualit� rigoureux et constant appliqu� par ASRock. Fid�le � son engagement de qualit� et de durabilit�, ASRock vous garantit une carte m�re de conception robuste aux performances �lev�es.
Les sp�cifications de la carte m�re et du logiciel BIOS pouvant �tre mises � jour, le contenu de ce document est soumis � modification sans pr�avis. En cas de modifications du pr�sent document, la version mise � jour sera disponible sur le site Internet ASRock sans notification pr�alable. Si vous avez besoin d'une assistance technique pour votre carte m�re, veuillez visiter notre site Internet pour plus de d�tails sur le mod�le que vous utilisez. La liste la plus r�cente des cartes VGA et des processeurs pris en charge est �galement disponible sur le site Internet de ASRock. Site Internet ASRock http://www.asrock.com.
1.1 Contenu de l'emballage
� Carte m�re ASRock H670 PG Riptide (facteur de forme ATX) � Guide d'installation rapide ASRock H670 PG Riptide � CD d'assistance ASRock H670 PG Riptide � 2 x c�bles de donn�es Serial ATA (SATA) (Optionnel) � 4 x vis pour sockets M.2 (Optionnel) � 1 x Entretoise pour socket M.2 (Optionnel) � 1 x panneau de protection E/S
57
Fran�ais
1.2 Sp�cifications
Plateforme
� Facteur de forme ATX � Conception � condensateurs solides
Processeur
� Prend en charge les processeurs 12�me g�n�ration Intel� CoreTM
(LGA1700) � Alimentation � 9 phases � Prend en charge Intel� Hybrid Technology � Prend en charge la technologie Intel� Turbo Boost Max 3.0
Chipset
� Intel� H670
M�moire
� Technologie m�moire double canal DDR4 � 4 x fentes DIMM DDR4 � Prend en charge les m�moires sans tampon non ECC DDR4
jusqu'� 5000+(OC)* * Prend en charge la DDR4 3200 de fa�on native. * Veuillez consulter la liste de prise en charge des m�moires sur le site Web d'ASRock pour de plus amples informations. (http://www.asrock.com/) � Prend en charge les modules m�moire UDIMM ECC (fonctionne
en mode non-ECC) � Capacit� max. de la m�moire syst�me : 128GB � Prend en charge Intel� Extreme Memory Profile (XMP) 2.0
Fente d'expansion
� 2 x fentes PCIe x16 (PCIE1/PCIE3: simple en mode Gen5x16 (PCIE1), double � Gen5x16 (PCIE1) / Gen4x4 (PCIE3))*
* Prend en charge les SSD NVMe comme disques de d�marrage � 3 x fentes PCIe Gen3x1 � Prend en charge AMD CrossFireTM � 1 x socket M.2 (Touche E), prend en charge les emplacements
modules WiFi/BT type 2230, WiFi PCIe et Intel� CNVi (WiFi/BT int�gr�)
Graphiques
� La technologie Intel� UHD Graphics Built-in Visuals et les sorties VGA sont uniquement prises en charge par les processeurs int�grant un contr�leur graphique.
� Architecture graphique Intel� Xe (Gen 12)
Fran�ais
58
H670 PG Riptide
� Double sortie graphique : Prend en charge les ports HDMI et
DisplayPort 1.4 via contr�leurs d'affichage ind�pendants � Prend en charge HDMI 2.1 TMDS, Compatible avec une r�solution
max. jusqu'� 4K x 2K (4096x2160) @ 60 Hz � Prend en charge DisplayPort 1.4 avec DSC (compress�), R�solution
max. jusqu'� 8K (7680x4320) @ 60Hz / 5K (5120x3200) @ 120Hz � Prend en charge HDCP 2.3, Compatible avec HDMI 2.1 TMDS et
ports DisplayPort 1.4
Audio
� Audio 7.1 CH HD (Codec audio Realtek ALC897) � Prend en charge la protection contre les surtensions � Audio Nahimic
R�seau
� Gigabit LAN 10/100/1000 Mo/s � Giga PHY Intel� I219V � Prend en charge la fonction Wake-On-LAN � Prend en charge la protection contre la foudre/les d�charges
�lectrostatiques � Prend en charge la fonction d'�conomie d'�nergie Ethernet 802.3az � Prend en charge UEFI PXE
Connectique du panneau arri�re
� 3 x points de montage d'antenne � 1 x port souris/clavier PS/2 � 1 x port HDMI � 1 x DisplayPort 1.4 � 1 x port USB 3.2 Gen2 Type A (10 Go/s) (ReDriver) (Protection
contre les d�charges �lectrostatiques) � 1 x port USB 3.2 Gen2 Type C (10 Go/s) (ReDriver) (Protection
contre les d�charges �lectrostatiques) � 4 x ports USB 3.2 Gen1 (Protection contre les d�charges
�lectrostatiques)
* USB3_2_3 sont les ports de jeu Lightning. � 2 x ports USB 2.0 (Protection contre les d�charges �lectrostatiques) � 1 x port RJ-45 LAN avec LED (LED ACT/LIEN et LED VITESSE) � 1 x Bouton BIOS Flashback � Connecteurs jack audio HD : Entr�e ligne / haut-parleur avant /
microphone
Fran�ais
59
Stockage
� 4 x connecteur SATA3 6,0 Go/s � 1 x Socket Hyper M.2 (M2_1, Key M), supporte le mode PCIe
Gen4x4 (64 Gb/s) de type 2260/2280* � 1 x Socket Hyper M.2 (M2_2, Key M), supporte le mode PCIe
Gen4x4 (64 Gb/s) de type 2242/2260/2280* � 1 x Socket Hyper M.2 (M2_3, Key M), supporte le mode PCIe
Gen4x4 (64 Gb/s) de type 2260/2280/22110 SATA3 6,0 Go/s* * Prend en charge la technologie Intel� OptaneTM (M2_2 et M2_3 uniquement) * Prend en charge Intel� Volume Management Device (VMD) * Prend en charge les SSD NVMe comme disques de d�marrage * Prend en charge le kit ASRock U.2
RAID
� Prend en charge RAID 0, RAID 1, RAID 5 et RAID 10 pour les p�riph�riques de stockage SATA
� Supporte RAID 0, RAID 1 et RAID 5 pour les p�riph�riques de stockage M.2 NVMe
Connecteur
� 1 x embase SPI TPM � 1 x prise DEL d'alimentation et haut-parleur � 1 x embase LED RVB * Prend en charge les rubans DEL jusqu'� 12 V/3 A, 36 W au total � 3 x embases LED adressables * Prend en charge les rubans LED jusqu'� 5 V/3 A, 15 W au total � 1 x connecteur pour ventilateur de CPU (4 broches) * Le connecteur pour ventilateur de CPU prend en charge un ventilateur de CPU d'une puissance maximale de 1 A (12 W). � 1 x connecteur pour ventilateur de processeur /pompe � eau
(4 broches) (contr�le de vitesse de ventilateur intelligent) * Le ventilateur de processeur /pompe � eau prend en charge un ventilateur de refroidisseur d'eau d'une puissance maximale de 2 A (24 W). � 4 x connecteurs pour ventilateur de ch�ssis /pompe � eau
(4 broches) (contr�le de vitesse de ventilateur intelligent) * Le ventilateur de ch�ssis /pompe � eau prend en charge un ventilateur de refroidisseur d'eau d'une puissance maximale de 2 A (24 W). * CPU_FAN2/WP et CHA_FAN1~4/WP peuvent d�tecter automatiquement si un ventilateur 3 broches ou 4 broches est utilis�.
Fran�ais
60
H670 PG Riptide
� 1 x connecteur d'alimentation ATX 24 broches � 1 x connecteur d'alimentation 12 V 8 broches (connecteur
d'alimentation haute densit�) � 1 x connecteur d'alimentation 12 V 4 broches (connecteur
d'alimentation haute densit�) � 1 x connecteur audio panneau frontal � 1 x connecteur Thunderbolt AIC (5 broches) (Prise en charge de la
carte ASRock Thunderbolt 4 AIC) � 1 x embase USB 2.0 (2 ports USB 2.0 pris en charge) (Protection
contre les d�charges �lectrostatiques) � 2 x embase USB 3.2 Gen1 (4 ports USB 3.2 Gen1 pris en charge)
(concentrateur ASMedia ASM1074) (Protection contre les
d�charges �lectrostatiques) � 1 x embase USB 3.2 Gen2x2 Type C sur panneau avant (20 Go/s)
(Protection contre les d�charges �lectrostatiques)
Caract�ristiques du BIOS
� BIOS UEFI AMI avec prise en charge d'interface graphique
multilingue � Compatible ACPI 6.0 Wake Up Events � Compatible SMBIOS 2.7 � R�glage de la tension CPU Core/Cache, GT, DRAM, VCCIN AUX,
+1,05V PROC, +1,8V PROC, +0,82V PCH , +1,05V PCH
Surveillance du mat�riel
� Tachym�tre de ventilateur : Ventilateurs de CPU, CPU /pompe � eau, ch�ssis /pompe � eau
� Ventilateur silencieux (r�glage automatique de la vitesse du ventilateur du ch�ssis d'apr�s la temp�rature du CPU) : Ventilateurs de CPU, CPU /pompe � eau, ch�ssis /pompe � eau
� Contr�le simultan� des vitesses du ventilateur : Ventilateurs de CPU, CPU /pompe � eau, ch�ssis /pompe � eau
� Surveillance de la tension d'alimentation : CPU Vcore, PCH, DRAM, VCCIN AUX, +1,05V PROC, +1,8V PROC, +0,82V PCH, +12V, +5V, +3,3V
Syst�me
� Microsoft� Windows� 10 64-bit / 11 64-bit
d'exploitation
Certifications � FCC, CE � ErP/EuP Ready (alimentation ErP/EuP ready requise)
Fran�ais
61
* pour des informations d�taill�es de nos produits, veuillez visiter notre site : http://www.asrock.com Il est important de signaler que l'overclocking pr�sente certains risques, incluant des modifications du BIOS, l'application d'une technologie d'overclocking d�li�e et l'utilisation d'outils d'overclocking d�velopp�s par des tiers. La stabilit� de votre syst�me peut �tre affect�e par ces pratiques, voire provoquer des dommages aux composants et aux p�riph�riques du syst�me. L'overclocking se fait � vos risques et p�rils. Nous ne pourrons en aucun cas �tre tenus pour responsables des dommages �ventuels provoqu�s par l'overclocking.
62
Fran�ais
H670 PG Riptide
1.3 Configuration des cavaliers (jumpers)
L'illustration ci-dessous vous renseigne sur la configuration des cavaliers (jumpers). Lorsque le capuchon du cavalier est install� sur les broches, le cavalier est � court-circuit� �. Si le capuchon du cavalier n'est pas install� sur les broches, le cavalier est � ouvert �.
Cavalier Clear CMOS (CLRMOS1) (voir p.1, No. 22)
Cavalier (jumper) � 2 broches
CLRMOS1 vous permet d'effacer les donn�s de la CMOS. Pour effacer les param�tres du syst�me et r�tablir les valeurs par d�faut, veuillez �teindre votre ordinateur et d�brancher son cordon d'alimentation. Patientez 15 secondes, puis utilisez un capuchon de cavalier pour court-circuiter les broches sur CLRMOS1 pendant 5 secondes. Toutefois, n'effacez pas la CMOS imm�diatement apr�s avoir mis � jour le BIOS. Si vous avez besoin d'effacer les donn�es CMOS apr�s une mise � jour du BIOS, vous devez tout d'abord red�marrer le syst�me, puis l'�teindre avant de proc�der � l'effacement de la CMOS. Veuillez noter que les param�tres mot de passe, date, heure et profil de l'utilisateur seront uniquement effac�s en cas de retrait de la pile de la CMOS. N'oubliez pas de retirer le capuchon du cavalier une fois les donn�es CMOS effac�es.
Fran�ais
63
1.4 Embases et connecteurs de la carte m�re
Les embases et connecteurs situ�s sur la carte NE SONT PAS des cavaliers. Ne placez JAMAIS de capuchons de cavaliers sur ces embases ou connecteurs. Placer un capuchon de cavalier sur ces embases ou connecteurs endommagera irr�m�diablement votre carte m�re.
Embase du panneau syst�me (PANNEAU1 � 9 broches) (voir p.1, No. 19)
PLED+ PLEDPWRBTN# GND
1 GND
RESET# GND HDLEDHDLED+
Branchez le bouton de mise en marche, le bouton de r�initialisation et le t�moin d'�tat du syst�me pr�sents sur le ch�ssis sur cette embase en respectant la configuration des broches illustr�e ci-dessous. Rep�rez les broches positive et n�gative avant de brancher les c�bles.
PWRBTN (bouton d'alimentation) : pour brancher le bouton d'alimentation du panneau frontal du ch�ssis. Vous pouvez configurer la fa�on dont votre syst�me doit s'arr�ter � l'aide du bouton d'alimentation.
RESET (bouton de r�initialisation) : pour brancher le bouton de r�initialisation du panneau frontal du ch�ssis. Appuyez sur le bouton de r�initialisation pour red�marrer l'ordinateur en cas de plantage ou de dysfonctionnement au d�marrage.
PLED (LED d'alimentation du syst�me) : pour brancher le t�moin d'�tat de l'alimentation du panneau frontal du ch�ssis. Le LED est allum� lorsque le syst�me fonctionne. Le LED clignote lorsque le syst�me se trouve en mode veille S1/S3. Le LED est �teint lorsque le syst�me se trouve en mode veille S4 ou hors tension (S5).
HDLED (LED d'activit� du disque dur) : pour brancher le t�moin LED d'activit� du disque dur du panneau frontal du ch�ssis. Le LED est allum� lorsque le disque dur lit ou �crit des donn�es.
La conception du panneau frontal peut varier en fonction du ch�ssis. Un module de panneau frontal est principalement compos� d'un bouton d'alimentation, d'un bouton de r�initialisation, d'un t�moin LED d'alimentation, d'un t�moin LED d'activit� du disque dur, d'un haut-parleur etc. Lorsque vous reliez le module du panneau frontal de votre ch�ssis sur cette embase, veillez � parfaitement faire correspondre les fils et les broches.
Fran�ais
Prise DEL d'alimentation et haut-parleur (SPK_PLED1 � 7 broches) (voir p.1, No. 20)
64
SPEAKER DUMMY DUMMY +5V
1
PLED+ PLED+ PLED-
Veuillez brancher la DEL d'alimentation du ch�ssis et le haut-parleur du ch�ssis sur ce connecteur.
H670 PG Riptide
Connecteurs Serial ATA3 Angle droit : (SATA3_0: voir p.1, No. 17) (Sup�rieur) (SATA3_1: voir p.1, No. 17) (Inf�rieur) (SATA3_2: voir p.1, No. 16) (Sup�rieur) (SATA3_3: voir p.1, No. 16) (Inf�rieur)
SATA3_0 SATA3_2 SATA3_1 SATA3_3
Ces quatre connecteurs SATA3 sont compatibles avec les c�bles de donn�es SATA pour les appareils de stockage internes avec un taux de transfert maximal de 6,0 Go/s.
Embase USB 2.0 (USB_2_3 � 9 broches) (voir p.1, No. 23)
USB_PWR PP+ GND DUMMY
1 GND
P+ PUSB_PWR
Cette carte m�re comprend une embase USB 2.0. Cette embase USB 2.0 peut prendre en charge deux ports.
Embases USB 3.2 Gen1 Vertical: (USB3_6_7 � 19 broches) (voir p.1, No. 12)
Vbus IntA_PA_SSRXIntA_PA_SSRX+
GND IntA_PA_SSTXIntA_PA_SSTX+
GND IntA_PA_DIntA_PA_D+
Vbus IntA_PB_SSRXIntA_PB_SSRX+ GND IntA_PB_SSTXIntA_PB_SSTX+ GND IntA_PB_DIntA_PB_D+ Dummy 1
Cette carte m�re comprend deux connecteurs. Chaque embase USB 3.2 Gen1 peut prendre en charge deux ports.
Angle droit : (USB3_4_5 � 19 broches) (voir p.1, No. 15)
1 Dummy IntA_PB_D+ IntA_PB_D-
GND IntA_PB_SSTX+ IntA_PB_SSTX-
GND IntA_PB_SSRX+ IntA_PB_SSRX-
Vbus
IntA_PA_D+ IntA_PA_DGND IntA_PA_SSTX+ IntA_PA_SSTXGND IntA_PA_SSRX+ IntA_PA_SSRX-
Vbus
Embase USB 3.2 Gen2x2 Type C sur panneau avant (F_USB32_TC_1 � 20 broches) (voir p.1, No. 14)
USB Type-C Cable
Cette carte m�re comprend une embase USB 3.2 Gen2x2 Type C sur le panneau avant. Cette embase sert � connecter un module USB 3.2 Gen2x2 pour des ports USB 3.2 Gen2x2 suppl�mentaires.
65
Fran�ais
Embase audio du panneau frontal (HD_AUDIO1 � 9 broches) (voir p.1, No. 26)
GND PRESENCE# MIC_RET OUT_RET
1 OUT2_L
J_SENSE OUT2_R MIC2_R MIC2_L
Cette embase sert au branchement des appareils audio au panneau audio frontal.
1. L'audio haute d�finition prend en charge la technologie Jack Sensing (d�tection de la fiche), mais le panneau grillag� du ch�ssis doit �tre compatible avec la HDA pour fonctionner correctement. Veuillez suivre les instructions figurant dans notre manuel et dans le manuel du ch�ssis pour installer votre syst�me.
2. Si vous utilisez un panneau audio AC'97, veuillez le brancher sur l'embase audio du panneau frontal en proc�dant comme suit : A. branchez Mic_IN (MIC) sur MIC2_L. B. branchez Audio_R (RIN) sur OUT2_R et Audio_L (LIN) sur OUT2_L. C. branchez la mise � terre (GND) sur mise � terre (GND). D. MIC_RET et OUT_RET sont exclusivement r�serv�s au panneau audio HD. Il est inutile de les brancher avec le panneau audio AC'97. E. Pour activer le micro frontal, s�lectionnez l'onglet � FrontMic � du panneau de contr�le Realtek et r�glez le param�tre � Volume d'enregistrement �.
Connecteurs du ventilateur de ch�ssis/ pompe � eau (CHA_FAN1/WP � 4 broches) (voir p.1, No. 13) (CHA_FAN2/WP � 4 broches) (voir p.1, No. 28) (CHA_FAN3/WP � 4 broches) (voir p.1, No. 10) (CHA_FAN4/WP � 4 broches) (voir p.1, No. 18)
4 3 21
FAN_SPEED_CONTROL CHA_FAN_SPEED FAN_VOLTAGE GND
Cette carte m�re est dot�e de quatre connecteurs pour ventilateur de ch�ssis � refroidissement par eau � 4 broches. Si vous envisagez de connecter un ventilateur de refroidisseur d'eau pour ch�ssis � 3 broches, veuillez le brancher sur la Broche 1-3.
Connecteur du ventilateur du processeur (CPU_FAN1 � 4 broches) (voir p.1, No. 3)
66
FAN_SPEED_CONTROL CPU_FAN_SPEED +12V GND
1 2 34
Cette carte m�re est dot�e d'un connecteur pour ventilateur de processeur (Quiet Fan) � 4 broches. Si vous envisagez de connecter un ventilateur de processeur � 3 broches, veuillez le brancher sur la Broche 1-3.
Fran�ais
H670 PG Riptide
Connecteur pour ventilateur de processeur / pompe � eau (CPU_FAN2/WP � 4 broches) (voir p.1, No. 6)
Connecteur d'alimentation ATX (ATXPWR1 � 24 broches) (voir p.1, No. 11)
Connecteur d'alimentation ATX 12 V (ATX12V1 � 8 broches) (voir p.1, No. 1)
Connecteur d'alimentation ATX 12 V (ATX12V2 � 4 broches) (voir p.1, No. 2)
4 3 21
GND FAN_VOLTAGE CPU_FAN_SPEED FAN_SPEED_CONTROL
12
24
1
13
8
5
4
1
Cette carte m�re est dot�e d'un connecteur pour ventilateur de processeur � refroidissement par eau � 4 broches. Si vous envisagez de connecter un ventilateur de refroidisseur d'eau pour processeur � 3 broches, veuillez le brancher sur la Broche 1-3.
Cette carte m�re est dot�e d'un connecteur d'alimentation ATX � 24 broches. Pour utiliser une alimentation ATX � 20 broches, veuillez effectuer les branchements sur la Broche 1 et la Broche 13.
Cette carte m�re est dot�e d'un connecteur d'alimentation ATX 12V � 8 broches. Pour utiliser une alimentation ATX � 4 broches, veuillez effectuer les branchements sur la Broche 1 et la Broche 5. *Avertissement : Veuillez v�rifier que le c�ble d'alimentation connect� est pour l'unit� centrale et non pour la carte graphique. Ne branchez pas le c�ble d'alimentation PCIe sur ce connecteur.
Veuillez connecter une source d'alimentation ATX 12 V � ce connecteur. *La fiche d'alimentation �lectrique s'adapte � ce connecteur dans un seul sens. Le branchement d'un c�ble ATX 12V � 4 broches � ATX12V2 est optionnel. Pour un surcaden�age avanc�, nous conseillons d'utiliser ce connecteur avec ATX12V1.
67
Fran�ais
Embase SPI TPM (SPI_TPM_J1 � 13 broches) (voir p.1, No. 21)
SPI_DQ3 SPI_PWR Dummy CLK SPI_MOSI RST# TPM_PIRQ
1
SPI_TPM_CS# GND RSMRST# SPI_MISO SPI_CS0 SPI_DQ2
Ce connecteur prend en charge un module SPI TPM (Trusted Platform Module � Module de plateforme s�curis�e), qui permet de sauvegarder cl�s, certificats num�riques, mots de passe et donn�es en toute s�curit�. Le syst�me TPM permet �galement de renforcer la s�curit� du r�seau, de prot�ger les identit�s num�riques et de pr�server l'int�grit� de la plateforme.
Connecteur Thunderbolt AIC (TB1 � 5 broches) (voir p.1, No. 27)
Veuillez connecter une carte d'extension ThunderboltTM (AIC) � ce connecteur via le c�ble GPIO. *Veuillez installer la carte AIC ThunderboltTM sur la fente PCIE3 (fente par d�faut).
Embase LED RVB (RGB_LED1 � 4 broches) (voir p.1, No. 24)
1 +12V G R B
Cette embase RVB sert � connecter le c�ble d'extension LED RVB qui permet aux utilisateurs de choisir parmi plusieurs effets lumineux LED. Attention : N'installez jamais le c�ble LED RVB dans le mauvais sens ; dans le cas contraire, le c�ble peut �tre endommag�. *Veuillez consulter la page 40 pour des instructions suppl�mentaires sur cette embase.
Fran�ais
68
H670 PG Riptide
Embases LED adressables (ADDR_LED1 � 3 broches) (voir p.1, No. 25)
(ADDR_LED2 � 3 broches) (voir p.1, No. 8) (ADDR_LED3 � 3 broches) (voir p.1, No. 7)
1 GND
DO_ADDR VOUT
GND
DO_ADDR VOUT 1
Cette embase sert � connecter un c�ble de rallonge LED adressable permettant aux utilisateurs de choisir parmi diff�rents effets lumineux LED. Attention : N'installez jamais le c�ble LED adressable dans le mauvais sens. Dans le cas contraire, le c�ble peut �tre endommag�. *Veuillez consulter la page 41 pour des instructions suppl�mentaires sur cette embase.
Fran�ais
69
2.7 Bouton intelligent
La carte m�re est �quip�e d'un bouton intelligent : Le bouton BIOS Flashback , qui permet aux utilisateurs de flasher le BIOS.
Bouton BIOS Flashback (BIOS_FB1) (voir p.3, No. 10)
Le bouton BIOS Flashback permet aux utilisateurs de flasher le BIOS.
La fonction ASRock BIOS Flashback vous permet de mettre � jour le BIOS sans allumer le syst�me, m�me sans processeur.
Avant d'utiliser la fonction BIOS Flashback, veuillez interrompre BitLocker et tout chiffrement ou s�curit� reposant sur le TPM. Assurez-vous que vous avez d�j� stock� et sauvegard� la cl� de r�cup�ration. Si la cl� de r�cup�ration est manquante alors que le chiffrement est actif, les donn�es restent crypt�es et le syst�me ne peut pas d�marrer sur le syst�me d'exploitation. Il est recommand� de d�sactiver fTPM avant de mettre � jour le BIOS. Sinon, une d�faillance impr�visible peut survenir.
Pour utiliser la fonction USB BIOS Flashback, veuillez suivre les �tapes ci-dessous.
1. T�l�chargez le dernier fichier BIOS sur le site Web d'ASRock : http://www.asrock.com. 2. Copiez le fichier du BIOS sur votre cl� USB. Veuillez vous assurer que le syst�me de fichiers de votre cl�
USB est FAT32. 3. Proc�dez � l'extraction du fichier BIOS depuis le fichier zip. 4. Renommez le fichier � "creative.rom" et enregistrez-le dans le r�pertoire racine de X : Cl� USB. 5. Branchez le connecteur d'alimentation 24 broches sur la carte m�re. Allumez ensuite l'interrupteur CA
de l'alimentation �lectrique. *Il n'est pas n�cessaire d'allumer le syst�me. 6. Branchez ensuite votre cl� USB dans le port BIOS Flashback USB. 7. Appuyez sur le bouton BIOS Flashback pendant environ trois secondes. La LED commence alors � clignoter. 8. Attendez que la LED arr�te de clignoter, indiquant que le flashage du BIOS a �t� effectu�. *Si l'indicateur LED devient vert fixe, cela signifie que la fonction BIOS Flashback ne fonctionne pas correctement. Veuillez vous assurer d'avoir brancher la cl� USB sur le port USB BIOS Flashback. **Si la LED ne s'allume pas du tout, veuillez d�brancher l'alimentation du syst�me et retirer/d�connecter
la pile CMOS de la carte m�re pendant plusieurs minutes. Rebranchez l'alimentation et la batterie, puis r�essayez.
Fran�ais
Port BIOS Flashback USB 70
H670 PG Riptide
1 Introduzione
Congratulazioni per l'acquisto della scheda madre ASRock H670 PG Riptide, una scheda madre affidabile prodotta secondo i severissimi controlli di qualit� ASRock. La scheda madre offre eccellenti prestazioni con un design robusto che si adatta all'impegno di ASRock di offrire sempre qualit� e durata.
Dato che le specifiche della scheda madre e del software BIOS possono essere aggiornate, il contenuto di questa documentazione sar� soggetto a variazioni senza preavviso. Nel caso di eventuali modifiche della presente documentazione, la versione aggiornata sar� disponibile sul sito Web di ASRock senza ulteriore preavviso. Per il supporto tecnico correlato a questa scheda madre, visitare il nostro sito Web per informazioni specifiche relative al modello attualmente in uso. � possibile trovare l'elenco di schede VGA pi� recenti e di supporto di CPU anche sul sito Web di ASRock. Sito Web di ASRock http://www.asrock.com.
1.1 Contenuto della confezione
� Scheda madre ASRock H670 PG Riptide (Form Factor ATX) � Guida all'installazione rapida di ASRock H670 PG Riptide � CD di supporto ASRock H670 PG Riptide � 2 x cavi dati Serial ATA (SATA) (opzionali) � 4 x viti per Socket M.2 (opzionali) � 1 x Distanziatore per Socket M.2 (opzionali) � 1 x mascherina metallica posteriore I/O
71
Italiano
1.2 Specifiche
Piattaforma
� Fattore di forma ATX � Design condensatore solido
CPU
� Supporta processori 12th Generation Intel� CoreTM (LGA1700) � Potenza a 9 fasi � Supporta la tecnologia Intel� Hybrid � Supporta la tecnologia Intel� Turbo Boost Max 3.0
Chipset
� Intel� H670
Memoria
� Tecnologia memoria DDR4 Dual Channel � 4 x alloggi DIMM DDR4 � Supporta DDR4 non ECC, memoria senza buffer fino a 5000+
(OC)* * Supporta DDR4 3200 in modo nativo. * Per maggiori informazioni fare riferimento all'elenco dei supporti di memoria sul sito di ASRock. (http://www.asrock.com/) � Supporta moduli di memoria ECC UDIMM (funziona in modalit�
non ECC) � Capacit� max. della memoria di sistema: 128GB � Supporto di XMP (Extreme Memory Profile) Intel� 2.0
Alloggio d'espansione
� 2 alloggi PCIe x16 (PCIE1/PCIE3: singolo a Gen5x16 (PCIE1); doppio a Gen5x16 (PCIE1) / Gen4x4 (PCIE3))*
* Supporto di SSD NVMe come disco d'avvio � 3 alloggi PCIe Gen3x1 � Supporta AMD CrossFireTM � 1 x Socket M.2 (Key E), supporta il modulo WiFi tipo 2230 WiFi/
BT PCIe e Intel� CNVi (Integrated WiFi/BT)
Grafica
� La videografica integrata della scheda video UHD Intel� e le uscite VGA possono essere supportate soltanto con processori con GPU integrata.
� Architettura grafica Intel� Xe (Gen 12)
Italiano
72
H670 PG Riptide
� Doppia uscita grafica: supporto di porte HDMI e DisplayPort 1.4
tramite controller display indipendenti � Supporta HDMI 2.1 TMDS compatibile con max. risoluzione fino a
4K x 2K (4096x2160) a 60 Hz � Supporta DisplayPort 1.4 con DSC (compresso) max. risoluzione
fino a 8K (7680x4320) a 60 Hz / 5K (5120x3200) a 120 Hz � Supporta HDCP 2.3 con HDMI 2.1 TMDS compatibile e porte
DisplayPort 1.4
Audio
� Audio HD 7.1 CH (codec audio Realtek ALC897) � Supporta protezione da sovratensione � Audio Nahimic
LAN
� LAN Gigabit 10/100/1000 Mb/s � Giga PHY Intel� I219V � Supporto WOL (Wake-On-LAN) � Supporta protezione da fulmini/scariche elettrostatiche � Supporto Energy Efficient Ethernet 802.3az � Supporto UEFI PXE
I/O pannello posteriore
� 3 punti di montaggio antenna � 1 x porta mouse/tastiera PS/2 � 1 x porta HDMI � 1 x DisplayPort 1.4 � 1 x Porta USB 3.2 Gen2 di tipo A (10 Gb/s) (ReDriver) (Supporto
protezione ESD) � 1 x Porta USB 3.2 Gen2 di tipo C (10 Gb/s) (ReDriver) (Supporto
protezione ESD) � 4 x porte USB 3.2 Gen1 (supporto protezione da scariche
elettrostatiche)
* USB3_2_3 adalah Port Gaming Lightning. � 2 x porte USB 2.0 (supporto protezione da scariche elettrostatiche) � 1 x porta LAN RJ-45 con LED (ACT/LINK LED e SPEED LED) � 1 x Tasto Flashback BIOS � Connettori audio HD: Ingresso linea / altoparlante frontale /
microfono
Italiano
73
Archiviazione
� 4 x Connettori SATA3 6,0 Gb/s � 1 x socket Hyper M.2 (M2_1, key M), supporta la modalit� di tipo
2260/2280 PCIe Gen4x4 (64 Gb/s)* � 1 x socket Hyper M.2 (M2_2, key M), supporta le modalit� di tipo
2242/2260/2280 PCIe Gen4x4 (64 Gb/s)* � 1 x socket Hyper M.2 (M2_3, key M), supporta le modalit� di tipo
2260/2280/22110 SATA3 6,0 Gb/s e PCIe Gen4x4 (64 Gb/s)* * Supporta la tecnologia Intel� OptaneTM (solo M2_2 e M2_3) * Supporta il dispositivo di gestione del volume Intel� (VMD) * Supporto di SSD NVMe come disco d'avvio * Supporta kit ASRock U.2
RAID
� Supporta RAID 0, RAID 1, RAID 5 e RAID 10 per dispositivi di archiviazione SATA
� Supporta RAID 0, RAID 1 e RAID 5 per dispositivi di archiviazione M.2 NVMe
Connettore
� 1 x connettore SPI TPM � 1 x connettore LED alimentazione e altoparlante � 1 x collettore LED RGB * Supporto totale di fino a 12V/3A, 36W strip LED � 3 x Header LED indirizzabili * Supporto totale di strisce LED fino a 5 V/3 A, 15 W � 1 x connettore ventola CPU (4-pin) * Il connettore ventola CPU supporta ventole CPU con potenza massima di 1 A (12 W). � 1 x connettore ventola CPU/ventola pompa dell'acqua (4-pin)
(Controllo intelligente della velocit� della ventola) * La ventola CPU/ventola pompa dell'acqua supporta ventole di sistemi di raffreddamento ad acqua di potenza massima di 2A (24W). � 4 x connettori ventola telaio/ventola pompa dell'acqua (4-pin)
(Controllo intelligente della velocit� della ventola) * La ventola Chassis/ventola pompa dell'acqua supporta ventole di sistemi di raffreddamento ad acqua di potenza massima di 2 A (24W). * CPU_FAN2/WP e CHA_FAN1~4/WP sono in grado di rilevare se � in uso una ventola a 3 pin o 4 a pin.
Italiano
74
H670 PG Riptide
� 1 x connettore alimentazione ATX 24-pin � 1 x connettore alimentazione 12V 8-pin (connettore alimentazione
ad alta densit�) � 1 x connettore alimentazione 12V 4-pin (connettore alimentazione
ad alta densit�) � 1 x connettore audio pannello frontale � 1 x connettore Thunderbolt AIC (5-pin) (supporta carta ASRock
Thunderbolt 4 AIC) � 1 x connettore USB 2.0 (supporto di 2 porte USB 2.0) (supporto
protezione da scariche elettrostatiche) � 2 x connettore USB 3.2 Gen1 (supporto di 4 porte USB 3.2 Gen1)
(hub ASMedia ASM1074) (supporto protezione da scariche
elettrostatiche) � 1 x connettore USB 3.2 tipo C connettore Gen2x2 (20 Gb/s)
(supporto protezione da scariche elettrostatiche) sul pannello
frontale
Funzionalit� BIOS
� AMI UEFI Legal BIOS con interfaccia di supporto multilingue � Eventi di riattivazione conformi a ACPI 6.0 � Supporto di SMBIOS 2.7 � CPU Core/Cache, CPU GT, DRAM, VCCIN AUX, +1,05 V PROC,
+1,8 V PROC, + 0,82 V PCH, Regolazione multipla della tensione
+1,05 V PCH
Hardware Monitor
� Tachimetro ventola: Ventole CPU, CPU/pompa dell'acqua, telaio/ pompa dell'acqua
� Ventola silenziosa (regolazione automatica velocit� in base alla temperatura della CPU): Ventole CPU, CPU/pompa dell'acqua, telaio/pompa dell'acqua
� Controllo velocit� ventola: Ventole CPU, CPU/pompa dell'acqua, telaio/pompa dell'acqua
� Monitoraggio tensione: CPU Vcore, PCH, DRAM, VCCIN AUX, +1,05 V PROC, +1,8 V PROC, + 0,82 V PCH, +12 V, + 5 V, + 3,3 V
SO
� Microsoft� Windows� 10 64-bit / 11 64-bit
Certificazioni � FCC, CE � ErP/EuP Ready (� necessaria alimentazione ErP/EuP ready)
Italiano
75
* Per informazioni dettagliate sul prodotto, visitare il nostro sito Web: http://www.asrock.com Prestare attenzione al potenziale rischio previsto nella pratica di overclocking, inclusa la regolazione delle impostazioni nel BIOS, l'applicazione di tecnologia di Untied Overclocking o l'utilizzo di strumenti di overclocking di terze parti. L'overclocking pu� influenzare la stabilit� del sistema o perfino provocare danni ai componenti e ai dispositivi del sistema. Occorre eseguirlo a proprio rischio e spese. Non ci riterremo responsabili per possibili danni provocati da overclocking.
76
Italiano
H670 PG Riptide
1.3 Impostazione jumper
L'illustrazione mostra in che modo vengono impostati i jumper. Quando il cappuccio del jumper � posizionato sui pin, il jumper � "cortocircuitato". Se sui pin non � posizionato alcun cappuccio del jumper, il jumper � "aperto".
Jumper per azzerare la CMOS (CLRMOS1) (vedere pag. 1, n. 22)
Jumper a 2 pin
CLRMOS1 permette si azzerare i dati nella CMOS. Per azzerare e reimpostare i parametri del sistema alla configurazione predefinita, spegnere il computer e scollegare il cavo di alimentazione dalla rete. Attendere 15 secondi, quindi usare un cappuccio jumper per cortocircuitare i di CLRMOS1 per 5 secondi. Tuttavia, non azzerare la CMOS subito dopo aver aggiornato il BIOS. Se � necessario azzerare la CMOS dopo l'aggiornamento del BIOS, � necessario riavviare prima il sistema e in seguito spegnerlo prima di eseguire l'operazione di azzeramento della CMOS. La password, la data, l'ora e il profilo predefinito dell'utente saranno azzerati solo se viene rimossa la batteria della CMOS. Ricordarsi di rimuovere il cappuccio jumper prima di cancellare la CMOS.
Italiano
77
1.4 Header e connettori su scheda
Gli header e i connettori sulla scheda NON sono jumper. NON posizionare cappucci del jumper su questi header e connettori. Il posizionamento di cappucci del jumper su header e connettori provocher� danni permanenti alla scheda madre.
Header sul pannello del sistema (PANEL1 a 9 pin) (vedere pag. 1, n. 19)
PLED+ PLEDPWRBTN# GND
1 GND
RESET# GND HDLEDHDLED+
Collegare il tasto d'alimentazione, il tasto di ripristino e l'indicatore di stato del sistema del telaio a questa basetta in base all'assegnazione dei pin definita di seguito. Annotare i pin positivi e negativi prima di collegare i cavi.
PWRBTN (tasto d'alimentazione): Collegare al tasto d'alimentazione del pannello frontale del telaio. Utilizzando il tasto d'alimentazione � possibile configurare il modo in cui si spegne il sistema.
RESET (tasto di ripristino): Collegare all'interruttore di ripristino del pannello frontale del telaio. Premere il tasto di ripristino per riavviare il sistema se il computer si blocca e non riesce ad eseguire un normale riavvio.
PLED (LED alimentazione del sistema): collegare all'indicatore di stato dell'alimentazione sul pannello anteriore dello chassis. Il LED � acceso quando il sistema � in funzione. Il LED continua a lampeggiare quando il sistema si trova nello stato di sospensione S1/S3. Il LED � spento quando il sistema si trova nello stato di sospensione S4 o quando � spento (S5).
HDLED (LED di attivit� disco rigido): collegare al LED di attivit� disco rigido sul pannello anteriore dello chassis. Il LED � acceso quando il disco rigido sta leggendo o scrivendo dati.
Il design del pannello anteriore pu� cambiare a seconda dello chassis. Un modulo del pannello frontale consiste principalmente di tasto d'alimentazione, tasto di ripristino, LED d'alimentazione, LED attivit� del disco rigido, altoparlanti e cos� via. Quando si collega il modulo del pannello frontale del telaio a questa basetta, assicurarsi che l'assegnazione dei cavi e l'assegnazione dei pin siano corrette.
Italiano
Connettore LED alimentazione e altoparlante (SPK_PLED1 a 7 pin) (vedere pag. 1, n. 20)
78
SPEAKER DUMMY DUMMY +5V
1
PLED+ PLED+ PLED-
Collegare i LED alimentazione e l'altoparlante a questo connettore.
H670 PG Riptide
Connettori Serial ATA3 Angolo destro: (SATA3_0: vedere pag. 1, n. 17) (Superiore) (SATA3_1: vedere pag. 1, n. 17) (Inferiore) (SATA3_2: vedere pag.1, n. 16) (Superiore) (SATA3_3: vedere pag.1, n. 16) (Inferiore)
SATA3_0 SATA3_2 SATA3_1 SATA3_3
Questi quattro connettori SATA3 supportano cavi dati SATA per dispositivi di archiviazione interna, con una velocit� di trasferimento dati fino a 6,0 Gb/s.
Connettore USB 2.0 (USB_2_3 a 9 pin) (vedere pag. 1, n. 23)
USB_PWR PP+ GND DUMMY
1 GND
P+ PUSB_PWR
Su questa scheda madre c'� un connettore USB 2.0. Questo connettore USB 2.0 pu� supportare due porte.
Connettore USB 3.2 Gen1 Verticale: (USB3_6_7 a 19 pin) (vedere pag. 1, n. 12)
Vbus IntA_PA_SSRXIntA_PA_SSRX+
GND IntA_PA_SSTXIntA_PA_SSTX+
GND IntA_PA_DIntA_PA_D+
Vbus IntA_PB_SSRXIntA_PB_SSRX+ GND IntA_PB_SSTXIntA_PB_SSTX+ GND IntA_PB_DIntA_PB_D+ Dummy 1
Ci sono due connettori su questa scheda madre. Ciascun header USB 3.2 Gen1 pu� supportare due porte.
Angolo destro: (USB3_4_5 a 19 pin) (vedere pag. 1, n. 15)
1 Dummy IntA_PB_D+ IntA_PB_D-
GND IntA_PB_SSTX+ IntA_PB_SSTX-
GND IntA_PB_SSRX+ IntA_PB_SSRX-
Vbus
IntA_PA_D+ IntA_PA_DGND IntA_PA_SSTX+ IntA_PA_SSTXGND IntA_PA_SSRX+ IntA_PA_SSRX-
Vbus
Connettore USB 3.2 Gen2x2 tipo C pannello anteriore (F_USB32_TC_1 a 20 pin) (vedere pag. 1, n. 14)
USB Type-C Cable
� presente un connettore USB 3.2 Gen2x2 tipo C pannello anteriore su questa scheda madre. Questo connettore viene utilizzato per il collegamento di un modulo USB 3.2 Gen2x2 per porte USB 3.2 Gen2x2 supplementari.
79
Italiano
Header audio pannello anteriore (HD_AUDIO1 a 9 pin) (vedere pag. 1, n. 26)
GND PRESENCE# MIC_RET OUT_RET
1 OUT2_L
J_SENSE OUT2_R MIC2_R MIC2_L
Questo header serve a collegare i dispositivi audio al pannello audio anteriore.
1. L'audio ad alta definizione supporta le funzioni Jack sensing, ma il filo del pannello sullo chassis deve supportare HDA per funzionare correttamente. Seguire le istruzioni presenti nel nostro manuale e nel manuale dello chassis per installare il sistema.
2. Se si utilizza un pannello audio AC'97, installarlo sull'header audio del pannello anteriore seguendo le fasi di seguito: A. Collegare Mic_IN (MIC) a MIC2_L. B. Collegare Audio_R (RIN) a OUT2_R e Audio_L (LIN) a OUT2_L. C. Collegare Ground (GND) a Ground (GND). D. MIC_RET e OUT_RET servono soltanto per il pannello audio HD. Non � necessario collegarli per il pannello audio AC'97. E. Per attivare il microfono anteriore, andare alla scheda "FrontMic" nel pannello di controllo Realtek e regolare il "Volume di registrazione".
Connettori ventola chassis / pompa dell'acqua (CHA_FAN1/WP a 4 pin) (vedere pag. 1, n. 13) (CHA_FAN2/WP a 4 pin) (vedere pag. 1, n. 28) (CHA_FAN3/WP a 4 pin) (vedere pag. 1, n. 10) (CHA_FAN4/WP a 4 pin) (vedere pag. 1, n. 18)
4 3 21
FAN_SPEED_CONTROL CHA_FAN_SPEED FAN_VOLTAGE GND
Questa scheda madre � dotata di quattro connettori ventola a 4 pin per il raffreddamento ad acqua del telaio. Se si decide di collegare una ventola telaio con raffreddamento ad acqua a 3 pin, collegarla al pin 1-3.
Connettore ventola CPU (CPU_FAN1 a 4 pin) (vedere pag. 1, n. 3)
FAN_SPEED_CONTROL CPU_FAN_SPEED +12V GND
1 2 34
Questa scheda madre � dotata di un connettore per la ventola della CPU (Ventola silenziosa) a 4 pin. Se si decide di collegare una ventola della CPU a 3 pin, collegarla al pin 1-3.
Italiano
80
H670 PG Riptide
Connettore ventola CPU / pompa dell'acqua (CPU_FAN2/WP a 4 pin) (vedere pag. 1, n. 6)
Connettore di alimentazione ATX (ATXPWR1 a 24 pin) (vedere pag. 1, n. 11)
Connettore di alimentazione ATX da 12 V (ATX12V1 a 8 pin) (vedere pag. 1, n. 1)
Connettore di alimentazione ATX da 12 V (ATX12V2 a 4 pin) (vedere pag. 1, n. 2)
4 3 21
GND FAN_VOLTAGE CPU_FAN_SPEED FAN_SPEED_CONTROL
12
24
1
13
8
5
4
1
Questa scheda madre � dotata di un connettore per la ventola della CPU con raffreddamento ad acqua a 4 pin. Se si decide di collegare una ventola della CPU con raffreddamento ad acqua a 3 pin, collegarla al pin 1-3.
Questa scheda madre � dotata di un connettore di alimentazione ATX a 24 pin. Per utilizzare un'alimentazione ATX a 20 pin, collegarla lungo il pin 1 e il pin 13.
Questa scheda madre � dotata di un connettore di alimentazione ATX da 12 V a 8 pin. Per utilizzare un'alimentazione ATX a 4 pin, collegarla lungo il pin 1 e il pin 5. *Attenzione: Assicurarsi che il cavo di alimentazione collegato sia per la CPU e non la scheda grafica. Non inserire il cavo di alimentazione PCIe in questo connettore.
Collegare un alimentatore ATX a 12 V a questo connettore. *La spina di alimentazione pu� essere inserita in questo connettore con un solo orientamento. * Il collegamento di un cavo ATX 12V a 4 pin a ATX12V2 � opzionale. Per l'overclock avanzato, si consiglia l'uso di questo connettore con ATX12V1.
81
Italiano
Connettore SPI TPM (SPI_TPM_J1 a 13 pin) (vedere pag. 1, n. 21)
SPI_DQ3 SPI_PWR Dummy CLK SPI_MOSI RST# TPM_PIRQ
1
SPI_TPM_CS# GND RSMRST# SPI_MISO SPI_CS0 SPI_DQ2
Questo connettore supporta il sistema SPI Trusted Platform Module (TPM), che pu� archiviare in modo sicuro chiavi, certificati digitali, password e dati. Un sistema TPM permette anche di potenziare la sicurezza della rete, di proteggere identit� digitali e di garantire l'integrit� della piattaforma.
Connettore Thunderbolt AIC (TB1 a 5 pin) (vedere pag. 1, n. 27)
Collegare una scheda aggiuntiva ThunderboltTM (AIC) a questo connettore utilizzando il cavo GPIO. * Installare la scheda ThunderboltTM AIC nell'alloggio (predefinito) PCIE3.
Collettore LED RGB (RGB_LED1 a 4 pin) (vedere pag. 1, n. 24)
1 +12V G R B
Questa basetta RGB � utilizzata per collegare il cavo di prolunga RGB LED che permette agli utenti di scegliere tra vari effetti luminosi LED. Attenzione: Non installare il cavo LED RGB in senso errato; in caso contrario, il cavo potrebbe danneggiarsi. * Fare riferimento a pagina 40 per ulteriori istruzioni su questa basetta.
Italiano
82
H670 PG Riptide
Header LED indirizzabili (ADDR_LED1 a 3 pin) (vedere pag. 1, n. 25)
(ADDR_LED2 a 3 pin) (vedere pag. 1, n. 8) (ADDR_LED3 a 3 pin) (vedere pag. 1, n. 7)
1 GND
DO_ADDR VOUT
GND DO_ADDR VOUT 1
Questo header serve a collegare il cavo di estensione del LED indirizzabile che consente di scegliere tra vari effetti luce LED. Attenzione: Non installare mai il cavo del LED indirizzabile secondo un orientamento errato, altrimento potrebbe danneggiarsi. * Fare riferimento a pagina 41 per ulteriori istruzioni su questa basetta.
Italiano
83
2.7 Tasto Smart
La scheda madre � dotata di un tasto smart: Il tasto BIOS Flashback permette di eseguire il flash del BIOS.
Tasto BIOS Flashback (BIOS_FB1) (vedere pag. 3, n. 10)
L'interruttore BIOS Flashback consente agli utenti di aggiornare il BIOS.
La funzione di flashback BIOS di ASRock consente di aggiornare il BIOS senza alimentare il sistema, persino senza CPU
Prima di utilizzare la funzione BIOS Flashback, sospendere BitLocker e qualsiasi crittografia o sicurezza basata sul TPM. Assicurati di aver gi� archiviato e di aver eseguito il backup della chiave di ripristino. Se la chiave di ripristino manca mentre la crittografia � attiva, i dati rimarranno crittografati e il sistema non si avvier� nel sistema operativo. Si consiglia di disabilitare fTPM prima di aggiornare il BIOS. In caso contrario, potrebbe verificarsi un guasto imprevisto.
Per utilizzare la funzione Flashback BIOS USB, attenersi ai passaggi di seguito.
1. Scaricare il file BIOS pi� recente dal sito web di ASRock: http://www.asrock.com. 2. Copiare il file del BIOS sulla chiavetta USB. Assicurarsi che il file system della chiavetta USB sia FAT32. 3. Estrarre il file del BIOS dal file compresso. 4. Rinominare il file come "creative.rom" e salvarlo nella directory di root di X: chiavetta USB. 5. Inserire il connettore di alimentazione a 24 pin sulla scheda madre. Quindi accendere l'interruttore
dell'alimentazione CA. *Non � necessario alimentare il sistema. 6. Quindi collegare l'unit� USB alla porta USB BIOS Flashback. 7. Premere l'interruttore BIOS Flashback per circa tre secondi. A questo punto il LED comincer� a lampeggiare. 8. Attendere finch� il LED non smette di lampeggiare, indicando che la copia del BIOS � stata completata. *Se il LED si illumina in verde, allora il BIOS Flashback non funziona correttamente. Assicurarsi di aver inserito la chiavetta USB nella porta USB BIOS Flashback. **Se il LED non si accende affatto, scollegare l'alimentazione dal sistema e rimuovere/scollegare la
batteria CMOS dalla scheda madre per diversi minuti. Ricollegare l'alimentazione e la batteria, quindi riprovare.
Italiano
Porta USB BIOS Flashback 84
H670 PG Riptide
1 Introducci�n
Gracias por comprar la placa base ASRock H670 PG Riptide, una placa base fiable fabricada seg�n el riguros�simo control de calidad de ASRock. Ofrece un rendimiento excelente con un dise�o resistente de acuerdo con el compromiso de calidad y resistencia de ASRock.
Ya que las especificaciones de la placa base y el software de la BIOS podr�n ser actualizados, el contenido que aparece en esta documentaci�n estar� sujeto a modificaciones sin previo aviso. Si esta documentaci�n sufre alguna modificaci�n, la versi�n actualizada estar� disponible en el sitio web de ASRock sin previo aviso. Si necesita asistencia t�cnica relacionada con esta placa base, visite nuestro sitio web para obtener informaci�n espec�fica sobre el modelo que est� utilizando. Podr� encontrar las �ltimas tarjetas VGA, as� como la lista de compatibilidad de la CPU, en el sitio web de ASRock. Sitio web de ASRock http://www.asrock.com.
1.1 Contenido del paquete
� Placa base ASRock H670 PG Riptide (Factor de forma ATX) � Gu�a de instalaci�n r�pida de ASRock H670 PG Riptide � CD de soporte de ASRock H670 PG Riptide � 2 x Cables de datos Serie ATA (SATA) (Opcional) � 4 x tornillos para sockets M.2 (Opcional) � 1 x separador para socket M.2 (Opcional) � 1 x escudo panel E/S
85
Espa�ol
1.2 Especificaciones
Plataforma
� Factor de forma ATX � Dise�o de condensador s�lido
CPU
� Compatible con la 12a generaci�n de procesadores Intel� CoreTM
(LGA1700)
� Dise�o de 9 fases de alimentaci�n
� Compatible con la Tecnolog�a H�brido de Intel�
� Admite Intel� Turbo Boost Technology 3.0
Conjunto de chips
� Intel� H670
Memoria
� Tecnolog�a de memoria DDR4 de doble canal � 4 x ranuras DIMM DDR4 � Admite memoria DDR4 no ECC, sin b�fer de hasta 5000+(OC)* * Admite DDR4 3200 de forma nativa. * Para obtener m�s informaci�n, consulte la lista de memorias compatibles en el sitio web de ASRock. (http://www.asrock.com/) � Admite m�dulos de memoria UDIMM ECC (funcionamiento en
modo no ECC) � Capacidad m�xima de memoria del sistema: 128GB � Admite Perfil de memoria extremo de Intel� (XMP) 2.0
Ranura de expansi�n
� 2 ranuras PCIe x16 (PCIE1/PCIE3: simple a Gen5x16 (PCIE1); dual a Gen5x16 (PCIE1) / Gen4x4 (PCIE3))*
* Admite unidad de estado s�lido de NVMe como disco de arranque � 3 ranuras PCIe Gen3x1 � Compatible con AMD CrossFireTM � 1 x Z�calo M.2 (Clave E), es compatible con los PCIe WiFi m�dulos
WiFi/BT tipo 2230 e Intel� CNVi (WiFi/BT integrado)
Gr�ficos
� Intel� UHD Graphics Built-in Visuals y las salidas de VGA son compatibles �nicamente con procesadores con GPU integrado.
� Arquitectura de gr�ficos Intel� Xe (Generaci�n 12)
Espa�ol
86
H670 PG Riptide
� Salida gr�fica dual: compatible con puertos HDMI y DisplayPort 1.4 mediante controladores de pantalla independientes
� Admite HDMI 2.1 TMDS compatible con una resoluci�n m�xima de hasta 4K x 2K (4096x2160) a 60 Hz
� Admite DisplayPort 1.4 con DSC (comprimido) con una resoluci�n m�xima de hasta 8K (7680x4320) a 60 Hz o 5K (5120x3200) a 120 Hz
� Admite HDCP 2.3 con compatibilidad con HDMI 2.1 TMDS y puertos DisplayPort 1.4
Audio
� 7.1 Audio CH HD (C�dec de audio Realtek ALC897) � Admite protecci�n contra sobretensiones � Audio Nahimic
LAN
� Gigabit LAN 10/100/1000 Mb/s � Giga PHY Intel� I219V � Admite la funci�n Reactivaci�n de LAN � Admite protecci�n contra rayos y descargas electrost�ticas (ESD) � Admite Ethernet 802.3az de eficiencia energ�tica � Admite UEFI PXE
E/S en panel posterior
� 3 x Puntos de instalaci�n para la antena � 1 x puerto de rat�n/teclado PS/2 � 1 x puerto HDMI � 1 x DisplayPort 1.4 � 1 x Puerto USB 3.2 Gen2 Tipo-A (10 Gb/s) (ReDriver) (admite
protecci�n ESD) � 1 x Puerto USB 3.2 Gen2 Tipo-C (10 Gb/s) (ReDriver) (admite
protecci�n ESD) � 4 x Puertos USB 3.2 Gen1 (admite protecci�n contra descargas
electrost�ticas) * USB3_2_3 son puertos para juegos de tipo Lightning. � 2 x Puertos USB 2.0 (admite protecci�n contra descargas
electrost�ticas) � 1 x Puerto LAN RJ-45 con LED (LED DE ACTIVIDAD/ENLACE
y LED DE VELOCIDAD) � 1 x Bot�n Actualizar BIOS � Conector de audio HD: Entrada de l�nea / Altavoz frontal /
Micr�fono
87
Espa�ol
Almacenamiento
� 4 x conectores SATA3 de 6,0 Gb/s � 1 x Z�calo Hyper M.2 (M2_1, Clave M), compatible con el modo
de tipo 2260/2280 PCIe Generaci�n 4 x 4 (64 Gb/s)* � 1 x Z�calo Hyper M.2 (M2_2, Clave M), compatible con los modos
de tipo 2242/2260/2280 PCIe Generaci�n 4 x 4 (64 Gb/s)* � 1 x Z�calo Hyper M.2 (M2_3, Clave M), compatible con los modos
de tipo 2260/2280/22110 SATA3 6,0 Gb/s y PCIe Generaci�n 4 x 4 (64 Gb/s)* * Compatible con la Tecnolog�a OptaneTM de Intel� (solo M2_2 y M2_3) * Admite el Dispositivo de Administraci�n de Volumen (VMD, seg�n sus siglas en ingles) de Intel� * Admite unidad de estado s�lido de NVMe como disco de arranque * Admite el Kit U.2 de ASRock
RAID
� Admite RAID 0, RAID 1, RAID 5 y RAID 10 para dispositivos de almacenamiento SATA
� Admite RAID 0, RAID 1 y RAID 5 para dispositivos de almacenamiento M.2 NVMe
Espa�ol
Conector
� 1 x Conector SPI TPM � 1 x LED de alimentaci�n y base de conexiones para el altavoz � 1 x Cabezal de indicador LED RGB * Admite una tira de LED de hasta 12 V/3 A (36 W) en total � 3 x Cabezales de LED direccionables * Admite una tira de LED de hasta 5 V/3 A (15 W) en total � 1 x Conector para ventilador de la CPU (4 contactos) * El conector para ventilador de la CPU admite ventilador de la CPU con una potencia de ventilador de 1 A (12 W) m�xima. � 1 x Conector (4 contactos) para el ventilador de la bomba de agua/
CPU (control de velocidad de ventilador inteligente) * El ventilador de la CPU/bomba de agua admite ventilador del disipador por agua con una potencia de ventilador m�xima de 2 A (24 W). � 4 x Conectores (4 contactos) para el ventilador de la bomba de
agua/chasis (control de velocidad de ventilador inteligente) * El ventilador de la bomba de agua/Chasis admite ventilador del disipador por agua con una potencia de ventilador m�xima de 2 A (24 W). * CPU_FAN2/WP y CHA_FAN1~4/WP se pueden detectar autom�ticamente si se usa el ventilador de 3 o 4 contactos.
88
H670 PG Riptide
� 1 x Conector de alimentaci�n ATX de 24 contactos � 1 x Conector de alimentaci�n de 8 contactos y 12 V (conector de
alimentaci�n de alta densidad) � 1 x Conector de alimentaci�n de 4 contactos y 12 V (conector de
alimentaci�n de alta densidad) � 1 x Conector de audio en el panel frontal � 1 x Conector Thunderbolt AIC (5 contactos) (solamente se admite
tarjeta ASRock Thunderbolt 4 AIC) � 1 x Base de conexiones USB 2.0 (admite 2 puertos USB 2.0)
(admite protecci�n contra descargas electrost�ticas) � 2 x Base de conexiones USB 3.2 Gen1 (admite 4 puertos USB 3.2
Gen1) (concentrador ASMedia ASM1074) (admite protecci�n
contra descargas electrost�ticas) � 1 x Base de conexiones USB 3.2 Gen2x2 Tipo C en el panel frontal
(20 Gb/s) (admite protecci�n contra descargas electrost�ticas)
Funci�n de la BIOS
� BIOS legal UEFI AMI compatible con interfaz gr�fica de usuario
multiling�e � Eventos de reactivaci�n compatibles con ACPI 6.0 � Admite SMBIOS 2.7 � Varios ajustes de voltaje de n�cleo y cach� de CPU, GT de CPU,
DRAM, VCCIN AUX, +1,05V PROC, +1,8V PROC, +0,82V PCH,
+1,05V PCH
Monitor de hardware
� Tac�metro del ventilador: Ventiladores de la bomba de agua/chasis, bomba de agua/CPU, CPU
� Ventilador silencioso (ajuste autom�tico de la velocidad del ventilador del chasis por temperatura de la CPU): Ventiladores de la bomba de agua/chasis, bomba de agua/CPU, CPU
� Control de varias velocidades del ventilador: Ventiladores de la bomba de agua/chasis, bomba de agua/CPU, CPU
� Supervisi�n del voltaje: N�cleo CPU V, PCH, DRAM, VCCIN AUX, +1,05V PROC, +1,8V PROC, +0,82V PCH, +12V, +5V, +3,3V
SO
� Microsoft� Windows� 10 64 bit / 11 64 bit
Certificaciones � FCC y CE � Preparado para ErP/EuP (se necesita una fuente de alimentaci�n
preparada para ErP/EuP)
89
Espa�ol
* Para obtener informaci�n detallada del producto, visite nuestro sitio Web: http://www.asrock.com Tenga en cuenta que hay un cierto riesgo impl�cito en las operaciones de overclocking, incluido el ajuste de la BIOS, aplicando la tecnolog�a de overclocking liberada o utilizando las herramientas de overclocking de otros fabricantes. El overclocking puede afectar a la estabilidad del sistema e, incluso, da�ar los componentes y dispositivos del sistema. Esta operaci�n se debe realizar bajo su propia responsabilidad y usted debe asumir los costos. No asumimos ninguna responsabilidad por los posibles da�os causados por el overclocking.
90
Espa�ol
H670 PG Riptide
1.3 Instalaci�n de los puentes
La instalaci�n muestra c�mo deben instalarse los puentes. Cuando la tapa de puente se coloca en los contactos, el puente queda "Corto". Si no coloca la tapa de puente en los contactos, el puente queda "Abierto".
Puente de borrado de CMOS (CLRMOS1) (consulte la p�g. 1, n� 22)
Puente de 2 contactos
CLRMOS1 le permite borrar los datos del CMOS. Para borrar y restablecer los par�metros del sistema a los valores predeterminados de instalaci�n, apague el ordenador y desenchufe el cable de alimentaci�n de la toma de alimentaci�n. Despu�s de esperar 15 segundos, utilice una tapa de puente para acortar los contactos en el CLRMOS1 durante 5 segundos. Sin embargo, no borre el CMOS justo despu�s de que haya actualizado la BIOS. Si necesita borrar el CMOS cuando acabe de actualizar la BIOS, deber� arrancar el sistema primero y, a continuaci�n, deber� apagarlo antes de que realice el borrado del CMOS. Tenga en cuenta que la contrase�a, la fecha, la hora y el perfil de usuario predeterminado ser�n eliminados �nicamente si se retira la pila del CMOS. Acu�rdese de retirar la tapa de puente despu�s de borrar el CMOS.
Espa�ol
91
1.4 Conectores y cabezales incorporados
Los cabezales y conectores incorporados NO son puentes. NO coloque tapas de puente sobre estos cabezales y conectores. Si coloca tapas de puente sobre los cabezales y conectores da�ar� de forma permanente la placa base.
Cabezal del panel del sistema (PANEL1 de 9 contactos) (consulte la p�g. 1, n� 19)
PLED+ PLEDPWRBTN# GND
1 GND
RESET# GND HDLEDHDLED+
Conecte el bot�n de alimentaci�n, el bot�n de restablecimiento y el indicador de estado del sistema que se encuentran en el chasis a esta base de conexiones seg�n las asignaciones de contactos que se indica a continuaci�n. Cerci�rese de cu�les son los contactos positivos y los negativos antes de conectar los cables.
PWRBTN (bot�n de alimentaci�n): Con�ctelo al bot�n de alimentaci�n del panel frontal del chasis. Deber� configurar la forma en la que su sistema se apagar� mediante el bot�n de alimentaci�n.
RESET (bot�n de restablecimiento): Con�ctelo al bot�n de restablecimiento del panel frontal del chasis. Pulse el bot�n de restablecimiento para resetear el ordenador si �ste est� bloqueado y no se puede reiniciar de forma normal.
PLED (Indicador LED de la alimentaci�n del sistema): Con�ctelo al indicador de estado de la alimentaci�n del panel frontal del chasis. El indicador LED permanece encendido cuando el sistema est� funcionando. El indicador LED parpadea cuando el sistema se encuentra en estado de suspensi�n S1/S3. El indicador LED se apaga cuando el sistema se encuentra en estado de suspensi�n S4 o est� apagado (S5).
HDLED (Indicador LED de actividad en el disco duro): Con�ctelo al indicador LED de actividad en el disco duro del panel frontal del chasis. El indicador LED permanece encendido cuando el disco duro est� leyendo o escribiendo datos.
El dise�o del panel frontal puede ser diferente dependiendo del chasis. Un m�dulo de panel frontal consta principalmente de: bot�n de alimentaci�n, bot�n de restablecimiento, indicador LED de alimentaci�n, indicador LED de actividad en el disco duro, altavoz, etc. Cuando conecte su m�dulo del panel frontal del chasis a este cabezal, aseg�rese de que las asignaciones de los cables y los contactos coinciden correctamente.
Espa�ol
LED de alimentaci�n y base de conexiones para la altavoz (SPK_PLED1 de 7 contactos) (consulte la p�g. 1, n� 20)
92
SPEAKER DUMMY DUMMY +5V
1
PLED+ PLED+ PLED-
Conecte el LED de alimentaci�n del chasis y el altavoz del chasis a esta base de conexiones.
H670 PG Riptide
Conectores Serie ATA3 �ngulo recto: (SATA3_0: consulte la p�g.1, n� 17) (Superior) (SATA3_1: consulte la p�g.1, n� 17) (Inferior) (SATA3_2: consulte la p�g. 1, n� 16) (Superior) (SATA3_3: consulte la p�g. 1, n� 16) (Inferior)
SATA3_0 SATA3_2 SATA3_1 SATA3_3
Estos cuatro conectores SATA3 son compatibles con cables de datos SATA para dispositivos de almacenamiento interno con una velocidad de transferencia de datos de hasta 6,0 Gb/s.
Cabezal USB 2.0 (USB_2_3 de 9 contactos) (consulte la p�g. 1, n� 23)
USB_PWR PP+ GND DUMMY
1 GND
P+ PUSB_PWR
Esta placa base tiene otra base de conexiones USB 2.0. Cada base de conexiones USB 2.0 admite dos puertos.
Cabezales USB 3.2 Gen1 Vertical: (USB3_6_7 de 19 contactos) (consulte la p�g. 1, n� 12)
Vbus IntA_PA_SSRXIntA_PA_SSRX+
GND IntA_PA_SSTXIntA_PA_SSTX+
GND IntA_PA_DIntA_PA_D+
Vbus IntA_PB_SSRXIntA_PB_SSRX+ GND IntA_PB_SSTXIntA_PB_SSTX+ GND IntA_PB_DIntA_PB_D+ Dummy 1
Hay dos bases de conexiones en esta placa base. Cada cabezal USB 3.2 Gen1 admite dos puertos.
�ngulo recto: (USB3_4_5 de 19 contactos) (consulte la p�g. 1, n� 15)
1 Dummy IntA_PB_D+ IntA_PB_D-
GND IntA_PB_SSTX+ IntA_PB_SSTX-
GND IntA_PB_SSRX+ IntA_PB_SSRX-
Vbus
IntA_PA_D+ IntA_PA_DGND IntA_PA_SSTX+ IntA_PA_SSTXGND IntA_PA_SSRX+ IntA_PA_SSRX-
Vbus
Base de conexiones USB 3.2 Gen2x2 de tipo C en el panel frontal (F_USB32_TC_1 de 20 contactos) (consulte la p�g. 1, n� 14)
USB Type-C Cable
Existe una base de conexiones USB 3.2 Gen2x2 de tipo C en el panel frontal en esta placa base. Esta base de conexiones se utiliza para conectar un m�dulo USB 3.2 Gen2x2 para puertos USB 3.2 Gen2x2 adicionales.
93
Espa�ol
Cabezal de audio del panel frontal (HD_AUDIO1 de 9 contactos) (consulte la p�g. 1, n� 26)
GND PRESENCE# MIC_RET OUT_RET
1 OUT2_L
J_SENSE OUT2_R MIC2_R MIC2_L
Este cabezal se utiliza para conectar dispositivos de audio al panel de audio frontal.
1. El Audio de Alta Definici�n (HDA, en ingl�s) es compatible con el m�todo de sensor de conectores, sin embargo, el cable del panel del chasis deber� ser compatible con HDA para que pueda funcionar correctamente. Siga las instrucciones que se indican en nuestro manual y en el manual del chasis para instalar su sistema.
2. Si utiliza un panel de audio AC'97, col�quelo en el cabezal de audio del panel frontal siguiendo los pasos que se describen a continuaci�n: A. Conecte Mic_IN (MIC) a MIC2_L. B. Conecte Audio_R (RIN) a OUT2_R y Audio_L (LIN) a OUT2_L. C. Conecte Ground (Conexi�n a tierra) (GND) a Ground (GND). D. MIC_RET y OUT_RET se utilizan �nicamente con el panel de audio HD. No es necesario que los conecte en el panel de audio AC'97. E. Para activar el micr�fono frontal, vaya a la ficha "micr�fono frontal" (Front Mic) en el panel de control de Realtek y ajuste el "Volumen de grabaci�n" (Recording Volume).
Espa�ol
Conectores del ventilador de
4 3 21
la bomba de agua/chasis
(CHA_FAN1/WP de 4 contactos) (consulte la p�g. 1, n� 13)
FAN_SPEED_CONTROL CHA_FAN_SPEED FAN_VOLTAGE GND
(CHA_FAN2/WP de
4 contactos)
(consulte la p�g. 1, n� 29)
(CHA_FAN3/WP de
4 contactos)
(consulte la p�g. 1, n� 10)
(CHA_FAN4/WP de
4 contactos)
(consulte la p�g. 1, n� 18)
Esta placa base proporciona cuatro conectores para el ventilador del chasis para refrigeraci�n por agua de 4 contactos. Si tiene pensando conectar un ventilador de disipador por agua del chasis de 3 contactos, con�ctelo al contacto 1-3.
Conector del ventilador de la CPU (CPU_FAN1 de 4 contactos) (consulte la p�g. 1, n� 3)
FAN_SPEED_CONTROL CPU_FAN_SPEED +12V GND
1 2 34
Esta placa base contiene un conector de ventilador (ventilador silencioso) de CPU de 4 contactos. Si tiene pensando conectar un ventilador de CPU de 3 contactos, con�ctelo al Pin 1-3.
94
H670 PG Riptide
Conector del ventilador de la bomba de agua/CPU (CPU_FAN2/WP de 4 contactos) (consulte la p�g. 1, n� 6)
4 3 21
GND FAN_VOLTAGE CPU_FAN_SPEED FAN_SPEED_CONTROL
Conector de alimentaci�n ATX (ATXPWR1 de 24 contactos) (consulte la p�g. 1, n� 11)
12
24
1
13
Conector de alimentaci�n
8
5
ATX de 12 V
(ATX12V1 de 8 contactos)
4
1
(consulte la p�g. 1, n� 1)
Conector de alimentaci�n ATX de 12 V (ATX12V2 de 4 contactos) (consulte la p�g. 1, n� 2)
Esta placa base proporciona un conector de ventilador de CPU de refrigeraci�n por agua de 4 contactos. Si tiene pensando conectar un ventilador de disipador por agua de CPU de 3 contactos, con�ctelo al contacto 1-3.
Esta placa base contiene un conector de alimentaci�n ATX de 24 contactos. Para utilizar una toma de alimentaci�n ATX de 20 contactos, con�ctela en los contactos del 1 al 13.
Esta placa base contiene un conector de alimentaci�n ATX de 12V y 8 contactos. Para utilizar una toma de alimentaci�n ATX de 4 contactos, con�ctela en los contactos del 1 al 5. *Advertencia: Aseg�rese de que el cable de alimentaci�n conectado corresponda a este CPU y no a la tarjeta gr�fica. No conecte el cable de alimentaci�n PCIe a este conector.
Conecte una fuente de alimentaci�n ATX 12V en este conector. *El enchufe de la fuente de alimentaci�n encaja en este conector en una �nica direcci�n. *Conectar un cable de 4 clavijas ATX 12V al ATX12V2 es opcional. Para un aumento avanzado de la velocidad del reloj, le recomendamos usar este conector junto con ATX12V1.
95
Espa�ol
Cabezal de SPI TPM (SPI_TPM_J1 de 13 contactos) (consulte la p�g. 1, n� 21)
SPI_DQ3 SPI_PWR Dummy CLK SPI_MOSI RST# TPM_PIRQ
1
SPI_TPM_CS# GND RSMRST# SPI_MISO SPI_CS0 SPI_DQ2
Este conector es compatible con el sistema SPI M�dulo de Plataforma Segura (TPM, en ingl�s), que puede almacenar de forma segura claves, certificados digitales, contrase�as y datos. Un sistema TPM tambi�n ayuda a aumentar la seguridad en la red, protege las identidades digitales y garantiza la integridad de la plataforma.
Conector Thunderbolt AIC (TB1 de 5 contactos) (consulte la p�g. 1, n� 27)
Enchufe una tarjeta complementaria (AIC) ThunderboltTM a este conector mediante el cable GPIO. *Instale la tarjeta ThunderboltTM AIC en PCIE3 (ranura predeterminada).
Cabezal de LED RGB (RGB_LED1 de 4 contactos) (consulte la p�g. 1, n� 24)
1 +12V G R B
Este cabezal RGB se utiliza para conectar el alargador de LED RGB que permite a los usuarios elegir entre varios efectos de iluminaci�n de LED. Precauci�n: Nunca instale el cable de LED RGB con la orientaci�n incorrecta ya que, de lo contrario, el cable puede da�arse. *Consulte la p�gina 40 para obtener m�s instrucciones sobre esta base de conexiones.
Espa�ol
96
H670 PG Riptide
Cabezales de LED direccionables (ADDR_LED1 de 3 contactos) (consulte la p�g. 1, n� 25)
1
GND DO_ADDR VOUT
(ADDR_LED2 de 3 contactos) (consulte la p�g. 1, n� 8) (ADDR_LED3 de 3 contactos) (consulte la p�g. 1, n� 7)
GND
DO_ADDR VOUT 1
La base de conexiones se usa para conectar el alargador de LED direccionable que permite a los usuarios elegir entre varios efectos de iluminaci�n LED. Precauci�n: Nunca instale el cable de LED direccionable con la orientaci�n incorrecta ya que, de lo contrario, el cable puede da�arse. *Consulte la p�gina 41 para obtener m�s instrucciones sobre esta base de conexiones.
Espa�ol
97
2.7 Bot�n inteligente
La placa base tiene un bot�n inteligente: El bot�n Actualizar BIOS permite a los usuarios actualizar la BIOS.
Bot�n de actualizaci�n de la BIOS (BIOS_FB1) (consulte la p�g.3, N.� 10)
El interruptor de actualizaci�n de la BIOS permite a los usuarios actualizar la BIOS.
La caracter�stica de actualizaci�n ASRock BIOS le permite actualizar la BIOS sin encender el sistema, incluso sin CPU.
Antes de utilizar la funci�n Actualizar BIOS, suspende BitLocker y cualquier cifrado o medida de seguridad que depende del TPM. Aseg�rese de que ya ha guardado y creado una copia de seguridad de la clave de recuperaci�n. Si falta la clave de recuperaci�n mientras el cifrado est� activo, los datos permanecer�n cifrados y el sistema no se iniciar� en el sistema operativo. Se recomienda deshabilitar fTPM antes de actualizar la BIOS. De lo contrario, un fallo impredecible podr�a ocurrir.
Para utilizar la funci�n de actualizaci�n USB de la BIOS, siga los siguientes pasos.
1. Descargue el archivo del BIOS m�s reciente del sitio web de ASRock: http://www.asrock.com. 2. Copie el archivo del BIOS en la unidad flash USB. Aseg�rese de que el sistema de archivos de su unidad
flash USB sea FAT32. 3. Extraiga el archivo del BIOS del archivo comprimido. 4. Cambie el nombre del archivo a "creative.rom" y gu�rdelo en el directorio ra�z de la unidad X: Unidad
flash USB. 5. Conecte el conector de 24 pines a la placa madre. A continuaci�n, encienda el interruptor de corriente
CA. *No hay necesidad de encender el sistema. 6. A continuaci�n, enchufe la unidad USB al puerto BIOS Flashback USB. 7. Presione el bot�n BIOS Flashback durante tres segundos aproximadamente. A continuaci�n, el LED comenzar� a parpadear. 8. Espere hasta que el LED deje de parpadear, lo que significa que la actualizaci�n del BIOS se ha completado. *Si el LED se ilumina en color verde permanentemente, significa que la caracter�stica BIOS Flashback no est� funcionando correctamente. Aseg�rese de que conecta la unidad USB en el puerto BIOS Flashback USB. **Si el LED no se enciende, desconecte la alimentaci�n del sistema y retire y desconecte la bater�a
CMOS de la placa base durante varios minutos. Vuelva a conectar la alimentaci�n y la bater�a y vuelva a intentarlo.
Espa�ol
Puerto BIOS Flashback USB 98
H670 PG Riptide
1
ASRock H670 PG Riptide, ASRock. ASRock .
BIOS . - ASRock . , , - . - ASRock VGA- . - ASRock http://www.asrock.com.
1.1
� ASRock H670 PG Riptide (- ATX) � ASRock H670 PG Riptide � ASRock H670 PG Riptide � 2 Serial ATA (SATA) ( ) � 4 M.2 ( ) � 1 M.2 ( ) � 1 -
99
1.2
� - ATX �
� 12- Intel� CoreTM
(LGA 1700)
� 9
� Intel� Hybrid
� Intel� Turbo Boost Max 3.0
� Intel� H670
� DDR4 � 4 x DDR4 DIMM � DDR4 -ECC
5000+(OC)* * DDR4 3200 . * (Memory Support List ) - ASRock. (http://www.asrock.com/) � ECC UDIMM ( ,
) � : 128 � Intel� Extreme Memory Profile (XMP) 2.0
� 2 x PCIe x16 (PCIE1/PCIE3: Gen5x16 (PCIE1); Gen5x16 (PCIE1) / Gen4x4 (PCIE3))*
* SSD- NVMe � 3 x PCIe Gen3x1 � AMD CrossFireTM � M.2 ( E) 2230 Wi-Fi/BT PCIe Wi-Fi
Intel� CNVi ( Wi-Fi/BT) 1 .
� Intel� UHD Graphics VGA .
� Intel� Xe (12 )
100
H670 PG Riptide
LAN
� : HDMI DisplayPort 1.4
� HDMI 2.1, TMDS, . 4K x 2K (4096x2160) 60
� DisplayPort 1.4 DSC () . 8K (7680x4320) 60 /5K (5120x3200) 120
� HDCP 2.3 HDMI 2.1, TMDS DisplayPort 1.4
� 7.1- ( Realtek ALC897)
� � Nahimic
� Gigabit Ethernet 10/100/1000 / � Giga PHY Intel� I219V � � � Energy Efficient Ethernet 802.3az � UEFI PXE
� , 3 . � 1 x PS/2 / � 1 x HDMI � 1 DisplayPort 1.4 � 1 USB 3.2 Gen2 A (10 /) (ReDriver) (
) � 1 USB 3.2 Gen2 (10 /) (ReDriver) (
) � 4 x USB 3.2 Gen1 (
) * USB3_2_3 � Lightning. � 2 x USB 2.0 ( ) � 1 x RJ-45 (/
) � 1 x BIOS � HD Audio: / /
101
� 4 SATA3 6,0 / � Hyper M.2 (M2_1, M)
2260/2280 PCIe Gen4x4 (64 /) 1 .* � Hyper M.2 (M2_2, M)
2242/2260/2280 PCIe Gen4x4 (64 /) 1 .* � Hyper M.2 (M2_3, M)
2260/2280/22110 SATA3 6,0 / PCIe Gen4x4 (64 /) 1 .* * Intel� OptaneTM ( M2_2 M2_3) * Intel� Volume Management Device (VMD) * SSD- NVMe * ASRock U.2
RAID
� RAID 0, RAID 1, RAID 5 RAID 10 SATA
� RAID 0, RAID 1 RAID 5 M.2 NVMe
� 1 x SPI � 1 x
� 1 RGB- * ( 12 /3 , 36 ). � 3 x * ( 5 /3 , 15 ) � 1 x (4-) * 1 (12 ). � 1 x
(4-) (- ) * 2 (24 ). � 4 x (4-) (- ) * 2 (24 ). * CPU_FAN2/WP CHA_FAN1~4/WP : 3- 4-.
102
H670 PG Riptide
� 1 , 24- � 1 12 (8-
) � 1 12 (4-
) � 1 � 1 AIC- Thunderbolt (5-) (
ASRock Thunderbolt 4 AIC) � 1 USB 2.0 (2 USB 2.0
) � 2 USB 3.2 Gen1 (4 USB 3.2 Gen1) (
ASMedia ASM1074) ( ) � 1 USB 3.2 Gen2x2 (20 /) ( )
BIOS
� AMI UEFI Legal BIOS
� ACPI 6.0 � SMBIOS 2.7 � CPU Core/Cache, CPU GT, DRAM, VCCIN AUX,
: +1,05 PROC, +1,8 PROC, +0,82 PCH, +1,05 PCH
� : ; ;
� ( ): ; ;
� : ; ;
� : CPU Vcore, PCH, DRAM, VCCIN AUX, +1,05 PROC, +1,8 PROC, +0,82 PCH, +12 , +5 , +3,3
- � Microsoft� Windows� 10 64- / 11 64-
103
� FCC, CE � ErP/EuP ( ,
ErP/EuP)
* -: http://www.asrock.com
, , BIOS, Untied Overclocking , . . . , .
104
H670 PG Riptide
1.3
. - ��. - , ��.
CMOS (CLRMOS1) (. . 1, 22)
2-
CLRMOS1 CMOS. , . 15 CLRMOS1 5 . CMOS BIOS. CMOS BIOS , CMOS. , , , , CMOS. CMOS .
105
1.4 ,
. -. .
(9-, PANEL1) (. . 1, 19)
PLED+ PLEDPWRBTN# GND
1 GND
RESET# GND HDLEDHDLED+
, , . .
PWRBTN ( ): , . .
RESET ( ): , . , , .
PLED ( ): , . , . S1/S3, . S4 (S5), .
HDLED ( ): , . , .
. , , , , .. .
(7-, SPK_PLED1) (. . 1, 20)
SPEAKER DUMMY DUMMY +5V
1
PLED+ PLED+
PLED-
106
.
H670 PG Riptide
Serial ATA3 : (SATA3_0: . . 1, 17) () (SATA3_1: . . 1, 17) () (SATA3_2: . .1, 16) () (SATA3_3: . .1, 16) ()
SATA3_0 SATA3_2 SATA3_1 SATA3_3
SATA3 SATA 6,0 /.
USB 2.0 (9-, USB_2_3) (. . 1, 23)
USB_PWR PP+ GND DUMMY
1 GND
P+ PUSB_PWR
USB 2.0. USB 2.0 .
USB 3.2 Gen1 : (19-, USB3_6_7) (. . 1, 12)
Vbus IntA_PA_SSRXIntA_PA_SSRX+
GND IntA_PA_SSTXIntA_PA_SSTX+
GND IntA_PA_DIntA_PA_D+
Vbus IntA_PB_SSRXIntA_PB_SSRX+ GND IntA_PB_SSTXIntA_PB_SSTX+ GND IntA_PB_DIntA_PB_D+ Dummy 1
. USB 3.2 Gen1 .
: (19-, USB3_4_5) (. . 1, 15)
1 Dummy IntA_PB_D+ IntA_PB_D-
GND IntA_PB_SSTX+ IntA_PB_SSTX-
GND IntA_PB_SSRX+ IntA_PB_SSRX-
Vbus
IntA_PA_D+ IntA_PA_DGND IntA_PA_SSTX+ IntA_PA_SSTXGND IntA_PA_SSRX+ IntA_PA_SSRX-
Vbus
USB 3.2 Gen2x2 Type C (20-, F_USB32_TC_1) (. . 1, 14)
USB Type-C Cable
USB 3.2 Gen2x2 Type C . USB 3.2 Gen2x2 USB 3.2 Gen2x2.
107
(9-, HD_AUDIO1) (. . 1, 26)
GND PRESENCE# MIC_RET OUT_RET
1 OUT2_L
J_SENSE OUT2_R MIC2_R MIC2_L
.
1. , , HDA. . .
2. AC'97 , : A. Mic_IN (MIC) MIC2_L. B. Audio_R (RIN) OUT2_R, Audio_L (LIN) OUT2_L. C. (GND) (GND). D. MIC_RET OUT_RET . AC'97 . E. , FrontMic Realtek Recording Volume ( ).
(4- CHA_ FAN1/WP) (. . 1, 13) (4- CHA_ FAN2/WP) (. . 1, 28) (4- CHA_ FAN3/WP) (. . 1, 10) (4- CHA_ FAN4/WP) (. . 1, 18)
4 3 21
FAN_SPEED_CONTROL CHA_FAN_SPEED FAN_VOLTAGE GND
4- . 3- 1�3.
(4-, CPU_FAN1) (. . 1, 3)
108
FAN_SPEED_CONTROL CPU_FAN_SPEED +12V GND
1 2 34
4- . 3- , 1-3.
H670 PG Riptide
(4- CPU_ FAN2/WP) (. . 1, 6)
(24-, ATXPWR1) (. . 1, 11)
12 (8-, ATX12V1) (. . 1, 1)
12 (4-, ATX12V2) (. . 1, 2)
4 3 21
GND FAN_VOLTAGE CPU_FAN_SPEED FAN_SPEED_CONTROL
12
24
1
13
8
5
4
1
4- . 3- 1-3.
24- . 20- ATX, 1 13.
8- 12 . 4- ATX, 1 5. *! , , . PCIe .
ATX 12 . * . * 4- ATX 12V ATX12V2 . ATX12V1.
109
SPI (13-, SPI_ TPM_J1) (. . 1, 21)
SPI_DQ3 SPI_PWR Dummy CLK SPI_MOSI RST# TPM_PIRQ
1
SPI_TPM_CS# GND RSMRST# SPI_MISO SPI_CS0 SPI_DQ2
SPI Trusted Platform Module (TPM), , , . , .
Thunderbolt AIC (5-, TB1) (. . 1, 27)
(AIC-) ThunderboltTM GPIO-. * ThunderboltTM AIC PCIE3 ( ).
RGB- (4-, RGB_ LED1) (. . 1, 24)
1 +12V G R B
RGB- RGB-, . ! RGB , . * . . 40.
110
H670 PG Riptide
(3-, ADDR_LED1) (. . 1, 25)
1
GND DO_ADDR VOUT
(3-, ADDR_LED2) (. . 1, 8) (3-, ADDR_LED3) (. . 1, 7)
GND
DO_ADDR VOUT 1
, . ! , . * . . 41.
111
2.7 -
-: BIOS BIOS.
BIOS (BIOS_FB1) (. . 3, . 10)
BIOS Flashback BIOS.
BIOS ASRock BIOS, .
BIOS BitLocker , TPM. , . , , . BIOS fTPM. .
BIOS USB- .
1. BIOS - ASRock: http://www.asrock.com. 2. BIOS - USB. - USB
FAT32. 3. BIOS zip-. 4. "creative.rom" : -
USB 5. 24- .
. * . 6. USB- USB BIOS. 7. 3 BIOS. . 8. , BIOS. * , BIOS. , USB- USB BIOS. ** , /
. .
USB BIOS 112
H670 PG Riptide
1 Introdu��o
Obrigado por comprar a placa-m�e ASRock H670 PG Riptide, uma placa-m�e confi�vel produzida sob o controle de qualidade altamente consistente da ASRock. Esta placa principal oferece um excelente desempenho com um design robusto em conformidade com o compromisso da ASRock em fabricar produtos de qualidade e resistentes.
Como as especifica�es da placa-m�e e do software do BIOS podem ser atualizadas, o conte�do desta documenta��o estar� sujeito a altera�es sem aviso pr�vio. Caso ocorram modifica�es a esta documenta��o, a vers�o atualizada estar� dispon�vel no site da ASRock sem aviso pr�vio. Se precisar de assist�ncia t�cnica relacionada a esta placa principal, visite o nosso site para obter informa�es espec�ficas sobre o modelo que estiver utilizando. Voc� tamb�m poder� encontrar a lista de placas VGA e CPU mais recentes suportadas no site da ASRock. Site da ASRock http://www.asrock.com.
1.1 Conte�do da embalagem
� Placa M�e ASRock H670 PG Riptide (Fator de Forma ATX) � Guia de Instala��o R�pida da ASRock H670 PG Riptide � CD de Suporte da ASRock H670 PG Riptide � 2 x Cabos de dados Serial ATA (SATA) (Opcional) � 4 x Parafusos para Soquetes M.2 (Opcional) � 1 x Porca aut�noma sextavada para Soquete M.2 (Opcional) � 1 x Painel de E/S
113
Portugu�s
1.2 Especifica�es
Plataforma
� Fator de Forma ATX � Design de condensador s�lido
CPU
� Suportas Processadores 12th Gen Intel� CoreTM (LGA1700)
� Design com 9 fases de alimenta��o
� Suporta Tecnologia H�brida Intel�
� Suporta Tecnologia Intel� Turbo Boost Max 3.0
Chipset
� Intel� H670
Mem�ria
� Tecnologia de mem�ria DDR4 de dois canais � 4 x Slots DIMM DDR4 � Suporta DDR4 n�o-ECC, mem�ria sem buffer at� 5000+(OC)* * Suporta DDR4 3200 nativamente. * Por favor, consulte a Lista de Suporte de Mem�ria no site da ASRock para obter mais informa��o. (http://www.asrock.com/) � Suporta m�dulos de mem�ria ECC UDIMM (opera em modo n�o-
ECC) � Capacidade m�xima da mem�ria do sistema: 128GB � Suporta Extreme Memory Profile (XMP) 2.0 da Intel�
Slot de expans�o
� 2 x Slots PCIe x16 (PCIE1/PCIE3: �nico em Gen5x16 (PCIE1); duplo em Gen5x16 (PCIE1) / Gen4x4 (PCIE3))*
* Suporta NVMe SSD nos discos de inicializa��o � 3 x Slots PCIe Gen3x1 � Suporta AMD CrossFireTM � 1 Soquete M.2 (Chave E), suporta m�dulo 2230 WiFi/BT PCIe
WiFi e Intel� CNVi (WiFi/BT Integrado)
Gr�ficos
� Os gr�ficos incorporados Intel� UHD e as sa�das VGA s� podem ser suportados com processadores com GPU integrada.
� Arquitetura Gr�fica Intel� Xe (Gen 12)
Portugu�s
114
H670 PG Riptide
� Sa�da gr�fica dupla: Suporta portas HDMI e DisplayPort 1.4 por controladores de v�deo independentes
� Suporta HDMI 2.1 TMDS, compat�vel com resolu��o m�x. at� 4K x 2K (4096x2160) @ 60Hz
� Suporta DisplayPort 1.4 com DSC (compactado), com resolu��o m�x. at� 8K (7680x4320) @ 60Hz / 5K (5120x3200) @ 120Hz
� Suporta HDCP 2.3 com HDMI 2.1 TMDS, compat�vel com portas DisplayPort 1.4
�udio
� �udio 7.1 CH HD com prote��o de conte�do (Codec de �udio Realtek ALC897)
� Suporta Prote��o de Sobretens�o � �udio Nahimic
LAN
� LAN Gigabit a 10/100/1000 Mb/s � Giga PHY Intel� I219V � Suporta Wake-On-LAN � Oferece Suporte � Prote��o de Rel�mpago/ESD � Suporta Energy Efficient Ethernet 802.3az � Suporta UEFI PXE
E/S do painel posterior
� 3 Pontos de Montagem da Antena � 1 x Porta PS/2 para mouse/teclado � 1 x Porta HDMI � 1 x DisplayPort 1.4 � 1 x Porta USB 3.2 Gen2 Tipo A (10 Gb/s) (ReDriver) (Suporta
Prote��o ESD) � 1 x Porta USB 3.2 Gen2 Tipo C (10 Gb/s) (ReDriver) (Suporta
Prote��o ESD) � 4 x Portas USB 3.2 Gen1 (Suporta Prote��o ESD)
* USB3_2_3 s�o Portas para Ilumina��o de Jogos. � 2 x Portas USB 2.0 (Suporta Prote��o ESD) � 1 x Porta LAN RJ-45 com LED (LED ACT/LINK e LED DE
VELOCIDADE) � 1 x Bot�o BIOS Flashback � Fichas de �udio HD: Entrada de Linha / Autofalante Frontal /
Microfone
Portugu�s
115
Armazenamento
� 4 x Conectores SATA3 6,0 Gb/s � 1 x Hiper Soquete M.2 (M2_1, Chave M), suporta modo tipo
2260/2280 PCIe Gen4x4 (64 Gb/s)* � 1 x Hiper Soquete M.2 (M2_2, Chave M), suporta modo Gen4x4
tipo 2242/2260/2280 PCIe (64 Gb/s)* � 1 x Hiper Soquete M.2 (M2_3, Chave M), suporta modo SATA3
6,0 Gb/s e Gen4x4 tipo 2260/2280/22110 PCIe (64 Gb/s)* * Suporta tecnologia Intel� OptaneTM (M2_2 e M2_3 apenas) * Suporta o Dispositivo de Gerenciamento de Volume Intel� (VMD) * Suporta NVMe SSD nos discos de inicializa��o * Suporta Kit U.2 ASRock
RAID
� Suporta RAID 0, RAID 1, RAID 5 e RAID 10 para dispositivos de armazenagem SATA
� Suporta RAID 0, RAID 1 e RAID 5 para dispositivos de armazenagem M.2 NVMe
Conector
� 1 x Suporte SPI TPM � 1 x LED de alimenta��o e Cabe�ote de Autofalante � 1 x Cabe�ote de LED RGB * Suporta no total at� 12V/3A, Tira de LED de 36W � 3 x Cabe�otes LED Endere��veis * Suporte no total de at� 5V/3A, Faixa LED de 15W � 1 x Conector da ventoinha da CPU (4 pinos) * O Conector do Ventilador de CPU suporta o ventilador de CPU de alimenta��o m�xima 1A do ventilador (12W). � 1 x Conector de Ventilador de CPU/Ventilador da Bomba de �gua
(4 pinos) (Controle de Velocidade de Ventoinha Inteligente) * O Ventilador de CPU/Ventilador da Bomba de �gua suporta o ventilador de refrigerador a �gua de 2A m�ximo (24W) pot�ncia do ventilador. � 4 x Conectores de Ventilador de Chassi/Ventilador da Bomba de
�gua (4 pinos) (Controle de Velocidade de Ventoinha Inteligente) * O Ventilador de Chassi/Ventilador da Bomba de �gua suporta o ventilador de refrigerador a �gua de 2A m�ximo (24W) pot�ncia do ventilador. * CPU_FAN2/WP e CHA_FAN1~4/WP podem autodetectar se o ventilador de 3-pin ou 4-pin est� em uso.
Portugu�s
116
H670 PG Riptide
� 1 x Conector alimenta��o ATX 24-pinos � 1 x Conector de energia 8-pinos 12V (Conector de energia de alta
densidade) � 1 x Conector de energia 4-pinos 12V (Conector de energia de alta
densidade) � 1 x Conector de �udio do painel frontal � 1 x Conector Thunderbolt AIC (5-pin) (Suporta Placa ASRock
Thunderbolt 4 AIC) � 1 x Plataforma USB 2.0 (Suporta 2 portas USB 2.0) (Suporta
Prote��o ESD) � 2 x Plataforma USB 3.2 Gen1 (Suporta 4 portas USB 3.2 Gen1)
(ASMedia ASM1074 n�cleo) (Suporta Prote��o ESD) � 1 x Painel Frontal Tipo C USB 3.2 Suporte Gen2x2 (20 Gb/s)
(Suporta Prote��o ESD)
Fun�es da BIOS
� AMI Legal UEFI BIOS com suporte multilingue GUI � ACPI 6.0 compat�vel com eventos de despertar � Suporte SMBIOS 2.7 � CPU Core/Cache, CPU GT, DRAM, VCCIN AUX, +1,05V PROC,
+1,8V PROC, +0,82V PCH , +1,05V PCH de Tens�o de Multi-
ajuste
Monitor de hardware
� Tac�metro da ventoinha: CPU, CPU/Bomba de �gua, Chassis/ Ventoinhas da bomba de �gua
� Ventoinha Silenciosa (Auto ajusta velocidade da ventoinha do chassi pela temperatura da CPU): CPU, CPU/Bomba de �gua, Chassis/Ventoinhas da bomba de �gua
� Controle multi-velocidade da ventoinha: CPU, CPU/Bomba de �gua, Chassis/Ventoinhas da bomba de �gua
� Monitoramento da tens�o: CPU Vcore, PCH, DRAM, VCCIN AUX, +1,05V PROC, +1,8V PROC, +0,82V PCH, +12V, +5V, +3,3V
SO
� Microsoft� Windows� 10 64-bit / 11 64-bit
Certifica�es
� FCC, CE � Preparada para ErP/EuP (� necess�ria uma fonte de alimenta��o
preparada para ErP/EuP)
Portugu�s
117
Portugu�s
* Para obter informa�es detalhadas sobre o produto, por favor, visite o nosso site: http://www.asrock.com Por favor, observe que existe um certo risco envolvendo overclocking, incluindo o ajuste das defini�es na BIOS, a aplica��o de tecnologia Untied Overclocking ou a utiliza��o de ferramentas de overclocking de terceiros. O overclocking poder� afetar a estabilidade do sistema ou mesmo causar danos nos componentes e dispositivos do seu sistema. Ele deve ser realizado por sua conta e risco. N�o nos responsabilizamos por poss�veis danos causados pelo overclocking.
118
H670 PG Riptide
1.3 Configura��o dos jumpers
A imagem abaixo mostra como os jumpers s�o configurados. Quando a tampa do jumper � colocada nos pinos, o jumper � "Curto". Se n�o for colocada uma tampa de jumper nos pinos, o jumper � "Aberto".
Apagar o Jumper CMOS (CLRMOS1) (ver p.1, N.� 22)
Jumper de 2 pinos
CLRMOS1 permite que voc� limpe os dados do CMOS. Para apagar e reinicializar os par�metros do sistema nos valores predefinidos, desligue o computador e desplugue a tomada da alimenta��o. Depois de aguardar 15 segundos, use uma capa de jumper para fazer curto dos pinos no CLRMOS1 por 5 segundos. No entanto, n�o apague o CMOS logo ap�s ter realizado a atualiza��o da BIOS. Se voc� precisar apagar o CMOS logo ap�s ter terminado uma atualiza��o da BIOS, dever� primeiro iniciar o sistema e voltar a encerr�lo antes de apagar o CMOS. Por favor, observe que a senha, data, hora e perfil padr�o do usu�rio ser�o apagados s� se a bateria CMOS for removida. Por favor, n�o se esque�a de retirar a tampa do jumper depois de apagar o CMOS.
Portugu�s
119
1.4 Suportes e conectores onboard
Os conectores e suportes onboard N�O s�o jumpers. N�O coloque tampas de jumpers sobre estes terminais e conectores. Colocar tampas de jumpers sobre os terminais e conectores ir� causar danos permanentes � placa-m�e.
Suporte do painel de sistema (PAINEL1 de 9 pinos) (ver p.1, N.� 19)
PLED+ PLEDPWRBTN# GND
1 GND
RESET# GND HDLEDHDLED+
Ligue o bot�o de alimenta��o, o bot�o de reinicializa��o e o indicador do estado do sistema no chassi deste suporte, de acordo com a descri��o abaixo. Observe os pinos positivos e negativos antes de conectar os cabos.
PWRBTN (Bot�o de alimenta��o): Conecte o bot�o de alimenta��o no painel frontal do chassi. Voc� pode configurar a forma para desligar o seu sistema atrav�s do bot�o de alimenta��o.
RESET (Bot�o de reinicializa��o): Conecte o bot�o de reinicializa��o no painel frontal do chassi. Pressione o bot�o de reinicializa��o para reiniciar o computador, se ele congela e falha ao realizar um rein�cio normal.
PLED (LED de alimenta��o do sistema): Conecte o indicador do estado da alimenta��o no painel frontal do chassi. O LED ficar� aceso quando o sistema estiver em funcionamento. O LED ficar� piscando quando o sistema estiver nos estados de suspens�o S1/S3. O LED ficar� desligado quando o sistema estiver no estado de suspens�o S4 ou desligado (S5).
HDLED (LED de atividade do disco r�gido): Conecte o LED de atividade do disco r�gido no painel frontal do chassi. O LED ficar� aceso quando o disco r�gido estiver lendo ou registrando dados.
O design do painel frontal poder� variar dependendo do chassi. Um m�dulo de painel frontal consiste principalmente em um bot�o de alimenta��o, um bot�o de reinicializa��o, um LED de alimenta��o, um LED de atividade do disco r�gido, um alto-falante, etc. Ao conectar seu m�dulo de painel frontal do chassi a este conector, certifique-se de que os fios e os pinos correspondem de forma correta.
Portugu�s
LED de alimenta��o e Cabe�ote de Autofalante (SPK_PLED1 de 7 pinos) (ver p.1, N.� 20)
120
SPEAKER DUMMY DUMMY +5V
1
PLED+ PLED+ PLED-
Conecte o LED de alimenta��o do chassi e o autofalante do chassi a este cabe�ote.
H670 PG Riptide
SATA3_0 SATA3_2 SATA3_1 SATA3_3
Portugu�s
Conectores s�rie ATA3 �ngulo Reto: (SATA3_0: ver p.1, N.� 17) (superior) (SATA3_1: ver p.1, N.� 17) (inferior) (SATA3_2: ver p.1, N.� 16) (superior) (SATA3_3: ver p.1, N.� 16) (inferior)
Estes quatro conectores SATA3 suportam cabos de dados SATA para dispositivos de armazenamento interno com uma taxa de transfer�ncia de dados de at� 6,0 Gb/s.
Suporte cabe�ote USB 2.0 (USB_2_3 de 9 pinos) (ver p.1, N.� 23)
USB_PWR PP+ GND DUMMY
1 GND
P+ PUSB_PWR
H� um cabe�ote USB 2.0 nesta placa-m�e. Cada suporte USB 2.0 pode ter duas portas.
Suporte cabe�ote USB 3.2 Gen1 Vertical: (USB3_6_7 de 19 pinos) (ver p.1, N.� 12)
Vbus IntA_PA_SSRXIntA_PA_SSRX+
GND IntA_PA_SSTXIntA_PA_SSTX+
GND IntA_PA_DIntA_PA_D+
Vbus IntA_PB_SSRXIntA_PB_SSRX+ GND IntA_PB_SSTXIntA_PB_SSTX+ GND IntA_PB_DIntA_PB_D+ Dummy 1
H� dois cabe�otes nesta placa-m�e. Cada suporte USB 3.2 Gen1 pode suportar duas portas.
�ngulo Reto: (USB3_4_5 de 19 pinos) (ver p.1, N.� 15)
1 Dummy IntA_PB_D+ IntA_PB_D-
GND IntA_PB_SSTX+ IntA_PB_SSTX-
GND IntA_PB_SSRX+ IntA_PB_SSRX-
Vbus
IntA_PA_D+ IntA_PA_DGND IntA_PA_SSTX+ IntA_PA_SSTXGND IntA_PA_SSRX+ IntA_PA_SSRX-
Vbus
Painel Frontal Tipo C USB 3.2 Suporte Gen2x2 (F_USB32_TC_1 de 20 pinos) (ver p.1, N.� 14)
USB Type-C Cable
Existe um Painel Frontal Tipo C USB 3.2 Suporte Gen2x2 nesta placa m�e. Este suporte � usado para conex�o de um m�dulo USB 3.2 Gen2x2 para USB 3.2 adicional portas Gen2x2.
121
Suporte de �udio do painel frontal (HD_AUDIO1 de 9 pinos) (ver p.1, N.� 26)
GND PRESENCE# MIC_RET OUT_RET
1 OUT2_L
J_SENSE OUT2_R MIC2_R MIC2_L
Este suporte destina-se � conex�o dos dispositivos de �udio no painel de �udio frontal.
1. O �udio de alta defini��o suporta Sensor de Adaptador, mas o fio do painel no chassi dever� suportar HDA para funcionar corretamente. Por favor, siga as instru�es no nosso manual e no manual do chassi para instalar o seu sistema.
2. Se utilizar um painel de �udio AC'97, instale-o no terminal de �udio do painel frontal de acordo com os passos abaixo: A. Ligue Mic_IN (MIC) a MIC2_L. B. Conecte o Audio_R (RIN) a OUT2_R e Audio_L (LIN) a OUT2_L. C. Conecte a liga��o Terra (GND) � Terra (GND). D. MIC_RET e OUT_RET destinam-se apenas ao painel de �udio HD. Voc� n�o precisa lig�los ao painel de �udio AC'97. E. Para ativar o microfone frontal, v� � guia "Microfone Frontal" no painel de controle Realtek e ajuste o "Volume de grava��o".
Portugu�s
Chassis / Conectores da ventoinha de bomba de �gua (CHA_FAN1/WP de 4 pinos) (ver p.1, N.� 13) (CHA_FAN2/WP de 4 pinos) (ver p.1, N.� 28) (CHA_FAN3/WP de 4 pinos) (ver p.1, N.� 10) (CHA_FAN4/WP de 4 pinos) (ver p.1, N.� 18)
4 3 21
FAN_SPEED_CONTROL CHA_FAN_SPEED FAN_VOLTAGE GND
Esta placa m�e fornece tr�s conectores do chassi de refrigera��o a �gua de 4 pinos. Se voc� pretende conectar um ventilador de refrigera��o a �gua de chassis de 3 pinos, por favor, conecte-o ao Pino 1-3.
Conector da Ventoinha da CPU (CPU_FAN1 de 4 pinos) (ver p.1, N.� 3)
FAN_SPEED_CONTROL CPU_FAN_SPEED +12V GND
1 2 34
Esta placa m�e inclui um conector de ventilador da CPU (Ventilador silencioso) de 4 pinos. Se voc� pretende conectar um ventilador da CPU de 3 pinos, por favor, conecte-o ao Pino 1-3.
122
H670 PG Riptide
Portugu�s
Conector da ventoinha de bomba de �gua/CPU (CPU_FAN2/WP de 4 pinos) (ver p.1, N.� 6)
Conector de alimenta��o ATX (ATXPWR1 de 24 pinos) (ver p.1, N.� 11)
Conector de alimenta��o de 12V ATX (ATX12V1 de 8 pinos) (ver p.1, N.� 1)
Conector de alimenta��o de 12V ATX (ATX12V2 de 4 pinos) (ver p.1, N.� 2)
4 3 21
GND FAN_VOLTAGE CPU_FAN_SPEED FAN_SPEED_CONTROL
12
24
1
13
8
5
4
1
Esta placa m�e inclui um conector de ventilador da CPU de refrigera��o a �gua de 4 pinos. Se voc� pretende conectar um ventilador de refrigera��o a �gua da CPU de 3 pinos, por favor, conecte-o ao Pino 1-3.
Esta placa-m�e inclui um conector de alimenta��o ATX de 24 pinos. Para utilizar uma fonte de alimenta��o ATX de 20 pinos, introduza-a no Pino 1 e Pino 13.
Esta placa-m�e inclui um conector de alimenta��o de 12V ATX de 8 pinos. Para utilizar uma fonte de alimenta��o ATX de 4 pinos, introduza-a no Pino 1 e Pino 5. *Aviso: Certifique-se que o cabo de for�a conectado � para o CPU e n�o para a placa gr�fica. N�o ligue o cabo de for�a PCIe a este conector.
Por favor, ligue este conector a uma alimenta��o de for�a ATX 12V. *O plugue de sua fonte de alimenta��o se encaixa neste conector apenas em uma orienta��o. *A conex�o a um cabo 4-pin ATX 12V para ATX12V2 � opcional. Para overclocking avan�ado, sugerimos o uso deste conector junto com o ATX12V1.
123
Plataforma SPI TPM (SPI_TPM_J1 de 13 pinos) (ver p.1, N.� 21)
SPI_DQ3 SPI_PWR Dummy CLK SPI_MOSI RST# TPM_PIRQ
1
SPI_TPM_CS# GND RSMRST# SPI_MISO SPI_CS0 SPI_DQ2
Este conector suporta um sistema com SPI M�dulo de Plataforma Confi�vel (TPM), que pode armazenar com seguran�a chaves, certificados digitais, senhas e dados. Um sistema TPM tamb�m ajuda a melhorar a seguran�a de rede, a proteger identidades digitais e a garantir a integridade da plataforma.
Conector Thunderbolt AIC (TB1 de 5 pinos) (ver p.1, N.� 27)
Por favor, conecte uma placa adicional ThunderboltTM (AIC) a este conector atrav�s do cabo GPIO. *Instale a placa AIC ThunderboltTM no PCIE3 (slot padr�o).
Cabe�ote de LED RGB (RGB_LED1 de 4 pinos) (ver p.1, N.� 24)
1 +12V G R B
Este Cabe�ote RGB � usado para conectar o cabo de extens�o de LED RGB que permite aos usu�rios escolher entre v�rios efeitos de ilumina��o LED. Aten��o: Nunca instale o cabo RGB LED na orienta��o errada; caso contr�rio, o cabo pode ser danificado. *Consulte a p�gina 40 para obter mais informa�es sobre esta plataforma.
Portugu�s
124
H670 PG Riptide
Cabe�otes LED Endere��veis (ADDR_LED1 de 3 pinos) (ver p.1, N.� 25)
(ADDR_LED2 de 3 pinos) (ver p.1, N.� 8) (ADDR_LED3 de 3 pinos) (ver p.1, N.� 7)
1 GND
DO_ADDR VOUT
GND DO_ADDR VOUT 1
Esta plataforma � usada para conectar caboi de extens�o Ajust�vel de LED que permite aos usu�rios escolher entre v�rios efeitos de ilumina��o de LED. Aten��o: Nunca instale o cabo de LED Ajust�vel na orienta��o errada, caso contr�rio o cabo pode ser danificado. *Consulte a p�gina 41 para obter mais informa�es sobre esta plataforma.
Portugu�s
125
2.7 Bot�o Inteligente
A placa m�e tem um bot�o inteligente: Bot�o Flashback da BIOS, permitindo aos usu�rios limpar a BIOS.
Bot�o Flashback da BIOS (BIOS_FB1) (ver p.3, N.� 10)
A Chave BIOS Flashback permite aos usu�rios limpar a BIOS.
O recurso ASRock BIOS Flashback permite que voc� atualize o BIOS sem ligar o sistema, mesmo sem a CPU.
Antes de usar a fun��o Certifique-se que voc� j� armazenou e realizou o backup da chave de recupera��o. Se a chave de recupera��o estiver faltando enquanto a criptografia esteja ativa, os dados permanecer�o criptografados e o sistema n�o ser� reiniciado no sistema operacional. � recomendado desabilitar o fTPM antes de atualizar o BIOS. De outro modo, pode ocorrer uma falha imprevista.
Para usar a fun��o USB BIOS Flashback, siga as etapas abaixo.
1. Fa�a o download do arquivo BIOS mais recente no site da web ASRock:http://www.asrock.com. 2. Copie o arquivo BIOS para sua unidade flash USB. Certifique-se se o sistema de arquivos da sua
unidade flash USB seja FAT32. 3. Extraia o arquivo BIOS do arquivo zipado. 4. Renomeie o arquivo para "creative.rom" e salve-o no diret�rio raiz de X: Unidade flash USB. 5. Conecte o conector de energia de 24 pinos na placa m�e. Em seguida, ligue o interruptor CA da fonte
de alimenta��o. *N�o h� necessidade de ligar o sistema. 6. Depois, ligue o USB drive na porta USB BIOS Flashback. 7. Pressione o BIOS Flashback Switch por cerca de tr�s segundos. Depois, o LED come�a a piscar. 8. Espere at� que o LED pare de piscar, indicando que a intermit�ncia do BIOS foi completada. *Se a luz do LED se torna verde s�lido, isto significa que o BIOS Flashback n�o est� operando adequadamente. Certifique-se de conectar a unidade USB � porta USB BIOS Flashback. **Se o LED n�o acender mais, desconecte a energia do sistema e remova/desconecte a bateria CMOS da
placa m�e por diversos minutos. Reconecte a alimenta��o e a bateria e tente novamente.
Portugu�s
Porta USB BIOS Flashback 126
Polski
H670 PG Riptide
1 Wprowadzenie
Dzikujemy za zakupienie plyty gl�wnej ASRock H670 PG Riptide, niezawodnej plyty gl�wnej produkowanej z konsekwentnie wykonywan przez firm ASRock, rygorystyczn kontrol jakoci. Plyta ta zapewnia doskonal jako dzialania i solidn konstrukcj, spelniajc zobowizanie firmy ASRock do dostarczania produkt�w o wysokiej jakoci i wytrzymaloci.
Poniewa specyfikacje plyty gl�wnej i oprogramowanie BIOS mog zosta zaktualizowane, zawarto tej dokumentacji moe zosta zmieniona bez powiadomienia. W przypadku jakichkolwiek modyfikacji tej dokumentacji, zaktualizowana wersja bdzie dostpna na stronie internetowej ASRock, bez dalszego powiadomienia. Jeli wymagana jest pomoc techniczna w odniesieniu do tej plyty gl�wnej, naley odwiedzi stron internetow w celu uzyskania specyficznych informacji o uywanym modelu. Na stronie internetowej ASRock, mona take pobra list najnowszych kart VGA i obslugiwanych CPU. Strona internetowa ASRock http://www.asrock.com.
1.1 Zawarto opakowania
� Plyta gl�wna ASRock H670 PG Riptide (Wsp�lczynnik ksztaltu ATX) � Skr�cona instrukcja instalacji ASRock H670 PG Riptide � Pomocnicza plyta CD ASRock H670 PG Riptide � 2 x kable danych Serial ATA (SATA) (Opcjonalne) � 4 x ruby do gniazda M.2 (Opcjonalne) � 1 x gniazdo wsporcze do gniazda M.2 (Opcjonalna) � 1 x oslona panelu Wejcia/Wyjcia
127
1.2 Specyfikacje
Platforma
� Wsp�lczynnik ksztaltu ATX � Konstrukcja kondensatorami stalymi
CPU
� Obsluga 12-tej generacji procesor�w Intel� CoreTM (LGA1700) � Sekcja zasilania 9 Power Phase Design � Obsluga technologii Intel� Hybrid � Obsluga technologii Intel� Turbo Boost Max 3.0
Chipset
� Intel� H670
Pami
� Technologia pamici Dual Channel DDR4 � 4 x gniazda DDR4 DIMM � Obsluga niebuforowanej pamici DDR4 non-ECC, do 5000+(OC)*
* Natywna obsluga pamici DDR4 3200.
* Sprawd list obslugiwanej pamici na stronie internetowej ASRock
w celu uzyskania dalszych informacji. (http://www.asrock.com/) � Obsluga modul�w pamici ECC UDIMM (dzialanie w trybie non-
ECC) � Maks. wielko pamici systemowej: 128GB � Obsluga Intel� Extreme Memory Profile (XMP) 2.0
Gniazdo rozszerzenia
� 2 x gniazda PCIe x16 (PCIE1/PCIE3: pojedyncze w Gen5x16
(PCIE1); podw�jne w Gen5x16 (PCIE1) / Gen4x4 (PCIE3))*
* Obsluga SSD NVMe, jako dysk�w rozruchowych � 3 x gniazda PCIe Gen3x1 � Obsluga AMD CrossFireTM � 1 x gniazdo M.2 (Key E), z obslug modulu WiFi/BT PCIe typu
2230 i Intel� CNVi (Zintegrowany WiFi/BT)
Grafika
� Wbudowana grafika Intel� UHD i wyjcia VGA s obslugiwane
wylcznie z procesorami, kt�re maj zintegrowane GPU. � Architektura grafiki Intel� Xe (Generacja 12)
Polski
128
H670 PG Riptide
� Podw�jne wyjcie graficzne: Obsluga HDMI i DisplayPort 1.4 przez
niezalene sterowniki graficzne � Obsluga HDMI 2.1 zgodnego z TMDS z maks. rozdzielczoci do
4K x 2K (4096 x 2160) przy 60Hz � Obsluga DisplayPort 1.4 z DSC (skompresowany) o maks.
rozdzielczoci do 8K (7680 x 4320) przy 60Hz / 5K (5120 x 3200) przy 120Hz � Obsluga HDCP 2.3 z HDMI 2.1 zgodnego z TMDS i port�w DisplayPort 1.4
Audio
� Dwik HD 7.1 CH (kodek audio Realtek ALC897) � Obsluga zabezpieczenia przed przepiciami � Nahimic Audio
LAN
� Gigabit LAN 10/100/1000 Mb/s � Giga PHY Intel� I219V � Obsluga Wake-On-LAN � Obsluga zabezpieczenia przed wyladowaniami atmosferycznymi/
ESD � Obsluga Energy Efficient Ethernet 802.3az � Obsluga UEFI PXE
Tylny panel Wejcia/ Wyjcia
� 3 x punkty montau anteny � 1 x port myszy/klawiatury PS/2 � 1 x port HDMI � 1 x DisplayPort 1.4 � 1 x port USB 3.2 Gen2 typu A (10 Gb/s) (ReDriver) (Obsluga
zabezpieczenia ESD) � 1 x port USB 3.2 Gen2 typu C (10 Gb/s) (ReDriver) (Obsluga
zabezpieczenia ESD) � 4 x porty USB 3.2 Gen1 (Obsluga zabezpieczenia ESD)
* USB3_2_3 to porty gamingowe Lightning. � 2 x porty USB 2.0 (Obsluga zabezpieczenia ESD) � 1 x port LAN RJ-45 z LED (LED ACT/LINK i LED SPEED) � 1 x przycisk flashowania BIOS � Gniazda audio HD: Wejcie liniowe / Glonik przedni / Mikrofon
Polski
129
Polski
Przechowywanie
� 4 x zlcza SATA3 6,0 Gb/s � 1 x Hyper M.2 Socket (M2_1, Key M), z obslug trybu 2260/2280
PCIe Gen4x4 (64 Gb/s)* � 1 x Hyper M.2 Socket (M2_2, Key M), z obslug trybu
2242/2260/2280 PCIe Gen4x4 (64 Gb/s)* � 1 x Hyper M.2 Socket (M2_3, Key M), z obslug typu
2260/2280/22110 SATA3 6,0 Gb/s i tryb�w PCIe Gen4x4 (64 Gb/s)* * Obsluga technologii Intel� OptaneTM (tylko M2_2 i M2_3) * Obsluga Intel� Volume Management Device (VMD) * Obsluga SSD NVMe, jako dysk�w rozruchowych * Obsluga ASRock U.2 Kit
RAID
� Obsluga RAID 0, RAID 1, RAID 5 i RAID 10 dla urzdze pamici masowej SATA
� Obsluga RAID 0, RAID 1 i RAID 5 dla urzdze pamici masowej M.2 NVMe
Zlcze
� 1 x zlcze gl�wkowe SPI TPM � 1 x dioda LED zasilania i zlcze gl�wkowe glonika � 1 x zlcze gl�wkowe LED RGB * Obsluga lcznie do 12V/3A, pasek LED 36W � 3 x adresowalne zlcza gl�wkowe LED * Obsluga lcznie do 5V/3A, pasek LED 15W � 1 x zlcze wentylatora CPU (4-pinowe) * Zlcze wentylatora CPU obsluguje wentylator CPU maksymalnym prdem zasilania wentylatora 1A (12W). � 1 x zlcze wentylatora CPU/pompy wodnej (4-pinowe)
(Inteligentne sterowanie prdkoci obrotow wentylatora) * Zlcze wentylatora CPU/pompy wodnej obsluguje wentylator ukladu chlodzenia maksymalnym prdem zasilania wentylatora 2A (24W). � 4 x zlcza wentylatora obudowy/pompy wodnej (4-pinowe)
(Inteligentne sterowanie prdkoci obrotow wentylatora) * Zlcze wentylatora obudowy/pompy wodnej obsluguje wentylator ukladu chlodzenia maksymalnym prdem zasilania wentylatora 2A (24W). * CPU_FAN2/WP i CHA_FAN1~4/WP moe automatycznie wykrywa, jeli uywany jest wentylator 3-pinowy lub 4-pinowy.
130
H670 PG Riptide
� 1 x 24 pinowe zlcze zasilania ATX � 1 x 8 pinowe 12V zlcze zasilania (Zlcze zasilania Hi-Density) � 1 x 4 pinowe 12V zlcze zasilania (Zlcze zasilania Hi-Density) � 1 x zlcze audio na panelu przednim � 1 x zlcze Thunderbolt AIC (5-pinowe) (Obsluga kart ASRock
Thunderbolt 4 AIC) � 1 x zlcza gl�wkowe USB 2.0 (obsluguje 2 porty USB 2.0)
(Obsluga zabezpieczenia ESD) � 2 x zlcza gl�wkowe USB 3.2 Gen1 (Obsluga 4 port�w USB 3.2
Gen1) (ASMedia ASM1074 hub) (Obsluga zabezpieczenia ESD) � 1 x zlcze gl�wkowe USB 3.2 Gen2x2 typu C na panelu przednim
(20 Gb/s) (Obsluga zabezpieczenia ESD)
Funkcja BIOS
� Obsluga starszych wersji BIOS AMI UEFI z wielojzycznym GUI � Zgodno zdarze wybudzania z ACPI 6.0 � Obsluga SMBIOS 2.7 � Wiele regulacji napicia CPU Core/Cache, CPU GT, DRAM,
VCCIN AUX, +1,05V PROC, +1,8V PROC, +0,82V PCH,
+1,05V PCH
Monitor sprztu
� Obrotomierz wentylatora: CPU, CPU/pompa wodna, wentylatory obudowy/pompy wodnej
� Cichy wentylator (Automatyczna regulacja prdkoci obrotowej wentylatora obudowy przez temperatur CPU): CPU, CPU/pompa wodna, wentylatory obudowy/pompy wodnej
� Kontrola wielu prdkoci obrotowych wentylatora: CPU, CPU/ pompa wodna, wentylatory obudowy/pompy wodnej
� Monitorowanie napicia: CPU Vcore, PCH, DRAM, VCCIN AUX, +1,05V PROC, +1,8V PROC, +0,82V PCH, +12V, +5V, +3,3V
System operacyjny
� Microsoft� Windows� 10 64-bitowy / 11 64-bitowy
Certyfikaty
� FCC, CE � Gotowo do obslugi ErP/EuP (Wymagane zasilanie z gotowoci
obslugi ErP/EuP)
Polski
131
Polski
* Dla uzyskania szczeg�lowej informacji o produkcie, naley odwiedzi nasz stron internetow: http://www.asrock.com
Naley pamita, e przetaktowywanie jest zwizane z pewnym ryzykiem, wlcznie z regulacj ustawie w BIOS, zastosowaniem Untied Overclocking Technology lub uywaniem narzdzi przetaktowywania innych firm. Przetaktowywanie moe wplywa na stabilno systemu lub nawet powodowa uszkodzenie komponent�w i urzdze systemu. Powinno to zosta zrobione na wlasne ryzyko i koszt. Nie odpowiadamy za moliwe uszkodzenia spowodowane przetaktowywaniem.
132
H670 PG Riptide
1.3 Ustawienia zworek
Ta ilustracja pokazuje ustawienia zworek. Po umieszczeniu nasadki zworki na pinach, zworka jest "Zwarta". Jeli nasadka zworki nie jest umieszczona na pinach, zworka jest "Otwarta".
Zworka usuwania danych z pamici CMOS (CLRMOS1) (sprawd s.1, Nr 22)
2-pinowa zworka
CLRMOS1 umoliwia usunicie wszystkich danych z pamici CMOS. Aby usun i zresetowa parametry systemu do ustawie domylnych, wylcz komputer i odlcz przew�d zasilajcy od zasilania. Po odczekaniu 15 sekund, uyj nasadk zworki do zwarcia pin�w CLRMOS1 na 5 sekund. Jednak, nie naley usuwa danych z pamici CMOS zaraz po wykonaniu aktualizacji BIOS. Jeli wymagane jest usunicie danych z pamici CMOS po zakoczeniu aktualizacji BIOS, przed rozpoczciem usuwania danych z pamici CMOS naley najpierw uruchomi system, a nastpnie wylczy go. Naley pamita, e haslo, data, czas i domylny profil uytkownika zostan usunite tylko po wyjciu baterii CMOS. Naley pamita, aby po usuniciu danych z pamici CMOS, usun nasadk zworki.
Polski
133
1.4 Wbudowane zlcza gl�wkowe i inne zlcza
Wbudowane zlcza gl�wkowe i inne zlcza s bezzworkowe. NIE naley umieszcza zworek nad tymi zlczami gl�wkowymi i zlczami. Umieszczanie zworek nad zlczami gl�wkowymi i zlczami spowoduje trwale uszkodzenie plyty gl�wnej.
Polski
Zlcze gl�wkowe na panelu systemu (9-pinowe PANEL1) (sprawd s.1, Nr 19)
PLED+ PLEDPWRBTN# GND
1 GND
RESET# GND HDLEDHDLED+
Do tego zlcza gl�wkowego mona podlcza przycisk zasilania, przycisk reset i wskanik stanu systemu na obudowie, zgodnie z przydzialem pin�w poniej. Przed podlczeniem kabli naley zapisa pozycj pin�w plus i minus.
PWRBTN (Przycisk zasilania): Podlczenie do przycisk�w zasilania na panelu przednim obudowy. Uytkownik moe skonfigurowa spos�b wylczania systemu z uyciem przycisku zasilania.
RESET (Przycisk resetowania): Podlczenie do przycisku resetowania na panelu przednim obudowy. Nacinij przycisk resetowania, aby ponownie uruchomi komputer, przy jego zawieszeniu i braku moliwoci wykonania normalnego ponownego uruchomienia.
PLED (Dioda LED zasilania systemu): Podlczenie do wskanika stanu zasilania na panelu przednim obudowy. Ta dioda LED jest wlczona podczas dzialania systemu. Ta dioda LED miga, gdy system znajduje si w stanie upienia S1/S3. Ta dioda LED jest wylczona, gdy system znajduje si w stanie upienia S4 lub wylczenia zasilania (S5).
HDLED (Dioda LED aktywnoci dysku twardego): Podlczenie do diody LED aktywnoci dysku twardego na panelu przednim obudowy. Dioda LED jest wlczona, podczas odczytu lub zapisu danych przez dysk twardy.
Konstrukcja panelu przedniego zaley od obudowy. Modul panelu przedniego gl�wnie sklada si z przycisku zasilania, przycisku resetowania, diody LED zasilania, diody LED aktywnoci dysku twardego, glonika, itd. Po podlczeniu do tego zlcza gl�wkowego modulu panelu przedniego obudowy, naley si upewni, e jest prawidlowo dopasowany przydzial przewod�w i pin�w.
Dioda LED zasilania i zlcze gl�wkowe glonika (7-pinowe SPK_PLED1) (sprawd s.1, Nr 20)
134
SPEAKER DUMMY DUMMY +5V
1
PLED+ PLED+ PLED-
Podlcz to tego zlcza gl�wkowego diod LED zasilania obudowy i glonik obudowy.
H670 PG Riptide
SATA3_0 SATA3_2 SATA3_1 SATA3_3
Polski
Zlcza Serial ATA3 Kt prosty: (SATA3_0: sprawd s.1, Nr 17) (G�rny) (SATA3_1: sprawd s.1, Nr 17) (Dolny) (SATA3_2: sprawd s.1, Nr 16) (G�rny) (SATA3_3: sprawd s.1, Nr 16) (Dolny)
Te cztery zlcza SATA3 obsluguj kable danych SATA dla wewntrznych urzdze pamici z szybkoci transferu danych do 6,0 Gb/s.
Zlcza gl�wkowe USB 2.0 (9-pinowe USB_2_3) (sprawd s.1, Nr 23)
USB_PWR PP+ GND DUMMY
1 GND
P+ PUSB_PWR
Na tej plycie gl�wnej znajduje si jedno zlcze gl�wkowe USB 2.0. Zlcze gl�wkowe USB 2.0 moe obslugiwa dwa porty.
Zlcza gl�wkowe USB 3.2 Gen1 Pionowy: (19-pinowe USB3_6_7) (sprawd s.1, Nr 12)
Vbus IntA_PA_SSRXIntA_PA_SSRX+
GND IntA_PA_SSTXIntA_PA_SSTX+
GND IntA_PA_DIntA_PA_D+
Vbus IntA_PB_SSRXIntA_PB_SSRX+ GND IntA_PB_SSTXIntA_PB_SSTX+ GND IntA_PB_DIntA_PB_D+ Dummy 1
Na tej plycie gl�wnej znajduj si dwa zlcza gl�wkowe. Kade zlcze gl�wkowe USB 3.2 Gen1 moe obslugiwa dwa porty.
Kt prosty: (19-pinowe USB3_4_5) (sprawd s.1, Nr 15)
1 Dummy IntA_PB_D+ IntA_PB_D-
GND IntA_PB_SSTX+ IntA_PB_SSTX-
GND IntA_PB_SSRX+ IntA_PB_SSRX-
Vbus
IntA_PA_D+ IntA_PA_DGND IntA_PA_SSTX+ IntA_PA_SSTXGND IntA_PA_SSRX+ IntA_PA_SSRX-
Vbus
Zlcze gl�wkowe generacji 2x2 USB 3.2 typu C na panelu przednim (20-pinowe F_USB32_ TC_1) (sprawd s.1, Nr 14)
USB Type-C Cable
Na tej plycie gl�wnej dostpne jest jedno zlcze gl�wkowe generacji 2 x 2 USB 3.2 typu C na panelu przednim. To zlcze gl�wkowe jest uywane do podlczania modulu USB 3.2 generacji 2 x 2 dla dodatkowych port�w USB 3.2 generacji 2 x 2.
135
Zlcze gl�wkowe audio panelu przedniego (9-pinowe HD_AUDIO1) (sprawd s.1, Nr 26)
GND PRESENCE# MIC_RET OUT_RET
1 OUT2_L
J_SENSE OUT2_R MIC2_R MIC2_L
To zlcze gl�wkowe sluy do podlczania urzdze audio do przedniego panelu audio.
1. High Definition Audio obsluguje wykrywanie gniazda, ale aby dziala prawidlowo przew�d panelu na obudowie musi obslugiwa HDA. W celu instalacji systemu naley wykona instrukcje z naszego podrcznika i podrcznika obudowy.
2. Jeli uywany jest panel audio AC'97, naley go zainstalowa w zlczu gl�wkowym audio panelu przedniego, poprzez wykonanie wymienionych poniej czynnoci: A. Podlcz Mic_IN (MIC) do MIC2_L. B. Podlcz Audio_R (RIN) do OUT2_R i Audio_L (LIN) do OUT2_L. C. Podlcz uziemienie (GND) do uziemienia (GND). D. MIC_RET i OUT_RET slu wylcznie dla panelu audio HD. Nie naley ich podlcza dla panelu audio AC'97. E. Aby uaktywni mikrofon przedni, przejd do zakladki "FrontMic" w panelu Realtek Control i wyreguluj "Glono nagrywania".
Zlcze /wentylatora pompy wodnej obudowy (4-pinowe CHA_FAN1/WP) (sprawd s.1, Nr 13) (4-pinowe CHA_FAN2/WP) (sprawd s.1, Nr 28) (4-pinowe CHA_FAN3/WP) (sprawd s.1, Nr 10) (4-pinowe CHA_FAN4/WP) (sprawd s.1, Nr 18)
4 3 21
FAN_SPEED_CONTROL CHA_FAN_SPEED FAN_VOLTAGE GND
Ta plyta gl�wna udostpnia cztery 4-pinowe zlcza obudowy wentylatora chlodzenia wodnego. Jeli planowane jest podlczenie 3-pinowego wentylatora chlodzenia wodnego obudowy, naley go podlczy do pin�w 1-3.
Zlcze wentylatora CPU (4-pinowe CPU_FAN1) (sprawd s.1, Nr 3)
FAN_SPEED_CONTROL CPU_FAN_SPEED +12V GND
1 2 34
Ta plyta gl�wna udostpnia 4-pinowe zlcze wentylatora CPU (Cichy wentylator). Jeli planowane jest podlczenie 3-pinowego wentylatora CPU, naley je podlczy do pin�w 1-3.
Polski
136
H670 PG Riptide
Polski
Zlcze wentylatora pompy wodnej / CPU (4-pinowe CPU_FAN2/WP) (sprawd s.1, Nr 6)
4 3 21
GND FAN_VOLTAGE CPU_FAN_SPEED FAN_SPEED_CONTROL
Zlcze zasilania ATX (24-pinowe ATXPWR1) (sprawd s.1, Nr 11)
12
24
Zlcze zasilania ATX 12V (8-pinowe ATX12V1) (sprawd s.1, Nr 1)
1
13
8
5
4
1
Zlcze zasilania ATX 12V (4-pinowe ATX12V2) (sprawd s.1, Nr 2)
Ta plyta gl�wna udostpnia 4-pinowe zlcze obudowy wentylatora chlodzenia wodnego CPU. Jeli planowane jest podlczenie 3-pinowego wentylatora chlodzenia wodnego CPU, naley je podlczy do pin�w 1-3.
Ta plyta gl�wna udostpnia 24-pinowe zlcze zasilania ATX. W celu uycia 20-pinowego zasilacza ATX, naley podlczy je wzdlu pinu 1 i pinu 13.
Ta plyta gl�wna udostpnia 8-pinowe zlcze zasilania ATX 12V. W celu uycia 4-pinowego zasilacza ATX, naley podlczy je wzdlu pinu 1 i pinu 5. *Ostrzeenie: Upewnij si, e podlczony kabel zasilajcy jest przeznaczony do CPU, a nie do karty graficznej. Nie podlczaj do tego zlcza kabla zasilajcego PCIe.
Podlcz do tego zlcza zasilacz ATX 12V. *Wtyczka zasilacza pasuje do tego zlcza tylko w jednym kierunku. *Podlczenie 4-pinowego kabla ATX 12V do ATX12V2 jest opcjonalne. Do zaawansowanego przetaktowywania, zalecamy uywanie tego zlcza z ATX12V1.
137
Zlcze gl�wkowe SPI TPM (13-pinowe SPI_TPM_J1) (sprawd s.1, Nr 21)
SPI_DQ3 SPI_PWR Dummy CLK SPI_MOSI RST# TPM_PIRQ
1
SPI_TPM_CS# GND RSMRST# SPI_MISO SPI_CS0 SPI_DQ2
To zlcze obsluguje system SPI Trusted Platform Module (TPM), kt�ry moe bezpiecznie przechowywa klucze, certyfikaty cyfrowe, hasla i dane. System TPM pomaga take w zwikszeniu zabezpieczenia sieci, ochronie cyfrowych danych osobowych i zapewnieniu integralnoci platformy.
Zlcze Thunderbolt AIC (5-pinowe TB1) (sprawd s.1, Nr 27)
Podlcz do tego zlcza dodatkow kart ThunderboltTM (AIC) przez kabel GPIO. * Naley zainstalowa kart ThunderboltTM AIC do PCIE3 (gniazdo domylne).
Zlcze gl�wkowe LED RGB (4-pinowe RGB_LED1) (sprawd s.1, Nr 24)
1 +12V G R B
To zlcze gl�wkowe RGB jest uywane do podlczenia przedluacza LED RGB, kt�ry umoliwia uytkownikom wyb�r spor�d r�nych efekt�w wiatla LED. Ostrzeenie: Nigdy nie naley instalowa kabla LED RGB w nieprawidlowym kierunku; w przeciwnym razie kabel moe zosta uszkodzony. *Dalsze instrukcje dotyczce tego zlcza gl�wkowego naley sprawdzi na stronie 40.
Polski
138
H670 PG Riptide
Adresowalne zlcza gl�wkowe LED (3-pinowe ADDR_LED1) (sprawd s.1, Nr 25)
(3-pinowe ADDR_LED2) (sprawd s.1, Nr 8) (3-pinowe ADDR_LED3) (sprawd s.1, Nr 7)
1 GND
DO_ADDR VOUT
GND DO_ADDR VOUT 1
To zlcze gl�wkowe LED jest uywane do podlczenia adresowalnego przedluacza LED, kt�ry umoliwia uytkownikom wyb�r spor�d r�nych efekt�w wiatla LED. Ostrzeenie: Nigdy nie naley instalowa adresowalnego kabla LED w nieprawidlowym kierunku; w przeciwnym razie kabel moe zosta uszkodzony. *Dalsze instrukcje dotyczce tego zlcza gl�wkowego naley sprawdzi na stronie 41.
Polski
139
2.7 Inteligentny przycisk
Ta plyta gl�wna ma jeden inteligentny przycisk: Przycisk flashowania BIOS umoliwia uytkownikom flashowanie BIOS.
Przycisk flashowania BIOS (BIOS_FB1) (patrz p.3, Nr. 10)
Przelcznik flashowania BIOS umoliwia uytkownikom flashowanie BIOS.
Funkcja flashowania BIOS ASRock umoliwia uytkownikom aktualizacj BIOS bez wlczania zasilania systemu, nawet bez procesora.
Przed uyciem funkcji flashowania BIOS, naley wstrzyma dzialanie BitLockera i szyfrowanie lub zabezpieczenie bazujce na TPM. Upewnij si, e klucz przywracania zostal ju zapisany oraz, e zostala wykonana jego kopia zapasowa. Po utraceniu klucza przywracania, przy aktywnym szyfrowaniu, dane bd nadal zaszyfrowane, a system nie uruchomi si do systemu operacyjnego. Zaleca si wylczenie fTPM, przed aktualizacj BIOS. W przeciwnym razie, moe wystpi nieprzewidywalna awaria.
Aby uywa funkcj flashowania BIOS przez USB, naley wykona podane poniej czynnoci.
1. Pobierz najnowszy plik BIOS ze strony internetowej ASRock:http://www.asrock.com. 2. Skopiuj plik BIOS do napdu flash USB. Upewnij si, e system plik�w napdu flash USB to FAT32. 3. Rozpakuj plik BIOS z pliku zip. 4. Zmie nazw pliku na "creative.rom" i zapisz go w gl�wnym katalogu X: Napd flash USB. 5. Podlcz 24-pinowe zlcze zasilania do plyty gl�wnej. Nastpnie wlcz przelcznik zasilacza prdu
zmiennego. *Nie jest konieczne wlczanie zasilania systemu. 6. Nastpnie podlcz napd USB do portu USB flashowania BIOS. 7. Nacinij przelcznik flashowania BIOS na okolo trzy sekundy. Nastpnie zacznie miga dioda LED. 8. Zaczekaj na zatrzymanie migania diody LED, co wskazuje zakoczenie flashowania BIOS. *Jeli dioda LED zacznie wieci stalym, zielonym wiatlem, oznacza to, e flashowanie BIOS nie dziala prawidlowo. Naley pamita, aby podlczy napd USB do portu USB flashowania BIOS. **Jeli dioda LED nie wieci w og�le, naley odlczy zasilanie od systemu i wyj/odlczy na kilka
minut bateri CMOS od plyty gl�wnej. Podlcz ponownie zasilanie oraz bateri i spr�buj ponownie.
Polski
Port USB flashowania BIOS 140
H670 PG Riptide
1
ASRock H670 PG Riptide . ASRock . ASRock .
BIOS , . , ASRock . , . ASRock VGA CPU . ASRock http://www.asrock.com.
1.1
� ASRock H670 PG Riptide (ATX ) � ASRock H670 PG Riptide � ASRock H670 PG Riptide CD � ATA (SATA) 2 ( ) � M.2 4 ( ) � M.2 1 ( ) � I/O 1
141
1.2
� ATX �
CPU
� 12 Intel� CoreTM (LGA1700) � 9 � Intel� Hybrid � Intel� Turbo Boost Max Technology 3.0
� Intel� H670
� DDR4 � DDR4 DIMM 4 � DDR4 ECC, 5000+(OC) *
* DDR4 3200 .
* ASRock
. (http://www.asrock.com/) � ECC UDIMM ( -ECC ) � : 128GB � Intel� Extreme Memory Profile (XMP) 2.0
� PCIe x16 2 (PCIE1/PCIE3: @ Gen5x16 (PCIE1),
@ Gen5x16 (PCIE1) / Gen4x4 (PCIE3))*
* NVMe SSD � PCIe Gen3x1 3 � AMD CrossFireTM � M.2 (E ) 1 , 2230 WiFi/BT PCIe WiFi
Intel� CNVi( WiFi/BT)
� Intel� UHD - VGA GPU .
� Intel� Xe (Gen 12) � : HDMI
DisplayPort 1.4 � 4K x 2K(4096x2160) @ 60Hz
HDMI 2.1 TMDS
142
H670 PG Riptide
� 8K(7680x4320) @ 60Hz / 5K(5120x3200) @ 120Hz , DSC( ) DisplayPort 1.4
� DisplayPort 1.4 HDMI 2.1 TMDS HDCP 2.3
� 7.1 CH HD (Realtek ALC897 ) � � Nahimic
LAN
� Gigabit LAN 10/100/1000 Mb/s � Giga PHY Intel� I219V � Wake-On-LAN � /ESD � 802.3az � UEFI PXE
I/O
� 3 � PS/2 / 1 � HDMI 1 � DisplayPort 1.4 1 � USB 3.2 Gen2 A 1(10 Gb/s) (ReDriver) (ESD
) � USB 3.2 Gen2 C 1(10 Gb/s) (ReDriver) (ESD
) � USB 3.2 Gen1 4 (ESD )
* USB3_2_3 . � USB 2.0 2 (ESD ) � LED RJ-45 LAN 1(ACT/LINK LED SPEED LED) � BIOS 1 � HD : / /
� SATA3 6.0 Gb/s 4 � M.2 1 (M2_1, Key M), 2260/2280
PCIe Gen4x4(64Gb/s) * � M.2 1 (M2_2, Key M), 2242/2260/2280
PCIe Gen 4x4(64Gb/s) * � M.2 1 (M2_3, Key M),
2260/2280/22110 SATA3 6.0 Gb/s PCIe Gen
4x4(64Gb/s) *
143
RAID
* Intel� OptaneTM (M2_2 M2_3 ) * Intel� Volume Management Device(VMD) * NVMe SSD * ASRock U.2
� SATA RAID 0, RAID 1, RAID 5 RAID 10 � M.2 NVMe RAID 0, RAID 1 RAID 5
� SPI TPM 1 � LED 1 � RGB LED 1 * 12V/3A, 36W LED � LED 3 * 5V/3A, 15W LED � CPU (4 ) 1 * CPU 1A(12W) CPU . � CPU/ (4 ) 1 ( ) * CPU/ 2A(24W) . � / (4 ) 4 ( ) * / 2A(24W) . * 3 4 , CPU_FAN2/WP CHA_FAN1~4/WP . � 24 ATX 1 � 8 12V 1 ( ) � 4 12V 1 ( ) � 1 � Thunderbolt AIC 1 (5 )(ASRock Thunderbolt 4
AIC ) � USB 2.0 1 (USB 2.0 2 ) (ESD
) � USB 3.2 Gen1 2 (USB 3.2 Gen1 4 )
(ASMedia ASM1074 ) (ESD ) � C USB 3.2 Gen2x2 1 (20Gb/s)
(ESD )
144
H670 PG Riptide
BIOS
OS
� GUI AMI UEFI BIOS � ACPI 6.0 � SMBIOS 2.7 � CPU /, CPU GT, DRAM, VCCIN AUX, +1.05V PROC,
+1.8V PROC, +0.82V PCH , +1.05V PCH
� : CPU, CPU/ , / � (CPU ): CPU,
CPU/ , / � : CPU, CPU/ , / � : CPU Vcore, PCH, DRAM, VCCIN AUX, +1.05V
PROC, +1.8V PROC, +0.82V PCH, +12V, +5V, +3.3V
� Microsoft� Windows� 10 64 10 64 / 11 64
� FCC, CE � ErP/EuP (ErP/EuP )
* : http://www.asrock.com
BIOS Untied Overclocking Technology . . . .
145
1.3
. "" . "" .
Clear CMOS (CLRMOS1) (1 , 22 )
2
CLRMOS1 CMOS . . 15 CLRMOS1 5 . BIOS CMOS . BIOS CMOS , CMOS . CMOS , , , . CMOS .
146
H670 PG Riptide
1.4
. . .
(9 PANEL1) (1 , 19 )
PLED+ PLEDPWRBTN# GND
1 GND
RESET# GND HDLEDHDLED+
, , . .
PWRBTN( ): . .
RESET( ): . .
PLED( LED): . LED . S1/S3 LED . S4 (S5) LED .
HDLED( LED): LED . LED .
. , , LED, LED, . .
LED (7 SPK_PLED1) (1 , 20 )
SPEAKER DUMMY DUMMY +5V
1
PLED+ PLED+ PLED-
LED .
147
ATA3 : (SATA3_0: 1 , 17 ) ( ) (SATA3_1: 1 , 17 ) ( ) (SATA3_2: 1 , 16 ) ( ) (SATA3_3: 1 , 16 ) ( )
SATA3_0 SATA3_2 SATA3_1 SATA3_3
SATA3 6.0 Gb/s SATA .
USB 2.0 (9 USB_2_3) (1 , 23 )
USB_PWR PP+ GND DUMMY
1 GND
P+ PUSB_PWR
USB 2.0 . USB 2.0 .
USB 3.2 Gen1 : (19 USB3_6_7) (1 , 12 )
Vbus IntA_PA_SSRXIntA_PA_SSRX+
GND IntA_PA_SSTXIntA_PA_SSTX+
GND IntA_PA_DIntA_PA_D+
Vbus IntA_PB_SSRXIntA_PB_SSRX+ GND IntA_PB_SSTXIntA_PB_SSTX+ GND IntA_PB_DIntA_PB_D+ Dummy 1
. USB 3.2 Gen1 .
: (19 USB3_4_5) (1 , 15 )
1 Dummy IntA_PB_D+ IntA_PB_D-
GND IntA_PB_SSTX+ IntA_PB_SSTX-
GND IntA_PB_SSRX+ IntA_PB_SSRX-
Vbus
IntA_PA_D+ IntA_PA_DGND IntA_PA_SSTX+ IntA_PA_SSTXGND IntA_PA_SSRX+ IntA_PA_SSRX-
Vbus
C USB 3.2 Gen2x2 (20 F_USB32_TC_1) (1 , 14 )
148
USB Type-C Cable
C USB 3.2 Gen2x2 1 . USB 3.2 Gen2x2 USB 3.2 Gen2x2 .
H670 PG Riptide
(9 HD_AUDIO1) (1 , 26 )
GND PRESENCE# MIC_RET OUT_RET
1 OUT2_L
J_SENSE OUT2_R MIC2_R MIC2_L
.
1. HDA . .
2. AC'97 : A. Mic_IN (MIC) MIC2_L . B. Audio_R (RIN) OUT2_R Audio_L (LIN) OUT2_L . C. (GND) (GND) . D. MIC_RET OUT_RET HD . AC'97 . E. Realtek "FrontMic" "Recording Volume( )" .
/ (4 CHA_FAN1/WP) (1 , 13 ) (4 CHA_FAN2/WP) (1 , 28 ) (4 CHA_FAN3/WP) (1 , 10 ) (4 CHA_FAN4/WP) (1 , 18 )
4 3 21
FAN_SPEED_CONTROL CHA_FAN_SPEED FAN_VOLTAGE GND
4 4 . 3 1-3 .
CPU (4 CPU_FAN1) (1 , 3 )
FAN_SPEED_CONTROL CPU_FAN_SPEED +12V GND
1 2 34
4 CPU ( ) . 3 CPU 1-3 .
149
CPU/ (4 CPU_FAN2/WP) (1 , 6 )
ATX (24 ATXPWR1) (1 , 11 )
ATX 12V (8 ATX12V1) (1 , 1 )
ATX 12V (4 ATX12V2) (1 , 2 )
4 3 21
GND FAN_VOLTAGE CPU_FAN_SPEED FAN_SPEED_CONTROL
12
24
1
13
8
5
4
1
4 CPU . 3 CPU 1-3 .
24 ATX . 20 ATX 1 13 .
8 ATX 12V . 4 ATX 1 5 . * : CPU . PCIe .
ATX 12V . * . *ATX 12V 4 ATX12V2 . ATX12V1 .
150
H670 PG Riptide
SPI TPM (13 SPI_TPM_J1) (1 , 21 )
SPI_DQ3 SPI_PWR Dummy CLK SPI_MOSI RST# TPM_PIRQ
1
SPI_TPM_CS# GND RSMRST# SPI_MISO SPI_CS0 SPI_DQ2
, , SPI TPM(Trusted Platform Module) . TPM , .
Thunderbolt AIC (5 TB1) (1 , 27 )
RGB LED (4 RGB_LED1) (1 , 24 )
LED (3 ADDR_LED1) (1 , 25 )
(3 ADDR_LED2) (1 , 8 ) (3 ADDR_LED3) (1 , 7 )
1 +12V G R B
1 GND
DO_ADDR VOUT
GND DO_ADDR VOUT 1
ThunderboltTM (AIC) GPIO . *ThunderboltTM AIC PCIE5( ) .
RGB LED RGB LED . : RGB LED . . * 40 .
LED LED . : LED . . * 41 .
151
2.7
. BIOS BIOS .
BIOS (BIOS_FB1) (3 , 10 )
BIOS BIOS .
ASRock BIOS , CPU BIOS .
BIOS Flashback BitLocker TPM . . . BIOS fTPM . .
USB BIOS .
1. ASRock BIOS : http://www.asrock.com. 2. BIOS USB . USB
FAT32 . 3. BIOS . 4. "creative.rom" X .
USB . 5. 24 . AC .
* . 6. USB USB BIOS . 7. BIOS 3 . LED . 8. LED , BIOS .
* LED BIOS . USB USB BIOS . ** LED CMOS / . .
USB BIOS 152
H670 PG Riptide
1
ASRock H670 PG Riptide ASRock
BIOS ASRock ASRock VGA CPU ASRock http://www.asrock.com.
1.1
� ASRock H670 PG Riptide ATX � ASRock H670 PG Riptide � ASRock H670 PG Riptide CD � 2 x ATA (SATA) � 4 x M.2 � 1 x M.2 � 1 x I/O
153
1.2
� ATX �
CPU
� 12 Intel� CoreTM (LGA1700)
� 9
� Intel� Hybrid
� Intel� Max 3.0
� Intel� H670
� DDR4 � 4 x DDR4 DIMM � 5000+(OC)* DDR4 ECC
* DDR4 3200
* ASRock
(http://www.asrock.com/) � ECC UDIMM non-ECC
� 128GB � Intel� (XMP) 2.0
� 2 x PCIe x16 PCIE1/PCIE3Gen5x16 (PCIE1)
Gen5x16 (PCIE1) / Gen4x4 (PCIE3) *
* NVMe SSD � 3 x PCIe Gen3x1 � AMD CrossFireTM � 1 x M.2 (Key E) 2230 WiFi/BT PCIe WiFi
Intel� CNVi WiFi/BT
� Intel� UHD VGA
GPU � Intel� Xe (Gen 12)
154
H670 PG Riptide
LAN
I/O
� :
HDMI DisplayPort 1.4 � 4K x 2K4096 x 2160 @ 60Hz
HDMI 2.1TMDS � 8K7680 x 4320 @ 60Hz/5K5120x3200 @ 120Hz
DSC DisplayPort 1.4 � HDMI 2.1 TMDS HDCP 2.3 DisplayPort 1.4
� 7.1 CH HD (Realtek ALC897 Audio Codec) � � Nahimic
� LAN 10/100/1000 Mb/s � PHY Intel� I219V � Wake-On-LAN � / (ESD) � 802.3az � UEFI PXE
� 3 x � 1 x PS/2 / � 1 x HDMI � 1 x DisplayPort 1.4 � 1 x USB 3.2 Gen2 Type-A (10 Gb/s)
(ESD) � 1 x USB 3.2 Gen2 Type-C (10 Gb/s)
(ESD) � 4 x USB 3.2 Gen1 (ESD)
* USB3_2_3 � 2 x USB 2.0 (ESD) � LED 1 x RJ-45 LAN ACT/LINK LED SPEED
LED � 1 x BIOS � HD / /
155
RAID
� 4 x SATA3 6.0 Gb/s � 1 x Hyper M.2 (M2_1 M) 2260/2280 PCIe
Gen4x4 (64 Gb/s) * � 1 x Hyper M.2 (M2_2 M) 2242/2260/2280
PCIe Gen4x4 (64 Gb/s) * � 1 x Hyper M.2 (M2_3 M) 2260/2280/22110
SATA3 6.0 Gb/s PCIe Gen4x4 (64 Gb/s) * * Intel� OptaneTM (M2_2 M2_3 ) * Intel� (VMD) * NVMe SSD * ASRock U.2
� SATA RAID 0RAID 1RAID 5 RAID 10
� M.2 NvMe RAID 0RAID 1 RAID 5
� 1 x SPI TPM � 1 x LED � 1 x RGB LED * 12V/3A36W LED � 3 x LED * 5V/3A15W LED � 1 x CPU 4 * CPU 1A (12W) CPU � 1 x CPU/ 4
* CPU/ 2A (24W) � 4 x / 4
* / 2A (24W) * CPU_FAN2/WP CHA_FAN1~4/WP 3 4
156
H670 PG Riptide
� 1 x 24 ATX � 1 x 8 12V � 1 x 4 12V � 1 x � 1 x underbolt AIC 5 underbolt 4 AIC
� 1 x USB 2.0 2 USB 2.0
(ESD) � 2 x USB 3.2 Gen1 4 USB 3.2 Gen1
ASMedia ASM1074 (ESD) � 1 x C USB 3.2 Gen2x2
(20 Gb/s) (ESD)
BIOS
� AMI UEFI Legal BIOS GUI � ACPI 6.0 � SMBIOS 2.7 � CPU / CPU GTDRAMVCCIN AUX+1.05V
PROC+1.8V PROC+0.82V PCH +1.05V PCH
� : CPUCPU/ /
� CPU :
CPUCPU/ /
� CPUCPU/
/ � CPU VcorePCHDRAMVCCIN AUX+1.05V
PROC+1.8V PROC+0.82V PCH+12V+5V+3.3V
OS
� Microso � Windows� 10 64 / 11 64
� FCCCE � ErP/EuP Ready ErP/EuP
157
* http://www.asrock.com BIOS
158
H670 PG Riptide
1.3
CMOS (CLRMOS1) p.1No. 22
2
CLRMOS1 CMOS 15 CLRMOS1 5 BIOS CMOS BIOS CMOS CMOS CMOS CMOS
159
1.4
9 PANEL1 p.1No. 19
PLED+ PLEDPWRBTN# GND
1 GND
RESET# GND HDLEDHDLED+
PWRBTN
RESET
PLED LED LED S1/S3 LED S4 S5LED
HDLED LED LED LED
LEDLED
LED 7 SPK_PLED1 p.1No. 20
SPEAKER DUMMY DUMMY +5V
1
PLED+ PLED+ PLED-
LED
160
H670 PG Riptide
SATA3_0 SATA3_2 SATA3_1 SATA3_3
ATA3 : SATA3_0: p.1No. 17 SATA3_1: p.1No. 17 SATA3_2: p.1No. 16 SATA3_3: p.1No. 16
4 SATA3 6.0 Gb/s SATA
USB 2.0 9 USB_2_3 p.1No. 23
USB_PWR PP+ GND DUMMY
1 GND
P+ PUSB_PWR
1 USB 2.0 USB 2.0 2
USB 3.2 Gen1 : 19 USB3_6_7 p.1No. 12
Vbus IntA_PA_SSRXIntA_PA_SSRX+
GND IntA_PA_SSTXIntA_PA_SSTX+
GND IntA_PA_DIntA_PA_D+
Vbus IntA_PB_SSRXIntA_PB_SSRX+ GND IntA_PB_SSTXIntA_PB_SSTX+ GND IntA_PB_DIntA_PB_D+ Dummy 1
2 USB 3.2 Gen1 2
: 19 USB3_4_5 p.1No. 15
1 Dummy IntA_PB_D+ IntA_PB_D-
GND IntA_PB_SSTX+ IntA_PB_SSTX-
GND IntA_PB_SSRX+ IntA_PB_SSRX-
Vbus
IntA_PA_D+ IntA_PA_DGND IntA_PA_SSTX+ IntA_PA_SSTXGND IntA_PA_SSRX+ IntA_PA_SSRX-
Vbus
C USB 3.2 Gen2x2 20 F_USB32_TC_1 p.1No. 14
USB Type-C Cable
1 C USB 3.2 Gen2x2 USB 3.2 Gen2x2 USB 3.2 Gen2x2
161
9 HD_AUDIO1 p.1No. 26
GND PRESENCE# MIC_RET OUT_RET
1 OUT2_L
J_SENSE OUT2_R MIC2_R MIC2_L
1. HDA
2. AC'97 A. Mic_IN (MIC) MIC2_L B. Audio_R (RIN) OUT2_R Audio_L (LIN) OUT2_L C. (GND) (GND) D. MIC_RET OUT_RET HD AC'97 E. RealtekFrontMic
/
4 3 21
4 CHA_FAN1/WP FAN_SPEED_CONTROL
p.1No. 13 4 CHA_FAN2/WP
CHA_FAN_SPEED FAN_VOLTAGE GND
p.1No. 28
4 CHA_FAN3/WP
p.1No. 10
4 CHA_FAN4/WP
p.1No. 18
4 4 3 1-3
CPU 4 CPU_FAN1 p.1No. 3
FAN_SPEED_CONTROL CPU_FAN_SPEED +12V GND
1 2 34
4 CPU 3 CPU 1-3
162
H670 PG Riptide
CPU/ 4 CPU_FAN2/WP p.1No. 6
ATX 24 ATXPWR1 p.1No. 11
ATX 12V 8 ATX12V1 p.1No. 1
ATX 12V 4 ATX12V2 p.1No. 2
4 3 21
GND FAN_VOLTAGE CPU_FAN_SPEED FAN_SPEED_CONTROL
12
24
1
13
8
5
4
1
4 CPU 3 CPU 1-3
24 ATX 20 ATX 1 13
8 ATX12V 4 ATX 1 5 * : CPU PCIe
ATX 12V * 1 * ATX12V2 ATX 12V 4 ATX12V1
163
SPI TPM 13 SPI_TPM_J1 p.1No. 21
SPI_DQ3 SPI_PWR Dummy CLK SPI_MOSI RST# TPM_PIRQ
1
SPI_TPM_CS# GND RSMRST# SPI_MISO SPI_CS0 SPI_DQ2
SPI (TPM) TPM
underbolt AIC 5 TB1 p.1No. 27
GPIO underbolt TM
(AIC) * underbolt TM AIC PCIE3
RGB LED 4 RGB_LED1 p.1No. 24
1 +12V G R B
RGB RGB LED LED : RGB LED * 40
164
H670 PG Riptide
LED 3 ADDR_LED1 p.1No. 25
3 ADDR_LED2 p.1No. 8 3 ADDR_LED3 p.1No. 7
1 GND
DO_ADDR VOUT
GND DO_ADDR VOUT 1
LED LED : LED * 41
165
2.7
1 : BIOS BIOS
BIOS (BIOS_FB1) p.3No. 10
BIOS BIOS
ASRock BIOS Flashback CPU BIOS
BIOS Flashback BitLocker TPM BIOS fTPM
USB BIOS Flashback
1. ASRock BIOS : http://www.asrock.com. 2. BIOS USB USB
FAT32 3. BIOS 4. creative.romX: USB
5. 24 AC
* 6. USB USB BIOS Flashback 7. BIOS Flashback 3 LED 8. LED BIOS LED * LED BIOS Flashback
USB USB BIOS Flashback ** LED CMOS
USB BIOS Flashback 166
H670 PG Riptide
1
H670 PG Riptide
BIOS VGA CPU http://www.asrock.com
1.1
� H670 PG Riptide ATX � H670 PG Riptide � H670 PG Riptide � 2 x ATA (SATA) � 4 x M.2 � 1 x M.2 � 1 x I/O
167
1.2
CPU
� ATX �
� 12 Intel� CoreTM (LGA1700) � 9 � Intel� Hybrid Technology � Intel� Turbo Boost Max Technology 3.0
� Intel� H670
� DDR4 � 4 x DDR4 DIMM � DDR4 ECC 5000+(OC)* * DDR4 3200 * Memory Support List (http://www.asrock.com/) � ECC UDIMM ECC � 128GB � Intel� Extreme Memory Profile (XMP) 2.0
� 2 x PCIe x16 PCIE1/PCIE3 - Gen5x16 (PCIE1) - Gen5x16 (PCIE1) / Gen4x4 (PCIE3)*
* NVMe SSD � 3 x PCIe Gen3x1 � AMD CrossFireTM � 1 x M.2 Socket(Key E) 2230 WiFi/BT PCIe WiFi
Intel� CNVi WiFi/BT
� GPU Intel� UHD Graphics VGA
� Intel� Xe (Gen 12) � : HDMI DisplayPort
1.4 � TMDS HDMI 2.1 4K x 2K
(4096x2160) @ 60Hz � DisplayPort 1.4 DSC 8K
(7680x4320) @ 60Hz / 5K (5120x3200) @ 120Hz
168
H670 PG Riptide
LAN I/O
� HDCP 2.3 TMDS HDMI 2.1 DisplayPort 1.4
� 7.1 CH Realtek ALC897 � � Nahimic
� Gigabit LAN 10/100/1000 Mb/s � Giga PHY Intel� I219V � Wake-On-LAN � /ESD � 802.3az � UEFI PXE
� 3 x � 1 x PS/2 / � 1 x HDMI � 1 x DisplayPort 1.4 � 1 x USB 3.2 Gen2 A (10 Gb/s) (ReDriver)
ESD � 1 x USB 3.2 Gen2 C (10 Gb/s) (ReDriver)
ESD � 4 x USB 3.2 Gen1 ESD * USB3_2_3 Lightning Gaming � 2 x USB 2.0 ESD � 1 x RJ-45 LAN LEDACT/LINK LED SPEED
LED � 1 x BIOS � : / /
� 4 x SATA3 6.0 Gb/s � 1 x M.2 M2_1Key M 2260/2280
PCIe Gen4x4 (64 Gb/s) * � 1 x M.2 M2_2Key M
2242/2260/2280 PCIe Gen4x4 (64 Gb/s) * � 1 x M.2 M2_3Key M 2260/2280/
22110 SATA3 6.0 Gb/s PCIe Gen4x4 (64 Gb/s) *
169
RAID
* Intel� OptaneTM Technology M2_2 M2_3 * Intel� (VMD) * NVMe SSD * U.2
� RAID 0RAID 1RAID 5 RAID 10 SATA
� M.2 NVMe RAID 0RAID 1 RAID 5
� 1 x SPI TPM � 1 x LED � 1 x RGB LED * 12V/3A, 36W LED � 3 x LED * 5V/3A, 15W LED � 1 x CPU 4 * CPU 1A (12W) CPU � 1 x CPU/ 4 * CPU/ 2A (24W) � 4 x / 4 * / 2A (24W) * CPU_FAN2/WP CHA_FAN1~4/WP 3 4 � 1 x 24 ATX � 1 x 8 12V � 1 x 4 12V � 1 x � 1 x Thunderbolt AIC 5 ASRock
Thunderbolt 4 AIC � 1 x USB 2.0 2 USB 2.0 ESD � 2 x USB 3.2 Gen1 4 USB 3.2 Gen1
ASMedia ASM1074 ESD � 1 x C USB 3.2 Gen2x2 (20 Gb/s)
ESD
170
H670 PG Riptide
BIOS
� AMI UEFI Legal BIOS GUI � ACPI 6.0 � SMBIOS 2.7 � CPU / CPU GTDRAMVCCIN AUX+1.05V
PROC+1.8V PROC+0.82V PCH+1.05V PCH
� CPUCPU/ / � CPU
CPUCPU/ / � CPUCPU/ / � CPU VcorePCHDRAMVCCIN AUX
+1.05V PROC+1.8V PROC+0.82V PCH+12V+5V +3.3V
� Microsoft� Windows� 10 64 / 11 64
� FCCCE � ErP/EuP ErP/EuP
* http://www.asrock.com
BIOS ""
171
1.3
"" ""
CMOS (CLRMOS1) 1 22
2
CLRMOS1 CMOS 15 CLRMOS1 5 BIOS CMOS BIOS CMOS CMOS CMOS CMOS
172
H670 PG Riptide
1.4
9 PANEL1 1 19
PLED+ PLEDPWRBTN# GND
1 GND
RESET# GND HDLEDHDLED+
PWRBTN
RESET
PLED LED LED S1/S3 LED S4 (S5) LED
HDLED LED LED LED
LED LED
LED 7 SPK_PLED1 1 20
SPEAKER DUMMY DUMMY +5V
1
PLED+ PLED+ PLED-
LED
173
ATA3 SATA3_0: 1 17 SATA3_1: 1 17 SATA3_2: 1 16 SATA3_3: 1 16
SATA3_0 SATA3_2 SATA3_1 SATA3_3
SATA3 6.0 Gb/s SATA
USB 2.0 9 USB_2_3 1 23
USB_PWR PP+ GND DUMMY
1 GND
P+ PUSB_PWR
USB 2.0 USB 2.0
USB 3.2 Gen1 19 USB3_6_7 1 12
Vbus IntA_PA_SSRXIntA_PA_SSRX+
GND IntA_PA_SSTXIntA_PA_SSTX+
GND IntA_PA_DIntA_PA_D+
Vbus IntA_PB_SSRXIntA_PB_SSRX+ GND IntA_PB_SSTXIntA_PB_SSTX+ GND IntA_PB_DIntA_PB_D+ Dummy 1
2 USB 3.2 Gen1
19 USB3_4_5 1 15
1 Dummy IntA_PB_D+ IntA_PB_D-
GND IntA_PB_SSTX+ IntA_PB_SSTX-
GND IntA_PB_SSRX+ IntA_PB_SSRX-
Vbus
IntA_PA_D+ IntA_PA_DGND IntA_PA_SSTX+ IntA_PA_SSTXGND IntA_PA_SSRX+ IntA_PA_SSRX-
Vbus
C USB 3.2 Gen2x2 20 F_USB32_TC_1 1 14
C USB 3.2 Gen2x2 USB 3.2 Gen2x2 USB 3.2 Gen2x2
USB Type-C Cable
174
H670 PG Riptide
9 HD_AUDIO1 1 26
GND PRESENCE# MIC_RET OUT_RET
1 OUT2_L
J_SENSE OUT2_R MIC2_R MIC2_L
1. HDA
2. AC'97 A. Mic_IN (MIC) MIC2_L B. Audio_R (RIN) OUT2_R Audio_L (LIN) OUT2_L C. (GND) (GND) D. MIC_RET OUT_RET AC'97 E. Realtek "FrontMic" "Recording Volume"
/ 4 CHA_FAN1/WP 1 13 4 CHA_FAN2/WP 1 28 4 CHA_FAN3/WP 1 10 4 CHA_FAN4/WP 1 18
4 3 21
FAN_SPEED_CONTROL CHA_FAN_SPEED FAN_VOLTAGE GND
4 3 1-3
CPU 4 CPU_FAN1 1 3
FAN_SPEED_CONTROL CPU_FAN_SPEED +12V GND
1 2 34
4 CPU 3 CPU 1-3
175
CPU/ 4 CPU_FAN2/WP 1 6
ATX 24 ATXPWR1 1 11
4 3 21
GND FAN_VOLTAGE CPU_FAN_SPEED FAN_SPEED_CONTROL
12
24
4 3 CPU 1-3
24 ATX 20 ATX 1 13
1
13
ATX 12V
8
8 ATX12V1
1 1
4
5
8 ATX 12V
4 ATX
1
1 5
*
CPU
PCIe
ATX 12V 4 ATX12V2 1 2
ATX 12V * * ATX 12V 4 ATX12V2 ATX12V1
SPI TPM 13 SPI_TPM_J1 1 21
SPI_DQ3 SPI_PWR Dummy CLK SPI_MOSI RST# TPM_PIRQ
1
SPI_TPM_CS# GND RSMRST# SPI_MISO SPI_CS0 SPI_DQ2
SPI Trusted Platform Module TPM TPM
176
H670 PG Riptide
Thunderbolt AIC 5 TB1 1 27
RGB LED 4 RGB_LED1 1 24
LED 3 ADDR_LED1 1 25
3 ADDR_LED2 1 8 3 ADDR_LED3 1 7
1 +12V G R B
1 GND
DO_ADDR VOUT
GND DO_ADDR VOUT 1
GPIO ThunderboltTM (AIC) * ThunderboltTM AIC PCIE3
RGB RGB LED LED RGB LED * 40
LED LED LED * 41
177
2.7
BIOS BIOS
BIOS (BIOS_FB1) 3 10
BIOS BIOS
ASRock BIOS CPU BIOS
BIOS BitLocker TPM BIOS fTPM
USB BIOS
1. ASRock BIOS http://www.asrock.com 2. BIOS USB USB FAT32 3. BIOS 4. "creative.rom" X USB 5. 24
* 6. USB USB BIOS 7. BIOS LED 8. LED BIOS
* LED BIOS USB USB BIOS
** LED CMOS /
USB BIOS 178
H670 PG Riptide
SJ/T 11364-2006 10
(Pb) (Cd) (Hg) (Cr(VI)) (PBB) (PBDE)
XO O
O
O
O
XO O
O
O
O
O: SJ/T 11363-2006 X: SJ/T 11363-2006 2002/95/EC :
179
1
H670 PG Riptide
BIOS VGA CPU http://www.asrock.com
1.1
� H670 PG Riptide ATX � H670 PG Riptide � H670 PG Riptide � 2 x Serial ATA (SATA) � 4 x M.2 � 1 x M.2 � 1 x I/O
180
H670 PG Riptide
1.2
CPU
� ATX �
� 12 Intel� CoreTM (LGA1700) � 9 � Intel� � Intel� Turbo Boost Max 3.0
� Intel� H670
� DDR4 � 4 x DDR4 DIMM � DDR4 ECC 5000+(OC)* * DDR4 3200 * (http://www.asrock.com/) � ECC UDIMM ECC � 128GB � Intel� Extreme Memory Profile (XMP) 2.0
� 2 x PCIe x16 PCIE1/PCIE3 Gen5x16 (PCIE1) Gen5x16 (PCIE1) / Gen4x4 (PCIE3)*
* NVMe SSD � 3 x PCIe Gen3x1 � AMD CrossFireTM � 1 x M.2 (Key E) 2230 WiFi/BT PCIe WiFi
Intel� CNVi WiFi/BT
� GPU Intel� UHD Graphics Builtin Visuals VGA
� Intel� Xe 12 � HDMI DisplayPort
1.4 � HDMI 2.1 TMDS 4K x 2K
(4096x2160) @ 60Hz � DisplayPort 1.4DSC ( ) 8K
(7680x4320) @ 60Hz / 5K (5120x3200) @ 120Hz � HDCP 2.3 HDMI 2.1 TMDS DisplayPort 1.4
181
LAN I/O
� 7.1 CH HD Realtek ALC897 � � Nahimic
� Gigabit LAN 10/100/1000 Mb/s � Giga PHY Intel� I219V � � � 802.3az EEE � UEFI PXE
� 3 x � 1 x PS/2 � 1 x HDMI � 1 x DisplayPort 1.4 � 1 x USB 3.2 Gen2 A (10 Gb/s) (ReDriver)
� 1 x USB 3.2 Gen2 C (10 Gb/s) (ReDriver)
� 4 x USB 3.2 Gen1 * USB3_2_3 Lightning Gaming � 2 x USB 2.0 � 1 x RJ-45 LAN LEDACT/LINK LED SPEED
LED � 1 x BIOS Flashback � HD
� 4 x SATA3 6.0 Gb/s � 1 x Hyper M.2 M2_1Key M 2260/2280
PCIe Gen4x4 (64 Gb/s) * � 1 x Hyper M.2 M2_2Key M 2242/2260/2280
PCIe Gen4x4 (64 Gb/s) * � 1 x Hyper M.2 M2_3Key M
2260/2280/22110 SATA3 6.0 Gb/s PCIe Gen4x4 (64 Gb/s) * * Intel� OptaneTM M2_2 M2_3 * Intel� (VMD) * NVMe SSD * U.2
182
H670 PG Riptide
RAID
BIOS
� SATA RAID 0RAID 1RAID 5 RAID 10
� M.2 NVMe RAID 0RAID 1 RAID 5
� 1 x SPI TPM � 1 x LED � 1 x RGB LED * 12V/3A36W LED � 3 x LED * 5V/3A15W LED � 1 x CPU (4-pin) * CPU 1A (12W) CPU � 1 x CPU (4-pin) * CPU 2A (24W) � 4 x (4-pin) * 2A (24W) * CPU_FAN2/WP CHA_FAN1~4/WP 3-pin 4-pin � 1 x 24 pin ATX � 1 x 8 pin 12V � 1 x 4 pin 12V � 1 x � 1 x Thunderbolt AIC (5-pin) Thunderbolt 4
AIC � 1 x USB 2.0 2 USB 2.0 � 2 x USB 3.2 Gen1 4 USB 3.2 Gen1
ASMedia ASM1074 � 1 x Type C USB 3.2 Gen2x2 (20 Gb/s)
� AMI UEFI Legal BIOS GUI � ACPI 6.0 � SMBIOS 2.7 � CPU CPU GTDRAMVCCIN AUX+1.05V
PROC+1.8V PROC+0.82V PCH+1.05V PCH
183
� CPUCPU / / � CPU
CPUCPU / / � CPUCPU / /
� CPU VcorePCHDRAMVCCIN AUX
+1.05V PROC+1.8V PROC+0.82V PCH+12V+5V +3.3V
� Microsoft� Windows� 10 64 / 11 64
� FCCCE � ErP/EuP ready ErP/EuP ready
* http://www.asrock.com
BIOS
184
H670 PG Riptide
1.3
CMOS (CLRMOS1) 1 22
2-pin
CLRMOS1 CMOS 15 CLRMOS1 pin 5 BIOS CMOS BIOS CMOS CMOS CMOS CMOS
185
1.4
(9-pin PANEL1) 1 19
PLED+ PLEDPWRBTN# GND
1 GND
RESET# GND HDLEDHDLED+
PWRBTN
RESET
PLED LED LED S1/S3 LED S4 (S5) LED
HDLED LED LEDLED
LED LED
LED (7-pin SPK_PLED1) 1 20
SPEAKER DUMMY DUMMY +5V
1
PLED+ PLED+ PLED-
LED
186
H670 PG Riptide
SATA3_0 SATA3_2 SATA3_1 SATA3_3
Serial ATA3 SATA3_0: 1 17 SATA3_1: 1 17 SATA3_2: 1 16 SATA3_3: 1 16
SATA3 SATA 6.0 Gb/s
USB 2.0 (9-pin USB_2_3) 1 23
USB_PWR PP+ GND DUMMY
1 GND
P+ PUSB_PWR
USB 2.0 USB 2.0
USB 3.2 Gen1
Vbus
:
IntA_PA_SSRX-
IntA_PA_SSRX+
(19-pin USB3_6_7)
GND
IntA_PA_SSTX-
1 12 IntA_PA_SSTX+
GND
IntA_PA_D-
IntA_PA_D+
Vbus IntA_PB_SSRXIntA_PB_SSRX+ GND IntA_PB_SSTXIntA_PB_SSTX+ GND IntA_PB_DIntA_PB_D+ Dummy 1
USB 3.2 Gen1
1 Dummy
(19-pin USB3_4_5)
IntA_PB_D+ IntA_PB_D-
1
15 GND IntA_PB_SSTX+
IntA_PB_SSTX-
GND
IntA_PB_SSRX+
IntA_PB_SSRX-
Vbus
IntA_PA_D+ IntA_PA_DGND IntA_PA_SSTX+ IntA_PA_SSTXGND IntA_PA_SSRX+ IntA_PA_SSRX-
Vbus
Type C USB 3.2 Gen2x2 (20-pin F_USB32_TC_1) 1 14
USB Type-C Cable
Type C USB 3.2 Gen2x2 USB 3.2 Gen2x2 USB 3.2 Gen2x2
187
(9-pin HD_AUDIO1) 1 26
GND PRESENCE# MIC_RET OUT_RET
1 OUT2_L
J_SENSE OUT2_R MIC2_R MIC2_L
1. (Jack Sensing) HDA
2. AC'97 A. Mic_IN (MIC) MIC2_L B. Audio_R (RIN) OUT2_R Audio_L (LIN) OUT2_L C. (GND) (GND) D. MIC_RET OUT_RET HD AC'97 E. Realtek FrontMic
4 3 21
(4-pin CHA_FAN1/WP)
1 13FAN_SPEED_CONTROL
(4-pin CHA_FAN2/WP) 1 28
CHA_FAN_SPEED FAN_VOLTAGE GND
(4-pin CHA_FAN3/WP)
1 10
(4-pin CHA_FAN4/WP)
1 18
4-Pin 3-Pin CPU Pin 1-3
CPU (4-pin CPU_FAN1) 1 3
FAN_SPEED_CONTROL CPU_FAN_SPEED +12V GND
1 2 34
4-Pin CPU 3-Pin CPU Pin 1-3
188
H670 PG Riptide
CPU (4-pin CPU_FAN2/WP) 1 6
4 3 21
GND FAN_VOLTAGE CPU_FAN_SPEED FAN_SPEED_CONTROL
ATX
12
24
(24-pin ATXPWR1)
1 11
1
13
4-Pin CPU 3-Pin CPU Pin 1-3
24-pin ATX 20-pin ATX Pin 1 Pin 13
ATX 12V
8
(8-pin ATX12V1)
1 1
4
ATX 12V (4-pin ATX12V2) 1 2
5
8-pin ATX
12V 4-pin
1
ATX Pin 1
Pin 5
* CPU
PCIe
ATX 12V * * ATX 12V 4-pin ATX12V2 ATX12V1
189
SPI TPM
SPI_DQ3
SPI_PWR
(13-pin SPI_TPM_J1)
Dummy CLK
1 21
SPI_MOSI RST#
TPM_PIRQ
1
SPI_TPM_CS# GND RSMRST# SPI_MISO SPI_CS0 SPI_DQ2
SPI (TPM) TPM
Thunderbolt AIC (5-pin TB1) 1 27
GPIO ThunderboltTM (AIC) * ThunderboltTM AIC PCIE3
RGB LED (4-pin RGB_LED1) 1 24
1 +12V G R B
LED (3-pin ADDR_LED1) 1 25
1
GND DO_ADDR VOUT
(3-pin ADDR_LED2) 1 8 (3-pin ADDR_LED3) 1 7
GND
DO_ADDR VOUT 1
RGB RGB LED LED RGB LED * 40
LED LED LED * 41
190
H670 PG Riptide
2.7
BIOS Flashback BIOS
BIOS Flashback (BIOS_FB1) 3 10
BIOS Flashback BIOS
ASRock BIOS Flashback BIOS CPU
BIOS Flashback BitLocker TPM BIOS fTPM
USB BIOS Flashback
1. ASRock BIOS http://www.asrock.com 2. BIOS USB USB FAT32 3. zip BIOS 4. creative.rom X: USB 5. 24 pin AC
* 6. USB USB BIOS Flashback 7. BIOS Flashback LED 8. LED BIOS
* LED BIOS Flashback USB USB BIOS Flashback
** LED CMOS
USB BIOS Flashback 191
Bahasa Indonesia
Spesifikasi
Platform
� Bentuk dan Ukuran ATX � Desain Kapasitor Solid
CPU
� Mendukung Prosesor Intel� CoreTM Gen ke-12 (LGA1700)
� Desain 9 Fase Daya
� Mendukung Teknologi Intel� Hybrid
� Mendukung Teknologi Intel� Turbo Boost Max 3.0
Chipset
� Intel� H670
Memori
� Teknologi Memori DDR4 Dua Saluran � 4 x Slot DIMM DDR4 � Mendukung memori DDR4 non-ECC, tanpa buffer hingga
5000+(OC)*
* Mendukung DDR4 3200 secara native.
* Lihat Daftar Dukungan Memori pada situs web ASRock untuk
informasi selengkapnya. (http://www.asrock.com/) � Mendukung modul memori ECC UDIMM (berjalan dalam mode
non-ECC) � Kapasitas maksimum memori sistem: 128GB � Mendukung Intel� Extreme Memory Profile (XMP) 2.0
Slot Ekspansi
� 2 slot PCIe x16 (PCIE1/PCIE3: satu pada Gen5x16 (PCIE1); dua
pada Gen5x16 (PCIE1) / Gen4x4 (PCIE3))*
* Mendukung SSD NVMe sebagai disk boot � 3 slot PCIe Gen3x1 � Mendukung AMD CrossFireTM � 1 x Soket M.2 (Tombol E), mendukung modul jenis 2230 WiFi/
WiFi BT PCIe dan Intel� CNVi (WiFi/BT terintegrasi)
Grafis
� Intel� UHD Graphics Built-in Visuals dan output VGA hanya
didukung dengan prosesor yang terintegrasi GPU. � Arsitektur Grafis Intel� Xe (Gen 12) � Output grafis ganda: Mendukung port HDMI dan DisplayPort 1.4
melalui pengontrol layar mandiri � Mendukung HDMI 2.1 Yang Kompatibel dengan TMDS dengan
resolusi maks. hingga 4K x 2K (4096x2160) @ 60Hz
192
H670 PG Riptide
Bahasa Indonesia
� Mendukung DisplayPort 1.4 dengan resolusi maks. DSC (dikompres) hingga 8K (7680x4320) @ 60Hz / 5K (5120x3200) @ 120Hz
� Mendukung HDCP 2.3 dengan Port HDMI 2.1 Yang Kompatibel dengan TMDS dan DisplayPort 1.4
Audio
� Audio HD 7.1 CH (Realtek ALC897 Audio Codec) � Mendukung Perlindungan dari Lonjakan Arus � Audio Nahimic
LAN
� Gigabit LAN 10/100/1000 Mb/s � Giga PHY Intel� I219V � Mendukung Wake-On-LAN � Mendukung Perlindungan dari Petir/ESD � Mendukung Ethernet 802.3az Hemat Energi � Mendukung UEFI PXE
I/O Panel Belakang
� 3 x Titik Pemasangan Antena � 1 x Port Mouse/Keyboard PS/2 � 1 x Port HDMI � 1 x DisplayPort 1.4 � 1 x Port USB 3.2 Gen2 Tipe-A (10 Gb/s) (ReDriver) (Mendukung
Perlindungan ESD) � 1 x Port USB 3.2 Gen2 Tipe-C (10 Gb/s) (ReDriver) (Mendukung
Perlindungan ESD) � 4 x Port USB 3.2 Gen1 (Mendukung Perlindungan dari ESD)
* USB3_2_3 adalah Port Gaming Lightning. � 2 x Port USB 2.0 (Mendukung Perlindungan dari ESD) � 1 x Port LAN RJ-45 dengan LED (LED ACT/LINK dan LED
SPEED) � 1 x Tombol BIOS Flashback � Soket Audio HD: Saluran Masuk/Speaker Depan/Mikrofon
Penyimpanan
� 4 x Konektor SATA3 6,0 Gb/s � 1 x Soket Hyper M.2 (M2_1, Key M), mendukung PCIe tipe
2260/2280 mode Gen4x4 (64 Gb/s)* � 1 x Soket Hyper M.2 (M2_2, Key M), mendukung PCIe tipe
2242/2260/2280 mode Gen4x4 (64 Gb/s)* � 1 x Soket Hyper M.2 (M2_3, Key M), mendukung SATA3 tipe
2260/2280/22110 6,0 Gb/s & PCIe mode Gen4x4 (64 Gb/s)*
193
Bahasa Indonesia
RAID Konektor
* Mendukung Teknologi Intel� OptaneTM (hanya M2_2 dan M2_3) * Mendukung Intel� Volume Management Device (VMD) * Mendukung SSD NVMe sebagai disk boot * Mendukung Kit U.2 ASRock
� Mendukung RAID 0, RAID 1, RAID 5 dan RAID 10 untuk perangkat penyimpanan SATA
� Mendukung RAID 0, RAID 1 dan RAID 5 untuk perangkat penyimpanan M.2 NVMe
� 1 x Header SPI TPM � 1 x Header LED Daya dan Speaker � 1 x Header LED RGB * Mendukung total Strip LED hingga 12V/3A, 36W � 3 x Addressable LED Header * Mendukung total Strip LED hingga 5V/3A, 15W � 1 x Konektor Kipas CPU (4-pin) * Konektor Kipas CPU mendukung kipas CPU dengan daya kipas maksimum 1A (12W). � 1 x Konektor Kipas CPU/Pompa Air (4-pin) (Kontrol Kecepatan
Kipas Pintar) * CPU/Kipas Pompa Air mendukung kipas berpendingin air dengan daya kipas maksimum 2A (24W). � 4 x Konektor Sasis/Kipas Pompa Air (4-pin) (Kontrol Kecepatan
Kipas Pintar) * Chassis/Kipas Pompa Air mendukung kipas berpendingin air dengan daya kipas maksimum 2A (24W). * CPU_FAN2/WP dan CHA_FAN1~4/WP dapat mendeteksi otomatis jika kipas 3-pin atau 4-pin sedang digunakan. � 1 x Konektor Daya ATX 24 pin � 1 x Konektor Daya 12 V 8 pin (Konektor Daya dengan Densitas
Tinggi) � 1 x Konektor Daya 12 V 4 pin (Konektor Daya dengan Densitas
Tinggi) � 1 x Konektor Audio Panel Depan � 1 x Konektor Thunderbolt AIC (5-pin) (Mendukung Thunderbolt 4
AIC)
194
Bahasa Indonesia
H670 PG Riptide
Fitur BIOS
Monitor Perangkat Keras
OS Sertifikasi
� 1 x Header USB 2.0 (Mendukung 2 port USB 2.0) (Mendukung Perlindungan dari ESD)
� 2 x Header USB 3.2 Gen1 (Mendukung 4 port USB 3.2 Gen1) (Hub ASMedia ASM1074) (Mendukung Perlindungan dari ESD)
� 1 x Header Tipe C USB 3.2 Gen2x2 Panel Depan (20Gb/s) (Mendukung Perlindungan ESD)
� AMI UEFI Legal BIOS dengan dukungan GUI multibahasa � ACPI 6.0 Kompatibel dengan aktivitas pengaktifan � Dukungan SMBIOS 2.7 � CPU Core/Cache, CPU GT, DRAM, VCCIN AUX, +1,05V PROC,
+1,8V PROC, +0.82V PCH, Multi penyesuaian Tegangan +1,05V PCH
� Takometer Kipas: Kipas CPU, CPU/Pompa Air, Sasis/Pompa Air � Kipas Hening (Penyesuaian otomatis kecepatan kipas sasis
berdasarkan suhu CPU): Kipas CPU, CPU/Pompa Air, Sasis/Pompa Air � Kontrol Multikecepatan Kipas: Kipas CPU, CPU/Pompa Air, Sasis/ Pompa Air � Pemantauan tegangan: CPU Vcore, PCH, DRAM, VCCIN AUX, +1,05V PROC, +1,8V PROC, +0,82V PCH, +12V, +5V, +3,3V
� Microsoft� Windows� 10 64-bit / 11 64-bit
� FCC, CE � Mendukung ErP/EuP (memerlukan catu daya untuk ErP/EuP)
* Untuk informasi rinci tentang produk, kunjungi situs web kami: http://www.asrock.com
Perlu diketahui, overclocking memiliki risiko tertentu, termasuk menyesuaikan pengaturan pada BIOS, menerapkan Teknologi Untied Overclocking, atau menggunakan alat bantu overclocking pihak ketiga. Overclocking dapat mempengaruhi stabilitas sistem, atau bahkan mengakibatkan kerusakan komponen dan perangkat sistem. Risiko dan biaya apa pun menjadi tanggungan Anda. Kami tidak bertanggung jawab atas kemungkinan kerusakan karena overclocking.
195
Contact Information
If you need to contact ASRock or want to know more about ASRock, you're welcome to visit ASRock's website at http://www.asrock.com; or you may contact your dealer for further information. For technical questions, please submit a support request form at http://www.asrock.com/support/tsd.asp ASRock Incorporation 2F., No.37, Sec. 2, Jhongyang S. Rd., Beitou District, Taipei City 112, Taiwan (R.O.C.) ASRock EUROPE B.V. Bijsterhuizen 11-11 6546 AR Nijmegen The Netherlands Phone: +31-24-345-44-33 Fax: +31-24-345-44-38 ASRock America, Inc. 13848 Magnolia Ave, Chino, CA91710 U.S.A. Phone: +1-909-590-8308 Fax: +1-909-590-1026
DECLARATION OF CONFORMITY
Per FCC Part 2 Section 2.1077(a)
Responsible Party Name: ASRock Incorporation Address: 13848 Magnolia Ave, Chino, CA91710
Phone/Fax No: +1-909-590-8308/+1-909-590-1026 hereby declares that the product
Product Name : Motherboard Model Number : H670 PG Riptide Conforms to the following specifications:
FCC Part15, SubpartB,Unintentional Radiators Supplementary Information:
is device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) is device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Representative Person's Name: James
Signature : Date : May 12, 2017
EU Declaration of Conformity
For the following equipment: Motherboard (Product Name)
H670 PG Riptide / ASRock (Model Designation / Trade Name)
ASRock Incorporation (Manufacturer Name)
2F., No.37, Sec. 2, Jhongyang S. Rd., Beitou District, Taipei City 112, Taiwan (R.O.C.) (Manufacturer Address)
EMC Directive - 2014/30/EU
�EN 55032:2015/A11:2020 �EN 61000-3-2:2014 �EN 61000-3-3:2013
�EN 55024:2010/A1:2015 �EN 55035:2017/A11:2020 �EN 61000-4-2:2009 �EN 61000-4-3:2006/A1:2008/A2:2010 �EN 61000-4-4:2012 �EN 61000-4-5:2014/A1:2017 �EN 61000-4-6:2014/AC:2015 �EN 61000-4-8:2010 �EN 61000-4-11:2004/A1:2017
Low Voltage Directive - 2014/35/EU
�EN 62368-1:2014 �EN 62368-1:2014/A11:2017
RoHS Directive - 2011/65/EU
�(EU) 2015/863�EN 50581:2012
ASRock EUROPE B.V. (Company Name)
Bijsterhuizen 1111 6546 AR Nijmegen The Netherlands (Company Address)
Person responsible for making this declaration:
(Name, Surname) A.V.P (Position / Title) December 17, 2021 (Date)
P/N: 15G062335000AK V1.0
