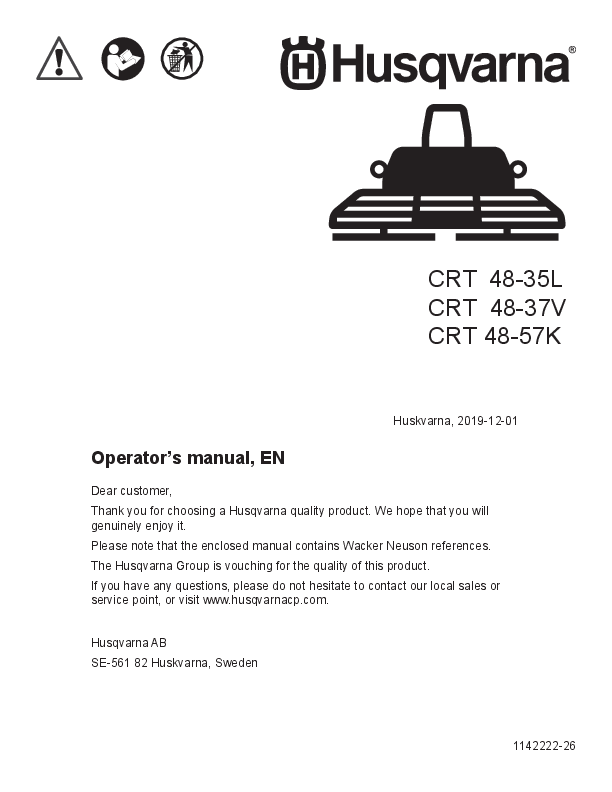

CRT 48-35L CRT 48-37V CRT 48-57K
Huskvarna, 2019-12-01
Operator's manual, EN
Dear customer, Thank you for choosing a Husqvarna quality product. We hope that you will genuinely enjoy it. Please note that the enclosed manual contains Wacker Neuson references. The Husqvarna Group is vouching for the quality of this product. If you have any questions, please do not hesitate to contact our local sales or service point, or visit www.husqvarnacp.com.
Husqvarna AB SE-561 82 Huskvarna, Sweden
1142222-26

Operator's Manual Ride-On Trowel
CRT48-37V CRT48-35L CRT48-57K

Type Document Date Revision Language

CRT48-37V, CRT48-35L, CRT48-57K 5100022491 0819 12 EN
5100022491

CALIFORNIA Proposition 65 Warning
CALIFORNIA Proposition 65 Warning
WARNING
The engine exhaust from this product contains chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.
WARNING
Diesel engine exhaust and some of its constituents are known to the State of California to cause cancer, birth defects, and other reproductive harm.
WARNING
Cancer and Reproductive Harm www.P65Warnings.ca.gov.
WARNING
Batteries, battery posts, terminals and related accessories contain lead and lead compounds, and other chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. WASH HANDS AFTER HANDLING.
NOTICE! CALIFORNIA AIR RESOURCES BOARD (CARB): This machine is considered a preempt Off-Road Applicatoin as relating to CARB standards. The U.S. EPA has sole authority to establish emission standards for preempt construction equipment. For more information see www.arb.ca.gov/msprog/offroad/preempt.htm

wc_tx004643en.fm

CALIFORNIA Proposition 65 Warning
Notes

wc_tx004643en.fm

CRT48
Foreword

Foreword

SAVE THESE INSTRUCTIONS--This manual contains important instructions for the machine models below. These instructions have been written expressly by Wacker Neuson Production Americas LLC and must be followed during installation, operation, and maintenance of the machines.

Machine CRT48-37V CRT48-35L CRT48-57K

Item Number 5100024209, 5100024290 5000620113, 5000620806 5100018892

Machine identification

wc_gr013202
A nameplate listing the model number, item number, revision number, and serial number is attached to this machine. The location of the nameplate is shown above.

Serial number For future reference, record the serial number in the space provided below. You will

(S/N)

need the serial number when requesting parts or service for this machine.

Serial Number:

Machine documentation

From this point forward in this documentation, Wacker Neuson Production Americas LLC will be referred to as Wacker Neuson.
Keep a copy of the Operator's Manual with the machine at all times. For spare parts information, please see your Wacker Neuson Dealer, or visit the
Wacker Neuson website at http://www.wackerneuson.com/. When ordering parts or requesting service information, be prepared to provide
the machine model number, item number, revision number, and serial number.

wc_tx004191gb_FM10.fm

Foreword

CRT48

Expectations for information in this manual

This manual provides information and procedures to safely operate and maintain the above Wacker Neuson model(s). For your own safety and to reduce the risk of injury, carefully read, understand, and observe all instructions described in this manual.
Wacker Neuson expressly reserves the right to make technical modifications, even without notice, which improve the performance or safety standards of its machines.
The information contained in this manual is based on machines manufactured up until the time of publication. Wacker Neuson reserves the right to change any portion of this information without notice.
The illustrations, parts, and procedures in this manual refer to Wacker Neuson factory-installed components. Your machine may vary depending on the requirements of your specific region.

CALIFORNIA Proposition 65 Warning

Combustion exhaust, some of its constituents, and certain vehicle components contain or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

Laws pertaining to spark arresters

NOTICE: State Health Safety Codes and Public Resources Codes specify that in certain locations spark arresters be used on internal combustion engines that use hydrocarbon fuels. A spark arrester is a device designed to prevent accidental discharge of sparks or flames from the engine exhaust. Spark arresters are qualified and rated by the United States Forest Service for this purpose. In order to comply with local laws regarding spark arresters, consult the engine distributor or the local Health and Safety Administrator.

Manufacturer's approval

This manual contains references to approved parts, attachments, and modifications. The following definitions apply:
Approved parts or attachments are those either manufactured or provided by Wacker Neuson.
Approved modifications are those performed by an authorized Wacker Neuson service center according to written instructions published by Wacker Neuson.
Unapproved parts, attachments, and modifications are those that do not meet the approved criteria.

Unapproved parts, attachments, or modifications may have the following consequences:
Serious injury hazards to the operator and persons in the work area Permanent damage to the machine which will not be covered under warranty

Contact your Wacker Neuson dealer immediately if you have questions about approved or unapproved parts, attachments, or modifications.

wc_tx004191gb_FM10.fm

EC Declaration of Conformity

We, Husqvarna AB, SE 561 82 Huskvarna, SWEDEN, Tel. +46 36 146500 declare on our sole responsibility that the product:

Description Brand Type / Model Identification

Concrete Smoothing Machine, Trowel HUSQVARNA CRT 48-37V Serial numbers dating from 2019 and onwards

complies fully with the following EU directives and regulations:

Directive/Regulation 2006/42/EC

Description "relating to machinery"

2014/30/EU

"relating to electromagnetic compatibility"

and that the following standards and/or technical specifications are applied;

EN 12649:2008+A1:2011

Partille, 2019-12-01

Martin Huber
R&D Director, Concrete Surfaces & Floors Husqvarna AB, Construction Division
Responsible for technical documentation

CRT48
CALIFORNIA Proposition 65 Warning

Table of Contents
3

Foreword

EC Declaration of Conformity

1 Safety Information

1.1 Signal Words Used in this Manual ..................................................... 13 1.2 Machine Description and Intended Use ............................................. 14 1.3 Safety Guidelines for Operating the Machine ..................................... 15 1.4 Service Safety .................................................................................... 17 1.5 Operator Safety while Using Internal Combustion Engines ............... 19 1.6 Safety Guidelines for Lifting the Machine ........................................... 20

2 Labels

2.1 Label Locations .................................................................................. 22 2.2 Label Meanings .................................................................................. 23

3 Lifting and Transporting

3.1 Lifting the Machine ............................................................................. 32 3.2 Preparing the Machine for Transport on a Truck or Trailer ................ 33

4 Operation

4.1 Preparing the Machine for First Use ................................................... 35 4.2 Position of the Operator ..................................................................... 35 4.3 Machine Components ........................................................................ 36 4.4 Machine Components Descriptions .................................................... 37 4.5 Recommended Fuel--Gasoline ......................................................... 38 4.6 Recommended Fuel--Diesel ............................................................. 38 4.7 Refueling the Machine ........................................................................ 39 4.8 Break-In Period .................................................................................. 40 4.9 Before Starting ................................................................................... 40 4.10 Starting, Steering, Operating,
and Stopping the Machine (Vanguard) ............................................... 41 4.11 Starting, Steering, Operating, and Stopping the Machine (Kohler) .... 43 4.12 Starting, Steering, Operating, and Stopping the Machine (Kubota) ... 45 4.13 Adjusting the Pitch .............................................................................. 47 4.14 Emergency Shutdown Procedure ....................................................... 48

wc_bo5100022491_09TOC.fm

Table of Contents

CRT48

5 General Maintenance

5.1 Maintaining the Emission Control System ...........................................49 5.2 Periodic Maintenance Schedule ..........................................................50 5.3 Maintaining the Gearboxes .................................................................51 5.4 Adjusting the Blade Arms ....................................................................53 5.5 Lubricate the Trowel Arms ..................................................................55 5.6 Mounting Float Pans ...........................................................................56 5.7 Replacing the Drive Belt ......................................................................58 5.8 Installing or Changing the Blades ........................................................60 5.9 Cleaning the Machine ..........................................................................62 5.10 Storage ................................................................................................63 5.11 Machine Disposal / Decommissioning .................................................64

6 Engine Maintenance: KOHLER

7 Engine Maintenance: Vanguard

8 Engine Maintenance: Kubota

9 Troubleshooting

10 Technical Data

10.1 Engine .................................................................................................78 10.2 Trowel ..................................................................................................79 10.3 Sound Measurements .........................................................................80 10.4 Vibration Measurements .....................................................................80 10.5 Dimensions ..........................................................................................81

11 Emission Control Systems Information and Warranty--Diesel 83
11.1 Emission Control System Background Information .............................83 11.2 Limited Defect Warranty for Wacker Neuson Emission Control
Systems ...............................................................................................84

wc_bo5100022491_09TOC.fm

CRT48

Table of Contents

12 Emission Control Systems Information

and Warranty--Gasoline

12.1 Emission Control System Background Information ............................ 89
12.2 Limited Defect Warranty for Wacker Neuson Emission Control Systems .............................................................................................. 90

13 AEM Safety Manual

14 Schematics

113

14.1 Electrical Schematic--CRT48-37V .................................................. 114 14.2 Electrical Schematic Components--CRT48-37V ............................. 115 14.3 Fuse/Relay Box Layout .................................................................... 115 14.4 Electrical Schematic--CRT48-35L ................................................... 116 14.5 Electrical Schematic Components--CRT48-35L ............................. 117 14.6 Electrical Schematic--CRT48-57K .................................................. 118 14.7 Electrical Schematic Components--CRT48-57K ............................. 119 14.8 Fuse/Relay Box Layout .................................................................... 119

wc_bo5100022491_09TOC.fm

Table of Contents

CRT48

wc_bo5100022491_09TOC.fm

CRT48

Safety Information

1 Safety Information

1.1 Signal Words Used in this Manual

This manual contains DANGER, WARNING, CAUTION, NOTICE, and NOTE signal words which must be followed to reduce the possibility of personal injury, damage to the equipment, or improper service.

This is the safety alert symbol. It is used to alert you to potential personal hazards. Obey all safety messages that follow this symbol.

DANGER DANGER indicates a hazardous situation which, if not avoided, will result in death or serious injury.
To avoid death or serious injury from this type of hazard, obey all safety messages that follow this signal word.

WARNING WARNING indicates a hazardous situation which, if not avoided, could result in death or serious injury.
To avoid possible death or serious injury from this type of hazard, obey all safety messages that follow this signal word.

CAUTION CAUTION indicates a hazardous situation which, if not avoided, could result in minor or moderate injury. To avoid possible minor or moderate injury from this type of hazard, obey all
safety messages that follow this signal word.
NOTICE: Used without the safety alert symbol, NOTICE indicates a situation which, if not avoided, could result in property damage. Note: A Note contains additional information important to a procedure.

wc_si000969gb_FM10.fm

Safety Information

CRT48

1.2 Machine Description and Intended Use

This machine is a ride-on concrete finishing trowel. The Wacker Neuson Ride-On Trowel consists of a frame onto which are mounted a gasoline or diesel engine, a fuel tank, a water tank, two gearboxes joined by a drive shaft, and an operator's platform with controls and a seat. A set of metal blades is connected to each gearbox. A ring guard surrounds the blades. The engine rotates the blades via the gearboxes and a clutch mechanism. The rotating blades ride on the surface of curing concrete, creating a smooth finish. The operator, who sits on the operator's platform, uses the controls and the throttle pedal to control speed and direction of the machine.

This machine is intended to be used for floating and burnishing curing concrete.

This machine has been designed and built strictly for the intended use described above. Using the machine for any other purpose could permanently damage the machine or seriously injure the operator or other persons in the area. Machine damage caused by misuse is not covered under warranty.
The following are some examples of misuse:
Using the machine as a ladder, support, or work surface Using the machine to carry or transport passengers or equipment Using the machine to finish inappropriate materials such as slurries, sealers, or
epoxy finishes Operating the machine outside of factory specifications Operating the machine in a manner inconsistent with all warnings found on the
machine and in the Operator's Manual

This machine has been designed and built in accordance with the latest global safety standards. It has been carefully engineered to eliminate hazards as far as practicable and to increase operator safety through protective guards and labeling. However, some risks may remain even after protective measures have been taken. They are called residual risks. On this machine, they may include exposure to:
Heat, noise, exhaust, and carbon monoxide from the engine Chemical burns from the curing concrete Fire hazards from improper refueling techniques Fuel and its fumes, fuel spillage from improper lifting technique Personal injury from improper lifting techniques Cutting hazards from sharp or worn blades
To protect yourself and others, make sure you thoroughly read and understand the safety information presented in this manual before operating the machine.

wc_si000969gb_FM10.fm

CRT48

Safety Information

1.3 Safety Guidelines for Operating the Machine

Operator training

Before operating the machine: Read and understand the operating instructions contained in all manuals
delivered with the machine. Familiarize yourself with the location and proper use of all controls and safety
devices. Contact Wacker Neuson for additional training if necessary.
When operating this machine: Do not allow improperly trained people to operate the machine. People
operating the machine must be familiar with the potential risks and hazards associated with it.

Operator qualifications

Only trained personnel are permitted to start, operate, and shut down the machine. They also must meet the following qualifications:
Have received instruction on how to properly use the machine Are familiar with required safety devices
The machine must not be accessed or operated by:
Children People impaired by alcohol, drugs, or prescription drugs

Application area

Be aware of the application area.
Keep unauthorized personnel, children, and pets away from the machine. Remain aware of changing positions and the movement of other equipment and
personnel in the application area/job site. Identify whether special hazards exist in the application area, such as toxic
gases or unstable ground conditions, and take appropriate action to eliminate the special hazards before using the machine. Do not operate the machine in areas that contain flammable objects, fuels, or products that produce flammable vapors.

Dust precaution

Dust created by construction activities may cause silicosis or respiratory harm. To reduce the risk of exposure:
Work in a well ventilated area. Use a dust control system. Wear an approved dust/particle respirator.

Safety devices, controls, and attachments

Only operate the machine when:
All safety devices and guards are in place and in working order. All controls operate correctly. The machine is set up correctly according to the instructions in the Operator's
Manual. The machine is clean. The machine's labels are legible.
To ensure safe operation of the machine:

wc_si000969gb_FM10.fm

Safety Information

CRT48

Safe operating practices

Do not operate the machine if any safety devices or guards are missing or inoperative.
Do not modify or defeat the safety devices. Only use accessories or attachments that are approved by Wacker Neuson. When operating this machine:
Remain aware of the machine's moving parts. Keep hands, feet, and loose clothing away from the machine's moving parts.
Do not operate a machine in need of repair. Do not consume the operating fluids used in this machine. Depending on your
machine model, these operating fluids may include water, wetting agents, fuel (gasoline, diesel, kerosene, propane, or natural gas), oil, coolant, hydraulic oil, heat transfer fluid (propylene glycol with additives), battery acid, or grease.

Personal Protective Equipment (PPE)

Wear the following personal protective equipment (PPE) while operating this machine:
Close-fitting work clothes that do not hinder movement Safety glasses with side shields Hearing protection Safety-toed footwear

After use

Stop the engine when the machine is not being operated. Close the fuel valve on engines equipped with one when the machine is not
being operated. Ensure that the machine will not tip over, roll, slide, or fall when not being
operated. Store the machine properly when it is not being used. The machine should be
stored in a clean location out of the reach of children.

wc_si000969gb_FM10.fm

CRT48

Safety Information

1.4 Service Safety

Service training

Before servicing or maintaining the machine: Read and understand the instructions contained in all manuals delivered with
the machine. Familiarize yourself with the location and proper use of all controls and
protective devices. Only trained personnel shall troubleshoot or repair problems occurring with the
machine. Contact Wacker Neuson for additional training if necessary.
When servicing or maintaining this machine: Do not allow untrained or improperly trained people to service or maintain the
machine. Personnel servicing or maintaining the machine must be familiar with the associated potential risks and hazards.

Precautions

When servicing or maintaining the machine:
Read and understand the service procedures before performing any service to the machine.
All adjustments and repairs must be completed before operating the machine. Do not operate the machine with a known problem or deficiency.
All repairs and adjustments shall be completed by a qualified technician. Turn off the machine before performing maintenance or making repairs. Remain aware of the machine's moving parts. Keep hands, feet, and loose
clothing away from the machine's moving parts. Reinstall the safety devices and guards after repair and maintenance
procedures are complete.

Machine modifications

When servicing or maintaining the machine:
Use only accessories/attachments that are approved by Wacker Neuson. Do not defeat safety devices. Do not modify the machine without the express written approval of Wacker
Neuson.

Replacing parts and labels Cleaning

Replace worn or damaged components. Replace all missing and hard-to-read labels. When replacing electrical components, use components that are identical in
rating and performance to the original components. When replacement parts are required for this machine, use only Wacker
Neuson replacement parts or those parts equivalent to the original in all types of specifications, such as physical dimensions, type, strength, and material.
When cleaning and servicing the machine:
Keep machine clean and free of debris such as leaves, paper, cartons, etc. Keep labels legible. Clean with soapy water only.
When cleaning the machine:
Do not clean the machine while it is running.

wc_si000969gb_FM10.fm

Safety Information

CRT48

Never use gasoline or other types of fuels or flammable solvents to clean the machine. Fumes from fuels and solvents can become explosive.

Personal protective equipment (PPE)

Wear the following Personal Protective Equipment (PPE) while servicing or maintaining this machine:
Close-fitting work clothes that do not hinder movement Safety glasses with side shields Hearing protection Safety-toed footwear
In addition, before servicing or maintaining the machine:
Tie back long hair. Remove all jewelry (including rings).

wc_si000969gb_FM10.fm

CRT48

Safety Information

1.5 Operator Safety while Using Internal Combustion Engines

WARNING Internal combustion engines present special hazards during operation and fueling. Failure to follow the warnings and safety standards could result in severe injury or death.
Read and follow the warning instructions in the engine owner's manual and the safety guidelines below.

Operating safety Refueling safety

DANGER Exhaust gas from the engine contains carbon monoxide, a deadly poison. Exposure to carbon monoxide can kill you in minutes. NEVER operate the machine inside an enclosed area, such as a tunnel, unless
adequate ventilation is provided through such items as exhaust fans or hoses.
When running the engine: Keep the area around the exhaust pipe free of flammable materials. Check the fuel lines and the fuel tank for leaks and cracks before starting the
engine. Do not run the machine if fuel leaks are present or the fuel lines are loose. Do not smoke while operating the machine. Do not run the engine near sparks or open flames. Do not touch the engine or muffler while the engine is running or immediately after it has been turned off. Do not operate a machine when its fuel cap is loose or missing. Do not start the engine if fuel has spilled or a fuel odor is present. Move the machine away from the spill and wipe the machine dry before starting.
When refueling the engine: Clean up any spilled fuel immediately. Refill the fuel tank in a well-ventilated area. Reinstall the fuel tank cap after refueling. Do not smoke. Do not refuel a hot or running engine. Do not refuel the engine near sparks or open flames. Use suitable tools for refueling (for example, a fuel hose or a funnel). Do not refuel if the machine is positioned in a truck fitted with a plastic bed liner.
Static electricity can ignite the fuel or fuel vapors.

wc_si000969gb_FM10.fm

Safety Information

CRT48

1.6 Safety Guidelines for Lifting the Machine

When lifting the machine:
Make sure slings, chains, hooks, ramps, jacks, forklifts, cranes, hoists, and any other type of lifting device used is attached securely and has enough weightbearing capacity to lift or hold the machine safely. See the Technical Data chapter for machine weight.
Remain aware of the location of other people when lifting the machine. Only use the lifting points and tie-downs described in the Operator's Manual. Make sure the transporting vehicle has sufficient load capacity and platform size
to safely transport the machine.
To reduce the possibility of injury:
Do not stand under the machine while it is being lifted or moved. Do not get onto the machine while it is being lifted or moved.

wc_si000969gb_FM10.fm

CRT48
Notes

Safety Information

wc_si000969gb_FM10.fm

Labels
2 Labels 2.1 Label Locations

M D

R Q

CRT48
K P B

CC U G

BB Y AA

L ZFJ Z

L VW G GG

wc_gr013222
wc_si000970gb_FM10.fm

CRT48
2.2 Label Meanings
A

0178751

STOP

DANGER PELIGRO DANGER

STOP 173440

DIESEL

Labels
DANGER Asphyxiation hazard Engines emit carbon monoxide. Do not run the machine indoors or in an
enclosed area unless adequate ventilation, through such items as exhaust fans or hoses, is provided. Read the Operator's Manual. No sparks, flames, or burning objects near the machine. Stop the engine before refueling.

178752
B

STOP

WARNING
ADVERTENCIA AVERTISSEMENT 118085
wc_si000970gb_FM10.fm

178745

Water tank fill. Use only clean water or waterbased retardants.
WARNING Always wear hearing and eye protection when operating this machine.
23

Labels
D

Steering control. See Steering.

CRT48

158722

Read and understand the supplied Operator's

WARNING
READ AND UNDERSTAND THE SUPPLIED OPERATOR'S MANUAL BEFORE OPERATING THIS MACHINE. FAILURE TO DO SO INCREASES THE RISK OF INJURY TO YOURSELF OR OTHERS.
ADVERTENCIA
LEA Y ENTIENDA EL MANUAL DE OPERACION PROVISTO CON EL EQUIPO ANTES DE QUE OPERE ESTE EQUIPO. DE NO HACERSE ASI, PODRIA AUMENTAR EL RIESGO DE LOS DA�OS PERSONALES Y A OTRAS PERSONAS.
AVERTISSEMENT
LIRE ET COMPRENDRE LA NOTICE D'EMPLOI FOURNIE AVEC LA MACHINE AVANT DE LA METTRE EN SERVICE. A DEFAUT, VOUS AUGMENTERIEZ LE RISQUE DE VOUS EXPOSER ET LES AUTRES A DES BLESSURES.

Manual before operating this machine. Failure to do so increases the risk of injury to yourself or others.

150349

178714

wc_si000970gb_FM10.fm

CRT48
F WARNING
ADVERTENCIA AVERTISSEMENT 117039
178713
WARNING
WARNUNG ADVERTENCIA AVERTISSEMENT
117037

178732

5200007832

WARNING
WARNUNG ADVERTENCIA AVERTISSEMENT

5200007834
G
WARNING
ADVERTENCIA AVERTISSEMENT 111453

WARNING Hot surface

Labels

WARNING Cutting hazard. Keep hands and feet away from blades. Always replace blade guard.

wc_si000970gb_FM10.fm

Labels
H
110164

WARNING
ADVERTENCIA AVERTISSEMENT

178711
J

K
XXX kg (XXXX LBS)

CRT48
WARNING Pressurized contents. Do not open when hot!
WARNING Hand injury if caught in moving belt. Always replace beltguard.
NOTICE Lifting point

5200014673
L
M
118084

Tie-down point

Key switch, engine start: Off On Start

wc_si000970gb_FM10.fm

CRT48
N
OPERATOR'S MANUAL MUST BE STORED ON MACHINE. REPLACEMENT OPERATOR'S MANUAL CAN BE ORDERED THROUGH YOUR LOCAL WACKER DISTRIBUTOR.
EL MANUAL DE OPERACION DEBE SER RETENIDO EN LA MAQUINA. CONTACTE A SU DISTRIBUIDOR WACKER MAS CERCANO PARA PEDIR UN EJEMPLAR ADICIONAL.
LA NOTICE D'EMPLOI DOIT ETRE MUNIE SUR LA MACHINE. CONTACTER LE DISTRIBUTEUR WACKER LE PLUS PROCHE POUR COMMANDER UN EXEMPLAIRE SUPPLEMENTAIRE.
150350

Labels
Operator's Manual must be stored on machine. Replacement Operator's Manual can be ordered through your local Wacker Neuson distributor.

180562

www.wackerneuson.com

20-25

5-10

0 118083 LEFT
Q

0 118083 RIGHT

164910
R

164471 wc_si000970gb_FM10.fm

Blade pitch control. Turn both controls inward to increase blade pitch. Refer to topic Pitch Adjustment.
CAUTION Engine oil pressure is low! Stop the engine and check the oil level.
CAUTION Low voltage! Stop the engine and check the charging system. (if equipped)
27

Labels
S

164909
T

165016
U
WARNING
ADVERTENCIA AVERTISSEMENT

154657

178717

USE ONLY
MOBIL GLYGOYLE 460 WACKER NEUSON
P/N 163918
www.wackerneuson.com

163710

CRT48
CAUTION Coolant temperature is too high. Stop the engine and check the coolant level. (if equipped)
CAUTION Glow plugs activated. Do not start engine until light turns off. (if equipped) WARNING Entanglement hazard. Rotating machinery.
Use only Glygoyle 460 gear oil in gearbox.
This machine may be covered by one or more patents.

wc_si000970gb_FM10.fm

CRT48
X

CAUTION
STEERING ASSIST SYSTEM UNDER LOAD. SEE OPERATOR'S MANUAL FOR SERVICE.
VORSICHT
DIE SERVOLENKUNG IST UNTER LAST. WARTUNGSINFORMATION IST IN DER BETRIEBSANLEITUNG ZU FINDEN.
172844

ATENCION
LA DIRECCION SERVO ASISTIDA ESTA BAJO CARGA. VEA EL MANUAL DE OPERACION PARA EL SERVICIO.
ATTENTION
LA DIRECTION ASSISTEE EST EN CHARGE. VOIR LA NOTICE D'EMPLOI POUR LE SERVICE.

Labels
Read Operator's Manual. Steering system components are under load. See topic Steering or a trained service technician for adjustments.

178792
Y

CAUTION VORSICHT

ATENCION ATTENTION

Read Operator's Manual CAUTION Engage manual steering handle lock before lifting the machine.

172895

Z
151108
wc_si000970gb_FM10.fm

178744

Fork pockets

Labels
AA
BB

CC
5200007831

WARNING
AVOID CRUSHING AREA
WARNUNG
QUETSCH-ZONE VERMEIDEN
ADVERTENCIA
EVITE ZONA DE APRIETE
AVERTISSEMENT
EVITER ZONE DE RACCORDEMENT A PINCE

5200007833
WARNING ADVERTENCIA AVERTISSEMENT
5200005890

5200005891
EE

5100015395

DANGER
NOTICE Ultra low sulfur fuel only
(if equipped)

CRT48

Emission Control Information This equipment meets U.S. EPA EVAP standards.
(if equipped)

This machine may be covered by one or more patents.

WARNING Explosion hazard. Do not use evaporative starting fluids such
as ether on this engine. The engine is equipped with a cold starting
aid. Using evaporative starting fluids can cause an explosion which can cause engine damage, personal injury, or death. Read and follow the engine starting instructions in this Operator's Manual.
(if equipped)
Caution Check engine.
(if equipped)

wc_si000970gb_FM10.fm

CRT48
FF
GG

HH -- --

WARNING
Cancer and Reproductive Harm www.P65Warnings.ca.gov
ADVERTENCIA
C�ncer y da�o reproductivo www.P65Warnings.ca.gov
AVERTISSEMENT
Cancer ou malformations cong�nitales
www.P65Warnings.ca.gov
5100045462

R e m v e p n fr m tr w e l b e f r e liftin g m c h in e v e rh e d .
P n s c n f ll n d c u s e d e th r s e r i u s in ju r y if p e r s n is h it.

G le its c h e ib e v m B e t n g l� tte r e n tfe r n e n b e v r d s G e r � t u b e r K p fh � h e g e h b e n w ir d . G le its c h e ib e k n n f lle n u n d s c h w e r e V e r le tz u n g
d e r T d v e r u r s c h e n w e n n P e r s n l g e tr ffe n w ir d .

Q u ite e l d is c d e fl t c i� n n te s d e le v n t r l

m � q u in

lis d r d e h r m ig � n .

L s d is c s p d r � n c e r y m t r l s tim r

s e ri m e n te u n p e rs n q u e s e e n c u e n tre c e rc .

A v n t d e le v e r l p p r e il u -d e s s u s d e v tr e t� te , � te r le d is q u e d e t l c h g e d e l tr u e lle . L e d is q u e d e t l c h g e p e u t t m b e r e t e n tr �n e r d e g r v e s b le s s u r e s u m � m e l m r t.

118688

Dynamic Steering Stabilization

Labels

Industry Canada ICES-002 Compliance Label: CAN ICES-2/NMB-2
California Proposition 65 Warning Cancer and Reproductive Harm www.P65Warnings.ca.gov.

WARNING Remove pan from trowel before lifting machine overhead. Pans can fall and cause death or serious injury if a person is hit. (Label is located on top side of float pan.)
This engine is certified to EPA standards only but is saleable in California in this Wacker Neuson equipment under the farm and construction preemption. Please see www.arb.ca.gov/msprog/offroad/preempt.htm for more information. (Label is located on the engine.)

wc_si000970gb_FM10.fm
31

Lifting and Transporting

CRT48

3 Lifting and Transporting

3.1 Lifting the Machine

Background The machine is equipped with fork lift pockets (a) on the front and back, and two lifting tubes (b).

Requirements

wc_gr013203
Lifting equipment (crane, hoist, or fork truck) capable of supporting the machine's weight
Lifting devices (hooks, chains, and shackles) capable of supporting the machines' weight
Machine stopped

Lifting the machine

Perform the procedure below to lift the machine. 1. Attach a sling or chain through the lifting tubes or use a fork lift. Do not attach
lifting devices to any other part of the machine. 2. Lift the machine a small distance.

WARNING Crushing hazard. An unstable machine may cause the lifting devices and equipment to fail. You may be crushed if the lifting devices and equipment fail.
Check for stability before continuing.

3. Check for stability. If necessary, lower the machine, reposition the lifting devices, and lift the machine a small distance again.
4. Continue lifting the machine only when it is stable.

wc_tx004192gb_FM10.fm

CRT48

Lifting and Transporting

3.2 Preparing the Machine for Transport on a Truck or Trailer

Requirements Machine stopped Flatbed truck or trailer capable of supporting the machine's weight Chains, hooks, or straps capable of supporting the machine's weight

WARNING Crushing hazard. Improperly securing the machine can lead to a crushing hazard.
Use only the designated tie-down points to secure the machine to a truck or trailer.

Checklist

Before transporting the machine, check the following items:
Check that the transport vehicle or trailer can support the weight of the machine. Check that the transport vehicle or trailer is wide enough to support the
machine. Check that the wheels of the transport vehicle or trailer are chocked during the
loading process. Check that the transport vehicle or trailer is clean and free of grease, oil, ice,
and other loose material. If the machine is mounted to a trailer, do not use the machine's trailer jack to
support the trailer tongue during transporting. Check that any ramps used in the loading process:
Can support the weight of the machine. Are clean and free of grease, oil, ice, and other loose material. Are securely connected to the transport vehicle or trailer. Are of sufficient length to keep the loading angle 15� or less.
In addition:
Check that the loading area is flat and the ground is stable. Check the overall height of the machine once it is loaded on the truck or trailer. Plan your travel route so there will be adequate clearance for overpasses, road
signs, buildings, etc. Check local regulations regarding transporting and obey these regulations.

wc_tx004192gb_FM10.fm

Lifting and Transporting
Note: Graphic is representative only. Your machine may vary.

CRT48

wc_gr011880

wc_tx004192gb_FM10.fm

CRT48

Operation

4 Operation

4.1 Preparing the Machine for First Use

1. Make sure all loose packaging materials have been removed from the machine. 2. Check the machine and its components for damage. If there is visible damage,
do not operate the machine! Contact your Wacker Neuson dealer immediately for assistance. 3. Take inventory of all items included with the machine and verify that all loose components and fasteners are accounted for. 4. Add fluids as needed and applicable, including fuel, engine oil, hydraulic oil, retardant, and battery acid. 5. Move the machine to its operating location. 6. Connect component parts not already attached.

4.2 Position of the Operator
Safe and efficient use of this machine is the operator's responsibility. Full control of the machine is not possible unless the operator maintains the proper working position at all times.
While operating this machine the operator must: be seated in the operator's seat facing forward have both feet on the control deck have both hands on the steering levers

Adjusting the steering levers

The steering levers can be adjusted between two positions. With the steering levers set in the highest position, there will be a longer stroke. To adjust the position of the steering levers:
1. Remove the four bolts and nuts (a).

2. Set the steering levers in the desired position. 3. Re-assemble the four bolts and nuts.

wc_tx004193gb_FM10.fm

a
a
wc_gr013235

Operation
4.3 Machine Components
n p q

o
a b j

km
d c

CRT48
r s t u
e f g

h
wc_gr013209

wc_tx004193gb_FM10.fm

CRT48
4.4 Machine Components Descriptions

Operation

Operator presence system

Ref. Description

a Right pitch control

m Work light switch

b Fuel tank

n Glow plug indicator light (if equipped)

c Steering levers

o Engine keyswitch

d Operator's seat with "operator presence" switch

p Hour meter

e Left pitch control

q Water spray control

f Rear work light (one each side)

r Oil pressure indicator light

g Water tank

s Alternator charging indicator light (if equipped)

h Front work light (one each side)

t Coolant temperature indicator light (if equipped)

j Foot pedal (throttle control)

u Check engine indicator light (if equipped)

k Engine choke control (if equipped) -- --

The Ride-On Trowel features a seat with an integrated "operator presence" system which works in conjunction with a throttle-mounted switch. This system allows the engine to remain running (idling) with no operator seated in the seat, as long as the throttle is not depressed.
The purpose of the "operator presence" system is to reduce the throttle to idle if the operator leaves the seat. The "operator presence" system meets requirement published by organizations such as OSHA, ANSI, and ISO.

Learning to operate the trowel

To familiarize a new operator with the Ride-On Trowel, the following steps should be taken:
1. With the operator in the seat, show him or her the functions of the steering levers (c) and how to start the machine.
2. Have the operator practice steering the trowel. A hard concrete slab slightly wetted with water is an ideal surface on which to practice.
3. Pitch the blades up approximately 6.35 mm (�") on the leading edge. Start by making the machine hover in one spot, and then practice moving the machine in a straight line and making 180� turns. The best control is achieved at full rpm.

wc_tx004193gb_FM10.fm

Operation

CRT48

4.5 Recommended Fuel--Gasoline

The engine requires regular grade unleaded gasoline. Use only fresh, clean gasoline. Gasoline containing water or dirt will damage the fuel system. Consult the engine owner's manual for complete fuel specifications.

Use of oxygenated fuels

Some conventional gasolines are blended with alcohol. These gasolines are collectively referred to as oxygenated fuels. If you use an oxygenated fuel, be sure it is unleaded and meets the minimum octane rating requirement.
Before using an oxygenated fuel, confirm the fuel's contents. Some states and provinces require this information to be posted on the fuel pump.
The following is the Wacker Neuson approved percentage of oxygenates:
ETHANOL - (ethyl or grain alcohol) 10% by volume. You may use gasoline containing up to 10% ethanol by volume (commonly referred to as E10). Gasoline containing more than 10% ethanol (such as E15, E20, or E85) may not be used because it could damage the engine.
If you notice any undesirable operating symptoms, try another service station, or switch to another brand of gasoline.
Fuel system damage or performance problems resulting from the use of an oxygenated fuel containing more than the percentages of oxygenates mentioned above are not covered under warranty.

4.6 Recommended Fuel--Diesel

Low temperatures cause diesel fuel to gel. Always use the proper fuel for the conditions. Follow the guidelines in the table below.

Lowest expected ambient temperature
Above freezing > 0�C (32�F)
Below freezing < 0�C (32�F)

Recommended fuel1 #2 diesel plus additives
Winter-blend diesel

1Your engine may require ultra low sulfur fuel. Consult the engine owner's manual.

CAUTION Fire hazard.
Do not use gasoline, crankcase oil, or any oil containing gasoline.

wc_tx004193gb_FM10.fm

CRT48

4.7 Refueling the Machine

Requirements

Machine shut down Engine cool Machine/fuel tank level with the ground Fresh, clean fuel supply

Operation

Procedure

Perform the procedure below to refuel the machine.

WARNING Fire and burn hazard. Fuel and its vapors are extremely flammable.
Keep all sources of ignition away from the machine while refueling. Refuel only when the machine is outdoors. Clean up spilled fuel immediately.

1. Remove the fuel cap (a).

Result

wc_gr013207
2. Fill the fuel tank up to the base of the neck (b). The tank includes an expansion space for proper operation of the venting port (c).
CAUTION Fire and health hazard. Fuel expands when heated. Expanding fuel in an over-filled tank can lead to spills and leaks. Do not overfill the fuel tank. Do not modify, bypass, or remove the venting port.
3. Re-install the fuel cap.
The machine has now been refueled.

wc_tx004193gb_FM10.fm

Operation

CRT48

4.8 Break-In Period

Overview

This machine requires a break-in period for the engine and the gearbox.

Gearbox break-in period

To break in the gearboxes, run the engine at 50% of full throttle for the first 2�4 hours. This will prevent premature wear and extend gear life.
NOTICE: Running the engine at full throttle during the break-in period could result in premature gear failure.

Kohler engine break-in period

Follow the recommendations below while operating the machine during the breakin period.
The Kohler engine has a 50-hour break-in period. During the first 50 hours, do not exceed 70% of maximum rated power. Change the engine oil and oil filter after the first 50 hours of operation. Allow the engine to warm up completely before operating the machine in cold
weather.

Vanguard engine breakin period

Follow the recommendations below while operating the machine during the breakin period.
Do not operate at full load during the first 5�10 hours of operation. Change the oil after the first 5�10 hours of operation. Allow the machine to warm up completely before operating the machine in cold
weather.

Kubota engine break-in period

Follow the recommendations below while operating the machine during the breakin period.
Change the oil and oil filter after the first 50 hours of operation. Allow the machine to warm up completely before operating the machine in cold
weather.

4.9 Before Starting
Requirement Operator must be familiar with the location and function of all controls.

Checklist

Check the following items before starting the trowel:
fuel level--add fuel as needed oil level in the engine--add oil as needed water level--add water as needed air filter--element is clean and undamaged trowel arms and blades--functional and undamaged

wc_tx004193gb_FM10.fm

CRT48

Operation

4.10 Starting, Steering, Operating, and Stopping the Machine (Vanguard)

Requirements Machine is in serviceable condition and has been properly maintained There is fuel in the tank

Starting the machine

Perform the procedure below to start the machine. 1. Sit in the operator's seat. 2. Turn the starting key (a) clockwise until the engine starts.

a
wc_gr014048
NOTICE: Cranking the engine for more than five seconds can cause starter damage. If the engine fails to start, release the key switch and wait 10 seconds before
operating the starter again. If the engine still will not start after multiple attempts, see chapter
Troubleshooting. 3. Press the throttle pedal to engage the blades.
This procedure continues on the next page.

wc_tx004193gb_FM10.fm

Operation

CRT48

Steering

Continued from the previous page. The steering levers (b) control the travel direction and rotation of the machine.

Hand motions

wc_gr013215
Refer to the illustration for the necessary steering lever motions to move the trowel in the desired direction. 1 -- forward 2 -- reverse 3 -- rotate counter-clockwise 4 -- rotate clockwise 5 -- move left sideways 6 -- move right sideways

Operating the machine

Follow the guidelines below to use your Ride-On Trowel to its fullest capacity. Operate the machine in the direction that the operator is facing. This will finish
the widest possible area, while giving the operator an excellent view of the slab surface to be troweled. When the machine reaches the end of the slab, make a 180� U-turn and repeat the straight line of direction to the other end of the slab. Alternatively, move the machine laterally (sideways) and then travel
backward to the other end of the slab. Remember that the best possible control is achieved at maximum engine
speed.
NOTICE: Do not use excessive pressure on the steering levers. Excessive pressure does not increase the reaction time of the machine and can damage the steering controls.

Stopping the machine

1. Stop trowel movement by returning the steering levers to their neutral positions and releasing pressure on the throttle foot pedal.
2. Shut off the engine by turning the key switch to "O" (OFF) position.

wc_tx004193gb_FM10.fm

CRT48

Operation

4.11 Starting, Steering, Operating, and Stopping the Machine (Kohler)

Requirements Machine is in serviceable condition and has been properly maintained There is fuel in the tank

Starting the machine

Perform the procedure below to start the machine. 1. Sit in the operator's seat. 2. Turn the starting key (a) clockwise to the ON position.

a
wc_gr013213
3. When the glow plug indicator light (b) turns off, turn the key switch to the START position and hold until the engine starts.
NOTICE: Cranking the engine for more than five seconds can cause starter damage. If the engine fails to start, release the key switch and wait 10 seconds before
operating the starter again. If the engine still will not start after multiple attempts, see chapter
Troubleshooting.
4. Allow the engine to warm up before operating the machine. 5. Press the throttle pedal to engage the blades.
This procedure continues on the next page.

wc_tx004193gb_FM10.fm

Operation

CRT48

Steering

Continued from the previous page. The steering levers (c) control the travel direction and rotation of the machine.

Hand motions

wc_gr013208
Refer to the illustration for the necessary steering lever motions to move the trowel in the desired direction. 1 -- forward 2 -- reverse 3 -- rotate counter-clockwise 4 -- rotate clockwise 5 -- move left sideways 6 -- move right sideways

Operating the machine

Follow the guidelines below to use your Ride-On Trowel to its fullest capacity.
Operate the machine in the direction that the operator is facing. This will finish the widest possible area, while giving the operator an excellent view of the slab surface to be troweled.
When the machine reaches the end of the slab, make a 180� U-turn and repeat the straight line of direction to the other end of the slab. Alternatively, move the machine laterally (sideways) and then travel backward to the other end of the slab.
Remember that the best possible control is achieved at maximum engine speed.

NOTICE: Do not use excessive pressure on the steering levers. Excessive pressure does not increase the reaction time of the machine and can damage the steering controls.

Stopping the machine

wc_tx004193gb_FM10.fm

CRT48

Operation

4.12 Starting, Steering, Operating, and Stopping the Machine (Kubota)

Requirements Machine is in serviceable condition and has been properly maintained There is fuel in the tank

Starting the machine

Perform the procedure below to start the machine. 1. Sit in the operator's seat. 2. Turn the starting key (a) clockwise to the crank position until the engine starts. NOTICE: Cranking the engine for more than five seconds can cause starter damage. If the engine fails to start, release the key switch and wait 10 seconds before
operating the starter again. If the engine still will not start after multiple attempts, see chapter
Troubleshooting.

a
wc_gr013214
3. Allow the engine to warm up before operating the machine. 4. Press the throttle pedal to engage the blades.
This procedure continues on the next page.

wc_tx004193gb_FM10.fm

Operation

CRT48

Steering

Continued from the previous page. The steering levers (b) control the travel direction and rotation of the machine.

Hand motions

Operating the machine

Follow the guidelines below to use your Ride-On Trowel to its fullest capacity.
Operate the machine in the direction that the operator is facing. This will finish the widest possible area, while giving the operator an excellent view of the slab surface to be troweled.
When the machine reaches the end of the slab, make a 180� U-turn and repeat the straight line of direction to the other end of the slab. Alternatively, move the machine laterally (sideways) and then travel backward to the other end of the slab.
Remember that the best possible control is achieved at maximum engine speed.

Stopping the machine

wc_tx004193gb_FM10.fm

CRT48

Operation

4.13 Adjusting the Pitch

Background Changing the pitch (angle) of the trowel blades enables the operator to finish concrete from the wet surface stage through the hard finishing stage (burnishing).

a
5-10 �

15�

Changing pitch angle

20-25�
wc_gr013211
Perform the procedure below to change or set the pitch angle of the trowel blades. 1. Slow the machine. 2. Set the desired pitch on the left side of the machine. To increase the pitch, turn
the pitch control inward (a). 3. Adjust the right side to match. 4. Use the pitch indicator (b) to adjust pitch equally on both right and left trowel
blades.

Suggested working pitch

Working conditions of concrete 1. Wet surface working stage 2. Wet to plastic working stage 3. Semi-hard working stage 4. Hard finishing stage (burnishing)

Suggested working pitch Flat (no pitch) Slight pitch (5�10�) Additional pitch (15�) Maximum pitch (20�25�)

wc_tx004193gb_FM10.fm

Operation

CRT48

4.14 Emergency Shutdown Procedure

Procedure

If a breakdown or accident occurs while the machine is operating, follow the procedure below: 1. Stop the engine. 2. Close the fuel valve. 3. Remove the machine from the job site using the wheel kit. 4. Clean concrete from the blades and the machine. 5. Contact the rental yard or machine owner for further instructions.

wc_tx004193gb_FM10.fm

CRT48
5 General Maintenance

General Maintenance

WARNING A poorly maintained machine can malfunction, causing injuries or permanent damage to the machine. Keep the machine in safe operating condition by performing periodic
maintenance and making repairs as needed.
5.1 Maintaining the Emission Control System
For machines sold in North America:
Normal maintenance, replacement, or repair of emission control devices and systems may be performed by any repair establishment or individual; however, warranty repairs must be performed by a dealer/service center authorized by Wacker Neuson. The use of service parts that are not equivalent in performance and durability to authorized parts may impair the effectiveness of the emission control system and may have a bearing on the outcome of a warranty claim.

wc_tx004194gb_FM10.fm

General Maintenance

CRT48

5.2 Periodic Maintenance Schedule

The table below lists basic machine maintenance. Tasks designated with check
marks may be performed by the operator. Tasks designated with square bullet
points require special training and equipment.

Lubricate trowel arms.
Check external hardware.
Pressure wash all surfaces until free of concrete. Check oil level in gearboxes.
Lubricate gearbox input shaft fitting. Lubricate drive and pitch controls. Check drive belt for wear.
Lubricate steering cylinder pivots. Replace oil in gearboxes.

Daily

Every 20 Every 50

hours

Every 300
hours

wc_tx004194gb_FM10.fm

CRT48

General Maintenance

5.3 Maintaining the Gearboxes

When

Check the gearboxes for the correct oil level after every 20 hours of operation. Change the gearbox oil every 300 hours. Clear clogs from, or replace, pressure relief valve (a) as needed to prevent oil
leakage from gearbox shaft seals.

Requirements

wc_gr011863
Fresh oil (see Technical Data for quantity and type) Plastic cloth and a container of sufficient volume to collect drained oil Note: Collect, store and dispose of drained oil in accordance with current environmental protection regulations.

WARNING Most used oil contains small amounts of materials that can cause cancer and other health problems if inhaled, ingested, or left in contact with skin for prolonged periods of time.
Take steps to avoid inhaling or ingesting used engine oil.
Wash skin thoroughly after exposure to used engine oil.

Checking gearbox level

Perform the procedure below to check the oil level. 1. Each CRT gearbox is equipped with two oil fill plugs (b). Remove one gearbox
oil fill plug. 2. If the level is below the threads of the oil fill plug hole, add synthetic gear oil
through the opening. Do not overfill. 3. Wipe the threads dry on both the gearbox and the oil fill plug. 4. Apply Loctite 545 or equivalent to the oil fill plug threads, replace the oil fill plug
and torque to 16�20 Nm (12�15 ft.lbs.). NOTICE: Do not mix types of gear oil. Do not overfill the gearbox with oil. Damage to the gearbox may occur if oils are mixed, or if the gearbox is overfilled. See Technical Data for oil quantity and type.

wc_tx004194gb_FM10.fm

General Maintenance

CRT48

Changing gearbox oil

Perform the procedure below to change the gearbox oil. 1. Place a container of sufficient capacity (approximately 3.8 L [1 gallon]) under
each gearbox. 2. Remove the gearbox oil drain plug (c) and allow the oil to drain. It may be
necessary to remove the gearbox oil fill plug(s) to facilitate draining. 3. After most of the oil has drained, tip the back of the trowel upwards to allow the
remaining oil to drain. 4. After all the oil has drained, wipe the threads dry on both the gearbox and the oil
drain plug. 5. Apply Loctite 545 or equivalent to the oil drain plug threads, and replace the
gearbox oil drain plug. 6. With the trowel level, fill the gearbox with approximately 1.83 L (62 oz.) synthetic
gear oil through the oil fill plug as described above. 7. Wipe the threads dry on both the gearbox and the oil fill plug. 8. Apply Loctite 545 or equivalent to the oil fill plug threads, replace the oil fill
plug(s), and torque all plugs to 16�20 Nm (12�15 ft.lbs.).

wc_tx004194gb_FM10.fm

CRT48

General Maintenance

5.4 Adjusting the Blade Arms

When

Adjust the blade arms if the machine is wobbling during operation, after replacing an arm, or after disassembling the spider assembly.

Requirements

Machine stopped Lifting devices with enough weight-bearing capacity to lift the machine Properly rated jack stands Measuring device

Procedure

Perform the procedure below to adjust the blade arms. 1. Using an appropriate hoist or crane, raise the machine off the ground so that the
blades (at full pitch) will not touch the ground. 2. Set the machine on four jack stands (a) as shown below. 3. Using the pitch controls (b), adjust the blades so that they are between 1/2 and
full pitch (approximately 12�).

a
4. Disconnect the battery. WARNING Cutting and pinch hazard. Disconnect the battery before measuring the blades. Wear hand protection when handling the blades.
This procedure continues on the next page.

wc_gr013216

wc_tx004194gb_FM10.fm

General Maintenance

CRT48

Continued from the previous page.
5. There is a small amount of play in the connection between the blade arm and the spider (lift plate). Gently wiggle each blade so that the lower end of the blade is at the lowest point of the play. Mark a reference point (c) on the machine frame. Measure the distance (x) between the machine frame at the reference mark and the bottom edge of the blade. Rotate the blades as necessary to measure the distance (x) for each blade.
Note: Rotate the blades by manually turning the drive belt.

wc_gr013217
6. Determine the average distance "x". Adjust any blade that does not measure the distance "x" � 1.25 mm (0.050 in.). To adjust: Loosen or tighten the pitch links (d) as necessary.
d

Result

7. Reconnect the battery. The blade arms have now been adjusted.

wc_gr011868

wc_tx004194gb_FM10.fm

CRT48
5.5 Lubricate the Trowel Arms
Requirements Machine stopped Grease (Unirex N2) or equivalent

General Maintenance

Procedure

Perform the procedure below to grease the trowel arms. 1. Set the trowel on a flat, level surface. 2. Disconnect the battery. 3. For access, pitch the blades to the maximum angle. 4. Apply grease to each zerk (a) on the spider assembly.

a
5. Apply grease to the lifting ring (b) on each side of the machine. Note: Graphic is representative only. Your machine may vary.

wc_gr011908

Result

The trowel arms have now been greased.

wc_gr011909

wc_tx004194gb_FM10.fm

General Maintenance

CRT48

5.6 Mounting Float Pans

Background

Certain applications may require the use of float pans. Optional float pans are available from your Wacker Neuson dealer. The blade arms on the machine are designed to accommodate either a standard 48" lip-style float pan or an optional smaller 46" pan. An alternative set of blade mounting holes is provided for mounting a 46" pan.

Requirements Machine stopped Lifting devices with enough weight-bearing capacity to lift the machine Properly rated jack stands

Mounting a 48" float pan

Perform the procedure below to mount a 48" float pan.
1. Stop the engine. 2. Using an appropriate hoist or crane, raise the machine off the ground so that the
blades will not touch the ground.
3. Set the machine on jack stands (a) as shown below. Note: Graphic is representative only. Your machine may vary.

a
wc_gr011869
4. Position each float pan (b) against the blades, and turn the pans either left or right to engage clip angles (c) as shown.
Note: Right-hand trowel blades turn counter-clockwise; left-hand trowel blades turn clockwise.
c

b
wc_gr011865
This procedure continues on the next page.
56

wc_tx004194gb_FM10.fm

CRT48

Continued from the previous page. 5. Lower the machine.

General Maintenance

WARNING Float pans can fall off a raised trowel, striking nearby personnel.
Do not lift the trowel overhead after float pans have been mounted.

Mounting a 46" float pan

Perform the procedure below to mount a 46" float pan. 1. Loosen and remove the bolts (d) that attach each blade (e).

d
wc_gr011866
2. Move the blades inward to align with mounting holes (f). 3. Re-install and tighten the bolts in mounting holes. 4. Attach the 46" pan to the blades.

wc_tx004194gb_FM10.fm

General Maintenance

5.7 Replacing the Drive Belt

When

Check the drive belt every 50 hours Replace the drive belt if it is worn or damaged.

Requirements Machine stopped Replacement drive belt (in necessary)

Procedure

Perform the procedure below to replace the drive belt. 1. Set the trowel on a flat, level surface with the blades pitched flat. 2. Disconnect the battery. 3. Remove the beltguard (a). Note: Graphic is representative only. Your machine may vary.

CRT48

c
48.04 mm (1.89 in.)

336.55 mm (13.24 in.)

wc_gr011871
4. Remove the three bolts (b) holding the universal joint to the drive pulley. 5. Loosen the pillow block bearing (c). 6. Remove the old drive belt (d). 7. Install a new drive belt.

wc_tx004194gb_FM10.fm

CRT48
Reassembly

General Maintenance
Perform the procedure below to reassemble the belt drive. 1. Align the pillow bearing and shaft as straight as possible. Adjust pulley offset
and center distance to values as shown. 2. Re-install the three bolts and torque to 14 �1.4 Nm (10 �1 ft.lbs.). 3. Re-install the beltguard. 4. Reconnect the battery.

Result

The drive belt has now been replaced.

wc_tx004194gb_FM10.fm

General Maintenance

CRT48

5.8 Installing or Changing the Blades

Introduction

There are two types of blades available for the trowel:
Combination blades can be used throughout the entire concrete working process, from floating to finishing stages. They are designed for rotation in one direction only.
Finish blades are used only in the final stages of the concrete working process. While in use, these blades are pitched at progressively steeper angles to burnish the concrete. Finish blades are symmetrical and can be installed to rotate in either direction.

Requirements

Machine is stopped Battery is disconnected to prevent unintentional start-up Machine has been lifted via a hoist, or raised on the wheel kit. Frame is supported on blocks while the machine is elevated. Combination blades or finish blades for installation Protective gloves Bearing grease

WARNING Cutting hazard. Trowel blade edges are extremely sharp, especially if worn.
Always wear protective gloves when changing blades.

Procedure

Perform the procedure below to install or change the blades. 1. Remove the screws (a) from the trowel arms (b) and detach the existing blades
(c). Set the existing blades aside for future use or dispose of them properly if they have reached the end of their service life.

a c
b
This procedure continues on the next page.

d
wc_gr011872

wc_tx004194gb_FM10.fm

CRT48
Result

General Maintenance
Continued from the previous page. 2. Position and align the blades.
If installing combination blades (d), orient the blades as shown in the diagram and align the screw holes. This positions the raised edge of each blade correctly for the rotation of each rotor.
If installing finish blades, simply align the screw holes. Blade orientation is not critical with finish blades.
3. Coat the screw threads with bearing grease. A grease coating will prevent wet concrete from cementing the screws in place. This step will also make blade removal easier in the future.
4. Re-install the screws and tighten securely. Do not overtighten.
The blades have now been changed.

wc_tx004194gb_FM10.fm

General Maintenance

5.9 Cleaning the Machine

When

Clean the machine after each use.

CRT48

Background

Regular cleaning is essential for keeping the trowel in serviceable condition. It is important to remove uncured concrete, dust and dirt from the trowel as soon as possible after work has been completed.

Requirements

Engine stopped and machine cool to the touch Fresh, clean water supply Pressure washer Clean, soft cloths

Procedure

Perform the procedure below to clean the machine.
1. Use a pressure washer to remove concrete and debris from the trowel blades, wheels, and ring guards.
2. Keeping a minimum distance of 1 meter (3 feet) away, use the pressure washer to rinse the trowel body.
NOTICE: Direct, high water pressure at close range will damage certain components on the machine. The following components should be wiped clean by hand using a damp, clean cloth. Do not apply high pressure spray to these components:
Oil cooler, fan, and connecting hoses Operator's station including the seat, joysticks/control levers, control switches,
key switch, indicator lights, and throttle control Foot pedal Hydraulic manifold Fuse boxes Electronic controller Electrical connectors

wc_tx004194gb_FM10.fm

CRT48

General Maintenance

5.10 Storage

Extended storage of equipment requires preventive maintenance. Performing these steps helps to preserve machine components and ensures the machine will be ready for future use. While not all of these steps necessarily apply to this machine, the basic procedures remain the same.

When

Prepare your machine for extended storage if it will not be operated for 30 days or more.

Preparing for storage

Perform the procedures below to prepare your machine for storage.
Complete any needed repairs. Replenish or change oils (engine, exciter, hydraulic, and gearcase) per the
intervals specified in the Scheduled Maintenance table. Grease all fittings and, if applicable, repack bearings. Inspect engine coolant. Replace coolant if it appears cloudy, is more than two
seasons old, or does not meet the average lowest temperature for your area. If your machine has an engine equipped with a fuel valve, start the engine, close
the fuel valve, and run the engine until it stops. Consult the engine owner's manual for instructions on preparing the engine for
storage.

Stabilizing the fuel

After completing the procedures listed above, fill the fuel tank completely and add a high-quality stabilizer to the fuel.
Choose a stabilizer that includes cleaning agents and additives designed to coat/protect the cylinder walls.
Make sure the stabilizer you use is compatible with the fuel in your area, fuel type, grade, and temperature range. Do not add extra alcohol to fuels which already contain it (for example, E10).
For engines with diesel fuel, use a stabilizer with a biocide to restrict or prevent bacteria and fungus growth.
Add the correct amount of stabilizer per the manufacturer's recommendations.

Storing the machine

Perform these remaining steps to store your machine. Wash the machine and allow it to dry. Move the machine to a clean, dry, secure storage location. Block or chock the
wheels to prevent machine movement. Use touch-up paint as needed to protect exposed metal against rust. If the machine has a battery, either remove or disconnect it.
NOTICE: Allowing the battery to freeze or completely discharge is likely to cause permanent damage. Periodically charge the battery while the machine is not in use. In cold climates, store and charge the battery indoors or in a warm location.
Cover the machine. Tires and other exposed rubber items should be protected from the weather. Either cover them or use a protectant.

wc_tx004194gb_FM10.fm

General Maintenance

CRT48

5.11 Machine Disposal / Decommissioning

Introduction

This machine must be properly decommissioned at the end of its service life. Responsible disposal of recyclable components, such as plastic and metal, ensures that these materials can be reused--conserving landfill space and valuable natural resources.
Responsible disposal also prevents toxic chemicals and materials from harming the environment. The operating fluids in this machine, including fuel, engine oil, and grease, may be considered hazardous waste in many areas. Before decommissioning this machine, read and follow local safety and environmental regulations pertaining to the disposal of construction equipment.

Preparation

Perform the following tasks to prepare the machine for disposal.
Move the machine to a protected location where it will not pose any safety hazards and cannot be accessed by unauthorized individuals.
Ensure that the machine cannot be operated from the time of final shutdown to disposal.
Drain all fluids, including fuel, engine oil, and coolant. Seal any fluid leaks. Remove the battery.

Disposal

Perform the following tasks to dispose of the machine.
Disassemble the machine and separate all parts by material type. Dispose of recyclable parts as specified by local regulations. Dispose of all non-hazardous components that cannot be recycled. Dispose of waste fuel, engine oil, and hydraulic fluid in accordance with local
environmental protection regulations.

wc_tx004194gb_FM10.fm

Engine Maintenance: KOHLER
6 Engine Maintenance: KOHLER
The information in this chapter comes from copyrighted Kohler material. The viscosity of the engine oil is an important factor when determining the correct engine oil to use in your machine. Use an engine oil of appropriate viscosity based on the expected outside air temperature. See the table below.
WARNING Most used liquids from this machine such as oil, gasoline, grease, etc., contain small amounts of materials that can cause cancer and other health problems if inhaled, ingested, or left in contact with skin for prolonged periods of time. Take steps to avoid inhaling or ingesting used liquids. Wash skin thoroughly after exposure to used liquids.

wc_tx003649gb_FM10.fm

Engine Maintenance: KOHLER

OIL CLASSIFICATIONS API/MIL - SEQUENZE API/MIL - SEQUENCES API/MIL API/MIL-SEQUENZEN - SECUENCIAS API/MIL - SEQU�NCIAS API/MIL

DIESEL

GASOLINE - BENZINA - ESSENCE BENZIN - GASOLINA

API CH-4 CG-4 CF-4 CF-2 CF CE CD CC SC SD SE SF SG SH SJ SL

MIL

L- 46152 D / E

CURRENT - CORRENTI

OBSOLETE - OBSOLETI

F� -40 -31 -22 -13 -4 5 14 23 32 41 50 59 68 77 86 95 104113122 C� -40 -35 -30 -25 -20 -15 -10 -5 0 5 10 15 20 25 30 35 40 45 50
SAE 10W SAE 20W SAE 30 SAE 40 SAE 10W-30 SAE 10W-40 SAE 10W-60 SAE 15W-40* SAE 15W-40** SAE 20W-60**
SAE 10W-30***
SAE 5W-30***

SAE Viscosity Grade - Gradazioni SAE - Viscosit� SAE SAE Viskosit�tsklasse - Viscosidad SAE - Grada��o SAE

*
Mineral Base Base Minerale Base Min�rale Mineral�lbasis Base Mineral Base Mineral

**
Semi-Synthetic Base Base Semi-Sintetica Base Semi-Synth�tique Halbsynthetische Basis Base Semi-Sintetica Base Semi-Sint�tica

***
Synthetic Base Base Sintetica Base Synth�tique Synthetische Basis Base Sintetica Base Sint�tica

770005

wc_tx003649gb_FM10.fm

Engine Maintenance: KOHLER
The engine maintenance schedule(s) in this chapter are reproduced from the engine owner's manual. For additional information, see the engine owner's manual.

ORDINARY MAINTENANCE - MANUNTENZIONE ORDINARIA ENTRETIEN ORDINAIRE - ORDENTLICHE WARTUNG
MANUTENCION ORDINARIA - MANUNTENA��O NORMAL

CHECK - CONTROLLO - CONTR� LE - KONTROLLE - COMPROBAC�ON - CONTR� LE

OPERATION DESCRIPTION - DESCRIZIONE OPERAZIONE DESCRIPTION DE L'OP�RATION - BESCHREIBUNG DES ARBEITSVORGANGS
DESCRIPCI�N DE LA OPERACI�N - DESCRI��O DA OPERA��O
Oil Level - Livello Olio Motore - Niveau huile Moteur - �lstanddaten - Nivel Aceite Del Motor - Nivel �leo do Motor

FREQUENCY x HOURS - PERIODICITA' x ORE FREQUENCE x HEURES - WARTUNGSPERIODEN x STUNDEN
PERIODO x HORAS - FREQU�NCIA x HORAS
10 250 300 500 1000 5000 10000

- Nivel Liquido para Refrigeraci�n - Nivel Liquido Esfriamento.

Troca do Radiador Panel Air Filter (Dry-Type) - Filtro Aria a Pannello (a Secco) - Filtre � Air � Panneau (� Sec) -
(***)
Remote Air Filter (Dry-Type) - Filtro Aria a Distanza (a Secco) - Filtre � Air � Distance (� Sec)
(***)

Combust�veis

Fan/Alternator Belt Tension - Tensione Cinghia Ventola/Alternatore - Tension Courroie Ventilateur/

Alternateur Keilriemens L�fter - Tensi�n Correa Ventilador/Alternador - Tens�o Cincha Ventilador/

Alternador

(*)

(***) - Check paper element for dirty, loose, or damaged parts, in accordance with the maintenance schedule. Depending on the environment the engine is used in, clean and replace , dirty conditions.
-

- Das Zeitintervall zwischen den Reinigungen oder dem Auswechseln des Filterelements h�ngt von der Umgebung ab, in der der Motor verwendet wird. In sehr staubiger

. En ambientes muy polvorientos

770002

Engine Maintenance: KOHLER

CHECK - CONTROLLO - CONTR� LE - KONTROLLE - COMPROBAC�ON - CONTR� LE

OPERATION DESCRIPTION - DESCRIZIONE OPERAZIONE DESCRIPTION DE L'OP�RATION - BESCHREIBUNG DES ARBEITSVORGANGS
DESCRIPCI�N DE LA OPERACI�N - DESCRI��O DA OPERA��O
Cooling Hoses - Manicotti Liquido di Raffreddamento - Manchons de Liquide de Refroidissement - Muffen des K�hlmittels - Manguitos de L�quido de Refrogeraci�n - Casquilhos para L�quido de Arrefecimento Rubber Intake Hose (Air Filter and Intake Manifold) for Engines with Remote Air Filter - Tubo in Gomma Asp. (Filtro Aria Coll. Asp.) Per Mot. Con Filtro Aria a Dist. - Tuyau d'Aspiration en Caoutchouc (Filtre � Air du Collecteur d'Admission) Pour Mot. Avec Syst�me de Filtrage d'Air � Distance - Gummiansaugschlauch

FREQUENCY x HOURS - PERIODICITA' x ORE FREQUENCE x HEURES - WARTUNGSPERIODEN x STUNDEN
PERIODO x HORAS - FREQU�NCIA x HORAS 10 250 300 500 1000 5000 10000
(*)

Aire Colector de Admisi�n) Para Mot. Con Filtro de Aire Remoto - Tubo de Borracha de Aspira��o (Filtro ar Colector de Aspira��o) Para Mot. com Filtro de ar a Dist�ncia

Valve Clearance - Registro Gioco Valvole - R�glage Jeu Soupapes - Einstallen des Ventilspiels Ajuste

da Tolar�ncia - Registro Juego de V�lvulas - Apuramento v�lvula

(**)

Injector Cleaning and Adjustment - Taratura e Pulizia Iniettori - Tarage et Nettoyage Injecteur Einspritzd�sen �berpr�fen - Ajuste y Limpieza Inyectores - Taradura e Limpeza Injectores

Flush Radiator - Pulizia Interna Radiatore - Nettoyage Int�rieur du Radiateur - Innenreinigung des K�hlers - Limpieza del Interior del Radiador - Limpeza Interna do Radiador

Clean Fuel Tank - Pulizia Serbatotio Combustibile - Nettoyage du R�servoir � Combustible - Reinigung Kraftstofftank - Limpieza Dep�sito Combustible - Limpeza do Dep�sito do Combust�vel

wc_tx003649gb_FM10.fm

770003

wc_tx003649gb_FM10.fm

REPLACEMENT - SOSTITUZIONE - REMPLACEMENT - AUSWECHSELN - SUSTITUCI�N - SUBSTITUI��O

OPERATION DESCRIPTION - DESCRIZIONE OPERAZIONE DESCRIPTION DE L'OP�RATION - BESCHREIBUNG DES ARBEITSVORGANGS
DESCRIPCI�N DE LA OPERACI�N - DESCRI��O DA OPERA��O
Engine Oil (�) - Olio Motore (�) - Huile Moteur (�) - �ldaten (�) - Aceite del Motor (�) - �leo do Motor (�) Oil Filter - Filtro Olio - Filtre a Huile - �l Filter - Filtro Aceite - Filtro �leo
Alternator Belt - Cinghia Alternatore - Courroie Alternateur - Drehstromgenerator Riemen - Correa Alternador - Cincha Alternador

FREQUENCY x HOURS - PERIODICITA' x ORE FREQUENCE x HEURES - WARTUNGSPERIODEN x STUNDEN
PERIODO x HORAS - FREQU�NCIA x HORAS
10 250 300 500 1000 5000 10000 (*) (*) (*)
(**)
(**)

(**) Rubber Intake Hose (Air Filter and Intake Manifold) - Tubo in Gomma Asp. (Filtro Aria Coll. Asp.) - Tuyau d'aspir. en
(**)

Admis (Filtro de Aire Col. De Admis.) - Tubo de Borracha de Aspir. (Filtro ar Col. de Aspir.)

Coolant Hoses - Manicotti Liquido di Raffredd. - Manchons de Liquide de Refroid. - Muffen des K�hlmittels - Manguitos

de L�quido de Refriger - Casqilhos para L�quido de Arrefecimento

(**)

Timing Belt - Cinghia Distribuzione - Courroie de Distribution - Verteilerriemen Correa de Distribuci�n - Correia de Distribui��o (***) Every 4000 hours or 4 Years - Ogni 4000 ore o 4 anni - Toutes les

Dry Air Cleaner, External Cartridge - Cartuccia Esterna Filtro Aria a Secco - Cartouche Ext�rieure Filtre a Air

4000 heures ou 4 ans - Alle 4000 Stunden und 4 yahre - Cada 4000 horas o 4 anos - Cada 4000 oras o 4 anos

Seco

(****)

Filter Element, Panel Air Filter - Massa Filtrante Filtro Aria a Pannello - Masse Filtrante de Filtre � Air � Panneau

After six cleaning checks - Dopo 6 Controlli con Pulizia - Au Bout de 6 Contr�les Avec Nettoyage - Nach 6 Kontrollen

Mit Reinigung - Tras 6 Inspecciones Con Limpieza - Ap�s 6

Controlos com Limpeza

Engine Maintenance: KOHLER

(�) - If you are using oil of a quality lower than the prescribed one then you will have to replace it every 125 hours for the standard sump and every 150 hours for the enhanced sump.
- Se si utilizza olio di qualit� inferiore a quello prescritto sostituirlo ogni 125 ore per la coppa standard e 150 per la coppa maggiorata. - Si l'huile utilis�e est de qualit� inf�rieure � celle indiqu�, la vindanger toutes les 125 heures s'il s'agit d'un carter standard et toutes les 150 heures s'il s'agit d'un carter
surdimensionn�. - Wenn �l einer niedrigeren Qualit�t als vorgeschriebenen verwendet wird, sollte es bei Standard�lwannen alle 125 Betriebsstunden, bei vergr��ererten �lwannen alle 150
Stunden gewechselt werden. - Si se utiliza un aceite de calidad inferior al que recomendado deber� sustituirse cada 125 horas en caso de c�rter est�ndar o cada 150 en caso de c�rter sobredimensionado. - Se utilizar �leo de qualidade inferior � quele prescrito, substitua- o a cada 125 horas para o c�rter padrao e 150 para o c�rter aumentado.

770004

Engine Maintenance: Vanguard
7 Engine Maintenance: Vanguard
The information in this chapter comes from copyrighted Vanguard material.
The viscosity of the engine oil is an important factor when determining the correct engine oil to use in your machine. Use an engine oil of appropriate viscosity based on the expected outside air temperature. See the table below.
WARNING Most used liquids from this machine such as oil, gasoline, grease, etc., contain small amounts of materials that can cause cancer and other health problems if inhaled, ingested, or left in contact with skin for prolonged periods of time. Take steps to avoid inhaling or ingesting used liquids. Wash skin thoroughly after exposure to used liquids.

Oil Recommendations
We recommend the use of Briggs & Stratton Warranty Certified oils for best performance. Other high-quality detergent oils are acceptable if classified for service SF, SG, SH, SJ or higher. Do not use special additives.
Outdoor temperatures determine the proper oil viscosity for the engine. Use the chart to select the best viscosity for the outdoor temperature range expected.

�F

�C

SAE 30 10W-30 Synthetic 5W-30 5W-30

* Below 40�F (4�C) the use of SAE 30 will result in hard starting.
** Above 80� F (27�C) the use of 10W-30 may cause inceased oil consumption. Check oil level more frequently.

770026

wc_tx003702gb_FM10.fm

Engine Maintenance: Vanguard
The engine maintenance schedule(s) in this chapter are reproduced from the engine owner's manual. For additional information, see the engine owner's manual.
Maintenance Chart
First 5 Hours
Change oil
Every 8 Hours or Daily
Check engine oil level Clean area around muffler and controls
Every 100 Hours or Annually
Clean or change air filter * Change engine oil and filter Clean pre-cleaner (if equipped)* Replace spark plug Check muffler and spark arrester
Every 250 Hours or Annually
Check valve clearance. Adjust if necessary.
Every 400 Hours or Annually
Change air filter Replace fuel filter Clean air cooling system* Clean oil cooler fins*
Every 600 Hours or Annually
Change safety filter (if equipped) * In dusty conditions or when airborne debris is present, clean more often.
Every third air filter change, change the inner safety filter (if equipped).
770027

wc_tx003702gb_FM10.fm

Engine Maintenance: Kubota
8 Engine Maintenance: Kubota
The information in this chapter comes from copyrighted Kubota material.
The viscosity of the engine oil is an important factor when determining the correct engine oil to use in your machine. Use an engine oil of appropriate viscosity based on the expected outside air temperature. See the table below.
WARNING Most used liquids from this machine such as oil, gasoline, grease, etc., contain small amounts of materials that can cause cancer and other health problems if inhaled, ingested, or left in contact with skin for prolonged periods of time. Take steps to avoid inhaling or ingesting used liquids. Wash skin thoroughly after exposure to used liquids.

Engine oil should have properties of API classification SL or higher. Change the type of engine oil according to the ambient temperature.

Above 25 C (77 F)

SAE30 or SAE10W-30 SAE15W-40

0 C to 25 C (32 F to 77 F)

SAE20 or SAE10W-30

0 C to -20 C (32 F to -4 F) SAE10W or SAE10W-30

When using oil of different brands from the previous one, be sure to drain all the previous oil before adding the new engine oil.
770083

wc_tx004037gb_FM10.fm

Engine Maintenance: Kubota
The engine maintenance schedule(s) in this chapter are reproduced from the engine owner's manual. For additional information, see the engine owner's manual.

SERVICE INTERVALS
Non-warranty maintenance, repair, or replacement of the emission control devices and systems should be performed by a qualified repair establishment or individual which has the experience and equipment to perform such work. See the Emission Warranty Statement.

In order to keep your engine in good working conditions, be sure to follow the maintenance / checking schedule given in the table below. (The schedule applies to an engine in use under normal conditions.)

Items

Each part Engine oil

Check / Clean Check / Replenish
Change

Oil filter cartridge Change

Clean

Spark plug

Adjust

Change

Check

Air cleaner element Clean

Change

Intake pipe / clamp bands

Change

Fuel filter

Check Change

Fuel tank

Clean Check setting

Fuel pipe / clamps (Gasoline line)

Check Change

Fuel pipe / clamps (LPG line: LPG tank to regulator assy (D-EPR))

Check the connector
Check fuel leakage
Change

Every 8 hours (daily)

Interval

Every 50 hours (weekly)

Every 100
hours

(Initial change)
(Initial change)

Every 200
hours

Remarks

Gasoline line LPG line

: If necessary IMPORTANT: *1 Change more often when operating under dusty conditions. *2 If you do not have the proper tools and/or are not mechanically proficient, contact your local KUBOTA dealer. To ensure the best quality and reliability, use new KUBOTA Genuine parts or their equivalents for repair and replacement, whenever you have maintenance done.
770084

wc_tx004037gb_FM10.fm

Engine Maintenance: Kubota

Items

Each part

Check / Clean

Engine oil

Check / Replenish
Change

Oil filter cartridge Change

Clean

Spark plug

Adjust

Change

Check

Air cleaner element Clean

Change

Intake pipe / clamp bands

Change

Fuel filter

Check Change

Fuel tank

Clean Check setting

Fuel pipe / clamps (Gasoline line)

Check Change

Fuel pipe / clamps (LPG line: LPG tank to regulator assy (D-EPR))

Check the connector
Check fuel leakage
Change

Every 1000 hours

Interval

Every 2000 hours

Yearly

Each 2
years

Remarks

Gasoline line LPG line

wc_tx004037gb_FM10.fm

Engine Maintenance: Kubota

Items

Breather tube PCV valve
LPG vaporizer regulator
LPG Lock off valve Battery
Radiator coolant
Radiator hoses and clamp bands Radiator and water jacket Fan belt tension Valve clearance

Change Check Check Change Check inner parts*2 Check Check Change Check Change Check Change
Clean
Check Adjust Adjust

Every 8 hours (daily)

Interval

Every 50 hours (weekly)

Every 100
hours

Every 200
hours

Remarks

Hot water line Hot water line

wc_tx004037gb_FM10.fm

Engine Maintenance: Kubota

Items

Breather tube PCV valve
LPG vaporizer regulator
LPG Lock off valve Battery
Radiator coolant
Radiator hoses and clamp bands Radiator and water jacket Fan belt tension Valve clearance

Change Check Check Change Check inner parts*2 Check Check Change Check Change Check Change
Clean
Check Adjust Adjust

Every 1000 hours
*2

Interval

Every 2000 hours

Yearly

Each 2
years

Remarks

Hot water line Hot water line

wc_tx004037gb_FM10.fm

CRT48
9 Troubleshooting

Troubleshooting

Problem Engine doesn't start
Engine is hard to start.
Machine out of balance; wobbling excessively
Poor handling; excessive free play in steering mechanism Machine does not move

Cause No fuel in tank Battery connections loose or corroded Battery charge low Defective starter No fuel in tank
Battery charge low Fuel filter clogged Fuel circuit failure Trowel arm(s) bent Trowel arm(s) out of adjustment Trowel blade(s) bent Worn pivot bearings, rod ends, and/or cylinder mounts Drive belt broken A vacuum exists between bottom of blades or pans and surface of concrete Key sheared in the gearbox output shaft

Remedy Add fuel. Check and clean battery connections. Charge or replace battery. Replace starter. Add fuel. Bleed fuel lines. Charge or replace battery. Replace fuel filter. Check fuel lines. Replace trowel arm(s). Adjust trowel arm(s).
Replace trowel blade(s). Inspect pivot bearings, rod ends, and cylinder mounts. Replace as needed. Replace drive belt. Change pitch on blades or actuate steering system to break suction. Replace damaged key.

wc_tx004196gb_FM10.fm

Technical Data
10 Technical Data 10.1 Engine

CRT48

Machine

CRT48-37V

CRT48-35L

CRT48-57K

Engine make

Vanguard

Kohler

Kubota

Engine model

A/C V-Twin

KDW1404

WG1605-G

Maximum rated power @ rated speed

kW 27.6 (37) @ 3600 26 (34.9) @ 3600 42.5 (57) @ 3600

(hp)

rpm1

rpm2

rpm1

Displacement

cm�

993 (61)

(in�)

1372 (84)

1537 (93.8)

Operating speed

rpm

4000

3600

Engine speed--idle

rpm

1200

1450

1000

Battery

V / size

12 / BCI G24

Fuel

type Regular unleaded

Diesel

Regular unleaded

gasoline

Fuel tank capacity

L (gal)

24.6 (6.5)

Fuel consumption

L (gal)/ hr

10 (2.75)

6.2 (1.7)

9.5 (2.5)

Running time

2.5

2.6

Clutch

type

Variable speed

Engine oil capacity

L (qt)

2.3 (2.4)

5.2 (5.4)

6.0 (6.3)

Engine lubrication

oil grade

10W30

10W40

10W30

1Net engine power rating per SAE J1995. Actual power output may vary due to conditions of specific use.
2Net engine power rating per ISO 1585. Actual power output may vary due to conditions of specific use.

wc_td000668gb_FM10.fm

CRT48
10.2 Trowel

Machine

Operating weight

kg (lb)

Dimensions (L x W x H)
Rotor speed (range)
Blade pitch (range)

mm (in.)
rpm
degrees

Gearbox

type

Gearbox lubrication

type L (oz.)

Driveshaft

type

Technical Data

CRT48-37V

CRT48-35L

CRT48-57K

560 (1235)

643 (1420)

648 (1428)

2566 x 1295 x 1473 (101 x 51 x 58)

25�165

25�150

0�25

Heavy duty, fan cooled

Mobil Glygoyle 460

1.83 (62) each

Splined universal joint

Troweling width with pans (non-overlapping)
without pans (non-overlapping)
Troweling area with pans (non-overlapping)
without pans (non-overlapping)

Operation mm (in.)
m2 (ft2)

2465 (97) 2413 (95)
3 (32) 2.8 (30)

wc_td000668gb_FM10.fm

Technical Data

CRT48

10.3 Sound Measurements

Products are tested for sound pressure level in accordance with ISO 3744 for the sound power level (LWA) and ISO 11204 for the sound pressure level (LPA) at the operator's location. The required sound specifications, per Annex VIII, European Directive 2006/42/EC of the EC Machine Regulations, are:

Machine
CRT48-37V CRT48-35L CRT48-57K

Sound Pressure at Operator's Location dB(A) 94.8
91.1
94.3

Guaranteed Sound Power dB(A) 110.3
110.2
111.7

10.4

Vibration Measurements

Products are tested for hand/arm vibration (HAV) level and whole body vibration in accordance with ISO 5349, EN 1033, and ISO 2631 where applicable.

Machine CRT48-37V CRT48-35L CRT48-57K

HAV m/sec2 1.60 2.14 2.00

Whole body m/sec2 0.50 0.90 0.40

Vibration uncertainties

Hand-transmitted vibration was measured per ISO 5349-1. This measurement includes an uncertainty of 1.5 m/s2. Whole body vibration was measured per ISO 2631-1. This measurement includes an uncertainty of 0.3 m/s2.

wc_td000668gb_FM10.fm

CRT48
10.5 Dimensions
mm (in.)
1295 (51)

Technical Data

2566 (101)

1473 (58)

wc_gr013206

wc_td000668gb_FM10.fm

Technical Data
Notes

CRT48

wc_td000668gb_FM10.fm

Emission Control Systems Information and Warranty--Diesel
11 Emission Control Systems Information and Warranty--Diesel
The Emission Control Warranty and associated information is valid only for the U.S.A., its territories, and Canada.

11.1

Emission Control System Background Information
Introduction
Wacker Neuson engines/equipment must conform with applicable Environmental Protection Agency (EPA) and California Air Resource Board (CARB) emissions regulations. These regulations require that manufacturers warrant the emission control systems for defects in materials and workmanship.
Furthermore, EPA and CARB regulations require all manufacturers to furnish written instructions describing how to operate and maintain the engines/equipment including the emission control systems. This information is provided with all Wacker Neuson engines/equipment at the time of purchase.

Problems that may affect Emissions
If any of the following symptoms arise, have the engine/equipment inspected and repaired by a Wacker Neuson dealer/service center.
Hard starting or stalling after starting Rough idling Misfiring or backfiring under load Afterburning (backfiring) Presence of black exhaust smoke during operation High fuel consumption

Tampering and Altering
Tampering with or altering the emission control system may increase emissions beyond the legal limit. If evidence of tampering is found, Wacker Neuson may deny a warranty claim. Among those acts that constitute tampering are:
Removing or altering of any part of the air intake, fuel, or exhaust systems. Altering or defeating the speed-adjusting mechanism causing the engine to
operate outside its design parameters.

wc_tx004122gb_FM10.fm

Emission Control Systems Information and Warranty--Diesel
11.2 Limited Defect Warranty for Wacker Neuson Emission Control Systems
The Emission Control Warranty is valid only for the U.S.A., its territories, and Canada. Wacker Neuson Sales Americas, LLC, N92 W15000 Anthony Avenue, Menomonee Falls, WI 53051, (hereinafter "Wacker Neuson") warrants to the initial retail purchaser and each subsequent owner, that this engine/equipment, including all parts of its emission control system, have been designed, built, and equipped to conform at the time of initial sale to all applicable evaporative emission regulations of the U.S. Environmental Protection Agency (EPA), and that the engine/equipment is free of defects in materials and workmanship which would cause this engine/ equipment to fail to conform to EPA regulations during its warranty period. Wacker Neuson is also liable for damages to other engine/equipment components caused by a failure of any warranted parts during the warranty period.
What is covered
Wacker Neuson recommends the use of genuine Wacker Neuson parts, or the equivalent, whenever maintenance is performed. The use of replacement parts not equivalent to the original parts may impair the effectiveness of the engine/ equipment emission controls systems. If such a replacement part is used in the repair or maintenance of the engine/equipment, assure yourself that such part is warranted by its manufacturer to be equivalent to the parts offered by Wacker Neuson in performance and durability. Furthermore, if such a replacement part is used in the repair or maintenance of the engine/equipment, and an authorized Wacker Neuson dealer/service center determines it is defective or causes a failure of a warranted part, the claim for repair of the engine/equipment may be denied. If the part in question is not related to the reason the engine/equipment requires repair, the claim will not be denied. For the components listed in the following table, an authorized Wacker Neuson dealer/service center will, at no cost to you, make the necessary diagnosis, repair, or replacement necessary to ensure that the engine/equipment complies with the applicable EPA regulations. All defective parts replaced under this warranty become property of Wacker Neuson.
What is not covered
Failures other than those resulting from defects in material or workmanship. Any systems or parts which are affected or damaged by owner abuse,
tampering, neglect, improper maintenance, misuse, improper fueling, improper storage, accident and/or collision; the incorporation of, or any use of, add-on or modified parts, or unsuitable attachments, or the alteration of any part. Replacement of expendable maintenance items made in connection with required maintenance services after the item's first scheduled replacement as listed in the maintenance section of the engine/equipment operator's manual, such as spark plugs and filters.

wc_tx004122gb_FM10.fm

Emission Control Systems Information and Warranty--Diesel
Incidental or consequential damages such as loss of time or the use of the engine/equipment, or any commercial loss due to the failure of the engine/ equipment.
Diagnosis and inspection charges that do not result in warranty-eligible service being performed.
Any non-authorized replacement part, or malfunction of authorized parts due to use of-non authorized parts.
Owner's Warranty Responsibility
The engine/equipment owner, is responsible for the performance of the required maintenance listed in the Wacker Neuson engine/equipment operator's manual. Wacker Neuson recommends that all receipts covering maintenance on the engine/equipment be retained, but Wacker Neuson cannot deny warranty coverage solely for the lack of receipts or for the failure to ensure the performance of all scheduled maintenance. Normal maintenance, replacement, or repair of emission control devices and systems may be performed by any repair establishment or individual; however, warranty repairs must be performed by an authorized Wacker Neuson dealer/ service center. The engine/equipment must be presented to an authorized Wacker Neuson dealer/ service center as soon as a problem exists. Contact Wacker Neuson Product Support Department (1-800-770-0957) or visit wackerneuson.com to find a dealer/ service center in your area, or to answer questions regarding warranty rights and responsibilities.

wc_tx004122gb_FM10.fm

Emission Control Systems Information and Warranty--Diesel
How to Make a Claim
In the event that any emission-related part is found to be defective during the warranty period, you shall notify Wacker Neuson Product Support Department (1-800-770-0957, or technical.support@wackerneuson.com, or wackerneuson.com), and you will be advised of the appropriate dealer/service center where warranty repair can be performed. All repairs qualifying under this limited warranty must be performed by an authorized Wacker Neuson dealer/ service center.
You must take your Wacker Neuson engine/equipment along with proof of original purchase date, at your expense, to the authorized Wacker Neuson dealer/service center during their normal business hours.
For owners located more than 100 miles from an authorized dealer/service center (excluding the states with high-altitude areas as identified in 40 CFR Part 1068, Appendix III), Wacker Neuson will pay for pre-approved shipping costs to and from an authorized Wacker Neuson dealer/service center.
Claims for repair or adjustment found to be caused solely by defects in material or workmanship will not be denied because the engine/equipment was not properly maintained and used.
The warranty repairs should be completed in a reasonable amount of time, not to exceed 30 days.

wc_tx004122gb_FM10.fm

Emissions Control Systems Information and Warranty
11 Emissions Control Systems Information and Warranty

System Covered Air filter system and associated plumbing (Before engine intake)
Exhaust system

Components Air filter
Exhaust system connected after the exhaust manifold

wc_tx004132gb_FM10.fm

Emissions Control Systems Information and Warranty
11 Emissions Control Systems Information and Warranty
Limited Defect Warranty Period for Wacker Neuson Emission Control
Systems
The warranty period for this engine/equipment begins on the date of sale to the initial purchaser and continues for a period of 5 years or 3000 hours of operation (whichever comes first). For the warranty terms for your specific engine/equipment, visit wackerneuson.com. Any implied warranties are limited to the duration of this written warranty.

wc_tx004143gb_FM10.fm

Emission Control Systems Information and Warranty--Gasoline
12 Emission Control Systems Information and Warranty--Gasoline
The Emission Control Warranty and associated information is valid only for the U.S.A., its territories, and Canada.

12.1

Emission Control System Background Information
Introduction
Wacker Neuson spark-ignited engines/equipment must conform with applicable Environmental Protection Agency (EPA) emissions regulations. There are two types of emissions that fall under these regulations: 1) exhaust, and 2) evaporative. These regulations require that manufacturers warrant the emission control systems for defects in materials and workmanship.
Furthermore, EPA regulations require all manufacturers to furnish written instructions describing how to operate and maintain the engines/equipment including the emission control systems. This information is provided with all Wacker Neuson engines/equipment at the time of purchase.

Exhaust Emissions
The combustion process produces carbon monoxide, oxides of nitrogen, and hydrocarbons. Control of hydrocarbons and oxides of nitrogen is very important because, under certain conditions, they react to form photochemical smog when subjected to sunlight. Carbon monoxide does not react in the same way, but it is toxic.
Wacker Neuson utilizes lean carburetor settings and other systems to reduce the emissions of carbon monoxide, oxides of nitrogen, and hydrocarbons.

Evaporative Emissions
Evaporative emissions are fuel emissions and generally include emissions that result from permeation of fuel through the fuel-system materials or from ventilation of the fuel system.
Wacker Neuson utilizes low-permeation fuel lines and fuel tanks where applicable to reduce evaporative emissions.

wc_tx004118gb_FM10.fm

Emission Control Systems Information and Warranty--Gasoline
Tampering and Altering
Tampering with or altering the emission control system may increase emissions beyond the legal limit. If evidence of tampering is found, Wacker Neuson may deny a warranty claim. Among those acts that constitute tampering are: Removing or altering of any part of the air intake, fuel, or exhaust systems. Altering or defeating the speed-adjusting mechanism causing the engine to
operate outside its design parameters.

12.2

Limited Defect Warranty for Wacker Neuson Emission Control Systems
The Emission Control Warranty is valid only for the U.S.A., its territories, and Canada.
Wacker Neuson Sales Americas, LLC, N92 W15000 Anthony Avenue, Menomonee Falls, WI 53051, (hereinafter "Wacker Neuson") warrants to the initial retail purchaser, and each subsequent owner, that this engine/equipment, including all parts of its emission control systems, have been designed, built, and equipped to conform at the time of initial sale to all applicable emission regulations of the U.S. Environmental Protection Agency (EPA), and that the engine/equipment is free of defects in materials and workmanship which would cause this engine/ equipment to fail to conform to EPA regulations during its warranty period.
Wacker Neuson is also liable for damages to other engine/equipment components caused by a failure of any warranted parts during the warranty period.

What is covered
Wacker Neuson recommends the use of genuine Wacker Neuson parts, or the equivalent, whenever maintenance is performed. The use of replacement parts not equivalent to the original parts may impair the effectiveness of the engine/ equipment emission controls systems. If such a replacement part is used in the repair or maintenance of the engine/equipment, assure yourself that such part is warranted by its manufacturer to be equivalent to the parts offered by Wacker Neuson in performance and durability. Furthermore, if such a replacement part is used in the repair or maintenance of the engine/equipment, and an authorized Wacker Neuson dealer/service center determines it is defective or causes a failure of a warranted part, the claim for repair of the engine/equipment may be denied. If the part in question is not related to the reason the engine/equipment requires repair, the claim will not be denied.
For the components listed in the following table, an authorized Wacker Neuson dealer/service center will, at no cost to you, make the necessary diagnosis, repair, or replacement necessary to ensure that the engine/equipment complies with the applicable EPA regulations. All defective parts replaced under this warranty become property of Wacker Neuson.

What is not covered
Failures other than those resulting from defects in material or workmanship.

wc_tx004118gb_FM10.fm

Emission Control Systems Information and Warranty--Gasoline
Any systems or parts which are affected or damaged by owner abuse, tampering, neglect, improper maintenance, misuse, improper fueling, improper storage, accident and/or collision; the incorporation of, or any use of, add-on or modified parts, or unsuitable attachments, or the alteration of any part.
Replacement of expendable maintenance items made in connection with required maintenance services after the item's first scheduled replacement as listed in the maintenance section of the engine/equipment operator's manual, such as spark plugs and filters.
Incidental or consequential damages such as loss of time or the use of the engine/equipment, or any commercial loss due to the failure of the engine/ equipment.
Diagnosis and inspection charges that do not result in warranty-eligible service being performed.
Any non-authorized replacement part, or malfunction of authorized parts due to use of-non authorized parts.
Owner's Warranty Responsibility
The engine/equipment owner is responsible for the performance of the required maintenance listed in the Wacker Neuson engine/equipment operator's manual. Wacker Neuson recommends that all receipts covering maintenance on the engine/equipment be retained, but Wacker Neuson cannot deny warranty coverage solely for the lack of receipts or for the failure to ensure the performance of all scheduled maintenance.
Normal maintenance, replacement, or repair of emission control devices and systems may be performed by any repair establishment or individual; however, warranty repairs must be performed by an authorized Wacker Neuson dealer/ service center.
The engine/equipment must be presented to an authorized Wacker Neuson dealer/ service center as soon as a problem exists. Contact Wacker Neuson Product Support Department (1-800-770-0957) or visit wackerneuson.com to find a dealer/ service center in your area, or to answer questions regarding warranty rights and responsibilities.
How to Make a Claim
In the event that any emission-related part is found to be defective during the warranty period, you shall notify Wacker Neuson Product Support Department (1-800-770-0957, or technical.support@wackerneuson.com, or wackerneuson.com), and you will be advised of the appropriate dealer/service center where warranty repair can be performed. All repairs qualifying under this limited warranty must be performed by an authorized Wacker Neuson dealer/ service center.
You must take your Wacker Neuson engine/equipment along with proof of original purchase date, at your expense, to the authorized Wacker Neuson dealer/service center during their normal business hours.

wc_tx004118gb_FM10.fm

Emission Control Systems Information and Warranty--Gasoline
For owners located more than 100 miles from an authorized dealer/service center (excluding the states with high-altitude areas as identified in 40 CFR Part 1068, Appendix III), Wacker Neuson will pay for pre-approved shipping costs to and from an authorized Wacker Neuson dealer/service center.
Claims for repair or adjustment found to be caused solely by defects in material or workmanship will not be denied because the engine/equipment was not properly maintained and used.
The warranty repairs should be completed in a reasonable amount of time, not to exceed 30 days.

wc_tx004118gb_FM10.fm

Emissions Control Systems Information and Warranty
12 Emissions Control Systems Information and Warranty

System Covered Evaporative control system

CRT48-37V Components Fuel tank Fuel cap Fuel line Fuel vent fitting

See the supplied engine owner's manual for the applicable exhaust emission warranty statement.

System Covered Exhaust system
Evaporative control system

CRT48-57K Components Pipe-engine Catalytic converter
Fuel tank Fuel cap Fuel line Fuel return fitting

See the supplied engine owner's manual for the applicable exhaust emission warranty statement.

wc_tx004159gb_FM10.fm

Emissions Control Systems Information and Warranty
12 Emissions Control Systems Information and Warranty
Limited Defect Warranty Period for Wacker Neuson Emission Control
Systems
The warranty period for this engine/equipment begins on the date of sale to the initial purchaser and continues for a period of 3 years or 2500 hours of operation (whichever comes first). For the warranty terms for your specific engine/equipment, visit wackerneuson.com. Any implied warranties are limited to the duration of this written warranty.

wc_tx004142gb_FM10.fm

CONCRETE POWER TROWEL

Table of Contents
Acknowledgment....................................................................2 Foreword .................................................................................3 Safety Alerts............................................................................4 A Word to the User/Operator ................................................5 Follow a Safety Program........................................................6 Prepare for Safe Operation..................................................10 Start Safely............................................................................17 Operate Safely ......................................................................19 Shut Down Safely .................................................................21 Perform Maintenance Safely ...............................................22 Final Word to the User .........................................................35

Acknowledgment
We wish to thank the members of the Association of Equipment Manufacturers for their invaluable contributions in preparing this Safety Manual.

NOTICE OF COPYRIGHT PROTECTION
Copyright 2017, by the Association of Equipment Manufacturers. All rights reserved. This work may not be reproduced or disseminated in whole or in part by any means without the prior written permission of the Association of Equipment Manufacturers.

Revised 06/17

Foreword

This safety manual is intended to point out some of the basic safety situations that may be encountered during the normal operation and maintenance of your trowel and to instruct you in safety practices for dealing with these conditions. This manual is NOT a substitute for the manufacturer's operating manual(s).
Additional precautions may be necessary, or some instructions may not apply, depending on equipment, attachments and conditions at the job site or in the service area. The manufacturer has no direct control over equipment application, operation, inspection, or maintenance. Therefore, it is YOUR responsibility to use good safety practices in these areas.
The information provided in this manual supplements the specific information about your trowel that is contained in the manufacturer's operating manual(s). Other information that may affect the safe operation of your machine may be contained in the following:
� Safety signs � Insurance requirements � Employer safety and training programs � Safety codes � Local, state/provincial, and federal laws, rules,
and regulations

Read and understand manuals before operating
IMPORTANT! Before you operate this machine, make sure you have the manufacturer's manual(s) for this trowel and all attachments. If the manufacturer's manual(s) are missing, obtain replacements from your employer, equipment dealer, or directly from the manufacturer. Keep this safety manual and the manufacturer's manual(s) with the machine at all times. Read and understand all manuals. Safety videos and other training resources are available from some manufacturers and dealers. Operators are encouraged to periodically review these resources.
3

Safety Alerts

Safety Alert Symbol
This Safety Alert Symbol means: "Attention! Stay alert! Your safety is involved!"
The Safety Alert Symbol identifies important safety messages on equipment, safety signs, in manuals, or elsewhere. When you see this symbol, be alert to the possibility of death or personal injury. Carefully read the message that follows and inform other operators. Follow instructions in the safety message.

Signal Words

Signal words are distinctive words that are typically found on safety signs on the concrete power trowels and other job site equipment. These words may also be found in this manual and the manufacturer's manual(s). These words are intended to alert the operator to a hazard and the degree of severity of the hazard.

DANGER DANGER indicates a hazardous situation that, if not avoided, will result in death or serious injury.

WARNING WARNING indicates a hazardous situation that, if not avoided, could result in death or serious injury.

CAUTION CAUTION indicates a hazardous situation that, if not avoided, may result in minor or moderate injury.

NOTICE

NOTICE is used to address practices not related to physical injury.

A Word to the User/Operator

It is YOUR responsibility to read and understand this safety manual and the manufacturer's manual(s) before operating this equipment. This safety manual takes you step by step through the working day.
Graphics have been provided to help you understand the text.
Hazard recognition and accident prevention depend upon you being alert, careful, and properly trained in the inspection, operation, transport, maintenance, and storage of this equipment.
Read and understand all safety signs � replace damaged
signs

Remember that YOU are the key to safety. Good safety practices not only protect you but also protect the people around you. Study this manual and the manufacturer's operating manual(s) for the specific machine. Make them a working part of your safety program. Keep in mind that this safety manual is written only for concrete power trowels.
After studying the manufacturer's operating manual(s) and this safety manual, please contact the equipment manufacturer with any remaining questions.
Practice all usual and customary safe working precautions and remember:
Safe operation is up to you!
You can prevent death or serious injury caused by unsafe work practices!

Follow a Safety Program

For Safe Operation
You must be a qualified and authorized operator for safe operation of this trowel. You must clearly understand the written instructions supplied by the manufacturer, be trained--including actual operation--and know the safety rules and regulations for the job site. It is a good safety practice to point out and explain safety signs and practices to others, and to make sure they understand the importance of following these instructions.
Never operate while impaired by alcohol
or drugs
WARNING! Death or serious injury could result from operating machinery while impaired by drugs or alcohol. Drugs and alcohol affect operator alertness, coordination, and the ability to safely operate the equipment. Never operate the trowel while impaired by use of alcohol or drugs. Never knowingly allow anyone to operate the machine when their alertness or coordination is impaired.
6

An operator taking prescriptions or over-the-counter medication must consult a medical professional regarding any side effects of the medication that would hinder their ability to safely operate this equipment.
Be Alert!
Know where to get assistance. Keep emergency numbers for doctors, ambulance service, hospital, and fire department near your telephone. Know how to use a first aid kit and fire extinguisher/fire suppression system; know their location and practice getting to them. Ensure they have been properly tested and maintained.
Let others know where you will be working, and what time you will be returning. In case of an emergency, you want others to know where to find you.
Be Aware!
Take advantage of training programs offered.
Know the proper response to a fire or chemical spill on your trowel.

Follow a Safety Program

Be Careful!
Human error is the result of many factors: carelessness, fatigue, sensory overload, preoccupation, unfamiliarity with the machine or attachments, or drugs and alcohol, to name a few. You can avoid death or serious injury caused by these and other unsafe work practices. Be careful; never assume accidents cannot happen to you.
For your safety and the safety of others, act safely and encourage your fellow workers to act safely as well.
Protect Yourself
Wear all the personal protective clothing and Personal Protective Equipment (PPE) issued to you or called for by job conditions.
You may need: � Hard hat � Safety shoes � Safety glasses, goggles, or face shield � Heavy duty gloves � Hearing protection � Reflective clothing � Wet weather gear � Respirator or filter mask

Wear whatever is needed to protect yourself--don't take chances.
WARNING! Avoid death or serious injury from entanglement. Do not wear loose or frayed clothing or accessories that could catch on moving parts. Examples of items to avoid include flopping cuffs, dangling neckties and scarves, wallets attached to chains, jewelry and wrist watches.
7

Follow a Safety Program

Know the Rules
Most job sites have rules governing equipment use and maintenance. Before you start work at a new location, check with the supervisor or safety coordinator. Ask about the rules you will be expected to obey.
OSHA enforces federal laws within the United States that apply to the safe operation, application, and maintenance of equipment on some job sites. It is the employer's responsibility to comply with these laws. A federal representative may periodically inspect a job site to see that these laws are being followed.
There may be other local, state/provincial, federal laws or international organizations that regulate the use of this equipment, along with specific job site or employer rules. It is important that you know and comply with all applicable laws and rules, including those requiring operator training and certification.
These are some of the rules you must work by: � Only qualified and authorized individuals may operate
this equipment. � Inspect your machine and attachments before each
use as specified by the manufacturer and your employer.
8

� Know the operating characteristics of your equipment. Do not misuse it.
� Wear proper clothing and PPE. Check that others are also wearing appropriate clothing.
� All shields, guards, air filters, access panels, and doors must be properly installed before each use.
� Know the rules regarding traffic at your job site. Know what all signs, flags, and markings mean. Know hand, flag, horn, whistle, siren, or bell signals, if used.
� Never modify or remove any part of the machine (except for qualified service personnel; then make sure the part is re-installed or replaced if defective or worn out).

Safety Rules

�

Know and understand rules of operation

Keep bystanders away

Follow a Safety Program

� Never allow children to play near, ride on or operate the equipment.
� Keep bystanders away from the machine during operation.
� Know the work area before you use the equipment. Be aware of possible hazards.
� Only use attachments and parts that are approved by the manufacturer.
� Follow all safe shutdown instructions (See page 21, Shut Down Safely).
Know the Equipment
Read and understand the DANGER, WARNING, CAUTION, and NOTICE safety labels and other informational signs on the machine, the attachments, and in the manufacturer's operating manual(s). Ask your supervisor or dealer to explain any information you do not understand. Failure to obey safety instructions could result in death or serious injury.
Know the following about your equipment: � Function, purpose, and use of all controls � Correct operation speeds � How to quickly stop equipment in an emergency � Rated operating capacity

� Know the meaning of all identification symbols on the controls and gauges
� Know the location and type of emergency shut-down control the trowel is equipped with
� Never start or operate the trowel without protective guards and panels in place
� Know the capabilities and limitations of the trowel
Read and understand manuals before operating
Dust Precaution Some dust created by construction activities may cause silicosis or respiratory harm. Your risk of exposure varies depending on how often you do this type of work. To reduce your risk, work in a well ventilated area, use a dust control system, and wear approved personal safety equipment such as a dust/particle respirator designed to filter out microscopic particles.
9

Prepare for Safe Operation

Load and Unload Safely
Precautions � Power trowels are heavy and awkward to move
around. � Do not attempt to lift the ride-on trowel by the guard
rings. � Use proper heavy lifting procedures. � Keep all non-essential personnel clear of the area. � Never lift the trowel over areas where people are
standing or working. � Remove tools and loose items before lifting. � Make sure the crossbars on the safety catches are in
good condition if so equipped. � Always consult the machine's operator's manual for
the best and proper lifting, loading, and unloading methods.
Read and understand manuals before
loading and unloading

Walk-Behind Trowels
Some walk-behind trowels can be lifted or moved by two people utilizing lifting tubes or other special attachments. Generally however, they must be lifted using lifting bales (special lifting brackets), or other specific lifting points provided by the manufacturer, and cranes, hoists, or forklifts. Be certain any lifting devices used have adequate capacity.
Ride-On Trowels
Ride-on trowels are very heavy. They require heavy-duty lifting devices such as cranes or heavy-duty hoists to lift them on and off the concrete slab.
Be certain any lifting devices used have adequate capacity. Some ride-on trowels are equipped with lifting bosses that are used with specialized apparatus to assist in moving the trowels around. Use extreme care when lifting or moving a ride-on trowel.

Prepare for Safe Operation

Check and Use All Available Safety Devices
To protect you and others around you, your machine may be equipped with the safety equipment listed below. Additional equipment may be required or some items may not apply, depending on attachments used, job site conditions, or applicable job site rules. Check that each required item is securely in place and in operating condition: � Emergency stop switch or other "Shut-Down"
devices � Guards, Shields & Panels � Alarms or Warning Lamps � Drain Covers, Plugs, and Caps � Pressure Relief Devices � Lights � Special enclosures or accessories required for
specific applications or job site conditions � Safety Signs
Use them! Never remove or disconnect any safety device.

Check the Machine
Before beginning your work day, inspect the machine and have all systems in good operational condition. � Perform daily and periodic service procedures as
instructed by the equipment manufacturer. � Check for broken, missing, loose, or damaged parts.
Make necessary repairs.
Inspect the machine before
each work day
� Keep handholds clean and free of grease, oil, dirt, snow or ice.
� Ensure shielding is properly installed and in good condition. Repair or replace if damaged or missing.
� Ensure all tools or loose objects are removed or securely fastened before operating the machine.

Prepare for Safe Operation

Hydraulic Fluid Injection Hazard
WARNING! Accidental injection of pressurized fluid into the hands or body is dangerous and could result in death or serious injury. Use caution when checking hydraulic leaks as pressurized hydraulic fluid has enough force to penetrate skin, causing serious personal injury.
If a leak is discovered: � Ensure engine is turned off; relieve pressure in
hydraulic circuit. � Wear proper hand and eye protection. � Visually examine the hydraulic hose or fluid lines in
the vicinity of the leak for breaks or cracks. Do not use your hand to check for leaks. � Repair or replace hydraulic lines per manufacturer's recommendation.
Fluid injection injuries are not always obvious. Victims have reported such injuries feel like a bee sting or splinter under the skin. If you suspect you have a fluid injection injury, do not take chances. Seek proper medical care immediately. If any fluid is injected into the skin, it must be surgically removed within a few hours by a doctor familiar with this type of injury.
12

Pressurized fluid can inject into the body
Wear proper hand and eye
protection

Prepare for Safe Operation

Check the Cooling System
When checking the cooling system, make sure the engine is turned off and is cool. Remove the key to prevent fans from unexpectedly starting. Ensure the coolers and engine compartment are clean and free from debris, which could ignite and cause a fire. If the machine is air-cooled, be sure the cooling unit has an unobstructed air flow. If it is liquid-cooled, check coolant level (at overflow tank, if provided).
Allow radiator to cool before removing cap
slowly
WARNING! Allow the radiator to cool before checking the level. Hot radiator fluids could escape as steam and burn you. (See page 27, Engine Coolant Hazards.)

Use Caution When Fueling
WARNING! Avoid injury from fire or explosion. Never fill the fuel tank with the engine running, while smoking or when near an open flame.
Never overfill the tank or spill fuel. If fuel is spilled, clean it up immediately.
Be sure to use the correct type and grade of fuel.
Ground the fuel funnel or nozzle against the filler neck to prevent sparks that could ignite fuel vapors. Be sure to replace the fuel fill cap (if equipped) when you are done.
No smoking and no open flames in flammable/explosive
atmospheres

Prepare for Safe Operation

Ultra-Low Sulfur Diesel (ULSD) Fuel Hazard
Avoid Static Electricity Risk When Fueling
WARNING! Ultra-Low Sulfur Diesel (ULSD) poses a greater static ignition hazard than earlier diesel formulations. Avoid death or serious injury from fire or explosion; consult with your fuel or fuel system supplier to ensure the delivery system is in compliance with fueling standards for proper grounding and bonding practices.
Static discharge during fueling can cause explosion

WARNING! Exhaust fumes from diesel, gasoline or LP gas engines can kill. Do not breath exhaust fumes from any kind of engine.
Ventilate work area
Operating in Flammable/Explosive Atmospheres WARNING! A trowel must not be operated in
flammable or explosive atmospheres. Use in explosive atmospheres can result in fires and/or explosions which could cause serious injury or death.

Follow Safe Operating Practices
Exhaust Fumes in a Closed Space Can Kill Vent exhaust and assure a flow of fresh air when an internal combustion engine is used in a closed space.
14

Do not operate in explosive/flammable
atmosphere

Prepare for Safe Operation

Avoid Crystalline Silica (quartz) Dust
WARNING! Avoid exposure to dust containing crystalline silica particles. This dust can cause serious injury to the lungs (silicosis).
Avoid silica dust
Because crystalline silica is a basic component of sand and granite, many activities at construction sites produce dust containing crystalline silica. Trenching, sawing and boring of material containing crystalline silica can produce dust containing crystalline silica. If dust which contains crystalline silica is present there are guidelines which should be followed. 1. Be aware of the health effects of crystalline silica and
that smoking adds to the damage. 2. Be aware of and follow OSHA (or other) guidelines for
exposure to airborne crystalline silica.

3. Know the work operations where exposure to crystalline silica may occur.

4. Participate in air monitoring or training programs offered by the employer.

5. Be aware of and use optional equipment controls such as water sprays, local exhaust ventilation, and enclosed cabs with positive pressure air conditioning.

6. Where respirators are required, wear a respirator approved for protection against crystalline silicacontaining dust. Do not alter the respirator in any way. Workers who use tight-fitting respirators cannot have beards/mustaches which interfere with the respirator seal to the face.

7. If possible, change into disposable or washable work clothes at the worksite; shower and change into clean clothing before leaving the worksite.

8. Do not eat, drink, use tobacco products, or apply cosmetics in areas where there is dust containing crystalline silica.

9. Store food, drink and personal belongings away from the work area.

10. Wash hands and face before eating, drinking, smok-

ing, or applying cosmetics after leaving the exposure

area.

Prepare for Safe Operation

Know the Working Area
Learn as much about your working area as possible.
Check at Ground or Floor Level
Thoroughly check the area for unusual or dangerous conditions, such as tools, or items that may damage the trowel or be propelled by the trowels rotating blades. Note where pipes and forms are located. Locate and mark protrusions (rebar, anchor bolts, floor drains, etc.) in the concrete.
Plan Your Work
Know in advance the conditions likely to be encountered, and plan for any likely emergency.
Getting on and off a Ride-On Trowel
If operating a ride-on trowel, mount and dismount carefully. Use the steps and hand holds provided. Do not use control levers as hand holds and never use guard rings as steps. Watch for surfaces that may be slippery. Never jump off a ride-on trowel.

Operating on an Elevated Deck (Multi-Story Operation)
Consult local/state regulations before you operate equipment on an elevated deck. If operating on an elevated deck, ensure perimeter safety cabling of proper size and strength is in place. Do not operate the trowel close to the edge of the deck.
Use three points of contact when mounting and
dismounting

Start Safely

Warn Personnel Before Starting
Before starting, walk completely around the machine. Make sure no one is on it or close to it. Let others know you are starting up and don't start until everyone is completely clear of the machine. As the equipment operator, you are responsible for the safe use of the machine, so always make sure you have communicated your work plans to others on the site.
Before starting, walk completely around trowel
Check the trowel thoroughly at delivery for any shipping damage. Locate the trowel in an accessible location, as close to the work site as possible. Secure the trowel after it is placed in its intended operating position so it does not tip, roll, slide or fall.

Starting the Engine
WARNING! Never attempt to start the engine by shorting across starter terminals. Serious injury or death may result.
Know the exact starting procedure for your machine. See the manufacturer's operating manual(s) for starting.
� Familiarize yourself with warning devices, gauges and operating controls.
� Make sure controls are in the neutral/locked position. � Clear the area of all persons. � Start the engine following the instructions in the
manufacturer's operating manual(s). � If necessary to run the engine or operate the machine in
an enclosed area, ensure there is adequate ventilation.
WARNING! Never operate the machine without adequate ventilation. Exhaust fumes can kill. Do not breathe exhaust fumes!
For a walk-behind (pedestrian operated) trowel machine, make sure that a circular area with a minimum radius equal to the length of the machine is clear. This will ensure safety of personnel around the machine.

Start Safely

Starting Aids If you have trouble starting the engine and need to use jumper cables, follow the instructions in manufacturer's operating manual(s). Jump-starting is a two-person operation. The operator must be in the operator's seat when jump-starting so the machine will be under control when the engine starts.
WARNING! Improper jump-starting procedures may cause serious injury or death from a battery explosion or a run-away machine. Always use proper jump-starting procedure. (See page 29, Battery Hazards.)
To avoid explosion, follow proper jumpstarting procedures
Never start engine by shorting across starter terminals

Ether/cold start fluid is HIGHLY FLAMMABLE. Before using it, always read the instructions on the ether/ cold start fluid container and the instructions in the manufacturer's operating manual(s).
WARNING! Avoid injury from explosion or fire. If the engine is equipped with a glow plug pre-heater or other intake manifold type pre-heater, follow manufacturer's instructions before using ether/cold start fluid.
After Starting Engine
Observe gauges, instruments, and warning lights to assure that they are functioning and their readings are within the operating range.
Run an Operating Check
Do not use a machine that is not in proper operating condition. It is your responsibility to check the condition of all systems and to run the check in a safe area.

Operate Safely

Walk-Behind Trowels
� Ensure that the operator is familiar with the trowel and is trained on its operation.
� Do not start or operate the trowel if the drive train will not disengage. Centrifugal force between the trowel and surface when starting can cause uncontrolled handle movement that can cause serious injury. The handle must not move while pulling the engine recoil starter.
� Visually check to be sure that the blades are free of obstructions and the area is clear for operation.
� For trowels that use this feature, ensure that the emergency stop switch is in the ON position.
� Move the throttle to the idle position. � Switch the engine ON/OFF switch to the ON position. � Never place your foot on the ring guard when starting
the engine or severe injury can occur if your foot slips through the ring guard as the blades start to spin. � While firmly holding the handle with one hand, start the engine following the guidelines in the engine manufacturer's instruction manual. � Hold the handle bar firmly with both hands while the trowel is "throttled-up".

� If control of the trowel is lost, stay clear and do not attempt to regain control until the trowel has stopped moving. Depending on the engine speed, the trowel handle can swing around before it stops completely.
Ride-On Trowels
� Ensure that the operator is familiar with the trowel and is trained on its operation.
� Ensure the operator is well rested and not fatigued, is alert, and not impaired in any way (medications, drugs, alcohol, etc.).
� Adjust the seating if necessary and get into a comfortable position where all controls are accessible.
� Visually check to be sure that the blades are free of obstructions and the area is clear for operation.
� Start the trowel following the instructions in the engine manufacturer's operation manual. For diesel powered trowels, follow the instructions for glow plug and cold start operation.
� Observe any gauges and warning lights to ensure they are functioning and their readings are within the manufacturer's normal operating range.
� Check operation of controls. Make certain they operate properly.
19

Operate Safely

Electrical Equipment
Some walk-behind trowels are powered by electric motors. Electric motors and components present special hazards during operation. Read the operator's manual. � Never operate a trowel with a damaged or worn
electrical cord. When using an extension cord, be sure to use one heavy enough to carry the current load. When trowel is used outdoors, use only extension cords that are marked for outdoor use. � Use only appropriate extension cords that have grounding-type plugs and receptacles that accept the machine's plug. � Use an electrically powered trowel that has been built in accordance with the requirements of the National Electrical Code (NFPA-70) and has been approved by a Nationally Recognized Test Lab.

� Keep all electrical cords away from rotating components, heat, oil, and sharp edges to avoid damaging them.
� Avoid body contact with grounded surfaces such as pipes, metal railings, radiators and metal ductwork.
� Always check the power supply before running the trowel. Using the wrong voltage supply will damage the motor.
� Always make sure the motor switch is OFF or in the stop position before plugging the trowel into the power supply.
� Do not operate an electric powered trowel in the rain or snow. Keep the motor, switch, and electrical cords dry.
� Never operate the trowel in areas exposed to flammable or explosive liquids or gases. Sparks could ignite fumes.

Shut Down Safely
Storage
Always store equipment properly when it is not being used. Equipment should be stored in a clean, dry location out of reach of children.
WARNING! Avoid death or serious injury. Never leave a machine unattended with the engine running.
Safe Shutdown
The detailed shutdown procedure is given in your manufacturer's manual(s). In general, this includes: � Stop machine. � Position controls in neutral or locked position. � Idle engine for short cool-down period. � Stop engine and remove ignition key (if equipped). � Cycle hydraulic controls to eliminate pressure. � Lock covers and enclosures. � Shut off master electric switch (if equipped).

Shut engine off, remove key

Perform Maintenance Safely

Know What You're Doing
Maintenance on this type of machine is not for inexperienced or untrained personnel. It can be hazardous unless performed properly. Be sure you have the necessary skill, information, correct tools, and proper equipment to do the job safely.
Be sure to maintain the equipment according to the manufacturer's instructions. Regularly check the operation of the protective and safety devices.
Do not perform any work on a machine unless you are authorized and qualified to do so.
If you have been authorized to perform maintenance, read the manufacturer's operating and service manual(s). Study the instructions: check the lubrication charts, examine all the instruction messages on the machine.

Protect Yourself
Wear all the personal protective clothing and PPE issued to you or called for by job conditions.
You may need: � Hard hat � Safety shoes � Safety glasses, goggles or face shield � Heavy duty gloves � Hearing protection � Reflective clothing � Wet weather gear � Respirator or filter mask
Wear whatever is needed to protect yourself. Do not take chances.

Maintain equipment 22

Perform Maintenance Safely

WARNING! Avoid death or serious injury from entanglement. Do not wear loose clothing or accessories. Stay away from all rotating components when the engine is running. Contact, wrapping or entanglement with rotating or moving parts could result in death or serious injury.
Wear a rubber apron and rubber gloves when working with corrosives. Wear gloves and safety shoes when handling wooden blocks or sharp-edged metal.
Always use safety glasses, goggles or a face shield. They provide eye protection from fluids under pressure, during grinding and while servicing batteries. Protection is also needed from flying debris, liquids and loose material produced by equipment, tools and pressurized air/water.
Wear a face shield and follow manufacturer's instructions when you disassemble spring-loaded components or work with battery acids. Keep pockets free of all objects that could fall out and drop into machinery.
Handle tools and heavy parts sensibly, with regard for the safety of yourself and others. Lower items; don't drop them.

Avoid rotating parts
Wear eye protection
Do not loosen radiator cap until cool

Perform Maintenance Safely

Prepare the Work Area
� Position the machine in a level area out of the way of other working equipment.
� Make sure there is adequate light, ventilation and clearance.
� Remove oil, grease or water to eliminate any slippery surfaces.
� Clean around the area to be serviced to minimize contamination.
Avoid falls, clean slippery surfaces
Prepare the Machine
Stored energy sources (electrical, mechanical, hydraulic, pneumatic, chemical, thermal, etc.) must be controlled or reduced to a practical minimum before performing any maintenance, repair, or service procedures.
CAUTION! Load and unload machinery using proper procedures. (See page 10, Load and Unload Safely.)
24

Safety practices to prevent potential injuries from energy-releasing sources include: � Place controls in NEUTRAL or LOCKED position
before shutting off engine. � Allow all moving parts to stop. � Shut off engine. � Follow your manufacturer's recommendation for
relieving hydraulic system pressure. � Lock ignition, remove key (if equipped) and take it
with you. � Look and listen for evidence of moving parts before
dismounting. � Shut off master electrical switch (if equipped). � Securely support or block up machine before working
underneath machine or other lifted components. � Securely support, block up, or lock up other
components with approved locking devices before working near or underneath them. � Relieve pressure before disconnecting or disassembling any pressurized system. � Block or relieve spring pressure before disassembling any spring-loaded mechanism. � Avoid flames, sparks, or smoking near any fuel, hydraulic fluid or other flammable material such as spraying debris.

Perform Maintenance Safely

Attach a "DO NOT OPERATE" warning tag to the control levers. Lockout/tagout the unit according to the manufacturer's operating manual(s). If there is a key, remove it and take it with you.
Install approved support device(s) when working under or near raised equipment.
Remove only guards or covers that provide access to the area being serviced. Replace all guards and covers when work is complete.
Do not operate the machine with gaurds removed.
WARNING! Avoid injury or death. Never work on machinery with the engine running unless instructed by the manufacturer's manual(s) for specific service.

Trowel Maintenance and Repair
MAKE SURE the trowel is disconnected from the power source or the appropriate circuits are dead and OSHA Lockout/Tagout is applied before doing any maintenance or repair work on the trowel.

WARNING

Trowel Blades, Pans and Attachments

� Do not attempt to clean, service or perform

adjustments on the trowel while it is running.

� Do not remove blades or pans while the trowel

is hanging overhead. Always support the trowel

securely on a flat, level surface before changing

blades or pans.

� Always handle blades and pans carefully. Worn

blades or pans may develop sharp edges that can

cause serious cuts.

� Always replace worn or damaged parts with service

parts designated by the manufacturer.

� Replace blades and pans as a complete set � even

if only one blade or pan is showing wear or damage.

They can wear differently depending on different jobs,

and a difference in blade size will damage the finish

of the slab surface.

� Only use

manufacturer

approved polishing and brush

Avoid rotating parts

attachments.

Perform Maintenance Safely

Common Maintenance Safety Practices
Use Proper Ventilation Never run an engine in an enclosed area without an approved ventilation system.
Ventilate work area
WARNING! Exhaust fumes contain carbon monoxide which could be deadly if inhaled. Never operate any type of engine without proper ventilation. EXHAUST FUMES CAN KILL. A feeling of tiredness, or nausea, is an indication of being overcome by exhaust. Shut the engine off immediately if this occurs.

Fuel Hazards
WARNING! Avoid serious injury or death. Always use approved fuel containers and/or fuel dispensing equipment to reduce the risk of explosion or fire.
Always observe these practices to reduce the possibility of a serious accident: � Shut off engine and ignition during refueling. � Turn off all electrical switches. � Ground the fuel nozzle against the filler neck. � Keep sparks and open flames away from fuel. Do
not smoke while refueling or when handling fuel containers. � Do not cut or weld on or near fuel lines, tanks or containers. � Do not overfill the tank or spill fuel. Clean up spilled fuel immediately. Clean spills immediately.
No smoking and no open flames

Perform Maintenance Safely

Ultra-Low Sulfur Diesel (ULSD) Hazard
WARNING! Ultra-Low Sulfur Diesel (ULSD) poses a greater static ignition hazard than earlier diesel formulations with higher sulfur content. Avoid death or serious injury from fire or explosion; consult with your fuel or fuel system supplier to ensure the delivery system is in compliance with fueling standards for proper grounding and bonding practices.
Engine Coolant Hazards
WARNING! Avoid serious injury or death. Liquid cooling systems build up pressure as the engine gets hot, so use extreme caution before removing the radiator cap. � Stop the engine and wait for the system to cool. � Wear protective clothing and safety glasses. � Turn the radiator cap slowly to the first stop to allow
the pressure to escape before removing completely.

Engine Coolant Hazards (cont.) CAUTION! Before replacing engine coolant, refer to
the manufacturer's operating manual(s) for direction. Using incorrect coolant type may cause overheating and increase safety risks.
Hydraulic System Hazards Be sure to follow manufacturer's instructions for relieving fluid pressure before performing any maintenance. The hydraulic system is pressurized whenever the engine is on and may hold pressure even after the engine is shut off. Cycle hydraulic controls, including auxiliary hydraulic control (if equipped), after the engine is shut off.
Check for leaks and inspect
hoses

Allow radiator to cool before removing cap
slowly
27

Perform Maintenance Safely

Hydraulic System Hazards (cont.)
During inspection of the hydraulic system: � Wait for fluid to cool before disconnecting the lines
Hot hydraulic fluid can cause severe burns. � Wear appropriate eye protection. Hydraulic fluid can
cause permanent eye injury. � When venting or filling the hydraulic system, loosen
the filler cap slowly and remove it gradually. � Never reset any relief valve in the hydraulic system
to a pressure higher than recommended by the manufacturer.
Hydraulic Fluid Injection Hazard
WARNING! Accidental injection of pressurized fluid into the hands or body is dangerous and could result in death or serious injury. Use caution when checking hydraulic leaks as pressurized hydraulic fluid has enough force to penetrate skin, causing serious personal injury.
If a leak is discovered: � Ensure engine is turned off; relieve pressure in
hydraulic circuit. � Wear proper hand and eye protection.
28

� Visually examine the hydraulic hoses or fluid lines in the vicinity of the leak for breaks or cracks. Do not use your hand to check for leaks.
� Repair or replace hydraulic lines according to the manufacturer's recommendations.
Fluid injection injuries are not always obvious. Victims have reported such injuries feel like a bee sting or splinter under the skin. If you suspect you have a fluid injection injury, do not take chances. Seek proper medical care immediately. If any fluid is injected into the skin, it must be surgically removed within a few hours by a doctor familiar with this type of injury.
Wear eye protection
Pressurized fluid can inject into the body

Perform Maintenance Safely

Battery Hazards
The liquid in batteries contains acid, which is a POISON and could cause SEVERE CHEMICAL BURNS.
Avoid injury: � Wear a face shield to prevent contact with your eyes. � Wear chemical-resistant gloves and clothing to keep
electrolyte off your skin and regular clothing.
WARNING! Electrolyte will damage eyes or skin on contact. Always wear a face shield to avoid electrolyte in eyes.
If liquid from the battery contacts your eyes, flush immediately with clean water and get medical attention. Wear chemical-resistant gloves and protective clothing to keep liquid off your skin. If liquid contacts exposed skin or clothing, wash off immediately with clean water. If liquid is ingested, drink large quantities of water or milk. DO NOT induce vomiting. Seek medical attention immediately.

Wear hand protection
Wear face protection

Perform Maintenance Safely

Avoid Explosion
WARNING! Avoid serious injury from explosion. Lead-acid batteries produce extremely explosive gases especially when being charged. Keep arcs, sparks, flames and lighted tobacco away.
� Do not smoke near batteries. � Keep them away from arcs, sparks and open flames. � Provide adequate ventilation.
Never check the battery by placing a metal object across the battery posts. The resulting spark could cause an explosion.
WARNING! Avoid serious injury from battery explosion. Do not charge a battery or jump-start the engine if the battery is frozen.
Warm to 60�F (15.6�C) or the battery may explode and could cause serious injury.
Safety rules during battery jump-starting: � Follow the instructions for proper battery jump-
starting, as specified in the manufacturer's manual(s). � Be sure the machines are not touching. � Adhere to the polarity of the batteries and
connections.
30

� Make the final cable connection to the engine or the farthest ground point away from the battery. Never make the final connection at the starter or dead battery. Sparks may ignite the explosive gases present at the battery.
� When disconnecting cables, remove the cables in reverse order of connection (e.g., final connection first).
Avoid sparks and open flames
near batteries
When jump-starting, observe polarity and
make final connection at ground point

Perform Maintenance Safely

Complete Service and Repairs Before Machine is Released
Tighten all bolts, fittings, and connections to torques specified by the manufacturer. Inspect for leftover components such as cotter pins, washers, locknuts, etc. after completing service. Replace any missing parts.
Pressurized fluid can inject into the body

Recheck all fluid levels before releasing the equipment for operation.
All parts should be inspected during repair and replaced if worn, cracked or damaged. Excessively worn or damaged parts could fail and cause injury or death.
Install all guards, covers, and shields after servicing. Refill and recharge pressure systems only with manufacturer-approved or recommended fluids.

Start the engine and check for leaks. (See page 27, Hydraulic System Hazards.) Operate all controls to make sure the machine is functioning properly. Test the machine if necessary. After testing, shut down and check the work you performed.

Verify service work when completed

Notes

Notes
33
Notes
34

Final Word to the User
You have just finished reading the AEM Concrete Power Trowel Safety Manual. It is impossible for this manual to cover every safety situation that you may encounter on a daily basis. Your knowledge of these safety precautions and your application to the basic rules of safety will help to build good judgment in all situations. Our objective is to help you develop, establish, and maintain good safety habits to make operating a concrete power trowel easier and safer for you.
Many pictorials in this safety manual can be downloaded at http://pictorials.aem.org. For additional publications, visit our website at www.safetymaterials.org.
35
This manual is one in a series on the safe operation of machinery, published by AEM.
FORM PT-0416 06/17

CRT48
14 Schematics
Notes

Schematics

wc_tx004197gb_FM10.fm

113

Schematics
14.1 Electrical Schematic--CRT48-37V

21 FUSE RELAY

234

6 7 8 11 12 15 16

27 28

35 36 37 38 39 40 41 46 47 48

ENGINE 65432

WATER PUMP

CRT48

BATTERY POS+

38 RD 39 RD 29 RD 61 RD 21 PK 49 RD 63 RD 55 RD 59 RD 52 RD 56 BR 57 RD 58 RD 22 PK 25 BU 27 BK 54 BR 55 RD 5 BR 34 PK 48 RD 51 PK

35 BR 28 BK 9 BR 33 PK 32 RD 12 BR 37 PU

40 RD

61 RD

3 29 RD

1 18 PK

KEY 5 SWITCH 2

32 RD 26 BK

4 31 PK

HOUR METER

19 PK

OIL PRESSURE LIGHT GROUND

35 BR

OIL PRESSURE LIGHT POWER

20 PU

5 HOUR METER GRND

1 BR

KEY SWITCH

2 BR

SP 1

59 RD 58 RD

28 BK

26 BK

SP 3
22 PK 21 PK 18 PK 19 PK

SP 4

25 BU

SP 2

24 BU

23 BU

27 BK 51 PK

32 RD 31 PK

34 PK
32 RD 31 PK

33 PK SP 6

57 RD 52 RD 49 RD

40 RD SP 5

13 WH SP 7 14 WH
15 WH

16 WH

17 WH

37 PU 38 RD

SPRAY SWITCH

39 RD 17 WH

16 LIGHT SWITCH

8 BR 48 RD 42 BR 10 BR 15 WH 11 BR 16 WH

6 BR 13 WH 7 BR 14 WH

4 BR 24 BU

3 BR 23 BU 63 RD

OPERATOR SEAT
7

POWER STEER

OPERATOR THROTTLE

LIGHT RT FRONT

LIGHT RT REAR

114

GRND TO FRAME

OIL COOLER

LIGHT LT REAR

LIGHT LT FRONT

5100024738-05
wc_tx004197gb_FM10.fm

CRT48
14.2 Electrical Schematic Components--CRT48-37V

Ref. Description 1 Key switch 2 Hour meter 3 Oil pressure light ground 4 Oil pressure light power 5 Hour meter ground 6 Key switch ground 7 Operator seat 8 Power steer 9 Operator throttle 10 Light RT front 11 Light RT rear

Ref. Description 12 Ground to frame 13 Oil cooler 14 Light LT rear 15 Light LT front 16 Light switch 17 Spray switch 18 Water pump 19 Engine 20 Battery positive 21 Fuse relay ----

14.3 Fuse/Relay Box Layout

432 1

8 ABC

16 E F G H 13

28 (30) (85)

32 J (87A)

36 (86) (87)

40 (30) (85) (30) (85) 37

44 L (87A) M (87A) 41 (86) (87) (86) (87)

48 47 46 45

wc_gr014076

Position Description

Key 20 amp

Lights 15 amp

Water pump

Oil cooler

Power steer harness

Spare 15

Spare 5

Auxiliary relay

Oil cooler relay

Operator presence relay

Schematics

BLK GRN BLU

Black Green Blue

RED TAN VIO

Red Tan Violet

Wire Colors WHT YEL GRY

White Yellow Gray

ORG BRN PNK

Orange Brown Pink

wc_tx004197gb_FM10.fm

115

wc_gr011910
wc_tx004197gb_FM10.fm

116

29 4 28
13

PACKARD WEATHERPACK
BRN # 13 PNK # 14
PACKARD WEATHERPACK
BRN # 12 PNK # 15

#35 12 VOLT + GLOW PLUG LIGHT GROUND
12V + KEY START CAV 5 KEY RUN 12V+CAV 2 POWER IN ALT B+ CAV 3

WHT # 38 BLK # 25

PNK # 19 BRN # 11
PNK # 20

RED # 2

BRN # 7 BLU # 22
RED # 39 PNK # 40
BRN # 8 BLU # 23

OIL PRESSURE LIGHT ALTERNATOR LIGHT COOLANT TEMP LIGHT

PNK # 34
RED # 42 WORK LIGHTS 12V PRPL # 36 OIL PRESSURE LIGHT
YEL # 43 ALTERNATOR LIGHT ORG # 44 COOLANT TEMP LIGHT PNK # 16 LIGHT SWITCH OUTPUT
PACKARD WEATHERPACK
BRN # 9 PNK # 17
PACKARD WEATHERPACK
BRN # 10 PNK # 18

21 23

RED # 3 PNK # 47
BLU # 41 CAV # 2 ORG # 44 CAV # 1

2
PRPL # 36

PNK # 37 BRN # 52

INTERNAL

PNK # 21

12V+

25 11 12

RED

BLK #26

BLK # 27 WHT # 38 BRN # 5 BLU # 41

XXX
XXX CSOTAORLTAENRTX X X SENSOR

RED # 48

STARTER SOLENOID

KEY SWITCH TERMINAL

RED # 49

RING # 10

GLOW PLUG

26
GROUND
GLOW PLUG LIGHT

PNK # 32 350mm (30)

BLU # 24 (85)

PNK # 37 (87)

(86)

PNK # 51 JUMPER (87)

PNK # 40 BRN # 6

27 15

BROWN 13

TO
STARTER
+1 -

52 6 8 10 12

BROWN BROWN

BROWN

BROWN BROWN

BROWN

Schematics
14.4 Electrical Schematic--CRT48-35L

CRT48

CRT48
14.5 Electrical Schematic Components--CRT48-35L

Ref. Description 1 Battery 2 Oil pressure switch (dual circuit) 3 Key switch 4 Oil pressure indicator light 5 Operator presence switch (normally open) 6 Throttle sense switch (normally closed) 7 Right front light 8 Right rear light 9 Left rear light 10 Left front light 11 Fuse--spray system 12 Fuse--light circuit 13 Light switch 14 Spray pump switch 15 Spray pump motor

Ref. Description 16 Fuel cut-off solenoid 17 Starter motor 18 Engine crank solenoid 19 Glow plug fuse 20 Relay--safety system
21 Voltage regulator
22 Alternator 23 Glow plug temperature sensors 24 Glow plugs 25 Keyed power fuse 26 Glow plug relay 27 12V+ to Power Steer Circuit 28 Alternator light 29 Coolant temperature light ----

BLK GRN BLU

Black Green Blue

RED TAN VIO

Red Tan Violet

Wire Colors WHT YEL GRY

White Yellow Gray

ORG BRN PNK

Orange Brown Pink

wc_tx004197gb_FM10.fm

117

Schematics

14.6 Electrical Schematic--CRT48-57K

Note: The machine may or may not have Item 32 and the "Alt B" connection.

29 28

CRT48

20
30 19

5200036154 _01

118

wc_tx004197gb_FM10.fm

CRT48
14.7 Electrical Schematic Components--CRT48-57K

Ref. Description 1 Ground 2 Light, right rear 3 Light, right front 4 Fuel pump 5 Fuel pressure manifold 6 Fuel pressure engine 7 Pedal sensor 8 Key switch 9 Hour meter 10 Sprayer switch 11 Power steer power 12 Power in lights 13 Malfunction Indicator Light (MIL) (Check engine light) 14 Charge alternator 15 Light, oil pressure 16 Coolant temperature
14.8 Fuse/Relay Box Layout

Ref. Description 17 Light switch 18 Light, left front 19 Light, left rear 20 Sprayer pump 21 Power from starter 22 40A fuse 23 Seat switch 24 Vehicle connection 2 25 Vehicle connection 1 26 Fuse / relay box 27 Splice #4, fuse 28 Splice, common ground 29 Splice #3, key run power
30 Splice #1, work light power 31 Splice #2, battery power 32 Fuse box, engine

432 1

ABCD

12 16

9 13

40 (30) (85) (30) (85) 37

44 G

F 41

(86) (87) (86) (87)

48 47 46 45

wc_gr012980

Position Description

Work lights 25A fuse

Water pump 5A fuse

Light cluster 5A fuse

Operator presence 15A fuse

Power steer power 10A fuse

Operator presence relay

Work light relay

wc_tx004197gb_FM10.fm

119

Schematics

Wire Colors

Black

RD Red

Yellow

OR Orange

GN Green

Tan

BR Brown

Purple

Blue

VIO Violet

CL Clear

SH Shield

Pink

WH White

GY Gray

Lt. blue

Important: For spare parts information, please see your Wacker Neuson Dealer, or visit the Wacker Neuson website at http://www.wackerneuson.com/.
Wichtig! Informationen �ber Ersatzteile erhalten Sie von Ihrem Wacker Neuson H�ndler oder besuchen Sie die Wacker Neuson Website unter http://www.wackerneuson.com/.
Important : Pour des informations sur les pi�ces d�tach�es, merci de consulter votre distributeur Wacker Neuson, ou de visiter le site Internet de Wacker Neuson sur http://www.wackerneuson.com/. Importante : Para saber m�s sobre las piezas de repuesto, p�ngase en contacto con su distribuidor de Wacker Neuson o acceda al sitio web de Wacker Neuson en http://www.wackerneuson.com/. Importante : Per informazioni sui pezzi di ricambio, contattare il rivenditore Wacker Neuson o visitare il sito di Wacker Neuson all'indirizzo www.wackerneuson.com. Viktigt : F�r information om reservdelar, kontakta din Wacker Neuson-leverant�r eller bes�k Wacker Neusons webbplats p� http://www.wackerneuson.com/. T�rke�� : Pyyd� varaosatietoja Wacker Neusonin j�lleenmyyj�lt� tai vieraile Wacker Neusonin web-sivustolla osoitteessa http://www.wackerneuson.com/ Viktig : For informasjon om reservedeler, vennligst kontakt din Wacker Neuson-forhandler, eller bes�k Wacker Neusons nettside p� http://www.wackerneuson.com/. Vigtigt : Hvis du �nsker oplysninger om reservedele, bedes du kontakte din Wacker Neuson forhandler eller bes�g Wacker Neuson websiden p� http://www.wackerneuson.com/. Belangrijk! Neem contact op met uw Wacker Neuson dealer of bezoek de website van Wacker Neuson op http://www.wackerneuson.com/ voor meer informatie over reserveonderdelen. Importante : Para obter informa�es sobre as pe�as sobresselentes, consulte o seu fornecedor da Wacker Neuson ou aceda ao site Web da Wacker Neuson em http://www.wackerneuson.com Wane : W celu uzyskania informacji na temat czci zamiennych skontaktuj si z przedstawicielem firmy Wacker Neuson lub skorzystaj z witryny internetowej http://wackerneuson.com/. Dlezit� upozornn�! Pro informace o n�hradn�ch d�lech, pros�m, kontaktujte sv�ho Wacker Neuson dealera, nebo navstivte webov� str�nky http://www.wackerneuson.com/. FONTOS: A p�talkatr�szekre vonatkoz� inform�ci�k�rt k�rj�k, forduljon Wacker Neuson kereskedj�hez vagy l�togasson el a Wacker Neuson weboldal�ra a k�vetkez c�men: http://www.wackerneuson.com/. ! , , Wacker Neuson - http://www.wackerneuson.com/.
: , Wacker Neuson, http://www.wackerneuson.com/.
Vazno : Za rezervne dijelove obratite se svom Wacker Neuson prodavacu ili posjetite mrezne stranice tvrtke Wacker Neuson: http://www.wackerneuson.com/. �nemli : Yedek par�a bilgileri i�in Wacker Neuson Bayinize bakin veya Wacker Neuson web sitesini ziyaret edin. http://www.wackerneuson.com/
http://www.wackerneuson.com/
http://www.wackerneuson.com/ Important : Pentru informaii referitoare la piesele de schimb, v rugm s v adresai distribuitorului Wacker Neuson sau s vizitai site-ul web Wacker Neuson la adresa http://www.wackerneuson.com/. : , , Wacker Neuson Wacker Neuson http://www.wackerneuson.com/.
Wacker Neuson Produktion GmbH & Co. KG, Preu�enstra�e 41, D-80809 M�nchen, Tel.: +49-(0)89-3 54 02-0 Fax: +49 - (0)89-3 54 02-390
Wacker Neuson Production Americas LLC, N92W15000 Anthony Ave., Menomonee Falls, WI. 53051 Tel.: (262) 255-0500 Fax: (262) 255-0550 Tel.: (800) 770-0957
Wacker Neuson Limited - Room 1701�03 & 1717�20, 17/F. Tower 1, Grand Century Place, 193 Prince Edward Road West, Mongkok, Kowloon, Hongkong. Tel: (852) 3605 5360, Fax: (852) 2758 0032

� Copyright 2019 by Wacker Neuson Production Americas LLC All rights, including copying and distribution rights, are reserved. This publication may be photocopied by the original purchaser of the machine. Any other type of reproduction is prohibited without express written permission from Wacker Neuson Production Americas LLC. Any type of reproduction or distribution not authorized by Wacker Neuson Production Americas LLC represents an infringement of valid copyrights. Violators will be prosecuted.
All trademarks referenced in this manual are the property of their respective owners.
Wacker Neuson Production Americas LLC N92W15000 Anthony Avenue Menomonee Falls, WI 53051 U.S.A. Tel: (262) 255-0500 � Fax: (262) 255-0550 � Tel: (800) 770-0957 www.wackerneuson.com
This Operator's Manual presents the original instructions. The original language of this Operator's Manual is American English.
