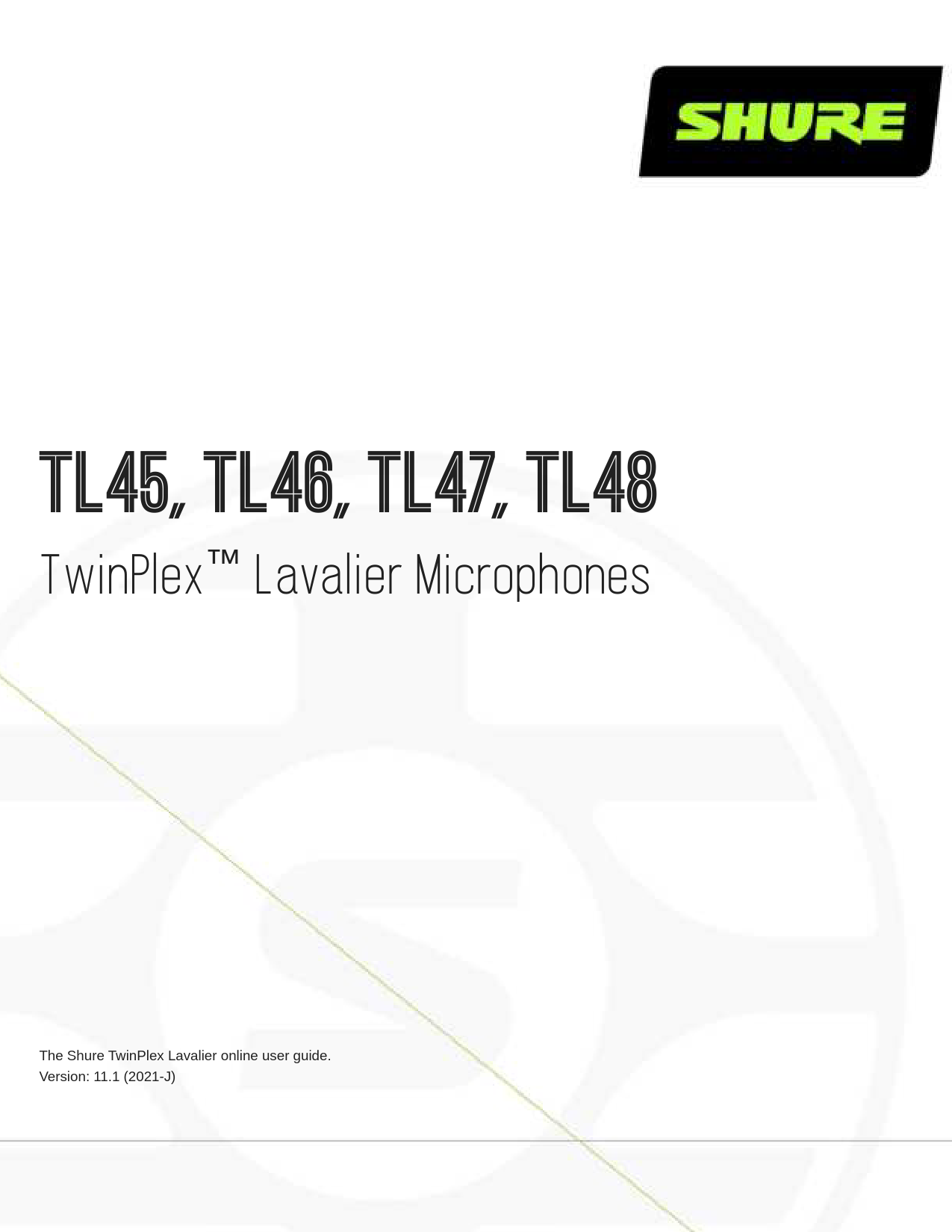

SHURE TL45 TwinPlex Lavalier Microphones User Guide
File info: application/pdf · 20 pages · 1.59MB
TL45, TL46, TL47, TL48
TL45, TL46, TL47, TL48 - pubs-staging.shure.com
TL45, TL46, TL47, TL48 TwinPlex™ Lavalier Microphones The Shure TwinPlex Lavalier online user guide. Version: 11 (2019-I)
TL45, TL46, TL47, TL48 TwinPlex™ Lavalier Microphones General Description. Shure Incorporated. The Shure TwinPlex subminiature omnidirectional lavaliers are designed to.. View
Extracted Text
TL45, TL46, TL47, TL48 TwinPlexTM Lavalier Microphones The Shure TwinPlex Lavalier online user guide. Version: 11.1 (2021-J) Shure Incorporated Table of Contents TL45, TL46, TL47, TL48 TwinPlexTM Lavalier Micro phones 3 General Description 3 Features 3 Model Variations 4 The Shure TwinPlex Cartridge 5 Care and Maintenance 5 TwinPlex Accessories Quick Start 5 Frequency Caps 6 Attaching the Windscreen 6 Lavalier Standoff 7 Tie Clip 7 Dual Tie Clip 7 Vampire Clip 7 Sticky Mount 8 Sticky Vampire Clip 8 Lavalier Distance 8 Threaded Mount Instructions 8 Accessories 8 Replacement Parts 9 Furnished Accessories 9 Optional Accessories 10 Wiring and Termination 10 Typical Wiring Table 10 Converting LEMO to TA4F 11 TA5F Wiring for Lectrosonics Bodypacks (Servo Biased Wiring) 12 Hirose Wiring for Sony Bodypacks 13 MTQG Connector Assembly 14 RPM400 Preamplifiers 15 Features 15 Preamplifier Mounting Kit 15 Specifications 15 Frequency Response 19 Certifications 20 2/20 TL45, TL46, TL47, TL48 TwinPlexTM Lavalier Microphones General Description Shure Incorporated The Shure TwinPlex subminiature omnidirectional lavaliers are designed to perform better than other 5 mm lavalier micro phones for professional theater, film, tv, and corporate events. The TwinPlex dual-diaphragm technology yields extraordinary gainbeforefeedback, offaxis response, and low selfnoise while delivering lifelike, exceptional clarity free of digital interfer ence. The cable itself is ultra quiet and has been tested to be the longest-lasting, most dependable cable in its class. The Twin Plex series features the most extensive accessories and connector options to date. TwinPlex 5 mm lavs not only meet premi um market-leading expectations, they exceed them. Features � Exceptional sound quality from the all new TwinPlex dual-diaphragm element Robust low frequency response with flat top end Best in class specifications and dynamic range Consistent off axis response results in increased gain before feedback � Durability beyond the competition Exclusive, double helix cable technology with redundant grounding 3/20 Shure Incorporated Nanocoated frequency caps for reduced sweat out � Comprehensive accessories and microphone offerings Over 60 color, sensitivity, frequency response, and connector options available All new clips, mounts, and accessories designed on extended research and field testing � High RF immunity for use with today's digital wireless systems. � Paintable cables allow for discreet placement in professional theater applications. � Interchangeable frequency response caps offer adjustable flat or presence responses (TL45, TL46, TL47). Model Variations Shure TwinPlex lavaliers are available in a variety of connector and sensitivity levels. Model Sound Sensitivity Connector Cable Type TL45 series Natural Low LEMO 1.1mm (Paintable) TL46 series Natural High LEMO, MTQG 1.6mm (Paintable) TL47 series Natural Low LEMO, MDOT, MTQG, XLR, NC 1.6mm (Paintable) TL48 series Speech Low LEMO, MDOT, MTQG, NC 1.6mm (Paintable) Model Variations Key Series TL45 TL46 TL47 TL48 Color B: Black C: Cocoa T: Tan W: White Polar Pattern O: Omnidirectional Connector LEMO: LEMO3 body packs Accessories A: Accessories includ ed MTQG: TA4F/TQG Shure bodypacks XLR: includes XLR pre amplifier NC: no connector MDOT: MicroDot (re quires adapter) Note: Not all model variations are available. Refer to www.shure.com/twinplex for the most up to date offerings. 4/20 Shure Incorporated The Shure TwinPlex Cartridge Over 6 years in development, the patent pending, TwinPlex Omnidirectional element was designed to offer best in class sound quality and specifications of any lavalier to date. It utilizes a dual-diaphragm design with two side firing elements as opposed to a single, end fired design. By essentially doubling the surface area of the diaphragm in the same amount of space, the Twin Plex design offers robust low frequency response, exceptional off-axis consistency, increased gain-before-feedback and low handling noise, resulting in a new tier of performance for 5mm microphones. Diaphragm Assembly Spacer Washer Backplate Assembly Contact Spacer Nest PCB TwinPlex cartridge exploded view Care and Maintenance The TwinPlex lavalier dual-diaphragm has a nanocoating which rejects the build-up of grit from sweat and water. It is designed to withstand being blown out with a can of air for quick clean-up. 5/20 TwinPlex Accessories Quick Start Frequency Caps TL45 / TL46 / TL47 TL48 Attaching the Windscreen Shure Incorporated 6/20 Lavalier Standoff Tie Clip Dual Tie Clip Vampire Clip Shure Incorporated 7/20 Sticky Mount Sticky Vampire Clip Lavalier Distance Threaded Mount Instructions Shure Incorporated 8/20 Shure Incorporated Accessories Replacement Parts MTQG/TA4F 4-pin Connector (Shure� Bodypacks) Neutrik MTQG 5-pin Connector Kit (Lectrosonics� Bodypacks) TL45 Lemo Connector for 1.1mm cables TL46/47/48/TH53 Lemo Connector for 1.6mm cables WA430 WA435 WA411 WA416 MicroDot adapters for -MDOT versions MicroDot to LEMO 3 Pin for Shure� and Sennheiser� Bodypacks MicroDot to TA4F/TQG for (Shure� Bodypacks) MicroDot to TA5F/TQG (Lectrosonics� Bodypacks) Furnished Accessories MD40LEMO MD40TA4F MD40TA5F -A Series Frequency Caps, Flat Response* RPM40FC Frequency Caps, Presence Response* RPM40PC Single Tie Clip RPM40STC Dual Tie Clip RPM40TC Standoff for Clips RPM40SO Vampire Mount RPM40VM Sticky Vampire Mount RPM40SVM Foam Windscreen RPM40WS Clear Sticky Mount RPM40SM Sticky Mount Adhesives (15 Pieces) RPM40TS Sticky Mount Adhesives (50 Pieces) RPM40TS/50 Neutrik Threaded Shell for WA430/WA435 WA445 Storage Case RPM40CASE *Not furnished with TL48 Accessories are available in Black (/B), Tan (/T), Cocoa (/C), White (/W), and Mixed (/M) color varieties. Please consult your Shure representative for available options. 9/20 -XLR Series TA4F/TQG XLR Preamplifier Lemo XLR Preamplifier Belt Clip for XLR Preamplifier Mounting Kit for XLR Preamplifier Optional Accessories Magnet Mount Rycote� Mini-WindJammer (Gray) Accessory Kit for TL Microphones Magnet Mount is available in Black (/B) and White (/W) options. Note: Optional accessories are not furnished with -A models. Shure Incorporated RPM400TQG RPM400LEMO RPM40PRECLIP RPM40PREMNT RPM40MM RPM40MWJ RPM40KIT Wiring and Termination Typical Wiring Table Series Cable Con struc tion Electri cal De sign Polari ty Re place ment Con nector For Use With Wiring Line Art (From Solder Side) TL45LEMO 1.1mm cable with single con ductor and shield 2-Wire (Com mon Source) Nega tive with re spect to ground WA411 Shure Lemo Bodypacks (AD1/ADX1Lemo, Shure UR1MLemo, ULXD1Lemo), Sennheiser SK5212, Lectrosonics SSM, and others Red wire: Audio/ Bias(3) Shield: Ground(1) TL46MTQG, TL47MTQG, TL48MTQG 1.6mm cable with 2 con duc tors, 2 3-Wire (Source Follow er) Posi tive with re spect WA430 All Shure TA4F Body packs Red wire: Bias(2) Blue wire: Audio(3) Shield wire: Ground(1) 10/20 Shure Incorporated Series Cable Con struc tion shield wires and shield Electri cal De sign Polari ty Re place ment Con nector to ground For Use With Wiring Line Art (From Solder Side) Shield: Ground (Shell) TL46LEMO, TL47LEMO, TL48LEMO 1.6mm cable with 2 con duc tors, 2 shield wires and shield 2-Wire (Com mon Source) Nega tive with re spect to ground WA416 Shure Lemo bodypacks (ADX1Lemo, Shure UR1MLemo, ULXD1Lemo), Sennheiser SK5212, Lectrosonics SSM, and others Red wire: Audio/ Bias(3) Blue wire: Not con nected Shield wire: Ground(1) TL47NC, TL48NC 1.6mm cable with 2 con duc tors, 2 shield wires and shield 2-Wire (Com mon Source) Nega tive with re spect to ground LEMO: WA416, Shure TQG/ TA4F: WA430, Lec troson ics TA5F: WA435 Termination Dependent Red wire: Audio/Bias Blue wire: Not con nected Shield wire: Ground Shield: Ground (Shell) Converting LEMO to TA4F Series Cable Con struc tion Electri cal De sign Polari ty Re place ment Con nector For Use With Wiring TL45LEMO 1.1mm cable with single con ductor and shield 2-Wire (Com mon Source) Nega tive with re spect to ground Shure TQG/ TA4F: WA430 Termination Dependent Shield: Ground(1) Red wire: Audio/ Bias(3) 8.25k Resistor be tween pin 2 and 3 Line Art (From Solder Side) 11/20 Shure Incorporated Series Cable Con struc tion Electri cal De sign Polari ty Re place ment Con nector For Use With Wiring Line Art (From Solder Side) Shield: Ground(Shell) TL46LEMO, TL47LEMO, TL48LEMO 1.6mm cable with 2 con duc tors, 2 shield wires and shield 2-Wire (Com mon Source) Nega tive with re spect to ground Shure TQG/ TA4F: WA430 Termination Dependent Shield wire: Ground(1) Red wire: Audio/ Bias(3) Blue wire: Not con nected 8.25k Resistor be tween pin 2 and 3 Shield: Ground(Shell) TA5F Wiring for Lectrosonics Bodypacks (Servo Biased Wiring) Series Cable Con struc tion Electri cal De sign Polari ty Re place ment Con nector For Use With Wiring Line Art (From Solder Side) TL46MTQG, TL47MTQG, TL48MTQG 1.6mm cable with 2 con duc tors, 2 shield wires and shield 3-Wire (Source Follow er) Posi tive with re spect to ground WA435 Lectrosonics TA5F body packs Red wire: Bias(3) Blue wire: Audio(5) Shield wire: Ground(1) Shield: Ground(Shell) Jumper between 2 and 4 TL46LEMO, TL47LEMO, TL48LEMO, TL47NC, TL48NC 1.6mm cable with 2 con duc tors, 2 shield wires and shield 2-Wire (Com mon Source) Nega tive with re spect to ground WA435 Lectrosonics TA5F body packs Red wire: Audio/ Bias(3) Blue wire: Not con nected Shield wire: Ground(1) Shield: Ground(Shell) 12/20 Shure Incorporated Series Cable Con struc tion Electri cal De sign Polari ty Re place ment Con nector For Use With Wiring Line Art (From Solder Side) Jumper between 2 and 4 Hirose Wiring for Sony Bodypacks Notes: � When using TwinPlex mics with Sony Hirose 4pin bodypacks, Shure recommends purchasing Shure �MTQG versions and not �NC versions. This facilitates an easier termination due to the lack of circuitry required in Shure 3wire/MTQG TA4F products. � Due to the thin cable on TwinPlex and the large boot on Hirose connectors, heat shrink may be required to build up the ca ble under the boot where the crimp connection is made and where the cable exits the boot � The TwinPlex Microdot (-MDOT) version can be used with 4-pin Hirose adapters from DPA (DPA part # DAD6008) Series Cable Con struc tion Electri cal De sign Polari ty Replacement Connector For Use With Wiring Line Art (From Solder Side) TL45LEMO 1.1mm cable with single con ductor and shield Red wire: Audio/Bias: Into resistor and ca pacitor 2-Wire (Com mon Source) Nega tive with re spect to ground Hirose 4-pinKMC-9BPD-4P Sony Hirose Bodypacks (WRT) 1: 8.2k resistor 2: Jumper to 4 3: 1 uF capacitor (-) 4: Ground/shieldjumper to 2 Split Shield to shell Blue wire: not used TL46LEMO, TL47LEMO, TL48LEMO, TL47NC, TL48NC 1.6mm cable with 2 con duc tors, 2 shield wires and shield 2-Wire (Com mon Source) Nega tive with re spect to ground Hirose 4-pinKMC-9BPD-4P Sony Hirose Bodypacks (WRT) Red wire: Audio/Bias: Into resistor and ca pacitor 1: 8.2k resistor 2: Jumper to 4 3: 1 uF capacitor (-) 13/20 Shure Incorporated Series Cable Con struc tion Electri cal De sign Polari ty Replacement Connector For Use With Wiring Line Art (From Solder Side) 4: Ground/shieldjumper to 2 Split Shield to shell Blue wire: not used TL46MTQG, TL47MTQG, TL48MTQG 1.6mm cable with 2 con duc tors, 2 shield wires and shield 3-Wire (Source Follow er) Posi tive with re spect to ground Hirose 4-pinKMC-9BPD-4P Sony Hirose Bodypacks (WRT) 1: Red wire (Bias) 2: Blue wire (Audio) 3: Jumper to 4 4: Ground/shieldjumper to 3 Split Shield to shell MTQG Connector Assembly Note: Make sure to solder the shield to ground collar. Exploded View 14/20 Assembled View Shure Incorporated RPM400 Preamplifiers The RPM400 preamplifiers offer exceptional dynamic range utilizing an active gain circuit in a concise and small package. They are offered in two connector versions: TA4F and LEMO, which allows you to quickly take a wireless TL microphone and make it a wired solution. These preamplifiers require phantom power and can efficiently operate across a wide range of supply voltages from 12-48v. Features � Active circuit design with neutral gain mimics wireless for consistent gain output across wired or wireless applications. � High RF immunity against unwanted interference. � Short, compact design. � Belt clip and table mounting kits for easy placement for a variety of applications. Preamplifier Mounting Kit TwinPlex XLR microphones include an under table mounting kit for temporarily or permanently mounting the amplifier. It in cludes preamplifier clip, 4 screws, and premium dual lock adhesive. The mounting kit and accessories are also sold separately. Specifications TwinPlex Microphone Microphone Capsule Dual-Diaphragm, Prepolarized Condenser Polar Pattern Omnidirectional 15/20 Frequency Response 20 Hz to 20 kHz Sensitivity TL46 TL45, TL47, TL48 Self-Noise, A-Weighted, Equivalent Acoustical TL46 TL45, TL47, TL48 Signal-To-Noise Ratio[3] TL46 TL45, TL47, TL48 Output Clipping Level 3.0 dBV,1 kHz at 1% THD, typical Maximum SPL[4] TL46 TL45, TL47, TL48 Dynamic Range TL46 TL45,TL47, TL48 Microphone Current Draw 120 to 240 �A, typical Bias Voltage Recommended Operating Voltage 5 V DC Housing Molded ABS Polarity MTQG, XLR connector LEMO, NC, MDOT Cable Diameter TL45 Shure Incorporated 37.0 dBV(14.1 mV)at 1 kHz[2] 45.0 dBV(5.62 mV)at 1 kHz[2] 24.0 dB SPLA 24.5 dB SPLA 70.0 dB 69.5 dB 134.0 dB SPL,1 kHz at 1% THD, typical 142.0 dB SPL,1 kHz at 1% THD, typical 110.0 dBtypical 117.5 dBtypical Positive pressure on diaphragm produces positive voltage on pin 3 with respect to pin 1 Positive pressure on diaphragm produces negative voltage on pin 3 with respect to pin 1. 1.1 mm 16/20 Shure Incorporated TL46, TL47, TL48 Cable Length MTQG, LEMO, MDOT NC, XLR connector Net Weight with cable 12.0 g 1.6 mm 66 in. (1.67 m) 96 in. (2.43 m) (0.42 oz.) [1]All specifications measured with a 48 Vdc phantom power supply. The microphone operates at lower voltages, but with slightly decreased headroom and sensitivity. [2] 1 Pa=94 dB SPL [3]S/N ratio is the difference between 94 dB SPL and equivalent SPL of self noise, A-weighted [4]THD of microphone preamplifier when applied input signal level is equivalent to cartridge output at specified SPL RPM400 Preamplifier Output Impedance 100 Connector Three-pin professional audio (XLR), male, balanced Output Clipping Level 3.0 dBV,1 kHz at 1% THD, typical Microphone Bias 5 V DC Polarity Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3 Sensitivity TL46 into RPM400LEMO TL45, TL47, TL48 into RPM400LEMO TL46 into RPM400MTQG TL45, TL47, TL48 into RPM400MTQG Maximum SPL[4] TL46 into RPM400LEMO TL45, TL47, TL48 into RPM400LEMO 31.0 dBV(28.2 mV)at 1 kHz[2] 39.0 dBV(11.2 mV)at 1 kHz[2] 37.0 dBV(14.1 mV)at 1 kHz[2] 45.0 dBV(5.62 mV)at 1 kHz[2] 128.0 dB SPL,1 kHz at 1% THD, typical 136.0 dB SPL,1 kHz at 1% THD, typical 17/20 Shure Incorporated TL46 into RPM400MTQG 134.0 dB SPL,1 kHz at 1% THD, typical TL45, TL47, TL48 into RPM400MTQG 142.0 dB SPL,1 kHz at 1% THD, typical Dynamic Range TL46 into RPM400LEMO 104.0 dBtypical TL45, TL47, TL48 into RPM400LEMO 111.5 dBtypical TL46 into RPM400MTQG 110.0 dBtypical TL45, TL47, TL48 into RPM400MTQG 117.5 dBtypical Power Requirements MTQG 11�52 V DC[1]phantom power, 4.8 mA LEMO 11�52 V DC[1]phantom power, 5.5 mA [1]All specifications measured with a 48 Vdc phantom power supply. The microphone operates at lower voltages, but with slightly decreased headroom and sensitivity. [2] 1 Pa=94 dB SPL [3]S/N ratio is the difference between 94 dB SPL and equivalent SPL of self noise, A-weighted [4]THD of microphone preamplifier when applied input signal level is equivalent to cartridge output at specified SPL Dimensions 18/20 Shure Incorporated TL45 TL46 TL47-MTQG, TL47-MDOT, TL47LEMO TL47-XLR, TL47-NC TL48-MTQG, TL48-MDOT, TL48LEMO TL48-XLR, TL48-NC Frequency Response A B C D Cable Length Cable Diameter Microphone Length Microphone Diameter 66 in. (1.67M) 1.1MM 13.5MM 5.6MM 66 in. (1.67M) 1.6MM 13.5MM 5.6MM 66 in. (1.67M) 1.6MM 13.5MM 5.6MM 96 in. (2.43M) 1.6MM 13.5MM 5.6MM 66 in. (1.67M) 1.6MM 19MM 5.3MM 96 in. (2.43M) 1.6MM 19MM 5.3MM TL45 / TL46 / TL47 TL48 19/20 Dimensions Shure Incorporated Certifications Note: Testing is based on the use of supplied and recommended cable types. The use of other than shielded (screened) cable types may degrade EMC per formance. The CE Declaration of Conformity can be obtained from: www.shure.com/europe/compliance Authorized European representative: Shure Europe GmbH Global Compliance Jakob-Dieffenbacher-Str. 12 75031 Eppingen, Germany Phone: +49-7262-92 49 0 Email: info@shure.de www.shure.com 20/20
