3

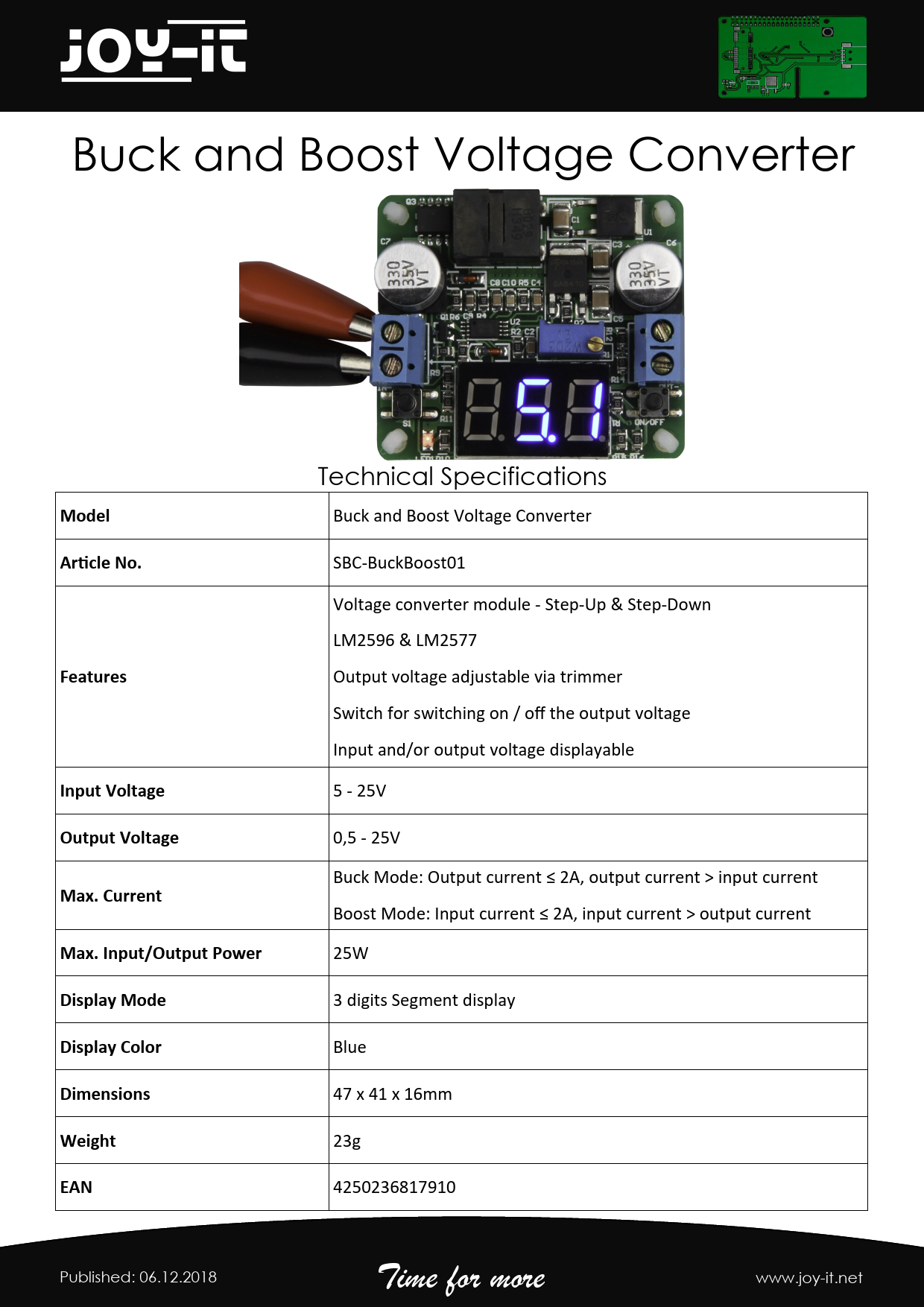

Buck and Boost Voltage Converter

Model Article No.
Features
Input Voltage Output Voltage Max. Current Max. Input/Output Power Display Mode Display Color Dimensions Weight EAN

Technical Specifications
Buck and Boost Voltage Converter SBC-BuckBoost01 Voltage converter module - Step-Up & Step-Down LM2596 & LM2577 Output voltage adjustable via trimmer Switch for switching on / off the output voltage Input and/or output voltage displayable 5 - 25V 0,5 - 25V Buck Mode: Output current  2A, output current > input current Boost Mode: Input current  2A, input current > output current 25W 3 digits Segment display Blue 47 x 41 x 16mm 23g 4250236817910

Published: 06.12.2018
