cs-1900p en- 2415 1

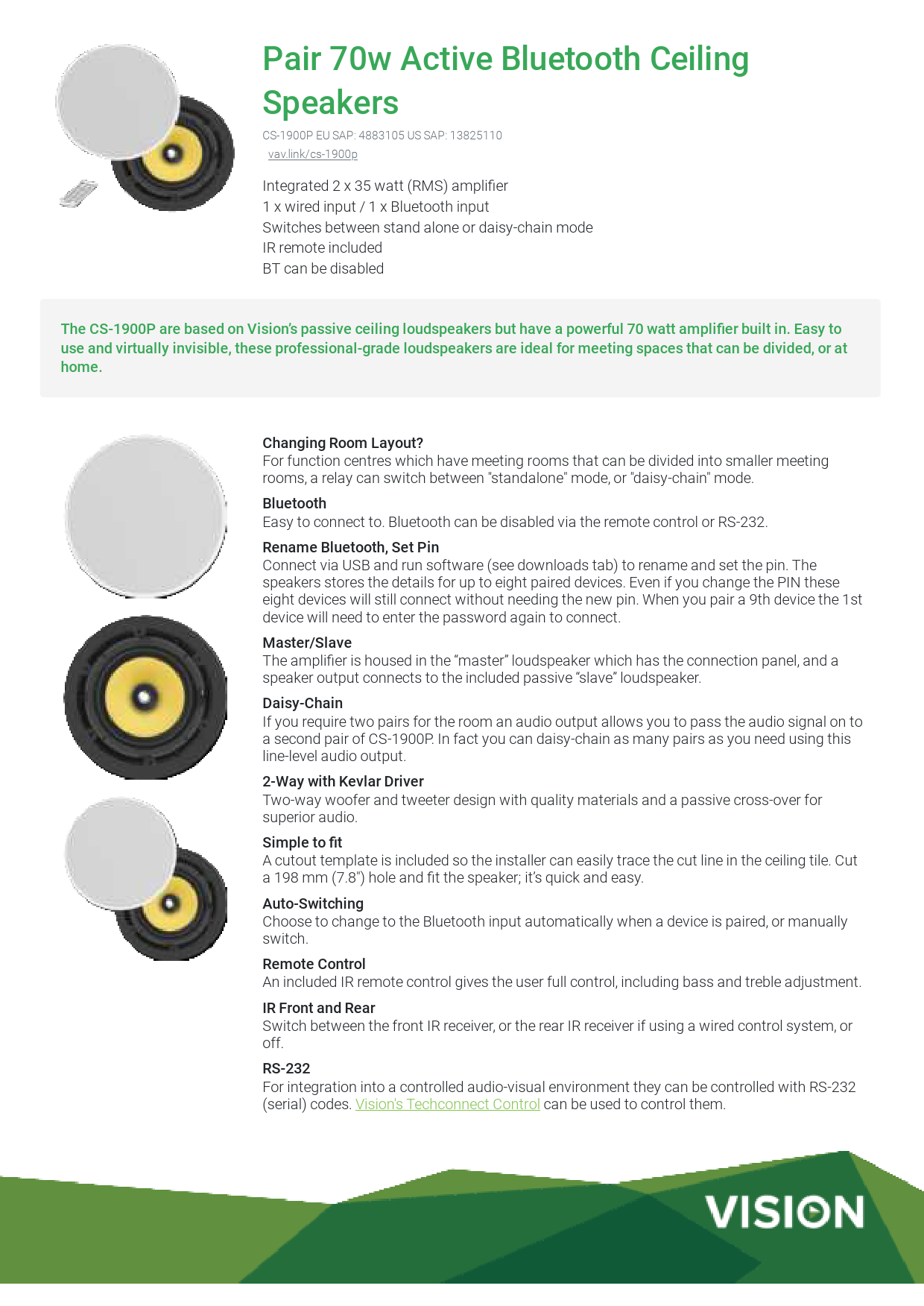

Pair 70w Active Bluetooth Ceiling
Speakers
CS-1900P EU SAP: 4883105 US SAP: 13825110 vav.link/cs-1900p
Integrated 2 x 35 watt (RMS) ampli er 1 x wired input / 1 x Bluetooth input Switches between stand alone or daisy-chain mode IR remote included BT can be disabled
The CS-1900P are based on Vision's passive ceiling loudspeakers but have a powerful 70 watt ampli er built in. Easy to use and virtually invisible, these professional-grade loudspeakers are ideal for meeting spaces that can be divided, or at home.
Changing Room Layout? For function centres which have meeting rooms that can be divided into smaller meeting rooms, a relay can switch between "standalone" mode, or "daisy-chain" mode.
Bluetooth Easy to connect to. Bluetooth can be disabled via the remote control or RS-232.
Rename Bluetooth, Set Pin Connect via USB and run software (see downloads tab) to rename and set the pin. The speakers stores the details for up to eight paired devices. Even if you change the PIN these eight devices will still connect without needing the new pin. When you pair a 9th device the 1st device will need to enter the password again to connect.
Master/Slave The ampli er is housed in the "master" loudspeaker which has the connection panel, and a speaker output connects to the included passive "slave" loudspeaker.
Daisy-Chain If you require two pairs for the room an audio output allows you to pass the audio signal on to a second pair of CS-1900P. In fact you can daisy-chain as many pairs as you need using this line-level audio output.
2-Way with Kevlar Driver Two-way woofer and tweeter design with quality materials and a passive cross-over for superior audio.
Simple to t A cutout template is included so the installer can easily trace the cut line in the ceiling tile. Cut a 198 mm (7.8) hole and t the speaker; it's quick and easy.
Auto-Switching Choose to change to the Bluetooth input automatically when a device is paired, or manually switch.
Remote Control An included IR remote control gives the user full control, including bass and treble adjustment.
IR Front and Rear Switch between the front IR receiver, or the rear IR receiver if using a wired control system, or off.
RS-232 For integration into a controlled audio-visual environment they can be controlled with RS-232 (serial) codes. Vision's Techconnect Control can be used to control them.

Memory When power is turned on at the wall the CS-1900P automatically turn on and resumes the previous input and volume setting.
Auto-Standby If the ampli er senses no input for ten minutes it will automatically go into standby mode.
Bluetooth device NOT PAIRED when it goes into standby: they will wake up when you pair a device or play audio though the line-level input. Bluetooth device PAIRED when it goes into standby: if the BT input was selected only the Bluetooth source will wake them up. If the line-level input was selected only a line-level input will wake them up.
Automatic standby can be disabled with the remote control.
Magnetic Grille The bezel-less grille clips into place once the speakers are secured.

MANUAL
Manual en
EN PDF 3.16 MB
les.visionaudiovisual.com/products/CS-1900P/manuals/CS-1900P_manual_en.pdf
SOFTWARE
InstallBlueSuite 2 6 4 1046
ZIP 25.81 MB
les.visionaudiovisual.com/products/CS-1900P/software/InstallBlueSuite_2_6_4_1046.zip
FIRMWARE
Firmware
ZIP 6.29 MB
les.visionaudiovisual.com/products/CS-1900P/ rmware/CS-1900P_ rmware.zip
Firmware 070920
ZIP 6.95 MB
les.visionaudiovisual.com/products/CS-1900P/ rmware/CS-1900P_ rmware_070920.zip
Product Images
ZIP 26.59 MB
les.visionaudiovisual.com/products/CS-1900P/images/CS-1900P.zip
Menu
PNG 1.14 MB
les.visionaudiovisual.com/products/CS-1900P/images/CS-1900P_menu.png
Product Images
PNG 4.75 MB
les.visionaudiovisual.com/products/CS-1900P/images/CS-1900P.png
Grille
PNG 4.03 MB
les.visionaudiovisual.com/products/CS-1900P/images/CS-1900P_grille.png
No grille
PNG 4.20 MB
les.visionaudiovisual.com/products/CS-1900P/images/CS-1900P_no_grille.png
No remote
PNG 4.62 MB
les.visionaudiovisual.com/products/CS-1900P/images/CS-1900P_no_remote.png
Master side
PNG 340.84 KB
les.visionaudiovisual.com/products/CS-1900P/images/CS-1900P_master_side-.png
Remote
PNG 44.30 KB
les.visionaudiovisual.com/products/CS-1900P/images/CS-1900P_remote.png
Side
PNG 6.54 MB
les.visionaudiovisual.com/products/CS-1900P/images/CS-1900P_side.png
Rear master
PNG 9.65 MB
les.visionaudiovisual.com/products/CS-1900P/images/CS-1900P_rear_master.png
35277/en/2020-09-06 23:30:52/2020-09-07 00:02:59

SPECIFICATIONS
LOUDSPEAKER DIMENSIONS 232 x 95 mm/ 9.1 x 3.7 (diameter 224 mm without grille)
CUTOUT SIZE 198 mm / 7.8
CARTON DIMENSIONS 253 x 253 x 273 mm / 10.0 x 10.0 x 10.8
SPEAKER WEIGHT MASTER 1.3 kg / 2.9 lbs
SPEAKER WEIGHT SLAVE 1.2 kg / 2.7 lbs
CARTON WEIGHT 4.0 kg / 8.8 lbs (per pair)
CONSTRUCTION MATERIAL Plastic (ABS)
COLOUR White
AMPLIFIER OUTPUT 2 x 35 watts (RMS)
WOOFER 6.5 Kevlar
TWEETER 0.5 Silk
OUTPUT IMPEDANCE 8 ohms
SENSITIVITY 89 dB (1w/1m)
FREQUENCY RESPONSE 80 Hz-20 kHz
POWER CONSUMPTION  70 w
LINE-LEVEL INPUT 1 x 2-Phono and 1 x 3.5mm Minijack (summed)
SPEAKER OUTPUT Phoenix connector
DAISY-CHAIN INPUT 3.5mm Minijack
DAISY-CHAIN OUTPUT 3.5mm Minijack
SPEAKER INPUT Phoenix connector
ACCESSORIES INCLUDED 1 x Speaker Cable 5 m (16.4) long 1 x Remote Control (Battery included: CR2025 3V Li-Mn)
POWER SUPPLY 100-240v 50/60Hz AC External Power Supply ­ 24 volt / 3 amp Laptop-style transformer
INCLUDES 4 X 0.5M FIGURE-8 POWER CABLES UK/EU/US/AU
DC TAIL LENGTH 1.5m (5ft)
TRANSFORMER DIMENSIONS 120 x 52 x 32 mm / 4.72 x 2.0 x 1.2
WARRANTY Lifetime return-to-base
COMPLIANCE RoHS, CE/EMC, IEC, RCM-SDOC, RCM-POC, BT, CE-RED, FCC-BT3, FCC-BT4, REACH
ORDER PART CODE CS-1900P [EU SAP: 4883105 / US SAP: 13825110]
SPARE POWER SUPPLY UNIT (PSU) TC2 P24V3A [EU SAP: 3940953/ US SAP: 13445528]
