Document No.

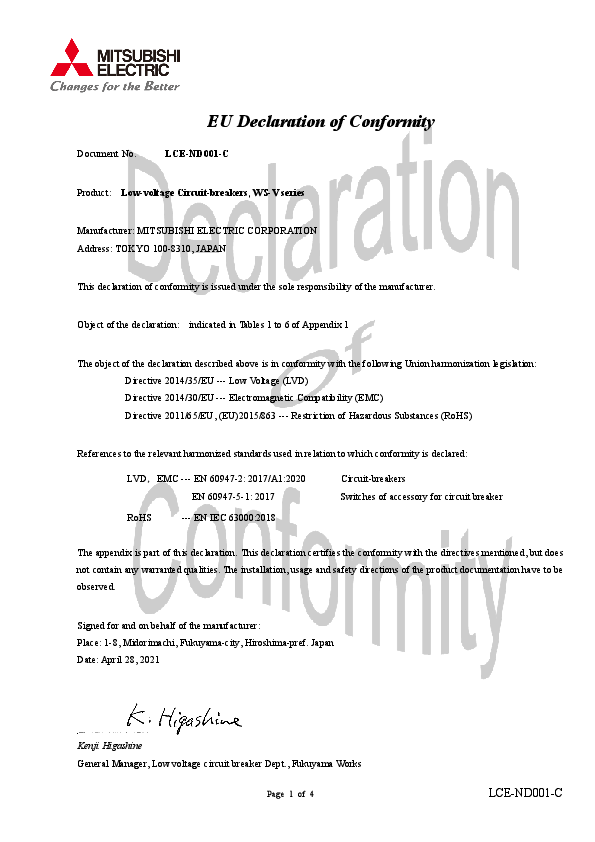

EU Declaration of Conformity
LCE-ND001-C

Product: Low-voltage Circuit-breakers, WS-V series

Manufacturer: MITSUBISHI ELECTRIC CORPORATION Address: TOKYO 100-8310, JAPAN

This declaration of conformity is issued under the sole responsibility of the manufacturer.

Object of the declaration: indicated in Tables 1 to 6 of Appendix 1

The object of the declaration described above is in conformity with the following Union harmonization legislation: Directive 2014/35/EU --- Low Voltage (LVD) Directive 2014/30/EU --- Electromagnetic Compatibility (EMC) Directive 2011/65/EU, (EU)2015/863 --- Restriction of Hazardous Substances (RoHS)

References to the relevant harmonized standards used in relation to which conformity is declared:

LVDEMC --- EN 60947-2: 2017/A1:2020 EN 60947-5-1: 2017

RoHS

--- EN IEC 63000:2018

Circuit-breakers Switches of accessory for circuit breaker

The appendix is part of this declaration. This declaration certifies the conformity with the directives mentioned, but does not contain any warranted qualities. The installation, usage and safety directions of the product documentation have to be observed.

Signed for and on behalf of the manufacturer: Place: 1-8, Midorimachi, Fukuyama-city, Hiroshima-pref. Japan Date: April 28, 2021

___________________________________________ Kenji Higashine General Manager, Low voltage circuit breaker Dept., Fukuyama Works
Page 1 of 4

LCE-ND001-C

Appendix 1

Low-voltage Circuit-breakers WS-V series

Products:

Table 1 WS-V NF series

Model of products

NF32-CVF(*1)

NF125-CVF(*1)

NF160-SGV(*1)

NF32-SVF(*1)

NF125-SVF (*1)

NF160-SXV(*1)

NF32-SV(*1)

NF125-CV(*1)

NF160-LGV(*1)

NF63-CVF(*1)

NF125-SV(*1)

NF160-LXV(*1)

NF63-SVF (*1)

NF125-SEV

NF160-HGV(*1)

NF63-CV(*1)

NF125-SGV (*1)

NF160-HXV(*1)

NF63-SV(*1)

NF125-SXV (*1)

NF63-HV(*1)

NF125-LGV (*1)

NF63-HRV(*1)

NF125-LXV(*1)

NF63-HDV(*1) (*2)

NF125-HV(*1)

NF125-HEV

NF125-HGV(*1)

NF125-HXV(*1)

NF125-RV(*1)

NF125-RGV(*1)

NF125-UV(*1)

NF125-HDVA(*1) (*3)

NF250-CV(*1) NF250-SV(*1) NF250-SEV NF250-SGV(*1) NF250-SXV(*1) NF250-LGV(*1) NF250-LXV(*1) NF250-HV(*1) NF250-HEV NF250-HGV(*1) NF250-HXV(*1) NF250-RV(*1) NF250-RGV(*1) NF250-UV(*1) NF250-HDVA(*1)

(*1) Circuit breakers not incorporating electronic circuit are not required the immunity and emission tests for

Electromagnetic Compatibility.

(*2) Rated Current 50A or less

(*3) No. of poles 4-pole

Products:
NV32-CVF NV32-SVF NV32-SV NV63-CVF NV63-SVF NV63-CV NV63-SV NV63-HV

Table 2 WS-V NV series Model of products
NV125-CVF NV125-SVF NV125-CV NV125-SV NV125-SEV NV125-HV NV125-HEV

NV250-CV NV250-SV NV250-SEV NV250-HV NV250-HEV NV250-WEV

Above products incorporating electronic circuit are required the immunity and emission tests for Electromagnetic

Compatibility. Reference standard Nos. are EN60947-2:2006/A2:2013, Annex J.2 (immunity) and J.3 (emission).

Products: NF50-SVFU

Table 3 WS-V NF-UL series

Model of products

NF100-CVFU

NF125-SVU

NF125-HVU

NF250-CVU NF250-SVU NF250-HVU

Above products not incorporating electronic circuit are not required the immunity and emission tests for Electromagnetic

Compatibility.

Page 2 of 4

LCE-ND001-C

Products: NV50-SVFU

Table 4 WS-V NV-UL series

Model of products

NV100-CVFU

NV125-SVU

NV125-HVU

NV250-CVU NV250-SVU NV250-HVU

Above products incorporating electronic circuit are required the immunity and emission tests for Electromagnetic

Compatibility. Reference standard Nos. are EN60947-2:2006/A2:2013, Annex J.2 (immunity) and J.3 (emission).

Products:
NF32-SV NF63-SV NF63-HRV
NF63-SV
NF63-CV
NF63-SVF NF63-CV NF32-SV NV63-SV NF32-SV NF63-SV NF63-HRV
NV32-SV NV63-SV NF32-SV NF63-SV NF63-HRV
NV32-SV NV63-SV NF32-SV NF63-SV NF63-HRV
NV32-SV NV63-SV

Table 5 Special purpose breakers Model of products

NF63-CV NF125-CV

NF125-SV

NF250-CV

NF63-HV NF125-HV

NF250-HV

NF125-SV
NF125-SV NF125-CV NF125-CV

NF32-SV NV63-SV NF63-CV

NF125-SV NF125-SV

NF125-SV

NF250-SV NF250-SV
NF250-CV NF250-HV NF125-SV
NF125-SV

NF63-CV NF63-HV
NV63-CV NV63-HV NF63-CV NF63-HV
NV63-CV NV63-HV NF63-CV NF63-HV
NV63-CV NV63-HV

NF125-CV NF125-SGV NF125-HV NF125-RV NF125-UV NV125-CV NV125-HV NF125-CV NF125-SGV NF125-HV NF125-RV NF125-UV NV125-CV NV125-HV NF125-CV NF125-SGV NF125-HV NF125-RV NF125-UV NV125-CV NV125-HV

NF125-SV NF125-LGV NF125-HGV NF125-RGV NF125-HDVA NV125-SV
NF125-SV NF125-LGV NF125-HGV NF125-RGV NF125-HDVA NV125-SV
NF125-SV NF125-LGV NF125-HGV NF125-RGV NF125-HDVA NV125-SV

NF250-CV NF250-SGV NF250-HV NF250-RV NF250-UV NV250-CV NV250-HV NF250-CV NF250-SGV NF250-HV NF250-RV NF250-UV NV250-CV NV250-HV NF250-CV NF250-SGV NF250-HV NF250-RV NF250-UV NV250-CV NV250-HV

NF250-SV
NF250-SV
NF250-SV NF250-LGV NF250-HGV NF250-RGV NF250-HDVA NV250-SV NF250-SV NF250-LGV NF250-HGV NF250-RGV NF250-HDVA NV250-SV NF250-SV NF250-LGV NF250-HGV NF250-RGV NF250-HDVA NV250-SV

Mag Only (Instantaneous tripping
circuit breakers) Special voltage DC
400VDC440VDC 500VDC550VDC 600VDC
Thyristor protection High-instantaneous (Transformer use) Low-instantaneous
MB (Motor protection IE1)
PR (Motor protection IE3)
Low Temp. use
Moisture-fungus treatment
Corrosion resist

Above products not incorporating electronic circuit are not required the immunity and emission tests for Electromagnetic

Compatibility.

Page 3 of 4

LCE-ND001-C

Products:

Table 6 Accessories

Kind of Accessory

Model of products

Alarm switch

AL

Auxiliary switch

AX

Alarm and Auxiliary switch

ALAX

Shunt tripping device

SHT

Under voltage tripping device

UVTN UVTS

Electrical operation device

MDS

Measuring Display Unit

MDU

Remark
UVTN:Non-synchronous type UVTS:Synchronous type MDS: Electrical operation device of
spring charge type

Above products not incorporating electronic circuit are not required the immunity and emission tests for Electromagnetic

Compatibility.

The conformity of the mentioned products with the regulations of the Directive 2014/35/EU for Low Voltage (LVD) and

the Directive 2014/30/EU for Electromagnetic Compatibility (EMC) are shown by application of the Technical

documentation. This is supported by selected product tests to the following LVD and EMC standards.

Harmonized European Standards:

Reference No.

EN 60947-2:2017/A1:2020

EN 60947-5-1: 2017

IEC standard Reference No.

IEC 60947-2:2016/A1:2019 IEC 60947-5-1:2016

The Mitsubishi Technical documentation of WS-V series is stored at the following location:

Factory: Address:

Mitsubishi Electric Corporation, Fukuyama Works 1-8 Midorimachi, Fukuyama-city, Hiroshima, 720-8647 Japan

Manufacture Agent: Mitsubishi Electric Europe B. V.

Address:

Mitsubishi-Electric-Platz 1, 40882 Ratingen, Germany

Page 4 of 4
