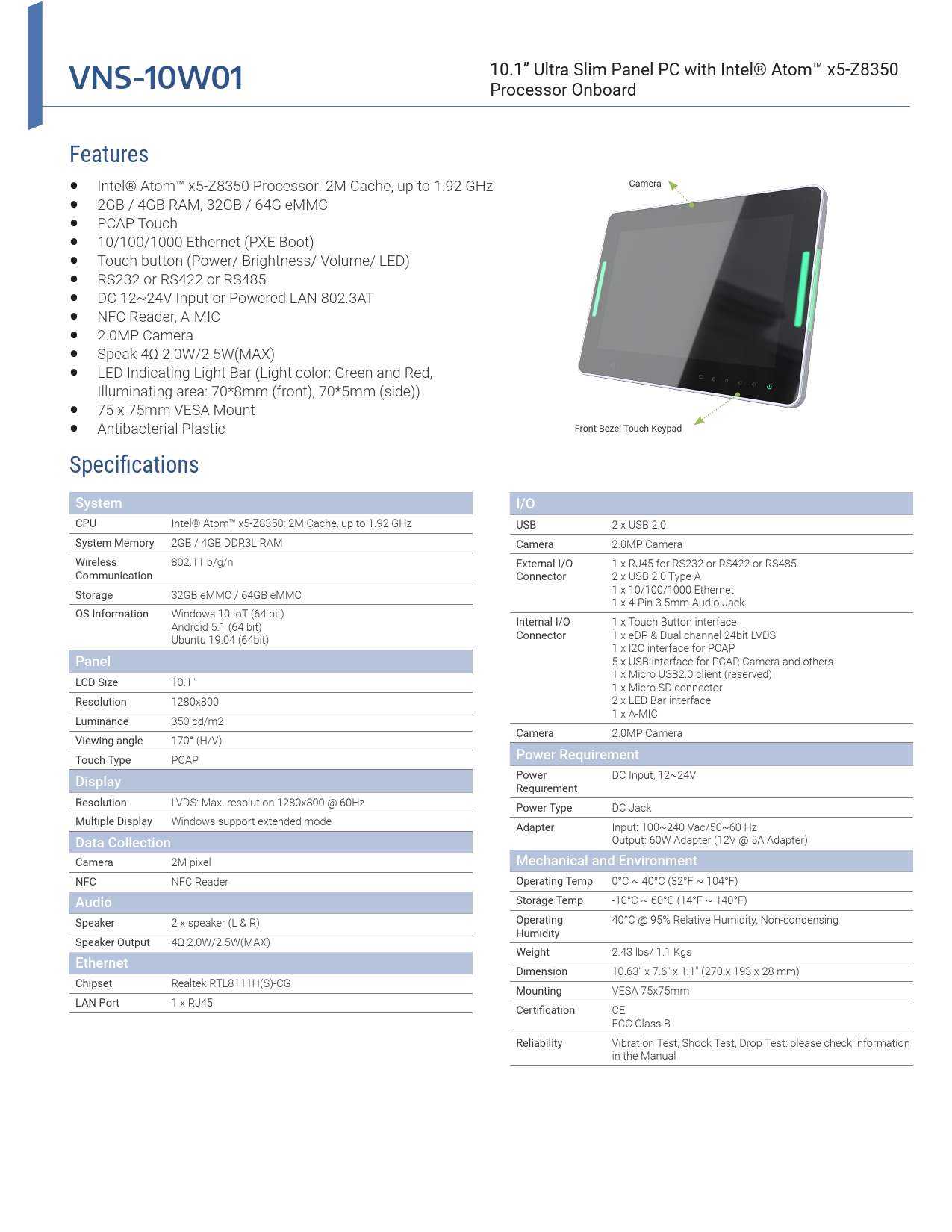

VNS-10W01

10.1" Ultra Slim Panel PC with Intel� AtomTM x5-Z8350 Processor Onboard

Features

�����������

Intel� AtomTM x5-Z8350 Processor: 2M Cache, up to 1.92 GHz 2GB / 4GB RAM, 32GB / 64G eMMC PCAP Touch 10/100/1000 Ethernet (PXE Boot) Touch button (Power/ Brightness/ Volume/ LED) RS232 or RS422 or RS485 DC 12~24V Input or Powered LAN 802.3AT NFC Reader, A-MIC 2.0MP Camera Speak 4 2.0W/2.5W(MAX) LED Indicating Light Bar (Light color: Green and Red,

Illuminating area: 70*8mm (front), 70*5mm (side))

75 x 75mm VESA Mount
�� Antibacterial Plastic

Specifications

Camera Front Bezel Touch Keypad

System

CPU

Intel� AtomTM x5-Z8350: 2M Cache, up to 1.92 GHz

System Memory 2GB / 4GB DDR3L RAM

Wireless

802.11 b/g/n

Communication

Storage

32GB eMMC / 64GB eMMC

OS Information

Windows 10 IoT (64 bit) Android 5.1 (64 bit) Ubuntu 19.04 (64bit)

Panel

LCD Size

10.1"

Resolution

1280x800

Luminance

350 cd/m2

Viewing angle

170� (H/V)

Touch Type

PCAP

Display

Resolution

LVDS: Max. resolution 1280x800 @ 60Hz

Multiple Display Windows support extended mode

Data Collection

Camera

2M pixel

NFC

NFC Reader

Audio

Speaker

2 x speaker (L & R)

Speaker Output 4 2.0W/2.5W(MAX)

Ethernet

Chipset

Realtek RTL8111H(S)-CG

LAN Port

1 x RJ45

I/O

USB

2 x USB 2.0

Camera

2.0MP Camera

External I/O Connector

1 x RJ45 for RS232 or RS422 or RS485 2 x USB 2.0 Type A 1 x 10/100/1000 Ethernet 1 x 4-Pin 3.5mm Audio Jack

Internal I/O Connector

1 x Touch Button interface 1 x eDP & Dual channel 24bit LVDS 1 x I2C interface for PCAP 5 x USB interface for PCAP, Camera and others 1 x Micro USB2.0 client (reserved) 1 x Micro SD connector 2 x LED Bar interface 1 x A-MIC

Camera

2.0MP Camera

Power Requirement

Power Requirement

DC Input, 12~24V

Power Type

DC Jack

Adapter

Input: 100~240 Vac/50~60 Hz Output: 60W Adapter (12V @ 5A Adapter)

Mechanical and Environment

Operating Temp 0�C ~ 40�C (32�F ~ 104�F)

Storage Temp

-10�C ~ 60�C (14�F ~ 140�F)

Operating Humidity

40�C @ 95% Relative Humidity, Non-condensing

Weight

2.43 lbs/ 1.1 Kgs

Dimension

10.63" x 7.6" x 1.1" (270 x 193 x 28 mm)

Mounting

VESA 75x75mm

Certification

CE FCC Class B

Reliability

Vibration Test, Shock Test, Drop Test: please check information in the Manual

10.1" Ultra Slim Panel PC with Intel� AtomTM x5-Z8350 Processor

NFC

Display on/off

Brightness

Power On/Off

Up/down Volume

Up/down

Ordering Info
VNS-10W01-32G-WN VNS-10W01-64G-WN VNS-10W01-32G-LX VNS-10W01-32G-AN

10" Panel PC, Intel Atom Z8350 Processor 2GB DDR3L, 32GB eMMC, DC12~24V, Windows 10 IoT 2019
10" Panel PC, Intel Atom Z8350 Processor 4GB DDR3L, 64GB eMMC, DC12~24V, Windows 10 IoT 2019
10" Panel PC, Intel Atom Z8350 Processor 2GB DDR3L, 32GB eMMC, DC12~24V, Linux OS
10" Panel PC, Intel Atom Z8350 Processor 2GB DDR3L, 32GB eMMC, DC12~24V, Android 5.1 OS

* All product specifications and images are subject to change without notice. Last update: 2021/04/09
