Digital Pressure Switch / Transmitter Dimensions mm [inches] Cable Connection Terminals 5 4 3 2 1 OUT2 OUT1 ANALOG 1 2 3 4 5 6 7 8 9 10 Wiring Display, KeyPad ...
prosense pressure switch (Transmitters and switches) ProSense pressure sensors are designed to monitor system pressure in hydraulic and pneumatic applications. ), Pnp/Npn Selectable Or 4-20 Ma/0-10 Vdc, 1/4In Male Npt P…
Extracted Text

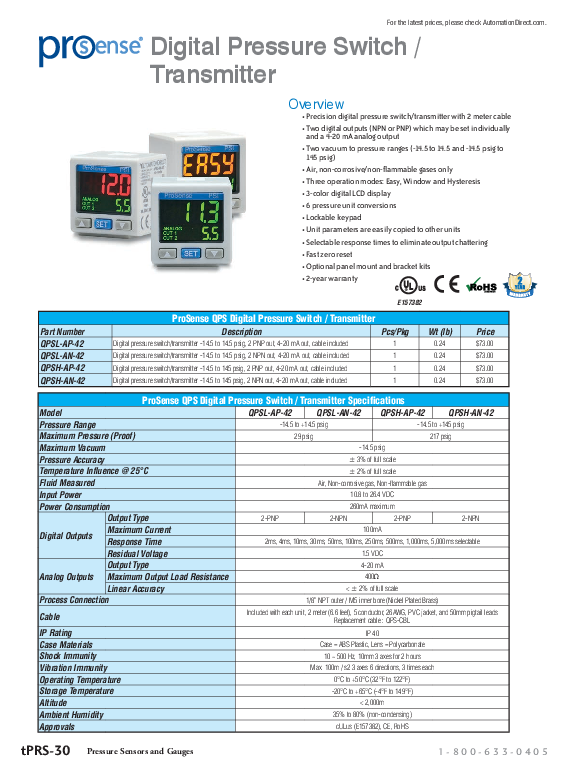

For the latest prices, please check AutomationDirect.com. Digital Pressure Switch / Transmitter Overview � Precision digital pressure switch/transmitter with 2 meter cable � Two digital outputs (NPN or PNP) which may be set individually and a 4-20 mA analog output � Two vacuum to pressure ranges (-14.5 to 14.5 and -14.5 psig to 145 psig) � Air, non-corrosive/non-flammable gases only � Three operation modes: Easy, Window and Hysteresis � 3-color digital LCD display � 6 pressure unit conversions � Lockable keypad � Unit parameters are easily copied to other units � Selectable response times to eliminate output chattering � Fast zero reset � Optional panel mount and bracket kits � 2-year warranty Part Number QPSL-AP-42 QPSL-AN-42 QPSH-AP-42 QPSH-AN-42 E157382 ProSense QPS Digital Pressure Switch / Transmitter Description Pcs/Pkg Digital pressure switch/transmitter -14.5 to 14.5 psig, 2 PNP out, 4-20 mA out, cable included 1 Digital pressure switch/transmitter -14.5 to 14.5 psig, 2 NPN out, 4-20 mA out, cable included 1 Digital pressure switch/transmitter -14.5 to 145 psig, 2 PNP out, 4-20 mA out, cable included 1 Digital pressure switch/transmitter -14.5 to 145 psig, 2 NPN out, 4-20 mA out, cable included 1 Wt (lb) 0.24 0.24 0.24 0.24 Price $73.00 $73.00 $73.00 $73.00 ProSense QPS Digital Pressure Switch / Transmitter Specifications Model QPSL-AP-42 QPSL-AN-42 QPSH-AP-42 QPSH-AN-42 Pressure Range -14.5 to +14.5 psig -14.5 to +145 psig Maximum Pressure (Proof) 29 psig 217 psig Maximum Vacuum -14.5 psig Pressure Accuracy w 3% of full scale Temperature Influence @ 25�C w 2% of full scale Fluid Measured Air, Non-corrosive gas, Non-flammable gas Input Power 10.8 to 26.4 VDC Power Consumption 260mA maximum Output Type 2-PNP 2-NPN 2-PNP 2-NPN Digital Outputs Maximum Current Response Time 100mA 2ms, 4ms, 10ms, 30ms, 50ms, 100ms, 250ms, 500ms, 1,000ms, 5,000ms selectable Residual Voltage 1.5 VDC Output Type 4-20 mA Analog Outputs Maximum Output Load Resistance 400 Linear Accuracy < w 2% of full scale Process Connection 1/8" NPT outer / M5 inner bore (Nickel Plated Brass) Cable Included with each unit, 2 meter (6.6 feet), 5 conductor, 26AWG, PVC jacket, and 50mm pigtail leads Replacement cable : QPS-CBL IP Rating IP 40 Case Materials Case = ABS Plastic, Lens = Polycarbonate Shock Immunity 10 ~ 500 Hz, 10mm 3 axes for 2 hours Vibration Immunity Max. 100m / s2 3 axes 6 directions, 3 times each Operating Temperature 0�C to +50�C (32�F to 122�F) Storage Temperature -20�C to +65�C (-4�F to 149�F) Altitude < 2,000m Ambient Humidity 35% to 80% (non-condensing) Approvals cULus (E157382), CE, RoHS tPRS-30 Pressure Sensors and Gauges 1-800-633-0405 For the latest prices, please check AutomationDirect.com. Digital Pressure Switch / Transmitter 1 4 2 5 ANALOG 3 OUT1 OUT2 6 7 8 Dimensions mm [inches] 9 Display, KeyPad, Connections 1 - Analog output indicator 2 - Digital output 1 indicator 3 - Digital output 2 indicator 4 - Pressure Value (PV)/parameter display (8 mm digits) 5 - Setpoint Value (SV)/setup item display (4 mm digits) 10 6 - Increment UP button 7 - SET or Enter button 8 - Decrement DOWN button 9 - Cable connection 10 - Pressure connection Cable Connection Terminals x See our website www.AutomationDirect.com for complete Engineering drawings. Wiring QPSL-AN-42 QPSH-AN-42 Outputs: NPN discrete 4-20mA analog Load Load Load Input Power 10.8 to 26.4 VDC QPSL-AP-42 QPSH-AP-42 Outputs: PNP discrete 4-20mA analog 5 4 3 2 1 1 - P ositive power supply input (brown) 2 - Digital output 1 signal (black) 3 - Digital output 2 signal (white) 4 - Analog output signal (orange) 5 - N egative power supply input (blue) Input Power 10.8 to 26.4 VDC Load Load Load tPRS-31 Pressure Sensors and Gauges 1-800-633-0405 For the latest prices, please check AutomationDirect.com. Digital Pressure Switch / Transmitter Operating Modes: Easy Mode: When the measured pressure is greater than pressure setpoint plus the hysteresis setting (SV+hysteresis), the output will change state. When the measured pressure is less than the pressure setpoint (<SV), the output will change state. Each digital output can be individually set. SV Hysteresis Time Output: On O Hysteresis Mode: When the measured pressure is greater than the Hi setpoint, the output will change state. When the measured pressure is less than the Lo setpoint, the output will change state. Each digital output can be individually set. Output: On O Window Mode: The output will change state when the measured pressure increases to the Lo setpoint plus the hysteresis setting (Lo+hysteresis) and will change state again when the pressure increases to the Hi setpoint plus the hysteresis setting (Hi+hysteresis). When the pressure decreases to the Hi setpoint the output will change state and will change state again when the pressure decreases to the Lo setpoint. Hysteresis Hysteresis Output: On O Analog Output (4-20mA): The analog output is directly proportional to the process pressure over the full range of the device. For example if the process pressure is 0 psig the 4-20 mA output of a QPSL will be approximately 12 mA or for the QPSH the pressure at 12 mA would be 65.3 psig and for 0 psig the output would be 5.45mA. The analog output is enabled as the factory default. It can be disabled with the "Analog Output Enable" parameter in Pro Setup Mode. 20mA 12mA 4mA -14.5psi 0psi QPSL-xx-42 14.5psi tPRS-32 Pressure Sensors and Gauges 20mA 12mA 5.45mA 4mA -14.5psi 0psi 65.3psi QPSH-xx-42 145psi 1-800-633-0405 Part Number QPS-PMK QPS-FMK QPS-CBL For the latest prices, please check AutomationDirect.com. Digital Pressure Switch / Transmitter Accessories ProSense QPSDigital Pressure Switch / Transmitter Accessories Description Pcs/Pkg Wt (lb) Panel mount kit for QPS series 1 0.1 Bracket mount kit for QPS series 1 0.1 Replacement cable for QPS series digital pressure switch and transmitter, 2 meters (6.6 feet) 1 0.1 Price $2.00 $2.00 $26.00 QPS-PMK Dimensions mm [inches] QPS-PMK - Optional Panel Mount Kit M3.5 x 14mm QPS-FMK M3.5 x 6mm QPS-CBL QPS-FMK - Optional Frame Mount Kit PMK Front Bezel PMK Back Retaining Clip Note: See the NITRA Pneumatics section for Push-to-Connect fittings and tubing QPS-CBL tPRS-33 Pressure Sensors and Gauges Note: Cable included with each QPS series switch/transmitter 1-800-633-0405
