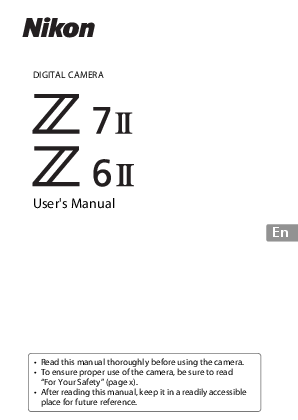

DIGITAL CAMERA
User's Manual En
� Read this manual thoroughly before using the camera. � To ensure proper use of the camera, be sure to read
"For Your Safety" (page x). � After reading this manual, keep it in a readily accessible
place for future reference.
64GB
When Your First Photo Can't Wait
Getting Ready
1 Insert the battery (07).
For information on charging the battery, see "Charging the Battery" (0 2).
2 Insert a memory card (09).
3 Attach a lens (012).
� Align the white dot on the lens with the white dot on the camera body (q) and rotate the lens in the direction shown (w).
� A strap can be attached to the camera. For more information, see "Attaching the Strap" (01).
4 Turn the camera on and then
choose a language and set the clock (014).
Z 7II Model Name: N1932 Z 6II Model Name: N1929 ii When Your First Photo Can't Wait
Take (018) and View (028) Pictures
1 Rotate the mode dial to b.
2 To focus, press the shutter-
release button halfway (i.e, lightly press the shutterrelease button, stopping when it is pressed halfway).
3 Without lifting your finger
from the shutter-release button, press the button the rest of the way down to take the picture.
4 View the picture.
When Your First Photo Can't Wait iii
Package Contents
Be sure all items listed here were included with your camera.
Camera
EN-EL15c rechargeable Li-ion battery with terminal
cover
BF-N1 body cap
MH-25a battery charger (comes with either an AC wall adapter or power cable of a type and shape that varies with the country or region of sale)
HDMI/USB cable clip
DK-29 rubber eyecup (comes attached to
camera)
EH-7P charging AC adapter (Z 7II only; supplied with a plug adapter attached in
countries or regions where required; shape depends on country of sale-- 04)
AN-DC19 strap
Warranty (printed on the back cover of this manual)
User's Manual UC-E24 USB cable BS-1 accessory shoe cover
� Memory cards are sold separately.
iv Package Contents
D Lens Kit Lenses For information on lenses supplied as part of a lens kit, see the lens manuals available for download from the Nikon Download Center. D The Nikon Download Center A pdf version of this manual is available from the Nikon Download Center, together with an English-language reference manual with detailed operating instructions, which can be viewed online in html. Visit the Nikon Download Center to download firmware updates, ViewNX-i, Capture NX-D, and other Nikon computer software, and manuals for other Nikon products including cameras, NIKKOR lenses, and flash units. https://downloadcenter.nikonimglib.com/
Package Contents v
About This Manual
Symbols
The following symbols and conventions are employed in this manual. Use them to help locate the information you need.
D This icon marks notes, information that should be read before using this product.
A This icon marks tips, additional information you may find helpful when using this product.
0 This icon marks references to other sections in this manual.
Conventions
� This manual is for use with both the Z 7II and Z 6II. The illustrations show the Z 6II.
� This camera uses CFexpress (Type B), XQD, SD, SDHC, and SDXC memory cards. Memory cards of all types are referred to throughout this manual as "memory cards". Where it is necessary to distinguish between the different types, the terms "CFexpress memory card", "XQD memory card", and "SD memory card" may be used.
� Throughout this manual, battery chargers are referred to as "battery chargers" or "chargers".
� Throughout this manual, the display in camera monitor and viewfinder during shooting is referred to as the "shooting display"; in most cases, the illustrations show the monitor.
� Throughout this manual, smartphones and tablets are referred to as "smart devices".
� Throughout this manual, the term "default settings" is used to refer to the settings in effect at shipment. The explanations in this manual assume that default settings are used.
vi About This Manual
AFor Your Safety "For Your Safety" contains important safety instructions. Be sure to read them before using the camera. For more information, see "For Your Safety" (0x).
Nikon User Support
Visit the site below to register your camera and keep up-to-date with the latest product information. You will find answers to frequently asked questions (FAQs) and can contact us for technical assistance. https://www.europe-nikon.com/support
About This Manual vii
Table of Contents
When Your First Photo Can't Wait ..................................................... ii Package Contents................................................................................... iv About This Manual ................................................................................. vi For Your Safety ......................................................................................... x Notices....................................................................................................... xv
First Steps
1
Attaching the Strap................................................................................. 1 Charging the Battery .............................................................................. 2
The Battery Charger......................................................... 2 Charging AC Adapters .................................................... 4 Inserting the Battery............................................................................... 7 Removing the Battery ..................................................... 7 Battery Level ....................................................................... 8 Inserting Memory Cards........................................................................ 9 Removing Memory Cards ........................................... 10 Attaching a Lens ................................................................................... 12 Detaching Lenses........................................................... 13 Choose a Language and Set the Clock ......................................... 14
viii Table of Contents
Basic Photography and Playback
18
Taking Photographs (b Mode) ....................................................... 18 Shooting Movies (b Mode) .............................................................. 24 Playback ................................................................................................... 28
Viewing Photos............................................................... 28 Viewing Movies .............................................................. 29
Troubleshooting
30
Before Contacting Customer Support .......................................... 30
Technical Notes
31
Caring for the Camera......................................................................... 31 Storage .............................................................................. 31
Caring for the Camera and Battery: Cautions............................. 32 Camera Care .................................................................... 32 Battery Care...................................................................... 37 Using the Charger.......................................................... 40 Using the Charging AC Adapter............................... 40
Trademarks and Licenses................................................................... 41 Notices...................................................................................................... 45 Bluetooth and Wi-Fi (Wireless LAN) ............................................... 48
Warranty Terms - Nikon Europe Service Warranty ................... 55
Table of Contents ix
For Your Safety
To prevent damage to property or injury to yourself or to others, read "For Your Safety" in its entirety before using this product. Keep these safety instructions where all those who use this product will read them. A DANGER: Failure to observe the precautions marked with this icon carries a high risk of death or severe injury. A WARNING: Failure to observe the precautions marked with this icon could result in death or severe injury. A CAUTION: Failure to observe the precautions marked with this icon could result in injury or property damage.
A WARNING
Do not use while walking or operating a vehicle. Failure to observe this precaution could result in accidents or other injury. Do not disassemble or modify this product. Do not touch internal parts that become exposed as the result of a fall or other accident. Failure to observe these precautions could result in electric shock or other injury. Should you notice any abnormalities such as the product producing smoke, heat, or unusual odors, immediately disconnect the battery or power source. Continued operation could result in fire, burns or other injury. Keep dry. Do not handle with wet hands. Do not handle the plug with wet hands. Failure to observe these precautions could result in fire or electric shock.
x For Your Safety
Do not let your skin remain in prolonged contact with this product while it is on or plugged in. Failure to observe this precaution could result in low-temperature burns. Do not use this product in the presence of flammable dust or gas such as propane, gasoline or aerosols. Failure to observe this precaution could result in explosion or fire. Do not directly view the sun or other bright light source through the lens. Failure to observe this precaution could result in visual impairment. Do not aim the flash or AF-assist illuminator at the operator of a motor vehicle. Failure to observe this precaution could result in accidents. Keep this product out of reach of children. Failure to observe this precaution could result in injury or product malfunction. In addition, note that small parts constitute a choking hazard. Should a child swallow any part of this product, seek immediate medical attention. Do not entangle, wrap or twist the straps around your neck. Failure to observe this precaution could result in accidents. Do not use batteries, chargers, or AC adapters not specifically designated for use with this product. When using batteries, chargers, and AC adapters designated for use with this product, do not: � Damage, modify, forcibly tug or bend the cords or cables, place
them under heavy objects, or expose them to heat or flame. � Use travel converters or adapters designed to convert from one
voltage to another or with DC-to-AC inverters. Failure to observe these precautions could result in fire or electric shock.
For Your Safety xi
Do not handle the plug when charging the product or using the AC adapter during thunderstorms. Failure to observe this precaution could result in electric shock. Do not handle with bare hands in locations exposed to extremely high or low temperatures. Failure to observe this precaution could result in burns, or frostbite.
A CAUTION
Do not leave the lens pointed at the sun or other strong light sources. Light focused by the lens could cause fire or damage to product's internal parts. When shooting backlit subjects, keep the sun well out of the frame. Sunlight focused into the camera when the sun is close to the frame could cause fire. Turn this product off when its use is prohibited. Disable wireless features when the use of wireless equipment is prohibited. The radio-frequency emissions produced by this product could interfere with equipment onboard aircraft or in hospitals or other medical facilities. Remove the battery and disconnect the AC adapter if this product will not be used for an extended period. Failure to observe this precaution could result in fire or product malfunction. Do not fire the flash in contact with or in close proximity to the skin or objects. Failure to observe this precaution could result in burns or fire.
xii For Your Safety
Do not leave the product where it will be exposed to extremely high temperatures, for an extended period such as in an enclosed automobile or in direct sunlight. Failure to observe this precaution could result in fire or product malfunction. Do not look directly at the AF-assist illuminator. Failure to observe this precaution could have adverse effects on vision. Do not transport cameras or lenses with tripods or similar accessories attached. Failure to observe this precaution could result in injury or product malfunction. Do not touch the memory card when a high-temperature warning is displayed in the monitor or viewfinder. The memory card will be hot, potentially causing burns or causing the card to be dropped and damaged when removed.
A DANGER (Batteries)
Do not mishandle batteries. Failure to observe the following precautions could result in the batteries leaking, overheating, rupturing, or catching fire: � Use only rechargeable batteries approved for use in this product. � Do not expose batteries to flame or excessive heat. � Do not disassemble. � Do not short-circuit the terminals by touching them to necklaces,
hairpins, or other metal objects. � Do not expose batteries or the products in which they are inserted to
powerful physical shocks. � Do not step on batteries, pierce them with nails, or strike them with
hammers. Charge only as indicated. Failure to observe this precaution could result in the batteries leaking, overheating, rupturing, or catching fire.
For Your Safety xiii
If battery liquid comes into contact with the eyes, rinse with plenty of clean water and seek immediate medical attention. Delaying action could result in eye injuries. Follow the instructions of airline personnel. Batteries left unattended at high altitudes in an unpressurized environment may leak, overheat, rupture, or catch fire.
A WARNING (Batteries)
Keep batteries out of reach of children. Should a child swallow a battery, seek immediate medical attention. Keep batteries out of reach of household pets and other animals. The batteries could leak, overheat, rupture, or catch fire if bitten, chewed, or otherwise damaged by animals. Do not immerse batteries in water or expose to rain. Failure to observe this precaution could result in fire or product malfunction. Immediately dry the product with a towel or similar object should it become wet. Discontinue use immediately should you notice any changes in the batteries, such as discoloration or deformation. Cease charging EN-EL15c rechargeable batteries if they do not charge in the specified period of time. Failure to observe these precautions could result in the batteries leaking, overheating, rupturing, or catching fire. When batteries are no longer needed, insulate the terminals with tape. Overheating, rupture, or fire may result should metal objects come into contact with the terminals. If battery liquid comes into contact with a person's skin or clothing, immediately rinse the affected area with plenty of clean water. Failure to observe this precaution could result in skin irritation.
xiv For Your Safety
Notices
� No part of the manuals included with this product may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form, by any means, without Nikon's prior written permission.
� Nikon reserves the right to change the appearance and specifications of the hardware and software described in these manuals at any time and without prior notice.
� Nikon will not be held liable for any damages resulting from the use of this product.
� While every effort has been made to ensure that the information in these manuals is accurate and complete, we would appreciate it were you to bring any errors or omissions to the attention of the Nikon representative in your area (address provided separately).
Notice Concerning Prohibition of Copying or Reproduction Note that simply being in possession of material that has been digitally copied or reproduced by means of a scanner, digital camera, or other device may be punishable by law. � Items prohibited by law from being copied or reproduced
Do not copy or reproduce paper money, coins, securities, government bonds, or local government bonds, even if such copies or reproductions are stamped "Sample". The copying or reproduction of paper money, coins, or securities which are circulated in a foreign country is prohibited. Unless the prior permission of the government has been obtained, the copying or reproduction of unused postage stamps or post cards issued by the government is prohibited. The copying or reproduction of stamps issued by the government and of certified documents stipulated by law is prohibited.
Notices xv
� Cautions on certain copies and reproductions The government has issued cautions on copies or reproductions of securities issued by private companies (shares, bills, checks, gift certificates, etc.), commuter passes, or coupon tickets, except when a minimum of necessary copies are to be provided for business use by a company. Also, do not copy or reproduce passports issued by the government, licenses issued by public agencies and private groups, ID cards, and tickets, such as passes and meal coupons.
� Comply with copyright notices Under copyright law, photographs or recordings of copyrighted works made with the camera cannot be used without the permission of the copyright holder. Exceptions apply to personal use, but note that even personal use may be restricted in the case of photographs or recordings of exhibits or live performances.
Use Only Nikon Brand Electronic Accessories Nikon cameras are designed to the highest standards and include complex electronic circuitry. Only Nikon brand electronic accessories (including lenses, chargers, batteries, AC adapters, and flash accessories) certified by Nikon specifically for use with this Nikon digital camera are engineered and proven to operate within the operational and safety requirements of this electronic circuitry. The use of non-Nikon electronic accessories could damage the camera and may void your Nikon warranty. The use of third-party rechargeable Li-ion batteries not bearing the Nikon holographic seal shown at right could interfere with normal operation of the camera or result in the batteries overheating, igniting, rupturing, or leaking. For more information about Nikon brand accessories, contact a local authorized Nikon dealer.
xvi Notices
D Before Taking Important Pictures Before taking pictures on important occasions (such as at weddings or before taking the camera on a trip), take a test shot to ensure that the camera is functioning normally. Nikon will not be held liable for damages or lost profits that may result from product malfunction. D Life-Long Learning As part of Nikon's "Life-Long Learning" commitment to ongoing product support and education, continually-updated information is available on-line at the following sites: � For users in the U.S.A.: https://www.nikonusa.com/ � For users in Europe:
https://www.europe-nikon.com/support/ � For users in Asia, Oceania, the Middle East, and Africa:
https://www.nikon-asia.com/ Visit these sites to keep up-to-date with the latest product information, tips, answers to frequently-asked questions (FAQs), and general advice on digital imaging and photography. Additional information may be available from the Nikon representative in your area. See the following URL for contact information: https://imaging.nikon.com/
Notices xvii
xviii Notices
First Steps
Attaching the Strap
To attach a strap (whether the supplied strap or one that has been purchased separately):
Attaching the Strap 1
Charging the Battery
Charge the supplied EN-EL15c battery before use. D The Battery and Charger Read and follow the warnings and cautions in "For Your Safety" (0x) and "Caring for the Camera and Battery: Cautions" (032).
The Battery Charger
Depending on the country or region, the charger comes with either an AC wall adapter or a power cable. � AC wall adapter: After inserting the AC wall adapter into the
charger AC inlet (q), slide the AC wall adapter latch as shown (w) and rotate the adapter 90 � to fix it in place (e).
2 Charging the Battery
� Power cable: After connecting the power cable with the plug in the orientation shown, insert the battery and plug the cable in.
� An exhausted battery will fully charge in about 2 hours and 35 minutes.
Battery charging (flashes) Charging complete (steady) D If the CHARGE Lamp Flashes Rapidly If the CHARGE lamp flashes rapidly (8 times a second): � A battery charging error has occurred: Unplug the charger and
remove and reinsert the battery. � The ambient temperature is too hot or too cold: Use the battery
charger at temperatures within the designated temperature range (0� 40 �C/+32�104 �F). If the problem persists, unplug the charger and end charging. Bring the battery and charger to a Nikon-authorized service representative.
Charging the Battery 3
Charging AC Adapters
When a battery is inserted in the camera, an EH-7P charging AC adapter (available separately for the Z 6II, supplied with the Z 7II) can be used to charge the battery or power the camera. � EN-EL15a or EN-EL15 batteries cannot be charged using a
charging AC adapter. Use an MH-25a battery charger instead. � If [Enable] is selected for [USB power delivery] in the setup
menu, the charging AC adapter can be used to power the camera. The batteries will not charge while the camera is powered by an outside source.
1 Insert the EN-EL15c into the
camera (07).
4 Charging the Battery
2 After confirming that the camera is off, connect
the charging AC adapter (q) and plug the adapter in.
Keep the plug straight during insertion and removal.
Charging � The battery charges while the camera is off. � The camera charge lamp (w) lights amber while charging is
in progress. The lamp turns off when charging is complete. � An exhausted battery will fully charge in about 2 hours and
45 minutes. Power Delivery The camera will draw power from the adapter while on.
Charging the Battery 5
3 Unplug the charging AC adapter when charging is
complete or when it is no longer needed to power the camera.
D The Charging AC Adapter If the battery cannot be charged using the charging AC adapter, for example because the battery is not compatible or the temperature of the camera is elevated, the charge lamp will flash rapidly for about 30 seconds and then turn off. If the charge lamp is off and you did not observe the battery charging, turn the camera on and check the battery level. A Computer USB Power Delivery and Battery Charging � Computers will supply current to power the camera or charge the
battery only when connected via a UC-E25 USB cable (available separately). The supplied USB cable cannot be used for this purpose. � Depending on the model and product specifications, some computers will not supply current to power the camera or charge the battery.
6 Charging the Battery
Inserting the Battery
� Turn the camera off before inserting or removing the battery. � Using the battery to keep the orange battery latch pressed to
one side, slide the battery into the battery chamber until the latch locks it in place.
Removing the Battery
To remove the battery, turn the camera off and open the battery-chamber cover. Press the battery latch in the direction shown by the arrow to release the battery and then remove the battery by hand.
Inserting the Battery 7
Battery Level
� The battery level is shown in the shooting display and control panel while the camera is on.
Monitor
Viewfinder
Control panel
� The battery level display changes as the battery level diminishes, from L through K, J, I, and H. When the battery level falls to H, suspend shooting and charge the battery or ready a spare battery.
� If the message [Shutter release disabled. Recharge battery.] is displayed, charge or exchange the battery.
8 Inserting the Battery
128GB
Inserting Memory Cards
The camera is equipped with two memory card slots: a slot that takes one CFexpress or XQD memory card (q) and another that takes one SD memory card (w), for a total of two cards, one of each type. � Turn the camera off before inserting or removing memory
cards. � Holding the memory card in the orientation shown, slide it
straight into the slot until it clicks into place. - CFexpress and XQD memory cards:
- SD memory cards:
Inserting Memory Cards 9
64GB
16GB
Removing Memory Cards
After confirming that the memory card access lamp is off, turn the camera off, open the memory card slot cover, and press the card in to eject it (q). The card can then be removed by hand (w). D Memory Cards
� Memory cards may be hot after use. Observe due caution when removing memory cards from the camera.
� Do not perform the following operations during formatting or while data are being recorded, deleted, or copied to a computer or other device. Failure to observe these precautions could result in loss of data or in damage to the camera or card. - Do not remove or insert memory cards - Do not turn the camera off - Do not remove the battery - Do not disconnect AC adapters
� Do not touch the card terminals with your fingers or metal objects. � Do not use excessive force when handling memory cards. Failure to
observe this precaution could damage the card. � Do not bend or drop memory cards or subject them to strong physical
shocks. � Do not expose memory cards to water, heat, or direct sunlight. � Do not format memory cards in a computer.
10 Inserting Memory Cards
D Memory Card High-Temperature Warning As indicated on the inside of the memory card slot cover, memory cards inserted in the camera may become hot. Do not attempt to remove memory cards if a high-temperature warning appears in the shooting display; instead, wait for the camera to cool and the warning to clear from the display. D No Memory Card Inserted If no memory card is inserted, a "no memory card" indicator will appear in the shooting display and [�E�] will appear in both the control panel and the shooting display.
A The Write Protect Switch � SD memory cards are equipped
with a write-protect switch. Sliding the switch to the "lock" position write-protects the card, protecting the data it contains. � A "���" indicator and a [Card] warning appear in the shooting display when a write-protected card is inserted. � If you attempt to release the shutter while a write-protected card is inserted, a warning will be displayed and no picture will be recorded. Unlock the memory card before attempting to take or delete pictures.
Inserting Memory Cards 11
Attaching a Lens
� The camera can be used with Z mount lenses. The lens generally used in this manual for illustrative purposes is a NIKKOR Z 24�70mm f/4 S.
� Be careful to prevent dust entering the camera. � Confirm that the camera is off before attaching the lens.
- Remove the camera body cap (q, w) and rear lens cap (e, r).
- Align the mounting marks on the camera (t) and lens (y). Do not touch the image sensor or lens contacts.
12 Attaching a Lens
- Rotate the lens as shown until it clicks into place (u).
� Remove the front lens cap before taking pictures. D F Mount Lenses
� Be sure to attach the FTZ mount adapter (available separately) before using F mount lenses.
� Attempting to attach F mount lenses directly to the camera could damage the lens or image sensor.
Detaching Lenses
� After turning the camera off, press and hold the lens release button (q) while turning the lens in the direction shown (w).
� After removing the lens, replace the lens caps and camera body cap.
Attaching a Lens 13
Choose a Language and Set the Clock
The language option in the setup menu is automatically highlighted the first time menus are displayed. Choose a language and set the camera clock.
1 Turn the camera on.
2 Highlight [Language] in the
setup menu and press 2.
The [Language] item is automatically highlighted in the setup menu the first time the G button is pressed after purchase.
14 Choose a Language and Set the Clock
3 Select a language.
Press 1 or 3 to highlight the desired language and press J (the languages available vary with the country or region in which the camera was originally purchased).
4 Highlight [Time zone and date]
and press 2.
5 Choose a time zone.
� Select [Time zone] in the [Time zone and date] display.
� Highlight a time zone in the [Time zone] display and press J.
� The display shows a time zone map listing the selected cities in the chosen zone and the difference between the time in the chosen zone and UTC.
Choose a Language and Set the Clock 15
6 Turn daylight saving time on or
off.
� Select [Daylight saving time] in the [Time zone and date] display.
� Highlight [On] (daylight saving time on) or [Off] (daylight saving time off) and press J.
� Selecting [On] advances the clock one hour; to undo the effect, select [Off].
7 Set the clock.
� Select [Date and time] in the [Time zone and date] display.
� Press J after using the multi selector to set the clock to the date and time in the selected time zone (note that the camera uses a 24-hour clock).
8 Choose a date format.
� Select [Date format] in the [Time zone and date] display.
� Highlight the desired date (year, month, and day) display order and press J.
16 Choose a Language and Set the Clock
9 Exit the menus.
Lightly press the shutter-release button halfway to exit to shooting mode. D The t Icon
A flashing t icon in the shooting display indicates that the camera clock has been reset. The date and time recorded with new photographs will not be correct; use the [Time zone and date] > [Date and time] option in the setup menu to set the clock to the correct time and date. The camera clock is powered by an independent clock battery. The clock battery charges when the main battery is inserted in the camera. It takes about 2 days to charge. Once charged, it will power the clock for about a month. A SnapBridge Use the SnapBridge app to synchronize the camera clock with the clock on a smartphone or tablet (smart device). See SnapBridge online help for details.
Choose a Language and Set the Clock 17
Basic Photography and Playback
Taking Photographs (b Mode)
Select b (auto) mode for simple "point-and-shoot" photography. D Lenses with Retractable Barrels
Lenses with retractable barrels must be extended before use. Rotate the lens zoom ring as shown until the lens clicks into the extended position.
1 Turn the camera on.
The monitor and control panel will light.
18 Taking Photographs (b Mode)
2 Select photo mode by
rotating the photo/ movie selector to C.
3 Pressing the mode
dial lock release on top of the camera, rotate the mode dial to b.
Taking Photographs (b Mode) 19
4 Ready the camera.
Holding the handgrip in your right hand and cradling the camera body or lens with your left, bring your elbows in against the sides of your chest. � Framing photos in the viewfinder:
Landscape (wide) orientation
Portrait (tall) orientation
� Framing photos in the monitor:
Landscape (wide) orientation
Portrait (tall) orientation
20 Taking Photographs (b Mode)
5 Frame the photograph.
Position the main subject in the AFarea brackets. � If the camera detects a human face,
the AF-area brackets will be replaced by a yellow border around the subject's face indicating the focus point. If eyes are detected, the yellow focus point will instead appear over one or the other of the subject's eyes.
Taking Photographs (b Mode) 21
6 Press the shutter-release
button halfway to focus.
� The focus point will be displayed in green when the camera focuses. If the camera is unable to focus, the AF-area brackets will flash.
� The AF-assist illuminator may light to assist the focus operation if the subject is poorly lit.
� You can also focus by pressing the AF-ON button. � If the camera detects the faces or
eyes of human portrait subjects, the active focus point will be displayed in green. The focus point will flash red if the camera is unable to focus.
D The AF-Assist Illuminator Do not obstruct the AF-assist illuminator while it is lit.
22 Taking Photographs (b Mode)
7 Smoothly press the shutter-
release button the rest of the way down to take the photograph.
� You can also take a photograph by touching the monitor. Touch your subject to focus and lift your finger to release the shutter.
D The Memory Card Access Lamp The memory card access lamp will light while the photograph is being recorded. Do not remove the memory card or battery.
D The Standby Timer The camera uses a standby timer to help reduce the drain on the battery. If no operations are performed for about 30 seconds, the standby timer will expire and the monitor, viewfinder, and control panel will turn off. A few seconds prior to turning off, the monitor and viewfinder will dim. They can be reactivated by pressing the shutter-release button halfway. The length of time before the standby timer expires automatically can be selected using Custom Setting c3 [Power off delay] > [Standby timer].
Taking Photographs (b Mode) 23
Shooting Movies (b Mode)
b (auto) mode can also be used for simple, "point-and-shoot" movie recording.
1 Turn the camera on.
The monitor and control panel will light.
2 Select movie mode by
rotating the photo/ movie selector to 1.
Note that optional flash units cannot be used when the camera is in movie mode.
3 Pressing the mode
dial lock release on top of the camera, rotate the mode dial to b.
24 Shooting Movies (b Mode)
4 Press the movie-record button
to start recording.
� A recording indicator will be displayed in the monitor. The monitor also shows the time remaining, or in other words the approximate amount of new footage that can be recorded to the memory card.
1
1 Recording indicator
2
2 Time remaining
� The camera can be refocused during recording by pressing the AF-ON button.
� Sound is recorded via the built-in microphone. Do not cover the microphone during recording.
� If you tap your subject in the monitor during recording, the focus point will track the subject as it moves through the frame.
Shooting Movies (b Mode) 25
5 Press the movie-record button
again to end recording.
D The Memory Card Access Lamp The memory card access lamp will light while the movie is being recorded. Do not remove the memory card or battery. D The 0 Icon A 0 icon indicates that movies cannot be recorded.
26 Shooting Movies (b Mode)
D Recording Movies � Movie recording will end automatically if:
- The maximum length is reached - Another mode is selected - The photo/movie selector is rotated to C - The lens is removed � Sounds made by the camera may be audible in footage recorded: - During autofocus - During vibration reduction - When power aperture is used D Memory Card High-Temperature Warning During movie recording, memory cards may become hot and a high-temperature warning may appear in the shooting display. Do not attempt to remove the memory card; instead, wait for the camera to cool and the warning to clear from the display.
Shooting Movies (b Mode) 27
Playback
Press the K button to view photos and movies recorded with the camera.
Viewing Photos
Photos can be viewed by following the steps below.
1 Press the K button.
� A picture will be displayed in the monitor or viewfinder.
� The memory card containing the picture currently displayed is shown by an icon.
2 Press 4 or 2 to view
additional pictures.
� When pictures are displayed in the monitor, you can view other pictures by flicking a finger left or right over the display.
� To end playback and return to shooting mode, press the shutter-release button halfway.
28 Playback
Viewing Movies
Movies are indicated by a 1 icon. Tap the a icon in the display or press the J button to start playback (a progress bar shows your approximate position in the movie).
1
2
4
3
1 1 icon 2 Length 3 a icon 4 Current position/total length 5 Progress bar 6 Volume 7 Guide
5
67
Playback 29
Troubleshooting
Before Contacting Customer Support
You may be able to resolve any issues with the camera by following the steps below. Check this list before consulting your retailer or Nikon-authorized service representative.
Turn the camera off and remove the battery, then wait
about a minute, re-insert the battery and turn the camera
1 STEP
on. D The camera may continue to write data to the memory
card after shooting. Wait at least a minute before
removing the battery.
Search Nikon websites.
� For support information and answers to frequently asked
2 STEP
questions, visit the website for your country or region (0 xvii).
� To download the latest firmware for your camera, visit: https://downloadcenter.nikonimglib.com/
3 STEP Consult a Nikon-authorized service representative.
30 Before Contacting Customer Support
Technical Notes
Caring for the Camera
Storage
When the camera will not be used for an extended period, remove the battery. Before removing the battery, confirm that the camera is off. Do not store the camera in locations that: � are poorly ventilated or subject to humidities of over 60% � are next to equipment that produces strong electromagnetic
fields, such as televisions or radios � are exposed to temperatures above 50 �C (122 �F) or below
-10 �C (14 �F)
Caring for the Camera 31
Caring for the Camera and Battery: Cautions
Camera Care
Do Not Drop Do not drop the camera or lens or subject them to blows. The product may malfunction if subjected to strong shocks or vibration. Keep Dry Keep the camera dry. Rusting of the internal mechanism caused by water inside the camera can not only be expensive to repair but can in fact cause irreparable damage. Avoid Sudden Changes in Temperature Sudden changes in temperature, such as those that occur when entering or leaving a heated building on a cold day, can cause condensation inside or outside the device. To prevent condensation, place the device in a carrying case or plastic bag before exposing it to sudden changes in temperature. Keep Away from Strong Magnetic Fields Static charges or the magnetic fields produced by equipment such as radio transmitters could interfere with the monitor, corrupt data stored on the memory card, or affect the product's internal circuitry. Do Not Leave the Lens Pointed at the Sun Do not leave the lens pointed at the sun or other strong light source for extended periods. Intense light may damage the image sensor or cause fading or "burn in". Photographs taken with the camera may exhibit a white blur effect.
32 Caring for the Camera and Battery: Cautions
Lasers and Other Bright Light Sources Do not direct lasers or other extremely bright light sources toward the lens, as this could damage the camera's image sensor. Cleaning When cleaning the camera body, use a blower to gently remove dust and lint, then wipe gently with a soft, dry cloth. After using the camera at the beach or seaside, wipe off any sand or salt using a cloth lightly dampened in fresh water and then dry the camera thoroughly. In rare instances, static electricity may cause the LCD displays to light up or go dark; this does not indicate a malfunction. The display will soon return to normal. Cleaning the Lens and Viewfinder These glass elements are easily damaged: remove dust and lint with a blower. If using an aerosol blower, keep the can vertical to prevent the discharge of liquid that could damage glass elements. To remove fingerprints and other stains from the lens, apply a small amount of lens cleaner to a soft cloth and wipe the lens carefully. Do Not Touch the Image Sensor Under no circumstances should you exert pressure on the image sensor, poke it with cleaning tools, or subject it to powerful air currents from a blower. These actions could scratch or otherwise damage the sensor.
Caring for the Camera and Battery: Cautions 33
The Lens Contacts Keep the lens contacts clean. Avoid touching them with your fingers. Store in a Well-Ventilated Area To prevent mold or mildew, store the camera in a dry, well-ventilated area. Do not store the camera with naphtha or camphor moth balls, next to equipment that produces strong electromagnetic, or where it will be exposed to extremely high temperatures, for example near a heater or in an enclosed vehicle on a hot day. Failure to observe these precautions could result in product malfunction. Long-Term Storage To prevent damage caused by, for example, leaking battery fluid, remove the battery if the product will not be used for an extended period. Store the camera in a plastic bag containing a desiccant. Do not, however, store the leather camera case in a plastic bag, as this may cause the material to deteriorate. Store the battery in a cool, dry place. Note that desiccant gradually loses its capacity to absorb moisture and should be replaced at regular intervals. To prevent mold or mildew, take the camera out of storage at least once a month, insert the battery, and release the shutter a few times. Turn the Product Off Before Removing or Disconnecting the Power
Source Removing or disconnecting the power source while the camera is on could damage the product. Particular care should be taken not to remove or disconnect the power source while images are being recorded or deleted.
34 Caring for the Camera and Battery: Cautions
Monitor/Viewfinder � The monitors (including viewfinder) are constructed with extremely
high precision; at least 99.99% of pixels are effective, with no more than 0.01% being missing or defective. Hence while these displays may contain pixels that are always lit (white, red, blue, or green) or always off (black), this is not a malfunction. Images recorded with the device are unaffected. Your understanding is requested. � Images in the monitor may be difficult to see in a bright light. � Do not apply pressure to the monitor. The monitor could malfunction or suffer damage. Dust or lint on the monitor can be removed with a blower. Stains can be removed by wiping the monitor lightly with a soft cloth or chamois leather. Should the monitor break, care should be taken to avoid injury from broken glass. Be careful that liquid crystal from the monitor does not touch the skin or enter the eyes or mouth. � Should you experience any of the following symptoms while framing shots in the viewfinder, discontinue use until your condition improves: - nausea, eye pain, eye fatigue, - dizziness, headache, stiffness in your neck or shoulders, - queasiness or loss of hand-eye coordination, or - motion sickness. � The display may rapidly flicker on and off during burst photography. Watching the flickering display could cause you to feel unwell. Discontinue use until your condition improves. Bright Lights and Back-Lit Subjects Noise in the form of lines may in rare cases appear in pictures that include bright lights or back-lit subjects.
Caring for the Camera and Battery: Cautions 35
D Disposing of Data Storage Devices Please note that deleting images or formatting memory cards or other data storage devices does not completely erase the original image data. Deleted files can sometimes be recovered from discarded storage devices using commercially available software, potentially resulting in the malicious use of personal image data. Ensuring the privacy of such data is the user's responsibility. Before discarding a data storage device or transferring ownership to another person, erase all data using commercial deletion software, or format the device and then completely refill it with images containing no private information (for example, pictures of empty sky). Care should be taken to avoid injury when physically destroying data storage devices. Before discarding the camera or transferring ownership to another person, you should also use the [Reset all settings] item in the camera setup menu to delete network settings and other personal information.
36 Caring for the Camera and Battery: Cautions
Battery Care
Precautions for Use � If improperly handled, batteries may rupture or leak, causing the
product to corrode. Observe the following precautions when handling batteries: - Turn the product off before replacing the battery. - Batteries may be hot after extended use. - Keep the battery terminals clean. - Use only batteries approved for use in this equipment. - Do not short or disassemble batteries or expose them to flame or
excessive heat. - Replace the terminal cover when the battery is not inserted in the
camera or charger. � If the battery is hot, for example immediately after use, wait for it to cool
before charging. Attempting to charge the battery while its internal temperature is elevated will impair battery performance, and the battery may not charge or charge only partially. � If the battery will not be used for some time, insert it in the camera and run it flat before removing it from the camera for storage. The battery should be stored in a cool, dry location with an ambient temperature of 15 �C to 25 �C (59 �F to 77 �F). Avoid hot or extremely cold locations. � Batteries should be charged within six months of use. During long periods of disuse, charge the battery and use the camera to run it flat once every six months before returning it to a cool location for storage. � Remove the battery from the camera or charger when not in use. The camera and charger draw minute amounts of charge even when off and could draw the battery down to the point that it will no longer function.
Caring for the Camera and Battery: Cautions 37
� Do not use the battery at ambient temperatures below 0 �C (32 �F) or above 40 �C (104 �F). Failure to observe this precaution could damage the battery or impair its performance. Charge the battery indoors at ambient temperatures of 5 �C�35 �C (41 �F�95 �F). The battery will not charge if its temperature is below 0 �C (32 �F) or above 60 �C (140 �F).
� Capacity may be reduced and charging times increase at battery temperatures from 0 �C (32 �F) to 15 �C (59 �F) and from 45 �C (113 �F) to 60 �C (140 �F).
� Batteries in general exhibit a drop in capacity at low ambient temperatures. Even fresh batteries charged at temperatures under about 5 �C (41 �F) may show a temporary increase from "0" to "1" in the setup menu [Battery info] age display, but the display will return to normal once the battery has been recharged at a temperature of about 20 �C (68 �F) or higher.
� Battery capacity drops at low temperatures. The change in capacity with temperature is reflected in the camera battery-level display. As a result, the battery display may show a drop in capacity as the temperature drops, even if the battery is fully charged.
� Batteries may be hot after use. Observe due caution when removing batteries from the camera.
Charge Batteries Before Use Charge the battery before use. The supplied battery is not fully charged at shipment. Ready Spare Batteries Before taking photographs, ready a spare battery and keep it fully charged. Depending on your location, it may be difficult to purchase replacement batteries on short notice.
38 Caring for the Camera and Battery: Cautions
Have Fully-Charged Spare Batteries Ready on Cold Days Partially-charged batteries may not function on cold days. In cold weather, charge one battery before use and keep another in a warm place, ready to be exchanged as necessary. Once warmed, a cold battery may recover some of its charge. Battery Level � Turning the camera on or off repeatedly when the battery is fully
discharged will shorten battery life. Batteries that have been fully discharged must be charged before use. � A marked drop in the time a fully charged battery retains its charge when used at room temperature indicates that it requires replacement. Purchase a new rechargeable battery. Do Not Attempt to Charge Fully-Charged Batteries Continuing to charge the battery after it is fully charged can impair battery performance. Recycling Used Batteries Recycle rechargeable batteries in accord with local regulations, being sure to first insulate the terminals with tape.
Caring for the Camera and Battery: Cautions 39
Using the Charger
� Do not move the charger or touch the battery during charging; failure to observe this precaution could in very rare instances result in the charger showing that charging is complete when the battery is only partially charged. Remove and reinsert the battery to begin charging again.
� Do not short the charger terminals. Failure to observe this precaution could result in overheating and damage to the charger.
� Unplug the charger when it is not in use. � Use the MH-25a with compatible batteries only. � Do not use chargers with damage that leaves the interior exposed or
that produce unusual sounds when used. � The symbols on this product represent the following:
m AC, p DC, q Class II equipment (the construction of the product is double-insulated)
Using the Charging AC Adapter
� Do not move the camera or touch the battery during charging. Failure to observe this precaution could in very rare instances result in the camera showing that charging is complete when the battery is only partially charged. Disconnect and reconnect the adapter to begin charging again.
� Do not short the adapter terminals. Failure to observe this precaution could result in overheating and damage to the charger.
� Unplug the adapter when it is not in use. � Do not use adapters with damage that leaves the interior exposed or
that produce unusual sounds when used. � The symbols on this product represent the following:
m AC, p DC, q Class II equipment (the construction of the product is double-insulated)
40 Caring for the Camera and Battery: Cautions
Trademarks and Licenses
� CFexpress is a trademark of the CompactFlash Association in the United States and other countries.
� NVM Express is a trademark of NVM Express Inc. in the United States and other countries.
� XQD is a trademark of Sony Corporation. � The SD, SDHC, and SDXC logos are trademarks of SD-3C, LLC. � Windows is either a registered trademark or a trademark of
Microsoft Corporation in the United States and/or other countries. � Apple�, App Store�, the Apple logos, iPhone�, iPad�, Mac, and macOS are trademarks of Apple Inc. registered in the U.S. and/ or other countries. � Android, Google Play and the Google Play logo are trademarks of Google LLC. The Android robot is reproduced or modified from work created and shared by Google and used according to terms described in the Creative Commons 3.0 Attribution License. � IOS is a trademark or registered trademark of Cisco Systems, Inc., in the United States and/or other countries and is used under license. � HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing, LLC.
Trademarks and Licenses 41
� The Bluetooth� word mark and logo are registered trademarks owned by Bluetooth SIG, Inc., and any use of such marks by Nikon is under license.
� Wi-Fi and the Wi-Fi logo are trademarks or registered trademarks of the Wi-Fi Alliance.
� All other trade names mentioned in this manual or the other documentation provided with your Nikon product are trademarks or registered trademarks of their respective holders.
Use of the Made for Apple badge means that an accessory has been designed to connect specifically to the Apple products identified in the badge, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with an Apple product may affect wireless performance.
D FreeType License (FreeType2) Portions of this software are copyright � 2012 The FreeType Project (https://www.freetype.org). All rights reserved. D MIT License (HarfBuzz) Portions of this software are copyright � 2018 The HarfBuzz Project (https://www.freedesktop.org/wiki/Software/HarfBuzz). All rights reserved.
42 Trademarks and Licenses
D Unicode� Character Database License (Unicode� Character Database)
The software for this product uses the Unicode� Character Database License open-source software. The terms of the software license are as follows: COPYRIGHT AND PERMISSION NOTICE Copyright � 1991-2020 Unicode, Inc. All rights reserved. Distributed under the Terms of Use in https://www.unicode.org/copyright.html. Permission is hereby granted, free of charge, to any person obtaining a copy of the Unicode data files and any associated documentation (the "Data Files") or Unicode software and any associated documentation (the "Software") to deal in the Data Files or Software without restriction, including without limitation the rights to use, copy, modify, merge, publish, distribute, and/or sell copies of the Data Files or Software, and to permit persons to whom the Data Files or Software are furnished to do so, provided that either (i) this copyright and permission notice appear with all copies of the
Data Files or Software, or (ii) this copyright and permission notice appear in associated
Documentation.
Trademarks and Licenses 43
THE DATA FILES AND SOFTWARE ARE PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT OF THIRD PARTY RIGHTS. IN NO EVENT SHALL THE COPYRIGHT HOLDER OR HOLDERS INCLUDED IN THIS NOTICE BE LIABLE FOR ANY CLAIM, OR ANY SPECIAL INDIRECT OR CONSEQUENTIAL DAMAGES, OR ANY DAMAGES WHATSOEVER RESULTING FROM LOSS OF USE, DATA OR PROFITS, WHETHER IN AN ACTION OF CONTRACT, NEGLIGENCE OR OTHER TORTIOUS ACTION, ARISING OUT OF OR IN CONNECTION WITH THE USE OR PERFORMANCE OF THE DATA FILES OR SOFTWARE. Except as contained in this notice, the name of a copyright holder shall not be used in advertising or otherwise to promote the sale, use or other dealings in these Data Files or Software without prior written authorization of the copyright holder. D AVC Patent Portfolio License THIS PRODUCT IS LICENSED UNDER THE AVC PATENT PORTFOLIO LICENSE FOR THE PERSONAL AND NON-COMMERCIAL USE OF A CONSUMER TO (i) ENCODE VIDEO IN COMPLIANCE WITH THE AVC STANDARD ("AVC VIDEO") AND/OR (ii) DECODE AVC VIDEO THAT WAS ENCODED BY A CONSUMER ENGAGED IN A PERSONAL AND NONCOMMERCIAL ACTIVITY AND/OR WAS OBTAINED FROM A VIDEO PROVIDER LICENSED TO PROVIDE AVC VIDEO. NO LICENSE IS GRANTED OR SHALL BE IMPLIED FOR ANY OTHER USE. ADDITIONAL INFORMATION MAY BE OBTAINED FROM MPEG LA, L.L.C. SEE https://www.mpegla.com
D BSD License (NVM Express Driver) The license for the open-source software included in the camera's NVM Express driver is as follows: https://imaging.nikon.com/support/pdf/LicenseNVMe.pdf
44 Trademarks and Licenses
Notices
Notices for Customers in the U.S.A. The Battery Charger
IMPORTANT SAFETY INSTRUCTIONS--SAVE THESE INSTRUCTIONS DANGER--TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, CAREFULLY FOLLOW THESE INSTRUCTIONS
For connection to a supply not in the U.S.A., use an attachment plug adapter of the proper configuration for the power outlet if needed. This power unit is intended to be correctly oriented in a vertical or floor mount position.
Federal Communications Commission (FCC) Radio Frequency Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: � Reorient or relocate the receiving antenna. � Increase the separation between the equipment and receiver. � Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected. � Consult the dealer or an experienced radio/television technician for
help.
Notices 45
CAUTIONS
Modifications
The FCC requires the user to be
Z 7II/Z 6II
notified that any changes or
modifications made to this device that are not expressly approved by
Nikon Corporation may void the user's authority to operate the
equipment.
Interface Cables
Use the interface cables sold or provided by Nikon for your equipment.
Using other interface cables may exceed the limits of Class B Part 15 of the
FCC rules.
Nikon Inc., 1300 Walt Whitman Road, Melville, New York 11747-3064,
U.S.A.
Tel.: 631-547-4200
Power Cable
At voltages over AC 125 V (U.S.A. only): The power cable must be rated for the voltage in use, be at least AWG no. 18 gauge, and have SVG insulation or better with a NEMA 6P-15 plug rated for AC 250 V 15 A.
Notice for Customers in Canada CAN ICES-3 B / NMB-3 B
46 Notices
Notices for Customers in Europe CAUTION: RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS. This symbol indicates that electrical and electronic equipment is to be collected separately. The following apply only to users in European countries: � This product is designated for separate collection at an appropriate collection point. Do not dispose of as household waste. � Separate collection and recycling helps conserve natural resources and prevent negative consequences for human health and the environment that might result from incorrect disposal. � For more information, contact the retailer or the local authorities in charge of waste management. This symbol on the battery indicates that the battery is to be collected separately. The following apply only to users in European countries: � All batteries, whether marked with this symbol or not, are designated for separate collection at an appropriate collection point. Do not dispose of as household waste. � For more information, contact the retailer or the local authorities in charge of waste management.
Notices 47
Bluetooth and Wi-Fi (Wireless LAN)
This product is controlled by the United States Export Administration Regulations (EAR). The permission of the United States government is not required for export to countries other than the following, which as of this writing are subject to embargo or special controls: Cuba, Iran, North Korea, Sudan, and Syria (list subject to change). The use of wireless devices may be prohibited in some countries or regions. Contact a Nikon-authorized service representative before using the wireless features of this product outside the country of purchase. The Bluetooth transmitter in this device operates in the 2.4 GHz band.
Notice for Customers in the U.S.A. and Canada This device complies with part 15 of FCC Rules and Innovation, Science and Economic Development Canada's licence-exempt RSSs. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC WARNING The FCC requires the user to be notified that any changes or modifications made to this device that are not expressly approved by Nikon Corporation may void the user's authority to operate the equipment.
48 Bluetooth and Wi-Fi (Wireless LAN)
Compliance with FCC requirement 15.407(c) Data transmission is always initiated by software, which is the passed down through the MAC, through the digital and analog baseband, and finally to the RF chip. Several special packets are initiated by the MAC. These are the only ways the digital baseband portion will turn on the RF transmitter, which it then turns off at the end of the packet. Therefore, the transmitter will be on only while one of the aforementioned packets is being transmitted. In other words, this device automatically discontinue transmission in case of either absence of information to transmit or operational failure. Frequency Tolerance: �20 ppm FCC Radio Frequency Interference Statement Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: � Reorient or relocate the receiving antenna. � Increase the separation between the equipment and receiver. � Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected. � Consult the dealer or an experienced radio/TV technician for help. Co-location This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter. Nikon Inc., 1300 Walt Whitman Road, Melville, New York 11747-3064, U.S.A. Tel.: 631-547-4200
Bluetooth and Wi-Fi (Wireless LAN) 49
FCC/ISED RF Exposure Statement The available scientific evidence does not show that any health problems are associated with using low power wireless devices. There is no proof, however, that these low power wireless devices are absolutely safe. Low power Wireless devices emit low levels of radio frequency energy (RF) in the microwave range while being used. Whereas high levels of RF can produce health effects (by heating tissue), exposure of low-level RF that does not produce heating effects causes no known adverse health effects. Many studies of low-level RF exposures have not found any biological effects. Some studies have suggested that some biological effects might occur, but such findings have not been confirmed by additional research. This product has been tested and found to comply with FCC/ISED radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines and RSS-102 of the ISED radio frequency (RF) Exposure rules. Please refer to the SAR test report that was uploaded to FCC website. Compliance with RSS-247 Issue 2 �6.4 Data transmission is always initiated by software, which is the passed down through the MAC, through the digital and analog baseband, and finally to the RF chip. Several special packets are initiated by the MAC. These are the only ways the digital baseband portion will turn on the RF transmitter, which it then turns off at the end of the packet. Therefore, the transmitter will be on only while one of the aforementioned packets is being transmitted. In other words, this device automatically discontinue transmission in case of either absence of information to transmit or operational failure. Notice for Customers in Canada For indoor use only (5150-5350MHz).
50 Bluetooth and Wi-Fi (Wireless LAN)
Notice for Customers in Europe and in Countries Complying with the Radio Equipment Directive
Hereby, Nikon Corporation declares that the radio equipment types Z 7II and Z 6II are in compliance with Directive 2014/53/ EU. The full texts of the EU declarations of conformity are available at the following internet addresses: Z 7II: https://imaging.nikon.com/support/pdf/DoC_N1932.pdf Z 6II: https://imaging.nikon.com/support/pdf/DoC_N1929.pdf
Wi-Fi � Operating frequency:
- 2412�2462 MHz (channel 11; Africa, Asia, Bolivia, and Oceania) - 2412�2462 MHz (channel 11) and 5180�5825 MHz (U.S.A., Canada,
Mexico) - 2412�2462 MHz (channel 11) and 5180�5805 MHz (other countries in
the Americas) - 2412�2462 MHz (channel 11) and 5745�5805 MHz (Georgia) - 2412�2462 MHz (channel 11) and 5180�5320 MHz (other European
countries) � Maximum output power (EIRP):
- 2.4 GHz band: 5.2 dBm - 5 GHz band: 5.3 dBm (Georgia) - 5 GHz band: 8.3 dBm (other countries) Bluetooth � Operating frequency: - Bluetooth: 2402�2480 MHz - Bluetooth Low Energy: 2402�2480 MHz � Maximum output power (EIRP): - Bluetooth: �0.3 dBm - Bluetooth Low Energy: �1.8 dBm
Bluetooth and Wi-Fi (Wireless LAN) 51
Notice for Customers in Singapore
Trade Name: Model: Z 7II
Trade Name: Model: Z 6II
This device complies with radio-frequency regulations. The content of certification labels not affixed to the device is given below.
Complies with IMDA Standards DA103423
Security Although one of the benefits of this product is that it allows others to freely connect for the wireless exchange of data anywhere within its range, the following may occur if security is not enabled: � Data theft: Malicious third-parties may intercept wireless transmissions
to steal user IDs, passwords, and other personal information. � Unauthorized access: Unauthorized users may gain access to the
network and alter data or perform other malicious actions. Note that due to the design of wireless networks, specialized attacks may allow unauthorized access even when security is enabled. � Unsecured networks: Connecting to open networks may result in unauthorized access. Use secure networks only.
A Conformity Marking The standards with which the camera complies can be viewed using the [Conformity marking] option in the setup menu.
52 Bluetooth and Wi-Fi (Wireless LAN)
A Certificates Bluetooth and Wi-Fi (Wireless LAN) 53
54
Warranty Terms - Nikon Europe Service Warranty
Dear Nikon Customer, We thank you for your purchasing this Nikon product. Should your Nikon product require warranty service, please contact the dealer from whom it was purchased or a member of our authorized service network within the sales territory of Nikon Europe B.V. (e.g. Europe/Russia/others). See details under: https://www.europe-nikon.com/support
In order to avoid any unnecessary inconvenience, we advise you to read the user manuals carefully before contacting the dealer or our authorized service network.
Your Nikon equipment is guaranteed against any manufacturing defects for one full year from the date of original purchase. If during this period of guarantee the product proves defective due to improper material or workmanship, our authorized service network within the sales territory of Nikon Europe B.V. will, without charge for labor and parts, repair the product in the terms and conditions set as below. Nikon reserves the right (at its sole discretion) to replace or repair the product.
1. This warranty is only provided upon presentation of the completed warranty card and original invoice or purchase receipt indicating the date of purchase, product type and dealer's name, together with the product. Nikon reserves the right to refuse free-of-charge warranty service if the above documents cannot be presented or if the information contained in it is incomplete or illegible.
Warranty Terms - Nikon Europe Service Warranty 55
2. This warranty will not cover: � necessary maintenance and repair or replacement of parts due to normal wear and tear. � modifications to upgrade the product from its normal purpose as described in user manuals, without the prior written consent of Nikon. � transport costs and all risks of transport relating directly or indirectly to the warranty of the products. � any damage resulting from modifications or adjustments which may be made to the product, without the prior written consent of Nikon, in order to comply with local or national technical standards in force in any other country than the ones for which the product was originally designed and/or manufactured.
3. The warranty will not be applicable in the case of: � damage caused by misuse including but not limited to failure to use the product for its normal purpose or according to the user instructions on the proper use and maintenance, and to installation or use of the product inconsistent with the safety standards in force in the country where it is used. � damage caused by accidents including but not limited to lightning, water, fire, misuse or neglect. � defacing, illegibility or removal of the model or serial number on the product. � damage resulting from repairs or adjustments which have been conducted by unauthorized service organizations or persons. � defects in any system into which the product is incorporated or with which it is used.
56 Warranty Terms - Nikon Europe Service Warranty
4. This service warranty does not affect the consumer's statutory rights under applicable national laws in force, nor the consumer's right against the dealer arising from their sales/ purchase contract.
Notice: An overview of all authorized Nikon Service Stations can be found online by following this Link (URL = https://www.europe-nikon.com/service/).
Warranty Terms - Nikon Europe Service Warranty 57
No reproduction in any form of this manual, in whole or in part (except for brief quotation in critical articles or reviews), may be made without written authorization from NIKON CORPORATION.
6MOA7711-01
