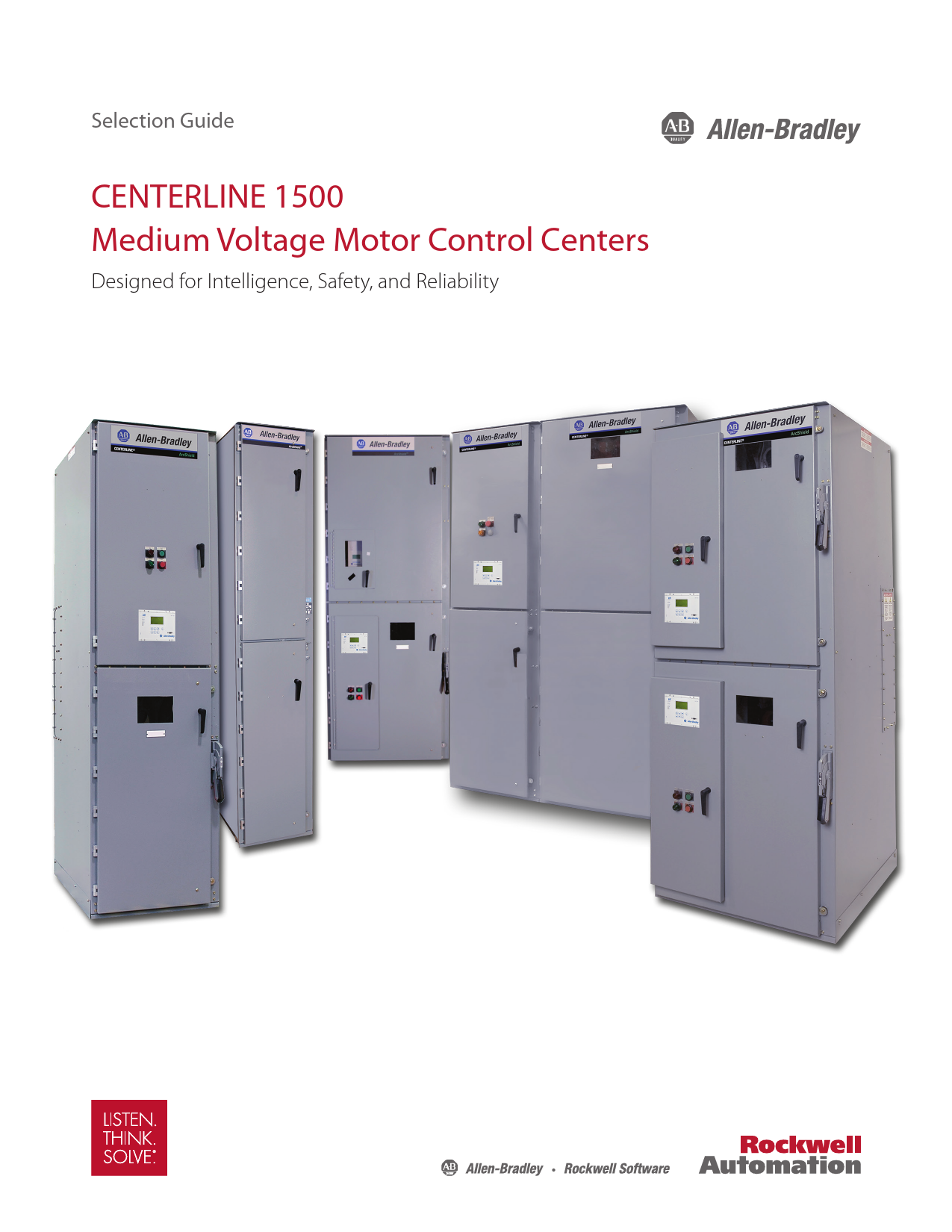

CENTERLINE 1500 Medium Voltage Motor Control Centers
Designed for Intelligence, Safety, and Reliability
Introduction
Your critical applications rely on medium voltage motors for safe, repeatable operation in harsh industrial environments. To help improve the protection and performance of your systems, choose Allen-Bradley® CENTERLINE® 1500 medium voltage motor control centers (MVMCCs)—built tough to meet your application demands.
With one of the broadest suites of motor controls in the marketplace, CENTERLINE 1500 MVMCCs deliver premium quality, tailored solutions in a centralized package that integrates control and power in one efficient solution.
Matched to your requirements, our UL and NEMA certified medium voltage solutions are designed to mitigate risk and support an extensive range of control formats and configurations. The result? Smart, cost-effective systems that can deliver power, control, information, and safety capabilities on a common platform.
To extend system performance further, incorporate additional features—like industry-leading ArcShield™ arc-resistant enclosures and IntelliCENTER® technology, our built-in network and software package. Our flexible and scalable approach to design means you can choose the capabilities that you need to enhance safety and maximize productivity.
For nearly 80 years, Rockwell Automation has provided leading medium voltage motor control solutions—solutions like the CENTERLINE 1500 MVMCC.
Medium Voltage Motor Control Centers
Enclosure Features
CENTERLINE 1500 MVMCCs come in an array of enclosure types, in compliance with multiple standards. These enclosures feature line, load, and control wire conduit openings with removable cover plates for optimum accessibility and safety. All power cell doors are bolted for protection from the medium voltage power circuitry. Many enclosures can be ordered with a prepared space for future controller installations. For simplified installation, removable lifting angles and fixed base sill channels are provided.
Enclosure Types
- Arc-resistant Type 2B, 40 kA or 50 kA (NEMA Type 12, IP52)
- NEMA Type 1 – General-purpose (IP10)
- NEMA Type 1 w/g – General-purpose with gasket (IP21)
- NEMA Type 12 – Dust-tight and drip proof (IP52)
- NEMA Type 3R – Non walk-in weatherproof (IP34)
Standards Compliance
- Underwriters Laboratories, Inc. (UL), High Voltage Industrial Control Equipment 347
- Canadian Standards Association (CSA), Industrial Control Equipment C22.2 No. 253 (harmonized with UL 347, fifth edition)
- National Electrical Manufacturers Association (NEMA), Medium Voltage Controllers Rated 1501...7200 VAC ICS 3-2 (formerly ICS 2-324)
- American Nation Standards Institute (ANSI), Instrument Transformers C57.13
- Institute of Electrical and Electronic Engineers (IEEE) 519-1992
- IEEE C37.20.7, Type 2B for arc resistance
- National Electrical Code (NEC)
- Canadian Electrical Code (CEC)
- Occupational Safety and Health Act (OSHA)
- European Directives for EMC
Compartmentalization
Each CENTERLINE 1500 MV MCC is assembled with completely isolated, easily accessible, and modular compartments:
- Centralized power bus compartment
- One or more medium voltage power cell compartments
- One or more low voltage compartments
Power Bus Compartment
The CENTERLINE 1500 MVMCC features a centralized horizontal power bus compartment with removable cover plates for premium accessibility and power distribution throughout the entire lineup.
- Controllers are expandable from the left-to-right or right-to-left
- Designed for direct connection of incoming line cables, from top or bottom
- Horizontal edge-to-edge bus bar configuration opposes magnetic forces, moisture, and dust collection
- One-piece 3-phase bus brace helps reduce maintenance and provides excellent distribution of forces during faults
- Side and rear access, which is protected by removable, bolted grounded plates; power bus accessible from the front for all motor controllers
Power Cell Compartment
The MVMCC power cell compartment is the heart of the controller. It contains all power circuitry, including proprietary non-load break isolation switches, integrated power fuses, contactors, and current and control power transformers. The MVMCC power cell compartment is fully interlocked (electrically and mechanically) to provide an enhanced safety level. See "Standard Features" on page 5 for detailed information about our market-leading technology.
Standard Features
Bulletin 1502: Fixed Mounted Vacuum Contactors
The Allen-Bradley vacuum contactors are designed as fixed mounted devices for heavy-duty industrial performance. This design helps reduce the maintenance and reliability concerns that are associated with drawout-style contactors. Also, there are no drawout stab and finger assemblies, which require routine maintenance.
Our compact and low maintenance design reduces the need to remove the power cell. The contactors are designed to operate with Rockwell Automation's IntelliVAC family of control modules or optional pilot relay-type control.
Advantages
- Lightweight, compact design
- Minimal maintenance required
- High interrupting capability
- Low chop current
- Visual contact wear indicator (no measurement tools required)
- Mechanical interlocking to the non-load break isolation switch
- Excellent dielectric recovery for high switching frequency
- Single coil/core magnet assembly (800 A only)
- Control power transformer primary-fuse holders (400 A only)
- All major components are easily accessed from the front
- Mechanical latch design version (optional)
- Easily integrated into control circuit with quick connector and wire harness (optional)
- Optimized to complement the advanced features of the IntelliVAC contactor control module
Applications
Medium voltage (1000...7200V) vacuum switching for motor starter loads (asynchronous, synchronous)
- Full-voltage
- Reduced voltage
- Variable-frequency drives
- Transformer feeder unit loads
- Capacitor loads
Bulletin 1503: Non-Load Break Isolation Switch
The isolation switch is a non-load-break type switch, available to support either clip-on or bolt-on fuses. When opened, the switch delivers a dead-fronted power cell for enhanced safety. Positively driven auxiliary contacts provide safety interlocking of the low voltage control circuitry.
Electrical and mechanical interlocks help prevent the switch from opening or closing when the medium voltage vacuum contactor is energized, or if a power cell door is open.
Standard Features
- Three pole, gang operated
- 400, 600 or 800 A full load current
- Auxiliary contacts: 2 N.O./2 N.C. are standard; Provisions for 3 N.O./3 N.C.
- Contact type: Catalog No. 700-CPM
- Contact Rating: NEMA 2 x A600 and 2 x P600
- Clip-on or bolt-on fuses supported
- Line and load fuse clips or bolt-on locations
- Electrically and mechanically interlocked when used with the Allen-Bradley handle module and contactor
- Shutter mechanism fully isolates the power cell from medium voltage power bus
- Switch blades are grounded in the off position
Mechanical Interlocking
A simple, heavy duty, direct drive mechanism improves reliability and helps provide excellent operator safety. All mechanical interlock mechanisms remain part of the enclosure to minimize setup adjustment.
Isolation Switch Handle Module
- Padlocking provision up to 3 padlocks in open position, 1 padlock in closed position
- Mechanical interlock with the power cell door, non-load isolation switch, and contactor
- Provision for mechanically trapped key interlocking
Low Voltage Compartment
The unique swing-out, low voltage compartment provides a separate and fully isolated area. All CENTERLINE 1500 low voltage compartments include these features:
- Enables controller testing and troubleshooting without exposing personnel to medium voltage for maximum safety
- By using the unique Test Selector Switch and external test power supply receptacle, all low voltage components can be configured and tested safely without medium voltage applied
- The Test Selector Switch additionally helps prevent backfeeding through the control transformer
- All low voltage panels are painted white, providing increased visibility, better component identification, simple access, easy product integration, and higher maintainability
The low voltage compartment can house various low voltage Intelligent Motor Control (IMC) devices for diverse protection and measurement capabilities. These IMC devices include:
- Bulletin 193: E300™ Electronic Overload Relay
- Bulletin 1426: PowerMonitor™ 5000
- Bulletin 1503VC: IntelliVAC™ Contactor Control Module
- Bulletin 1794: Flex™ I/O
- Bulletin 857: Motor/Feeder Protection Relay
- Bulletin 865: Differential Protection Relay
Product Features
Each controller consists of functional modules for high reliability and virtually no maintenance. The following product highlights include some of our patented modular technologies, which are the foundation of our high-quality CENTERLINE 1500 MVMCCS.
Non-load Break Isolation Switch
Our integrated non-load break isolation switch features a proprietary shutter mechanism and an easily accessible handle to isolate the power cell safely from medium voltage. The power cell door is interlocked with the handle mechanism to help prevent the door from being opened when the cell is energized. The state of the isolation switch can be quickly determined through a polycarbonate viewing window.
Power Fuses
Three R-rated current-limiting power fuses are applied with the vacuum contactors so no transient overload current reaches the motor. E-rated power fuses are implemented for some sizes of transformer controllers. Both bolt-on and clip-on styles are available.
Vacuum Contactors
Compact and high-performance vacuum contactors are implemented within the power cell compartment of CENTERLINE 1500 MVMCCS. These vacuum contactors are designed to enable repeatable activation and deactivation of the connected load. Their compact and low maintenance design also reduces the need to remove the contactor to replace power or control circuit transformer fuses, or do testing.
Control Power Transformers (CPT)
The standard CPT transforms the primary side medium voltage to a single-phase 120V or 240V secondary side voltage to run the control circuitry efficiently in the isolated low voltage compartment. The CPT features a standard accuracy of ±4%, with the option of ±1% accuracy per customer request.
Current Transformers
CENTERLINE 1500 MVMCCS use two styles of current transformers; donut type and bar type. Three of either types are used for overload protection and metering. Optional ground fault (zero sequence style) current transformers are also available.
Intelligent Motor Control Devices
Bulletin 857: Motor Protection Relay
- Complete protection: Comprehensive selection of protection functions for distribution network overhead line feeders, cable feeders, transformer feeders, and motors, which includes large motors, capacitor banks, and reactors.
- Complete flexibility in display capabilities: Take control with a fully configurable LCD HMI, including the display of up to six configurable measurement values, configurable interlocking schemes with basic logic functions, and a fully interactive MIMIC diagram.
- Integrated 12-channel disturbance recorder: Built-in disturbance recorder to evaluate all analog and digital signals.
- Comprehensive energy management and measurements: Widest range of measurement functions including phase-to-earth, phase-to-phase voltages, currents, frequency, active, reactive, and apparent power, active and reactive energy imported and exported, power factor, and negative phase sequence current.
- Power quality: Power quality assessment and analysis including supervision of harmonics up to the 15th order, THD, and voltage swells and sags.
- Fault location: Integrated fault location with distance indication for short circuits in distribution networks irrespective of power network earthing system and earth-faults in compensated networks.
- Optional ultra-fast arc flash protection: Unique integrated arc fault protection functionality for enhanced safety of switchgear, substations, people, and property.
- Extensive communication capabilities: Large number of supported communication protocols including EtherNet/IP, TCP/IP, IEC 61850, IEC 60870-5-101, IEC 60870-5-103, Modbus TCP, Modbus RTU, PROFIBUS DP, SPA-bus slave, DNP3.0, or DNP TCP.
- Easy programming and management: Easy commissioning, configuration, and operation supported by the free SetPointPS relay configuration and management software. Local or remote Internet configuration capabilities are available.
Bulletin 865: Differential Motor Protection Relay
- Optimized protection: Ideal for transformer, motor, generator, and short cable differential protection. Optimized for transformer protection.
- Second and fifth harmonic blocking: Full detection of inrush current magnitude with sensitivity selection and blocking of overcurrent elements during inrush current protection.
- Integrated 12-channel disturbance recorder: Built-in disturbance recorder for evaluating all analog and digital signals.
- Optional ultra-fast arc flash protection: Unique integrated arc fault protection functionality for enhanced safety of switchgear, substations, people, and property.
- Complete flexibility in display capabilities: Take control with a fully configurable LCD HMI including the display of up to six configurable measurement values, configurable interlocking schemes with basic logic functions along with a fully interactive MIMIC diagram.
- Extensive communication capabilities: Large number of supported communication protocols including EtherNet/IP, TCP/IP, IEC 61850, IEC 60870-5-101, IEC 60870-5-103, Modbus TCP, Modbus RTU, PROFIBUS DP, SPA-bus slave, and DNP3.0.
- Easy programming and management: Easy commissioning, configuration, and operation supported by the free SetPointPS relay configuration and management software. Includes local or remote Internet configuration capabilities.
Bulletin 193/592: E300 Electronic Overload Relay
The E300 Electronic Overload Relay is the next generation electronic overload from Allen-Bradley. Its modular design, communication options, diagnostic information, simplified wiring, and integration into Logix make it the ideal overload for motor control applications in an automation system. The E300 Overload Relay provides flexibility, helps reduce engineering time, and maximizes uptime for important motor starter applications. For a detailed product profile, see publication 193-BR029.
Modular Design
- For exacting application needs
- Wide current range
- Multiple sensing capabilities
- Expansion I/O
- Operator interface
Intelligent Motor Control
- Easy automation system integration
- Network connectivity
- Native I/O
- DeviceLogix technology enabled
- Integrated into Logix
- Preprogrammed operating modes
Diagnostic Information
Monitor motor performance, which includes:
- Voltage, current, and energy
- Trip/warning histories
- Percentage of thermal capacity use
- Time to reset
- Operational hours
- Number of starts
Bulletin 1503VC: IntelliVAC Contactor Control Modules
The Bulletin 1503VC IntelliVAC controllers offer an excellent, efficient, and flexible means to control Bulletin 1502 vacuum contactors. The IntelliVAC control module family offers a scalable solution for multiple medium voltage control applications.
IntelliVAC Module
- Provides basic electronic control capabilities for Allen-Bradley Bulletin 1502, 400 A, 450 A, and 800 A contactors (electrically held and mechanical latch)
- Offers enhanced reliability through enhanced diagnostics and the ability to provide selective coordination between the power fuses and the vacuum contactor drop-out time.
- Inherent power loss ride-through (TDUV) and contactor anti-kiss and anti-plugging features provide excellent control and protection capabilities.
Medium Voltage Controller Types
Bulletin 1512A: One-high Full-voltage Non-reversing Motor Starter
Description of Features
- Fixed mounted vacuum contactor
- Three-pole, gang-operated, non-load break isolating switch with an external operating handle, fully interlocked with main contactor and power cell doors
- A polycarbonate viewing window in the power cell door to view the position of the isolating switch
- Three R-rated current-limiting power fuses
- Three current transformers
- Control power transformer with primary and secondary fuses
- Segregated low voltage panel to house standard and optional hardware for unit control and monitoring
- IntelliVAC control module for each vacuum contactor, mounted in low voltage panel, with advanced features
- Additional low voltage control panel accessories that include: 'NORMAL-OFF-TEST' circuit, Receptacle for external test power supply, Set of control circuit terminal blocks
- Two-high structure design for two complete motor controllers
- Available in optional ArcShield enclosure
- Also available as 'Prepared Space' (Bulletin 1512BP) and Starter Kits (Bulletin 1512BS)
Bulletin 1512A Starter Specifications
| Starter Size | 2400V | 3300V | 4160V | 4800V | 6600V | 6900V | Dimensions, in. (mm), approx. | Weight, lb (kg), approx. | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Hp, max | Width | Depth | Height | |||||||
| 200 A | 800 | 1000 | 1250 | 1500 | 2250 | 2500 | 26 (661) | 36 (915) | 91 (2315) (1) | 1075 (490) (2) |
| 400 A | 1500 | 2250 | 2750 | 3000 | 4500 | 5000 | 36 (915) | 1350 (611)(2) | ||
| 600 A | 2750 | 3500 | 4500 | 5500 | 8000 | 56 (1422) | 1800 (816) | |||
| 800 A | 3000 | 5000 | 6000 | 7000 | 9000 |
(1) Height is 128.5 inches (3264 mm) with ArcShield enclosure with plenum.
(2) Weight is different with ArcShield.
Bulletin 1512AT: Full-voltage Transformer Feeder Unit Starter
Description of Features
- Fixed mounted vacuum contactor
- Three-pole, gang-operated, non-load break isolating switch with an external operating handle, fully interlocked with main contactor and power cell doors
- A polycarbonate viewing window in the power cell door to view the position of the isolating switch
- Three E-rated current-limiting power fuses (R-rated power fuses that are used for controller sizes and voltages)
- Three current transformers
- Control power transformer with primary and secondary fuses
- Segregated low voltage panel to house standard and optional hardware for unit control and monitoring
- IntelliVAC control module for each vacuum contactor, mounted in low voltage panel, with advanced features
- Additional low voltage control panel accessories that include: 'NORMAL-OFF-TEST' circuit, Receptacle for external test power supply, Set of control circuit terminal blocks
- One-high structure design for one complete motor controller
- Available in optional ArcShield enclosure
- Also available as 'Prepared Space' (Bulletin 1512AP, only in 200 A and 400 A) or Feeder Kits (Bulletin 1512AU)
Bulletin 1512AT Starter Specifications
| Starter Size | Transformer Size (kVA) | Dimensions, in. (mm), approx. | Weight, lb (kg), approx. | |||||||
|---|---|---|---|---|---|---|---|---|---|---|
| 2400V | 3300V | 4160V | 4800V | 6600V | 6900V | Width | Depth | Height | ||
| 200 A | 700 | 1000 | 1250 | 2000 | 26 (660) | 36 (914) | 91 (2311) (1) | 1075 (490) (2) | ||
| 400 A | 1250 | 2000 | 2500 | 2750 | 4500 | 6000 | 36 (914) | 1350 (611)(2) | ||
| 800 A | 3000 | 4000 | 5500 | 6000 | 8000 | 56 (1422) | 1800 (816) |
(1) Height is 128.5 in. (3264 mm) with ArcShield enclosure with plenum.
(2) Weight is different with ArcShield.
Bulletin 1512AD: One-high Full-voltage Non-reversing Drive Input Starter Controller
Description of Features
- Fixed mounted vacuum contactor
- Three-pole, gang-operated, non-load break isolating switch with an external operating handle, fully interlocked with main contactor and power cell doors
- A polycarbonate viewing window in the power cell door to view the position of the isolating switch
- Three current-limiting power fuses
- Three current transformers
- Segregated low voltage panel to house circuit control fusing that includes: 'NORMAL-OFF-TEST' circuit, Receptacle for external test power supply, Set of control circuit terminal blocks
- Optional hardware for unit control and monitoring
- IntelliVAC control module for each vacuum contactor, mounted in low voltage panel, with advanced features: Selectable vacuum contactor drop-out time and consistent pickup time, Altitude compensation, Anti-kiss and anti-plugging protection, Set of control circuit terminal blocks
- Unit output must be cabled to VFD input. Customer is responsible for interwiring between input contactor unit and variable-frequency drive (VFD)
Bulletin 1512AD Starter Specifications
| Starter Size | Transformer Size (kVA) | Dimensions, in. (mm), approx. | Weight, lb (kg), approx. (2) | ||
|---|---|---|---|---|---|
| 2400...6900 V | Width | Depth | Height | ||
| 200 A | Sized based on variable-frequency drive and continuous current of the motor | 26 (660) | 36 (914) | 91 (2311) (1) | 1075 (488) |
| 400 A | 36 (914) | 1350 (611) | |||
| 600 A | 56 (1423) | 1800 (816) | |||
| 800 A |
(1) Height is 128.5 in. (3264 mm) with ArcShield enclosure with plenum.
(2) Weight is different with ArcShield.
Bulletin 1512B: Two-high Full-voltage Non-reversing Motor Starter
Description of Features
- Fixed mounted vacuum contactor
- Three-pole, gang-operated, non-load break isolating switch with an external operating handle, fully interlocked with main contactor and power cell doors
- A polycarbonate viewing window in the power cell door to view the position of the isolating switch
- Three R-rated current-limiting power fuses
- Three current transformers
- Control power transformer with primary and secondary fuses
- Segregated low voltage panel to house standard and optional hardware for unit control and monitoring
- IntelliVAC control module for each vacuum contactor, mounted in low voltage panel, with advanced features
- Additional low voltage control panel accessories that include: 'NORMAL-OFF-TEST' circuit, Receptacle for external test power supply, Set of control circuit terminal blocks
- Two-high structure design for two complete motor controllers
- Available in optional ArcShield enclosure
- Also available as 'Prepared Space' (Bulletin 1512BP) and Starter Kits (Bulletin 1512BS)
Bulletin 1512B Starter Specifications
| Starter Size | 2400V | 3300V | 4160V | 4800V | 6600V | 6900V | Dimensions, in. (mm), approx. | Weight, lb (kg), approx. | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Hp, max | Width | Depth | Height | |||||||
| 200 A | 800 | 1000 | 1250 | 1500 | 2250 | 2500 | 36 (915) | 36 (915) | 91 (2315) (1) | 1770 (802) (2) |
| 400 A | 1500 | 2250 | 2750 | 3000 | 4000 | 4000 | 36 (915) | 1770 (802) |
(1) Height is 128.5 inches (3264 mm) with ArcShield enclosure with plenum.
(2) Weight is different with ArcShield.
Bulletin 1512BT: Two-high Full-voltage Transformer Feeder Unit Starter
Description of Features
- Fixed mounted vacuum contactor
- Three-pole, gang-operated, non-load break isolating switch with an external operating handle, fully interlocked with main contactor and power cell doors
- A polycarbonate viewing window in the power cell door to view the position of the isolating switch
- Three E-rated or R-rated current-limiting power fuses
- Three current transformers
- Control power transformer with primary and secondary fuses
- Segregated low voltage panel to house standard and optional hardware for unit control and monitoring
- IntelliVAC control module for each vacuum contactor, mounted in low voltage panel, with advanced features
- Additional low voltage control panel accessories that include: 'NORMAL-OFF-TEST' circuit, Receptacle for external test power supply, Set of control circuit terminal blocks
- Two-high structure design for one complete motor controller
- Available in optional ArcShield enclosure
- Also available as 'Prepared Space' (Bulletin 1512BP) or Starter Kit (Bulletin 1512BU)
Bulletin 1512BT Starter Specifications
| Starter Size | Transformer Size (kVA) | Dimensions, in. (mm), approx. | Weight, lb (kg), approx. | |||||||
|---|---|---|---|---|---|---|---|---|---|---|
| 2400V | 3300V | 4160V | 4800V | 6600V | 6900V | Width | Depth | Height | ||
| 200 A | 700 | 1000 | 1250 | 2000 | 36 (914) | 36 (914) | 91 (2311) (1) | 1770 (802) (2) | ||
| 400 A | 1500 | 2000 | 2500 | 2750 | 4000 | 36 (914) | 1350 (611)(2) |
(1) Height is 128.5 in. (3264 mm) with ArcShield enclosure with plenum.
(2) Weight is different with ArcShield.
Bulletin 1512BD: Two-high Full-voltage Non-reversing Drive Input Starter Controller
Description of Features
- Fixed mounted vacuum contactor
- Three-pole, gang-operated, non-load break isolating switch with an external operating handle, fully interlocked with main contactor and power cell doors
- A polycarbonate viewing window in the power cell door to view the position of the isolating switch
- Three R-rated current-limiting power fuses
- Three current transformers
- Control power transformer with primary and secondary fuses
- Segregated low voltage panel to house standard and optional hardware for unit control and monitoring
- IntelliVAC control module for each vacuum contactor, mounted in low voltage panel, with advanced features: Selectable vacuum contactor drop-out time and consistent pickup time, Altitude compensation, Anti-kiss and anti-plugging protection
- Unit output must be cabled to VFD input. Customer is responsible for interwiring between input contactor unit and VFD.
Bulletin 1512BD Starter Specifications
| Starter Size | Transformer Size (kVA) | Dimensions, in. (mm), approx. | Weight, lb (kg), approx. | ||
|---|---|---|---|---|---|
| 2400...6900V | Width | Depth | Height | ||
| 200 A | Sized based on VFD and continuous current of the motor | 36 (915) | 36 (915) | 91 (2311)(1) | 1770 (802) (2) |
| 400 A | 36 (915) | 1770 (802) |
(1) Height is 128.5 in. (3264 mm) with ArcShield enclosure with plenum.
(2) Weight is different with ArcShield.
Bulletin 1506: Full-voltage Reversing Motor Starter
Description of Features
- Fixed mounted vacuum contactors (forward and reverse)
- Three-pole, gang-operated, non-load break isolating switch with an external operating handle, fully interlocked with main contactor and power cell doors
- A polycarbonate viewing window in the power cell door to view the position of the isolating switch
- Three R-rated current-limiting power fuses
- Three current transformers
- Control power transformer with primary and secondary fuses
- Segregated low voltage panel to house standard and optional hardware for unit control and monitoring
- IntelliVAC control module for each vacuum contactor, mounted in low voltage panel, with advanced features
- Additional low voltage control panel accessories that include: "NORMAL-OFF-TEST" circuit, Receptacle for external test power supply, Set of control circuit terminal blocks
- Available for motor loads
- Plugging or anti-plugging duty
- Mechanically and electrically interlocked contactors
Bulletin 1506 Starter Specifications
| Starter Size | 2400V | 3300V | 4160V | 4800V | Dimensions, in. (mm), approx. | Weight, lb (kg), approx. | ||
|---|---|---|---|---|---|---|---|---|
| Hp, max | Width | Depth | Height | |||||
| 200 A | 800 | 1000 | 1250 | 1500 | 36 (914) | 36 (914) | 91 (2311) (1) | 1770 (802) (2) |
| 400 A | 1500 | 2250 | 2750 | 3000 | 56 (1422) | 92 (2337) | 3570 (1619) | |
| 800 A | 3500 | 5000 | 6000 | 7000 | 1950 (885) |
(1) Height is 128.5 inches (3254 mm) with ArcShield enclosure and plenum.
(2) Weight is different with ArcShield.
Bulletin 1522E/F/G: Two-speed Non-reversing Motor Starter
Description of Features
- Fixed mounted vacuum contactor
- HIGH and LOW speed settings for two-speed separate winding, Bulletin 1522E starter
- HIGH/LOW speeds and HIGH SPEED SHORTING settings for two-speed consequent pole, Bulletin 1522F/G starter
- Three-pole, gang-operated, non-load break isolating switch with an external operating handle, fully interlocked with main contactor and power cell doors
- A polycarbonate viewing window in the power cell door to view the position of the isolating switch
- Three R-rated current-limiting power fuses
- Six current transformers
- Control power transformer with primary and secondary fuses
- Segregated low voltage panel to house standard and optional hardware for unit control and monitoring
- IntelliVAC control module for each vacuum contactor, mounted in low voltage panel, with advanced features
- Additional low voltage control panel accessories that include: 'NORMAL-OFF-TEST' circuit, Receptacle for external test power supply, Set of control circuit terminal blocks
- Constant or variable torque, and constant horsepower applications
Bulletin 1522E/F/G Starter Specifications
| Starter Size | Hp, max | Dimensions, in. (mm), approx. | Weight, lb (kg), approx. | |||||
|---|---|---|---|---|---|---|---|---|
| 2400V | 3300V | 4160V | 4800V | Width | Depth | Height | ||
| 200 A | 800 | 1000 | 1250 | 1500 | 36 (915) | 36 (915) | 91 (2315) | 1770 (802) |
| 400 A | 1500 | 2250 | 2750 | 3000 |
Bulletin 1560F/1562F: SMC-50 Smart Electronic Soft Start Motor Controller
Description of Features
- The Bulletin 1562F is a flexible combination motor controller available in two main configurations: A modified two-high cabinet (two complete controllers), A combination of a one-high full-voltage non-reversing (FVNR) cabinet and a 1560F unit (one complete controller)
- Based around the SMC-50 Smart motor control module, Rockwell Automation offers various advanced controlling and electronic motor-starting styles: Soft start with Selectable Kickstart, Soft stop, Pump control start/stop, Torque control, Current limit start with Selectable Kickstart, Sensorless linear speed acceleration with Selectable Kickstart, Sensorless linear speed deceleration, Dual ramp with Selectable Kickstart, Emergency run (full-voltage)
- The SMC-50 control module offers advanced monitoring/metering functions, and provides motor and controller protection.
- The Bulletin 1562F features both isolation and bypass vacuum contactors. The Bulletin 1560F is a retrofit controller that is specifically designed to integrate smoothly with an existing customer-supplied starter to enable all combination controls listed in this section.
Bulletin 1560F and Bulletin 1562F Controllers
| Bulletin | Voltage | Ratio (s) | Hp, max | Dimensions, in. (mm), approx. | Weight, lb (kg), approx. | ||
|---|---|---|---|---|---|---|---|
| Width | Depth | Height | |||||
| 1560F | 2400 | 200 | 800 | 26 (660) | 36 (914) | 91 (2311) | 800 (363) |
| 400 | 1500 | 44 (1118) | 1300 (590) | ||||
| 3300 | 200 | 1000 | 26 (660) | 800 (363) | |||
| 400 | 2250 | 44 (1118) | 1300 (590) | ||||
| 4160 | 200 | 1250 | 26 (660) | 800 (363) | |||
| 400 | 2750 | 44 (1118) | 1300 (590) | ||||
| 6600 | 200 | 2250 | 36 (914) | 1400 (636) | |||
| 400 | 4500 | 44 (1118) | 1300 (590) | ||||
| 6900 | 200 | 2500 | 36 (914) | 1220 (554) | |||
| 400 | 5000 | 44 (1118) | 1300 (590) | ||||
| 1562F | 2400 | 200 | 800 | 36 (914) | 36 (914)(1) | 91 (2311) (2) | 1400 (636) (3) |
| 400 | 1500 | 80 (2032) | 36 (914) | 91 (2311) | 2325 (1056) | ||
| 3300 | 200 | 1000 | 36 (914) | 36 (914) (1) | 91 (2311)(2) | 1400 (636) (3) | |
| 400 | 2250 | 80 (2032) | 36 (914) | 91 (2311) | 2325 (1056) | ||
| 4160 | 200 | 1250 | 36 (914) | 36 (914)(1) | 91 (2311)(2) | 1400 (636) (3) | |
| 400 | 2750 | 80 (2032) | 36 (914) | 91 (2311) | 2325 (1056) | ||
| 6600 | 200 | 2250 | 36 (914) | 36 (914) | 1400 (636) (3) | ||
| 400 | 4500 | 80 (2032) | 36 (914) | 1300 (590) | |||
| 6900 | 200 | 2500 | 62 (1575) | 36 (914) (1) | 91 (2311) (2) | 2325 (1056)(3) | |
| 400 | 5000 | 100 (2540) | 36 (914) | 91 (2311) | 4000 (1812) |
(1) Depth is 46 in. (1168 mm) with ArcShield enclosure with plenum.
(2) Height is 128.5 in. (3264 mm) with ArcShield enclosure with plenum.
(3) Weight is different with ArcShield.
Bulletin 1572/1576/1582: Reduced Voltage Reversing and Non-reversing Autotransformer and Reactor Motor Starter
Description of Features
- Fixed mounted vacuum contactors (1S, 2S, and RUN) contactors, with closed transition operation, Bulletin 1572 non-reversing starter
- (1S, FORWARD, REVERSE, and RUN) contactors, with closed transition operation, Bulletin 1576 reversing starter
- A three-pole, gang-operated, non-load break isolating switch with an external operating handle, fully interlocked with main contactor and power cell doors
- A polycarbonate viewing window in the power cell door to view the position of the isolating switch
- Three R-rated current-limiting power fuses
- Three current transformers
- Control power transformer with primary and secondary fuses
- Segregated low voltage panel to house standard and optional hardware for unit control and monitoring
- IntelliVAC control module for each vacuum contactor, mounted in low voltage panel, with advanced features
- Additional low voltage control panel accessories that include: "NORMAL-OFF-TEST" circuit, Receptacle for external test power supply, Set of control circuit terminal blocks
- NEMA medium duty, dry type, three-winding autotransformer with 50%, 65% and 80% taps. The 65% tap is used unless otherwise specified.
Bulletin 1572/1576/1582 Starter Specifications
| Controller Type | Hp, max | Dimensions, in. (mm), approx. | Weight, lb (kg), approx. | ||||||
|---|---|---|---|---|---|---|---|---|---|
| Starter Size | 2400V | 3300V | 4160V | 4800V | Width | Depth | Height | ||
| 1572 | 200 A | 800 | 1000 | 1250 | 1500 | 56 (1422) | 36 (914) | 91 (2311) | 3750 (1703) |
| 400 A | 1500 | 2250 | 2750 | 3000 | 80 (2032) | 5000 (2270) | |||
| 600 A | 2250 | 4000 | 4500 | 5500 | 100 (2540) | ||||
| 800 A | 3500 | 5000 | 6000 | 7000 | |||||
| 1576 | 200 A | 800 | 1000 | 1250 | 1500 | 80 (2032) | 3750 (1703) | ||
| 400 A | 1500 | 2250 | 2750 | 3000 | 100 (2540) | 5000 (2270) | |||
| 800 A | 3500 | 5000 | 6000 | 7000 | |||||
| 1582 | 200 A | 800 | 1000 | 1250 | 1500 | 56 (1422) | 3750 (1703) | ||
| 400 A | 1500 | 2250 | 2750 | 3000 | 80 (2032) | 5000 (2270) | |||
| 600 A(1) | 2250 | 4000 | 4500 | 5500 | 100 (2540) | ||||
| 800 A (1) | 3500 | 5000 | 6000 | 7000 |
(1) 600 A and 800 A controllers require a separately quoted autotransformer with minimum dimensions of 52 in. (1321 mm) wide, 46 in. (1168 mm) deep, and 66 in. (1676 mm) high.
Bulletin 1906B/1912B: Full-voltage Reversing and Non-reversing Brush-type Synchronous Motor Starter
Description of Features
- Bulletins 1906B and 1912B are designed as a complete reversing and non-reversing synchronous starter, respectively (1)
- Available with or without static exciter
- Features a control power transformer (CPT) with primary and secondary fuses for converting line voltage to single-phase 120V for low voltage devices
- Forward-mounted vacuum contactors are implemented within the Bulletin 1906B starter
- The Bulletin 1912B starter showcases both forward and reverse vacuum contactors
- Standard SyncPro™ field application and protection system
Bulletin 1906B Starter Specifications
| Starter Size | 2400V | 3300V | 4160V | 4800V | Dimensions, in. (mm), approx. (1) | Weight, lb (kg), approx. | ||
|---|---|---|---|---|---|---|---|---|
| Hp, max | Width | Depth | Height | |||||
| 200 A | 800 | 1000 | 1250 | 1500 | 26 (660) | 36 (914) | 91 (2311) | 1075 (490) |
| 400 A | 1500 | 2250 | 2750 | 3000 | 56 (1422) | 92 (2337) | 3570 (1619) | |
| 800 A | 3500 | 5000 | 6000 | 7000 | 1950 (885) |
(1) These dimensions exclude static exciter.
Bulletin 1912B Starter Specifications
| Starter Size | 2400V | 3300V | 4160V | 4800V | 6600V | 6900V | Dimensions, in. (mm), approx. (1) | Weight, lb (kg), approx. | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Hp, max | Width | Depth | Height | |||||||
| 200 A | 800 | 1000 | 1250 | 1500 | 2000 | 2250 | 26 (660) | 36 (914) | 91 (2311) | 1075 (490) |
| 400 A | 1500 | 2250 | 2750 | 3000 | 4500 | 36 (914) | 1700 (773) | |||
| 600 A | 2750 | 3500 | 4500 | 5500 | Contact factory | 56 (1422) | 1950 (885) | |||
| 800 A | 3500 | 5000 | 6000 | 7000 | 2400 (1090) |
(1) These dimensions exclude static exciter.
Bulletin 1906L/1912L: Full-voltage Reversing and Non-reversing Brushless Synchronous Motor Starter
Description of Features
- Bulletins 1906L and 1912L are designed as complete reversing and non-reversing synchronous starters, respectively (1)
- Available with or without static exciter
- Features a control power transformer (CPT) with primary and secondary fuses for converting line voltage to single phase 120V for low voltage devices
- Forward-mounted vacuum contactors are implemented within the Bulletin 1906B starter
- The Bulletin 1912L starter showcases both forward and reverse vacuum contactors
Bulletin 1906L Starter Specifications
| Starter Size | 2400V | 3300V | 4160V | 4800V | Dimensions, in. (mm), approx. (1) | Weight, lb (kg), approx. | ||
|---|---|---|---|---|---|---|---|---|
| Hp, max | Width | Depth | Height | |||||
| 200 A | 800 | 1000 | 1250 | 1500 | 54 (1372) | 36 (914) | 91 (2311) | 2370 (1076) |
| 400 A | 1500 | 2250 | 2750 | 3000 | 74 (1880) | 2400 (1090) | ||
| 800 A | 3500 | 5000 | 6000 | 7000 |
(1) These dimensions exclude static exciter.
Bulletin 1912L Starter Specifications
| Starter Size | 2400V | 3300V | 4160V | 4800V | 6600V | 6900V | Dimensions, in. (mm), approx. (1) | Weight, lb (kg), approx. | |
|---|---|---|---|---|---|---|---|---|---|
| Hp, max | Width | Depth | Height | ||||||
| 200 A | 800 | 1000 | 1250 | 1500 | Contact factory | 26 (660) | 36 (914) | 91 (2311) | 1075 (490) |
| 400 A | 1500 | 2250 | 2750 | 3000 | 54 (1372) | 74 (1880) | 1950 (885) | ||
| 600 A | 2750 | 3500 | 4500 | 5500 | 2400 (1090) | ||||
| 800 A | 3500 | 5000 | 6000 | 7000 |
(1) These dimensions exclude static exciter.
Incoming Line Units
Bulletin 1591A/B: Incoming Line Units
Description of Features
- Incoming bus arrangement for top or bottom cables
- Provision for the low voltage panel and door
- Metering CTs and PTs available
- Lug pad with provision for multiple incoming cable lug terminations
- Only Bulletin 1591B comes as a two-high structure; also available in ArcShield designs
Bulletin 1591A/B Incoming Line Units Specifications
| Voltage Rating | Incomer Size, in. (mm) | Dimensions, in. (mm), approx. | Weight, lb (kg), approx. | ||
|---|---|---|---|---|---|
| Width | Depth | Height | |||
| 2400...6900 | 18 (457) | 18 (457) | 36 (914) | 91 (2311) (2) (4) | 600 (272) (3) |
| 36 (914) | 36 (914) | 91 (2311) (2) | 800 (363) (3) | ||
| 44 (1118) (1) | 44 (1118) | 91 (2311) | 1200 (545) |
(1) A 44-in. (1118-mm) incomer is only available when a 3000 A power bus is used.
(2) Height is 128. in. (3264 mm) with ArcShield enclosure with plenum.
(3) Weight is different with ArcShield.
(4) Only available size for 1591B.
Bulletin 1592BF, 1592F/M, and 1594F/M: Fused and Non-fused Load-break Switches
Description of Features
- Main load break switch for switching primary power source
- Feeder load break switch for switching other loads
- Isolation between upper and lower power cells
- The operating handle is fully interlocked with the power cell door
- Provisions on the operating handle for key interlocking
- A polycarbonate viewing window in the power cell door to view the position of the isolation handle
- Protective guard over the line terminals, inside the power cell, to barrier off medium voltage when the power door is open
- Feeders for two-high structures
- Bulletin 1592BF – fused load break switch, which is designed as a feeder for two-high structures
- Bulletin 1592F/M - fused load break switch, fused feeder, and mains
- Bulletin 1594F/M – non-fused load break switch for feeder and mains
Bulletin 1592BF Switch Specifications(1)
| Starter Size | Transformer Size (kVA) | Dimensions, in. (mm), approx. | Weight, lb (kg), approx. | |||||||
|---|---|---|---|---|---|---|---|---|---|---|
| 2400V | 3300V | 4160V | 4800V | 6600V | 6900V | Width | Depth | Height | ||
| 200 A | 700 | 1000 | 1250 | 2000 | 36 (914) | 91 (2311) | 1770 (804) (2) | |||
| 400 A | 1500 | 2000 | 2500 | 2750 | 1770 (804) |
(1) One 1592BF occupies half of a two-high structure.
(2) Includes complete two-high structure weight with two 1592BF units.
(3) Weight is different with ArcShield.
Bulletins 1592F/M and 1594F/M Switch Specifications
| Switch Size, max | Dimensions, in. (mm), approx. | Weight, lb (kg), approx. | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| 2400V | 3300V | 4160V | 4800V | 6600V | 6900V | Width | Depth | Height | ||
| 600 A | (1) | 36 (914) (2) | 36 (914) | 91 (2311) | 1770 (804) | |||||
| 1200 A | (1) | 54 (1372) (3) | 42 (1067) | 2500 (1135) |
(1) Available in all sizes except 1200 A at 6600V and 6900V.
(2) If an isolated, low-voltage panel is required, the width increases by 18 in. (272 mm) and weight increases accordingly.
(3) If an isolated, low-voltage panel is required or incoming cables are fed from the bottom, the width increases by 18 in. (272 mm) and the weight increases accordingly. If the 42-in. deep unit is positioned on either end of 36-in. (94 mm) deep structures, the width increases by an additional 4 in. (104 mm).
Rockwell Automation Services & Support
Global Support. Local Address. Peace of Mind.
Providing the resources you need, when and where you need them, Rockwell Automation has an integrated, global network of ISO-certified repair centers, exchange hubs, field service professionals, IACET-recognized training centers, certified technical phone support centers and online tools.
www.rockwellautomation.com/en_NA/support/overview
Meet Your Everyday Technical Needs
Remote Support & Monitoring
- Real-time product, system and application-level support
- Unlimited online resources and tools
- Live chat and support forums
- Secure equipment monitoring, alarming and diagnostics
Training Services
- Instructor-led and computer or web-based courses
- Virtual classroom
- Training assessments
- Workstations and job aids
OnSite Services
- Embedded engineering
- Preventive maintenance
- Migrations and conversions
- Start-up and commissioning
Repair Services
- Product remanufacturing
- Repair services on a full range of industrial automation brands and products
- Annual repair agreements
Maximize Your Automation Investment
MRO Demand Management
- Comprehensive asset management planning
- Reliability services
- Warranty tracking
- Quick access to global spare parts inventory
Lifecycle Extension & Migrations
- Installed Base Evaluation™
- Pinpoint obsolescence risk
- Tools and lifecycle support service agreements to mitigate production risk
Network & Security Services
- Control system lifecycle services
- Manage network convergence
- Security technology, policies and procedures services
Safety Services
- Safety assessments and remediation
- Safety design, integration and validation services
Visit the Rockwell Automation Support Center at www.rockwellautomation.custhelp.com for technical information and assistance, plus:
- View technical/application notes
- Obtain software patches
- Subscribe for product/service email notifications
- Submit a Question, Live Chat, Support Forums and more
Get Support at www.rockwellautomation.custhelp.com to select your country and find your local support information.
Connect with us.
Allen-Bradley, ArcShield, CENTERLINE, E300, Flex, IntelliCENTER, IntelliVAC, LISTEN. THINK. SOLVE., PowerMonitor, Rockwell Automation, and SMC are trademarks of Rockwell Automation, Inc. Trademarks not belonging to Rockwell Automation are property of their respective companies.
Power, Control and Information Solutions Headquarters
Americas: Rockwell Automation, 1201 South Second Street, Milwaukee, WI 53204-2496 USA, Tel: (1) 414.382.2000, Fax: (1) 414.382.4444
Europe/Middle East/Africa: Rockwell Automation NV, Pegasus Park, De Kleetlaan 12a, 1831 Diegem, Belgium, Tel: (32) 2 663 0600, Fax: (32) 2 663 0640
Asia Pacific: Rockwell Automation, Level 14, Core F, Cyberport 3, 100 Cyberport Road, Hong Kong, Tel: (852) 2887 4788, Fax: (852) 2508 1846
Publication 1500-SG001D-EN-P - July 2019 Supersedes 1500-SG001C-EN-P - January 2017 Copyright © 2019 Rockwell Automation, Inc. All rights reserved. Printed in the U.S.A.
