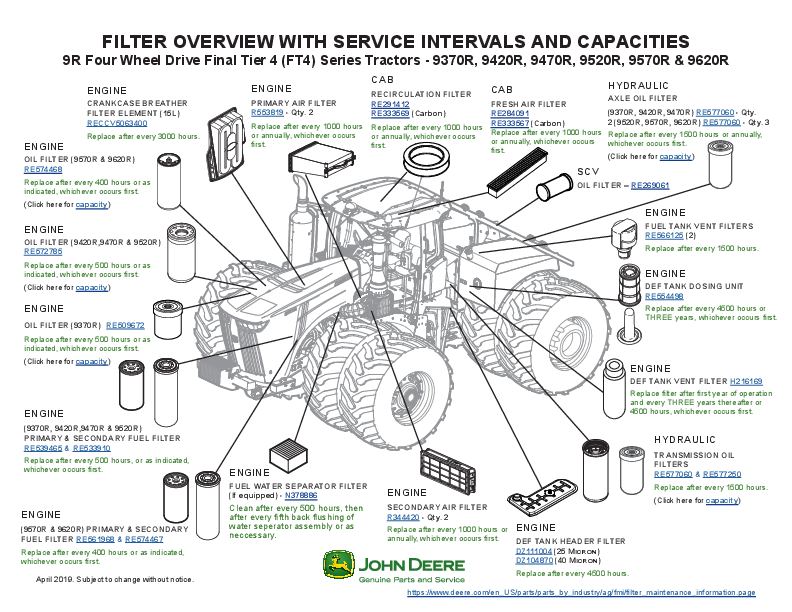

FILTER OVERVIEW WITH SERVICE INTERVALS AND CAPACITIES
9R Four Wheel Drive Final Tier 4 (FT4) Series Tractors - 9370R, 9420R, 9470R, 9520R, 9570R & 9620R

ENGINE

CRANKCASE BREATHER FILTER ELEMENT (15L) RECCV5063400

ENGINE

Replace after every 3000 hours.

OIL FILTER (9570R & 9620R) RE574468

Replace after every 400 hours or as indicated, whichever occurs first.

(Click here for capacity)

ENGINE
OIL FILTER (9420R,9470R & 9520R) RE572785 Replace after every 500 hours or as indicated, whichever occurs first. (Click here for capacity)
ENGINE
OIL FILTER (9370R) RE509672 Replace after every 500 hours or as indicated, whichever occurs first. (Click here for capacity)

ENGINE
(9370R, 9420R,9470R & 9520R) PRIMARY & SECONDARY FUEL FILTER RE539465 & RE533910 Replace after every 500 hours, or as indicated, whichever occurs first.
ENGINE
(9570R & 9620R) PRIMARY & SECONDARY FUEL FILTER RE561968 & RE574467 Replace after every 400 hours or as indicated, whichever occurs first.
April 2019. Subject to change without notice.

ENGINE
PRIMARY AIR FILTER R553819 - Qty. 2
Replace after every 1000 hours or annually, whichever occurs first.

CAB
RECIRCULATION FILTER RE291412 RE333569 (Carbon)
Replace after every 1000 hours or annually, whichever occurs first.

CAB

HYDRAULIC

FRESH AIR FILTER

AXLE OIL FILTER

RE284091

(9370R, 9420R, 9470R) RE577060 - Qty.

RE333567 (Carbon)

2 (9520R, 9570R, 9620R) RE577060 - Qty. 3

Replace after every 1000 hours Replace after every 1500 hours or annually,

or annually, whichever occurs whichever occurs first.

first.

(Click here for capacity)

SCV
OIL FILTER ­ RE269061

ENGINE
FUEL TANK VENT FILTERS RE566125 (2) Replace after every 1500 hours.
ENGINE
DEF TANK DOSING UNIT RE554498 Replace after every 4500 hours or THREE years, whichever occurs first.

ENGINE
DEF TANK VENT FILTER H216169
Replace filter after first year of operation and every THREE years thereafter or 4500 hours, whichever occurs first.

ENGINE
FUEL WATER SEPARATOR FILTER (If equipped) - N378886
Clean after every 500 hours, then after every fifth back flushing of water seperator assembly or as neccessary.

ENGINE

SECONDARY AIR FILTER R344420 - Qty. 2
Replace after every 1000 hours or annually, whichever occurs first.

ENGINE
DEF TANK HEADER FILTER DZ111004 (25 Micron) DZ104870 (40 Micron)

Replace after every 4500 hours.

HYDRAULIC
TRANSMISSION OIL FILTERS RE577060 & RE577250
Replace after every 1500 hours.
(Click here for capacity)

https://www.deere.com/en_US/parts/parts_by_industry/ag/fmi/filter_maintenance_information.page

CAPACITIES
9R Four Wheel Drive Final Tier 4 (FT4) Series Tractors - 9370R, 9420R, 9470R, 9520R, 9570R & 9620R

CAPACITIES (Approximate):
Fuel Tank: 9370R, 9420R & 9470R - SR Axles..................... 1173 L (310 gal) 9520R, 9570R & 9620R - DR Axles..................... 1514 L (400 gal)
Cooling System Including Overflow Tank: Cool-GardTM II 9370R...................................................................... 50 L (13.2 gal) 9420R, 9470R & 9520R....................................... 56.5 L (14.9 gal) 9570R & 9620R....................................................... 62 L (16.3 gal)
Crankcase including Filter: Plus-50TM II 9370R........................................................................ 34 L (9.0 gal) 9420R, 9470R & 9520R.......................................... 48 L (12.7 gal) 9570R & 9620R.................................................... 43.5 L (11.5 gal)
Diesel Exhaust Fluid John Deere Diesel Exhaust FluidTM ................................................................................ 83 L (22.0 gal)
Hydraulic Reservoir: Hy-GardTM Full - Cold................................................................ 93 L (24.5 gal) Min - Cold................................................................ 81 L (21.5 gal)

Transmission/Hydraulic Reservoir: Hy-GardTM 9370R, 9420R & 9470R - SR Axles Stand. Flow..... 265 L (70 gal) 9370R, 9420R & 9470R - SR Axles High Flow..... 268.5 L (71 gal) 9520R, 9570R & 9620R - DR Axles Stand. Flow..... 208 L (55 gal) 9520R, 9570R & 9620R - DR Axles High Flow........ 212 L (56 gal)
Hydraulic/Transmission/Axle without 3-point rear hitch and PTO Hy-GardTM 9370R, 9420R & 9470R........................................... 276 L (73 gal) 9520R, 9570R & 9620R........................................... 220 L (58 gal)
Hydraulic/Transmission/Axle with 3-point rear hitch and PTO Hy-GardTM 9370R, 9420R & 9470R........................................... 284 L (75 gal) 9520R, 9570R & 9620R........................................... 227 L (60 gal)
Return to Filter Overview

April 2019. Subject to change without notice.
