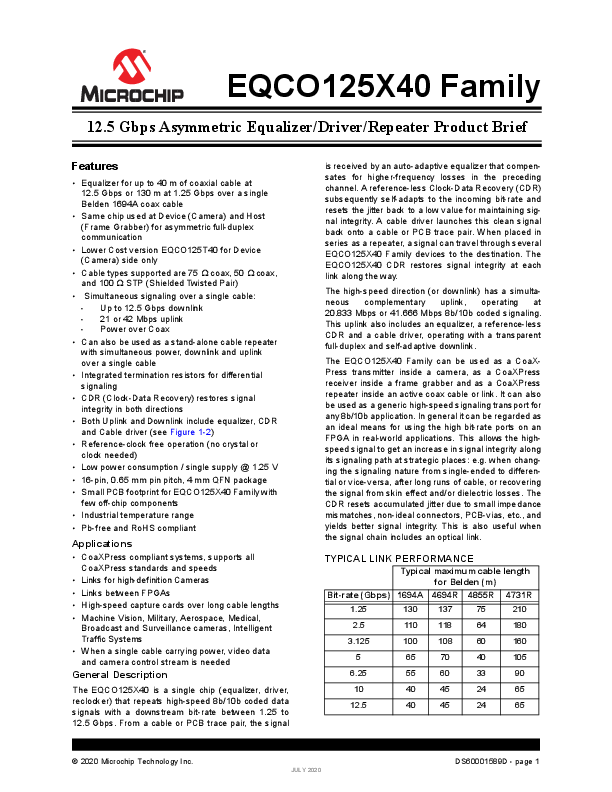

EQCO125X40 Family
12.5 Gbps Asymmetric Equalizer/Driver/Repeater Product Brief

Features
� Equalizer for up to 40 m of coaxial cable at 12.5 Gbps or 130 m at 1.25 Gbps over a single Belden 1694A coax cable
� Same chip used at Device (Camera) and Host (Frame Grabber) for asymmetric full-duplex communication
� Lower Cost version EQCO125T40 for Device (Camera) side only
� Cable types supported are 75 coax, 50 coax, and 100 STP (Shielded Twisted Pair)
� Simultaneous signaling over a single cable:
- Up to 12.5 Gbps downlink - 21 or 42 Mbps uplink - Power over Coax
� Can also be used as a stand-alone cable repeater with simultaneous power, downlink and uplink over a single cable
� Integrated termination resistors for differential signaling
� CDR (Clock-Data Recovery) restores signal integrity in both directions
� Both Uplink and Downlink include equalizer, CDR and Cable driver (see Figure 1-2)
� Reference-clock free operation (no crystal or clock needed)
� Low power consumption / single supply @ 1.25 V
� 16-pin, 0.65 mm pin pitch, 4 mm QFN package
� Small PCB footprint for EQCO125X40 Family with few off-chip components
� Industrial temperature range
� Pb-free and RoHS compliant
Applications
� CoaXPress compliant systems, supports all CoaXPress standards and speeds
� Links for high-definition Cameras
� Links between FPGAs
� High-speed capture cards over long cable lengths
� Machine Vision, Military, Aerospace, Medical, Broadcast and Surveillance cameras, Intelligent Traffic Systems
� When a single cable carrying power, video data and camera control stream is needed
General Description
The EQCO125X40 is a single chip (equalizer, driver, reclocker) that repeats high-speed 8b/10b coded data signals with a downstream bit-rate between 1.25 to 12.5 Gbps. From a cable or PCB trace pair, the signal

is received by an auto-adaptive equalizer that compensates for higher-frequency losses in the preceding channel. A reference-less Clock-Data Recovery (CDR) subsequently self-adapts to the incoming bit-rate and resets the jitter back to a low value for maintaining signal integrity. A cable driver launches this clean signal back onto a cable or PCB trace pair. When placed in series as a repeater, a signal can travel through several EQCO125X40 Family devices to the destination. The EQCO125X40 CDR restores signal integrity at each link along the way.
The high-speed direction (or downlink) has a simultaneous complementary uplink, operating at 20.833 Mbps or 41.666 Mbps 8b/10b coded signaling. This uplink also includes an equalizer, a reference-less CDR and a cable driver, operating with a transparent full-duplex and self-adaptive downlink.
The EQCO125X40 Family can be used as a CoaXPress transmitter inside a camera, as a CoaXPress receiver inside a frame grabber and as a CoaXPress repeater inside an active coax cable or link. It can also be used as a generic high-speed signaling transport for any 8b/10b application. In general it can be regarded as an ideal means for using the high bit-rate ports on an FPGA in real-world applications. This allows the highspeed signal to get an increase in signal integrity along its signaling path at strategic places: e.g. when changing the signaling nature from single-ended to differential or vice-versa, after long runs of cable, or recovering the signal from skin effect and/or dielectric losses. The CDR resets accumulated jitter due to small impedance mismatches, non-ideal connectors, PCB-vias, etc., and yields better signal integrity. This is also useful when the signal chain includes an optical link.

TYPICAL LINK PERFORMANCE Typical maximum cable length for Belden (m)
Bit-rate (Gbps) 1694A 4694R 4855R 4731R

1.25

130 137

210

2.5

110

118

180

3.125

100 108

160

105

6.25

12.5

2020 Microchip Technology Inc.

JULY 2020

DS60001589D - page 1

EQCO125X40 Family
TO OUR VALUED CUSTOMERS
It is our intention to provide our valued customers with the best documentation possible to ensure successful use of your Microchip products. To this end, we will continue to improve our publications to better suit your needs. Our publications will be refined and enhanced as new volumes and updates are introduced. If you have any questions or comments regarding this publication, please contact the Marketing Communications Department via E-mail at docerrors@microchip.com. We welcome your feedback.
Most Current Data Sheet
To obtain the most up-to-date version of this data sheet, please register at our Worldwide Web site at: http://www.microchip.com
You can determine the version of a data sheet by examining its literature number found on the bottom outside corner of any page. The last character of the literature number is the version number, (e.g., DS30000000A is version A of document DS30000000).
Errata
An errata sheet, describing minor operational differences from the data sheet and recommended workarounds, may exist for current devices. As device/documentation issues become known to us, we will publish an errata sheet. The errata will specify the revision of silicon and revision of document to which it applies. To determine if an errata sheet exists for a particular device, please check with one of the following: � Microchip's Worldwide Web site; http://www.microchip.com � Your local Microchip sales office (see last page) When contacting a sales office, please specify which device, revision of silicon and data sheet (include literature number) you are using.
Customer Notification System
Register on our web site at www.microchip.com to receive the most current information on all of our products.

page 2 - DS60001589D

2020 Microchip Technology Inc.

EQCO125X40 Family
1.0 BASIC APPLICATION INFORMATION
The EQCO125X40 repeater chip is designed to simultaneously transmit and receive signals on a single cable or PCB trace pair. In one direction an 8b/10b coded downlink signal is transmitted between 1.25 Gbps and 12.5 Gbps. In the opposite direction a lower speed 8b/10b coded uplink signal is transmitted at 20.833 Mbps or 41.666 Mbps. The EQCO125X40 has an integrated high-speed equalizer, reclocker and cable driver. The uplink channel also has an integrated receiver, reclocker and driver. Figure 1-1 illustrates a typical EQCO125X40 link set-up.
The downlink signal is transmitted with 600 mV transmit amplitude. As this signal is attenuated by the coax (or STP) over distance, it is recovered by the equalizer and reclocker. The low-speed uplink is transmitted with a lower amplitude of 130 mV to limit the crosstalk with the downlink channel.
The downlink channel is intended for NRZ 8b/10b data with bit-rates between 1.25 Gbps and 12.5 Gbps. CoaXPress standard speeds of CXP-1 (1.25 Gbps), CXP-2 (2.5 Gbps), CXP-3 (3.125 Gbps), CXP-5 (5 Gbps), CXP-6 (6.25 Gbps), CXP-10 (10 Gbps) and CXP-12 (12.5 Gbps) are all supported as well as all generic 8b/10b applications.
The low-speed uplink is intended for NRZ 8b/10b data with bit-rates between 20 Mbps and 42 Mbps with a single-ended 1.25V LVTTL input and output. CoaXPress standard speeds of 20.833 Mbps and 41.666 Mbps are supported.
On top of the downlink channel and the low-speed uplink, the system allows power transmission over the coax by using external inductors. These external inductors give the communication channel a high-pass characteristic. The uplink receiver inside the EQCO125X40 chip recovers the signal lost by this high-pass filter. Appropriate inductors should be selected for correct operation of the link. Operation has only been tested with the inductor combination used in Microchip's reference design, even though other components might be suitable.
FIGURE 1-1: TYPICAL EQCO125X40 LINK SET-UP

High Definition Camera

Up to 12.5 Gbps downlink

DC Power
�

EQCO 125X40

21/42

Mbps

TP2

uplink

Coax

DC Power
�

Up to 12.5 Gbps downlink

EQCO 125X40

Frame Store + Camera Control

21/42

TP3

Mbps

uplink

FIGURE 1-2: EQCO125X40 BLOCK DIAGRAM SHOWING ELECTRICAL CONNECTIONS

SDIp SDIn
TXLF RXLF CLKLF

EQCO125X40

HF Equalizer

HF Reclocker

HF Cable driver

LF Cable Driver

Noise Gen.

LF Output Driver

LF Reclocker

LF Receiver

SDOp SDOn
TSI

2020 Microchip Technology Inc.

DS60001589D - page 3

EQCO125X40 Family
PACKAGING INFORMATION

16-Lead Plastic Quad Flat, No Lead Package (8E) - 4x4x0.9 mm Body [QFN]

Note: For the most current package drawings, please see the Microchip Packaging Specification located at

Note: Fohrtttph:e//wmwowst.mcuicrrroecnht ippa.ccokmag/peadcrkaawgiinnggs, please see the Microchip Packaging Specification located at

http://www.microchip.com/packaging

NOTE 1 NOTE 1

D ND N

AB AB

1
1 2
2 (DATUM B) (D(ADTAUTMUMB)A) (2DXATUM A) 2X 0.20 C
0.20 C 2X
2X 0.20 C 0.20 C

TOP VIEW TOP VIEW

SEATINGC SEAPTLINANGE

PLANE (A3)

SIDE VIEW

(A3) 0.10 C A BSIDE VIEW

0.10 C A B

(16X K)

E E
0.10 C A1
0.10 C A1
16X 16X 0.08 C
0.08 C
0.10 C A B 0.10 C A B

E2 E2
16X L

16X L

16X b

16X b 0.10 C A B

BOTTOe M VIEW

0.01.005 CCA B

BOTTOM VIEWMicrochip Tec0h.n0o5logy DCrawing C04-259B Sheet 1 of 2

Microchip Technology Drawing C04-259B Sheet 1 of 2

page 4 - DS60001589D

2020 Microchip Technology Inc.

EQCO125X40 Family
1166--LLeeaaddPPlalasstticicQQuuaaddFFlalatt,,NNooLLeeaaddPPaacckkaaggee((88EE))--44xx44xx00.9.9mmmmBBooddyy[[QQFFNN]]
NNootete:: FFoorrththeemmoossttccuurrrerennttppaacckkaaggeeddrarawwininggss,,ppleleaasseesseeeeththeeMMicicrorocchhipipPPaacckkaaggininggSSppeeccifiifcicaatitoionnloloccaateteddaatt hhtttptp:/://w/wwwww.m.micicrorocchhipip.c.coomm/p/paacckkaagginingg

NNootetess: :

UUnnitists

DDimimeennssioionnLLimimitists

NNuummbbeerroof fPPininss

PPitictchh

OOvveerarallllHHeeigighht t

SStatannddooffff

AA11

TTeermrmininaal lTThhicickknneessss

AA33

OOvveerarallllWWididthth

EExxppoosseeddPPaaddWWididthth

EE22

OOvveerarallllLLeennggthth

EExxppoosseeddPPaaddLLeennggthth

DD22

TTeermrmininaal lWWididthth

TTeermrmininaal lLLeennggthth

TTeermrmininaal-lt-oto-E-Exxppoosseedd-P-Paadd

MMININ
00.8.800 00.0.000
11.9.955 11.9.955 00.2.255 00.4.455

MMILILLLIMIMEETTEERRSS NNOOMM 1166
00.6.655BBSSCC 00.8.877 00.0.022
00.2.200RREEFF 44.0.000BBSSCC
22.0.055 44.0.000BBSSCC
22.0.055 00.3.300 00.5.555 00.4.42255RREEFF

MMAAXX
00.9.955 00.0.055
22.1.155 22.1.155 00.3.355 00.6.655

11. . PPinin11vvisisuuaal lininddeexxfefeaatutureremmaayyvvaaryry, ,bbuut tmmuusst tbbeeloloccaateteddwwitihthininththeehhaatctchheeddaarereaa. . 22. . PPaacckkaaggeeisisssaawwssiningguulalatetedd

33. . DDimimeennssioionnininggaannddtotolelerarannccininggppeerrAASSMMEEYY1144.5.5MM

BBSSCC: :BBaassicicDDimimeennssioionn. .TThheeooreretitcicaalllylyeexxaacct tvvaalulueesshhoowwnnwwitihthoouut ttotoleleraranncceess. . RREEFF: :RReefefererenncceeDDimimeennssioionn, ,uussuuaalllylywwitihthoouut ttotolelerarannccee, ,foforrininfoformrmaatitoionnppuurprpoosseessoonnlyly. .

MMicicrorocchhipipTTeecchhnnoolologgyyDDrarawwiningg CC0044-2-25599BBSShheeeet t22oof f22

2020 Microchip Technology Inc.

DS60001589D - page 5
