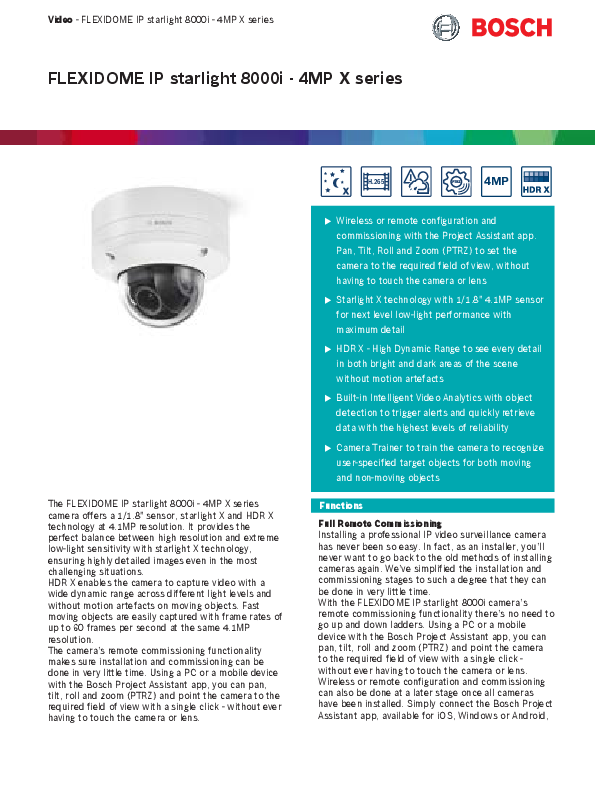

Video - FLEXIDOME IP starlight 8000i - 4MP X series FLEXIDOME IP starlight 8000i - 4MP X series The FLEXIDOME IP starlight 8000i - 4MP X series camera offers a 1/1.8" sensor, starlight X and HDR X technology at 4.1MP resolution. It provides the perfect balance between high resolution and extreme low-light sensitivity with starlight X technology, ensuring highly detailed images even in the most challenging situations. HDR X enables the camera to capture video with a wide dynamic range across different light levels and without motion artefacts on moving objects. Fast moving objects are easily captured with frame rates of up to 60 frames per second at the same 4.1MP resolution. The camera's remote commissioning functionality makes sure installation and commissioning can be done in very little time. Using a PC or a mobile device with the Bosch Project Assistant app, you can pan, tilt, roll and zoom (PTRZ) and point the camera to the required field of view with a single click - without ever having to touch the camera or lens. H.265 4MP u Wireless or remote configuration and commissioning with the Project Assistant app. Pan, Tilt, Roll and Zoom (PTRZ) to set the camera to the required field of view, without having to touch the camera or lens u Starlight X technology with 1/1.8" 4.1MP sensor for next level low-light performance with maximum detail u HDR X - High Dynamic Range to see every detail in both bright and dark areas of the scene without motion artefacts u Built-in Intelligent Video Analytics with object detection to trigger alerts and quickly retrieve data with the highest levels of reliability u Camera Trainer to train the camera to recognize user-specified target objects for both moving and non-moving objects Functions Full Remote Commissioning Installing a professional IP video surveillance camera has never been so easy. In fact, as an installer, you'll never want to go back to the old methods of installing cameras again. We've simplified the installation and commissioning stages to such a degree that they can be done in very little time. With the FLEXIDOME IP starlight 8000i camera's remote commissioning functionality there's no need to go up and down ladders. Using a PC or a mobile device with the Bosch Project Assistant app, you can pan, tilt, roll and zoom (PTRZ) and point the camera to the required field of view with a single click without ever having to touch the camera or lens. Wireless or remote configuration and commissioning can also be done at a later stage once all cameras have been installed. Simply connect the Bosch Project Assistant app, available for iOS, Windows or Android, Video - FLEXIDOME IP starlight 8000i - 4MP X series 2 | 8 wirelessly to the camera. Or connect to the camera remotely via the network using the camera's web interface or the Bosch Configuration Manager. Fast performance The 60 frames per second mode provides for optimum performance in fast action scenes and makes sure no critical data is lost. In combination with the high 4.1MP resolution, it allows for high detail video capture of fast moving objects while at the same time providing situational awareness. Starlight X - Next level starlight performance Starlight X technology combines the latest high performance, large pixel sensors, optics, improved image processing and noise suppression, resulting in a 5.5x improved sensitivity compared to the standard starlight camera. HDR X - High Dynamic Range HDR X is a new technology that combines unique sensor functionality and advanced algorithms. It is a huge leap forward in capturing high quality video of moving objects in scenes with a large dynamic range. It also allows HDR imaging at lower light levels in which traditional HDR technologies are non-functional. This is possible because the HDR X - Motion optimized mode takes two different readouts from one exposure to capture details in both the highlights and shadows of the scene, instead of blending multiple exposures like standard HDR technologies. Blending multiple exposures reduces sharpness and creates unwanted imaging artefacts on moving objects. HDR-X resolves these issues, providing a crisp image with improved dynamic range. In case an even larger dynamic range is required, HDR X - Optimized DR or HDR X - Extreme DR will further increase performance to an absolute maximum by adding another fast exposure. This combines the benefits from HDR X - Motion optimized and traditional HDR. Scene modes Nine configurable modes are provided with the best settings for a variety of applications. In one click fully optimized image settings can be selected to suit the conditions. Different scene modes can be selected for different situations such as traffic or retail environments. Intelligent streaming Smart encoding capabilities, together with Intelligent Dynamic Noise Reduction technology and analytics, reduce the bandwidth consumption to extremely low levels. Only relevant information in the scene, like motion, or objects found with the analytics, need to be encoded. The camera is capable of quad streaming which allows the camera to deliver independent, configurable streams for live viewing, recording, or remote monitoring via constrained bandwidths. Each of these streams can be adapted independently to deliver high quality video, perfectly tailored to purpose, while reducing bit rate by up to 90% compared to a standard camera. H.265 high-efficiency video encoding The camera is designed on the most efficient and powerful H.264 and H.265/HEVC encoding platform. The camera is capable of delivering high-quality and high-resolution video with very low network load. With a doubling of encoding efficiency, H.265 is the new compression standard of choice for IP video surveillance systems. Bitrate optimized profile The average bitrate for the bitrate optimized profile using H.265 encoding in kbps for different frame rates can be found in the table provided below. FPS Low activity Medium activity High activity 60 1287 1765 4239 30 776 1054 2536 25 680 1124 2218 15 471 710 1528 10 352 534 1140 5 215 329 693 3 150 231 482 1 70 108 222 i Notice Actual bitrate values may vary depending on scene complexity/activity and picture settings. Recording and storage management Recording management can be controlled by the Bosch Video Recording Manager application, or the camera can use local storage and iSCSI targets directly without any recording software. Local storage can be used for recording "at the edge" or for Automatic Network Replenishment (ANR) technology to improve the overall recording reliability. Pre-alarm recording in RAM reduces bandwidth consumption on the network and extends the effective life of the memory card. Advanced edge recording Advanced edge recording provides the most reliable storage solution possible due to the combination of the following functionalities: · Dual SD cards that can be set up as either: Mirrored, for redundant storage Failover, for extended service intervals Video - FLEXIDOME IP starlight 8000i - 4MP X series 3 | 8 Extended, for maximum retention time · Industrial SD card support allows for extreme lifetime · Health monitoring of industrial SD cards provide early service indications Intelligent Video Analytics on the edge The camera includes the latest release of the Intelligent Video Analytics application from Bosch. Specifically designed for the most demanding environments. It delivers the highest levels of accuracy for mission-critical applications such as perimeter protection of airports, critical infrastructures and government buildings, border patrol, ship tracking and traffic monitoring (e.g. wrong-way detection, traffic counts, monitoring roadsides for parked cars). Intelligent Video Analytics is extremely resistant to false triggers caused by challenging environments with snow, wind (moving trees), rain, hail, and water reflections. It is ideal for providing automatic object detection over large distances. The set-up of Bosch's video analytics is also second to none, which is great news for installers. Should your customer decide to use Intelligent Video Analytics, configuration and calibration couldn't be easier. Simply enter the height of the camera and the rest of the calibration is carried out by the video analytics itself based on information provided by the camera's built-in gyro sensor. Camera Trainer Based on examples of target objects and non-target objects, the new Camera Trainer program uses machine learning to allow the user to define objects of interest and generate detectors for them. In contrast to the moving objects that the Intelligent Video Analytics application detects, the Camera Trainer program detects both moving and non-moving objects and classifies them immediately. Using Configuration Manager, you can configure the Camera Trainer program using both live video as well as recordings available through the respective camera. The resulting detectors can be downloaded and uploaded for distribution to other cameras. A free of charge license is required to activate the Camera Trainer program. DORI coverage DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The maximum distance at which a camera/lens combination can meet these criteria is shown below: 4MP camera with 4.4 mm - 10 mm lens or 12 mm 40 mm lens DORI Detect DORI definition 25 px/m 8 px/ft Distance Distance 4.4 mm / 10 mm 12 mm / 40 mm 38 m / 121 m 162 m / 118 ft / 479 m 377 ft 505 ft / 1498 ft Horizontal width 108 m 336 ft Observe 63 px/m 19 px/ft 15 m / 48 m 64 m / 190 m 43 m 50 ft / 159 ft 213 ft / 631 ft 142 ft Recognize 125 px/m 38 px/ft 8 m / 24 m 25 ft / 79 ft 32 m / 96 m 106 ft / 315 ft 22 m 71 ft Identify 250 px/m 76 px/ft 4 m / 12 m 16 m / 48 m 11 m 12 ft / 40 ft 53 ft / 158 ft 35 ft Data security Special measures ensure the highest level of security for device access and data transport. On initial setup, the camera is only accessible over secure channels and enforces a password. Web browser and viewing client access can be protected using HTTPS or other secure protocols that support state-of-the-art TLS 1.2 with updated cipher suites including AES encryption with 256 bit keys. No software can be installed in the camera, and only authenticated firmware can be uploaded. A three-level password protection with security recommendations allows users to customize device access. Network and device access can be protected using 802.1x network authentication with EAP/TLS. Superior protection from malicious attacks is guaranteed by the Embedded Login Firewall, on-board Trusted Platform Module (TPM) and Public Key Infrastructure (PKI) support. The advanced certificate handling offers: · Self-signed unique certificates automatically created when required · Client and server certificates for authentication · Client certificates for proof of authenticity · Certificates with encrypted private keys System integration and ONVIF conformance The camera conforms to the ONVIF Profile S, ONVIF Profile G and ONVIF Profile T specifications. For H.265 configuration, the camera supports Media Service 2, which is part of ONVIF Profile T. Compliance with these standards guarantees interoperability between network video products regardless of manufacturer. Video - FLEXIDOME IP starlight 8000i - 4MP X series 4 | 8 Third-party integrators can easily access the internal feature set of the camera for integration into large projects. Visit the Bosch Integration Partner Program (IPP) website (ipp.boschsecurity.com) for more information. Universal accessories A full line of universal accessories are available that allow a consistent design across different platforms and a wide range of installation possibilities. Several dedicated accessories are available that seamlessly fit to the camera and expand the different installation options over previous generations. Available options include: a paintable cover, an oncamera weather protector, a clear or tinted replacement bubble, in-ceiling mounting kits, a surveillance cabinet with power and fiber optic options and different mounting options. Certifications and approvals Standards Emission Immunity Environmental Safety Image performance HD Color representation ONVIF conformance Impact protection Water/dust protection Type EN 300 328, EN 62311, EN 50121-4 (EN 55016-2-1, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6), ISED RSS-247, ISED RSS-GEN, CFR 47 FCC, part 15.247, 15.205, 15.207, 15.209, Class B, AS/NZS CISPR 32 EN 301 489-1, EN 301 489-3, EN 301 489-17, EN 50130-4 (EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6), EN 50121-4 (EN 55016-2-1, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6) EN 50130-5 Class IVA (EN 60068-2-2, EN 60068-2-5, EN 60068-2-6, EN 60068-2-18, EN 60068-2-27, EN 60068-2-30, EN 60068-2-42, EN 60068-2-52, EN 60068-2-75, EN 60068-2-78, EN 60529), UL 2043 when combined with NDA-8000-PLEN, Nema TS 2 Section 2 EN 62368-1, EN 60950-22, UL 62368-1, UL 60950-22, CSA C22.2 No. 62368-1-14, CAN/CSA-C22.2 No. 60950-22:07 IEC 62676-5 SMPTE 296M-2001 (Resolution: 1280x720) SMPTE 274M-2008 (Resolution: 1920x1080) ITU-R BT.709-6 EN 50132-5-2, EN 62676-2 EN 62262 (IK10) EN 60529 (IP66), ISO 20653 (IP6K9K), UL50E (Type 4X), UL 60950-22 Standards Environment Marks Type 2011/65/EU RoHS (EN 50581 and EN IEC 63000), 1999/45/EC and 1907/2006 REACH, 2012/19/EU WEEE, 94/62/EC and 2005/20/EC Packaging CE, cULus, WEEE, RCM, EAC, China RoHS, Cmim, BIS, NOM, ANRT, KCC, Anatel, ICASA, TRA, BSMI, NCC Installation/configuration notes ~175 mm (6.9 in) ~148 mm (5.8 in) ~85 mm (3.3 in) ~71 mm (2.8 in) ~107mm (4.2 in) Technical specifications Power Input voltage PoE IEEE 802.3af / 802.3at Type 1, Class 3; 24 VAC ±10%; 12-26 VDC ±10%; PoE and auxiliary power can be connected simultaneously for redundant operation Power Consumption (typical / maximum) PoE: 7 W / 12.95 W; 24 VAC: 7.1 W - 12 VA / 13 W - 25 VA; 12-26 VDC: 7.5 W / 16 W Sensor Sensor type Effective pixels 1/1.8inch CMOS 2688 x 1520 2.9 m pixels, 4.1MP (approx.) Sensitivity Low-light technology starlight X Measuring method IEC 62676 Part 5 (1/25, F1.3) Color 0.0078 lx (NDE-8503-RX); 0.0247 lx (NDE-8503-RXT) Video - FLEXIDOME IP starlight 8000i - 4MP X series 5 | 8 Sensitivity Mono 0.0008 lx (NDE-8503-RX); 0.003 lx (NDE-8503-RXT) Dynamic range Dynamic range (WDR) HDR X 141 dB Measured according to 108 dB WDR IEC 62676 Part 5 Optical (4.4 to 10 mm lens) Lens 4.4 to 10 mm P-iris lens (IR corrected); F-stop 1.3 - 1.97 Adjustment Motorized zoom/focus Iris control P-iris control Viewing angle Wide: 110° x 56° (H x V); Tele: 48° x 27° (H x V) Optical (12 to 40 mm lens) Lens 12 to 40 mm P-iris lens (IR corrected) F-stop 2.3 - 2.3 Adjustment Motorized zoom/focus Iris control P-iris control Viewing angle Wide: 36.8° x 20.3° (H x V) Tele: 12.8° x 7.3° (H x V) Platform Common product platform Video streaming Video compression Sensor modes Streaming Camera latency CPP7.3 H.265; H.264; M- JPEG 25 fps, HDR X, 2688 x 1520 (4.1 MP); 30 fps, HDR X, 2688 x 1520 (4.1 MP); 50 fps, 2688 x 1520 (4.1 MP); 60 fps, 2688 x 1520 (4.1 MP) Multiple configurable streams in H.264, H.265 and M-JPEG, configurable frame rate and bandwidth. Regions of Interest (ROI); Bosch Intelligent Streaming 67 ms (60 fps) Video streaming GOP structure IBBP Frame rate 1-60 fps Signal-to-Noise Ratio >55 dB (SNR) Video resolution (H x V) Supported resolutions 4.1 MP 2688 x 1520, 3.7 MP 2560 x 1440, 2.8 MP (4:3) 1920 x 1440, HD 1080p 1920 x 1080, 1.3MP 1536 x 864, 1.3 MP (5:4) 1280 x 1024, HD 720p 1280 x 720, SD 432p 768 x 432, SD 480p (4:3) 720 x 480, VGA (4:3) 640 x 480 Camera installation Mirror image On / Off Rotate 0° / 90° upright / 180° / 270° upright Camera LED Auto disable/Enable/Disable Positioning Coordinates / Mounting height Camera view wizard Motorized pan, tilt, roll, zoom, autofocus Wireless commissioning IEEE 802.11b/g/n Video functions - color Adjustable picture settings Contrast, Saturation, Brightness White Balance 2500 to 10000K, 4 automatic modes (Basic, Standard, Sodium lamp, Dominant color), Manual mode and Hold mode Video functions - ALC ALC Mode (standard, fluorescent), Level , Average vs. peak, Speed, Maximum gain Exposure Automatic Electronic Shutter (AES); Fixed shutter (1/25[30] to 1/15000) selectable; Default shutter, Maximum shutter P-iris Automatic/manual, priority Day/Night Auto (adjustable switch points), Color, Monochrome Video functions - enhance High dynamic range HDR X - Motion optimized, HDR X - Optimized DR, HDR X - Extreme DR Video - FLEXIDOME IP starlight 8000i - 4MP X series 6 | 8 Video functions - enhance Enhancements Backlight compensation, Contrast enhancement, Intelligent Auto Exposure Intelligent defog Intelligent Defog automatically adjusts parameters for best picture in foggy or misty scenes (switchable) Sharpness Sharpness enhancement level selectable Noise reduction Intelligent Dynamic Noise Reduction with separate temporal and spatial adjustments Video content analysis Analysis type Intelligent Video Analytics, Camera Trainer Configurations Silent VCA / Profile1/2 / Scheduled / Event triggered Alarm rules (combinable) Object filters Tracking modes Calibration / Geolocation Additional functionalities Any object, Object in field, Line crossing, Enter / leave field, Loitering, Follow route, Idle / removed object, Counting, Occupancy, Crowd density estimation, Condition change, Similarity search, Flow / counter flow Duration, Size, Aspect ratio, Speed, Direction, Color, Object classes (4) Standard (2D) tracking, 3D tracking, 3D people tracking, Ship tracking, Museum mode Automatic, based on gyro sensor, focal length and camera height Tamper detection, Face detection Additional functions Scene modes 10 default modes with scheduler: Standard, Sodium lighting, Fast movement, Sensitivity boost, Dynamic backlight, Vibrant, Color only, Sports & Gaming, Retail, License Plate Recognition (LPR) Privacy Masking Eight independent areas, fully programmable Display stamping Name; Logo; Time; Alarm message Pixel counter Selectable area Local storage Internal RAM Memory card slots Dual SD-card slot configurations 5 s pre-alarm recording Dual SDXC / SDHC / SD card slots, up to 2TB. · Mirror (redundant storage) Local storage Industrial SD cards · Failover (extended service interval) · Extend (maximum retention time) · Automatic Network Replenishment Extreme lifetime and health monitoring support that provides early service indication. Input/output Power output Audio signal line in Audio signal line out Alarm input Alarm output Ethernet Surge protection Fiber optics (sold separately) +12 VDC, max 50 mA 10 kOhm typical; 1 Vrms max 1 Vrms; 1.5 kOhm typical 2 supervised inputs, dry contact or voltage operated (5 - 40 VDC); 2.2K end-of-line resistor 1 output, maximum: 30 VAC or +40 VDC, 0.5 A continuous, 10 VA Shielded RJ45 Ethernet: 1 kV, 2 kA to ground (8/20 µs pulse) The Fiber Optic Ethernet Media Converter kit (VG4-SFPSCKT) installed inside a Surveillance Cabinet (NDA-U-PA0, NDA-U-PA1 or NDA-UPA2) provides the fiber optic interface to the mounted camera. Audio streaming Standard G.711, 8 kHz sampling rate L16, 16 kHz sampling rate AAC-LC, 48 kbps at 16 kHz sampling rate AAC-LC, 80 kbps at 16 kHz sampling rate Signal-to-Noise Ratio >50 dB Audio Streaming Full-duplex / half duplex Network Protocols Ethernet Interoperability IPv4, IPv6, UDP, TCP, HTTP, HTTPS, RTP/RTCP, IGMP V2/V3, ICMP, ICMPv6, RTSP, FTP, ARP, DHCP, APIPA (Auto-IP, link local address), NTP (SNTP), SNMP (V1, V3, MIB-II), 802.1x, DNS, DNSv6, DDNS (DynDNS.org, selfHOST.de, noip.com), SMTP, iSCSI, UPnP (SSDP), DiffServ (QoS), LLDP, SOAP, DropboxTM, CHAP, digest authentication 10/100 Base-T ONVIF Profile S; ONVIF Profile G; ONVIF Profile T Video - FLEXIDOME IP starlight 8000i - 4MP X series 7 | 8 Network GB/T 28181 Data security Crypto Coprocessor (TPM) PKI RSA 2048 bit, AES/CBC 256 bit X.509 certificates Encryption Full end-to-end encryption with supported VMS Network: TLS1.0/1.2, AES128, AES256 Local storage: XTS-AES Video authentication checksum, MD5, SHA-1, SHA-256 Mechanical Dimensions (D x H) 175 x 148 mm (6.9 x 5.7 in) Weight 2.3 kg (5.07 lbs) Mounting Surface mount Color White (RAL9003) Motorized PTR range Pan: 0º to +361º; Tilt: -3º to +81º (NDE-8503-RX), -3º to +89º (NDE-8503-RXT); Roll: -95º to +95º Dome bubble Polycarbonate, clear with UV blocking antiscratch coating Housing Aluminum with dehumidifying membranes and waterproof connection area Environmental Operating temperature -50 °C to +60 °C (-58 °F to +140 °F) for continuous operation; Up to +74 °C (+165 °F) according to NEMA TS 2-2003 (R2008), para 2.1.5.1 using fig. 2.1 test profile Storage temperature -30 °C to +70 °C (-22 °F to +158 °F) Operating humidity 5% to 93% RH non condensing 5% to 100% RH condensing Storage humidity Up to 98% RH Impact resistance casing and dome IK10+ (50 joules) Water/dust protection IP66, IP6K9K and NEMA Type 4X Ordering information NDE-8503-RX Fixed dome 4MP HDR X 4.4-10mm PTRZ IP66 Fixed dome 4MP PTRZ HDR X H.265 IVA IP66 Order number NDE-8503-RX | F.01U.385.213 NDE-8503-RXT Fixed dome 4MP HDR X 12-40mm PTRZ IP66 Fixed dome 4MP tele PTRZ HDR X H.265 IVA IP66 Order number NDE-8503-RXT | F.01U.385.214 Accessories NDA-8000-PC Paintable cover, 4 pcs Paintable cover (4 pieces) for FLEXIDOME IP 8000i. Order number NDA-8000-PC | F.01U.324.966 NDA-8000-CBL Clear replacement bubble Clear replacement bubble. Order number NDA-8000-CBL | F.01U.324.934 NDA-8000-TBL Tinted Bubble Tinted bubble for FLEXIDOME IP 8000i. Order number NDA-8000-TBL | F.01U.324.973 NDA-8000-IC In-ceiling mount kit In-ceiling mount kit for FLEXIDOME IP 8000i. Order number NDA-8000-IC | F.01U.324.935 NDA-8000-PLEN Plenum-rated in-ceiling mount kit Plenum-rated in-ceiling mount kit for FLEXIDOME IP 8000i. Order number NDA-8000-PLEN | F.01U.324.936 NDA-8000-SP In-ceiling mount support kit Soft ceiling support for in-ceiling mount kit for FLEXIDOME IP 8000i. Order number NDA-8000-SP | F.01U.324.937 NDA-8000-WP On-camera weather protector On-camera weather protector for FLEXIDOME IP 8000i. Order number NDA-8000-WP | F.01U.324.929 NDA-8000-PIP Pendant interface plate, indoor Pendant interface plate for FLEXIDOME IP 8000i and FLEXIDOME IP panoramic 6000/7000 outdoor. Order number NDA-8000-PIP | F.01U.324.938 NDA-8000-PIPW Pendant interface plate, outdoor Pendant interface plate including weather protector for FLEXIDOME IP 8000i and FLEXIDOME IP panoramic 6000/7000 outdoor. Order number NDA-8000-PIPW | F.01U.324.967 NDA-U-WMT Pendant wall mount Universal wall mount for dome cameras, white Order number NDA-U-WMT | F.01U.324.939 NDA-U-PMT Pendant pipe mount, 12" (31cm) Universal pipe mount for dome cameras, 31 cm, white Order number NDA-U-PMT | F.01U.324.940 NDA-U-PMTS Pendant pipe mount, 4" (11 cm) Universal pendant pipe mount for dome cameras, 11 cm (4"), white Order number NDA-U-PMTS | F.01U.385.046 NDA-U-PMTE Pendant pipe extension, 20" (50cm) Extension for universal pipe mount, 50 cm, white Order number NDA-U-PMTE | F.01U.324.941 Video - FLEXIDOME IP starlight 8000i - 4MP X series 8 | 8 NDA-U-PSMB Pendant wall/ceiling mount SMB Surface mount box (SMB) for wall mount or pipe mount. Order number NDA-U-PSMB | F.01U.324.942 NDA-U-PA0 Surveillance cabinet 24VAC Surveillance cabinet, 24 VAC input, 24 VAC output, IP66 Order number NDA-U-PA0 | F.01U.324.947 NDA-U-PA1 Surveillance cabinet 120VAC Surveillance cabinet, 100 - 120 VAC 50/60 Hz input, 24 VAC output, IP66 Order number NDA-U-PA1 | F.01U.324.948 NDA-U-PA2 Surveillance cabinet 230VAC Surveillance cabinet, 230 VAC input, 24 VAC output, IP66 Order number NDA-U-PA2 | F.01U.324.949 NDA-U-PMAL Pole mount adapter large Universal pole mount adapter, white; large Order number NDA-U-PMAL | F.01U.324.944 NDA-U-PMAS Pole mount adapter small Pole mount adapter small Universal pole mount adapter, white; small. Order number NDA-U-PMAS | F.01U.324.943 NDA-U-RMT Pendant parapet mount Universal roof mount for dome cameras, white Order number NDA-U-RMT | F.01U.324.945 NDA-U-WMTG Pendant wall mount, gang box Universal wall mount, compatible with gang box installation for fixed dome cameras only, white Order number NDA-U-WMTG | F.01U.358.358 NDA-U-PMTG Pendant pipe mount, gang box Universal pipe mount, compatible with gang box installation for fixed dome cameras only, white Order number NDA-U-PMTG | F.01U.358.359 VG4-SFPSCKT Ethernet to SFP interface kit Ethernet media converter video transmitter/data receiver fiber optic kit for AUTODOME cameras, for MIC-IP-PSU for MIC analog cameras and for the Surveillance cabinets (NDA-U-PA0, NDA-U-PA1 and NDA-U-PA2). Order number VG4-SFPSCKT | F.01U.142.529 SFP-2 Fiber module, multimode, 1310nm, 2LC SFP Fiber Optic Module, 2 km (1.2 miles), 2 LC connectors. Multi-mode 1310 mm Order number SFP-2 | F.01U.136.537 SFP-3 Fiber module, single-mode, 1310nm, 2LC SFP Fiber Optic Module, 20 km (12.4 miles), 2 LC connectors. Single-mode 1310 nm Order number SFP-3 | F.01U.136.538 SFP-25 Fiber module, 1310/1550nm, 1SC SFP Fiber Optic Module, 2 km (1.2 miles), 1 SC connector Multi-mode 1310/1550 nm Order number SFP-25 | F.01U.136.541 SFP-26 Fiber module, 1550/1310nm, 1SC SFP Fiber Optic Module, 2 km (1.2 miles), 1 SC connector Multi-mode 1550/1310 nm Order number SFP-26 | F.01U.136.542 Represented by: Europe, Middle East, Africa: Bosch Security Systems B.V. P.O. Box 80002 5600 JB Eindhoven, The Netherlands Phone: + 31 40 2577 284 emea.securitysystems@bosch.com emea.boschsecurity.com Germany: Bosch Sicherheitssysteme GmbH Robert-Bosch-Ring 5 85630 Grasbrunn Germany www.boschsecurity.com Data subject to change without notice | 202103251808 | V2 | March 25, 2021 North America: Bosch Security Systems, LLC 130 Perinton Parkway Fairport, New York, 14450, USA Phone: +1 800 289 0096 Fax: +1 585 223 9180 onlinehelp@us.bosch.com www.boschsecurity.us Asia-Pacific: Robert Bosch (SEA) Pte Ltd, Security Systems 11 Bishan Street 21 Singapore 573943 Phone: +65 6571 2808 Fax: +65 6571 2699 apr.securitysystems@bosch.com www.boschsecurity.asia © Bosch Security Systems 2021SCHEMA ST4 ST4 PDF Engine (Build 7.0.2.0)
