instructions for an experienced installer to set up and operate this switcher. The diagram below shows a typical application for a DTP2 T 212 switcher. For full installation, configuration, and operation details, see the DTP2 T 212 User Guide, available at www.extron.com.

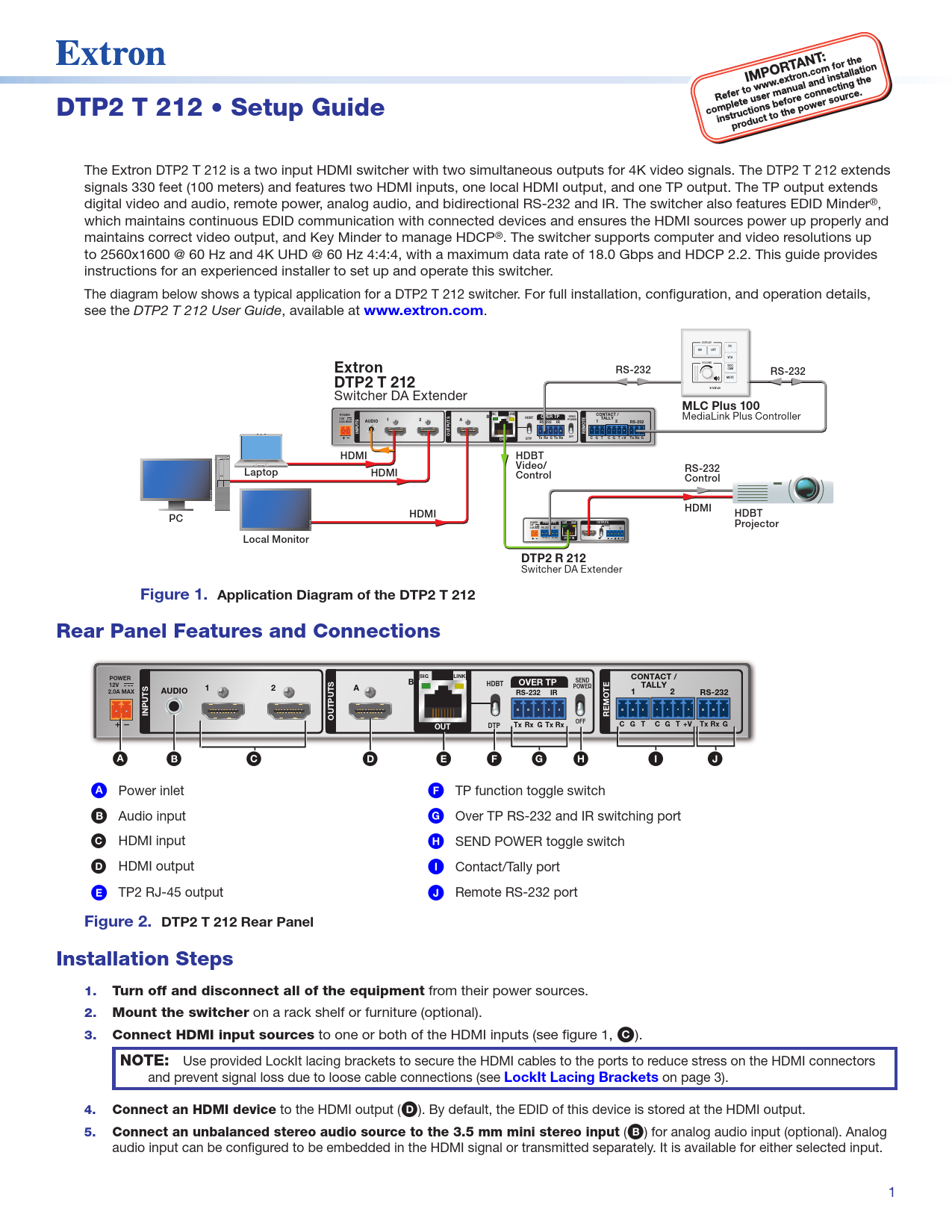

DTP2 T 212 · Setup Guide The Extron DTP2 T 212 is a two input HDMI switcher with two simultaneous outputs for 4K video signals. The DTP2 T 212 extends signals 330 feet (100 meters) and features two HDMI inputs, one local HDMI output, and one TP output. The TP output extends digital video and audio, remote power, analog audio, and bidirectional RS-232 and IR. The switcher also features EDID Minder®, which maintains continuous EDID communication with connected devices and ensures the HDMI sources power up properly and maintains correct video output, and Key Minder to manage HDCP®. The switcher supports computer and video resolutions up to 2560x1600 @ 60 Hz and 4K UHD @ 60 Hz 4:4:4, with a maximum data rate of 18.0 Gbps and HDCP 2.2. This guide provides instructions for an experienced installer to set up and operate this switcher. The diagram below shows a typical application for a DTP2 T 212 switcher. For full installation, configuration, and operation details, see the DTP2 T 212 User Guide, available at www.extron.com. WiFi 1 2 3 4 Laptop INPUTS OUTPUTS REMOTE Extron DTP2 T 212 Switcher DA Extender POWER 12V 2.0A MAX AUDIO 1 2 A HDMI HDMI RS-232 SIG B LINK HDBT OVER TP SEND POWER RS-232 IR OUT DTP Tx Rx G Tx Rx OFF HDBT Video/ Control CONTACT / TALLY 1 2 RS-232 C G T C G T +V Tx Rx G PC Local Monitor HDMI Figure 1. Application Diagram of the DTP2 T 212 Rear Panel Features and Connections POWER OVER DTP2 12V 0.8A MAX RS-232 IR SIG LINK Tx Rx G Tx Rx DTP2 IN OUTPUTS AUDIO L R DTP2 R 212 Switcher DA Extender DISPLAY ON OFF VOLUME PC VGA DOC CAM MUTE Extron RS-232 MLC Plus 100 MediaLink Plus Controller RS-232 Control HDMI HDBT Projector INPUTS OUTPUTS REMOTE POWER 12V 2.0A MAX AUDIO 1 2 A SIG B LINK HDBT OVER TP SEND POWER RS-232 IR CONTACT / TALLY 1 2 RS-232 OUT DTP Tx Rx G Tx Rx OFF C G T C G T +V Tx Rx G AB C D E F GH I JJ A Power inlet B Audio input C HDMI input D HDMI output E TP2 RJ-45 output F TP function toggle switch G Over TP RS-232 and IR switching port H SEND POWER toggle switch I Contact/Tally port J Remote RS-232 port Figure 2. DTP2 T 212 Rear Panel Installation Steps 1. Turn off and disconnect all of the equipment from their power sources. 2. Mount the switcher on a rack shelf or furniture (optional). 3. Connect HDMI input sources to one or both of the HDMI inputs (see figure 1, C). NOTE: Use provided LockIt lacing brackets to secure the HDMI cables to the ports to reduce stress on the HDMI connectors and prevent signal loss due to loose cable connections (see LockIt Lacing Brackets on page 3). 4. Connect an HDMI device to the HDMI output (D). By default, the EDID of this device is stored at the HDMI output. 5. Connect an unbalanced stereo audio source to the 3.5 mm mini stereo input (B) for analog audio input (optional). Analog audio input can be configured to be embedded in the HDMI signal or transmitted separately. It is available for either selected input. 1 DTP2 T 212 · Setup Guide (Continued) 6. Connect an RJ45 DTP or HDBT receiving device to the output (see figure 2, E on the previous page) for either DTP or HDBT mode (see image to the right to properly wire the RJ-45 connector). · If the receiver is in the Extron DTP2 series, set the DTP/HDBT toggle switch (F) to DTP and the SEND POWER switch (H) to the UP (SEND POWER) position. On the receiver, set the SEND POWER switch to the DOWN (OFF) position. · If the receiver is in the Extron Legacy DTP series, set the DTP/HDBT toggle switch (F) to DTP and the SEND POWER switch (H) to the DOWN (OFF) position. · If the receiver is HDBaseT enabled, set the DTP/HDBT toggle switch (F) to HDBT, and the SEND POWER switch (H) to the DOWN (OFF) position. Pins: 12345678 TP Wires TIA/EIA T 568B Pin Wire color 1 White-orange 2 Orange 3 White-green 4 Blue 5 White-blue 6 Green 7 White-brown 8 Brown ATTENTION: · Position these toggle switches (see figure 2, F and H) BEFORE connecting the appropriate device to the TP connector. Failure to comply can damage the endpoint. · Positionnez ces sélecteurs (voir figure 2, F et H) AVANT de connecter l'appareil approprié au connecteur TP. Ne pas respecter cette procédure pourrait endommager le point de connexion. · The DTP2 T 212 is configured to output power to DTP2 models only. If connected to a Legacy DTP or HDBT device, set the SEND POWER toggle switch to the "DOWN" position (OFF). Failure to turn the power OFF will damage the connected Legacy DTP device. · Le DTP2 T 212 est configuré pour fournir une alimentation aux modèles DTP2 uniquement. S'il est connecté à un autre appareil, veuillez positionner l'interrupteur à bascule sur « DOWN » (OFF). Si l'interrupteur n'est pas positionné sur OFF, vous risquez d'entraîner la défaillance de l'appareil Legacy DTP connecté. NOTE: When the output is configured for DTP mode, remote power is available for Extron DTP2 devices only. When the output is configured for HDBT mode, remote power is disabled and both the switching transmitter and receiver require their own 12 VDC powerDsTuPpEpnldyp. oint Connected to a DTP2 Endpoint OFF Extron DTP2 T 212 Transmitter INPUTS POWER Extron 12V 2.0A MAX AUDIO 1 2 DTP2 T 212 Transmitter POWER 12V 2.0A MAX AUDIO 1 2 OUTPUTS SEND DTP Endpoint CPoOWnERnected to a DTP2 EndpointExtron OFF OFF SEND A SIG B LINK HDBT OVER TP SEND POWER RS-232 IR POCWONETARCT / TALLY 1 2 RS-232 No Remote Power DTP HDMI 4K 330 Rx Receiver Extron OVER DTP RS-232 IR REMOTE OUT DTP Tx Rx G Tx Rx OFF C G T C G T +V Tx Rx G OFF A SIG B LINK HDBT OVER TP SEND POWER RS-232 IR CONTACT / TALLY 1 2 RS-232 CATx Cable up to 330' (100 m) No Remote Power DTP HDMI 4K 330 Rx TxRx G Tx Rx DTP HDMI 330 Rx Receiver OVER DTP RS-232 IR REMOTE OUTPUTS INPUTS Local Power Supply OUT DTP Tx Rx G Tx Rx OFF C G T C G T +V Tx Rx G CATx Cable up to 330' (100 m) Tx Rx G Tx Rx DTP HDMI 330 Rx Local Power Supply Local Power Supply Local Power Supply INPUTS Extron DTP2 T 212 Transmitter INPUTS POWER Extron 12V 2.0A MAX AUDIO 1 2 DTP2 T 212 Transmitter POWER 12V 2.0A MAX AUDIO 1 2 OUTPUTS OUTPUTS DTP2 Endpoint Connected to a DTP2 Endpoint OFF ON SEND POWER DTP2 Endpoint Connected to a DTP2 EndpoiEnxt tron SEND POWER OOFFFF SEND A SIG B LINK HDBT OVER TP SEND POWER RS-232 IR POCWONETRACT / TALLY 1 2 RS-232 REMOTE OUT DTP Tx Rx G Tx Rx OFF C G T C G T +V Tx Rx G OFF REMOTE A SIG B LINK HDBT OVER TP SEND POWER RS-232 IR CONTACT / TALLY 1 2 RS-232 OUT DTP Tx Rx G Tx Rx OFF C G T C G T +V Tx Rx G Direction of Remote Power up DtCoiAr3eT3cx0tCi'o(an1b0ol0ef m) Remote Power CATx Cable up to 330' (100 m) DTP2 R 211 Receiver ExtronCONFIG STATUS INPUT LINK SEND POWER DTP2 R 211OUTPUT OFF Receiver ON OFF SEND POWER DTP2 R 211 OFF CONFIG STATUS INPUT LINK SEND POWER OUTPUT OFF Local DTP2 R 211 Power Supply Extron DTP2 T 212 Transmitter OUTPUTS INPUTS POWER Extron 12V 2.0A MAX AUDIO 1 2 A DTP2 T 212 Transmitter POWER 12V 2.0A MAX AUDIO 1 2 A OUTPUTS INPUTS Local Power Supply ON SEND POWER SIG B LINK HDBT OVER TP SEND POWER RS-232 IR ON OFF SEND POCWONETRACT / TALLY 1 2 RS-232 REMOTE OUT DTP Tx Rx G Tx Rx OFF C G T C G T +V Tx Rx G OFF SIG B LINK HDBT OVER TP SEND POWER RS-232 IR OUT DTP Tx Rx G Tx Rx OFF REMOTE CONTACT / TALLY 1 2 RS-232 C G T C G T +V Tx Rx G Direction of Remote Power upRDetComiAr3eoT3cxte0tCi'oP(an1ob0wol0efemr ) CATx Cable up to 330' (100 m) Extron OFF Local Power SuPpSOEpWNElDyR DTP2 R 211 Receiver OFF OFF Extron CONFIG STATUS INPUT LINK SEND POWER DTP2 R 211OUTPUT OFF Receiver SEND POWER DTP2 R 211 OFF CONFIG STATUS INPUT LINK SEND POWER OUTPUT OFF DTP2 R 211 Figure 3. Send Power Toggle Switch Configuration Local 7. Connect OPovweerrSTupPplyRS-232 and IR control. Connect a serial RS-232 signal, a modulated IR signal, or both into this 3.5 mm, 5-pole captive screw port (G) for IR and bidirectional RS232 communication (see wiring diagram on the right). 2 Tx/Rx Pins OVER TP RS-232 IR Tx Rx G Tx Rx OVER TP RS-232/IR IR Device Rx Tx Gnd Tx Rx Gnd RS-232 Device 8. Connect control devices. Connect your computer to one of the following communication ports to configure and control the switcher via SIS commands or Product Configuration Software (PCS): · RS-232 port -- Connect the unterminated transmit, receive, and ground wires of the RS-232 cable to the three pins on the provided 3-pole captive screw connector, as shown in the diagram on the right. Insert the connector into the rear panel Remote port (J), and the other end of the cable into your computer serial port. Protocol for the RS-232 port: REMOTE RS-232 Tx Rx G REMOTE RS-232 · 9600 baud · 8 data bits · no parity · Config port -- Connect a USB mini-B cable to the front panel USB port (see figure 5, C, on the next page) for USB control. 9. Connect a contact closure device (optional). Connect a push-button contact closure device to a Contact port (see figure 2, I, on page 1) to enable input switching via contact closure. a. Wire and plug one of the provided blue, 3.5 mm, 3-pole connectors into a Contact/Tally port representing input 1 or input 2 on the DTP2 T 212. · C = Contact closure input CONTACT / TALLY 1 2 C G T C G T +V · G = Contact and Tally Ground · T = Tally output b. Press the button on the contact closure device to switch the connected input to the output. TIP: The Contact and Tally ports can be used with Extron Show Me cables. For each cable, connect the red wire to the Contact Closure pin and the black wire to the Tally Out pin (see diagram on the right). Red Black Show Me Cable 10. Connect an indicator device to the Tally Out port (optional). To identify the currently selected input when the front panel buttons are not visible, connect a device such as an LED to the Contact/Tally port (figure 2, I). When the input you are using is selected, the corresponding tally out pin shorts to ground, which activates the connected indicator. Wire and connect one of the provided blue, 3.5 mm, 4-pole connectors into a Contact In/Tally Out port. · C = Contact closure input · G = Contact and Tally Ground CONTACT / TALLY 1 2 · T = Tally output · +V = +5 VDC (Insert the power wire for the contact indicator device into the +V port.) C G T C G T +V 11. If necessary, wire a 2-pole captive screw connector to your power supply as shown in figure 4 (see figure 2, A on page 1). SECTION AA Figure 4. A A Smooth POWER 12V --A MAX Ridges 3/16" (5 mm) Max. Wiring the Power Connector CAUTION: The DC output cables must be kept separate from each other while the power supply is plugged in. Remove power before wiring. ATTENTION : Les câbles de sortie CC doivent être séparés les uns des autres tant que la source d'alimentation est branchée. Coupez l'alimentation avant d'effectuer un raccordement. ATTENTION: · Do not connect any external power supplies until you have read the Attention notifications in the Power Supply section of the DTP2 T/R 211 User Guide. · Ne branchez pas de sources d'alimentation externes avant d'avoir lu les mises en garde dans la section « Power Supply » du DTP2 T/R 211 User Guide. 12. Power on the output display. 1 13. Connect power to the switcher. 14. Power on the source devices. 2 LockIt Lacing Brackets Use the included LockIt Lacing Brackets to securely fasten the HDMI cables to each device as follows. 1 Plug the HDMI cable into the rear panel connection. 3 2 Loosen the HDMI connection mounting screw from the panel enough to allow the LockIt lacing bracket to be placed over it. The screw does not have to be removed. 3 Place the LockIt lacing bracket on the screw and against the HDMI connector, then tighten the screw 4 to secure the bracket. 5 3 DTP2 T 212 · Setup Guide (Continued) ATTENTION: · Do not overtighten the HDMI connector mounting screw. The shield it fastens to is very thin and can easily be stripped. · Ne serrez pas trop la vis de montage du connecteur HDMI. Le blindage auquel elle est attachée est très fin et peut facilement être dénudé. 4 Loosely place the included tie wrap around the HDMI connector and the LockIt lacing bracket as shown. 5 While holding the connector securely against the lacing bracket, use pliers or similar tools to tighten the tie wrap, then remove any excess length. Front Panel Features AB C D E AUTO SWITCH R CONFIG INPUTS 1 2 MODE NORM/AUTO SIGNAL HDCP INPUTS 1 2 OUTPUTS A B DTP2 T 212 F A Auto Switch LED C USB Config port E Inputs and Outputs Signal LEDs B Reset Button D Input selection buttons and LEDs F Inputs and Outputs HDCP LEDs Figure 5. DTP2 T 212 Front Panel A Auto Switch LED -- Lights when Auto Switch is enabled. B Reset button -- Press and hold the reset button for 3 seconds while operating the unit to reset back to factory default. C USB Config port -- Connect a USB A to mini-B cable between your computer and this female USB mini-B port to configure and control the switcher via SIS commands or PCS, and to update the firmware. D Inputs selection buttons and LEDs -- Press one of these buttons to select an input to switch to the output. The LED at the right of each button lights when the corresponding input is selected. If auto-input switching is in effect, these buttons are disabled, but the LEDs continue to light to indicate the selected input. To enable or disable Auto-Switch mode via the front panel, press and hold the Input 1 button for 3 seconds, then press and release the Input 2 button to toggle between Normal and Auto Switch. E Inputs and Outputs LEDs · Inputs -- Light when a source is connected to the corresponding input and TMDS clock activity is detected. · Outputs -- Light when active sink devices are connected to the HDMI and TP outputs. F Inputs and Outputs HDCP LEDs · Inputs -- Light if the connected sources are HDCP encrypted and have been authenticated by the switcher inputs. NOTE: If the source device connected to the selected input is HDCP encrypted (requires HDCP authentication), the corresponding signal LED may not light unless HDCP has been authenticated. · Outputs -- Light when the currently selected input requires HDCP and the connected output device has been successfully authenticated. NOTE: HDCP is re-authenticated on the output whenever a new input is selected. NOTE: All front panel LEDs will flash three times simultaneously to indicate enabling or disabling of Executive Mode, which will lock out front panel input buttons when enabled via PCS or SIS commands. For information on safety guidelines, regulatory compliances, EMI/EMF compatibility, accessibility, and related topics, see the Extron Safety and Regulatory Compliance Guide on the Extron website. © 2019 Extron Electronics -- All rights reserved. www.extron.com 68-2915-50 Rev. A All trademarks mentioned are the property of their respective owners. 12 19 4 Worldwide Headquarters: Extron USA West, 1025 E. Ball Road, Anaheim, CA 92805, 800.633.9876, P. Ganay, A Yeh Adobe PDF Library 15.0
