Overview Featuring an integrated 24 dBi dish antenna, the LTU Pro is a 5 GHz subscriber station that functions as a CPE (Customer Premises Equipment) in a Point‑to‑MultiPoint (PtMP) environment with the
Based on Ubiquiti's LTU technology, the LTU Pro is not impeded by the limitations of standard 802.11 Wi‑Fi technology. Its custom. LTU silicon and radio ...

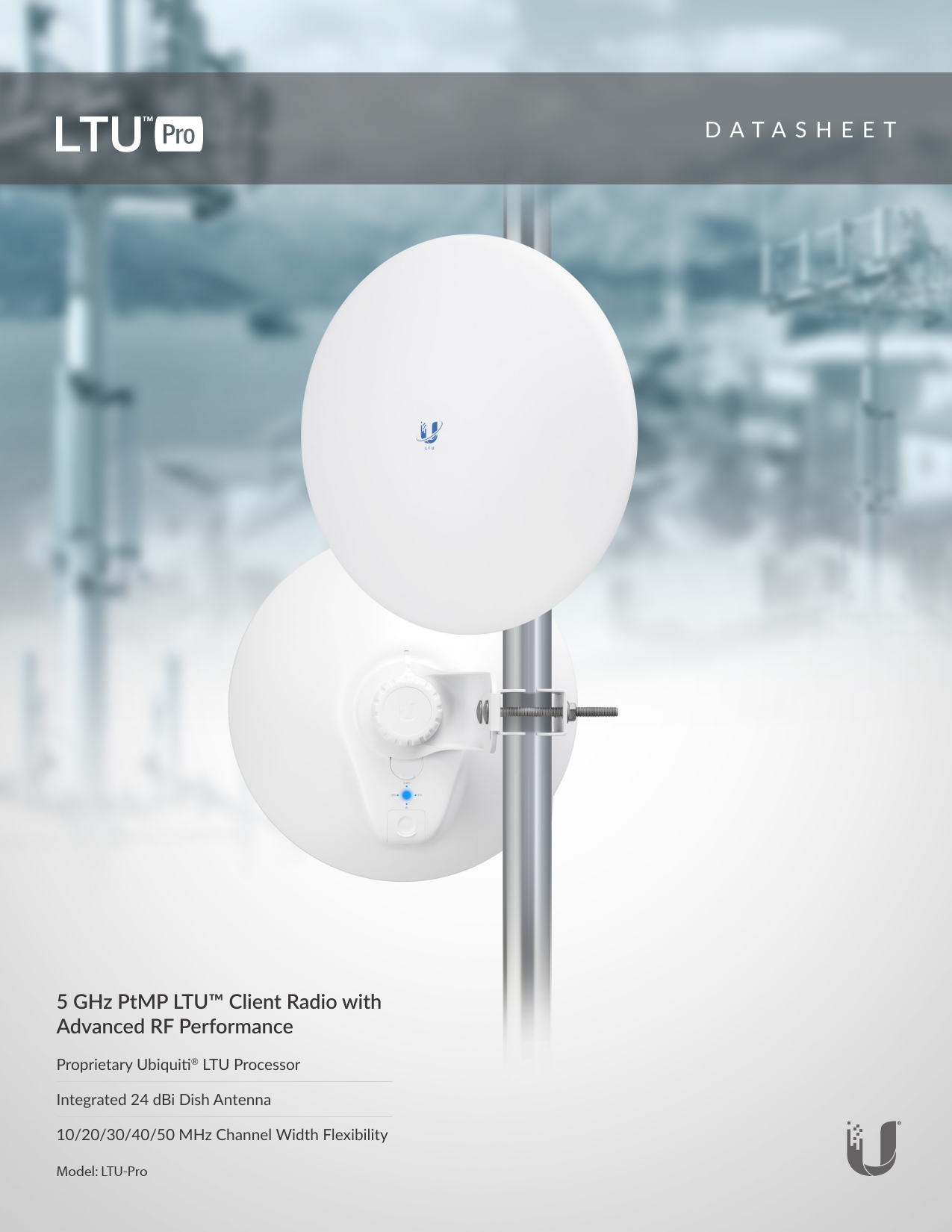

D ATA S H E E T 5 GHz PtMP LTUTM Client Radio with Advanced RF Performance Proprietary Ubiquiti® LTU Processor Integrated 24 dBi Dish Antenna 10/20/30/40/50 MHz Channel Width Flexibility Model: LTU-Pro D ATA S H E E T Overview Featuring an integrated 24 dBi dish antenna, the LTU Pro is a 5 GHz subscriber station that functions as a CPE (Customer Premises Equipment) in a PointtoMultiPoint (PtMP) environment with the LTU Rocket® as the basestation. Proprietary LTU Technology Based on Ubiquiti's LTU technology, the LTU Pro is not impeded by the limitations of standard 802.11 WiFi technology. Its custom LTU silicon and radio architecture provide up to 600+ Mbps1 of real TCP/IP throughput and modulation rates of up to 4096QAM2. CPE Modes The LTU Pro supports both bridged and built-in hardware NAT router modes to suit your specific deployment. Frequency Split The LTU Pro can use different frequencies for TX and RX to avoid interference. 1 1+ Gbps with future firmware upgrade. 2 Available with future firmware upgrade. Robust Pole Mount Design The LTU Pro is designed for quick yet reliable mounting on a pole. It features a built-in mechanical tilt; the mounting bracket allows convenient adjustments to the elevation with a range of ± 15°. Deployment Example In a PtMP link, the LTU Pro functions as CPEs to the LTU Rocket, which is paired with an airMAX® sector antenna. 2 Channel Width Flexibility Channel width flexibility allows independent TX and RX channel frequency configurations anywhere within the radio band to avoid local interference. Channel width options include the following: · 10 MHz · 20 MHz · 30 MHz · 40 MHz · 50 MHz · Up to 100 MHz* Auto Power Adjustments By default, the Auto Output Power option allows the LTU Pro to set the output power (EIRP) to the appropriate level. Signal Control The LTU Pro's TX output power is controlled by the AP's target TX output power. A PtMP network can manage signal levels to enhance network stability and achieve optimal wireless performance with the highest possible modulation. Convenient Configuration To manage the LTU Pro, you have two options: the LTU Configuration Interface and Ubiquiti Network Management System (UNMSTM). Either option lets you manually configure the LTU Pro. Within the LTU Configuration Interface, you can manually configure the LTU Pro or manage it from the AP side using the Find My AP feature. The LTU Pro will automatically scan for APs using the same channel bandwidth. Select the appropriate AP and then use it to configure the LTU Pro. Integrated GPS Built-in GPS improves synchronization and allows map and Fresnel views on the Dashboard. * Available with future firmware upgrade. D ATA S H E E T 3 D ATA S H E E T LTU Configuration Interface PtMP Dashboard The Dashboard offers map and Fresnel views* so you can visualize the network. The map view shows your PtMP links overlaid on a geographic map, while the Fresnel view shows the link calculated for your selected CPE, including line of sight, first Fresnel zone, and 60% clearance zone. New graphs provide instant status updates and help you to detect connectivity issues and their effects on PtMP performance: · The airtime distribution bar graph displays in real time how much airtime each CPE is using. Click any point to view the airtime and link score for a specific CPE. · The local and remote RX rate histograms show the receive modulation rates of the various CPEs. Real-Time Spectral Analysis airView® spectral analysis runs on a dedicated and independent receiver, which has excellent EVM (Error Vector Magnitude) performance. The receiver can also perform other tasks, such as a search for channel occupancy, DFS detection, and automatic channel/ frequency assignment. Calibration (signal level measurement accuracy) and resolution bandwidth options are enhanced. Spectral zoom (user-defined scan limits) is also available. · The AP RF environment bar graph shows ambient RF noise levels across the frequency spectrum. · The combined remote RF environment bar graph also shows ambient RF noise levels but for the combined environment of all of the remote CPEs. * Available for models equipped with GPS. 4 Dimensions Weight Networking Interface Enclosure Max. Power Consumption Power Supply Power Method Voltage Range Max. Conducted TX Power Gain Beamwidth Sidelobe Level Front-to-Back Ratio Mounting Wind Loading Wind Survivability ESD/EMP Protection Operating Temperature Operating Humidity Certifications LTU-Pro 316.5 x 316.5 x 174.3 mm (12.46 x 12.46 x 6.86") 1.3 kg (2.87 lb) (1) 10/100/1000 Ethernet Port Outdoor UV Stabilized Plastic 9W 24V, 0.5A Gigabit PoE Adapter (Included) 24V Passive PoE (Pairs 4, 5+; 7, 8-) 22 - 26V 22 dBm (per Chain) 24 dBi 14° -10 dB 27 dB Pole-Mount (Kit Included) 150 N @ 200 km/h (33.72 lbf @ 125 mph) 200 km/h (125 mph) ± 24kV Contact/Air -40 to 60° C (-40 to 140° F) 10 - 90% Noncondensing CE, FCC, IC Worldwide US/CA U-NII-1 U-NII-2A U-NII-2C U-NII-3 Worldwide Operating Frequency (MHz) 4800 - 6200* 5150 - 5250 5250 - 5350 5470 - 5725 5725 - 5850 * Depends on regulatory region. Bluetooth LE Management Radio (MHz) 2400 - 2483.5 S P E C I F I C AT I O N S Vertical Azimuth S P E C I F I C AT I O N S Vertical Elevation Horizontal Azimuth Horizontal Elevation Specifications are subject to change. Ubiquiti products are sold with a limited warranty described at: ui.com/support/warranty The limited warranty requires the use of arbitration to resolve disputes on an individual basis, and, where applicable, specify arbitration instead of jury trials or class actions. ©2019-2020 Ubiquiti Inc. All rights reserved. Ubiquiti, Ubiquiti Networks, the Ubiquiti U logo, the Ubiquiti beam logo, airMAX, airOS, airView, LTU, Rocket, and UNMS are trademarks or registered trademarks of Ubiquiti Inc. in the United States and in other countries. Apple and the Apple logo are trademarks of Apple Inc., registered in the U.S. and other countries. App Store is a service mark of Apple Inc., registered in the U.S. and other countries. Android, Google, Google Play, the Google Play logo and other marks are trademarks of Google LLC. All other trademarks are the property of their respective owners. JL021320Adobe PDF Library 15.0
