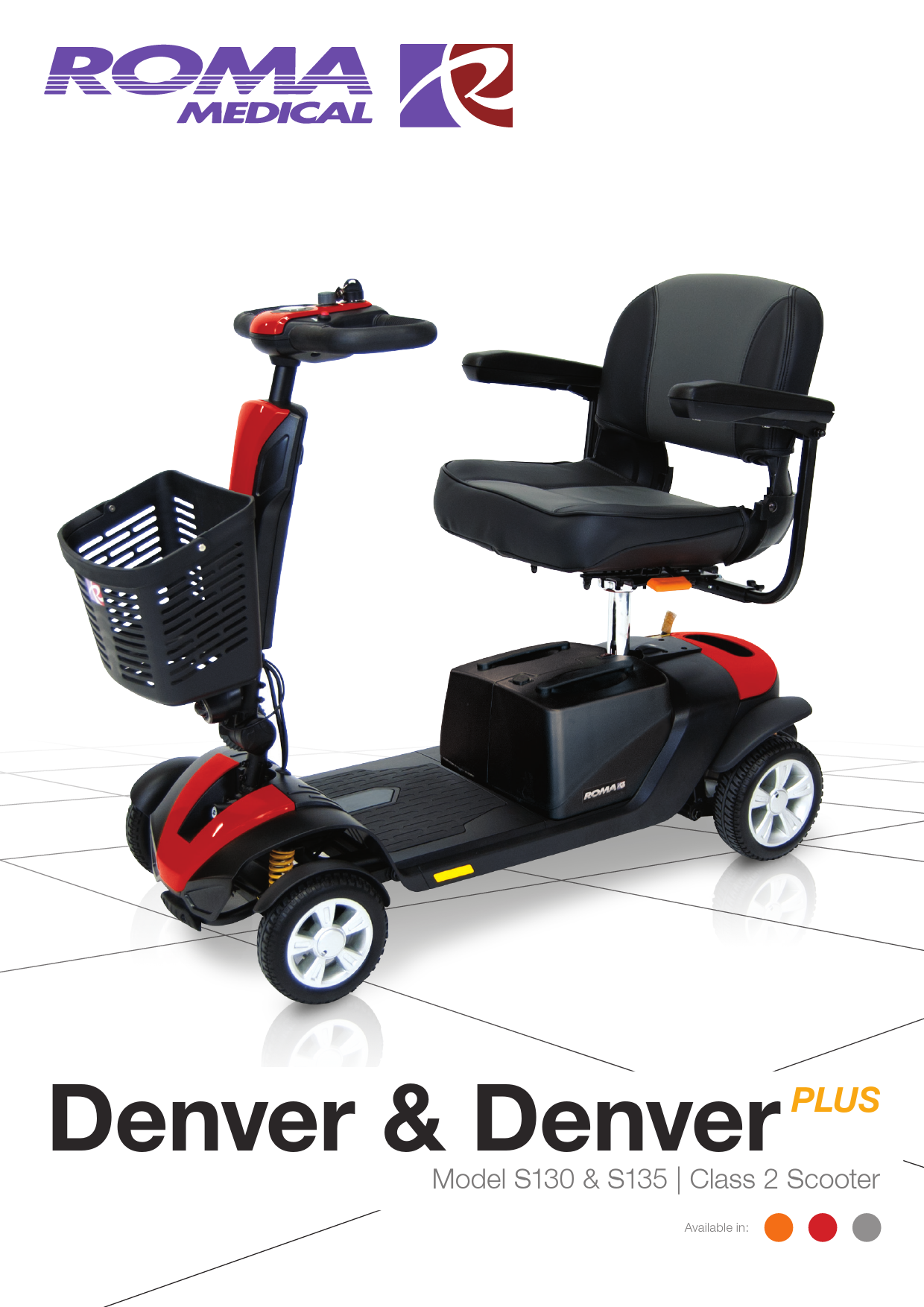

Denver & Denver PLUS Model S130 & S135 | Class 2 Scooter Available in:

Denver & Denver PLUS
Model S130 & S135 | Class 2 Scooter

Available in Red, Orange or Graphite Grey.

Front and rear shock absorbers.

Special Features
Front LED headlight. Front and rear shock absorbers. Front and rear mud guards. Quickly dismantles without tools for easy transport and storage. Anti-tipping wheels at rear. Comfortable swivel adjustable height seat with rear storage pocket. Flexible seat slider. Flip up and width adjustable armrests. Adjustable angle tiller. Detachable battery pack. Durable rubber foot mat and foot rests. Two charging points, one on-board and one off-board. Generous leg room. Available in Bright Orange, Bright Red and Graphite Grey.

Front and rear mud guards.

Shopping basket.

Detachable battery pack.

Easy to use controls.

York Road Bridgend Industrial Estate Bridgend CF31 3TB
Tel: 01656 674488 Fax: 01656 674499 Email: sales@romamedical.co.uk
www.romamedical.co.uk
We are social. Follow us on Facebook
/RomaMedicalAids
*Lower limb amputees should refer to the user manual before use. ** Passenger weight, ground conditions and battery condition/size can affect distance of travel. *** Measurement of underside of chassis. Roma Medical reserve the right to change specifications without prior notice.

Specifications (General)

Class (Invalid Carriage):

2

Overall Length:

1120mm / 44.1"

Overall Width:

550 - 650mm / 21.7 - 25.6"

Overall Height:

930 - 970mm / 36.7 - 38"

Seat Width:

440mm / 17"

Safe Working Slope:

6� / 10%

Maximum User Weight:

136 kg / 21.5 st

Maximum Speed:

6 kmph / 4 mph

Wheel Size Front:

7.5"

Wheel Size Rear:

8.5"

Turning Radius:

1440mm / 56.7"

Battery Charger:

2 Amp Standard

Ground Clearance***:

100mm

Colours:

Orange, Red & Graphite Grey

Specifications (Denver)

Model No.*: Range* Battery Size: Overall Weight

S130 16 km / 10 miles 2x 12ah 56 kg / 124 lbs

Specifications (Denver Plus)

Model No.*: Range* Battery Size: Overall Weight:

S135 32 km / 20 miles 2x 38ah 73 kg / 160 lbs
