Square D transformers manufactured by Schneider Electric™ are optimized for ... Lugs are not shipped with the transformer. This.

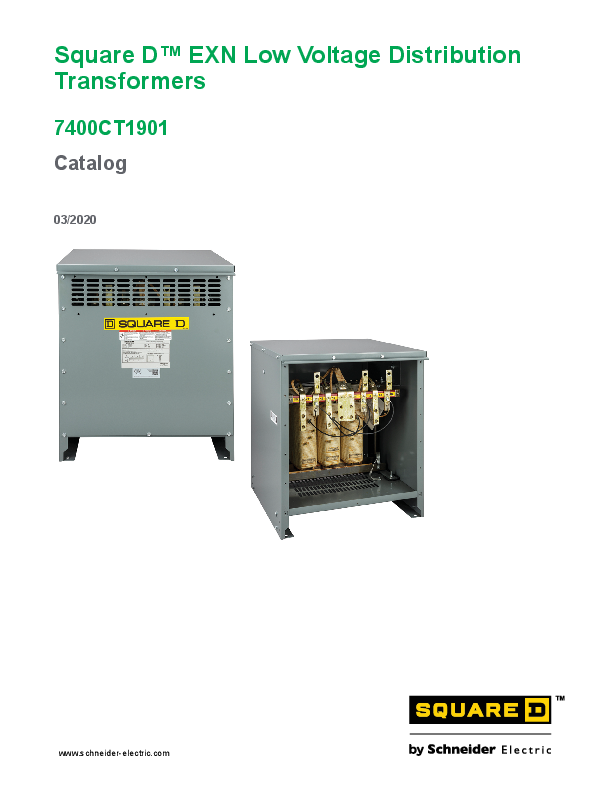

Square DTM EXN Low Voltage Distribution Transformers 7400CT1901 Catalog 03/2020 www.schneider-electric.com Legal Information The Schneider Electric brand and any trademarks of Schneider Electric SE and its subsidiaries referred to in this guide are the property of Schneider Electric SE or its subsidiaries. All other brands may be trademarks of their respective owners. This guide and its content are protected under applicable copyright laws and furnished for informational use only. No part of this guide may be reproduced or transmitted in any form or by any means (electronic, mechanical, photocopying, recording, or otherwise), for any purpose, without the prior written permission of Schneider Electric. Schneider Electric does not grant any right or license for commercial use of the guide or its content, except for a non-exclusive and personal license to consult it on an "as is" basis. Schneider Electric products and equipment should be installed, operated, serviced, and maintained only by qualified personnel. As standards, specifications, and designs change from time to time, information contained in this guide may be subject to change without notice. To the extent permitted by applicable law, no responsibility or liability is assumed by Schneider Electric and its subsidiaries for any errors or omissions in the informational content of this material or consequences arising out of or resulting from the use of the information contained herein. Product Description 7400CT1901 The Square DTM Distribution Transformer is designed to supply power throughout the building. The transformer permits the use of multiple voltages in the design of the system. Some advantages to designing a system with low voltage transformers: · Distributes a voltage higher than required by the load to limit wire losses and voltage drop · Addition of source impedance to the system, reducing common overcurrent at normal voltages · Mitigates harmonics through an internal magnetic circuit · Allows system grounding closer to the load, reducing capacitive noise · Can be designed for any output voltage that is required. A few disadvantages to designing a system with low voltage distribution transformers: · Reduces overall efficiency of the system due to internal losses within the transformer · Added heat to the building if installed indoors and in the HVAC system. The impact on the efficiency of the system and the concerns for improvements in the market for energy consumption have led to low voltage distribution transformers being regulated through the Energy Policy and Conservation Act (United States) and Natural Resources (Canada). Below are the efficiency ratings of Three-Phase Low Voltage Dry-Type Distribution Transformers: Three-Phase kVA 15 30 45 75 112.5 150 225 300 500 750 1000 Efficiency (%) 97.89 98.23 98.40 98.60 98.74 98.83 98.94 99.02 99.14 99.23 99.28 NOTE: All efficiency values are at 35% of nameplaterated load, determined according to the U.S. Department of Energy (DOE) Test Method for Measuring the Energy Consumption of Distribution Transformers under Appendix A to Subpart K of 10 CFR part 431. 7400CT1901 3 7400CT1901 EXN Energy Efficient Transformer Family Square D transformers manufactured by Schneider ElectricTM are optimized for performance, including the following components: · Coil--Designed to reduce the losses with customized wire configurations used exclusively by Schneider Electric. Computer-controlled winding equipment minimizes variability during the winding process. Aluminum conductors are standard with copper conductors available as a factory option. · Insulation System--The system consists of a conductor wrap or coating, layer insulation, air gap spacing, and varnish material. The system is UL listed for a specific maximum temperature for average temperature rise, hot spot, and ambient temperature. Schneider Electric's EXN family of transformers have a 428°F (220°C) insulation system, with an average temperature rise maximum of 302°F (150°C). · Core--EXN Transformers are designed with high-grade grain oriented, nonaging silicon steel laminations with high magnetic permeability, low hysteresis, and low eddy current losses. The computer-aided process allows the design to keep the magnetic flux densities well below the saturation point. The laminations are carefully and evenly stacked via distributive gap laminations, then clamped together to ensure an efficient magnetic circuit while providing a quiet quality offering of low voltage transformers. · Terminals--Sized to allow the lugs to align with all corresponding Schneider Electric equipment (such as circuit breakers, switches, panelboards, switchboards, etc.). The terminal positioning separates the Primary and Secondary terminals and meets the National Electrical Code® (NEC®) minimum wire bending requirements. Lugs are not shipped with the transformer. This allows the installer the flexibility to order what is needed to meet any distribution system requirements. NOTE: Both mechanical and compression lug kits are available from Schneider Electric. Terminals are standardized to National Electrical Manufacturers Association® (NEMA®) two-pole pad dimensions. Codes and Standards NEMA ST-20--100% routine testing prior to shipment; other ST-20 testing available at time of order, to be included when shipped. UL1561 and CSA22.2 No. 47--Third party Certified by UL File E6868; cULus Labeled Energy Efficient Registration--Department of Energy 10 CFR 429; Natural Resources Canada via UL Manufactured in ISO 9001 Facilities--Product Environmental Profile RoHS/ REACH 4 7400CT1901 EXN -- Enclosure 17M 7400CT1901 Cat. No. DOE 2016 Efficiency Winding Material Temp. Rise 220°C Insulation Core Loss Coil Loss %IZ %IX X/R Weight (lbs.) 15 kVA, 480 Delta 6-2.5%2+4- Pri Taps, 208Y/120, Sound Level 39 dB EXN15T3H 97.96% Al 150°C 50 592 4.03 1.79 0.53 188 EXN15T3HCU 98.05% Cu 150°C 48 562 4.06 1.72 0.47 222 EXN15T3HF 98.00% Al 115°C 50 538 3.98 1.79 0.53 184 EXN15T3HFCU 98.03% Cu 115°C 48 534 3.90 1.68 0.43 219 EXN15T3HB 98.09% Al 80°C 52 442 4.01 2.79 1.00 195 EXN15T3HBCU 98.10% Cu 80°C 51 438 4.53 3.51 1.23 235 15 kVA, 600 Delta 6-2.5% 2+4- Pri Taps, 208Y/120, Sound Level 39 dB EXN15T65H 97.96% Al 150°C 50 595 4.32 1.78 0.53 188 EXN15T65HCU 98.16% Cu 150°C 46 501 3.78 1.85 0.56 234 15 kVA, 480 Delta 6-2.5% 2+4- Pri Taps, 480Y/277, Sound Level 39 dB EXN15T1814H 98.00% Al 150°C 51 561 4.62 2.77 0.89 195 15 kVA, 480 Delta 6-2.5% 2+4- Pri Taps, 240 Delta, [CT 120CT 7.5% capacity], Sound Level 39 dB EXN15T6H 98.02% Al 150°C 51 555 4.70 2.97 0.98 193 EXN15T6HCT 98.02% Al 150°C 15 kVA, 480 Delta 6-2.5% 2+4- Pri Taps, 380Y/220, Sound Level 39 dB 51 555 4.70 2.97 0.98 193 EXN15T1755H 98.03% Al 150°C 52 535 4.21 2.31 0.76 192 15 kVA, 480 Delta 6-2.5% 4+2- Pri Taps, 400Y/231, Sound Level 39 dB EXN15T3184H 97.98% Al 150°C 59 495 3.86 2.08 0.76 192 15 kVA, 480 Delta 6-2.5% 2+4- Pri Taps, 415Y/240, Sound Level 39 dB EXN15T1769H 98.01% Al 150°C 51 557 4.72 2.97 0.76 193 Cat. No. Primary Voltage (used) DOE 2016 Efficiency Winding Material Core Loss Coil Loss %IZ %IX X/R Weight (lbs.) 15 kVA, 240 Delta to 480Y/277 OR 208 Delta to 480Y/277 (shipped as 240 Delta) Pri Taps: 192/200/208/216/232/240/248, 150°C Rise 220°C Insulation, Sound Level 39 dB EXN15T3155H 240 98.02% Al 208 97.94% Al 55 519 4.01 2.12 0.72 191 55 562 4.24 2.12 0.66 191 15 kVA, 240 Delta to 208Y/120 OR 208 Delta to 208Y/120 (shipped as 240 Delta) Pri Taps: 192/200/208/216/232/240/248, 150°C Rise, 220°C Insulation, Sound Level 39 dB EXN15T3156H 240 98.04% Al 208 97.96% Al 54 509 4.04 2.28 0.80 192 54 553 4.29 2.30 0.73 192 15 kVA, 480 Delta to 220Y/127 OR 440 Delta to 220Y/127 (shipped as 480 Delta) Pri Taps: 400/420/440/460/480/500, 150°C Rise, 220°C Insulation, Sound Level 39 dB EXN15T3166H 440 97.97% Al 480 98.02% Al 59 503 3.91 2.12 0.76 193 58 477 3.78 2.13 0.81 193 7400CT1901 5 7400CT1901 Cat. No. DOE 2016 Efficiency Winding Material K-Rating Core Loss Coil Loss %IZ %IX X/R Weight (lbs.) 15 kVA, 480 Delta 6-2.5% 2+4- Pri Taps, 208Y/120, 150°C Rise, 220°C Insulation, Sound Level 39 dB EXN15T3HNL 97.97% Al K4 50 592 4.30 1.79 0.53 184 EXN15T3HCUNL 98.00% Cu K4 48 589 4.22 1.67 0.43 219 EXN15T3HNLP 98.03% Al K13 52 540 4.51 2.79 1.00 195 EXN15T3HCUNLP 98.05% Cu K13 51 533 4.96 3.51 1.23 235 All units above ship in Type 2 enclosure 17M, minimum rear and side clearance 1/2inch Front Clearance for ventilated opening is six inches (must meet minimum code access requirements). To be compliant with the seismic requirements of ASCE/SEI 7. This unit is self-certified to ICS ES AC156 by shake table qualifications testing. EXN15T3H 6 7400CT1901 17M Dimensions 23.99 (609) 21.50 (546) Entering side access point Approximate center of gravity 5.36 (136) 10.57 (268) 3.50 (89) 11.93 (303) 0.75 (19) 2.68 (68) 4.50 (114) 3.07 (78) 21.18 (538) Approximate center of gravity 11.93 (303) 8.07 (205) 17.00 (432) 1.20 (30) 7400CT1901 21.14 (537) 1.07 (27) 15.00 (381) 0.75 (19) 2.70 (69) 19.00 (483) 0.50 (13) (4 Places) Entering bottom access point Dimensions: in. (mm) 17M Accessories Weathershield -- Convert from Type 2 to Type 3R: 7400WS17M 21.50 (546) Approximate center of gravity 21.18 (538) Approximate center of gravity 23.99 (609) 11.93 (303) 10.57 (268) 8.07 (205) Wall Mounting Bracket: 7400WMB17M 8.00 (203) 0.50 (13) (4 Places) 19.00 (483) 7400CT1901 22.24 (565) 11.30 (287) 11.93 (303) 1.00 (25) 1.33 (34) Ceiling Mounting Bracket: 7400CMB17M 17.00 (432) 25.00 (635) 23.00 (584) 0.75 (19) Dimensions: in. (mm) 7 7400CT1901 EXN -- Enclosure 18M Cat. No. DOE 2016 Efficiency Winding Material Temp. Rise 220°C Insulation Core Loss Coil Loss %IZ %IX X/R 30 kVA, 480 Delta 6-2.5% 2+4- Pri Taps, 208Y/120, Sound Level 39 dB EXN30T3H 98.28% Al 150°C 80 1044 3.80 1.58 0.49 EXN30T3HCU 98.38% Cu 150°C 68 1049 4.08 2.24 0.65 EXN30T3HF 98.31% Al 115°C 97 778 2.92 1.41 0.57 EXN30T3HFCU 98.39% Cu 115°C 68 974 3.98 2.42 0.69 EXN30T3HB 98.30% Al 80°C 86 835 4.37 3.44 1.31 EXN30T3HBCU 98.52% Cu 80°C 90 589 2.76 1.99 1.04 30 kVA, 600 Delta 6-2.5% 2+4- Pri Taps, 208Y/120, Sound Level 39 dB EXN30T65H 98.28% Al 150°C 83 1013 3.70 1.61 0.53 EXN30T65HCU 98.45% Cu 150°C 68 973 3.88 2.24 0.71 30 kVA, 480 Delta 6-2.5% 2+4- Pri Taps, 480Y/277, Sound Level 39 dB EXN30T1814H 98.30% Al 150°C 94 884 3.50 1.96 0.78 30 kVA, 480 Delta 6-2.5% 2+4- Pri Taps, 240 Delta, [CT 120CT 7.5% capacity], Sound Level 39 dB EXN30T6H 98.31% Al 150°C 110 703 2.99 1.90 1.00 EXN30T6HCT 98.31% Al 150°C 110 703 2.99 1.90 1.00 30 kVA, 480 Delta 6-2.5% 2+4- Pri Taps, 380Y/220, Sound Level 39 dB EXN30T1755H 98.34% Al 150°C 86 919 3.78 2.26 0.85 30 kVA, 480 Delta 6-2.5% 4+2- Pri Taps, 400Y/231, Sound Level 39 dB EXN30T3184H 98.30% Al 150°C 96 850 3.47 2.04 0.84 30 kVA, 480 Delta 6-2.5% 2+4- Pri Taps, 415Y/240, Sound Level 39 dB EXN30T1769H 98.31% Al 150°C 110 705 3.00 1.90 1.00 Cat. No. Primary Voltage (used) DOE 2016 Efficiency Winding Material Core Loss Coil Loss %IZ %IX X/R 30 kVA, 240 Delta to 480Y/277 OR 208 Delta to 480Y/277 (shipped as 240 Delta), Pri Taps: 192/200/208/216/232/240/248, 150°C Rise, 220°C Insulation, Sound Level 39 dB EXN30T3155H 240 98.33% Al 208 98.27% Al 95 836 3.43 2.07 0.88 95 905 3.63 2.09 0.81 30 kVA, 240 Delta to 208Y/120 OR 208 Delta to 208Y/120 (shipped as 240 Delta), Pri Taps: 192/200/208/216/232/240/248, 150°C Rise, 220°C Insulation, Sound Level 39 dB EXN30T3156H 240 98.38% Al 208 98.23% Al 99 747 3.22 2.08 1.02 99 808 3.37 2.09 0.94 30 kVA, 480 Delta to 220Y/127 OR 440 Delta to 220Y/127 (shipped as 480 Delta), Pri Taps: 400/420/440/460/480/500, 150°C Rise, 220°C Insulation, Sound Level 39 dB EXN30T3166H 440 98.30% Al 480 98.34% Al 98 839 3.40 1.99 0.84 98 799 3.30 1.99 0.89 Cat. No. DOE 2016 Efficiency Winding Material K-Rating Core Loss Coil Loss %IZ %IX X/R 30 kVA, 480 Delta 6-2.5% 2+4- Pri Taps, 208Y/120, 150°C Rise, 220°C Insulation, Sound Level 39 dB EXN30T3HNL 98.29% Al K4 97 855 3.15 1.41 0.57 EXN30T3HCUNL 98.29% Cu K4 68 1069 4.23 2.42 0.69 Weight (lbs.) 303 356 324 358 345 407 324 361 333 365 365 335 335 361 Weight (lbs.) 335 335 363 363 337 337 Weight (lbs.) 324 358 8 7400CT1901 7400CT1901 Cat. No. DOE 2016 Efficiency Winding Material K-Rating Core Loss Coil Loss %IZ %IX X/R Weight (lbs.) 30 kVA, 480 Delta 6-2.5% 2+4- Pri Taps, 208Y/120, 150°C Rise, 220°C Insulation, Sound Level 39 dB EXN30T3HNLP 98.29% Al K13 83 999 4.18 2.64 1.03 336 EXN30T3HCUNLP 98.48% Cu K13 90 714 3.06 1.99 1.04 407 15 kVA, 600 Delta 6-2.5% 2+4- Pri Taps, 208Y/120, 150°C Rise, 220°C Insulation, Sound Level 39 dB EXN15T65HNLP 97.99% Al K13 83 250 1.83 0.80 0.65 325 Cat. No. DOE 2016 Efficiency Winding Material Temp. Rise 220°C Insulation Core Loss Coil Loss %IZ %IX X/R Weight (lbs.) 15 kVA, 600 Delta 6-2.5% 2+4- Pri Taps, 208Y/120, Sound Level 39 dB EXN15T65HB 97.89% Al 80°C Contact factory 365 EXN15T65HBCU 97.89% Cu 80°C Contact factory 365 15 kVA, 480 Delta 6-2.5% 2+4- Pri Taps, 480Y/277, Sound Level 39 dB EXN15T1814HB 97.89% Al 80°C Contact factory 365 15 kVA, 480 Delta 6-2.5% 2+4- Pri Taps, 240 Delta, Sound Level 39 dB, [CT 120CT 7.5% capacity] EXN15T6HB 97.89% Al 80°C Contact factory 365 EXN15T6HBCT 97.89% Al 80°C Contact factory 365 15 kVA, 480 Delta 6-2.5% 2+4- Pri Taps, 380Y/220, Sound Level 39 dB EXN15T1755HB 97.89% Al 80°C Contact factory 365 15 kVA, 480 Delta 6-2.5% 4+2- Pri Taps, 400Y/231, Sound Level 39 dB EXN15T3184HB 97.89% Al 80°C Contact factory 365 15 kVA, 480 Delta 6-2.5% 2+4- Pri Taps, 415Y/240, Sound Level 39 dB EXN15T1769HB 97.89% Al 80°C Contact factory 365 Cat. No. Primary Voltage (used) DOE 2016 Efficiency Winding Material Core Loss Coil Loss %IZ %IX X/R Weight (lbs.) 15 kVA, 240 Delta to 480Y/277 OR 208 Delta to 480Y/277, (shipped as 240 Delta), Pri Taps: 192/200/208/216/232/240/248, 80°C Rise, 220°C Insulation, Sound Level 39 dB 240 97.89% Al 365 EXN15T3155HB Contact factory 208 97.89% Al 365 15 kVA, 240 Delta to 208Y/120 OR 208 Delta to 208Y/120 (shipped as 240 Delta) Pri Taps: 192/200/208/216/232/240/248, 80°C Rise, 220°C Insulation, Sound Level 39 dB 240 97.89% Al 365 EXN15T3156HB Contact factory 208 97.89% Al 365 All units above ship in Type 2 enclosure 18M, minimum rear and side clearance 1/2inch Front Clearance for ventilated opening is six inches (must meet minimum code access requirements). To be compliant with the seismic requirements of ASCE/SEI 7. This unit is self-certified to ICS ES AC156 by shake table qualifications testing. 7400CT1901 9 7400CT1901 18M Dimensions 28.32 (719) 13.18 (335) 25.50 (648) Entering side access point Approximate center of gravity 5.80 (147) 13.18 (335) 3.50 12.57 (89) (319) 4.50 (114) 0.75 (19) 3.80 (97) 3.82 (97) 17.50 (445) 24.68 (627) Approximate center of gravity 8.82 (224) 20.50 (521) 1.35 (34) 1.25 (32) 23.00 (584) 25.14 (639) Dimensions: in. (mm) 1.00 (25) 4.00 (102) 0.50 (13) (4 Places) Entering bottom access point 18M Accessories Weathershield -- Convert from Type 2 to Type 3R: 7400WS18M19M 25.50 (648) 24.68 (627) 28.32 (719) Approximate center of gravity 13.18 (335) Approximate center of gravity 13.18 (335) 12.57 (319) 8.82 (224) Wall Mounting Bracket: 7400WMB18M19M20M Ceiling Mounting Bracket: 7400CMB18M19M20M (25) 1.00 1.31 (33) 34.00 (864) 27.75 (705) 1.50 (38) 10.50 (267) 0.50 (13) (4 Places) 23.00 (584) 10 28.75 (730) 18.29 (465) 20.50 (521) 3.31 (84) 31.75 (806) Dimensions: in. (mm) 7400CT1901 EXN -- Enclosure 19M 7400CT1901 Cat. No. DOE 2016 Efficiency Winding Material Temp. Rise 220°C Insulation Core Loss Coil Loss %IZ %IX X/R 45 kVA, 480 Delta 6-2.5% 2+4- Pri Taps, 208Y/120, Sound Level 39 dB EXN45T3H 98.45% Al 150°C 104 1446 4.10 2.60 0.88 EXN45T3HCU 98.51% Cu 150°C 99 1384 3.44 1.68 0.59 EXN45T3HF 98.47% Al 115°C 132 1065 4.36 2.58 1.21 EXN45T3HFCU 98.48% Cu 115°C 99 1354 3.72 2.29 0.71 EXN45T3HB 98.44% Al 80°C 130 1041 4.10 3.43 1.58 EXN45T3HBCU 98.59% Cu 80°C 108 1032 4.12 3.48 1.58 45 kVA, 600 Delta 6-2.5% 2+4- Pri Taps, 208Y/120, Sound Level 39 dB EXN45T65H 98.44% Al 150°C 104 1458 4.10 2.62 0.83 EXN45T65HCU 98.55% Cu 150°C 99 1326 3.37 1.76 0.61 45 kVA, 480 Delta 6-2.5% 2+4- Pri Taps, 480Y/277, Sound Level 39 dB EXN45T1814H 98.44% Al 150°C 112 1380 3.95 2.62 0.93 45 kVA, 480 Delta 6-2.5% 2+4- Pri Taps, 240 Delta, [CT 120CT 7.5% capacity], Sound Level 39 dB EXN45T6H 98.44% Al 150°C 104 1449 4.06 2.60 0.87 EXN45T6HCT 98.44% Al 150°C 104 1449 4.06 2.60 0.87 45 kVA, 480 Delta 6-2.5% 2+4- Pri Taps, 380Y/219, Sound Level 39 dB EXN45T1755H 98.49% Al 150°C 107 1346 3.95 2.67 0.97 45 kVA, 480 Delta 6-2.5% 4+2- Pri Taps, 400Y/231, Sound Level 39 dB EXN45T3184H 98.45% Al 150°C 123 1249 3.62 2.41 0.97 45 kVA, 480 Delta 6-2.5% 2+4- Pri Taps, 415Y/240, Sound Level 39 dB EXN45T1769H 98.40% Al 150°C 104 1453 4.07 2.61 0.87 Cat. No. Primary Voltage (used) DOE 2016 Efficiency Winding Material Core Loss Coil Loss %IZ %IX X/R 45 kVA, 240 Delta to 480Y/277 OR 208 Delta to 480Y/277 (shipped as 240 Delta), Pri Taps: 192/200/208/216/232/240/248, 150°C Rise, 220°C Insulation, Sound Level 39 dB EXN45T3155H 240 98.55% Al 208 98.48% Al 105 1279 3.86 2.69 1.07 105 1394 4.05 2.71 0.96 45 kVA, 240 Delta to 208Y/120 OR 208 Delta to 208Y/120 (shipped as 240 Delta), Pri Taps: 192/200/208/216/232/240/248, 150°C Rise, 220°C Insulation, Sound Level 39 dB EXN45T3156H 240 98.53% Al 208 98.45% Al 99 1360 4.04 2.75 1.03 99 1491 4.25 2.77 0.92 45 kVA, 480 Delta to 220Y/127 or 440 Delta to 220Y/127 (shipped as 480 Delta) Pri Taps: 400/420/440/460/480/500, 150°C Rise, 220°C Insulation, Sound Level 39 dB EXN45T3166H 440 98.45% Al 480 98.49% Al 115 1334 3.79 2.45 0.93 98 799 3.30 1.99 0.89 Cat. No. DOE 2016 Efficiency Winding Material K-Rating Core Loss Coil Loss %IZ %IX X/R 45 kVA, 480 Delta 6-2.5% 2+4- Pri Taps, 208Y/120, 150°C Rise, 220°C Insulation, Sound Level 39 dB EXN45T3HNL 98.47% Al K4 108 1373 4.13 2.87 1.12 EXN45T3HCUNL 98.50% Cu K4 99 1410 4.02 2.62 0.86 Weight (lbs.) 369 399 400 428 416 509 368 405 373 369 369 374 374 369 Weight (lbs.) 395 395 396 396 392 392 Weight (lbs.) 392 428 7400CT1901 11 7400CT1901 Cat. No. DOE 2016 Efficiency Winding Material K-Rating Core Loss Coil Loss %IZ %IX X/R Weight (lbs.) 45 kVA, 480 Delta 6-2.5% 2+4- Pri Taps, 208Y/120, 150°C Rise, 220°C Insulation, Sound Level 42 dB EXN45T3HNLP 98.44% Al K13 108 1428 4.71 3.55 1.43 400 EXN45T3HCUNLP 98.54% Cu K13 108 1252 4.41 3.50 1.31 509 30 kVA, 600 Delta 6-2.5% 2+4- Pri Taps, 208Y/120, 150°C Rise, 220°C Insulation, Sound Level 39 dB EXN30T65HNLP 98.42% Al K13 104 640 2.70 1.72 1.05 370 Cat. No. DOE 2016 Efficiency Winding Material Temp. Rise 220°C Insulation Core Loss Coil Loss %IZ %IX X/R Weight (lbs.) 30 kVA, 600 Delta 6-2.5% 2+4- Pri Taps, 208Y/120, Sound Level 39 dB EXN30T65HB 98.23% Al 80°C 375 Contact factory EXN30T65HBCU 98.23% Cu 80°C 375 30 kVA, 480 Delta 6-2.5% 2+4- Pri Taps, 480Y/277, Sound Level 39 dB EXN30T1814HB 98.23% Al 80°C Contact factory 375 30 kVA, 480 Delta 6-2.5% 2+4- Pri Taps, 240 Delta, [CT 120CT 7.5% capacity], Sound Level 39 dB EXN30T6HB 98.23% Al 80°C Contact factory 375 EXN30T6HBCT 98.23% Al 80°C Contact factory 375 30 kVA, 480 Delta 6-2.5% 2+4- Pri Taps, 380Y/220, Sound Level 39 dB EXN30T1755HB 98.23% Al 80°C Contact factory 375 30 kVA, 480 Delta 6-2.5% 4+2- Pri Taps, 400Y/231, Sound Level 39 dB EXN30T3184HB 98.23% Al 80°C Contact factory 375 30 kVA, 480 Delta 6-2.5% 2+4- Pri Taps, 415Y/240, Sound Level 39 dB EXN30T1769HB 98.23% Al 80°C Contact factory 375 Cat. No. Primary Voltage (used) DOE 2016 Efficiency Winding Material Core Loss Coil Loss %IZ %IX X/R Weight (lbs.) 30 kVA, 240 Delta to 480Y/277, OR 208 Delta to 480Y/277 (shipped as 240 Delta), Pri Taps: 192/200/208/216/232/240/248, 80°C Rise, 220°C Insulation, Sound Level 39 dB EXN30T3155HB 240 98.23% Al 208 98.23% Al 375 Contact factory 375 30 kVA, 240 Delta to 208Y/120, OR 208 Delta to 208Y/120 (shipped as 240 Delta), Pri Taps: 192/200/208/216/232/240/248, 80°C Rise, 220°C Insulation, Sound Level 39 dB EXN30T3156HB 240 98.23% Al 208 98.23% Al 375 Contact factory 375 All units above ship in Type 2 enclosure 19M, minimum rear and side clearance 1/2inch Front Clearance for ventilated opening is six inches (must meet minimum code access requirements). To be compliant with the seismic requirements of ASCE/SEI 7. This unit is self-certified to ICS ES AC156 by shake table qualifications testing. 12 7400CT1901 19M Dimensions 7400CT1901 29.32 (745) 25.50 (648) 12.57 (319) Entering side access point Approximate center of gravity 6.96 (177) 12.93 (328) 3.50 4.50 0.75 (89) (114) (19) 4.28 (109) 3.82 (97) 25.93 (659) 21.50 (546) Approximate center of gravity 12.93 (328) 9.48 (241) 1.42 1.25 (36) (32) 25.14 (639) 17.50 (445) 1.00 (25) 4.00 (102) 23.00 (584) 0.50 (13) (4 Places) Entering bottom access point Dimensions: in. (mm) 19M Accessories Weathershield -- Convert from Type 2 to Type 3R: 7400WS18M19M 25.50 (648) 25.93 (659) 29.32 (745) Approximate center of gravity 12.57 (319) 12.93 (328) Wall Mounting Bracket: 7400WMB18M19M20M Approximate center of gravity 12.93 (328) 9.48 (241) 1.00 (25) Ceiling Mounting Bracket: 7400CMB18M19M20M 34.00 (864) 27.75 1.13 (705) (29) (38) 1.50 10.50 (267) 0.50 (13) (4 Places) 23.00 (584) 28.75 (730) 18.29 (465) 21.50 (546) 3.13 (79) 31.75 (806) Dimensions: in. (mm) 7400CT1901 13 7400CT1901 EXN -- Enclosure 20M Cat. No. DOE 2016 Efficiency Winding Material Temp. Rise 220°C Insulation Core Loss Coil Loss %IZ %IX X/R Weight (lbs.) 75 kVA, 480 Delta 6-2.5% 2+4- Pri Taps, 208Y/120, Sound Level 44 dB EXN75T3H 98.63% Al 150°C 142 2226 4.90 3.97 1.54 515 EXN75T3HCU 98.65% Cu 150°C 142 2169 5.56 4.84 1.76 695 EXN75T3HF 98.67% Al 115°C 144 1979 5.07 4.41 1.83 527 EXN75T3HFCU 98.74% Cu 115°C 142 1813 4.01 3.28 1.29 676 EXN75T3HB 98.74% Al 80°C 153 1590 5.05 4.63 2.36 580 EXN75T3HBCU 98.74% Cu 80°C 142 1687 5.61 5.22 2.03 733 75 kVA, 600 Delta 6-2.5% 2+4- Pri Taps, 208Y/120, Sound Level 44 dB EXN75T65H 98.64% Al 150°C 142 2209 4.67 3.74 1.39 513 EXN75T65HCU 98.80% Cu 150°C 127 1887 4.13 3.32 1.36 656 75 kVA, 480 Delta 6-2.5% 2+4- Pri Taps, 480Y/277, Sound Level 44 dB EXN75T1814 98.67% Al 150°C 144 2110 5.03 4.25 1.83 531 75 kVA, 480 Delta 6-2.5% 2+4- Pri Taps, 240 Delta, [CT 120CT 7.5% capacity], Sound Level 44 dB EXN75T6H 98.66% Al 150°C 144 2126 5.08 4.30 1.83 529 EXN75T6HCT 98.66% Al 150°C 144 2126 5.08 4.30 1.83 529 75 kVA, 480 Delta 6-2.5% 2+4- Pri Taps, 380Y/220, Sound Level 44 dB EXN75T1755H 98.64% Al 150°C 118 2434 7.00 6.26 2.42 556 75 kVA, 480 Delta 6-2.5% 4+2- Pri Taps, 400Y/231, Sound Level 44 dB EXN75T3184H 98.66% Al 150°C 132 2255 6.34 5.64 2.40 556 75 kVA, 480 Delta 6-2.5% 2+4- Pri Taps, 415Y/240, Sound Level 44 dB EXN75T1769H 98.66% Al 150°C 144 2134 5.10 4.31 1.84 529 Cat. No. Primary Voltage (used) DOE 2016 Efficiency Winding Material Core Loss Coil Loss %IZ %IX X/R Weight (lbs.) 75 kVA, 240 Delta to 480Y/277 OR 208 Delta to 480Y/277 (shipped as 240 Delta), Pri Taps: 192/200/208/216/232/240/248, 150°C Rise, 220°C Insulation, Sound Level 44 dB EXN75T3155H 240 98.71% Al 208 98.64% Al 160 1841 3.94 3.16 1.50 544 160 2018 4.05 3.14 1.33 544 75 kVA, 240 Delta to 208Y/120 OR 208 Delta to 208Y/120 (shipped as 240 Delta) Pri Taps: 192/200/208/216/232/240/248, 150°C Rise, 220°C Insulation, Sound Level 44 dB EXN75T3156H 240 98.71% Al 208 98.64% Al 144 1998 4.88 4.15 1.86 526 144 2190 5.03 4.18 1.67 526 75 kVA, 480 Delta to 220Y/127 OR 440 Delta to 220Y/127 (shipped as 480 Delta), Pri Taps: 400/420/440/460/480/500, 150°C Rise, 220°C Insulation, Sound Level 44 dB EXN75T3166H 440 98.65% Al 480 98.68% Al 143 2181 5.32 4.52 1.88 534 142 2079 5.25 4.52 1.98 534 Cat. No. DOE 2016 Efficiency Winding Material K-Rating Core Loss Coil Loss %IZ %IX X/R Weight (lbs.) 75 kVA, 480 Delta 6-2.5% 2+4- Pri Taps, 208Y/120, 150°C Rise, 220°C Insulation, Sound Level 44 dB EXN75T3HNL 98.64% Al K4 144 2173 5.21 4.41 1.82 527 EXN75T3HCUNL 98.72% Cu K4 142 1988 4.15 3.28 1.29 584 14 7400CT1901 7400CT1901 Cat. No. DOE 2016 Efficiency Winding Material K-Rating Core Loss Coil Loss %IZ %IX X/R Weight (lbs.) 75 kVA, 480 Delta 6-2.5% 2+4- Pri Taps, 208Y/120, 150°C Rise, 220°C Insulation, Sound Level 47 dB EXN75T3HNLP 98.70% Al K13 153 1933 5.26 4.63 2.36 580 EXN75T3HCUNLP 98.65% Cu K13 142 2169 5.56 4.82 2.13 700 45 kVA, 600 Delta 6-2.5% 2+4- Pri Taps, 208Y/120, 150°C Rise, 220°C Insulation, Sound Level 42 dB EXN45T65HNLP 98.62% Al K13 142 786 2.78 2.22 1.72 513 Cat. No. DOE 2016 Efficiency Winding Material Temp. Rise 220°C Insulation Core Loss Coil Loss %IZ %IX X/R Weight (lbs.) 45 kVA, 600 Delta 6-2.5% 2+4- Pri Taps, 208Y/120, Sound Level 44 dB EXN45T65HB 98.40% Al 80°C Contact factory 535 EXN45T65HBCU 98.40% Cu 80°C Contact factory 535 45 kVA, 480 Delta 6-2.5% 2+4- Pri Taps, 480Y/277, Sound Level 44 dB EXN45T1814HB 98.40% Al 80°C 142 786 2.78 2.22 1.72 513 Cat. No. Primary Voltage (used) DOE 2016 Efficiency Winding Material Core Loss Coil Loss %IZ %IX X/R Weight (lbs.) 45 kVA, 240 Delta to 480Y/277 OR 208 Delta to 480Y/277 (shipped as 240 Delta), Pri Taps: 192/200/208/216/232/240/248, 80°C Rise, 220°C Insulation, Sound Level 44 dB EXN45T3155HB 240 98.40% Al 208 98.40% Al 535 Contact factory 535 45 kVA, 240 Delta to 208Y/120 OR 208 Delta to 208Y/120 (shipped as 240 Delta), Pri Taps: 192/200/208/216/232/240/248, 80°C Rise, 220°C Insulation, Sound Level 44 dB EXN45T3156HB 240 98.40% Al 208 98.40% Al 535 Contact factory 535 Cat. No. DOE 2016 Efficiency Winding Material K-Rating Core Loss Coil Loss %IZ %IX X/R Weight (lbs.) 45 kVA, 480 Delta 6-2.5% 2+4- Pri Taps, 240 Delta, [CT 120CT 7.5% capacity], Sound Level 44 dB EXN45T6HB EXN45T6HBCT 98.40% Al 98.40% Al 80°C 80°C 535 Contact factory 535 45 kVA, 480 Delta 6-2.5% 2+4- Pri Taps, 380Y/220, Sound Level 44 dB EXN45T1755HB 98.40% Al 80°C Contact factory 535 45 kVA, 480 Delta 6-2.5% 4+2- Pri Taps, 400Y/231, Sound Level 44 dB EXN45T3184HB 98.40% Al 80°C Contact factory 535 45 kVA, 480 Delta 6-2.5% 2+4- Pri Taps, 415Y/240, Sound Level 44 dB EXN45T1769HB 98.40% Al 80°C Contact factory 535 All units above ship in Type 2 enclosure 20M, minimum rear and side clearance 1/2inch Front Clearance for ventilated opening is six inches (must meet minimum code access requirements). To be compliant with the seismic requirements of ASCE/SEI 7. This unit is self-certified to ICS ES AC156 by shake table qualifications testing. 7400CT1901 15 7400CT1901 20M Dimensions 33.50 (851) 30.06 (764) 14.95 (380) Entering side access point Approximate center of gravity 7.43 (189) 14.06 (357) 3.50 (89) 4.38 0.75 (111) (19) 4.28 (109) 27.43 (697) Approximate center of gravity 14.06 (357) 10.54 (268) 23.25 1.19 (591) (30) 29.89 (759) 3.70 (94) 1.16 (29) 21.00 (533) 27.75 (705) Dimensions: in. (mm) 1.00 (25) 4.50 (114) 0.50 (13) (4 Places) Entering bottom access point 20M Accessories Weathershield -- Convert from Type 2 to Type 3R: 7400WS20M 30.06 (764) 27.50 (699) 33.50 (851) Approximate center of gravity 27.43 (697) 27.11 (689) Approximate center of gravity 13.68 (347) 14.95 (380) Wall Mounting Bracket: 7400WMB18M19M20M 13.68 (347) 10.56 (268) Ceiling Mounting Bracket: 7400CMB18M19M20M (25) 1.00 23.25 (591) 1.50 (38) 34.00 (864) 10.50 (267) 0.50 (13) (4 Places) 16 27.75 (705) 28.75 (730) 18.29 (465) 0.84 (21) 31.75 (806) Dimensions: in. (mm) 7400CT1901 EXN -- Enclosure 21M 7400CT1901 Cat. No. DOE 2016 Efficiency Winding Material Temp. Rise 220°C Insulation Core Loss Coil Loss %IZ %IX X/R Weight (lbs.) 112.5 kVA, 480 Delta 6-2.5% 2+4- Pri Taps, 208Y/120, Sound Level 44 dB EXN112T3H 98.80% Al 150°C 222 2586 3.70 2.94 1.42 724 EXN112T3HCU 98.80% Cu 150°C 238 2389 3.27 2.67 1.39 975 EXN112T3HF 98.84% Al 115°C 237 2124 3.30 2.76 1.58 806 EXN112T3HFCU 98.87% Cu 115°C 213 2043 3.79 3.38 1.80 963 EXN112T3HB 98.79% Al 80°C 309 1507 2.54 2.19 1.75 949 EXN112T3HBCU 99.00% Cu 80°C 227 1466 3.76 3.55 2.90 1146 112.5 kVA, 600 Delta 6-2.5% 2+4- Pri Taps, 208Y/120, Sound Level 44 dB EXN112T65H 98.78% Al 150°C 235 2526 3.62 2.91 1.44 727 EXN112T65HCU 98.81% Cu 150°C 213 2611 3.27 2.40 1.08 844 112.5 kVA, 480 Delta 6-2.5% 2+4- Pri Taps, 480Y/277, Sound Level 44 dB EXN112T1814H 98.82% Al 150°C 221 2498 3.53 2.82 1.46 730 112.5 kVA, 480 Delta 6-2.5% 2+4- Pri Taps, 240 Delta, [CT 120CT 7.5% capacity], Sound Level 44 dB EXN112T6H 98.81% Al 150°C 227 2463 3.47 2.77 1.46 730 EXN112T6HCT 98.81% Al 150°C 227 2463 3.47 2.77 1.46 730 112.5 kVA, 480 Delta 6-2.5% 2+4- Pri Taps, 380Y/220, Sound Level 44 dB EXN112T1755H 98.80% Al 150°C 199 2797 3.98 3.20 1.44 734 112.5 kVA, 480 Delta 6-2.5% 4+2- Pri Taps, 400Y/231, Sound Level 44 dB EXN112T3184H 98.78% Al 150°C 227 2606 3.64 2.88 1.43 734 112.5 kVA, 480 Delta 6-2.5% 2+4- Pri Taps, 415Y/240, Sound Level 44 dB EXN112T1769H 98.81% Al 150°C 227 2471 3.48 2.77 1.46 730 Cat. No. Primary Voltage (used) DOE 2016 Efficiency Winding Material Core Loss Coil Loss %IZ %IX X/R Weight (lbs.) 112.5 kVA, 240 Delta to 480Y/277 OR 208 Delta to 480Y/277 (shipped as 240 Delta), Pri Taps: 192/200/208/216/232/240/248, 150°C Rise, 220°C Insulation, Sound Level 44 dB EXN112T3155H 240 98.83% Al 208 98.77% Al 221 2465 3.67 3.00 1.59 735 221 2683 3.78 3.02 1.43 735 112.5 kVA, 240 Delta to 208Y/277 OR 208 Delta to 208Y/120 (shipped as 240 Delta) Pri Taps: 192/200/208/216/232/240/248, 150°C Rise, 220°C Insulation, Sound Level 44 dB EXN112T3156H 240 98.83% Al 208 98.77% Al 237 2316 3.48 2.87 1.61 811 237 2556 3.62 2.89 1.43 811 112.5 kVA, 480 Delta to 220Y/127 OR 440 Delta to 220Y/127 (shipped as 480 Delta) Pri Taps: 400/420/440/460/480/500, 150°C Rise, 220°C Insulation, Sound Level 44 dB EXN112T3166H 480 98.82% Al 440 98.79% Al 274 1976 2.78 2.21 1.43 806 274 2094 2.84 2.21 1.33 806 Cat. No. DOE 2016 Efficiency Winding Material K-Rating Core Loss Coil Loss %IZ %IX X/R Weight (lbs.) 112.5 kVA, 480 Delta 6-2.5% 2+4- Pri Taps, 208Y/120, 150°C Rise, 220°C Insulation, Sound Level 44 dB EXN112T3HNL 98.78% Al K4 213 2731 3.80 3.01 1.49 713 EXN112T3HCUNL 98.90% Cu K4 213 2236 3.88 3.38 1.79 963 7400CT1901 17 7400CT1901 Cat. No. DOE 2016 Efficiency Winding Material K-Rating Core Loss Coil Loss %IZ %IX X/R Weight (lbs.) 112.5 kVA, 480 Delta 6-2.5% 2+4- Pri Taps, 208Y/120, 150°C Rise, 220°C Insulation, Sound Level 47 dB EXN112T3HNLP 98.79% Al K13 227 2541 3.70 3.00 1.72 802 EXN112T3HCUNLP 98.89% Cu K13 227 2124 3.33 2.79 1.55 1000 75 kVA, 600 Delta 6-2.5% 2+4- Pri Taps, 208Y/120, 150°C Rise, 220°C Insulation, Sound Level 47 dB EXN75T65HNLP 98.75% Al K13 216 1179 2.21 1.60 1.34 702 Cat. No. DOE 2016 Efficiency Winding Material Temp. Rise 220°C Insulation Core Loss Coil Loss %IZ %IX X/R Weight (lbs.) 75 kVA, 600 Delta 6-2.5% 2+4- Pri Taps, 208Y/120, Sound Level 44 dB EXN75T65HB 98.60% Al 80°C Contact factory 750 EXN75T65HBCU 98.60% Cu 80°C Contact factory 750 75 kVA, 480 Delta 6-2.5% 2+4- Pri Taps, 480Y/277, Sound Level 44 dB EXN75T1814HB 98.60% Al 80°C Contact factory 750 75 kVA, 480 Delta 6-2.5% 2+4- Pri Taps, 240 Delta, [CT 120CT 7.5% capacity], Sound Level 44 dB EXN75T6HB 98.60% Al 80°C Contact factory 750 EXN75T6HBCT 98.60% Al 80°C Contact factory 750 75 kVA, 480 Delta 6-2.5% 2+4- Pri Taps, 380Y/220, Sound Level 44 dB EXN75T1755HB 98.60% Al 80°C Contact factory 750 75 kVA, 480 Delta 6-2.5% 4+2- Pri Taps, 400Y/231, Sound Level 44 dB EXN75T3184HB 98.60% Al 80°C Contact factory 750 75 kVA, 480 Delta 6-2.5% 2+4- Pri Taps, 415Y/240, Sound Level 44 dB EXN75T1769HB 98.60% Al 80°C Contact factory 750 Cat. No. Primary Voltage (used) DOE 2016 Efficiency Winding Material Core Loss Coil Loss %IZ %IX X/R Weight (lbs.) 75 kVA, 240 Delta to 480Y/277 OR 208 Delta to 480Y/277 (shipped as 240 Delta), Pri Taps: 192/200/208/216/232/240/248, 80°C Rise, 220°C Insulation, Sound Level 44 dB EXN75T3155HB 240 98.60% Al 208 98.60% Al 750 Contact factory 750 75 kVA, 240 Delta to 208Y/120 OR 208 Delta to 208Y/120 (shipped as 240 Delta), Pri Taps: 192/200/208/216/232/240/248, 80°C Rise, 220°C Insulation, Sound Level 44 dB EXN75T3156HB 240 98.60% Al 208 98.60% Al 750 Contact factory 750 All units above ship in Type 2 enclosure 21M, minimum rear and side clearance 1/2inch Front Clearance for ventilated opening is six inches (must meet minimum code access requirements). To be compliant with the seismic requirements of ASCE/SEI 7. This unit is self-certified to ICS ES AC156 by shake table qualifications testing. 18 7400CT1901 21M Dimensions 7400CT1901 31.31 (795) 37.50 (953) 3.50 (89) 15.57 (396) Entering side access point Approximate center of gravity 28.43 (722) Approximate center of gravity 15.72 (399) 13.35 (339) 15.72 (399) 4.50 0.75 (114) (19) 10.59 4.78 (269) (121) 2.07 23.25 1.84 (53) (591) (47) 1.16 (30) 23.00 (584) 29.00 (737) 31.14 (791) Dimensions: in. (mm) 1.00 (25) 5.00 (127) Entering bottom access point 0.50 (13) (4 Places) EXN112T3H Dimensions 21M Accessories Weathershield -- Convert from Type 2 to Type 3R: 7400WS21M Ceiling Mounting Bracket: 7400CMB21M 37.50 (953) 31.31 (795) 28.75 (730) Approximate center of gravity 28.43 (722) 28.11 (714) Approximate center of gravity 15.57 (395) 15.72 (399) 15.72 (399) 10.59 (269) 1.40 (36) 34.00 (864) 29.00 (737) (38) 1.50 23.25 (591) 1.34 (34) 34.00 (864) Dimensions: in. (mm) 7400CT1901 19 7400CT1901 EXN -- Enclosure 22M Cat. No. DOE 2016 Efficiency Winding Material Temp. Rise 220°C Insulation Core Loss Coil Loss %IZ %IX 150 kVA, 480 Delta 6-2.5% 2+4- Pri Taps, 208Y/120, Sound Level 44 dB EXN150T3H 98.89% Al 150°C 301 2909 3.10 2.48 EXN150T3HCU 98.98% Cu 150°C 235 3045 3.79 3.26 EXN150T3HF 98.87% Al 115°C 318 2649 3.36 2.92 EXN150T3HFCU 98.94% Cu 115°C 263 2805 4.56 4.26 EXN150T3HB 98.92% Al 80°C 348 1971 3.92 3.73 EXN150T3HBCU 99.09% Cu 80°C 228 2221 5.45 5.28 150 kVA, 600 Delta 6-2.5% 2+4- Pri Taps, 208Y/120, Sound Level 44 dB EXN150T65H 98.90% Al 150°C 301 2819 3.14 2.59 EXN150T65HCU 98.97% Cu 150°C 217 3301 5.23 4.80 150 kVA, 480 Delta 6-2.5% 2+4- Pri Taps, 480Y/277, Sound Level 44 dB EXN150T1814 98.93% Al 150°C 297 2719 3.08 2.57 150 kVA, 480 Delta 6-2.5% 2+4- Pri Taps, 240 Delta, [CT 120CT 7.5% capacity], Sound Level 44 dB EXN150T6H 98.91% Al 150°C 306 2721 3.08 2.57 EXN150T6HCT 98.91% Al 150°C 306 150 kVA, 480 Delta 6-2.5% 2+4- Pri Taps, 380Y/220, Sound Level 44 dB 2721 3.08 2.57 EXN150T1755H 98.90% Al 150°C 285 3002 3.20 2.58 150 kVA, 480 Delta 6-2.5% 4+2- Pri Taps, 400Y/231, Sound Level 44 dB EXN150T3184H 98.87% Al 150°C 320 2783 2.92 2.33 150 kVA, 480 Delta 6-2.5% 2+4- Pri Taps, 415Y/240, Sound Level 44 dB EXN150T1769H 98.91% Al 150°C 306 2730 3.09 2.57 Cat. No. Primary Voltage (used) DOE 2016 Efficiency Winding Material Core Loss Coil Loss %IZ %IX 150 kVA, 240 Delta to 480Y/277 OR 208 Delta to 480Y/277 (shipped as 240 Delta), Pri Taps: 192/200/208/216/232/240/248, 150°C Rise, 220°C Insulation, Sound Level 44 dB EXN150T3155H 240 98.93% Al 208 98.89% Al 314 2555 3.12 2.67 314 2768 3.20 2.69 150 kVA, 240 Delta to 208Y/120 OR 208 Delta to 208Y/120 (shipped as 240 Delta) Pri Taps: 192/200/208/216/232/240/248, 150°C Rise, 220°C Insulation, Sound Level 44 dB EXN150T3156H 240 98.92% Al 208 98.88% Al 311 2626 3.22 2.76 311 2841 3.31 2.78 150 kVA, 480 Delta to 220Y/127 OR 440 Delta to 220Y/127 (shipped as 480 Delta) Pri Taps: 400/420/440/460/480/500, 150°C Rise, 220°C Insulation, Sound Level 44 dB EXN150T3166H 480 98.83% Al 440 98.83% Al Contact factory X/R Weight (lbs.) 1.47 933 1.70 1224 1.81 1017 2.39 1303 3.13 1208 3.91 1424 1.61 1002 2.33 1192 1.66 1010 1.66 1010 1.66 1010 1.48 997 1.47 997 1.66 1007 X/R Weight (lbs.) 1.90 1020 1.73 1020 1.90 1015 1.73 1015 -- -- 20 7400CT1901 7400CT1901 Cat. No. DOE 2016 Efficiency Winding Material K-Rating Core Loss Coil Loss %IZ %IX X/R Weight (lbs.) 150 kVA, 480 Delta 6-2.5% 2+4- Pri Taps, 208Y/120, 150°C Rise, 220°C Insulation, Sound Level 44 dB EXN150T3HNL 98.87% Al K4 308 2844 3.37 2.85 1.88 1012 EXN150T3HCUNL 98.93% Cu K4 263 3016 4.35 3.98 2.26 1303 112.5 kVA, 600 Delta 6-2.5% 2+4- Pri Taps, 208Y/120, 150°C Rise, 220°C Insulation, Sound Level 47 dB EXN112T65HNLP 98.89% Al K13 257 1847 2.96 2.52 2.01 913 Cat. No. DOE 2016 Efficiency Winding Material Temp. Rise 220°C Insulation Core Loss Coil Loss %IZ %IX X/R Weight (lbs.) 112.5 kVA, 600 Delta 6-2.5% 2+4- Pri Taps, 208Y/120, Sound Level 44 dB EXN112T65HB 98.74% Al 80°C Contact factory 1020 EXN112T65HBCU 98.74% Cu 80°C Contact factory 1020 112.5 kVA, 480 Delta 6-2.5% 2+4- Pri Taps, 480Y/277, Sound Level 44 dB EXN112T1814HB 98.74% Al 80°C Contact factory 1020 112.5 kVA, 480 Delta 6-2.5% 2+4- Pri Taps, 240 Delta, [CT 120CT 7.5% capacity], Sound Level 44 dB EXN112T6HB 98.40% Al 80°C Contact factory 1020 EXN112T6HBCT 98.74% Al 80°C Contact factory 1020 112.5 kVA, 480 Delta 6-2.5% 2+4- Pri Taps, 380Y/220, Sound Level 44 dB EXN112T1755HB 98.74% Al 80°C Contact factory 1020 112.5 kVA, 480 Delta 6-2.5% 4+2- Pri Taps, 400Y/231, Sound Level 44 dB EXN112T3184HB 98.74% Al 80°C Contact factory 1020 112.5 kVA, 480 Delta 6-2.5% 2+4- Pri Taps, 415Y/240, Sound Level 44 dB EXN112T1769HB 98.74% Al 80°C Contact factory 1020 Cat. No. Primary Voltage (used) DOE 2016 Efficiency Winding Material Core Loss Coil Loss %IZ %IX X/R Weight (lbs.) 112.5 kVA, 240 Delta to 480Y/277 OR 208 Delta to 480Y/277 (shipped as 240 Delta), Pri Taps: 192/200/208/216/232/240/248, 150°C Rise, 220°C Insulation, Sound Level 44 dB EXN112T3155HB 240 98.74% Al 208 98.74% Al Contact factory 1020 1020 112.5 kVA, 240 Delta to 208Y/120 OR 208 Delta to 208Y/120 (shipped as 240 Delta), Pri Taps: 192/200/208/216/232/240/248, 150°C Rise, 220°C Insulation, Sound Level 44 dB EXN112T3156HB 240 98.74% Al 208 98.74% Al Contact factory 1020 1020 All units above ship in Type 2 enclosure 22M, minimum rear and side clearance 1/2inch Front Clearance for ventilated opening is six inches (must meet minimum code access requirements). To be compliant with the seismic requirements of ASCE/SEI 7. This unit is self-certified to ICS ES AC156 by shake table qualifications testing. 7400CT1901 21 7400CT1901 22M Dimensions 40.58 (1031) 33.65 (855) 16.57 (421) Entering side access point Approximate center of gravity 16.47 (418) 13.83 (351) 32.57 (827) 4.78 (121) Approximate center of gravity 16.47 (418) 3.50 4.50 0.75 (89) (114) (19) 11.53 9.55 (293) 3.07 (243) 28.50 1.21 (78) (724) (31) 27.00 (686) 1.33 (34) 31.00 (787) 33.14 (842) Dimensions: in. (mm) 0.75 (19) 4.80 (122) Entering bottom access point EXN150T3H Dimensions 0.50 (13) (4 Places) 22M Accessories Weathershield -- Convert Type 2 enclosure to Type 3R: 7400WS22M Ceiling Mounting Bracket: 7400CMB22M 40.58 (1031) 33.65 (855) 31.00 (787) Approximate center of gravity 32.57 (827) 32.28 (820) Approximate center of gravity 16.57 (421) 16.47 (418) 16.47 (418) 11.53 (293) 22 1.40 (36) 38.00 (965) 31.00 (787) 0.68 (17) (38) 1.50 23.25 (591) 1.34 (34) 34.00 (864) Dimensions: in. (mm) 7400CT1901 Transformer Connections Voltage Code "3" Primary Volts 504 492 480 468 456 444 432 22.5% FCAN 42.5% FCBN 1 2 3 4 5 6 7 Voltage Code "65" Primary Volts 630 615 600 585 570 555 540 22.5% FCAN 42.5% FCBN 1 2 3 4 5 6 7 Voltage Code "3156" Primary Volts Full Capacity Taps 248 1 240 2 232 3 216 4 208 5 200 6 192 7 NOTE: Per UL 1561, unit shipped connected to 240 V tap. Nameplate has nominal connections for 240 V and 208 V. 7400CT1901 Voltage Code "1814" Primary Volts 504 492 480 468 456 444 432 22.5% FCAN 42.5% FCBN 1 2 3 4 5 6 7 Voltage Code "3155" Primary Volts Full Capacity Taps 248 1 240 2 232 3 216 4 208 5 200 6 192 7 H0 NOTE: Per UL 1561, unit shipped connected to 240 V tap. Nameplate has nominal connections for 240 V and 208 V. X1 H1 X2 X1 X3 X2 X3 H2 H1 H3 H2 H0 H3 7400CT1901 23 7400CT1901 Voltage Code "3166" Primary Volts Full Capacity Taps 500 1 480 2 460 3 440 4 420 5 400 6 NOTE: Per UL 1561, unit shipped connected to 480 V tap. X0 Nameplate has nominal connections for 480 V and 440 V. Voltage Code "6" Primary Volts 504 492 22.5% FCAN 42.5% FCBN 1 2 480 3 468 4 456 5 444 6 432 7 H1 X1 H2 H1 H3 H2 H3 X2 X1 X3 X2 X0 X3 24 7400CT1901 Voltage Code "6" and "CT" Primary Volts Full Capacity Taps 504 1 492 2 480 3 468 4 456 5 444 6 432 7 NOTE: "CT" 120 V center tap (X4) limited to 7.5% capacity. 7400CT1901 7400CT1901 25 7400CT1901 Overcurrent Protection Inrush Information Cat. No. EXN15T3H EXN15T3HCU EXN15T3HF EXN15T3HFCU EXN15T3HB EXN15T3HBCU EXN15T3HNL EXN15T3HCUNL EXN15T3HNLP EXN15T3HCUNLP EXN15T65H EXN15T65HCU EXN15T1814H EXN15T6H EXN15T6HCT EXN15T3155H EXN15T3156H When voltage is applied to the input winding of a transformer, there can be a brief period of inrush current until the transformer core stabilizes. Inrush lasts approximately six power cycles, or about 0.1 seconds. The magnitude of the inrush varies depending on when the switch closes on the power wave, so that inrush can be anywhere from zero to greater than the full load current rating of the transformer. In addition, the impedance of the supply system can influence the amount of inrush current the transformer can draw. To avoid tripping circuit breakers or blowing fuses on the primary side of the transformer during energizing, careful coordination of fuse sizes or circuit breaker handle ratings and magnetic trip settings is essential. This coordination requires information about maximum possible inrush to be expected from the particular transformer in question. In order to provide optimal coordination and prevent possible inrush nuisance tripping, the primary overcurrent protection should be adjusted based on the maximum inrush current. This will result in the primary overcurrent protection exceeding the 125% allowance in the NEC for primary-only protection, and secondary protection will be required. Primary Voltage 480 600 480 240 208 240 208 Primary Nameplate Current 18.04 14.43 18.04 36.08 36.08 Max RMS Inrush Amperes RMS Peak Inrush Multiplier 336 18.60X 267 14.81X 272 15.06X 272 15.06X 234 12.98X 220 12.18X 272 15.06X 272 15.06X 239 13.24X 220 12.18X 217 15.00X 221 15.34X 207 11.49X 195 10.79X 195 10.79X 472 13.08X 528 12.67X 459 12.72X 444 12.31X 26 7400CT1901 Cat. No. EXN30T3H EXN30T3HCU EXN30T3HF EXN30T3HFCU EXN30T3HB EXN30T3HBCU EXN30T3HNL EXN30T3HCUNL EXN30T3HNLP EXN30T3HCUNLP EXN30T65H EXN30T65HCU EXN30T1814H EXN30T6H EXN30T6HCT EXN30T3155H EXN30T3156H Cat. No. EXN45T3H EXN45T3HCU EXN45T3HF EXN45T3HFCU EXN45T3HB EXN45T3HBCU EXN45T3HNL EXN45T3HCUNL EXN45T3HNLP EXN45T3HCUNLP EXN45T65H EXN45T65HCU EXN45T1814H EXN45T6H EXN45T6HCT EXN45T3155H EXN45T3156H Primary Voltage 480 600 480 240 208 240 208 Primary Voltage 480 600 480 240 208 240 208 Primary Nameplate Current 36.08 28.87 36.08 72.17 Primary Nameplate Current 54.13 43.30 54.13 108.25 Max RMS Inrush Amperes 536 430 616 418 389 581 616 418 420 581 399 360 532 547 547 1031 1127 1059 1222 Max RMS Inrush Amperes 736 709 671 620 625 562 576 582 496 532 475 571 586 593 593 1146 1334 1014 1165 7400CT1901 RMS Peak Inrush Multiplier 13.86X 11.92X 17.07X 11.57X 10.77X 16.10X 17.07X 11.57X 11.64X 16.10X 13.80X 12.47X 14.73X 15.15X 15.15X 14.28X 13.53X 14.67X 14.21X RMS Peak Inrush Multiplier 13.60X 13.10X 12.40X 11.46X 11.55X 10.39X 10.65X 10.75X 9.16X 9.83X 10.98X 13.18X 10.83X 10.96X 10.96X 10.59X 10.68X 9.37X 9.33X 7400CT1901 27 7400CT1901 Cat. No. EXN75T3H EXN75T3HCU EXN75T3HF EXN75T3HFCU EXN75T3HB EXN75T3HBCU EXN75T3HNL EXN75T3HCUNL EXN75T3HNLP EXN75T3HCUNLP EXN75T65H EXN75T65HCU EXN75T1814H EXN75T6H EXN75T6HCT EXN75T3155H EXN75T3156H Cat. No. EXN112T3H EXN112T3HCU EXN112T3HF EXN112T3HFCU EXN112T3HB EXN112T3HBCU EXN112T3HNL EXN112T3HCUNL EXN112T3HNLP EXN112T3HCUNLP EXN112T65H EXN112T65HCU EXN112T1814H EXN112T6H EXN112T6HCT EXN112T3155H EXN112T3156H Primary Voltage 480 600 480 240 208 240 208 Primary Voltage 480 600 480 240 208 240 208 Primary Nameplate Current 90.21 72.17 90.21 180.42 Primary Nameplate Current 135.32 108.25 135.32 270.63 Max RMS Inrush Amperes 785 734 777 782 801 706 777 852 771 739 662 611 777 777 777 1931 2207 1662 1938 Max RMS Inrush Amperes 1349 1563 1536 1455 1912 1329 1495 1455 1444 1558 1259 1354 1476 1518 1518 3031 3020 2958 2566 RMS Peak Inrush Multiplier 8.70X 8.14X 8.61X 8.67X 8.88X 7.83X 8.61X 9.44X 8.55X 8.19X 9.17X 8.47X 8.61X 8.61X 8.61X 10.70X 10.60X 9.21X 9.31X RMS Peak Inrush Multiplier 9.97X 11.55X 11.35X 10.75X 14.13X 9.82X 11.05X 10.75X 10.67X 11.51X 11.63X 12.51X 10.91X 11.22X 11.22X 11.20X 9.67X 10.93X 9.48X 28 7400CT1901 Cat. No. EXN150T3H EXN150T3HCU EXN150T3HF EXN150T3HFCU EXN150T3HB EXN150T3HBCU EXN150T3HNL EXN150T3HCUNL EXN150T65H EXN150T65HCU EXN150T1814H EXN150T6H EXN150T6HCT EXN150T3155H EXN150T3156H Primary Voltage 480 600 480 240 208 240 208 Primary Nameplate Current 180.42 144.34 180.42 360.84 Max RMS Inrush Amperes 2149 1386 1907 1476 1909 1332 1972 1476 1653 1060 1983 2053 4262 4717 4316 4142 7400CT1901 RMS Peak Inrush Multiplier 11.91X 7.68X 10.57X 8.18X 10.58X 7.38X 10.93X 8.18X 11.45X 7.34X 10.99X 11.38X 11.81X 11.33X 11.96X 11.48X 7400CT1901 29 7400CT1901 Cat. No. EXN15T3H EXN30T3H EXN45T3H EXN75T3H Primary Voltage Primary Nameplate Current 480 Delta 18.04 480 Delta 36.08 480 Delta 54.13 480 Delta 90.21 Circuit Breaker Handle Ratings 25 30 35 40 45 50 60 70 80 90 100 70 80 90 100 110 125 125 150 Handle Ratings 125 150 175 200 225 Schneider Electric Circuit Breaker Family E-Frame B-Frame H-Frame Max inrush exceeds trip curve Fixed (ED/EG/EJ) Fixed (BD/BG/BJ) Fixed (HD/HG/HJ/HL/HR) Max inrush exceeds trip curve Max inrush exceeds trip curve Electronic trip setting (HD/HG/HJ/HL/HR) Fixed (ED/EG/EJ) Fixed (BD/BG/BJ) Fixed (HD/HG/HJ/HL/HR) Max inrush exceeds Electronic trip setting trip curve Max inrush exceeds (HD/HG/HJ/HL/HR) trip curve Fixed (ED/EG/EJ) Fixed (BD/BG/BJ) Fixed (HD/HG/HJ/HL/HR) Fixed (ED, EG, EJ) -- J-Frame Fixed (BD, BG, BJ) -- L-Frame Electronic trip setting (HD/HG/HJ/HL/HR) Fixed (JD/JG/JJ/JL/JR) Electronic trip setting (LD/LG/LJ/LL/LR) 30 7400CT1901 Schneider Electric 800 Federal Street 01810 Andover, MA USA 8887782733 www.schneider-electric.com As standards, specifications, and design change from time to time, please ask for confirmation of the information given in this publication. © 2019 2020 Schneider Electric. All rights reserved. 7400CT1901Servigistics Arbortext Publishing Engine PDFlib PDI 9.0.7p3 (C /Win64)
