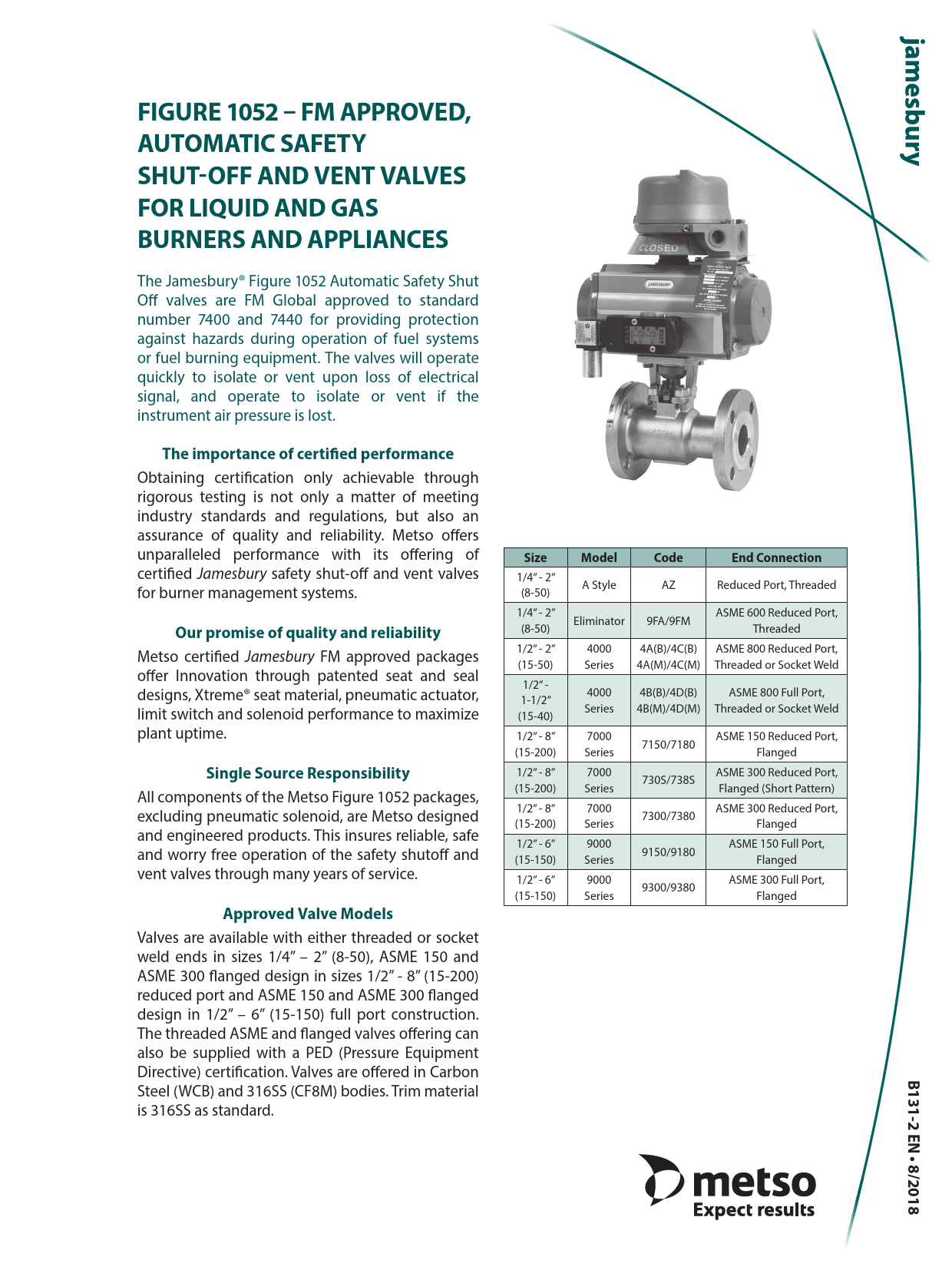

FIGURE 1052 FM APPROVED, AUTOMATIC SAFETY SHUT-OFF AND VENT VALVES FOR LIQUID AND GAS BURNERS AND APPLIANCES The Jamesbury® Figure 1052 Automatic Safety Shut Off valves are FM Global approved to standard number 7400 and 7440 for providing protection against hazards during operation of fuel systems or fuel burning equipment. The valves will operate quickly to isolate or vent upon loss of electrical signal, and operate to isolate or vent if the instrument air pressure is lost. The importance of certified performance Obtaining certification only achievable through rigorous testing is not only a matter of meeting industry standards and regulations, but also an assurance of quality and reliability. Metso offers unparalleled performance with its offering of certified Jamesbury safety shut-off and vent valves for burner management systems. Our promise of quality and reliability Metso certified Jamesbury FM approved packages offer Innovation through patented seat and seal designs, Xtreme® seat material, pneumatic actuator, limit switch and solenoid performance to maximize plant uptime. Single Source Responsibility All components of the Metso Figure 1052 packages, excluding pneumatic solenoid, are Metso designed and engineered products. This insures reliable, safe and worry free operation of the safety shutoff and vent valves through many years of service. Approved Valve Models Valves are available with either threaded or socket weld ends in sizes 1/4" 2" (8-50), ASME 150 and ASME 300 flanged design in sizes 1/2" - 8" (15-200) reduced port and ASME 150 and ASME 300 flanged design in 1/2" 6" (15-150) full port construction. The threaded ASME and flanged valves offering can also be supplied with a PED (Pressure Equipment Directive) certification. Valves are offered in Carbon Steel (WCB) and 316SS (CF8M) bodies. Trim material is 316SS as standard. Size 1/4" - 2" (8-50) 1/4" - 2" (8-50) 1/2" - 2" (15-50) 1/2" 1-1/2" (15-40) 1/2" - 8" (15-200) 1/2" - 8" (15-200) 1/2" - 8" (15-200) 1/2" - 6" (15-150) 1/2" - 6" (15-150) Model Code End Connection A Style AZ Reduced Port, Threaded Eliminator 9FA/9FM 4000 4A(B)/4C(B) Series 4A(M)/4C(M) ASME 600 Reduced Port, Threaded ASME 800 Reduced Port, Threaded or Socket Weld 4000 4B(B)/4D(B) ASME 800 Full Port, Series 4B(M)/4D(M) Threaded or Socket Weld 7000 Series 7000 Series 7000 Series 9000 Series 9000 Series 7150/7180 730S/738S 7300/7380 9150/9180 9300/9380 ASME 150 Reduced Port, Flanged ASME 300 Reduced Port, Flanged (Short Pattern) ASME 300 Reduced Port, Flanged ASME 150 Full Port, Flanged ASME 300 Full Port, Flanged B131-2 EN · 8/2018 B131-2 EN METSO Valve Design Features and Benefits Polymeric flexible lip, self relieving seat design offers tight shut-off to API 598, better than ANSI / FCI 70-2 Class VI, in either direction and extended cycle life with a minimum of maintenance. Providing tightest shutoff available. Xtreme seat material, developed in the Metso Polymer Research Laboratory, provides longer life and industry leading expanded performance. This equals a lower cost of ownership. API standards for `Process Valves' require adjustable packing. Metso's independently adjustable stem sealing, including 2" and smaller patented design, provides a life cycle that complements the enhanced performance of the seat technology; lowers the risk of fugitive emissions. Approved Actuator Models Metso Jamesbury Figure 1052 assemblies are available with a choice of two actuator types. The Quadra-Powr® X spring and diaphragm pneumatic actuator rated for 60 psi/4.1 bar minimum air supply or the Valv-Powr® VPVL rack and pinion pneumatic actuator rated for 60 psi/4.1 bar minimum air supply. Assemblies approved for 40 PSI minimum air supply are available. Note* Operating FM package with a actuator air supply greater than the listed minimum air supply pressure can have an adverse effect on operating speeds. This is especially true in the optional fast closing assemblies. Quadra-Powr X Actuator Features Rolling diaphragm design, along with a one piece UHMW Polyethylene guide bearing insures a long cycle life, smooth operation and low friction. Acetal-lined stainless steel backed bearing offer a low coefficient of friction that allows virtually all of the available torque to be delivered directly to the output shaft. Zinc phosphate epoxy based primer coat and UV resistant polyurethane top coat provide durability and protection in corrosive atmospheres. Solenoid Pilot Valves Metso has tested and qualified all of the approved solenoid models to insure the reliability and quality to maximize cycle life. Flow capacity of the solenoid is sufficient to provide standard valve closing within 5 seconds. Optional fast closing units are available as an option. Standard coils are continuous duty molded Class F. StoneL® Limit Switches Housing assemblies are FM approved to NEMA 4, 4X and 6; Class I, Div. 1, Groups B, C & D; Class II, Div. 1, Groups E, F & G for watertight and explosive proof hazardous location service. Limit switches are actuated directly from the valve/actuator drive train, reliably giving a true valve position signal. Switched designated as "supervisory" are set so that are activated only when the valve is in the fail position. The "supervisory" switch(es) marked so as to indicate the, as assembled, position. Switches indicated as "free" are not marked and can be adjusted. These are normally set to be activated when the actuator is energized. Valv-Powr Actuator Features Bearings on all rotating and moving parts to insure a long cycle life. Dual piston rack-and-pinion mechanism for simple construction, high cycle life and constant torque output. Hard-anodized PTFE-coated extruded aluminum body with honed internal surfaces for strength and lowercoefficient of friction. Mechanically multi-guided aluminum pistons for precise movement, low friction and high cycle life. Machined teeth on piston racks and pinions for excellent rack and pinion engagement and maximum efficiently. 2 TECHNICAL BULLETIN 8/18 GAS AND OIL SHUTOFF VALVES - FIGURE 1052 B131-2 EN Maximum Operating Pressure Ratings Automatic Gas and Oil SafetyValves are rated for service based on FM approval tests as shown below. Ambient temperature should not exceed +140°F (60°C). Maximum Operating Pressure Valve Size Valve Size Valve (Inches) (DN) Series Valve Material Seats 1/2" - 2" 1/4" - 2" 1/4" - 2" 1/2" - 8" (1/2" - 6") 1/2" - 2" (1/2" - 1-1/2") 3" - 8" (2" - 6") 15-50 8-50 8-50 15-200 (15-150) 15-50 (15-40) 80-200 (50-150) 4000 WCB, CF8M Eliminator WCB, CF8M A Style WCB, CF8M 7150 (9150) WCB CF8M 7300/730S (9300) WCB CF8M 7300/730S (9300) WCB CF8M Xtreme(X) PTFE (T) Xtreme(X) PTFE (T) Xtreme(X) PTFE (T) Xtreme(X) PTFE (T) Xtreme(X) PTFE (T) Xtreme(X) PTFE (T) Xtreme(X) PTFE (T) Xtreme(X) PTFE (T) Xtreme(X) PTFE (T) Gas (Max Temp. 100°F / 38°C) psi bar 1200 82.7 1000 68.9 1200 82.7 1000 68.9 1200 82.7 1000 68.9 285 19.6 275 19 740 51.1 720 49.6 285 19.6 275 19 * For Xtreme seats, use Max Temp. 500°F/260°C. For PTFE seats, use Max Temp. 375°F/190°C Unheated Oil #2, #4 (Max Temp. 100°F / 38°C) psi bar 1200 82.7 1000 68.9 1200 82.7 1000 68.9 1200 82.7 1000 68.9 285 19.6 275 19 740 51.1 720 49.6 285 19.6 275 19 Heated Oil #5, #6 (Max Temp. *°F / *°C) psi bar 350 24 100 7 350 24 100 7 350 24 100 7 170 12 100 7 170 12 100 7 350 24 100 7 350 24 100 7 170 12 100 7 170 12 100 7 Flow Data The tables below provide flow coefficients of Jamesbury Automatic Gas and Oil Safety Valves covered in this bulletin. The Cv values represent the flow of water at +60°F through the valve in U.S. gallons per minute at a pressure drop of 1 psi. The metric equivalent, Kv, is the flow of water at 16°C through the valve in m3/hr at a pressure drop of 1 kg/cm2. To convert Cv to Kv, multiply by 0.8569. Series 4000 Valve Size Standard Port Full Port Inches DN Cv Equivalent length of pipe (ft.) Cv Equivalent length of pipe (ft.) 1/2 15 13 1.52 13 1.52 3/4 20 33 1.1 40 .61 1 25 44 2.1 65 1.9 1-1/4 32 46 8.4 90 2.0 1-1/2 40 95 4.5 135 3.2 2 50 111 12.0 - - Eliminator & A Style Valve Size Standard Port Inches DN Equivalent Cv length of pipe (ft.) 1/4 8 6 0.33 3/8 10 10 0.61 1/2 15 13 1.52 3/4 20 33 1.1 1 25 44 2.1 1-1/4 32 46 8.4 1-1/2 40 95 4.5 2 50 111 12.0 Standard Port Flanged Valves Valve Size Inches DN Cv 1/2 15 9 3/4 20 19 1 25 45 2 50 165 3 80 350 4 100 550 6 150 765 8 200 1890 Equivalent length of pipe (ft.) 3.2 3.1 2.0 5.4 9.7 16.2 70 51 Full Port Flanged Valves Valve Size Inches DN Cv 1/2 15 9 3/4 20 50 1 25 100 2 50 490 3 80 1160 4 100 2200 6 150 5100 Equivalent length of pipe (ft.) 3.2 0.45 0.41 0.6 0.8 0.9 1.6 Dimensional Data The following dimensional data is nominal values using a standard solenoid, standard actuators sized for 60psi and a tall Quartz® switch. 3 TECHNICAL BULLETIN 8/18 B131-2 EN METSO DIMENSIONS 1/2" - 2" (DN15 - 50) Reduced Port and 1/2" - 1-1/2" (DN15 - 40) Full Port Series 4000 Screwed End and Socket Weld Valves with Valv-Powr Spring-Return Actuator, Full Rating C 1.39 ØD A E B F Valve Size inches 1/2 3/4 1 1-1/4 1-1/2 2 Socket & NPT A 2.59 3.01 3.69 4.22 4.58 5.11 Valve Size DN 15 20 25 32 40 50 Socket & NPT A 65.8 76.5 93.7 107.2 116.3 129.8 Valve Size inches 1/2 3/4 1 1-1/4 1-1/2 Socket & NPT A 2.59 3.69 4.22 4.58 5.11 Valve Size DN 15 20 25 32 40 Socket & NPT A 65.8 93.7 107.2 116.3 129.8 4 TECHNICAL BULLETIN 8/18 Series 4000 Reduced Port - Full Rating Approximate Dimensions - inches B C D E F 6.04 12.24 0.50 1.91 3.33 8.01 13.07 0.69 1.99 3.66 9.49 14.46 0.88 2.22 4.06 11.97 16.14 1.00 2.83 5.39 13.11 17.19 1.25 3.03 5.79 15.53 18.16 1.50 3.39 6.54 Weight lbs 10 14 19 32 42 58 Series 4000 Reduced Port - Full Rating Approximate Dimensions - mm B C D 153.4 311.0 12.7 203.5 332.1 17.5 241.0 367.2 22.4 304.0 410.0 25.4 333.0 436.7 31.8 394.5 461.3 38.1 E F 48.5 84.6 50.5 93.0 56.5 103.1 72.0 136.9 77.0 147.1 86.0 166.1 Weight kg 5 6 9 15 19 26 Series 4000 Full Port - Full Rating Approximate Dimensions - inches B C D E F 6.04 12.24 0.50 1.91 3.33 9.49 14.46 0.80 2.22 4.06 11.97 16.14 1.00 2.83 5.39 13.11 17.19 1.25 3.03 5.79 15.53 18.16 1.50 3.39 6.54 Weight lbs 10 19 33 43 59 Series 4000 Reduced Port - Full Rating Approximate Dimensions - mm B C D 153.4 311.0 12.7 241.0 367.2 22.4 304.0 410.0 25.4 333.0 436.7 31.8 394.5 461.3 38.1 E F 48.5 84.6 56.5 103.1 72.0 136.9 77.0 147.1 86.0 166.1 Weight kg 5 9 15 19 27 Actuator VPVL100SR4/5 VPVL200SR4/5 VPVL250SR4/5 VPVL350SR4/5 VPVL400SR4/5 VPVL450SR4/5 Actuator VPVL100SR4/5 VPVL200SR4/5 VPVL250SR4/5 VPVL350SR4/5 VPVL400SR4/5 VPVL450SR4/5 Actuator VPVL100SR4/5 VPVL200SR4/5 VPVL250SR4/5 VPVL350SR4/5 VPVL400SR4/5 Actuator VPVL100SR4/5 VPVL200SR4/5 VPVL250SR4/5 VPVL350SR4/5 VPVL400SR4/5 GAS AND OIL SHUTOFF VALVES - FIGURE 1052 B131-2 EN DIMENSIONS 1/2" - 2" (DN15 - 50) Reduced Port and 1/2" - 1-1/2" (DN15 - 40) Full Port Series 4000 Screwed End and Socket Weld Valves with Valv-Powr Spring-Return Actuator, Reduced Rating (Equal to ASME Class 150) C 1.39 ØD A E B F Valve Size inches 1/2 3/4 1 1-1/4 1-1/2 2 Socket & NPT A 2.59 3.01 3.69 4.22 4.58 5.11 Series 4000 Reduced Port - Reduced Rating Approximate Dimensions - inches Weight B C D E F lbs 6.04 12.24 0.50 1.91 3.33 10 6.04 12.40 0.69 1.91 3.33 11 8.01 13.95 0.88 1.99 3.66 16 8.01 14.08 1.00 1.99 3.66 18 9.49 15.28 1.25 2.22 4.06 24 10.20 15.93 1.50 2.48 4.67 31 Valve Size DN 15 20 25 32 40 50 Socket & NPT A 65.8 76.5 93.7 107.2 116.3 129.8 Series 4000 Reduced Port - Reduced Rating Approximate Dimensions - mm B C D 153.4 311.0 12.7 153.4 315.0 17.5 203.5 354.2 22.4 203.5 357.5 25.4 241.0 388.0 31.8 259.1 404.5 38.1 E F 48.5 84.6 48.5 84.6 50.5 93.0 50.5 93.0 56.5 103.1 63.0 118.6 Weight kg 5 5 7 8 11 14 Valve Size inches 1/2 3/4 1 1-1/4 1-1/2 Socket & NPT A 2.59 3.69 4.22 4.58 5.11 Series 4000 Full Port - Reduced Rating Approximate Dimensions - inches B C D E F 6.04 12.24 0.50 1.91 3.33 8.01 13.95 0.88 1.99 3.66 8.01 14.08 1.00 1.99 3.66 9.49 15.28 1.25 2.22 4.06 10.20 15.93 1.50 2.48 4.67 Weight lbs 10 17 18 25 32 Valve Size DN 15 20 25 32 40 Socket & NPT A 65.8 93.7 107.2 116.3 129.8 Series 4000 Full Port - Reduced Rating Approximate Dimensions - mm B C D 153.4 311.0 12.7 203.5 354.2 22.4 203.5 357.5 25.4 241.0 388.0 31.8 259.1 404.5 38.1 E F 48.5 84.6 50.5 93.0 50.5 93.0 56.5 103.1 63.0 118.6 Weight kg 5 8 8 11 14 Actuator VPVL100SR4/5 VPVL100SR4/5 VPVL200SR4/5 VPVL200SR4/5 VPVL250SR4/5 VPVL300SR4/5 Actuator VPVL100SR4/5 VPVL100SR4/5 VPVL200SR4/5 VPVL200SR4/5 VPVL250SR4/5 VPVL300SR4/5 Actuator VPVL100SR4/5 VPVL200SR4/5 VPVL200SR4/5 VPVL250SR4/5 VPVL300SR4/5 Actuator VPVL100SR4/5 VPVL200SR4/5 VPVL200SR4/5 VPVL250SR4/5 VPVL300SR4/5 5 TECHNICAL BULLETIN 8/18 B131-2 EN METSO DIMENSIONS 1/2" - 2" (DN15 - 50) Reduced Port and 1/2" - 1-1/2" (DN15 - 40) Full Port Series 4000 Screwed End and Socket Weld Valves with Quadra-Powr Spring Diaphragm Actuator, Full Rating and Reduced Rating (Equal to ASME Class 150) C 2.71 A ØB ØD E Valve Size inches 1/2 3/4 1 1-1/4 1-1/2 2 Valve Size DN 15 20 25 32 40 50 Valve Size inches 1/2 3/4 1 1-1/4 1-1/2 Valve Size DN 15 20 25 32 40 Socket & NPT A 2.59 3.01 3.69 4.22 4.58 5.11 Series 4000 Reduced Port - Full Rating Approximate Dimensions - inches Weight B C D E lbs 7.75 13.72 0.50 11.26 91 7.75 13.88 0.69 11.26 92 7.75 14.36 0.88 11.26 94 7.75 14.49 1.00 11.26 96 8.98 15.19 1.25 13.35 105 10.79 16.00 1.50 15.78 117 Socket & NPT A 65.8 76.5 93.7 107.2 116.3 129.8 Series 4000 Reduced Port - Full Rating Approximate Dimensions - mm Weight B C D E kg 196.9 348.5 12.7 286.0 41 196.9 352.6 17.5 286.0 42 196.9 364.8 22.4 286.0 43 196.9 368.1 25.4 286.0 43 228.1 385.7 31.8 339.1 48 274.1 406.4 38.1 400.8 53 Socket & NPT A 2.59 3.69 4.22 4.58 5.11 Series 4000 Reduced Port - Full Rating Approximate Dimensions - inches Weight B C D E lbs 7.75 13.72 0.50 11.26 91 7.75 14.36 0.88 11.26 95 7.75 14.49 1.00 11.26 96 8.98 15.19 1.25 13.35 106 10.79 16.00 1.50 15.78 118 Socket & NPT A 65.8 93.7 107.2 116.3 129.8 Series 4000 Reduced Port - Full Rating Approximate Dimensions - mm Weight B C D E kg 196.9 348.5 12.7 286.0 41 196.9 364.8 22.4 286.0 43 196.9 368.1 25.4 286.0 44 228.1 385.7 31.8 339.1 48 274.1 406.4 38.1 400.8 54 6 TECHNICAL BULLETIN 8/18 Actuator QPX1C/M QPX1C/M QPX1C/M QPX1C/M QPX2C/M QPX3C/M Actuator QPX1C/M QPX1C/M QPX1C/M QPX1C/M QPX2C/M QPX3C/M Actuator QPX1C/M QPX1C/M QPX1C/M QPX2C/M QPX3C/M Actuator QPX1C/M QPX1C/M QPX1C/M QPX2C/M QPX3C/M GAS AND OIL SHUTOFF VALVES - FIGURE 1052 B131-2 EN DIMENSIONS 1/2" - 2" (DN15 - 50) Reduced Port and 1/2" - 1-1/2" (DN15 - 40) Full Port Series 4000 Screwed End and Socket Weld Valves with Quadra-Powr Spring Diaphragm Actuator, Full Rating and Reduced Rating (Equal to ASME Class 150) Valve Size inches 1/2 3/4 1 1-1/4 1-1/2 2 Valve Size DN 15 20 25 32 40 50 Valve Size inches 1/2 3/4 1 1-1/4 1-1/2 Valve Size DN 15 20 25 32 40 Series 4000 Reduced Port - Reduced Rating Approximate Dimensions - inches Socket & NPT Weight A B C D E lbs 2.59 7.75 13.72 0.50 11.26 91 3.01 7.75 13.88 0.69 11.26 92 3.69 7.75 14.36 0.88 11.26 94 4.22 7.75 14.49 1.00 11.26 96 4.58 8.98 15.19 1.25 13.35 105 5.11 8.98 15.37 1.50 15.35 117 Series 4000 Reduced Port - Reduced Rating Approximate Dimensions - mm Socket & NPT Weight A B C D E kg 65.8 196.9 348.5 12.7 286.0 41 76.5 196.9 352.6 17.5 286.0 42 93.7 196.9 364.8 22.4 286.0 43 107.2 196.9 368.1 25.4 286.0 43 116.3 228.1 385.7 31.8 339.1 48 129.8 228.1 390.3 38.1 339.1 49 Socket & NPT A 2.59 3.69 4.22 4.58 5.11 Series 4000 Full Port - Reduced Rating Approximate Dimensions - inches Weight B C D E lbs 7.75 13.72 0.50 11.26 91 7.75 14.36 0.88 11.26 95 7.75 14.49 1.00 11.26 96 8.98 15.19 1.25 13.35 106 8.98 15.37 1.50 13.35 109 Socket & NPT A 65.8 93.7 107.2 116.3 129.8 Series 4000 Full Port - Reduced Rating Approximate Dimensions - mm Weight B C D E kg 196.9 348.5 12.7 286.0 41 196.9 364.8 22.4 286.0 43 196.9 368.1 25.4 286.0 44 228.1 385.7 31.8 339.1 48 228.1 390.3 38.1 339.1 54 Actuator QPX1C/M QPX1C/M QPX1C/M QPX1C/M QPX2C/M QPX3C/M Actuator QPX1C/M QPX1C/M QPX1C/M QPX1C/M QPX2C/M QPX2C/M Actuator QPX1C/M QPX1C/M QPX1C/M QPX2C/M QPX2C/M Actuator QPX1C/M QPX1C/M QPX1C/M QPX2C/M QPX2C/M 7 TECHNICAL BULLETIN 8/18 B131-2 EN METSO DIMENSIONS 1/4" - 2" (DN8 - 50) Reduced Port Eliminator Screwed End Valves with Valv-Powr Spring-Return Actuator, Full Rating C 1.39 Valve Size inches 1/4 3/8 1/2 3/4 1 1-1/4 1-1/2 2 Valve Size DN 8 10 15 20 25 32 40 50 NPT A 2.16 2.16 2.62 3.00 3.55 4.00 4.38 5.50 NPT A 54.9 54.9 66.5 76.2 90.2 101.6 111.3 139.7 A B ØD E F Eliminator Reduced Port - Full Rating Approximate Dimensions - inches B C D E F 6.04 12.24 0.43 1.91 3.33 6.04 12.24 0.43 1.91 3.33 6.04 12.24 0.50 1.91 3.33 8.01 13.07 0.69 1.99 3.66 9.49 14.46 0.88 2.22 4.06 11.97 16.14 1.00 2.83 5.39 13.11 17.19 1.23 3.03 5.79 15.53 18.16 1.50 3.39 6.54 Eliminator Reduced Port - Full Rating Approximate Dimensions - mm B C D 153.4 311.0 10.9 153.4 311.0 10.9 153.4 311.0 12.7 203.5 332.1 17.5 241.0 367.2 22.4 304.0 410.0 25.4 333.0 436.7 31.2 394.5 461.3 38.1 E F 48.5 84.6 48.5 84.6 48.5 84.6 50.5 93.0 56.5 103.1 72.0 136.9 77.0 147.1 86.0 166.1 Weight lbs 9 9 9 13 17 30 38 53 Weight kg 4 4 4 6 8 14 17 24 Actuator VPVL100SR4/5 VPVL100SR4/5 VPVL100SR4/5 VPVL200SR4/5 VPVL250SR4/5 VPVL350SR4/5 VPVL400SR4/5 VPVL450SR4/5 Actuator VPVL100SR4/5 VPVL100SR4/5 VPVL100SR4/5 VPVL200SR4/5 VPVL250SR4/5 VPVL350SR4/5 VPVL400SR4/5 VPVL450SR4/5 8 TECHNICAL BULLETIN 8/18 GAS AND OIL SHUTOFF VALVES - FIGURE 1052 DIMENSIONS 1/4" - 2" (DN8 - 50) Reduced Port Eliminator Screwed End Valves with Valv-Powr Spring-Return Actuator, Reduced Rating (Equal to ASME Class 150) B131-2 EN C 1.39 Valve Size inches 1/4 3/8 1/2 3/4 1 1-1/4 1-1/2 2 Valve Size DN 8 10 15 20 25 32 40 50 NPT A 2.16 2.16 2.62 3.00 3.55 4.00 4.38 5.50 NPT A 54.9 54.9 66.5 76.2 90.2 101.6 111.3 139.7 A B ØD E F Eliminator Reduced Port - Reduced Rating Approximate Dimensions - inches Weight B C D E F lbs 6.04 12.24 0.43 1.91 3.33 9 6.04 12.24 0.43 1.91 3.33 9 6.04 12.24 0.50 1.91 3.33 9 6.04 12.40 0.69 1.91 3.33 10 8.01 13.95 0.88 1.99 3.66 14 8.01 14.08 1.00 1.99 3.66 15 9.49 15.28 1.23 2.22 4.06 20 10.20 15.93 1.50 2.48 4.67 26 Eliminator Reduced Port - Reduced Rating Approximate Dimensions - mm B C D 153.4 311.0 10.9 153.4 311.0 10.9 153.4 311.0 12.7 153.4 315.0 17.5 203.5 354.2 22.4 203.5 357.5 25.4 241.0 388.0 31.2 259.1 404.5 38.1 E F 48.5 84.6 48.5 84.6 48.5 84.6 48.5 84.6 50.5 93.0 50.5 93.0 56.5 103.1 63.0 118.6 Weight kg 4 4 4 5 7 7 9 12 Actuator VPVL100SR4/5 VPVL100SR4/5 VPVL100SR4/5 VPVL100SR4/5 VPVL200SR4/5 VPVL200SR4/5 VPVL250SR4/5 VPVL300SR4/5 Actuator VPVL100SR4/5 VPVL100SR4/5 VPVL100SR4/5 VPVL100SR4/5 VPVL200SR4/5 VPVL200SR4/5 VPVL250SR4/5 VPVL300SR4/5 9 TECHNICAL BULLETIN 8/18 B131-2 EN METSO DIMENSIONS 1/4" - 2" (DN8 - 50) Reduced Port Eliminator Screwed End Valves with Quadra-Powr Spring Diaphragm Actuator, Full Rating and Reduced Rating (Equal to ASME Class 150) C A ØB 2.71 ØD E Valve Size inches 1/4 3/8 1/2 3/4 1 1-1/4 1-1/2 2 Valve Size DN 8 10 15 20 25 32 40 50 NPT A 2.16 2.16 2.62 3.00 3.55 4.00 4.38 5.50 NPT A 54.9 54.9 66.5 76.2 90.2 101.6 111.3 139.7 Eliminator Reduced Port - Full Rating Approximate Dimensions - inches Weight B C D E lbs 7.75 13.72 0.43 11.26 90 7.75 13.72 0.43 11.26 90 7.75 13.72 0.50 11.26 90 7.75 13.88 0.69 11.26 91 7.75 14.36 0.88 11.26 92 7.75 14.49 1.00 11.26 93 8.98 15.19 1.23 13.35 101 10.79 16.00 1.50 15.78 112 Eliminator Reduced Port - Full Rating Approximate Dimensions - mm Weight B C D E kg 196.9 348.5 10.9 286.0 41 196.9 348.5 10.9 286.0 41 196.9 348.5 12.7 286.0 41 196.9 352.6 17.5 286.0 41 196.9 364.8 22.4 286.0 42 196.9 368.1 25.4 286.0 42 228.1 385.7 31.2 339.1 46 274.1 406.4 38.1 400.8 51 Actuator QPX1C/M QPX1C/M QPX1C/M QPX1C/M QPX1C/M QPX1C/M QPX2C/M QPX3C/M Actuator QPX1C/M QPX1C/M QPX1C/M QPX1C/M QPX1C/M QPX1C/M QPX2C/M QPX3C/M 10 TECHNICAL BULLETIN 8/18 GAS AND OIL SHUTOFF VALVES - FIGURE 1052 B131-2 EN DIMENSIONS 1/4" - 2" (DN8 - 50) Reduced Port Eliminator Screwed End Valves with Quadra-Powr Spring Diaphragm Actuator, Full Rating and Reduced Rating (Equal to ASME Class 150) Valve Size inches 1/4 3/8 1/2 3/4 1 1-1/4 1-1/2 2 Valve Size DN 8 10 15 20 25 32 40 50 NPT A 2.16 2.16 2.62 3.00 3.55 4.00 4.38 5.50 NPT A 54.9 54.9 66.5 76.2 90.2 101.6 111.3 139.7 Eliminator Reduced Port - Reduced Rating Approximate Dimensions - inches Weight B C D E lbs 7.75 13.72 0.43 11.26 90 7.75 13.72 0.43 11.26 90 7.75 13.72 0.50 11.26 90 7.75 13.88 0.69 11.26 91 7.75 14.36 0.88 11.26 92 7.75 14.49 1.00 11.26 93 8.98 15.19 1.23 13.35 101 8.98 15.37 1.50 13.35 103 Eliminator Reduced Port - Reduced Rating Approximate Dimensions - mm Weight B C D E kg 196.9 348.5 10.9 286.0 41 196.9 348.5 10.9 286.0 41 196.9 348.5 12.7 286.0 41 196.9 352.6 17.5 286.0 41 196.9 364.8 22.4 286.0 42 196.9 368.1 25.4 286.0 42 228.1 385.7 31.2 339.1 46 228.1 390.3 38.1 339.1 47 Actuator QPX1C/M QPX1C/M QPX1C/M QPX1C/M QPX1C/M QPX1C/M QPX2C/M QPX2C/M Actuator QPX1C/M QPX1C/M QPX1C/M QPX1C/M QPX1C/M QPX1C/M QPX2C/M QPX2C/M 11 TECHNICAL BULLETIN 8/18 B131-2 EN METSO DIMENSIONS 1/4" - 2" (DN8 - 50) Reduced Port A-Style Screwed End Valves with Valv-Powr Spring-Return Actuator, Full Rating C 1.39 Valve Size inches 1/4 3/8 1/2 3/4 1 1-1/4 1-1/2 2 Valve Size DN 8 10 15 20 25 32 40 50 NPT A 2.94 2.94 3.44 3.81 4.50 4.44 4.56 5.00 NPT A 74.7 74.7 87.4 96.8 114.3 112.8 115.8 127.0 A B ØD E F A-Style Reduced Port - Full Rating Approximate Dimensions - inches B C D E F 6.04 12.24 0.43 1.91 3.33 6.04 12.24 0.43 1.91 3.33 6.04 12.24 0.50 1.91 3.33 8.01 13.07 0.69 1.99 3.66 9.49 14.46 0.88 2.22 4.06 11.97 16.14 1.00 2.83 5.39 13.11 17.19 1.23 3.03 5.79 15.553 18.16 1.50 3.39 6.54 A-Style Reduced Port - Full Rating Approximate Dimensions - mm B C D 153.4 311.0 10.9 153.4 311.0 10.9 153.4 311.0 12.7 203.5 332.1 17.5 241.0 367.2 22.4 304.0 41.0 25.4 333.0 436.7 31.2 394.5 461.3 38.1 E F 48.5 84.6 48.5 84.6 48.5 84.6 50.5 93.0 56.5 103.1 72.0 136.9 77.0 147.1 86.0 166.1 Weight lbs 10 10 10 14 18 30 38 52 Weight kg 4 4 4 6 8 13 17 24 Actuator VPVL100SR4/5 VPVL100SR4/5 VPVL100SR4/5 VPVL200SR4/5 VPVL250SR4/5 VPVL350SR4/5 VPVL400SR4/5 VPVL450SR4/5 Actuator VPVL100SR4/5 VPVL100SR4/5 VPVL100SR4/5 VPVL200SR4/5 VPVL250SR4/5 VPVL350SR4/5 VPVL400SR4/5 VPVL450SR4/5 12 TECHNICAL BULLETIN 8/18 GAS AND OIL SHUTOFF VALVES - FIGURE 1052 DIMENSIONS 1/4" - 2" (DN8 - 50) Reduced Port A-Style Screwed End Valves with Valv-Powr Spring-Return Actuator, Reduced Rating (Equal to ASME Class 150) B131-2 EN C 1.39 Valve Size inches 1/4 3/8 1/2 3/4 1 1-1/4 1-1/2 2 Valve Size DN 8 10 15 20 25 32 40 50 NPT A 2.94 2.94 3.44 3.81 4.50 4.44 4.56 5.00 NPT A 74.7 74.7 87.4 96.8 114.3 112.8 115.8 127.0 A B ØD E F A-Style Reduced Port - Reduced Rating Approximate Dimensions - inches B C D E F 6.04 12.24 0.43 1.91 3.33 6.04 12.24 0.43 1.91 3.33 6.04 12.24 0.50 1.91 3.33 6.04 12.40 0.69 1.91 3.33 8.01 13.95 0.88 1.99 3.66 8.01 14.08 1.00 1.99 3.66 9.49 15.28 1.23 2.22 4.06 10.20 15.93 1.50 2.48 4.67 Weight lbs 10 10 10 11 15 15 20 25 A-Style Reduced Port - Reduced Rating Approximate Dimensions - mm B C D 153.4 311.0 10.9 153.4 311.0 10.9 153.4 311.0 12.7 153.4 315.0 17.5 203.5 354.2 22.4 203.5 357.5 25.4 241.0 388.0 31.2 259.1 404.5 38.1 E F 48.5 84.6 48.5 84.6 48.5 84.6 48.5 84.6 50.5 93.0 50.5 93.0 56.5 103.1 63.0 118.6 Weight kg 4 4 4 5 7 7 9 11 Actuator VPVL100SR4/5 VPVL100SR4/5 VPVL100SR4/5 VPVL100SR4/5 VPVL200SR4/5 VPVL200SR4/5 VPVL250SR4/5 VPVL300SR4/5 Actuator VPVL100SR4/5 VPVL100SR4/5 VPVL100SR4/5 VPVL100SR4/5 VPVL200SR4/5 VPVL200SR4/5 VPVL250SR4/5 VPVL300SR4/5 13 TECHNICAL BULLETIN 8/18 B131-2 EN METSO DIMENSIONS 1/4" - 2" (DN8 - 50) Reduced Port A-Style Screwed End Valves with Quadra-Powr Spring Diaphragm Actuator, Full Rating and Reduced Rating (Equal to ASME Class 150) C Valve Size inches 1/4 3/8 1/2 3/4 1 1-1/4 1-1/2 2 Valve Size DN 8 10 15 20 25 32 40 50 NPT A 2.94 2.94 3.44 3.81 4.50 4.44 4.56 5.50 NPT A 74.7 74.7 87.4 96.8 114.3 112.8 115.8 127.0 A ØB 2.71 ØD E A-Style Reduced Port - Full Rating Approximate Dimensions - inches Weight B C D E lbs 7.75 13.72 0.43 11.26 91 7.75 13.72 0.43 11.26 91 7.75 13.72 0.50 11.26 91 7.75 13.88 0.69 11.26 92 7.75 14.36 0.88 11.26 93 7.75 14.49 1.00 11.26 93 8.98 15.19 1.23 13.35 101 10.79 16.00 1.50 15.78 112 A-Style Reduced Port - Full Rating Approximate Dimensions - mm Weight B C D E kg 196.9 348.5 10.9 286.0 41 196.9 348.5 10.9 286.0 41 196.9 348.5 12.7 286.0 41 196.9 352.6 17.5 286.0 42 196.9 364.8 22.4 286.0 42 196.9 368.1 25.4 286.0 42 228.1 385.7 31.2 339.1 46 274.1 406.4 38.1 400.8 51 Actuator QPX1C/M QPX1C/M QPX1C/M QPX1C/M QPX1C/M QPX1C/M QPX2C/M QPX3C/M Actuator QPX1C/M QPX1C/M QPX1C/M QPX1C/M QPX1C/M QPX1C/M QPX2C/M QPX3C/M 14 TECHNICAL BULLETIN 8/18 GAS AND OIL SHUTOFF VALVES - FIGURE 1052 B131-2 EN DIMENSIONS 1/4" - 2" (DN8 - 50) Reduced Port A-Style Screwed End Valves with Quadra-Powr Spring Diaphragm Actuator, Full Rating and Reduced Rating (Equal to ASME Class 150) Valve Size inches 1/4 3/8 1/2 3/4 1 1-1/4 1-1/2 2 Valve Size DN 8 10 15 20 25 32 40 50 NPT A 2.94 2.94 3.44 3.81 4.50 4.44 4.56 5.00 NPT A 74.7 74.7 87.4 96.8 114.3 112.8 115.8 127.0 A-Style Reduced Port - Full Rating Approximate Dimensions - inches Weight B C D E lbs 7.75 13.72 0.43 11.26 91 7.75 13.72 0.43 11.26 91 7.75 13.72 0.50 11.26 91 7.75 13.88 0.69 11.26 92 7.75 14.36 0.88 11.26 93 7.75 14.49 1.00 11.26 93 8.98 15.19 1.23 13.35 101 8.98 15.37 1.50 13.35 103 A-Style Reduced Port - Full Rating Approximate Dimensions - mm B C D E 196.9 348.5 10.9 286.0 196.9 348.5 10.9 286.0 196.9 348.5 12.7 286.0 196.9 352.6 17.5 286.0 196.9 364.8 22.4 286.0 196.9 368.1 25.4 286.0 228.1 385.7 31.2 339.1 228.1 390.3 38.1 339.1 Weight kg 41 41 41 42 42 42 46 47 Actuator QPX1C/M QPX1C/M QPX1C/M QPX1C/M QPX1C/M QPX1C/M QPX2C/M QPX2C/M Actuator QPX1C/M QPX1C/M QPX1C/M QPX1C/M QPX1C/M QPX1C/M QPX2C/M QPX2C/M 15 TECHNICAL BULLETIN 8/18 B131-2 EN METSO DIMENSIONS 1/2" - 2" (DN15 - 50) Series 7000 ASME Class 150 and 300 Reduced Port and 1/2" - 1-1/2" (DN15 - 40) Series 9000 ASME Class 150 and 300 Full Port Valves with Valv-Powr Spring-Return Actuator C 1.390 ØD A B E F Valve Size inches A 1/2 4.25 3/4 4.63 1 5.00 1-1/2 6.50 2 7.00 Valve Size DN 15 20 25 40 50 A 107.95 117.60 127.00 165.10 177.80 Valve Size inches A 1/2 5.50 3/4 6.00 1 6.50 1-1/2 7.50 2 8.50 Valve Size DN 15 20 25 40 50 A 139.70 152.40 165.10 190.50 215.90 16 TECHNICAL BULLETIN 8/18 Series 7150 Reduced Port Approximate Dimensions - inches B C D E F 6.04 12.24 0.50 1.91 3.33 6.04 12.40 0.69 1.91 3.33 8.01 13.95 0.88 1.99 3.66 9.49 15.28 1.25 2.22 4.06 10.20 15.93 1.50 2.48 4.67 Series 7150 Reduced Port Approximate Dimensions - mm B C D E F 153.42 153.42 203.45 241.05 259.08 310.97 315.04 354.23 387.99 404.50 12.70 17.53 22.35 31.75 38.10 48.50 48.50 50.50 56.50 63.00 84.58 84.58 92.96 103.12 118.62 Series 7300 Reduced Port Approximate Dimensions - inches B C D E F 6.04 12.24 0.50 1.91 3.33 6.04 12.40 0.69 1.91 3.33 8.01 13.95 0.88 1.99 3.66 10.20 15.75 1.25 2.48 4.67 11.97 16.90 1.50 2.83 5.39 Series 7300 Reduced Port Approximate Dimensions - mm B C D E F 153.42 153.42 203.45 259.08 304.04 310.97 315.04 354.23 399.92 429.31 12.70 17.53 22.35 31.75 38.10 48.50 48.50 50.50 63.00 72.00 84.58 84.58 92.96 118.62 136.91 Weight lbs 12 13 19 26 34 Actuator VPVL100SR4/5 VPVL100SR4/5 VPVL200SR4/5 VPVL250SR4/5 VPVL300SR4/5 Valve Size kg 5 6 9 12 16 Actuator VPVL100SR4/5 VPVL100SR4/5 VPVL200SR4/5 VPVL250SR4/5 VPVL300SR4/5 Weight lbs 14 16 21 34 49 Actuator VPVL100SR4/5 VPVL100SR4/5 VPVL200SR4/5 VPVL250SR4/5 VPVL300SR4/5 Valve Size kg 6 7 10 16 22 Actuator VPVL100SR4/5 VPVL100SR4/5 VPVL200SR4/5 VPVL250SR4/5 VPVL300SR4/5 GAS AND OIL SHUTOFF VALVES - FIGURE 1052 B131-2 EN DIMENSIONS 1/2" - 2" (DN15 - 50) Series 7000 ASME Class 150 and 300 Reduced Port and 1/2" - 1-1/2" (DN15 - 40) Series 9000 ASME Class 150 and 300 Full Port Valves with Valv-Powr Spring-Return Actuator Valve Size inches A 1/2 4.25 3/4 4.63 1 5.00 1-1/2 6.50 2 7.00 Valve Size DN 15 20 25 40 50 A 107.95 117.60 127.00 165.10 177.80 Valve Size inches A 1/2 4.25 3/4 4.63 1 5.00 1-1/2 6.50 Valve Size DN 15 20 25 40 A 107.95 117.60 127.00 165.10 Valve Size inches A 1/2 5.50 3/4 6.00 1 6.50 1-1/2 7.50 Valve Size DN 15 20 25 40 A 193.70 152.40 165.10 190.50 Series 730S Reduced Port Approximate Dimensions - inches B C D E F 6.04 12.24 0.50 1.91 3.33 6.04 12.40 0.69 1.91 3.33 8.01 13.95 0.88 1.99 3.66 10.20 15.75 1.25 2.48 4.67 11.97 16.90 1.50 2.83 5.39 Series 730S Reduced Port Approximate Dimensions - mm B C D E F 153.42 153.42 203.45 259.08 304.04 310.97 315.04 354.23 399.92 429.31 12.70 17.53 22.35 31.75 38.10 48.50 48.50 50.50 63.00 72.00 84.58 84.58 92.96 118.62 136.91 Series 9150 Full Port Approximate Dimensions - inches B C D E F 6.04 12.24 0.50 1.91 3.33 8.01 13.95 0.88 1.99 3.66 8.01 14.08 1.00 1.99 3.66 10.20 16.19 1.50 2.48 4.67 Series 9150 Full Port Approximate Dimensions - mm B C D E F 153.42 203.45 203.45 259.08 310.97 354.23 357.53 411.28 12.70 22.35 25.40 38.10 48.50 50.50 50.50 63.00 84.58 92.96 92.96 118.62 Series 9300 Full Port Approximate Dimensions - inches B C D E F 6.04 12.24 0.50 1.91 3.33 8.01 13.95 0.88 1.99 3.66 9.49 14.59 1.00 2.22 4.06 11.97 16.90 1.50 2.83 5.39 Series 9300 Full Port Approximate Dimensions - mm B C D E F 153.42 203.45 241.05 304.04 310.97 354.23 370.48 429.31 12.70 22.35 25.40 38.10 48.50 50.50 56.50 72.00 84.58 92.96 103.12 136.91 Weight lbs 13 16 21 36 48 Actuator VPVL100SR4/5 VPVL100SR4/5 VPVL200SR4/5 VPVL300SR4/5 VPVL350SR4/5 Valve Size kg 6 7 10 16 22 Actuator VPVL100SR4/5 VPVL100SR4/5 VPVL200SR4/5 VPVL300SR4/5 VPVL350SR4/5 Weight lbs 12 21 24 37 Actuator VPVL100SR4/5 VPVL200SR4/5 VPVL200SR4/5 VPVL300SR4/5 Valve Size kg 5 10 11 17 Actuator VPVL100SR4/5 VPVL200SR4/5 VPVL200SR4/5 VPVL300SR4/5 Weight lbs 14 24 31 49 Actuator VPVL100SR4/5 VPVL200SR4/5 VPVL250SR4/5 VPVL350SR4/5 Valve Size kg 6 11 14 22 Actuator VPVL100SR4/5 VPVL200SR4/5 VPVL250SR4/5 VPVL350SR4/5 17 TECHNICAL BULLETIN 8/18 B131-2 EN METSO DIMENSIONS 1/2" - 2" (DN15 - 50) Series 7000 ASME Class 150 and 300 Reduced Port and 1/2" - 1-1/2" (DN15 - 40) Series 9000 ASME Class 150 and 300 Full Port Valves with Quadra-Powr Spring Diaphragm Actuator C A ØB 2.71 ØD E Valve Size inches A 1/2 4.25 3/4 4.63 1 5.00 1-1/2 6.50 2 7.00 Valve Size DN 15 20 25 40 50 A 107.95 117.60 127.00 165.10 177.80 Valve Size inches A 1/2 5.50 3/4 6.00 1 6.50 1-1/2 7.50 2 8.50 Valve Size DN 15 20 25 40 50 A 139.70 152.40 165.10 190.50 215.90 18 TECHNICAL BULLETIN 8/18 Series 7150 Reduced Port Approximate Dimensions - inches B C D E 7.75 13.72 0.50 11.26 7.75 13.88 0.69 11.26 7.75 14.36 0.88 11.26 8.98 15.19 1.25 13.35 8.98 15.37 1.50 13.35 Weight lbs 93 94 97 107 112 Series 7150 Reduced Port Approximate Dimensions - mm B C D E 196.85 196.85 196.85 228.09 228.09 348.50 352.57 364.82 385.75 390.32 12.70 17.53 22.35 31.75 38.10 286.00 286.00 286.00 339.09 339.09 Valve Size kg 42 43 44 49 51 Series 7300 Reduced Port Approximate Dimensions - inches B C D E 7.75 13.72 0.50 11.26 7.75 13.88 0.69 11.26 7.75 14.36 0.88 11.26 8.98 15.19 1.25 13.35 8.98 15.37 1.50 13.35 Weight lbs 95 97 99 112 118 Series 7300 Reduced Port Approximate Dimensions - mm B C D E 196.85 196.85 196.85 228.09 228.09 348.50 352.57 364.82 385.75 390.32 12.70 17.53 22.35 31.75 38.10 286.00 286.00 286.00 339.09 339.09 Valve Size kg 43 44 45 51 53 Actuator QPX1C/M QPX1C/M QPX1C/M QPX2C/M QPX2C/M Actuator QPX1C/M QPX1C/M QPX1C/M QPX2C/M QPX2C/M Actuator QPX1C/M QPX1C/M QPX1C/M QPX2C/M QPX2C/M Actuator QPX1C/M QPX1C/M QPX1C/M QPX2C/M QPX2C/M GAS AND OIL SHUTOFF VALVES - FIGURE 1052 B131-2 EN DIMENSIONS 1/2" - 2" (DN15 - 50) Series 7000 ASME Class 150 and 300 Reduced Port and 1/2" - 1-1/2" (DN15 - 40) Series 9000 ASME Class 150 and 300 Full Port Valves with Quadra-Powr Spring Diaphragm Actuator Valve Size inches 1/2 3/4 1 1-1/2 2 Valve Size DN 15 20 25 40 50 Valve Size inches 1/2 3/4 1 1-1/2 Valve Size DN 15 20 25 40 Valve Size inches 1/2 3/4 1 1-1/2 Valve Size DN 15 20 25 40 A 4.25 4.63 5.00 6.50 7.00 A 107.95 117.60 127.00 165.10 177.80 A 4.25 4.63 5.00 6.50 A 107.95 117.60 127.00 165.10 A 5.50 6.00 6.50 7.50 A 139.70 152.40 165.10 190.50 Series 730S Reduced Port Approximate Dimensions - inches B C D E 7.75 13.72 0.50 11.26 7.75 13.88 0.69 11.26 7.75 14.36 0.88 11.26 8.98 15.19 1.25 13.35 8.98 15.37 1.50 13.35 Weight lbs 94 97 99 113 117 Series 730S Reduced Port Approximate Dimensions - mm B C D E 196.85 196.85 196.85 228.09 228.09 348.50 352.57 364.82 385.75 390.32 12.70 17.53 22.35 31.75 38.10 286.00 286.00 286.00 339.09 339.09 Valve Size kg 43 44 45 51 53 Series 9150 Full Port Approximate Dimensions - inches B C D E 7.75 13.72 0.50 11.26 7.75 14.31 0.88 11.26 7.75 14.49 1.00 11.26 8.98 15.37 1.50 13.35 Weight lbs 93 99 102 113 Series 9150 Full Port Approximate Dimensions - mm B C D E 196.85 196.85 196.85 228.09 348.50 363.49 368.12 390.32 12.70 22.35 25.40 38.10 286.00 286.00 286.00 339.09 Valve Size kg 42 45 46 51 Series 9300 Full Port Approximate Dimensions - inches B C D E 7.75 13.72 0.50 11.26 7.75 14.31 0.88 11.26 7.75 14.49 1.00 11.26 8.98 15.37 1.50 13.35 Weight lbs 95 102 106 118 Series 9300 Full Port Approximate Dimensions - mm B C D E 196.85 196.85 196.85 228.09 348.50 363.49 368.12 390.32 12.70 22.35 25.40 38.10 286.00 286.00 286.00 339.09 Valve Size kg 43 46 48 53 Actuator QPX1C/M QPX1C/M QPX1C/M QPX2C/M QPX2C/M Actuator QPX1C/M QPX1C/M QPX1C/M QPX2C/M QPX2C/M Actuator QPX1C/M QPX1C/M QPX1C/M QPX2C/M Actuator QPX1C/M QPX1C/M QPX1C/M QPX2C/M Actuator QPX1C/M QPX1C/M QPX1C/M QPX2C/M Actuator QPX1C/M QPX1C/M QPX1C/M QPX2C/M 19 TECHNICAL BULLETIN 8/18 B131-2 EN METSO DIMENSIONS 3" - 6" (DN80 - 150) Series 7000 ASME Class 150 and 300 Reduced Port Valves with Valv-Powr Spring-Return Actuator 1.39 F C ØD Valve Size inches 3 4 6 A 8.00 9.00 10.50 Valve Size DN 80 100 150 A 203.20 228.60 266.70 Valve Size inches 3 4 6 A 11.12 12.00 15.88 Valve Size DN 80 100 150 A 282.45 304.80 403.35 A E B Series 7150 Reduced Port Approximate Dimensions - inches B C D E F 13.11 13.92 2.31 3.03 5.79 15.53 14.41 3.00 3.39 6.54 20.79 17.52 4.00 4.39 8.58 Series 7150 Reduced Port Approximate Dimensions - mm B C D E F 332.99 394.46 528.07 353.44 365.89 445.11 58.67 76.20 101.60 77.00 86.00 111.50 147.07 166.12 217.93 Series 7300 Reduced Port Approximate Dimensions - inches B C D E F 13.11 13.92 2.31 3.03 5.79 15.53 15.94 3.00 3.39 6.54 20.79 18.07 4.00 4.39 8.58 Series 7300 Reduced Port Approximate Dimensions - mm B C D E F 332.99 394.46 528.07 353.44 404.95 458.93 58.67 76.20 101.60 77.00 86.00 111.50 147.07 166.12 217.93 Weight lbs 74 112 232 Actuator VPVL400SR4/5 VPVL450SR4/5 VPVL600SR4/5 Valve Size kg 34 51 105 Actuator VPVL400SR4/5 VPVL450SR4/5 VPVL600SR4/5 Weight lbs 94 147 300 Actuator VPVL400SR4/5 VPVL450SR4/5 VPVL600SR4/5 Valve Size kg 43 67 136 Actuator VPVL400SR4/5 VPVL450SR4/5 VPVL600SR4/5 20 TECHNICAL BULLETIN 8/18 GAS AND OIL SHUTOFF VALVES - FIGURE 1052 DIMENSIONS 3" - 6" (DN80 - 150) Series 7000 ASME Class 150 and 300 Reduced Port Valves with Valv-Powr Spring-Return Actuator B131-2 EN Valve Size inches 3 4 6 A 8.00 9.00 10.50 Valve Size DN 80 100 150 A 203.20 228.60 266.70 Series 730S Reduced Port Approximate Dimensions - inches B C D E F 13.11 13.92 2.31 3.03 5.79 15.53 15.94 3.00 3.39 6.54 20.79 18.07 4.00 4.39 8.58 Series 730S Reduced Port Approximate Dimensions - mm B C D E F 332.99 394.46 528.07 353.44 404.95 458.93 58.67 76.20 101.60 77.00 86.00 111.50 147.07 166.12 217.93 Weight lbs 87 138 266 Actuator VPVL400SR4/5 VPVL450SR4/5 VPVL600SR4/5 Valve Size kg 40 63 121 Actuator VPVL400SR4/5 VPVL450SR4/5 VPVL600SR4/5 21 TECHNICAL BULLETIN 8/18 B131-2 EN METSO DIMENSIONS 3" - 6" (DN80 - 150) Series 7000 ASME Class 150 and 300 Reduced Port Valves with Quadra-Powr Spring Diaphragm Actuator ØB C 2.71 ØD A E Valve Size inches 3 4 6 Valve Size DN 80 100 150 Valve Size inches 3 4 6 Valve Size DN 80 100 150 A 8.00 9.00 10.50 A 203.20 228.60 266.70 A 11.12 12.00 15.88 A 282.45 304.80 403.35 Series 7150 Full Port Approximate Dimensions - inches B C D E 10.79 18.37 2.31 15.78 12.60 20.86 3.00 17.80 12.60 22.94 4.00 17.80 Series 7150 Full Port Approximate Dimensions - mm B C D E 274.07 320.04 320.04 466.69 529.91 582.74 58.67 76.20 101.60 400.81 452.12 452.12 Series 7300 Full Port Approximate Dimensions - inches B C D E 10.79 18.37 2.31 15.78 12.60 22.63 3.00 17.80 12.60 23.09 4.00 17.80 Series 7300 Full Port Approximate Dimensions - mm B C D E 274.07 320.04 320.04 466.69 574.84 586.55 58.67 76.20 101.60 400.81 452.12 452.12 Weight lbs 145 195 256 Valve Size kg 66 89 116 Weight lbs 165 229 326 Valve Size kg 75 104 148 Actuator QPX3C/M QPX4C/M QPX4C/M Actuator QPX3C/M QPX4C/M QPX4C/M Actuator QPX3C/M QPX4C/M QPX4C/M Actuator QPX3C/M QPX4C/M QPX4C/M 22 TECHNICAL BULLETIN 8/18 Valve Size inches 3 4 6 Valve Size DN 80 100 150 GAS AND OIL SHUTOFF VALVES - FIGURE 1052 DIMENSIONS 3" - 6" (DN80 - 150) Series 7000 ASME Class 150 and 300 Reduced Port Valves with Quadra-Powr Spring Diaphragm Actuator A 8.00 9.00 10.50 A 203.20 228.60 266.70 Series 730S Full Port Approximate Dimensions - inches B C D E 10.79 18.37 2.31 15.78 12.60 22.63 3.00 17.80 12.60 23.09 4.00 17.80 Series 730S Full Port Approximate Dimensions - mm B C D E 274.07 320.04 320.04 466.69 574.84 586.55 58.67 76.20 101.60 400.81 452.12 452.12 Weight lbs 158 220 292 Valve Size kg 72 100 133 B131-2 EN Actuator QPX3C/M QPX4C/M QPX4C/M Actuator QPX3C/M QPX4C/M QPX4C/M 23 TECHNICAL BULLETIN 8/18 B131-2 EN METSO DIMENSIONS 2" - 4" (DN50 - 100) Series 9000 ASME Class 150 and 300 Full Port Valves with Valv-Powr Spring-Return Actuator 1.39 F C ØD Valve Size inches A 3 7.00 4 8.00 6 9.00 Valve Size DN 80 100 150 A 177.80 203.20 228.60 Valve Size inches 3 4 6 A 8.50 11.12 12.00 Valve Size DN 80 100 150 A 215.90 282.45 304.80 A E B Series 9150 Full Port Approximate Dimensions - inches B C D E F 11.97 13.57 2.00 2.83 5.39 15.53 14.38 3.00 3.39 6.54 20.79 17.52 4.00 4.39 8.58 Series 9150 Full Port Approximate Dimensions - mm B C D E F 304.04 394.46 528.07 344.55 365.13 445.11 50.80 76.20 101.60 72.00 86.00 111.50 136.91 166.12 217.93 Series 9300 Full Port Approximate Dimensions - inches B C D E F 11.97 13.57 2.00 2.83 5.39 15.53 15.95 3.00 3.39 6.54 20.79 18.07 4.00 4.39 8.58 Series 9300 Full Port Approximate Dimensions - mm B C D E F 304.04 394.46 528.07 344.55 405.21 458.93 50.80 76.20 101.60 72.00 86.00 111.50 136.91 166.12 217.93 Weight lbs 59 98 197 Actuator VPVL350SR4/5 VPVL450SR4/5 VPVL600SR4/5 Valve Size kg 27 45 89 Actuator VPVL350SR4/5 VPVL450SR4/5 VPVL600SR4/5 Weight lbs 67 128 242 Actuator VPVL350SR4/5 VPVL450SR4/5 VPVL600SR4/5 Valve Size kg 30 58 110 Actuator VPVL350SR4/5 VPVL450SR4/5 VPVL600SR4/5 24 TECHNICAL BULLETIN 8/18 GAS AND OIL SHUTOFF VALVES - FIGURE 1052 B131-2 EN DIMENSIONS 8" (DN200) Series 7000 ASME Class 150 and 300 Reduced Port and 6" (DN150) Series 9000 ASME Class 150 and 300 Full Port Valves with Valv-Powr Spring-Return Actuator F 3.72 C A B ØD E Valve Size inches 8 8 A 11.50 11.50 Valve Size DN 200 200 A 292.10 292.10 Valve Size inches 8 8 A 16.50 16.50 Valve Size DN 200 200 A 419.10 419.10 Valve Size inches 8 8 A 11.50 11.50 Valve Size DN 200 200 A 292.10 292.10 Series 7150 Reduced Port Approximate Dimensions - inches B C D 23.82 19.68 6.00 27.95 19.68 6.00 E F 5.16 10.16 5.51 12.56 Series 7150 Reduced Port Approximate Dimensions - mm B C D E F 605.03 709.93 499.82 499.82 152.40 152.40 131.00 140.00 258.06 319.02 Series 7300 Reduced Port Approximate Dimensions - inches B C D E F 23.82 21.67 6.00 27.95 21.67 6.00 5.16 10.16 5.51 12.56 Series 7300 Reduced Port Approximate Dimensions - mm B C D E F 605.03 709.93 550.32 550.32 152.40 152.40 131.00 140.00 258.06 319.02 Series 730S Reduced Port Approximate Dimensions - inches B C D E F 23.82 21.67 6.00 27.95 21.67 6.00 5.16 10.16 5.51 12.56 Series 730S Reduced Port Approximate Dimensions - mm B C D E F 605.03 709.93 550.32 550.32 152.40 152.40 131.00 140.00 258.06 319.02 Weight lbs 415 471 Actuator VPVL650SR4/5 VPVL700SR4/5 Valve Size kg 188 214 Actuator VPVL650SR4/5 VPVL700SR4/5 Weight lbs 522 579 Actuator VPVL650SR4/5 VPVL700SR4/5 Valve Size kg 237 263 Actuator VPVL650SR4/5 VPVL700SR4/5 Weight lbs 509 566 Actuator VPVL650SR4/5 VPVL700SR4/5 Valve Size kg 231 257 Actuator VPVL650SR4/5 VPVL700SR4/5 25 TECHNICAL BULLETIN 8/18 B131-2 EN METSO DIMENSIONS 8" (DN200) Series 7000 ASME Class 150 and 300 Reduced Port and 6" (DN150) Series 9000 ASME Class 150 and 300 Full Port Valves with Valv-Powr Spring-Return Actuator Valve Size inches 6 6 A 10.50 10.50 Valve Size DN 150 150 A 266.70 266.70 Valve Size inches 6 6 A 15.88 15.88 Valve Size DN 150 150 A 403.35 403.35 Series 9150 Full Port Approximate Dimensions - inches B C D E F 23.82 19.69 6.00 27.95 19.69 6.00 5.16 10.16 5.51 12.56 B 605.03 709.93 Series 9150 Full Port Approximate Dimensions - mm C D E F 500.08 500.08 152.40 152.40 131.00 140.00 258.06 319.02 Series 9300 Full Port Approximate Dimensions - inches B C D E F 23.82 21.67 6.00 27.95 21.67 6.00 5.16 10.16 5.51 12.56 Series 9300 Full Port Approximate Dimensions - mm B C D E F 605.03 709.93 550.32 550.32 152.40 152.40 131.00 140.00 258.06 319.02 Weight lbs 409 465 Actuator VPVL650SR4/5 VPVL700SR4/5 Valve Size kg 185 211 Actuator VPVL650SR4/5 VPVL700SR4/5 Weight lbs 509 566 Actuator VPVL650SR4/5 VPVL700SR4/5 Valve Size kg 231 257 Actuator VPVL650SR4/5 VPVL700SR4/5 26 TECHNICAL BULLETIN 8/18 GAS AND OIL SHUTOFF VALVES - FIGURE 1052 B131-2 EN DIMENSIONS 8" (DN200) Series 7000 ASME Class 150 and 300 Reduced Port and 2" - 6" (DN50 - 150) Series 9000 ASME Class 150 and 300 Full Port Valves with Quadra-Powr Spring Diaphragm Actuator ØB E 3.50 C ØD A Valve Size inches 8 Valve Size DN 200 Valve Size inches 8 Valve Size DN 200 Valve Size inches 8 Valve Size DN 200 A 11.50 A 292.10 A 16.50 A 419.10 A 11.50 A 292.10 Series 7150 Reduced Port Approximate Dimensions - inches B C D E 15.04 26.44 6.00 22.07 Weight lbs 413 Series 7150 Reduced Port Approximate Dimensions - mm B C D E 382.02 671.55 152.40 560.58 Valve Size kg 187 Series 7300 Reduced Port Approximate Dimensions - inches B C D E 15.04 27.55 6.00 22.07 Weight lbs 513 Series 7300 Reduced Port Approximate Dimensions - mm B C D E 382.02 699.67 152.40 560.58 Valve Size kg 233 Series 730S Reduced Port Approximate Dimensions - inches B C D E 15.04 27.55 6.00 22.07 Weight lbs 500 Series 730S Reduced Port Approximate Dimensions - mm B C D E 382.02 699.67 152.40 560.58 Valve Size kg 227 Actuator QPX5C/M Actuator QPX5C/M Actuator QPX5C/M Actuator QPX5C/M Actuator QPX5C/M Actuator QPX5C/M 27 TECHNICAL BULLETIN 8/18 B131-2 EN METSO DIMENSIONS 8" (DN200) Series 7000 ASME Class 150 and 300 Reduced Port and 2" - 6" (DN50 - 150) Series 9000 ASME Class 150 and 300 Full Port Valves with Quadra-Powr Spring Diaphragm Actuator Valve Size inches 2 3 4 6 Valve Size DN 50 80 100 150 Valve Size inches 2 3 4 6 Valve Size DN 50 80 100 150 A 7.00 8.00 9.00 10.50 A 177.80 203.20 228.60 266.70 A 8.50 11.12 12.00 15.88 A 215.90 282.45 304.80 403.35 Series 9150 Full Port Approximate Dimensions - inches B C D E 10.79 18.02 2.00 15.78 12.60 20.83 3.00 17.80 12.60 22.94 4.00 17.80 15.04 26.45 6.00 22.07 Series 9150 Full Port Approximate Dimensions - mm B C D E 274.07 320.04 320.04 382.02 457.80 529.15 528.74 671.80 50.80 76.20 101.60 152.40 400.81 452.12 452.12 560.58 Series 9300 Full Port Approximate Dimensions - inches B C D E 10.79 18.02 2.00 15.78 12.60 22.12 3.00 17.80 12.60 23.61 4.00 17.80 15.04 27.55 6.00 22.07 Series 9300 Full Port Approximate Dimensions - mm B C D E 274.07 320.04 320.04 382.02 457.80 561.91 599.73 699.67 50.80 76.20 101.60 152.40 400.81 452.12 452.12 560.58 Weight lbs 135 181 221 407 Valve Size kg 61 82 100 185 Weight lbs 143 209 269 500 Valve Size kg 65 95 122 227 Actuator QPX3C/M QPX4C/M QPX4C/M QPX5C/M Actuator QPX3C/M QPX4C/M QPX4C/M QPX5C/M Actuator QPX3C/M QPX4C/M QPX4C/M QPX5C/M Actuator QPX3C/M QPX4C/M QPX4C/M QPX5C/M 28 TECHNICAL BULLETIN 8/18 GAS AND OIL SHUTOFF VALVES - FIGURE 1052 B131-2 EN HOW TO ORDER JAMESBURY GAS AND OIL SAFETY SHUTOFF AND VENT VALVES WARNING: As the use of the valve is application specific, a number of factors should be taken into account when selecting a valve for a given application. Therefore, some of the situations in which the valves are used are outside the scope of this manual. If you have any questions concerning the use, application or compatibility of the valve with the intended service, contact Metso for more information. The Gas and Oil Safety Shutoff and Vent Valve designation is made up of numbers and letters that describe all features of the available variations of these units. Coding is as follows: Example: 1052 7LXQVSA1 A 3" (DN 80) (7) ASME Class 150 reduced port flanged design with carbon steel body and stainless steel trim (L), Xtreme seats (X), QX4VB02SDM-MET52 limit switch with 1 fixed and 1 adjustable switch (Q), Valv-Powr VPVL actuator to operate at a minimum supply pressure of 60psi air supply (V), standard valve (S), standard solenoid valve (A) with a voltage supply of 120 VAC (1), spring-to-close (leave blank). Figure 1052 123456789 7 L X Q V S A 1 1 Size Code C D 1 2 inches 1/4 3/8 1/2 3/4 DN 8 10 15 20 3456 1 1-1/4 1-1/2 2 25 32 40 50 7890 3468 80 100 150 200 2 Valve Size Code Series Body Style 0 A1 Screwed End, Reduced Port (1/4" - 2") 1 A1 Screwed End, Reduced Port (1/4" - 2") 3 9F1 Screwed End, Reduced Port (1/4" - 2") 4 9F1 Screwed End, Reduced Port (1/4" - 2") C 4000 Screwed End, Reduced Port (1/2" - 2") D 4000 Screwed End, Reduced Port (1/2" - 2") Body Material Carbon Stainless Carbon Stainless Carbon Stainless E 4000 Socket Weld, Reduced Port (1/2" - 2") Carbon F 4000 Socket Weld, Reduced Port (1/2" - 2") Stainless G 4000 Screwed End, Full Port (1/2" - 1-1/2") Carbon H 4000 Screwed End, Full Port (1/2" - 1-1/2") Stainless J 4000 Socket Weld, Full Port (1/2" - 1-1/2") Carbon K 4000 Socket Weld, Full Port (1/2" - 1-1/2") Stainless L 7150 Flanged, Reduced Port, Class 150 (1/2" - 8") Carbon M 7150 Flanged, Reduced Port, Class 150 (1/2" - 8") Stainless N 9150 Flanged, Full Port, Class 150 (1/2" - 6") Carbon P 9150 Flanged, Full Port, Class 150 (1/2" - 6") Stainless Q 9300 Flanged, Full Port, Class 300 (1/2" - 6")* Carbon S 730S Flanged, Reduced Port, Class 300, Short (1/2" - 8")** Carbon T 9300 Flanged, Full Port, Class 300 (1/2" - 6")* Stainless V 730S Flanged, Reduced Port, Class 300, Short (1/2" - 8")** Stainless Y 7300 Flanged, Reduced Port, Class 300 (1/2" - 8") Carbon Z 7300 Flanged, Reduced Port, Class 300 (1/2" - 8") Stainless 1 Eliminator & A-Style use Xtreme seats only. * 2" and larger Rated to Class 150 ** 3" and larger Rated to Class 150 3 Valve Seat Material Code Seat Material X Xtreme T PTFE * 6" 9000 & 8" 7000 with Xtreme seats is only available with Valv-Powr actuator 4 Switch Description Code Description Switch Code 0 No Switch 1 2 SPDT switches, both fixed QX2VB02SDM 2 2 SPDT switches, 1 fixed, 1 adjustable (Mechanical Switches) P 2 DPDT switches, both fixed QX4VB02SDM-MET52 Q 2 DPDT switches, 1 fixed, 1 adjustable (Mechanical Switches) 6 2 SPDT switches, 1 fixed, 1 adjustable QX2HB02SDM 7 2 SPDT switches, both fixed (Longer Life Proximity Switches) 5 Actuator Code Actuator Type Q Quadra-Powr X, diaphragm, spring return * V Valv-Powr VPVL, rack and pinion, spring return ** * Ambient temperature from -20°F to 140°F ** Ambient temperature from -40°F to 140°F 6 Options Code Option S Standard B 4000 Series, Eliminator and A-Style (full rating) per ASME B31 valve per ASME B16.34 with Class 600 rating M Valve with Monel ball and stem R 4000 Series, Eliminator and A-Style (reduced rating) per ASME B31 valve per ASME B16.34 with Class 150 rating 7 Solenoid Code Solenoid A Standard (up to 125°F, 51°C) B High Temperature (up to 140°F, 60°C) C Manual reset D Stainless steel E Faster closing F High temperature & faster closing 29 TECHNICAL BULLETIN 8/18 B131-2 EN 8 Solenoid Voltage Code Voltage 1 120 VAC, 60 Hz 2 240 VAC, 60 Hz 4 24 VDC 9 Actuator Spring Direction Code Voltage -- Spring-to-Close V Spring-to-Open METSO 30 TECHNICAL BULLETIN 8/18 GAS AND OIL SHUTOFF VALVES - FIGURE 1052 B131-2 EN 31 TECHNICAL BULLETIN 8/18 Subject to change without prior notice. Metso Flow Control Inc. Europe, Vanha Porvoontie 229, P.O. Box 304, FI-01301 VANTAA, Finland. Tel. +358 20 483 150. Fax +358 20 483 151 http://contact.metso.com/ North America, 44 Bowditch Drive, P.O. Box 8044, Shrewsbury, MA 01545, USA. Tel. +1 508 852 0200. Fax +1 508 852 8172 South America, Av. Independéncia, 2500- Iporanga, 18087-101, Sorocaba-São Paulo, Brazil. Tel. +55 15 2102 9700. Fax +55 15 2102 9748/49 Asia Paci c, 238B Thomson Road, #17-01 Novena Square Tower B, Singapore 307685. Tel. +65 6511 1011. Fax +65 6250 0830 China, 11/F, China Youth Plaza, No.19 North Rd of East 3rd Ring Rd, Chaoyang District, Beijing 100020, China. Tel. +86 10 6566 6600. Fax +86 10 6566 2583 Middle East, Roundabout 8, Unit AB-07, P.O. Box 17175, Jebel Ali Freezone, Dubai, United Arab Emirates. Tel. +971 4 883 6974. Fax +971 4 883 6836 www.metso.com/valvesPDFium PDFium
