IPL, Husqvarna, 440 II, 2020-08, CHAIN SAWS
HUSI2020 AAaa 440II 2020-08
Husqvarna

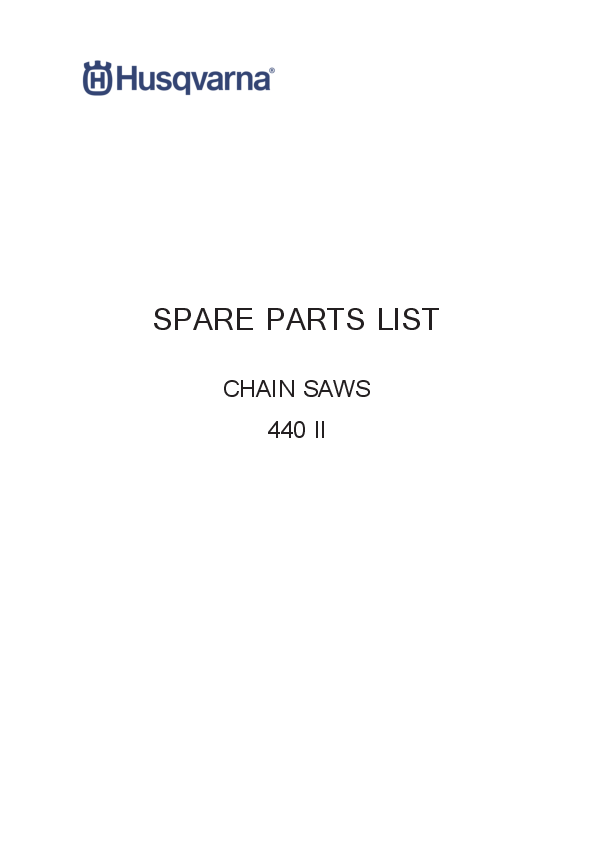

IPL, Husqvarna, 440 II, 2020-08 SPARE PARTS LIST
CHAIN SAWS 440 II
CHAIN BRAKE & CLUTCH COVER
440 II
CHAIN BRAKE & CLUTCH COVER
Ref
Part No
Description
1
544 19 49-05 CLUTCH COVER ASSY
2
504 54 28-01 COVER LID
3
544 30 60-01 BRAKE BAND ASSY
4
544 25 31-01 WEAR PROTECTION
5
503 85 52-01 GUIDE BUSHING
6
505 89 26-01 BRAKE SPRING
7
544 24 85-01 COVER LID
8
503 89 08-02 KNEE JOINT ASSY
9
503 89 29-01 PIN
10
735 31 08-20 E-CLIP
11
537 39 29-01 SCREW
12
537 34 72-01 GEAR ASSY
13
537 39 26-01 HEAT PROTECTOR
14
544 35 75-01 LABEL
15
503 21 70-10 SCREW CCRPANT
16
525 35 43-01 BEARING SLEEVE
17
505 32 10-01 WEAR PLATE
18
537 34 78-01 KNOB
Remark
440 II
QTY KIT 1 11 11 11 11 11 11 11 11 11 11 11 11 11 10 1 11 11 1
CHAIN BRAKE & CLUTCH COVER
440 II
CHAIN BRAKE & CLUTCH COVER
Ref
Part No
Description
1
501 38 82-01 CLUTCH COVER ASSY
2
735 31 08-20 E-CLIP
3
537 28 66-01 PAWL
4
540 06 33-01 CHAIN GUIDE
5
537 01 74-01 BEARING SLEEVE
6
503 89 08-02 KNEE JOINT ASSY
7
505 89 26-01 BRAKE SPRING
8
503 85 52-01 GUIDE BUSHING
9
544 24 85-01 COVER LID
10
503 21 70-10 SCREW CCRPANT
11
544 25 31-01 WEAR PROTECTION
12
544 30 60-01 BRAKE BAND ASSY
13
503 89 29-01 PIN
14
537 39 70-01 WORM SCREW
15
537 07 94-02 WORM WHEEL
16
740 48 07-02 O-RING
17
503 23 00-63 WASHER
18
544 37 68-01 LABEL
19
503 22 00-01 HEXAGON NUT
Remark
440 II
QTY KIT
11 11 11 11 11 11 11 11 71 11 11 11 11 11 11 11 11 1
CLUTCH & OIL PUMP
440 II
CLUTCH & OIL PUMP
Ref
Part No
Description
1
575 56 80-01 CLUTCH ASSY
2
574 71 88-01 CLUTCH SPRING
3
505 44 15-01 CLUTCH DRUM ASSY
4
503 53 92-01 NEEDLE BEARING
5
544 21 24-02 WORM GEAR
6
540 05 79-01 PUMP PISTON
7
537 15 48-01 PUMP CYLINDER
8
544 08 42-02 OIL HOSE
Remark
440 II
QTY KIT 1 21 1 13 1 1 1 1
CYLINDER COVER
440 II
CYLINDER COVER
Ref
Part No
Description
1
504 79 02-01 CYLINDER COVER ASSY
2
522 73 60-01 LABEL
3
503 89 47-01 SNAP LOCKING
Remark
440 II
QTY KIT 1 11 3
STARTER
440 II
STARTER
Ref
Part No
Description
1
504 59 70-02 STARTER ASSY
2
504 59 69-02 STARTER
3
537 28 32-01 SLEEVE
4
540 05 75-02 SPRING CASSETTE ASSY
5
503 21 28-10 SCREW CCRPANT
6
504 59 71-01 STARTER PULLEY
7
503 21 77-16 SCREW IHSCT
8
505 30 51-25 STARTER CORD
9
537 23 25-01 STARTER HANDLE
10
503 21 73-21 SCREW
11
504 54 68-05 LABEL
12
544 19 71-02 AIR CONDUCTOR
Remark
440 II
QTY KIT 1 11 1 1, 2 11 21 11 11 11 11 41 1 1
IGNITION SYSTEM
440 II
IGNITION SYSTEM
Ref
Part No
Description
1
580 27 98-01 FLYWHEEL ASSY
2
537 24 56-01 STARTER PAWL
3
501 81 99-03 SCREW
4
503 23 00-42 WASHER
5
529 27 11-01 SPRING
6
503 22 04-01 NUT
7
579 63 88-04 IGNITION MODULE
8
510 10 14-01 WIRING ASSY
9
503 20 02-20 SCREW IHSCFM
Remark
440 II
QTY KIT 1 21 21 21 21 1 1 1 2
MUFFLER
440 II
MUFFLER
Ref
Part No
Description
1
544 14 77-02 MUFFLER ASSY
2
579 75 33-01 SCREEN
3
501 32 31-01 HEAT DEFLECTOR
4
579 75 31-01 GASKET
5
725 53 68-55 SCREW IHSCM
6
724 12 87-59 SCREW CRPANM
7
504 79 40-01 GASKET
Remark
440 II
QTY KIT 1 11 1 17 2 11 1
CARBURETOR & AIR FILTER
440 II
CARBURETOR & AIR FILTER
Ref
Part No
Description
1
504 72 47-01 INSULATION WALL
2
504 72 45-01 INSULATION WALL
3
504 72 44-01 INSULATION WALL
4
504 20 12-01 INLET PIPE
5
503 20 02-16 SCREW IHSCFM
6
506 45 05-01 CARBURETTOR
7
544 28 44-01 THROTTLE ROD ASSY
8
544 97 64-02 FILTER HOLDER
9
544 39 26-01 SHACKLE
10
504 71 25-01 GUIDE
11
544 84 43-06 CONTROL
12
544 97 66-01 SCREW
13
503 20 02-40 SCREW IHSCFM
14
544 80 54-02 AIR FILTER
14
544 80 54-03 AIR FILTER
15
503 93 66-01 PURGE
16
544 40 19-01 HOSE
Remark
440 II
QTY KIT 1 11 11 1 4 1 1 1 18 1 1 1 11 3 1 1 1 1
CYLINDER PISTON
440 II
CYLINDER PISTON
Ref
Part No
Description
1
504 73 51-01 CYLINDER
2
502 62 50-07 PISTON ASSY
3
544 40 59-01 PISTON RING
4
544 40 60-01 PISTON PIN
5
737 44 10-00 SNAP RING
6
503 41 41-01 NEEDLE BEARING
7
544 39 60-01 GASKET
8
544 39 59-01 GASKET
9
725 53 33-55 SCREW IHSCM
10
503 23 51-11 SPARK PLUG
11
504 79 40-01 GASKET
Remark
440 II
QTY KIT 1 11 12 12 22 11 1 11 1 11 4 1 1
CRANKSHAFT
440 II
CRANKSHAFT
Ref
Part No
Description
1
525 60 46-01 CRANKSHAFT ASSY
2
544 24 87-02 BALL BEARING
3
544 25 12-01 SEALING
4
544 24 88-02 BALL BEARING
5
544 25 13-01 SEALING
6
503 41 41-01 NEEDLE BEARING
Remark
440 II
QTY KIT 1 11 11 11 11 1
CRANKCASE
440 II
CRANKCASE
Ref
Part No
Description
1
544 93 25-07 CRANKCASE ASSY
2
503 87 58-02 STIFFENING PLATE
3
503 87 54-02 BAR BOLT
4
537 33 46-01 BAR BOLT
5
544 03 64-01 BAR BOLT
6
503 24 09-05 NEEDLE ROLLER
7
530 02 61-19 CHECK VALVE
8
537 40 35-01 FILTER
9
544 08 33-01 OIL SCREEN
10
544 33 16-01 GUIDE PIN
11
503 86 93-01 SUPPORT
12
522 62 00-03 TANK CAP ASSY
13
589 24 11-01 GASKET
14
503 57 89-01 HOLDER
15
503 88 63-01 PIN
16
503 21 88-76 SCREW IHSCT
17
501 00 76-01 SUPPORT
18
503 21 51-03 SCREW IHSCT
19
544 28 46-01 CHAIN GUIDE PLATE
20
503 21 70-10 SCREW CCRPANT
21
544 28 65-01 SPIKE
22
503 21 75-20 SCREW IHSCFT
23
544 25 15-01 HAND GUARD
24
503 89 24-01 LOCK
25
503 89 30-01 SCREW
26
503 43 65-01 POSITION SPRING
Remark
440 II
QTY KIT 1 11 11 11 11 11 11 11 11 31 1 1 1 12 1 12 1 2 1 1 1 1 1 2 1 1 2 1
FUEL TANK
440 II
FUEL TANK
Ref
Part No
Description
1
544 19 38-05 FUEL TANK
2
503 21 28-10 SCREW CCRPANT
3
720 18 25-20 PARALLEL PIN
4
544 96 85-01 THROTTLE CONTROL
5
544 09 99-01 SPRING
6
579 23 94-01 THROTTLE LOCKOUT
7
544 28 49-01 HANDLE INSERT
8
544 12 86-01 FUEL HOSE
9
503 44 32-01 FUEL FILTER
10
577 53 51-01 RETURN HOSE
11
522 62 00-03 TANK CAP ASSY
12
589 24 11-01 GASKET
13
503 57 89-01 HOLDER
14
544 37 50-01 LABEL
15
501 00 76-01 SUPPORT
16
504 79 56-01 ANTIVIBRATION ELEMENT
17
721 12 63-39 GROOVED PIN
18
501 15 29-01 TANK VENT ASSY
Remark
440 II
QTY KIT 1 1 1 1 1 1 1 1 1 1 1 1 11 1 11 1 1 21 11 11
HANDLE
440 II
HANDLE
Ref
Part No
Description
1
544 28 40-01 FRONT HANDLE
2
503 21 88-76 SCREW IHSCT
3
503 89 83-01 ANTIVIBRATION ELEMENT
Remark
440 II
QTY KIT 1 3 1
CARBURETOR
440 II
CARBURETOR
Ref
Part No
Description
1
506 45 05-01 CARBURETTOR
2
503 48 11-01 PIECE
3
504 02 40-01 NOZZLE ASSY
4
503 53 56-01 PLUG WELCH
5
503 47 97-01 VALVE
6
537 02 03-01 SPRING
7
503 66 59-01 LEVER
8
503 48 00-01 PIN RETAINING SCREW
9
504 02 41-01 SCREW
10
505 53 52-01 HUB CAP
11
504 02 61-01 SHAFT ASSY
12
505 11 07-01 COLLAR
13
504 02 85-01 SPRING
14
504 02 75-01 VALVE
15
503 48 18-01 SCREW
16
504 02 67-01 CIRCLIP
17
504 02 62-01 SHAFT ASSY
18
540 05 37-01 LEVER
19
504 02 83-01 SPRING
20
504 02 63-01 LEVER
21
503 47 90-01 SCREW
22
504 02 74-01 VALVE
23
503 48 18-01 SCREW
24
504 02 60-01 SHAFT ASSY
25
504 02 84-01 SPRING
26
544 98 31-01 LEVER
27
503 47 90-01 SCREW
28
504 02 76-01 VALVE
29
503 47 92-01 SCREW
30
504 02 73-01 SCREW
31
504 90 92-01 SCREW
32
504 02 81-01 SCREW
33
504 02 43-01 GASKET
34
504 02 45-01 DIAPHRAGM
35
504 02 46-01 BODY
36
504 02 82-01 SCREW
37
504 02 50-01 STRAINER
38
504 02 56-01 DIAPHRAGM
39
504 02 57-01 GASKET
40
504 02 59-01 COVER
41
504 02 78-01 SCREW
42
504 02 86-01 GASKET KIT
Remark Zama C1T-EL41
440 II
QTY KIT 1 11 11 11 11 11 11 11 11 11 11 11 11 11 21 21 11 11 11 11 21 11 21 11 11 11 21 11 11 11 11 11 1 1, 42 1 1, 42 11 11 11 1 1, 42 1 1, 42 11 41 1
ACCESSORIES
440 II
ACCESSORIES
Ref
Part No
Description
1
501 69 17-01 COMBINATION WRENCH
Remark
440 II
QTY KIT 1
WINTER KIT
440 II
WINTER KIT
Ref
Part No
Description
1
505 45 04-01 WINTER KIT
2
503 21 70-16 SCREW CCRPANT
3
503 40 59-01 WINTER PLUG
Remark Winter kit Screw Winter plug
440 II
QTY KIT 1 21 11
Illustrated Parts List - IPL Update
Product Name(s)
H440 II
Description of change 1. Updated Oil Hose 544 08 42-02 added. Sealing knob removed to simplify assembly.
Comment
This change is fully exchangeable.
Introduced from
Serial number / Date
S/n 20201100385 S/n 20202600001
Remark
Valid for Oil hose, 544 08 42-02. For RoW Valid for Oil hose, 544 08 42-02. For North America
IPL updates
Page Title
Clutch & Oil pump
Ref. New part no. Name no
8
544 08 42-02 Oil hose
Excl. part no. Remark 544 08 42-01
1. Oil hose New version
Old version
544 08 42-02
544 08 42-01
Page 1 of 1
