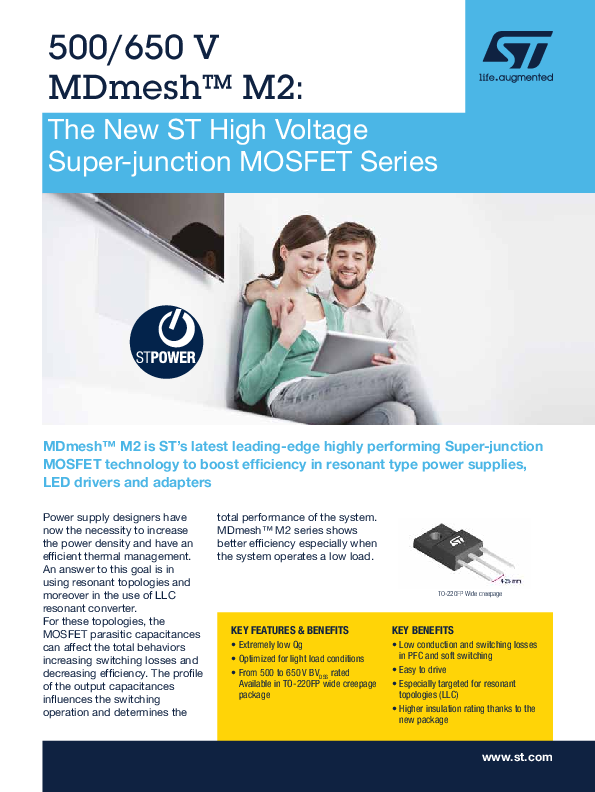

500/650 V MDmeshTM M2: The New ST High Voltage Super-junction MOSFET Series MDmeshTM M2 is ST's latest leading-edge highly performing Super-junction MOSFET technology to boost efficiency in resonant type power supplies, LED drivers and adapters Power supply designers have now the necessity to increase the power density and have an efficient thermal management. An answer to this goal is in using resonant topologies and moreover in the use of LLC resonant converter. For these topologies, the MOSFET parasitic capacitances can affect the total behaviors increasing switching losses and decreasing efficiency. The profile of the output capacitances influences the switching operation and determines the total performance of the system. MDmeshTM M2 series shows better efficiency especially when the system operates a low load. KEY FEATURES & BENEFITS · Extremely low Qg · Optimized for light load conditions · From 500 to 650 V BVDSS rated Available in TO-220FP wide creepage package TO-220FP Wide creepage KEY BENEFITS · Low conduction and switching losses in PFC and soft switching · Easy to drive · Especially targeted for resonant topologies (LLC) · Higher insulation rating thanks to the new package www.st.com 500/650 V MDmeshTM M2 | THE NEW ST HIGH VOLTAGE SUPER-JUNCTION MOSFET SERIES List of available power transistors belonging to MDmeshTM M2 series BVDSS (V) Max RDS(on) () Max ID (A) Qg (nC) Sales Type Packages 0.95 5 8.8 STx7N60M2 DPAK/IPAK/TO-220/TO-220FP 0.780/0.860* 5.5 8 STx9N60M2 IPAK/DPAK/TO-220/TO-220FP/PowerFLATTM 5x6 HV 0.600/0.66* 8 10 STx10N60M2 IPAK/DPAK/D2PAK/TO-220/TO-220FP/TO-220FP wide creepage/PowerFLATTM 5x6 HV 0.380/0.420* 11 16 STx13N60M2 IPAK/DPAK/D2PAK/TO-247/TO-220/TO-220FP/TO-220FP wide creepage/PowerFLATTM 5x6 HV 0.280/0.308* 13 600 V 0.190/ 0.210* 18 21 STx18N60M2 TO-220/TO-220FP/TO-220FP wide creepage/TO-247/D2PAK/PowerFLATTM 5x6 HV 29 STx24N60M2 TO-220/TO-220 FP/TO-220FP wide creepage/D2PAK/I2PAK/TO-247/PowerFLATTM 8x8 HV 0.150 24 39 STx28N60M2 TO-220/TO-220FP/TO-220FPNL/D2PAK/TO-247 0.125/0.135* 26 45 STx33N60M2 TO-220/ TO-220FP/TO-247/D2PAK/PowerFLATTM 8x8 HV 0.088 34 75 STx40N60M2 TO-220/ TO-220FP/ TO-220FP wide creepage/D2PAK/TO-247/TO-3PF 0.040 68 130 STW70N60M2 TO-247 1.8 2.3 5 STL3N65M2 PowerFLATTM 3.3 x 3.3 HV 1.35 4 9.8 STx6N65M2 DPAK/D2PAK/IPAK/TO-220/TO-220FP 1.25 4 6.5 STL8N65M2 PowerFLATTM 5x6 HV 1.15 5 9 STx7N65M2 DPAK/IPAK/TO-220/TO-220FP 1 4.5 8 STL10N65M2 PowerFLATTM 5x6 HV 0.9 5 10 STx9N65M2 DPAK/IPAK/TO-220/TO-220FP 0.82 5.5 11.5 STx9HN65M2 IPAK/TO-220FP 0.68 7 12.5 STx11N65M2 DPAK/IPAK/I2PAK/TO-220/TO-220FP 0.75 5 12.5 STL12HN65M2 PowerFLATTM 5x6 HV 650 V 0.5/0.75* 8/5* 16.5 STx12N65M2 DPAK/TO-220FP/PowerFLATTM 5x6 HV 0.43/0.475* 10/6.5* 17 STx13N65M2 DPAK/IPAK/TO-220/TO-220FP/TO-220FP ULTRA NARROW LEADS/PowerFLATTM 5x6 HV 0.36/0.395* 11/7.5* 19.5 STx16N65M2 DPAK/IPAK/TO-220/TO-220FP/PowerFLATTM 5x6 HV 0.33/0.365* 12/8* 20 STx18N65M2 I2PAK/TO-220/TO-220FP/TO-220FP ULTRA NARROW LEADS/PowerFLATTM 5x6 HV 0.23 16 29 STx24N65M2 D2PAK/TO-220/TO-220FP 0.18 20 35 STx28N65M2 D2PAK/TO-220/TO-220FP/TO-220FP ULTRA NARROW LEADS/TO-247 0.14 24 41.5 STx33N65M2 D2PAK/I2PAK/TO-220/TO-220FP 0.099 32 56 STx40N65M2 I2PAK/TO-220/TO-220FP/TO-247 0.062 49 93 STx56N65M2 TO-247/TO247-4 0.046 65 135 STW70N65M2 TO-247 Notes:* Value for PowerFLATTM package For a complete MDmeshTM M2 product portfolio visit www.st.com/mdmeshm2 or consult the APP ST-MOSFET-Finder Order code: FLMDMESHM250420 © STMicroelectronics - April 2020 - Printed in United Kingdom - All rights reserved The STMicroelectronics corporate logo is a registered trademark of the STMicroelectronics group of companies All other names are the property of their respective owners For more information on ST products and solutions, visit www.st.comAdobe PDF Library 15.0 Adobe InDesign 15.0 (Windows)
