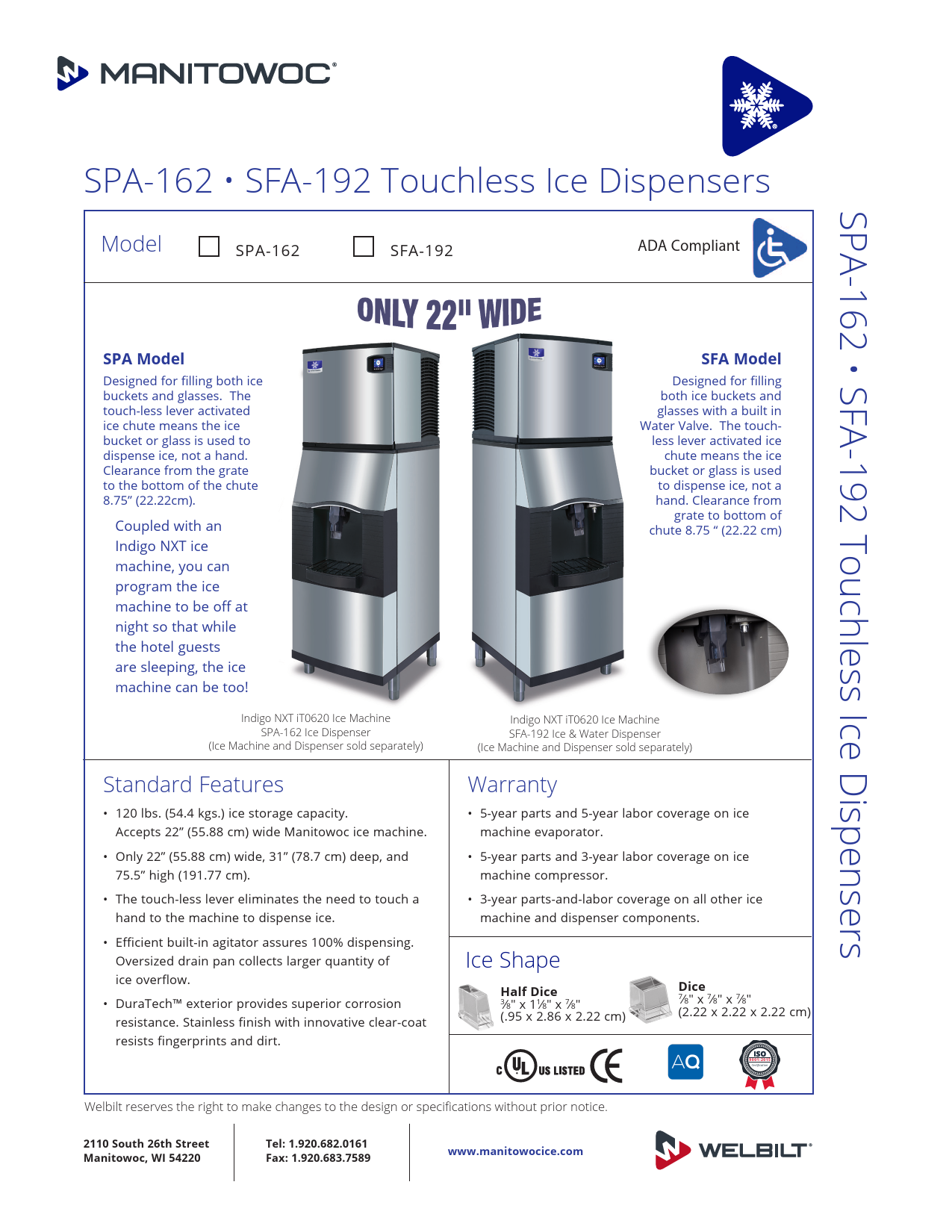

SPA-162 • SFA-192 Touchless Ice Dispensers - Welbilt UK
8 lug 2021 —
Extracted Text
SPA-162 � SFA-192 Touchless Ice Dispensers SPA-162 � SFA-192 Touchless Ice Dispensers Model SPA-162 SFA-192 ADA Compliant SPA Model Designed for filling both ice buckets and glasses. The touch-less lever activated ice chute means the ice bucket or glass is used to dispense ice, not a hand. Clearance from the grate to the bottom of the chute 8.75" (22.22cm). Coupled with an Indigo NXT ice machine, you can program the ice machine to be off at night so that while the hotel guests are sleeping, the ice machine can be too! Indigo NXT iT0620 Ice Machine SPA-162 Ice Dispenser (Ice Machine and Dispenser sold separately) Standard Features � 120 lbs. (54.4 kgs.) ice storage capacity. Accepts 22" (55.88 cm) wide Manitowoc ice machine. � Only 22" (55.88 cm) wide, 31" (78.7 cm) deep, and 75.5" high (191.77 cm). � The touch-less lever eliminates the need to touch a hand to the machine to dispense ice. � Efficient built-in agitator assures 100% dispensing. Oversized drain pan collects larger quantity of ice overflow. � DuraTechTM exterior provides superior corrosion resistance. Stainless finish with innovative clear-coat resists fingerprints and dirt. SFA Model Designed for filling both ice buckets and glasses with a built in Water Valve. The touchless lever activated ice chute means the ice bucket or glass is used to dispense ice, not a hand. Clearance from grate to bottom of chute 8.75 " (22.22 cm) Indigo NXT iT0620 Ice Machine SFA-192 Ice & Water Dispenser (Ice Machine and Dispenser sold separately) Warranty � 5-year parts and 5-year labor coverage on ice machine evaporator. � 5-year parts and 3-year labor coverage on ice machine compressor. � 3-year parts-and-labor coverage on all other ice machine and dispenser components. Ice Shape Half Dice 3/8" x 11/8" x 7/8" (.95 x 2.86 x 2.22 cm) Dice 7/8" x 7/8" x 7/8" (2.22 x 2.22 x 2.22 cm) 9001:2015 Certification Welbilt reserves the right to make changes to the design or specifications without prior notice. 2110 South 26th Street Manitowoc, WI 54220 Tel: 1.920.682.0161 Fax: 1.920.683.7589 www.manitowocice.com SPA-162 � SFA-192 Touchless Ice Dispensers �2018 Welbilt, Inc. 24.50" (62.23 cm) iT0420 or iT0520 Ice Machines SPA-160 or SFA-191 Ice Dispenser A B C D E F 21.50" (54.60 cm) 48.00" (121.92 cm) 31.19" (79.22 cm) F G H 6.00" (15.24 cm) 22.00" (55.88 cm) A Electrical Entrance (2) Options B 3/8" (0.95 cm) F.P.T. Water Condenser Inlet (water-cooled units) C 1/2" (1.27 cm) F.P.T. Water Condenser Outlet (water-cooled units) D 3/8" (0.95 cm) F.P.T. Ice Making Water Inlet E 1/2" (1.27 cm) F.P.T. Ice Making Water Drain F Dispenser Electrical Entrance G 1/2" (1.27 cm) F.P.T. Melting Tray Pan Drain Floor To Drain Distance = 13" (With 6" legs) H Water Inlet: SFA-191 only Installation Note - Dispensers have no minimum clearance, when installing an ice machine/ dispenser combination follow the clearance requirements for the ice machine being installed. Ice Machine Electric Note: Dispenser will accept single 22" wide ice machine. Ice machine ordered separately. Choose Dice or Half Dice cube size. Refer to ice machine specification sheet for electrical and complete AHRI standard ratings. Dispenser Electric: 115/60/1. (208-230/60/1 and 230/50/1 also available.) Maximum Circuit Fuse Size: 15.0 amps. HACR-type circuit breakers can be used in place of fuses. Dispenser Electrical Connection: 6' power cord, rated 125 VAC, 16-3 conductors with standard 3-prong, straight-blade, ground-type plug (NEMA configuration 5-15P). Motor: 1.6 amps maximum. Permanently lubricated. Service Access: Dispenser door removes easily to access components. Model Options: SPA-162 touch-less activated lever only SFA-192 touch-less activated lever with water valve Series iT0420 (115 volt) Ice Model Shape IDT-0420A dice IDT-0420W dice IYT-0420A half-dice IYT-0420W half-dice Ice Production 24 Hours 70�Air/50�F Water lbs. kgs. 90�Air/70�F Water lbs. kgs. 470 213 375 170 454 206 400 181 460 209 375 170 490 222 425 193 Series iT0620 (115 volt) Ice Model Shape IDT-0620A dice IDT-0620W dice IYT-0620A half-dice IYT-0620W half-dice Ice Production 24 Hours 70�Air/50�F Water 90�Air/70�F Water lbs. kgs. lbs. kgs. 560 254 450 204 530 240 450 204 575 261 465 211 560 254 485 220 LuminIce� II Virus and Bacteria Inhibitor controls viruses and bacteria inside the ice machine ArcticPure� Water Filters AR-Pre filters, dirt, rust and sediment. AR-10000 reduces: scale, chlorine taste, and odor. Ice looks and tastes better. 2110 South 26th Street Manitowoc, WI 54220 Tel: 1.920.682.0161 Fax: 1.920.683.7589 www.manitowocice.com 4358I 12/2020
