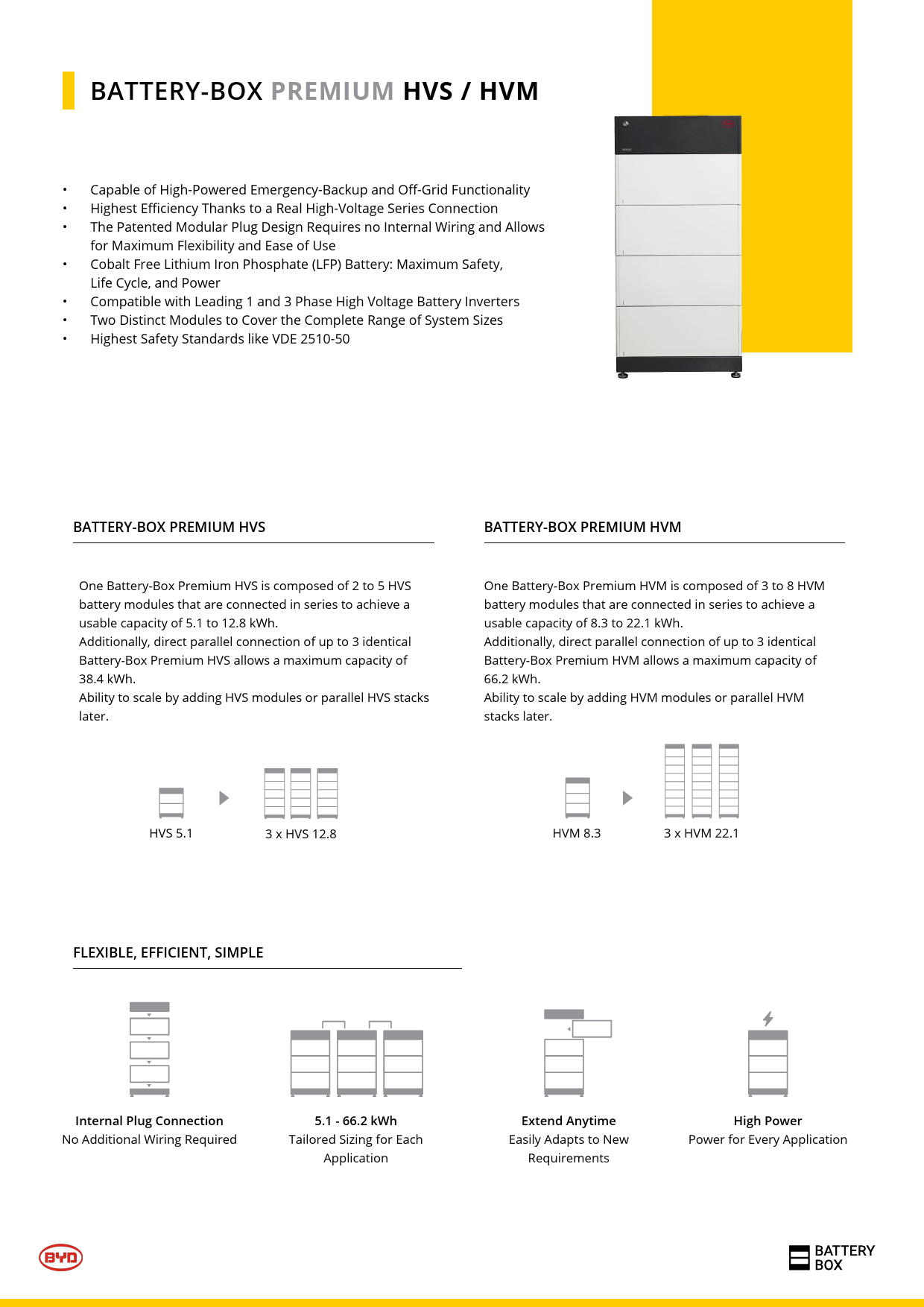

BATTERY-BOX PREMIUM HVS / HVM
One Battery-Box Premium HVM is composed of 3 to 8 HVM battery modules that are connected in series to achieve a usable capacity of 8.3 to 22.1 kWh.
bydbatterybox.com › uploads › downloadsBATTERY-BOX PREMIUM HVS / HVM
Extracted Text
BATTERY-BOX PREMIUM HVS / HVM � Capable of High-Powered Emergency-Backup and Off-Grid Functionality � Highest Efficiency Thanks to a Real High-Voltage Series Connection � The Patented Modular Plug Design Requires no Internal Wiring and Allows for Maximum Flexibility and Ease of Use � Cobalt Free Lithium Iron Phosphate (LFP) Battery: Maximum Safety, Life Cycle, and Power � Compatible with Leading 1 and 3 Phase High Voltage Battery Inverters � Two Distinct Modules to Cover the Complete Range of System Sizes � Highest Safety Standards like VDE 2510-50 BATTERY-BOX PREMIUM HVS One Battery-Box Premium HVS is composed of 2 to 5 HVS battery modules that are connected in series to achieve a usable capacity of 5.1 to 12.8 kWh. Additionally, direct parallel connection of up to 3 identical Battery-Box Premium HVS allows a maximum capacity of 38.4 kWh. Ability to scale by adding HVS modules or parallel HVS stacks later. BATTERY-BOX PREMIUM HVM One Battery-Box Premium HVM is composed of 3 to 8 HVM battery modules that are connected in series to achieve a usable capacity of 8.3 to 22.1 kWh. Additionally, direct parallel connection of up to 3 identical Battery-Box Premium HVM allows a maximum capacity of 66.2 kWh. Ability to scale by adding HVM modules or parallel HVM stacks later. HVS 5.1 3 x HVS 12.8 HVM 8.3 3 x HVM 22.1 FLEXIBLE, EFFICIENT, SIMPLE Internal Plug Connection No Additional Wiring Required 5.1 - 66.2 kWh Tailored Sizing for Each Application Extend Anytime Easily Adapts to New Requirements High Power Power for Every Application TECHNICAL PARAMETERS PREMIUM HVS / HVM Battery Module Number of Modules Usable Energy [1] Max Output Current [2] Peak Output Current [2] Nominal Voltage Operating Voltage Dimensions (H/W/D) Weight HVS 5.1 2 5.12 kWh 25 A 50 A, 3 s 204.8 V 160~230.4 V 762x585x298 mm 91 kg HVS 7.7 HVS 10.2 HVS (2.56 kWh, 102.4 V, 38 kg) 3 4 7.68 kWh 10.24 kWh 25 A 25 A 50 A, 3 s 50 A, 3 s 307.2 V 409.6 V 240~345.6 V 320~460.8 V 995x585x298 mm 1228x585x298 mm 129 kg 167 kg HVS 12.8 5 12.8 kWh 25 A 50 A, 3 s 512 V 400~576 V 1461x585x298 mm 205 kg Battery Module Number of Modules Usable Energy [1] Max Output Current [2] Peak Output Current [2] Nominal Voltage Operating Voltage Dimensions (H/W/D) Weight HVM 8.3 3 8.28 kWh 40 A 75 A, 3 s 153.6 V 120~172.8 V HVM 11.0 4 11.04 kWh 40 A 75 A, 3 s 204.8 V 160~230.4 V HVM 13.8 HVM 16.6 HVM (2.76 kWh, 51.2 V, 38 kg) 5 6 13.80 kWh 16.56 kWh 40 A 40 A 75 A, 3 s 75 A, 3 s 256 V 307.2 V 200~288 V 240~345.6 V HVM 19.3 7 19.32 kWh 40 A 75 A, 3 s 358.4 V 280~403.2 V HVM 22.1 8 22.08 kWh 40 A 75 A, 3 s 409.6 V 320~460.8 V 995 x 1228 x 1461 x 1694 x 1927 x 2160 x 585 x 298 mm 585 x 298 mm 585 x 298 mm 585 x 298 mm 585 x 298 mm 585 x 298 mm 129 kg 167 kg 205 kg 243 kg 281 kg 319 kg HVS & HVM Operating Temperature Battery Cell Technology Communication Enclosure Protection Rating Round-trip Efficiency Certification Applications Warranty [3] Compatible Inverters -10 �C to +50�C Lithium Iron Phosphate (cobalt-free) CAN/RS485 IP55 96% VDE2510-50 / IEC62619 / CEC / CE / UN38.3 ON Grid / ON Grid + Backup / OFF Grid 10 Years Refer to BYD Battery-Box Premium HVS / HVM Compatible Inverter List [1] DC Usable Energy, Test conditions: 100% DOD, 0.2C charge & discharge at + 25 �C. System Usable Energy may vary with different inverter brands [2] Power derating will occur between -10 �C and +5 �C [3] Conditions apply. Refer to BYD Battery-Box Premium Limited Warranty Letter. BYD Company Limited www.bydbatterybox.com Global Sales: batteryboxgrp@byd.com Global Service: bboxservice@byd.com Battery-Box EU Service Partner EFT-Systems GmbH www.eft-systems.de info@eft-systems.de Battery-Box AU Service Partner Alps Power Pty Ltd www.alpspower.com.au service@alpspower.com.au Battery-Box US Service www.bydbatterybox.com bboxusservice@byd.com V1.5
