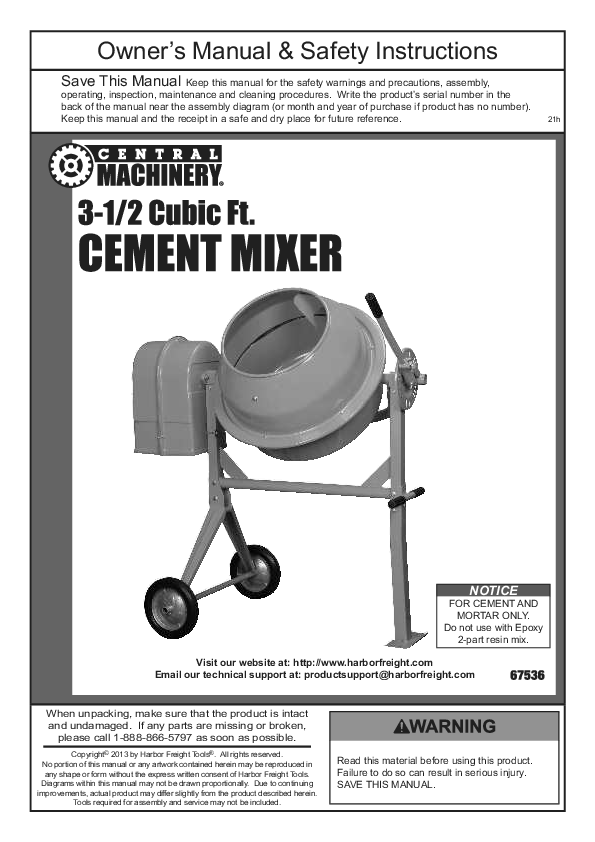

CENTRAL MACHINERY 67536 3-1/2Cubic Ft Cement Mixer Instruction Manual
File info: application/pdf · 20 pages · 1.86MB
Owner’s Manual & Safety Instructions
Harbor Freight Tools for a replacement. Page 4 For technical questions, please call 1-888-866-5797. ... Mixer Safety Warnings 1. FOR CEMENT AND MORTAR ONLY. DO NOT
Owner’s Manual & Safety Instructions
Harbor Freight Tools for a replacement. Page 4 For technical questions, please call 1-888-866-5797. Item 67536 ... Do not attempt to move the Cement Mixer when it is full and/or in operation. It is unsafe to move the mi…
Extracted Text
Owner's Manual & Safety Instructions
Save This Manual Keep this manual for the safety warnings and precautions, assembly,
operating, inspection, maintenance and cleaning procedures. Write the product's serial number in the
back of the manual near the assembly diagram (or month and year of purchase if product has no number).
Keep this manual and the receipt in a safe and dry place for future reference.
21h
NOTICE
FOR CEMENT AND MORTAR ONLY.
Do not use with Epoxy 2-part resin mix.
Visit our website at: http://www.harborfreight.com EmailVoisuitr oteucrhwneicbaslitseuaptp:ohrtttpa:t/:/wprwowdu.hcatrsbuoprpfroeritg@hht.acrobmorfreight.com Email our technical support at: productsupport@harborfreight.com
When unpacking, make sure that the product is intact and undamaged. If any parts are missing or broken,
please call 1-888-866-5797 as soon as possible.
Copyright� 2013 by Harbor Freight Tools�. All rights reserved. No portion of this manual or any artwork contained herein may be reproduced in any shape or form without the express written consent of Harbor Freight Tools. Diagrams within this manual may not be drawn proportionally. Due to continuing improvements, actual product may differ slightly from the product described herein.
Tools required for assembly and service may not be included.
Read this material before using this product. Failure to do so can result in serious injury. SAVE THIS MANUAL.
SAFETY
NOTICE
FOR CEMENT AND MORTAR ONLY. Do not use with Epoxy 2-part resin mix.
Table of Contents
Safety ......................................................... 3 Specifications ............................................. 6 Setup .......................................................... 7 Operation................................................... 12
Maintenance .............................................. 14 Parts Lists and Diagrams .......................... 16 Warranty .................................................... 20
WARNING SYMBOLS AND DEFINITIONS This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death.
Indicates a hazardous situation which, if not avoided, will result in death or serious injury.
Indicates a hazardous situation which, if not avoided, could result in death or serious injury.
Indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.
Addresses practices not related to personal injury.
SETUP
OPERATION
MAINTENANCE
Page 2
For technical questions, please call 1-888-866-5797.
Item 67536
SAFETY
SETUP
NOTICE
FOR CEMENT AND MORTAR ONLY. Do not use with Epoxy 2-part resin mix.
IMPORTANT SAFETY INFORMATION
WARNING Read all safety warnings and instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference.
Assembly Precautions
1. Assemble only according to these instructions. Improper assembly can create hazards.
2. Wear ANSI-approved safety goggles and heavy-duty work gloves during assembly.
3. Keep assembly area clean and well lit.
Use Precautions
4. Keep bystanders out of the area during assembly.
5. Do not assemble when tired or when under the influence of alcohol, drugs or medication.
6. Weight capacity and other product capabilities apply to properly and completely assembled product only.
1. This product is not a toy. Do not allow children to play with or near this item.
2. Use as intended only.
3. Inspect before every use; do not use if parts are loose or damaged.
4. Do not exceed listed weight capacity. Be aware of dynamic loading! Sudden load movement may briefly create excess load causing product failure.
5. DO NOT OVERLOAD MIXER. An overload can damage equipment.
6. DO NOT MOVE MIXER DURING OPERATION. The Mixer can tip over or motor could be damaged.
7. KEEP SAFE CLEARANCE AROUND MIXER. Keep all persons (except operator) at least six feet from Mixer during operation.
8. DON'T USE IN DANGEROUS ENVIRONMENT. Don't use power tools in damp or wet locations, or expose them to rain. Keep work area well lighted.
9. KEEP CHILDREN AWAY. All visitors should be kept safe distance from work area.
10. MAKE WORKSHOP KID PROOF with padlocks, master switches, or by removing starter keys.
11. DON'T FORCE TOOL. It will do the job better and safer at the rate for which it was designed.
12. USE RIGHT TOOL. Don't force tool or attachment to do a job for which it was not designed.
13. USE PROPER EXTENSION CORD. Make sure your extension cord is in good condition. When using an extension cord, be sure to use one heavy enough to carry the current your product will draw. An undersized cord will cause a drop
in line voltage resulting in loss of power and overheating. Table A shows the correct size to use depending on cord length and nameplate ampere rating. If in doubt, use the next heavier gauge. The smaller the gauge number, the heavier the cord.
14. WEAR PROPER APPAREL. Do not wear loose clothing, gloves, neckties, rings, bracelets, or other jewelry which may get caught in moving parts. Nonslip footwear is recommended. Wear protective hair covering to contain long hair.
15. SECURE WORK. Use clamps or a vise to hold work when practical. It's safer than using your hand and it frees both hands to operate tool.
16. DON'T OVERREACH. Keep proper footing and balance at all times.
17. MAINTAIN TOOLS WITH CARE. Keep tools sharp and clean for best and safest performance. Follow instructions for lubricating and changing accessories.
18. DISCONNECT TOOLS before servicing; when changing accessories, such as blades, bits, cutters, and the like.
19. REDUCE THE RISK OF UNINTENTIONAL STARTING. Make sure switch is in off position before plugging in.
20. NEVER STAND ON TOOL. Serious injury could occur if the tool is tipped or if the cutting tool is unintentionally contacted.
21. NEVER LEAVE TOOL RUNNING UNATTENDED. TURN POWER OFF. Don't leave tool until it comes to a complete stop.
22. Maintain product labels and nameplates. These carry important safety information. If unreadable or missing, contact Harbor Freight Tools for a replacement.
OPERATION
MAINTENANCE
Item 67536
For technical questions, please call 1-888-866-5797.
Page 3
SAFETY
SETUP
Grounding
NOTICE
FOR CEMENT AND MORTAR ONLY. Do not use with Epoxy 2-part resin mix.
TO PREVENT ELECTRIC SHOCK AND DEATH FROM INCORRECT GROUNDING WIRE CONNECTION: Check with a qualified electrician if you are in doubt as to whether the outlet is properly grounded. Do not modify the power cord plug provided with the tool. Never remove the grounding prong from the plug. Do not use the tool if the power cord or plug is damaged. If damaged, have it repaired by a service facility before use. If the plug will not fit the outlet, have a proper outlet installed by a qualified electrician.
Grounded Tools: Tools with Three Prong Plugs
2. The grounding prong in the plug is connected through the green wire inside the cord to the grounding system in the tool. The green wire in the cord must be the only wire connected to the tool's grounding system and must never be attached to an electrically "live" terminal. (See 3-Prong Plug and Outlet.)
3-Prong Plug and Outlet
1. Tools marked with "Grounding Required" have a three wire cord and three prong grounding plug. The plug must be connected to a properly grounded outlet. If the tool should electrically malfunction or break down, grounding provides a low resistance path to carry electricity away from the user, reducing the risk of electric shock. (See 3-Prong Plug and Outlet.)
3. The tool must be plugged into an appropriate outlet, properly installed and grounded in accordance with all codes and ordinances. The plug and outlet should look like those in the preceding illustration. (See 3-Prong Plug and Outlet.)
Extension Cords
1. Grounded tools require a three wire extension cord. Double Insulated tools can use either a two or three wire extension cord.
2. As the distance from the supply outlet increases, you must use a heavier gauge extension cord. Using extension cords with inadequately sized wire causes a serious drop in voltage, resulting in loss of power and possible tool damage. (See Table A.)
3. The smaller the gauge number of the wire, the greater the capacity of the cord. For example, a 14 gauge cord can carry a higher current than a 16 gauge cord. (See Table A.)
4. When using more than one extension cord to make up the total length, make sure each cord contains at least the minimum wire size required. (See Table A.)
5. If you are using one extension cord for more than one tool, add the nameplate amperes and use the sum to determine the required minimum cord size. (See Table A.)
6. If you are using an extension cord outdoors, make sure it is marked with the suffix "W-A" ("W" in Canada) to indicate it is acceptable for outdoor use.
7. Make sure the extension cord is properly wired and in good electrical condition. Always replace a damaged extension cord or have it repaired by a qualified electrician before using it.
8. Protect the extension cords from sharp objects, excessive heat, and damp or wet areas.
OPERATION
MAINTENANCE
Page 4
For technical questions, please call 1-888-866-5797.
Item 67536
SAFETY
SETUP
NOTICE
FOR CEMENT AND MORTAR ONLY. Do not use with Epoxy 2-part resin mix.
TABLE A: RECOMMENDED MINIMUM WIRE GAUGE FOR EXTENSION CORDS* (120/240 VOLT)
NAMEPLATE
AMPERES
(at full load)
EXTENSION CORD LENGTH
25� 50� 75� 100� 150�
0 � 2.0
18 18 18 18 16
2.1 � 3.4
18 18 18 16 14
3.5 � 5.0
18 18 16 14 12
5.1 � 7.0
18 16 14 12 12
7.1 � 12.0
18 14 12 10 -
a. Make a knot as shown below then connect the cords:
Extension Cord
Appliance Cord
2
1 b. Or, use a plug-receptacle retaining
12.1 � 16.0
14 12 10 -
-
16.1 � 20.0
12 10 -
-
-
* Based on limiting the line voltage drop to five volts at 150% of the rated amperes.
Connecting Cords To reduce the risk of the cords pulling apart during operation, do one of the following:
Mixer Safety Warnings
strap or connector designed to hold extension cords to appliance cords.
1. FOR CEMENT AND MORTAR ONLY. DO NOT USE WITH EPOXY 2-PART RESIN MIX.
WARNING! Do not attempt to move the Cement Mixer when it is full and/or in operation. It is unsafe to move the mixer while in this condition, and serious injury to personnel could occur.
5. Maintain labels and nameplates on the tool. These carry important safety information. If unreadable or missing, contact Harbor Freight Tools for a replacement.
6. Avoid unintentional starting. Prepare to begin work before turning on the tool.
2. When servicing use only identical replacement parts.
3. Only use safety equipment that has been approved by an appropriate standards agency. Unapproved safety equipment may not provide adequate protection. Eye protection must be ANSI-approved and breathing protection must be NIOSH-approved for the specific hazards in the work area.
4. Industrial applications must follow OSHA guidelines.
7. People with pacemakers should consult their physician(s) before use. Electromagnetic fields in close proximity to heart pacemaker could cause pacemaker interference or pacemaker failure.
8. The warnings, precautions, and instructions discussed in this instruction manual cannot cover all possible conditions and situations that may occur. It must be understood by the operator that common sense and caution are factors which cannot be built into this product, but must be supplied by the operator.
Vibration Safety
This tool vibrates during use. Repeated or long-term exposure to vibration may cause temporary or permanent physical injury, particularly to the hands, arms and shoulders. To reduce the risk of vibration-related injury:
1. Anyone using vibrating tools regularly or for an extended period should first be examined by a doctor and then have regular medical checkups to ensure medical problems are not being caused or worsened from use. Pregnant women
or people who have impaired blood circulation to the hand, past hand injuries, nervous system disorders, diabetes, or Raynaud's Disease should not use this tool. If you feel any medical or physical symptoms related to vibration (such as tingling, numbness, and white or blue fingers), seek medical advice as soon as possible.
2. Do not smoke during use. Nicotine reduces the blood supply to the hands and fingers, increasing the risk of vibration-related injury.
OPERATION
MAINTENANCE
Item 67536
For technical questions, please call 1-888-866-5797.
Page 5
SAFETY
NOTICE
FOR CEMENT AND MORTAR ONLY. Do not use with Epoxy 2-part resin mix.
3. Wear suitable gloves to reduce the vibration effects on the user.
4. Use tools with the lowest vibration when there is a choice between different processes.
5. Include vibration-free periods each day of work.
6. To reduce vibration, maintain the tool as explained in this manual. If any abnormal vibration occurs, stop use immediately.
Specifications
Electrical Input Motor No Load Speed Drum Speed Drum Capacity Drum Opening
120 VAC / 60 Hz / 3.5 A 1820 RPM 36 RPM 3-1/2 Cubic Feet 15"
SETUP
OPERATION
MAINTENANCE
Page 6
For technical questions, please call 1-888-866-5797.
Item 67536
SAFETY
SETUP
Setup - Before Use
NOTICE
FOR CEMENT AND MORTAR ONLY. Do not use with Epoxy 2-part resin mix.
Read the ENTIRE IMPORTANT SAFETY INFORMATION section at the beginning of this document including all text under subheadings therein before set up or use of this product.
TO PREVENT SERIOUS INJURY FROM ACCIDENTAL OPERATION: Turn the Power Switch of the tool off before performing any procedure in this section. Note: For additional information regarding the parts listed in the following pages, refer to the Assembly Diagram near the end of this manual.
Assembly/Mounting
1. Place the Stand (78) into the Wheel Bracket (4) so that bolt holes line up. See Figure A:.
Note: Set Stand on its side for easier assembly.
Hex Bolts (69), Flat Washer (55), Hex Flange Nut (5)
6. Attach Wheels (3) to Wheel Bracket and slide a Flat Washer (2) onto each end of Bracket axle. See Figure B:.
Wheel (3)
Wheel Bracket (4)
Wheel Bracket (4)
Stand (78)
Flat Washer (2)
Hex Bolts (70), Flat Washer (55), Hex Flange Nut (5)
Leg (79)
Figure A:
2. Fasten together using Hex Bolts (69, 70), Flat Washers (55) and Hex Flange Nuts (5). Tighten with a wrench (not included) until secure.
3. Insert Leg (79) into Stand so that bolt holes line up.
4. Fasten together using Hex Bolts (69, 70), Flat Washers (55) and Hex Flange Nuts (5). Tighten with a wrench until secure.
5. Place Stand upright.
Figure B: 7. Insert a Cotter Pin (1) through holes in each end
of the Bracket axle and bend the Cotter Pins over to secure the Wheels in place. See Figure C:.
Cotter Pin (1)
Figure C:
OPERATION
MAINTENANCE
Item 67536
For technical questions, please call 1-888-866-5797.
Page 7
NOTICE
FOR CEMENT AND MORTAR ONLY. Do not use with Epoxy 2-part resin mix.
8. With assistance, set the Lower Drum (48) with attached Arm (77) and Support Bracket Seats (35) into Stand assembly and align the bolt holes. See Figure D:.
Support Bracket Seat (35)
Lower Drum (48)
SAFETY
SETUP
OPERATION
Arm (77)
Figure D: 9. Fasten together using Hex Bolts (71), Flat
Washers (55), and Hex Flange Nuts (5). Tighten with wrench until secure. 10. Mount Handle Control Plate (41) to Support Bracket Seat (35) using Hex Bolts (28), Spring Washers (29) and Flat Washers (30). See Figure E:.
Control Handle (46)
Crushed Washer
Figure F:
Arm (77) nut (44) Coil Spring (43)
Hex Bolt(28), Washers (29 & 30)
Hex Bolt (42) Flat Washers (45)
Coil Spring
Figure G:
13. Attach Control Handle to Arm shaft with a Hex Bolt (42), two Flat Washers (45), and a nut (44). Then thread Locking Hex bolt into Hex stud to secure Coil Spring down.
Handle Control Plate (41)
Figure E:
11. Tighten to a point where the Arm (77) can still move.
12. Insert crushed washer then Coil Spring (43) into the Control Handle (46).
Flat Washers
Control Handle
Arm Shaft
Hex Bolt
Page 8
For technical questions, please call 1-888-866-5797.
Item 67536
MAINTENANCE
SAFETY
SETUP
NOTICE
FOR CEMENT AND MORTAR ONLY. Do not use with Epoxy 2-part resin mix.
14. Use gasket sealer (not included) to stick the Rubber Gasket (60) to the Upper Drum (59), making sure the holes in both align. The Gasket must be flat on the Upper Drum to ensure a proper seal.
15. Place the Upper Drum onto the Lower Drum (48), making sure the mounting holes align in both.
Upper Drum
18. Fasten tops of Mixer Blades to Upper Drum using Hex Bolts (54), Washers (55), Seal Gaskets (56), and Hex Flange Nuts (5). Fasten pointed ends of Mixer Blades to Lower Drum using Hex Bolts (61), Washers (55), Seal Gaskets (56), Rubber Gaskets (63) and Hex Flange Nuts (5).
19. Mount the Motor Hood (31) to the Support Bracket Seat (35) using Hex Bolts (28), Spring Washers (29) and Flat Washers (30).
Mounting Holes Lower Drum
20. Use Hex Bolts (73), Flat Washers (55), Spring Washers (29) and Clamp (72) to attach the Motor Bracket (6) to the Motor Hood. Tighten connections until secure. See Figure H:.
Flat Washer (55)
Motor Hood (31)
Spring Washer (29)
16. Insert a Screw (57) into each of six mounting holes. Fasten Drums together using Flat Washers (58) and Nuts (32).
17. Position each Mixer Blade (62) inside the assembled Drum with the pointed end facing downward. The V-shaped bend in the Blades should point in the direction of the Drum rotation (clockwise).
Hex Bolt (73)
Clamp (72)
Figure H:
Motor Cover (9)
Mixer Blade (62)
OPERATION
MAINTENANCE
Item 67536
For technical questions, please call 1-888-866-5797.
Page 9
SAFETY
SETUP
NOTICE
FOR CEMENT AND MORTAR ONLY. Do not use with Epoxy 2-part resin mix.
21. Clean the Pinion Shaft (36) of all protective material and other debris. Clean debris out of the Motor Pulley (66) hub.
22. Remove screw and Flat Washer (24) from Drum Pulley Hub.
Drum Pulley (26)
24. Place the Motor (65) onto the Motor Bracket.
25. Use Hex Bolts (28), Flat Washers (55) and Hex Flange Nuts (5) to secure the Motor to the Motor Bracket. Hand-tighten all four nuts since the motor will be adjusted forward or backward later.
26. Once the Drum Pulley is pushed in all the way, use a hex key (not included) to tighten the Screw on the side of the Pulley's hub.
Flat Washer (24)
27. Attach the V-Belt by placing it around the Motor Pulley (66) and then over the Drum Pulley. Using a flat-edge screwdriver (not included), push the Motor inward until the Motor Pulley is directly under the Drum Pulley. Tighten the Bolts securing the Motor to the Motor Bracket.
Flat Key (25)
23. Spread a few drops of lubricating oil on the Pinion Shaft and squarely push the Drum Pulley (26) onto the Shaft so that the groove in the Pulley engages the Flat Key (25). The Pulley should be flush with the step on the Pinion Shaft. Secure Drum Pulley with same screw and washer.
28. Slightly loosen the Hex Bolts (73) holding the Motor Bracket in place. Push the Motor downward until the V-Belt tension is tight. When proper V-Belt tension is achieved, tighten the Hex Bolts (see Belt Inspection and Tensioning on page 14).
29. Check if Motor and V-Belt turn correctly. Hand turn the Drum Pulley and verify that Motor Pulley and Drum Pulley do not rub against any other part. Adjust Motor location as needed.
30. Before mounting Motor Cover, unscrew four screws holding plastic backplate for the electrical switch.
Pinion Shaft (36)
Screw Backplate
Note: Do not hammer the Drum Pulley onto the Pinion Shaft. Doing so can damage the unit and possibly lead to a loose fitting V-Belt (68).
OPERATION
MAINTENANCE
Page 10
For technical questions, please call 1-888-866-5797.
Item 67536
SAFETY
NOTICE
FOR CEMENT AND MORTAR ONLY. Do not use with Epoxy 2-part resin mix.
31. Route wires through provided hole in the housing while using plastic wire clamps to secure wire. Attach green ground wires to provided ground bolt by securing with provided nut.
33. Wiring should be connected as shown in the below picture.
Green Wires
Attach Green Wires Here
Attach Black Wires Here
Attach Green Wires Here
32. Plug in white and black wires into open ports.
Attach White Wires Here
34. Mount the Motor Cover (9) to the Motor Hood (31) using three Hex Bolts (16) and Nuts (32).
CAUTION! Make sure that the power cord from the Motor to the Switch (13) does not come in contact with any moving parts.
35. Check all connections to verify that all screws, nuts, and bolts are securely tightened.
Attach Black Wires Here
Attach White Wires Here
SETUP
OPERATION
MAINTENANCE
Item 67536
For technical questions, please call 1-888-866-5797.
Page 11
SAFETY
NOTICE
FOR CEMENT AND MORTAR ONLY. Do not use with Epoxy 2-part resin mix.
Operating Instructions
Read the ENTIRE IMPORTANT SAFETY INFORMATION section at the beginning of this manual including all text under subheadings therein before set up or use of this product.
Functions
Motor Assembly
Upper Drum
Control Handle
Mixer Blade
Stand Wheel Bracket
Wheel
Lower Drum Arm
Leg
Handle Control
Plate
SETUP
OPERATION
MAINTENANCE
Page 12
For technical questions, please call 1-888-866-5797.
Item 67536
SAFETY
NOTICE
FOR CEMENT AND MORTAR ONLY. Do not use with Epoxy 2-part resin mix.
General Operating Instructions
1. Place the Cement Mixer on a solid, even surface.
WARNING! TO PREVENT SERIOUS INJURY: Do not attempt to move the Cement Mixer when it is full and/or in operation. Block the wheels with wheel chocks (not included).
2. Connect the Power Cord to an electric outlet (or properly rated grounded three prong extension cord).
3. Add material to the Drum. Typical maximum quantities include: 2 gallons water with 3 shovels of cement and 15 shovels aggregate rock (using a size 3 shovel, not included).
4. Adjust the Drum angle by pulling on the Control Handle. First, disengage the locking pins by pulling the Control Handle away from the drum and then pushing on the Handle until the desired angle is reached. Re-engage the locking pins.
5. Flip the switch to "ON" (I) position.
6. Once materials are mixed, tilt Drum and dump materials where needed. The materials are dumped while the Drum is rotating.
CAUTION! Never leave the Cement Mixer running while unattended. Do not turn Mixer off while full of cement.
7. When finished, flip the Switch to the "OFF" (O) position and disconnect the Power Cord.
8. Tilt the Drum angle as far down as possible to drain all fluids from Drum.
9. Clean, then store out of children's reach.
SETUP
OPERATION
MAINTENANCE
Item 67536
For technical questions, please call 1-888-866-5797.
Page 13
SAFETY
SETUP
NOTICE
FOR CEMENT AND MORTAR ONLY. Do not use with Epoxy 2-part resin mix.
Maintenance and Servicing
Procedures not specifically explained in this manual must be performed only by a qualified technician.
TO PREVENT SERIOUS INJURY FROM ACCIDENTAL OPERATION: Turn the Power Switch of the tool to its "OFF" position and unplug the tool from its electrical outlet before performing any inspection, maintenance, or cleaning procedures.
TO PREVENT SERIOUS INJURY FROM TOOL FAILURE: Do not use damaged equipment. If abnormal noise or vibration occurs, have the problem corrected before further use.
Cleaning, Maintenance, and Lubrication
1. BEFORE EACH USE, inspect the general condition of the tool. Check for:
� Loose hardware
� Misalignment or binding of moving parts
� Cracked or broken parts
� Damaged electrical wiring
� Damaged or cracked belts
� Any other condition that may affect its safe operation.
Belt Inspection and Tensioning
1. Retighten V-Belt after the first 25 hours of use. To test the tension, follow the steps below.
2. Remove Motor Cover.
3. Examine Belt for cracks, tears in the backing, or other damage. Replace Belt if damaged according to steps below:
a. Loosen the Motor Bracket bolts and slide the Bracket up as far as possible.
b. Slide the old Belt off of the Drum Pulley first, then remove it from the Motor Pulley.
c. Put the new belt around the Motor Pulley first, then around the Drum Pulley.
d. Move the Motor Bracket down until the Belt is properly tensioned according to the directions below. Tighten the Motor Bracket bolts.
4. Check and adjust belt tension according to the steps below:
2. AFTER USE, immediately wash out all debris from the inside and outside of the Cement Mixer. Scrub the inside of the Drum with a stiff, long handled bristle brush for best results. Wipe external surfaces of the tool with clean cloth.
3. DO NOT apply water in or around the Motor Cover.
4. PERIODICALLY recheck all fasteners and other connections for tightness.
5. WARNING! TO PREVENT SERIOUS INJURY: If the supply cord of this power tool is damaged, it must be replaced only by a qualified service technician.
Deflection Distance
a. Press on the center of the longest span on the belt with moderate finger pressure. Then measure the deflection distance, the distance that the belt moved. The belt should deflect anywhere from 1/2" to 3/4".
b. If the belt deflects too much, tighten belt by loosening the Motor Bracket bolts and moving the Motor away from the Drum Pulley slightly. Tighten Motor Bracket bolts and retest tension. If the belt is too long to be properly tensioned, it must be replaced.
c. If the belt deflects too little, loosen the Motor Bracket bolts and lift Bracket upward. Tighten Motor Bracket bolts and retest tension.
5. Replace Motor Cover.
OPERATION
MAINTENANCE
Page 14
For technical questions, please call 1-888-866-5797.
Item 67536
SAFETY
Troubleshooting
NOTICE
FOR CEMENT AND MORTAR ONLY. Do not use with Epoxy 2-part resin mix.
Problem
Tool will not start.
Possible Causes
1. Cord not connected.
2. No power at outlet.
3. Internal damage or wear. Tool operates slowly. Extension cord too long or
wire size too small.
Excessive noise or rattling.
Overheating/ Overloading.
1. Belt too loose (slipping) or too tight (bearing damage).
2. Internal damage or wear. 1. Running at 100% load
for extended time.
2. Blocked motor housing vents.
3. Motor being strained by long or small diameter extension cord.
Likely Solutions
1. Check that cord is plugged in. 2. Check power at outlet. If outlet is unpowered, turn
off tool and check circuit breaker. If breaker is tripped, make sure circuit has the correct capacity for the tool and circuit has no other loads. 3. Have technician service tool. Eliminate use of extension cord. If an extension cord is needed, use shorter/heavier gauge cord. See Extension Cords in GROUNDING section. 1. Properly tension belt.
2. Have technician service tool. 1. Allow for lighter no-load intervals.
2. Wear ANSI-approved safety goggles and NIOSHapproved dust mask/respirator while blowing dust out of motor using compressed air.
3. Eliminate use of extension cord. If an extension cord is needed, use one with the proper diameter for its length and load. See Extension Cords in GROUNDING section.
Follow all safety precautions whenever diagnosing or servicing the tool. Disconnect power supply before service.
SETUP
OPERATION
MAINTENANCE
Item 67536
For technical questions, please call 1-888-866-5797.
Page 15
SAFETY
SETUP
NOTICE
FOR CEMENT AND MORTAR ONLY. Do not use with Epoxy 2-part resin mix.
Parts Lists and Diagrams
Mixer Parts List
Part
Description
1 Cotter Pin 5�40
2 Flat Washer 27
3 Wheel
4 Wheel Bracket
5 Hex Flange Nut M8
6 Motor Bracket
7 Power Cord
8 Bushing M12
9 Motor Cover
10 Flat Washer 4
11 Cross-Head Screw M4�12
12 Screw ST3.5�9.5
13 Switch
14 Switch Panel
15 Overload Protection Device 5A
16 Hex Bolt M6�20
17 Spring Washer 4
18 Nut M4
19 Ground Wire
20 Serrated Washer
21 Terminal Box
22 Cross-Head Screw M6�15
23 Spring Washer 6
24 Flat Washer 6
25 Flat Key 5�35
26 Drum Pulley
27 Spacer
28 Hex Bolt M8�20
29 Spring Washer 8
30 Flat Washer 8
31 Motor Hood
32 Nut M6
33 Bearing 6002ZZ
34 Ring Shield �38
35 Support Bracket Seat
36 Pinion Shaft
37 Gear
38 Flat Key 5�12
39 Gear Cover
40 Cross-Head Screw M4�30
Qty
2 4 2 1 18 1 1 3 1 15 4 4 1 1 1 5 4 4 1 1 1 2 2 2 1 1 2 4 6 4 1 13 2 4 2 1 1 1 1 3
Part
Description
41 Handle Control Plate
42 Hex Bolt M10�70
43 Coil Spring
44 Nut M10
45 Flat Washer 10
46 Control Handle
47 Rubber Handle
48 Lower Drum
49 Bearing Cover, Upper
50 Bearing 6206Z
51 Shaft
52 Nut M8
53 Bearing Cover, Lower
54 Hex Bolt M8�16
55 Flat Washer 8
56 Seal Gasket
57 Bolt M6x16
58 Flat Washer 6
59 Upper Drum
60 Rubber Gasket
61 Hex Bolt M8�20
62 Mixer Blade
63 Rubber Gasket
64 Flat Key 5�25
65 Motor
66 Motor Pulley
67 Screw M6�12
68 V-Belt O-870
69 Hex Bolt M8�55
70 Hex Bolt M8�65
71 Hex Bolt M8�60
72 Clamp
73 Hex Bolt M8�70
74 Hex Bolt M14�30
75 Spring Washer 14
76 Flat Washer
77 Arm
78 Stand
79 Leg
Qty
1 1 1 1 2 1 3 1 1 2 1 6 1 10 26 18 8 8 1 1 2 2 2 1 1 1 1 1 2 4 2 1 2 1 1 1 1 1 1
OPERATION
MAINTENANCE
Page 16
For technical questions, please call 1-888-866-5797.
Item 67536
MAINTENANCE
OPERATION
SETUP
SAFETY
Page 17
55 54
56
47
54
For technical questions, please call 1-888-866-5797.
NOTICE
FOR CEMENT AND MORTAR ONLY. Do not use with Epoxy 2-part resin mix.
Mixer Assembly Diagram
55
56
59
57
58
32 48 49
42 45
16 14 15 1110
60
50
28 34
53
51
41
5
56 61
55
56
62
32
56
31
63 27
282930
26
1821 22232425
10 17
8
68
36 35 34 34
33 5
5
50
35 34
40
10 52 22 39
24 37
33
23
38
27
5 55
71
77
70 55
76
55 71 75 74
29 73 55 72
29 30
69
5 47
67
18 17
64 66 65
70 55
5 78
19 20
28
55
55 69
5
5
79
13
12 10 11 10 9 8
6
1 2
7
3 2
5
4
46 4544 43
Item 67536
2 3 21
SAFETY
Wiring Diagram
NOTICE
FOR CEMENT AND MORTAR ONLY. Do not use with Epoxy 2-part resin mix.
120V 60Hz
Thermal Protector
Capacitor
Leakage Protector
CK-1
CK-1
AC Contactor
Switch
Over Current Protector
SETUP
OPERATION
MAINTENANCE
Record Serial Number Here:
Note: If product has no serial number, record month and year of purchase instead.
Note: Some parts are listed and shown for illustration purposes only, and are not available individually as replacement parts. Specify UPC 193175329752 when ordering parts.
Page 18
For technical questions, please call 1-888-866-5797.
Item 67536
NOTICE
FOR CEMENT AND MORTAR ONLY. Do not use with Epoxy 2-part resin mix.
SAFETY
SETUP
OPERATION
MAINTENANCE
Item 67536
For technical questions, please call 1-888-866-5797.
Page 19
PLEASE READ THE FOLLOWING CAREFULLY
THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLY DIAGRAM IN THIS DOCUMENT AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR DISTRIBUTOR MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT HE OR SHE IS QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR SHE IS QUALIFIED TO REPLACE ANY PARTS OF THE PRODUCT. IN FACT, THE MANUFACTURER AND/OR DISTRIBUTOR EXPRESSLY STATES THAT ALL REPAIRS AND PARTS REPLACEMENTS SHOULD BE UNDERTAKEN BY CERTIFIED AND LICENSED TECHNICIANS, AND NOT BY THE BUYER. THE BUYER ASSUMES ALL RISK AND LIABILITY ARISING OUT OF HIS OR HER REPAIRS TO THE ORIGINAL PRODUCT OR REPLACEMENT PARTS THERETO, OR ARISING OUT OF HIS OR HER INSTALLATION OF REPLACEMENT PARTS THERETO.
LIMITED 90 DAY WARRANTY
Harbor Freight Tools Co. makes every effort to assure that its products meet high quality and durability standards, and warrants to the original purchaser that this product is free from defects in materials and workmanship for the period of 90 days from the date of purchase. This warranty does not apply to damage due directly or indirectly, to misuse, abuse, negligence or accidents, repairs or alterations outside our facilities, criminal activity, improper installation, normal wear and tear, or to lack of maintenance. We shall in no event be liable for death, injuries to persons or property, or for incidental, contingent, special or consequential damages arising from the use of our product. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation of exclusion may not apply to you. THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS. To take advantage of this warranty, the product or part must be returned to us with transportation charges prepaid. Proof of purchase date and an explanation of the complaint must accompany the merchandise. If our inspection verifies the defect, we will either repair or replace the product at our election or we may elect to refund the purchase price if we cannot readily and quickly provide you with a replacement. We will return repaired products at our expense, but if we determine there is no defect, or that the defect resulted from causes not within the scope of our warranty, then you must bear the cost of returning the product. This warranty gives you specific legal rights and you may also have other rights which vary from state to state.
26541 Agoura Road � Calabasas, CA 91302 � 1-888-866-5797
