1128-2128 programming-instructions

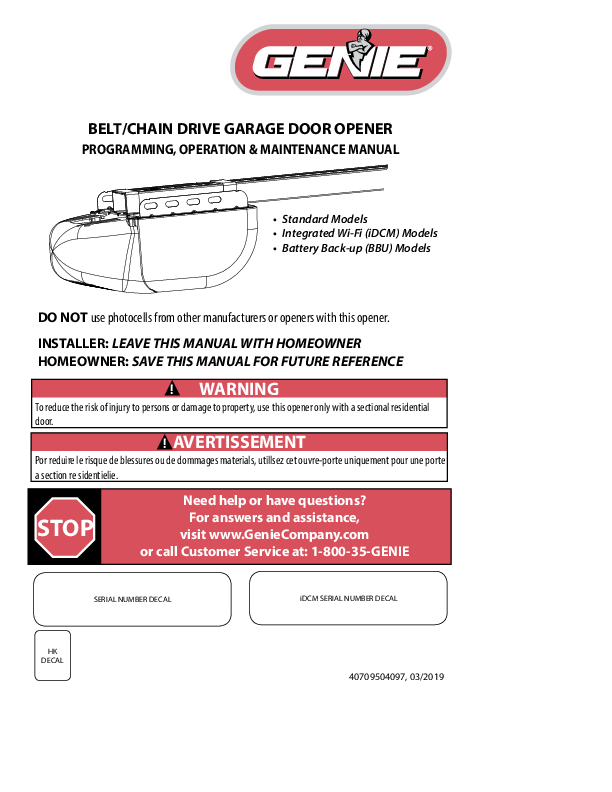

BELT/CHAIN DRIVE GARAGE DOOR OPENER
PROGRAMMING, OPERATION & MAINTENANCE MANUAL

· Standard Models · Integrated Wi-Fi (iDCM) Models · Battery Back-up (BBU) Models

DO NOT use photocells from other manufacturers or openers with this opener.

INSTALLER: LEAVE THIS MANUAL WITH HOMEOWNER HOMEOWNER: SAVE THIS MANUAL FOR FUTURE REFERENCE

! WARNING
To reduce the risk of injury to persons or damage to property, use this opener only with a sectional residential door.
! AVERTISSEMENT
Por reduire le risque de blessures ou de dommages materials, utillsez cet ouvre-porte uniquement pour une porte a section re sidentielie.

STOP

Need help or have questions? For answers and assistance, visit www.GenieCompany.com or call Customer Service at: 1-800-35-GENIE

SERIAL NUMBER DECAL

iDCM SERIAL NUMBER DECAL

HK DECAL

40709504097, 03/2019

INDEX

1 Safety & General Information

FCC Part 15.21 Statement:

Introduction .............................................................. 1 Changes or modi cations not expressly

Safety Noti cations................................................. 2 approved by the party responsible for

Important Installation Instructions................... 3 compliance could void the user's authority to

operate the equipment.

2 Standard & Safety Features ............................. 4
FCC / IC Statement:

Programming Information Introduction to opener programming ............ 5

This device complies with FCC Part 15 and Industry Canada licence-exempt RSS standard(s). Operation is subject to the

Setting the DOWN Limit ....................................... 6 following two conditions: (1) this device

Setting the UP Limit ............................................... 7 may not cause harmful interference, and

Setting the Force Control ..................................... 8 (2) this device must accept any interference

Contact Reverse Test .............................................. 8 received, including interference that may cause

Contact Reverse Adjustment .............................. 8 undesired operation of the device.

Remote Control Programming........................... 9 *Keypad Programming........................................10 *Homelink® & Car2U Programming®..............11 Aladdin Connect® Programming.............. 12-13 Battery Back-up Installation ..............................14

Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage,

et (2) l'utilisateur de l'appareil doit accepter

4 Maintenance

tout brouillage radioélectrique subi, même si le

Important Safety Instructions...........................16 brouillage est susceptible d'en compromettre le

Regular Maintenance Schedule .......................17 fonctionnement.

Door Inspection & Maintenance......................17

Remote Battery Replacement...........................18

Light Bulb Replacement .....................................18

5 Special Installation Information Force Adjustment Guide.....................................19 Clearing Remote Memory..................................20 Locating Safe-T-Beam® Pairs .............................21 Safe-T-Beam® Troubleshooting ........................21

6 Troubleshooting & LED Signals............. 22-23 7 Replacement Parts ...................................... 24-25 8 DASMA Information ................................... 26-27

* Abbreviated versions. See instructions that accompany Accessory or Vehicle owners manual for full details and instructions.

SAVE THESE INSTRUCTIONS READ AND FOLLOW ALL INSTRUCTIONS

1 INTRODUCTION
Thank you for purchasing a Genie® brand garage door opener. The leader in garage door opener technology.
Please take a moment to preview this manual to ensure that you have the proper tools and skill set to install a new garage door opener. Pay particular attention to all Safety Warnings, Cautions and Information. Remember, your garage door is the largest and heaviest moving object in your home.
DO NOT RETURN PRODUCT TO STORE If you require assistance or have any questions, a knowledgeable Genie Service Technician is just a phone call away at: 1-800-35-GENIE (1-800-354-3643) Or visit our website at:
www.GenieCompany.com

Before setting up your new garage door opener, please note the model plate on the opener and serial number(s) located on the front of this manual. This information will be necessary should you seek technical support via our website, customer support department or local servicing Genie® dealer.

} Spanish language manuals available at:
Idioma alternativo manuales disponibles en:

www.geniecompany.com

For patent information go to www.geniecompany.com/patents
©2019 GMI Holdings, Inc d/b/a The Genie Company, the Genie logo, Intellicode, Safe-T-Reverse, SmartSet, Sure-Lock, Door Detect, and Safe-TBeam, are trademarks of The Genie Company. All other trademarks are property of their rightful owners. Consistent with our policy of continuing product improvements, we reserve the right to change product speci cations without prior notice or obligations. HomeLink is a registered trademark of Gentex Corporation. Car2U is a registered trademark of Lear Corporation.
1

SAFETY NOTIFICATIONS & INSTRUCTIONS
OVERVIEW OF POTENTIAL HAZARDS READ THIS SAFETY INFORMATION
Garage doors are large, heavy objects that move with the help of springs under high tension and electric motors. Since moving objects, springs under tension, and electric motors can cause injuries, your safety and the safety of others depend on you reading the information in this manual. If you have questions or do not understand the information presented, call your nearest trained door system technician or visit our website at www.geniecompany.com
CONVENTIONS USED IN THESE INSTRUCTIONS The following safety alert symbol and signal words are used throughout this manual to call attention to and identify di erent levels of hazards and special instructions.
This is the safety alert symbol. This symbol alerts you to potential hazards that can kill or hurt you and others. All safety messages will follow the safety alert symbol and the word "DANGER", "WARNING", or "CAUTION".
· DANGER indicates an imminently hazardous situation which, if NOT avoided, will result in death or serious injury. · WARNING indicates a potentially hazardous situation which, if NOT avoided, could result in death or serious injury. · CAUTION indicates a potentially hazardous situation which, if NOT avoided, may result in injury or property damage. · The word NOTE is used to indicate important steps to be followed or important considerations.
Tous les messages concernant la sécurité seront indiqués après un symbole d'alerte de la sécurité et l'une des mentions suivantes "DANGER", "AVERTISSEMENT" ou "MISE EN GARDE".
· DANGER signale une situation dangereuse imminente qui, si elle n'est pas évitée, risque d'entraîner des blessures graves, voire mortelles. · AVERTISSEMENT signale une situation potentiellement dangereuse qui, si elle n'est pas évitée, risque d'entraîner la mort ou des blessures
graves. · MISE EN GARDE signale une situation potentiellement dangereuse qui, si elle n'est pas évitée, risque d'entraîner des blessures ou des
dommages matériels. · Le terme REMARQUE est utilisé pour signaler les étapes importantes à suivre ou d'importants éléments à prendre en considération.

IMPORTANT SAFETY INSTRUCTIONS

POTENTIAL HAZARD
MOVING DOOR
ELECTRICAL SHOCK

EFFECT
! WARNING
Could result in Serious Injury of Death
! WARNING
Could cause Serious Injury or Death

PREVENTION
Do Not operate unless the doorway is in sight and free of obstructions. Keep people clear of opening while door is moving. Do Not allow children to play with the door opener. Do Not change opener control to momentary contact unless an external reversing means is installed. Do Not operate a door that jambs or one that has a broken spring.
Turn o electrical power before removing opener cover. When replacing the cover, make sure wires are not pinched or near moving parts. Opener must be electrically grounded.

HIGH SPRING TENSION

! WARNING
Could cause Serious Injury or Death

Do Not try to remove, repair or adjust springs or anything to which door spring parts are fastened such as wood block, steel brackets, cables or any other structure or like item. Repairs and adjustments must be made by a trained service representative using proper tools and instructions.

IMPORTANTES CONSIGNES DE SÉCURITÉ

DANGER POTENTIEL
PORTE EN MOUVEMENT
CHOC ÉLECTRIQUE

EFFET
! AVERTISSEMENT
Pourrait entraîner des blessures graves voire la mort
! AVERTISSEMENT
Pourrait entraîner des blessures graves voire la mort

PRÉVENTION
Utiliser uniquement si la porte est en vue et libre de tout obstacle. Ne laisser personne se tenir dans l'ouverture de la porte pendant qu'elle est en mouvement. Ne pas permettre aux enfants de jouer avec l'opérateur de la porte. Ne pas modi er la commande de l'opérateur à contact momentané à moins qu'un moyen d'inversion externe soit installé. Ne pas faire fonctionner une porte qui bloque ou dont le ressort est cassé.
Couper le courant avant d'enlever le couvercle de l'opérateur. Lorsque le couvercle doit être remplacé, s'assurer que les ls ne sont ni coincés ni près des pièces mobiles. L'opérateur doit être correctement mis à la terre.

TENSION ÉLEVÉE RESSORT

! AVERTISSEMENT

Ne pas essayer d'enlever, réparer ni ajuster les ressorts ou toute autre pièce à laquelle le ressort de la porte est attaché, y

Pourrait entraîner des

compris blocs de bois, supports en acier, câbles ou autres articles

blessures graves voire la mort semblables.

Les réparations et les réglages doivent être e ectués par

technicien quali é qui se sert d'outils appropriés et qui respecte les

instructions.

IMPORTANT INSTALLATION INSTRUCTIONS
! WARNING
TO REDUCE THE RISK OF SEVERE INJURY OR
DEATH
READ AND FOLLOW ALL SAFETY, INSTALLATION AND OPERATION INSTRUCTIONS. If you have any questions or do not understand an instruction, call The Genie Company. · DO NOT install opener on an improperly balanced door. An improperly balanced door could cause severe injury. Repairs
and adjustments to cables, spring assembly and other hardware must be made by a trained service person using proper tools and instructions. · Remove all ropes, and disable all locks connected to the door before installing opener. · Where possible, install the door opener 7 feet or more above the oor. For products having an emergency release, mount the emergency release within reach, but at least 6 feet above the oor and avoiding contact with vehicles to avoid accidental release. DO NOT use emergency release cord to pull door. · DO NOT connect the opener to the source of power until instructed to do so. · Locate the wall control button: A) Within sight of door. B) At a minimum height of 5 feet, so small children cannot reach it. C) Away from all moving parts of the door. · Install the entrapment WARNING label next to the wall button or console, in a prominent location. Install the emergency release handle on the emergency release cord. · The opener must reverse when the door contacts a 1-1/2 inch high object on the oor at the center of the doorway. This is about the size of a 2" x 4" board laid at.
IMPORTANTES INSTRUCTIONS D'INSTALLATION
! AVERTISSEMENT
POUR RÉDUIRE LES RISQUES DE BLESSURES GRAVES VOIRE MORTELLES
LIRE ET SUIVRE ATTENTIVEMENT TOUTES LES INSTRUCTIONS D'INSTALLATION ET DE FONCTIONNEMENT AINSI QUE TOUTES LES CONSIGNES DE SÉCURITÉ. Si vous avez des questions ou si vous ne comprenez pas une instruction, veuillez contacter directement The Genie Company. · NE PAS installer l'opérateur sur une porte mal équilibrée. Celle-ci pourrait entraîner de graves blessures. Les réparations
et les réglages des câbles, ensembles de ressort ou tout autre article de quincaillerie doivent être e ectués par un professionnel qui se sert d'outils appropriés et qui respecte les instructions. · Enlever toutes les cordes et désactiver toutes les verrous de la porte avant l'installer l'opérateur. · Dans la mesure du possible, installer l'ouvre-porte à 2,1 m ou plus au-dessus du sol. Pour les produits dotés d'un cordon de déclenchement d'urgence, installer le déclenchement d'urgence mais au moins à 1,8 m au-dessus du sol en évitant tout contact avec les véhicules pour éviter qu'ils ne soient déclenchés accidentellement. NE PAS utiliser d'urgence cordon de libération pour ouvrir ou fermer la porte. · NE PAS connecter l'opérateur à la source d'alimentation tant que l'instruction n'est pas donnée. · Repérer la console murale: A) En vue de la porte. B) À une hauteur minimale de 1,5 m a n que les jeunes enfants ne puissent pas l'atteindre. C) Loin de toutes pièces mobiles de la porte du garage. · Placer l'étiquette d'AVERTISSEMENT en cas de coinçage à proximité du bouton mural ou de la console de manière à ce qu'elle soit bien en évidence. Installer la poignée du cordon de déclenchement d'urgence. · L'opérateur doit s'inverser lorsque la porte entre en contact avec un objet d'une hauteur de 3,8 cm placé sur le sol, au centre de l'ouverture de la porte. Ceci équivaut environ à une planche de 5 x 10 cm posée à plat sur le sol.

! WARNING
Opener is equipped with grounded electrical plug for your protection, and only ts grounded electrical outlets. DO NOT alter plug in any way! If your have no grounded outlets, have one installed by a licensed electrician. Opener must be properly grounded to prevent personal injury and equipment damage. NEVER USE AN EXTENSION CORD! Check local building codes for any requirement that you must have a permanent hard-wired connection. Permanent hard-wired connections must be performed by a licensed electrician using proper tools and instructions.

! AVERTISSEMENT
L'opérateur, qui est équipé d'une prise électrique mise à la terre pour votre protection est compatible uniquement avec des prises électriques mises à la terre. NE PAS modi er la che dune quelconque manière. Si vous n'avez pas de prises mises à la terre, faites-en installer par un électricien agréé. L'opérateur doit être correctement mis à la terre pour éviter les blessures corporelles et des dommages matériels. NE JAMAIS UTILISER DE RALLONGE! Véri ez les codes locaux des bâtiments pour connexions câblées permanente. Les connexions câblées permanentes doivent être e ectuées par un électricien agréé qui se servira d'outils appropriés et respectera les consignes.
3

2 SAFETY & STANDARD FEATURES

8 45

Vehicle Compatible

1. Safe-T-Beam® (STB) Non-Contact Reversing System: · Places an infrared beam across the door opening. · Only a ects the DOWN travel of the door. · Stops an open door from closing or reverses a door while in the down travel. · Reversing system can be overridden with constant pressure on the wired wall console only. · The door will stop and reverse to the full open position if beam is obstructed. · Self-diagnostic LEDs on STBs and Powerhead alert to operational issues (See Locating Safe-T-Beam® Pairs & Troubleshooting section in this manual for more information).
2. Contact Reversing System: · Automatically reverses a closing door upon contact with an obstruction (Force Control)
3. Manual Emergency Release pull handle & cord: · Manually releases door from door opener. Used during a power failure or other emergency to allow manual opening and closing of the door. · DO NOT use emergency release cord to pull the door!
4. Automatic Lighting System: · Lighting system turns ON when door is activated and automatically turns OFF 4 minutes later. · Can be activated/deactivated manually from the wall console.
5. Integrated Aladdin Connect® (iDCM): · Available with select models, allows operation of the garage door opener with a secure mobile device application (app) from Aladdin Connect®.
6. Wall Console: · Wired Wall Console included. Operates door opener from inside garage with an open/close button. Has a light manual control and override. Sure-lockTM security activate switch to lock out all remote control operation.
7. Intellicode® Encryption, Factory Programmed Remote(s) : · An encryption system that enhances the security of the door opener by continuously changing the access code each time the remote is used. · Factory programmed remote control(s) included with this opener.
8. Battery Back-up System) : · Available on select models, provides emergency power to provide open and close function during power outages.

3 OPENER PROGRAMMING & ACCESSORY INSTALLATIONS
NOTE: Before programming the opener, check to make sure there are no objects in the garage door opening. DO NOT allow persons to enter the area of the door while programming and operating.
The following steps list the order of programming the opener's functional settings and install any accessories that were included with the opener or purchased separately. These steps should be performed in order. 1. Down Travel Limit 2. Up Travel Limit 3. Force Control 4. Contact Reverse test and adjustment 5. Remote Control Programming
· Remote control(s) included with this opener are programmed at the factory. The information provided on this page should be used if adding additional remote controls.
6. Accessory Programming /Installation · Program wireless keypad (If applicable) · Program built in vehicle remote (If applicable) · Program the Integrated Aladdin Connect® (if applicable) · Install external Battery Back-up (BBU- if applicable)

Term De nitions:
Travel Limits Programmable setting to adjust how far door travels up or down.
Force Control refers to how much power is needed to move (open/close) a particular door and does NOT require programming.
Remote & Accessory Programming synchronizes remote devices with the powerhead. (Remote Controls, Wireless Keypad, Homelink®, Car-2-U® Systems)
Speed Control refers to how fast or slow the opener opens and closes the door. This is factory set and does NOT require programming. NOT available on all models.

Programming Button Layout
Long LED Indicator

Open Travel Button

+ PPRRGGMM

Program/Set

Round LED Indicator

SSEETT

Close Travel Button

DOOR NOTE: Each programming step has a 30 second time limit for completion after the function is initiated. After 30
seconds, both LED's will illuminate RED indicating time has expired and the step must be restarted. Restart the
step as many times as necessary to complete the programming. 5

PROGRAMMING DOWN TRAVEL LIMIT

! WARNING
· Make sure doorway is in full view and clear of obstacles and people to avoid injury or property damage.
· DO NOT operate this unit from the wall control before LIMITS are set. Severe damage to the opener could occur.
· The carriage MUST be engaged to turnbuckle BEFORE setting limits. See installation poster or call Customer Service at 1-800-35-GENIE or visit www.geniecompany.com.
· DO NOT set limits with Battery Backup attached. AC power MUST be connected to the opener while setting limits for proper operation.
! AVERTISSEMENT
· S'assurer que le passage de la porte est visible et dégagé, à savoir sans obstacles ni personne a n d'éviter toute blessure potentielle ou dommage matériel.
· NE PAS utiliser cette unité avec la console murale avant d'avoir réglé les LIMITES. L'ouvre-porte pourrait subir de sérieux dommages.
· La tendeur DOIT être engagée dans le chariot AVANT de régler les limites. Voir le poster d'installation (si fourni) ou appelez le service clientèle au 1-800-35-GENIE Door ou visitez le site www.geniecompany.com.
· NE PAS xer de limites en mode batterie de secours. L'alimentation CA DOIT être branchée sur l'ouvre-porte, pendant le réglage des limites, pour assurer un bon fonctionnement.
! NOTE: Door MUST be locked to the opener prior to programming. Door should rest somewhere between full open and closed. Do not start with door fully open or closed.
(SEE INSET ABOVE RIGHT)
Programming DOWN Limit:
1. Press and hold the DOWN arrow button. · Long LED will light BLUE.
2. Release DOWN arrow button. · Long LED will ash BLUE.
3. Press and hold the DOWN arrow button until door is fully closed.
· Use the UP arrow button if door closes too far. Use both UP and DOWN buttons to adjust close travel as necessary.
Door should rest on the oor until the weather strip is compressed enough to seal along the width of the door. Damaged doors or uneven oors may not seal properly. Repair these conditions to achieve a proper seal. DO NOT compress seal so much that the door will bend or buckle.
4. Press and release the SET/PRGM button · Both LEDs will ash BLUE then go out.
6 The DOWN limit is now programmed.

TO ENGAGE DOOR TO CARRIAGE:
Lift door by hand until carriage engages the bullet on the chain/belt systems.

Chain/ Belt Drive
Lever must be UP

1-2. Enter Programming Mode

Steady Blue

+ PPRRGGMM

SSEETT

HOLD UNTIL LED Lights

Flashing Blue

+ PPRRGGMM

SSEETT

RELEASE

3. Adjust Door Position
+

PPRRGGMM

SSEETT

4. Lock Programming
+

PPRRGGMM

Flashing Blue

SSEETT

+ PPRRGGMM

SSEETT

PRESS & RELEASE

PROGRAMMING UP TRAVEL LIMIT

Programming UP Limit:
1. Press and hold the UP arrow button. · Long LED will light BLUE.
2. Release UP arrow button. · Round LED will ash BLUE.
3. Press and hold the UP arrow button until door is fully open.
· Use the DOWN arrow button if door opens too far. Use both UP and DOWN buttons to adjust open travel as necessary.
SECTIONAL DOOR UP LIMIT: Door should fully open so that door seal is even with door header. Do not adjust so much that the door will bend, buckle or stretch door spring cables backward. Stop carriage short of the opener powerhead. Door should fully open so that door seal is even with door header. Do Not adjust so much that the door will bend or buckle or stretch door spring cables backward.
4. Press and release the SET/PRGM button · Both LEDs will ash BLUE then go out.
The UP limit is now programmed.

1-2. Enter Programming Mode

Steady Blue

+ PPRRGGMM

SSEETT

Flashing Blue

+ PPRRGGMM

SSEETT

3. Adjust Door Position
+ PPRRGGMM

SSEETT

HOLD UNTIL LED Lights
RELEASE

4. Lock Programming

Flashing Blue

+ PPRRGGMM

SSEETT

+ PPRRGGMM

SSEETT

PRESS & RELEASE

PROGRAMMING FORCE AND CONTACT REVERSE

Force Control
The force controls are automatically set when the wall control is used for the rst time with garage door opener. The door MUST complete one full cycle, from full open to full close and then, full close to full open, before the settings are automatically recorded.
! WARNING
TO AVOID INJURY OR DAMAGE · NEVER adjust the force settings to adjust for damage,
including an unbalanced door, binding door track or broken spring. · Perform a CONTACT REVERSE TEST monthly.
! AVERTISSEMENT
Pour éviter les blessures ou des dommages
· NE JAMAIS régler la force pour compenser des dommages, y compris une porte mal équilibrée, un rail de porte coinçant ou des ressorts cassés.
· Tous les mois, EFFECTUEZ LE TEST D'INVERSION AU CONTACT.

Contact Reverse Test
NOTE: The limit and Force settings MUST BE COMPLETED before performing the Contact Reverse Test.
1. With the garage door open, lay a 2 X 4 board at on the oor at the center of the door
opening. 2. Close the garage door using the wall control.

1. Press and release the Wall Control button and allow the garage door to travel and stop at the DOWN limit.
2. Press and release the wall control button and allow the garage door to travel and stop at the UP limit.

· When the door contacts the board, it should stop and reverse direction within 2 seconds to the full open position.
· The long LED light on the powerhead will begin to ash RED with the reversal of the door.
· Remove the 2" x 4" board and operate the opener with the wall control again. This cycle will clear the ashing red LEDs.

Force Control Adjustments
Force settings are programmed from the factory to remain within safe parameters. These should not require adjustments. However, certain circumstances may require adjustment.
Refer to the "Maintenance and Adjustment" section, page 17, to adjust the force settings.

Contact Reverse Adjustment
If the door stops before contacting the board or if it does not reverse direction to fully open after contact with the board, it may be due to an improperly set DOWN limit. Verify settings by:
1. Repeat the "Down Travel Limit" section to make certain the door is closing tight against the oor.
2. Repeat the "Force Control" section on the left to set force limits.
3. Repeat the "Contact Reverse Test" above.
Repeat this process as needed until the door passes the Contact Reverse Test.
Refer to the "Maintenance and Adjustment" section, page 17, to adjust the force settings.

PROGRAMMING ADDITIONAL REMOTE CONTROLS

THE REMOTE CONTROLS INCLUDED WITH THIS OPENER HAVE BEEN
PROGRAMMED AT THE FACTORY FOR YOUR CONVENIENCE.

1. Activate Remote

NOTE: The following instructions are for remote control transmitters purchased separately in addition to those provided with this opener, but can also be used if any remote(s) may require re-programming.
NOTE: Each programming step has a 30 second time limit for completion after the function is initiated. After 30 seconds, two LED's will illuminate RED indicating time has expired and the step must be re-started. Restart the step as many times as necessary to complete the programming.
NOTE: Do not hold remote too close to the powerhead when programming remote buttons.
NOTE: Each button on each remote must be programmed separately, following these steps.
1. Remove the battery's protective lm from the remote by pulling straight down.
2. Press and hold the SET/PRGM button on the opener for two seconds.
· The ROUND LED will turn BLUE. · The LONG LED will then ash PURPLE.

2. Enter Programming Mode
+ PPRRGGMM

Solid Blue

SSEETT

Flashing Purple

+ PPRRGGMM

SSEETT

3. Stand at least 5 feet away from opener and slowly press and release the desired button on the remote two times.
· Both opener LEDs will ash and turn o indicating the remote has been programmed.
4. Press the desired remote button again. · The opener should run.

3. Press Remote Button Twice

+ PPRRGGMM

SSEETT

To program the same remote for other garage door openers, repeat the steps above using one of the other remaining remote buttons.
REPEAT STEPS 1 TO 4 FOR EACH OPENER AND REMOTE

Flashing 4. Test Remote

NOTE: It is possible to press the remote button too quickly or lightly. If the LEDs do not go o , press the remote button several more times to achieve con rmation.

BASIC PROGRAMMING IS COMPLETE AND YOUR GARAGE DOOR OPENER IS READY TO USE.

See page 18 of this manual to erase remote devices from memory.

PRESS & RELEASE
9

PROGRAMMING ACCESSORIES (abbreviated)

QuickView Single Door setup.
Please see complete instructions that accompany keypad
Activate keypad by opening battery compartment and pull protective tab. Reinstall compartment door to
begin programming.
TAB

STEP 3) OPERATING THE KEYPAD WITH THE OPENER Single Door Operation: 1. Ensure number pad back lighting is o . 2. Enter PIN number. 3. Press the UP/DOWN key. 4. Opener will operate.
NOTE: Keypad will remain active for 15 seconds after a successful entry is made. During this 15 seconds ANY key will operate the opener.

Program Keypad before mounting.

STEP 1) PROGRAMMING A PIN NUMBER (Single Door)
Program the keypad for the rst time* with a Personal Identi cation Number (PIN). This PIN must be 3 to 8 digits. 1. Ensure number pad back lighting is o . 2. Press 3-5-7 in sequence. 3. Press PROGRAM key. LED will blink once per second. 4. Enter a PIN number (3-8 digits). 5. Press PROGRAM key. LED will blink twice and shut
o .
STEP 2) PROGRAMMING THE KEYPAD TO 1 OPENER 1. Place garage door opener into PROGRAMMING
MODE. 2. Ensure number pad back lighting is o . 3. Enter the PIN number on keypad. 4. Press the UP/DOWN key 3 to 4 times slowly until
garage door opener operates.

PUTTING OPENER INTO PROGRAMMING MODE:

1. Press and hold the program button on the powerhead until the round LED turns blue, then release.
2. The round LED will go out and the long LED will begin ashing purple.
3. Complete programming steps. Flashing Purple

+ PPRRGGMM

SSEETT

PRESS & RELEASE

+ PPRRGGMM

SSEETT

Solid Blue
NOTE: The openers LEARN LED will time out in 30 seconds. Programming must be completed within 30 seconds.

Resetting a PIN: Press and hold both the PROGRAM key and the Up/ Down key for about ve seconds. The LED's will slowly blink and then go out. When the LED stops blinking, the old programming has been successfully erased. To create a new PIN, start with "Setting the PIN for the First Time"
Mounting Keypad The keypad MUST be mounted within sight of the garage door(s) at least ve feet above the oor and clear of any moving door part. 1. Remove battery cover and batteries.
2. Drill 3/32" pilot hole for the top mounting screw (included).
3. Install a screw into the pilot hole, leaving a 1/8" gap between the screw head and wall.
4. Hook the slotted mount, on back of keypad, over the screw.

5. Mark and drill a pilot hole for the bottom screw

(included) and secure keypad to wall (DO NOT

overtighten).

6. Reinstall batteries and cover.

PROGRAMMING VEHICLE SYSTEMS

Programming HomeLink® System

Programming Car2U® System

Step 1 Clear HomeLink
Clear HomeLink by pressing and holding down the rst and third buttons until the indicator on the HomeLink blinks slow and then fast for 20 seconds; then release both buttons.
NOTE: Clearing the HomeLink will remove all previously programmed garage door openers.

Step 1 Clear Car2U to default settings
The default setting for the Car2U system is: · Button 1 = Genie® Manufactured Openers · Button 2 = LiftMaster® Manufactured Openers · Button 3 = Wayne Dalton® Manufactured Openers A. Press and hold buttons 1 and 3 for 20 seconds or until all three
LEDs begin to ash. B. Release both buttons. The Car2U system is now set to the
Factory Default settings

Step 2 Train HomeLink to the Remote
Choose the button on the HomeLink that will be used to open the door.

NOTE: Clearing the Car2U remote will remove all previously programmed garage door openers.

NOTE: Hold the Remote two inches from the HomeLink button.

Hold down the remote button. While holding, press and hold the chosen HomeLink button.
Hold down both buttons until the indicator on the HomeLink blinks slow then fast. Once it blinks, release both buttons.

Step 3 Program HomeLink to the Opener
(Place opener into programming mode)
A. Press and hold the PROGRAM button on the opener until the round blue LED is ON. Release the button. The long purple LED will begin ashing.

PUTTING OPENER INTO PROGRAMMING MODE:

+ PPRRGGMM

SSEETT

PRESS & RELEASE

+ PPRRGGMM

SSEETT

Solid Blue NOTE: The openers LEARN LED will time out in 30 seconds. Programming must be completed within 30 seconds.
B. Press the chosen HomeLink button for two seconds and release. Press that same button again for two seconds and release. The long LED will ash blue and then turn o .

C. Press the HomeLink button a few more times until door moves.
NOTE: For additional instructions, see the motor vehicle manual, www.homelink.com or visit www.geniecompany.com

Step 2 Program Car2U to the Genie® Opener (Place opener into programming mode)
A. Press and hold the PROGRAM button on the opener until the round blue LED is ON--release the button. The long purple LED will begin ashing.
B. Press the designated Car2U button for two seconds and release. Press that same button again for two seconds and release. The long LED will ash blue and then turn o .
C. Press the Car2U button a few times more until door moves.

PUTTING OPENER INTO PROGRAMMING MODE:

+ PPRRGGMM

SSEETT

PRESS & RELEASE

+ PPRRGGMM

SSEETT

Solid Blue
NOTE: The openers LEARN LED will time out in 30 seconds. Programming must be completed within 30 seconds.
Step 3 Changing Factory Default Button for a Genie® Opener
A. Press and hold buttons 1 & 3 for ONE SECOND and release-- all three LEDs will light solid red.
B. Press and hold the button (2 or 3) to change it to-- the corresponding LED will ash. While continuing to hold that button, press and release button 1. Press and release button 1 again.
C. Release the button being held in step B and wait for the LED to stop ashing. This button is now set.
Repeat Step 2 for second Opener.
NOTE: For additional instructions see the motor vehicle manual, learcar2u.com.
11

PROGRAMMING TO USE Aladdin Connect®

Perform these steps only after opener is fully installed, programmed and tested.

IMPORTANT SAFETY INSTRUCTIONS
WARNING
TO REDUCE THE RISK OF SEVERE INJURY OR DEATH, READ AND FOLLOW ALL INSTRUCTIONS.
1. Never allow children to operate or play with door controls.
2. Install the entrapment WARNING placard next to the wall control in a prominent location.
3. NO PERSONS SHOULD CROSS THE PATH OF A MOVING DOOR.
4. NEVER GO UNDER A STOPPED/PARTIALLY OPEN DOOR. 5. The Aladdin Connect® operating system is designed
for unattended operation. The door could move unexpectedly.
SAVE THESE INSTRUCTIONS

CONSIGNES DE SÉCURITÉ IMPORTANTES
AVERTISSEMENT
POUR RÉDUIRE LE RISQUE DE BLESSURES GRAVES VOIRE MORTELLES, LIRE ET COMPRENDRE TOUTES LES INSTRUCTIONS. 1. NE JAMAIS laisser les enfants utiliser ou jouer avec les
commandes de l'ouvre-porte.
2. Placer l'étiquette d'AVERTISSEMENT en cas de coinçage à proximité du bouton mural ou de la console murale de manière à ce qu'elle soit bien en évidence.
3. NE JAMAIS PASSER SOUS LA PORTE EN MOUVEMENT. 4. NE JAMAIS PASSER SOUS UNE PORTE À L'ARRÊT PARTIELLEMENT
OUVERTE. 5. Le système d'exploitation Aladdin Connect® a été conçu pour
fonctionner sans surveillance. La porte peut se déplacer de façon inattendue.
CONSERVER CES INSTRUCTIONS

Integrated Aladdin Connect®
The Aladdin Connect® system is a convenient mobile device app to operate up to 20 garage door openers/controllers from Aladdin Connect®. The Aladdin Connect® app has the following features:
· Up to 20 users for each account. · Sends noti cations any time the garage door is operated from the app, wall
console or remote control. · Show reports for opener usage showing dates and times when the opener
was operated. · Show reports of who operated the opener when used from another user on the
account. · Set custom RULES for predetermined times to automatically close a chosen door and/or notify of
its operation. · Opener light system and an audible signal will activate as a warning that the opener is about to
operate.

To use the Genie® Aladdin Connect® app to control this garage door system follow these steps.
Other home automation apps may also control this garage door opener system. Check our website at www.geniecompany.com for updates pertaining to compatible 3rd party apps.

1 Check Wi-Fi Signal
FOR ALL APPS - Use smart phone or other mobile device to check Wi-Fi signal strength. Hold the device near the garage door opener and check Wi-Fi meter on the device. If signal is present, proceed to step 2 if using the Aladdin Connect® app. Follow manufacturers instructions for other 3rd party apps.
If signal is very week or nonexistent, try the following:
· Move Wi-Fi router closer to the garage. · Install a Wi-Fi range extender.
(Available at most electronics stores.)
12

2 Download the Aladdin Connect® app (Unless using 3rd party app)

Scan for iOS app Versions 8 and higher

Scan for Android app Versions 4.4 and higher

Apple and the Apple logo are trademarks of Apple Inc., registered in the U.S. and other countries. App Store
is a service mark of Apple Inc.

3 Follow the Aladdin Connect® app instructions
Follow steps per the app instructions. · Create an account · Set up opener(s) · Add users · Set rules and noti cations.
For help at any time contact The Genie® Company at 1-866-599-4995 or visit our website. www.geniecompany.com

BELT/CHAIN DRIVE GARAGE DOOR OPENER PROGRAMMING, OPERATION & MAINTENANCE MANUAL
t StandardModels t iDCMModels

DO NOT use photocells from other manufacturers or openers with this opener.

INSTALLER: LEAVE THIS MANUAL WITH HOMEOWNER HOMEOWNER: SAVE THIS MANUAL FOR FUTURE REFERENCE

STOP

Need help or have questions? For answers and assistance, visit www.OverheadDoor.com or call Overhead Door at 800-929-3667

SERIAL NUMBER DECAL

iDCM SERIAL NUMBER DECAL

HK DECAL

3848550XXXX, 11/2018

Scan the Aladdin Connect® QR Code on the front of this manual or on the powerhead when prompted by the Aladdin Connect® app.
123 4 5 6

IMPORTANT NOTE: When prompted by the app, the opener MUST be operated 4 full up and down cycles, pausing 5 seconds between operations, using the wall control
or remote control prior to operating the opener with this accessory app.
4 Install WARNING placard
Place included unintended operation warning placard next to garage door openers wall button.

NOTE: This placard should be used in lieu of the standard WARNING placard included with this opener.

NOTE: Use of this product, the software embedded within this product and the related application

software is subject to the Terms and Conditions available at:

www.geniecompany.com

BATTERY BACKUP INSTALLATION

Battery backup devices from other manufacturers will not operate with this opener. Use only Battery Backup type battery that was provided. P/N 111658.0002.S (Battery only)

Installing Battery Backup (if applicable)
1. Unplug powerhead from power source. 2. Install mounting bracket to ceiling within reach of attached connector cable
with lag bolts. Make certain to install into garage framing. DO NOT install into unreinforced wall board or drywall. FIG.1.
3. Slide battery into mounting bracket until it snaps into place. FIG. 2, 4. Plug battery harness into plug located at the top of the powerhead. FIG.3. 5. Reconnect powerhead to power source.
FIG.1

CAUTION

TO PREVENT POSSIBLE SERIOUS INJURY or DEATH

from electrocution AND REDUCE RISK of FIRE

-- Disconnect ALL electric power sources and battery

power BEFORE performing ANY service or maintenance.

Install only in DRY locations - NOT INTENDED FOR OUTDOOR USE. Use only 12V,5AH,SLA replacment battery (P/N 111658.0002.S).

ATTENTION

POUR ÉVITER LES BLESSURES GRAVES VOIRE MORTELLE PAR

ÉLECTROCUATION POUR RÉDUIRE ES LES RISQUES

D'INCENDIE

--Débrancher toutes les sources d'alimentation électriques et

lapileavantd'e ectuerdesopérationsderéparationou

d'entretien.

Installer uniquement dans des endroits secs--NE DOIT PAS ÊTRE

UTILISÉ À L'EXTÉRIEUR.

Utiliser uniquement une pile de remplacement de 12V, 5AH, SLA

(réf. 111658.0002.S).

FIG.2

FIG.3

See page 23 for Condition LED's That will illuminate once Battery Backup is operational. Both LEDs will signal solid GREEN under normal, fully charged, operation.

+ PPRRGGMM

SSEETT

Testing The Battery Backup NOTE: It is recommended that the battery backup be allowed to charge for 24 to 48 hours prior to testing. Initially, the opener may not
operate from the battery backup mode if battery is not fully charged.
1. Run the opener using the wall control or remote to ensure it is working properly. 2. Turn o power to opener by unplugging from outlet or turning o breaker. 3. Press wall control or remote control. Opener will run at a slower speed than normal.
NOTE: See troubleshooting guide (pg. 18) in this manual if any of the steps above fail.
Work light will not operate while in battery backup mode. (Courtesy white LED's will
illuminate.)
4. After successful test, reconnect powerhead to power source.

Replacing The Battery in the Battery Backup Proper care should be used when handling a battery. Eye protection should be worn. NOTE DO NOT reverse polarity (+) and (-) as this will damage the powerhead.
1. Unplug powerhead from power source. 2. Unplug battery backup from harness connection. 3. Remove battery back-up from mounting bracket. 4. Remove 4 screws from top of case. 5. Remove battery. 6. Disconnect harness wires from the (+) and (-) terminals. 7. Install harness wires onto replacement battery. 8. Install into casing in reverse order and install assembly back onto mounting
bracket. NOTE: Allow 24-48 hours to charge battery before testing.
9. Test as noted above.

4 MAINTENANCE

IMPORTANT SAFETY INSTRUCTIONS ! WARNING
To reduce the risk of severe injury or death,
read and follow all instructions.
1. NEVER let children operate or play with the door controls. 2. Keep remote away from children. 3. ALWAYS keep the moving door in sight and away from people and objects until door is completely closed. NO ONE
SHOULD CROSS THE PATH OF THE MOVING DOOR.
4. NEVER GO UNDER A STOPPED, PARTIALLY OPEN DOOR. 5. Test opener monthly. The door MUST reverse on contact with a 1-1/2" high object (or 2" x 4" board laid at) at the center
of the doorway on the oor. After adjusting either the force or limit of travel, retest door opener. Failure to adjust the opener properly may cause severe injury or death.
6. When possible, use emergency release only when door is closed. Use caution when using this release with the door
open. Weak or broken springs are capable of increasing the rate of door closing and increasing the risk of severe injury or death.
7. KEEP DOORS PROPERLY BALANCED. See your garage door Owner's Manual. An improperly balanced door increases the
risk of severe injury or death. Have a trained door system technician make repairs to cables, spring assemblies, and other hardware.
SAVE THESE INSTRUCTIONS
IMPORTANTES CONSIGNES DE SÉCURITÉ ! AVERTISSEMENT
Pour réduire le risque de blessures graves
voire mortelles, lire et comprendre toutes les
instructions.
1. NE JAMAIS permettre aux enfants d'actionner ou de jouer avec les commandes de la porte. 2. Tenir les télécommandes hors de la portée des enfants. 3. TOUJOURS garder en vue la porte en mouvement et tenir à l'écart toute personne ou objet jusqu'à ce que la porte soit
totalement fermée. PERSONNE NE DOIT TRAVERSER LA TRAJECTOIRE D'UNE PORTE EN MOUVEMENT. 4. NE JAMAIS PASSER SOUS UNE PORTE À L'ARRÊT PARTIELLEMENT OUVERTE. 5. Tester l'ouvre-porte une fois par mois. La porte de garage DOIT inverser sa course au contact d'un objet de 4 cm (planche
de 5 sur 10 cm) posé à plat sur le sol au centre de l'ouverture de la porte. Après avoir réglé la force ou la limite de la course, retenter l'ouvre-porte de garage. Un mauvais réglage de l'ouvre-porte peut entraîner des blessures graves voire mortelles 6. Utiliser, dans la mesure du possible le déclenchement d'urgence uniquement lorsque la porte est fermée. Utiliser le déclenchement d'urgence avec prudence lorsque la porte est ouverte. Des ressorts faibles ou brisés peuvent faire descendre la porte rapidement ce qui peut entraîner des blessures graves voire mortelles. 7. VEILLER À CE QUE LA PORTE SOIT CORRECTEMENT ÉQUILIBRÉE. Consulter le manuel du propriétaire de la porte de garage. Une porte déséquilibrée pourrait entraîner de graves blessures voire mortelles. Demander à un technicien spécialisé en système de portes de se charger des réparations des câbles, des ressorts et de toute autre quincaillerie.
CONSERVER CES INSTRUCTIONS

! WARNING
Use of any other wall control can cause unexpected operation of the door and loss of lighting feature. Locate wall console within sight of the door but far enough from door to prevent contacting it while operating the console. Control must be at least 5 feet above the oor to prevent small children from operating it.
16

! AVERTISSEMENT
L'utilisation d'une autre commande murale pourrait produire des résultats inattendus de la porte ainsi que le dysfonctionnement de l'éclairage. Localisez la console murale en vue de la porte et su samment loin de la porte pour éviter tout contact pendant l'utilisation de la console. La commande doit être à une hauteur minimale de 1,5 m au-dessus du sol a n que les jeunes enfants ne puissent pas l'atteindre.

Regular inspection/maintenance for the door and opener should be performed at regular intervals to ensure the system runs at peak safety, performance and e ciency.

MAINTENANCE ITEM Contact Reverse Test Lubricate Door Hardware
Safe-T-Beam® system check
Door Balance Battery Backup System
Remote Battery replacement Light Bulb Replacement

INTERVALS Monthly Monthly
Monthly
Monthly Monthly
As Needed As Needed

DETAILS
See Page 8 to run system test.
Lubricate Rollers & Hinges with a light weight general purpose grease.
Check wiring for loose connections, cracks or worn insulation. Clean lenses of dirt & debris.
See Maintenance Detail A
Unplug opener from outlet. Test opener with remote or wall console. Replace battery if needed.
See Maintenance Detail B
See Maintenance Detail C

A Door Inspection
Perform the Door inspection as follows: With the door closed, pull manual emergency release handle DOWN and away from door and let go to disengage the carriage from the drive chain or belt. FIG.1.
· Raise and lower the door manually. Door should move freely and smoothly. · Raise door manually about 3' to 4' feet from oor and let go.. Door should remain stationary or slowly
drift closed. FIG. 2. If door opens or closes rapidly, CONTACT A TRAINED DOOR SYSTEM TECHNICIAN to have your door springs serviced. · Close the door. · Place the carriage in the "engage" position Reverse of FIG. 1. · Operate door using remote or wall control. The carriage will reattach itself to the drive chain/belt.

! WARNING
· Garage door hardware (springs, cables, brackets, pulleys, etc.) are under extreme pressure and tension.
· DO NOT attempt to repair or adjust door springs or any hardware, and DO NOT OPERATE garage door automatically or manually if door is improperly balanced or springs are broken.
· CONTACT A TRAINED DOOR SYSTEM TECHNICIAN.

! AVERTISSEMENT
· La quincaillerie de la porte de garage (ressorts, câbles, supports, poulies, etc.) sont sous des pressions et des tensions extrêmes.
· NE PAS réparer ni régler les ressorts de la porte ou toute autre pièce de quincaillerie et NE PAS ACTIONNER la porte manuellement ou automatiquement si elle n'est pas correctement équilibrée ou si des ressorts sont cassés.
· CONTACTEZ UN TECHNICIEN SPÉCIALISÉ EN SYSTÈME DE PORTES

Chain/Belt Drive

Disengage the carriage by pulling the release handle down, toward the door and then releasing
DO NOT use release cord to pull door!
FIG.1

FIG 2 17

B Replacing Batteries
Remote Battery Replacement (3-button) Replace remote battery with a CR2032 coin cell battery. 1. Open remote case using a washer or coin that ts into the slot on the top
of the remote. 2. Replace battery. Be sure positive side (+) is UP. 3. Align components and snap case closed.

C Changing Light Bulbs (Genie® LED bulbs recommended)

! WARNING

! AVERTISSEMENT

· Use extreme caution when working from a ladder or step stool or serious injury can occur.
· When replacing light cover, make sure wires are not pinched or near moving parts.
· Use only properly rated incandescent, LED or CFL light bulbs. · DO NOT use bulbs with a rating greater than 100 Watts. · Use A19 size light bulbs. DO NOT use bulbs having a short
neck.

· Faire particulièrement attention lors de travaux e ectués depuis une échelle ou en escabeau.
· En referment le couvercle de l'éclairage, s'assurer que les ls ne sont ni coincés ni près des pièces mobiles.
· Utilisez uniquement incandescence correctement classé, LED ou des ampoules uocompactes.
· NE PAS utiliser des ampoules avec une note supérieure à 100 Watts
· Utilisez A19 ampoules de taille. NE PAS utiliser des ampoules

1. Disconnect power to opener.

ayant un cou court.

2. Open powerhead lens cover by pressing in on upper locking tab and lower cover.

3. Replace old light bulbs with 100 Watt MAXIMUM incandescent, CFL or LED equivalent**.

* Genie® LED light bulbs, which are speci cally made for garage door openers, are recommended.

4. Close lens cover.

5. Reconnect power to door opener. 6. Test light operation.

LIGHT BULB

NOTE: Use of standard LED bulbs may reduce the range of your

remote controls*.

* Genie LED light bulbs are designed to reduce or eliminate reduced remote range issues caused by common LED bulbs. They also o er better product life by making them resistant to vibration caused by the opener, and cold or damp weather. See website for details at www.geniecompany.com. recommendations for LED bulbs.

LIGHT COVER SWINGS OPEN

**Integrated Aladdin Connect® models require a MINIMUM 40 Watt or equivalent bulb, 100 watt maximum.

5 SPECIAL INSTALLATION INFORMATION

Changing Force Settings

! WARNING

! AVERTISSEMENT

TO AVOID INJURY OR DAMAGE · NEVER adjust the force settings to adjust for damage,
including an unbalanced door, binding door track or broken spring. · Perform a CONTACT REVERSE TEST monthly.
Force Settings:

Pour éviter les blessures ou des dommages · NE JAMAIS régler la force pour compenser des
dommages, y compris une porte mal équilibrée, un rail de porte coinçant ou des ressorts cassés. · Tous les mois, EFFECTUEZ LE TEST D'INVERSION AU CONTACT.

Force settings are pre-programmed at the factory and applied during the Open/Closed Limit settings steps. For

normal use, these settings should not need adjustment.

Conditions possibly requiring adjustments are: 1. Doors with very sti weather seals. 2. Doors that start down, STOP, and reverse before closing. 3. Doors that start up, but STOP before they completely open.

PRESS & RELEASE

1. Press and hold both UP & DOWN arrow buttons until the ROUND LED turns RED. Release buttons.
· LEDs will show current force level. SEE CHART. 2. Press either the UP or DOWN arrow button until the
desired UP force setting is shown. SEE CHART. 3. Press & release the PRGM button to lock the desired UP
FORCE setting. · LEDs will now show the current DOWN FORCE setting.
SEE CHART. 4. Press either the UP or DOWN arrow button until desired
DOWN force setting is shown. SEE CHART. 5. Press & release the PRGM button to lock the desired
DOWN FORCE setting. · Both LEDs will turn BLUE then go out con rming that the
force settings have been changed and are locked. 6. Opener is now ready to operate and test. 7. Operate door from the wall console two full cycles then
perform safety contact reverse test. (SEE PAGE 8)
FORCE SETTING CHART

+ PPRRGGMM

SSEETT

Flashing RED

+ PPRRGGMM

SSEETT

See Chart for Force level indicators.

Force Level

Long LED

Round LED

1 (LOWEST) 2

OFF BLUE

BLUE OFF

+ PPRRGGMM

BLUE

SSEETT

OFF

VIOLET

OFF

VIOLET

OFF

RED

Press PRGM to lock settings

RED

OFF

9 (HIGHEST)

RED

CLEARING MEMORY OF ACCESSORIES
NOTE: Clearing memory of remotes from the powerhead will clear ALL programmed remotes, wireless keypads and vehicle transmitters. The opener will no longer recognize any signal from any remote device, including a missing remote device. This does not include the Aladdin Connect® Connect® or Wireless Wall Console.
All remaining (or recovered) remotes, vehicles and wireless keypads MUST be reprogrammed. NOTE: The garage door opener will operate normally using the wall console. 1. Press and hold the SET/PRGM button on the
opener for two seconds. · The ROUND LED will turn BLUE. · The ROUND LED will then ash PURPLE.
2. Press and hold the UP & DOWN buttons at the same time until both LEDs turn o .
· Both opener LEDs will ash and turn o indicating that all remotes have been erased.
3. Press any remote button. · The opener should NOT run.
To deprogram the same remote for other garage door openers, repeat the steps above using one of the other remaining remote buttons.

1. Enter Programming Mode

+ PPRRGGMM

SSEETT

+ PPRRGGMM

SSEETT

Solid Blue

Flashing Purple

2. Press and Hold + & - Buttons

+ PPRRGGMM

SSEETT

Release when LEDs turn o

3. Test Remote

Installing Safe-T-Beams® on multiple garage doors (Preventing "cross-talk")

LOCATING SAFE-T-BEAM® PAIRS Transmitter (RED LED) and Receiver (GREEN LED)

Multiple Garage Doors · NEVER position Safe-T-Beam® modules where
signals will cross. · Place the Transmitter (Red LED) Safe-T-Beams on
adjacent doors facing in opposite directions.

NOTE: Direct sunlight creates interference with SafeT-Beam® Receiver (Green LED). STB modules CAN be positioned further away from the door opening if necessary to avoid sunlight but no further o the wall to maintain alignment with the Transmitter (Red LED) module.

Single Garage Door · Determine which side of the garage receives direct sunlight. · Position the Transmitter (Red LED) on the direct sunlight side.
NOTE: Only use Safe-T-Beams® that are included with this opener. DO NOT use other brands or types of photocells on this opener.

Safe-T-Beam® Self-Diagnostic Troubleshooting Chart

Source (RED LED)
ON OFF
OFF
2 BLINKS
2 BLINKS
3 BLINKS

Sensor (Green LED)
ON OFF
ON
ON
OFF
ON

Possible Problem
Normal Operation
· Opener not powered · Wiring from opener bad
· Wiring to source missing or bad · Power has been interrupted
· Beam not aligned · Beam obstructed · Sensor defective
· Wire to sensor missing or bad · Sensor defective
· Sensor receiving interference

Solution
None Required
· Check breakers, fuses, plugs · Check wiring for shorts
· Check wiring · Remove power and reapply
· Check source, Sensor alignment · Check for obstruction · Contact Customer Support
· Check wiring · Contact Customer Support
· Determine source of interference · Contact Customer Support

6 TROUBLESHOOTING

Use the guide below along with the self diagnostic powerhead LEDs to help troubleshoot any problems.

Need help or have questions? DO NOT RETURN to the store. Visit www.genicompany.com or call Customer Service at 1-800-35-GENIE.

PROBLEM:

WHAT TO DO:

Opener does NOT operate when wall control is pressed.

· Turn Sure-LockTM OFF See page 4. · Check power source.
Plug a lamp into outlet used for powerhead. If lamp works, power source is OK. If not, check fuse or circuit breaker. · If power is OK, Check connections at powerhead terminals and at wall console. · Check for reversed, broken or cut wires. Staples can cut insulation and short wires. Repair or replace.

Opener runs, but door does not move. Opener works from wall control, but NOT from remote. Remote has less than 25 feet operating range or no operation.

· Make sure carriage is engaged with chain/belt/screw. Refer to installation poster or download poster from www.geniecompany.com · Check to make sure chain/belt is not broken or o its pulley.
· Check all remotes. · Replace remote battery. See page 16. · Program remotes to powerhead. See page 9.
· Relocate remote inside car and /or point remote at garage door. · Replace battery. See page 18. · Reposition door opener antenna. · Eliminate possible competing signals (radio, etc.). · LED bulbs may be interfering with remote signal. See page 18.

Door starts down, · If a NEW installation, check Door Arm position.

then STOPS and

· If NEW Installation, make sure ONLY the Safe-T-Beams® that came with this opener are installed.

goes back up.

· Check if limits are properly set. See pages 6-7. Adjust limits as needed.

· Check if Safe-T- Beam® red LED is ashing. See page 21, Safe-T-Beam® system check.

Safe-T-Beam®

· Check Safe-T-Beam® system for beam obstruction or misalignment of lenses. See page 21, Safe-T-Beam®system.

System malfunction. · Check garage door for binding.

· If an operational problem exists, and opener will not close, the opener can be forced to close as follows: Press

and hold the wall control button until door is completely closed.

· Check for interference from adjacent Safe-T-Beam® units. See page 21.

· Contact Genie® at 1-800-35-GENIE.

Door starts down, then STOPS before it is closed. OR Door will only open.

· Check Safe-T- Beam®wire connection at powerhead and at STBs. See page 21, Safe-T-Beam® system check. · Check if limits are properly set. See pages 6-7. Adjust limits as needed. · Check CONTACT REVERSE. See page 8. · Check garage door for binding. See maintenance and adjustment. Page 17. · Check closing "FORCE" control. See page 8, or Force settings. Page 19.

Door starts up, but STOPS before it is completely open.

· Check if limits are properly set. See pages 6-7. Adjust limits as needed. · Be sure door, opener, springs are in good repair, properly lubricated and balanced. Page 17. · Check closing/opening "FORCE" control. See page 8, or Force settings Page 19. · If you suspect a problem with the garage door hardware or springs, visit www.geniecompany.com
and use the "dealer locater" to hire a local door service professional.
NEVER try to repair door hardware or springs yourself.

Door will only run closed.

· Turn Sure-LockTM OFF See page 4. · Check if limits are properly set. See pages 6-7. · Check door balance, condition, and door spring. Page 17. · Check opening "FORCE" control. See page 8, or Force settings. Page 19. · If you suspect a problem with the garage door hardware or springs, visit www.geniecompany.com
and use the "dealer locater" to hire a local door service professional.
NEVER try to repair door hardware or springs yourself.

Door opener starts · Button stuck on wall control or remote.

for no reason.

· Was remote lost or stolen? Erase all remotes from powerhead memory and program new remotes. See page 20.

Noisy operation. Door opener runs slow.

· Be sure all door fasteners are tight. · Be sure garage door is in good repair, properly lubricated and balanced. Page 17 · Be sure opener is in good repair.
· Check operating condition of door. Door may need professional repair/adjustment.

TROUBLESHOOTING

POWERHEAD LEDS

Powerhead LED

Round LED

Long LED

OFF

ON/RED/ STEADY
ON/RED/ FLASHING
ON/BLUE/ FLASHING
ON/PURPLE/ FLASHING

ON/RED/ STEADY ON/RED/ FLASHING
OFF
OFF

Possible Problem Normal operation. No response from unit.
Limits NOT set properly. Program error. Component failure. Remote NOT programmed.
Remote NOT programmed.

Solution None required. Check power supply. Contact a trained door system professional. Re-program limits, see pages 6-7. Unplug unit, wait 5 seconds, plug in. Contact a trained door system technician. Program remote, see page 9.
Program remote, see page 9.

ON/RED/ FLASHING
OFF
OFF

OFF
ON/RED/ FLASHING
ON/RED/ STEADY

Safe-T-Beam® physical obstruction. Safe-T-Beam® signal interference. Door contact in UP or DOWN travel. Door component failure detected.
Thermal cutout.

Remote obstruction, recheck unit.
Check alignment of Safe-T-Beam® pair and nearest other Safe-T-Beam® pair, see page 21.
Remove obstruction.
Check door spring, track, rollers, hinges and xtures.
DO NOT unplug unit. Wait until LED clears before operating.

ON/PURPLE/ STEADY

Component error.

Contact a trained door system technician.

OFF
ON/PURPLE/ FLASHING

ON/BLUE/ FLASHING
ON/PURPLE/ FLASHING

Door will not open. Radio receiver error.

Check Sure-LockTM. Sure-LockTM should be OFF for normal operation.
Unplug the unit. Wait 5 seconds and plug the unit back in. If problems persist, contact a trained door system technician.

BATTERY BACK-UP TROUBLESHOOTING

ON/GREEN STEADY

OK=Charged, Battery Back Up

ON/GREEN FLASHING

Discharging, Battery Back Up

ON/YELLOW FLASHING

Charging, Battery Back Up

ON/RED TO YELLOW ON/RED TO YELLOW

FLASHING

Dead Battery, Battery Back Up

ON/WHITE STEADY ON/WHITE STEADY Battery Backup in Operation

None Required
Power is out. Battery in use.
None Required
Replace Battery. No Fault. Courtesy light while in battery backup mode. Light will turn o after 4 minutes.

LED DISPLAY UNDER NORMAL OPERATING CONDITIONS

+ PPRRGGMM

SSEETT

Standard Models

Battery Back-up Models

NO LED DISPLAY BOTH LEDs = STEADY GREEN 23

7 REPLACEMENT PARTS
Specify model number of opener when ordering parts
Some hardware listed here shows size and/or type so they may be sourced locally if lost. Complete hardware bags can be ordered separately.
Chain & Belt Channel

Item 1 1A 2 3 4
5
6
7
24

Description

QTY.

Head To Rail Bracket ( 2 for Chain, 1 for Belt) 1

Head To Rail Bracket Belt Guard (for Belt

only)

Tensioner Assembly

Pulley Tensioner

Chain Bullet Assembly

Belt Bullet Assembly

Chain & Bullet Assembly, 7, 8, 10, 12,14 ft. 1

Belt & Bullet Assembly, 7, 8 10, 12, 14 ft.

Chain Drive Sprocket Assembly

Belt Drive Sprocket Assembly

Carriage Assembly, 7 ft Doors

Carriage Assembly, 8 ft Doors

Carriage Assembly, 9, 10, 12, 14 ft Doors

Carriage Release Handle

Curved Door Arm

10 Installation Parts Pack (Blue Bag)

11 Mounting Parts Pack (Orange Bag)

13 Parts Pack, Rail Connector, 12-14f t Models 1

14 Release Cord Assembly,7' (32")

Release Cord Assembly, 8' (44")

Release Cord Assembly, 9-14' (116")

NS Rail Support Kit, 12-14 ft only

NS Wire Clips, (50 pcs)

DC Chain/Belt Drive Powerhead 10

Specify model number of opener when ordering parts

Item # 1 2 3 4 5 6 7
8 9 10 NS

Description Powerhead Cover, Light Lens Cover Motor Assembly Light Socket Assembly Transformer, 120V Circuit Board Assembly Power Cord Assembly Power Cord Assembly Screws, M6-1x12 (3pk) Screws, # 8x5/16 (3pk) Integrated Wi-Fi (iDCM) control board Kits Optical Dual Encoder Assembly Replacement Kit

NOTE: The following kits will include all necessary harnesses, and/or hardware

required for reassembly and detailed assembly instructions.

Motor Assemblies

PCB DC Controllers

Light Sockets

Idler Pulley Assembly

Transformer Assembly

Chain & Belt Kits

Covers

QTY. 1 1 1 1 1 1 1 1 1 1 1 1
25

8 DASMA SAFETY GUIDELINES

Look for this Safety Alert Symbol below. This
! symbol indicates a potential personal safety hazard that can result in injury or death.
A GARAGE DOOR IS THE LARGEST MOVING OBJECT IN THE HOME. These doors are often operated by electric door openers. Proper installation, operation, maintenance, and testing of the garage door and automatic opener are necessary to provide safe, trouble-free operation.
An improperly adjusted garage door or automatic opener can exert deadly force when the door closes. This could lead to serious injury or death from being hit by a closing garage door or from being trapped under the door.
! A few simple precautions can protect our family and friends from potential harm. Please take a few minutes to read the following safety and maintenance tips. Refer to your garage door and opener owner's manual for details speci c to your garage door and automatic opener.

! Do not stand or walk under a moving door! Do not let children or adults play "beat the door." It is dangerous and can result in serious injury or death. Adults should set a good example. Know how to use the emergency release, in case someone is pinned by the door.

! Do not let children play with or use the transmitters or remote controls. Always place or store them out of the reach of children.

DASMA SAFETY GUIDELINES

The push button wall control should
! be out of reach of children. (at least 5 feet from the oor) and away from all moving parts. Mount and use the button where you can clearly see the moving garage door.

WHEN USING THE PUSH BUTTON OR
! TRANSMITTER, KEEP THE DOOR IN SIGHT UNTIL IT COMPLETELY STOPS MOVING. Teach children never to play under or near an open garage door.

GARAGE DOOR OPENERS ARE NOT
! TOYS. Careless operation and allowing children to play with or use garage door opener controls can lead to tragic results. Discuss garage door safety with your children. Explain the danger of being trapped under the door.

! Teach children to keep their hands and ngers clear of section joints, hinges,
track, springs, and other door parts. Contact with a moving door or its hardware could cause injury. These injuries can also happen with garage doors that don't have automatic openers.

This important information is provided by the U.S. Consumer Product Safety Commission, the National Safety Council, and the Industry Coalition for Automatic Garage Door Opener Safety.
27

THE GENIE COMPANY 1 DOOR DRIVE MOUNT HOPE, OHIO. 44660 1-800-35-GENIE
www.genieccompany.com

GPL Ghostscript 9.06
