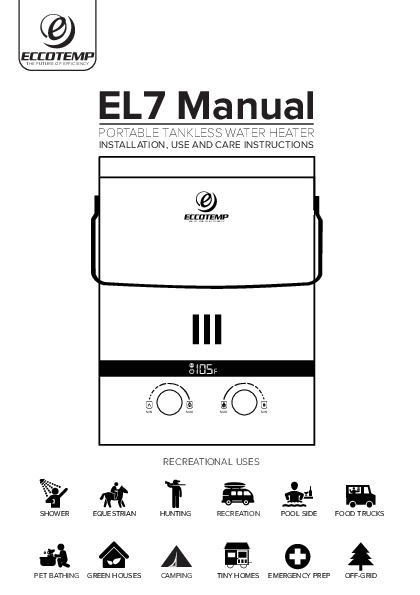

THE FUTURE OF EFFICIENCY
EL7 Manual
PORTABLE TANKLESS WATER HEATER
INSTALLATION, USE AND CARE INSTRUCTIONS
THE FUTURE OF EFFICIENCY

105 F

MIN

MAX

MAX

MIN

RECREATIONAL USES

SHOWER

EQUESTRIAN

HUNTING

RECREATION

POOL SIDE FOOD TRUCKS

PET BATHING GREEN HOUSES

CAMPING

TINY HOMES EMERGENCY PREP OFF-GRID

ENGLISH

PLEASE RETAIN THIS INSTRUCTION MANUAL FOR FUTURE REFERENCE

WARNING

WCAAURTNIIONNG

SAFETY

CARBON MONOXIDE HAZARD
This appliance can produce carbon monoxide which has no odor.
Using it in an enclosed space can kill you.
Never use this appliance in an enclosed space such as a camper, tent, car or home.

HOT/CHAUD

CAUTION
THE FUTURE OF EFFICIENCY THE FUTURE OF EFFICIENCY

BURN/BR�LER

105 F

MIN

MAX

MAX

MIN

Vapors from flammable liquids will explode and catch fire causing death or severe burns.
Do not use or store flammable products such as gasoline, solvents or adhesives in the same room or near the water heater. Keep flammable products : 1. Far away from heater 2. In approved containers 3. Tightly closed 4. Out of children`s reach
Water heater has a main burner flame. The main burner flame: 1. Can come on at any time and
2. Will ignite flammable vapors. Vapors:
1. Cannot be seen 2. Are heavier than air 3. Go a long way on the floor 4. Can be carried from other rooms to
the main burner flame by air currents. Installation: Do not Install water heater where flammable products will be stored or used unless the main burner flame is at least 18" above the floor. This will reduce, but not eliminate, the risk of vapors being ignited by the main burner flame.
Read and follow water heater warnings and Instructions. If owners manual is missing, contact the retailer or manufacturer.

Water temperature over 125�F can cause severe burns instantly or death scalds. Children, disabled and elderly are at highest risk of being scalded. See instruction manual before setting temperature at water heater. Feel water before bathing or showering. Temperature limiting valves are available, see manual.
WARNING
Incorrect installation, use, adjustment, alteration, service or maintenance may cause injury or damage materials. Refer to this manual for assistance or additional information consult a qualified installer, service agency or gas supplier.
WARNING
Fire or Explosion Hazard Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.

PLEASE NOTE: THIS MODEL IS NOT RECOMMENDED, NOR HAS IT BEEN TESTED FOR ANY PERMANENT OR INDOOR INSTALLATION. THIS MODEL IS PART OF OUR PORTABLE, OUTDOOR SERIES AND NEEDS TO BE TAKEN DOWN AND STORED IN A WARM, DRY PLACE AFTER EVERY USE. THIS MANUAL AND ALL ECCOTEMP CONTENT IS SUBJECT TO CHANGE WITHOUT NOTICE. VISIT SUPPORT.ECCOTEMP.COM FOR THE
LATEST VERSION OF THE MANUAL AND WARRANTY.

2

Support: Support.Eccotemp.com

Shop Online: Eccotemp.com

Store Locator: Eccotemp.com/locator

ENGLISH

SAFETY

EL7 PORTABLE TANKLESS WATER HEATER
Use & Care Manual
With Installation Instructions for the Installer

Safety Information

Safety Precautions

2

Leak Testing

6

Combustion and Ventilation Air 6

Installation Instructions

Benefits and Recommendations 7

Getting Started

8

Water and Gas Connections

8

Proper Installation

9

Operating Instructions

Use and Operation

10

Adjustment

11

Functions and Features

12

Maintenance

Rain Cap Inspection

13

Storage

13

Cleaning Water Screen

13

Flushing Water Heater

14

Troubleshooting

Troubleshooting

15

Construction and Parts

17

Electrical Wiring

18

Replacement Parts

18

Warranty

Warranty

19

APPLICATION
Recreational

INSTALLATION
Outdoor

BTU'S
47,800-52,500

FLOW RATE
1.85 GPM

CONGRATULATIONS!
You've just purchased a new Eccotemp EL7 portable tankless water heater. This will open a world of enjoyment to going tankless!
We highly suggest you take the time to read through all the safety and installation procedures in this manual before attempting to install your new tankless water heater.
Should you have any questions, please feel free to visit our helpdesk located at support.eccotemp.com.

PLEASE RETAIN THE INSTRUCTION MANUAL FOR FUTURE REFERENCE
FOR YOUR RECORDS Write your serial number here: #_______________________________
You can find them on a label on the appliance and/or packaging. Staple sales slip or canceled check here. Proof of the original purchase date is needed to obtain service under the warranty.
READ THIS MANUAL Inside you will find many helpful hints on how to use and maintain your water heater properly. A little preventive care on your part can save you time and money over the life of your water heater. You will find many answers to common problems in the Troubleshooting Guide. If you review the chart of Troubleshooting Tips first, you may not need to call for service.
READ THE SAFETY INFORMATION Your safety and the safety of others are very important. There are many important safety messages in this manual and on your water heater. Always read and obey all safety messages. This is the safety alert symbol. Recognize this symbol as an indication of Important Safety Information! This symbol alerts you to potential hazards that can kill or hurt you and others. All safety messages will follow the safety alert symbol and the words: "DANGER", "WARNING", "CAUTION" or "NOTICE". These words mean:
WARNING - A potentially hazardous situation that could result in death or serious injury and/or damage to property.
DANGER - An imminently hazardous situation that will result in death or serious injury.
CAUTION - A potentially hazardous situation that may result in minor or moderate injury.
NOTICE - Attention is called to observe a specified procedure or maintain a specific condition.

PLEASE NOTE: THIS MODEL IS NOT RECOMMENDED, NOR HAS IT BEEN TESTED FOR ANY PERMANENT OR INDOOR INSTALLATION. THIS MODEL IS PART OF OUR PORTABLE, OUTDOOR SERIES AND NEEDS TO BE TAKEN DOWN AND STORED IN A WARM, DRY PLACE AFTER EVERY USE. THIS MANUAL AND ALL ECCOTEMP CONTENT IS SUBJECT TO CHANGE WITHOUT NOTICE. VISIT SUPPORT.ECCOTEMP.COM FOR THE
LATEST VERSION OF THE MANUAL AND WARRANTY.

Support: Support.Eccotemp.com

Shop Online: Eccotemp.com

Store Locator: Eccotemp.com/locator

3

ENGLISH

SAFETY

IMPORTANT SAFETY INFORMATION: READ ALL INSTRUCTIONS BEFORE USING
Be sure to read and understand the entire Use and Care Manual before attempting to install or operate this water heater. It may save you time and money. Pay particular attention to the Safety Instructions. Failure to follow these warnings could result in serious bodily injury or death. Should you have problems understanding the instructions in this manual, or have any questions, STOP, and get help from a qualified service technician, or the local gas utility.
DANGER!
PROPERLY INSTALL WATER HEATER
Failure to properly install the tankless water heater outdoors as outlined in the installation could result in injury. Failure to follow instructions in this manual can result in unsafe operation of the water heater. To avoid the risk of fire, explosion, or asphyxiation from carbon monoxide, never operate this water heater unless it is installed properly and has an adequate air supply for proper operation. Be sure to inspect the attached rain cap for proper installation at initial start-up; and at least annually thereafter. Refer to the Care and Cleaning section of this manual for more information regarding rain cap inspection.
WARNING!
Gasoline, as well as other flammable materials and liquids (adhesives, solvents, paint thinners etc.), and the vapors they produce are extremely dangerous. DO NOT handle, use or store gasoline or other flammable or combustible materials anywhere near or in the vicinity of a water heater or any other appliance. Be sure to read and follow the labels on the water heater, as well as the warnings printed in this manual. Failure to do so can result in property damage, bodily injury or death.

PLEASE NOTE: THIS MODEL IS NOT RECOMMENDED, NOR HAS IT BEEN TESTED FOR ANY PERMANENT OR INDOOR INSTALLATION. THIS MODEL IS PART OF OUR PORTABLE, OUTDOOR SERIES AND NEEDS TO BE TAKEN DOWN AND STORED IN A WARM, DRY PLACE AFTER EVERY USE. THIS MANUAL AND ALL ECCOTEMP CONTENT IS SUBJECT TO CHANGE WITHOUT NOTICE. VISIT SUPPORT.ECCOTEMP.COM FOR THE
LATEST VERSION OF THE MANUAL AND WARRANTY.

4

Support: Support.Eccotemp.com

Shop Online: Eccotemp.com

Store Locator: Eccotemp.com/locator

ENGLISH

SAFETY

DANGER!
LIQUIFIED PETROLEUM MODELS
Liquid propane has an odorant added to aid in detecting a gas leak. Some people may not physically be able to smell or recognize this odorant. If you are unsure or unfamiliar with the smell of liquid propane, ask the gas supplier. Other conditions, such as "odorant fade", which causes the odorant to diminish in intensity, can also hide or camouflage a gas leak. Always check with commercial leak detector or soapy water. � Gas detectors are recommended in liquid propane applications and their installation
should be in accordance with the detector manufacturer's recommendations and/or local laws, rules and regulations. � Water heaters utilizing liquid propane gas are different from natural gas models. A natural gas water heater will not function safely on liquid propane gas and vice versa. � No attempt should ever be made to convert the tankless water heater from liquid propane to natural gas. To avoid possible equipment damage, personal injury or fire, do not connect the water heater to a fuel type not in accordance with the portable tankless water heater data plate: propane for propane portable tankless water heaters and natural gas for natural gas portable tankless water heaters. These portable tankless water heaters are not certified for any other fuel type. � Liquid propane gas must be used with great caution. It is heavier than air and will collect first in lower areas making it hard to detect at nose level. � Before attempting to light the water heater, make sure to look and smell for gas leaks. Use a soapy solution to check all gas fittings and connections. Bubbling at a connection indicates a leak that must be corrected. When smelling to detect a gas leak, be sure to sniff near the floor also. � It is recommended that more than one method, such as soapy solution, gas detectors, etc., be used to detect leaks in gas applications.
NOTICE!
IF A GAS LEAK IS PRESENT OR SUSPECTED:
� DO NOT attempt to find the cause yourself.
� DO NOT try to light the water heater.
� DO NOT touch any electrical switch.
ADDITIONAL WARNINGS!
1. Do not leave unattended.
2. The exhaust gas and top of the portable tankless water heater is HOT! Do not place hands or any foreign object near the top of the heater.
3. Do not use in high wind conditions.
4. If the smell of gas is detected, turn off the gas valve at the tank immediately! Do not use flame for leak detection.
5. Use only liquid propane.
6. Use only outdoors.
7. Do not over tighten the gas regulator connection to the portable tankless water heater with a wrench. This may cause a crack in the gas regulator.

PLEASE NOTE: THIS MODEL IS NOT RECOMMENDED, NOR HAS IT BEEN TESTED FOR ANY PERMANENT OR INDOOR INSTALLATION. THIS MODEL IS PART OF OUR PORTABLE, OUTDOOR SERIES AND NEEDS TO BE TAKEN DOWN AND STORED IN A WARM, DRY PLACE AFTER EVERY USE. THIS MANUAL AND ALL ECCOTEMP CONTENT IS SUBJECT TO CHANGE WITHOUT NOTICE. VISIT SUPPORT.ECCOTEMP.COM FOR THE
LATEST VERSION OF THE MANUAL AND WARRANTY.

Support: Support.Eccotemp.com

Shop Online: Eccotemp.com

Store Locator: Eccotemp.com/locator

5

ENGLISH

SAFETY

Leak Testing
WARNING: Never use an open flame to test for gas leaks, as property damage, personal injury, or death could result. The tankless water heater and its gas connections must be leak tested at normal operating pressures before it is placed in operation.

� Turn on the gas to the tankless water heater from the recommended gas cylinder.

� Use a commercial leak detector or soapy water solution to test for leaks at all connections and fittings.
� Bubbles indicate a gas leak that must be corrected.
The factory connections should also be leak tested after the tankless water heater is placed in operation cause water damage which may or may not be reparable. Please check the warranty information found on our website at www.eccotemp.com for more information on freezing issues.
Pressure Relief Valve
A new pressure relief valve, complying with the standard for pressure relief valves and automatic gas shut-off Devices for Hot Water Supply Systems, ANSI Z21.22, must be installed at the hot water outlet connection of the tankless water heater at the time of installation. Local codes shall govern the installation of pressure relief valves. The diagram to the right illustrates a pressure only relief valve. If local codes require a combination and pressure relief valve be installed, an extension piece may be required.
For safe operation of the water heater, be sure that:

� The pressure rating of the pressure relief valve must not exceed 150 psi, the maximum working pressure of the tankless water heater as marked on the rating plate.

� The BTUH rating of the pressure relief valve must equal or exceed the BTUH input of the tankless water heater as marked on its rating plate.

� No valve of any type should be installed between the pressure relief valve and the water heater.

� The discharge line must be NO SMALLER than the

Gas

outlet of the valve and must pitch downward to allow Supply

TT-SShahpae pe CCoonnnencteorctor

complete drainage (by gravity) of the pressure relief

DrDarianin

PPrreesssusreure

�

valve and discharge line.
The end of the discharge line should not be threaded or concealed. No valve of any type, restriction or reducer coupling should be installed in discharge line.

PipPiepe

RReelileifeVfalVvealve SShoowwereHrose

DPDPDirirprpaaaienieinnPipeSShhoowwereHroHseose

Hose

PrePssrueresRseulierfeValve

Relief Valve

Combustion and Ventilation Air

Warning!
Gasoline, as well as other flammable materials and liquids (adhesives, solvents, paint thinners etc.), and the vapors they produce are extremely dangerous. DO NOT handle, use or store gasoline or other flammable or combustible materials anywhere near or in the vicinity of a water heater or any other appliance. Be sure to read and follow the labels on the water heater, as well as the warnings printed in this manual. Failure to do so can result in property damage, bodily injury or death.

This water heater is for OUTDOOR installation ONLY. It must NOT be installed indoors or in a confined space. An air supply containing halogenated hydrocarbons may be safe to breathe, but when it passes through a gas flame corrosive elements are released that will shorten the life of any gas burning appliance. Propellants from common spray cans or gas leaks from A/C and refrigeration equipment are highly corrosive after passing through a flame and therefore should never be used around the water heater. The tankless water heater warranty is voided when failure of the heater is due to operation in a corrosive atmosphere.

PLEASE NOTE: THIS MODEL IS NOT RECOMMENDED, NOR HAS IT BEEN TESTED FOR ANY PERMANENT OR INDOOR INSTALLATION. THIS MODEL IS PART OF OUR PORTABLE, OUTDOOR SERIES AND NEEDS TO BE TAKEN DOWN AND STORED IN A WARM, DRY PLACE AFTER EVERY USE. THIS MANUAL AND ALL ECCOTEMP CONTENT IS SUBJECT TO CHANGE WITHOUT NOTICE. VISIT SUPPORT.ECCOTEMP.COM FOR THE
LATEST VERSION OF THE MANUAL AND WARRANTY.

6

Support: Support.Eccotemp.com

Shop Online: Eccotemp.com

Store Locator: Eccotemp.com/locator

ENGLISH

INSTALLATION

The EL7 Portable Tankless Water Heater
BENEFITS AND RECOMMENDED USES

The Eccotemp EL7 is a portable liquid propane fired tankless water heater capable of delivering 1 to 1.5 gallons of hot water per minute to almost anywhere. The portable tankless water heater has standard 1/2" NPT pipe fittings and an adapter for using a standard garden hose for inlet water supply. People around the world use similar portable tankless water heaters to heat water for recreational use, safely and reliably.

THE FUTURE OF EFFICIENCY
Handle

Rain Cap

Required gas supply should be from a standard 20 pound liquid propane cylinder (not included). Included with your EL7 Portable Tankless Water Heater is a CSA approved regulator with hose and a multi-spray showerhead set with an on/off switch. If you purchased the EL7 Bundle then you received in addition to the above items the EccoFlo 12v water pump and strainer.
The automatic ignition is powered by 4 "AA" Cell Batteries (not included). When water starts flowing through the tankless water heater the burner ignites and starts producing instant hot water! No pilot light! Ideal water pressure for operation is 20-80 psi.

105 F

MIN

MAX

MAX

MIN

Ignition Window
Pressure Indicator Light

The EL7 has a built-in tilt switch that will automatically shut off the tankless water heater any time it is tilted more than 45� in any direction.

Gas Adjustment Water Adjustment

Required gas supply should be from a standard 20 pound liquid propane cylinder (not included). LP-gas cylinders must either be designed, fabricated, tested and marked (or stamped) in accordance with the regulations of the U.S. Department of Transportation (DOT) or for use in Canada, cylinders must be constructed and marked in accordance with the specifications for Cylinders, Spheres, and Tubes for the Transportation of Dangerous Goods, CSA B339.
� Do not store a spare LP gas cylinder under or near this appliance.
� Never fill the cylinder beyond 80 percent full.

If the information above is not followed exactly, a fire causing death or serious injury may occur.

Outdoor Recreational Uses

SHOWER

EQUESTRIAN

HUNTING

RECREATION

POOL SIDE FOOD TRUCKS

PET BATHING GREEN HOUSES

CAMPING

TINY HOMES EMERGENCY PREP OFF-GRID

PLEASE NOTE: THIS MODEL IS NOT RECOMMENDED, NOR HAS IT BEEN TESTED FOR ANY PERMANENT OR INDOOR INSTALLATION. THIS MODEL IS PART OF OUR PORTABLE, OUTDOOR SERIES AND NEEDS TO BE TAKEN DOWN AND STORED IN A WARM, DRY PLACE AFTER EVERY USE. THIS MANUAL AND ALL ECCOTEMP CONTENT IS SUBJECT TO CHANGE WITHOUT NOTICE. VISIT SUPPORT.ECCOTEMP.COM FOR THE
LATEST VERSION OF THE MANUAL AND WARRANTY.

Support: Support.Eccotemp.com

Shop Online: Eccotemp.com

Store Locator: Eccotemp.com/locator

7

ENGLISH

INSTALLATION

Getting Started
1. Check box for damage. Damages caused in shipment must be reported immediately. 2. Make sure you have all the parts: Please note: included parts and accessories may vary depending on country and regulations.

qty. 1 - Water Heater

qty. 1 - Rain Cap

qty. 1 - Shower Nozzle and Hose

All accessories come with a 30 day manufacturer's warranty. qty. 1 - 1/2" NPT to Garden Hose Adapter

qty. 1 - Gas Hose
and Regulator

qty. 1 - Hardware Pack

Pressure Relief Valve (Only in Canadian Shipments)

4 "AA" Cell Batteries (Not included)

Parts Sold Separately

Manual

�" Threaded Tee Fitting �" x �" Adapter x 2 �" x �" Hex Nipple
Location
THIS WATER HEATER IS FOR OUTDOOR USE ONLY!

�" Pressure Relief Valve (Provided in Canadian
Shipments Only)

� This model is an outdoor model and must be mounted on a vertical wall. It must not be installed indoors or in a confined space. Make sure people (particularly children, disabled, and elderly) will not touch the hot water outlet or the flue terminal. The flue terminal and air inlet must be clear of obstruction and shrubbery.
� The tankless water heater must be installed on a fire retardant area, and must be away from all flammable materials. Clearance should be 4 ft to the left and right side of flammable materials and 6.75 ft to the front.
� The tankless water heater should be installed in open area where strong wind currents are not prevalent. Take measures to avoid direct wind, rain and snow.
� Make sure the tankless water heater is not temporarily installed in a location where damage can occur, for example, by moving vehicles or area flooding, etc.
Water and Gas Connections

GAS INPUT

DRAIN PLUG WATER WATER OUTPUT INPUT

BATTERY PACK

NOTICE: Sealant tape included in your hardware pack should be used on your water inlet and outlet pipes before connecting your water source or output device.

PLEASE NOTE: THIS MODEL IS NOT RECOMMENDED, NOR HAS IT BEEN TESTED FOR ANY PERMANENT OR INDOOR INSTALLATION. THIS MODEL IS PART OF OUR PORTABLE, OUTDOOR SERIES AND NEEDS TO BE TAKEN DOWN AND STORED IN A WARM, DRY PLACE AFTER EVERY USE. THIS MANUAL AND ALL ECCOTEMP CONTENT IS SUBJECT TO CHANGE WITHOUT NOTICE. VISIT SUPPORT.ECCOTEMP.COM FOR THE
LATEST VERSION OF THE MANUAL AND WARRANTY.

8

Support: Support.Eccotemp.com

Shop Online: Eccotemp.com

Store Locator: Eccotemp.com/locator

ENGLISH

INSTALLATION

Proper Installation

6

THE FUTURE OF EFFICIENCY

1

105 F

MIN

MAX

MAX

MIN

5

3

2

4

7

WARNING: If using with non-potable water, do not heat water for human consumption.

Liquid Propane Tank Not Included

1. Attach the rain cap securely to the top of your portable tankless water heater by sliding the shield into the designated slots.
2. If using a standard garden hose, attach the 1/2" NPT to garden hose adapter to the fitting marked "Water Input". Use sealant tape or other approved sealing method on the threads for a secure, watertight fit. Check to make sure the screen inside the water inlet is in place and clean. Then attach your water input/garden hose.
3. Install gas supply line and regulator to the portable tankless water heater by using 2 wrenches, one on the compression fitting already attached to the tankless water heater and the other on the gas line. DO NOT OVER TIGHTEN. OVER TIGHTENING MAY CRACK THE GAS REGULATOR CAUSING A GAS LEAK! Check for any gas leaks before ignition! Make sure the gas connection is secured and cylinder in an upright position for proper vapor withdrawal.
4. Attach the shower nozzle hose to the water output to the fitting marked "Water Outlet". Do not over tighten. If using with a pressure relief valve the pressure relief valve should be installed to the tankless water heater first and then the shower nozzle hose.
5. Install four AA batteries in the compartment on the bottom left of the heater. Check that the batteries are facing the correct direction. Additional parts are necessary when installing with pressure relief valve. See pg. 8 for more details.
6. Use the top tab on the portable tankless water heater to suspend from a mounted screw capable of holding 30 pounds. Place at a comfortable height without putting stress on the gas hose. Do not use suspended from the handle! Do not permanently mount this portable tankless water heater!
7. Attach gas regulator with hose to the LP tank. Use hand pressure only on the plastic connector. LEAVE GAS TANK VALVE IN THE "OFF" POSITION.

PLEASE NOTE: THIS MODEL IS NOT RECOMMENDED, NOR HAS IT BEEN TESTED FOR ANY PERMANENT OR INDOOR INSTALLATION. THIS MODEL IS PART OF OUR PORTABLE, OUTDOOR SERIES AND NEEDS TO BE TAKEN DOWN AND STORED IN A WARM, DRY PLACE AFTER EVERY USE. THIS MANUAL AND ALL ECCOTEMP CONTENT IS SUBJECT TO CHANGE WITHOUT NOTICE. VISIT SUPPORT.ECCOTEMP.COM FOR THE
LATEST VERSION OF THE MANUAL AND WARRANTY.

Support: Support.Eccotemp.com

Shop Online: Eccotemp.com

Store Locator: Eccotemp.com/locator

9

ENGLISH

OPERATING

Before going to the USE section:
Check around area for flammables, especially gasoline or other vapors which may ignite. The exhaust and top of the portable tankless water heater will get HOT! Make sure there are no foreign objects around the portable tankless water heater or that have fallen into the top.
Use and Operation
This water heater is for point of use and is meant for temporary water heating. You should not connect to a permanent inlet water connection or connect to a water distribution system to supply multiple outlets. If this water heater is only intended for use with non-potable water (such as a portable shower) do not consume the water internally. This water heater does not screen contaminants and poses a potential health risk if used to heat water for consumption.
Warning: This model is intended for recreational & portable use only. This model CANNOT be permanently mounted or plumbed in any way.
1. Be sure the showerhead or other water outlet device is in the "OFF" position. 2. Set the water regulator knob on the face of the portable tankless water heater to its highest setting. 3. Set the gas regulator knob on the face of the portable tankless water heater to its minimum setting. 4. Make sure the gas cylinder is in an upright position and turn the gas valve on the cylinder all the way
open. 5. IF THE SMELL OF GAS IS DETECTED, TURN OFF THE GAS VALVE FROM THE LP-GAS SUPPLY CYLINDER
IMMEDIATELY!!! 6. Turn on incoming water supply. Ensure that you have adequate water pressure between 20-80 PSI. 7. Turn on your showerhead or other water output device to the "on" position and adjust to the desired
water flow. 8. There will be a series of audible clicks and the burner will ignite. Should the burner not ignite after 5
seconds, shut off and go to the "Trouble Shooting" section. 9. Upon completion, turn the showerhead off or other water output off. 10. Turn your gas and water supply off. 11. For storage, disconnect the water and gas lines from your portable tankless water heater. 12. Drain the water heater by unscrewing the drain plug from the bottom of the tankless water heater. See
page 9 for location. 13. Store water heater when not in use in a safe, warm and dry place.
WARNING: If the outside temperature is around or below freezing (32�F, 0� C), ensure that the drain plug is opened and water drained from the portable tankless water heater after each use to avoid internal damage to the water heater. You will also need to unhook the outgoing water line to ensure that any water in the heat exchanger is drained. Failure to properly drain your portable tankless water heater will cause water damage which may or may not be repairable. Please check the warranty information found on our website at www.eccotemp.com for more information on freezing issues.
This appliance must be installed in accordance with local codes or, in the absence of local codes, the National Fuel Gas Code, ANSI Z223.1/NFPA 54, or the Natural Gas and Propane Installation Code, CSA B149.1, or the Propane Storage and Handling Code, CSA B149.2
WARNING!
GAS HOSE ADAPTER
THE EL7 PORTABLE TANKLESS WATER HEATER HAS A 1/2" TO 3/8" ADAPTER ALREADY ATTACHED TO THE GAS INLET ON THE WATER HEATER.
PLEASE ENSURE THE ADAPTER IS CORRECTLY INSTALLED WITH THREAD SEALANT. A SPOOL OF SEALANT TAPE IS INCLUDED WITH THE WATER HEATER.
MULTIPLE WRAPS OF SEALANT TAPE MAY BE NECESSARY TO ASSURE COMPLETE SEAL.
ALWAYS CHECK FOR GAS LEAKS BEFORE USING HEATER.

PLEASE NOTE: THIS MODEL IS NOT RECOMMENDED, NOR HAS IT BEEN TESTED FOR ANY PERMANENT OR INDOOR INSTALLATION. THIS MODEL IS PART OF OUR PORTABLE, OUTDOOR SERIES AND NEEDS TO BE TAKEN DOWN AND STORED IN A WARM, DRY PLACE AFTER EVERY USE. THIS MANUAL AND ALL ECCOTEMP CONTENT IS SUBJECT TO CHANGE WITHOUT NOTICE. VISIT SUPPORT.ECCOTEMP.COM FOR THE
LATEST VERSION OF THE MANUAL AND WARRANTY.

10

Support: Support.Eccotemp.com

Shop Online: Eccotemp.com

Store Locator: Eccotemp.com/locator

ENGLISH

OPERATING

Adjustment
The temperature of the outgoing water is dependent on the temperature of the incoming water balanced with the amount of heat applied. Use extreme caution when setting the outlet water temperature. 1. Make sure showerhead is in the off position. 2. Turn the water knob to max. 3. Turn gas knob to min. 4. Turn on gas. 5. Turn on water. 6. Turn showerhead on. (Or other outlet device) 7. Wait to hear a series of audible clicks. 8. Upon completion turn off showerhead set. 9. Turn off water supply. 10. Turn off gas supply. 11. Disconnect water and gas lines. 12. Drain plug open. See page 9 for location of pressure drain plug. 13. Store in a safe, warm, dry place.
WARNING: Do not alter or change this water heater's original temperature sensor.
WARNING: Should overheating occur or the gas supply fail to shut off, turn off the manual gas control valve to the appliance.
WARNING: THE PORTABLE TANKLESS WATER HEATER IS CAPABLE OF PRODUCING SCALDING WATER TEMPERATURES!

Pressure Indicator
Light Power Indicator Light

105 F

MIN

MAX

MAX

MIN

Gas Adjustment

Water Adjustment

PLEASE NOTE: THIS MODEL IS NOT RECOMMENDED, NOR HAS IT BEEN TESTED FOR ANY PERMANENT OR INDOOR INSTALLATION. THIS MODEL IS PART OF OUR PORTABLE, OUTDOOR SERIES AND NEEDS TO BE TAKEN DOWN AND STORED IN A WARM, DRY PLACE AFTER EVERY USE. THIS MANUAL AND ALL ECCOTEMP CONTENT IS SUBJECT TO CHANGE WITHOUT NOTICE. VISIT SUPPORT.ECCOTEMP.COM FOR THE
LATEST VERSION OF THE MANUAL AND WARRANTY.

Support: Support.Eccotemp.com

Shop Online: Eccotemp.com

Store Locator: Eccotemp.com/locator

11

ENGLISH

OPERATING

Functions and Features
� Water controlled automatic ignition: Water pressure between 20-80 PSI and 1.9 - 7.6 LPM opens the ignition circuit for easy and convenient operation.
� Auto cut-off protection: The auto cut-off protection will shut the gas supply off immediately in the event of flameout to reduce the risk of gas leakage.
� Remove drain valve to avoid water pipe and regulator damage caused by freezing water.*
� Anti-dry combustion protection: The portable tankless water heater will shut off the gas supply in the event water stops flowing through the portable tankless water heater.
*Read the maintenance section on draining the portable tankless water heater entirely to avoid freeze related issues.

MODEL EL7

TEMPERATURE INCREASE PER GPM

Gas Setting Highest Lowest

1.9 LPM 96 � 34 �

3.8 LPM 48 � 17 �

5.7 LPM 32 � 11 �

7.6 LPM 25 � 9 �

NOTICE - Temperature increases listed are based on use of the tankless water heater under optimal conditions. Variable factors such as incorrect or imperfect installation and varying incoming water temperatures may yield different results.

TECHNICAL SPECIFICATIONS - PORTABLE

Gas Type Model Water Pressure Gas Input Rating Manifold Gas Pressure Ignition
Protections
Dimensions Weight Pipe fittings

Liquid Propane EL7 20-80 PSI 47,800-52,500 Btu/hr 11 in w.c. (2.74 kPa) Electric Pulse, AA Battery Powered (No electrical connection required) Auto cut-off water control, automatic ignition, anti-dry combustion protection, over-pressure overheating and flameout protection 19.1" x 11.9" x 7.1" 14.7 lbs. 1/2" NPT, incoming/outgoing water & gas

PLEASE NOTE: THIS MODEL IS NOT RECOMMENDED, NOR HAS IT BEEN TESTED FOR ANY PERMANENT OR INDOOR INSTALLATION. THIS MODEL IS PART OF OUR PORTABLE, OUTDOOR SERIES AND NEEDS TO BE TAKEN DOWN AND STORED IN A WARM, DRY PLACE AFTER EVERY USE. THIS MANUAL AND ALL ECCOTEMP CONTENT IS SUBJECT TO CHANGE WITHOUT NOTICE. VISIT SUPPORT.ECCOTEMP.COM FOR THE
LATEST VERSION OF THE MANUAL AND WARRANTY.

12

Support: Support.Eccotemp.com

Shop Online: Eccotemp.com

Store Locator: Eccotemp.com/locator

ENGLISH

MAINTENANCE

Rain Cap Inspection
Be sure to turn the unit off and disconnect the water supply before performing any housekeeping tasks to this tankless water heater. Vacuum around the tankless water heater for dust, dirt and lint on a regular basis. Clean the tankless water heater and front panel by using a damp soft cloth with a few drops of mild detergent and gently wiping the surfaces of the unit. Wipe any remaining moisture with a dry soft cloth.

Storage

When not in use, your portable tankless water heater should be stored away in a climate-controlled area.
WARNING: Item should not be left or stored in freezing conditions (at or below 32�F / 0�C). Internal damage can occur.
Upon completion of use, prepare your water heater for storage:
1. Turn OFF water and gas supply and then disconnect from water heater.
2. Unscrew the drain valve (ribbed cylindrical stem next to the water input valve) to ensure draining of water.

3. Remove the screen at the end of the water inlet pipe and clean. Return screen after cleaning. (see housekeeping section above for instructions)

4. Store tankless water heater in a climate-controlled area.

When the tankless water heater is not in use and remains connected to the LP-gas supply cylinder, the tankless water heater and cylinder must be stored outdoors, in a well ventilated space, out of the reach of children, and must not be stored in a building, garage or any other enclosed area.

Storage of the tankless water heater indoors is permissible only if the cylinder is disconnected and removed from the water heater.

LP-gas cylinders must be stored outdoors, in a well-ventilated space, out of the reach of children, and must not be stored in a building, garage or any other enclosed area.
Cleaning the Water Screen

1. Make sure the water heater is OFF.

2. Disconnect the water supply from the water heater.

3. Locate the screen at the end of the water inlet pipe and gently remove with a screwdriver.
4. Rinse the screen in a sink or with a hose to remove any debris.

105 F

MIN

MA

MAX

MIN

5. Return the screen by gently inserting back into the end of the water inlet pipe.
6. Reconnect the water supply and turn ON the water heater.
7. Clean the water screen on a monthly basis.

Internal Water Inlet Screen

PLEASE NOTE: THIS MODEL IS NOT RECOMMENDED, NOR HAS IT BEEN TESTED FOR ANY PERMANENT OR INDOOR INSTALLATION. THIS MODEL IS PART OF OUR PORTABLE, OUTDOOR SERIES AND NEEDS TO BE TAKEN DOWN AND STORED IN A WARM, DRY PLACE AFTER EVERY USE. THIS MANUAL AND ALL ECCOTEMP CONTENT IS SUBJECT TO CHANGE WITHOUT NOTICE. VISIT SUPPORT.ECCOTEMP.COM FOR THE
LATEST VERSION OF THE MANUAL AND WARRANTY.

Support: Support.Eccotemp.com

Shop Online: Eccotemp.com

Store Locator: Eccotemp.com/locator

13

ENGLISH

MAINTENANCE

Flushing your Water Heater

It is highly recommended that you clean your Eccotemp portable tankless water heater after every other use or every 3 months to ensure your water heater is running as efficiently as possible. Exposure to unfiltered water can increase your chances of water scale, lime or rust deposit buildup.
To do this we recommend that you use our Eccotemp EZ-Flush Descaler System to flush out any unwanted build-up and sediment. For more information and to purchase please visit us at www.eccotemp.com or call 1-866-356-1992.

ECCOTEMP DESCALER

Use code: EZ2020 for 10% off EZ Flush

DANGER: Before disconnecting the water supply, make certain no one will be exposed to the danger of the hot water released by disconnecting. The water may be hot enough to create a scald hazard. The water should be released into a suitable drain to prevent injury or property damage.
DANGER: Hotter water increases the potential for hot water scalds.
DANGER: Failure to perform the recommended routine preventative maintenance can harm the proper operation of this water heater, which can cause carbon monoxide dangers, excessive hot water temperatures and other potentially hazardous conditions.

When properly maintained, your water heater will provide years of dependable trouble-free service. It is recommended that a periodic inspection of the burner, water screen and top exhaust should be made by service personnel qualified in gas appliance repair.
It is suggested that a routine preventive maintenance program be established and followed by the user.
Inspect the area around the tankless water heater to ensure a safe operating environment. Keep water heater area clear and free from combustible materials, gasoline, and other flammable vapors and liquids. Ensure the tankless water heater has not been damaged. If damage or denting is present, contact a service personnel to verify proper operation.
Check for any abnormal sounds during normal operation of the water heater.
All piping should be checked for gas and/or water leaks. Refer to page 4 of this manual for instructions on leak testing.
The air intake and cold water supply screen should be cleaned monthly. Refer to the "Housekeeping" section for further information.
DO NOT operate the tankless water heater if you feel something is wrong with the unit.
DO NOT allow children to operate or otherwise handle the unit.

PLEASE NOTE: THIS MODEL IS NOT RECOMMENDED, NOR HAS IT BEEN TESTED FOR ANY PERMANENT OR INDOOR INSTALLATION. THIS MODEL IS PART OF OUR PORTABLE, OUTDOOR SERIES AND NEEDS TO BE TAKEN DOWN AND STORED IN A WARM, DRY PLACE AFTER EVERY USE. THIS MANUAL AND ALL ECCOTEMP CONTENT IS SUBJECT TO CHANGE WITHOUT NOTICE. VISIT SUPPORT.ECCOTEMP.COM FOR THE
LATEST VERSION OF THE MANUAL AND WARRANTY.

14

Support: Support.Eccotemp.com

Shop Online: Eccotemp.com

Store Locator: Eccotemp.com/locator

ENGLISH TROUBLESHOOTING

DO NOT RETURN TO STORE
Visit our Helpdesk at support.eccotemp.com or contact us via email at support@eccotemp.com if you run into a problem.
Troubleshooting
Portable tankless water heater will not start � there are no audible clicks at startup:
1. The first thing to check is to ensure that the incoming water is connected to the "right" connection side of the portable tankless water heater. If the incoming and outgoing connections are reversed, the portable tankless water heater will not work. The incoming is on the far right and the outgoing water connection is in the middle.
2. The "On/Off" switch should be with the "-" sign pushed down.
3. Check to make sure you have fresh batteries and they are installed in the correct position.
4. Make sure that you have a minimum of 25 PSI of sustained water pressure. Number one reason that the portable tankless water heater does not ignite is that there is not enough water pressure.
5. Check to ensure that no wires have disconnected inside the portable tankless water heater during shipping. Make sure the gas is OFF and the "On/Off" switch is in the OFF position. The front cover is held on 8 screws: 2 on top holding on the black vent screen, 2 on the upper/back of the rain cap, 2 on the bottom, and 2 inside the top under the rain cap. The knobs pull off. All the wiring is done with push together plastic connectors. They are all visible without further dismantling of the portable tankless water heater. It should be obvious when a wire has become disconnected.
NOTE: Call technical support at 866.356.1992 if unsure how to remove the front cover.
6. It is possible that some debris or epoxy might have entered the water regulator. Check to see if the filter screen on the water inlet is clear of debris. You can also reverse the hookup by taking your water source and hooking it up to the water outlet side and back flushing the system to ensure there is no blockage.
7. If you've checked everything and the water heater still continues to not ignite, you can try a water pressure adjustment as follows: Looking up at the bottom of the portable tankless water heater, you will see 2 oval holes in the case. The hole that is the furthest on the right looks up at the water regulator where you will see two Phillips head screws. Take the screw that is furthest on the right in about a � or � turn. This will enable the portable tankless water heater to operate on a lower water pressure by restricting flow.
8. There is a simple test that we can help you perform if you are unaware if you have enough water pressure. Please visit the Eccotemp helpdesk at support.eccotemp.com or contact us via email at support@eccotemp.com for additional troubleshooting steps.
9. Propane gas cylinders sometimes are contaminated with air, especially new tanks upon their first filling. Cycle the portable tankless water heater on and off by using the shower head switch several times (5) to purge the air from the gas.
10. Should a portable tankless water heater fail to light or stay lit after 10 cycles, please visit support.eccotemp.com or contact us via email at support@eccotemp.com for additional troubleshooting steps.

PLEASE NOTE: THIS MODEL IS NOT RECOMMENDED, NOR HAS IT BEEN TESTED FOR ANY PERMANENT OR INDOOR INSTALLATION. THIS MODEL IS PART OF OUR PORTABLE, OUTDOOR SERIES AND NEEDS TO BE TAKEN DOWN AND STORED IN A WARM, DRY PLACE AFTER EVERY USE. THIS MANUAL AND ALL ECCOTEMP CONTENT IS SUBJECT TO CHANGE WITHOUT NOTICE. VISIT SUPPORT.ECCOTEMP.COM FOR THE
LATEST VERSION OF THE MANUAL AND WARRANTY.

Support: Support.Eccotemp.com

Shop Online: Eccotemp.com

Store Locator: Eccotemp.com/locator

15

TROUBLESHOOTING ENGLISH

Troubleshooting Continued...
Portable tankless water heater will not start � but there are audible clicks at startup:
1. The portable tankless water heater requires a minimum of about .75 GPM and a minimum of about 25 PSI. Note: water pressure is at the lower end of operating parameters. You will need a sustained water pressure of approximately 25 � 60 PSI for adequate use if you are using a 12/18/120 volt pump. See adjustment in previous section.
2. High Wind: for safety reasons the tankless heater will not start in sustained wind. Find an alternate location for the tankless water heater.
3. Out of, or low on gas. Propane gas cylinders sometimes are contaminated with air. Especially new tanks upon their first filling. Cycle the portable tankless water heater on and off by using the shower head switch several times (5) to purge the air from the gas.
4. One of the ignition sensors is bent and/or too close to the burner. Look to ensure that the ignition pins and the heat sensor are completely vertical and they do a 90 degree to the back of the box. If they are not straight (i.e. a 45 degree angle) then you can straighten them with pliers. Please visit support.eccotemp.com or call 1-866-356-1992 for assistance with this matter.
5. The gas sensor wire might have come loose or is no longer connected. Please visit support.eccotemp.com or call 1-866-356-1992 for assistance with this matter.

The water does not get hot enough:
1. Ensure you are not operating the portable tankless water heater above 2,000 feet. While it has been field tested up to 2,000 feet, we only recommend using it below 2,000 feet. For every 1,000 feet above the recommended 2,000 feet, you will see a 10% decrease in efficiency and performance.
2. Be sure you have your gas knob turned to max and your water knob turned a little lower towards min. The less water moving through the water heater will allow for a higher temperature.
Please note: Your incoming water temperature will play a major role in the achievable temperatures your water heater can reach. The colder the incoming water is, the lower the achievable temperature will be. You'll need to adjust your hot and cold knobs to help counteract the colder incoming water. Variable factors such as incorrect or imperfect installations and varying incoming water temperatures may yield different results.
3. Look into the viewer panes (3 small windows on the front cover) to see if there is a blue flame. If the flame is yellow there could be a cracked gas regulator. DO NOT ATTEMPT to use the portable tankless water heater if a cracked gas regulator is suspected. Visit support.eccotemp.com or call 1-866-356-1992 for assistance with this matter.

Water is flowing, but there is no hot water coming out:
1. Ensure that you have the incoming water supply and the outgoing water supply hooked up properly. Your water supply should be attached to your incoming connection (located on the far right) and the shower head should be attached to the outgoing water connection (located as the center connection).
2. Ensure that you have adequate water pressure of at least 25 PSI sustained.
3. Ensure that you have adequate gas in your propane bottle and that the LP regulator is threaded all of the way onto the portable tankless water heater.
4. Fresh batteries are required for ignition spark. Make sure batteries are aligned in the proper polarity (+/-): flat negative of battery toward the spring side of battery compartment.

The portable tankless water heater will not stay on:
1. The portable tankless water heater requires a minimum of about .75 GPM and a minimum of about 20 PSI to activate and approximately 25 sustained PSI to continue to operate. Consider your water source: Are you using a pump to draw water from a source? Be sure the pump you are using provides adequate sustained water pressure to activate and keep the water heater running.
2. Check that your batteries are fresh and aligned with the proper polarity (+/-): flat negative of battery toward the spring side of the battery compartment.
PLEASE NOTE: THIS MODEL IS NOT RECOMMENDED, NOR HAS IT BEEN TESTED FOR ANY PERMANENT OR INDOOR INSTALLATION. THIS MODEL IS PART OF OUR PORTABLE, OUTDOOR SERIES AND NEEDS TO BE TAKEN DOWN AND STORED IN A WARM, DRY PLACE AFTER EVERY USE. THIS MANUAL AND ALL ECCOTEMP CONTENT IS SUBJECT TO CHANGE WITHOUT NOTICE. VISIT SUPPORT.ECCOTEMP.COM FOR THE
LATEST VERSION OF THE MANUAL AND WARRANTY.

16

Support: Support.Eccotemp.com

Shop Online: Eccotemp.com

Store Locator: Eccotemp.com/locator

ENGLISH TROUBLESHOOTING

Construction and Parts of the EL7

Bracket of ignition controller

Rain Battery box cap heat shield

Ignition Controller

Tilt switch

Water outlet bracket Back panel
On/off switch

Battery box
Burner Micro Switch Gas and water valve
Temperature sensor

Side Front

Handle

Burner heat shield Ignition pin
Heat exchanger

Sensor pin Thermostat
Knob
Front panel decoration board

Display Display back cover
Front panel Decoration ring

Top

4.7"

11.41"

Weight: 14.7 lbs.

PLEASE NOTE: THIS MODEL IS NOT RECOMMENDED, NOR HAS IT BEEN TESTED FOR ANY PERMANENT OR INDOOR INSTALLATION. THIS MODEL IS PART OF OUR PORTABLE, OUTDOOR SERIES AND NEEDS TO BE TAKEN DOWN AND STORED IN A WARM, DRY PLACE AFTER EVERY USE. THIS MANUAL AND ALL ECCOTEMP CONTENT IS SUBJECT TO CHANGE WITHOUT NOTICE. VISIT SUPPORT.ECCOTEMP.COM FOR THE
LATEST VERSION OF THE MANUAL AND WARRANTY.

Support: Support.Eccotemp.com

Shop Online: Eccotemp.com

Store Locator: Eccotemp.com/locator

17

TROUBLESHOOTING ENGLISH

Electrical Wiring
This connection is for low-voltage batteries or direct current only. Do not connect 120 or 240 volts AC.

Ignition pin Display

Sensor pin

Temperature sensor

HV1 HV2

S

Ignition controller

On/Off Switch

Ground wire Over temp sensor

Battery box

Solenoid

CAUTION: Label all wires prior to disconnection when servicing controls. Wiring errors can cause improper and dangerous operation.

NOTICE - If any of the original wire as supplied with the appliance shall be replaced, it shall be replaced with the original type wire or its temperature equivalent.
Replacement parts

For more available parts for your Eccotemp Water Heater and to purchase, visit www.eccotemp.com/parts or call 1-866-356-1992.

REPLACEMENT PART

SKU

REPLACEMENT PART

SKU

Shower Nozzle and Hose

502024

Hardware Pack

201032

1/2" NPT to Garden Hose Adapter
Gas Hose and Regulator

502028 502005

Pressure Relief Valve
Battery Box and Control Pack

JPRV12 501026

PLEASE NOTE: THIS MODEL IS NOT RECOMMENDED, NOR HAS IT BEEN TESTED FOR ANY PERMANENT OR INDOOR INSTALLATION. THIS MODEL IS PART OF OUR PORTABLE, OUTDOOR SERIES AND NEEDS TO BE TAKEN DOWN AND STORED IN A WARM, DRY PLACE AFTER EVERY USE. THIS MANUAL AND ALL ECCOTEMP CONTENT IS SUBJECT TO CHANGE WITHOUT NOTICE. VISIT SUPPORT.ECCOTEMP.COM FOR THE
LATEST VERSION OF THE MANUAL AND WARRANTY.

18

Support: Support.Eccotemp.com

Shop Online: Eccotemp.com

Store Locator: Eccotemp.com/locator

ENGLISH

WARRANTY

ECCOTEMP SYSTEMS, LLC LIMITED WARRANTY INFORMATION EL7
Eccotemp hereby warrants this product to be free of material defects in materials and workmanship when installed and operated according to Eccotemp's installation and operating instructions. This Limited Warranty extends to the original purchaser and subsequent owners, but only while the product remains as the site of the original installation. This Limited Warranty terminates if moved or reinstalled at a new location. There are no warranties, express or implied made or given other than contained in this Limited Warranty. No agent, employee or representative of Eccotemp has any authority to bind Eccotemp to any representation or warranty concerning the Product not contained in this Limited Warranty. Eccotemp reserves the right and authority to change, modify or alter this warranty at any given time.
Except as expressly set forth herein, THERE ARE NO REPRESENTATIONS OR WARRANTIES, EXPRESS OR IMPLIED, INCLUDING, WITHOUT LIMITATION, AS TO MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE WITH RESPECT TO ANY GOODS SOLD HEREUNDER. BUYER'S EXCLUSIVE REMEDY IS LIMITED TO REPAIR OR REPLACEMENT OF THE GOODS SOLD, AT ECCOTEMP'S DISCRETION. ECCOTEMP SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES.
Limited Warranty Period
Limited Warranty Period This Warranty is extended by Eccotemp Systems to the Owner. This warranty takes effect on the date of installation of the Product or 30 days after the date of purchase, whichever occurs first, and is effective until the specified anniversary of such date as follows:
Item Period of Coverage Heat Exchanger 2 years All other parts 2 years Free Accessories (Shower head, gas regulator, hardware pack, etc.) 30 days
Coverages are void if the unit is used in a hot water circulation loop, in series with a circulation system or where an on-demand recirculation system is not incorporated. This portable water heater is for outdoor, temporary use only. Do not permanently install. If permanently installed or installed indoors, this warranty is void.
Eccotemp will provide 1 round of parts per incident (deemed by Eccotemp Support Team) under the warranty prior to requesting the shipment of any item to our warehouse for repair/inspection.
Shipping Related Costs:
US ORDERS Within the first 45 days of purchase, Eccotemp will cover all ground shipping costs for warranty related issues, excluding AK, HI and any location outside of the continental US. After the first 45 days of purchase, the customer is responsible for all shipping to Eccotemp, regardless of reason or circumstance. Eccotemp will cover the warranty related shipping costs when returning a product to a customer after repair/inspection. The method for warranty related shipping will be Ground equivalent with the provider of Eccotemp's choosing.
CANADA ORDERS Within the first 45 days of purchase, Eccotemp will cover all ground shipping costs for warranty related issues. After the first 45 days of purchase, the customer is responsible for all shipping to Eccotemp, regardless of reason or circumstance. Eccotemp will cover the warranty related shipping costs when returning a product to a customer. The method for warranty related shipping will be Ground equivalent with the provider of Eccotemp's choosing.
All shipments of any type of product coming to Eccotemp for any reason must have an RGA for any repairs to be made. Please contact Eccotemp to obtain an RGA number prior to shipping anything to Eccotemp. Failure to do so could result in loss of product. Eccotemp will not be responsible for replacement due to loss or damage if these steps are not properly followed.

US Eccotemp Systems/Returns Department 315-A Industrial Rd. Summerville, SC 29483

CANADA Eccotemp Systems/Returns Department CO Eccotemp Canada Ottawa Logistics 1270 Humber Place Ottawa Ontario K1B 3W3

PLEASE NOTE: THIS MODEL IS NOT RECOMMENDED, NOR HAS IT BEEN TESTED FOR ANY PERMANENT OR INDOOR INSTALLATION. THIS MODEL IS PART OF OUR PORTABLE, OUTDOOR SERIES AND NEEDS TO BE TAKEN DOWN AND STORED IN A WARM, DRY PLACE AFTER EVERY USE. THIS MANUAL AND ALL ECCOTEMP CONTENT IS SUBJECT TO CHANGE WITHOUT NOTICE. VISIT SUPPORT.ECCOTEMP.COM FOR THE
LATEST VERSION OF THE MANUAL AND WARRANTY.

Support: Support.Eccotemp.com

Shop Online: Eccotemp.com

Store Locator: Eccotemp.com/locator

19

ENGLISH

WARRANTY

Exclusions
Please refer to the Installation Manual and Use & Care Manual supplied with your new Eccotemp Systems product. This Limited Warranty becomes null and void if any of the following are determined to be a contributing factor by Eccotemp to the failure of the product: 1. Abuse, misuse, alteration, neglect or misapplication. 2. Improper, dangerous, destructive maintenance procedures or inadequate maintenance. 3. Damages caused by services performed by servicers other than Eccotemp Systems. 4. Installation in a corrosive or otherwise destructive environment. 5. Damage as a result of freezing within the unit or surrounding piping. 6. Scale buildup. 7. Incorrect gas or water pressure. 8. Acts of force Majeure. 9. Damage as a result of use with non-potable, untreated or poorly treated well water, or water with high PH levels or hardness levels in excess of 12 grains per gallon (200mg/L). 10. Incorrect sizing for the application. 11. Products with original serial numbers that have been removed or altered and cannot be readily determined. 12. Acts of God including, but not limited to; fire, flood, or nature disaster. This Product is not to be used as a pool or spa heater. In the event of an Eccotemp Systems recognized defect, malfunction, or failure to conform to this Warranty and based upon Eccotemp approval of warranty claim, Eccotemp Systems, at its sole and absolute discretion, will settle the warrant claim of such defect, malfunction, or failure to conform to this Warranty. In order to make a claim under this Warranty, The Owner must notify Eccotemp of the failure of the Product to conform to this Warranty.
Under this Warranty, Eccotemp Systems will only provide replacement parts as described in the "Limited Warranty Period". The Owner will be responsible for any cost incurred including labor costs for servicing the unit, shipping, delivery, and handling of the replacement part, cost for permits or materials necessary for the repair, or incidental costs resulting from damage external to the unit resulting from the failure. NOTWITHSTANDING ANYTHING IN THIS WARRANTY TO THE CONTRARY, EXCEPT FOR ECCOTEMP SYSTEMS' AFFIRMATIVE OBLIGATIONS EXPRESSLY SET FORTH IN THIS WARRANTY, ECCOTEMP SYSTEMS DISCLAIMS ANY AND ALL WARRANTIES, EITHER EXRESS OR IMPLIED, REGARDING THE PRODUCT AND ITS FUNCTIONALITY, PERFORMANCE, MERCHANTABILITY, FITNESS FOR PARTICULAR PURPOSE OR INTELLECTUAL PROPERTY RIGHTS. ECCOTEMP SYSTEMS DISCLAIMS ALL OTHER OBLIGATIONS OR LIABILITIES ON ITS PART AND NEITHER ASSUMES NOR AUTHORIZES ANY OTHER PERSON TO ASSUME FOR ECCOTEMP SYSTEMS ANY OTHER LIABILITIES IN CONNECTION WITH THE PERFORMANCE OF THE PRODUCT. THIS WARRANTY ONLY COVERS REPLACEMENT PARTS AND DOES NOT COVER COST OF LABOR OR SERVICES UNDER ANY CIRCUMSTANCES. This warranty only applies to the 50 states of the U.S.A and Territories of Canada. Eccotemp Systems shall not be liable for any claim or demand against Eccotemp Systems by any other part for damages of any kind, including, but not limited to incidental and consequential damages, arising out of the subject matter of this Agreement. Some States do not allow exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. This warranty gives you specific legal rights. You may also have other rights that vary from State to State. Please Note: This warranty and all Eccotemp content is subject to change. Please refer to support.eccotemp.com for the most updated version. For further questions, please email our support team at support@eccotemp.com.

PLEASE NOTE: THIS MODEL IS NOT RECOMMENDED, NOR HAS IT BEEN TESTED FOR ANY PERMANENT OR INDOOR INSTALLATION. THIS MODEL IS PART OF OUR PORTABLE, OUTDOOR SERIES AND NEEDS TO BE TAKEN DOWN AND STORED IN A WARM, DRY PLACE AFTER EVERY USE. THIS MANUAL AND ALL ECCOTEMP CONTENT IS SUBJECT TO CHANGE WITHOUT NOTICE. VISIT SUPPORT.ECCOTEMP.COM FOR THE
LATEST VERSION OF THE MANUAL AND WARRANTY.

20

Support: Support.Eccotemp.com

Shop Online: Eccotemp.com

Store Locator: Eccotemp.com/locator

ENGLISH

PORTABLE PRODUCT COMPARISONS

EL5

EL7

EL10

COMPARISON

THE FUTURE OF EFFICIENCY

THE FUTURE OF EFFICIENCY

THE FUTURE OF EFFICIENCY

105 F

MIN

MAX

MAX

MIN

105 F

MIN

MAX

MAX

MIN

MIN

MAX

MAX

MIN

INSTALLATION BTU Flow Rate Portable Power Source Gas Type Venting Water Pressure Regulator & Hose Temperature Control Warranty Product Dimensions Package Dimensions

EL5
OUTDOOR ONLY 25,000 - 37,500 Rated 1.5 GPM Yes 4 "AA" Cell Batteries Liquid Propane Only None Needed 20-80 PSI Standard / Included Manual 80 2 Years 15.9" x 11.4" x 4.8" - 11.2 lbs 21.9" x 12.4" x 7.7" - 13.8 lbs

EL7
OUTDOOR ONLY 47,800 - 52,500 Rated 1.85 GPM Yes 4 "AA" Cell Batteries Liquid Propane Only None Needed 20-80 PSI Standard / Included Manual 80 2 Years 19.1" x 11.9" x 7.1" - 14.7 lbs 25.8" x 14" x 7.7" - 16 lbs

EL10
OUTDOOR ONLY 75,000 Rated 2.65 GPM Yes 4 "AA" Cell Batteries Liquid Propane Only None Needed 20-80 PSI Standard / Included Manual 80 2 Years
* 30.2" x 13.6" x 9.5" - 30.8 lbs * 25.1" x 11.5" x 6" - 23.7 lbs
*Subject to change

PLEASE NOTE: THIS MODEL IS NOT RECOMMENDED, NOR HAS IT BEEN TESTED FOR ANY PERMANENT OR INDOOR INSTALLATION. THIS MODEL IS PART OF OUR PORTABLE, OUTDOOR SERIES AND NEEDS TO BE TAKEN DOWN AND STORED IN A WARM, DRY PLACE AFTER EVERY USE. THIS MANUAL AND ALL ECCOTEMP CONTENT IS SUBJECT TO CHANGE WITHOUT NOTICE. VISIT SUPPORT.ECCOTEMP.COM FOR THE
LATEST VERSION OF THE MANUAL AND WARRANTY.

Support: Support.Eccotemp.com

Shop Online: Eccotemp.com

Store Locator: Eccotemp.com/locator

21

THE FUTURE OF EFFICIENCY
� Eccotemp 2020 All Rights Reserved | Printing Version 2.0
