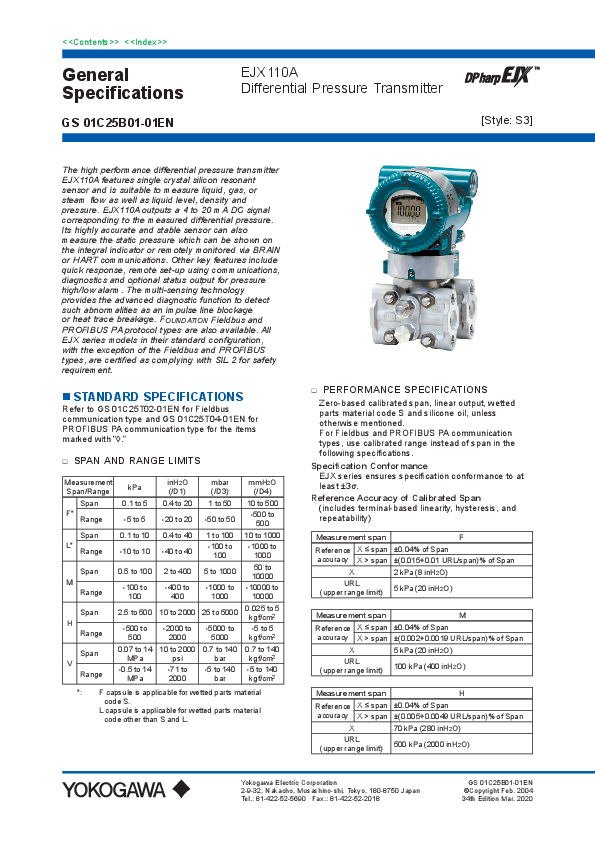

<<Contents>> <<Index>> General Specifications GS 01C25B01-01EN EJX110A Differential Pressure Transmitter [Style: S3] The high performance differential pressure transmitter EJX110A features single crystal silicon resonant sensor and is suitable to measure liquid, gas, or steam flow as well as liquid level, density and pressure. EJX110A outputs a 4 to 20 mA DC signal corresponding to the measured differential pressure. Its highly accurate and stable sensor can also measure the static pressure which can be shown on the integral indicator or remotely monitored via BRAIN or HART communications. Other key features include quick response, remote set-up using communications, diagnostics and optional status output for pressure high/low alarm. The multi-sensing technology provides the advanced diagnostic function to detect such abnormalities as an impulse line blockage or heat trace breakage. FOUNDATION Fieldbus and PROFIBUS PA protocol types are also available. All EJX series models in their standard configuration, with the exception of the Fieldbus and PROFIBUS types, are certified as complying with SIL 2 for safety requirement. STANDARD SPECIFICATIONS Refer to GS 01C25T02-01EN for Fieldbus communication type and GS 01C25T04-01EN for PROFIBUS PA communication type for the items marked with "." SPAN AND RANGE LIMITS Measurement Span/Range Span F* Range kPa 0.1 to 5 -5 to 5 Span L* Range 0.1 to 10 -10 to 10 Span M Range Span H Range Span V Range 0.5 to 100 -100 to 100 2.5 to 500 -500 to 500 0.07 to 14 MPa -0.5 to 14 MPa inH2O (/D1) 0.4 to 20 -20 to 20 0.4 to 40 -40 to 40 2 to 400 -400 to 400 10 to 2000 -2000 to 2000 10 to 2000 psi -71 to 2000 mbar (/D3) 1 to 50 -50 to 50 1 to 100 -100 to 100 5 to 1000 -1000 to 1000 25 to 5000 -5000 to 5000 0.7 to 140 bar -5 to 140 bar mmH2O (/D4) 10 to 500 -500 to 500 10 to 1000 -1000 to 1000 50 to 10000 -10000 to 10000 0.025 to 5 kgf/cm2 -5 to 5 kgf/cm2 0.7 to 140 kgf/cm2 -5 to 140 kgf/cm2 *: F capsule is applicable for wetted parts material code S. L capsule is applicable for wetted parts material code other than S and L. PERFORMANCE SPECIFICATIONS Zero-based calibrated span, linear output, wetted parts material code S and silicone oil, unless otherwise mentioned. For Fieldbus and PROFIBUS PA communication types, use calibrated range instead of span in the following specifications. Specification Conformance EJX series ensures specification conformance to at least ±3. Reference Accuracy of Calibrated Span (includes terminal-based linearity, hysteresis, and repeatability) Measurement span F Reference X span ±0.04% of Span accuracy X > span ±(0.015+0.01 URL/span)% of Span X 2 kPa (8 inH2O) URL (upper range limit) 5 kPa (20 inH2O) Measurement span M Reference X span ±0.04% of Span accuracy X > span ±(0.002+0.0019 URL/span)% of Span X 5 kPa (20 inH2O) URL (upper range limit) 100 kPa (400 inH2O) Measurement span H Reference X span ±0.04% of Span accuracy X > span ±(0.005+0.0049 URL/span)% of Span X 70 kPa (280 inH2O) URL (upper range limit) 500 kPa (2000 inH2O) Yokogawa Electric Corporation 2-9-32, Nakacho, Musashino-shi, Tokyo, 180-8750 Japan Tel.: 81-422-52-5690 Fax.: 81-422-52-2018 GS 01C25B01-01EN ©Copyright Feb. 2004 34th Edition Mar. 2020 <<Contents>> <<Index>> Measurement span V Reference X span ±0.04% of Span accuracy X > span ±(0.005+0.00125 URL/span)% of Span X 500 kPa (2000 inH2O) URL (upper range limit) 14 MPa (2000 psi) [When /HAC is specified] Measurement span M Reference X span ±0.025% of Span accuracy X > span ±(0.015+0.001 URL/Span) % of Span X 10 kPa (40 inH2O) URL (Upper Range Limit) 100 kPa (400 inH2O) Measurement span H Reference X span ±0.025% of Span accuracy X > span ±(0.0035 URL/Span) % of Span X 70 kPa (280 inH2O) URL (Upper Range Limit) 500 kPa (2000 inH2O) Measurement span V Reference X span ±0.025% of Span accuracy X > span ±(0.004+0.00075 URL/Span) % of Span X 500 kPa (2000 inH2O) URL (Upper Range Limit) 14 MPa (2000 psi) Square Root Output Accuracy The square root accuracy is a percent of flow span. Output 50% or Greater 50% to Dropout point Accuracy Same as reference accuracy Reference accuracy × 50 Square root output (%) Ambient Temperature Effects per 28°C (50°F) Change Capsule Effect F ±(0.055% Span + 0.18% URL) M ±(0.04% Span + 0.009% URL) H, V ±(0.04% Span + 0.0125% URL) All Rights Reserved. Copyright © 2004, Yokogawa Electric Corporation 2 Total Probable Error (M capsule) ±0.12% of Span @1:1 to 5:1 Rangedown Total probable error, known as a measure of the total performance of the transmitters under the condition of fixed line presurre. Total Probable Error = ± E12 + E22 + E32 E1: Reference Accuracy of Calibrated Span E2: Ambient Temperature Effects per 28°C change E3: Static Span Effects per 6.9 MPa change Total Accuracy (M capsule) ±0.12% of Span @1:1 Rangedown ±0.25% of Span @ 5:1 Rangedown Total accuracy is a comprehensive measure of transmitter total performance, covering all major factors in actual installation, that cause errors in measurement. As a standard measure, YOKOGAWA uses this to evaluate transmitter performance. Total Accuracy = ± E12 + E22 + (E3 + E4)2 + E52 E1: Reference Accuracy of Calibrated Span E2: Ambient Temperature Effects per 28°C change E3: Static Span Effects per 6.9 MPa change E4: Static Zero Effects per 6.9 MPa change E5: Overpressure Effects upto overpressure 25MPa Not only a day-to-day changes in temperature can affect the measurement and lead to unnoticed errors; fluctuaion of line pressure, incorrect operation of three/five valve manifold leading to over-pressure events, and other phenomena can have the similar result. Total Accuracy factors in such changes and errors and provides much comprehensive and practical determination of how a transmitter will perform under actual plant operation. Static Pressure Effects per 6.9 MPa (1000 psi) Change Span Effects F, M, H and V capsules ±0.075% of span Effect on Zero Capsule Effect F ±0.1% URL M ±0.02% URL H, V ±0.028% URL Overpressure Effects Overpressure condition: up to maximum working pressure M, H and V capsules, except for gold-plated diaphragm. ±0.03% of URL Stability (All normal operating condition, including overpressure effects) M, H and V capsules ±0.1% of URL per 15 years F capsule ±0.1% of URL per one year Power Supply Effects(Output signal code D, E and J) ±0.005 % per Volt (from 21.6 to 32 V DC, 350) GS 01C25B01-01EN Feb. 10, 2017-00 <<Contents>> <<Index>> Vibration Effects Amplifier housing code 1 and 3: Less than 0.1% of URL when tested per the requirements of IEC60770-1 field or pipeline with high vibration level (10-60 Hz, 0.21 mm displacement/60-2000 Hz 3 g) Amplifier housing code 2: Less than ±0.1% of URL when tested per the requirements of IEC60770-1 field with general application or pipeline with low vibration level (10-60 Hz 0.15mm displacement /60-500 Hz 2g) Mounting Position Effects Rotation in diaphragm plane has no effect. Tilting up to 90 degree will cause zero shift up to 0.4 kPa (1.6 inH2O) which can be corrected by the zero adjustment. Response Time (Differential pressure) "" 90 ms for Wetted Parts material code S and L, except for Measuring span code F. 150 ms for Wetted Parts Material Code H, M, T, A, B, D and W or Measuring span code F. When amplifier damping is set to zero and including dead time of 45 ms (nominal) Static Pressure Signal Range and Accuracy (For monitoring via communication or on indicator. Includes terminal-based linearity, hysteresis, and repeatability) Range Upper Range Value and Lower Range Value of the statice pressure can be set in the range between 0 and Maximum Working Pressure(MWP). The upper range value must be greater than the lower range value. Minimum setting span is 0.5 MPa(73 psi). Measuring either the pressure of high pressure side or low pressure side is user-selectable. Accuracy Absolute Pressure 1 MPa or higher: ±0.2% of span Less than 1 MPa: ±0.2%×(1 MPa/span) of span Gauge Pressure Reference Gauge pressure reference is 1013 hPa (1 atm) Note: Gauge pressure variable is based on the above fixed reference and thus subject to be affected by the change of atomospheric pressure. FUNCTIONAL SPECIFICATIONS Output "" Two wire 4 to 20 mA DC output with digital communications, linear or square root programmable. BRAIN or HART FSK protocol are superimposed on the 4 to 20 mA signal. Output range: 3.6 mA to 21.6 mA Output limits conforming to NAMUR NE43 can be pre-set by option code C2 or C3. Failure Alarm (Output signal code D, E and J) Analog output status at CPU failure and hardware error; Up-scale: 110%, 21.6 mA DC or more (standard) Down-scale: -5%, 3.2 mA DC or less Analog output status at process abnormality (Option code /DG6); The result of process abnormality detected by the advanced diagnostic function can be reflected to an analog alert status. The following three setting modes are available. 3 Mode Burnout Fall back Off Standard 110%, 21.6mA or more Holds to a Option Code /C1 /C2 -2.5%, 3.6mA or less -1.25%, 3.8mA or less specified value within the output range from 3.6mA to Normal output (No analog output alarm) /C3 103.1%, 20.5mA or more 21.6mA Damping Time Constant (1st order) Amplifier damping time constant is adjustable from 0.00 to 100.00 s by software and added to response time. Note: For BRAIN protocol type, when amplifier software damping is set to less than 0.5 s, communication may occasionally be unavailble during the operation, especially while output changes dynamically. The default setting of damping ensures stable communication. Update Period "" Differential pressure: 45 ms Static pressure: 360 ms Zero Adjustment Limits Zero can be fully elevated or suppressed, within the lower and upper range limits of the capsule. External Zero Adjustment External zero is continuously adjustable with 0.01% incremental resolution of span. Re-range can be done locally using the digital indicator with rangesetting switch. Integral Indicator (LCD display, optional) "" 5-digit numerical display, 6-digit unit display and bar graph. The indicator is configurable to display one or up to four of the following variables periodically.; Measured differential pressure, differential pressure in %, scaled differential pressure, measured static pressure. See also "Factory Setting." Local Parameter Setting (Output signal code D, E, and J) Parameter configuration by the external zero adjustment screw and push button (Integral indicator code E) offers easy and quick setup for parameters of Loop test, Tag number, Unit, LRV, URV, Damping, Output mode (linear/square root), Display out 1, and Re-range by applying actual pressure (LRV/URV) and Device Information. Burst Pressure Limits 69 MPa (10,000 psi) for wetted parts material S and L, except for Measurement span F. 47 MPa (6,800 psi) for wetted parts material other than S and L, or Measurement span F. Self Diagnostics CPU failure, hardware failure, configuration error, and over-range error for differential pressure, static pressure and capsule temperature. User-configurable process high/low alarm for differential pressure and static pressure is also available, and its status can be output when optional status output is specified. All Rights Reserved. Copyright © 2004, Yokogawa Electric Corporation GS 01C25B01-01EN Nov. 20, 2019-00 <<Contents>> <<Index>> Advanced Diagnostics (optional) "" Applicable for Output signal code E, J and F. · Impulse line blockage detection The impulse line condition can be calculated and detected by extracting the fluctuation component from the differential pressure and static pressure signals. The EJX110A detects the impulse line abnormality particularly which side of impulse line is plugged. · Heat trace monitoring The change of the flange temperature calculated by using the two temperature sensors built in the EJX enables to detect the heat trace breakage or the abnormal temperature due to the failure. Signal Characterizer (Output signal code D, E and J) User-configurable 10-segment signal characterizer for 4 to 20 mA output. Status Output (optional, output signal code D, E and J) One transistor contact output (sink type) to output the status of user configurable high/low alarm for differential pressure/static pressure. Contact rating: 30 V DC, 120 mA DC max. Refer to `Terminal Configuration' and `Wiring Example for Analog Output and Status Output.' SIL Certification EJX series transmitters except Fieldbus and PROFIBUS PA communication types are certified in compliance with the following standards; IEC 61508: 2010; Functional Safety of Electrical/electronic/ programmable electronic related systems; SIL 2 capability for single transmitter use, SIL 3 capability for dual transmitter use. Reliability Data different depending on hardware and software revision. For details, refer to Functional Safety Data Sheet. (Document number: TI 01C25A05-01EN or TI 01C25A05-21EN for option code SLT ) The document can be downloaded from the website of Yokogawa. (Website address: https://www.yokogawa.com/ solutions/products-platforms/field-instruments/) NORMAL OPERATING CONDITION (Optional features or approval codes may affect limits.) Ambient Temperature Limits -40 to 85°C (-40 to 185°F) -30 to 80°C (-22 to 176°F) with LCD display Process Temperature Limits -40 to 120°C (-40 to 248°F) Ambient Humidity Limits 0 to 100% RH Working Pressure Limits (Silicone oil) Maximum Pressure Limits (MWP) Capsule MWP F, L 16 MPa (2300 psi) Wetted Parts Material: S and L 25 MPa (3600 psi) M, H, V Wetted Parts Material: H, T, M, A, D, B and W 16 MPa (2300 psi) Minimum Pressure Limit See graph below 100(14.5) Working pressure kPa abs (psi abs) 10(1.4) Applicable range 4 Atmospheric pressure 2.7(0.38) 1(0.14) -40 (-40) 0 40 80 120 (32) (104) (176) (248) Process temperature °C (°F) F01E.ai Figure 1. Working Pressure and Process Temperature Supply & Load Requirements (Output signal code D, E and J. Optional features or approval codes may affect electrical requirements.) With 24 V DC supply, up to a 550 load can be used. See graph below. 600 External load resistance 250 R () R= E-10.5 0.0244 Digital Communication range BRAIN and HART 10.5 16.6 25.2 Power supply voltage E (V DC) 42 F02E.ai Figure 2. Relationship Between Power Supply Voltage and External Load Resistance Supply Voltage "" 10.5 to 42 V DC for general use and flameproof type. 10.5 to 32 V DC for lightning protector (option code /A.) 10.5 to 30 V DC for intrinsically safe, type n, or nonincendive. Minimum voltage limited at 16.6 V DC for digital communications, BRAIN and HART Load (Output signal code D, E and J) 0 to 1290 for operation 250 to 600 for digital communication All Rights Reserved. Copyright © 2004, Yokogawa Electric Corporation GS 01C25B01-01EN Nov. 20, 2019-00 <<Contents>> <<Index>> Communication Requirements "" (Approval codes may affect electrical requirements.) BRAIN Communication Distance Up to 2 km (1.25 miles) when using CEV polyethylene-insulated PVC-sheathed cables. Communication distance varies depending on type of cable used. Load Capacitance 0.22 µF or less Load Inductance 3.3 mH or less Input Impedance of communicating device 10 k or more at 2.4 kHz. EMC Conformity Standards EN 61326-1 Class A, Table2 EN 61326-2-3 EN 61326-2-5 (for fieldbus) European Pressure Equipment Directive 2014/68/EU Sound Engineering Practice (for all capsules) With option code /PE3 (for M, H and V capsules and wetted parts material code S.) Category III, Module H, Type of Equipment: Pressure Accessory-Vessel, Type of Fluid: Liquid and Gas, Group of Fluid: 1 and 2 EU RoHS Directive EN 50581 Safety Requirement Standards EN 61010-1, C22.2 No.61010-1 · Installation category: I (Anticipated transient overvoltage 330 V) · Pollution degree: 2 · Indoor/Outdoor use PHYSICAL SPECIFICATIONS Wetted Parts Materials Diaphragm, cover flange, process connector, capsule gasket, and vent/drain plug Refer to "MODEL AND SUFFIX CODES." Process connector gasket PTFE Teflon Fluorinated rubber for option code N2 and N3 Non-wetted Parts Materials Bolting B7 carbon steel, 316L SST or 660 SST Housing · Low copper cast aluminum alloy · Low copper cast aluminum alloy with corrosion resistance properties (copper content 0.03%, iron content 0.15%) (optional) · ASTM CF-8M Stainless steel (optional) Coating of housing [for aluminum housing] Polyester resin powder coating Mint-green paint (Munsell 5.6BG 3.3/2.9 or its equivalent) [for option code /P or /X2] Epoxy and polyurethane resin solvent coating 5 Degrees of protection IP66/IP67, Type 4X Cover O-rings Buna-N, fluoro-rubber (optional) Name plate and tag 316 SST Fill fluid Silicone, fluorinated oil (optional) Weight [Installation code 7, 8 and 9] 2.8 kg (6.2 lb) for measurement span code M, H and V, wetted parts material code S and L without integral indicator, mounting bracket, and process connector. 3.7 kg (8.2 lb) for measurement span code F without integral indicator, mounting bracket, and process connector. Add 1.5 kg (3.3lb) for Amplifier housing code 2. Connections Refer to "MODEL AND SUFFIX CODES." Process connection of cover flange: IEC61518 < Related Instruments> FieldMate Versatile Device Management Wizard: Refer to GS 01R01A01-01E. BRAIN TERMINAL: Refer to GS 01C00A11-00E Power Distributor: Refer to GS 01B04T01-02E or GS 01B04T02-02E < Reference > 1. is a registered trademark of Yokogawa Electric Corporation. 2. FieldMate; Trademark of Yokogawa Electric Corporation. 3. Teflon; Trademark of E.I. DuPont de Nemours & Co. 4. Hastelloy; Trademark of Haynes International Inc. 5. HART®: Registered trademark of the FieldComm Group. 6. FOUNDATION Fieldbus; Trademark of the FieldComm Group. 7. PROFIBUS; Registered trademark of Profibus Nutzerorganisation e.v., Karlsruhe, Germany. Other company names and product names used in this material are registered trademarks or trademarks of their respective owners. All Rights Reserved. Copyright © 2004, Yokogawa Electric Corporation GS 01C25B01-01EN Mar. 25, 2019-00 <<Contents>> <<Index>> 6 MODEL AND SUFFIX CODES Model Suffix Codes Description EJX110A . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Differential pressure transmitter Output signal -D . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -E . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -J . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -F . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -G . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Measurement span (capsule) F . . . . . . . . . . . . . . . . . . . . . . . . . . . L . . . . . . . . . . . . . . . . . . . . . . . . . . . M . . . . . . . . . . . . . . . . . . . . . . . . . . . H . . . . . . . . . . . . . . . . . . . . . . . . . . . V . . . . . . . . . . . . . . . . . . . . . . . . . . . Wetted parts material *1 . . . . . . . . . . . . . . . . . . . . . . . . . Process connections 0 . . . . . . . . . . . . . . . . . . . . . . See the table in the next 1 . . . . . . . . . . . . . . . . . . . . . . page for the codes for a 2 . . . . . . . . . . . . . . . . . . . . . . diaphragm seal system. 3 . . . . . . . . . . . . . . . . . . . . . . 4 . . . . . . . . . . . . . . . . . . . . . . 5 . . . . . . . . . . . . . . . . . . . . . . Bolts and nuts materia J . . . . . . . . . . . . . . . . . . . G . . . . . . . . . . . . . . . . . . . C . . . . . . . . . . . . . . . . . . . Installation -7 . . . . . . . . . . . . . . . . . -8 . . . . . . . . . . . . . . . . . -9 . . . . . . . . . . . . . . . . . -B . . . . . . . . . . . . . . . . . -U . . . . . . . . . . . . . . . . . Amplifier housing 1 . . . . . . . . . . . . . . 3 . . . . . . . . . . . . . . 2 . . . . . . . . . . . . . . Electrical connection 0 . . . . . . . . . . . 2 . . . . . . . . . . . 4 . . . . . . . . . . . 5 . . . . . . . . . . . 7 . . . . . . . . . . . 9 . . . . . . . . . . . A . . . . . . . . . . . C . . . . . . . . . . . D . . . . . . . . . . . Integral indicator D . . . . . . . . E . . . . . . . . N . . . . . . . . Mounting bracket B . . . . . . D . . . . . . J . . . . . . K . . . . . . M . . . . . . N . . . . . . Optional Codes 4 to 20 mA DC with digital communication (BRAIN protocol) 4 to 20 mA DC with digital communication (HART 5 protocol) 4 to 20 mA DC with digital communication (HART 5/HART 7 protocol) (Refer to GS 01C25T01-01EN) Digital communication (FOUNDATION Fieldbus protocol, refer to GS 01C25T02-01EN) Digital communication (PROFIBUS PA protocol, refer to GS 01C25T04-01EN) 0.1 to 5 kPa (0.4 to 20 inH2O) (For Wetted parts material code S) 0.1 to 10 kPa (0.4 to 40 inH2O) (For Wetted parts material code M, H, T, A, D, B and W) 0.5 to 100 kPa (2 to 400 inH2O) 2.5 to 500 kPa (10 to 2000 inH2O) 0.07 to 14 MPa (10 to 2000 psi) Refer to "Wetted Parts Material" Table. without process connector (Rc1/4 female on the cover flanges) with Rc1/4 female process connector with Rc1/2 female process connector with 1/4 NPT female process connector with 1/2 NPT female process connector without process connector (1/4 NPT female on the cover flanges) B7 carbon steel 316L SST 660 SST Vertical piping, left side high pressure, and process connection downside Horizontal piping and right side high pressure Horizontal piping and left side high pressure Bottom Process Connection, left side high pressure*2 Universal flange*2 Cast aluminum alloy Cast aluminum alloy with corrosion resistance properties*4 ASTM CF-8M stainless steel*5 G1/2 female, one electrical connection without blind plugs 1/2 NPT female, two electrical connections without blind plugs M20 female, two electrical connections without blind plugs G1/2 female, two electrical connections and a blind plug*6 1/2 NPT female, two electrical connections and a blind plug*6 M20 female, two electrical connections and a blind plug*6 G1/2 female, two electrical connections and a SUS316 blind plug 1/2 NPT female, two electrical connections and a SUS316 blind plug M20 female, two electrical connections and a SUS316 blind plug Digital indicator*7 Digital indicator with the range setting switch (push button)*8 None 304 SST 2-inch pipe mounting, flat type (for horizontal piping) 304 SST or SCS13A 2-inch pipe mounting, L type (for vertical piping) 316 SST 2-inch pipe mounting, flat type (for horizontal piping) 316 SST or SCS14A 2-inch pipe mounting, L type (for vertical piping) 316 SST or SCS14A 2-inch pipe mounting (for bottom process connection type) None / Optional specification The "" marks indicate the most typical selection for each specification. *1: Users must consider the characteristics of selected wetted parts material and the influence of process fluids. The use of inappropriate materials can result in the leakage of corrosive process fluids and cause injury to personnel and/or damage to plant facilities. It is also possible that the diaphragm itself can be damaged and that material from the broken diaphragm and the fill fluid can contaminate the user's process fluids. Be very careful with highly corrosive process fluids such as hydrochloric acid, sulfuric acid, hydrogen sulfide, sodium hypochlorite, and high-temperature steam (150°C [302°F] or above). Contact Yokogawa for detailed information of the wetted parts material. *2: Only applicable for Wetted parts material code S. *3: Not applicable for measurement span code F. *4: Not applicable for electrical connection code 0, 5, 7, 9 and A. *5: Not applicable for electrical connection code 0, 5, 7 and 9. *6: Material of a blind plug; aluminum alloy for code 5 and 9, and SUS304 for code 7. *7: Not applicable for output signal code G. *8: Not applicable for output signal code F. All Rights Reserved. Copyright © 2004, Yokogawa Electric Corporation GS 01C25B01-01EN June 1, 2017-00 <<Contents>> <<Index>> 7 Table. Wetted Parts Materials Wetted parts material code S # L # H # M # T A # D B # W # Cover flange and process connector Capsule ASTM CF-8M *1 Hastelloy C-276 *2 (Diaphragm) F316L SST, 316L SST (Others) ASTM CF-3M *7 Hastelloy C-276 *2 (Diaphragm) F316L SST, 316L SST (Others) ASTM CF-8M *1 Hastelloy C-276 *2 ASTM CF-8M *1 Monel ASTM CF-8M *1 Tantalum Hastelloy C-276 equivalent *3 Hastelloy C-276 *2 Hastelloy C-276 equivalent *3 Tantalum Monel equivalent *4 Monel Super Duplex SST equivalent *5 Hastelloy C-276 *2 Capsule gasket Teflon-coated 316L SST Teflon-coated 316L SST PTFE Teflon PTFE Teflon PTFE Teflon PTFE Teflon PTFE Teflon PTFE Teflon PTFE Teflon Vent/Drain plug 316 SST 316L SST 316 SST 316 SST 316 SST Hastelloy C-276 *2 Hastelloy C-276 *2 Monel Super Duplex SST *6 *1: Cast version of 316 SST. Equivalent to SCS14A. *2: Hastelloy C-276 or ASTM N10276. *3: Indicated material is equivalent to ASTM CW-12MW. *4: Indicated material is equivalent to ASTM M35-2. *5: Indicated material is equivalent to ASTM A995 Grade5A. *6: ASTM S32750 or EN 10272 1.4410. *7: Cast version of 316L SST. Equivalent to SCS16A. The `#'marks indicate the construction materials conform to NACE material recommendations per MR0175/ISO15156. Please refer to the latest standards for details. Selected materials also conform to NACE MR0103. [Process Connections Code for Diaphragm Seal System] The table below shows the codes dedicated for the combination with a diaphragm seal system. They are only available when the transmitter is ordered in combination with a diaphragm seal system. Please also refer to GS 01C25W01-01EN. Process Connections Code High Pressure Side Low Pressure Side B With C80F, C81F, C82F or C70S diaphragm seal With C80F, C81F, C82F or C70S diaphragm seal C With C80F, C82F or C70S diaphragm seal Rc 1/4 female on the cover flange D With C80F, C82F or C70S diaphragm seal 1/4 NPT female on the cover flange E Rc 1/4 female on the cover flange With C80F, C82F or C70S diaphragm seal F 1/4 NPT female on the cover flange With C80F, C82F or C70S diaphragm seal G With C80F, C81F or C82F diaphragm seal With C80F, C81F or C82 diaphragm seal for high vacuum use for high vacuum use Q With C20F or C30S direct mount seal Rc 1/4 female on the cover flange R With C20F or C30S direct mount seal 1/4 NPT female on the cover flange P With C20F or C30S direct mount seal With C80F or C70S diaphragm seal T With C20F direct mount seal With C80F compensation capillary system diaphragm seal C80F, C81F, C82F, C20F, C70S and C30S stand for C80FW or C80FE remote mount flanged diaphragm seal, C81FA or C82FA inner diaphragm adapter connection seal, C81FD or C82FD inner diaphragm flanged seal, C20FW or C20FE direct mount seal, C70SW or C70SE remote mount hygienic diaphragm seal, and C30SW or C30SE direct mount hygienic seal respectively. All Rights Reserved. Copyright © 2004, Yokogawa Electric Corporation GS 01C25B01-01EN Sep. 27, 2018-00 <<Contents>> <<Index>> 8 OPTIONAL SPECIFICATIONS (For Explosion Protected type) "" For other agency approvals and marine approvals, please refer to GS 01C25A20-01EN. Item Factory Mutual (FM) ATEX Description FM Explosionproof Approval *1 Applicable Standard: FM3600, FM3615, FM3810, NEMA 250, ANSI/UL 61010-1, ANSI/UL 61010-2-30 Explosionproof for Class I, Division 1, Groups B, C and D, Dust-ignitionproof for Class II/III, Division 1, Groups E, F and G, in Hazardous locations, indoors and outdoors (Enclosure: Type 4X) "FACTORY SEALED, CONDUIT SEAL NOT REQUIRED." Temperature class: T6, Amb. Temp.: 40 to 60°C (40 to 140°F) FM Intrinsically safe Approval *1*2 Applicable Standard: F M 3600, FM 3610, FM 3611, FM 3810, ANSI/ISA-60079-0, ANSI/ISA-60079-11, ANSI/ISA-61010-1, NEMA 250 Intrinsically Safe for Class I, Division 1, Groups A, B, C & D, Class II, Division 1, Groups E, F & G and Class III, Division 1, Class I, Zone 0, in Hazardous Locations, AEx ia IIC Nonincendive for Class I, Division 2, Groups A, B, C & D, Class II, Division. 2, Groups F & G, Class I, Zone 2, Group IIC, in Hazardous Locations Enclosure: Type 4X, Temp. Class: T4, Amb. Temp.: 60 to 60°C (75 to 140°F) Intrinsically Safe Apparatus Parameters [Groups A, B, C, D, E, F and G] Vmax=30 V, Imax=200 mA, Pmax=1 W, Ci=6 nF, Li=0 µH [Groups C, D, E, F and G] Vmax=30 V, Imax=225 mA, Pmax=1 W, Ci=6 nF, Li=0 µH Combined FF1 and FS1 *1*2 ATEX Flameproof Approval *1 Applicable Standard: EN IEC 60079-0, EN 60079-1, EN 60079-31 Certificate: KEMA 07ATEX0109 X II 2G, 2D Ex db IIC T6...T4 Gb, Ex tb IIIC T85°C Db Degree of protection: IP66/IP67 Amb. Temp. (Tamb) for gas-proof : T4; 50 to 75°C (58 to 167°F), T5; 50 to 80°C (58 to 176°F), T6; 50 to 75°C (58 to 167°F) Process Temp. for gas-proof (Tp): T4; 50 to 120°C (58 to 248°F), T5; 50 to 100°C (58 to 212°F), T6; 50 to 85°C (58 to 185°F) Max. surface Temp. for dust-proof: T85°C (Tamb: 30 to 75°C, Tp: 30 to 85°C) *3 ATEX Intrinsically safe Approval *1*2 Applicable Standard: EN 60079-0, EN 60079-11 Certificate: DEKRA 11ATEX0228 X II 1G, 2D Ex ia IIC T4 Ga, Ex ia IIIC T85°C T100°C T120°C Db Degree of protection: IP66/IP67 Amb. Temp. (Tamb) for EPL Ga: 50 to 60°C (58 to 140°F) Maximum Process Temp. (Tp) for EPL Ga:120°C Electrical data: Ui=30 V, Ii=200 mA, Pi=0.9 W, Ci=27.6 nF, Li=0 µH Amb. Temp. for EPL Db: 30 to 60°C *3 Max. surface Temp. for EPL Db: T85°C (Tp: 80°C), T100°C (Tp: 100°C), T120°C (Tp: 120°C) Combined KF22, KS21 and ATEX Intrinsically safe Ex ic *1*2 [ATEX Intrinsically safe Ex ic] Applicable Standard: EN 60079-0, EN 60079-11 II 3G Ex ic IIC T4 Gc, Amb. Temp.: 30 to 60°C (22 to 140°F) *3 Ui=30 V, Ci=27.6 nF, Li=0 H Code FF1 FS1 FU1 KF22 KS21 KU22 All Rights Reserved. Copyright © 2004, Yokogawa Electric Corporation GS 01C25B01-01EN Mar. 30, 2020-00 <<Contents>> <<Index>> 9 Item Canadian Standards Association (CSA) IECEx Scheme Combination of Approval Description CSA Explosionproof Approval *1 Certificate: 2014354 Applicable Standard: C22.2 No. 25, C22.2 No. 30, CAN/CSA-C22.2 No. 94, CAN/CSA-C22.2 No. 61010-1, CAN/CSA-C22.2 No. 61010-2-030, CAN/CSA-C22.2 No. 60079-0, CAN/CSA-C22.2 No. 60079-1, CAN/CSA-C22.2 No. 60529 Explosion-proof for Class I, Groups B, C and D. Dustignition-proof for Class II/III, Groups E, F and G. When installed in Division 2, "SEAL NOT REQUIRED" Enclosure: Type 4X, Temp. Code: T6...T4 Ex d IIC T6...T4 Enclosure: IP66/IP67 Max.Process Temp.: T4;120°C(248°F), T5;100°C(212°F), T6; 85°C(185°F) Amb.Temp.: 50 to 75°C(58 to 167°F) for T4, 50 to 80°C(58 to 176°F) for T5, 50 to 75°C(58 to 167°F) for T6 *3 Process Sealing Certification Dual Seal Certified by CSA to the requirement of ANSI/ISA-12.27.01 No additional sealing required Primary seal failure annunciation: at the zero adjustment screw CSA Intrinsically safe Approval *1*2 Certificate: 1606623 [For Division System] Applicable Standard: C22.2 No.0, C22.2 No.94, C22.2 No.157, C22.2 No.213, C22.2 No.61010-1, C22.2 No.61010-2-030 Intrinsically Safe for Class I, Division 1, Groups A, B, C & D, Class II, Division 1, Groups E, F & G, Class III, Division 1, Nonincendive for Class I, Division 2, Groups A, B, C & D, Class II, Division 2, Groups F & G, Class III, Division 1 Enclosure: Type 4X, Temp. Code: T4 Amb. Temp.: 50 to 60°C(58 to 140°F) *3 Electrical Parameters: [Intrinsically Safe] Vmax=30V, Imax=200mA, Pmax=0.9W, Ci=10nF, Li=0 µH [Nonincendive] Vmax=30V, Ci=10nF, Li=0 µH [For Zone System] Applicable Standard: CAN/CSA-C22.2 60079-0, CAN/CSA-E60079-11, CAN/CSA-E60079-15, CAN/CSA-C22.2 No.60529 Ex ia IIC T4, Ex nL IIC T4 Enclosure: IP66/IP67 Amb. Temp.: 50 to 60°C(58 to 140°F) *3, Max. Process Temp.: 120°C(248°F) Electrical Parameters: [Ex ia] Ui=30V, Ii=200mA, Pi=0.9W, Ci=10nF, Li=0 µH [Ex nL] Ui=30V, Ci=10nF, Li=0 µH Process Sealing Certification Dual Seal Certified by CSA to the requirement of ANSI/ISA-12.27.01 No additional sealing required Primary seal failure annunciation: at the zero adjustment screw Combined CF1 and CS1 *1*2 IECEx Flameproof Approval *1 Applicable Standard: IEC 60079-0, IEC60079-1 Certificate: IECEx CSA 07.0008 Flameproof for Zone 1, Ex d IIC T6...T4 Gb Enclosure: IP66/IP67 Max.Process Temp.: T4;120°C(248°F), T5;100°C(212°F), T6; 85°C(185°F) Amb.Temp.: 50 to 75°C(58 to 167°F) for T4, 50 to 80°C(58 to 176°F) for T5, 50 to 75°C(58 to 167°F) for T6 IECEx Intrinsically safe and Flameproof Approval *1*2 Intrinsically safe Ex ia Certificate: IECEx DEK 11.0081X Applicable Standard: IEC 60079-0, IEC 60079-11 Ex ia IIC T4 Ga Enclosure: IP66/IP67 Amb. Temp.: 50 to 60°C(58 to 140°F), Max. Process Temp.: 120°C(248°F) Electrical Parameters: Ui=30V, Ii=200mA, Pi=0.9W, Ci=27.6nF, Li=0 H Intrinsically safe Ex ic Certificate: IECEx DEK 13.0061X Applicable Standard: IEC 60079-0, IEC 60079-11 Ex ic IIC T4 Gc IP code: IP66 Amb. Temp.: 30 to 60°C(22 to 140°F) *3, Max. Process Temp.: 120°C(248°F) Electrical Parameters: Ui=30V,Ci=27.6 nF, Li=0 H Flameproof Certificate: IECEx CSA 07.0008 Applicable Standard: IEC 60079-0, IEC60079-1 Flameproof for Zone 1, Ex d IIC T6...T4 Gb Enclosure: IP66/IP67 Max.Process Temp.: T4;120°C(248°F), T5;100°C(212°F), T6; 85°C(185°F) Amb.Temp.: 50 to 75°C(58 to 167°F) for T4, 50 to 80°C(58 to 176°F) for T5, 50 to 75°C(58 to 167°F) for T6 Combination of KU22, FU1 and CU1 *1*2*4 *1: Applicable for Electrical connection code 2, 4, 7, 9, C and D. *2: Not applicable for option code /AL. *3: Lower limit of temperature is 15°C (5°F) when /HE is specified. *4: When this option code is specified, a wired tag plate (as of N4 option) shall be used. Code CF1 CS1 CU1 SF2 SU21 V1U1 All Rights Reserved. Copyright © 2004, Yokogawa Electric Corporation GS 01C25B01-01EN Mar. 30, 2020-00 <<Contents>> <<Index>> 10 OPTIONAL SPECIFICATIONS Item Description High Accuracy type*24*30 Reference accuracy: ±0.025% of Span Painting Color change Amplifier cover only*9 Amplifier cover and terminal cover, Munsell 7.5 R4/14 Coating change Anti-corrosion coating*1 316 SST exterior parts 316 SST zero-adjustment screw and setscrews*10 Fluoro-rubber O-ring All O-rings of amplifier housing. Lower limit of ambient temperature: 15°C (5°F) Lightning protector Transmitter power supply voltage: 10.5 to 32 V DC (10.5 to 30 V DC for intrinsically safe type.) Allowable current: Max. 6000 A (1×40 µs), Repeating 1000 A (1×40 µs) 100 times Applicable Standards: IEC 61000-4-4, IEC 61000-4-5 Status output*2 Transistor output (sink type) Contact rating: 30 V DC, 120 mA DC(max ) Low level: 0 to 2 V DC Oil-prohibited use*3*30 Degrease cleansing treatment Degrease cleansing treatment and fluorinated oilfilled capsule. Operating temperature -20 to 80°C (-4 to 176°F) Oil-prohibited use with dehydrating treatment*3*30 Degrease cleansing and dehydrating treatment Degrease cleansing and dehydrating treatment with fluorinated oilfilled capsule. Operating temperature -20 to 80°C ( -4 to 176°F) Capsule fill fluid*30 Fluorinated oil filled in capsule Operating temperature -20 to 80°C (-4 to 176°F) Calibration units*4 P calibration (psi unit) bar calibration (bar unit) (See Table for Span and Range Limits.) M calibration (kgf/cm2 unit) Plug option*26*27*30 Long vent*5: Total length: 119 mm (standard: 34 mm); Total length when combining with option code K1, K2, K5, and K6: 130 mm. Material: 316 SST U1 Without vent and drain plugs Gold-plated capsule gasket *11*30 Gold-plated 316L SST capsule gasket. Without vent and drain plugs. Gold-plated diaphragm *12 Surface of isolating diaphragms are gold plated, effective Gold plate thickness: 3 m*31 for hydrogen permeation. Gold plate thickness: 10 m*30 Output limits and failure operation*6 Failure alarm down-scale: Output status at CPU failure and hardware error is -5%, 3.2mA DC or less. NAMUR NE43 Compliant Output signal limits: 3.8 mA to 20.5 mA Failure alarm down-scale: Output status at CPU failure and hardware error is -5%, 3.2 mA DC or less. Failure alarm up-scale: Output status at CPU failure and hardware error is 110%, 21.6 mA or more. Body option*7*30 Right side high pressure, without vent and drain plug Terminal Side N1 and Process connection, based on IEC61518 with female thread on both sides of cover flange, with blind kidney flanges on back. L H F03E.ai Wired tag plate*23 Data configuration at factory*8 Advanced diagnostics*21 European Pressure Equipment Directive*13*30 Material certificate*14*30 Pressure test/ Leak test certificate*17*30 N2, and Material certificate for cover flange, diaphragm, capsule body, and blind kidney flange 316 SST tag plate wired onto transmitter Data configuration for HART communication type Software damping, Descriptor, Message Data configuration for BRAIN communication type Software damping Multi-sensing process monitoring · Impulse line blockage detection *22 · Heat trace monitoring PED 2014/68/EU Category III, Module H, Type of Equipment: Pressure Accessory-Vessel, Type of Fluid: Liquid and Gas, Group of Fluid: 1 and 2 Lower limit of ambient and process temperature: -29°C Cover flange *15 Cover flange, Process connector *16 Cover flange, Diaphragm, Capsule body*15*32 Cover flange, Process connector, Diaphragm, Capsule body*16*28 Cover flange, Bolt and Nut for cover flange, Diaphragm, Capsule body, Vent and Drain plug, Vent screw, Capsule gasket*15*25*27 Cover flange, Process connector, Bolt and nut for cover flange, Bolt for process connector, Diaphragm, Capsule body, Vent and Drain plug, Vent screw, Capsule gasket*16*25*27 Test Pressure: 16 MPa(2300 psi)*18 Test Pressure: 25 MPa(3600 psi)*19 Nitrogen Gas*20 Retention time: one minute Code HAC P PR X2 HC HE A AL K1 K2 K5 K6 K3 D1 D3 D4 U1 UN GS A1 A2 C1 C2 C3 N1 N2 N3 N4 CA CB DG6 PE3 M01 M11 MA1 MC1 MG1 MH1 T12 T13 All Rights Reserved. Copyright © 2004, Yokogawa Electric Corporation GS 01C25B01-01EN Nov. 20, 2019-00 <<Contents>> <<Index>> 11 Parameter list*33 List of setting and adjustment parameters YP Functional safety(SIL)*29 Low temperature expansion of functional safety Amb.Temp.: -55 to 85°C SLT *1: Not applicable with color change option. Not applicable for amplifier housing code 2. *2: Check terminals cannot be used when this option code is specified. Not applicable for output signal code F and G. *3: Applicable for Wetted parts material code S, M, H and T. *4: The unit of MWP (Max. working pressure) on the name plate of a housing is the same unit as specified by option codes D1, D3, and D4. *5: Applicable for vertical impulse piping type (Installation code 7) and Wetted parts material code S, H, M and T. *6: Applicable for output signal codes D, E and J. The hardware error indicates faulty amplifier or capsule. *7: Applicable for wetted parts material code S, M, H and T; process connection codes 3, 4, and 5; installation code 9; and mounting bracket code N. Process connection faces on the other side of zero adjustment screw. *8: Also see `Ordering Information'. *9: Not applicable for amplifier housing code 2 and 3. *10: 316 or 316L SST. The specification is included in amplifier housing code 2. *11: Applicable for wetted parts material code S; process connection code 0 and 5; and installation code 8 and 9. Not applicable for option code U1, N2, N3 and M11. No PTFE is used for wetted parts. *12: Applicable for wetted parts material code S or L. /A2 is not applicable with FM approval. *13: Applicable for measurement span code M, H and V and wetted parts material code S. If compliance with category III is needed, specify this option code. *14: Material traceability certification, per EN 10204 3.1B. *15: Applicable for process connections codes 0 and 5. *16: Applicable for process connections codes 1, 2, 3, and 4. *17: The unit on the certificate is always Pa unit regardless of selection of option code D1, D3 or D4. *18: Applicable for capsule code F and L. Also applicable for capsule M, H and V when combined with Wetted Parts Material code H, M, T, A, D, B or W. *19: Applicable for capsule codes M, H and V when combined with Wetted Parts Material code S or L. *20: Dry nitrogen gas is used for oil-prohibited use (option codes K1, K2, K5, and K6). *21: Applicable only for output signal code E and J. *22: The change of pressure fluctuation is monitored and then detects the impulse line blockage. See TI 01C25A31-01E for detailed technical information required for using this function. *23: Maximum number of characters to be engraved on N4 tag plate is 16. Not applicable when option code V1U1 is specified. *24: Refer to "PERFORMANCE SPECIFICATIONS." Applicable for measurement span code M, H or V, and wetted parts material code S or L. Not applicable for option code /A1, /A2, /K2, /K3 and /K6. When the specified range values for V capsule include negative value, the accuracy shall be the standard accuracy, even if /HAC is specified. *25: Not applicable with plug option code UN. *26: Not applicable for installation code -U. *27: Not applicable with option code N1, N2, N3 and GS. *28: Applicable for option code UN and N1. *29: Not applicable for output signal code F, G, and process connections code for diaphragm seal system. *30: Not applicable with process connections code for diaphragm seal system B, C, D, E, F, G, Q, R, P and T. *31: Not applicable with process connections code for diaphragm seal system B, G, P, and T. *32: Applicable for option code UN, N1, and GS. *33: Applicable only for output signal code D, E and J. All Rights Reserved. Copyright © 2004, Yokogawa Electric Corporation GS 01C25B01-01EN Mar. 30, 2020-00 <<Contents>> <<Index>> 12 OPTIONAL SPECIFICATIONS (FOR DIAPHRAGM SEAL SYSTEM) The table below shows the codes dedicated for the combination with a diaphragm seal system. They are only available when the transmitter is ordered in combination with a diaphragm seal system. Please also refer to GS 01C25W01-01EN Item Descriptions Oil-prohibited use Degrease cleansing treatment Degrease cleansing treatment and fluorinated oil-filled capsule. Operating temperature -20 to 80°C (-4 to 176°F) Oil-prohibited use with dehydrating treatment Degrease cleansing and dehydrating treatment Degrease cleansing and dehydrating treatment with fluorinated oil-filled capsule.Operating temperature -20 to 80°C ( -4 to 176°F) Capsule fill fluid Material certificate Fluorinated oil filled in capsule Operating temperature -20 to 80°C (-4 to 176°F) [Low pressure side] Cover flange*1 [High pressure side] Cover flange*2 Bolt and nut for cover flange [Low pressure side] Cover flange, bolt and nut for cover flange*1 [High pressure side] Cover flange, bolt and nut for cover flange*2 [Low pressure side] Cover flange, Diaphragm, Capsule gasket Capsule body*1 [High pressure side] Cover flange, Diaphragm, Capsule gasket Capsule body*2 [Low pressure side] Cover flange, Diaphragm, Vent and Drain plug, Vent screw, Capsule gasket Bolt and nut for cover flange, Capsule body*1 [High pressure side] Cover flange, Diaphragm, Vent and Drain plug, Vent screw, Capsule gasket Bolt and nut for cover flange, Capsule body*2 *1: Applicable with process connections code for diaphragm seal system C, D, Q, and R. *2: Applicable with process connections code for diaphragm seal system E and F. Code K11 K12 K15 K16 K13 M02 M03 M51 M62 M63 MC2 MC3 MD2 MD3 All Rights Reserved. Copyright © 2004, Yokogawa Electric Corporation GS 01C25B01-01EN Nov. 20, 2019-00 <<Contents>> <<Index>> 13 DIMENSIONS Unit: mm (approx.inch) Vertical Impulse Piping Type Wetted Parts Material Code S, L (Except for Measurement Span Code F and Option Code /HD, /HD2) Process connector downside (Installation code 7) Electrical connection for code 5, 9, A, and D. 6 54 (0.24) (2.13) 97 (3.82) 242(9.53) 175(6.89) 129(5.08) Mounting bracket (L-type,optional) Integral indicator (optional) External indicator Conduit connection (optional) 110(4.33) 12 39 (0.47) (1.54) 2-inch pipe (O.D. 60.5 mm) Vent/Drain plugs*6 Process connector upside (Installation code 6) Process connection 52 (2.05) 223(8.78) 97(3.82) 67(2.64) 41 (1.61) ø70(2.76) 138(5.43)*2 95(3.74) ø78(3.07) 223(8.78) 67(2.64) 97(3.82) 41 (1.61) Process connection Conduit connection Zero adjustment Ground terminal Process connector (optional) 54 High pressure (2.13) side*1 Low pressure side*1 52 (2.05) F04E.ai Horizontal Impulse Piping Type (Installation code 9) Wetted Parts Material Code S, L (Except for Measurement Span Code F and Option Code /HD, /HD2) 175(6.89) ø78(3.07) ø70 (2.76) 129(5.08) 145(5.71) External indicator Conduit connection (optional) 6 (0.24) 54 (2.13) 89(3.50) 67 (2.64) 95(3.74) Conduit connection Integral indicator (optional) Zero adjustment 110(4.33) 12 39 (0.47) (1.54) Vent plug, Drain plug*4*6 Ground terminal Electrical connection for code 5, 9, A, and D. 41.3 (1.63) 47 124(4.88) (1.85) Vent plug*4*6 Drain plug*4*6 41 (1.61) 115(4.53) Process connection Process connector High pressure side Mounting bracket (optional) (Flat-type,optional) 2-inch pipe (O.D. 60.5 mm) 54(2.13) 130(5.12)*3 Vent plug*4*6 Drain plug*4*6 Low pressure side F05E.ai *1: When Installation code 2, 3, or 8 is selected, high and low pressure side on the above figure are reversed. (i.e. High pressure side is on the right side.) *2: When Option code K1, K2, K5, or K6 is selected, add 15 mm (0.59 inch) to the value in the figure. *3: When Option code K1, K2, K5, or K6 is selected, add 30 mm (1.18 inch) to the value in the figure. *4: Not available when option code GS is specified. *5: When electrical connection code 7 or C is selected, a blind plug is protruded up to 8 mm (0.31 inch) from the conduit connection. *6: When option code UN is specified, Vent/Drain holes and plugs are not applicable. All Rights Reserved. Copyright © 2004, Yokogawa Electric Corporation GS 01C25B01-01EN Nov. 20, 2019-00 <<Contents>> <<Index>> 14 Unit: mm (approx.inch) Vertical Impulse Piping Type Wetted Parts Material Code: H, M, T, A, B, D, W, Measurement Span Code F or Option Code /HD, /HD2 Process connector downside (Installation code 7) Electrical connection for code 5, 9, A, and D. 6 54 (0.24) (2.13) 97 (3.82) 256(10.10) 194(7.64) 143(5.63) Mounting bracket (L-type,optional) Integral indicator (optional) 110(4.33) 9*4 39 (0.35) (1.54) External indicator Conduit connection (optional) 2-inch pipe (O.D. 60.5 mm) Vent/Drain plugs*6 Process connector upside (Installation code 6) Process connection 52 (2.05) 234(9.21) 102(4.02) 72(2.83) 46 (1.81) ø70 (2.76) 148(5.83)*2 95 (3.74) ø78(3.07) 234(9.21) 72(2.83) 102(4.02) 46 (1.81) Process connection Ground terminal Conduit connection Zero adjustment Process connector (optional) High pressure side*1 54 (2.13) Low pressure side*1 52 (2.05) F06E.ai Horizontal Impulse Piping Type (Installation code 9) Wetted Parts Material Code: H, M, T, A, B, D, W, Measurement Span Code F or Option Code /HD, /HD2 External indicator Conduit connection (optional) 6 (0.24) 54 (2.13) 94(3.70) 72(2.83) 95(3.75) Conduit connection Integral indicator (optional) Zero adjustment 110(4.33) 9*4 39 (0.35) (1.54) Ground terminal ø78(3.07) ø70 (2.76) 143(5.63) 194(7.64) 159(6.26) Electrical connection for code 5, 9, A, and D. 41.3 (1.63) 47 (1.85) 124(4.88) Vent plug*6 46 (1.81) 125(4.92) Process connection Process connector (optional) Drain plug*6 54 (2.13) Mounting bracket (Flat-type,optional) 2-inch pipe (O.D. 60.5 mm) Vent plug*6 Drain plug*6 133*3 (5.24) F07E.ai *1: When Installation code 2, 3, or 8 is selected, high and low pressure side on the above figure are reversed. (i.e. High pressure side is on the right side.) *2: When Option code K1, K2, K5, or K6 is selected, add 15 mm (0.59 inch) to the value in the figure. *3: When Option code K1, K2, K5, or K6 is selected, add 30 mm (1.18 inch) to the value in the figure. *4: 15 mm(0.59 inch) for right side high pressure. *5: When electrical connection code 7 or C is selected, a blind plug is protruded up to 8 mm (0.31 inch) from the conduit connection. *6: When option code UN is specified, Vent/Drain holes and plugs are not applicable. All Rights Reserved. Copyright © 2004, Yokogawa Electric Corporation GS 01C25B01-01EN Nov. 20, 2019-00 <<Contents>> <<Index>> 15 Universal Flange (INSTALLATION CODE `U') Measurement span code M, H and V 6 (0.24) External indicator Conduit connection (optional) 54 (2.13) 58 67 (2.28) (2.64) 95(3.74) Zero Conduit connection adjustment Integral indicator (optional) Unit: mm (approx.inch) 110(4.33) 12 39 (0.47) (1.54) 145(5.71) 175(6.89) 41.3 (1.63) ø78(3.07) ø70 (2.76) 129(5.08) Electrical connection for code 5, 9, A, and D. Drain plug Vent plug Drain plug 41 (1.61) 115(4.53) Ground terminal Process connection Process connector (optional) High pressure side 54 (2.13) 130*1 (5.12) Vent plug Drain plug Low pressure side F08E.ai Universal Flange (INSTALLATION CODE `U') Measurement span code F 6 (0.24) External indicator Conduit connection (optional) 54 (2.13) 63 72 (2.48) (2.83) 95(3.74) Conduit connection Zero adjustment Integral indicator (optional) 110(4.33) 9 39 (0.35) (1.54) 159(6.26) 194(7.64) 41.3 (1.63) ø78(3.07) ø70 (2.76) 143(5.63) Ground terminal Electrical connection for code 5, 9, A, and D. Drain plug Vent plug Drain plug 46 (1.81) 125(4.92) Process connection High pressure side Process connector (optional) 54 (2.13) 133(5.24)*1 Vent plug Drain plug Low pressure side F09E.ai *1: When Option code K1, K2, K5, or K6 is selected, add 30 mm (1.18 inch) to the value. *2: When electrical connection code 7 or C is selected, a blind plug is protruded up to 8 mm (0.31 inch) from the conduit connection. All Rights Reserved. Copyright © 2004, Yokogawa Electric Corporation GS 01C25B01-01EN Nov. 20, 2019-00 <<Contents>> <<Index>> 16 Unit: mm (approx.inch) Bottom Process Connection (Installation code B) Measurement span code M, H and V, except for option code /HD and /HD2 6 (0.24) 54 (2.13) Electrical connection for code 5, 9, A, and D. 95(3.74) 73 (2.87) Integral indicator (optional) Conduit connection Zero adjustment 188(7.40) 110(4.33) 12 39 (0.47) (1.54) ø78(3.07) ø70 (2.76) 109(4.29) 159(6.26) Extenal indicator Conduit connection (optional) Ground terminal 60 (2.36) Mounting bracket*1 (optional) 2-inch pipe (O.D. 60.5 mm) Process connector (optional) Process connection Vent plug*4 High pressure side 54 (2.13) 130(5.12)*2 Low pressure side 129(5.08) Measurement span code F or option code /HD, /HD2 Extenal indicator Conduit connection (optional) 95(3.74) 95(3.74) Integral indicator (optional) Conduit connection Zero adjustment 192(7.56) 110(4.33) 9 39 (0.35) (1.54) 6 (0.24) 54 (2.13) Ground terminal F10E.ai Vent plug*4 ø78(3.07) ø70 (2.76) 143(5.63) 159(6.26) 238(9.37) 79(3.11) Electrical connection for code 5, 9, A, and D. Vent plug*4 2-inch pipe (O.D. 60.5 mm) Process connector (optional) Mounting bracket (optional) High pressure side 54 (2.13) 133(5.24)*2 Low pressure side 129(5.08) 41.3 (1.63) F11E.ai *1: A transmitter with SST housing is not applicable for mounting to horizontal 2-inch pipe. *2: When option code K1, K2, K5 or K6 is selected, add 30 mm (1.18 inch) to the value in the figure. *3: When electrical connection code 7 or C is selected, a blind plug is protruded up to 8 mm (0.31 inch) from the conduit connection. *4: When option code UN is specified, Vent holes and plugs are not applicable. All Rights Reserved. Copyright © 2004, Yokogawa Electric Corporation GS 01C25B01-01EN Nov. 20, 2019-00 <<Contents>> <<Index>> 17 Terminal Configuration Terminal 1 Terminal 2 Terminal 3 Terminal Wiring SUPPLY + 1 2 Power supply and output terminals CHECK + or 3 2 External indicator (ammeter) terminals*1*2 or ALARM + 3 2 Status contact output terminals*2 (when /AL is specified) Ground terminal *1: When using an external indicator or check meter, the internal resistance must be 10 or less. A check meter or indicator cannot be connected when /AL option is specified. *2: Not available for FOUNDATION Fieldbus and PROFIBUS PA communication types. F12E.ai Wiring Example for Analog Output and Status Output Connection Analog output EJX electrical terminal SUPPLY + CHECK A *1 *1: Either A or + Description Distributor + 24V DC 250 Analog and EJX electrical terminal Distributor status output Shielded cable (when /AL is specified) SUPPLY + + 24V DC If shield cable is not used, communication is not possible. ALARM A *1 *1: Either A or + 250 External power supply 30V DC, 120mA max Use two-wire separately shielded cables. Magnetic valve AC power supply F13E.ai All Rights Reserved. Copyright © 2004, Yokogawa Electric Corporation GS 01C25B01-01EN Nov. 20, 2019-00 <<Contents>> <<Index>> 18 < Ordering Information > "" Specify the following when ordering. For output signal code J, refer to GS 01C25T0101EN. 1. Model, suffix codes, and option codes 2. Calibration range and units 1) Calibration range can be specified with range value specifications up to 5 digits (excluding any decimal point) for low or high range limits within the range of -32000 to 32000. When reverse range is designated, specify Lower Range Value(LRV) as greater than Upper Range Value(URV). When square root output mode is specified, LRV must be "0 (zero) ". 2) Specify only one unit from the table, `Factory setting.' 3. Select linear or square root for output mode and display mode. Note: If not specified, the instrument is shipped set for linear mode. 4. Display scale and units (for transmitters equipped with the integral indicator only) Specify either 0 to 100 % or `Range and Unit' for engineering units scale: Scale range can be specified with range limit specifications up to 5 digits (excluding any decimal point) for low or high range limits within the range of -32000 to 32000. Unit display consists of 6-digit, therefore, if the specified scaling unit excluding `/' is longer than 6-characters , the first 6 characters will be displayed on the unit display. 5. Tag Number (if required) Specified characters (up to 16 characters for BRAIN, 22 characters for HART, or 16 characters for /N4 tag) are engraved on the stainless steel tag plate fixed on the housing. 6. SOFTWARE TAG (for HART only. If required) Specified characters (up to 32 characters) are set as "Tag" (the first 8 characters) and "Long tag"*1 (32 characters) in the amplifier memory. Use alphanumeric capital letters. When the "SOFTWARE TAG" is not specified, specified "TAG NO" is set as "Tag" (the first 8 characters) and "Long tag"*1 (22 characters) in the amplifier memory. *1: applicable only when HART 7 is selected. 7. Other factory configurations (if required) Specifying option code CA or CB will allow further configuration at factory. Following are configurable items and setting range. [/CA : For HART communication type] 1) Descriptor (up to 16 characters) 2) Message (up to 30 characters) 3) Software damping in second (0.00 to 100.00) [/CB : For BRAIN communication type] 1) Software damping in second (0.00 to 100.00) All Rights Reserved. Copyright © 2004, Yokogawa Electric Corporation Subject to change without notice. < Factory Setting > "" Tag number As specified in order Software damping *1 `2.00 s' or as specified in order Output mode `Linear' unless otherwise specified in order Calibration range lower range value As specified in order Calibration range upper range As specified in order value Calibration range unit Selected from mmH2O, mmH2O(68°F), mmAq*2, mmWG*2, mmHg, Pa, hPa*2, kPa, MPa, mbar, bar, gf/cm2, kgf/cm2, inH2O, inH2O(68°F), inHg, ftH2O, ftH2O(68°F) or psi. (Only one unit can be specified.) Display setting Designated differential pressure value specified in order. (% or user scaled value.) Display mode `Linear' or `Square root' is also as specified in order. Static pressure display range `0 to 25 MPa' for M, H, and V capsule with wetted parts material S or L, and `0 to 16 MPa' for F capsule with wetted parts material S and all capsules with wetted parts material other than S and L, absolute value. Measuring high pressure side. *1: To specify these items at factory, option code CA or CB is required. *2: Not available for HART protocol type. < Material Cross Reference > ASTM 316 F316 316L F316L 304 F304 660 B7 CF-8M JIS SUS316 SUSF316 SUS316L SUSF316L SUS304 SUSF304 SUH660 SNB7 SCS14A <Information on EU WEEE Directive> EU WEEE (Waste Electrical and Electronic Equipment) Directive is only valid in the EU. This instrument is intended to be sold and used only as a part of equipment which is excluded from WEEE Directive, such as large-scale stationary industrial tools, a large-scale fixed installation and so on, and, therefore, subjected to the exclusion from the scope of the WEEE Directive. The instrument should be disposed of in accordance with local and national legislation/regulations. GS 01C25B01-01EN Nov. 20, 2019-00Adobe PDF Library 10.0.1
