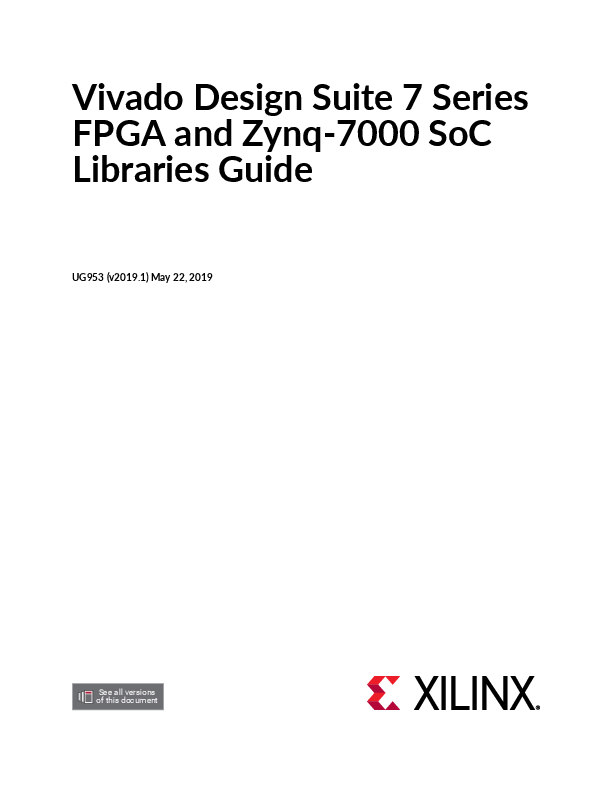

Vivado Design Suite 7 Series FPGA and Zynq-7000 SoC Libraries Guide
File info: application/pdf · 604 pages · 5.15MB
Vivado Design Suite 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Describes design elements used in the Vivado tools, associated with Xilinx 7 series and Zynq architectures. Details both UniMacro and Xilinx primitive components, including VHDL and Verilog instantiation code, schematic symbols, truth tables, and other information specific to the design element.
7 series, 7series, Virtex-7, virtex7, Kintex-7, kintex7.Artix-7, artix7, Zynq, libraries guide, design elements, schematic, macro, primitive, fpga, Vivado
Extracted Text
Vivado Design Suite 7 Series FPGA and Zynq-7000 SoC Libraries Guide
UG953 (v2019.1) May 22, 2019
See all versions of this document
Chapter 1: Introduction
Chapter 1
Introduction
Overview This HDL guide is part of the Vivado� Design Suite documentation collection. This guide contains the following: � Introduction � Descriptions of each available macro � A list of design elements supported in this architecture, organized by functional categories � Descriptions of each available primitive
About Design Elements This version of the Libraries Guide describes the valid design elements for 7 series architectures including Zynq�, and includes examples of instantiation code for each element. Instantiation templates are also supplied in a separate ZIP file, which you can find on www.xilinx.com linked to this file or within the Language Templates in the Vivado� Design Suite. Design elements are divided into the following main categories: � Macros : These elements are in the UniMacro library and the Xilinx Parameterized Macro
library in the tool, and are used to instantiate elements that are complex to instantiate by just using the primitives. The synthesis tools will automatically expand these macros to their underlying primitives. � Primitives: Xilinx components that are native to the architecture you are targeting.
Design Entry Methods For each design element in this guide, Xilinx evaluates the options for using the design element, and recommends what we believe is the best solution for you. The options are: � Instantiation: This component can be instantiated directly into the design. This method is
useful if you want to control the exact use, implementation, or placement of the individual blocks.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 2
Chapter 1: Introduction
� Inference: This component can be inferred by most supported synthesis tools. You should use this method if you want to have complete flexibility and portability of the code to multiple architectures. Inference also gives the tools the ability to optimize for performance, area, or power, as specified by the user to the synthesis tool.
� IP Catalog: This component can be instantiated from the IP Catalog. The IP Catalog maintains a library of IP Cores assembled from multiple primitives to form more complex functions, as well as interfaces to help in instantiation of the more complex primitives. References here to the IP Catalog generally refer to the latter, where you use the IP catalogt o assist in the use and integration of certain primitives into your design.
� Macro Support: This component has a UniMacro that can be used. These components are in the UniMacro library in the Xilinx tool, and are used to instantiate primitives that are too complex to instantiate by just using the primitives. The synthesis tools will automatically expand UniMacros to their underlying primitives.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 3
Chapter 2: Xilinx Parameterized Macros
Chapter 2
Xilinx Parameterized Macros
About Xilinx Parameterized Macros This section describes Xilinx� Parameterized Macros that can be used with 7 series FPGAs and Zynq�-7000 All Programmable SoC devices. The macros are organized alphabetically.
The following information is provided for each macro, where applicable:
� Name and description � Schematic symbol � Introduction � Logic diagram (if any) � Port descriptions � Design Entry Method � Available attributes � Example instantiation templates � Links to additional information
Enabling Xilinx Parameterized Macros The following instructions describe how to prepare Vivado to use the XPM libraries.
1. Ensure Vivado can identify the XPMs. � When using the IDE and/or the project flow, the tools will parse the files added to the project and setup Vivado to recognize the XPMs. � When using the non-project flow, you must issue the auto_detect_xpm command.
2. Select the XPM template that you wish to use from below. 3. Copy the contents of the template and paste into your own source file. 4. Set parameters/generics, and wire ports according to the documentation provided as code
comments.
Note: Be sure to read and comply with all code comments to properly use the XPMs.
Testbench A testbench for XPM CDC macros is available in the XPM CDC Testbench File.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 4
Chapter 2: Xilinx Parameterized Macros
A testbench for XPM FIFO macros is available in the XPM FIFO Testbench File.
Instantiation Templates
Instantiation templates for Xilinx Parameterized Macros are also available in Vivado, as well as in a downloadable ZIP file. Because PDF includes headers and footers if you copy text that spans pages, you should copy templates from Vivado or the downloaded ZIP file whenever possible.
Instantiation templates can be found on the Web in the Instantiation Templates for Xilinx Parameterizable Macros file.
List of Xilinx Parameterized Macros
Design Element XPM_CDC_ARRAY_SINGLE XPM_CDC_ASYNC_RST XPM_CDC_GRAY XPM_CDC_HANDSHAKE XPM_CDC_PULSE XPM_CDC_SINGLE XPM_CDC_SYNC_RST XPM_FIFO_ASYNC XPM_FIFO_AXIF XPM_FIFO_AXIL XPM_FIFO_AXIS XPM_FIFO_SYNC XPM_MEMORY_DPDISTRAM XPM_MEMORY_DPROM XPM_MEMORY_SDPRAM XPM_MEMORY_SPRAM XPM_MEMORY_SPROM XPM_MEMORY_TDPRAM
Description Parameterized Macro: Single-bit Array Synchronizer Parameterized Macro: Asynchronous Reset Synchronizer Parameterized Macro: Synchronizer via Gray Encoding Parameterized Macro: Bus Synchronizer with Full Handshake Parameterized Macro: Pulse Transfer Parameterized Macro: Single-bit Synchronizer Parameterized Macro: Synchronous Reset Synchronizer Parameterized Macro: Asynchronous FIFO Parameterized Macro: AXI-Full FIFO Parameterized Macro: AXI-Lite FIFO Parameterized Macro: AXI Stream FIFO Parameterized Macro: Synchronous FIFO Parameterized Macro: Dual Port Distributed RAM Parameterized Macro: Dual Port ROM Parameterized Macro: Simple Dual Port RAM Parameterized Macro: Single Port RAM Parameterized Macro: Single Port ROM Parameterized Macro: True Dual Port RAM
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 5
Chapter 2: Xilinx Parameterized Macros
XPM_CDC_ARRAY_SINGLE
Parameterized Macro: Single-bit Array Synchronizer
MACRO_GROUP: XPM MACRO_SUBGROUP: XPM_CDC Families: 7 series, UltraScale, UltraScale+
XPM_CDC_ARRAY_SINGLE
src_in[n:0] src_clk dest_clk
dest_out[n:0]
X15897-031116
Introduction
This macro synthesizes an array of single-bit signals from the source clock domain to the destination clock domain.
For proper operation, the input data must be sampled two or more times by the destination clock. You can define the number of register stages used in the synchronizers. An optional input register can be used to register the input in the source clock domain prior to it being synchronized. You can also enable a simulation feature to generate messages to report any potential misuse of the macro.
Note: This macro expects that the each bit of the source array is independent, and does not have a defined relationship that needs to be preserved. If each bit of the array has a relationship that needs to be preserved, use the XPM_CDC_HANDSHAKE or XPM_CDC_GRAY macros.
Port Descriptions
Port dest_clk dest_out src_clk
Direction Input Output Input
Width 1 WIDTH 1
Domain NA dest_clk NA
Sense
Handling if Unused
Function
EDGE Active _RISING
Clock signal for the destination clock domain.
NA
Active
src_in synchronized to the destination
clock domain. This output is registered.
EDGE 0 _RISING
Unused when SRC_INPUT_REG = 0. Input clock signal for src_in if SRC_INPUT_REG = 1.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 6
Chapter 2: Xilinx Parameterized Macros
Port src_in
Direction Input
Width WIDTH
Domain src_clk
Sense NA
Handling if Unused
Function
Active
Input single-bit array to be synchronized to destination clock domain. It is assumed that each bit of the array is unrelated to the others. This is reflected in the constraints applied to this macro.
To transfer a binary value losslessly across the two clock domains, use the XPM_CDC_GRAY macro instead.
Design Entry Method
Instantiation
No
Inference
No
IP and IP Integrator Catalog
No
Available Attributes
Attribute DEST_SYNC_FF INIT_SYNC_FF
SIM_ASSERT_CHK
SRC_INPUT_REG WIDTH
Type DECIMAL DECIMAL
DECIMAL
DECIMAL DECIMAL
Allowed Values Default
2 to 10
4
0, 1
0
0, 1
0
1, 0
1
1 to 1024
2
Description
Number of register stages used to synchronize signal in the destination clock domain.
0- Disable behavioral simulation initialization value(s) on synchronization registers. 1- Enable behavioral simulation initialization value(s) on synchronization registers.
0- Disable simulation message reporting. Messages related to potential misuse will not be reported. 1- Enable simulation message reporting. Messages related to potential misuse will be reported.
0- Do not register input (src_in) 1- Register input (src_in) once using src_clk
Width of single-bit array (src_in) that will be synchronized to destination clock domain.
VHDL Instantiation Template Unless they already exist, copy the following two statements and paste them before the entity declaration.
Library xpm; use xpm.vcomponents.all;
-- xpm_cdc_array_single: Single-bit Array Synchronizer -- Xilinx Parameterized Macro, version 2019.1
xpm_cdc_array_single_inst : xpm_cdc_array_single generic map (
DEST_SYNC_FF => 4, -- DECIMAL; range: 2-10 INIT_SYNC_FF => 0, -- DECIMAL; 0=disable simulation init values, 1=enable simulation init values SIM_ASSERT_CHK => 0, -- DECIMAL; 0=disable simulation messages, 1=enable simulation messages SRC_INPUT_REG => 1, -- DECIMAL; 0=do not register input, 1=register input
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 7
Chapter 2: Xilinx Parameterized Macros
WIDTH => 2
-- DECIMAL; range: 1-1024
)
port map (
dest_out => dest_out, -- WIDTH-bit output: src_in synchronized to the destination clock domain. This
-- output is registered.
dest_clk => dest_clk, -- 1-bit input: Clock signal for the destination clock domain.
src_clk => src_clk, -- 1-bit input: optional; required when SRC_INPUT_REG = 1
src_in => src_in
-- WIDTH-bit input: Input single-bit array to be synchronized to destination clock
-- domain. It is assumed that each bit of the array is unrelated to the others.
-- This is reflected in the constraints applied to this macro. To transfer a binary
-- value losslessly across the two clock domains, use the XPM_CDC_GRAY macro
-- instead.
);
-- End of xpm_cdc_array_single_inst instantiation
Verilog Instantiation Template
// xpm_cdc_array_single: Single-bit Array Synchronizer // Xilinx Parameterized Macro, version 2019.1
xpm_cdc_array_single #(
.DEST_SYNC_FF(4), // DECIMAL; range: 2-10
.INIT_SYNC_FF(0), // DECIMAL; 0=disable simulation init values, 1=enable simulation init values
.SIM_ASSERT_CHK(0), // DECIMAL; 0=disable simulation messages, 1=enable simulation messages
.SRC_INPUT_REG(1), // DECIMAL; 0=do not register input, 1=register input
.WIDTH(2)
// DECIMAL; range: 1-1024
)
xpm_cdc_array_single_inst (
.dest_out(dest_out), // WIDTH-bit output: src_in synchronized to the destination clock domain. This
// output is registered.
.dest_clk(dest_clk), // 1-bit input: Clock signal for the destination clock domain.
.src_clk(src_clk), // 1-bit input: optional; required when SRC_INPUT_REG = 1
.src_in(src_in)
// WIDTH-bit input: Input single-bit array to be synchronized to destination clock
// domain. It is assumed that each bit of the array is unrelated to the others. This
// is reflected in the constraints applied to this macro. To transfer a binary value
// losslessly across the two clock domains, use the XPM_CDC_GRAY macro instead.
);
// End of xpm_cdc_array_single_inst instantiation
For More Information � XPM CDC Testbench File � See the 7 Series Programmable Devices User Guides.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 8
Chapter 2: Xilinx Parameterized Macros
XPM_CDC_ASYNC_RST
Parameterized Macro: Asynchronous Reset Synchronizer
MACRO_GROUP: XPM MACRO_SUBGROUP: XPM_CDC Families: 7 series, UltraScale, UltraScale+
XPM_CDC_ASYNC_RST
src_arst
dest_arst
dest_clk
X15902-031116
Introduction
This macro synchronizes an asynchronous reset signal to the destination clock domain. The resulting reset output will be guaranteed to assert asynchronously in relation to the input but the deassertion of the output will always be synchronous to the destination clock domain.
You can define the polarity of the reset signal and the minimal output pulse width of the macro when asserted. The latter is controlled by defining the number of register stages used in the synchronizers.
Note: The minimum input pulse assertion is dependent on the setup and hold requirement of the reset or set pin of the registers. See the respective DC and AC switching characteristics data sheets for the targeted architecture.
Port Descriptions
Port dest_arst
dest_clk src_arst
Direction Output
Input Input
Width 1
1 1
Domain dest_clk
NA NA
Sense
Handling if Unused
Function
NA
Active
src_arst asynchronous reset signal
synchronized to destination clock domain.
This output is registered.
NOTE: Signal asserts asynchronously but deasserts synchronously to dest_clk. Width of the reset signal is at least (DEST_SYNC_FF*dest_clk) period.
EDGE Active _RISING
Destination clock.
NA
Active
Source asynchronous reset signal.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 9
Chapter 2: Xilinx Parameterized Macros
Design Entry Method
Instantiation
No
Inference
No
IP and IP Integrator Catalog
No
Available Attributes
Attribute DEST_SYNC_FF
INIT_SYNC_FF
RST_ACTIVE_HIGH
Type DECIMAL
DECIMAL
DECIMAL
Allowed Values Default
2 to 10
4
0, 1
0
0, 1
0
Description
Number of register stages used to synchronize signal in the destination clock domain. This parameter also determines the minimum width of the asserted reset signal.
0- Disable behavioral simulation initialization value(s) on synchronization registers. 1- Enable behavioral simulation initialization value(s) on synchronization registers.
Defines the polarity of the asynchronous reset signal.
� 0- Active low asynchronous reset signal
� 1- Active high asynchronous reset signal
VHDL Instantiation Template Unless they already exist, copy the following two statements and paste them before the entity declaration.
Library xpm; use xpm.vcomponents.all;
-- xpm_cdc_async_rst: Asynchronous Reset Synchronizer -- Xilinx Parameterized Macro, version 2019.1
xpm_cdc_async_rst_inst : xpm_cdc_async_rst generic map (
DEST_SYNC_FF => 4, -- DECIMAL; range: 2-10 INIT_SYNC_FF => 0, -- DECIMAL; 0=disable simulation init values, 1=enable simulation init values RST_ACTIVE_HIGH => 0 -- DECIMAL; 0=active low reset, 1=active high reset ) port map ( dest_arst => dest_arst, -- 1-bit output: src_arst asynchronous reset signal synchronized to destination
-- clock domain. This output is registered. NOTE: Signal asserts asynchronously
-- but deasserts synchronously to dest_clk. Width of the reset signal is at least -- (DEST_SYNC_FF*dest_clk) period.
dest_clk => dest_clk, src_arst => src_arst );
-- 1-bit input: Destination clock. -- 1-bit input: Source asynchronous reset signal.
-- End of xpm_cdc_async_rst_inst instantiation
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 10
Chapter 2: Xilinx Parameterized Macros
Verilog Instantiation Template
// xpm_cdc_async_rst: Asynchronous Reset Synchronizer // Xilinx Parameterized Macro, version 2019.1
xpm_cdc_async_rst #( .DEST_SYNC_FF(4), // DECIMAL; range: 2-10 .INIT_SYNC_FF(0), // DECIMAL; 0=disable simulation init values, 1=enable simulation init values .RST_ACTIVE_HIGH(0) // DECIMAL; 0=active low reset, 1=active high reset
) xpm_cdc_async_rst_inst (
.dest_arst(dest_arst), // 1-bit output: src_arst asynchronous reset signal synchronized to destination
// clock domain. This output is registered. NOTE: Signal asserts asynchronously
// but deasserts synchronously to dest_clk. Width of the reset signal is at least // (DEST_SYNC_FF*dest_clk) period.
.dest_clk(dest_clk), .src_arst(src_arst) );
// 1-bit input: Destination clock. // 1-bit input: Source asynchronous reset signal.
// End of xpm_cdc_async_rst_inst instantiation
For More Information � XPM CDC Testbench File � See the 7 Series Programmable Devices User Guides.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 11
Chapter 2: Xilinx Parameterized Macros
XPM_CDC_GRAY
Parameterized Macro: Synchronizer via Gray Encoding
MACRO_GROUP: XPM MACRO_SUBGROUP: XPM_CDC Families: 7 series, UltraScale, UltraScale+
XPM_CDC_GRAY
src_in_bin[n:0] src_clk dest_clk
dest_out_bin[n:0]
X15898-031116
Introduction
This macro synchronizes a binary input from the source clock domain to the destination clock domain using gray code. For proper operation, the input data must be sampled two or more times by the destination clock.
This module takes the input binary signal, translates it into Gray code and registers it, synchronizes it to the destination clock domain, and then translates it back to a binary signal. You can define the number of register stages used in the synchronizers. You can also enable a simulation feature to generate messages to report any potential misuse of the macro.
Since this macro uses Gray encoding, the binary value provided to the macro must only increment or decrement by one to ensure that the signal being synchronized has two successive values that only differ by one bit. This will ensure lossless synchronization of a Gray coded bus. If the behavior of the binary value is not compatible to Gray encoding, use the XPM_CDC_HANDSHAKE macro or an alternate method of synchronizing the data to the destination clock domain.
An additional option (SIM_LOSSLESS_GRAY_CHK) is provided to report an error message when any binary input values are found to violate the Gray coding rule where two successive values must only increment or decrement by one.
Note: When the XPM_CDC_GRAY module is used in a design and report_cdc is run, the synchronizer in this module is reported as a warning of type CDC-6, Multi-bit synchronized with ASYNC_REG property. This warning is safe to ignore since the bus that is synchronized is gray-coded. Starting in 2018.3, this warning has been suppressed by adding a CDC-6 waiver to the TCL constraint file.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 12
Chapter 2: Xilinx Parameterized Macros
You should run report_cdc to make sure the CDC structure is identified and that no critical warnings are generated, and also verify that dest_clk can sample src_in_bin[n:0] two or more times.
Port Descriptions
Port dest_clk dest_out_bin
src_clk src_in_bin
Direction Input Output
Input Input
Width 1 WIDTH
1 WIDTH
Domain NA dest_clk
NA src_clk
Sense
Handling if Unused
Function
EDGE Active _RISING
Destination clock.
NA
Active
Binary input bus (src_in_bin) synchronized
to destination clock domain. This output is
combinatorial unless REG_OUTPUT is set to
1.
EDGE Active _RISING
Source clock.
NA
Active
Binary input bus that will be synchronized
to the destination clock domain.
Design Entry Method
Instantiation
No
Inference
No
IP and IP Integrator Catalog
No
Available Attributes
Attribute DEST_SYNC_FF INIT_SYNC_FF
REG_OUTPUT SIM_ASSERT_CHK
SIM_LOSSLESS _GRAY_CHK
WIDTH
Type DECIMAL DECIMAL DECIMAL DECIMAL
DECIMAL
DECIMAL
Allowed Values Default
2 to 10
4
0, 1
0
0, 1
0
0, 1
0
0, 1
0
2 to 32
2
Description
Number of register stages used to synchronize signal in the destination clock domain.
0- Disable behavioral simulation initialization value(s) on synchronization registers.
1- Enable behavioral simulation initialization value(s) on synchronization registers.
0- Disable registered output
1- Enable registered output
0- Disable simulation message reporting. Messages related to potential misuse will not be reported.
1- Enable simulation message reporting. Messages related to potential misuse will be reported.
0- Disable simulation message that reports whether src_in_bin is incrementing or decrementing by one, guaranteeing lossless synchronization of a gray coded bus.
1- Enable simulation message that reports whether src_in_bin is incrementing or decrementing by one, guaranteeing lossless synchronization of a gray coded bus.
Width of binary input bus that will be synchronized to destination clock domain.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 13
Chapter 2: Xilinx Parameterized Macros
VHDL Instantiation Template Unless they already exist, copy the following two statements and paste them before the entity declaration.
Library xpm; use xpm.vcomponents.all;
-- xpm_cdc_gray: Synchronizer via Gray Encoding -- Xilinx Parameterized Macro, version 2019.1
xpm_cdc_gray_inst : xpm_cdc_gray
generic map (
DEST_SYNC_FF => 4,
-- DECIMAL; range: 2-10
INIT_SYNC_FF => 0,
-- DECIMAL; 0=disable simulation init values, 1=enable simulation init values
REG_OUTPUT => 0,
-- DECIMAL; 0=disable registered output, 1=enable registered output
SIM_ASSERT_CHK => 0,
-- DECIMAL; 0=disable simulation messages, 1=enable simulation messages
SIM_LOSSLESS_GRAY_CHK => 0, -- DECIMAL; 0=disable lossless check, 1=enable lossless check
WIDTH => 2
-- DECIMAL; range: 2-32
)
port map (
dest_out_bin => dest_out_bin, -- WIDTH-bit output: Binary input bus (src_in_bin) synchronized to
-- destination clock domain. This output is combinatorial unless REG_OUTPUT
-- is set to 1.
dest_clk => dest_clk, src_clk => src_clk, src_in_bin => src_in_bin
-- 1-bit input: Destination clock. -- 1-bit input: Source clock. -- WIDTH-bit input: Binary input bus that will be synchronized to the -- destination clock domain.
);
-- End of xpm_cdc_gray_inst instantiation
Verilog Instantiation Template
// xpm_cdc_gray: Synchronizer via Gray Encoding // Xilinx Parameterized Macro, version 2019.1
xpm_cdc_gray #(
.DEST_SYNC_FF(4),
// DECIMAL; range: 2-10
.INIT_SYNC_FF(0),
// DECIMAL; 0=disable simulation init values, 1=enable simulation init values
.REG_OUTPUT(0),
// DECIMAL; 0=disable registered output, 1=enable registered output
.SIM_ASSERT_CHK(0),
// DECIMAL; 0=disable simulation messages, 1=enable simulation messages
.SIM_LOSSLESS_GRAY_CHK(0), // DECIMAL; 0=disable lossless check, 1=enable lossless check
.WIDTH(2)
// DECIMAL; range: 2-32
)
xpm_cdc_gray_inst (
.dest_out_bin(dest_out_bin), // WIDTH-bit output: Binary input bus (src_in_bin) synchronized to
// destination clock domain. This output is combinatorial unless REG_OUTPUT
// is set to 1.
.dest_clk(dest_clk), .src_clk(src_clk), .src_in_bin(src_in_bin)
// 1-bit input: Destination clock. // 1-bit input: Source clock. // WIDTH-bit input: Binary input bus that will be synchronized to the // destination clock domain.
);
// End of xpm_cdc_gray_inst instantiation
For More Information � XPM CDC Testbench File � See the 7 Series Programmable Devices User Guides.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 14
Chapter 2: Xilinx Parameterized Macros
XPM_CDC_HANDSHAKE
Parameterized Macro: Bus Synchronizer with Full Handshake
MACRO_GROUP: XPM MACRO_SUBGROUP: XPM_CDC Families: 7 series, UltraScale, UltraScale+
XPM_CDC_HANDSHAKE
src_in[n:0] src_send src_clk dest_ack dest_clk
dest_out[n:0] src_rcv
dest_req
X15899-031116
Introduction
This macro uses a handshake signaling to transfer an input bus from the source clock domain to the destination clock domain. One example of when this macro should be used is when the data being transferred is not compatible with the XPM_CDC_GRAY macro that uses Gray encoding.
For this macro to function correctly, a full handshake - an acknowledgement that the data transfer was received and a resetting of the handshake signals � must be completed before another data transfer is initiated.
You can define the number of register stages used in the synchronizers to transfer the handshake signals between the clock domains individually. You can also include internal handshake logic to acknowledge the receipt of data on the destination clock domain. When this feature is enabled, the output (dest_out) must be consumed immediately when the data valid (dest_req) is asserted.
You can also enable a simulation feature to generate messages to report any potential misuse of the macro. These messages will generate errors when the signaling provided to the macro violates the usage guidance above.
Note: When the XPM_CDC_HANDSHAKE module is used in a design and report_cdc is run, the data bus that is synchronized in this module is reported as a warning of type CDC-15, Clock Enable Controlled CDC. This warning is safe to ignore. Starting in 2018.3, this warning has been suppressed by adding a CDC-15 waiver to the Tcl constraint file.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 15
Chapter 2: Xilinx Parameterized Macros
You should run report_cdc to make sure the CDC structure is identified and that no critical warnings are generated, and also verify that dest_clk can sample src_in[n:0] two or more times.
External Handshake The following waveform shows how back-to-back data is sent when the external handshake option is used.
Internal Handshake
The following waveform shows how back-to-back data is sent when the internal handshake option is enabled.
Port Descriptions
Port dest_ack
dest_clk dest_out
Direction Input
Input Output
Width 1
1 WIDTH
Domain dest_clk
NA dest_clk
Sense
Handling if Unused
Function
LEVEL 0 _HIGH
Destination logic acknowledgement if DEST_EXT_HSK = 1. Unused when DEST_EXT_HSK = 0.
Asserting this signal indicates that data on dest_out has been captured by the destination logic.
This signal should be deasserted once dest_req is deasserted, completing the handshake on the destination clock domain and indicating that the destination logic is ready for a new data transfer.
EDGE Active _RISING
Destination clock.
NA
Active
Input bus (src_in) synchronized to
destination clock domain. This output is
registered.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 16
Chapter 2: Xilinx Parameterized Macros
Port dest_req
src_clk src_in src_rcv src_send
Direction Output
Width 1
Domain dest_clk
Sense
LEVEL _HIGH
Handling if Unused
Function
Active
Assertion of this signal indicates that new dest_out data has been received and is ready to be used or captured by the destination logic.
� When DEST_EXT_HSK = 1, this signal
will deassert once the source handshake acknowledges that the destination clock domain has received the transferred data.
� When DEST_EXT_HSK = 0, this signal
asserts for one clock period when dest_out bus is valid.
Input Input Output
Input
1
NA
WIDTH src_clk
1
src_clk
EDGE Active _RISING
NA
Active
LEVEL _HIGH
Active
1
src_clk
LEVEL Active
_HIGH
This output is registered.
Source clock.
Input bus that will be synchronized to the destination clock domain.
Acknowledgement from destination logic that src_in has been received. This signal will be deasserted once destination handshake has fully completed, thus completing a full data transfer. This output is registered.
Assertion of this signal allows the src_in bus to be synchronized to the destination clock domain.
� This signal should only be asserted
when src_rcv is deasserted, indicating that the previous data transfer is complete.
� This signal should only be deasserted
once src_rcv is asserted, acknowledging that the src_in has been received by the destination logic.
Design Entry Method
Instantiation
No
Inference
No
IP and IP Integrator Catalog
No
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 17
Chapter 2: Xilinx Parameterized Macros
Available Attributes
Attribute DEST_EXT_HSK
DEST_SYNC_FF INIT_SYNC_FF SIM_ASSERT_CHK
SRC_SYNC_FF WIDTH
Type DECIMAL
DECIMAL DECIMAL DECIMAL
DECIMAL DECIMAL
Allowed Values Default
1, 0
1
2 to 10
4
0, 1
0
0, 1
0
2 to 10
4
1 to 1024
1
Description
0- An internal handshake will be implemented in the macro to acknowledge receipt of data on the destination clock domain. When using this option, the valid dest_out output must be consumed immediately to avoid any data loss.
1- External handshake logic must be implemented by the user to acknowledge receipt of data on the destination clock domain.
Number of register stages used to synchronize signal in the destination clock domain.
0- Disable behavioral simulation initialization value(s) on synchronization registers.
1- Enable behavioral simulation initialization value(s) on synchronization registers.
0- Disable simulation message reporting. Messages related to potential misuse will not be reported.
1- Enable simulation message reporting. Messages related to potential misuse will be reported.
Number of register stages used to synchronize signal in the source clock domain.
Width of bus that will be synchronized to destination clock domain.
VHDL Instantiation Template Unless they already exist, copy the following two statements and paste them before the entity declaration.
Library xpm; use xpm.vcomponents.all;
-- xpm_cdc_handshake: Bus Synchronizer with Full Handshake -- Xilinx Parameterized Macro, version 2019.1
xpm_cdc_handshake_inst : xpm_cdc_handshake
generic map (
DEST_EXT_HSK => 1, -- DECIMAL; 0=internal handshake, 1=external handshake
DEST_SYNC_FF => 4, -- DECIMAL; range: 2-10
INIT_SYNC_FF => 0, -- DECIMAL; 0=disable simulation init values, 1=enable simulation init values
SIM_ASSERT_CHK => 0, -- DECIMAL; 0=disable simulation messages, 1=enable simulation messages
SRC_SYNC_FF => 4, -- DECIMAL; range: 2-10
WIDTH => 1
-- DECIMAL; range: 1-1024
)
port map (
dest_out => dest_out, -- WIDTH-bit output: Input bus (src_in) synchronized to destination clock domain.
-- This output is registered.
dest_req => dest_req, -- 1-bit output: Assertion of this signal indicates that new dest_out data has been
-- received and is ready to be used or captured by the destination logic. When -- DEST_EXT_HSK = 1, this signal will deassert once the source handshake
-- acknowledges that the destination clock domain has received the transferred
-- data. When DEST_EXT_HSK = 0, this signal asserts for one clock period when -- dest_out bus is valid. This output is registered.
src_rcv => src_rcv,
-- 1-bit output: Acknowledgement from destination logic that src_in has been -- received. This signal will be deasserted once destination handshake has fully -- completed, thus completing a full data transfer. This output is registered.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 18
Chapter 2: Xilinx Parameterized Macros
dest_ack => dest_ack, -- 1-bit input: optional; required when DEST_EXT_HSK = 1
dest_clk => dest_clk, -- 1-bit input: Destination clock.
src_clk => src_clk, -- 1-bit input: Source clock.
src_in => src_in,
-- WIDTH-bit input: Input bus that will be synchronized to the destination clock
-- domain.
src_send => src_send
-- 1-bit input: Assertion of this signal allows the src_in bus to be synchronized -- to the destination clock domain. This signal should only be asserted when -- src_rcv is deasserted, indicating that the previous data transfer is complete. -- This signal should only be deasserted once src_rcv is asserted, acknowledging
-- that the src_in has been received by the destination logic.
);
-- End of xpm_cdc_handshake_inst instantiation
Verilog Instantiation Template
// xpm_cdc_handshake: Bus Synchronizer with Full Handshake // Xilinx Parameterized Macro, version 2019.1
xpm_cdc_handshake #(
.DEST_EXT_HSK(1), // DECIMAL; 0=internal handshake, 1=external handshake
.DEST_SYNC_FF(4), // DECIMAL; range: 2-10
.INIT_SYNC_FF(0), // DECIMAL; 0=disable simulation init values, 1=enable simulation init values
.SIM_ASSERT_CHK(0), // DECIMAL; 0=disable simulation messages, 1=enable simulation messages
.SRC_SYNC_FF(4), // DECIMAL; range: 2-10
.WIDTH(1)
// DECIMAL; range: 1-1024
)
xpm_cdc_handshake_inst (
.dest_out(dest_out), // WIDTH-bit output: Input bus (src_in) synchronized to destination clock domain.
// This output is registered.
.dest_req(dest_req), // 1-bit output: Assertion of this signal indicates that new dest_out data has been
// received and is ready to be used or captured by the destination logic. When // DEST_EXT_HSK = 1, this signal will deassert once the source handshake
// acknowledges that the destination clock domain has received the transferred data.
// When DEST_EXT_HSK = 0, this signal asserts for one clock period when dest_out bus // is valid. This output is registered.
.src_rcv(src_rcv), // 1-bit output: Acknowledgement from destination logic that src_in has been // received. This signal will be deasserted once destination handshake has fully
// completed, thus completing a full data transfer. This output is registered.
.dest_ack(dest_ack), // 1-bit input: optional; required when DEST_EXT_HSK = 1
.dest_clk(dest_clk), // 1-bit input: Destination clock.
.src_clk(src_clk), // 1-bit input: Source clock.
.src_in(src_in),
// WIDTH-bit input: Input bus that will be synchronized to the destination clock
// domain.
.src_send(src_send)
// 1-bit input: Assertion of this signal allows the src_in bus to be synchronized to // the destination clock domain. This signal should only be asserted when src_rcv is // deasserted, indicating that the previous data transfer is complete. This signal // should only be deasserted once src_rcv is asserted, acknowledging that the src_in
// has been received by the destination logic.
);
// End of xpm_cdc_handshake_inst instantiation
For More Information � XPM CDC Testbench File � See the 7 Series Programmable Devices User Guides.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 19
Chapter 2: Xilinx Parameterized Macros
XPM_CDC_PULSE
Parameterized Macro: Pulse Transfer
MACRO_GROUP: XPM MACRO_SUBGROUP: XPM_CDC Families: 7 series, UltraScale, UltraScale+
XPM_CDC_PULSE
src_pulse src_rst src_clk dest_rst dest_clk
dest_pulse
X15900-031116
Introduction
This macro synchronizes a pulse in the source clock domain to the destination clock domain. A pulse of any size in the source clock domain, if initiated correctly, will generate a pulse the size of a single destination clock period.
For proper operation, the input data must be sampled two or more times by the destination clock. You can define the number of register stages used in the synchronizers. An optional source and destination reset may be used to reset the pulse transfer logic. You can also enable a simulation feature to generate messages which report any potential misuse of the macro.
The implementation of this macro requires some feedback logic. When simulating the macro without the optional reset signals, the input pulse signal (src_pulse) must always be defined since there is no reset logic to recover from an undefined or `x' propagating through the macro.
This macro also requires the following minimum gap between subsequent pulse inputs:
2*(larger(src_clk period, dest_clk period))
The minimum gap is measured between the falling edge of a src_pulse to the rising edge of the next src_pulse. This minimum gap will guarantee that each rising edge of src_pulse will generate a pulse the size of one dest_clk period in the destination clock domain.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 20
Chapter 2: Xilinx Parameterized Macros
When using the optional reset signals, src_rst and dest_rst must be asserted simultaneously for at least the following duration to fully reset all the logic in the macro:
((DEST_SYNC_FF+2)*dest_clk_period) + (2*src_clk_period)
When reset is asserted, the input pulse signal should not toggle and the output pulse signal is not valid and should be ignored. The following waveform demonstrates how to reset the macro and transfer back-to-back pulses while abiding the minimum gap between each pulse.
Port Descriptions
Port dest_clk dest_pulse
dest_rst
src_clk src_pulse
Direction Input Output
Input
Input Input
Width 1 1
1
1 1
Domain NA dest_clk
dest_clk
NA src_clk
Sense
Handling if Unused
Function
EDGE Active _RISING
Destination clock.
LEVEL _HIGH
Active
Outputs a pulse the size of one dest_clk period when a pulse transfer is correctly initiated on src_pulse input. This output is combinatorial unless REG_OUTPUT is set to 1.
LEVEL 0 _HIGH
Unused when RST_USED = 0. Destination reset signal if RST_USED = 1.
Resets all logic in destination clock domain. To fully reset the macro, src_rst and dest_rst must be asserted simultaneously for at least ((DEST_SYNC_FF +2)*dest_clk_period) + (2*src_clk_period).
EDGE Active _RISING
Source clock.
EDGE Active _RISING
Rising edge of this signal initiates a pulse transfer to the destination clock domain.
The minimum gap between each pulse transfer must be at the minimum 2*(larger(src_clk period, dest_clk period)). This is measured between the falling edge of a src_pulse to the rising edge of the next src_pulse. This minimum gap will guarantee that each rising edge of src_pulse will generate a pulse the size of one dest_clk period in the destination clock domain.
When RST_USED = 1, pulse transfers will not be guaranteed while src_rst and/or dest_rst are asserted.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 21
Chapter 2: Xilinx Parameterized Macros
Port src_rst
Direction Input
Width 1
Domain src_clk
Sense
LEVEL _HIGH
Handling if Unused
Function
0
Unused when RST_USED = 0. Source reset
signal if RST_USED = 1.
Resets all logic in source clock domain.
To fully reset the macro, src_rst and dest_rst must be asserted simultaneously for at least ((DEST_SYNC_FF +2)*dest_clk_period) + (2*src_clk_period).
Design Entry Method
Instantiation
No
Inference
No
IP and IP Integrator Catalog
No
Available Attributes
Attribute DEST_SYNC_FF INIT_SYNC_FF
REG_OUTPUT RST_USED
SIM_ASSERT_CHK
Type DECIMAL DECIMAL
DECIMAL DECIMAL
DECIMAL
Allowed Values Default
2 to 10
4
0, 1
0
0, 1
0
1, 0
1
0, 1
0
Description
Number of register stages used to synchronize signal in the destination clock domain.
0- Disable behavioral simulation initialization value(s) on synchronization registers. 1- Enable behavioral simulation initialization value(s) on synchronization registers.
0- Disable registered output 1- Enable registered output
0 - No resets implemented. 1 - Resets implemented. When RST_USED = 0, src_pulse input must always be defined during simulation since there is no reset logic to recover from an x-propagating through the macro.
0- Disable simulation message reporting. Messages related to potential misuse will not be reported. 1- Enable simulation message reporting. Messages related to potential misuse will be reported.
VHDL Instantiation Template Unless they already exist, copy the following two statements and paste them before the entity declaration.
Library xpm; use xpm.vcomponents.all;
-- xpm_cdc_pulse: Pulse Transfer -- Xilinx Parameterized Macro, version 2019.1 xpm_cdc_pulse_inst : xpm_cdc_pulse generic map (
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 22
Chapter 2: Xilinx Parameterized Macros
DEST_SYNC_FF => 4, -- DECIMAL; range: 2-10
INIT_SYNC_FF => 0, -- DECIMAL; 0=disable simulation init values, 1=enable simulation init values
REG_OUTPUT => 0,
-- DECIMAL; 0=disable registered output, 1=enable registered output
RST_USED => 1,
-- DECIMAL; 0=no reset, 1=implement reset
SIM_ASSERT_CHK => 0 -- DECIMAL; 0=disable simulation messages, 1=enable simulation messages
)
port map (
dest_pulse => dest_pulse, -- 1-bit output: Outputs a pulse the size of one dest_clk period when a pulse
-- transfer is correctly initiated on src_pulse input. This output is
-- combinatorial unless REG_OUTPUT is set to 1.
dest_clk => dest_clk, dest_rst => dest_rst, src_clk => src_clk, src_pulse => src_pulse,
-- 1-bit input: Destination clock. -- 1-bit input: optional; required when RST_USED = 1 -- 1-bit input: Source clock. -- 1-bit input: Rising edge of this signal initiates a pulse transfer to the -- destination clock domain. The minimum gap between each pulse transfer must -- be at the minimum 2*(larger(src_clk period, dest_clk period)). This is -- measured between the falling edge of a src_pulse to the rising edge of the -- next src_pulse. This minimum gap will guarantee that each rising edge of -- src_pulse will generate a pulse the size of one dest_clk period in the -- destination clock domain. When RST_USED = 1, pulse transfers will not be -- guaranteed while src_rst and/or dest_rst are asserted.
src_rst => src_rst );
-- 1-bit input: optional; required when RST_USED = 1
-- End of xpm_cdc_pulse_inst instantiation
Verilog Instantiation Template
// xpm_cdc_pulse: Pulse Transfer // Xilinx Parameterized Macro, version 2019.1
xpm_cdc_pulse #(
.DEST_SYNC_FF(4), // DECIMAL; range: 2-10
.INIT_SYNC_FF(0), // DECIMAL; 0=disable simulation init values, 1=enable simulation init values
.REG_OUTPUT(0),
// DECIMAL; 0=disable registered output, 1=enable registered output
.RST_USED(1),
// DECIMAL; 0=no reset, 1=implement reset
.SIM_ASSERT_CHK(0) // DECIMAL; 0=disable simulation messages, 1=enable simulation messages
)
xpm_cdc_pulse_inst (
.dest_pulse(dest_pulse), // 1-bit output: Outputs a pulse the size of one dest_clk period when a pulse
// transfer is correctly initiated on src_pulse input. This output is
// combinatorial unless REG_OUTPUT is set to 1.
.dest_clk(dest_clk), .dest_rst(dest_rst), .src_clk(src_clk), .src_pulse(src_pulse),
// 1-bit input: Destination clock. // 1-bit input: optional; required when RST_USED = 1 // 1-bit input: Source clock. // 1-bit input: Rising edge of this signal initiates a pulse transfer to the // destination clock domain. The minimum gap between each pulse transfer must be // at the minimum 2*(larger(src_clk period, dest_clk period)). This is measured // between the falling edge of a src_pulse to the rising edge of the next // src_pulse. This minimum gap will guarantee that each rising edge of src_pulse // will generate a pulse the size of one dest_clk period in the destination // clock domain. When RST_USED = 1, pulse transfers will not be guaranteed while // src_rst and/or dest_rst are asserted.
.src_rst(src_rst) );
// 1-bit input: optional; required when RST_USED = 1
// End of xpm_cdc_pulse_inst instantiation
For More Information � XPM CDC Testbench File � See the 7 Series Programmable Devices User Guides.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 23
Chapter 2: Xilinx Parameterized Macros
XPM_CDC_SINGLE
Parameterized Macro: Single-bit Synchronizer
MACRO_GROUP: XPM MACRO_SUBGROUP: XPM_CDC Families: 7 series, UltraScale, UltraScale+
XPM_CDC_SINGLE
src_in src_clk dest_clk
dest_out
X15896-031116
Introduction
This macro synchronizes a one bit signal from the source clock domain to the destination clock domain.
For proper operation, the input data must be sampled two or more times by the destination clock. You can define the number of register stages used in the synchronizers. An optional input register may be used to register the input in the source clock domain prior to it being synchronized. You can also enable a simulation feature to generate messages to report any potential misuse of the macro.
Port Descriptions
Port dest_clk dest_out src_clk
src_in
Direction Input Output Input
Input
Width 1 1 1
1
Domain NA dest_clk NA
src_clk
Sense
Handling if Unused
Function
EDGE Active _RISING
Clock signal for the destination clock domain.
NA
Active
src_in synchronized to the destination
clock domain. This output is registered.
EDGE 0 _RISING
Input clock signal for src_in if SRC_INPUT_REG = 1.
Unused when SRC_INPUT_REG = 0.
NA
Active
Input signal to be synchronized to dest_clk
domain.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 24
Chapter 2: Xilinx Parameterized Macros
Design Entry Method
Instantiation
No
Inference
No
IP and IP Integrator Catalog
No
Available Attributes
Attribute DEST_SYNC_FF INIT_SYNC_FF
SIM_ASSERT_CHK
SRC_INPUT_REG
Type DECIMAL DECIMAL
DECIMAL
DECIMAL
Allowed Values Default
2 to 10
4
0, 1
0
0, 1
0
1, 0
1
Description
Number of register stages used to synchronize signal in the destination clock domain.
0- Disable behavioral simulation initialization value(s) on synchronization registers. 1- Enable behavioral simulation initialization value(s) on synchronization registers.
0- Disable simulation message reporting. Messages related to potential misuse will not be reported. 1- Enable simulation message reporting. Messages related to potential misuse will be reported.
0- Do not register input (src_in) 1- Register input (src_in) once using src_clk
VHDL Instantiation Template Unless they already exist, copy the following two statements and paste them before the entity declaration.
Library xpm; use xpm.vcomponents.all;
-- xpm_cdc_single: Single-bit Synchronizer -- Xilinx Parameterized Macro, version 2019.1
xpm_cdc_single_inst : xpm_cdc_single generic map (
DEST_SYNC_FF => 4, -- DECIMAL; range: 2-10 INIT_SYNC_FF => 0, -- DECIMAL; 0=disable simulation init values, 1=enable simulation init values SIM_ASSERT_CHK => 0, -- DECIMAL; 0=disable simulation messages, 1=enable simulation messages SRC_INPUT_REG => 1 -- DECIMAL; 0=do not register input, 1=register input ) port map ( dest_out => dest_out, -- 1-bit output: src_in synchronized to the destination clock domain. This output
-- is registered.
dest_clk => dest_clk, -- 1-bit input: Clock signal for the destination clock domain.
src_clk => src_clk, -- 1-bit input: optional; required when SRC_INPUT_REG = 1
src_in => src_in
-- 1-bit input: Input signal to be synchronized to dest_clk domain.
);
-- End of xpm_cdc_single_inst instantiation
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 25
Chapter 2: Xilinx Parameterized Macros
Verilog Instantiation Template
// xpm_cdc_single: Single-bit Synchronizer // Xilinx Parameterized Macro, version 2019.1
xpm_cdc_single #( .DEST_SYNC_FF(4), // DECIMAL; range: 2-10 .INIT_SYNC_FF(0), // DECIMAL; 0=disable simulation init values, 1=enable simulation init values .SIM_ASSERT_CHK(0), // DECIMAL; 0=disable simulation messages, 1=enable simulation messages .SRC_INPUT_REG(1) // DECIMAL; 0=do not register input, 1=register input
) xpm_cdc_single_inst (
.dest_out(dest_out), // 1-bit output: src_in synchronized to the destination clock domain. This output is // registered.
.dest_clk(dest_clk), // 1-bit input: Clock signal for the destination clock domain.
.src_clk(src_clk), // 1-bit input: optional; required when SRC_INPUT_REG = 1
.src_in(src_in)
// 1-bit input: Input signal to be synchronized to dest_clk domain.
);
// End of xpm_cdc_single_inst instantiation
For More Information � XPM CDC Testbench File � See the 7 Series Programmable Devices User Guides.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 26
Chapter 2: Xilinx Parameterized Macros
XPM_CDC_SYNC_RST
Parameterized Macro: Synchronous Reset Synchronizer
MACRO_GROUP: XPM MACRO_SUBGROUP: XPM_CDC Families: 7 series, UltraScale, UltraScale+
XPM_CDC_SYNC_RST
src_rst
dest_rst
dest_clk
X15901-031116
Introduction
This macro synchronizes a reset singal to the destination clock domain. Unlike the XPM_CDC_ASYNC_RST macro, the generated output will both assert and deassert synchronously to the destination clock domain.
For proper operation, the input data must be sampled two or more times by the destination clock. You can define the number of register stages used in the synchronizers and the initial value of these registers after configuration. An optional input register may be used to register the input in the source clock domain prior to it being synchronized. You can also enable a simulation feature to generate messages which report any potential misuse of the macro.
Port Descriptions
Port dest_clk dest_rst src_rst
Direction Input Output Input
Width 1 1 1
Domain NA dest_clk NA
Sense
Handling if Unused
Function
EDGE Active _RISING
Destination clock.
NA
Active
src_rst synchronized to the destination
clock domain. This output is registered.
NA
Active
Source reset signal.
Design Entry Method
Instantiation
No
Inference
No
IP and IP Integrator Catalog
No
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 27
Chapter 2: Xilinx Parameterized Macros
Available Attributes
Attribute DEST_SYNC_FF INIT
INIT_SYNC_FF SIM_ASSERT_CHK
Type DECIMAL DECIMAL
DECIMAL DECIMAL
Allowed Values Default
2 to 10
4
1, 0
1
0, 1
0
0, 1
0
Description
Number of register stages used to synchronize signal in the destination clock domain.
0- Initializes synchronization registers to 0
1- Initializes synchronization registers to 1
The option to initialize the synchronization registers means that there is no complete xpropagation behavior modeled in this macro. For complete x-propagation modelling, use the xpm_cdc_single macro.
0- Disable behavioral simulation initialization value(s) on synchronization registers.
1- Enable behavioral simulation initialization value(s) on synchronization registers.
0- Disable simulation message reporting. Messages related to potential misuse will not be reported.
1- Enable simulation message reporting. Messages related to potential misuse will be reported.
VHDL Instantiation Template Unless they already exist, copy the following two statements and paste them before the entity declaration.
Library xpm; use xpm.vcomponents.all;
-- xpm_cdc_sync_rst: Synchronous Reset Synchronizer -- Xilinx Parameterized Macro, version 2019.1
xpm_cdc_sync_rst_inst : xpm_cdc_sync_rst
generic map (
DEST_SYNC_FF => 4, -- DECIMAL; range: 2-10
INIT => 1,
-- DECIMAL; 0=initialize synchronization registers to 0, 1=initialize
-- synchronization registers to 1
INIT_SYNC_FF => 0, -- DECIMAL; 0=disable simulation init values, 1=enable simulation init values
SIM_ASSERT_CHK => 0 -- DECIMAL; 0=disable simulation messages, 1=enable simulation messages
)
port map (
dest_rst => dest_rst, -- 1-bit output: src_rst synchronized to the destination clock domain. This output
-- is registered.
dest_clk => dest_clk, -- 1-bit input: Destination clock. src_rst => src_rst -- 1-bit input: Source reset signal. );
-- End of xpm_cdc_sync_rst_inst instantiation
Verilog Instantiation Template
// xpm_cdc_sync_rst: Synchronous Reset Synchronizer // Xilinx Parameterized Macro, version 2019.1
xpm_cdc_sync_rst #(
.DEST_SYNC_FF(4), // DECIMAL; range: 2-10
.INIT(1),
// DECIMAL; 0=initialize synchronization registers to 0, 1=initialize synchronization
// registers to 1
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 28
Chapter 2: Xilinx Parameterized Macros
.INIT_SYNC_FF(0), // DECIMAL; 0=disable simulation init values, 1=enable simulation init values .SIM_ASSERT_CHK(0) // DECIMAL; 0=disable simulation messages, 1=enable simulation messages ) xpm_cdc_sync_rst_inst ( .dest_rst(dest_rst), // 1-bit output: src_rst synchronized to the destination clock domain. This output
// is registered. .dest_clk(dest_clk), // 1-bit input: Destination clock. .src_rst(src_rst) // 1-bit input: Source reset signal. ); // End of xpm_cdc_sync_rst_inst instantiation
For More Information � XPM CDC Testbench File � See the 7 Series Programmable Devices User Guides.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 29
Chapter 2: Xilinx Parameterized Macros
XPM_FIFO_ASYNC
Parameterized Macro: Asynchronous FIFO
MACRO_GROUP: XPM MACRO_SUBGROUP: XPM_FIFO Families: 7 series, UltraScale, UltraScale+
XPM_FIFO_ASYNC
din[(WRITE_DATA_WIDTH - 1):0] dout[(READ_DATA_WIDTH � 1):0]
wr_data_count[(WR_DATA_COUNT_WIDTH � 1):0] rd_data_count[(RD_DATA_COUNT_WIDTH � 1):0]
injectsbiterr injectdbiterr rst
wr_clk wr_en
rd_clk rd_en
sleep
sbiterr dbiterr
rd_rst_busy wr_rst_busy
full empty overflow underflow prog_full prog_empty wr_ack data_valid almost_full almost_empty
X17928-092617
Introduction This macro is used to instantiate an asynchronous FIFO.
The following describes the basic write and read operation of an XPM_FIFO instance. It does not distinguish between FIFO types, clock domain or read mode.
� After a user issues a reset, the user should wait until the busy signals go low before issuing another reset.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 30
Chapter 2: Xilinx Parameterized Macros
� All synchronous signals are sensitive to the rising edge of wr_clk/rd_clk, which is assumed to be a buffered and toggling clock signal behaving according to target device and FIFO/memory primitive requirements.
� A write operation is performed when the FIFO is not full and wr_en is asserted on each wr_clk cycle.
� A read operation is performed when the FIFO is not empty and rd_en is asserted on each rd_clk cycle.
� The number of clock cycles required for XPM FIFO to react to dout, full and empty changes depends on the CLOCK_DOMAIN, READ_MODE, and FIFO_READ_LATENCY settings. It may take more than one rd_clk cycle to deassert empty due to write operation (wr_en = 1). It may take more than one rd_clk cycle to present the read data on dout port upon assertion of rd_en. It may take more than one wr_clk cycle to deassert full due to read operation (rd_en = 1).
� All write operations are gated by the value of wr_en and full on the initiating wr_clk cycle. � All read operations are gated by the value of rd_en and empty on the initiating rd_clk cycle. � The wr_en input has no effect when full is asserted on the coincident wr_clk cycle. � The rd_en input has no effect when empty is asserted on the coincident rd_clk cycle. � Undriven or unknown values provided on module inputs will produce undefined output port
behavior. � wr_en/rd_en should not be toggled when reset (rst) or wr_rst_busy or rd_rst_busy is asserted. � Assertion/deassertion of prog_full happens only when full is deasserted. � Assertion/deassertion of prog_empty happens only when empty is deasserted.
Note: If the RELATED_CLOCKS attribute is set in an asynchronous FIFO, then both the wr_clk and rd_clk should be generated from the same source, violating this will result in timing warnings and can cause the design to fail in hardware.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 31
Timing Diagrams
Chapter 2: Xilinx Parameterized Macros Figure 1: Reset Behavior
X20501-050719
Figure 2: Standard Write operation FIFO_WRITE_DEPTH=16, PROG_FULL_THRESH=6
wr_clk
wr_en
din wr_data_count
full program_full
overflow
D0 D1 D2 D3 D4 D5 D6 D7 D8 D9 D10 D11 D12 D13 D14 D15 D16
0
1 2 3 4 5 6 7 8 9 10 11 12 13 14
15
X17947-092016
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 32
Chapter 2: Xilinx Parameterized Macros
Figure 3: Standard Read Operation FIFO_WRITE_DEPTH=16, PROG_EMPTY_THRESH=3, FIFO_READ_LATENCY=1
rd_clk
rd_en
dout
D0 D1 D2 D3 D4 D5 D6 D7 D8 D9 D10 D11 D12 D13
D14
rd_data_count
15
14 13 12 11 10 9 8 7 6 5 4 3 2 1
0
empty program_empty
underflow
X17948-092016
Figure 4: Standard Read Operation FIFO_WRITE_DEPTH=16, PROG_EMPTY_THRESH=3, FIFO_READ_LATENCY=3
rd_clk
rd_en
dout rd_data_count
D0 D1 D2 D3 D4 D5 D6 D7 D8 D9 D10 D11 D12 D13 D14
15
14 13 12 11 10 9 8 7 6 5 4 3 2 1
0
empty program_empty
underflow
X17949-092016
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 33
Chapter 2: Xilinx Parameterized Macros
Figure 5: Write Operation READ_MODE=FWFT, FIFO_WRITE_DEPTH=16, PROG_FULL_THRESH=7
wr_clk
wr_en
din
D0 D1 D2 D3 D4 D5 D6 D7 D8 D9 D10 D11 D12 D13 D14 D15 D16
wr_data_count
0
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17
full program_full
overflow
X17950-092016
Figure 6: Read Operation READ_MODE=FWFT, FIFO_WRITE_DEPTH=16, PROG_EMPTY_THRESH=5
rd_clk
rd_en
dout rd_data_count
D0 D1 D2 D3 D4 D5 D6 D7 D8 D9 D10 D11 D12 D13 D14 D15
D16
17
16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1
0
empty program_empty
underflow
X17951-092016
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 34
Chapter 2: Xilinx Parameterized Macros
Figure 7: Standard Write Operation with Empty De-Assertion FIFO_WRITE_DEPTH=16
wr_clk
wr_en
din wr_data_count
D0 D1 D2 D3 D4 D5 D6 D7 D8 D9 D10 D11 D12 D13 D14 D15 D16
0
1 2 3 4 5 6 7 8 9 10 11 12 13 14
15
full rd_clk
empty
X17952-092016
Figure 8: Standard Read operation with full de-assertion FIFO_WRITE_DEPTH=16, FIFO_READ_LATENCY=1
rd_clk
rd_en
dout
D0 D1 D2 D3 D4 D5 D6 D7 D8 D9 D10 D11 D12 D13
D14
rd_data_count
15
14 13 12 11 10 9 8 7 6 5 4 3 2 1
0
empty wr_clk
full
X17946-092016
Port Descriptions
Port almost_empty almost_full data_valid
Direction Output Output Output
Width 1 1 1
Domain rd_clk wr_clk rd_clk
Sense
LEVEL _HIGH
LEVEL _HIGH
LEVEL _HIGH
Handling if Unused
Function
DoNotCare Almost Empty : When asserted, this signal indicates that only one more read can be performed before the FIFO goes to empty.
DoNotCare Almost Full: When asserted, this signal indicates that only one more write can be performed before the FIFO is full.
DoNotCare Read Data Valid: When asserted, this signal indicates that valid data is available on the output bus (dout).
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 35
Chapter 2: Xilinx Parameterized Macros
Port dbiterr din dout empty
full
injectdbiterr injectsbiterr overflow prog_empty
prog_full
rd_clk rd_data_count
Direction Output Input Output Output
Output
Input Input Output Output
Output
Input Output
Width Domain
1
rd_clk
WRITE _DATA _WIDTH
READ _DATA _WIDTH
1
wr_clk rd_clk rd_clk
1
wr_clk
1
wr_clk
1
wr_clk
1
wr_clk
1
rd_clk
1
wr_clk
1
NA
RD _DATA rd_clk _COUNT _WIDTH
Sense
LEVEL _HIGH
NA
Handling if Unused
Function
DoNotCare Double Bit Error: Indicates that the ECC decoder detected a double-bit error and data in the FIFO core is corrupted.
Active
Write Data: The input data bus used when writing the FIFO.
NA
Active
Read Data: The output data bus is driven
when reading the FIFO.
LEVEL _HIGH
Active
Empty Flag: When asserted, this signal indicates that the FIFO is empty.
Read requests are ignored when the FIFO is empty, initiating a read while empty is not destructive to the FIFO.
LEVEL _HIGH
Active
Full Flag: When asserted, this signal indicates that the FIFO is full.
Write requests are ignored when the FIFO is full, initiating a write when the FIFO is full is not destructive to the contents of the FIFO.
LEVEL 0 _HIGH
Double Bit Error Injection: Injects a double bit error if the ECC feature is used on block RAMs or UltraRAM macros.
LEVEL 0 _HIGH
Single Bit Error Injection: Injects a single bit error if the ECC feature is used on block RAMs or UltraRAM macros.
LEVEL _HIGH
DoNotCare
Overflow: This signal indicates that a write request (wren) during the prior clock cycle was rejected, because the FIFO is full. Overflowing the FIFO is not destructive to the contents of the FIFO.
LEVEL _HIGH
DoNotCare
Programmable Empty: This signal is asserted when the number of words in the FIFO is less than or equal to the programmable empty threshold value.
It is de-asserted when the number of words in the FIFO exceeds the programmable empty threshold value.
LEVEL _HIGH
DoNotCare
Programmable Full: This signal is asserted when the number of words in the FIFO is greater than or equal to the programmable full threshold value.
It is de-asserted when the number of words in the FIFO is less than the programmable full threshold value.
EDGE Active _RISING
Read clock: Used for read operation. rd_clk must be a free running clock.
NA
DoNotCare Read Data Count: This bus indicates the
number of words read from the FIFO.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 36
Chapter 2: Xilinx Parameterized Macros
Port rd_en
Direction Input
Width 1
Domain rd_clk
Sense
LEVEL _HIGH
Handling if Unused
Function
Active
Read Enable: If the FIFO is not empty, asserting this signal causes data (on dout) to be read from the FIFO.
� Must be held active-low when
rd_rst_busy is active high.
rd_rst_busy
Output
rst
Input
sbiterr
Output
sleep
Input
underflow
Output
wr_ack
Output
wr_clk
Input
wr_data_count Output
wr_en
Input
1
rd_clk
1
wr_clk
1
rd_clk
1
NA
1
rd_clk
1
wr_clk
1
NA
WR _DATA _COUNT _WIDTH
1
wr_clk wr_clk
LEVEL _HIGH
Active
Read Reset Busy: Active-High indicator that the FIFO read domain is currently in a reset state.
LEVEL _HIGH
Active
Reset: Must be synchronous to wr_clk. The clock(s) can be unstable at the time of applying reset, but reset must be released only after the clock(s) is/are stable.
LEVEL _HIGH
DoNotCare Single Bit Error: Indicates that the ECC decoder detected and fixed a single-bit error.
LEVEL 0 _HIGH
Dynamic power saving: If sleep is High, the memory/fifo block is in power saving mode.
LEVEL _HIGH
DoNotCare
Underflow: Indicates that the read request (rd_en) during the previous clock cycle was rejected because the FIFO is empty. Under flowing the FIFO is not destructive to the FIFO.
LEVEL _HIGH
DoNotCare Write Acknowledge: This signal indicates that a write request (wr_en) during the prior clock cycle is succeeded.
EDGE Active _RISING
Write clock: Used for write operation. wr_clk must be a free running clock.
NA
DoNotCare Write Data Count: This bus indicates the
number of words written into the FIFO.
LEVEL _HIGH
Active
Write Enable: If the FIFO is not full, asserting this signal causes data (on din) to be written to the FIFO.
� Must be held active-low when rst or
wr_rst_busy is active high.
wr_rst_busy
Output
1
wr_clk
LEVEL _HIGH
Active
Write Reset Busy: Active-High indicator that the FIFO write domain is currently in a reset state.
Design Entry Method
Instantiation
No
Inference
No
IP and IP Integrator Catalog
No
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 37
Chapter 2: Xilinx Parameterized Macros
Available Attributes
Attribute CDC_SYNC_STAGES DOUT_RESET_VALUE ECC_MODE
FIFO_MEMORY_TYPE
FIFO_READ _LATENCY FIFO_WRITE_DEPTH
FULL_RESET_VALUE
Type DECIMAL
Allowed Values Default
2 to 8
2
Description
Specifies the number of synchronization stages on the CDC path
� Must be < 5 if FIFO_WRITE_DEPTH = 16
STRING STRING STRING
DECIMAL
String
"no_ecc", "en_ecc"
"0" "no_ecc"
"auto", "block", "auto" "distributed"
0 to 10
1
Reset value of read data path.
� "no_ecc" - Disables ECC � "en_ecc" - Enables both ECC Encoder and
Decoder
NOTE: ECC_MODE should be "no_ecc" if FIFO_MEMORY_TYPE is set to "auto". Violating this may result incorrect behavior.
Designate the fifo memory primitive (resource type) to use.
� "auto"- Allow Vivado Synthesis to choose � "block"- Block RAM FIFO � "distributed"- Distributed RAM FIFO
NOTE: There may be a behavior mismatch if Block RAM or Ultra RAM specific features, like ECC or Asymmetry, are selected with FIFO_MEMORY_TYPE set to "auto".
Number of output register stages in the read data path.
� If READ_MODE = "fwft", then the only
applicable value is 0.
DECIMAL 16 to 4194304 2048
DECIMAL 0 to 1
0
Defines the FIFO Write Depth, must be power of two.
� In standard READ_MODE, the effective depth =
FIFO_WRITE_DEPTH-1
� In First-Word-Fall-Through READ_MODE, the
effective depth = FIFO_WRITE_DEPTH+1
NOTE: The maximum FIFO size (width x depth) is limited to 150-Megabits.
Sets full, almost_full and prog_full to FULL_RESET_VALUE during reset
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 38
Chapter 2: Xilinx Parameterized Macros
Attribute PROG_EMPTY _THRESH
PROG_FULL_THRESH
RD_DATA_COUNT _WIDTH
Type DECIMAL
DECIMAL
DECIMAL
Allowed Values Default
3 to 4194301
10
5 to 4194301
10
1 to 23
1
Description
Specifies the minimum number of read words in the FIFO at or below which prog_empty is asserted.
� Min_Value = 3 + (READ_MODE_VAL*2)
� Max_Value = (FIFO_WRITE_DEPTH-3) -
(READ_MODE_VAL*2)
If READ_MODE = "std", then READ_MODE_VAL = 0; Otherwise READ_MODE_VAL = 1. NOTE: The default threshold value is dependent on default FIFO_WRITE_DEPTH value. If FIFO_WRITE_DEPTH value is changed, ensure the threshold value is within the valid range though the programmable flags are not used.
Specifies the maximum number of write words in the FIFO at or above which prog_full is asserted.
� Min_Value = 3 +
(READ_MODE_VAL*2*(FIFO_WRITE_DEPTH/ FIFO_READ_DEPTH))+CDC_SYNC_STAGES
� Max_Value = (FIFO_WRITE_DEPTH-3) -
(READ_MODE_VAL*2*(FIFO_WRITE_DEPTH/ FIFO_READ_DEPTH))
If READ_MODE = "std", then READ_MODE_VAL = 0; Otherwise READ_MODE_VAL = 1. NOTE: The default threshold value is dependent on default FIFO_WRITE_DEPTH value. If FIFO_WRITE_DEPTH value is changed, ensure the threshold value is within the valid range though the programmable flags are not used.
Specifies the width of rd_data_count. To reflect the correct value, the width should be log2(FIFO_READ_DEPTH)+1.
� FIFO_READ_DEPTH =
FIFO_WRITE_DEPTH*WRITE_DATA_WIDTH/ READ_DATA_WIDTH
READ_DATA_WIDTH
DECIMAL 1 to 4096
32
Defines the width of the read data port, dout
� Write and read width aspect ratio must be 1:1,
1:2, 1:4, 1:8, 8:1, 4:1 and 2:1
� For example, if WRITE_DATA_WIDTH is 32, then
the READ_DATA_WIDTH must be 32, 64,128, 256, 16, 8, 4.
NOTE:
� READ_DATA_WIDTH should be equal to
WRITE_DATA_WIDTH if FIFO_MEMORY_TYPE is set to "auto". Violating this may result incorrect behavior.
� The maximum FIFO size (width x depth) is
limited to 150-Megabits.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 39
Chapter 2: Xilinx Parameterized Macros
Attribute READ_MODE RELATED_CLOCKS SIM_ASSERT_CHK USE_ADV_FEATURES
WAKEUP_TIME WR_DATA_COUNT _WIDTH
Type STRING
Allowed Values Default
"std", "fwft"
"std"
Description
� "std"- standard read mode � "fwft"- First-Word-Fall-Through read mode
DECIMAL 0 to 1 DECIMAL 0 to 1
STRING
String
0 0
"0707"
Specifies if the wr_clk and rd_clk are related having the same source but different clock ratios
0- Disable simulation message reporting. Messages related to potential misuse will not be reported. 1- Enable simulation message reporting. Messages related to potential misuse will be reported.
Enables data_valid, almost_empty, rd_data_count, prog_empty, underflow, wr_ack, almost_full, wr_data_count, prog_full, overflow features.
� Setting USE_ADV_FEATURES[0] to 1 enables
overflow flag; Default value of this bit is 1
� Setting USE_ADV_FEATURES[1] to 1 enables
prog_full flag; Default value of this bit is 1
� Setting USE_ADV_FEATURES[2] to 1 enables
wr_data_count; Default value of this bit is 1
� Setting USE_ADV_FEATURES[3] to 1 enables
almost_full flag; Default value of this bit is 0
� Setting USE_ADV_FEATURES[4] to 1 enables
wr_ack flag; Default value of this bit is 0
� Setting USE_ADV_FEATURES[8] to 1 enables
underflow flag; Default value of this bit is 1
� Setting USE_ADV_FEATURES[9] to 1 enables
prog_empty flag; Default value of this bit is 1
� Setting USE_ADV_FEATURES[10] to 1 enables
rd_data_count; Default value of this bit is 1
� Setting USE_ADV_FEATURES[11] to 1 enables
almost_empty flag; Default value of this bit is 0
� Setting USE_ADV_FEATURES[12] to 1 enables
data_valid flag; Default value of this bit is 0
DECIMAL 0 to 2
0
� 0 - Disable sleep � 2 - Use Sleep Pin
NOTE: WAKEUP_TIME should be 0 if FIFO_MEMORY_TYPE is set to "auto". Violating this may result incorrect behavior.
DECIMAL 1 to 23
1
Specifies the width of wr_data_count. To reflect the
correct value, the width should be
log2(FIFO_WRITE_DEPTH)+1.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 40
Chapter 2: Xilinx Parameterized Macros
Attribute WRITE_DATA_WIDTH
Type DECIMAL
Allowed Values Default
1 to 4096
32
Description
Defines the width of the write data port, din
� Write and read width aspect ratio must be 1:1,
1:2, 1:4, 1:8, 8:1, 4:1 and 2:1
� For example, if WRITE_DATA_WIDTH is 32, then
the READ_DATA_WIDTH must be 32, 64,128, 256, 16, 8, 4.
NOTE:
� WRITE_DATA_WIDTH should be equal to
READ_DATA_WIDTH if FIFO_MEMORY_TYPE is set to "auto". Violating this may result incorrect behavior.
� The maximum FIFO size (width x depth) is
limited to 150-Megabits.
VHDL Instantiation Template Unless they already exist, copy the following two statements and paste them before the entity declaration.
Library xpm; use xpm.vcomponents.all;
-- xpm_fifo_async: Asynchronous FIFO -- Xilinx Parameterized Macro, version 2019.1
xpm_fifo_async_inst : xpm_fifo_async
generic map (
CDC_SYNC_STAGES => 2,
-- DECIMAL
DOUT_RESET_VALUE => "0", -- String
ECC_MODE => "no_ecc",
-- String
FIFO_MEMORY_TYPE => "auto", -- String
FIFO_READ_LATENCY => 1,
-- DECIMAL
FIFO_WRITE_DEPTH => 2048, -- DECIMAL
FULL_RESET_VALUE => 0,
-- DECIMAL
PROG_EMPTY_THRESH => 10, -- DECIMAL
PROG_FULL_THRESH => 10,
-- DECIMAL
RD_DATA_COUNT_WIDTH => 1, -- DECIMAL
READ_DATA_WIDTH => 32,
-- DECIMAL
READ_MODE => "std",
-- String
RELATED_CLOCKS => 0,
-- DECIMAL
SIM_ASSERT_CHK => 0,
-- DECIMAL; 0=disable simulation messages, 1=enable simulation messages
USE_ADV_FEATURES => "0707", -- String
WAKEUP_TIME => 0,
-- DECIMAL
WRITE_DATA_WIDTH => 32,
-- DECIMAL
WR_DATA_COUNT_WIDTH => 1 -- DECIMAL
)
port map (
almost_empty => almost_empty, -- 1-bit output: Almost Empty : When asserted, this signal indicates that
-- only one more read can be performed before the FIFO goes to empty.
almost_full => almost_full,
-- 1-bit output: Almost Full: When asserted, this signal indicates that -- only one more write can be performed before the FIFO is full.
data_valid => data_valid,
-- 1-bit output: Read Data Valid: When asserted, this signal indicates -- that valid data is available on the output bus (dout).
dbiterr => dbiterr,
-- 1-bit output: Double Bit Error: Indicates that the ECC decoder -- detected a double-bit error and data in the FIFO core is corrupted.
dout => dout,
-- READ_DATA_WIDTH-bit output: Read Data: The output data bus is driven -- when reading the FIFO.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 41
Chapter 2: Xilinx Parameterized Macros
empty => empty,
-- 1-bit output: Empty Flag: When asserted, this signal indicates that -- the FIFO is empty. Read requests are ignored when the FIFO is empty,
-- initiating a read while empty is not destructive to the FIFO.
full => full,
-- 1-bit output: Full Flag: When asserted, this signal indicates that the -- FIFO is full. Write requests are ignored when the FIFO is full, -- initiating a write when the FIFO is full is not destructive to the
-- contents of the FIFO.
overflow => overflow,
-- 1-bit output: Overflow: This signal indicates that a write request -- (wren) during the prior clock cycle was rejected, because the FIFO is -- full. Overflowing the FIFO is not destructive to the contents of the
-- FIFO.
prog_empty => prog_empty,
-- 1-bit output: Programmable Empty: This signal is asserted when the -- number of words in the FIFO is less than or equal to the programmable -- empty threshold value. It is de-asserted when the number of words in
-- the FIFO exceeds the programmable empty threshold value.
prog_full => prog_full,
-- 1-bit output: Programmable Full: This signal is asserted when the -- number of words in the FIFO is greater than or equal to the
-- programmable full threshold value. It is de-asserted when the number
-- of words in the FIFO is less than the programmable full threshold -- value.
rd_data_count => rd_data_count, -- RD_DATA_COUNT_WIDTH-bit output: Read Data Count: This bus indicates -- the number of words read from the FIFO.
rd_rst_busy => rd_rst_busy,
-- 1-bit output: Read Reset Busy: Active-High indicator that the FIFO -- read domain is currently in a reset state.
sbiterr => sbiterr,
-- 1-bit output: Single Bit Error: Indicates that the ECC decoder -- detected and fixed a single-bit error.
underflow => underflow,
-- 1-bit output: Underflow: Indicates that the read request (rd_en) -- during the previous clock cycle was rejected because the FIFO is
-- empty. Under flowing the FIFO is not destructive to the FIFO.
wr_ack => wr_ack,
-- 1-bit output: Write Acknowledge: This signal indicates that a write -- request (wr_en) during the prior clock cycle is succeeded.
wr_data_count => wr_data_count, -- WR_DATA_COUNT_WIDTH-bit output: Write Data Count: This bus indicates -- the number of words written into the FIFO.
wr_rst_busy => wr_rst_busy,
-- 1-bit output: Write Reset Busy: Active-High indicator that the FIFO -- write domain is currently in a reset state.
din => din,
-- WRITE_DATA_WIDTH-bit input: Write Data: The input data bus used when -- writing the FIFO.
injectdbiterr => injectdbiterr, -- 1-bit input: Double Bit Error Injection: Injects a double bit error if -- the ECC feature is used on block RAMs or UltraRAM macros.
injectsbiterr => injectsbiterr, -- 1-bit input: Single Bit Error Injection: Injects a single bit error if -- the ECC feature is used on block RAMs or UltraRAM macros.
rd_clk => rd_clk,
-- 1-bit input: Read clock: Used for read operation. rd_clk must be a -- free running clock.
rd_en => rd_en,
-- 1-bit input: Read Enable: If the FIFO is not empty, asserting this -- signal causes data (on dout) to be read from the FIFO. Must be held
-- active-low when rd_rst_busy is active high.
rst => rst,
-- 1-bit input: Reset: Must be synchronous to wr_clk. The clock(s) can be -- unstable at the time of applying reset, but reset must be released
-- only after the clock(s) is/are stable.
sleep => sleep,
-- 1-bit input: Dynamic power saving: If sleep is High, the memory/fifo -- block is in power saving mode.
wr_clk => wr_clk,
-- 1-bit input: Write clock: Used for write operation. wr_clk must be a -- free running clock.
wr_en => wr_en
-- 1-bit input: Write Enable: If the FIFO is not full, asserting this -- signal causes data (on din) to be written to the FIFO. Must be held
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 42
Chapter 2: Xilinx Parameterized Macros
-- active-low when rst or wr_rst_busy is active high. ); -- End of xpm_fifo_async_inst instantiation
Verilog Instantiation Template
// xpm_fifo_async: Asynchronous FIFO // Xilinx Parameterized Macro, version 2019.1
xpm_fifo_async #(
.CDC_SYNC_STAGES(2),
// DECIMAL
.DOUT_RESET_VALUE("0"), // String
.ECC_MODE("no_ecc"),
// String
.FIFO_MEMORY_TYPE("auto"), // String
.FIFO_READ_LATENCY(1),
// DECIMAL
.FIFO_WRITE_DEPTH(2048), // DECIMAL
.FULL_RESET_VALUE(0),
// DECIMAL
.PROG_EMPTY_THRESH(10), // DECIMAL
.PROG_FULL_THRESH(10),
// DECIMAL
.RD_DATA_COUNT_WIDTH(1), // DECIMAL
.READ_DATA_WIDTH(32),
// DECIMAL
.READ_MODE("std"),
// String
.RELATED_CLOCKS(0),
// DECIMAL
.SIM_ASSERT_CHK(0),
// DECIMAL; 0=disable simulation messages, 1=enable simulation messages
.USE_ADV_FEATURES("0707"), // String
.WAKEUP_TIME(0),
// DECIMAL
.WRITE_DATA_WIDTH(32),
// DECIMAL
.WR_DATA_COUNT_WIDTH(1) // DECIMAL
)
xpm_fifo_async_inst (
.almost_empty(almost_empty), // 1-bit output: Almost Empty : When asserted, this signal indicates that
// only one more read can be performed before the FIFO goes to empty.
.almost_full(almost_full),
// 1-bit output: Almost Full: When asserted, this signal indicates that // only one more write can be performed before the FIFO is full.
.data_valid(data_valid),
// 1-bit output: Read Data Valid: When asserted, this signal indicates // that valid data is available on the output bus (dout).
.dbiterr(dbiterr),
// 1-bit output: Double Bit Error: Indicates that the ECC decoder detected // a double-bit error and data in the FIFO core is corrupted.
.dout(dout),
// READ_DATA_WIDTH-bit output: Read Data: The output data bus is driven // when reading the FIFO.
.empty(empty),
// 1-bit output: Empty Flag: When asserted, this signal indicates that the // FIFO is empty. Read requests are ignored when the FIFO is empty,
// initiating a read while empty is not destructive to the FIFO.
.full(full),
// 1-bit output: Full Flag: When asserted, this signal indicates that the // FIFO is full. Write requests are ignored when the FIFO is full,
// initiating a write when the FIFO is full is not destructive to the // contents of the FIFO.
.overflow(overflow),
// 1-bit output: Overflow: This signal indicates that a write request // (wren) during the prior clock cycle was rejected, because the FIFO is // full. Overflowing the FIFO is not destructive to the contents of the
// FIFO.
.prog_empty(prog_empty),
// 1-bit output: Programmable Empty: This signal is asserted when the // number of words in the FIFO is less than or equal to the programmable // empty threshold value. It is de-asserted when the number of words in
// the FIFO exceeds the programmable empty threshold value.
.prog_full(prog_full),
// 1-bit output: Programmable Full: This signal is asserted when the // number of words in the FIFO is greater than or equal to the
// programmable full threshold value. It is de-asserted when the number of
// words in the FIFO is less than the programmable full threshold value.
.rd_data_count(rd_data_count), // RD_DATA_COUNT_WIDTH-bit output: Read Data Count: This bus indicates the // number of words read from the FIFO.
.rd_rst_busy(rd_rst_busy),
// 1-bit output: Read Reset Busy: Active-High indicator that the FIFO read // domain is currently in a reset state.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 43
Chapter 2: Xilinx Parameterized Macros
.sbiterr(sbiterr),
// 1-bit output: Single Bit Error: Indicates that the ECC decoder detected // and fixed a single-bit error.
.underflow(underflow),
// 1-bit output: Underflow: Indicates that the read request (rd_en) during // the previous clock cycle was rejected because the FIFO is empty. Under
// flowing the FIFO is not destructive to the FIFO.
.wr_ack(wr_ack),
// 1-bit output: Write Acknowledge: This signal indicates that a write // request (wr_en) during the prior clock cycle is succeeded.
.wr_data_count(wr_data_count), // WR_DATA_COUNT_WIDTH-bit output: Write Data Count: This bus indicates // the number of words written into the FIFO.
.wr_rst_busy(wr_rst_busy),
// 1-bit output: Write Reset Busy: Active-High indicator that the FIFO // write domain is currently in a reset state.
.din(din),
// WRITE_DATA_WIDTH-bit input: Write Data: The input data bus used when // writing the FIFO.
.injectdbiterr(injectdbiterr), // 1-bit input: Double Bit Error Injection: Injects a double bit error if // the ECC feature is used on block RAMs or UltraRAM macros.
.injectsbiterr(injectsbiterr), // 1-bit input: Single Bit Error Injection: Injects a single bit error if // the ECC feature is used on block RAMs or UltraRAM macros.
.rd_clk(rd_clk),
// 1-bit input: Read clock: Used for read operation. rd_clk must be a free // running clock.
.rd_en(rd_en),
// 1-bit input: Read Enable: If the FIFO is not empty, asserting this // signal causes data (on dout) to be read from the FIFO. Must be held
// active-low when rd_rst_busy is active high.
.rst(rst),
// 1-bit input: Reset: Must be synchronous to wr_clk. The clock(s) can be // unstable at the time of applying reset, but reset must be released only
// after the clock(s) is/are stable.
.sleep(sleep),
// 1-bit input: Dynamic power saving: If sleep is High, the memory/fifo // block is in power saving mode.
.wr_clk(wr_clk),
// 1-bit input: Write clock: Used for write operation. wr_clk must be a // free running clock.
.wr_en(wr_en)
// 1-bit input: Write Enable: If the FIFO is not full, asserting this // signal causes data (on din) to be written to the FIFO. Must be held
// active-low when rst or wr_rst_busy is active high.
);
// End of xpm_fifo_async_inst instantiation
For More Information � See the 7 Series Programmable Devices User Guides.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 44
Chapter 2: Xilinx Parameterized Macros
XPM_FIFO_AXIS
Parameterized Macro: AXI Stream FIFO
MACRO_GROUP: XPM MACRO_SUBGROUP: XPM_FIFO Families: 7 series, UltraScale, UltraScale+
s_aresetn s_aclk m_aclk injectsbiterr_axis injectdbiterr_axis
XPM_FIFO_AXIS
m_axis_tvalid m_axis_tlast
m_axis_tdata[TDATA_WIDTH-1:0] m_axis_tdest[TDEST_WIDTH-1:0] m_axis_tuser[TUSER_WIDTH-1:0]
m_axis_tid[TID_WIDTH-1:0] m_axis_tkeep[TDATA_WIDTH/8-1:0] m_axis_tstrb[TDATA_WIDTH/8-1:0]
wr_data_count_axis[WR_DATA_COUNT_WIDTH-1:0]
rd_data_count_axis[RD_DATA_COUNT_WIDTH-1:0]
m_axis_tready s_axis_tvalid s_axis_tlast s_axis_tdata[TDATA_WIDTH-1:0] s_axis_tdest[TDEST_WIDTH-1:0] s_axis_tuser[TUSER_WIDTH-1:0] s_axis_tid[TID_WIDTH-1:0] s_axis_tkeep[TDATA_WIDTH/8-1:0] s_axis_tstrb[TDATA_WIDTH/8-1:0]
almost_full_axis prog_full_axis
almost_empty_axis prog_empty_axis s_axis_tready sbiterr_axis dbiterr_axis
X20498-030818
Introduction This macro is used to instantiate AXI Stream FIFO.
AXI Stream FIFO is derived from the XPM_FIFO_SYNC and XPM_FIFO_ASYNC. The AXI Stream protocol uses a two-way valid and ready handshake mechanism. The information source uses the valid signal to show when valid data or control information is available on the channel. The information destination uses the ready signal to show when it can accept the data.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 45
Chapter 2: Xilinx Parameterized Macros
Timing Diagrams
Figure 9: Timing for Read and Write Operations to the AXI Stream FIFO
s_aclk
information
D0
s_axis_tvalid s_axis_tready
information
m_axis_tvalid m_axis_tready
D1
D0
D1
X20499-030818
In the timing diagram above, the information source generates a valid signal to indicate when data is available. The destination generates a ready signal to indicate that it can accept data, and transfer occurs only when both the valid and ready signals are High.
Because the AXI Stream FIFO is derived from XPM_FIFO_SYNC and XPM_FIFO_ASYNC, much of the behavior is common between them. The ready signal is generated based on availability of space in the FIFO and is held high to allow writes to the FIFO. The ready signal is pulled Low only when there is no space in the FIFO left to perform additional writes. The valid signal is generated based on availability of data in the FIFO and is held High to allow reads to be performed from the FIFO. The valid signal is pulled Low only when there is no data available to be read from the FIFO. The information signals are mapped to the din and dout bus of Native interface FIFOs. The width of the AXI FIFO is determined by concatenating all of the information signals of the AXI interface. The information signals include all AXI signals except for the valid and ready handshake signals.
The AXI Stream FIFO operates only in First-Word Fall-Through mode. The First-Word FallThrough (FWFT) feature provides the ability to look ahead to the next word available from the FIFO without issuing a read operation. When data is available in the FIFO, the first word falls through the FIFO and appears automatically on the output data bus.
Port Descriptions
Port
Direction
almost_empty Output _axis
almost_full_axi Output s
Width 1
1
Domain m_aclk
s_aclk
Sense
LEVEL _HIGH
LEVEL _HIGH
Handling if Unused
Function
DoNotCare Almost Empty : When asserted, this signal indicates that only one more read can be performed before the FIFO goes to empty.
DoNotCare Almost Full: When asserted, this signal indicates that only one more write can be performed before the FIFO is full.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 46
Chapter 2: Xilinx Parameterized Macros
Port dbiterr_axis
injectdbiterr _axis injectsbiterr _axis m_aclk
m_axis_tdata
m_axis_tdest m_axis_tid m_axis_tkeep
Direction Output Input Input Input Output
Output Output Output
Width Domain
1
m_aclk
1
s_aclk
1
s_aclk
1
NA
TDATA m_aclk _WIDTH
TDEST m_aclk _WIDTH
TID
m_aclk
_WIDTH
TDATA m_aclk _WIDTH / 8
Sense
Handling if Unused
Function
LEVEL _HIGH
DoNotCare Double Bit Error- Indicates that the ECC decoder detected a double-bit error and data in the FIFO core is corrupted.
LEVEL 0 _HIGH
Double Bit Error Injection- Injects a double bit error if the ECC feature is used.
LEVEL 0 _HIGH
Single Bit Error Injection- Injects a single bit error if the ECC feature is used.
EDGE Active _RISING
Master Interface Clock: All signals on master interface are sampled on the rising edge of this clock.
NA
Active
TDATA: The primary payload that is used to
provide the data that is passing across the
interface. The width of the data payload is
an integer number of bytes.
NA
Active
TDEST: Provides routing information for
the data stream.
NA
Active
TID: The data stream identifier that
indicates different streams of data.
NA
Active
TKEEP: The byte qualifier that indicates
whether the content of the associated byte
of TDATA is processed as part of the data
stream. Associated bytes that have the
TKEEP byte qualifier deasserted are null
bytes and can be removed from the data
stream. For a 64-bit DATA, bit 0
corresponds to the least significant byte
on DATA, and bit 7 corresponds to the
most significant byte. For example:
� KEEP[0] = 1b, DATA[7:0] is not a NULL
byte
� KEEP[7] = 0b, DATA[63:56] is a NULL
byte
m_axis_tlast Output m_axis_tready Input m_axis_tstrb Output
1
m_aclk
1
m_aclk
TDATA m_aclk _WIDTH / 8
LEVEL _HIGH
LEVEL _HIGH
NA
Active Active Active
TLAST: Indicates the boundary of a packet.
TREADY: Indicates that the slave can accept a transfer in the current cycle.
TSTRB: The byte qualifier that indicates whether the content of the associated byte of TDATA is processed as a data byte or a position byte. For a 64-bit DATA, bit 0 corresponds to the least significant byte on DATA, and bit 0 corresponds to the least significant byte on DATA, and bit 7 corresponds to the most significant byte. For example:
� STROBE[0] = 1b, DATA[7:0] is valid
� STROBE[7] = 0b, DATA[63:56] is not
valid
m_axis_tuser Output
TUSER m_aclk
NA
_WIDTH
Active
TUSER: The user-defined sideband information that can be transmitted alongside the data stream.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 47
Chapter 2: Xilinx Parameterized Macros
Port m_axis_tvalid
Direction Output
Width 1
Domain m_aclk
Sense
LEVEL _HIGH
Handling if Unused
Function
Active
TVALID: Indicates that the master is driving a valid transfer.
� A transfer takes place when both
TVALID and TREADY are asserted
prog_empty_ax Output is
prog_full_axis Output
rd_data_count Output _axis
s_aclk
Input
s_aresetn s_axis_tdata
Input Input
s_axis_tdest
Input
s_axis_tid
Input
s_axis_tkeep Input
1
m_aclk
1
s_aclk
RD _DATA m_aclk _COUNT _WIDTH
1
NA
1
NA
TDATA s_aclk _WIDTH
TDEST s_aclk _WIDTH
TID
s_aclk
_WIDTH
TDATA s_aclk _WIDTH / 8
LEVEL _HIGH
DoNotCare
Programmable Empty- This signal is asserted when the number of words in the FIFO is less than or equal to the programmable empty threshold value.
It is de-asserted when the number of words in the FIFO exceeds the programmable empty threshold value.
LEVEL _HIGH
DoNotCare
Programmable Full: This signal is asserted when the number of words in the FIFO is greater than or equal to the programmable full threshold value.
It is de-asserted when the number of words in the FIFO is less than the programmable full threshold value.
NA
DoNotCare Read Data Count- This bus indicates the
number of words available for reading in
the FIFO.
EDGE Active _RISING
Slave Interface Clock: All signals on slave interface are sampled on the rising edge of this clock.
LEVEL _LOW
Active
Active low asynchronous reset.
NA
Active
TDATA: The primary payload that is used to
provide the data that is passing across the
interface. The width of the data payload is
an integer number of bytes.
NA
Active
TDEST: Provides routing information for
the data stream.
NA
Active
TID: The data stream identifier that
indicates different streams of data.
NA
Active
TKEEP: The byte qualifier that indicates
whether the content of the associated byte
of TDATA is processed as part of the data
stream. Associated bytes that have the
TKEEP byte qualifier deasserted are null
bytes and can be removed from the data
stream. For a 64-bit DATA, bit 0
corresponds to the least significant byte
on DATA, and bit 7 corresponds to the
most significant byte. For example:
� KEEP[0] = 1b, DATA[7:0] is not a NULL
byte
� KEEP[7] = 0b, DATA[63:56] is a NULL
byte
s_axis_tlast
Input
1
s_axis_tready Output
1
s_aclk s_aclk
LEVEL _HIGH
LEVEL _HIGH
Active Active
TLAST: Indicates the boundary of a packet.
TREADY: Indicates that the slave can accept a transfer in the current cycle.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 48
Chapter 2: Xilinx Parameterized Macros
Port s_axis_tstrb
Direction Input
Width Domain
TDATA s_aclk _WIDTH / 8
Sense NA
Handling if Unused
Function
Active
TSTRB: The byte qualifier that indicates whether the content of the associated byte of TDATA is processed as a data byte or a position byte. For a 64-bit DATA, bit 0 corresponds to the least significant byte on DATA, and bit 0 corresponds to the least significant byte on DATA, and bit 7 corresponds to the most significant byte. For example:
� STROBE[0] = 1b, DATA[7:0] is valid
� STROBE[7] = 0b, DATA[63:56] is not
valid
s_axis_tuser Input s_axis_tvalid Input
TUSER s_aclk _WIDTH
1
s_aclk
NA
Active
LEVEL _HIGH
Active
TUSER: The user-defined sideband information that can be transmitted alongside the data stream.
TVALID: Indicates that the master is driving a valid transfer.
� A transfer takes place when both
TVALID and TREADY are asserted
sbiterr_axis
Output
wr_data_count Output _axis
1
m_aclk
WR _DATA _COUNT _WIDTH
s_aclk
LEVEL _HIGH
NA
DoNotCare Single Bit Error- Indicates that the ECC decoder detected and fixed a single-bit error.
DoNotCare Write Data Count: This bus indicates the number of words written into the FIFO.
Design Entry Method
Instantiation
No
Inference
No
IP and IP Integrator Catalog
No
Available Attributes
Attribute CDC_SYNC_STAGES
CLOCKING_MODE
Type DECIMAL
STRING
Allowed Values Default
2 to 8
2
"common _clock", "independent _clock"
"common _clock"
Description
Specifies the number of synchronization stages on the CDC path. Applicable only if CLOCKING_MODE = "independent_clock"
Designate whether AXI Stream FIFO is clocked with a common clock or with independent clocks-
� "common_clock"- Common clocking; clock
both write and read domain s_aclk
� "independent_clock"- Independent clocking;
clock write domain with s_aclk and read domain with m_aclk
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 49
Chapter 2: Xilinx Parameterized Macros
Attribute ECC_MODE
FIFO_DEPTH FIFO_MEMORY_TYPE
PACKET_FIFO
Type STRING
DECIMAL STRING
STRING
Allowed Values Default
"no_ecc", "en_ecc"
"no_ecc"
16 to 4194304 2048
"auto", "block", "auto" "distributed", "ultra"
"false", "true" "false"
Description
� "no_ecc" - Disables ECC � "en_ecc" - Enables both ECC Encoder and
Decoder
NOTE: ECC_MODE should be "no_ecc" if FIFO_MEMORY_TYPE is set to "auto". Violating this may result incorrect behavior.
Defines the AXI Stream FIFO Write Depth, must be power of two NOTE: The maximum FIFO size (width x depth) is limited to 150-Megabits.
Designate the fifo memory primitive (resource type) to use-
� "auto"- Allow Vivado Synthesis to choose � "block"- Block RAM FIFO � "distributed"- Distributed RAM FIFO � "ultra"- URAM FIFO
NOTE: There may be a behavior mismatch if Block RAM or Ultra RAM specific features, like ECC or Asymmetry, are selected with FIFO_MEMORY_TYPE set to "auto".
� "true"- Enables Packet FIFO mode � "false"- Disables Packet FIFO mode
PROG_EMPTY _THRESH DECIMAL 5 to 4194301
10
PROG_FULL_THRESH
DECIMAL 5 to 4194301
10
RD_DATA_COUNT
DECIMAL 1 to 23
1
_WIDTH
Specifies the minimum number of read words in the FIFO at or below which prog_empty is asserted.
� Min_Value = 5
� Max_Value = FIFO_WRITE_DEPTH - 5
NOTE: The default threshold value is dependent on default FIFO_WRITE_DEPTH value. If FIFO_WRITE_DEPTH value is changed, ensure the threshold value is within the valid range though the programmable flags are not used.
Specifies the maximum number of write words in the FIFO at or above which prog_full is asserted.
� Min_Value = 5 + CDC_SYNC_STAGES
� Max_Value = FIFO_WRITE_DEPTH - 5
NOTE: The default threshold value is dependent on default FIFO_WRITE_DEPTH value. If FIFO_WRITE_DEPTH value is changed, ensure the threshold value is within the valid range though the programmable flags are not used.
Specifies the width of rd_data_count_axis. To reflect the correct value, the width should be log2(FIFO_DEPTH)+1.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 50
Chapter 2: Xilinx Parameterized Macros
Attribute RELATED_CLOCKS SIM_ASSERT_CHK
TDATA_WIDTH TDEST_WIDTH TID_WIDTH TUSER_WIDTH USE_ADV_FEATURES
WR_DATA_COUNT _WIDTH
Type DECIMAL
DECIMAL
DECIMAL DECIMAL DECIMAL DECIMAL STRING
Allowed Values Default
0 to 1
0
0 to 1
0
8 to 2048
1 to 32 1 to 32 1 to 4086 String
32
1 1 1 "1000"
Description
Specifies if the s_aclk and m_aclk are related having the same source but different clock ratios. Applicable only if CLOCKING_MODE = "independent_clock"
0- Disable simulation message reporting. Messages related to potential misuse will not be reported. 1- Enable simulation message reporting. Messages related to potential misuse will be reported.
Defines the width of the TDATA port, s_axis_tdata and m_axis_tdata NOTE: The maximum FIFO size (width x depth) is limited to 150-Megabits.
Defines the width of the TDEST port, s_axis_tdest and m_axis_tdest
Defines the width of the ID port, s_axis_tid and m_axis_tid
Defines the width of the TUSER port, s_axis_tuser and m_axis_tuser
Enables almost_empty_axis, rd_data_count_axis, prog_empty_axis, almost_full_axis, wr_data_count_axis, prog_full_axis sideband signals.
� Setting USE_ADV_FEATURES[1] to 1 enables
prog_full flag; Default value of this bit is 0
� Setting USE_ADV_FEATURES[2] to 1 enables
wr_data_count; Default value of this bit is 0
� Setting USE_ADV_FEATURES[3] to 1 enables
almost_full flag; Default value of this bit is 0
� Setting USE_ADV_FEATURES[9] to 1 enables
prog_empty flag; Default value of this bit is 0
� Setting USE_ADV_FEATURES[10] to 1 enables
rd_data_count; Default value of this bit is 0
� Setting USE_ADV_FEATURES[11] to 1 enables
almost_empty flag; Default value of this bit is 0
DECIMAL 1 to 23
1
Specifies the width of wr_data_count_axis. To
reflect the correct value, the width should be
log2(FIFO_DEPTH)+1.
VHDL Instantiation Template Unless they already exist, copy the following two statements and paste them before the entity declaration.
Library xpm; use xpm.vcomponents.all;
-- xpm_fifo_axis: AXI Stream FIFO -- Xilinx Parameterized Macro, version 2019.1 xpm_fifo_axis_inst : xpm_fifo_axis
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 51
Chapter 2: Xilinx Parameterized Macros
generic map (
CDC_SYNC_STAGES => 2,
-- DECIMAL
CLOCKING_MODE => "common_clock", -- String
ECC_MODE => "no_ecc",
-- String
FIFO_DEPTH => 2048,
-- DECIMAL
FIFO_MEMORY_TYPE => "auto",
-- String
PACKET_FIFO => "false",
-- String
PROG_EMPTY_THRESH => 10,
-- DECIMAL
PROG_FULL_THRESH => 10,
-- DECIMAL
RD_DATA_COUNT_WIDTH => 1,
-- DECIMAL
RELATED_CLOCKS => 0,
-- DECIMAL
SIM_ASSERT_CHK => 0,
-- DECIMAL; 0=disable simulation messages, 1=enable simulation messages
TDATA_WIDTH => 32,
-- DECIMAL
TDEST_WIDTH => 1,
-- DECIMAL
TID_WIDTH => 1,
-- DECIMAL
TUSER_WIDTH => 1,
-- DECIMAL
USE_ADV_FEATURES => "1000",
-- String
WR_DATA_COUNT_WIDTH => 1
-- DECIMAL
)
port map (
almost_empty_axis => almost_empty_axis, -- 1-bit output: Almost Empty : When asserted, this signal
-- indicates that only one more read can be performed before
-- the FIFO goes to empty.
almost_full_axis => almost_full_axis,
-- 1-bit output: Almost Full: When asserted, this signal -- indicates that only one more write can be performed before
-- the FIFO is full.
dbiterr_axis => dbiterr_axis,
-- 1-bit output: Double Bit Error- Indicates that the ECC -- decoder detected a double-bit error and data in the FIFO
-- core is corrupted.
m_axis_tdata => m_axis_tdata,
-- TDATA_WIDTH-bit output: TDATA: The primary payload that is -- used to provide the data that is passing across the
-- interface. The width of the data payload is an integer -- number of bytes.
m_axis_tdest => m_axis_tdest,
-- TDEST_WIDTH-bit output: TDEST: Provides routing information -- for the data stream.
m_axis_tid => m_axis_tid,
-- TID_WIDTH-bit output: TID: The data stream identifier that -- indicates different streams of data.
m_axis_tkeep => m_axis_tkeep,
-- TDATA_WIDTH-bit output: TKEEP: The byte qualifier that -- indicates whether the content of the associated byte of -- TDATA is processed as part of the data stream. Associated -- bytes that have the TKEEP byte qualifier deasserted are null -- bytes and can be removed from the data stream. For a 64-bit -- DATA, bit 0 corresponds to the least significant byte on -- DATA, and bit 7 corresponds to the most significant byte. -- For example: KEEP[0] = 1b, DATA[7:0] is not a NULL byte
-- KEEP[7] = 0b, DATA[63:56] is a NULL byte
m_axis_tlast => m_axis_tlast, m_axis_tstrb => m_axis_tstrb,
-- 1-bit output: TLAST: Indicates the boundary of a packet. -- TDATA_WIDTH-bit output: TSTRB: The byte qualifier that -- indicates whether the content of the associated byte of -- TDATA is processed as a data byte or a position byte. For a -- 64-bit DATA, bit 0 corresponds to the least significant byte -- on DATA, and bit 0 corresponds to the least significant byte -- on DATA, and bit 7 corresponds to the most significant byte. -- For example: STROBE[0] = 1b, DATA[7:0] is valid STROBE[7] =
-- 0b, DATA[63:56] is not valid
m_axis_tuser => m_axis_tuser,
-- TUSER_WIDTH-bit output: TUSER: The user-defined sideband -- information that can be transmitted alongside the data
-- stream.
m_axis_tvalid => m_axis_tvalid,
-- 1-bit output: TVALID: Indicates that the master is driving a -- valid transfer. A transfer takes place when both TVALID and
-- TREADY are asserted
prog_empty_axis => prog_empty_axis,
-- 1-bit output: Programmable Empty- This signal is asserted -- when the number of words in the FIFO is less than or equal -- to the programmable empty threshold value. It is de-asserted
-- when the number of words in the FIFO exceeds the -- programmable empty threshold value.
prog_full_axis => prog_full_axis,
-- 1-bit output: Programmable Full: This signal is asserted -- when the number of words in the FIFO is greater than or
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 52
Chapter 2: Xilinx Parameterized Macros
-- equal to the programmable full threshold value. It is -- de-asserted when the number of words in the FIFO is less
-- than the programmable full threshold value.
rd_data_count_axis => rd_data_count_axis, -- RD_DATA_COUNT_WIDTH-bit output: Read Data Count- This bus -- indicates the number of words available for reading in the -- FIFO.
s_axis_tready => s_axis_tready,
-- 1-bit output: TREADY: Indicates that the slave can accept a -- transfer in the current cycle.
sbiterr_axis => sbiterr_axis,
-- 1-bit output: Single Bit Error- Indicates that the ECC -- decoder detected and fixed a single-bit error.
wr_data_count_axis => wr_data_count_axis, -- WR_DATA_COUNT_WIDTH-bit output: Write Data Count: This bus -- indicates the number of words written into the FIFO.
injectdbiterr_axis => injectdbiterr_axis, -- 1-bit input: Double Bit Error Injection- Injects a double -- bit error if the ECC feature is used.
injectsbiterr_axis => injectsbiterr_axis, -- 1-bit input: Single Bit Error Injection- Injects a single -- bit error if the ECC feature is used.
m_aclk => m_aclk,
-- 1-bit input: Master Interface Clock: All signals on master -- interface are sampled on the rising edge of this clock.
m_axis_tready => m_axis_tready,
-- 1-bit input: TREADY: Indicates that the slave can accept a -- transfer in the current cycle.
s_aclk => s_aclk,
-- 1-bit input: Slave Interface Clock: All signals on slave -- interface are sampled on the rising edge of this clock.
s_aresetn => s_aresetn, s_axis_tdata => s_axis_tdata,
-- 1-bit input: Active low asynchronous reset. -- TDATA_WIDTH-bit input: TDATA: The primary payload that is
-- used to provide the data that is passing across the -- interface. The width of the data payload is an integer
-- number of bytes.
s_axis_tdest => s_axis_tdest,
-- TDEST_WIDTH-bit input: TDEST: Provides routing information -- for the data stream.
s_axis_tid => s_axis_tid,
-- TID_WIDTH-bit input: TID: The data stream identifier that -- indicates different streams of data.
s_axis_tkeep => s_axis_tkeep,
-- TDATA_WIDTH-bit input: TKEEP: The byte qualifier that -- indicates whether the content of the associated byte of -- TDATA is processed as part of the data stream. Associated -- bytes that have the TKEEP byte qualifier deasserted are null -- bytes and can be removed from the data stream. For a 64-bit -- DATA, bit 0 corresponds to the least significant byte on -- DATA, and bit 7 corresponds to the most significant byte. -- For example: KEEP[0] = 1b, DATA[7:0] is not a NULL byte
-- KEEP[7] = 0b, DATA[63:56] is a NULL byte
s_axis_tlast => s_axis_tlast, s_axis_tstrb => s_axis_tstrb,
-- 1-bit input: TLAST: Indicates the boundary of a packet. -- TDATA_WIDTH-bit input: TSTRB: The byte qualifier that -- indicates whether the content of the associated byte of -- TDATA is processed as a data byte or a position byte. For a -- 64-bit DATA, bit 0 corresponds to the least significant byte -- on DATA, and bit 0 corresponds to the least significant byte -- on DATA, and bit 7 corresponds to the most significant byte. -- For example: STROBE[0] = 1b, DATA[7:0] is valid STROBE[7] =
-- 0b, DATA[63:56] is not valid
s_axis_tuser => s_axis_tuser,
-- TUSER_WIDTH-bit input: TUSER: The user-defined sideband -- information that can be transmitted alongside the data
-- stream.
s_axis_tvalid => s_axis_tvalid
-- 1-bit input: TVALID: Indicates that the master is driving a -- valid transfer. A transfer takes place when both TVALID and
-- TREADY are asserted
);
-- End of xpm_fifo_axis_inst instantiation
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 53
Chapter 2: Xilinx Parameterized Macros
Verilog Instantiation Template
// xpm_fifo_axis: AXI Stream FIFO // Xilinx Parameterized Macro, version 2019.1
xpm_fifo_axis #(
.CDC_SYNC_STAGES(2),
// DECIMAL
.CLOCKING_MODE("common_clock"), // String
.ECC_MODE("no_ecc"),
// String
.FIFO_DEPTH(2048),
// DECIMAL
.FIFO_MEMORY_TYPE("auto"),
// String
.PACKET_FIFO("false"),
// String
.PROG_EMPTY_THRESH(10),
// DECIMAL
.PROG_FULL_THRESH(10),
// DECIMAL
.RD_DATA_COUNT_WIDTH(1),
// DECIMAL
.RELATED_CLOCKS(0),
// DECIMAL
.SIM_ASSERT_CHK(0),
// DECIMAL; 0=disable simulation messages, 1=enable simulation messages
.TDATA_WIDTH(32),
// DECIMAL
.TDEST_WIDTH(1),
// DECIMAL
.TID_WIDTH(1),
// DECIMAL
.TUSER_WIDTH(1),
// DECIMAL
.USE_ADV_FEATURES("1000"),
// String
.WR_DATA_COUNT_WIDTH(1)
// DECIMAL
)
xpm_fifo_axis_inst (
.almost_empty_axis(almost_empty_axis), // 1-bit output: Almost Empty : When asserted, this signal
// indicates that only one more read can be performed before the
// FIFO goes to empty.
.almost_full_axis(almost_full_axis),
// 1-bit output: Almost Full: When asserted, this signal
// indicates that only one more write can be performed before
// the FIFO is full.
.dbiterr_axis(dbiterr_axis),
// 1-bit output: Double Bit Error- Indicates that the ECC // decoder detected a double-bit error and data in the FIFO core
// is corrupted.
.m_axis_tdata(m_axis_tdata),
// TDATA_WIDTH-bit output: TDATA: The primary payload that is // used to provide the data that is passing across the
// interface. The width of the data payload is an integer number // of bytes.
.m_axis_tdest(m_axis_tdest),
// TDEST_WIDTH-bit output: TDEST: Provides routing information // for the data stream.
.m_axis_tid(m_axis_tid),
// TID_WIDTH-bit output: TID: The data stream identifier that // indicates different streams of data.
.m_axis_tkeep(m_axis_tkeep),
// TDATA_WIDTH-bit output: TKEEP: The byte qualifier that // indicates whether the content of the associated byte of TDATA // is processed as part of the data stream. Associated bytes // that have the TKEEP byte qualifier deasserted are null bytes // and can be removed from the data stream. For a 64-bit DATA, // bit 0 corresponds to the least significant byte on DATA, and // bit 7 corresponds to the most significant byte. For example: // KEEP[0] = 1b, DATA[7:0] is not a NULL byte KEEP[7] = 0b,
// DATA[63:56] is a NULL byte
.m_axis_tlast(m_axis_tlast), .m_axis_tstrb(m_axis_tstrb),
// 1-bit output: TLAST: Indicates the boundary of a packet. // TDATA_WIDTH-bit output: TSTRB: The byte qualifier that // indicates whether the content of the associated byte of TDATA // is processed as a data byte or a position byte. For a 64-bit // DATA, bit 0 corresponds to the least significant byte on // DATA, and bit 0 corresponds to the least significant byte on // DATA, and bit 7 corresponds to the most significant byte. For // example: STROBE[0] = 1b, DATA[7:0] is valid STROBE[7] = 0b,
// DATA[63:56] is not valid
.m_axis_tuser(m_axis_tuser),
// TUSER_WIDTH-bit output: TUSER: The user-defined sideband // information that can be transmitted alongside the data
// stream.
.m_axis_tvalid(m_axis_tvalid),
// 1-bit output: TVALID: Indicates that the master is driving a // valid transfer. A transfer takes place when both TVALID and
// TREADY are asserted
.prog_empty_axis(prog_empty_axis),
// 1-bit output: Programmable Empty- This signal is asserted
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 54
Chapter 2: Xilinx Parameterized Macros
// when the number of words in the FIFO is less than or equal to // the programmable empty threshold value. It is de-asserted // when the number of words in the FIFO exceeds the programmable
// empty threshold value.
.prog_full_axis(prog_full_axis),
// 1-bit output: Programmable Full: This signal is asserted when // the number of words in the FIFO is greater than or equal to // the programmable full threshold value. It is de-asserted when // the number of words in the FIFO is less than the programmable
// full threshold value.
.rd_data_count_axis(rd_data_count_axis), // RD_DATA_COUNT_WIDTH-bit output: Read Data Count- This bus // indicates the number of words available for reading in the // FIFO.
.s_axis_tready(s_axis_tready),
// 1-bit output: TREADY: Indicates that the slave can accept a // transfer in the current cycle.
.sbiterr_axis(sbiterr_axis),
// 1-bit output: Single Bit Error- Indicates that the ECC // decoder detected and fixed a single-bit error.
.wr_data_count_axis(wr_data_count_axis), // WR_DATA_COUNT_WIDTH-bit output: Write Data Count: This bus // indicates the number of words written into the FIFO.
.injectdbiterr_axis(injectdbiterr_axis), // 1-bit input: Double Bit Error Injection- Injects a double bit // error if the ECC feature is used.
.injectsbiterr_axis(injectsbiterr_axis), // 1-bit input: Single Bit Error Injection- Injects a single bit // error if the ECC feature is used.
.m_aclk(m_aclk),
// 1-bit input: Master Interface Clock: All signals on master // interface are sampled on the rising edge of this clock.
.m_axis_tready(m_axis_tready),
// 1-bit input: TREADY: Indicates that the slave can accept a // transfer in the current cycle.
.s_aclk(s_aclk),
// 1-bit input: Slave Interface Clock: All signals on slave // interface are sampled on the rising edge of this clock.
.s_aresetn(s_aresetn), .s_axis_tdata(s_axis_tdata),
// 1-bit input: Active low asynchronous reset. // TDATA_WIDTH-bit input: TDATA: The primary payload that is
// used to provide the data that is passing across the // interface. The width of the data payload is an integer number
// of bytes.
.s_axis_tdest(s_axis_tdest),
// TDEST_WIDTH-bit input: TDEST: Provides routing information // for the data stream.
.s_axis_tid(s_axis_tid),
// TID_WIDTH-bit input: TID: The data stream identifier that // indicates different streams of data.
.s_axis_tkeep(s_axis_tkeep),
// TDATA_WIDTH-bit input: TKEEP: The byte qualifier that // indicates whether the content of the associated byte of TDATA // is processed as part of the data stream. Associated bytes // that have the TKEEP byte qualifier deasserted are null bytes // and can be removed from the data stream. For a 64-bit DATA, // bit 0 corresponds to the least significant byte on DATA, and // bit 7 corresponds to the most significant byte. For example: // KEEP[0] = 1b, DATA[7:0] is not a NULL byte KEEP[7] = 0b,
// DATA[63:56] is a NULL byte
.s_axis_tlast(s_axis_tlast), .s_axis_tstrb(s_axis_tstrb),
// 1-bit input: TLAST: Indicates the boundary of a packet. // TDATA_WIDTH-bit input: TSTRB: The byte qualifier that
// indicates whether the content of the associated byte of TDATA // is processed as a data byte or a position byte. For a 64-bit // DATA, bit 0 corresponds to the least significant byte on // DATA, and bit 0 corresponds to the least significant byte on // DATA, and bit 7 corresponds to the most significant byte. For // example: STROBE[0] = 1b, DATA[7:0] is valid STROBE[7] = 0b,
// DATA[63:56] is not valid
.s_axis_tuser(s_axis_tuser),
// TUSER_WIDTH-bit input: TUSER: The user-defined sideband // information that can be transmitted alongside the data
// stream.
.s_axis_tvalid(s_axis_tvalid)
// 1-bit input: TVALID: Indicates that the master is driving a // valid transfer. A transfer takes place when both TVALID and
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 55
Chapter 2: Xilinx Parameterized Macros
// TREADY are asserted ); // End of xpm_fifo_axis_inst instantiation
For More Information � See the 7 Series Programmable Devices User Guides.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 56
Chapter 2: Xilinx Parameterized Macros
XPM_FIFO_AXIF
Parameterized Macro: AXI Memory Mapped (AXI Full) FIFO
MACRO_GROUP: XPM MACRO_SUBGROUP: XPM_FIFO Families: 7 series, UltraScale, UltraScale+
s_aresetn s_aclk m_aclk
XPM_FIFO_AXIF
s_axi_awvalid s_axi_awaddr[AXI_ADDR_WIDTH-1:0] s_axi_awlen[AXI_LEN_WIDTH-1:0] s_axi_awid[AXI_ID_WIDTH-1:0] s_axi_awsize[2:0] s_axi_awburst[1:0] s_axi_awlock[1:0] s_axi_awcache[3:0] s_axi_awprot[2:0] s_axi_awqos[3:0] s_axi_awregion[3:0] s_axi_awuser[AXI_AWUSER_WIDTH-1:0] m_axi_awready
m_axi_awvalid m_axi_awaddr[AXI_ADDR_WIDTH-1:0]
m_axi_awlen[AXI_LEN_WIDTH-1:0] m_axi_awid[AXI_ID_WIDTH-1:0] m_axi_awsize[2:0] m_axi_awburst[1:0] m_axi_awlock[1:0] m_axi_awcache[3:0] m_axi_awprot[2:0] m_axi_awqos[3:0] m_axi_awregion[3:0]
m_axi_awuser[AXI_AWUSER_WIDTH-1:0] s_axi_awready
s_axi_wvalid s_axi_wdata[AXI_DATA_WIDTH-1:0] s_axi_wstrb[AXI_DATA_WIDTH/8-1:0] s_axi_wuser[AXI_WUSER_WIDTH-1:0] s_axi_wlast m_axi_wready
m_axi_wvalid m_axi_wdata[AXI_DATA_WIDTH-1:0] m_axi_wstrb[AXI_DATA_WIDTH/8-1:0] m_axi_wuser[AXI_WUSER_WIDTH-1:0]
m_axi_wlast s_axi_wready
m_axi_bvalid m_axi_bid[AXI_ID_WIDTH-1:0] m_axi_bresp[1:0] m_axi_buser[AXI_BUSER_WIDTH-1:0] s_axi_bready
s_axi_bvalid s_axi_bid[AXI_ID_WIDTH-1:0]
s_axi_bresp[1:0] s_axi_buser[AXI_BUSER_WIDTH-1:0]
m_axi_bready
s_axi_arvalid s_axi_araddr[AXI_ADDR_WIDTH-1:0] s_axi_arlen[AXI_LEN_WIDTH-1:0] s_axi_arid[AXI_ID_WIDTH-1:0] s_axi_arsize[2:0] s_axi_arburst[1:0] s_axi_arlock[1:0] s_axi_arcache[3:0] s_axi_arprot[2:0] s_axi_arqos[3:0] s_axi_arregion[3:0] s_axi_aruser[AXI_AWUSER_WIDTH-1:0] m_axi_arready
m_axi_arvalid m_axi_araddr[AXI_ADDR_WIDTH-1:0]
m_axi_arlen[AXI_LEN_WIDTH-1:0] m_axi_arid[AXI_ID_WIDTH-1:0] m_axi_arsize[2:0] m_axi_arburst[1:0] m_axi_arlock[1:0] m_axi_arcache[3:0] m_axi_arprot[2:0] m_axi_arqos[3:0] m_axi_arregion[3:0]
m_axi_aruser[AXI_AWUSER_WIDTH-1:0] s_axi_arready
m_axi_rvalid m_axi_rdata[AXI_DATA_WIDTH-1:0] m_axi_rid[AXI_ID_WIDTH-1:0] m_axi_rresp[1:0] m_axi_ruser[AXI_RUSER_WIDTH-1:0] m_axi_rlast s_axi_rready
s_axi_rvalid s_axi_rdata[AXI_DATA_WIDTH-1:0]
s_axi_rid[AXI_ID_WIDTH-1:0] s_axi_rresp[1:0]
s_axi_ruser[AXI_RUSER_WIDTH-1:0] s_axi_rlast
m_axi_rready
injectsbiterr_wdch injectsbiterr_rdch injectdbiterr_wdch injectdbiterr_rdch
sbiterr_wdch sbiterr_rdch dbiterr_wdch dbiterr_rdch prog_full_wdch prog_empty_wdch wr_data_count_wdch[WR_DATA_COUNT_WIDTH_WDCH-1:0] rd_data_count_wdch[RD_DATA_COUNT_WIDTH_WDCH-1:0] prog_full_rdch prog_empty_rdch wr_data_count_rdch[WR_DATA_COUNT_WIDTH_RDCH-1:0] rd_data_count_rdch[RD_DATA_COUNT_WIDTH_RDCH-1:0]
X21837-110218
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 57
Chapter 2: Xilinx Parameterized Macros
Introduction
This macro is used to instantiate AXI Memory Mapped (AXI Full) FIFO.
AXI4 FIFO is derived from the XPM_FIFO_SYNC and XPM_FIFO_ASYNC. The AXI interface protocol uses a two-way valid and ready handshake mechanism. The information source uses the valid signal to show when valid data or control information is available on the channel. The information destination uses the ready signal to show when it can accept the data.
Timing Diagrams
Figure 10: Timing for Read and Write Operations to the AXI Stream FIFO
s_aclk
information
D0
s_axis_tvalid s_axis_tready
information
m_axis_tvalid m_axis_tready
D1
D0
D1
X20499-030818
In the timing diagram above, the information source generates the valid signal to indicate when the data is available. The destination generates the ready signal to indicate that it can accept the data, and transfer occurs only when both the valid and ready signals are High.
Because AXI4 FIFO is derived from XPM_FIFO_SYNC and XPM_FIFO_ASYNC, much of the behavior is common between them. The ready signal is generated based on availability of space in the FIFO and is held high to allow writes to the FIFO. The ready signal is pulled Low only when there is no space in the FIFO left to perform additional writes. The valid signal is generated based on availability of data in the FIFO and is held High to allow reads to be performed from the FIFO. The valid signal is pulled Low only when there is no data available to be read from the FIFO. The information signals are mapped to the din and dout bus of XPM_FIFO_SYNC and XPM_FIFO_ASYNC. The width of the AXI4 FIFO is determined by concatenating all of the information signals of the AXI interface. The information signals include all AXI signals except for the valid and ready handshake signals.
AXI4 FIFO operates only in First-Word Fall-Through mode. The First-Word Fall-Through (FWFT) feature provides the ability to look ahead to the next word available from the FIFO without issuing a read operation. When data is available in the FIFO, the first word falls through the FIFO and appears automatically on the output data bus.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 58
Chapter 2: Xilinx Parameterized Macros
Port Descriptions
Port dbiterr_rdch
Direction Output
dbiterr_wdch Output
injectdbiterr _rdch
injectdbiterr _wdch
injectsbiterr _rdch
injectsbiterr _wdch
m_aclk
Input Input Input Input Input
m_axi_araddr Output
m_axi_arburst Output
m_axi_arcache Output
m_axi_arid m_axi_arlen
Output Output
m_axi_arlock Output m_axi_arprot Output
m_axi_arqos Output m_axi_arready Input m_axi_arregion Output
Width Domain
1
m_aclk
1
m_aclk
1
s_aclk
1
s_aclk
1
s_aclk
1
s_aclk
1
NA
AXI _ADDR _WIDTH
m_aclk
1
m_aclk
1
m_aclk
AXI _ID _WIDTH
AXI _LEN _WIDTH
m_aclk m_aclk
1
m_aclk
1
m_aclk
1
m_aclk
1
m_aclk
1
m_aclk
Sense
Handling if Unused
Function
LEVEL _HIGH
DoNotCare Double Bit Error- Indicates that the ECC decoder detected a double-bit error and data in the FIFO core is corrupted.
LEVEL _HIGH
DoNotCare Double Bit Error- Indicates that the ECC decoder detected a double-bit error and data in the FIFO core is corrupted.
LEVEL 0 _HIGH
Double Bit Error Injection- Injects a double bit error if the ECC feature is used.
LEVEL 0 _HIGH
Double Bit Error Injection- Injects a double bit error if the ECC feature is used.
LEVEL 0 _HIGH
Single Bit Error Injection- Injects a single bit error if the ECC feature is used.
LEVEL 0 _HIGH
Single Bit Error Injection- Injects a single bit error if the ECC feature is used.
EDGE Active _RISING
Master Interface Clock: All signals on master interface are sampled on the rising edge of this clock.
NA
Active
ARADDR: The read address bus gives the
initial address of a read burst transaction.
Only the start address of the burst is
provided and the control signals that are
issued alongside the address detail how
the address is calculated for the remaining
transfers in the burst.
NA
Active
ARBURST: The burst type, coupled with the
size information, details how the address
for each transfer within the burst is
calculated.
NA
Active
ARCACHE: Indicates the bufferable,
cacheable, write-through, write-back, and
allocate attributes of the transaction.
NA
Active
ARID: The data stream identifier that
indicates different streams of data.
NA
Active
ARLEN: The burst length gives the exact
number of transfers in a burst. This
information determines the number of
data transfers associated with the address.
NA
Active
ARLOCK: This signal provides additional
information about the atomic
characteristics of the transfer.
NA
Active
ARPROT: Indicates the normal, privileged,
or secure protection level of the
transaction and whether the transaction is
a data access or an instruction access.
NA
Active
ARQOS: Quality of Service (QoS) sent on
the write address channel for each write
transaction.
LEVEL _HIGH
Active
ARREADY: Indicates that the master can accept a transfer in the current cycle.
NA
Active
ARREGION: Region Identifier sent on the
write address channel for each write
transaction.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 59
Chapter 2: Xilinx Parameterized Macros
Port m_axi_arsize m_axi_aruser m_axi_arvalid
Direction Output Output Output
Width Domain
1
m_aclk
AXI
m_aclk
_ARUSER
_WIDTH
1
m_aclk
Sense NA
NA
LEVEL _HIGH
Handling if Unused
Function
Active
ARSIZE: Indicates the size of each transfer in the burst. Byte lane strobes indicate exactly which byte lanes to update.
Active
ARUSER: The user-defined sideband information that can be transmitted alongside the data stream.
Active
ARVALID: Indicates that the master is driving a valid transfer.
� A transfer takes place when both
ARVALID and ARREADY are asserted
m_axi_awaddr Output
m_axi_awburst Output
m_axi_awcache Output
m_axi_awid
Output
m_axi_awlen Output
m_axi_awlock Output m_axi_awprot Output
m_axi_awqos Output
m_axi_awready Input m_axi_awregio Output n m_axi_awsize Output
m_axi_awuser Output
AXI
m_aclk
NA
_ADDR
_WIDTH
Active
1
m_aclk
NA
Active
1
m_aclk
NA
Active
AXI _ID m_aclk
NA
_WIDTH
AXI _LEN m_aclk
NA
_WIDTH
Active Active
1
m_aclk
NA
Active
1
m_aclk
NA
Active
1
m_aclk
NA
Active
1
m_aclk
LEVEL Active
_HIGH
1
m_aclk
NA
Active
1
m_aclk
NA
Active
AXI
m_aclk
NA
_AWUSER
_WIDTH
Active
AWADDR: The write address bus gives the address of the first transfer in a write burst transaction. The associated control signals are used to determine the addresses of the remaining transfers in the burst.
AWSIZE: The burst type, coupled with the size information, details how the address for each transfer within the burst is calculated.
AWCACHE: Indicates the bufferable, cacheable, write-through, write-back, and allocate attributes of the transaction.
AWID: Identification tag for the write address group of signals.
AWLEN: The burst length gives the exact number of transfers in a burst. This information determines the number of data transfers associated with the address.
AWLOCK: This signal provides additional information about the atomic characteristics of the transfer.
AWPROT: Indicates the normal, privileged, or secure protection level of the transaction and whether the transaction is a data access or an instruction access.
AWQOS: Quality of Service (QoS) sent on the write address channel for each write transaction.
AWREADY: Indicates that the master can accept a transfer in the current cycle.
AWREGION: Region Identifier sent on the write address channel for each write transaction.
AWSIZE: Indicates the size of each transfer in the burst. Byte lane strobes indicate exactly which byte lanes to update.
AWUSER: The user-defined sideband information that can be transmitted alongside the data stream.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 60
Chapter 2: Xilinx Parameterized Macros
Port m_axi_awvalid
Direction Output
Width 1
Domain m_aclk
Sense
LEVEL _HIGH
Handling if Unused
Function
Active
AWVALID: Indicates that the master is driving a valid transfer.
� A transfer takes place when both
AWVALID and AWREADY are asserted
m_axi_bid
Input
m_axi_bready Output
m_axi_bresp Input
m_axi_buser Input
m_axi_bvalid Input
AXI _ID _WIDTH
1
m_aclk m_aclk
1
m_aclk
NA
Active
LEVEL _HIGH
NA
Active Active
AXI _BUSER _WIDTH
1
m_aclk m_aclk
NA
Active
LEVEL _HIGH
Active
BID: The data stream identifier that indicates different streams of data.
BREADY: Indicates that the master can accept a transfer in the current cycle.
BRESP: Indicates the status of the write transaction. The allowable responses are OKAY, EXOKAY, SLVERR, and DECERR.
BUSER: The user-defined sideband information that can be transmitted alongside the data stream.
BVALID: Indicates that the master is driving a valid transfer.
� A transfer takes place when both
BVALID and BREADY are asserted
m_axi_rdata Input
m_axi_rid
Input
m_axi_rlast
Input
m_axi_rready Output
m_axi_rresp Input
m_axi_ruser Input
m_axi_rvalid Input
AXI _DATA _WIDTH
m_aclk
AXI _ID _WIDTH
1
m_aclk m_aclk
1
m_aclk
1
m_aclk
NA
Active
NA
Active
LEVEL _HIGH
LEVEL _HIGH
NA
Active Active Active
AXI _RUSER _WIDTH
1
m_aclk m_aclk
NA
Active
LEVEL _HIGH
Active
RDATA: The primary payload that is used to provide the data that is passing across the interface. The width of the data payload is an integer number of bytes.
RID: The data stream identifier that indicates different streams of data.
RLAST: Indicates the boundary of a packet.
RREADY: Indicates that the master can accept a transfer in the current cycle.
RRESP: Indicates the status of the read transfer. The allowable responses are OKAY, EXOKAY, SLVERR, and DECERR.
RUSER: The user-defined sideband information that can be transmitted alongside the data stream.
RVALID: Indicates that the master is driving a valid transfer.
� A transfer takes place when both
RVALID and RREADY are asserted
m_axi_wdata Output
m_axi_wlast
Output
m_axi_wready Input
AXI _DATA _WIDTH
m_aclk
1
m_aclk
1
m_aclk
NA
Active
LEVEL _HIGH
LEVEL _HIGH
Active Active
WDATA: The primary payload that is used to provide the data that is passing across the interface. The width of the data payload is an integer number of bytes.
WLAST: Indicates the boundary of a packet.
WREADY: Indicates that the master can accept a transfer in the current cycle.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 61
Chapter 2: Xilinx Parameterized Macros
Port m_axi_wstrb
Direction Output
Width Domain
AXI _DATA _WIDTH / 8
m_aclk
Sense NA
Handling if Unused
Function
Active
WSTRB: The byte qualifier that indicates whether the content of the associated byte of TDATA is processed as a data byte or a position byte. For a 64-bit DATA, bit 0 corresponds to the least significant byte on DATA, and bit 0 corresponds to the least significant byte on DATA, and bit 7 corresponds to the most significant byte. For example:
� STROBE[0] = 1b, DATA[7:0] is valid
� STROBE[7] = 0b, DATA[63:56] is not
valid
m_axi_wuser Output m_axi_wvalid Output
AXI _WUSER _WIDTH
1
m_aclk m_aclk
NA
Active
LEVEL _HIGH
Active
WUSER: The user-defined sideband information that can be transmitted alongside the data stream.
WVALID: Indicates that the master is driving a valid transfer.
� A transfer takes place when both
WVALID and WREADY are asserted
prog_empty_rd Output
1
ch
prog_empty_w Output
1
dch
prog_full_rdch Output
1
prog_full_wdch Output
1
m_aclk m_aclk s_aclk s_aclk
LEVEL _HIGH
LEVEL _HIGH
LEVEL _HIGH
LEVEL _HIGH
DoNotCare
Programmable Empty- This signal is asserted when the number of words in the Read Data Channel FIFO is less than or equal to the programmable empty threshold value.
It is de-asserted when the number of words in the Read Data Channel FIFO exceeds the programmable empty threshold value.
DoNotCare
Programmable Empty- This signal is asserted when the number of words in the Write Data Channel FIFO is less than or equal to the programmable empty threshold value.
It is de-asserted when the number of words in the Write Data Channel FIFO exceeds the programmable empty threshold value.
DoNotCare
Programmable Full: This signal is asserted when the number of words in the Read Data Channel FIFO is greater than or equal to the programmable full threshold value.
It is de-asserted when the number of words in the Read Data Channel FIFO is less than the programmable full threshold value.
DoNotCare
Programmable Full: This signal is asserted when the number of words in the Write Data Channel FIFO is greater than or equal to the programmable full threshold value.
It is de-asserted when the number of words in the Write Data Channel FIFO is less than the programmable full threshold value.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 62
Chapter 2: Xilinx Parameterized Macros
Port rd_data_count _rdch rd_data_count _wdch s_aclk s_aresetn s_axi_araddr
s_axi_arburst
s_axi_arcache s_axi_arid s_axi_arlen
s_axi_arlock s_axi_arprot
s_axi_arqos s_axi_arready s_axi_arregion s_axi_arsize s_axi_aruser
Direction Output Output Input Input Input
Input Input Input Input Input Input Input Output Input Input Input
Width Domain
RD _DATA _COUNT _WIDTH _RDCH
m_aclk
RD _DATA _COUNT _WIDTH _WDCH
m_aclk
1
NA
1
NA
AXI _ADDR _WIDTH
s_aclk
1
s_aclk
1
s_aclk
AXI _ID _WIDTH
AXI _LEN _WIDTH
s_aclk s_aclk
1
s_aclk
1
s_aclk
1
s_aclk
1
s_aclk
1
s_aclk
1
s_aclk
AXI
s_aclk
_ARUSER
_WIDTH
Sense NA
Handling if Unused
Function
DoNotCare Read Data Count- This bus indicates the number of words available for reading in the Read Data Channel FIFO.
NA
DoNotCare Read Data Count- This bus indicates the
number of words available for reading in
the Write Data Channel FIFO.
EDGE Active _RISING
LEVEL _LOW
NA
Active Active
NA
Active
NA
Active
NA
Active
NA
Active
NA
Active
NA
Active
NA
Active
LEVEL _HIGH
NA
Active Active
NA
Active
NA
Active
Slave Interface Clock: All signals on slave interface are sampled on the rising edge of this clock.
Active low asynchronous reset.
ARADDR: The read address bus gives the initial address of a read burst transaction. Only the start address of the burst is provided and the control signals that are issued alongside the address detail how the address is calculated for the remaining transfers in the burst.
ARBURST: The burst type, coupled with the size information, details how the address for each transfer within the burst is calculated.
ARCACHE: Indicates the bufferable, cacheable, write-through, write-back, and allocate attributes of the transaction.
ARID: The data stream identifier that indicates different streams of data.
ARLEN: The burst length gives the exact number of transfers in a burst. This information determines the number of data transfers associated with the address.
ARLOCK: This signal provides additional information about the atomic characteristics of the transfer.
ARPROT: Indicates the normal, privileged, or secure protection level of the transaction and whether the transaction is a data access or an instruction access.
ARQOS: Quality of Service (QoS) sent on the write address channel for each write transaction.
ARREADY: Indicates that the slave can accept a transfer in the current cycle.
ARREGION: Region Identifier sent on the write address channel for each write transaction.
ARSIZE: Indicates the size of each transfer in the burst. Byte lane strobes indicate exactly which byte lanes to update.
ARUSER: The user-defined sideband information that can be transmitted alongside the data stream.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 63
Chapter 2: Xilinx Parameterized Macros
Port s_axi_arvalid
Direction Input
Width 1
Domain s_aclk
Sense
LEVEL _HIGH
Handling if Unused
Function
Active
ARVALID: Indicates that the master is driving a valid transfer.
� A transfer takes place when both
ARVALID and ARREADY are asserted
s_axi_awaddr Input
s_axi_awburst Input
s_axi_awcache Input
s_axi_awid s_axi_awlen
Input Input
s_axi_awlock Input s_axi_awprot Input
s_axi_awqos Input s_axi_awready Output s_axi_awregion Input s_axi_awsize Input s_axi_awuser Input s_axi_awvalid Input
AXI
s_aclk
NA
_ADDR
_WIDTH
Active
1
s_aclk
LEVEL Active
_HIGH
1
s_aclk
AXI _ID _WIDTH
AXI _LEN _WIDTH
s_aclk s_aclk
LEVEL _HIGH
Active
NA
Active
NA
Active
1
s_aclk
LEVEL Active
_HIGH
1
s_aclk
LEVEL Active
_HIGH
1
s_aclk
1
s_aclk
1
s_aclk
1
s_aclk
AXI
s_aclk
_AWUSER
_WIDTH
1
s_aclk
LEVEL _HIGH
Active
LEVEL _HIGH
LEVEL _HIGH
Active Active
LEVEL _HIGH
Active
NA
Active
LEVEL _HIGH
Active
AWADDR: The write address bus gives the address of the first transfer in a write burst transaction. The associated control signals are used to determine the addresses of the remaining transfers in the burst.
AWBURST: The burst type, coupled with the size information, details how the address for each transfer within the burst is calculated.
AWCACHE: Indicates the bufferable, cacheable, write-through, write-back, and allocate attributes of the transaction.
AWID: Identification tag for the write address group of signals.
AWLEN: The burst length gives the exact number of transfers in a burst. This information determines the number of data transfers associated with the address.
AWLOCK: This signal provides additional information about the atomic characteristics of the transfer.
AWPROT: Indicates the normal, privileged, or secure protection level of the transaction and whether the transaction is a data access or an instruction access.
AWQOS: Quality of Service (QoS) sent on the write address channel for each write transaction.
AWREADY: Indicates that the slave can accept a transfer in the current cycle.
AWREGION: Region Identifier sent on the write address channel for each write transaction.
AWSIZE: Indicates the size of each transfer in the burst. Byte lane strobes indicate exactly which byte lanes to update.
AWUSER: The user-defined sideband information that can be transmitted alongside the data stream.
AWVALID: Indicates that the master is driving a valid transfer.
� A transfer takes place when both
AWVALID and AWREADY are asserted
s_axi_bid
Output
s_axi_bready Input
AXI _ID _WIDTH
1
s_aclk s_aclk
NA
Active
LEVEL _HIGH
Active
BID: The data stream identifier that indicates different streams of data.
BREADY: Indicates that the slave can accept a transfer in the current cycle.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 64
Chapter 2: Xilinx Parameterized Macros
Port s_axi_bresp s_axi_buser s_axi_bvalid
Direction Output Output Output
Width
1
AXI _BUSER _WIDTH 1
Domain s_aclk s_aclk s_aclk
Sense NA
NA
LEVEL _HIGH
Handling if Unused
Function
Active
BRESP: Indicates the status of the write transaction. The allowable responses are OKAY, EXOKAY, SLVERR, and DECERR.
Active
BUSER: The user-defined sideband information that can be transmitted alongside the data stream.
Active
BVALID: Indicates that the master is driving a valid transfer.
� A transfer takes place when both
BVALID and BREADY are asserted
s_axi_rdata
Output
s_axi_rid
Output
s_axi_rlast
Output
s_axi_rready Input
s_axi_rresp
Output
s_axi_ruser
Output
s_axi_rvalid
Output
AXI _DATA _WIDTH
s_aclk
AXI _ID _WIDTH
1
s_aclk s_aclk
1
s_aclk
1
s_aclk
NA
Active
NA
Active
LEVEL _HIGH
LEVEL _HIGH
NA
Active Active Active
AXI _RUSER _WIDTH
1
s_aclk s_aclk
NA
Active
LEVEL _HIGH
Active
RDATA: The primary payload that is used to provide the data that is passing across the interface. The width of the data payload is an integer number of bytes.
RID: The data stream identifier that indicates different streams of data.
RLAST: Indicates the boundary of a packet.
RREADY: Indicates that the slave can accept a transfer in the current cycle.
RRESP: Indicates the status of the read transfer. The allowable responses are OKAY, EXOKAY, SLVERR, and DECERR.
RUSER: The user-defined sideband information that can be transmitted alongside the data stream.
RVALID: Indicates that the master is driving a valid transfer.
� A transfer takes place when both
RVALID and RREADY are asserted
s_axi_wdata
Input
s_axi_wlast
Input
s_axi_wready Output
s_axi_wstrb
Input
AXI _DATA _WIDTH
s_aclk
1
s_aclk
1
s_aclk
AXI _DATA _WIDTH / 8
s_aclk
NA
Active
LEVEL _HIGH
LEVEL _HIGH
NA
Active Active Active
WDATA: The primary payload that is used to provide the data that is passing across the interface. The width of the data payload is an integer number of bytes.
WLAST: Indicates the boundary of a packet.
WREADY: Indicates that the slave can accept a transfer in the current cycle.
WSTRB: The byte qualifier that indicates whether the content of the associated byte of TDATA is processed as a data byte or a position byte. For a 64-bit DATA, bit 0 corresponds to the least significant byte on DATA, and bit 0 corresponds to the least significant byte on DATA, and bit 7 corresponds to the most significant byte. For example:
� STROBE[0] = 1b, DATA[7:0] is valid
� STROBE[7] = 0b, DATA[63:56] is not
valid
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 65
Chapter 2: Xilinx Parameterized Macros
Port s_axi_wuser
s_axi_wvalid
Direction Input
Input
Width
AXI _WUSER _WIDTH
1
Domain s_aclk
s_aclk
Sense NA
LEVEL _HIGH
Handling if Unused
Function
Active
WUSER: The user-defined sideband information that can be transmitted alongside the data stream.
Active
WVALID: Indicates that the master is driving a valid transfer.
� A transfer takes place when both
WVALID and WREADY are asserted
sbiterr_rdch Output
sbiterr_wdch Output
wr_data_count Output _rdch
wr_data_count Output _wdch
1
m_aclk
1
m_aclk
WR _DATA _COUNT _WIDTH _RDCH
WR _DATA _COUNT _WIDTH _WDCH
s_aclk s_aclk
LEVEL _HIGH
LEVEL _HIGH
NA
DoNotCare Single Bit Error- Indicates that the ECC decoder detected and fixed a single-bit error.
DoNotCare Single Bit Error- Indicates that the ECC decoder detected and fixed a single-bit error.
DoNotCare Write Data Count: This bus indicates the number of words written into the Read Data Channel FIFO.
NA
DoNotCare Write Data Count: This bus indicates the
number of words written into the Write
Data Channel FIFO.
Design Entry Method
Instantiation
No
Inference
No
IP and IP Integrator Catalog
No
Available Attributes
Attribute AXI_ADDR_WIDTH AXI_ARUSER_WIDTH AXI_AWUSER_WIDTH AXI_BUSER_WIDTH AXI_DATA_WIDTH
AXI_ID_WIDTH
Type DECIMAL DECIMAL DECIMAL DECIMAL DECIMAL
DECIMAL
Allowed Values Default
1 to 64
32
1 to 1024
1
1 to 1024
1
1 to 1024
1
8 to 1024
32
1 to 32
1
Description
Defines the width of the ADDR ports, s_axi_araddr, s_axi_awaddr, m_axi_araddr and m_axi_awaddr
Defines the width of the ARUSER port, s_axi_aruser and m_axi_aruser
Defines the width of the AWUSER port, s_axi_awuser and m_axi_awuser
Defines the width of the BUSER port, s_axi_buser and m_axi_buser
Defines the width of the DATA ports, s_axi_rdata, s_axi_wdata, m_axi_rdata and m_axi_wdata NOTE: The maximum FIFO size (width x depth) is limited to 150-Megabits.
Defines the width of the ID ports, s_axi_awid, s_axi_wid, s_axi_bid, s_axi_ar_id, s_axi_rid, m_axi_awid, m_axi_wid, m_axi_bid, m_axi_ar_id, and m_axi_rid
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 66
Chapter 2: Xilinx Parameterized Macros
Attribute AXI_LEN_WIDTH AXI_RUSER_WIDTH AXI_WUSER_WIDTH CDC_SYNC_STAGES CLOCKING_MODE
ECC_MODE_RDCH
ECC_MODE_WDCH
FIFO_DEPTH_RACH FIFO_DEPTH_RDCH FIFO_DEPTH_WACH FIFO_DEPTH_WDCH FIFO_DEPTH_WRCH
Type DECIMAL DECIMAL DECIMAL DECIMAL
STRING
Allowed Values Default
8 to 8
8
1 to 1024
1
1 to 1024
1
2 to 8
2
"common _clock", "independent _clock"
"common _clock"
Description
Defines the width of the LEN ports, s_axi_arlen, s_axi_awlen, m_axi_arlen and m_axi_awlen
Defines the width of the RUSER port, s_axi_ruser and m_axi_ruser
Defines the width of the WUSER port, s_axi_wuser and m_axi_wuser
Specifies the number of synchronization stages on the CDC path. Applicable only if CLOCKING_MODE = "independent_clock"
Designate whether AXI Memory Mapped FIFO is clocked with a common clock or with independent clocks-
� "common_clock"- Common clocking; clock
both write and read domain s_aclk
� "independent_clock"- Independent clocking;
clock write domain with s_aclk and read domain with m_aclk
STRING
"no_ecc", "en_ecc"
"no_ecc"
� "no_ecc" - Disables ECC
� "en_ecc" - Enables both ECC Encoder and
Decoder
STRING
"no_ecc", "en_ecc"
"no_ecc"
� "no_ecc" - Disables ECC
� "en_ecc" - Enables both ECC Encoder and
Decoder
DECIMAL 16 to 4194304 2048 DECIMAL 16 to 4194304 2048 DECIMAL 16 to 4194304 2048 DECIMAL 16 to 4194304 2048 DECIMAL 16 to 4194304 2048
Defines the AXI Memory Mapped FIFO Write Depth, must be power of two NOTE: The maximum FIFO size (width x depth) is limited to 150-Megabits.
Defines the AXI Memory Mapped FIFO Write Depth, must be power of two NOTE: The maximum FIFO size (width x depth) is limited to 150-Megabits.
Defines the AXI Memory Mapped FIFO Write Depth, must be power of two NOTE: The maximum FIFO size (width x depth) is limited to 150-Megabits.
Defines the AXI Memory Mapped FIFO Write Depth, must be power of two NOTE: The maximum FIFO size (width x depth) is limited to 150-Megabits.
Defines the AXI Memory Mapped FIFO Write Depth, must be power of two NOTE: The maximum FIFO size (width x depth) is limited to 150-Megabits.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 67
Chapter 2: Xilinx Parameterized Macros
Attribute FIFO_MEMORY_TYPE _RACH
FIFO_MEMORY_TYPE _RDCH
FIFO_MEMORY_TYPE _WACH
FIFO_MEMORY_TYPE _WDCH
Type STRING
STRING
STRING
STRING
Allowed Values Default
"auto", "block", "auto" "distributed", "ultra"
Description
Designate the fifo memory primitive (resource type) to use-
� "auto"- Allow Vivado Synthesis to choose � "block"- Block RAM FIFO � "distributed"- Distributed RAM FIFO � "ultra"- URAM FIFO
"auto", "block", "auto" "distributed", "ultra"
NOTE: There may be a behavior mismatch if Block RAM or Ultra RAM specific features, like ECC or Asymmetry, are selected with FIFO_MEMORY_TYPE_RACH set to "auto".
Designate the fifo memory primitive (resource type) to use-
� "auto"- Allow Vivado Synthesis to choose
� "block"- Block RAM FIFO
� "distributed"- Distributed RAM FIFO
� "ultra"- URAM FIFO
"auto", "block", "auto" "distributed", "ultra"
NOTE: There may be a behavior mismatch if Block RAM or Ultra RAM specific features, like ECC or Asymmetry, are selected with FIFO_MEMORY_TYPE_RDCH set to "auto".
Designate the fifo memory primitive (resource type) to use-
� "auto"- Allow Vivado Synthesis to choose
� "block"- Block RAM FIFO
� "distributed"- Distributed RAM FIFO
� "ultra"- URAM FIFO
"auto", "block", "auto" "distributed", "ultra"
NOTE: There may be a behavior mismatch if Block RAM or Ultra RAM specific features, like ECC or Asymmetry, are selected with FIFO_MEMORY_TYPE_WACH set to "auto".
Designate the fifo memory primitive (resource type) to use-
� "auto"- Allow Vivado Synthesis to choose
� "block"- Block RAM FIFO
� "distributed"- Distributed RAM FIFO
� "ultra"- URAM FIFO
NOTE: There may be a behavior mismatch if Block RAM or Ultra RAM specific features, like ECC or Asymmetry, are selected with FIFO_MEMORY_TYPE_WDCH set to "auto".
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 68
Chapter 2: Xilinx Parameterized Macros
Attribute FIFO_MEMORY_TYPE _WRCH
PACKET_FIFO
PROG_EMPTY _THRESH_RDCH
PROG_EMPTY _THRESH_WDCH
PROG_FULL_THRESH _RDCH
Type STRING
STRING DECIMAL
DECIMAL
DECIMAL
Allowed Values Default
"auto", "block", "auto" "distributed", "ultra"
"false", "true" "false"
5 to 4194301
10
5 to 4194301
10
5 to 4194301
10
Description
Designate the fifo memory primitive (resource type) to use-
� "auto"- Allow Vivado Synthesis to choose
� "block"- Block RAM FIFO
� "distributed"- Distributed RAM FIFO
� "ultra"- URAM FIFO
NOTE: There may be a behavior mismatch if Block RAM or Ultra RAM specific features, like ECC or Asymmetry, are selected with FIFO_MEMORY_TYPE_WRCH set to "auto".
� "true"- Enables Packet FIFO mode
� "false"- Disables Packet FIFO mode
NOTE: Packet Mode is available only for Common Clock FIFOs.
Specifies the minimum number of read words in the FIFO at or below which prog_empty is asserted.
� Min_Value = 5
� Max_Value = FIFO_WRITE_DEPTH - 5
NOTE: The default threshold value is dependent on default FIFO_WRITE_DEPTH value. If FIFO_WRITE_DEPTH value is changed, ensure the threshold value is within the valid range though the programmable flags are not used.
Specifies the minimum number of read words in the FIFO at or below which prog_empty is asserted.
� Min_Value = 5
� Max_Value = FIFO_WRITE_DEPTH - 5
NOTE: The default threshold value is dependent on default FIFO_WRITE_DEPTH value. If FIFO_WRITE_DEPTH value is changed, ensure the threshold value is within the valid range though the programmable flags are not used.
Specifies the maximum number of write words in the FIFO at or above which prog_full is asserted.
� Min_Value = 5 + CDC_SYNC_STAGES
� Max_Value = FIFO_WRITE_DEPTH - 5
NOTE: The default threshold value is dependent on default FIFO_WRITE_DEPTH value. If FIFO_WRITE_DEPTH value is changed, ensure the threshold value is within the valid range though the programmable flags are not used.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 69
Chapter 2: Xilinx Parameterized Macros
Attribute PROG_FULL_THRESH _WDCH
RD_DATA_COUNT _WIDTH_RDCH RD_DATA_COUNT _WIDTH_WDCH SIM_ASSERT_CHK
USE_ADV_FEATURES _RDCH
Type DECIMAL
DECIMAL DECIMAL DECIMAL STRING
Allowed Values Default
5 to 4194301
10
1 to 23
1
1 to 23
1
0 to 1
0
String
"1000"
Description
Specifies the maximum number of write words in the FIFO at or above which prog_full is asserted.
� Min_Value = 5 + CDC_SYNC_STAGES
� Max_Value = FIFO_WRITE_DEPTH - 5
NOTE: The default threshold value is dependent on default FIFO_WRITE_DEPTH value. If FIFO_WRITE_DEPTH value is changed, ensure the threshold value is within the valid range though the programmable flags are not used.
Specifies the width of rd_data_count_rdch. To reflect the correct value, the width should be log2(FIFO_DEPTH)+1.
Specifies the width of rd_data_count_wdch. To reflect the correct value, the width should be log2(FIFO_DEPTH)+1.
0- Disable simulation message reporting. Messages related to potential misuse will not be reported. 1- Enable simulation message reporting. Messages related to potential misuse will be reported.
Enables rd_data_count_rdch, prog_empty_rdch, wr_data_count_rdch, prog_full_rdch sideband signals.
� Setting USE_ADV_FEATURES_RCCH[1] to 1
enables prog_full_rdch flag; Default value of this bit is 0
� Setting USE_ADV_FEATURES_RCCH[2] to 1
enables wr_data_count_rdch; Default value of this bit is 0
� Setting USE_ADV_FEATURES_RCCH[9] to 1
enables prog_empty_rdch flag; Default value of this bit is 0
� Setting USE_ADV_FEATURES_RCCH[10] to 1
enables rd_data_count_rdch; Default value of this bit is 0
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 70
Chapter 2: Xilinx Parameterized Macros
Attribute USE_ADV_FEATURES _WDCH
WR_DATA_COUNT _WIDTH_RDCH WR_DATA_COUNT _WIDTH_WDCH
Type STRING
Allowed Values Default
String
"1000"
Description
Enables rd_data_count_wdch, prog_empty_wdch, wr_data_count_wdch, prog_full_wdch sideband signals.
� Setting USE_ADV_FEATURES_WDCH[1] to 1
enables prog_full_wdch flag; Default value of this bit is 0
� Setting USE_ADV_FEATURES_WDCH[2] to 1
enables wr_data_count_wdch; Default value of this bit is 0
� Setting USE_ADV_FEATURES_WDCH[9] to 1
enables prog_empty_wdch flag; Default value of this bit is 0
� Setting USE_ADV_FEATURES_WDCH[10] to 1
enables rd_data_count_wdch; Default value of this bit is 0
DECIMAL 1 to 23
1
Specifies the width of wr_data_count_rdch. To
reflect the correct value, the width should be
log2(FIFO_DEPTH)+1.
DECIMAL 1 to 23
1
Specifies the width of wr_data_count_wdch. To
reflect the correct value, the width should be
log2(FIFO_DEPTH)+1.
VHDL Instantiation Template Unless they already exist, copy the following two statements and paste them before the entity declaration.
Library xpm; use xpm.vcomponents.all;
-- xpm_fifo_axif: AXI Memory Mapped (AXI Full) FIFO -- Xilinx Parameterized Macro, version 2019.1
xpm_fifo_axif_inst : xpm_fifo_axif
generic map (
AXI_ADDR_WIDTH => 32,
-- DECIMAL
AXI_ARUSER_WIDTH => 1,
-- DECIMAL
AXI_AWUSER_WIDTH => 1,
-- DECIMAL
AXI_BUSER_WIDTH => 1,
-- DECIMAL
AXI_DATA_WIDTH => 32,
-- DECIMAL
AXI_ID_WIDTH => 1,
-- DECIMAL
AXI_LEN_WIDTH => 8,
-- DECIMAL
AXI_RUSER_WIDTH => 1,
-- DECIMAL
AXI_WUSER_WIDTH => 1,
-- DECIMAL
CDC_SYNC_STAGES => 2,
-- DECIMAL
CLOCKING_MODE => "common_clock", -- String
ECC_MODE_RDCH => "no_ecc",
-- String
ECC_MODE_WDCH => "no_ecc",
-- String
FIFO_DEPTH_RACH => 2048,
-- DECIMAL
FIFO_DEPTH_RDCH => 2048,
-- DECIMAL
FIFO_DEPTH_WACH => 2048,
-- DECIMAL
FIFO_DEPTH_WDCH => 2048,
-- DECIMAL
FIFO_DEPTH_WRCH => 2048,
-- DECIMAL
FIFO_MEMORY_TYPE_RACH => "auto", -- String
FIFO_MEMORY_TYPE_RDCH => "auto", -- String
FIFO_MEMORY_TYPE_WACH => "auto", -- String
FIFO_MEMORY_TYPE_WDCH => "auto", -- String
FIFO_MEMORY_TYPE_WRCH => "auto", -- String
PACKET_FIFO => "false",
-- String
PROG_EMPTY_THRESH_RDCH => 10, -- DECIMAL
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 71
Chapter 2: Xilinx Parameterized Macros
PROG_EMPTY_THRESH_WDCH => 10, -- DECIMAL
PROG_FULL_THRESH_RDCH => 10,
-- DECIMAL
PROG_FULL_THRESH_WDCH => 10,
-- DECIMAL
RD_DATA_COUNT_WIDTH_RDCH => 1, -- DECIMAL
RD_DATA_COUNT_WIDTH_WDCH => 1, -- DECIMAL
SIM_ASSERT_CHK => 0,
-- DECIMAL; 0=disable simulation messages, 1=enable simulation messages
USE_ADV_FEATURES_RDCH => "1000", -- String
USE_ADV_FEATURES_WDCH => "1000", -- String
WR_DATA_COUNT_WIDTH_RDCH => 1, -- DECIMAL
WR_DATA_COUNT_WIDTH_WDCH => 1 -- DECIMAL
)
port map (
dbiterr_rdch => dbiterr_rdch,
-- 1-bit output: Double Bit Error- Indicates that the ECC
-- decoder detected a double-bit error and data in the FIFO
-- core is corrupted.
dbiterr_wdch => dbiterr_wdch,
-- 1-bit output: Double Bit Error- Indicates that the ECC -- decoder detected a double-bit error and data in the FIFO
-- core is corrupted.
m_axi_araddr => m_axi_araddr,
-- AXI_ADDR_WIDTH-bit output: ARADDR: The read address bus -- gives the initial address of a read burst transaction. Only -- the start address of the burst is provided and the control -- signals that are issued alongside the address detail how the -- address is calculated for the remaining transfers in the
-- burst.
m_axi_arburst => m_axi_arburst,
-- 2-bit output: ARBURST: The burst type, coupled with the size -- information, details how the address for each transfer
-- within the burst is calculated.
m_axi_arcache => m_axi_arcache,
-- 2-bit output: ARCACHE: Indicates the bufferable, cacheable, -- write-through, write-back, and allocate attributes of the
-- transaction.
m_axi_arid => m_axi_arid,
-- AXI_ID_WIDTH-bit output: ARID: The data stream identifier -- that indicates different streams of data.
m_axi_arlen => m_axi_arlen,
-- AXI_LEN_WIDTH-bit output: ARLEN: The burst length gives the -- exact number of transfers in a burst. This information -- determines the number of data transfers associated with the
-- address.
m_axi_arlock => m_axi_arlock,
-- 2-bit output: ARLOCK: This signal provides additional -- information about the atomic characteristics of the -- transfer.
m_axi_arprot => m_axi_arprot,
-- 2-bit output: ARPROT: Indicates the normal, privileged, or -- secure protection level of the transaction and whether the -- transaction is a data access or an instruction access.
m_axi_arqos => m_axi_arqos,
-- 2-bit output: ARQOS: Quality of Service (QoS) sent on the -- write address channel for each write transaction.
m_axi_arregion => m_axi_arregion,
-- 2-bit output: ARREGION: Region Identifier sent on the write -- address channel for each write transaction.
m_axi_arsize => m_axi_arsize,
-- 2-bit output: ARSIZE: Indicates the size of each transfer in -- the burst. Byte lane strobes indicate exactly which byte
-- lanes to update.
m_axi_aruser => m_axi_aruser,
-- AXI_ARUSER_WIDTH-bit output: ARUSER: The user-defined -- sideband information that can be transmitted alongside the
-- data stream.
m_axi_arvalid => m_axi_arvalid,
-- 1-bit output: ARVALID: Indicates that the master is driving -- a valid transfer. A transfer takes place when both ARVALID
-- and ARREADY are asserted
m_axi_awaddr => m_axi_awaddr,
-- AXI_ADDR_WIDTH-bit output: AWADDR: The write address bus -- gives the address of the first transfer in a write burst -- transaction. The associated control signals are used to -- determine the addresses of the remaining transfers in the
-- burst.
m_axi_awburst => m_axi_awburst,
-- 2-bit output: AWSIZE: The burst type, coupled with the size -- information, details how the address for each transfer
-- within the burst is calculated.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 72
Chapter 2: Xilinx Parameterized Macros
m_axi_awcache => m_axi_awcache, m_axi_awid => m_axi_awid, m_axi_awlen => m_axi_awlen,
m_axi_awlock => m_axi_awlock, m_axi_awprot => m_axi_awprot, m_axi_awqos => m_axi_awqos, m_axi_awregion => m_axi_awregion, m_axi_awsize => m_axi_awsize, m_axi_awuser => m_axi_awuser, m_axi_awvalid => m_axi_awvalid, m_axi_bready => m_axi_bready, m_axi_rready => m_axi_rready, m_axi_wdata => m_axi_wdata,
m_axi_wlast => m_axi_wlast, m_axi_wstrb => m_axi_wstrb,
m_axi_wuser => m_axi_wuser, m_axi_wvalid => m_axi_wvalid, prog_empty_rdch => prog_empty_rdch,
prog_empty_wdch => prog_empty_wdch,
-- 2-bit output: AWCACHE: Indicates the bufferable, cacheable, -- write-through, write-back, and allocate attributes of the
-- transaction.
-- AXI_ID_WIDTH-bit output: AWID: Identification tag for the -- write address group of signals.
-- AXI_LEN_WIDTH-bit output: AWLEN: The burst length gives the -- exact number of transfers in a burst. This information -- determines the number of data transfers associated with the
-- address.
-- 2-bit output: AWLOCK: This signal provides additional -- information about the atomic characteristics of the -- transfer.
-- 2-bit output: AWPROT: Indicates the normal, privileged, or -- secure protection level of the transaction and whether the -- transaction is a data access or an instruction access.
-- 2-bit output: AWQOS: Quality of Service (QoS) sent on the -- write address channel for each write transaction.
-- 2-bit output: AWREGION: Region Identifier sent on the write -- address channel for each write transaction.
-- 2-bit output: AWSIZE: Indicates the size of each transfer in -- the burst. Byte lane strobes indicate exactly which byte
-- lanes to update.
-- AXI_AWUSER_WIDTH-bit output: AWUSER: The user-defined -- sideband information that can be transmitted alongside the
-- data stream.
-- 1-bit output: AWVALID: Indicates that the master is driving -- a valid transfer. A transfer takes place when both AWVALID
-- and AWREADY are asserted
-- 1-bit output: BREADY: Indicates that the master can accept a -- transfer in the current cycle.
-- 1-bit output: RREADY: Indicates that the master can accept a -- transfer in the current cycle.
-- AXI_DATA_WIDTH-bit output: WDATA: The primary payload that -- is used to provide the data that is passing across the -- interface. The width of the data payload is an integer
-- number of bytes.
-- 1-bit output: WLAST: Indicates the boundary of a packet. -- AXI_DATA_WIDTH-bit output: WSTRB: The byte qualifier that -- indicates whether the content of the associated byte of -- TDATA is processed as a data byte or a position byte. For a -- 64-bit DATA, bit 0 corresponds to the least significant byte -- on DATA, and bit 0 corresponds to the least significant byte -- on DATA, and bit 7 corresponds to the most significant byte. -- For example: STROBE[0] = 1b, DATA[7:0] is valid STROBE[7] =
-- 0b, DATA[63:56] is not valid
-- AXI_WUSER_WIDTH-bit output: WUSER: The user-defined sideband -- information that can be transmitted alongside the data
-- stream.
-- 1-bit output: WVALID: Indicates that the master is driving a -- valid transfer. A transfer takes place when both WVALID and
-- WREADY are asserted
-- 1-bit output: Programmable Empty- This signal is asserted -- when the number of words in the Read Data Channel FIFO is -- less than or equal to the programmable empty threshold -- value. It is de-asserted when the number of words in the -- Read Data Channel FIFO exceeds the programmable empty
-- threshold value.
-- 1-bit output: Programmable Empty- This signal is asserted -- when the number of words in the Write Data Channel FIFO is -- less than or equal to the programmable empty threshold -- value. It is de-asserted when the number of words in the -- Write Data Channel FIFO exceeds the programmable empty
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 73
Chapter 2: Xilinx Parameterized Macros
-- threshold value.
prog_full_rdch => prog_full_rdch,
-- 1-bit output: Programmable Full: This signal is asserted -- when the number of words in the Read Data Channel FIFO is -- greater than or equal to the programmable full threshold -- value. It is de-asserted when the number of words in the -- Read Data Channel FIFO is less than the programmable full
-- threshold value.
prog_full_wdch => prog_full_wdch,
-- 1-bit output: Programmable Full: This signal is asserted -- when the number of words in the Write Data Channel FIFO is -- greater than or equal to the programmable full threshold -- value. It is de-asserted when the number of words in the -- Write Data Channel FIFO is less than the programmable full
-- threshold value.
rd_data_count_rdch => rd_data_count_rdch, -- RD_DATA_COUNT_WIDTH_RDCH-bit output: Read Data Count- This -- bus indicates the number of words available for reading in -- the Read Data Channel FIFO.
rd_data_count_wdch => rd_data_count_wdch, -- RD_DATA_COUNT_WIDTH_WDCH-bit output: Read Data Count- This -- bus indicates the number of words available for reading in -- the Write Data Channel FIFO.
s_axi_arready => s_axi_arready,
-- 1-bit output: ARREADY: Indicates that the slave can accept a -- transfer in the current cycle.
s_axi_awready => s_axi_awready,
-- 1-bit output: AWREADY: Indicates that the slave can accept a -- transfer in the current cycle.
s_axi_bid => s_axi_bid,
-- AXI_ID_WIDTH-bit output: BID: The data stream identifier -- that indicates different streams of data.
s_axi_bresp => s_axi_bresp,
-- 2-bit output: BRESP: Indicates the status of the write -- transaction. The allowable responses are OKAY, EXOKAY,
-- SLVERR, and DECERR.
s_axi_buser => s_axi_buser,
-- AXI_BUSER_WIDTH-bit output: BUSER: The user-defined sideband -- information that can be transmitted alongside the data
-- stream.
s_axi_bvalid => s_axi_bvalid,
-- 1-bit output: BVALID: Indicates that the master is driving a -- valid transfer. A transfer takes place when both BVALID and
-- BREADY are asserted
s_axi_rdata => s_axi_rdata,
-- AXI_DATA_WIDTH-bit output: RDATA: The primary payload that -- is used to provide the data that is passing across the -- interface. The width of the data payload is an integer
-- number of bytes.
s_axi_rid => s_axi_rid,
-- AXI_ID_WIDTH-bit output: RID: The data stream identifier -- that indicates different streams of data.
s_axi_rlast => s_axi_rlast, s_axi_rresp => s_axi_rresp,
-- 1-bit output: RLAST: Indicates the boundary of a packet. -- 2-bit output: RRESP: Indicates the status of the read -- transfer. The allowable responses are OKAY, EXOKAY, SLVERR,
-- and DECERR.
s_axi_ruser => s_axi_ruser,
-- AXI_RUSER_WIDTH-bit output: RUSER: The user-defined sideband -- information that can be transmitted alongside the data
-- stream.
s_axi_rvalid => s_axi_rvalid,
-- 1-bit output: RVALID: Indicates that the master is driving a -- valid transfer. A transfer takes place when both RVALID and
-- RREADY are asserted
s_axi_wready => s_axi_wready,
-- 1-bit output: WREADY: Indicates that the slave can accept a -- transfer in the current cycle.
sbiterr_rdch => sbiterr_rdch,
-- 1-bit output: Single Bit Error- Indicates that the ECC -- decoder detected and fixed a single-bit error.
sbiterr_wdch => sbiterr_wdch,
-- 1-bit output: Single Bit Error- Indicates that the ECC -- decoder detected and fixed a single-bit error.
wr_data_count_rdch => wr_data_count_rdch, -- WR_DATA_COUNT_WIDTH_RDCH-bit output: Write Data Count: This -- bus indicates the number of words written into the Read Data -- Channel FIFO.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 74
Chapter 2: Xilinx Parameterized Macros
wr_data_count_wdch => wr_data_count_wdch, -- WR_DATA_COUNT_WIDTH_WDCH-bit output: Write Data Count: This -- bus indicates the number of words written into the Write -- Data Channel FIFO.
injectdbiterr_rdch => injectdbiterr_rdch, -- 1-bit input: Double Bit Error Injection- Injects a double -- bit error if the ECC feature is used.
injectdbiterr_wdch => injectdbiterr_wdch, -- 1-bit input: Double Bit Error Injection- Injects a double -- bit error if the ECC feature is used.
injectsbiterr_rdch => injectsbiterr_rdch, -- 1-bit input: Single Bit Error Injection- Injects a single -- bit error if the ECC feature is used.
injectsbiterr_wdch => injectsbiterr_wdch, -- 1-bit input: Single Bit Error Injection- Injects a single -- bit error if the ECC feature is used.
m_aclk => m_aclk,
-- 1-bit input: Master Interface Clock: All signals on master -- interface are sampled on the rising edge of this clock.
m_axi_arready => m_axi_arready,
-- 1-bit input: ARREADY: Indicates that the master can accept a -- transfer in the current cycle.
m_axi_awready => m_axi_awready,
-- 1-bit input: AWREADY: Indicates that the master can accept a -- transfer in the current cycle.
m_axi_bid => m_axi_bid,
-- AXI_ID_WIDTH-bit input: BID: The data stream identifier that -- indicates different streams of data.
m_axi_bresp => m_axi_bresp,
-- 2-bit input: BRESP: Indicates the status of the write -- transaction. The allowable responses are OKAY, EXOKAY,
-- SLVERR, and DECERR.
m_axi_buser => m_axi_buser,
-- AXI_BUSER_WIDTH-bit input: BUSER: The user-defined sideband -- information that can be transmitted alongside the data
-- stream.
m_axi_bvalid => m_axi_bvalid,
-- 1-bit input: BVALID: Indicates that the master is driving a -- valid transfer. A transfer takes place when both BVALID and
-- BREADY are asserted
m_axi_rdata => m_axi_rdata,
-- AXI_DATA_WIDTH-bit input: RDATA: The primary payload that is -- used to provide the data that is passing across the
-- interface. The width of the data payload is an integer -- number of bytes.
m_axi_rid => m_axi_rid,
-- AXI_ID_WIDTH-bit input: RID: The data stream identifier that -- indicates different streams of data.
m_axi_rlast => m_axi_rlast, m_axi_rresp => m_axi_rresp,
-- 1-bit input: RLAST: Indicates the boundary of a packet. -- 2-bit input: RRESP: Indicates the status of the read
-- transfer. The allowable responses are OKAY, EXOKAY, SLVERR, -- and DECERR.
m_axi_ruser => m_axi_ruser,
-- AXI_RUSER_WIDTH-bit input: RUSER: The user-defined sideband -- information that can be transmitted alongside the data
-- stream.
m_axi_rvalid => m_axi_rvalid,
-- 1-bit input: RVALID: Indicates that the master is driving a -- valid transfer. A transfer takes place when both RVALID and
-- RREADY are asserted
m_axi_wready => m_axi_wready,
-- 1-bit input: WREADY: Indicates that the master can accept a -- transfer in the current cycle.
s_aclk => s_aclk,
-- 1-bit input: Slave Interface Clock: All signals on slave -- interface are sampled on the rising edge of this clock.
s_aresetn => s_aresetn, s_axi_araddr => s_axi_araddr,
-- 1-bit input: Active low asynchronous reset. -- AXI_ADDR_WIDTH-bit input: ARADDR: The read address bus gives -- the initial address of a read burst transaction. Only the -- start address of the burst is provided and the control -- signals that are issued alongside the address detail how the -- address is calculated for the remaining transfers in the
-- burst.
s_axi_arburst => s_axi_arburst,
-- 2-bit input: ARBURST: The burst type, coupled with the size -- information, details how the address for each transfer
-- within the burst is calculated.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 75
Chapter 2: Xilinx Parameterized Macros
s_axi_arcache => s_axi_arcache, s_axi_arid => s_axi_arid, s_axi_arlen => s_axi_arlen,
s_axi_arlock => s_axi_arlock, s_axi_arprot => s_axi_arprot, s_axi_arqos => s_axi_arqos, s_axi_arregion => s_axi_arregion, s_axi_arsize => s_axi_arsize, s_axi_aruser => s_axi_aruser, s_axi_arvalid => s_axi_arvalid, s_axi_awaddr => s_axi_awaddr,
s_axi_awburst => s_axi_awburst, s_axi_awcache => s_axi_awcache, s_axi_awid => s_axi_awid, s_axi_awlen => s_axi_awlen,
s_axi_awlock => s_axi_awlock, s_axi_awprot => s_axi_awprot, s_axi_awqos => s_axi_awqos, s_axi_awregion => s_axi_awregion, s_axi_awsize => s_axi_awsize, s_axi_awuser => s_axi_awuser,
-- 2-bit input: ARCACHE: Indicates the bufferable, cacheable, -- write-through, write-back, and allocate attributes of the
-- transaction.
-- AXI_ID_WIDTH-bit input: ARID: The data stream identifier -- that indicates different streams of data.
-- AXI_LEN_WIDTH-bit input: ARLEN: The burst length gives the -- exact number of transfers in a burst. This information -- determines the number of data transfers associated with the
-- address.
-- 2-bit input: ARLOCK: This signal provides additional -- information about the atomic characteristics of the -- transfer.
-- 2-bit input: ARPROT: Indicates the normal, privileged, or -- secure protection level of the transaction and whether the -- transaction is a data access or an instruction access.
-- 2-bit input: ARQOS: Quality of Service (QoS) sent on the -- write address channel for each write transaction.
-- 2-bit input: ARREGION: Region Identifier sent on the write -- address channel for each write transaction.
-- 2-bit input: ARSIZE: Indicates the size of each transfer in -- the burst. Byte lane strobes indicate exactly which byte
-- lanes to update.
-- AXI_ARUSER_WIDTH-bit input: ARUSER: The user-defined -- sideband information that can be transmitted alongside the
-- data stream.
-- 1-bit input: ARVALID: Indicates that the master is driving a -- valid transfer. A transfer takes place when both ARVALID and
-- ARREADY are asserted
-- AXI_ADDR_WIDTH-bit input: AWADDR: The write address bus -- gives the address of the first transfer in a write burst -- transaction. The associated control signals are used to -- determine the addresses of the remaining transfers in the
-- burst.
-- 2-bit input: AWBURST: The burst type, coupled with the size -- information, details how the address for each transfer
-- within the burst is calculated.
-- 2-bit input: AWCACHE: Indicates the bufferable, cacheable, -- write-through, write-back, and allocate attributes of the
-- transaction.
-- AXI_ID_WIDTH-bit input: AWID: Identification tag for the -- write address group of signals.
-- AXI_LEN_WIDTH-bit input: AWLEN: The burst length gives the -- exact number of transfers in a burst. This information -- determines the number of data transfers associated with the
-- address.
-- 2-bit input: AWLOCK: This signal provides additional -- information about the atomic characteristics of the -- transfer.
-- 2-bit input: AWPROT: Indicates the normal, privileged, or -- secure protection level of the transaction and whether the -- transaction is a data access or an instruction access.
-- 2-bit input: AWQOS: Quality of Service (QoS) sent on the -- write address channel for each write transaction.
-- 2-bit input: AWREGION: Region Identifier sent on the write -- address channel for each write transaction.
-- 2-bit input: AWSIZE: Indicates the size of each transfer in -- the burst. Byte lane strobes indicate exactly which byte
-- lanes to update.
-- AXI_AWUSER_WIDTH-bit input: AWUSER: The user-defined
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 76
Chapter 2: Xilinx Parameterized Macros
-- sideband information that can be transmitted alongside the -- data stream.
s_axi_awvalid => s_axi_awvalid,
-- 1-bit input: AWVALID: Indicates that the master is driving a -- valid transfer. A transfer takes place when both AWVALID and
-- AWREADY are asserted
s_axi_bready => s_axi_bready,
-- 1-bit input: BREADY: Indicates that the slave can accept a -- transfer in the current cycle.
s_axi_rready => s_axi_rready,
-- 1-bit input: RREADY: Indicates that the slave can accept a -- transfer in the current cycle.
s_axi_wdata => s_axi_wdata,
-- AXI_DATA_WIDTH-bit input: WDATA: The primary payload that is -- used to provide the data that is passing across the
-- interface. The width of the data payload is an integer -- number of bytes.
s_axi_wlast => s_axi_wlast, s_axi_wstrb => s_axi_wstrb,
-- 1-bit input: WLAST: Indicates the boundary of a packet. -- AXI_DATA_WIDTH-bit input: WSTRB: The byte qualifier that -- indicates whether the content of the associated byte of -- TDATA is processed as a data byte or a position byte. For a -- 64-bit DATA, bit 0 corresponds to the least significant byte -- on DATA, and bit 0 corresponds to the least significant byte -- on DATA, and bit 7 corresponds to the most significant byte. -- For example: STROBE[0] = 1b, DATA[7:0] is valid STROBE[7] =
-- 0b, DATA[63:56] is not valid
s_axi_wuser => s_axi_wuser,
-- AXI_WUSER_WIDTH-bit input: WUSER: The user-defined sideband -- information that can be transmitted alongside the data
-- stream.
s_axi_wvalid => s_axi_wvalid
-- 1-bit input: WVALID: Indicates that the master is driving a -- valid transfer. A transfer takes place when both WVALID and
-- WREADY are asserted
);
-- End of xpm_fifo_axif_inst instantiation
Verilog Instantiation Template
// xpm_fifo_axif: AXI Memory Mapped (AXI Full) FIFO // Xilinx Parameterized Macro, version 2019.1
xpm_fifo_axif #(
.AXI_ADDR_WIDTH(32),
// DECIMAL
.AXI_ARUSER_WIDTH(1),
// DECIMAL
.AXI_AWUSER_WIDTH(1),
// DECIMAL
.AXI_BUSER_WIDTH(1),
// DECIMAL
.AXI_DATA_WIDTH(32),
// DECIMAL
.AXI_ID_WIDTH(1),
// DECIMAL
.AXI_LEN_WIDTH(8),
// DECIMAL
.AXI_RUSER_WIDTH(1),
// DECIMAL
.AXI_WUSER_WIDTH(1),
// DECIMAL
.CDC_SYNC_STAGES(2),
// DECIMAL
.CLOCKING_MODE("common_clock"), // String
.ECC_MODE_RDCH("no_ecc"),
// String
.ECC_MODE_WDCH("no_ecc"),
// String
.FIFO_DEPTH_RACH(2048),
// DECIMAL
.FIFO_DEPTH_RDCH(2048),
// DECIMAL
.FIFO_DEPTH_WACH(2048),
// DECIMAL
.FIFO_DEPTH_WDCH(2048),
// DECIMAL
.FIFO_DEPTH_WRCH(2048),
// DECIMAL
.FIFO_MEMORY_TYPE_RACH("auto"), // String
.FIFO_MEMORY_TYPE_RDCH("auto"), // String
.FIFO_MEMORY_TYPE_WACH("auto"), // String
.FIFO_MEMORY_TYPE_WDCH("auto"), // String
.FIFO_MEMORY_TYPE_WRCH("auto"), // String
.PACKET_FIFO("false"),
// String
.PROG_EMPTY_THRESH_RDCH(10), // DECIMAL
.PROG_EMPTY_THRESH_WDCH(10), // DECIMAL
.PROG_FULL_THRESH_RDCH(10),
// DECIMAL
.PROG_FULL_THRESH_WDCH(10),
// DECIMAL
.RD_DATA_COUNT_WIDTH_RDCH(1), // DECIMAL
.RD_DATA_COUNT_WIDTH_WDCH(1), // DECIMAL
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 77
Chapter 2: Xilinx Parameterized Macros
.SIM_ASSERT_CHK(0),
// DECIMAL; 0=disable simulation messages, 1=enable simulation messages
.USE_ADV_FEATURES_RDCH("1000"), // String
.USE_ADV_FEATURES_WDCH("1000"), // String
.WR_DATA_COUNT_WIDTH_RDCH(1), // DECIMAL
.WR_DATA_COUNT_WIDTH_WDCH(1) // DECIMAL
)
xpm_fifo_axif_inst (
.dbiterr_rdch(dbiterr_rdch),
// 1-bit output: Double Bit Error- Indicates that the ECC
// decoder detected a double-bit error and data in the FIFO core
// is corrupted.
.dbiterr_wdch(dbiterr_wdch),
// 1-bit output: Double Bit Error- Indicates that the ECC // decoder detected a double-bit error and data in the FIFO core
// is corrupted.
.m_axi_araddr(m_axi_araddr),
// AXI_ADDR_WIDTH-bit output: ARADDR: The read address bus gives // the initial address of a read burst transaction. Only the // start address of the burst is provided and the control // signals that are issued alongside the address detail how the // address is calculated for the remaining transfers in the
// burst.
.m_axi_arburst(m_axi_arburst),
// 2-bit output: ARBURST: The burst type, coupled with the size // information, details how the address for each transfer within
// the burst is calculated.
.m_axi_arcache(m_axi_arcache),
// 2-bit output: ARCACHE: Indicates the bufferable, cacheable, // write-through, write-back, and allocate attributes of the
// transaction.
.m_axi_arid(m_axi_arid),
// AXI_ID_WIDTH-bit output: ARID: The data stream identifier // that indicates different streams of data.
.m_axi_arlen(m_axi_arlen),
// AXI_LEN_WIDTH-bit output: ARLEN: The burst length gives the // exact number of transfers in a burst. This information // determines the number of data transfers associated with the
// address.
.m_axi_arlock(m_axi_arlock),
// 2-bit output: ARLOCK: This signal provides additional // information about the atomic characteristics of the transfer.
.m_axi_arprot(m_axi_arprot),
// 2-bit output: ARPROT: Indicates the normal, privileged, or // secure protection level of the transaction and whether the // transaction is a data access or an instruction access.
.m_axi_arqos(m_axi_arqos),
// 2-bit output: ARQOS: Quality of Service (QoS) sent on the // write address channel for each write transaction.
.m_axi_arregion(m_axi_arregion),
// 2-bit output: ARREGION: Region Identifier sent on the write // address channel for each write transaction.
.m_axi_arsize(m_axi_arsize),
// 2-bit output: ARSIZE: Indicates the size of each transfer in // the burst. Byte lane strobes indicate exactly which byte
// lanes to update.
.m_axi_aruser(m_axi_aruser),
// AXI_ARUSER_WIDTH-bit output: ARUSER: The user-defined // sideband information that can be transmitted alongside the
// data stream.
.m_axi_arvalid(m_axi_arvalid),
// 1-bit output: ARVALID: Indicates that the master is driving a // valid transfer. A transfer takes place when both ARVALID and
// ARREADY are asserted
.m_axi_awaddr(m_axi_awaddr),
// AXI_ADDR_WIDTH-bit output: AWADDR: The write address bus // gives the address of the first transfer in a write burst // transaction. The associated control signals are used to // determine the addresses of the remaining transfers in the
// burst.
.m_axi_awburst(m_axi_awburst),
// 2-bit output: AWSIZE: The burst type, coupled with the size // information, details how the address for each transfer within
// the burst is calculated.
.m_axi_awcache(m_axi_awcache),
// 2-bit output: AWCACHE: Indicates the bufferable, cacheable, // write-through, write-back, and allocate attributes of the
// transaction.
.m_axi_awid(m_axi_awid),
// AXI_ID_WIDTH-bit output: AWID: Identification tag for the // write address group of signals.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 78
Chapter 2: Xilinx Parameterized Macros
.m_axi_awlen(m_axi_awlen), .m_axi_awlock(m_axi_awlock), .m_axi_awprot(m_axi_awprot), .m_axi_awqos(m_axi_awqos), .m_axi_awregion(m_axi_awregion), .m_axi_awsize(m_axi_awsize), .m_axi_awuser(m_axi_awuser), .m_axi_awvalid(m_axi_awvalid), .m_axi_bready(m_axi_bready), .m_axi_rready(m_axi_rready), .m_axi_wdata(m_axi_wdata), .m_axi_wlast(m_axi_wlast), .m_axi_wstrb(m_axi_wstrb),
.m_axi_wuser(m_axi_wuser), .m_axi_wvalid(m_axi_wvalid), .prog_empty_rdch(prog_empty_rdch),
.prog_empty_wdch(prog_empty_wdch),
.prog_full_rdch(prog_full_rdch),
.prog_full_wdch(prog_full_wdch),
// AXI_LEN_WIDTH-bit output: AWLEN: The burst length gives the // exact number of transfers in a burst. This information // determines the number of data transfers associated with the
// address.
// 2-bit output: AWLOCK: This signal provides additional // information about the atomic characteristics of the transfer.
// 2-bit output: AWPROT: Indicates the normal, privileged, or // secure protection level of the transaction and whether the // transaction is a data access or an instruction access.
// 2-bit output: AWQOS: Quality of Service (QoS) sent on the // write address channel for each write transaction.
// 2-bit output: AWREGION: Region Identifier sent on the write // address channel for each write transaction.
// 2-bit output: AWSIZE: Indicates the size of each transfer in // the burst. Byte lane strobes indicate exactly which byte
// lanes to update.
// AXI_AWUSER_WIDTH-bit output: AWUSER: The user-defined // sideband information that can be transmitted alongside the
// data stream.
// 1-bit output: AWVALID: Indicates that the master is driving a // valid transfer. A transfer takes place when both AWVALID and
// AWREADY are asserted
// 1-bit output: BREADY: Indicates that the master can accept a // transfer in the current cycle.
// 1-bit output: RREADY: Indicates that the master can accept a // transfer in the current cycle.
// AXI_DATA_WIDTH-bit output: WDATA: The primary payload that is // used to provide the data that is passing across the
// interface. The width of the data payload is an integer number // of bytes.
// 1-bit output: WLAST: Indicates the boundary of a packet. // AXI_DATA_WIDTH-bit output: WSTRB: The byte qualifier that // indicates whether the content of the associated byte of TDATA // is processed as a data byte or a position byte. For a 64-bit // DATA, bit 0 corresponds to the least significant byte on // DATA, and bit 0 corresponds to the least significant byte on // DATA, and bit 7 corresponds to the most significant byte. For // example: STROBE[0] = 1b, DATA[7:0] is valid STROBE[7] = 0b,
// DATA[63:56] is not valid
// AXI_WUSER_WIDTH-bit output: WUSER: The user-defined sideband // information that can be transmitted alongside the data
// stream.
// 1-bit output: WVALID: Indicates that the master is driving a // valid transfer. A transfer takes place when both WVALID and
// WREADY are asserted
// 1-bit output: Programmable Empty- This signal is asserted // when the number of words in the Read Data Channel FIFO is // less than or equal to the programmable empty threshold value. // It is de-asserted when the number of words in the Read Data // Channel FIFO exceeds the programmable empty threshold value.
// 1-bit output: Programmable Empty- This signal is asserted // when the number of words in the Write Data Channel FIFO is // less than or equal to the programmable empty threshold value. // It is de-asserted when the number of words in the Write Data // Channel FIFO exceeds the programmable empty threshold value.
// 1-bit output: Programmable Full: This signal is asserted when // the number of words in the Read Data Channel FIFO is greater // than or equal to the programmable full threshold value. It is // de-asserted when the number of words in the Read Data Channel // FIFO is less than the programmable full threshold value.
// 1-bit output: Programmable Full: This signal is asserted when
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 79
Chapter 2: Xilinx Parameterized Macros
// the number of words in the Write Data Channel FIFO is greater // than or equal to the programmable full threshold value. It is // de-asserted when the number of words in the Write Data // Channel FIFO is less than the programmable full threshold
// value.
.rd_data_count_rdch(rd_data_count_rdch), // RD_DATA_COUNT_WIDTH_RDCH-bit output: Read Data Count- This // bus indicates the number of words available for reading in // the Read Data Channel FIFO.
.rd_data_count_wdch(rd_data_count_wdch), // RD_DATA_COUNT_WIDTH_WDCH-bit output: Read Data Count- This // bus indicates the number of words available for reading in // the Write Data Channel FIFO.
.s_axi_arready(s_axi_arready),
// 1-bit output: ARREADY: Indicates that the slave can accept a // transfer in the current cycle.
.s_axi_awready(s_axi_awready),
// 1-bit output: AWREADY: Indicates that the slave can accept a // transfer in the current cycle.
.s_axi_bid(s_axi_bid),
// AXI_ID_WIDTH-bit output: BID: The data stream identifier that // indicates different streams of data.
.s_axi_bresp(s_axi_bresp),
// 2-bit output: BRESP: Indicates the status of the write // transaction. The allowable responses are OKAY, EXOKAY,
// SLVERR, and DECERR.
.s_axi_buser(s_axi_buser),
// AXI_BUSER_WIDTH-bit output: BUSER: The user-defined sideband // information that can be transmitted alongside the data
// stream.
.s_axi_bvalid(s_axi_bvalid),
// 1-bit output: BVALID: Indicates that the master is driving a // valid transfer. A transfer takes place when both BVALID and
// BREADY are asserted
.s_axi_rdata(s_axi_rdata),
// AXI_DATA_WIDTH-bit output: RDATA: The primary payload that is // used to provide the data that is passing across the
// interface. The width of the data payload is an integer number // of bytes.
.s_axi_rid(s_axi_rid),
// AXI_ID_WIDTH-bit output: RID: The data stream identifier that // indicates different streams of data.
.s_axi_rlast(s_axi_rlast), .s_axi_rresp(s_axi_rresp),
// 1-bit output: RLAST: Indicates the boundary of a packet. // 2-bit output: RRESP: Indicates the status of the read
// transfer. The allowable responses are OKAY, EXOKAY, SLVERR, // and DECERR.
.s_axi_ruser(s_axi_ruser),
// AXI_RUSER_WIDTH-bit output: RUSER: The user-defined sideband // information that can be transmitted alongside the data
// stream.
.s_axi_rvalid(s_axi_rvalid),
// 1-bit output: RVALID: Indicates that the master is driving a // valid transfer. A transfer takes place when both RVALID and
// RREADY are asserted
.s_axi_wready(s_axi_wready),
// 1-bit output: WREADY: Indicates that the slave can accept a // transfer in the current cycle.
.sbiterr_rdch(sbiterr_rdch),
// 1-bit output: Single Bit Error- Indicates that the ECC // decoder detected and fixed a single-bit error.
.sbiterr_wdch(sbiterr_wdch),
// 1-bit output: Single Bit Error- Indicates that the ECC // decoder detected and fixed a single-bit error.
.wr_data_count_rdch(wr_data_count_rdch), // WR_DATA_COUNT_WIDTH_RDCH-bit output: Write Data Count: This // bus indicates the number of words written into the Read Data // Channel FIFO.
.wr_data_count_wdch(wr_data_count_wdch), // WR_DATA_COUNT_WIDTH_WDCH-bit output: Write Data Count: This // bus indicates the number of words written into the Write Data // Channel FIFO.
.injectdbiterr_rdch(injectdbiterr_rdch), // 1-bit input: Double Bit Error Injection- Injects a double bit // error if the ECC feature is used.
.injectdbiterr_wdch(injectdbiterr_wdch), // 1-bit input: Double Bit Error Injection- Injects a double bit // error if the ECC feature is used.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 80
Chapter 2: Xilinx Parameterized Macros
.injectsbiterr_rdch(injectsbiterr_rdch), // 1-bit input: Single Bit Error Injection- Injects a single bit // error if the ECC feature is used.
.injectsbiterr_wdch(injectsbiterr_wdch), // 1-bit input: Single Bit Error Injection- Injects a single bit // error if the ECC feature is used.
.m_aclk(m_aclk),
// 1-bit input: Master Interface Clock: All signals on master // interface are sampled on the rising edge of this clock.
.m_axi_arready(m_axi_arready),
// 1-bit input: ARREADY: Indicates that the master can accept a // transfer in the current cycle.
.m_axi_awready(m_axi_awready),
// 1-bit input: AWREADY: Indicates that the master can accept a // transfer in the current cycle.
.m_axi_bid(m_axi_bid),
// AXI_ID_WIDTH-bit input: BID: The data stream identifier that // indicates different streams of data.
.m_axi_bresp(m_axi_bresp),
// 2-bit input: BRESP: Indicates the status of the write // transaction. The allowable responses are OKAY, EXOKAY,
// SLVERR, and DECERR.
.m_axi_buser(m_axi_buser),
// AXI_BUSER_WIDTH-bit input: BUSER: The user-defined sideband // information that can be transmitted alongside the data
// stream.
.m_axi_bvalid(m_axi_bvalid),
// 1-bit input: BVALID: Indicates that the master is driving a // valid transfer. A transfer takes place when both BVALID and
// BREADY are asserted
.m_axi_rdata(m_axi_rdata),
// AXI_DATA_WIDTH-bit input: RDATA: The primary payload that is // used to provide the data that is passing across the
// interface. The width of the data payload is an integer number // of bytes.
.m_axi_rid(m_axi_rid),
// AXI_ID_WIDTH-bit input: RID: The data stream identifier that // indicates different streams of data.
.m_axi_rlast(m_axi_rlast), .m_axi_rresp(m_axi_rresp),
// 1-bit input: RLAST: Indicates the boundary of a packet. // 2-bit input: RRESP: Indicates the status of the read
// transfer. The allowable responses are OKAY, EXOKAY, SLVERR, // and DECERR.
.m_axi_ruser(m_axi_ruser),
// AXI_RUSER_WIDTH-bit input: RUSER: The user-defined sideband // information that can be transmitted alongside the data
// stream.
.m_axi_rvalid(m_axi_rvalid),
// 1-bit input: RVALID: Indicates that the master is driving a // valid transfer. A transfer takes place when both RVALID and
// RREADY are asserted
.m_axi_wready(m_axi_wready),
// 1-bit input: WREADY: Indicates that the master can accept a // transfer in the current cycle.
.s_aclk(s_aclk),
// 1-bit input: Slave Interface Clock: All signals on slave // interface are sampled on the rising edge of this clock.
.s_aresetn(s_aresetn), .s_axi_araddr(s_axi_araddr),
// 1-bit input: Active low asynchronous reset. // AXI_ADDR_WIDTH-bit input: ARADDR: The read address bus gives // the initial address of a read burst transaction. Only the // start address of the burst is provided and the control // signals that are issued alongside the address detail how the // address is calculated for the remaining transfers in the
// burst.
.s_axi_arburst(s_axi_arburst),
// 2-bit input: ARBURST: The burst type, coupled with the size // information, details how the address for each transfer within
// the burst is calculated.
.s_axi_arcache(s_axi_arcache),
// 2-bit input: ARCACHE: Indicates the bufferable, cacheable, // write-through, write-back, and allocate attributes of the
// transaction.
.s_axi_arid(s_axi_arid),
// AXI_ID_WIDTH-bit input: ARID: The data stream identifier that // indicates different streams of data.
.s_axi_arlen(s_axi_arlen),
// AXI_LEN_WIDTH-bit input: ARLEN: The burst length gives the // exact number of transfers in a burst. This information // determines the number of data transfers associated with the
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 81
Chapter 2: Xilinx Parameterized Macros
.s_axi_arlock(s_axi_arlock), .s_axi_arprot(s_axi_arprot), .s_axi_arqos(s_axi_arqos), .s_axi_arregion(s_axi_arregion), .s_axi_arsize(s_axi_arsize), .s_axi_aruser(s_axi_aruser), .s_axi_arvalid(s_axi_arvalid), .s_axi_awaddr(s_axi_awaddr),
.s_axi_awburst(s_axi_awburst), .s_axi_awcache(s_axi_awcache), .s_axi_awid(s_axi_awid), .s_axi_awlen(s_axi_awlen),
.s_axi_awlock(s_axi_awlock), .s_axi_awprot(s_axi_awprot), .s_axi_awqos(s_axi_awqos), .s_axi_awregion(s_axi_awregion), .s_axi_awsize(s_axi_awsize), .s_axi_awuser(s_axi_awuser), .s_axi_awvalid(s_axi_awvalid), .s_axi_bready(s_axi_bready), .s_axi_rready(s_axi_rready),
// address.
// 2-bit input: ARLOCK: This signal provides additional // information about the atomic characteristics of the transfer.
// 2-bit input: ARPROT: Indicates the normal, privileged, or // secure protection level of the transaction and whether the // transaction is a data access or an instruction access.
// 2-bit input: ARQOS: Quality of Service (QoS) sent on the // write address channel for each write transaction.
// 2-bit input: ARREGION: Region Identifier sent on the write // address channel for each write transaction.
// 2-bit input: ARSIZE: Indicates the size of each transfer in // the burst. Byte lane strobes indicate exactly which byte
// lanes to update.
// AXI_ARUSER_WIDTH-bit input: ARUSER: The user-defined sideband // information that can be transmitted alongside the data
// stream.
// 1-bit input: ARVALID: Indicates that the master is driving a // valid transfer. A transfer takes place when both ARVALID and
// ARREADY are asserted
// AXI_ADDR_WIDTH-bit input: AWADDR: The write address bus gives // the address of the first transfer in a write burst
// transaction. The associated control signals are used to // determine the addresses of the remaining transfers in the
// burst.
// 2-bit input: AWBURST: The burst type, coupled with the size // information, details how the address for each transfer within
// the burst is calculated.
// 2-bit input: AWCACHE: Indicates the bufferable, cacheable, // write-through, write-back, and allocate attributes of the
// transaction.
// AXI_ID_WIDTH-bit input: AWID: Identification tag for the // write address group of signals.
// AXI_LEN_WIDTH-bit input: AWLEN: The burst length gives the // exact number of transfers in a burst. This information // determines the number of data transfers associated with the
// address.
// 2-bit input: AWLOCK: This signal provides additional // information about the atomic characteristics of the transfer.
// 2-bit input: AWPROT: Indicates the normal, privileged, or // secure protection level of the transaction and whether the // transaction is a data access or an instruction access.
// 2-bit input: AWQOS: Quality of Service (QoS) sent on the // write address channel for each write transaction.
// 2-bit input: AWREGION: Region Identifier sent on the write // address channel for each write transaction.
// 2-bit input: AWSIZE: Indicates the size of each transfer in // the burst. Byte lane strobes indicate exactly which byte
// lanes to update.
// AXI_AWUSER_WIDTH-bit input: AWUSER: The user-defined sideband // information that can be transmitted alongside the data
// stream.
// 1-bit input: AWVALID: Indicates that the master is driving a // valid transfer. A transfer takes place when both AWVALID and
// AWREADY are asserted
// 1-bit input: BREADY: Indicates that the slave can accept a // transfer in the current cycle.
// 1-bit input: RREADY: Indicates that the slave can accept a // transfer in the current cycle.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 82
Chapter 2: Xilinx Parameterized Macros
.s_axi_wdata(s_axi_wdata),
// AXI_DATA_WIDTH-bit input: WDATA: The primary payload that is // used to provide the data that is passing across the
// interface. The width of the data payload is an integer number // of bytes.
.s_axi_wlast(s_axi_wlast), .s_axi_wstrb(s_axi_wstrb),
// 1-bit input: WLAST: Indicates the boundary of a packet. // AXI_DATA_WIDTH-bit input: WSTRB: The byte qualifier that // indicates whether the content of the associated byte of TDATA // is processed as a data byte or a position byte. For a 64-bit // DATA, bit 0 corresponds to the least significant byte on // DATA, and bit 0 corresponds to the least significant byte on // DATA, and bit 7 corresponds to the most significant byte. For // example: STROBE[0] = 1b, DATA[7:0] is valid STROBE[7] = 0b,
// DATA[63:56] is not valid
.s_axi_wuser(s_axi_wuser),
// AXI_WUSER_WIDTH-bit input: WUSER: The user-defined sideband // information that can be transmitted alongside the data
// stream.
.s_axi_wvalid(s_axi_wvalid)
// 1-bit input: WVALID: Indicates that the master is driving a // valid transfer. A transfer takes place when both WVALID and
// WREADY are asserted
);
// End of xpm_fifo_axif_inst instantiation
For More Information � See the 7 Series Programmable Devices User Guides.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 83
Chapter 2: Xilinx Parameterized Macros
XPM_FIFO_AXIL
Parameterized Macro: AXI Memory Mapped (AXI Lite) FIFO
MACRO_GROUP: XPM MACRO_SUBGROUP: XPM_FIFO Families: 7 series, UltraScale, UltraScale+
s_aresetn s_aclk m_aclk
XPM_FIFO_AXIL
s_axi_awvalid s_axi_awaddr[AXI_ADDR_WIDTH-1:0] s_axi_awprot[2:0] m_axi_awready
m_axi_awvalid m_axi_awaddr[AXI_ADDR_WIDTH-1:0]
m_axi_awprot[2:0] s_axi_awready
s_axi_wvalid s_axi_wdata[AXI_DATA_WIDTH-1:0] s_axi_wstrb[AXI_DATA_WIDTH/8-1:0] m_axi_wready
m_axi_wvalid m_axi_wdata[AXI_DATA_WIDTH-1:0] m_axi_wstrb[AXI_DATA_WIDTH/8-1:0]
s_axi_wready
s_axi_bready m_axi_bresp[1:0] m_axi_bvalid
m_axi_bready s_axi_bresp[1:0]
s_axi_bvalid
s_axi_arvalid s_axi_araddr[AXI_ADDR_WIDTH-1:0] s_axi_arprot[2:0] m_axi_arready
m_axi_arvalid m_axi_araddr[AXI_ADDR_WIDTH-1:0]
m_axi_arprot[2:0] s_axi_arready
m_axi_rvalid m_axi_rdata[AXI_DATA_WIDTH-1:0] m_axi_rresp[1:0] s_axi_rready
s_axi_rvalid s_axi_rdata[AXI_DATA_WIDTH-1:0]
s_axi_rresp[1:0] m_axi_rready
injectsbiterr_wdch
sbiterr_wdch
injectsbiterr_rdch
sbiterr_rdch
injectdbiterr_wdch
dbiterr_wdch
injectdbiterr_rdch
dbiterr_rdch
prog_full_wdch
prog_empty_wdch
wr_data_count_wdch[WR_DATA_COUNT_WIDTH_WDCH-1:0]
rd_data_count_wdch[RD_DATA_COUNT_WIDTH_WDCH-1:0]
prog_full_rdch
prog_empty_rdch
wr_data_count_rdch[WR_DATA_COUNT_WIDTH_RDCH-1:0]
rd_data_count_rdch[RD_DATA_COUNT_WIDTH_RDCH-1:0]
Introduction This macro is used to instantiate AXI Memory Mapped (AXI Lite) FIFO.
X21836-110118
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 84
Chapter 2: Xilinx Parameterized Macros
AXI4 FIFO is derived from the XPM_FIFO_SYNC and XPM_FIFO_ASYNC. The AXI interface protocol uses a two-way valid and ready handshake mechanism. The information source uses the valid signal to show when valid data or control information is available on the channel. The information destination uses the ready signal to show when it can accept the data.
Timing Diagrams
Figure 11: Timing for Read and Write Operations to the AXI Stream FIFO
s_aclk
information
D0
s_axis_tvalid s_axis_tready
information
m_axis_tvalid m_axis_tready
D1
D0
D1
X20499-030818
In the timing diagram above, the information source generates the valid signal to indicate when the data is available. The destination generates the ready signal to indicate that it can accept the data, and transfer occurs only when both the valid and ready signals are High.
Because AXI4 FIFO is derived from XPM_FIFO_SYNC and XPM_FIFO_ASYNC, much of the behavior is common between them. The ready signal is generated based on availability of space in the FIFO and is held high to allow writes to the FIFO. The ready signal is pulled Low only when there is no space in the FIFO left to perform additional writes. The valid signal is generated based on availability of data in the FIFO and is held High to allow reads to be performed from the FIFO. The valid signal is pulled Low only when there is no data available to be read from the FIFO. The information signals are mapped to the din and dout bus of XPM_FIFO_SYNC and XPM_FIFO_ASYNC. The width of the AXI4-Full FIFO is determined by concatenating all of the information signals of the AXI interface. The information signals include all AXI signals except for the valid and ready handshake signals.
AXI4 FIFO operates only in First-Word Fall-Through mode. The First-Word Fall-Through (FWFT) feature provides the ability to look ahead to the next word available from the FIFO without issuing a read operation. When data is available in the FIFO, the first word falls through the FIFO and appears automatically on the output data bus.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 85
Chapter 2: Xilinx Parameterized Macros
Port Descriptions
Port dbiterr_rdch
Direction Output
dbiterr_wdch Output
injectdbiterr _rdch
injectdbiterr _wdch
injectsbiterr _rdch
injectsbiterr _wdch
m_aclk
Input Input Input Input Input
m_axi_araddr Output
m_axi_arprot Output
m_axi_arready Input m_axi_arvalid Output
Width 1
1
1 1 1 1 1
AXI _ADDR _WIDTH
1
1 1
Domain m_aclk m_aclk s_aclk s_aclk s_aclk s_aclk NA m_aclk
m_aclk
m_aclk m_aclk
Sense
Handling if Unused
Function
LEVEL _HIGH
DoNotCare Double Bit Error- Indicates that the ECC decoder detected a double-bit error and data in the FIFO core is corrupted.
LEVEL _HIGH
DoNotCare Double Bit Error- Indicates that the ECC decoder detected a double-bit error and data in the FIFO core is corrupted.
LEVEL 0 _HIGH
Double Bit Error Injection- Injects a double bit error if the ECC feature is used.
LEVEL 0 _HIGH
Double Bit Error Injection- Injects a double bit error if the ECC feature is used.
LEVEL 0 _HIGH
Single Bit Error Injection- Injects a single bit error if the ECC feature is used.
LEVEL 0 _HIGH
Single Bit Error Injection- Injects a single bit error if the ECC feature is used.
EDGE Active _RISING
Master Interface Clock: All signals on master interface are sampled on the rising edge of this clock.
NA
Active
ARADDR: The read address bus gives the
initial address of a read burst transaction.
Only the start address of the burst is
provided and the control signals that are
issued alongside the address detail how
the address is calculated for the remaining
transfers in the burst.
NA
Active
ARPROT: Indicates the normal, privileged,
or secure protection level of the
transaction and whether the transaction is
a data access or an instruction access.
LEVEL _HIGH
Active
ARREADY: Indicates that the master can accept a transfer in the current cycle.
LEVEL _HIGH
Active
ARVALID: Indicates that the master is driving a valid transfer.
� A transfer takes place when both
ARVALID and ARREADY are asserted
m_axi_awaddr Output
m_axi_awprot Output m_axi_awready Input m_axi_awvalid Output
AXI
m_aclk
NA
_ADDR
_WIDTH
Active
1
m_aclk
NA
Active
1
m_aclk
LEVEL Active
_HIGH
1
m_aclk
LEVEL Active
_HIGH
AWADDR: The write address bus gives the address of the first transfer in a write burst transaction. The associated control signals are used to determine the addresses of the remaining transfers in the burst.
AWPROT: Indicates the normal, privileged, or secure protection level of the transaction and whether the transaction is a data access or an instruction access.
AWREADY: Indicates that the master can accept a transfer in the current cycle.
AWVALID: Indicates that the master is driving a valid transfer.
� A transfer takes place when both
AWVALID and AWREADY are asserted
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 86
Chapter 2: Xilinx Parameterized Macros
Port m_axi_bready m_axi_bresp
m_axi_bvalid
Direction Output Input
Input
Width 1 1
1
Domain m_aclk m_aclk
m_aclk
Sense LEVEL _HIGH NA
LEVEL _HIGH
Handling if Unused
Function
Active
BREADY: Indicates that the master can accept a transfer in the current cycle.
Active
BRESP: Write Response. Indicates the status of the write transaction. The allowable responses are OKAY, EXOKAY, SLVERR, and DECERR.
Active
BVALID: Indicates that the master is driving a valid transfer.
� A transfer takes place when both
BVALID and BREADY are asserted
m_axi_rdata Input
m_axi_rready Output m_axi_rresp Input m_axi_rvalid Input
AXI _DATA _WIDTH
m_aclk
1
m_aclk
1
m_aclk
NA
Active
LEVEL _HIGH
NA
Active Active
1
m_aclk
LEVEL Active
_HIGH
RDATA: The primary payload that is used to provide the data that is passing across the interface. The width of the data payload is an integer number of bytes.
RREADY: Indicates that the master can accept a transfer in the current cycle.
RRESP: Indicates the status of the read transfer. The allowable responses are OKAY, EXOKAY, SLVERR, and DECERR.
RVALID: Indicates that the master is driving a valid transfer.
� A transfer takes place when both
RVALID and RREADY are asserted
m_axi_wdata Output
m_axi_wready Input m_axi_wstrb Output
AXI _DATA _WIDTH
m_aclk
1
m_aclk
AXI _DATA _WIDTH / 8
m_aclk
NA
Active
LEVEL _HIGH
NA
Active Active
WDATA: The primary payload that is used to provide the data that is passing across the interface. The width of the data payload is an integer number of bytes.
WREADY: Indicates that the master can accept a transfer in the current cycle.
WSTRB: The byte qualifier that indicates whether the content of the associated byte of TDATA is processed as a data byte or a position byte. For a 64-bit DATA, bit 0 corresponds to the least significant byte on DATA, and bit 0 corresponds to the least significant byte on DATA, and bit 7 corresponds to the most significant byte. For example:
� STROBE[0] = 1b, DATA[7:0] is valid
� STROBE[7] = 0b, DATA[63:56] is not
valid
m_axi_wvalid Output
1
m_aclk
LEVEL _HIGH
Active
WVALID: Indicates that the master is driving a valid transfer.
� A transfer takes place when both
WVALID and WREADY are asserted
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 87
Chapter 2: Xilinx Parameterized Macros
Port
Direction
prog_empty_rd Output ch
prog_empty_w Output dch
prog_full_rdch Output
prog_full_wdch Output
rd_data_count Output _rdch
rd_data_count Output _wdch
s_aclk
Input
s_aresetn
Input
s_axi_araddr Input
s_axi_arprot Input
Width Domain
1
m_aclk
1
m_aclk
1
s_aclk
1
s_aclk
RD _DATA _COUNT _WIDTH _RDCH
m_aclk
RD _DATA _COUNT _WIDTH _WDCH
m_aclk
1
NA
1
NA
AXI _ADDR _WIDTH
s_aclk
1
s_aclk
Sense LEVEL _HIGH
LEVEL _HIGH
LEVEL _HIGH
LEVEL _HIGH
NA
Handling if Unused
Function
DoNotCare
Programmable Empty- This signal is asserted when the number of words in the Read Data Channel FIFO is less than or equal to the programmable empty threshold value.
It is de-asserted when the number of words in the Read Data Channel FIFO exceeds the programmable empty threshold value.
DoNotCare
Programmable Empty- This signal is asserted when the number of words in the Write Data Channel FIFO is less than or equal to the programmable empty threshold value.
It is de-asserted when the number of words in the Write Data Channel FIFO exceeds the programmable empty threshold value.
DoNotCare
Programmable Full: This signal is asserted when the number of words in the Read Data Channel FIFO is greater than or equal to the programmable full threshold value.
It is de-asserted when the number of words in the Read Data Channel FIFO is less than the programmable full threshold value.
DoNotCare
Programmable Full: This signal is asserted when the number of words in the Write Data Channel FIFO is greater than or equal to the programmable full threshold value.
It is de-asserted when the number of words in the Write Data Channel FIFO is less than the programmable full threshold value.
DoNotCare Read Data Count- This bus indicates the number of words available for reading in the Read Data Channel FIFO.
NA
DoNotCare Read Data Count- This bus indicates the
number of words available for reading in
the Write Data Channel FIFO.
EDGE Active _RISING
LEVEL _LOW
NA
Active Active
NA
Active
Slave Interface Clock: All signals on slave interface are sampled on the rising edge of this clock.
Active low asynchronous reset.
ARADDR: The read address bus gives the initial address of a read burst transaction. Only the start address of the burst is provided and the control signals that are issued alongside the address detail how the address is calculated for the remaining transfers in the burst.
ARPROT: Indicates the normal, privileged, or secure protection level of the transaction and whether the transaction is a data access or an instruction access.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 88
Chapter 2: Xilinx Parameterized Macros
Port s_axi_arready s_axi_arvalid
Direction Width
Output
1
Input
1
Domain s_aclk s_aclk
Sense
LEVEL _HIGH
LEVEL _HIGH
Handling if Unused
Function
Active
ARREADY: Indicates that the slave can accept a transfer in the current cycle.
Active
ARVALID: Indicates that the master is driving a valid transfer.
� A transfer takes place when both
ARVALID and ARREADY are asserted
s_axi_awaddr Input
s_axi_awprot Input s_axi_awready Output s_axi_awvalid Input
AXI
s_aclk
NA
_ADDR
_WIDTH
Active
1
s_aclk
LEVEL Active
_HIGH
1
s_aclk
LEVEL Active
_HIGH
1
s_aclk
LEVEL Active
_HIGH
AWADDR: The write address bus gives the address of the first transfer in a write burst transaction. The associated control signals are used to determine the addresses of the remaining transfers in the burst.
AWPROT: Indicates the normal, privileged, or secure protection level of the transaction and whether the transaction is a data access or an instruction access.
AWREADY: Indicates that the slave can accept a transfer in the current cycle.
AWVALID: Indicates that the master is driving a valid transfer.
� A transfer takes place when both
AWVALID and AWREADY are asserted
s_axi_bready Input
1
s_axi_bresp
Output
1
s_axi_bvalid
Output
1
s_aclk s_aclk
LEVEL _HIGH
NA
Active Active
s_aclk
LEVEL _HIGH
Active
BREADY: Indicates that the slave can accept a transfer in the current cycle.
BRESP: Write Response. Indicates the status of the write transaction. The allowable responses are OKAY, EXOKAY, SLVERR, and DECERR.
BVALID: Indicates that the master is driving a valid transfer.
� A transfer takes place when both
BVALID and BREADY are asserted
s_axi_rdata
Output
s_axi_rready Input
s_axi_rresp
Output
s_axi_rvalid
Output
AXI _DATA _WIDTH
s_aclk
1
s_aclk
1
s_aclk
NA
Active
LEVEL _HIGH
NA
Active Active
1
s_aclk
LEVEL Active
_HIGH
RDATA: The primary payload that is used to provide the data that is passing across the interface. The width of the data payload is an integer number of bytes.
RREADY: Indicates that the slave can accept a transfer in the current cycle.
RRESP: Indicates the status of the read transfer. The allowable responses are OKAY, EXOKAY, SLVERR, and DECERR.
RVALID: Indicates that the master is driving a valid transfer.
� A transfer takes place when both
RVALID and RREADY are asserted
s_axi_wdata
Input
AXI
s_aclk
NA
_DATA
_WIDTH
Active
WDATA: The primary payload that is used to provide the data that is passing across the interface. The width of the data payload is an integer number of bytes.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 89
Chapter 2: Xilinx Parameterized Macros
Port s_axi_wready s_axi_wstrb
Direction Output Input
Width Domain
1
s_aclk
AXI _DATA _WIDTH / 8
s_aclk
Sense
LEVEL _HIGH NA
Handling if Unused
Function
Active
WREADY: Indicates that the slave can accept a transfer in the current cycle.
Active
WSTRB: The byte qualifier that indicates whether the content of the associated byte of TDATA is processed as a data byte or a position byte. For a 64-bit DATA, bit 0 corresponds to the least significant byte on DATA, and bit 0 corresponds to the least significant byte on DATA, and bit 7 corresponds to the most significant byte. For example:
� STROBE[0] = 1b, DATA[7:0] is valid
� STROBE[7] = 0b, DATA[63:56] is not
valid
s_axi_wvalid Input
1
s_aclk
LEVEL _HIGH
Active
WVALID: Indicates that the master is driving a valid transfer.
� A transfer takes place when both
WVALID and WREADY are asserted
sbiterr_rdch Output
sbiterr_wdch Output
wr_data_count Output _rdch
wr_data_count Output _wdch
1
m_aclk
1
m_aclk
WR _DATA _COUNT _WIDTH _RDCH
WR _DATA _COUNT _WIDTH _WDCH
s_aclk s_aclk
LEVEL _HIGH
LEVEL _HIGH
NA
DoNotCare Single Bit Error- Indicates that the ECC decoder detected and fixed a single-bit error.
DoNotCare Single Bit Error- Indicates that the ECC decoder detected and fixed a single-bit error.
DoNotCare Write Data Count: This bus indicates the number of words written into the Read Data Channel FIFO.
NA
DoNotCare Write Data Count: This bus indicates the
number of words written into the Write
Data Channel FIFO.
Design Entry Method
Instantiation
No
Inference
No
IP and IP Integrator Catalog
No
Available Attributes
Attribute AXI_ADDR_WIDTH
AXI_DATA_WIDTH
Type DECIMAL
DECIMAL
Allowed Values Default
1 to 64
32
8 to 1024
32
Description
Defines the width of the ADDR ports, s_axi_araddr, s_axi_awaddr, m_axi_araddr and m_axi_awaddr
Defines the width of the DATA ports, s_axi_rdata, s_axi_wdata, m_axi_rdata and m_axi_wdata NOTE: The maximum FIFO size (width x depth) is limited to 150-Megabits.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 90
Chapter 2: Xilinx Parameterized Macros
Attribute CDC_SYNC_STAGES CLOCKING_MODE
ECC_MODE_RDCH ECC_MODE_WDCH FIFO_DEPTH_RACH FIFO_DEPTH_RDCH FIFO_DEPTH_WACH FIFO_DEPTH_WDCH FIFO_DEPTH_WRCH
Type DECIMAL
STRING
Allowed Values Default
2 to 8
2
"common _clock", "independent _clock"
"common _clock"
Description
Specifies the number of synchronization stages on the CDC path. Applicable only if CLOCKING_MODE = "independent_clock"
Designate whether AXI Memory Mapped FIFO is clocked with a common clock or with independent clocks-
� "common_clock"- Common clocking; clock
both write and read domain s_aclk
� "independent_clock"- Independent clocking;
clock write domain with s_aclk and read domain with m_aclk
STRING
"no_ecc", "en_ecc"
"no_ecc"
� "no_ecc" - Disables ECC
� "en_ecc" - Enables both ECC Encoder and
Decoder
STRING
"no_ecc", "en_ecc"
"no_ecc"
� "no_ecc" - Disables ECC
� "en_ecc" - Enables both ECC Encoder and
Decoder
DECIMAL 16 to 4194304 2048 DECIMAL 16 to 4194304 2048 DECIMAL 16 to 4194304 2048 DECIMAL 16 to 4194304 2048 DECIMAL 16 to 4194304 2048
Defines the AXI Memory Mapped FIFO Write Depth, must be power of two NOTE: The maximum FIFO size (width x depth) is limited to 150-Megabits.
Defines the AXI Memory Mapped FIFO Write Depth, must be power of two NOTE: The maximum FIFO size (width x depth) is limited to 150-Megabits.
Defines the AXI Memory Mapped FIFO Write Depth, must be power of two NOTE: The maximum FIFO size (width x depth) is limited to 150-Megabits.
Defines the AXI Memory Mapped FIFO Write Depth, must be power of two NOTE: The maximum FIFO size (width x depth) is limited to 150-Megabits.
Defines the AXI Memory Mapped FIFO Write Depth, must be power of two NOTE: The maximum FIFO size (width x depth) is limited to 150-Megabits.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 91
Chapter 2: Xilinx Parameterized Macros
Attribute FIFO_MEMORY_TYPE _RACH
FIFO_MEMORY_TYPE _RDCH
FIFO_MEMORY_TYPE _WACH
FIFO_MEMORY_TYPE _WDCH
Type STRING
STRING
STRING
STRING
Allowed Values Default
"auto", "block", "auto" "distributed", "ultra"
Description
Designate the fifo memory primitive (resource type) to use-
� "auto"- Allow Vivado Synthesis to choose � "block"- Block RAM FIFO � "distributed"- Distributed RAM FIFO � "ultra"- URAM FIFO
"auto", "block", "auto" "distributed", "ultra"
NOTE: There may be a behavior mismatch if Block RAM or Ultra RAM specific features, like ECC or Asymmetry, are selected with FIFO_MEMORY_TYPE_RACH set to "auto".
Designate the fifo memory primitive (resource type) to use-
� "auto"- Allow Vivado Synthesis to choose
� "block"- Block RAM FIFO
� "distributed"- Distributed RAM FIFO
� "ultra"- URAM FIFO
"auto", "block", "auto" "distributed", "ultra"
NOTE: There may be a behavior mismatch if Block RAM or Ultra RAM specific features, like ECC or Asymmetry, are selected with FIFO_MEMORY_TYPE_RDCH set to "auto".
Designate the fifo memory primitive (resource type) to use-
� "auto"- Allow Vivado Synthesis to choose
� "block"- Block RAM FIFO
� "distributed"- Distributed RAM FIFO
� "ultra"- URAM FIFO
"auto", "block", "auto" "distributed", "ultra"
NOTE: There may be a behavior mismatch if Block RAM or Ultra RAM specific features, like ECC or Asymmetry, are selected with FIFO_MEMORY_TYPE_WACH set to "auto".
Designate the fifo memory primitive (resource type) to use-
� "auto"- Allow Vivado Synthesis to choose
� "block"- Block RAM FIFO
� "distributed"- Distributed RAM FIFO
� "ultra"- URAM FIFO
NOTE: There may be a behavior mismatch if Block RAM or Ultra RAM specific features, like ECC or Asymmetry, are selected with FIFO_MEMORY_TYPE_WDCH set to "auto".
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 92
Chapter 2: Xilinx Parameterized Macros
Attribute FIFO_MEMORY_TYPE _WRCH
PROG_EMPTY _THRESH_RDCH
PROG_EMPTY _THRESH_WDCH
PROG_FULL_THRESH _RDCH
Type STRING
DECIMAL DECIMAL DECIMAL
Allowed Values Default
"auto", "block", "auto" "distributed", "ultra"
5 to 4194301
10
5 to 4194301
10
5 to 4194301
10
Description
Designate the fifo memory primitive (resource type) to use-
� "auto"- Allow Vivado Synthesis to choose
� "block"- Block RAM FIFO
� "distributed"- Distributed RAM FIFO
� "ultra"- URAM FIFO
NOTE: There may be a behavior mismatch if Block RAM or Ultra RAM specific features, like ECC or Asymmetry, are selected with FIFO_MEMORY_TYPE_WRCH set to "auto".
Specifies the minimum number of read words in the FIFO at or below which prog_empty is asserted.
� Min_Value = 5
� Max_Value = FIFO_WRITE_DEPTH - 5
NOTE: The default threshold value is dependent on default FIFO_WRITE_DEPTH value. If FIFO_WRITE_DEPTH value is changed, ensure the threshold value is within the valid range though the programmable flags are not used.
Specifies the minimum number of read words in the FIFO at or below which prog_empty is asserted.
� Min_Value = 5
� Max_Value = FIFO_WRITE_DEPTH - 5
NOTE: The default threshold value is dependent on default FIFO_WRITE_DEPTH value. If FIFO_WRITE_DEPTH value is changed, ensure the threshold value is within the valid range though the programmable flags are not used.
Specifies the maximum number of write words in the FIFO at or above which prog_full is asserted.
� Min_Value = 5 + CDC_SYNC_STAGES
� Max_Value = FIFO_WRITE_DEPTH - 5
NOTE: The default threshold value is dependent on default FIFO_WRITE_DEPTH value. If FIFO_WRITE_DEPTH value is changed, ensure the threshold value is within the valid range though the programmable flags are not used.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 93
Chapter 2: Xilinx Parameterized Macros
Attribute PROG_FULL_THRESH _WDCH
RD_DATA_COUNT _WIDTH_RDCH RD_DATA_COUNT _WIDTH_WDCH SIM_ASSERT_CHK
USE_ADV_FEATURES _RDCH
Type DECIMAL
DECIMAL DECIMAL DECIMAL STRING
Allowed Values Default
5 to 4194301
10
1 to 23
1
1 to 23
1
0 to 1
0
String
"1000"
Description
Specifies the maximum number of write words in the FIFO at or above which prog_full is asserted.
� Min_Value = 5 + CDC_SYNC_STAGES
� Max_Value = FIFO_WRITE_DEPTH - 5
NOTE: The default threshold value is dependent on default FIFO_WRITE_DEPTH value. If FIFO_WRITE_DEPTH value is changed, ensure the threshold value is within the valid range though the programmable flags are not used.
Specifies the width of rd_data_count_rdch. To reflect the correct value, the width should be log2(FIFO_DEPTH)+1.
Specifies the width of rd_data_count_wdch. To reflect the correct value, the width should be log2(FIFO_DEPTH)+1.
0- Disable simulation message reporting. Messages related to potential misuse will not be reported. 1- Enable simulation message reporting. Messages related to potential misuse will be reported.
Enables rd_data_count_rdch, prog_empty_rdch, wr_data_count_rdch, prog_full_rdch sideband signals.
� Setting USE_ADV_FEATURES_RDCH[1] to 1
enables prog_full_rdch flag; Default value of this bit is 0
� Setting USE_ADV_FEATURES_RDCH[2] to 1
enables wr_data_count_rdch; Default value of this bit is 0
� Setting USE_ADV_FEATURES_RDCH[9] to 1
enables prog_empty_rdch flag; Default value of this bit is 0
� Setting USE_ADV_FEATURES_RDCH[10] to 1
enables rd_data_count_rdch; Default value of this bit is 0
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 94
Chapter 2: Xilinx Parameterized Macros
Attribute USE_ADV_FEATURES _WDCH
WR_DATA_COUNT _WIDTH_RDCH WR_DATA_COUNT _WIDTH_WDCH
Type STRING
Allowed Values Default
String
"1000"
Description
Enables rd_data_count_wdch, prog_empty_wdch, wr_data_count_wdch, prog_full_wdch sideband signals.
� Setting USE_ADV_FEATURES_WDCH[1] to 1
enables prog_full_wdch flag; Default value of this bit is 0
� Setting USE_ADV_FEATURES_WDCH[2] to 1
enables wr_data_count_wdch; Default value of this bit is 0
� Setting USE_ADV_FEATURES_WDCH[9] to 1
enables prog_empty_wdch flag; Default value of this bit is 0
� Setting USE_ADV_FEATURES_WDCH[10] to 1
enables rd_data_count_wdch; Default value of this bit is 0
DECIMAL 1 to 23
1
Specifies the width of wr_data_count_rdch. To
reflect the correct value, the width should be
log2(FIFO_DEPTH)+1.
DECIMAL 1 to 23
1
Specifies the width of wr_data_count_wdch. To
reflect the correct value, the width should be
log2(FIFO_DEPTH)+1.
VHDL Instantiation Template Unless they already exist, copy the following two statements and paste them before the entity declaration.
Library xpm; use xpm.vcomponents.all;
-- xpm_fifo_axil: AXI Memory Mapped (AXI Lite) FIFO -- Xilinx Parameterized Macro, version 2019.1
xpm_fifo_axil_inst : xpm_fifo_axil
generic map (
AXI_ADDR_WIDTH => 32,
-- DECIMAL
AXI_DATA_WIDTH => 32,
-- DECIMAL
CDC_SYNC_STAGES => 2,
-- DECIMAL
CLOCKING_MODE => "common_clock", -- String
ECC_MODE_RDCH => "no_ecc",
-- String
ECC_MODE_WDCH => "no_ecc",
-- String
FIFO_DEPTH_RACH => 2048,
-- DECIMAL
FIFO_DEPTH_RDCH => 2048,
-- DECIMAL
FIFO_DEPTH_WACH => 2048,
-- DECIMAL
FIFO_DEPTH_WDCH => 2048,
-- DECIMAL
FIFO_DEPTH_WRCH => 2048,
-- DECIMAL
FIFO_MEMORY_TYPE_RACH => "auto", -- String
FIFO_MEMORY_TYPE_RDCH => "auto", -- String
FIFO_MEMORY_TYPE_WACH => "auto", -- String
FIFO_MEMORY_TYPE_WDCH => "auto", -- String
FIFO_MEMORY_TYPE_WRCH => "auto", -- String
PROG_EMPTY_THRESH_RDCH => 10, -- DECIMAL
PROG_EMPTY_THRESH_WDCH => 10, -- DECIMAL
PROG_FULL_THRESH_RDCH => 10,
-- DECIMAL
PROG_FULL_THRESH_WDCH => 10,
-- DECIMAL
RD_DATA_COUNT_WIDTH_RDCH => 1, -- DECIMAL
RD_DATA_COUNT_WIDTH_WDCH => 1, -- DECIMAL
SIM_ASSERT_CHK => 0,
-- DECIMAL; 0=disable simulation messages, 1=enable simulation messages
USE_ADV_FEATURES_RDCH => "1000", -- String
USE_ADV_FEATURES_WDCH => "1000", -- String
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 95
Chapter 2: Xilinx Parameterized Macros
WR_DATA_COUNT_WIDTH_RDCH => 1, WR_DATA_COUNT_WIDTH_WDCH => 1 ) port map ( dbiterr_rdch => dbiterr_rdch, dbiterr_wdch => dbiterr_wdch, m_axi_araddr => m_axi_araddr,
m_axi_arprot => m_axi_arprot, m_axi_arvalid => m_axi_arvalid, m_axi_awaddr => m_axi_awaddr,
m_axi_awprot => m_axi_awprot, m_axi_awvalid => m_axi_awvalid, m_axi_bready => m_axi_bready, m_axi_rready => m_axi_rready, m_axi_wdata => m_axi_wdata, m_axi_wstrb => m_axi_wstrb,
m_axi_wvalid => m_axi_wvalid, prog_empty_rdch => prog_empty_rdch,
prog_empty_wdch => prog_empty_wdch,
-- DECIMAL -- DECIMAL
-- 1-bit output: Double Bit Error- Indicates that the ECC -- decoder detected a double-bit error and data in the FIFO
-- core is corrupted.
-- 1-bit output: Double Bit Error- Indicates that the ECC -- decoder detected a double-bit error and data in the FIFO
-- core is corrupted.
-- AXI_ADDR_WIDTH-bit output: ARADDR: The read address bus -- gives the initial address of a read burst transaction. Only -- the start address of the burst is provided and the control -- signals that are issued alongside the address detail how the -- address is calculated for the remaining transfers in the
-- burst.
-- 2-bit output: ARPROT: Indicates the normal, privileged, or -- secure protection level of the transaction and whether the -- transaction is a data access or an instruction access.
-- 1-bit output: ARVALID: Indicates that the master is driving -- a valid transfer. A transfer takes place when both ARVALID
-- and ARREADY are asserted
-- AXI_ADDR_WIDTH-bit output: AWADDR: The write address bus -- gives the address of the first transfer in a write burst -- transaction. The associated control signals are used to -- determine the addresses of the remaining transfers in the
-- burst.
-- 2-bit output: AWPROT: Indicates the normal, privileged, or -- secure protection level of the transaction and whether the -- transaction is a data access or an instruction access.
-- 1-bit output: AWVALID: Indicates that the master is driving -- a valid transfer. A transfer takes place when both AWVALID
-- and AWREADY are asserted
-- 1-bit output: BREADY: Indicates that the master can accept a -- transfer in the current cycle.
-- 1-bit output: RREADY: Indicates that the master can accept a -- transfer in the current cycle.
-- AXI_DATA_WIDTH-bit output: WDATA: The primary payload that -- is used to provide the data that is passing across the -- interface. The width of the data payload is an integer
-- number of bytes.
-- AXI_DATA_WIDTH-bit output: WSTRB: The byte qualifier that -- indicates whether the content of the associated byte of -- TDATA is processed as a data byte or a position byte. For a -- 64-bit DATA, bit 0 corresponds to the least significant byte -- on DATA, and bit 0 corresponds to the least significant byte -- on DATA, and bit 7 corresponds to the most significant byte. -- For example: STROBE[0] = 1b, DATA[7:0] is valid STROBE[7] =
-- 0b, DATA[63:56] is not valid
-- 1-bit output: WVALID: Indicates that the master is driving a -- valid transfer. A transfer takes place when both WVALID and
-- WREADY are asserted
-- 1-bit output: Programmable Empty- This signal is asserted -- when the number of words in the Read Data Channel FIFO is -- less than or equal to the programmable empty threshold -- value. It is de-asserted when the number of words in the -- Read Data Channel FIFO exceeds the programmable empty
-- threshold value.
-- 1-bit output: Programmable Empty- This signal is asserted -- when the number of words in the Write Data Channel FIFO is -- less than or equal to the programmable empty threshold -- value. It is de-asserted when the number of words in the -- Write Data Channel FIFO exceeds the programmable empty
-- threshold value.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 96
Chapter 2: Xilinx Parameterized Macros
prog_full_rdch => prog_full_rdch,
-- 1-bit output: Programmable Full: This signal is asserted -- when the number of words in the Read Data Channel FIFO is -- greater than or equal to the programmable full threshold -- value. It is de-asserted when the number of words in the -- Read Data Channel FIFO is less than the programmable full
-- threshold value.
prog_full_wdch => prog_full_wdch,
-- 1-bit output: Programmable Full: This signal is asserted -- when the number of words in the Write Data Channel FIFO is -- greater than or equal to the programmable full threshold -- value. It is de-asserted when the number of words in the -- Write Data Channel FIFO is less than the programmable full
-- threshold value.
rd_data_count_rdch => rd_data_count_rdch, -- RD_DATA_COUNT_WIDTH_RDCH-bit output: Read Data Count- This -- bus indicates the number of words available for reading in -- the Read Data Channel FIFO.
rd_data_count_wdch => rd_data_count_wdch, -- RD_DATA_COUNT_WIDTH_WDCH-bit output: Read Data Count- This -- bus indicates the number of words available for reading in -- the Write Data Channel FIFO.
s_axi_arready => s_axi_arready,
-- 1-bit output: ARREADY: Indicates that the slave can accept a -- transfer in the current cycle.
s_axi_awready => s_axi_awready,
-- 1-bit output: AWREADY: Indicates that the slave can accept a -- transfer in the current cycle.
s_axi_bresp => s_axi_bresp,
-- 2-bit output: BRESP: Write Response. Indicates the status of -- the write transaction. The allowable responses are OKAY,
-- EXOKAY, SLVERR, and DECERR.
s_axi_bvalid => s_axi_bvalid,
-- 1-bit output: BVALID: Indicates that the master is driving a -- valid transfer. A transfer takes place when both BVALID and
-- BREADY are asserted
s_axi_rdata => s_axi_rdata,
-- AXI_DATA_WIDTH-bit output: RDATA: The primary payload that -- is used to provide the data that is passing across the -- interface. The width of the data payload is an integer
-- number of bytes.
s_axi_rresp => s_axi_rresp,
-- 2-bit output: RRESP: Indicates the status of the read -- transfer. The allowable responses are OKAY, EXOKAY, SLVERR,
-- and DECERR.
s_axi_rvalid => s_axi_rvalid,
-- 1-bit output: RVALID: Indicates that the master is driving a -- valid transfer. A transfer takes place when both RVALID and
-- RREADY are asserted
s_axi_wready => s_axi_wready,
-- 1-bit output: WREADY: Indicates that the slave can accept a -- transfer in the current cycle.
sbiterr_rdch => sbiterr_rdch,
-- 1-bit output: Single Bit Error- Indicates that the ECC -- decoder detected and fixed a single-bit error.
sbiterr_wdch => sbiterr_wdch,
-- 1-bit output: Single Bit Error- Indicates that the ECC -- decoder detected and fixed a single-bit error.
wr_data_count_rdch => wr_data_count_rdch, -- WR_DATA_COUNT_WIDTH_RDCH-bit output: Write Data Count: This -- bus indicates the number of words written into the Read Data -- Channel FIFO.
wr_data_count_wdch => wr_data_count_wdch, -- WR_DATA_COUNT_WIDTH_WDCH-bit output: Write Data Count: This -- bus indicates the number of words written into the Write -- Data Channel FIFO.
injectdbiterr_rdch => injectdbiterr_rdch, -- 1-bit input: Double Bit Error Injection- Injects a double -- bit error if the ECC feature is used.
injectdbiterr_wdch => injectdbiterr_wdch, -- 1-bit input: Double Bit Error Injection- Injects a double -- bit error if the ECC feature is used.
injectsbiterr_rdch => injectsbiterr_rdch, -- 1-bit input: Single Bit Error Injection- Injects a single -- bit error if the ECC feature is used.
injectsbiterr_wdch => injectsbiterr_wdch, -- 1-bit input: Single Bit Error Injection- Injects a single -- bit error if the ECC feature is used.
m_aclk => m_aclk,
-- 1-bit input: Master Interface Clock: All signals on master
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 97
m_axi_arready => m_axi_arready, m_axi_awready => m_axi_awready, m_axi_bresp => m_axi_bresp, m_axi_bvalid => m_axi_bvalid, m_axi_rdata => m_axi_rdata,
m_axi_rresp => m_axi_rresp, m_axi_rvalid => m_axi_rvalid, m_axi_wready => m_axi_wready, s_aclk => s_aclk, s_aresetn => s_aresetn, s_axi_araddr => s_axi_araddr,
s_axi_arprot => s_axi_arprot, s_axi_arvalid => s_axi_arvalid, s_axi_awaddr => s_axi_awaddr,
s_axi_awprot => s_axi_awprot, s_axi_awvalid => s_axi_awvalid, s_axi_bready => s_axi_bready, s_axi_rready => s_axi_rready, s_axi_wdata => s_axi_wdata,
s_axi_wstrb => s_axi_wstrb,
Chapter 2: Xilinx Parameterized Macros
-- interface are sampled on the rising edge of this clock.
-- 1-bit input: ARREADY: Indicates that the master can accept a -- transfer in the current cycle.
-- 1-bit input: AWREADY: Indicates that the master can accept a -- transfer in the current cycle.
-- 2-bit input: BRESP: Write Response. Indicates the status of -- the write transaction. The allowable responses are OKAY,
-- EXOKAY, SLVERR, and DECERR.
-- 1-bit input: BVALID: Indicates that the master is driving a -- valid transfer. A transfer takes place when both BVALID and
-- BREADY are asserted
-- AXI_DATA_WIDTH-bit input: RDATA: The primary payload that is -- used to provide the data that is passing across the
-- interface. The width of the data payload is an integer -- number of bytes.
-- 2-bit input: RRESP: Indicates the status of the read -- transfer. The allowable responses are OKAY, EXOKAY, SLVERR,
-- and DECERR.
-- 1-bit input: RVALID: Indicates that the master is driving a -- valid transfer. A transfer takes place when both RVALID and
-- RREADY are asserted
-- 1-bit input: WREADY: Indicates that the master can accept a -- transfer in the current cycle.
-- 1-bit input: Slave Interface Clock: All signals on slave -- interface are sampled on the rising edge of this clock.
-- 1-bit input: Active low asynchronous reset. -- AXI_ADDR_WIDTH-bit input: ARADDR: The read address bus gives -- the initial address of a read burst transaction. Only the -- start address of the burst is provided and the control -- signals that are issued alongside the address detail how the -- address is calculated for the remaining transfers in the
-- burst.
-- 2-bit input: ARPROT: Indicates the normal, privileged, or -- secure protection level of the transaction and whether the -- transaction is a data access or an instruction access.
-- 1-bit input: ARVALID: Indicates that the master is driving a -- valid transfer. A transfer takes place when both ARVALID and
-- ARREADY are asserted
-- AXI_ADDR_WIDTH-bit input: AWADDR: The write address bus -- gives the address of the first transfer in a write burst -- transaction. The associated control signals are used to -- determine the addresses of the remaining transfers in the
-- burst.
-- 2-bit input: AWPROT: Indicates the normal, privileged, or -- secure protection level of the transaction and whether the -- transaction is a data access or an instruction access.
-- 1-bit input: AWVALID: Indicates that the master is driving a -- valid transfer. A transfer takes place when both AWVALID and
-- AWREADY are asserted
-- 1-bit input: BREADY: Indicates that the slave can accept a -- transfer in the current cycle.
-- 1-bit input: RREADY: Indicates that the slave can accept a -- transfer in the current cycle.
-- AXI_DATA_WIDTH-bit input: WDATA: The primary payload that is -- used to provide the data that is passing across the
-- interface. The width of the data payload is an integer -- number of bytes.
-- AXI_DATA_WIDTH-bit input: WSTRB: The byte qualifier that -- indicates whether the content of the associated byte of -- TDATA is processed as a data byte or a position byte. For a
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 98
Chapter 2: Xilinx Parameterized Macros
-- 64-bit DATA, bit 0 corresponds to the least significant byte -- on DATA, and bit 0 corresponds to the least significant byte -- on DATA, and bit 7 corresponds to the most significant byte. -- For example: STROBE[0] = 1b, DATA[7:0] is valid STROBE[7] =
-- 0b, DATA[63:56] is not valid
s_axi_wvalid => s_axi_wvalid
-- 1-bit input: WVALID: Indicates that the master is driving a -- valid transfer. A transfer takes place when both WVALID and
-- WREADY are asserted
);
-- End of xpm_fifo_axil_inst instantiation
Verilog Instantiation Template
// xpm_fifo_axil: AXI Memory Mapped (AXI Lite) FIFO // Xilinx Parameterized Macro, version 2019.1
xpm_fifo_axil #(
.AXI_ADDR_WIDTH(32),
// DECIMAL
.AXI_DATA_WIDTH(32),
// DECIMAL
.CDC_SYNC_STAGES(2),
// DECIMAL
.CLOCKING_MODE("common_clock"), // String
.ECC_MODE_RDCH("no_ecc"),
// String
.ECC_MODE_WDCH("no_ecc"),
// String
.FIFO_DEPTH_RACH(2048),
// DECIMAL
.FIFO_DEPTH_RDCH(2048),
// DECIMAL
.FIFO_DEPTH_WACH(2048),
// DECIMAL
.FIFO_DEPTH_WDCH(2048),
// DECIMAL
.FIFO_DEPTH_WRCH(2048),
// DECIMAL
.FIFO_MEMORY_TYPE_RACH("auto"), // String
.FIFO_MEMORY_TYPE_RDCH("auto"), // String
.FIFO_MEMORY_TYPE_WACH("auto"), // String
.FIFO_MEMORY_TYPE_WDCH("auto"), // String
.FIFO_MEMORY_TYPE_WRCH("auto"), // String
.PROG_EMPTY_THRESH_RDCH(10), // DECIMAL
.PROG_EMPTY_THRESH_WDCH(10), // DECIMAL
.PROG_FULL_THRESH_RDCH(10),
// DECIMAL
.PROG_FULL_THRESH_WDCH(10),
// DECIMAL
.RD_DATA_COUNT_WIDTH_RDCH(1), // DECIMAL
.RD_DATA_COUNT_WIDTH_WDCH(1), // DECIMAL
.SIM_ASSERT_CHK(0),
// DECIMAL; 0=disable simulation messages, 1=enable simulation messages
.USE_ADV_FEATURES_RDCH("1000"), // String
.USE_ADV_FEATURES_WDCH("1000"), // String
.WR_DATA_COUNT_WIDTH_RDCH(1), // DECIMAL
.WR_DATA_COUNT_WIDTH_WDCH(1) // DECIMAL
)
xpm_fifo_axil_inst (
.dbiterr_rdch(dbiterr_rdch),
// 1-bit output: Double Bit Error- Indicates that the ECC
// decoder detected a double-bit error and data in the FIFO core
// is corrupted.
.dbiterr_wdch(dbiterr_wdch),
// 1-bit output: Double Bit Error- Indicates that the ECC // decoder detected a double-bit error and data in the FIFO core
// is corrupted.
.m_axi_araddr(m_axi_araddr),
// AXI_ADDR_WIDTH-bit output: ARADDR: The read address bus gives // the initial address of a read burst transaction. Only the // start address of the burst is provided and the control // signals that are issued alongside the address detail how the // address is calculated for the remaining transfers in the
// burst.
.m_axi_arprot(m_axi_arprot),
// 2-bit output: ARPROT: Indicates the normal, privileged, or // secure protection level of the transaction and whether the // transaction is a data access or an instruction access.
.m_axi_arvalid(m_axi_arvalid),
// 1-bit output: ARVALID: Indicates that the master is driving a // valid transfer. A transfer takes place when both ARVALID and
// ARREADY are asserted
.m_axi_awaddr(m_axi_awaddr),
// AXI_ADDR_WIDTH-bit output: AWADDR: The write address bus // gives the address of the first transfer in a write burst // transaction. The associated control signals are used to // determine the addresses of the remaining transfers in the
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 99
Chapter 2: Xilinx Parameterized Macros
// burst.
.m_axi_awprot(m_axi_awprot),
// 2-bit output: AWPROT: Indicates the normal, privileged, or // secure protection level of the transaction and whether the // transaction is a data access or an instruction access.
.m_axi_awvalid(m_axi_awvalid),
// 1-bit output: AWVALID: Indicates that the master is driving a // valid transfer. A transfer takes place when both AWVALID and
// AWREADY are asserted
.m_axi_bready(m_axi_bready),
// 1-bit output: BREADY: Indicates that the master can accept a // transfer in the current cycle.
.m_axi_rready(m_axi_rready),
// 1-bit output: RREADY: Indicates that the master can accept a // transfer in the current cycle.
.m_axi_wdata(m_axi_wdata),
// AXI_DATA_WIDTH-bit output: WDATA: The primary payload that is // used to provide the data that is passing across the
// interface. The width of the data payload is an integer number // of bytes.
.m_axi_wstrb(m_axi_wstrb),
// AXI_DATA_WIDTH-bit output: WSTRB: The byte qualifier that // indicates whether the content of the associated byte of TDATA // is processed as a data byte or a position byte. For a 64-bit // DATA, bit 0 corresponds to the least significant byte on // DATA, and bit 0 corresponds to the least significant byte on // DATA, and bit 7 corresponds to the most significant byte. For // example: STROBE[0] = 1b, DATA[7:0] is valid STROBE[7] = 0b,
// DATA[63:56] is not valid
.m_axi_wvalid(m_axi_wvalid),
// 1-bit output: WVALID: Indicates that the master is driving a // valid transfer. A transfer takes place when both WVALID and
// WREADY are asserted
.prog_empty_rdch(prog_empty_rdch),
// 1-bit output: Programmable Empty- This signal is asserted // when the number of words in the Read Data Channel FIFO is // less than or equal to the programmable empty threshold value. // It is de-asserted when the number of words in the Read Data // Channel FIFO exceeds the programmable empty threshold value.
.prog_empty_wdch(prog_empty_wdch),
// 1-bit output: Programmable Empty- This signal is asserted // when the number of words in the Write Data Channel FIFO is // less than or equal to the programmable empty threshold value. // It is de-asserted when the number of words in the Write Data // Channel FIFO exceeds the programmable empty threshold value.
.prog_full_rdch(prog_full_rdch),
// 1-bit output: Programmable Full: This signal is asserted when // the number of words in the Read Data Channel FIFO is greater // than or equal to the programmable full threshold value. It is // de-asserted when the number of words in the Read Data Channel // FIFO is less than the programmable full threshold value.
.prog_full_wdch(prog_full_wdch),
// 1-bit output: Programmable Full: This signal is asserted when // the number of words in the Write Data Channel FIFO is greater // than or equal to the programmable full threshold value. It is // de-asserted when the number of words in the Write Data // Channel FIFO is less than the programmable full threshold
// value.
.rd_data_count_rdch(rd_data_count_rdch), // RD_DATA_COUNT_WIDTH_RDCH-bit output: Read Data Count- This // bus indicates the number of words available for reading in // the Read Data Channel FIFO.
.rd_data_count_wdch(rd_data_count_wdch), // RD_DATA_COUNT_WIDTH_WDCH-bit output: Read Data Count- This // bus indicates the number of words available for reading in // the Write Data Channel FIFO.
.s_axi_arready(s_axi_arready),
// 1-bit output: ARREADY: Indicates that the slave can accept a // transfer in the current cycle.
.s_axi_awready(s_axi_awready),
// 1-bit output: AWREADY: Indicates that the slave can accept a // transfer in the current cycle.
.s_axi_bresp(s_axi_bresp),
// 2-bit output: BRESP: Write Response. Indicates the status of // the write transaction. The allowable responses are OKAY,
// EXOKAY, SLVERR, and DECERR.
.s_axi_bvalid(s_axi_bvalid),
// 1-bit output: BVALID: Indicates that the master is driving a // valid transfer. A transfer takes place when both BVALID and
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 100
Chapter 2: Xilinx Parameterized Macros
// BREADY are asserted
.s_axi_rdata(s_axi_rdata),
// AXI_DATA_WIDTH-bit output: RDATA: The primary payload that is // used to provide the data that is passing across the
// interface. The width of the data payload is an integer number // of bytes.
.s_axi_rresp(s_axi_rresp),
// 2-bit output: RRESP: Indicates the status of the read // transfer. The allowable responses are OKAY, EXOKAY, SLVERR,
// and DECERR.
.s_axi_rvalid(s_axi_rvalid),
// 1-bit output: RVALID: Indicates that the master is driving a // valid transfer. A transfer takes place when both RVALID and
// RREADY are asserted
.s_axi_wready(s_axi_wready),
// 1-bit output: WREADY: Indicates that the slave can accept a // transfer in the current cycle.
.sbiterr_rdch(sbiterr_rdch),
// 1-bit output: Single Bit Error- Indicates that the ECC // decoder detected and fixed a single-bit error.
.sbiterr_wdch(sbiterr_wdch),
// 1-bit output: Single Bit Error- Indicates that the ECC // decoder detected and fixed a single-bit error.
.wr_data_count_rdch(wr_data_count_rdch), // WR_DATA_COUNT_WIDTH_RDCH-bit output: Write Data Count: This // bus indicates the number of words written into the Read Data // Channel FIFO.
.wr_data_count_wdch(wr_data_count_wdch), // WR_DATA_COUNT_WIDTH_WDCH-bit output: Write Data Count: This // bus indicates the number of words written into the Write Data // Channel FIFO.
.injectdbiterr_rdch(injectdbiterr_rdch), // 1-bit input: Double Bit Error Injection- Injects a double bit // error if the ECC feature is used.
.injectdbiterr_wdch(injectdbiterr_wdch), // 1-bit input: Double Bit Error Injection- Injects a double bit // error if the ECC feature is used.
.injectsbiterr_rdch(injectsbiterr_rdch), // 1-bit input: Single Bit Error Injection- Injects a single bit // error if the ECC feature is used.
.injectsbiterr_wdch(injectsbiterr_wdch), // 1-bit input: Single Bit Error Injection- Injects a single bit // error if the ECC feature is used.
.m_aclk(m_aclk),
// 1-bit input: Master Interface Clock: All signals on master // interface are sampled on the rising edge of this clock.
.m_axi_arready(m_axi_arready),
// 1-bit input: ARREADY: Indicates that the master can accept a // transfer in the current cycle.
.m_axi_awready(m_axi_awready),
// 1-bit input: AWREADY: Indicates that the master can accept a // transfer in the current cycle.
.m_axi_bresp(m_axi_bresp),
// 2-bit input: BRESP: Write Response. Indicates the status of // the write transaction. The allowable responses are OKAY,
// EXOKAY, SLVERR, and DECERR.
.m_axi_bvalid(m_axi_bvalid),
// 1-bit input: BVALID: Indicates that the master is driving a // valid transfer. A transfer takes place when both BVALID and
// BREADY are asserted
.m_axi_rdata(m_axi_rdata),
// AXI_DATA_WIDTH-bit input: RDATA: The primary payload that is // used to provide the data that is passing across the
// interface. The width of the data payload is an integer number // of bytes.
.m_axi_rresp(m_axi_rresp),
// 2-bit input: RRESP: Indicates the status of the read // transfer. The allowable responses are OKAY, EXOKAY, SLVERR,
// and DECERR.
.m_axi_rvalid(m_axi_rvalid),
// 1-bit input: RVALID: Indicates that the master is driving a // valid transfer. A transfer takes place when both RVALID and
// RREADY are asserted
.m_axi_wready(m_axi_wready),
// 1-bit input: WREADY: Indicates that the master can accept a // transfer in the current cycle.
.s_aclk(s_aclk),
// 1-bit input: Slave Interface Clock: All signals on slave // interface are sampled on the rising edge of this clock.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 101
Chapter 2: Xilinx Parameterized Macros
.s_aresetn(s_aresetn), .s_axi_araddr(s_axi_araddr),
// 1-bit input: Active low asynchronous reset. // AXI_ADDR_WIDTH-bit input: ARADDR: The read address bus gives // the initial address of a read burst transaction. Only the // start address of the burst is provided and the control // signals that are issued alongside the address detail how the // address is calculated for the remaining transfers in the
// burst.
.s_axi_arprot(s_axi_arprot),
// 2-bit input: ARPROT: Indicates the normal, privileged, or // secure protection level of the transaction and whether the // transaction is a data access or an instruction access.
.s_axi_arvalid(s_axi_arvalid),
// 1-bit input: ARVALID: Indicates that the master is driving a // valid transfer. A transfer takes place when both ARVALID and
// ARREADY are asserted
.s_axi_awaddr(s_axi_awaddr),
// AXI_ADDR_WIDTH-bit input: AWADDR: The write address bus gives // the address of the first transfer in a write burst
// transaction. The associated control signals are used to
// determine the addresses of the remaining transfers in the // burst.
.s_axi_awprot(s_axi_awprot),
// 2-bit input: AWPROT: Indicates the normal, privileged, or // secure protection level of the transaction and whether the // transaction is a data access or an instruction access.
.s_axi_awvalid(s_axi_awvalid),
// 1-bit input: AWVALID: Indicates that the master is driving a // valid transfer. A transfer takes place when both AWVALID and
// AWREADY are asserted
.s_axi_bready(s_axi_bready),
// 1-bit input: BREADY: Indicates that the slave can accept a // transfer in the current cycle.
.s_axi_rready(s_axi_rready),
// 1-bit input: RREADY: Indicates that the slave can accept a // transfer in the current cycle.
.s_axi_wdata(s_axi_wdata),
// AXI_DATA_WIDTH-bit input: WDATA: The primary payload that is // used to provide the data that is passing across the
// interface. The width of the data payload is an integer number // of bytes.
.s_axi_wstrb(s_axi_wstrb),
// AXI_DATA_WIDTH-bit input: WSTRB: The byte qualifier that // indicates whether the content of the associated byte of TDATA // is processed as a data byte or a position byte. For a 64-bit // DATA, bit 0 corresponds to the least significant byte on // DATA, and bit 0 corresponds to the least significant byte on // DATA, and bit 7 corresponds to the most significant byte. For // example: STROBE[0] = 1b, DATA[7:0] is valid STROBE[7] = 0b,
// DATA[63:56] is not valid
.s_axi_wvalid(s_axi_wvalid)
// 1-bit input: WVALID: Indicates that the master is driving a // valid transfer. A transfer takes place when both WVALID and
// WREADY are asserted
);
// End of xpm_fifo_axil_inst instantiation
For More Information � See the 7 Series Programmable Devices User Guides.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 102
Chapter 2: Xilinx Parameterized Macros
XPM_FIFO_SYNC
Parameterized Macro: Synchronous FIFO
MACRO_GROUP: XPM MACRO_SUBGROUP: XPM_FIFO Families: 7 series, UltraScale, UltraScale+
XPM_FIFO_SYNC
din[(WRITE_DATA_WIDTH - 1):0] dout[(READ_DATA_WIDTH � 1):0]
wr_data_count[(WR_DATA_COUNT_WIDTH � 1):0] rd_data_count[(RD_DATA_COUNT_WIDTH � 1):0]
injectsbiterr injectdbiterr rst
wr_clk wr_en rd_en
sleep
sbiterr dbiterr
rd_rst_busy wr_rst_busy
full empty overflow underflow prog_full prog_empty wr_ack data_valid almost_full almost_empty
X17929-092617
Introduction This macro is used to instantiate synchronous FIFO. The following describes the basic write and read operation of an XPM_FIFO instance. � All synchronous signals are sensitive to the rising edge of wr_clk, which is assumed to be a
buffered and toggling clock signal behaving according to target device and FIFO/memory primitive requirements.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 103
Chapter 2: Xilinx Parameterized Macros
� A write operation is performed when the FIFO is not full and wr_en is asserted on each wr_clk cycle.
� A read operation is performed when the FIFO is not empty and rd_en is asserted on each wr_clk cycle.
� The number of clock cycles required for XPM FIFO to react to dout, full and empty changes depends on the CLOCK_DOMAIN, READ_MODE, and FIFO_READ_LATENCY settings. It may take more than one wr_clk cycle to deassert empty due to write operation (wr_en = 1). It may take more than one wr_clk cycle to present the read data on dout port upon assertion of rd_en. It may take more than one wr_clk cycle to deassert full due to read operation (rd_en = 1).
� All write operations are gated by the value of wr_en and full on the initiating wr_clk cycle. � All read operations are gated by the value of rd_en and empty on the initiating wr_clk cycle. � The wr_en input has no effect when full is asserted on the coincident wr_clk cycle. � The rd_en input has no effect when empty is asserted on the coincident wr_clk cycle. � Undriven or unknown values provided on module inputs will produce undefined output port
behavior. � wr_en/rd_en should not be toggled when reset (rst) or wr_rst_busy or rd_rst_busy is asserted. � Assertion/deassertion of prog_full happens only when full is deasserted. � Assertion/deassertion of prog_empty happens only when empty is deasserted.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 104
Chapter 2: Xilinx Parameterized Macros
Timing Diagrams
WR_CLK
Figure 12: Reset Behavior
No Access Zone
RST
WR_RST_BUSY RD_RST_BUSY
FULL PROG_FULL ALMOST_FULL
WR_EN
EMPTY PROG_EMPTY ALMOST_EMPTY
RD_EN
DOUT** (Standard)
DOUT (FWFT)
DD
D
DD
D
** FIFO_READ_LATENCY = 1
Full Flag Reset Value = 1
Reset/Previous value Reset/Previous value
DDDDD DDDDDD
X20502-031318
Figure 13: Standard Write operation FIFO_WRITE_DEPTH=16, PROG_FULL_THRESH=6
wr_clk
wr_en
din wr_data_count
full program_full
overflow
D0 D1 D2 D3 D4 D5 D6 D7 D8 D9 D10 D11 D12 D13 D14 D15 D16 D17
0
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
16
X17953-092016
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 105
Chapter 2: Xilinx Parameterized Macros
Figure 14: Standard Read operation FIFO_WRITE_DEPTH=16, PROG_EMPTY_THRESH=3, FIFO_READ_LATENCY=1
wr_clk
rd_en
dout rd_data_count
D0 D1 D2 D3 D4 D5 D6 D7 D8 D9 D10 D11 D12 D13 D14 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1
D15 0
empty program_empty
underflow
X17954-092016
Figure 15: Standard Read operation FIFO_WRITE_DEPTH=16, PROG_EMPTY_THRESH=3, FIFO_READ_LATENCY=3
wr_clk
rd_en
dout rd_data_count
D0 D1 D2 D3 D4 D5 D6 D7 D8 D9 D10 D11D12 D13 D14 D15
16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1
0
empty program_empty
underflow
X17955-092016
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 106
Chapter 2: Xilinx Parameterized Macros
Figure 16: Write operation READ_MODE=FWFT, FIFO_WRITE_DEPTH=16, PROG_FULL_THRESH=7
wr_clk
wr_en
din wr_data_count
D0 D1 D2 D3 D4 D5 D6 D7 D8 D9 D10 D11 D12 D13 D14 D15 D16 D17
0
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18
full program_full
overflow
X17956-092016
Figure 17: Read operation READ_MODE=FWFT, FIFO_WRITE_DEPTH=16, PROG_EMPTY_THRESH=5
wr_clk
rd_en
dout D0 D1 D2 D3 D4 D5 D6 D7 D8 D9 D10 D11 D12 D13 D14 D15 D16 D17
rd_data_count
18
17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0
empty program_empty
underflow
X17958-092016
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 107
Chapter 2: Xilinx Parameterized Macros
Figure 18: Standard Write operation with empty de-assertion FIFO_WRITE_DEPTH=16
wr_clk
wr_en
din wr_data_count
D0 D1 D2 D3 D4 D5 D6 D7 D8 D9 D10 D11 D12 D13 D14 D15 D16 D17
0
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
16
full empty
X17959-092016
Figure 19: Standard Read operation with full de-assertion FIFO_WRITE_DEPTH=16, FIFO_READ_LATENCY=1
wr_clk
rd_en
dout rd_data_count
empty full
D0 D1 D2 D3 D4 D5 D6 D7 D8 D9 D10 D11 D12 D13 D14
D15
16
15 14 13 12 11 10 9 8 7 6 5 4 3 2 1
0
X17960-092016
Port Descriptions
Port almost_empty almost_full data_valid
Direction Output Output Output
Width 1 1 1
Domain wr_clk wr_clk wr_clk
Sense
LEVEL _HIGH
LEVEL _HIGH
LEVEL _HIGH
Handling if Unused
Function
DoNotCare Almost Empty : When asserted, this signal indicates that only one more read can be performed before the FIFO goes to empty.
DoNotCare Almost Full: When asserted, this signal indicates that only one more write can be performed before the FIFO is full.
DoNotCare Read Data Valid: When asserted, this signal indicates that valid data is available on the output bus (dout).
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 108
Chapter 2: Xilinx Parameterized Macros
Port dbiterr din dout empty
full
injectdbiterr injectsbiterr overflow prog_empty
prog_full
rd_data_count rd_en
Direction Output Input Output Output
Output
Input Input Output Output
Output
Output Input
Width Domain
1
wr_clk
WRITE _DATA _WIDTH
READ _DATA _WIDTH
1
wr_clk wr_clk wr_clk
1
wr_clk
1
wr_clk
1
wr_clk
1
wr_clk
1
wr_clk
1
wr_clk
RD _DATA wr_clk _COUNT _WIDTH
1
wr_clk
Sense LEVEL _HIGH NA
NA
LEVEL _HIGH
LEVEL _HIGH
LEVEL _HIGH LEVEL _HIGH LEVEL _HIGH
LEVEL _HIGH
LEVEL _HIGH
NA
LEVEL _HIGH
Handling if Unused
Function
DoNotCare Double Bit Error: Indicates that the ECC decoder detected a double-bit error and data in the FIFO core is corrupted.
Active
Write Data: The input data bus used when writing the FIFO.
Active
Read Data: The output data bus is driven when reading the FIFO.
Active
Empty Flag: When asserted, this signal indicates that the FIFO is empty.
Read requests are ignored when the FIFO is empty, initiating a read while empty is not destructive to the FIFO.
Active
Full Flag: When asserted, this signal indicates that the FIFO is full.
Write requests are ignored when the FIFO is full, initiating a write when the FIFO is full is not destructive to the contents of the FIFO.
0
Double Bit Error Injection: Injects a double
bit error if the ECC feature is used on block
RAMs or UltraRAM macros.
0
Single Bit Error Injection: Injects a single
bit error if the ECC feature is used on block
RAMs or UltraRAM macros.
DoNotCare
Overflow: This signal indicates that a write request (wren) during the prior clock cycle was rejected, because the FIFO is full. Overflowing the FIFO is not destructive to the contents of the FIFO.
DoNotCare
Programmable Empty: This signal is asserted when the number of words in the FIFO is less than or equal to the programmable empty threshold value.
It is de-asserted when the number of words in the FIFO exceeds the programmable empty threshold value.
DoNotCare
Programmable Full: This signal is asserted when the number of words in the FIFO is greater than or equal to the programmable full threshold value.
It is de-asserted when the number of words in the FIFO is less than the programmable full threshold value.
DoNotCare Read Data Count: This bus indicates the number of words read from the FIFO.
Active
Read Enable: If the FIFO is not empty, asserting this signal causes data (on dout) to be read from the FIFO.
� Must be held active-low when
rd_rst_busy is active high.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 109
Chapter 2: Xilinx Parameterized Macros
Port rd_rst_busy
Direction Output
rst
Input
sbiterr
Output
sleep
Input
underflow
Output
wr_ack
Output
wr_clk
Input
wr_data_count Output
wr_en
Input
Width 1
1
1
1
1
1
1 WR _DATA _COUNT _WIDTH 1
Domain wr_clk wr_clk
wr_clk NA wr_clk
wr_clk NA wr_clk
wr_clk
Sense
Handling if Unused
Function
LEVEL _HIGH
DoNotCare Read Reset Busy: Active-High indicator that the FIFO read domain is currently in a reset state.
LEVEL _HIGH
Active
Reset: Must be synchronous to wr_clk. The clock(s) can be unstable at the time of applying reset, but reset must be released only after the clock(s) is/are stable.
LEVEL _HIGH
DoNotCare Single Bit Error: Indicates that the ECC decoder detected and fixed a single-bit error.
LEVEL 0 _HIGH
Dynamic power saving- If sleep is High, the memory/fifo block is in power saving mode.
LEVEL _HIGH
DoNotCare
Underflow: Indicates that the read request (rd_en) during the previous clock cycle was rejected because the FIFO is empty. Under flowing the FIFO is not destructive to the FIFO.
LEVEL _HIGH
DoNotCare Write Acknowledge: This signal indicates that a write request (wr_en) during the prior clock cycle is succeeded.
EDGE Active _RISING
Write clock: Used for write operation. wr_clk must be a free running clock.
NA
DoNotCare Write Data Count: This bus indicates the
number of words written into the FIFO.
LEVEL _HIGH
Active
Write Enable: If the FIFO is not full, asserting this signal causes data (on din) to be written to the FIFO
� Must be held active-low when rst or
wr_rst_busy or rd_rst_busy is active
high
wr_rst_busy
Output
1
wr_clk
LEVEL _HIGH
DoNotCare Write Reset Busy: Active-High indicator that the FIFO write domain is currently in a reset state.
Design Entry Method
Instantiation
No
Inference
No
IP and IP Integrator Catalog
No
Available Attributes
Attribute DOUT_RESET_VALUE
Type STRING
Allowed Values Default
String
"0"
Description Reset value of read data path.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 110
Chapter 2: Xilinx Parameterized Macros
Attribute ECC_MODE FIFO_MEMORY_TYPE
FIFO_READ _LATENCY
Type STRING STRING
DECIMAL
Allowed Values Default
"no_ecc", "en_ecc"
"no_ecc"
"auto", "block", "auto" "distributed", "ultra"
0 to 100
1
Description
� "no_ecc" - Disables ECC � "en_ecc" - Enables both ECC Encoder and
Decoder
NOTE: ECC_MODE should be "no_ecc" if FIFO_MEMORY_TYPE is set to "auto". Violating this may result incorrect behavior.
Designate the fifo memory primitive (resource type) to use-
� "auto"- Allow Vivado Synthesis to choose � "block"- Block RAM FIFO � "distributed"- Distributed RAM FIFO � "ultra"- URAM FIFO
NOTE: There may be a behavior mismatch if Block RAM or Ultra RAM specific features, like ECC or Asymmetry, are selected with FIFO_MEMORY_TYPE set to "auto".
Number of output register stages in the read data path
� If READ_MODE = "fwft", then the only
applicable value is 0
FIFO_WRITE_DEPTH
DECIMAL 16 to 4194304 2048
FULL_RESET_VALUE
DECIMAL 0 to 1
0
PROG_EMPTY _THRESH DECIMAL 3 to 4194304
10
Defines the FIFO Write Depth, must be power of two
� In standard READ_MODE, the effective depth =
FIFO_WRITE_DEPTH
� In First-Word-Fall-Through READ_MODE, the
effective depth = FIFO_WRITE_DEPTH+2
NOTE: The maximum FIFO size (width x depth) is limited to 150-Megabits.
Sets full, almost_full and prog_full to FULL_RESET_VALUE during reset
Specifies the minimum number of read words in the FIFO at or below which prog_empty is asserted.
� Min_Value = 3 + (READ_MODE_VAL*2)
� Max_Value = (FIFO_WRITE_DEPTH-3) -
(READ_MODE_VAL*2)
If READ_MODE = "std", then READ_MODE_VAL = 0; Otherwise READ_MODE_VAL = 1. NOTE: The default threshold value is dependent on default FIFO_WRITE_DEPTH value. If FIFO_WRITE_DEPTH value is changed, ensure the threshold value is within the valid range though the programmable flags are not used.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 111
Chapter 2: Xilinx Parameterized Macros
Attribute PROG_FULL_THRESH
RD_DATA_COUNT _WIDTH READ_DATA_WIDTH
READ_MODE SIM_ASSERT_CHK
Type DECIMAL
DECIMAL
Allowed Values Default
3 to 4194301
10
1 to 23
1
Description
Specifies the maximum number of write words in the FIFO at or above which prog_full is asserted.
� Min_Value = 3 +
(READ_MODE_VAL*2*(FIFO_WRITE_DEPTH/ FIFO_READ_DEPTH))
� Max_Value = (FIFO_WRITE_DEPTH-3) -
(READ_MODE_VAL*2*(FIFO_WRITE_DEPTH/ FIFO_READ_DEPTH))
If READ_MODE = "std", then READ_MODE_VAL = 0; Otherwise READ_MODE_VAL = 1. NOTE: The default threshold value is dependent on default FIFO_WRITE_DEPTH value. If FIFO_WRITE_DEPTH value is changed, ensure the threshold value is within the valid range though the programmable flags are not used.
Specifies the width of rd_data_count. To reflect the correct value, the width should be log2(FIFO_READ_DEPTH)+1.
� FIFO_READ_DEPTH =
FIFO_WRITE_DEPTH*WRITE_DATA_WIDTH/ READ_DATA_WIDTH
DECIMAL 1 to 4096
32
Defines the width of the read data port, dout
� Write and read width aspect ratio must be 1:1,
1:2, 1:4, 1:8, 8:1, 4:1 and 2:1
� For example, if WRITE_DATA_WIDTH is 32, then
the READ_DATA_WIDTH must be 32, 64,128, 256, 16, 8, 4.
NOTE:
� READ_DATA_WIDTH should be equal to
WRITE_DATA_WIDTH if FIFO_MEMORY_TYPE is set to "auto". Violating this may result incorrect behavior.
� The maximum FIFO size (width x depth) is
limited to 150-Megabits.
STRING
"std", "fwft"
"std"
� "std"- standard read mode � "fwft"- First-Word-Fall-Through read mode
DECIMAL 0 to 1
0
0- Disable simulation message reporting.
Messages related to potential misuse will not be
reported.
1- Enable simulation message reporting. Messages related to potential misuse will be reported.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 112
Chapter 2: Xilinx Parameterized Macros
Attribute USE_ADV_FEATURES
WAKEUP_TIME WR_DATA_COUNT _WIDTH WRITE_DATA_WIDTH
Type STRING
Allowed Values Default
String
"0707"
Description
Enables data_valid, almost_empty, rd_data_count, prog_empty, underflow, wr_ack, almost_full, wr_data_count, prog_full, overflow features.
� Setting USE_ADV_FEATURES[0] to 1 enables
overflow flag; Default value of this bit is 1
� Setting USE_ADV_FEATURES[1] to 1 enables
prog_full flag; Default value of this bit is 1
� Setting USE_ADV_FEATURES[2] to 1 enables
wr_data_count; Default value of this bit is 1
� Setting USE_ADV_FEATURES[3] to 1 enables
almost_full flag; Default value of this bit is 0
� Setting USE_ADV_FEATURES[4] to 1 enables
wr_ack flag; Default value of this bit is 0
� Setting USE_ADV_FEATURES[8] to 1 enables
underflow flag; Default value of this bit is 1
� Setting USE_ADV_FEATURES[9] to 1 enables
prog_empty flag; Default value of this bit is 1
� Setting USE_ADV_FEATURES[10] to 1 enables
rd_data_count; Default value of this bit is 1
� Setting USE_ADV_FEATURES[11] to 1 enables
almost_empty flag; Default value of this bit is 0
� Setting USE_ADV_FEATURES[12] to 1 enables
data_valid flag; Default value of this bit is 0
DECIMAL 0 to 2
0
DECIMAL 1 to 23
1
DECIMAL 1 to 4096
32
� 0 - Disable sleep
� 2 - Use Sleep Pin
NOTE: WAKEUP_TIME should be 0 if FIFO_MEMORY_TYPE is set to "auto". Violating this may result incorrect behavior.
Specifies the width of wr_data_count. To reflect the correct value, the width should be log2(FIFO_WRITE_DEPTH)+1.
Defines the width of the write data port, din
� Write and read width aspect ratio must be 1:1,
1:2, 1:4, 1:8, 8:1, 4:1 and 2:1
� For example, if WRITE_DATA_WIDTH is 32, then
the READ_DATA_WIDTH must be 32, 64,128, 256, 16, 8, 4.
NOTE:
� WRITE_DATA_WIDTH should be equal to
READ_DATA_WIDTH if FIFO_MEMORY_TYPE is set to "auto". Violating this may result incorrect behavior.
� The maximum FIFO size (width x depth) is
limited to 150-Megabits.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 113
Chapter 2: Xilinx Parameterized Macros
VHDL Instantiation Template Unless they already exist, copy the following two statements and paste them before the entity declaration.
Library xpm; use xpm.vcomponents.all;
-- xpm_fifo_sync: Synchronous FIFO -- Xilinx Parameterized Macro, version 2019.1
xpm_fifo_sync_inst : xpm_fifo_sync
generic map (
DOUT_RESET_VALUE => "0", -- String
ECC_MODE => "no_ecc",
-- String
FIFO_MEMORY_TYPE => "auto", -- String
FIFO_READ_LATENCY => 1,
-- DECIMAL
FIFO_WRITE_DEPTH => 2048, -- DECIMAL
FULL_RESET_VALUE => 0,
-- DECIMAL
PROG_EMPTY_THRESH => 10, -- DECIMAL
PROG_FULL_THRESH => 10,
-- DECIMAL
RD_DATA_COUNT_WIDTH => 1, -- DECIMAL
READ_DATA_WIDTH => 32,
-- DECIMAL
READ_MODE => "std",
-- String
SIM_ASSERT_CHK => 0,
-- DECIMAL; 0=disable simulation messages, 1=enable simulation messages
USE_ADV_FEATURES => "0707", -- String
WAKEUP_TIME => 0,
-- DECIMAL
WRITE_DATA_WIDTH => 32,
-- DECIMAL
WR_DATA_COUNT_WIDTH => 1 -- DECIMAL
)
port map (
almost_empty => almost_empty, -- 1-bit output: Almost Empty : When asserted, this signal indicates that
-- only one more read can be performed before the FIFO goes to empty.
almost_full => almost_full,
-- 1-bit output: Almost Full: When asserted, this signal indicates that -- only one more write can be performed before the FIFO is full.
data_valid => data_valid,
-- 1-bit output: Read Data Valid: When asserted, this signal indicates -- that valid data is available on the output bus (dout).
dbiterr => dbiterr,
-- 1-bit output: Double Bit Error: Indicates that the ECC decoder -- detected a double-bit error and data in the FIFO core is corrupted.
dout => dout,
-- READ_DATA_WIDTH-bit output: Read Data: The output data bus is driven -- when reading the FIFO.
empty => empty,
-- 1-bit output: Empty Flag: When asserted, this signal indicates that -- the FIFO is empty. Read requests are ignored when the FIFO is empty,
-- initiating a read while empty is not destructive to the FIFO.
full => full,
-- 1-bit output: Full Flag: When asserted, this signal indicates that the -- FIFO is full. Write requests are ignored when the FIFO is full, -- initiating a write when the FIFO is full is not destructive to the
-- contents of the FIFO.
overflow => overflow,
-- 1-bit output: Overflow: This signal indicates that a write request -- (wren) during the prior clock cycle was rejected, because the FIFO is -- full. Overflowing the FIFO is not destructive to the contents of the
-- FIFO.
prog_empty => prog_empty,
-- 1-bit output: Programmable Empty: This signal is asserted when the -- number of words in the FIFO is less than or equal to the programmable -- empty threshold value. It is de-asserted when the number of words in
-- the FIFO exceeds the programmable empty threshold value.
prog_full => prog_full,
-- 1-bit output: Programmable Full: This signal is asserted when the -- number of words in the FIFO is greater than or equal to the
-- programmable full threshold value. It is de-asserted when the number
-- of words in the FIFO is less than the programmable full threshold -- value.
rd_data_count => rd_data_count, -- RD_DATA_COUNT_WIDTH-bit output: Read Data Count: This bus indicates -- the number of words read from the FIFO.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 114
Chapter 2: Xilinx Parameterized Macros
rd_rst_busy => rd_rst_busy,
-- 1-bit output: Read Reset Busy: Active-High indicator that the FIFO -- read domain is currently in a reset state.
sbiterr => sbiterr,
-- 1-bit output: Single Bit Error: Indicates that the ECC decoder -- detected and fixed a single-bit error.
underflow => underflow,
-- 1-bit output: Underflow: Indicates that the read request (rd_en) -- during the previous clock cycle was rejected because the FIFO is
-- empty. Under flowing the FIFO is not destructive to the FIFO.
wr_ack => wr_ack,
-- 1-bit output: Write Acknowledge: This signal indicates that a write -- request (wr_en) during the prior clock cycle is succeeded.
wr_data_count => wr_data_count, -- WR_DATA_COUNT_WIDTH-bit output: Write Data Count: This bus indicates -- the number of words written into the FIFO.
wr_rst_busy => wr_rst_busy,
-- 1-bit output: Write Reset Busy: Active-High indicator that the FIFO -- write domain is currently in a reset state.
din => din,
-- WRITE_DATA_WIDTH-bit input: Write Data: The input data bus used when -- writing the FIFO.
injectdbiterr => injectdbiterr, -- 1-bit input: Double Bit Error Injection: Injects a double bit error if -- the ECC feature is used on block RAMs or UltraRAM macros.
injectsbiterr => injectsbiterr, -- 1-bit input: Single Bit Error Injection: Injects a single bit error if -- the ECC feature is used on block RAMs or UltraRAM macros.
rd_en => rd_en,
-- 1-bit input: Read Enable: If the FIFO is not empty, asserting this -- signal causes data (on dout) to be read from the FIFO. Must be held
-- active-low when rd_rst_busy is active high.
rst => rst,
-- 1-bit input: Reset: Must be synchronous to wr_clk. The clock(s) can be -- unstable at the time of applying reset, but reset must be released
-- only after the clock(s) is/are stable.
sleep => sleep,
-- 1-bit input: Dynamic power saving- If sleep is High, the memory/fifo -- block is in power saving mode.
wr_clk => wr_clk,
-- 1-bit input: Write clock: Used for write operation. wr_clk must be a -- free running clock.
wr_en => wr_en
-- 1-bit input: Write Enable: If the FIFO is not full, asserting this -- signal causes data (on din) to be written to the FIFO Must be held -- active-low when rst or wr_rst_busy or rd_rst_busy is active high
);
-- End of xpm_fifo_sync_inst instantiation
Verilog Instantiation Template
// xpm_fifo_sync: Synchronous FIFO // Xilinx Parameterized Macro, version 2019.1
xpm_fifo_sync #(
.DOUT_RESET_VALUE("0"), // String
.ECC_MODE("no_ecc"),
// String
.FIFO_MEMORY_TYPE("auto"), // String
.FIFO_READ_LATENCY(1),
// DECIMAL
.FIFO_WRITE_DEPTH(2048), // DECIMAL
.FULL_RESET_VALUE(0),
// DECIMAL
.PROG_EMPTY_THRESH(10), // DECIMAL
.PROG_FULL_THRESH(10),
// DECIMAL
.RD_DATA_COUNT_WIDTH(1), // DECIMAL
.READ_DATA_WIDTH(32),
// DECIMAL
.READ_MODE("std"),
// String
.SIM_ASSERT_CHK(0),
// DECIMAL; 0=disable simulation messages, 1=enable simulation messages
.USE_ADV_FEATURES("0707"), // String
.WAKEUP_TIME(0),
// DECIMAL
.WRITE_DATA_WIDTH(32),
// DECIMAL
.WR_DATA_COUNT_WIDTH(1) // DECIMAL
)
xpm_fifo_sync_inst (
.almost_empty(almost_empty), // 1-bit output: Almost Empty : When asserted, this signal indicates that
// only one more read can be performed before the FIFO goes to empty.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 115
Chapter 2: Xilinx Parameterized Macros
.almost_full(almost_full),
// 1-bit output: Almost Full: When asserted, this signal indicates that // only one more write can be performed before the FIFO is full.
.data_valid(data_valid),
// 1-bit output: Read Data Valid: When asserted, this signal indicates // that valid data is available on the output bus (dout).
.dbiterr(dbiterr),
// 1-bit output: Double Bit Error: Indicates that the ECC decoder detected // a double-bit error and data in the FIFO core is corrupted.
.dout(dout),
// READ_DATA_WIDTH-bit output: Read Data: The output data bus is driven // when reading the FIFO.
.empty(empty),
// 1-bit output: Empty Flag: When asserted, this signal indicates that the // FIFO is empty. Read requests are ignored when the FIFO is empty,
// initiating a read while empty is not destructive to the FIFO.
.full(full),
// 1-bit output: Full Flag: When asserted, this signal indicates that the // FIFO is full. Write requests are ignored when the FIFO is full,
// initiating a write when the FIFO is full is not destructive to the // contents of the FIFO.
.overflow(overflow),
// 1-bit output: Overflow: This signal indicates that a write request // (wren) during the prior clock cycle was rejected, because the FIFO is // full. Overflowing the FIFO is not destructive to the contents of the
// FIFO.
.prog_empty(prog_empty),
// 1-bit output: Programmable Empty: This signal is asserted when the // number of words in the FIFO is less than or equal to the programmable // empty threshold value. It is de-asserted when the number of words in
// the FIFO exceeds the programmable empty threshold value.
.prog_full(prog_full),
// 1-bit output: Programmable Full: This signal is asserted when the // number of words in the FIFO is greater than or equal to the
// programmable full threshold value. It is de-asserted when the number of
// words in the FIFO is less than the programmable full threshold value.
.rd_data_count(rd_data_count), // RD_DATA_COUNT_WIDTH-bit output: Read Data Count: This bus indicates the // number of words read from the FIFO.
.rd_rst_busy(rd_rst_busy),
// 1-bit output: Read Reset Busy: Active-High indicator that the FIFO read // domain is currently in a reset state.
.sbiterr(sbiterr),
// 1-bit output: Single Bit Error: Indicates that the ECC decoder detected // and fixed a single-bit error.
.underflow(underflow),
// 1-bit output: Underflow: Indicates that the read request (rd_en) during // the previous clock cycle was rejected because the FIFO is empty. Under
// flowing the FIFO is not destructive to the FIFO.
.wr_ack(wr_ack),
// 1-bit output: Write Acknowledge: This signal indicates that a write // request (wr_en) during the prior clock cycle is succeeded.
.wr_data_count(wr_data_count), // WR_DATA_COUNT_WIDTH-bit output: Write Data Count: This bus indicates // the number of words written into the FIFO.
.wr_rst_busy(wr_rst_busy),
// 1-bit output: Write Reset Busy: Active-High indicator that the FIFO // write domain is currently in a reset state.
.din(din),
// WRITE_DATA_WIDTH-bit input: Write Data: The input data bus used when // writing the FIFO.
.injectdbiterr(injectdbiterr), // 1-bit input: Double Bit Error Injection: Injects a double bit error if // the ECC feature is used on block RAMs or UltraRAM macros.
.injectsbiterr(injectsbiterr), // 1-bit input: Single Bit Error Injection: Injects a single bit error if // the ECC feature is used on block RAMs or UltraRAM macros.
.rd_en(rd_en),
// 1-bit input: Read Enable: If the FIFO is not empty, asserting this // signal causes data (on dout) to be read from the FIFO. Must be held
// active-low when rd_rst_busy is active high.
.rst(rst),
// 1-bit input: Reset: Must be synchronous to wr_clk. The clock(s) can be // unstable at the time of applying reset, but reset must be released only
// after the clock(s) is/are stable.
.sleep(sleep),
// 1-bit input: Dynamic power saving- If sleep is High, the memory/fifo // block is in power saving mode.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 116
Chapter 2: Xilinx Parameterized Macros
.wr_clk(wr_clk),
// 1-bit input: Write clock: Used for write operation. wr_clk must be a // free running clock.
.wr_en(wr_en)
// 1-bit input: Write Enable: If the FIFO is not full, asserting this // signal causes data (on din) to be written to the FIFO Must be held // active-low when rst or wr_rst_busy or rd_rst_busy is active high
);
// End of xpm_fifo_sync_inst instantiation
For More Information � See the 7 Series Programmable Devices User Guides.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 117
Chapter 2: Xilinx Parameterized Macros
XPM_MEMORY_DPDISTRAM
Parameterized Macro: Dual Port Distributed RAM
MACRO_GROUP: XPM MACRO_SUBGROUP: XPM_MEMORY Families: 7 series, UltraScale, UltraScale+
XPM_MEMORY_DPDISTRAM
dina[(WRITE_DATA_WIDTH_A - 1):0] addra[(ADDR_WIDTH_A � 1):0] addrb[(ADDR_WIDTH_B � 1):0]
wea[WRITE_DATA_WIDTH_A/ BYTE_WRITE_WIDTH_A � 1):0]
clka clkb rsta rstb ena enb regcea regceb
douta[(READ_DATA_WIDTH_A � 1):0] doutb[(READ_DATA_WIDTH_B � 1):0]
X16219-040416
Introduction This macro is used to instantiate Dual Port Distributed RAM. Port-A can be used to perform both read and write operations and simultaneously port B can be used to perform read operations from the memory. Write operations are not allowed through port B.
The following describes the basic read and write port usage of an XPM_MEMORY instance. It does not distinguish between ports A and B.
� All synchronous signals are sensitive to the rising edge of clk[a|b], which is assumed to be a buffered and toggling clock signal behaving according to target device and memory primitive requirements.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 118
Chapter 2: Xilinx Parameterized Macros
� A read operation is implicitly performed to address addr[a|b] combinatorially. The data output is registered each clk[a|b] cycle that en[a|b] is asserted.
� Read data appears on the dout[a|b] port READ_LATENCY_[A|B] clk[a|b] cycles after the associated read operation.
� A write operation is explicitly performed, writing dina to address addra, when both ena and wea are asserted on each clka cycle.
� All read and write operations are gated by the value of en[a|b] on the initiating clk[a|b] cycle, regardless of input or output latencies. The addra and wea inputs have no effect when ena is de-asserted on the coincident clka cycle.
� For each clk[a|b] cycle that rst[a|b] is asserted, the final output register is immediately but synchronously reset to READ_RESET_VALUE_[A|B], irrespective of READ_LATENCY_[A|B].
� For each clk[a|b] cycle that regce[a|b] is asserted and rst[a|b] is de-asserted, the final output register captures and outputs the value from the previous pipeline register.
� Undriven or unknown values provided on module inputs will produce undefined memory array and output port behavior.
Note:
� When the attribute "CLOCKING_MODE" is set to "common_clock", all read/write operations to memory through port A and port B are performed on clka. If this attribute is set to "independent_clock", then read/write operations through port A are performed based on clka, and read/write operations through port B are performed based on clkb.
� Writing to an out-of-range address location may overwrite a valid address location when effective address bits match to a physical memory address location.
� set_false_path constraint is needed for the independent clock distributed RAM based memory if the design takes care of avoiding address collision (write address != read address at any given point of time). Set USE_EMBEDDED_CONSTRAINT = 1 if XPM_MEMORY needs to take care of necessary constraints. If USE_EMBEDDED_CONSTRAINT = 0, Vivado may trigger Timing-6 or Timing-7 or both. Alternatively, you can also add the constraint when USE_EMBEDDED_CONSTRAINT = 0. An example of adding this constraint is provided below. If Port-B also has write permissions for an Independent clock configuration, then a similar constraint needs to be added for clkb as well.
set_false_path -from [filter [all_fanout -from [get_ports clka] -flat -endpoints_only] {IS_LEAF}] -through [get_pins -of_objects [get_cells -hier * -filter {PRIMITIVE_SUBGROUP==LUTRAM || PRIMITIVE_SUBGROUP==dram || PRIMITIVE_SUBGROUP==drom}] -filter {DIRECTION==OUT}]
� If "CLOCKING_MODE" is set to "independent_clock", Vivado may trigger a false positive CDC-1 warning and can be ignored.
Port Descriptions
Port addra
Direction Input
Width
ADDR _WIDTH _A
Domain clka
Sense NA
Handling if Unused
Function
Active
Address for port A write and read operations.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 119
Chapter 2: Xilinx Parameterized Macros
Port addrb clka clkb dina douta doutb ena
enb
regcea regceb rsta
rstb wea
Direction Input Input Input Input Output Output Input
Input
Input Input Input
Input Input
Width Domain
ADDR
clkb
_WIDTH
_B
1
NA
1
NA
WRITE clka _DATA _WIDTH _A
READ
clka
_DATA
_WIDTH
_A
READ
clkb
_DATA
_WIDTH
_B
1
clka
1
clkb
1
clka
1
clkb
1
clka
1
clkb
WRITE clka _DATA _WIDTH _A / BYTE _WRITE _WIDTH _A
Sense NA
Handling if Unused
Function
Active
Address for port B write and read operations.
EDGE Active _RISING
EDGE Active _RISING
NA
Active
Clock signal for port A. Also clocks port B when parameter CLOCKING_MODE is "common_clock".
Clock signal for port B when parameter CLOCKING_MODE is "independent_clock". Unused when parameter CLOCKING_MODE is "common_clock".
Data input for port A write operations.
NA
Active
Data output for port A read operations.
NA
Active
Data output for port B read operations.
LEVEL _HIGH
Active
LEVEL _HIGH
Active
LEVEL _HIGH
LEVEL _HIGH
LEVEL _HIGH
1 Active Active
LEVEL _HIGH
Active
LEVEL _HIGH
Active
Memory enable signal for port A.
Must be high on clock cycles when read or write operations are initiated. Pipelined internally.
Memory enable signal for port B.
Must be high on clock cycles when read or write operations are initiated. Pipelined internally.
Clock Enable for the last register stage on the output data path.
Do not change from the provided value.
Reset signal for the final port A output register stage.
Synchronously resets output port douta to the value specified by parameter READ_RESET_VALUE_A.
Reset signal for the final port B output register stage. Synchronously resets output port doutb to the value specified by parameter READ_RESET_VALUE_B.
Write enable vector for port A input data port dina. 1 bit wide when word-wide writes are used.
In byte-wide write configurations, each bit controls the writing one byte of dina to address addra. For example, to synchronously write only bits [15-8] of dina when WRITE_DATA_WIDTH_A is 32, wea would be 4'b0010.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 120
Chapter 2: Xilinx Parameterized Macros
Design Entry Method
Instantiation
No
Inference
No
IP and IP Integrator Catalog
No
Available Attributes
Attribute ADDR_WIDTH_A ADDR_WIDTH_B BYTE_WRITE_WIDTH _A
CLOCKING_MODE
Type DECIMAL DECIMAL DECIMAL
STRING
Allowed Values Default
1 to 20
6
1 to 20
6
1 to 4608
32
Description
Specify the width of the port A address port addra, in bits.
Must be large enough to access the entire memory from port A, i.e. >= $clog2(MEMORY_SIZE/ [WRITE|READ]_DATA_WIDTH_A).
Specify the width of the port B address port addrb, in bits.
Must be large enough to access the entire memory from port B, i.e. >= $clog2(MEMORY_SIZE/ [WRITE|READ]_DATA_WIDTH_B).
To enable byte-wide writes on port A, specify the byte width, in bits.
� 8- 8-bit byte-wide writes, legal when
WRITE_DATA_WIDTH_A is an integer multiple of 8
� 9- 9-bit byte-wide writes, legal when
WRITE_DATA_WIDTH_A is an integer multiple of 9
"common _clock", "independent _clock"
"common _clock"
Or to enable word-wide writes on port A, specify the same value as for WRITE_DATA_WIDTH_A.
Designate whether port A and port B are clocked with a common clock or with independent clocks-
� "common_clock"- Common clocking; clock
both port A and port B with clka
� "independent_clock"- Independent clocking;
clock port A with clka and port B with clkb
MEMORY_INIT_FILE
STRING
String
"none"
Specify "none" (including quotes) for no memory initialization, or specify the name of a memory initialization file- Enter only the name of the file with .mem extension, including quotes but without path (e.g. "my_file.mem").
File format must be ASCII and consist of only hexadecimal values organized into the specified depth by narrowest data width generic value of the memory.
See the Memory File (MEM) section for more information on the syntax. Initialization of memory happens through the file name specified only when parameter MEMORY_INIT_PARAM value is equal to "".
When using XPM_MEMORY in a project, add the specified file to the Vivado project as a design source.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 121
Chapter 2: Xilinx Parameterized Macros
Attribute MEMORY_INIT _PARAM
Type STRING
MEMORY _OPTIMIZATION
STRING
MEMORY_SIZE MESSAGE_CONTROL
DECIMAL DECIMAL
READ_DATA_WIDTH_A DECIMAL
READ_DATA_WIDTH_B DECIMAL
READ_LATENCY_A
DECIMAL
READ_LATENCY_B
DECIMAL
Allowed Values Default
String
"0"
"true", "false" "true"
2 to 150994944 2048
0 to 1
0
1 to 4608
32
1 to 4608
32
0 to 100
2
0 to 100
2
Description
Specify "" or "0" (including quotes) for no memory initialization through parameter, or specify the string containing the hex characters. Enter only hex characters with each location separated by delimiter (,).
Parameter format must be ASCII and consist of only hexadecimal values organized into the specified depth by narrowest data width generic value of the memory.
For example, if the narrowest data width is 8, and the depth of memory is 8 locations, then the parameter value should be passed as shown below.
parameter MEMORY_INIT_PARAM = "AB,CD,EF,1,2,34,56,78"
Where "AB" is the 0th location and "78" is the 7th location.
Specify "true" to enable the optimization of unused memory or bits in the memory structure. Specify "false" to disable the optimization of unused memory or bits in the memory structure
Specify the total memory array size, in bits. For example, enter 65536 for a 2kx32 RAM.
Specify 1 to enable the dynamic message reporting such as collision warnings, and 0 to disable the message reporting
Specify the width of the port A read data output port douta, in bits.
The values of READ_DATA_WIDTH_A and WRITE_DATA_WIDTH_A must be equal.
Specify the width of the port B read data output port doutb, in bits.
The values of READ_DATA_WIDTH_B and WRITE_DATA_WIDTH_B must be equal.
Specify the number of register stages in the port A read data pipeline. Read data output to port douta takes this number of clka cycles.
To target block memory, a value of 1 or larger is required- 1 causes use of memory latch only; 2 causes use of output register. To target distributed memory, a value of 0 or larger is required- 0 indicates combinatorial output.
Values larger than 2 synthesize additional flipflops that are not retimed into memory primitives.
Specify the number of register stages in the port B read data pipeline. Read data output to port doutb takes this number of clkb cycles (clka when CLOCKING_MODE is "common_clock").
To target block memory, a value of 1 or larger is required- 1 causes use of memory latch only; 2 causes use of output register. To target distributed memory, a value of 0 or larger is required- 0 indicates combinatorial output.
Values larger than 2 synthesize additional flipflops that are not retimed into memory primitives.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 122
Chapter 2: Xilinx Parameterized Macros
Attribute READ_RESET_VALUE _A
Type STRING
READ_RESET_VALUE _B STRING
RST_MODE_A
STRING
Allowed Values Default
String
"0"
String
"0"
"SYNC", "ASYNC"
"SYNC"
Description
Specify the reset value of the port A final output register stage in response to rsta input port is assertion. The value mentioned must be accomodated in READ_DATA_WIDTH_A number of bits.
Specify the reset value of the port B final output register stage in response to rstb input port is assertion. The value mentioned must be accomodated in READ_DATA_WIDTH_B number of bits.
Describes the behaviour of the reset
� "SYNC" - when reset is applied, synchronously
resets output port douta to the value specified by parameter READ_RESET_VALUE_A
� "ASYNC" - when reset is applied,
asynchronously resets output port douta to zero
RST_MODE_B
STRING
"SYNC", "ASYNC"
"SYNC"
Describes the behaviour of the reset
� "SYNC" - when reset is applied, synchronously
resets output port doutb to the value specified by parameter READ_RESET_VALUE_B
� "ASYNC" - when reset is applied,
asynchronously resets output port doutb to zero
SIM_ASSERT_CHK
DECIMAL 0 to 1
0
USE_EMBEDDED
DECIMAL 0 to 1
0
_CONSTRAINT
USE_MEM_INIT
DECIMAL 0 to 1
1
WRITE_DATA_WIDTH _A DECIMAL 1 to 4608
32
0- Disable simulation message reporting. Messages related to potential misuse will not be reported.
1- Enable simulation message reporting. Messages related to potential misuse will be reported.
Specify 1 to enable the set_false_path constraint addition between clka of Distributed RAM and doutb_reg on clkb
Specify 1 to enable the generation of below message and 0 to disable generation of the following message completely.
"INFO - MEMORY_INIT_FILE and MEMORY_INIT_PARAM together specifies no memory initialization. Initial memory contents will be all 0s." NOTE: This message gets generated only when there is no Memory Initialization specified either through file or Parameter.
Specify the width of the port A write data input port dina, in bits.
The values of WRITE_DATA_WIDTH_A and READ_DATA_WIDTH_A must be equal.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 123
Chapter 2: Xilinx Parameterized Macros
VHDL Instantiation Template Unless they already exist, copy the following two statements and paste them before the entity declaration.
Library xpm; use xpm.vcomponents.all;
-- xpm_memory_dpdistram: Dual Port Distributed RAM -- Xilinx Parameterized Macro, version 2019.1
xpm_memory_dpdistram_inst : xpm_memory_dpdistram
generic map (
ADDR_WIDTH_A => 6,
-- DECIMAL
ADDR_WIDTH_B => 6,
-- DECIMAL
BYTE_WRITE_WIDTH_A => 32,
-- DECIMAL
CLOCKING_MODE => "common_clock", -- String
MEMORY_INIT_FILE => "none",
-- String
MEMORY_INIT_PARAM => "0",
-- String
MEMORY_OPTIMIZATION => "true", -- String
MEMORY_SIZE => 2048,
-- DECIMAL
MESSAGE_CONTROL => 0,
-- DECIMAL
READ_DATA_WIDTH_A => 32,
-- DECIMAL
READ_DATA_WIDTH_B => 32,
-- DECIMAL
READ_LATENCY_A => 2,
-- DECIMAL
READ_LATENCY_B => 2,
-- DECIMAL
READ_RESET_VALUE_A => "0",
-- String
READ_RESET_VALUE_B => "0",
-- String
RST_MODE_A => "SYNC",
-- String
RST_MODE_B => "SYNC",
-- String
SIM_ASSERT_CHK => 0,
-- DECIMAL; 0=disable simulation messages, 1=enable simulation messages
USE_EMBEDDED_CONSTRAINT => 0, -- DECIMAL
USE_MEM_INIT => 1,
-- DECIMAL
WRITE_DATA_WIDTH_A => 32
-- DECIMAL
)
port map (
douta => douta, -- READ_DATA_WIDTH_A-bit output: Data output for port A read operations.
doutb => doutb, -- READ_DATA_WIDTH_B-bit output: Data output for port B read operations.
addra => addra, -- ADDR_WIDTH_A-bit input: Address for port A write and read operations.
addrb => addrb, -- ADDR_WIDTH_B-bit input: Address for port B write and read operations.
clka => clka,
-- 1-bit input: Clock signal for port A. Also clocks port B when parameter
-- CLOCKING_MODE is "common_clock".
clkb => clkb,
-- 1-bit input: Clock signal for port B when parameter CLOCKING_MODE is -- "independent_clock". Unused when parameter CLOCKING_MODE is "common_clock".
dina => dina, ena => ena,
-- WRITE_DATA_WIDTH_A-bit input: Data input for port A write operations. -- 1-bit input: Memory enable signal for port A. Must be high on clock cycles when read
-- or write operations are initiated. Pipelined internally.
enb => enb,
-- 1-bit input: Memory enable signal for port B. Must be high on clock cycles when read -- or write operations are initiated. Pipelined internally.
regcea => regcea, -- 1-bit input: Clock Enable for the last register stage on the output data path.
regceb => regceb, -- 1-bit input: Do not change from the provided value.
rsta => rsta,
-- 1-bit input: Reset signal for the final port A output register stage. Synchronously
-- resets output port douta to the value specified by parameter READ_RESET_VALUE_A.
rstb => rstb,
-- 1-bit input: Reset signal for the final port B output register stage. Synchronously -- resets output port doutb to the value specified by parameter READ_RESET_VALUE_B.
wea => wea
-- WRITE_DATA_WIDTH_A-bit input: Write enable vector for port A input data port dina. 1
-- bit wide when word-wide writes are used. In byte-wide write configurations, each bit -- controls the writing one byte of dina to address addra. For example, to
-- synchronously write only bits [15-8] of dina when WRITE_DATA_WIDTH_A is 32, wea -- would be 4'b0010.
);
-- End of xpm_memory_dpdistram_inst instantiation
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 124
Chapter 2: Xilinx Parameterized Macros
Verilog Instantiation Template
// xpm_memory_dpdistram: Dual Port Distributed RAM // Xilinx Parameterized Macro, version 2019.1
xpm_memory_dpdistram #(
.ADDR_WIDTH_A(6),
// DECIMAL
.ADDR_WIDTH_B(6),
// DECIMAL
.BYTE_WRITE_WIDTH_A(32),
// DECIMAL
.CLOCKING_MODE("common_clock"), // String
.MEMORY_INIT_FILE("none"),
// String
.MEMORY_INIT_PARAM("0"),
// String
.MEMORY_OPTIMIZATION("true"), // String
.MEMORY_SIZE(2048),
// DECIMAL
.MESSAGE_CONTROL(0),
// DECIMAL
.READ_DATA_WIDTH_A(32),
// DECIMAL
.READ_DATA_WIDTH_B(32),
// DECIMAL
.READ_LATENCY_A(2),
// DECIMAL
.READ_LATENCY_B(2),
// DECIMAL
.READ_RESET_VALUE_A("0"),
// String
.READ_RESET_VALUE_B("0"),
// String
.RST_MODE_A("SYNC"),
// String
.RST_MODE_B("SYNC"),
// String
.SIM_ASSERT_CHK(0),
// DECIMAL; 0=disable simulation messages, 1=enable simulation messages
.USE_EMBEDDED_CONSTRAINT(0), // DECIMAL
.USE_MEM_INIT(1),
// DECIMAL
.WRITE_DATA_WIDTH_A(32)
// DECIMAL
)
xpm_memory_dpdistram_inst (
.douta(douta), // READ_DATA_WIDTH_A-bit output: Data output for port A read operations.
.doutb(doutb), // READ_DATA_WIDTH_B-bit output: Data output for port B read operations.
.addra(addra), // ADDR_WIDTH_A-bit input: Address for port A write and read operations.
.addrb(addrb), // ADDR_WIDTH_B-bit input: Address for port B write and read operations.
.clka(clka),
// 1-bit input: Clock signal for port A. Also clocks port B when parameter CLOCKING_MODE
// is "common_clock".
.clkb(clkb),
// 1-bit input: Clock signal for port B when parameter CLOCKING_MODE is // "independent_clock". Unused when parameter CLOCKING_MODE is "common_clock".
.dina(dina), .ena(ena),
// WRITE_DATA_WIDTH_A-bit input: Data input for port A write operations. // 1-bit input: Memory enable signal for port A. Must be high on clock cycles when read
// or write operations are initiated. Pipelined internally.
.enb(enb),
// 1-bit input: Memory enable signal for port B. Must be high on clock cycles when read // or write operations are initiated. Pipelined internally.
.regcea(regcea), // 1-bit input: Clock Enable for the last register stage on the output data path.
.regceb(regceb), // 1-bit input: Do not change from the provided value.
.rsta(rsta),
// 1-bit input: Reset signal for the final port A output register stage. Synchronously
// resets output port douta to the value specified by parameter READ_RESET_VALUE_A.
.rstb(rstb),
// 1-bit input: Reset signal for the final port B output register stage. Synchronously // resets output port doutb to the value specified by parameter READ_RESET_VALUE_B.
.wea(wea)
// WRITE_DATA_WIDTH_A-bit input: Write enable vector for port A input data port dina. 1 // bit wide when word-wide writes are used. In byte-wide write configurations, each bit // controls the writing one byte of dina to address addra. For example, to synchronously // write only bits [15-8] of dina when WRITE_DATA_WIDTH_A is 32, wea would be 4'b0010.
);
// End of xpm_memory_dpdistram_inst instantiation
For More Information � See the 7 Series Programmable Devices User Guides. � See the 7 Series FPGAs Memory Resources User Guide (UG473).
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 125
Chapter 2: Xilinx Parameterized Macros
XPM_MEMORY_DPROM
Parameterized Macro: Dual Port ROM
MACRO_GROUP: XPM MACRO_SUBGROUP: XPM_MEMORY Families: 7 series, UltraScale, UltraScale+
XPM_MEMORY_DPROM
addra[(ADDR_WIDTH_A � 1):0] addrb[(ADDR_WIDTH_B � 1):0]
douta[(READ_DATA_WIDTH_A � 1):0] doutb[(READ_DATA_WIDTH_B � 1):0]
injectsbiterra injectsbiterrb injectdbiterra injectdbiterrb
sbiterra sbiterrb dbiterra dbiterrb
clka clkb rsta rstb ena enb regcea regceb sleep
X16221-031116
Introduction This macro is used to instantiate True Dual Port ROM. Read operations from the memory can be performed from Port A and Port B simulataneously.
The following describes the basic read and write port usage of an XPM_MEMORY instance. It does not distinguish between ports A and B.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 126
Chapter 2: Xilinx Parameterized Macros
� All synchronous signals are sensitive to the rising edge of clk[a|b], which is assumed to be a buffered and toggling clock signal behaving according to target device and memory primitive requirements.
� A read operation is implicitly performed to address addr[a|b] combinatorially. The data output is registered each clk[a|b] cycle that en[a|b] is asserted.
� Read data appears on the dout[a|b] port READ_LATENCY_[A|B] clk[a|b] cycles after the associated read operation.
� All read operations are gated by the value of en[a|b] on the initiating clk[a|b] cycle, regardless of input or output latencies.
� For each clk[a|b] cycle that rst[a|b] is asserted, the final output register is immediately but synchronously reset to READ_RESET_VALUE_[A|B], irrespective of READ_LATENCY_[A|B].
� For each clk[a|b] cycle that regce[a|b] is asserted and rst[a|b] is de-asserted, the final output register captures and outputs the value from the previous pipeline register.
� Undriven or unknown values provided on module inputs will produce undefined memory array and output port behavior.
WRITE_MODE_A must be set to "read_first" in Dual Port ROM configurations. Violating this will result in a DRC.
Note:
� When the attribute "CLOCKING_MODE" is set to "common_clock", all read/write operations to memory through port A and port B are performed on clka. If this attribute is set to "independent_clock", then read/write operations through port A are performed based on clka, and read/write operations through port B are performed based on clkb.
� set_false_path constraint is needed for the independent clock distributed RAM based memory if the design takes care of avoiding address collision (write address != read address at any given point of time).
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 127
Chapter 2: Xilinx Parameterized Macros
Timing Diagrams
CLK RST EN ADDR DOUT
DPROM with Read Latency of 1
AA
BB
CC
DD
EE
Data(AA) Data(BB) Data(CC) Data(DD) Data(EE) RSTVAL
CLK RST EN REGCE ADDR DOUT
DPROM with Read Latency of 2
AA
BB
CC
DD
EE
Data(AA) Data(BB) Data(CC) Data(DD)
RSTVAL
Note: The above waveforms do not distinguish between port A and port B. The behavior shown in the above waveforms is true for both port A and port B.
Port Descriptions
Port addra addrb clka clkb
dbiterra
Direction Input Input Input Input
Output
Width
ADDR _WIDTH _A ADDR _WIDTH _B 1
1
1
Domain clka
Sense NA
Handling if Unused
Function
Active
Address for port A read operations.
clkb
NA
Active
Address for port B read operations.
NA
EDGE Active
Clock signal for port A. Also clocks port B
_RISING
when parameter CLOCKING_MODE is
"common_clock".
NA
EDGE Active
Clock signal for port B when parameter
_RISING
CLOCKING_MODE is "independent_clock".
Unused when parameter
CLOCKING_MODE is "common_clock".
clka
LEVEL DoNotCare Leave open.
_HIGH
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 128
Chapter 2: Xilinx Parameterized Macros
Port dbiterrb douta
doutb
ena enb injectdbiterra injectdbiterrb injectsbiterra injectsbiterrb regcea regceb rsta
rstb
sbiterra sbiterrb sleep
Direction Width
Output
1
Output Output Input
READ _DATA _WIDTH _A
READ _DATA _WIDTH _B
1
Input
1
Input
1
Input
1
Input
1
Input
1
Input
1
Input
1
Input
1
Input
1
Output
1
Output
1
Input
1
Domain clkb clka
Sense
LEVEL _HIGH NA
Handling if Unused
DoNotCare Leave open.
Function
Active
Data output for port A read operations.
clkb
NA
Active
Data output for port B read operations.
clka
LEVEL Active
Memory enable signal for port A. Must be
_HIGH
high on clock cycles when read operations
are initiated. Pipelined internally.
clkb
LEVEL Active
Memory enable signal for port B. Must be
_HIGH
high on clock cycles when read operations
are initiated. Pipelined internally.
clka
LEVEL 0
_HIGH
Do not change from the provided value.
clkb
LEVEL 0
_HIGH
Do not change from the provided value.
clka
LEVEL 0
_HIGH
Do not change from the provided value.
clkb
LEVEL 0
_HIGH
Do not change from the provided value.
clka
LEVEL 1
_HIGH
Do not change from the provided value.
clkb
LEVEL 1
_HIGH
Do not change from the provided value.
clka
LEVEL Active
Reset signal for the final port A output
_HIGH
register stage. Synchronously resets
output port douta to the value specified by
parameter READ_RESET_VALUE_A.
clkb
LEVEL Active
Reset signal for the final port B output
_HIGH
register stage. Synchronously resets
output port doutb to the value specified by
parameter READ_RESET_VALUE_B.
clka
LEVEL DoNotCare Leave open.
_HIGH
clkb
LEVEL DoNotCare Leave open.
_HIGH
NA
LEVEL 0
_HIGH
sleep signal to enable the dynamic power saving feature.
Design Entry Method
Instantiation
No
Inference
No
IP and IP Integrator Catalog
No
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 129
Chapter 2: Xilinx Parameterized Macros
Available Attributes
Attribute ADDR_WIDTH_A ADDR_WIDTH_B AUTO_SLEEP_TIME CASCADE_HEIGHT CLOCKING_MODE
ECC_MODE
MEMORY_INIT_FILE
Type DECIMAL DECIMAL DECIMAL DECIMAL
STRING
STRING
Allowed Values Default
1 to 20
6
1 to 20
6
0 to 15
0
0 to 64
0
"common _clock", "independent _clock"
"common _clock"
"no_ecc", "both _encode _and _decode", "decode _only", "encode _only"
"no_ecc"
Description
Specify the width of the port A address port addra, in bits. Must be large enough to access the entire memory from port A, i.e. >= $clog2(MEMORY_SIZE/ READ_DATA_WIDTH_A).
Specify the width of the port B address port addrb, in bits. Must be large enough to access the entire memory from port B, i.e. >= $clog2(MEMORY_SIZE/ READ_DATA_WIDTH_B).
Must be set to 0 0 - Disable auto-sleep feature
0- No Cascade Height, Allow Vivado Synthesis to choose. 1 or more - Vivado Synthesis sets the specified value as Cascade Height.
Designate whether port A and port B are clocked with a common clock or with independent clocks"common_clock"- Common clocking; clock both port A and port B with clka "independent_clock"Independent clocking; clock port A with clka and port B with clkb
� "no_ecc" - Disables ECC
� "encode_only" - Enables ECC Encoder only
� "decode_only" - Enables ECC Decoder only
� "both_encode_and_decode" - Enables both
ECC Encoder and Decoder
STRING
String
"none"
Specify "none" (including quotes) for no memory initialization, or specify the name of a memory initialization file- Enter only the name of the file with .mem extension, including quotes but without path (e.g. "my_file.mem"). File format must be ASCII and consist of only hexadecimal values organized into the specified depth by narrowest data width generic value of the memory. See the Memory File (MEM) section for more information on the syntax. Initialization of memory happens through the file name specified only when parameter MEMORY_INIT_PARAM value is equal to "". | When using XPM_MEMORY in a project, add the specified file to the Vivado project as a design source.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 130
Chapter 2: Xilinx Parameterized Macros
Attribute MEMORY_INIT _PARAM
Type STRING
MEMORY _OPTIMIZATION
STRING
MEMORY _PRIMITIVE
STRING
MEMORY_SIZE MESSAGE_CONTROL
DECIMAL DECIMAL
READ_DATA_WIDTH_A DECIMAL
READ_DATA_WIDTH_B DECIMAL
READ_LATENCY_A
DECIMAL
READ_LATENCY_B
DECIMAL
Allowed Values Default
String
"0"
"true", "false" "true"
"auto", "block", "auto" "distributed", "ultra"
2 to 150994944 2048
0 to 1
0
1 to 4608
32
1 to 4608
32
0 to 100
2
0 to 100
2
Description
Specify "" or "0" (including quotes) for no memory initialization through parameter, or specify the string containing the hex characters. Enter only hex characters with each location separated by delimiter (,).
Parameter format must be ASCII and consist of only hexadecimal values organized into the specified depth by narrowest data width generic value of the memory.
For example, if the narrowest data width is 8, and the depth of memory is 8 locations, then the parameter value should be passed as shown below.
parameter MEMORY_INIT_PARAM = "AB,CD,EF,1,2,34,56,78"
Where "AB" is the 0th location and "78" is the 7th location.
Specify "true" to enable the optimization of unused memory or bits in the memory structure. Specify "false" to disable the optimization of unused memory or bits in the memory structure
Designate the memory primitive (resource type) to use- "auto"- Allow Vivado Synthesis to choose "distributed"- Distributed memory "block"- Block memory
Specify the total memory array size, in bits. For example, enter 65536 for a 2kx32 ROM.
Specify 1 to enable the dynamic message reporting such as collision warnings, and 0 to disable the message reporting
Specify the width of the port A read data output port douta, in bits.
Specify the width of the port B read data output port doutb, in bits.
Specify the number of register stages in the port A read data pipeline. Read data output to port douta takes this number of clka cycles. To target block memory, a value of 1 or larger is required- 1 causes use of memory latch only; 2 causes use of output register. To target distributed memory, a value of 0 or larger is required- 0 indicates combinatorial output. Values larger than 2 synthesize additional flip-flops that are not retimed into memory primitives.
Specify the number of register stages in the port B read data pipeline. Read data output to port doutb takes this number of clkb cycles (clka when CLOCKING_MODE is "common_clock"). To target block memory, a value of 1 or larger is required- 1 causes use of memory latch only; 2 causes use of output register. To target distributed memory, a value of 0 or larger is required- 0 indicates combinatorial output. Values larger than 2 synthesize additional flip-flops that are not retimed into memory primitives.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 131
Chapter 2: Xilinx Parameterized Macros
Attribute READ_RESET_VALUE _A
Type STRING
READ_RESET_VALUE _B STRING
RST_MODE_A
STRING
Allowed Values Default
String
"0"
String
"SYNC", "ASYNC"
"0" "SYNC"
Description
Specify the reset value of the port A final output register stage in response to rsta input port is assertion. For example, to reset the value of port douta to all 0s when READ_DATA_WIDTH_A is 32, specify 32HHHHh0.
Specify the reset value of the port B final output register stage in response to rstb input port is assertion.
Describes the behaviour of the reset
� "SYNC" - when reset is applied, synchronously
resets output port douta to the value specified by parameter READ_RESET_VALUE_A
� "ASYNC" - when reset is applied,
asynchronously resets output port douta to zero
RST_MODE_B
STRING
"SYNC", "ASYNC"
"SYNC"
Describes the behaviour of the reset
� "SYNC" - when reset is applied, synchronously
resets output port doutb to the value specified by parameter READ_RESET_VALUE_B
� "ASYNC" - when reset is applied,
asynchronously resets output port doutb to zero
SIM_ASSERT_CHK USE_MEM_INIT WAKEUP_TIME
DECIMAL 0 to 1
0
DECIMAL 0 to 1
1
STRING
"disable _sleep", "disable
"use _sleep
_sleep"
_pin"
0- Disable simulation message reporting. Messages related to potential misuse will not be reported.
1- Enable simulation message reporting. Messages related to potential misuse will be reported.
Specify 1 to enable the generation of below message and 0 to disable generation of the following message completely.
"INFO - MEMORY_INIT_FILE and MEMORY_INIT_PARAM together specifies no memory initialization. Initial memory contents will be all 0s." NOTE: This message gets generated only when there is no Memory Initialization specified either through file or Parameter.
Specify "disable_sleep" to disable dynamic power saving option, and specify "use_sleep_pin" to enable the dynamic power saving option
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 132
Chapter 2: Xilinx Parameterized Macros
VHDL Instantiation Template Unless they already exist, copy the following two statements and paste them before the entity declaration.
Library xpm; use xpm.vcomponents.all;
-- xpm_memory_dprom: Dual Port ROM -- Xilinx Parameterized Macro, version 2019.1
xpm_memory_dprom_inst : xpm_memory_dprom
generic map (
ADDR_WIDTH_A => 6,
-- DECIMAL
ADDR_WIDTH_B => 6,
-- DECIMAL
AUTO_SLEEP_TIME => 0,
-- DECIMAL
CASCADE_HEIGHT => 0,
-- DECIMAL
CLOCKING_MODE => "common_clock", -- String
ECC_MODE => "no_ecc",
-- String
MEMORY_INIT_FILE => "none",
-- String
MEMORY_INIT_PARAM => "0",
-- String
MEMORY_OPTIMIZATION => "true", -- String
MEMORY_PRIMITIVE => "auto",
-- String
MEMORY_SIZE => 2048,
-- DECIMAL
MESSAGE_CONTROL => 0,
-- DECIMAL
READ_DATA_WIDTH_A => 32,
-- DECIMAL
READ_DATA_WIDTH_B => 32,
-- DECIMAL
READ_LATENCY_A => 2,
-- DECIMAL
READ_LATENCY_B => 2,
-- DECIMAL
READ_RESET_VALUE_A => "0",
-- String
READ_RESET_VALUE_B => "0",
-- String
RST_MODE_A => "SYNC",
-- String
RST_MODE_B => "SYNC",
-- String
SIM_ASSERT_CHK => 0,
-- DECIMAL; 0=disable simulation messages, 1=enable simulation messages
USE_MEM_INIT => 1,
-- DECIMAL
WAKEUP_TIME => "disable_sleep" -- String
)
port map (
dbiterra => dbiterra,
-- 1-bit output: Leave open.
dbiterrb => dbiterrb,
-- 1-bit output: Leave open.
douta => douta,
-- READ_DATA_WIDTH_A-bit output: Data output for port A read operations.
doutb => doutb,
-- READ_DATA_WIDTH_B-bit output: Data output for port B read operations.
sbiterra => sbiterra,
-- 1-bit output: Leave open.
sbiterrb => sbiterrb,
-- 1-bit output: Leave open.
addra => addra,
-- ADDR_WIDTH_A-bit input: Address for port A read operations.
addrb => addrb,
-- ADDR_WIDTH_B-bit input: Address for port B read operations.
clka => clka,
-- 1-bit input: Clock signal for port A. Also clocks port B when
-- parameter CLOCKING_MODE is "common_clock".
clkb => clkb,
-- 1-bit input: Clock signal for port B when parameter CLOCKING_MODE is -- "independent_clock". Unused when parameter CLOCKING_MODE is -- "common_clock".
ena => ena,
-- 1-bit input: Memory enable signal for port A. Must be high on clock -- cycles when read operations are initiated. Pipelined internally.
enb => enb,
-- 1-bit input: Memory enable signal for port B. Must be high on clock -- cycles when read operations are initiated. Pipelined internally.
injectdbiterra => injectdbiterra, -- 1-bit input: Do not change from the provided value.
injectdbiterrb => injectdbiterrb, -- 1-bit input: Do not change from the provided value.
injectsbiterra => injectsbiterra, -- 1-bit input: Do not change from the provided value.
injectsbiterrb => injectsbiterrb, -- 1-bit input: Do not change from the provided value.
regcea => regcea,
-- 1-bit input: Do not change from the provided value.
regceb => regceb,
-- 1-bit input: Do not change from the provided value.
rsta => rsta,
-- 1-bit input: Reset signal for the final port A output register
-- stage. Synchronously resets output port douta to the value specified
-- by parameter READ_RESET_VALUE_A.
rstb => rstb,
-- 1-bit input: Reset signal for the final port B output register -- stage. Synchronously resets output port doutb to the value specified
-- by parameter READ_RESET_VALUE_B.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 133
Chapter 2: Xilinx Parameterized Macros
sleep => sleep );
-- 1-bit input: sleep signal to enable the dynamic power saving feature.
-- End of xpm_memory_dprom_inst instantiation
Verilog Instantiation Template
// xpm_memory_dprom: Dual Port ROM // Xilinx Parameterized Macro, version 2019.1
xpm_memory_dprom #(
.ADDR_WIDTH_A(6),
// DECIMAL
.ADDR_WIDTH_B(6),
// DECIMAL
.AUTO_SLEEP_TIME(0),
// DECIMAL
.CASCADE_HEIGHT(0),
// DECIMAL
.CLOCKING_MODE("common_clock"), // String
.ECC_MODE("no_ecc"),
// String
.MEMORY_INIT_FILE("none"),
// String
.MEMORY_INIT_PARAM("0"),
// String
.MEMORY_OPTIMIZATION("true"), // String
.MEMORY_PRIMITIVE("auto"),
// String
.MEMORY_SIZE(2048),
// DECIMAL
.MESSAGE_CONTROL(0),
// DECIMAL
.READ_DATA_WIDTH_A(32),
// DECIMAL
.READ_DATA_WIDTH_B(32),
// DECIMAL
.READ_LATENCY_A(2),
// DECIMAL
.READ_LATENCY_B(2),
// DECIMAL
.READ_RESET_VALUE_A("0"),
// String
.READ_RESET_VALUE_B("0"),
// String
.RST_MODE_A("SYNC"),
// String
.RST_MODE_B("SYNC"),
// String
.SIM_ASSERT_CHK(0),
// DECIMAL; 0=disable simulation messages, 1=enable simulation messages
.USE_MEM_INIT(1),
// DECIMAL
.WAKEUP_TIME("disable_sleep") // String
)
xpm_memory_dprom_inst (
.dbiterra(dbiterra),
// 1-bit output: Leave open.
.dbiterrb(dbiterrb),
// 1-bit output: Leave open.
.douta(douta),
// READ_DATA_WIDTH_A-bit output: Data output for port A read operations.
.doutb(doutb),
// READ_DATA_WIDTH_B-bit output: Data output for port B read operations.
.sbiterra(sbiterra),
// 1-bit output: Leave open.
.sbiterrb(sbiterrb),
// 1-bit output: Leave open.
.addra(addra),
// ADDR_WIDTH_A-bit input: Address for port A read operations.
.addrb(addrb),
// ADDR_WIDTH_B-bit input: Address for port B read operations.
.clka(clka),
// 1-bit input: Clock signal for port A. Also clocks port B when
// parameter CLOCKING_MODE is "common_clock".
.clkb(clkb),
// 1-bit input: Clock signal for port B when parameter CLOCKING_MODE is // "independent_clock". Unused when parameter CLOCKING_MODE is // "common_clock".
.ena(ena),
// 1-bit input: Memory enable signal for port A. Must be high on clock // cycles when read operations are initiated. Pipelined internally.
.enb(enb),
// 1-bit input: Memory enable signal for port B. Must be high on clock // cycles when read operations are initiated. Pipelined internally.
.injectdbiterra(injectdbiterra), // 1-bit input: Do not change from the provided value.
.injectdbiterrb(injectdbiterrb), // 1-bit input: Do not change from the provided value.
.injectsbiterra(injectsbiterra), // 1-bit input: Do not change from the provided value.
.injectsbiterrb(injectsbiterrb), // 1-bit input: Do not change from the provided value.
.regcea(regcea),
// 1-bit input: Do not change from the provided value.
.regceb(regceb),
// 1-bit input: Do not change from the provided value.
.rsta(rsta),
// 1-bit input: Reset signal for the final port A output register stage.
// Synchronously resets output port douta to the value specified by
// parameter READ_RESET_VALUE_A.
.rstb(rstb),
// 1-bit input: Reset signal for the final port B output register stage. // Synchronously resets output port doutb to the value specified by
// parameter READ_RESET_VALUE_B.
.sleep(sleep) );
// 1-bit input: sleep signal to enable the dynamic power saving feature.
// End of xpm_memory_dprom_inst instantiation
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 134
Chapter 2: Xilinx Parameterized Macros
For More Information � See the 7 Series Programmable Devices User Guides. � See the 7 Series FPGAs Memory Resources User Guide (UG473).
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 135
Chapter 2: Xilinx Parameterized Macros
XPM_MEMORY_SDPRAM
Parameterized Macro: Simple Dual Port RAM
MACRO_GROUP: XPM MACRO_SUBGROUP: XPM_MEMORY Families: 7 series, UltraScale, UltraScale+
XPM_MEMORY_SDPRAM
dina[(WRITE_DATA_WIDTH_A - 1):0] addra[(ADDR_WIDTH_A � 1):0] addrb[(ADDR_WIDTH_B � 1):0]
wea[WRITE_DATA_WIDTH_A/ BYTE_WRITE_WIDTH_A � 1):0]
doutb[(READ_DATA_WIDTH_B � 1):0]
injectsbiterra injectdbiterra clka clkb rstb ena enb regceb sleep
sbiterrb dbiterrb
X16233-033016
Introduction This macro is used to instantiate Simple Dual Port RAM. Port A is used to perform write operations from the memory and port B can be used to read from the memory.
The following describes the basic read and write port usage of an XPM_MEMORY instance. It does not distinguish between port A and port B.
� All synchronous signals are sensitive to the rising edge of clk[a|b], which is assumed to be a buffered and toggling clock signal behaving according to target device and memory primitive requirements.
� A read operation is implicitly performed to address addrb combinatorially. The data output is registered each clkb cycle that enb is asserted.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 136
Chapter 2: Xilinx Parameterized Macros
� Read data appears on the doutb port READ_LATENCY_B clkb cycles after the associated read operation.
� A write operation is explicitly performed, writing dina to address addra, when both ena and wea are asserted on each clka cycle.
� All read and write operations are gated by the value of en[a|b] on the initiating clk[a|b] cycle, regardless of input or output latencies. The addra and wea inputs have no effect when ena is de-asserted on the coincident clk[a|b] cycle.
� For each clkb cycle that rstb is asserted, the final output register is immediately but synchronously reset to READ_RESET_VALUE_B, irrespective of READ_LATENCY_B.
� For each clkb cycle that regceb is asserted and rstb is de-asserted, the final output register captures and outputs the value from the previous pipeline register.
� Undriven or unknown values provided on module inputs will produce undefined memory array and output port behavior.
In Simple Dual Port RAM configuration, only WRITE_MODE_B is considered (though port A has the write permissions, WRITE_MODE_B is used because the output data will be connected to port B, and the same mode value is applied to WRITE_MODE_A internally when passing to the primitive). Choosing the Invalid Configuration will result in a DRC.
Note:
� When the attribute "CLOCKING_MODE" is set to "common_clock", all read/write operations to memory through port A and port B are performed on clka. If this attribute is set to "independent_clock", then read/write operations through port A are performed based on clka, and read/write operations through port B are performed based on clkb.
� Writing to an out-of-range address location may overwrite a valid address location when effective address bits match to a physical memory address location.
� set_false_path constraint is needed for the independent clock distributed RAM based memory if the design takes care of avoiding address collision (write address != read address at any given point of time). Set USE_EMBEDDED_CONSTRAINT = 1 if XPM_MEMORY needs to take care of necessary constraints. If USE_EMBEDDED_CONSTRAINT = 0, Vivado may trigger Timing-6 or Timing-7 or both. Alternatively, you can also add the constraint when USE_EMBEDDED_CONSTRAINT = 0. An example of adding this constraint is provided below. If Port-B also has write permissions for an Independent clock configuration, then a similar constraint needs to be added for clkb as well.
set_false_path -from [filter [all_fanout -from [get_ports clka] -flat -endpoints_only] {IS_LEAF}] -through [get_pins -of_objects [get_cells -hier * -filter {PRIMITIVE_SUBGROUP==LUTRAM || PRIMITIVE_SUBGROUP==dram || PRIMITIVE_SUBGROUP==drom}] -filter {DIRECTION==OUT}]
� If"CLOCKING_MODE" is set to "independent_clock", Vivado may trigger a false positive CDC-1 warning and can be ignored.
� The use of UltraRAM's dedicated input and output registers are controlled by synthesis based on the READ_LATENCY_B value. For example, if 4 UltraRAMs are in cascade and the READ_LATENCY_B is >= 4, then synthesis will absorb as much registers inside UltraRAM primitive as possible.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 137
Chapter 2: Xilinx Parameterized Macros
� For UltraRAM's, the enablement of OREG depends on the READ_LATENCY_B and WRITE_MODE_B. OREG enabled when READ_LATENCY_B >= 3 in READ_FIRST mode and READ_LATENCY_B >= 4 in WRITE_FIRST mode.
Timing Diagrams
CLK[A|B ]
RSTB ENA WEA ENB ADDRA DINA ADDRB DOUTB
CLK[A|B ]
RSTB ENA WEA ENB REGCEB ADDRA DINA ADDRB DOUTB
SDPRAM : with Read Latency of 1
AA
BB
Da
Db
AA
BB
Data(AA) Data(BB)
RSTVAL
SDPRAM : with Read Latency of 2
AA
BB
Da
Db
AA
BB
Data(AA)
RSTVAL
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 138
Chapter 2: Xilinx Parameterized Macros
SDPRAM : UltraRAM Limitation on write aceess before sleep assertion
CLKA SLEEP
ENA WEA
Write is not allowed in the clock cycle before sleep assertion for UltraRAM configurations
SDPRAM : UltraRAM Limitation on read aceess before sleep assertion
CLKB SLEEP
ENB
Read is not allowed in the clock cycle before sleep assertion for UltraRAM configurations
X17942-091716
Note: The UltraRAM primitive does not support Write/Read access in the clock cycle just before assertion of sleep gets recognized on the positive edge of the clock when its OREG attribute is set to TRUE. For UltraRAM configurations, Write/Read access to the memory is not allowed in the clock cycle just before the assertion of sleep.
ECC Modes Both Block RAM and UltraRAM primitives support ECC when the memory type is set to Simple Dual Port RAM. The three ECC modes supported are: � Both encode and decode � Encode only � Decode only The read and write usage of the three ECC Modes are the same as described in the Introduction section above. See the "Built-in Error Correction" section of the 7 Series FPGAs Memory Resources User Guide (UG473) for more details on this feature like Error Injection and syndrome bits calculations. There are restrictions on the attributes WRITE_DATA_WIDTH_A, READ_DATA_WIDTH_B, and MEMORY_SIZE in each of the above ECC modes. � Both encode and decode WRITE_DATA_WIDTH_A and READ_DATA_WIDTH_B must be
multiples of 64-bits. Violating this rule will results in a DRC in XPM_Memory.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 139
Chapter 2: Xilinx Parameterized Macros
� Encode only WRITE_DATA_WIDTH_A must be a multiple of 64 bits and READ_DATA_WIDTH_B must be a multiple of 72-bits. MEMORY_SIZE must be a multiple of READ_DATA_WIDTH_B. Violating these rules will result in a DRC.
� Decode only WRITE_DATA_WIDTH_A must be a multiple of 72 bits and READ_DATA_WIDTH_B must be a multiple of 64-bits. MEMORY_SIZE must be a multiple of WRITE_DATA_WIDTH_A. Violating these rules will result in a DRC.
When ECC is enabled the following are not supported:
� Assymetry � Initialization � Reset (neither non-zero reset value nor reset assertion)
Note: ECC uses a hard-ECC block available in the BRAM/URAM macro and the data width should be multiples of 64/72. Use ECC IP for other data width combinations.
Auto Sleep Mode � This feature is applicable only when MEMORY_PRIMITIVE is URAM and is controlled
internally in the UltraRAM to check if it can be put in sleep mode and when it needs to wake up. Thus power savings are obtained automatically without having to explicitly control the SLEEP Pin. � When AUTO_SLEEP_TIME is 0, the feature is disabled. When AUTO_SLEEP_TIME is nonzero, XPM_MEMORY constructs the pipeline registers equal to AUTO_SLEEP_TIME value on all input signals except rst[a|b]. � If AUTO_SLEEP_TIME is too low, then UltraRAM goes into sleep and wakeup too often, which can cause more power to be consumed. � The number of sleep cycles achieved is calculated by following formula: If number of consecutive inactive cycles is < AUTO_SLEEP_TIME, then number of sleep
cycles = 0 If number of consecutive inactive cycles is >= AUTO_SLEEP_TIME, Then number of
consecutive sleep cycles = Number of consecutive inactive cycles � 3 Inactive cycle is defined as a cycle where there is no Read/Write operation from either port
� The latency between the read operation and the data arrival at dout[a|b] is AUTO_SLEEP_TIME + READ_LATENCY_[A|B] clock cycles (Assuming that REGCE is high when the output data pipe line exists).
� When the READ_LATENCY_[A|B] is set to 1 or 2, XPM_Memory behaviorally models the AUTO SLEEP feature and forces `x' on DOUT[A|B] when the RAM is in Auto Sleep Mode. For READ_LATENCY_[A|B] greater than 2, the propagation of `x' cannot happen to the DOUT[A| B] as the output registers gets the clock enable (delayed read enable) after UltraRAM comes out of sleep mode.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 140
Chapter 2: Xilinx Parameterized Macros
� The Auto Sleep mode is most effective for larger Memory sizes or any Memory with very little activity.
Timing diagrams for Auto Sleep Mode at various read latencies are shown below.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 141
Chapter 2: Xilinx Parameterized Macros
Note: EN_DLY[A|B],ADDR_DLY[A|B], and REGCE_DLY[A|B] are the delayed versions of EN[A|B], ADDR[A| B] and REGCE[A|B] by AUTO_SLEEP_TIME number of clock cycles respectively.
Port Descriptions
Port addra addrb clka clkb
dbiterrb dina doutb ena
enb
injectdbiterra injectsbiterra regceb rstb
sbiterrb
Direction Width
Input Input Input
ADDR _WIDTH _A
ADDR _WIDTH _B
1
Input
1
Output Input Output Input
1
WRITE _DATA _WIDTH _A
READ _DATA _WIDTH _B
1
Input
1
Input
1
Input
1
Input
1
Input
1
Output
1
Domain clka
Sense NA
Handling if Unused
Function
Active
Address for port A write operations.
clkb
NA
Active
Address for port B read operations.
NA
EDGE Active
Clock signal for port A. Also clocks port B
_RISING
when parameter CLOCKING_MODE is
"common_clock".
NA
EDGE Active
Clock signal for port B when parameter
_RISING
CLOCKING_MODE is "independent_clock".
Unused when parameter CLOCKING_MODE is "common_clock".
clkb
LEVEL DoNotCare Status signal to indicate double bit error
_HIGH
occurrence on the data output of port B.
clka
NA
Active
Data input for port A write operations.
clkb
NA
Active
Data output for port B read operations.
clka
LEVEL Active
Memory enable signal for port A.
_HIGH
Must be high on clock cycles when write
operations are initiated. Pipelined
internally.
clkb
LEVEL Active
Memory enable signal for port B.
_HIGH
Must be high on clock cycles when read
operations are initiated. Pipelined
internally.
clka
LEVEL 0
_HIGH
Controls double bit error injection on input data when ECC enabled (Error injection capability is not available in "decode_only" mode).
clka
LEVEL 0
_HIGH
Controls single bit error injection on input data when ECC enabled (Error injection capability is not available in "decode_only" mode).
clkb
LEVEL 1
_HIGH
Clock Enable for the last register stage on the output data path.
clkb
LEVEL Active
Reset signal for the final port B output
_HIGH
register stage.
Synchronously resets output port doutb to the value specified by parameter READ_RESET_VALUE_B.
clkb
LEVEL DoNotCare Status signal to indicate single bit error
_HIGH
occurrence on the data output of port B.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 142
Chapter 2: Xilinx Parameterized Macros
Port sleep wea
Direction Input Input
Width Domain
1
NA
WRITE clka _DATA _WIDTH _A / BYTE _WRITE _WIDTH _A
Sense
LEVEL _HIGH
LEVEL _HIGH
Handling if Unused
Function
0
sleep signal to enable the dynamic power
saving feature.
Active
Write enable vector for port A input data port dina. 1 bit wide when word-wide writes are used. In byte-wide write configurations, each bit controls the writing one byte of dina to address addra.
For example, to synchronously write only bits [15-8] of dina when WRITE_DATA_WIDTH_A is 32, wea would be 4'b0010.
Design Entry Method
Instantiation
No
Inference
No
IP and IP Integrator Catalog
No
Available Attributes
Attribute ADDR_WIDTH_A ADDR_WIDTH_B AUTO_SLEEP_TIME
BYTE_WRITE_WIDTH _A
Type DECIMAL DECIMAL DECIMAL
DECIMAL
Allowed Values Default
1 to 20
6
1 to 20
6
0 to 15
0
1 to 4608
32
Description
Specify the width of the port A address port addra, in bits. Must be large enough to access the entire memory from port A, i.e. >= $clog2(MEMORY_SIZE/ WRITE_DATA_WIDTH_A).
Specify the width of the port B address port addrb, in bits. Must be large enough to access the entire memory from port B, i.e. >= $clog2(MEMORY_SIZE/ READ_DATA_WIDTH_B).
Number of clk[a|b] cycles to auto-sleep, if feature is available in architecture.
� 0 - Disable auto-sleep feature
� 3-15 - Number of auto-sleep latency cycles
Do not change from the value provided in the template instantiation.
To enable byte-wide writes on port A, specify the byte width, in bits.
� 8- 8-bit byte-wide writes, legal when
WRITE_DATA_WIDTH_A is an integer multiple of 8
� 9- 9-bit byte-wide writes, legal when
WRITE_DATA_WIDTH_A is an integer multiple of 9
Or to enable word-wide writes on port A, specify the same value as for WRITE_DATA_WIDTH_A.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 143
Chapter 2: Xilinx Parameterized Macros
Attribute CASCADE_HEIGHT
CLOCKING_MODE
Type DECIMAL
STRING
Allowed Values Default
0 to 64
0
"common _clock", "independent _clock"
"common _clock"
Description
0- No Cascade Height, Allow Vivado Synthesis to choose. 1 or more - Vivado Synthesis sets the specified value as Cascade Height.
Designate whether port A and port B are clocked with a common clock or with independent clocks.
� "common_clock"- Common clocking; clock
both port A and port B with clka
� "independent_clock"- Independent clocking;
clock port A with clka and port B with clkb
ECC_MODE
STRING
"no_ecc", "both _encode _and _decode", "decode _only", "encode _only"
"no_ecc"
� "no_ecc" - Disables ECC
� "encode_only" - Enables ECC Encoder only
� "decode_only" - Enables ECC Decoder only
� "both_encode_and_decode" - Enables both
ECC Encoder and Decoder
MEMORY_INIT_FILE
STRING
MEMORY_INIT _PARAM STRING
MEMORY _OPTIMIZATION
STRING
String
"none"
String
"0"
"true", "false" "true"
Specify "none" (including quotes) for no memory initialization, or specify the name of a memory initialization file. Enter only the name of the file with .mem extension, including quotes but without path (e.g. "my_file.mem").
File format must be ASCII and consist of only hexadecimal values organized into the specified depth by narrowest data width generic value of the memory. See the Memory File (MEM) section for more information on the syntax. Initialization of memory happens through the file name specified only when parameter MEMORY_INIT_PARAM value is equal to "".
When using XPM_MEMORY in a project, add the specified file to the Vivado project as a design source.
Specify "" or "0" (including quotes) for no memory initialization through parameter, or specify the string containing the hex characters. Enter only hex characters with each location separated by delimiter (,).
Parameter format must be ASCII and consist of only hexadecimal values organized into the specified depth by narrowest data width generic value of the memory.
For example, if the narrowest data width is 8, and the depth of memory is 8 locations, then the parameter value should be passed as shown below.
parameter MEMORY_INIT_PARAM = "AB,CD,EF,1,2,34,56,78"
Where "AB" is the 0th location and "78" is the 7th location.
Specify "true" to enable the optimization of unused memory or bits in the memory structure. Specify "false" to disable the optimization of unused memory or bits in the memory structure
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 144
Chapter 2: Xilinx Parameterized Macros
Attribute MEMORY _PRIMITIVE
MEMORY_SIZE
Type STRING
DECIMAL
Allowed Values Default "auto", "block", "auto" "distributed", "ultra"
2 to 150994944 2048
Description
Designate the memory primitive (resource type) to use.
� "auto"- Allow Vivado Synthesis to choose
� "distributed"- Distributed memory
� "block"- Block memory
� "ultra"- Ultra RAM memory
NOTE: There may be a behavior mismatch if Block RAM or Ultra RAM specific features, like ECC or Asymmetry, are selected with MEMORY_PRIMITIVE set to "auto".
Specify the total memory array size, in bits. For example, enter 65536 for a 2kx32 RAM.
� When ECC is enabled and set to
"encode_only", then the memory size has to be multiples of READ_DATA_WIDTH_B
� When ECC is enabled and set to
"decode_only", then the memory size has to be multiples of WRITE_DATA_WIDTH_A
MESSAGE_CONTROL
DECIMAL 0 to 1
0
READ_DATA_WIDTH_B DECIMAL 1 to 4608
32
Specify 1 to enable the dynamic message reporting such as collision warnings, and 0 to disable the message reporting
Specify the width of the port B read data output port doutb, in bits.
� When ECC is enabled and set to
"encode_only", then READ_DATA_WIDTH_B has to be multiples of 72-bits
� When ECC is enabled and set to "decode_only"
or "both_encode_and_decode", then READ_DATA_WIDTH_B has to be multiples of 64-bits
READ_LATENCY_B
DECIMAL 0 to 100
READ_RESET_VALUE _B STRING
String
2
Specify the number of register stages in the port B
read data pipeline. Read data output to port doutb
takes this number of clkb cycles (clka when
CLOCKING_MODE is "common_clock").
To target block memory, a value of 1 or larger is required- 1 causes use of memory latch only; 2 causes use of output register. To target distributed memory, a value of 0 or larger is required- 0 indicates combinatorial output.
Values larger than 2 synthesize additional flipflops that are not retimed into memory primitives.
"0"
Specify the reset value of the port B final output
register stage in response to rstb input port is
assertion.
As this parameter is a string, please specify the hex values inside double quotes. As an example, If the read data width is 8, then specify READ_RESET_VALUE_B = "EA";
When ECC is enabled, reset value is not supported.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 145
Chapter 2: Xilinx Parameterized Macros
Attribute RST_MODE_A
Type STRING
Allowed Values Default
"SYNC", "ASYNC"
"SYNC"
Description
Describes the behaviour of the reset
� "SYNC" - when reset is applied, synchronously
resets output port douta to the value specified by parameter READ_RESET_VALUE_A
� "ASYNC" - when reset is applied,
asynchronously resets output port douta to zero
RST_MODE_B
STRING
"SYNC", "ASYNC"
"SYNC"
Describes the behaviour of the reset
� "SYNC" - when reset is applied, synchronously
resets output port doutb to the value specified by parameter READ_RESET_VALUE_B
� "ASYNC" - when reset is applied,
asynchronously resets output port doutb to zero
SIM_ASSERT_CHK
DECIMAL
USE_EMBEDDED _CONSTRAINT
USE_MEM_INIT
DECIMAL DECIMAL
WAKEUP_TIME
STRING
WRITE_DATA_WIDTH _A DECIMAL
WRITE_MODE_B
STRING
0 to 1
0
0 to 1
0
0 to 1
1
"disable _sleep", "disable
"use _sleep
_sleep"
_pin"
1 to 4608
32
"no _change", "read _first", "write _first"
"no _change"
0- Disable simulation message reporting. Messages related to potential misuse will not be reported.
1- Enable simulation message reporting. Messages related to potential misuse will be reported.
Specify 1 to enable the set_false_path constraint addition between clka of Distributed RAM and doutb_reg on clkb
Specify 1 to enable the generation of below message and 0 to disable generation of the following message completely.
"INFO - MEMORY_INIT_FILE and MEMORY_INIT_PARAM together specifies no memory initialization. Initial memory contents will be all 0s." NOTE: This message gets generated only when there is no Memory Initialization specified either through file or Parameter.
Specify "disable_sleep" to disable dynamic power saving option, and specify "use_sleep_pin" to enable the dynamic power saving option
multiples of 64-bits When ECC is enabled and set to "decode_only", then WRITE_DATA_WIDTH_A has to be multiples of 72-bits
Write mode behavior for port B output data port, doutb.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 146
Chapter 2: Xilinx Parameterized Macros
VHDL Instantiation Template Unless they already exist, copy the following two statements and paste them before the entity declaration.
Library xpm; use xpm.vcomponents.all;
-- xpm_memory_sdpram: Simple Dual Port RAM -- Xilinx Parameterized Macro, version 2019.1
xpm_memory_sdpram_inst : xpm_memory_sdpram
generic map (
ADDR_WIDTH_A => 6,
-- DECIMAL
ADDR_WIDTH_B => 6,
-- DECIMAL
AUTO_SLEEP_TIME => 0,
-- DECIMAL
BYTE_WRITE_WIDTH_A => 32,
-- DECIMAL
CASCADE_HEIGHT => 0,
-- DECIMAL
CLOCKING_MODE => "common_clock", -- String
ECC_MODE => "no_ecc",
-- String
MEMORY_INIT_FILE => "none",
-- String
MEMORY_INIT_PARAM => "0",
-- String
MEMORY_OPTIMIZATION => "true", -- String
MEMORY_PRIMITIVE => "auto",
-- String
MEMORY_SIZE => 2048,
-- DECIMAL
MESSAGE_CONTROL => 0,
-- DECIMAL
READ_DATA_WIDTH_B => 32,
-- DECIMAL
READ_LATENCY_B => 2,
-- DECIMAL
READ_RESET_VALUE_B => "0",
-- String
RST_MODE_A => "SYNC",
-- String
RST_MODE_B => "SYNC",
-- String
SIM_ASSERT_CHK => 0,
-- DECIMAL; 0=disable simulation messages, 1=enable simulation messages
USE_EMBEDDED_CONSTRAINT => 0, -- DECIMAL
USE_MEM_INIT => 1,
-- DECIMAL
WAKEUP_TIME => "disable_sleep", -- String
WRITE_DATA_WIDTH_A => 32,
-- DECIMAL
WRITE_MODE_B => "no_change"
-- String
)
port map (
dbiterrb => dbiterrb,
-- 1-bit output: Status signal to indicate double bit error occurrence
-- on the data output of port B.
doutb => doutb, sbiterrb => sbiterrb,
-- READ_DATA_WIDTH_B-bit output: Data output for port B read operations. -- 1-bit output: Status signal to indicate single bit error occurrence
-- on the data output of port B.
addra => addra, addrb => addrb, clka => clka,
-- ADDR_WIDTH_A-bit input: Address for port A write operations. -- ADDR_WIDTH_B-bit input: Address for port B read operations. -- 1-bit input: Clock signal for port A. Also clocks port B when -- parameter CLOCKING_MODE is "common_clock".
clkb => clkb,
-- 1-bit input: Clock signal for port B when parameter CLOCKING_MODE is -- "independent_clock". Unused when parameter CLOCKING_MODE is -- "common_clock".
dina => dina, ena => ena,
-- WRITE_DATA_WIDTH_A-bit input: Data input for port A write operations. -- 1-bit input: Memory enable signal for port A. Must be high on clock -- cycles when write operations are initiated. Pipelined internally.
enb => enb,
-- 1-bit input: Memory enable signal for port B. Must be high on clock -- cycles when read operations are initiated. Pipelined internally.
injectdbiterra => injectdbiterra, -- 1-bit input: Controls double bit error injection on input data when -- ECC enabled (Error injection capability is not available in -- "decode_only" mode).
injectsbiterra => injectsbiterra, -- 1-bit input: Controls single bit error injection on input data when -- ECC enabled (Error injection capability is not available in -- "decode_only" mode).
regceb => regceb,
-- 1-bit input: Clock Enable for the last register stage on the output -- data path.
rstb => rstb,
-- 1-bit input: Reset signal for the final port B output register
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 147
Chapter 2: Xilinx Parameterized Macros
-- stage. Synchronously resets output port doutb to the value specified -- by parameter READ_RESET_VALUE_B.
sleep => sleep, wea => wea
-- 1-bit input: sleep signal to enable the dynamic power saving feature. -- WRITE_DATA_WIDTH_A-bit input: Write enable vector for port A input -- data port dina. 1 bit wide when word-wide writes are used. In -- byte-wide write configurations, each bit controls the writing one -- byte of dina to address addra. For example, to synchronously write -- only bits [15-8] of dina when WRITE_DATA_WIDTH_A is 32, wea would be
-- 4'b0010.
);
-- End of xpm_memory_sdpram_inst instantiation
Verilog Instantiation Template
// xpm_memory_sdpram: Simple Dual Port RAM // Xilinx Parameterized Macro, version 2019.1
xpm_memory_sdpram #(
.ADDR_WIDTH_A(6),
// DECIMAL
.ADDR_WIDTH_B(6),
// DECIMAL
.AUTO_SLEEP_TIME(0),
// DECIMAL
.BYTE_WRITE_WIDTH_A(32),
// DECIMAL
.CASCADE_HEIGHT(0),
// DECIMAL
.CLOCKING_MODE("common_clock"), // String
.ECC_MODE("no_ecc"),
// String
.MEMORY_INIT_FILE("none"),
// String
.MEMORY_INIT_PARAM("0"),
// String
.MEMORY_OPTIMIZATION("true"), // String
.MEMORY_PRIMITIVE("auto"),
// String
.MEMORY_SIZE(2048),
// DECIMAL
.MESSAGE_CONTROL(0),
// DECIMAL
.READ_DATA_WIDTH_B(32),
// DECIMAL
.READ_LATENCY_B(2),
// DECIMAL
.READ_RESET_VALUE_B("0"),
// String
.RST_MODE_A("SYNC"),
// String
.RST_MODE_B("SYNC"),
// String
.SIM_ASSERT_CHK(0),
// DECIMAL; 0=disable simulation messages, 1=enable simulation messages
.USE_EMBEDDED_CONSTRAINT(0), // DECIMAL
.USE_MEM_INIT(1),
// DECIMAL
.WAKEUP_TIME("disable_sleep"), // String
.WRITE_DATA_WIDTH_A(32),
// DECIMAL
.WRITE_MODE_B("no_change")
// String
)
xpm_memory_sdpram_inst (
.dbiterrb(dbiterrb),
// 1-bit output: Status signal to indicate double bit error occurrence
// on the data output of port B.
.doutb(doutb), .sbiterrb(sbiterrb),
// READ_DATA_WIDTH_B-bit output: Data output for port B read operations. // 1-bit output: Status signal to indicate single bit error occurrence
// on the data output of port B.
.addra(addra), .addrb(addrb), .clka(clka),
// ADDR_WIDTH_A-bit input: Address for port A write operations. // ADDR_WIDTH_B-bit input: Address for port B read operations. // 1-bit input: Clock signal for port A. Also clocks port B when // parameter CLOCKING_MODE is "common_clock".
.clkb(clkb),
// 1-bit input: Clock signal for port B when parameter CLOCKING_MODE is // "independent_clock". Unused when parameter CLOCKING_MODE is // "common_clock".
.dina(dina), .ena(ena),
// WRITE_DATA_WIDTH_A-bit input: Data input for port A write operations. // 1-bit input: Memory enable signal for port A. Must be high on clock // cycles when write operations are initiated. Pipelined internally.
.enb(enb),
// 1-bit input: Memory enable signal for port B. Must be high on clock // cycles when read operations are initiated. Pipelined internally.
.injectdbiterra(injectdbiterra), // 1-bit input: Controls double bit error injection on input data when // ECC enabled (Error injection capability is not available in // "decode_only" mode).
.injectsbiterra(injectsbiterra), // 1-bit input: Controls single bit error injection on input data when // ECC enabled (Error injection capability is not available in
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 148
Chapter 2: Xilinx Parameterized Macros
// "decode_only" mode).
.regceb(regceb),
// 1-bit input: Clock Enable for the last register stage on the output // data path.
.rstb(rstb),
// 1-bit input: Reset signal for the final port B output register stage. // Synchronously resets output port doutb to the value specified by
// parameter READ_RESET_VALUE_B.
.sleep(sleep), .wea(wea)
// 1-bit input: sleep signal to enable the dynamic power saving feature.
// WRITE_DATA_WIDTH_A-bit input: Write enable vector for port A input // data port dina. 1 bit wide when word-wide writes are used. In
// byte-wide write configurations, each bit controls the writing one
// byte of dina to address addra. For example, to synchronously write
// only bits [15-8] of dina when WRITE_DATA_WIDTH_A is 32, wea would be // 4'b0010.
);
// End of xpm_memory_sdpram_inst instantiation
For More Information � See the 7 Series Programmable Devices User Guides. � See the 7 Series FPGAs Memory Resources User Guide (UG473).
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 149
Chapter 2: Xilinx Parameterized Macros
XPM_MEMORY_SPRAM
Parameterized Macro: Single Port RAM
MACRO_GROUP: XPM MACRO_SUBGROUP: XPM_MEMORY Families: 7 series, UltraScale, UltraScale+
XPM_MEMORY_SPRAM
dina[(WRITE_DATA_WIDTH_A - 1):0] addra[(ADDR_WIDTH_A � 1):0]
wea[WRITE_DATA_WIDTH_A/ BYTE_WRITE_WIDTH_A � 1):0]
douta[(READ_DATA_WIDTH_A � 1):0]
clka rsta ena regcea injectsbiterra injectdbiterra sleep
sbiterra dbiterra
X16218-031116
Introduction This macro is used to instantiate Single Port RAM. Reads and writes to the memory can be done through Port A.
The following describes the basic read and write port usage of an XPM_MEMORY instance.
� All synchronous signals are sensitive to the rising edge of clka, which is assumed to be a buffered and toggling clock signal behaving according to target device and memory primitive requirements.
� A read operation is implicitly performed to address addra combinatorially. The data output is registered each clka cycle that ena is asserted.
� Read data appears on the douta port READ_LATENCY_A clka cycles after the associated read operation.
� A write operation is explicitly performed, writing dina to address addra, when both ena and wea are asserted on each clka cycle.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 150
Chapter 2: Xilinx Parameterized Macros
� All read and write operations are gated by the value of ena on the initiating clka cycle, regardless of input or output latencies. The addra and wea inputs have no effect when ena is de-asserted on the coincident clka cycle.
� The behavior of douta with respect to the combination of dina and addra is a function of WRITE_MODE_A.
� For each clka cycle that rsta is asserted, the final output register is immediately but synchronously reset to READ_RESET_VALUE_A, irrespective of READ_LATENCY_A.
� For each clka cycle that regcea is asserted and rsta is de-asserted, the final output register captures and outputs the value from the previous pipeline register.
� Undriven or unknown values provided on module inputs will produce undefined memory array and output port behavior.
Choosing the Invalid Configuration will result in a DRC.
Note:
1. Writing to an out-of-range address location may overwrite a valid address location when effective address bits match to a physical memory address location.
� The use of UltraRAM's dedicated input and output registers are controlled by synthesis based on the READ_LATENCY_B value. For example, if 4 UltraRAMs are in cascade and the READ_LATENCY_B is >= 4, then synthesis will absorb as much registers inside UltraRAM primitive as possible.
� For UltraRAM's, OREG enabled when READ_LATENCY_B >= 3 in all write modes.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 151
Chapter 2: Xilinx Parameterized Macros
Timing Diagrams
CLKA RSTA ENA WEA ADDRA DINA DOUTA
SPRAM : Write First Mode with Read Latency of 1
AA
BB
AA
BB
CC
Da
Db
Dc
Data(AA) Data(BB) Da
Db
Dc
RSTVAL
CLKA RSTA ENA WEA REGCEA ADDRA DINA DOUTA
SPRAM : Write First Mode with Read Latency of 2
AA
BB
AA
BB
CC
Da
Db
Dc
Data(AA) Data(BB) Da
Db
RSTVAL
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 152
Chapter 2: Xilinx Parameterized Macros
SPRAM : UltraRAM Limitation on write aceess before sleep assertion
CLKA SLEEP
ENA WEA
Write is not allowed in the clock cycle before sleep assertion for UltraRAM configurations
SPRAM : UltraRAM Limitation on read aceess before sleep assertion
CLKA SLEEP
ENA
Read is not allowed in the clock cycle before sleep assertion for UltraRAM configurations
X17940-091716
Note: The UltraRAM primitive does not support Write/Read access in the clock cycle just before assertion of sleep gets recognized on the positive edge of the clock when its OREG attribute is set to TRUE. For UltraRAM configurations, Write/Read access to the memory is not allowed in the clock cycle just before the assertion of sleep.
ECC Modes Only the UltraRAM primitives support ECC when the memory type is set to Single Port RAM. The three ECC modes supported are: � Both encode and decode � Encode only � Decode only The read and write usage of the three ECC Modes are the same as described in the Introduction section above. See the "Built-in Error Correction" section of the 7 Series FPGAs Memory Resources User Guide (UG473) for more details on this feature like Error Injection and syndrome bits calculations. There are restrictions on the attributes WRITE_DATA_WIDTH_A, READ_DATA_WIDTH_A, and MEMORY_SIZE in each of the above ECC modes. � Both encode and decode WRITE_DATA_WIDTH_A and READ_DATA_WIDTH_A must be
multiples of 64-bits. Violating this rule will results in a DRC in XPM_Memory.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 153
Chapter 2: Xilinx Parameterized Macros
� Encode only WRITE_DATA_WIDTH_A must be a multiple of 64 bits and READ_DATA_WIDTH_A must be a multiple of 72-bits. MEMORY_SIZE must be a multiple of READ_DATA_WIDTH_A. Violating these rules will result in a DRC.
� Decode only WRITE_DATA_WIDTH_A must be a multiple of 72 bits and READ_DATA_WIDTH_A must be a multiple of 64-bits. MEMORY_SIZE must be a multiple of WRITE_DATA_WIDTH_A. Violating these rules will result in a DRC.
When ECC is enabled the following are not supported:
� Assymetry � Initialization � Reset (neither non-zero reset value nor reset assertion)
Note: ECC uses a hard-ECC block available in the BRAM/URAM macro and the data width should be multiples of 64/72. Use ECC IP for other data width combinations.
Auto Sleep Mode � This feature is applicable only when MEMORY_PRIMITIVE is URAM and is controlled
internally in the UltraRAM to check if it can be put in sleep mode and when it needs to wake up. Thus power savings are obtained automatically without having to explicitly control the SLEEP Pin. � When AUTO_SLEEP_TIME is 0, the feature is disabled. When AUTO_SLEEP_TIME is nonzero, XPM_MEMORY constructs the pipeline registers equal to AUTO_SLEEP_TIME value on all input signals except rst[a|b]. � If AUTO_SLEEP_TIME is too low, then UltraRAM goes into sleep and wakeup too often, which can cause more power to be consumed. � The number of sleep cycles achieved is calculated by following formula: If number of consecutive inactive cycles is < AUTO_SLEEP_TIME, then number of sleep
cycles = 0 If number of consecutive inactive cycles is >= AUTO_SLEEP_TIME, Then number of
consecutive sleep cycles = Number of consecutive inactive cycles � 3 Inactive cycle is defined as a cycle where there is no Read/Write operation from either port
� The latency between the read operation and the data arrival at dout[a|b] is AUTO_SLEEP_TIME + READ_LATENCY_[A|B] clock cycles (Assuming that REGCE is high when the output data pipe line exists).
� When the READ_LATENCY_[A|B] is set to 1 or 2, XPM_Memory behaviorally models the AUTO SLEEP feature and forces `x' on DOUT[A|B] when the RAM is in Auto Sleep Mode. For READ_LATENCY_[A|B] greater than 2, the propagation of `x' cannot happen to the DOUT[A| B] as the output registers gets the clock enable (delayed read enable) after UltraRAM comes out of sleep mode.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 154
Chapter 2: Xilinx Parameterized Macros
� The Auto Sleep mode is most effective for larger Memory sizes or any Memory with very little activity.
Timing diagrams for Auto Sleep Mode at various read latencies are shown below.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 155
Chapter 2: Xilinx Parameterized Macros
Note: EN_DLY[A|B],ADDR_DLY[A|B], and REGCE_DLY[A|B] are the delayed versions of EN[A|B], ADDR[A| B] and REGCE[A|B] by AUTO_SLEEP_TIME number of clock cycles respectively.
Port Descriptions
Port addra clka dbiterra dina
douta
ena
injectdbiterra
injectsbiterra
regcea rsta
sbiterra sleep wea
Direction Input Input Output Input
Output
Input
Input
Input
Input Input
Output Input Input
Width Domain
ADDR
clka
_WIDTH
_A
1
NA
1
clka
WRITE clka _DATA _WIDTH _A
READ
clka
_DATA
_WIDTH
_A
1
clka
1
clka
1
clka
1
clka
1
clka
1
clka
1
NA
WRITE clka _DATA _WIDTH _A / BYTE _WRITE _WIDTH _A
Sense NA
Handling if Unused
Function
Active
Address for port A write and read operations.
EDGE Active _RISING
Clock signal for port A.
LEVEL _HIGH
DoNotCare Status signal to indicate double bit error occurrence on the data output of port A.
NA
Active
Data input for port A write operations.
NA
Active
Data output for port A read operations.
LEVEL _HIGH
LEVEL _HIGH
LEVEL _HIGH
LEVEL _HIGH LEVEL _HIGH
LEVEL _HIGH LEVEL _HIGH LEVEL _HIGH
Active
Memory enable signal for port A.
Must be high on clock cycles when read or write operations are initiated. Pipelined internally.
0
Controls double bit error injection on input
data when ECC enabled (Error injection
capability is not available in "decode_only"
mode).
0
Controls single bit error injection on input
data when ECC enabled (Error injection
capability is not available in "decode_only"
mode).
1
Clock Enable for the last register stage on
the output data path.
Active
Reset signal for the final port A output register stage. Synchronously resets output port douta to the value specified by parameter READ_RESET_VALUE_A.
DoNotCare Status signal to indicate single bit error occurrence on the data output of port A.
0
sleep signal to enable the dynamic power
saving feature.
Active
Write enable vector for port A input data port dina. 1 bit wide when word-wide writes are used.
In byte-wide write configurations, each bit controls the writing one byte of dina to address addra. For example, to synchronously write only bits [15-8] of dina when WRITE_DATA_WIDTH_A is 32, wea would be 4'b0010.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 156
Chapter 2: Xilinx Parameterized Macros
Design Entry Method
Instantiation
No
Inference
No
IP and IP Integrator Catalog
No
Available Attributes
Attribute ADDR_WIDTH_A AUTO_SLEEP_TIME
BYTE_WRITE_WIDTH _A
CASCADE_HEIGHT ECC_MODE
Type DECIMAL DECIMAL
DECIMAL
DECIMAL STRING
Allowed Values Default
1 to 20
6
0 to 15
0
1 to 4608
32
0 to 64
0
"no_ecc", "both _encode _and _decode", "decode _only", "encode _only"
"no_ecc"
Description
Specify the width of the port A address port addra, in bits. Must be large enough to access the entire memory from port A, i.e. >= $clog2(MEMORY_SIZE/ [WRITE|READ]_DATA_WIDTH_A).
Specify the number of clka cycles to auto-sleep, if feature is available in architecture.
� 0 - Disable auto-sleep feature
� 3-15 - Number of auto-sleep latency cycles
Do not change from the value provided in the template instantiation.
To enable byte-wide writes on port A, specify the byte width, in bits.
� 8- 8-bit byte-wide writes, legal when
WRITE_DATA_WIDTH_A is an integer multiple of 8
� 9- 9-bit byte-wide writes, legal when
WRITE_DATA_WIDTH_A is an integer multiple of 9
Or to enable word-wide writes on port A, specify the same value as for WRITE_DATA_WIDTH_A.
0- No Cascade Height, Allow Vivado Synthesis to choose. 1 or more - Vivado Synthesis sets the specified value as Cascade Height.
� "no_ecc" - Disables ECC
� "encode_only" - Enables ECC Encoder only
� "decode_only" - Enables ECC Decoder only
� "both_encode_and_decode" - Enables both
ECC Encoder and Decoder
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 157
Chapter 2: Xilinx Parameterized Macros
Attribute MEMORY_INIT_FILE
Type STRING
MEMORY_INIT _PARAM STRING
MEMORY _OPTIMIZATION
STRING
MEMORY _PRIMITIVE
STRING
Allowed Values Default
String
"none"
String
"0"
"true", "false" "true"
"auto", "block", "auto" "distributed", "ultra"
Description
Specify "none" (including quotes) for no memory initialization, or specify the name of a memory initialization file- Enter only the name of the file with .mem extension, including quotes but without path (e.g. "my_file.mem").
File format must be ASCII and consist of only hexadecimal values organized into the specified depth by narrowest data width generic value of the memory. See the Memory File (MEM) section for more information on the syntax. Initialization of memory happens through the file name specified only when parameter MEMORY_INIT_PARAM value is equal to "".
When using XPM_MEMORY in a project, add the specified file to the Vivado project as a design source.
Specify "" or "0" (including quotes) for no memory initialization through parameter, or specify the string containing the hex characters. Enter only hex characters with each location separated by delimiter (,).
Parameter format must be ASCII and consist of only hexadecimal values organized into the specified depth by narrowest data width generic value of the memory.
For example, if the narrowest data width is 8, and the depth of memory is 8 locations, then the parameter value should be passed as shown below.
parameter MEMORY_INIT_PARAM = "AB,CD,EF,1,2,34,56,78"
Where "AB" is the 0th location and "78" is the 7th location.
Specify "true" to enable the optimization of unused memory or bits in the memory structure. Specify "false" to disable the optimization of unused memory or bits in the memory structure
Designate the memory primitive (resource type) to use.
� "auto"- Allow Vivado Synthesis to choose
� "distributed"- Distributed memory
� "block"- Block memory
� "ultra"- Ultra RAM memory
NOTE: There may be a behavior mismatch if Block RAM or Ultra RAM specific features, like ECC or Asymmetry, are selected with MEMORY_PRIMITIVE set to "auto".
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 158
Chapter 2: Xilinx Parameterized Macros
Attribute MEMORY_SIZE
Type DECIMAL
Allowed Values Default 2 to 150994944 2048
Description
Specify the total memory array size, in bits. For example, enter 65536 for a 2kx32 RAM.
� When ECC is enabled and set to
"encode_only", then the memory size has to be multiples of READ_DATA_WIDTH_A
� When ECC is enabled and set to
"decode_only", then the memory size has to be multiples of WRITE_DATA_WIDTH_A
MESSAGE_CONTROL
DECIMAL 0 to 1
0
READ_DATA_WIDTH_A DECIMAL 1 to 4608
32
READ_LATENCY_A
DECIMAL 0 to 100
2
Specify 1 to enable the dynamic message reporting such as collision warnings, and 0 to disable the message reporting
Specify the width of the port A read data output port douta, in bits. The values of READ_DATA_WIDTH_A and WRITE_DATA_WIDTH_A must be equal.
When ECC is enabled and set to "encode_only", then READ_DATA_WIDTH_A has to be multiples of 72-bits.
When ECC is enabled and set to "decode_only" or "both_encode_and_decode", then READ_DATA_WIDTH_A has to be multiples of 64bits.
Specify the number of register stages in the port A read data pipeline. Read data output to port douta takes this number of clka cycles.
� To target block memory, a value of 1 or larger
is required- 1 causes use of memory latch only; 2 causes use of output register.
� To target distributed memory, a value of 0 or
larger is required- 0 indicates combinatorial output.
� Values larger than 2 synthesize additional flip-
flops that are not retimed into memory primitives.
READ_RESET_VALUE _A STRING
String
RST_MODE_A
STRING
"SYNC", "ASYNC"
"0" "SYNC"
Specify the reset value of the port A final output register stage in response to rsta input port is assertion. Since this parameter is a string, you must specify the hex values inside double quotes. For example, If the read data width is 8, then specify READ_RESET_VALUE_A = "EA";
When ECC is enabled, then reset value is not supported.
Describes the behaviour of the reset
� "SYNC" - when reset is applied, synchronously
resets output port douta to the value specified by parameter READ_RESET_VALUE_A
� "ASYNC" - when reset is applied,
asynchronously resets output port douta to zero
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 159
Chapter 2: Xilinx Parameterized Macros
Attribute SIM_ASSERT_CHK
Type DECIMAL
USE_MEM_INIT
DECIMAL
WAKEUP_TIME
STRING
WRITE_DATA_WIDTH _A DECIMAL
WRITE_MODE_A
STRING
Allowed Values Default
0 to 1
0
0 to 1
1
"disable _sleep", "disable
"use _sleep
_sleep"
_pin"
1 to 4608
32
"read _first", "no _change", "write _first"
"read _first"
Description
0- Disable simulation message reporting. Messages related to potential misuse will not be reported.
1- Enable simulation message reporting. Messages related to potential misuse will be reported.
Specify 1 to enable the generation of below message and 0 to disable generation of the following message completely.
"INFO - MEMORY_INIT_FILE and MEMORY_INIT_PARAM together specifies no memory initialization. Initial memory contents will be all 0s." NOTE: This message gets generated only when there is no Memory Initialization specified either through file or Parameter.
Specify "disable_sleep" to disable dynamic power saving option, and specify "use_sleep_pin" to enable the dynamic power saving option
Specify the width of the port A write data input port dina, in bits. The values of WRITE_DATA_WIDTH_A and READ_DATA_WIDTH_A must be equal.
When ECC is enabled and set to "encode_only" or "both_encode_and_decode", then WRITE_DATA_WIDTH_A must be multiples of 64bits.
When ECC is enabled and set to "decode_only", then WRITE_DATA_WIDTH_A must be multiples of 72-bits.
Write mode behavior for port A output data port, douta.
VHDL Instantiation Template Unless they already exist, copy the following two statements and paste them before the entity declaration.
Library xpm; use xpm.vcomponents.all;
-- xpm_memory_spram: Single Port RAM -- Xilinx Parameterized Macro, version 2019.1
xpm_memory_spram_inst : xpm_memory_spram
generic map (
ADDR_WIDTH_A => 6,
-- DECIMAL
AUTO_SLEEP_TIME => 0,
-- DECIMAL
BYTE_WRITE_WIDTH_A => 32,
-- DECIMAL
CASCADE_HEIGHT => 0,
-- DECIMAL
ECC_MODE => "no_ecc",
-- String
MEMORY_INIT_FILE => "none",
-- String
MEMORY_INIT_PARAM => "0",
-- String
MEMORY_OPTIMIZATION => "true", -- String
MEMORY_PRIMITIVE => "auto",
-- String
MEMORY_SIZE => 2048,
-- DECIMAL
MESSAGE_CONTROL => 0,
-- DECIMAL
READ_DATA_WIDTH_A => 32,
-- DECIMAL
READ_LATENCY_A => 2,
-- DECIMAL
READ_RESET_VALUE_A => "0",
-- String
RST_MODE_A => "SYNC",
-- String
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 160
Chapter 2: Xilinx Parameterized Macros
SIM_ASSERT_CHK => 0,
-- DECIMAL; 0=disable simulation messages, 1=enable simulation messages
USE_MEM_INIT => 1,
-- DECIMAL
WAKEUP_TIME => "disable_sleep", -- String
WRITE_DATA_WIDTH_A => 32,
-- DECIMAL
WRITE_MODE_A => "read_first" -- String
)
port map (
dbiterra => dbiterra,
-- 1-bit output: Status signal to indicate double bit error occurrence
-- on the data output of port A.
douta => douta, sbiterra => sbiterra,
-- READ_DATA_WIDTH_A-bit output: Data output for port A read operations. -- 1-bit output: Status signal to indicate single bit error occurrence
-- on the data output of port A.
addra => addra, clka => clka, dina => dina,
ena => ena,
-- ADDR_WIDTH_A-bit input: Address for port A write and read operations. -- 1-bit input: Clock signal for port A.
-- WRITE_DATA_WIDTH_A-bit input: Data input for port A write operations.
-- 1-bit input: Memory enable signal for port A. Must be high on clock
-- cycles when read or write operations are initiated. Pipelined -- internally.
injectdbiterra => injectdbiterra, -- 1-bit input: Controls double bit error injection on input data when -- ECC enabled (Error injection capability is not available in -- "decode_only" mode).
injectsbiterra => injectsbiterra, -- 1-bit input: Controls single bit error injection on input data when -- ECC enabled (Error injection capability is not available in -- "decode_only" mode).
regcea => regcea,
-- 1-bit input: Clock Enable for the last register stage on the output -- data path.
rsta => rsta,
-- 1-bit input: Reset signal for the final port A output register -- stage. Synchronously resets output port douta to the value specified
-- by parameter READ_RESET_VALUE_A.
sleep => sleep, wea => wea
-- 1-bit input: sleep signal to enable the dynamic power saving feature. -- WRITE_DATA_WIDTH_A-bit input: Write enable vector for port A input -- data port dina. 1 bit wide when word-wide writes are used. In -- byte-wide write configurations, each bit controls the writing one -- byte of dina to address addra. For example, to synchronously write -- only bits [15-8] of dina when WRITE_DATA_WIDTH_A is 32, wea would be
-- 4'b0010.
);
-- End of xpm_memory_spram_inst instantiation
Verilog Instantiation Template
// xpm_memory_spram: Single Port RAM // Xilinx Parameterized Macro, version 2019.1
xpm_memory_spram #(
.ADDR_WIDTH_A(6),
// DECIMAL
.AUTO_SLEEP_TIME(0),
// DECIMAL
.BYTE_WRITE_WIDTH_A(32),
// DECIMAL
.CASCADE_HEIGHT(0),
// DECIMAL
.ECC_MODE("no_ecc"),
// String
.MEMORY_INIT_FILE("none"),
// String
.MEMORY_INIT_PARAM("0"),
// String
.MEMORY_OPTIMIZATION("true"), // String
.MEMORY_PRIMITIVE("auto"),
// String
.MEMORY_SIZE(2048),
// DECIMAL
.MESSAGE_CONTROL(0),
// DECIMAL
.READ_DATA_WIDTH_A(32),
// DECIMAL
.READ_LATENCY_A(2),
// DECIMAL
.READ_RESET_VALUE_A("0"),
// String
.RST_MODE_A("SYNC"),
// String
.SIM_ASSERT_CHK(0),
// DECIMAL; 0=disable simulation messages, 1=enable simulation messages
.USE_MEM_INIT(1),
// DECIMAL
.WAKEUP_TIME("disable_sleep"), // String
.WRITE_DATA_WIDTH_A(32),
// DECIMAL
.WRITE_MODE_A("read_first") // String
)
xpm_memory_spram_inst (
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 161
Chapter 2: Xilinx Parameterized Macros
.dbiterra(dbiterra),
// 1-bit output: Status signal to indicate double bit error occurrence // on the data output of port A.
.douta(douta), .sbiterra(sbiterra),
// READ_DATA_WIDTH_A-bit output: Data output for port A read operations. // 1-bit output: Status signal to indicate single bit error occurrence
// on the data output of port A.
.addra(addra), .clka(clka), .dina(dina),
.ena(ena),
// ADDR_WIDTH_A-bit input: Address for port A write and read operations. // 1-bit input: Clock signal for port A.
// WRITE_DATA_WIDTH_A-bit input: Data input for port A write operations.
// 1-bit input: Memory enable signal for port A. Must be high on clock // cycles when read or write operations are initiated. Pipelined // internally.
.injectdbiterra(injectdbiterra), // 1-bit input: Controls double bit error injection on input data when // ECC enabled (Error injection capability is not available in // "decode_only" mode).
.injectsbiterra(injectsbiterra), // 1-bit input: Controls single bit error injection on input data when // ECC enabled (Error injection capability is not available in // "decode_only" mode).
.regcea(regcea),
// 1-bit input: Clock Enable for the last register stage on the output // data path.
.rsta(rsta),
// 1-bit input: Reset signal for the final port A output register stage. // Synchronously resets output port douta to the value specified by
// parameter READ_RESET_VALUE_A.
.sleep(sleep), .wea(wea)
// 1-bit input: sleep signal to enable the dynamic power saving feature.
// WRITE_DATA_WIDTH_A-bit input: Write enable vector for port A input // data port dina. 1 bit wide when word-wide writes are used. In
// byte-wide write configurations, each bit controls the writing one
// byte of dina to address addra. For example, to synchronously write
// only bits [15-8] of dina when WRITE_DATA_WIDTH_A is 32, wea would be // 4'b0010.
);
// End of xpm_memory_spram_inst instantiation
For More Information � See the 7 Series Programmable Devices User Guides. � See the 7 Series FPGAs Memory Resources User Guide (UG473).
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 162
Chapter 2: Xilinx Parameterized Macros
XPM_MEMORY_SPROM
Parameterized Macro: Single Port ROM
MACRO_GROUP: XPM MACRO_SUBGROUP: XPM_MEMORY Families: 7 series, UltraScale, UltraScale+
XPM_MEMORY_SPROM addra[(ADDR_WIDTH_A � 1):0]
douta[(READ_DATA_WIDTH_A � 1):0]
injectsbiterra injectdbiterra
sbiterra dbiterra
clka rstb ena regcea sleep
X16250-031116
Introduction This macro is used to instantiate Single Port ROM. Read operations from the memory can be performed from Port A.
The following describes the basic read and write port usage of an XPM_MEMORY instance.
� All synchronous signals are sensitive to the rising edge of clka, which is assumed to be a buffered and toggling clock signal behaving according to target device and memory primitive requirements.
� A read operation is implicitly performed to address addra combinatorially. The data output is registered each clka cycle that ena is asserted.
� Read data appears on the douta port READ_LATENCY_A CLKA cycles after the associated read operation.
� All read operations are gated by the value of ena on the initiating clka cycle, regardless of input or output latencies.
� For each clka cycle that rsta is asserted, the final output register is immediately but synchronously reset to READ_RESET_VALUE_A, irrespective of READ_LATENCY_A.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 163
Chapter 2: Xilinx Parameterized Macros
� For each clka cycle that regcea is asserted and rsta is de-asserted, the final output register captures and outputs the value from the previous pipeline register.
� Undriven or unknown values provided on module inputs will produce undefined memory array and output port behavior.
WRITE_MODE_A must be set to "read_first" in Single Port ROM configurations. Violating this will result in a DRC.
Timing Diagrams
CLKA RSTA ENA ADDRA DOUTA
SPROM with Read Latency of 1
AA
BB
CC
DD
EE
Data(AA) Data(BB) Data(CC) Data(DD) Data(EE) RSTVAL
CLKA RSTA ENA REGCEA ADDRA DOUTA
SPROM with Read Latency of 2
AA
BB
CC
DD
EE
Data(AA) Data(BB) Data(CC) Data(DD)
RSTVAL
Port Descriptions
Port addra
clka dbiterra
Direction Input
Input Output
Width
ADDR _WIDTH _A 1
1
Domain clka
Sense NA
Handling if Unused
Function
Active
Address for port A read operations.
NA
EDGE Active
Clock signal for port A.
_RISING
clka
LEVEL DoNotCare Leave open.
_HIGH
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 164
Chapter 2: Xilinx Parameterized Macros
Port douta
ena injectdbiterra injectsbiterra regcea rsta
sbiterra sleep
Direction Width
Output Input
READ _DATA _WIDTH _A
1
Input
1
Input
1
Input
1
Input
1
Output
1
Input
1
Domain clka
Sense NA
Handling if Unused
Function
Active
Data output for port A read operations.
clka
LEVEL Active
Memory enable signal for port A. Must be
_HIGH
high on clock cycles when read operations
are initiated. Pipelined internally.
clka
LEVEL 0
_HIGH
Do not change from the provided value.
clka
LEVEL 0
_HIGH
Do not change from the provided value.
clka
LEVEL 1
_HIGH
Do not change from the provided value.
clka
LEVEL Active
Reset signal for the final port A output
_HIGH
register stage. Synchronously resets
output port douta to the value specified by
parameter READ_RESET_VALUE_A.
clka
LEVEL DoNotCare Leave open.
_HIGH
NA
LEVEL 0
_HIGH
sleep signal to enable the dynamic power saving feature.
Design Entry Method
Instantiation
No
Inference
No
IP and IP Integrator Catalog
No
Available Attributes
Attribute ADDR_WIDTH_A
AUTO_SLEEP_TIME CASCADE_HEIGHT
ECC_MODE
Type DECIMAL
DECIMAL DECIMAL
STRING
Allowed Values Default
1 to 20
6
0 to 15
0
0 to 64
0
"no_ecc", "both _encode _and _decode", "decode _only", "encode _only"
"no_ecc"
Description
Specify the width of the port A address port addra, in bits. Must be large enough to access the entire memory from port A, i.e. >= $clog2(MEMORY_SIZE/ READ_DATA_WIDTH_A).
Must be set to 0 0 - Disable auto-sleep feature
0- No Cascade Height, Allow Vivado Synthesis to choose. 1 or more - Vivado Synthesis sets the specified value as Cascade Height.
� "no_ecc" - Disables ECC
� "encode_only" - Enables ECC Encoder only
� "decode_only" - Enables ECC Decoder only
� "both_encode_and_decode" - Enables both
ECC Encoder and Decoder
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 165
Chapter 2: Xilinx Parameterized Macros
Attribute MEMORY_INIT_FILE
Type STRING
MEMORY_INIT _PARAM STRING
MEMORY _OPTIMIZATION
STRING
MEMORY _PRIMITIVE
STRING
MEMORY_SIZE MESSAGE_CONTROL
DECIMAL DECIMAL
READ_DATA_WIDTH_A DECIMAL
READ_LATENCY_A
DECIMAL
Allowed Values Default
String
"none"
String
"0"
"true", "false" "true"
"auto", "block", "auto" "distributed", "ultra"
2 to 150994944 2048
0 to 1
0
1 to 4608
32
0 to 100
2
Description
Specify "none" (including quotes) for no memory initialization, or specify the name of a memory initialization file- Enter only the name of the file with .mem extension, including quotes but without path (e.g. "my_file.mem"). File format must be ASCII and consist of only hexadecimal values organized into the specified depth by narrowest data width generic value of the memory. See the Memory File (MEM) section for more information on the syntax. Initialization of memory happens through the file name specified only when parameter MEMORY_INIT_PARAM value is equal to "". When using XPM_MEMORY in a project, add the specified file to the Vivado project as a design source.
Specify "" or "0" (including quotes) for no memory initialization through parameter, or specify the string containing the hex characters. Enter only hex characters with each location separated by delimiter (,).
Parameter format must be ASCII and consist of only hexadecimal values organized into the specified depth by narrowest data width generic value of the memory.
For example, if the narrowest data width is 8, and the depth of memory is 8 locations, then the parameter value should be passed as shown below.
parameter MEMORY_INIT_PARAM = "AB,CD,EF,1,2,34,56,78"
Where "AB" is the 0th location and "78" is the 7th location.
Specify "true" to enable the optimization of unused memory or bits in the memory structure. Specify "false" to disable the optimization of unused memory or bits in the memory structure
Designate the memory primitive (resource type) to use- "auto"- Allow Vivado Synthesis to choose "distributed"- Distributed memory "block"- Block memory
Specify the total memory array size, in bits. For example, enter 65536 for a 2kx32 ROM.
Specify 1 to enable the dynamic message reporting such as collision warnings, and 0 to disable the message reporting
Specify the width of the port A read data output port douta, in bits.
Specify the number of register stages in the port A read data pipeline. Read data output to port douta takes this number of clka cycles. To target block memory, a value of 1 or larger is required- 1 causes use of memory latch only; 2 causes use of output register. To target distributed memory, a value of 0 or larger is required- 0 indicates combinatorial output. Values larger than 2 synthesize additional flip-flops that are not retimed into memory primitives.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 166
Chapter 2: Xilinx Parameterized Macros
Attribute READ_RESET_VALUE _A
Type STRING
RST_MODE_A
STRING
Allowed Values Default
String
"0"
"SYNC", "ASYNC"
"SYNC"
Description
Specify the reset value of the port A final output register stage in response to rsta input port is assertion. For example, to reset the value of port douta to all 0s when READ_DATA_WIDTH_A is 32, specify 32HHHHh0.
Describes the behaviour of the reset
� "SYNC" - when reset is applied, synchronously
resets output port douta to the value specified by parameter READ_RESET_VALUE_A
� "ASYNC" - when reset is applied,
asynchronously resets output port douta to zero
SIM_ASSERT_CHK USE_MEM_INIT WAKEUP_TIME
DECIMAL 0 to 1
0
DECIMAL 0 to 1
1
STRING
"disable _sleep", "disable
"use _sleep
_sleep"
_pin"
0- Disable simulation message reporting. Messages related to potential misuse will not be reported.
1- Enable simulation message reporting. Messages related to potential misuse will be reported.
Specify 1 to enable the generation of below message and 0 to disable generation of the following message completely.
"INFO - MEMORY_INIT_FILE and MEMORY_INIT_PARAM together specifies no memory initialization. Initial memory contents will be all 0s." NOTE: This message gets generated only when there is no Memory Initialization specified either through file or Parameter.
Specify "disable_sleep" to disable dynamic power saving option, and specify "use_sleep_pin" to enable the dynamic power saving option
VHDL Instantiation Template Unless they already exist, copy the following two statements and paste them before the entity declaration.
Library xpm; use xpm.vcomponents.all;
-- xpm_memory_sprom: Single Port ROM -- Xilinx Parameterized Macro, version 2019.1
xpm_memory_sprom_inst : xpm_memory_sprom
generic map (
ADDR_WIDTH_A => 6,
-- DECIMAL
AUTO_SLEEP_TIME => 0,
-- DECIMAL
CASCADE_HEIGHT => 0,
-- DECIMAL
ECC_MODE => "no_ecc",
-- String
MEMORY_INIT_FILE => "none",
-- String
MEMORY_INIT_PARAM => "0",
-- String
MEMORY_OPTIMIZATION => "true", -- String
MEMORY_PRIMITIVE => "auto",
-- String
MEMORY_SIZE => 2048,
-- DECIMAL
MESSAGE_CONTROL => 0,
-- DECIMAL
READ_DATA_WIDTH_A => 32,
-- DECIMAL
READ_LATENCY_A => 2,
-- DECIMAL
READ_RESET_VALUE_A => "0",
-- String
RST_MODE_A => "SYNC",
-- String
SIM_ASSERT_CHK => 0,
-- DECIMAL; 0=disable simulation messages, 1=enable simulation messages
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 167
Chapter 2: Xilinx Parameterized Macros
USE_MEM_INIT => 1,
-- DECIMAL
WAKEUP_TIME => "disable_sleep" -- String
)
port map (
dbiterra => dbiterra,
-- 1-bit output: Leave open.
douta => douta,
-- READ_DATA_WIDTH_A-bit output: Data output for port A read operations.
sbiterra => sbiterra,
-- 1-bit output: Leave open.
addra => addra,
-- ADDR_WIDTH_A-bit input: Address for port A read operations.
clka => clka,
-- 1-bit input: Clock signal for port A.
ena => ena,
-- 1-bit input: Memory enable signal for port A. Must be high on clock
-- cycles when read operations are initiated. Pipelined internally.
injectdbiterra => injectdbiterra, -- 1-bit input: Do not change from the provided value.
injectsbiterra => injectsbiterra, -- 1-bit input: Do not change from the provided value.
regcea => regcea,
-- 1-bit input: Do not change from the provided value.
rsta => rsta,
-- 1-bit input: Reset signal for the final port A output register
-- stage. Synchronously resets output port douta to the value specified
-- by parameter READ_RESET_VALUE_A.
sleep => sleep );
-- 1-bit input: sleep signal to enable the dynamic power saving feature.
-- End of xpm_memory_sprom_inst instantiation
Verilog Instantiation Template
// xpm_memory_sprom: Single Port ROM // Xilinx Parameterized Macro, version 2019.1
xpm_memory_sprom #(
.ADDR_WIDTH_A(6),
// DECIMAL
.AUTO_SLEEP_TIME(0),
// DECIMAL
.CASCADE_HEIGHT(0),
// DECIMAL
.ECC_MODE("no_ecc"),
// String
.MEMORY_INIT_FILE("none"),
// String
.MEMORY_INIT_PARAM("0"),
// String
.MEMORY_OPTIMIZATION("true"), // String
.MEMORY_PRIMITIVE("auto"),
// String
.MEMORY_SIZE(2048),
// DECIMAL
.MESSAGE_CONTROL(0),
// DECIMAL
.READ_DATA_WIDTH_A(32),
// DECIMAL
.READ_LATENCY_A(2),
// DECIMAL
.READ_RESET_VALUE_A("0"),
// String
.RST_MODE_A("SYNC"),
// String
.SIM_ASSERT_CHK(0),
// DECIMAL; 0=disable simulation messages, 1=enable simulation messages
.USE_MEM_INIT(1),
// DECIMAL
.WAKEUP_TIME("disable_sleep") // String
)
xpm_memory_sprom_inst (
.dbiterra(dbiterra),
// 1-bit output: Leave open.
.douta(douta),
// READ_DATA_WIDTH_A-bit output: Data output for port A read operations.
.sbiterra(sbiterra),
// 1-bit output: Leave open.
.addra(addra),
// ADDR_WIDTH_A-bit input: Address for port A read operations.
.clka(clka),
// 1-bit input: Clock signal for port A.
.ena(ena),
// 1-bit input: Memory enable signal for port A. Must be high on clock
// cycles when read operations are initiated. Pipelined internally.
.injectdbiterra(injectdbiterra), // 1-bit input: Do not change from the provided value.
.injectsbiterra(injectsbiterra), // 1-bit input: Do not change from the provided value.
.regcea(regcea),
// 1-bit input: Do not change from the provided value.
.rsta(rsta),
// 1-bit input: Reset signal for the final port A output register stage.
// Synchronously resets output port douta to the value specified by
// parameter READ_RESET_VALUE_A.
.sleep(sleep) );
// 1-bit input: sleep signal to enable the dynamic power saving feature.
// End of xpm_memory_sprom_inst instantiation
For More Information � See the 7 Series Programmable Devices User Guides.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 168
Chapter 2: Xilinx Parameterized Macros � See the 7 Series FPGAs Memory Resources User Guide (UG473).
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 169
Chapter 2: Xilinx Parameterized Macros
XPM_MEMORY_TDPRAM
Parameterized Macro: True Dual Port RAM
MACRO_GROUP: XPM MACRO_SUBGROUP: XPM_MEMORY Families: 7 series, UltraScale, UltraScale+
XPM_MEMORY_TDPRAM
dina[(WRITE_DATA_WIDTH_A - 1):0] dinb[(WRITE_DATA_WIDTH_B - 1):0] addra[(ADDR_WIDTH_A � 1):0] addrb[(ADDR_WIDTH_B � 1):0] wea[WRITE_DATA_WIDTH_A/ BYTE_WRITE_WIDTH_A � 1):0]
web[WRITE_DATA_WIDTH_B/ BYTE_WRITE_WIDTH_B � 1):0]
douta[(READ_DATA_WIDTH_A � 1):0] doutb[(READ_DATA_WIDTH_B � 1):0]
injectsbiterra injectsbiterrb injectdbiterra injectdbiterrb
clka clkb rsta rstb ena enb regcea regceb sleep
sbiterra sbiterrb dbiterra dbiterrb
X16251-033016
Introduction This macro is used to instantiate True Dual Port RAM. Reads and writes to the memory can be done through port A and port B simultaneously.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 170
Chapter 2: Xilinx Parameterized Macros
The following describes the basic read and write port usage of an XPM_MEMORY instance. It does not distinguish between port A and port B.
� All synchronous signals are sensitive to the rising edge of clk[a|b], which is assumed to be a buffered and toggling clock signal behaving according to target device and memory primitive requirements.
� A read operation is implicitly performed to address addr[a|b] combinatorially. The data output is registered each clk[a|b] cycle that en[a|b] is asserted.
� Read data appears on the dout[a|b] port READ_LATENCY_[A|B] clk[a|b] cycles after the associated read operation.
� A write operation is explicitly performed, writing din[a|b] to address addr[a|b], when both en[a| b] and we[a|b] are asserted on each clk[a|b] cycle.
� All read and write operations are gated by the value of en[a|b] on the initiating clk[a|b] cycle, regardless of input or output latencies. The addr[a|b] and we[a|b] inputs have no effect when en[a|b] is de-asserted on the coincident clk[a|b] cycle.
� The behavior of dout[a|b] with respect to the combination of din[a|b] and addr[a|b] is a function of WRITE_MODE_[A|B].
� For each clk[a|b] cycle that rst[a|b] is asserted, the final output register is immediately but synchronously reset to READ_RESET_VALUE_[A|B], irrespective of READ_LATENCY_[A|B].
� For each clk[a|b] cycle that regce[a|b] is asserted and rst[a|b] is de-asserted, the final output register captures and outputs the value from the previous pipeline register.
� Undriven or unknown values provided on module inputs will produce undefined memory array and output port behavior.
Choosing the Invalid Configuration will result in a DRC.
Note:
� When the attribute "CLOCKING_MODE" is set to "common_clock", all read/write operations to memory through port A and port B are performed on clka. If this attribute is set to "independent_clock", then read/write operations through port A are performed based on clka, and read/write operations through port B are performed based on clkb.
� Writing to an out-of-range address location may overwrite a valid address location when effective address bits match to a physical memory address location.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 171
Chapter 2: Xilinx Parameterized Macros
� set_false_path constraint is needed for the independent clock distributed RAM based memory if the design takes care of avoiding address collision (write address != read address at any given point of time). Set USE_EMBEDDED_CONSTRAINT = 1 if XPM_MEMORY needs to take care of necessary constraints. If USE_EMBEDDED_CONSTRAINT = 0, Vivado may trigger Timing-6 or Timing-7 or both. Alternatively, you can also add the constraint when USE_EMBEDDED_CONSTRAINT = 0. An example of adding this constraint is provided below. If Port-B also has write permissions for an Independent clock configuration, then a similar constraint needs to be added for clkb as well.
set_false_path -from [filter [all_fanout -from [get_ports clka] -flat -endpoints_only] {IS_LEAF}] -through [get_pins -of_objects [get_cells -hier * -filter {PRIMITIVE_SUBGROUP==LUTRAM || PRIMITIVE_SUBGROUP==dram || PRIMITIVE_SUBGROUP==drom}] -filter {DIRECTION==OUT}]
� If "CLOCKING_MODE" is set to "independent_clock", Vivado may trigger a false positive CDC-1 warning and can be ignored.
� The use of UltraRAM's dedicated input and output registers are controlled by synthesis based on the READ_LATENCY_B value. For example, if 4 UltraRAMs are in cascade and the READ_LATENCY_B is >= 4, then synthesis will absorb as much registers inside UltraRAM primitive as possible.
� For UltraRAM's, OREG enabled when READ_LATENCY_B >= 3 in NO_CHANGE mode.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 172
Chapter 2: Xilinx Parameterized Macros
Timing Diagrams
CLK RST EN WE ADDR DIN DOUT
TDPRAM : Write First Mode with Read Latency of 1
AA
BB
AA
BB
CC
Da
Db
Dc
Data(AA) Data(BB) Da
Db
Dc
RSTVAL
CLK RST EN WE REGCE ADDR DIN DOUT
TDPRAM : Write First Mode with Read Latency of 2
AA
BB
AA
BB
CC
Da
Db
Dc
Data(AA) Data(BB) Da
Db
RSTVAL
Note: The above waveforms do not distinguish between port A and port B. The behavior shown in the above waveforms is true for both port A and port B.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 173
Chapter 2: Xilinx Parameterized Macros
TDPRAM : UltraRAM Limitation on write aceess before sleep assertion
CLK[A|B] SLEEP
EN[A|B] WE[A|B]
Write is not allowed in the clock cycle before sleep assertion for UltraRAM configurations
TDPRAM : UltraRAM Limitation on read aceess before sleep assertion
CLK[A|B] SLEEP
EN[A|B]
Read is not allowed in the clock cycle before sleep assertion for UltraRAM configurations
X17941-091716
Note: The UltraRAM primitive does not support Write/Read access in the clock cycle just before assertion of sleep gets recognized on the positive edge of the clock when its OREG attribute is set to TRUE. For UltraRAM configurations, Write/Read access to the memory is not allowed in the clock cycle just before the assertion of sleep.
ECC Modes Only the UltraRAM primitives support ECC when the memory type is set to True Dual Port RAM. The three ECC modes supported are: � Both encode and decode � Encode only � Decode only The read and write usage of the three ECC Modes are the same as described in the Introduction section above. See the "Built-in Error Correction" section of the 7 Series FPGAs Memory Resources User Guide (UG473) for more details on this feature like Error Injection and syndrome bits calculations. There are restrictions on the attributes WRITE_DATA_WIDTH_[A|B], READ_DATA_WIDTH_[A| B], and MEMORY_SIZE in each of the above ECC modes. � Both encode and decode WRITE_DATA_WIDTH_[A|B] and READ_DATA_WIDTH_[A|B] must
be multiples of 64-bits. Violating this rule will results in a DRC in XPM_Memory.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 174
Chapter 2: Xilinx Parameterized Macros
� Encode only WRITE_DATA_WIDTH_[A|B] must be a multiple of 64 bits and READ_DATA_WIDTH_[A|B] must be a multiple of 72-bits. MEMORY_SIZE must be a multiple of READ_DATA_WIDTH_[A|B]. Violating these rules will result in a DRC.
� Decode only WRITE_DATA_WIDTH_[A|B] must be a multiple of 72 bits and READ_DATA_WIDTH_[A|B] must be a multiple of 64-bits. MEMORY_SIZE must be a multiple of WRITE_DATA_WIDTH_[A|B]. Violating these rules will result in a DRC.
When ECC is enabled the following are not supported:
� Asymmetry � Initialization � Reset (neither non-zero reset value nor reset assertion)
Note: ECC uses a hard-ECC block available in the BRAM/URAM macro and the data width should be multiples of 64/72. Use ECC IP for other data width combinations.
Auto Sleep Mode � This feature is applicable only when MEMORY_PRIMITIVE is URAM and is controlled
internally in the UltraRAM to check if it can be put in sleep mode and when it needs to wake up. Thus power savings are obtained automatically without having to explicitly control the SLEEP Pin. � When AUTO_SLEEP_TIME is 0, the feature is disabled. When AUTO_SLEEP_TIME is nonzero, XPM_MEMORY constructs the pipeline registers equal to AUTO_SLEEP_TIME value on all input signals except rst[a|b]. � If AUTO_SLEEP_TIME is too low, then UltraRAM goes into sleep and wakeup too often, which can cause more power to be consumed. � The number of sleep cycles achieved is calculated by following formula: If number of consecutive inactive cycles is < AUTO_SLEEP_TIME, then number of sleep
cycles = 0 If number of consecutive inactive cycles is >= AUTO_SLEEP_TIME, Then number of
consecutive sleep cycles = Number of consecutive inactive cycles � 3 Inactive cycle is defined as a cycle where there is no Read/Write operation from either port
� The latency between the read operation and the data arrival at dout[a|b] is AUTO_SLEEP_TIME + READ_LATENCY_[A|B] clock cycles (Assuming that REGCE is high when the output data pipe line exists).
� When the READ_LATENCY_[A|B] is set to 1 or 2, XPM_Memory behaviorally models the AUTO SLEEP feature and forces `x' on DOUT[A|B] when the RAM is in Auto Sleep Mode. For READ_LATENCY_[A|B] greater than 2, the propagation of `x' cannot happen to the DOUT[A| B] as the output registers gets the clock enable (delayed read enable) after UltraRAM comes out of sleep mode.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 175
Chapter 2: Xilinx Parameterized Macros
� The Auto Sleep mode is most effective for larger Memory sizes or any Memory with very little activity.
Timing diagrams for Auto Sleep Mode at various read latencies are shown below.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 176
Chapter 2: Xilinx Parameterized Macros
Note: EN_DLY[A|B],ADDR_DLY[A|B], and REGCE_DLY[A|B] are the delayed versions of EN[A|B], ADDR[A| B] and REGCE[A|B] by AUTO_SLEEP_TIME number of clock cycles respectively.
Port Descriptions
Port addra addrb clka clkb dbiterra dbiterrb dina dinb douta doutb ena enb injectdbiterra injectdbiterrb
Direction Width
Input Input Input
ADDR _WIDTH _A
ADDR _WIDTH _B
1
Input
1
Output Output Input Input Output Output Input
1
1
WRITE _DATA _WIDTH _A
WRITE _DATA _WIDTH _B
READ _DATA _WIDTH _A
READ _DATA _WIDTH _B
1
Input
1
Input
1
Input
1
Domain clka
Sense NA
Handling if Unused
Function
Active
Address for port A write and read operations.
clkb
NA
Active
Address for port B write and read
operations.
NA
EDGE Active
Clock signal for port A. Also clocks port B
_RISING
when parameter CLOCKING_MODE is
"common_clock".
NA
EDGE Active
Clock signal for port B when parameter
_RISING
CLOCKING_MODE is "independent_clock".
Unused when parameter
CLOCKING_MODE is "common_clock".
clka
LEVEL DoNotCare Status signal to indicate double bit error
_HIGH
occurrence on the data output of port A.
clkb
LEVEL DoNotCare Status signal to indicate double bit error
_HIGH
occurrence on the data output of port A.
clka
NA
Active
Data input for port A write operations.
clkb
NA
Active
Data input for port B write operations.
clka
NA
Active
Data output for port A read operations.
clkb
NA
Active
Data output for port B read operations.
clka
LEVEL Active
Memory enable signal for port A. Must be
_HIGH
high on clock cycles when read or write
operations are initiated. Pipelined
internally.
clkb
LEVEL Active
Memory enable signal for port B. Must be
_HIGH
high on clock cycles when read or write
operations are initiated. Pipelined
internally.
clka
LEVEL 0
_HIGH
Controls double bit error injection on input data when ECC enabled (Error injection capability is not available in "decode_only" mode).
clkb
LEVEL 0
_HIGH
Controls double bit error injection on input data when ECC enabled (Error injection capability is not available in "decode_only" mode).
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 177
Chapter 2: Xilinx Parameterized Macros
Port injectsbiterra injectsbiterrb regcea regceb rsta rstb sbiterra sbiterrb sleep wea
web
Direction Input Input Input Input Input Input Output Output Input Input
Input
Width Domain
1
clka
1
clkb
1
clka
1
clkb
1
clka
1
clkb
1
clka
1
clkb
1
NA
WRITE clka _DATA _WIDTH _A / BYTE _WRITE _WIDTH _A
WRITE clkb _DATA _WIDTH _B / BYTE _WRITE _WIDTH _B
Sense LEVEL _HIGH
LEVEL _HIGH
LEVEL _HIGH LEVEL _HIGH LEVEL _HIGH
LEVEL _HIGH
LEVEL _HIGH LEVEL _HIGH LEVEL _HIGH LEVEL _HIGH
LEVEL _HIGH
Handling if Unused
Function
0
Controls single bit error injection on input
data when ECC enabled (Error injection
capability is not available in "decode_only"
mode).
0
Controls single bit error injection on input
data when ECC enabled (Error injection
capability is not available in "decode_only"
mode).
1
Clock Enable for the last register stage on
the output data path.
1
Clock Enable for the last register stage on
the output data path.
Active
Reset signal for the final port A output register stage. Synchronously resets output port douta to the value specified by parameter READ_RESET_VALUE_A.
Active
Reset signal for the final port B output register stage. Synchronously resets output port doutb to the value specified by parameter READ_RESET_VALUE_B.
DoNotCare Status signal to indicate single bit error occurrence on the data output of port A.
DoNotCare Status signal to indicate single bit error occurrence on the data output of port B.
0
sleep signal to enable the dynamic power
saving feature.
Active
Write enable vector for port A input data port dina. 1 bit wide when word-wide writes are used. In byte-wide write configurations, each bit controls the writing one byte of dina to address addra. For example, to synchronously write only bits [15-8] of dina when WRITE_DATA_WIDTH_A is 32, wea would be 4'b0010.
Active
Write enable vector for port B input data port dinb. 1 bit wide when word-wide writes are used. In byte-wide write configurations, each bit controls the writing one byte of dinb to address addrb. For example, to synchronously write only bits [15-8] of dinb when WRITE_DATA_WIDTH_B is 32, web would be 4'b0010.
Design Entry Method
Instantiation
No
Inference
No
IP and IP Integrator Catalog
No
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 178
Chapter 2: Xilinx Parameterized Macros
Available Attributes
Attribute ADDR_WIDTH_A ADDR_WIDTH_B AUTO_SLEEP_TIME BYTE_WRITE_WIDTH _A
BYTE_WRITE_WIDTH _B
CASCADE_HEIGHT CLOCKING_MODE
ECC_MODE
Type DECIMAL DECIMAL DECIMAL DECIMAL
DECIMAL
DECIMAL STRING
STRING
Allowed Values Default
1 to 20
6
1 to 20
6
0 to 15
0
1 to 4608
32
1 to 4608
32
0 to 64
0
"common _clock", "independent _clock"
"common _clock"
"no_ecc", "both _encode _and _decode", "decode _only", "encode _only"
"no_ecc"
Description
Specify the width of the port A address port addra, in bits. Must be large enough to access the entire memory from port A, i.e. >= $clog2(MEMORY_SIZE/ [WRITE|READ]_DATA_WIDTH_A).
Specify the width of the port B address port addrb, in bits. Must be large enough to access the entire memory from port B, i.e. >= $clog2(MEMORY_SIZE/ [WRITE|READ]_DATA_WIDTH_B).
Number of clk[a|b] cycles to auto-sleep, if feature is available in architecture 0 - Disable auto-sleep feature 3-15 - Number of auto-sleep latency cycles Do not change from the value provided in the template instantiation
To enable byte-wide writes on port A, specify the byte width, in bits- 8- 8-bit byte-wide writes, legal when WRITE_DATA_WIDTH_A is an integer multiple of 8 9- 9-bit byte-wide writes, legal when WRITE_DATA_WIDTH_A is an integer multiple of 9 Or to enable word-wide writes on port A, specify the same value as for WRITE_DATA_WIDTH_A.
To enable byte-wide writes on port B, specify the byte width, in bits- 8- 8-bit byte-wide writes, legal when WRITE_DATA_WIDTH_B is an integer multiple of 8 9- 9-bit byte-wide writes, legal when WRITE_DATA_WIDTH_B is an integer multiple of 9 Or to enable word-wide writes on port B, specify the same value as for WRITE_DATA_WIDTH_B.
0- No Cascade Height, Allow Vivado Synthesis to choose.
1 or more - Vivado Synthesis sets the specified value as Cascade Height.
Designate whether port A and port B are clocked with a common clock or with independent clocks"common_clock"- Common clocking; clock both port A and port B with clka "independent_clock"Independent clocking; clock port A with clka and port B with clkb
� "no_ecc" - Disables ECC
� "encode_only" - Enables ECC Encoder only
� "decode_only" - Enables ECC Decoder only
� "both_encode_and_decode" - Enables both
ECC Encoder and Decoder
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 179
Chapter 2: Xilinx Parameterized Macros
Attribute MEMORY_INIT_FILE
Type STRING
MEMORY_INIT _PARAM STRING
MEMORY _OPTIMIZATION
STRING
MEMORY _PRIMITIVE
STRING
MEMORY_SIZE
DECIMAL
MESSAGE_CONTROL
DECIMAL
Allowed Values Default
String
"none"
String
"0"
"true", "false" "true"
"auto", "block", "auto" "distributed", "ultra"
2 to 150994944 2048
0 to 1
0
Description
Specify "none" (including quotes) for no memory initialization, or specify the name of a memory initialization file- Enter only the name of the file with .mem extension, including quotes but without path (e.g. "my_file.mem"). File format must be ASCII and consist of only hexadecimal values organized into the specified depth by narrowest data width generic value of the memory. See the Memory File (MEM) section for more information on the syntax. Initialization of memory happens through the file name specified only when parameter MEMORY_INIT_PARAM value is equal to "". | When using XPM_MEMORY in a project, add the specified file to the Vivado project as a design source.
Specify "" or "0" (including quotes) for no memory initialization through parameter, or specify the string containing the hex characters. Enter only hex characters with each location separated by delimiter (,).
Parameter format must be ASCII and consist of only hexadecimal values organized into the specified depth by narrowest data width generic value of the memory.
For example, if the narrowest data width is 8, and the depth of memory is 8 locations, then the parameter value should be passed as shown below.
parameter MEMORY_INIT_PARAM = "AB,CD,EF,1,2,34,56,78"
Where "AB" is the 0th location and "78" is the 7th location.
Specify "true" to enable the optimization of unused memory or bits in the memory structure. Specify "false" to disable the optimization of unused memory or bits in the memory structure
Designate the memory primitive (resource type) to use- "auto"- Allow Vivado Synthesis to choose "distributed"- Distributed memory "block"- Block memory "ultra"- Ultra RAM memory NOTE: There may be a behavior mismatch if Block RAM or Ultra RAM specific features, like ECC or Asymmetry, are selected with MEMORY_PRIMITIVE set to "auto".
Specify the total memory array size, in bits. For example, enter 65536 for a 2kx32 RAM. When ECC is enabled and set to "encode_only", then the memory size has to be multiples of READ_DATA_WIDTH_[A|B] When ECC is enabled and set to "decode_only", then the memory size has to be multiples of WRITE_DATA_WIDTH_[A|B]
Specify 1 to enable the dynamic message reporting such as collision warnings, and 0 to disable the message reporting
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 180
Chapter 2: Xilinx Parameterized Macros
Attribute READ_DATA_WIDTH_A READ_DATA_WIDTH_B READ_LATENCY_A READ_LATENCY_B
READ_RESET_VALUE _A READ_RESET_VALUE _B
Type DECIMAL DECIMAL DECIMAL DECIMAL
STRING STRING
Allowed Values Default
1 to 4608
32
1 to 4608
32
0 to 100
2
0 to 100
2
String
"0"
String
"0"
Description
Specify the width of the port A read data output port douta, in bits. The values of READ_DATA_WIDTH_A and WRITE_DATA_WIDTH_A must be equal. When ECC is enabled and set to "encode_only", then READ_DATA_WIDTH_A has to be multiples of 72-bits When ECC is enabled and set to "decode_only" or "both_encode_and_decode", then READ_DATA_WIDTH_A has to be multiples of 64bits
Specify the width of the port B read data output port doutb, in bits. The values of READ_DATA_WIDTH_B and WRITE_DATA_WIDTH_B must be equal. When ECC is enabled and set to "encode_only", then READ_DATA_WIDTH_B has to be multiples of 72-bits When ECC is enabled and set to "decode_only" or "both_encode_and_decode", then READ_DATA_WIDTH_B has to be multiples of 64bits
Specify the number of register stages in the port A read data pipeline. Read data output to port douta takes this number of clka cycles. To target block memory, a value of 1 or larger is required- 1 causes use of memory latch only; 2 causes use of output register. To target distributed memory, a value of 0 or larger is required- 0 indicates combinatorial output. Values larger than 2 synthesize additional flip-flops that are not retimed into memory primitives.
Specify the number of register stages in the port B read data pipeline. Read data output to port doutb takes this number of clkb cycles (clka when CLOCKING_MODE is "common_clock"). To target block memory, a value of 1 or larger is required- 1 causes use of memory latch only; 2 causes use of output register. To target distributed memory, a value of 0 or larger is required- 0 indicates combinatorial output. Values larger than 2 synthesize additional flip-flops that are not retimed into memory primitives.
Specify the reset value of the port A final output register stage in response to rsta input port is assertion. As this parameter is a string, please specify the hex values inside double quotes. As an example, If the read data width is 8, then specify READ_RESET_VALUE_A = "EA"; When ECC is enabled, then reset value is not supported
Specify the reset value of the port B final output register stage in response to rstb input port is assertion. As this parameter is a string, please specify the hex values inside double quotes. As an example, If the read data width is 8, then specify READ_RESET_VALUE_B = "EA"; When ECC is enabled, then reset value is not supported
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 181
Chapter 2: Xilinx Parameterized Macros
Attribute RST_MODE_A
Type STRING
Allowed Values Default
"SYNC", "ASYNC"
"SYNC"
Description
Describes the behaviour of the reset
� "SYNC" - when reset is applied, synchronously
resets output port douta to the value specified by parameter READ_RESET_VALUE_A
� "ASYNC" - when reset is applied,
asynchronously resets output port douta to zero
RST_MODE_B
STRING
"SYNC", "ASYNC"
"SYNC"
Describes the behaviour of the reset
� "SYNC" - when reset is applied, synchronously
resets output port doutb to the value specified by parameter READ_RESET_VALUE_B
� "ASYNC" - when reset is applied,
asynchronously resets output port doutb to zero
SIM_ASSERT_CHK
DECIMAL 0 to 1
0
USE_EMBEDDED
DECIMAL 0 to 1
0
_CONSTRAINT
USE_MEM_INIT
DECIMAL 0 to 1
1
WAKEUP_TIME
STRING
WRITE_DATA_WIDTH _A DECIMAL
"disable _sleep", "disable
"use _sleep
_sleep"
_pin"
1 to 4608
32
WRITE_DATA_WIDTH _B DECIMAL 1 to 4608
32
0- Disable simulation message reporting. Messages related to potential misuse will not be reported.
1- Enable simulation message reporting. Messages related to potential misuse will be reported.
Specify 1 to enable the set_false_path constraint addition between clka of Distributed RAM and doutb_reg on clkb
Specify 1 to enable the generation of below message and 0 to disable generation of the following message completely.
"INFO - MEMORY_INIT_FILE and MEMORY_INIT_PARAM together specifies no memory initialization. Initial memory contents will be all 0s." NOTE: This message gets generated only when there is no Memory Initialization specified either through file or Parameter.
Specify "disable_sleep" to disable dynamic power saving option, and specify "use_sleep_pin" to enable the dynamic power saving option
Specify the width of the port A write data input port dina, in bits. The values of WRITE_DATA_WIDTH_A and READ_DATA_WIDTH_A must be equal. When ECC is enabled and set to "encode_only" or "both_encode_and_decode", then WRITE_DATA_WIDTH_A has to be multiples of 64-bits When ECC is enabled and set to "decode_only", then WRITE_DATA_WIDTH_A has to be multiples of 72-bits
Specify the width of the port B write data input port dinb, in bits. The values of WRITE_DATA_WIDTH_B and READ_DATA_WIDTH_B must be equal. When ECC is enabled and set to "encode_only" or "both_encode_and_decode", then WRITE_DATA_WIDTH_B has to be multiples of 64-bits When ECC is enabled and set to "decode_only", then WRITE_DATA_WIDTH_B has to be multiples of 72-bits
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 182
Chapter 2: Xilinx Parameterized Macros
Attribute WRITE_MODE_A
WRITE_MODE_B
Type STRING
STRING
Allowed Values Default
"no _change", "read _first", "write _first"
"no _change"
"no _change", "read _first", "write _first"
"no _change"
Description Write mode behavior for port A output data port, douta.
Write mode behavior for port B output data port, doutb.
VHDL Instantiation Template Unless they already exist, copy the following two statements and paste them before the entity declaration.
Library xpm; use xpm.vcomponents.all;
-- xpm_memory_tdpram: True Dual Port RAM -- Xilinx Parameterized Macro, version 2019.1
xpm_memory_tdpram_inst : xpm_memory_tdpram
generic map (
ADDR_WIDTH_A => 6,
-- DECIMAL
ADDR_WIDTH_B => 6,
-- DECIMAL
AUTO_SLEEP_TIME => 0,
-- DECIMAL
BYTE_WRITE_WIDTH_A => 32,
-- DECIMAL
BYTE_WRITE_WIDTH_B => 32,
-- DECIMAL
CASCADE_HEIGHT => 0,
-- DECIMAL
CLOCKING_MODE => "common_clock", -- String
ECC_MODE => "no_ecc",
-- String
MEMORY_INIT_FILE => "none",
-- String
MEMORY_INIT_PARAM => "0",
-- String
MEMORY_OPTIMIZATION => "true", -- String
MEMORY_PRIMITIVE => "auto",
-- String
MEMORY_SIZE => 2048,
-- DECIMAL
MESSAGE_CONTROL => 0,
-- DECIMAL
READ_DATA_WIDTH_A => 32,
-- DECIMAL
READ_DATA_WIDTH_B => 32,
-- DECIMAL
READ_LATENCY_A => 2,
-- DECIMAL
READ_LATENCY_B => 2,
-- DECIMAL
READ_RESET_VALUE_A => "0",
-- String
READ_RESET_VALUE_B => "0",
-- String
RST_MODE_A => "SYNC",
-- String
RST_MODE_B => "SYNC",
-- String
SIM_ASSERT_CHK => 0,
-- DECIMAL; 0=disable simulation messages, 1=enable simulation messages
USE_EMBEDDED_CONSTRAINT => 0, -- DECIMAL
USE_MEM_INIT => 1,
-- DECIMAL
WAKEUP_TIME => "disable_sleep", -- String
WRITE_DATA_WIDTH_A => 32,
-- DECIMAL
WRITE_DATA_WIDTH_B => 32,
-- DECIMAL
WRITE_MODE_A => "no_change",
-- String
WRITE_MODE_B => "no_change"
-- String
)
port map (
dbiterra => dbiterra,
-- 1-bit output: Status signal to indicate double bit error occurrence
-- on the data output of port A.
dbiterrb => dbiterrb,
-- 1-bit output: Status signal to indicate double bit error occurrence -- on the data output of port A.
douta => douta, doutb => doutb, sbiterra => sbiterra,
-- READ_DATA_WIDTH_A-bit output: Data output for port A read operations. -- READ_DATA_WIDTH_B-bit output: Data output for port B read operations. -- 1-bit output: Status signal to indicate single bit error occurrence
-- on the data output of port A.
sbiterrb => sbiterrb,
-- 1-bit output: Status signal to indicate single bit error occurrence -- on the data output of port B.
addra => addra, addrb => addrb, clka => clka,
-- ADDR_WIDTH_A-bit input: Address for port A write and read operations. -- ADDR_WIDTH_B-bit input: Address for port B write and read operations. -- 1-bit input: Clock signal for port A. Also clocks port B when
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 183
Chapter 2: Xilinx Parameterized Macros
-- parameter CLOCKING_MODE is "common_clock".
clkb => clkb,
-- 1-bit input: Clock signal for port B when parameter CLOCKING_MODE is -- "independent_clock". Unused when parameter CLOCKING_MODE is -- "common_clock".
dina => dina, dinb => dinb, ena => ena,
-- WRITE_DATA_WIDTH_A-bit input: Data input for port A write operations. -- WRITE_DATA_WIDTH_B-bit input: Data input for port B write operations. -- 1-bit input: Memory enable signal for port A. Must be high on clock -- cycles when read or write operations are initiated. Pipelined
-- internally.
enb => enb,
-- 1-bit input: Memory enable signal for port B. Must be high on clock -- cycles when read or write operations are initiated. Pipelined
-- internally.
injectdbiterra => injectdbiterra, -- 1-bit input: Controls double bit error injection on input data when -- ECC enabled (Error injection capability is not available in -- "decode_only" mode).
injectdbiterrb => injectdbiterrb, -- 1-bit input: Controls double bit error injection on input data when -- ECC enabled (Error injection capability is not available in -- "decode_only" mode).
injectsbiterra => injectsbiterra, -- 1-bit input: Controls single bit error injection on input data when -- ECC enabled (Error injection capability is not available in -- "decode_only" mode).
injectsbiterrb => injectsbiterrb, -- 1-bit input: Controls single bit error injection on input data when -- ECC enabled (Error injection capability is not available in -- "decode_only" mode).
regcea => regcea,
-- 1-bit input: Clock Enable for the last register stage on the output -- data path.
regceb => regceb,
-- 1-bit input: Clock Enable for the last register stage on the output -- data path.
rsta => rsta,
-- 1-bit input: Reset signal for the final port A output register -- stage. Synchronously resets output port douta to the value specified
-- by parameter READ_RESET_VALUE_A.
rstb => rstb,
-- 1-bit input: Reset signal for the final port B output register -- stage. Synchronously resets output port doutb to the value specified
-- by parameter READ_RESET_VALUE_B.
sleep => sleep, wea => wea,
-- 1-bit input: sleep signal to enable the dynamic power saving feature. -- WRITE_DATA_WIDTH_A-bit input: Write enable vector for port A input -- data port dina. 1 bit wide when word-wide writes are used. In -- byte-wide write configurations, each bit controls the writing one -- byte of dina to address addra. For example, to synchronously write -- only bits [15-8] of dina when WRITE_DATA_WIDTH_A is 32, wea would be
-- 4'b0010.
web => web
-- WRITE_DATA_WIDTH_B-bit input: Write enable vector for port B input -- data port dinb. 1 bit wide when word-wide writes are used. In -- byte-wide write configurations, each bit controls the writing one -- byte of dinb to address addrb. For example, to synchronously write -- only bits [15-8] of dinb when WRITE_DATA_WIDTH_B is 32, web would be
-- 4'b0010.
);
-- End of xpm_memory_tdpram_inst instantiation
Verilog Instantiation Template
// xpm_memory_tdpram: True Dual Port RAM // Xilinx Parameterized Macro, version 2019.1
xpm_memory_tdpram #( .ADDR_WIDTH_A(6), .ADDR_WIDTH_B(6), .AUTO_SLEEP_TIME(0), .BYTE_WRITE_WIDTH_A(32), .BYTE_WRITE_WIDTH_B(32),
// DECIMAL // DECIMAL // DECIMAL // DECIMAL // DECIMAL
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 184
Chapter 2: Xilinx Parameterized Macros
.CASCADE_HEIGHT(0),
// DECIMAL
.CLOCKING_MODE("common_clock"), // String
.ECC_MODE("no_ecc"),
// String
.MEMORY_INIT_FILE("none"),
// String
.MEMORY_INIT_PARAM("0"),
// String
.MEMORY_OPTIMIZATION("true"), // String
.MEMORY_PRIMITIVE("auto"),
// String
.MEMORY_SIZE(2048),
// DECIMAL
.MESSAGE_CONTROL(0),
// DECIMAL
.READ_DATA_WIDTH_A(32),
// DECIMAL
.READ_DATA_WIDTH_B(32),
// DECIMAL
.READ_LATENCY_A(2),
// DECIMAL
.READ_LATENCY_B(2),
// DECIMAL
.READ_RESET_VALUE_A("0"),
// String
.READ_RESET_VALUE_B("0"),
// String
.RST_MODE_A("SYNC"),
// String
.RST_MODE_B("SYNC"),
// String
.SIM_ASSERT_CHK(0),
// DECIMAL; 0=disable simulation messages, 1=enable simulation messages
.USE_EMBEDDED_CONSTRAINT(0), // DECIMAL
.USE_MEM_INIT(1),
// DECIMAL
.WAKEUP_TIME("disable_sleep"), // String
.WRITE_DATA_WIDTH_A(32),
// DECIMAL
.WRITE_DATA_WIDTH_B(32),
// DECIMAL
.WRITE_MODE_A("no_change"),
// String
.WRITE_MODE_B("no_change")
// String
)
xpm_memory_tdpram_inst (
.dbiterra(dbiterra),
// 1-bit output: Status signal to indicate double bit error occurrence
// on the data output of port A.
.dbiterrb(dbiterrb),
// 1-bit output: Status signal to indicate double bit error occurrence // on the data output of port A.
.douta(douta), .doutb(doutb), .sbiterra(sbiterra),
// READ_DATA_WIDTH_A-bit output: Data output for port A read operations. // READ_DATA_WIDTH_B-bit output: Data output for port B read operations. // 1-bit output: Status signal to indicate single bit error occurrence
// on the data output of port A.
.sbiterrb(sbiterrb),
// 1-bit output: Status signal to indicate single bit error occurrence // on the data output of port B.
.addra(addra), .addrb(addrb), .clka(clka),
// ADDR_WIDTH_A-bit input: Address for port A write and read operations. // ADDR_WIDTH_B-bit input: Address for port B write and read operations.
// 1-bit input: Clock signal for port A. Also clocks port B when // parameter CLOCKING_MODE is "common_clock".
.clkb(clkb),
// 1-bit input: Clock signal for port B when parameter CLOCKING_MODE is // "independent_clock". Unused when parameter CLOCKING_MODE is // "common_clock".
.dina(dina), .dinb(dinb), .ena(ena),
// WRITE_DATA_WIDTH_A-bit input: Data input for port A write operations. // WRITE_DATA_WIDTH_B-bit input: Data input for port B write operations. // 1-bit input: Memory enable signal for port A. Must be high on clock
// cycles when read or write operations are initiated. Pipelined // internally.
.enb(enb),
// 1-bit input: Memory enable signal for port B. Must be high on clock // cycles when read or write operations are initiated. Pipelined // internally.
.injectdbiterra(injectdbiterra), // 1-bit input: Controls double bit error injection on input data when // ECC enabled (Error injection capability is not available in // "decode_only" mode).
.injectdbiterrb(injectdbiterrb), // 1-bit input: Controls double bit error injection on input data when // ECC enabled (Error injection capability is not available in // "decode_only" mode).
.injectsbiterra(injectsbiterra), // 1-bit input: Controls single bit error injection on input data when // ECC enabled (Error injection capability is not available in // "decode_only" mode).
.injectsbiterrb(injectsbiterrb), // 1-bit input: Controls single bit error injection on input data when // ECC enabled (Error injection capability is not available in // "decode_only" mode).
.regcea(regcea),
// 1-bit input: Clock Enable for the last register stage on the output // data path.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 185
Chapter 2: Xilinx Parameterized Macros
.regceb(regceb),
// 1-bit input: Clock Enable for the last register stage on the output // data path.
.rsta(rsta),
// 1-bit input: Reset signal for the final port A output register stage. // Synchronously resets output port douta to the value specified by
// parameter READ_RESET_VALUE_A.
.rstb(rstb),
// 1-bit input: Reset signal for the final port B output register stage. // Synchronously resets output port doutb to the value specified by
// parameter READ_RESET_VALUE_B.
.sleep(sleep), .wea(wea),
// 1-bit input: sleep signal to enable the dynamic power saving feature.
// WRITE_DATA_WIDTH_A-bit input: Write enable vector for port A input // data port dina. 1 bit wide when word-wide writes are used. In
// byte-wide write configurations, each bit controls the writing one
// byte of dina to address addra. For example, to synchronously write
// only bits [15-8] of dina when WRITE_DATA_WIDTH_A is 32, wea would be // 4'b0010.
.web(web)
// WRITE_DATA_WIDTH_B-bit input: Write enable vector for port B input // data port dinb. 1 bit wide when word-wide writes are used. In
// byte-wide write configurations, each bit controls the writing one
// byte of dinb to address addrb. For example, to synchronously write
// only bits [15-8] of dinb when WRITE_DATA_WIDTH_B is 32, web would be // 4'b0010.
);
// End of xpm_memory_tdpram_inst instantiation
For More Information � See the 7 Series Programmable Devices User Guides. � See the 7 Series FPGAs Memory Resources User Guide (UG473).
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 186
Chapter 3
Unimacros
About Unimacros This section describes the unimacros that can be used with 7 series FPGAs and Zynq�-7000 SoC devices devices. The unimacros are organized alphabetically. The following information is provided for each unimacro, where applicable: � Name and description � Schematic symbol � Logic table (if any) � Introduction � Port descriptions � Design Entry Method � Available attributes � Example instantiation templates � Links to additional information
Instantiation Templates Instantiation templates for Unimacros are also available in Vivado, as well as in a downloadable ZIP file. Because PDF includes headers and footers if you copy text that spans pages, you should copy templates from Vivado or the downloaded ZIP file whenever possible. Instantiation templates can be found on the Web in the Instantiation Templates for 7 Series Devices file.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 187
Chapter 3: Unimacros
List of UniMacros
Design Element BRAM_SDP_MACRO BRAM_SINGLE_MACRO BRAM_TDP_MACRO ADDMACC_MACRO ADDSUB_MACRO COUNTER_LOAD_MACRO COUNTER_TC_MACRO EQ_COMPARE_MACRO MACC_MACRO MULT_MACRO FIFO_DUALCLOCK_MACRO FIFO_SYNC_MACRO
Description Macro: Simple Dual Port RAM Macro: Single Port RAM Macro: True Dual Port RAM Macro: Adder/Multiplier/Accumulator Macro: Adder/Subtractor Macro: Loadable Counter Macro: Counter with Terminal Count Macro: Equality Comparator Macro: Multiplier/Accumulator Macro: Multiplier Macro: Dual Clock First-In, First-Out (FIFO) RAM Buffer Macro: Synchronous First-In, First-Out (FIFO) RAM Buffer
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 188
Chapter 3: Unimacros
BRAM_SDP_MACRO
Macro: Simple Dual Port RAM
BRAM_SDP_MACRO
DI(WRITE_WIDTH-1:0) WRADDR(8:0) WE(f(WRITE_WIDTH):0)
DO(READ_WIDTH-1:0) WREN RST
WRCLK RDADDR(8:0) RDEN REGCE
RDCLK Simple Dual Port RAM
X10923
Introduction
7 series FPGA devices contain several block RAM memories that can be configured as generalpurpose 36Kb or 18Kb RAM/ROM memories. These block RAM memories offer fast and flexible storage of large amounts of on-chip data. Both read and write operations are fully synchronous to the supplied clock(s) of the component. However, READ and WRITE ports can operate fully independently and asynchronously to each other, accessing the same memory array. Byte-enable write operations are possible, and an optional output register can be used to reduce the clock-toout times of the RAM.
Note: This element must be configured so that read and write ports have the same width.
Port Descriptions
Port DO
DI
Direction Output
Input
Width
Function
See
Data output bus addressed by RDADDR.
Configurati
on Table
See
Data input bus addressed by WRADDR.
Configurati
on Table
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 189
Chapter 3: Unimacros
Port WRADDR, RDADDR
WE
WREN, RDEN RST REGCE WRCLK, RDCLK
Direction Input
Input
Input Input Input Input
Width
Function
See
Write/Read address input buses.
Configurati
on Table
See
Byte-Wide Write enable.
Configurati
on Table
1
Write/Read enable
1
Input reset.
1
Output register clock enable input (valid only when
DO_REG=1).
1
Write/Read clock input.
Port Configuration
This unimacro is a parameterizable version of the primitive, and can be instantiated only. Use this table to correctly configure the unimacro to meet design needs.
DATA_WIDTH
BRAM_SIZE
ADDR
WE
72 - 37
36Kb
9
8
36 - 19
36Kb
10
4
18Kb
9
18 - 10
36Kb
11
2
18Kb
10
9 - 5
36Kb
12
1
18Kb
11
4 - 3
36Kb
13
1
18Kb
12
2
36Kb
14
1
18Kb
13
1
36Kb
15
1
18Kb
14
Design Entry Method
This unimacro is a parameterizable version of the primitive, and can be instantiated only. Consult the Port Configuration section to correctly configure this element to meet your design needs.
Instantiation Inference IP Catalog Macro support
Yes No No Recommended
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 190
Chapter 3: Unimacros
Available Attributes
Attribute BRAM_SIZE
Type STRING
DEVICE DO_REG
STRING INTEGER
INIT
READ_WIDTH, WRITE_WIDTH
HEX INTEGER
INIT_FILE
STRING
SIM_COLLISION_CHEC STRING K
Allowed Values "36Kb", "18Kb"
Default "18Kb"
"7SERIES" 0, 1
"7SERIES" 0
Any 72-Bit Value 1-72
All zeros 36
String representing NONE file name and location.
"ALL", "WARNING_ONLY", "GENERATE_X_ONLY ","NONE"
"ALL"
Description
Configures RAM as "36Kb" or "18Kb" memory.
Target hardware architecture.
A value of 1 enables to the output registers to the RAM enabling quicker clock-to-out from the RAM at the expense of an added clock cycle of read latency. A value of 0 allows a read in one clock cycle but will have slower clock to out timing.
Specifies the initial value on the output after configuration.
Specifies the size of the DI and DO buses. The following combinations are allowed:
� READ_WIDTH = WRITE_WIDTH
� If asymmetric, READ_WIDTH and
WRITE_WIDTH must be in the ratio of 2, or must be values allowed by the unisim (1, 2, 4, 8, 9, 16, 18, 32, 36, 64, 72)
Name of the file containing initial values.
Allows modification of the simulation behavior if a memory collision occurs. The output is affected as follows:
� "ALL" - Warning produced and
affected outputs/memory location go unknown (X).
� "WARNING_ONLY" - Warning
produced and affected outputs/ memory retain last value.
� "GENERATE_X_ONLY" - No
warning. However, affected outputs/memory go unknown (X).
� "NONE" - No warning and
affected outputs/memory retain last value.
Note: Setting this to a value other than "ALL" can allow problems in the design go unnoticed during simulation. Care should be taken when changing the value of this attribute. Please see the Synthesis and Simulation Design Guide for more information.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 191
Chapter 3: Unimacros
Attribute SRVAL
Type HEX
Allowed Values Any 72-Bit Value
Default All zeroes
INIT_00 to INIT_7F
HEX
INITP_00 to INITP_0F HEX
Any 256-Bit Value All zeroes Any 256-Bit Value All zeroes
Description
Specifies the output value of on the DO port upon the assertion of the synchronous reset (RST) signal.
Specifies the initial contents of the 16Kb or 32Kb data memory array.
Specifies the initial contents of the 2Kb or 4Kb parity data memory array.
VHDL Instantiation Template Unless they already exist, copy the following four statements and paste them before the entity declaration.
Library UNISIM; use UNISIM.vcomponents.all; library UNIMACRO; use unimacro.Vcomponents.all;
-- BRAM_SDP_MACRO: Simple Dual Port RAM
--
7 Series
-- Xilinx HDL Language Template, version 2019.1
-- Note - This Unimacro model assumes the port directions to be "downto".
--
Simulation of this model with "to" in the port directions could lead to erroneous results.
-----------------------------------------------------------------------
-- READ_WIDTH | BRAM_SIZE | READ Depth | RDADDR Width |
--
-- WRITE_WIDTH |
| WRITE Depth | WRADDR Width | WE Width --
-- ============|===========|=============|==============|============--
-- 37-72 | "36Kb" |
512 |
9-bit | 8-bit --
-- 19-36 | "36Kb" |
1024 | 10-bit | 4-bit --
-- 19-36 | "18Kb" |
512 |
9-bit | 4-bit --
-- 10-18 | "36Kb" |
2048 | 11-bit | 2-bit --
-- 10-18 | "18Kb" |
1024 | 10-bit | 2-bit --
--
5-9
| "36Kb" |
4096 | 12-bit | 1-bit --
--
5-9
| "18Kb" |
2048 | 11-bit | 1-bit --
--
3-4
| "36Kb" |
8192 | 13-bit | 1-bit --
--
3-4
| "18Kb" |
4096 | 12-bit | 1-bit --
--
2
| "36Kb" | 16384 | 14-bit | 1-bit --
--
2
| "18Kb" |
8192 | 13-bit | 1-bit --
--
1
| "36Kb" | 32768 | 15-bit | 1-bit --
--
1
| "18Kb" | 16384 | 14-bit | 1-bit --
-----------------------------------------------------------------------
BRAM_SDP_MACRO_inst : BRAM_SDP_MACRO
generic map (
BRAM_SIZE => "18Kb", -- Target BRAM, "18Kb" or "36Kb"
DEVICE => "7SERIES", -- Target device: "VIRTEX5", "VIRTEX6", "7SERIES", "SPARTAN6"
WRITE_WIDTH => 0, -- Valid values are 1-72 (37-72 only valid when BRAM_SIZE="36Kb")
READ_WIDTH => 0,
-- Valid values are 1-72 (37-72 only valid when BRAM_SIZE="36Kb")
DO_REG => 0, -- Optional output register (0 or 1)
INIT_FILE => "NONE",
SIM_COLLISION_CHECK => "ALL", -- Collision check enable "ALL", "WARNING_ONLY",
-- "GENERATE_X_ONLY" or "NONE"
SRVAL => X"000000000000000000", -- Set/Reset value for port output
WRITE_MODE => "WRITE_FIRST", -- Specify "READ_FIRST" for same clock or synchronous clocks
-- Specify "WRITE_FIRST for asynchrononous clocks on ports
INIT => X"000000000000000000", -- Initial values on output port
-- The following INIT_xx declarations specify the initial contents of the RAM
INIT_00 => X"0000000000000000000000000000000000000000000000000000000000000000",
INIT_01 => X"0000000000000000000000000000000000000000000000000000000000000000",
INIT_02 => X"0000000000000000000000000000000000000000000000000000000000000000",
INIT_03 => X"0000000000000000000000000000000000000000000000000000000000000000",
INIT_04 => X"0000000000000000000000000000000000000000000000000000000000000000",
INIT_05 => X"0000000000000000000000000000000000000000000000000000000000000000",
INIT_06 => X"0000000000000000000000000000000000000000000000000000000000000000",
INIT_07 => X"0000000000000000000000000000000000000000000000000000000000000000",
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 192
Chapter 3: Unimacros
INIT_08 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_09 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_0A => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_0B => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_0C => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_0D => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_0E => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_0F => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_10 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_11 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_12 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_13 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_14 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_15 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_16 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_17 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_18 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_19 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_1A => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_1B => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_1C => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_1D => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_1E => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_1F => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_20 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_21 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_22 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_23 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_24 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_25 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_26 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_27 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_28 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_29 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_2A => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_2B => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_2C => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_2D => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_2E => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_2F => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_30 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_31 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_32 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_33 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_34 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_35 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_36 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_37 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_38 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_39 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_3A => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_3B => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_3C => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_3D => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_3E => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_3F => X"0000000000000000000000000000000000000000000000000000000000000000", -- The next set of INIT_xx are valid when configured as 36Kb INIT_40 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_41 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_42 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_43 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_44 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_45 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_46 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_47 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_48 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_49 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_4A => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_4B => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_4C => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_4D => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_4E => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_4F => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_50 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_51 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_52 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_53 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_54 => X"0000000000000000000000000000000000000000000000000000000000000000",
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 193
Chapter 3: Unimacros
INIT_55 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_56 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_57 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_58 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_59 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_5A => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_5B => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_5C => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_5D => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_5E => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_5F => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_60 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_61 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_62 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_63 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_64 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_65 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_66 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_67 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_68 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_69 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_6A => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_6B => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_6C => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_6D => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_6E => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_6F => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_70 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_71 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_72 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_73 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_74 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_75 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_76 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_77 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_78 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_79 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_7A => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_7B => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_7C => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_7D => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_7E => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_7F => X"0000000000000000000000000000000000000000000000000000000000000000",
-- The next set of INITP_xx are for the parity bits INITP_00 => X"0000000000000000000000000000000000000000000000000000000000000000", INITP_01 => X"0000000000000000000000000000000000000000000000000000000000000000", INITP_02 => X"0000000000000000000000000000000000000000000000000000000000000000", INITP_03 => X"0000000000000000000000000000000000000000000000000000000000000000", INITP_04 => X"0000000000000000000000000000000000000000000000000000000000000000", INITP_05 => X"0000000000000000000000000000000000000000000000000000000000000000", INITP_06 => X"0000000000000000000000000000000000000000000000000000000000000000", INITP_07 => X"0000000000000000000000000000000000000000000000000000000000000000",
-- The next set of INIT_xx are valid when configured as 36Kb
INITP_08 => X"0000000000000000000000000000000000000000000000000000000000000000",
INITP_09 => X"0000000000000000000000000000000000000000000000000000000000000000",
INITP_0A => X"0000000000000000000000000000000000000000000000000000000000000000",
INITP_0B => X"0000000000000000000000000000000000000000000000000000000000000000",
INITP_0C => X"0000000000000000000000000000000000000000000000000000000000000000",
INITP_0D => X"0000000000000000000000000000000000000000000000000000000000000000",
INITP_0E => X"0000000000000000000000000000000000000000000000000000000000000000",
port map (
DO => DO,
-- Output read data port, width defined by READ_WIDTH parameter
DI => DI,
-- Input write data port, width defined by WRITE_WIDTH parameter
RDADDR => RDADDR, -- Input read address, width defined by read port depth
RDCLK => RDCLK, -- 1-bit input read clock
RDEN => RDEN,
-- 1-bit input read port enable
REGCE => REGCE, -- 1-bit input read output register enable
RST => RST,
-- 1-bit input reset
WE => WE,
-- Input write enable, width defined by write port depth
WRADDR => WRADDR, -- Input write address, width defined by write port depth
WRCLK => WRCLK, -- 1-bit input write clock
WREN => WREN
-- 1-bit input write port enable
);
-- End of BRAM_SDP_MACRO_inst instantiation
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 194
Chapter 3: Unimacros
Verilog Instantiation Template
// BRAM_SDP_MACRO: Simple Dual Port RAM
//
7 Series
// Xilinx HDL Language Template, version 2019.1
///////////////////////////////////////////////////////////////////////
// READ_WIDTH | BRAM_SIZE | READ Depth | RDADDR Width |
//
// WRITE_WIDTH |
| WRITE Depth | WRADDR Width | WE Width //
// ============|===========|=============|==============|============//
// 37-72 | "36Kb" |
512 |
9-bit | 8-bit //
// 19-36 | "36Kb" |
1024 | 10-bit | 4-bit //
// 19-36 | "18Kb" |
512 |
9-bit | 4-bit //
// 10-18 | "36Kb" |
2048 | 11-bit | 2-bit //
// 10-18 | "18Kb" |
1024 | 10-bit | 2-bit //
//
5-9
| "36Kb" |
4096 | 12-bit | 1-bit //
//
5-9
| "18Kb" |
2048 | 11-bit | 1-bit //
//
3-4
| "36Kb" |
8192 | 13-bit | 1-bit //
//
3-4
| "18Kb" |
4096 | 12-bit | 1-bit //
//
2
| "36Kb" | 16384 | 14-bit | 1-bit //
//
2
| "18Kb" |
8192 | 13-bit | 1-bit //
//
1
| "36Kb" | 32768 | 15-bit | 1-bit //
//
1
| "18Kb" | 16384 | 14-bit | 1-bit //
///////////////////////////////////////////////////////////////////////
BRAM_SDP_MACRO #(
.BRAM_SIZE("18Kb"), // Target BRAM, "18Kb" or "36Kb"
.DEVICE("7SERIES"), // Target device: "7SERIES"
.WRITE_WIDTH(0), // Valid values are 1-72 (37-72 only valid when BRAM_SIZE="36Kb")
.READ_WIDTH(0),
// Valid values are 1-72 (37-72 only valid when BRAM_SIZE="36Kb")
.DO_REG(0),
// Optional output register (0 or 1)
.INIT_FILE ("NONE"),
.SIM_COLLISION_CHECK ("ALL"), // Collision check enable "ALL", "WARNING_ONLY",
// "GENERATE_X_ONLY" or "NONE"
.SRVAL(72'h000000000000000000), // Set/Reset value for port output
.INIT(72'h000000000000000000), // Initial values on output port
.WRITE_MODE("WRITE_FIRST"), // Specify "READ_FIRST" for same clock or synchronous clocks
// Specify "WRITE_FIRST for asynchronous clocks on ports
.INIT_00(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_01(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_02(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_03(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_04(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_05(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_06(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_07(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_08(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_09(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_0A(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_0B(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_0C(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_0D(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_0E(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_0F(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_10(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_11(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_12(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_13(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_14(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_15(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_16(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_17(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_18(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_19(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_1A(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_1B(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_1C(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_1D(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_1E(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_1F(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_20(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_21(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_22(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_23(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_24(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_25(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_26(256'h0000000000000000000000000000000000000000000000000000000000000000),
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 195
Chapter 3: Unimacros
.INIT_27(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_28(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_29(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_2A(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_2B(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_2C(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_2D(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_2E(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_2F(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_30(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_31(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_32(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_33(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_34(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_35(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_36(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_37(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_38(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_39(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_3A(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_3B(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_3C(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_3D(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_3E(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_3F(256'h0000000000000000000000000000000000000000000000000000000000000000), // The next set of INIT_xx are valid when configured as 36Kb .INIT_40(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_41(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_42(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_43(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_44(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_45(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_46(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_47(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_48(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_49(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_4A(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_4B(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_4C(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_4D(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_4E(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_4F(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_50(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_51(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_52(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_53(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_54(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_55(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_56(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_57(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_58(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_59(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_5A(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_5B(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_5C(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_5D(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_5E(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_5F(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_60(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_61(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_62(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_63(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_64(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_65(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_66(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_67(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_68(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_69(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_6A(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_6B(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_6C(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_6D(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_6E(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_6F(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_70(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_71(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_72(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_73(256'h0000000000000000000000000000000000000000000000000000000000000000),
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 196
Chapter 3: Unimacros
.INIT_74(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_75(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_76(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_77(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_78(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_79(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_7A(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_7B(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_7C(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_7D(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_7E(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_7F(256'h0000000000000000000000000000000000000000000000000000000000000000),
// The next set of INITP_xx are for the parity bits .INITP_00(256'h0000000000000000000000000000000000000000000000000000000000000000), .INITP_01(256'h0000000000000000000000000000000000000000000000000000000000000000), .INITP_02(256'h0000000000000000000000000000000000000000000000000000000000000000), .INITP_03(256'h0000000000000000000000000000000000000000000000000000000000000000), .INITP_04(256'h0000000000000000000000000000000000000000000000000000000000000000), .INITP_05(256'h0000000000000000000000000000000000000000000000000000000000000000), .INITP_06(256'h0000000000000000000000000000000000000000000000000000000000000000), .INITP_07(256'h0000000000000000000000000000000000000000000000000000000000000000),
// The next set of INITP_xx are valid when configured as 36Kb
.INITP_08(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INITP_09(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INITP_0A(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INITP_0B(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INITP_0C(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INITP_0D(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INITP_0E(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INITP_0F(256'h0000000000000000000000000000000000000000000000000000000000000000)
) BRAM_SDP_MACRO_inst (
.DO(DO),
// Output read data port, width defined by READ_WIDTH parameter
.DI(DI),
// Input write data port, width defined by WRITE_WIDTH parameter
.RDADDR(RDADDR), // Input read address, width defined by read port depth
.RDCLK(RDCLK), // 1-bit input read clock
.RDEN(RDEN),
// 1-bit input read port enable
.REGCE(REGCE), // 1-bit input read output register enable
.RST(RST),
// 1-bit input reset
.WE(WE),
// Input write enable, width defined by write port depth
.WRADDR(WRADDR), // Input write address, width defined by write port depth
.WRCLK(WRCLK), // 1-bit input write clock
.WREN(WREN)
// 1-bit input write port enable
);
// End of BRAM_SDP_MACRO_inst instantiation
For More Information � See the 7 Series Programmable Devices User Guides.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 197
Chapter 3: Unimacros
BRAM_SINGLE_MACRO
Macro: Single Port RAM
BRAM_SINGLE_MACRO
DI(WRITE_WIDTH-1:0) ADDR(f(BRAM_SIZE):0)
WE(f(WRITE_WIDTH):0) EN REGCE RST DO(WRITE_WIDTH-1:0)
CLK Single Port RAM
X10922
Introduction
7 series FPGA devices contain several block RAM memories that can be configured as generalpurpose 36Kb or 18Kb RAM/ROM memories. These single-port, block RAM memories offer fast and flexible storage of large amounts of on-chip data. Byte-enable write operations are possible, and an optional output register can be used to reduce the clock-to-out times of the RAM.
Port Descriptions
Port DO
DI
ADDR
WE
EN RST
Direction Output
Input
Input
Input
Input Input
Width
Function
See Configurati on Table below.
Data output bus addressed by ADDR.
See Configurati on Table below.
Data input bus addressed by ADDR.
See Configurati on Table below.
Address input bus.
See Configurati on Table below.
Byte-Wide Write enable.
1
Write/Read enables.
1
Output registers synchronous reset.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 198
Chapter 3: Unimacros
REGCE CLK
Port
Direction Input
Input
Width 1
1
Function
Output register clock enable input (valid only when DO_REG=1).
Clock input.
Port Configuration
This unimacro is a parameterizable version of the primitive, and can be instantiated only. Use this table to correctly configure the unimacro to meet design needs.
WRITE_WIDTH
READ_WIDTH
BRAM_SIZE
ADDR
WE
72 - 37
72 - 37
36Kb
9
8
36 - 19
10
18 - 10
11
9 - 5
12
4 - 3
13
2
14
1
15
36 - 19
36 - 19
36Kb
10
4
18-10
11
9 - 5
12
4 - 3
13
2
14
1
15
18 - 10
36 - 19
36Kb
11
2
18-10
11
9 - 5
12
4 - 3
13
2
14
1
15
9 - 5
36-19
36Kb
12
1
18-10
12
9 - 5
12
4 - 3
13
2
14
1
15
4 - 3
36-19
36Kb
13
1
18-10
13
9 - 5
13
4 - 3
13
2
14
1
15
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 199
Chapter 3: Unimacros
WRITE_WIDTH
READ_WIDTH
BRAM_SIZE
ADDR
WE
2
36-19
36Kb
14
1
18-10
14
9 - 5
14
4 - 3
14
2
14
1
15
1
36 - 19
36Kb
15
1
18 - 10
15
9 - 5
15
3 - 4
15
2
15
1
15
18-10
18-10
18Kb
10
2
9 - 5
11
4 - 3
12
2
13
1
14
9 - 5
18-10
18Kb
11
1
9 - 5
11
4 - 3
12
2
13
1
14
4 - 3
18-10
18Kb
12
1
9 - 5
12
4 - 3
12
2
13
1
14
2
18-10
18Kb
13
1
9 - 5
13
4 - 3
13
2
13
1
14
1
18-10
18Kb
14
1
9 - 5
14
4 - 3
14
2
14
1
14
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 200
Chapter 3: Unimacros
Design Entry Method
This unimacro is a parameterizable version of the primitive, and can be instantiated only. Consult the Port Configuration section to correctly configure this element to meet your design needs.
Instantiation Inference IP Catalog Macro support
Yes No No Recommended
Available Attributes
Attribute BRAM_SIZE
Type STRING
DEVICE DO_REG
STRING INTEGER
READ_WIDTH, WRITE_WIDTH
INTEGER
INIT_FILE
STRING
WRITE_MODE
STRING
INIT
HEX
SRVAL
HEX
INIT_00 to INIT_FF HEX
INITP_00 to
HEX
INITP_0F
Allowed Values "36Kb", "18Kb"
Default "18Kb"
"7SERIES" 0, 1
"7SERIES" 0
1 - 36
1
String representing file name and location.
"READ_FIRST", "WRITE_FIRST", "NO_CHANGE"
Any 72-Bit Value
None "WRITE_FIRST" All zeros
Any 72-Bit Value All zeroes
Any 256-Bit Value All zeroes Any 256-Bit Value All zeroes
Description
Configures RAM as "36Kb" or "18Kb" memory. Target hardware architecture. A value of 1 enables to the output registers to the RAM enabling quicker clock-to-out from the RAM at the expense of an added clock cycle of read latency. A value of 0 allows a read in one clock cycle but will have slower clock to out timing. Specifies the size of the DI and DO buses. The following combinations are allowed:
� READ_WIDTH = WRITE_WIDTH � If asymmetric, READ_WIDTH and
WRITE_WIDTH must be in the ratio of 2, or must be values allowed by the unisim (1, 2, 4, 8, 9, 16, 18, 32, 36, 64, 72)
Name of the file containing initial values.
Specifies write mode to the memory.
Specifies the initial value on the output after configuration. Specifies the output value of on the DO port upon the assertion of the synchronous reset (RST) signal. Specifies the initial contents of the 16Kb or 32Kb data memory array. Specifies the initial contents of the 2Kb or 4Kb parity data memory array.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 201
Chapter 3: Unimacros
VHDL Instantiation Template Unless they already exist, copy the following four statements and paste them before the entity declaration.
Library UNISIM; use UNISIM.vcomponents.all; library UNIMACRO; use unimacro.Vcomponents.all;
-- BRAM_SINGLE_MACRO: Single Port RAM
--
7 Series
-- Xilinx HDL Language Template, version 2019.1
-- Note - This Unimacro model assumes the port directions to be "downto".
--
Simulation of this model with "to" in the port directions could lead to erroneous results.
---------------------------------------------------------------------
-- READ_WIDTH | BRAM_SIZE | READ Depth | ADDR Width |
--
-- WRITE_WIDTH |
| WRITE Depth |
| WE Width --
-- ============|===========|=============|============|============--
-- 37-72 | "36Kb" |
512 | 9-bit | 8-bit --
-- 19-36 | "36Kb" |
1024 | 10-bit | 4-bit --
-- 19-36 | "18Kb" |
512 | 9-bit | 4-bit --
-- 10-18 | "36Kb" |
2048 | 11-bit | 2-bit --
-- 10-18 | "18Kb" |
1024 | 10-bit | 2-bit --
--
5-9
| "36Kb" |
4096 | 12-bit | 1-bit --
--
5-9
| "18Kb" |
2048 | 11-bit | 1-bit --
--
3-4
| "36Kb" |
8192 | 13-bit | 1-bit --
--
3-4
| "18Kb" |
4096 | 12-bit | 1-bit --
--
2
| "36Kb" | 16384 | 14-bit | 1-bit --
--
2
| "18Kb" |
8192 | 13-bit | 1-bit --
--
1
| "36Kb" | 32768 | 15-bit | 1-bit --
--
1
| "18Kb" | 16384 | 14-bit | 1-bit --
---------------------------------------------------------------------
BRAM_SINGLE_MACRO_inst : BRAM_SINGLE_MACRO generic map (
BRAM_SIZE => "18Kb", -- Target BRAM, "18Kb" or "36Kb" DEVICE => "7SERIES", -- Target Device: "VIRTEX5", "7SERIES", "VIRTEX6, "SPARTAN6" DO_REG => 0, -- Optional output register (0 or 1) INIT => X"000000000000000000", -- Initial values on output port INIT_FILE => "NONE", WRITE_WIDTH => 0, -- Valid values are 1-72 (37-72 only valid when BRAM_SIZE="36Kb") READ_WIDTH => 0, -- Valid values are 1-72 (37-72 only valid when BRAM_SIZE="36Kb") SRVAL => X"000000000000000000", -- Set/Reset value for port output WRITE_MODE => "WRITE_FIRST", -- "WRITE_FIRST", "READ_FIRST" or "NO_CHANGE" -- The following INIT_xx declarations specify the initial contents of the RAM INIT_00 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_01 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_02 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_03 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_04 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_05 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_06 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_07 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_08 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_09 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_0A => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_0B => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_0C => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_0D => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_0E => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_0F => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_10 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_11 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_12 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_13 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_14 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_15 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_16 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_17 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_18 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_19 => X"0000000000000000000000000000000000000000000000000000000000000000",
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 202
Chapter 3: Unimacros
INIT_1A => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_1B => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_1C => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_1D => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_1E => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_1F => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_20 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_21 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_22 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_23 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_24 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_25 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_26 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_27 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_28 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_29 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_2A => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_2B => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_2C => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_2D => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_2E => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_2F => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_30 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_31 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_32 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_33 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_34 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_35 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_36 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_37 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_38 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_39 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_3A => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_3B => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_3C => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_3D => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_3E => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_3F => X"0000000000000000000000000000000000000000000000000000000000000000", -- The next set of INIT_xx are valid when configured as 36Kb INIT_40 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_41 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_42 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_43 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_44 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_45 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_46 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_47 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_48 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_49 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_4A => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_4B => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_4C => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_4D => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_4E => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_4F => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_50 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_51 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_52 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_53 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_54 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_55 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_56 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_57 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_58 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_59 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_5A => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_5B => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_5C => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_5D => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_5E => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_5F => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_60 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_61 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_62 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_63 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_64 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_65 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_66 => X"0000000000000000000000000000000000000000000000000000000000000000",
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 203
Chapter 3: Unimacros
INIT_67 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_68 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_69 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_6A => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_6B => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_6C => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_6D => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_6E => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_6F => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_70 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_71 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_72 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_73 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_74 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_75 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_76 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_77 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_78 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_79 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_7A => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_7B => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_7C => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_7D => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_7E => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_7F => X"0000000000000000000000000000000000000000000000000000000000000000",
-- The next set of INITP_xx are for the parity bits INITP_00 => X"0000000000000000000000000000000000000000000000000000000000000000", INITP_01 => X"0000000000000000000000000000000000000000000000000000000000000000", INITP_02 => X"0000000000000000000000000000000000000000000000000000000000000000", INITP_03 => X"0000000000000000000000000000000000000000000000000000000000000000", INITP_04 => X"0000000000000000000000000000000000000000000000000000000000000000", INITP_05 => X"0000000000000000000000000000000000000000000000000000000000000000", INITP_06 => X"0000000000000000000000000000000000000000000000000000000000000000", INITP_07 => X"0000000000000000000000000000000000000000000000000000000000000000",
-- The next set of INIT_xx are valid when configured as 36Kb
INITP_08 => X"0000000000000000000000000000000000000000000000000000000000000000",
INITP_09 => X"0000000000000000000000000000000000000000000000000000000000000000",
INITP_0A => X"0000000000000000000000000000000000000000000000000000000000000000",
INITP_0B => X"0000000000000000000000000000000000000000000000000000000000000000",
INITP_0C => X"0000000000000000000000000000000000000000000000000000000000000000",
INITP_0D => X"0000000000000000000000000000000000000000000000000000000000000000",
INITP_0E => X"0000000000000000000000000000000000000000000000000000000000000000",
INITP_0F => X"0000000000000000000000000000000000000000000000000000000000000000")
port map (
DO => DO,
-- Output data, width defined by READ_WIDTH parameter
ADDR => ADDR, -- Input address, width defined by read/write port depth
CLK => CLK, -- 1-bit input clock
DI => DI,
-- Input data port, width defined by WRITE_WIDTH parameter
EN => EN,
-- 1-bit input RAM enable
REGCE => REGCE, -- 1-bit input output register enable
RST => RST, -- 1-bit input reset
WE => WE
-- Input write enable, width defined by write port depth
);
-- End of BRAM_SINGLE_MACRO_inst instantiation
Verilog Instantiation Template
// BRAM_SINGLE_MACRO: Single Port RAM
//
7 Series
// Xilinx HDL Language Template, version 2019.1
/////////////////////////////////////////////////////////////////////
// READ_WIDTH | BRAM_SIZE | READ Depth | ADDR Width |
//
// WRITE_WIDTH |
| WRITE Depth |
| WE Width //
// ============|===========|=============|============|============//
// 37-72 | "36Kb" |
512 | 9-bit | 8-bit //
// 19-36 | "36Kb" |
1024 | 10-bit | 4-bit //
// 19-36 | "18Kb" |
512 | 9-bit | 4-bit //
// 10-18 | "36Kb" |
2048 | 11-bit | 2-bit //
// 10-18 | "18Kb" |
1024 | 10-bit | 2-bit //
//
5-9
| "36Kb" |
4096 | 12-bit | 1-bit //
//
5-9
| "18Kb" |
2048 | 11-bit | 1-bit //
//
3-4
| "36Kb" |
8192 | 13-bit | 1-bit //
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 204
Chapter 3: Unimacros
//
3-4
| "18Kb" |
4096 | 12-bit | 1-bit //
//
2
| "36Kb" | 16384 | 14-bit | 1-bit //
//
2
| "18Kb" |
8192 | 13-bit | 1-bit //
//
1
| "36Kb" | 32768 | 15-bit | 1-bit //
//
1
| "18Kb" | 16384 | 14-bit | 1-bit //
/////////////////////////////////////////////////////////////////////
BRAM_SINGLE_MACRO #( .BRAM_SIZE("18Kb"), // Target BRAM, "18Kb" or "36Kb" .DEVICE("7SERIES"), // Target Device: "7SERIES" .DO_REG(0), // Optional output register (0 or 1) .INIT(36'h000000000), // Initial values on output port .INIT_FILE ("NONE"), .WRITE_WIDTH(0), // Valid values are 1-72 (37-72 only valid when BRAM_SIZE="36Kb") .READ_WIDTH(0), // Valid values are 1-72 (37-72 only valid when BRAM_SIZE="36Kb") .SRVAL(36'h000000000), // Set/Reset value for port output .WRITE_MODE("WRITE_FIRST"), // "WRITE_FIRST", "READ_FIRST", or "NO_CHANGE" .INIT_00(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_01(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_02(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_03(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_04(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_05(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_06(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_07(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_08(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_09(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_0A(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_0B(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_0C(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_0D(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_0E(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_0F(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_10(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_11(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_12(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_13(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_14(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_15(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_16(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_17(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_18(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_19(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_1A(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_1B(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_1C(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_1D(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_1E(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_1F(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_20(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_21(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_22(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_23(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_24(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_25(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_26(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_27(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_28(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_29(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_2A(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_2B(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_2C(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_2D(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_2E(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_2F(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_30(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_31(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_32(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_33(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_34(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_35(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_36(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_37(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_38(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_39(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_3A(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_3B(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_3C(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_3D(256'h0000000000000000000000000000000000000000000000000000000000000000),
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 205
Chapter 3: Unimacros
.INIT_3E(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_3F(256'h0000000000000000000000000000000000000000000000000000000000000000), // The next set of INIT_xx are valid when configured as 36Kb .INIT_40(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_41(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_42(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_43(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_44(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_45(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_46(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_47(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_48(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_49(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_4A(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_4B(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_4C(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_4D(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_4E(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_4F(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_50(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_51(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_52(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_53(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_54(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_55(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_56(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_57(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_58(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_59(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_5A(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_5B(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_5C(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_5D(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_5E(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_5F(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_60(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_61(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_62(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_63(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_64(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_65(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_66(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_67(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_68(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_69(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_6A(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_6B(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_6C(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_6D(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_6E(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_6F(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_70(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_71(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_72(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_73(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_74(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_75(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_76(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_77(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_78(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_79(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_7A(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_7B(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_7C(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_7D(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_7E(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_7F(256'h0000000000000000000000000000000000000000000000000000000000000000), // The next set of INITP_xx are for the parity bits .INITP_00(256'h0000000000000000000000000000000000000000000000000000000000000000), .INITP_01(256'h0000000000000000000000000000000000000000000000000000000000000000), .INITP_02(256'h0000000000000000000000000000000000000000000000000000000000000000), .INITP_03(256'h0000000000000000000000000000000000000000000000000000000000000000), .INITP_04(256'h0000000000000000000000000000000000000000000000000000000000000000), .INITP_05(256'h0000000000000000000000000000000000000000000000000000000000000000), .INITP_06(256'h0000000000000000000000000000000000000000000000000000000000000000), .INITP_07(256'h0000000000000000000000000000000000000000000000000000000000000000),
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 206
Chapter 3: Unimacros
// The next set of INIT_xx are valid when configured as 36Kb
.INITP_08(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INITP_09(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INITP_0A(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INITP_0B(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INITP_0C(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INITP_0D(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INITP_0E(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INITP_0F(256'h0000000000000000000000000000000000000000000000000000000000000000)
) BRAM_SINGLE_MACRO_inst (
.DO(DO),
// Output data, width defined by READ_WIDTH parameter
.ADDR(ADDR), // Input address, width defined by read/write port depth
.CLK(CLK),
// 1-bit input clock
.DI(DI),
// Input data port, width defined by WRITE_WIDTH parameter
.EN(EN),
// 1-bit input RAM enable
.REGCE(REGCE), // 1-bit input output register enable
.RST(RST),
// 1-bit input reset
.WE(WE)
// Input write enable, width defined by write port depth
);
// End of BRAM_SINGLE_MACRO_inst instantiation
For More Information � See the 7 Series Programmable Devices User Guides.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 207
BRAM_TDP_MACRO
Macro: True Dual Port RAM BRAM_TDP_MACRO
DIA(WRITE_WIDTH_A-1:0) ADDRA(WRITE_WIDTH_A-1:0) WEA(WRITE_WIDTH_A-1:0)
DOA(READ_WIDTH_A-1:0) ENA RS TA REGCEA
CLKA
DIB(WRITE_WIDTH_B-1:0) ADDRB(ADDRB_WIDTH-1:0) WEB(WRITE_WIDTH_B-1:0)
DOB(READ_WIDTH_B-1:0) ENB RSTB REGCEB
CLKB True Dual Port RAM
X10921
Chapter 3: Unimacros
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 208
Chapter 3: Unimacros
Introduction
7 series FPGA devices contain several block RAM memories that can be configured as generalpurpose 36kb or 18kb RAM/ROM memories. These block RAM memories offer fast and flexible storage of large amounts of on-chip data. Both read and write operations are fully synchronous to the supplied clock(s) of the component. However, READ and WRITE ports can operate fully independently and asynchronous to each other, accessing the same memory array. Byte-enable write operations are possible, and an optional output register can be used to reduce the clock-toout times of the RAM.
Port Descriptions
DOA
Port
DOB
DIA
DIB
ADDRA, ADDRB
WEA, WEB
ENA, ENB RSTA, RSTB REGCEA, REGCEB
CLKA, CLKB
Direction Output
Output
Input
Input
Input
Input
Input Input Input Input
Width
Function
See Configurati on Table below.
Data output bus addressed by ADDRA.
See Configurati on Table below.
Data output bus addressed by ADDRB.
See Configurati on Table below.
Data input bus addressed by ADDRA.
See Configurati on Table below.
Data input bus addressed by ADDRB.
See Configurati on Table below.
Address input buses for Port A, B.
See Configurati on Table below.
Write enable for Port A, B.
1
Write/Read enables for Port A, B.
1
Output registers synchronous reset for Port A, B.
1
Output register clock enable input for Port A, B (valid only
when DO_REG=1).
1
Write/Read clock input for Port A, B.
Port Configuration
This unimacro is a parameterizable version of the primitive, and can be instantiated only. Use this table to correctly configure the unimacro to meet design needs.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 209
Chapter 3: Unimacros
WRITE_WIDTH_A/BDIA/DIB
36 - 19
18 - 10
9 - 5
4 - 3
2
1
READ_WIDTH_A/BDOA/DOB
36 - 19 18-10 9 - 5 4 - 3 2 1 36 - 19 18-10 9 - 5 4 - 3 2 1 36-19 18-10 9 - 5 4 - 3 2 1 36-19 18-10 9 - 5 4 - 3 2 1 36-19 18-10 9 - 5 4 - 3 2 1 36-19 18-10 9 - 5 4 - 3 2 1
BRAM_SIZE 36Kb 36Kb 36Kb 36Kb 36Kb 36Kb
ADDRA/B 10 11 12 13 14 15 11 11 12 13 14 15 12 12 12 13 14 15 13 13 13 13 14 15 14 14 14 14 14 15 15 15 15 15 15 15
WEA/B 4 2 1 1 1 1
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 210
Chapter 3: Unimacros
WRITE_WIDTH_A/BDIA/DIB
18-10
9 - 5
4 - 3
2
1
READ_WIDTH_A/BDOA/DOB
18-10 9 - 5 4 - 3 2 1 18-10 9 - 5 4 - 3 2 1 18-10 9 - 5 4 - 3 2 1 18-10 9 - 5 4 - 3 2 1 18-10 9 - 5 4 - 3 2 1
BRAM_SIZE 18Kb 18Kb 18Kb 18Kb 18Kb
ADDRA/B 10 11 12 13 14 11 11 12 13 14 12 12 12 13 14 13 13 13 13 14 14 14 14 14 14
WEA/B 2 1 1 1 1
Design Entry Method
This unimacro is a parameterizable version of the primitive, and can be instantiated only. Consult the Port Configuration section to correctly configure this element to meet your design needs.
Instantiation Inference IP Catalog Macro support
Yes No No Recommended
Available Attributes
Attribute(s) BRAM_SIZE DEVICE
Type STRING STRING
Allowed Values "36Kb", "18Kb" "7SERIES"
Default "18Kb" "7SERIES"
Description Configures RAM as "36Kb" or "18Kb" memory. Target hardware architecture.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 211
Chapter 3: Unimacros
Attribute(s) DO_REG
Type INTEGER
INIT INIT_FILE
HEX STRING
READ_WIDTH, WRITE_WIDTH
INTEGER
SIM_COLLISION _CHECK
STRING
SRVAL A, SRVAL_B
HEX
INIT_00 to INIT_FF
HEX
INITP_00 to INITP_0F HEX
Allowed Values 0, 1
Default 0
Any 72-Bit Value All zeros
String representing file name and location.
1 - 72
NONE 36
Description
A value of 1 enables to the output registers to the RAM enabling quicker clock-to-out from the RAM at the expense of an added clock cycle of read latency. A value of 0 allows a read in one clock cycle but will have slower clock to out timing. Specifies the initial value on the output after configuration. Name of file containing initial values.
Specifies the size of the DI and DO buses. The following combinations are allowed:
� READ_WIDTH = WRITE_WIDTH � If asymmetric, READ_WIDTH and
WRITE_WIDTH must be in the ratio of 2, or must be values allowed by the unisim (1, 2, 4, 8, 9, 16, 18, 32, 36)
"ALL","WARNING_ "ALL" ONLY","GENERATE _X_ONLY","NONE"
Allows modification of the simulation behavior if a memory collision occurs. The output is affected as follows:
� "ALL" - Warning produced and affected
outputs/memory location go unknown (X).
� "WARNING_ONLY" - Warning produced and
affected outputs/memory retain last value.
� "GENERATE_X_ONLY" - No warning. However,
affected outputs/memory go unknown (X).
� "NONE" - No warning and affected outputs/
memory retain last value.
Note: Setting this to a value other than "ALL" can allow problems in the design go unnoticed during simulation. Care should be taken when changing the value of this attribute. Please see the Synthesis and Simulation Design Guide for more information.
Any 72-Bit Value All zeroes Any 256-Bit Value All zeroes Any 256-Bit Value All zeroes
Specifies the output value of on the DO port upon the assertion of the synchronous reset (RST) signal.
Specifies the initial contents of the 16Kb or 32Kb data memory array.
Specifies the initial contents of the 2Kb or 4Kb parity data memory array.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 212
Chapter 3: Unimacros
VHDL Instantiation Template Unless they already exist, copy the following four statements and paste them before the entity declaration.
Library UNISIM; use UNISIM.vcomponents.all; library UNIMACRO; use unimacro.Vcomponents.all;
-- BRAM_TDP_MACRO: True Dual Port RAM
--
7 Series
-- Xilinx HDL Language Template, version 2019.1
-- Note - This Unimacro model assumes the port directions to be "downto".
--
Simulation of this model with "to" in the port directions could lead to erroneous results.
--------------------------------------------------------------------------
-- DATA_WIDTH_A/B | BRAM_SIZE | RAM Depth | ADDRA/B Width | WEA/B Width --
-- ===============|===========|===========|===============|=============--
--
19-36
| "36Kb" | 1024 | 10-bit
| 4-bit --
--
10-18
| "36Kb" | 2048 | 11-bit
| 2-bit --
--
10-18
| "18Kb" | 1024 | 10-bit
| 2-bit --
--
5-9
| "36Kb" | 4096 | 12-bit
| 1-bit --
--
5-9
| "18Kb" | 2048 | 11-bit
| 1-bit --
--
3-4
| "36Kb" | 8192 | 13-bit
| 1-bit --
--
3-4
| "18Kb" | 4096 | 12-bit
| 1-bit --
--
2
| "36Kb" | 16384 | 14-bit
| 1-bit --
--
2
| "18Kb" | 8192 | 13-bit
| 1-bit --
--
1
| "36Kb" | 32768 | 15-bit
| 1-bit --
--
1
| "18Kb" | 16384 | 14-bit
| 1-bit --
--------------------------------------------------------------------------
BRAM_TDP_MACRO_inst : BRAM_TDP_MACRO generic map (
BRAM_SIZE => "18Kb", -- Target BRAM, "18Kb" or "36Kb" DEVICE => "7SERIES", -- Target Device: "VIRTEX5", "VIRTEX6", "7SERIES", "SPARTAN6" DOA_REG => 0, -- Optional port A output register (0 or 1) DOB_REG => 0, -- Optional port B output register (0 or 1) INIT_A => X"000000000", -- Initial values on A output port INIT_B => X"000000000", -- Initial values on B output port INIT_FILE => "NONE", READ_WIDTH_A => 0, -- Valid values are 1-36 (19-36 only valid when BRAM_SIZE="36Kb") READ_WIDTH_B => 0, -- Valid values are 1-36 (19-36 only valid when BRAM_SIZE="36Kb") SIM_COLLISION_CHECK => "ALL", -- Collision check enable "ALL", "WARNING_ONLY",
-- "GENERATE_X_ONLY" or "NONE" SRVAL_A => X"000000000", -- Set/Reset value for A port output SRVAL_B => X"000000000", -- Set/Reset value for B port output WRITE_MODE_A => "WRITE_FIRST", -- "WRITE_FIRST", "READ_FIRST" or "NO_CHANGE" WRITE_MODE_B => "WRITE_FIRST", -- "WRITE_FIRST", "READ_FIRST" or "NO_CHANGE" WRITE_WIDTH_A => 0, -- Valid values are 1-36 (19-36 only valid when BRAM_SIZE="36Kb") WRITE_WIDTH_B => 0, -- Valid values are 1-36 (19-36 only valid when BRAM_SIZE="36Kb") -- The following INIT_xx declarations specify the initial contents of the RAM INIT_00 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_01 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_02 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_03 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_04 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_05 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_06 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_07 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_08 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_09 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_0A => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_0B => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_0C => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_0D => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_0E => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_0F => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_10 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_11 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_12 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_13 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_14 => X"0000000000000000000000000000000000000000000000000000000000000000",
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 213
Chapter 3: Unimacros
INIT_15 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_16 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_17 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_18 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_19 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_1A => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_1B => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_1C => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_1D => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_1E => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_1F => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_20 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_21 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_22 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_23 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_24 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_25 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_26 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_27 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_28 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_29 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_2A => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_2B => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_2C => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_2D => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_2E => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_2F => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_30 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_31 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_32 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_33 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_34 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_35 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_36 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_37 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_38 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_39 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_3A => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_3B => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_3C => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_3D => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_3E => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_3F => X"0000000000000000000000000000000000000000000000000000000000000000", -- The next set of INIT_xx are valid when configured as 36Kb INIT_40 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_41 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_42 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_43 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_44 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_45 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_46 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_47 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_48 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_49 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_4A => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_4B => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_4C => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_4D => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_4E => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_4F => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_50 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_51 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_52 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_53 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_54 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_55 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_56 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_57 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_58 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_59 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_5A => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_5B => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_5C => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_5D => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_5E => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_5F => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_60 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_61 => X"0000000000000000000000000000000000000000000000000000000000000000",
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 214
Chapter 3: Unimacros
INIT_62 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_63 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_64 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_65 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_66 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_67 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_68 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_69 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_6A => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_6B => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_6C => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_6D => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_6E => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_6F => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_70 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_71 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_72 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_73 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_74 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_75 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_76 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_77 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_78 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_79 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_7A => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_7B => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_7C => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_7D => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_7E => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_7F => X"0000000000000000000000000000000000000000000000000000000000000000",
-- The next set of INITP_xx are for the parity bits INITP_00 => X"0000000000000000000000000000000000000000000000000000000000000000", INITP_01 => X"0000000000000000000000000000000000000000000000000000000000000000", INITP_02 => X"0000000000000000000000000000000000000000000000000000000000000000", INITP_03 => X"0000000000000000000000000000000000000000000000000000000000000000", INITP_04 => X"0000000000000000000000000000000000000000000000000000000000000000", INITP_05 => X"0000000000000000000000000000000000000000000000000000000000000000", INITP_06 => X"0000000000000000000000000000000000000000000000000000000000000000", INITP_07 => X"0000000000000000000000000000000000000000000000000000000000000000",
-- The next set of INIT_xx are valid when configured as 36Kb
INITP_08 => X"0000000000000000000000000000000000000000000000000000000000000000",
INITP_09 => X"0000000000000000000000000000000000000000000000000000000000000000",
INITP_0A => X"0000000000000000000000000000000000000000000000000000000000000000",
INITP_0B => X"0000000000000000000000000000000000000000000000000000000000000000",
INITP_0C => X"0000000000000000000000000000000000000000000000000000000000000000",
INITP_0D => X"0000000000000000000000000000000000000000000000000000000000000000",
INITP_0E => X"0000000000000000000000000000000000000000000000000000000000000000",
INITP_0F => X"0000000000000000000000000000000000000000000000000000000000000000")
port map (
DOA => DOA,
-- Output port-A data, width defined by READ_WIDTH_A parameter
DOB => DOB,
-- Output port-B data, width defined by READ_WIDTH_B parameter
ADDRA => ADDRA, -- Input port-A address, width defined by Port A depth
ADDRB => ADDRB, -- Input port-B address, width defined by Port B depth
CLKA => CLKA,
-- 1-bit input port-A clock
CLKB => CLKB,
-- 1-bit input port-B clock
DIA => DIA,
-- Input port-A data, width defined by WRITE_WIDTH_A parameter
DIB => DIB,
-- Input port-B data, width defined by WRITE_WIDTH_B parameter
ENA => ENA,
-- 1-bit input port-A enable
ENB => ENB,
-- 1-bit input port-B enable
REGCEA => REGCEA, -- 1-bit input port-A output register enable
REGCEB => REGCEB, -- 1-bit input port-B output register enable
RSTA => RSTA,
-- 1-bit input port-A reset
RSTB => RSTB,
-- 1-bit input port-B reset
WEA => WEA,
-- Input port-A write enable, width defined by Port A depth
WEB => WEB
-- Input port-B write enable, width defined by Port B depth
);
-- End of BRAM_TDP_MACRO_inst instantiation
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 215
Chapter 3: Unimacros
Verilog Instantiation Template
// BRAM_TDP_MACRO: True Dual Port RAM
//
7 Series
// Xilinx HDL Language Template, version 2019.1
//////////////////////////////////////////////////////////////////////////
// DATA_WIDTH_A/B | BRAM_SIZE | RAM Depth | ADDRA/B Width | WEA/B Width //
// ===============|===========|===========|===============|=============//
//
19-36
| "36Kb" | 1024 | 10-bit
| 4-bit //
//
10-18
| "36Kb" | 2048 | 11-bit
| 2-bit //
//
10-18
| "18Kb" | 1024 | 10-bit
| 2-bit //
//
5-9
| "36Kb" | 4096 | 12-bit
| 1-bit //
//
5-9
| "18Kb" | 2048 | 11-bit
| 1-bit //
//
3-4
| "36Kb" | 8192 | 13-bit
| 1-bit //
//
3-4
| "18Kb" | 4096 | 12-bit
| 1-bit //
//
2
| "36Kb" | 16384 | 14-bit
| 1-bit //
//
2
| "18Kb" | 8192 | 13-bit
| 1-bit //
//
1
| "36Kb" | 32768 | 15-bit
| 1-bit //
//
1
| "18Kb" | 16384 | 14-bit
| 1-bit //
//////////////////////////////////////////////////////////////////////////
BRAM_TDP_MACRO #(
.BRAM_SIZE("18Kb"), // Target BRAM: "18Kb" or "36Kb"
.DEVICE("7SERIES"), // Target device: "7SERIES"
.DOA_REG(0),
// Optional port A output register (0 or 1)
.DOB_REG(0),
// Optional port B output register (0 or 1)
.INIT_A(36'h0000000), // Initial values on port A output port
.INIT_B(36'h00000000), // Initial values on port B output port
.INIT_FILE ("NONE"),
.READ_WIDTH_A (0), // Valid values are 1-36 (19-36 only valid when BRAM_SIZE="36Kb")
.READ_WIDTH_B (0), // Valid values are 1-36 (19-36 only valid when BRAM_SIZE="36Kb")
.SIM_COLLISION_CHECK ("ALL"), // Collision check enable "ALL", "WARNING_ONLY",
// "GENERATE_X_ONLY" or "NONE"
.SRVAL_A(36'h00000000), // Set/Reset value for port A output
.SRVAL_B(36'h00000000), // Set/Reset value for port B output
.WRITE_MODE_A("WRITE_FIRST"), // "WRITE_FIRST", "READ_FIRST", or "NO_CHANGE"
.WRITE_MODE_B("WRITE_FIRST"), // "WRITE_FIRST", "READ_FIRST", or "NO_CHANGE"
.WRITE_WIDTH_A(0), // Valid values are 1-36 (19-36 only valid when BRAM_SIZE="36Kb")
.WRITE_WIDTH_B(0), // Valid values are 1-36 (19-36 only valid when BRAM_SIZE="36Kb")
.INIT_00(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_01(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_02(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_03(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_04(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_05(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_06(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_07(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_08(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_09(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_0A(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_0B(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_0C(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_0D(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_0E(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_0F(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_10(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_11(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_12(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_13(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_14(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_15(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_16(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_17(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_18(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_19(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_1A(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_1B(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_1C(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_1D(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_1E(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_1F(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_20(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_21(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_22(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_23(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_24(256'h0000000000000000000000000000000000000000000000000000000000000000),
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 216
Chapter 3: Unimacros
.INIT_25(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_26(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_27(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_28(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_29(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_2A(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_2B(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_2C(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_2D(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_2E(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_2F(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_30(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_31(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_32(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_33(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_34(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_35(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_36(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_37(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_38(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_39(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_3A(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_3B(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_3C(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_3D(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_3E(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_3F(256'h0000000000000000000000000000000000000000000000000000000000000000), // The next set of INIT_xx are valid when configured as 36Kb .INIT_40(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_41(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_42(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_43(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_44(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_45(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_46(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_47(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_48(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_49(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_4A(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_4B(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_4C(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_4D(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_4E(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_4F(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_50(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_51(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_52(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_53(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_54(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_55(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_56(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_57(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_58(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_59(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_5A(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_5B(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_5C(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_5D(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_5E(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_5F(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_60(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_61(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_62(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_63(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_64(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_65(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_66(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_67(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_68(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_69(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_6A(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_6B(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_6C(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_6D(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_6E(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_6F(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_70(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_71(256'h0000000000000000000000000000000000000000000000000000000000000000),
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 217
Chapter 3: Unimacros
.INIT_72(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_73(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_74(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_75(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_76(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_77(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_78(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_79(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_7A(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_7B(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_7C(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_7D(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_7E(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_7F(256'h0000000000000000000000000000000000000000000000000000000000000000),
// The next set of INITP_xx are for the parity bits .INITP_00(256'h0000000000000000000000000000000000000000000000000000000000000000), .INITP_01(256'h0000000000000000000000000000000000000000000000000000000000000000), .INITP_02(256'h0000000000000000000000000000000000000000000000000000000000000000), .INITP_03(256'h0000000000000000000000000000000000000000000000000000000000000000), .INITP_04(256'h0000000000000000000000000000000000000000000000000000000000000000), .INITP_05(256'h0000000000000000000000000000000000000000000000000000000000000000), .INITP_06(256'h0000000000000000000000000000000000000000000000000000000000000000), .INITP_07(256'h0000000000000000000000000000000000000000000000000000000000000000),
// The next set of INITP_xx are valid when configured as 36Kb
.INITP_08(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INITP_09(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INITP_0A(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INITP_0B(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INITP_0C(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INITP_0D(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INITP_0E(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INITP_0F(256'h0000000000000000000000000000000000000000000000000000000000000000)
) BRAM_TDP_MACRO_inst (
.DOA(DOA),
// Output port-A data, width defined by READ_WIDTH_A parameter
.DOB(DOB),
// Output port-B data, width defined by READ_WIDTH_B parameter
.ADDRA(ADDRA), // Input port-A address, width defined by Port A depth
.ADDRB(ADDRB), // Input port-B address, width defined by Port B depth
.CLKA(CLKA),
// 1-bit input port-A clock
.CLKB(CLKB),
// 1-bit input port-B clock
.DIA(DIA),
// Input port-A data, width defined by WRITE_WIDTH_A parameter
.DIB(DIB),
// Input port-B data, width defined by WRITE_WIDTH_B parameter
.ENA(ENA),
// 1-bit input port-A enable
.ENB(ENB),
// 1-bit input port-B enable
.REGCEA(REGCEA), // 1-bit input port-A output register enable
.REGCEB(REGCEB), // 1-bit input port-B output register enable
.RSTA(RSTA),
// 1-bit input port-A reset
.RSTB(RSTB),
// 1-bit input port-B reset
.WEA(WEA),
// Input port-A write enable, width defined by Port A depth
.WEB(WEB)
// Input port-B write enable, width defined by Port B depth
);
// End of BRAM_TDP_MACRO_inst instantiation
For More Information � See the 7 Series Programmable Devices User Guides.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 218
Chapter 3: Unimacros
ADDMACC_MACRO
Macro: Adder/Multiplier/Accumulator
LOAD
ADDMACC_MACRO
LOAD_DATA((WIDTH_PRODUCT-1):0)
MULTIPLIER((WIDTH_MULTIPLIER-1):0)
RST PRODUCT((WIDTH_PRODUCT-1):0)
PREADD1((WIDTH_PREADD-1):0)
PREADD2((WIDTH_PREADD-1):0)
CARRYIN
CE
CLK
Add Multiply Accumulator
X12356
Introduction
ADDMACC_MACRO simplifies the instantiation of the DSP48 block when used as a pre-add, multiply accumulate function. It features parameterizable input and output widths and latency that ease the integration of DSP48 block into HDL.
Port Descriptions
Port PRODUCT
PREADD1
Direction Output
Input
Width
Variable width, equals the value of the WIDTH_A attibute plus the value of the WIDTH_B attribute.
Primary data output.
Variable, see WIDTH_PR EADD attribute.
Preadder data input.
Function
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 219
Chapter 3: Unimacros
PREADD2
Port
MULTIPLIER
CARRYIN CLK CE LOAD LOAD_DATA
RST
Direction Input
Input
Input Input Inupt Input Input
Input
Width
Function
Variable, see WIDTH_PR EADD attribute.
Preadder data input
Variable, see WIDTH_MU LTIPLIER attribute.
Multiplier data input
1
Carry input
1
Clock
1
Clock enable
1
Load
Variable, see WIDTH_PR ODUCT attribute.
In a DSP slice, when LOAD is asserted, loads P with A*B +LOAD_DATA.
1
Synchronous Reset
Design Entry Method
This unimacro is a parameterizable version of the primitive, and can be instantiated only.
Instantiation Inference IP Catalog Macro support
Yes No No Recommended
Available Attributes
Attribute WIDTH_PREADD
Type INTEGER
WIDTH_MULTIPLIER WIDTH_PRODUCT LATENCY
INTEGER INTEGER INTEGER
DEVICE
STRING
Allowed Values 1 to 24
Default 24
1 to 18
18
1 to 48
48
0, 1, 2, 3, 4
3
"7SERIES"
"7SERIES"
Description
Controls the width of PREADD1 and PREADD2 inputs. Controls the width of MULTIPLIER input. Controls the width of MULTIPLIER output. Number of pipeline registers
� 1 - MREG == 1 � 2 - AREG == BREG == 1 and MREG == 1
or MREG == 1 and PREG == 1
� 3 - AREG == BREG == 1 and MREG == 1
and PREG == 1
� 4 - AREG == BREG == 2 and MREG == 1
and PREG == 1
Target hardware architecture.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 220
Chapter 3: Unimacros
VHDL Instantiation Template Unless they already exist, copy the following four statements and paste them before the entity declaration.
Library UNISIM; use UNISIM.vcomponents.all; library UNIMACRO; use unimacro.Vcomponents.all;
-- ADDMACC_MACRO: Add and Multiple Accumulate Function implemented in a DSP48E
--
7 Series
-- Xilinx HDL Language Template, version 2019.1
ADDMACC_MACRO_inst : ADDMACC_MACRO
generic map (
DEVICE => "7SERIES", -- Target Device: "7SERIES", "VIRTEX6", "SPARTAN6"
LATENCY => 4,
-- Desired clock cycle latency, 1-4
WIDTH_PREADD => 25, -- Pre-Adder input bus width, 1-25
WIDTH_MULTIPLIER => 18, -- Multiplier input bus width, 1-18
WIDTH_PRODUCT => 48) -- MACC output width, 1-48
port map (
PRODUCT => PRODUCT,
-- MACC result output, width defined by WIDTH_PRODUCT generic
MULTIPLIER => MULTIPLIER, -- Multiplier data input, width determined by WIDTH_MULTIPLIER generic
PREADDER1 => PREADDER1, -- Preadder data input, width determined by WIDTH_PREADDER generic
PREADDER2 => PREADDER2, -- Preadder data input, width determined by WIDTH_PREADDER generic
CARRYIN => CARRYIN, -- 1-bit carry-in input
CE => CE,
-- 1-bit input clock enable
CLK => CLK, -- 1-bit clock input
LOAD => LOAD, -- 1-bit accumulator load input
LOAD_DATA => LOAD_DATA, -- Accumulator load data input, width defined by WIDTH_PRODUCT generic
RST => RST -- 1-bit input active high synchronous reset
);
-- End of ADDMACC_MACRO_inst instantiation
Verilog Instantiation Template
// ADDMACC_MACRO: Variable width & latency - Pre-Add -> Multiplier -> Accumulate
//
function implemented in a DSP48E
//
7 Series
// Xilinx HDL Language Template, version 2019.1
ADDMACC_MACRO #(
.DEVICE("7SERIES"), // Target Device: "7SERIES"
.LATENCY(4),
// Desired clock cycle latency, 0-4
.WIDTH_PREADD(25),
// Pre-adder input width, 1-25
.WIDTH_MULTIPLIER(18), // Multiplier input width, 1-18
.WIDTH_PRODUCT(48)
// MACC output width, 1-48
) ADDMACC_MACRO_inst (
.PRODUCT(PRODUCT), // MACC result output, width defined by WIDTH_PRODUCT parameter
.CARRYIN(CARRYIN), // 1-bit carry-in input
.CLK(CLK),
// 1-bit clock input
.CE(CE),
// 1-bit clock enable input
.LOAD(LOAD),
// 1-bit accumulator load input
.LOAD_DATA(LOAD_DATA), // Accumulator load data input, width defined by WIDTH_PRODUCT parameter
.MULTIPLIER(MULTIPLIER), // Multiplier data input, width defined by WIDTH_MULTIPLIER parameter
.PREADD2(PREADD2), // Preadder data input, width defined by WIDTH_PREADD parameter
.PREADD1(PREADD1), // Preadder data input, width defined by WIDTH_PREADD parameter
.RST(RST)
// 1-bit active high synchronous reset
);
// End of ADDMACC_MACRO_inst instantiation
For More Information � See the 7 Series Programmable Devices User Guides.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 221
Chapter 3: Unimacros
ADDSUB_MACRO
Macro: Adder/Subtractor
ADDSUB_MACRO
A((WIDTH:1):0)
B((WIDTH:1):0)
ADDSUB
CARRYOUT
CARRYIN
RST
RESULT((WIDTH:1):0)
CE
CLK Adder/Subtractor
X11193
Introduction
ADDSUB_MACRO simplifies the instantiation of the DSP48 block when used as a simple adder/ subtractor. It features parameterizable input and output widths and latency that ease the integration of the DSP48 block into HDL.
Port Descriptions
Port CARRYOUT RESULT
ADDSUB A
B
CE CARRYIN CLK RST
Direction Output Output
Input Input
Input
Input Input Input Input
Width
Function
1
Carry Out
Variable, Data output bus addressed by RDADDR. see WIDTH attrribute.
1
When high, RESULT is an addition. When low, RESULT is a
subtraction.
Variable, Data input to add/sub. see WIDTH attribute.
Variable, Data input to add/sub see WIDTH attribute.
1
Clock Enable
1
Carry In
1
Clock
1
Synchronous Reset
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 222
Chapter 3: Unimacros
Design Entry Method
This unimacro is a parameterizable version of the primitive, and can be instantiated only.
Instantiation Inference IP Catalog Macro support
Yes No No Recommended
Available Attributes
Attribute DEVICE LATENCY
Type STRING INTEGER
Allowed Values "7SERIES" 0, 1, 2
Default "7SERIES" 2
WIDTH
INTEGER
1-48
48
Description Target hardware architecture. Number of pipeline registers.
� 1 - PREG == 1 � 2 - AREG == BREG == CREG == PREG
Result port width override.
VHDL Instantiation Template Unless they already exist, copy the following four statements and paste them before the entity declaration.
Library UNISIM; use UNISIM.vcomponents.all; library UNIMACRO; use unimacro.Vcomponents.all;
-- ADDSUB_MACRO: Variable width & latency - Adder / Subtrator implemented in a DSP48E
--
7 Series
-- Xilinx HDL Language Template, version 2019.1
ADDSUB_MACRO_inst : ADDSUB_MACRO
generic map (
DEVICE => "7SERIES", -- Target Device: "VIRTEX5", "7SERIES", "SPARTAN6"
LATENCY => 2,
-- Desired clock cycle latency, 0-2
WIDTH => 48)
-- Input / Output bus width, 1-48
port map (
CARRYOUT => CARRYOUT, -- 1-bit carry-out output signal
RESULT => RESULT,
-- Add/sub result output, width defined by WIDTH generic
A => A,
-- Input A bus, width defined by WIDTH generic
ADD_SUB => ADD_SUB, -- 1-bit add/sub input, high selects add, low selects subtract
B => B,
-- Input B bus, width defined by WIDTH generic
CARRYIN => CARRYIN, -- 1-bit carry-in input
CE => CE,
-- 1-bit clock enable input
CLK =>CLK,
-- 1-bit clock input
RST => RST
-- 1-bit active high synchronous reset
);
-- End of ADDSUB_MACRO_inst instantiation
Verilog Instantiation Template
// ADDSUB_MACRO: Variable width & latency - Adder / Subtracter implemented in a DSP48E
//
7 Series
// Xilinx HDL Language Template, version 2019.1
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 223
Chapter 3: Unimacros
ADDSUB_MACRO #(
.DEVICE("7SERIES"), // Target Device: "7SERIES"
.LATENCY(2),
// Desired clock cycle latency, 0-2
.WIDTH(48)
// Input / output bus width, 1-48
) ADDSUB_MACRO_inst (
.CARRYOUT(CARRYOUT), // 1-bit carry-out output signal
.RESULT(RESULT),
// Add/sub result output, width defined by WIDTH parameter
.A(A),
// Input A bus, width defined by WIDTH parameter
.ADD_SUB(ADD_SUB), // 1-bit add/sub input, high selects add, low selects subtract
.B(B),
// Input B bus, width defined by WIDTH parameter
.CARRYIN(CARRYIN), // 1-bit carry-in input
.CE(CE),
// 1-bit clock enable input
.CLK(CLK),
// 1-bit clock input
.RST(RST)
// 1-bit active high synchronous reset
);
// End of ADDSUB_MACRO_inst instantiation
For More Information � See the 7 Series Programmable Devices User Guides.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 224
Chapter 3: Unimacros
COUNTER_LOAD_MACRO
Macro: Loadable Counter
COUNTER_LOAD_MACRO
RST LOAD
Q((WIDTH_DATA:1):0)
DIRECTION
LOAD_DATA(WIDTH_DATA:1):0)
CE CLK Loadable Counter
X11190
Introduction
COUNTER_LOAD_MACRO simplifies the instantiation of the DSP48 block when used as dynamic loading up/down counter. It features parameterizable output width and count by values that ease the integration of the DSP48 block into HDL.
Port Descriptions
Port Q
CE CLK LOAD
LOAD_DATA
DIRECTION RST
Direction Output
Input Input Input
Input
Input Input
Width
Function
Variable, see WIDTH_DA TA attribute.
Counter output.
1
Clock Enable.
1
Clock.
Variable, see WIDTH_DA TA attribute.
When asserted, loads the counter from LOAD_DATA (twoclock latency).
Variable, see WIDTH_DA TA attribute.
In a DSP slice, asserting the LOAD pin will force this data into the P register with a latency of 2 clocks.
1
High for Up and Low for Down (two-clock latency)
1
Synchronous Reset
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 225
Chapter 3: Unimacros
Design Entry Method
This unimacro is a parameterizable version of the primitive, and can be instantiated only.
Instantiation Inference IP Catalog Macro support
Yes No No Recommended
Available Attributes
Attribute DEVICE COUNT_BY
Type STRING HEX
WIDTH_DATA
INTEGER
Allowed Values "7SERIES" Any 48 bit value.
Default "7SERIES" 000000000001
1-48
48
Description
Target hardware architecture. Count by n; takes precedence over WIDTH_DATA. Specifies counter width.
VHDL Instantiation Template Unless they already exist, copy the following four statements and paste them before the entity declaration.
Library UNISIM; use UNISIM.vcomponents.all; library UNIMACRO; use unimacro.Vcomponents.all;
-- COUNTER_LOAD_MACRO: Loadable variable counter implemented in a DSP48E
--
7 Series
-- Xilinx HDL Language Template, version 2019.1
COUNTER_LOAD_MACRO_inst : COUNTER_LOAD_MACRO
generic map (
COUNT_BY => X"000000000001", -- Count by value
DEVICE => "7SERIES",
-- Target Device: "VIRTEX5", "7SERIES", "SPARTAN6"
WIDTH_DATA => 48)
-- Counter output bus width, 1-48
port map (
Q => Q,
-- Counter ouput, width determined by WIDTH_DATA generic
CLK => CLK,
-- 1-bit clock input
CE => CE,
-- 1-bit clock enable input
DIRECTION => DIRECTION, -- 1-bit up/down count direction input, high is count up
LOAD => LOAD,
-- 1-bit active high load input
LOAD_DATA => LOAD_DATA, -- Counter load data, width determined by WIDTH_DATA generic
RST => RST
-- 1-bit active high synchronous reset
);
-- End of COUNTER_LOAD_MACRO_inst instantiation
Verilog Instantiation Template
// COUNTER_LOAD_MACRO: Loadable variable counter implemented in a DSP48E
//
7 Series
// Xilinx HDL Language Template, version 2019.1
COUNTER_LOAD_MACRO #(
.COUNT_BY(48'h000000000001), // Count by value
.DEVICE("7SERIES"), // Target Device: "7SERIES"
.WIDTH_DATA(48)
// Counter output bus width, 1-48
) COUNTER_LOAD_MACRO_inst (
.Q(Q),
// Counter output, width determined by WIDTH_DATA parameter
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 226
Chapter 3: Unimacros
.CLK(CLK),
// 1-bit clock input
.CE(CE),
// 1-bit clock enable input
.DIRECTION(DIRECTION), // 1-bit up/down count direction input, high is count up
.LOAD(LOAD),
// 1-bit active high load input
.LOAD_DATA(LOAD_DATA), // Counter load data, width determined by WIDTH_DATA parameter
.RST(RST)
// 1-bit active high synchronous reset
);
// End of COUNTER_LOAD_MACRO_inst instantiation
For More Information � See the 7 Series Programmable Devices User Guides.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 227
Chapter 3: Unimacros
COUNTER_TC_MACRO
Macro: Counter with Terminal Count
COUNTER_TC_MACRO
RST
TC
Q((DATA_WIDTH:1):0)
CE
CLK Counter with Terminal Count
X11188
Introduction
COUNTER_TC_MACRO simplifies the instantiation of the DSP48 block when used as a terminal count, up/down counter. It features parameterizable output width, terminal count values, count by and count direction in order to ease the integration of DSP48 block into HDL.
Port Descriptions
Port TC Q
CE CLK RST
Direction Output Output
Input Input Input
Width
Function
1
Terminal count goes high when TC_VALUE is reached
Variable, see WIDTH_DA TA attribute.
Counter output
1
Clock Enable
1
Clock
1
Synchronous Reset
Design Entry Method
This unimacro is a parameterizable version of the primitive, and can be instantiated only.
Instantiation Inference IP Catalog Macro support
Yes No No Recommended
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 228
Chapter 3: Unimacros
Available Attributes
Attribute RESET_UPON_TC
Type BOOLEAN
Allowed Values True, False
Default False
DEVICE DIRECTION COUNT_BY
STRING STRING HEX
"7SERIES" "UP", "DOWN" Any 48 bit value
"7SERIES" "UP" 000000000001
TC_VALUE WIDTH_DATA
HEX INTEGER
Any 48 bit value 1-48
All zeros 48
Description
Specifies whether to reset the counter upon reaching terminal count
Target hardware architecture.
Count up versus count down.
Count by n; takes precedence over WIDTH_DATA
Terminal count value.
Specifies counter width.
VHDL Instantiation Template Unless they already exist, copy the following four statements and paste them before the entity declaration.
Library UNISIM; use UNISIM.vcomponents.all; library UNIMACRO; use unimacro.Vcomponents.all;
-- COUNTER_TC_MACRO: Counter with terminal count implemented in a DSP48E
--
7 Series
-- Xilinx HDL Language Template, version 2019.1
COUNTER_TC_MACRO_inst : COUNTER_TC_MACRO
generic map (
COUNT_BY => X"000000000001", -- Count by value
DEVICE => "7SERIES",
-- Target Device: "VIRTEX5", "7SERIES"
DIRECTION => "UP",
-- Counter direction "UP" or "DOWN"
RESET_UPON_TC => "FALSE",
-- Reset counter upon terminal count, TRUE or FALSE
TC_VALUE => X"000000000000", -- Terminal count value
WIDTH_DATA => 48)
-- Counter output bus width, 1-48
port map (
Q => Q,
-- Counter ouput, width determined by WIDTH_DATA generic
TC => TC,
-- 1-bit terminal count output, high = terminal count is reached
CLK => CLK, -- 1-bit clock input
CE => CE,
-- 1-bit clock enable input
RST => RST
-- 1-bit active high synchronous reset
);
-- End of COUNTER_TC_MACRO_inst instantiation
Verilog Instantiation Template
// COUNTER_TC_MACRO: Counter with terminal count implemented in a DSP48E
//
7 Series
// Xilinx HDL Language Template, version 2019.1
COUNTER_TC_MACRO #(
.COUNT_BY(48'h000000000001), // Count by value
.DEVICE("7SERIES"),
// Target Device: "7SERIES"
.DIRECTION("UP"),
// Counter direction, "UP" or "DOWN"
.RESET_UPON_TC("FALSE"), // Reset counter upon terminal count, "TRUE" or "FALSE"
.TC_VALUE(48'h000000000000), // Terminal count value
.WIDTH_DATA(48)
// Counter output bus width, 1-48
) COUNTER_TC_MACRO_inst (
.Q(Q),
// Counter output bus, width determined by WIDTH_DATA parameter
.TC(TC), // 1-bit terminal count output, high = terminal count is reached
.CLK(CLK), // 1-bit positive edge clock input
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 229
.CE(CE), // 1-bit active high clock enable input .RST(RST) // 1-bit active high synchronous reset ); // End of COUNTER_TC_MACRO_inst instantiation
For More Information � See the 7 Series Programmable Devices User Guides.
Chapter 3: Unimacros
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 230
Chapter 3: Unimacros
EQ_COMPARE_MACRO
Macro: Equality Comparator
EQ_COMPARE_MACRO
DATA_IN((WIDTH:1):0)
RST
Q
DYNAMIC_PATTERN((WIDTH:1):0) CE
CLK
Equality Comparator
X11189
Introduction
EQ_COMPARE_MACRO simplifies the instantiation of the DSP48 block when used as an equality comparator. It features parameterizable input and output widths, latencies, mask, and input sources that ease the integration of the DSP48 block into HDL.
Port Descriptions
Port Q DATA_IN
DYNAMIC_PATTERN
CLK CE RST
Direction Output Input
Input
Input Inupt Input
Width
Function
1
Active High pattern detection. Detects match of DATA_IN
and the selected DYNAMIC_PATTERN gated by the MASK.
Result arrives on the same cycle as P.
Variable width, equals the value of the WIDTH attribute.
Input data to be compared.
Variable width, equals the value of the WIDTH attribute.
Dynamic data to be compared to DATA_IN.
1
Clock.
1
Clock enable.
1
Synchronous Reset.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 231
Chapter 3: Unimacros
Design Entry Method
This unimacro is a parameterizable version of the primitive, and can be instantiated only.
Instantiation Inference IP Catalog Macro support
Yes No No Recommended
Available Attributes
Attribute DEVICE SEL_PATTERN
Type STRING INTEGER
MASK STATIC_PATTERN SEL_MASK
HEX HEX STRING
WIDTH LATENCY
INTEGER INTEGER
Allowed Values
Default
"7SERIES"
"7SERIES"
1 to 24
24
48 hex
48 hex
"MASK", "DYNAMIC_PATT ERN"
1 to 48
0, 1, 2, 3
all zeros all zeros "MASK"
48 2
Description Target hardware architecture. Controls the width of PREADD1 and PREADD2 inputs. Mask to be used for pattern detector. Pattern to be used for pattern detector. Selects whether to use the static MASK or the C input for the mask of the pattern detector.
Width of DATA_IN and DYNAMIC_PATTERN. Number of pipeline registers.
� 1: QREG == 1 � 2: AREG == BREG == CREG == QREG == 1 � 3: AREG == BREG == 2 and CREG == QREG == 1
VHDL Instantiation Template Unless they already exist, copy the following four statements and paste them before the entity declaration.
Library UNISIM; use UNISIM.vcomponents.all; library UNIMACRO; use unimacro.Vcomponents.all;
-- EQ_COMPARE_MACRO: Equiality Comparator implemented in a DSP48E
--
7 Series
-- Xilinx HDL Language Template, version 2019.1
EQ_COMPARE_MACRO_inst : EQ_COMPARE_MACRO
generic map (
DEVICE => "7SERIES",
-- Target Device: "VIRTEX5", "7SERIES"
LATENCY => 2,
-- Desired clock cycle latency, 0-2
MASK => X"000000000000",
-- Select bits to be masked, must set
-- SEL_MASK = "MASK"
SEL_MASK => "MASK",
-- "MASK" = use MASK generic,
-- "DYNAMIC_PATTERN = use DYNAMIC_PATTERN input bus
SEL_PATTERN => "DYNAMIC_PATTERN", -- "DYNAMIC_PATTERN" = use DYNAMIC_PATTERN input bus
-- "STATIC_PATTERN" = use STATIC_PATTERN generic
STATIC_PATTERN => X"000000000000", -- Specify static pattern,
-- must set SEL_PATTERN = "STATIC_PATTERN
WIDTH => 48)
-- Comparator output bus width, 1-48
port map (
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 232
Chapter 3: Unimacros
Q => Q,
-- 1-bit output indicating a match
CE => CE,
-- 1-bit active high input clock enable input
CLK => CLK, -- 1-bit positive edge clock input
DATA_IN => DATA_IN, -- Input Data Bus, width determined by WIDTH generic
DYNAMIC_PATTERN, => DYNAMIC_PATTERN, -- Input Dynamic Match/Mask Bus, width determined by WIDTH generic
RST => RST
-- 1-bit input active high reset
);
-- End of EQ_COMPARE_MACRO_inst instantiation
Verilog Instantiation Template
// EQ_COMPARE_MACRO: Equality Comparator implemented in a DSP48E
//
7 Series
// Xilinx HDL Language Template, version 2019.1
EQ_COMPARE_MACRO #(
.DEVICE("7SERIES"),
// Target Device: "7SERIES"
.LATENCY(2),
// Desired clock cycle latency, 0-2
.MASK(48'h000000000000), // Select bits to be masked, must set SEL_MASK="MASK"
.SEL_MASK("MASK"),
// "MASK" = use MASK parameter,
// "DYNAMIC_PATTERN" = use DYNAMIC_PATTERN input bus
.SEL_PATTERN("STATIC_PATTERN"), // "STATIC_PATTERN" = use STATIC_PATTERN parameter,
// "DYNAMIC_PATTERN = use DYNAMIC_PATTERN input bus
.STATIC_PATTERN(48'h000000000000), // Specify static pattern, must set SEL_PATTERN = "STATIC_PATTERN"
.WIDTH(48)
// Comparator output bus width, 1-48
) EQ_COMPARE_MACRO_inst (
.Q(Q),
// 1-bit output indicating a match
.CE(CE), // 1-bit active high input clock enable
.CLK(CLK), // 1-bit positive edge clock input
.DATA_IN(DATA_IN), // Input Data Bus, width determined by WIDTH parameter
.DYNAMIC_PATTERN(DYNAMIC_PATTERN), // Input Dynamic Match/Mask Bus, width determined by WIDTH parameter
.RST(RST) // 1-bit input active high reset
);
// End of EQ_COMPARE_MACRO_inst instantiation
For More Information � See the 7 Series Programmable Devices User Guides.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 233
Chapter 3: Unimacros
MACC_MACRO
Macro: Multiplier/Accumulator
MACC_MACRO
A((WIDTH_A:1):0)
B((WIDTH_B:1:0))
LOAD_DATA((WIDTH_P:1):0)
LOAD
ADDSUB
CARRYIN RST
P((WIDTH_P:1):0)
CE
CLK
Multiplier/Accumulator
X11192
Introduction
MACC_MACRO simplifies the instantiation of the DSP48 block when used in simple signed multiplier/accumulator mode. It features parameterizable input and output widths and latencies that ease the integration of the DSP48 block into HDL.
Port Descriptions
Port P
A
Direction Output
Input
Width
Variable width, equals the value of the WIDTH_A attribute plus the value of the WIDTH_B attribute.
Variable, see WIDTH_A attribute.
Primary data output. Multiplier data input.
Function
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 234
Chapter 3: Unimacros
Port B
CARRYIN CE CLK LOAD LOAD_DATA
RST ADDSUB
Direction Input
Input Input Input Inupt Input
Input Input
Width
Variable, see WIDTH_B attribute.
1
1
1
1
Variable width, equals the value of the WIDTH_A attribute plus the value of the WIDTH_B attribute.
1
1
Multiplier data input.
Function
Carry input. Clock enable. Clock. Load. In a DSP slice, when LOAD is asserted, loads P with A*B +LOAD_DATA.
Synchronous Reset.
High sets accumulator in addition mode; low sets accumulator in subtraction mode.
Design Entry Method
This unimacro is a parameterizable version of the primitive, and can be instantiated only.
Instantiation Inference IP Catalog Macro support
Yes No No Recommended
Available Attributes
Attribute DEVICE WIDTH_P WIDTH_A WIDTH_B
Type STRING INTEGER INTEGER INTEGER
Allowed Values "7SERIES" 1 to 48 1 to 25 1 to 18
Default "7SERIES" 48 25 18
Description Target hardware architecture. Accumulator output bus width. Multiplier A-input bus width. Multiplier B-input bus width.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 235
Chapter 3: Unimacros
Attribute LATENCY
Type INTEGER
Allowed Values 1, 2, 3, 4
Default 3
Description
Number of pipeline registers.
� 1 - MREG == 1
� 2 - AREG == BREG == 1 and MREG == 1 or MREG
== 1 and PREG == 1
� 3 - AREG == BREG == 1 and MREG == 1 and
PREG == 1
� 4 - AREG == BREG == 2 and MREG == 1 and
PREG == 1
VHDL Instantiation Template Unless they already exist, copy the following four statements and paste them before the entity declaration.
Library UNISIM; use UNISIM.vcomponents.all; library UNIMACRO; use unimacro.Vcomponents.all;
-- MACC_MACRO: Multiple Accumulate Function implemented in a DSP48E
--
7 Series
-- Xilinx HDL Language Template, version 2019.1
MACC_MACRO_inst : MACC_MACRO
generic map (
DEVICE => "7SERIES", -- Target Device: "VIRTEX5", "7SERIES", "SPARTAN6"
LATENCY => 3,
-- Desired clock cycle latency, 1-4
WIDTH_A => 25,
-- Multiplier A-input bus width, 1-25
WIDTH_B => 18,
-- Multiplier B-input bus width, 1-18
WIDTH_P => 48)
-- Accumulator output bus width, 1-48
port map (
P => P,
-- MACC ouput bus, width determined by WIDTH_P generic
A => A,
-- MACC input A bus, width determined by WIDTH_A generic
ADDSUB => ADDSUB, -- 1-bit add/sub input, high selects add, low selects subtract
B => B,
-- MACC input B bus, width determined by WIDTH_B generic
CARRYIN => CARRYIN, -- 1-bit carry-in input to accumulator
CE => CE,
-- 1-bit active high input clock enable
CLK => CLK, -- 1-bit positive edge clock input
LOAD => LOAD, -- 1-bit active high input load accumulator enable
LOAD_DATA => LOAD_DATA, -- Load accumulator input data,
-- width determined by WIDTH_P generic
RST => RST -- 1-bit input active high reset
);
-- End of MACC_MACRO_inst instantiation
Verilog Instantiation Template
// MACC_MACRO: Multiply Accumulate Function implemented in a DSP48E
//
7 Series
// Xilinx HDL Language Template, version 2019.1
MACC_MACRO #(
.DEVICE("7SERIES"), // Target Device: "7SERIES"
.LATENCY(3),
// Desired clock cycle latency, 1-4
.WIDTH_A(25),
// Multiplier A-input bus width, 1-25
.WIDTH_B(18),
// Multiplier B-input bus width, 1-18
.WIDTH_P(48)
// Accumulator output bus width, 1-48
) MACC_MACRO_inst (
.P(P),
// MACC output bus, width determined by WIDTH_P parameter
.A(A),
// MACC input A bus, width determined by WIDTH_A parameter
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 236
Chapter 3: Unimacros
.ADDSUB(ADDSUB), // 1-bit add/sub input, high selects add, low selects subtract
.B(B),
// MACC input B bus, width determined by WIDTH_B parameter
.CARRYIN(CARRYIN), // 1-bit carry-in input to accumulator
.CE(CE),
// 1-bit active high input clock enable
.CLK(CLK), // 1-bit positive edge clock input
.LOAD(LOAD), // 1-bit active high input load accumulator enable
.LOAD_DATA(LOAD_DATA), // Load accumulator input data, width determined by WIDTH_P parameter
.RST(RST) // 1-bit input active high reset
);
// End of MACC_MACRO_inst instantiation
For More Information � See the 7 Series Programmable Devices User Guides.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 237
Chapter 3: Unimacros
MULT_MACRO
Macro: Multiplier
MULT_MACRO
A((WIDTH_A:1):0) B((WIDTH_B:1:0))
RST CE
CLK
P((WIDTH_A+WIDTH_B:1):0)
Multiplier
X11191
Introduction
MULT_MACRO simplifies the instantiation of the DSP48 block when used as a simple signed multiplier. It features parameterizable input and output widths and latencies that ease the integration of the DSP48 block into HDL.
Port Descriptions
Port P
A
B
CE CLK RST
Direction Output
Input
Input
Input Input Input
Width
Variable, equals WIDTH_A + WIDTH_B.
Primary data output.
Variable, see WIDTH_A attribute.
Multiplier data input.
Variable, see WIDTH_B attribute.
Multiplier data input.
1
Clock Enable.
1
Clock.
1
Synchronous Reset.
Function
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 238
Chapter 3: Unimacros
Design Entry Method
This unimacro is a parameterizable version of the primitive, and can be instantiated only.
Instantiation Inference IP Catalog Macro support
Yes No No Recommended
Available Attributes
Attribute DEVICE WIDTH_A WIDTH_B LATENCY
Type STRING INTEGER INTEGER INTEGER
Allowed Values "7SERIES" 1 to 25 1 to 18 0, 1, 2, 3, 4
Default "7SERIES" 18 18 3
Description
Target hardware architecture.
Multiplier A-input bus width.
Multiplier B-input bus width.
Number of pipeline registers.
� 1 - MREG == 1 � 2 - AREG == BREG == 1 and MREG == 1 or MREG
== 1 and PREG == 1
� 3 - AREG == BREG == 1 and MREG == 1 and PREG
== 1
� 4 - AREG == BREG == 2 and MREG == 1 and PREG
== 1
VHDL Instantiation Template Unless they already exist, copy the following four statements and paste them before the entity declaration.
Library UNISIM; use UNISIM.vcomponents.all; library UNIMACRO; use unimacro.Vcomponents.all;
-- MULT_MACRO: Multiply Function implemented in a DSP48E
--
7 Series
-- Xilinx HDL Language Template, version 2019.1
MULT_MACRO_inst : MULT_MACRO
generic map (
DEVICE => "7SERIES", -- Target Device: "VIRTEX5", "7SERIES", "SPARTAN6"
LATENCY => 3,
-- Desired clock cycle latency, 0-4
WIDTH_A => 18,
-- Multiplier A-input bus width, 1-25
WIDTH_B => 18)
-- Multiplier B-input bus width, 1-18
port map (
P => P,
-- Multiplier ouput bus, width determined by WIDTH_P generic
A => A,
-- Multiplier input A bus, width determined by WIDTH_A generic
B => B,
-- Multiplier input B bus, width determined by WIDTH_B generic
CE => CE, -- 1-bit active high input clock enable
CLK => CLK, -- 1-bit positive edge clock input
RST => RST -- 1-bit input active high reset
);
-- End of MULT_MACRO_inst instantiation
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 239
Chapter 3: Unimacros
Verilog Instantiation Template
// MULT_MACRO: Multiply Function implemented in a DSP48E
//
7 Series
// Xilinx HDL Language Template, version 2019.1
MULT_MACRO #(
.DEVICE("7SERIES"), // Target Device: "7SERIES"
.LATENCY(3),
// Desired clock cycle latency, 0-4
.WIDTH_A(18),
// Multiplier A-input bus width, 1-25
.WIDTH_B(18)
// Multiplier B-input bus width, 1-18
) MULT_MACRO_inst (
.P(P),
// Multiplier output bus, width determined by WIDTH_P parameter
.A(A),
// Multiplier input A bus, width determined by WIDTH_A parameter
.B(B),
// Multiplier input B bus, width determined by WIDTH_B parameter
.CE(CE), // 1-bit active high input clock enable
.CLK(CLK), // 1-bit positive edge clock input
.RST(RST) // 1-bit input active high reset
);
// End of MULT_MACRO_inst instantiation
For More Information � See the 7 Series Programmable Devices User Guides.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 240
Chapter 3: Unimacros
FIFO_DUALCLOCK_MACRO
Macro: Dual Clock First-In, First-Out (FIFO) RAM Buffer FIFO_DUALCLOCK_MACRO
DI(DATA_WIDTH-1:0)
WE(f(WRITE_WIDTH):0)
WRERR
RST
ALMOSTFULL
WREN
FULL
WRCOUNT(f(DATA_WIDTH):0)
WRCLK
DO(DATA_WIDTH-1:0)
RDERR
RDEN
ALMOSTEMPTY
RDCLK
EMPTY
RDCOUNT(f(DATA_WIDTH):0)
Dual Clock First-In, First-Out (FIFO) Buffer
X12357
Introduction
FPGA devices contain several block RAM memories that can be configured as general-purpose 36 Kb or 18 Kb RAM/ROM memories. Dedicated logic in the block RAM enables you to easily implement FIFOs. The FIFO can be configured as an 18 Kb or 36 Kb memory. This unimacro configures the FIFO for using independent read and writes clocks. Data is read from the FIFO on the rising edge of the read clock and written to the FIFO on the rising edge of write clock.
Depending on the offset between read and write clock edges, the Empty, Almost Empty, Full and Almost Full flags can deassert one cycle later. Due to the asynchronous nature of the clocks, the simulation model only reflects the deassertion latency cycles listed in the User Guide.
Port Descriptions
Port ALMOSTEMPTY
Direction Output
Width 1
Function Almost all valid entries in FIFO have been read.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 241
Chapter 3: Unimacros
Port ALMOSTFULL DO
EMPTY FULL RDCOUNT
RDERR WRCOUNT
WRERR DI
RDCLK RDEN RST WRCLK WREN
Direction Output Output
Output Output Output
Output Output
Output Input
Input Input Input Input Input
Width
Function
1
Almost all entries in FIFO memory have been filled.
See Configurati on Table below.
Data output bus addressed by ADDR.
1
FIFO is empty.
1
All entries in FIFO memory are filled.
See Configurati on Table below.
FIFO data read pointer.
1
When the FIFO is empty, any additional read operation
generates an error flag.
See Configurati on Table below.
FIFO data write pointer.
1
When the FIFO is full, any additional write operation
generates an error flag.
See Configurati on Table below.
Data input bus addressed by ADDR.
1
Clock for Read domain operation.
1
Read Enable.
1
Asynchronous reset.
1
Clock for Write domain operation.
1
Write Enable.
Port Configuration
This unimacro is a parameterizable version of the primitive, and can be instantiated only. Use this table to correctly configure the unimacro to meet design needs.
DATA_WIDTH 72 - 37 36 - 19
18 - 10
9-5
1-4
FIFO_SIZE 36 Kb 36 Kb 18 Kb 36 Kb 18 Kb 36 Kb 18 Kb 36 Kb 18 Kb
WRCOUNT 9 10 9 11 10 12 11 13 12
RDCOUNT 9 10 9 11 10 12 11 13 12
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 242
Chapter 3: Unimacros
Design Entry Method
This unimacro is a parameterizable version of the primitive, and can be instantiated only. Consult the Port Configuration section to correctly configure this element to meet your design needs.
Instantiation Inference IP Catalog Macro support
Yes No No Recommended
Available Attributes
Attribute
ALMOST_EMPTY_OFFS ET
Type HEX
ALMOST_FULL_OFFSET HEX
DATA_WIDTH
DEVICE
FIFO_SIZE
FIRST_WORD_FALL_TH ROUGH
INTEGER STRING STRING BOOLEAN
Allowed Values 13-Bit Value
Default All zeros
13-Bit Value
All zeros
1 - 72 "7SERIES" "18Kb", "36Kb" FALSE, TRUE
4 "7SERIES" "18Kb" FALSE
Description
Setting determines the difference between EMPTY and ALMOSTEMPTY conditions. Must be set using hexadecimal notation.
Setting determines the difference between FULL and ALMOSTFULL conditions. Must be set using hexadecimal notation.
Width of DI/DO bus.
Target hardware architecture.
Configures the FIFO as 18 Kb or 36 Kb memory.
If TRUE, the first word written into the empty FIFO appears at the FIFO output without RDEN asserted.
VHDL Instantiation Template Unless they already exist, copy the following four statements and paste them before the entity declaration.
Library UNISIM; use UNISIM.vcomponents.all; library UNIMACRO; use unimacro.Vcomponents.all;
-- FIFO_DUALCLOCK_MACRO: Dual-Clock First-In, First-Out (FIFO) RAM Buffer
--
7 Series
-- Xilinx HDL Language Template, version 2019.1
-- Note - This Unimacro model assumes the port directions to be "downto".
--
Simulation of this model with "to" in the port directions could lead to erroneous results.
-----------------------------------------------------------------
-- DATA_WIDTH | FIFO_SIZE | FIFO Depth | RDCOUNT/WRCOUNT Width --
-- ===========|===========|============|=======================--
-- 37-72 | "36Kb" |
512 |
9-bit
--
-- 19-36 | "36Kb" | 1024 |
10-bit
--
-- 19-36 | "18Kb" |
512 |
9-bit
--
-- 10-18 | "36Kb" | 2048 |
11-bit
--
-- 10-18 | "18Kb" | 1024 |
10-bit
--
-- 5-9
| "36Kb" | 4096 |
12-bit
--
-- 5-9
| "18Kb" | 2048 |
11-bit
--
-- 1-4
| "36Kb" | 8192 |
13-bit
--
-- 1-4
| "18Kb" | 4096 |
12-bit
--
-----------------------------------------------------------------
FIFO_DUALCLOCK_MACRO_inst : FIFO_DUALCLOCK_MACRO
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 243
Chapter 3: Unimacros
generic map (
DEVICE => "7SERIES",
-- Target Device: "VIRTEX5", "VIRTEX6", "7SERIES"
ALMOST_FULL_OFFSET => X"0080", -- Sets almost full threshold
ALMOST_EMPTY_OFFSET => X"0080", -- Sets the almost empty threshold
DATA_WIDTH => 0, -- Valid values are 1-72 (37-72 only valid when FIFO_SIZE="36Kb")
FIFO_SIZE => "18Kb",
-- Target BRAM, "18Kb" or "36Kb"
FIRST_WORD_FALL_THROUGH => FALSE) -- Sets the FIFO FWFT to TRUE or FALSE
port map (
ALMOSTEMPTY => ALMOSTEMPTY, -- 1-bit output almost empty
ALMOSTFULL => ALMOSTFULL,
-- 1-bit output almost full
DO => DO,
-- Output data, width defined by DATA_WIDTH parameter
EMPTY => EMPTY,
-- 1-bit output empty
FULL => FULL,
-- 1-bit output full
RDCOUNT => RDCOUNT,
-- Output read count, width determined by FIFO depth
RDERR => RDERR,
-- 1-bit output read error
WRCOUNT => WRCOUNT,
-- Output write count, width determined by FIFO depth
WRERR => WRERR,
-- 1-bit output write error
DI => DI,
-- Input data, width defined by DATA_WIDTH parameter
RDCLK => RDCLK,
-- 1-bit input read clock
RDEN => RDEN,
-- 1-bit input read enable
RST => RST,
-- 1-bit input reset
WRCLK => WRCLK,
-- 1-bit input write clock
WREN => WREN
-- 1-bit input write enable
);
-- End of FIFO_DUALCLOCK_MACRO_inst instantiation
Verilog Instantiation Template
// FIFO_DUALCLOCK_MACRO: Dual Clock First-In, First-Out (FIFO) RAM Buffer
//
7 Series
// Xilinx HDL Language Template, version 2019.1
/////////////////////////////////////////////////////////////////
// DATA_WIDTH | FIFO_SIZE | FIFO Depth | RDCOUNT/WRCOUNT Width //
// ===========|===========|============|=======================//
// 37-72 | "36Kb" |
512 |
9-bit
//
// 19-36 | "36Kb" | 1024 |
10-bit
//
// 19-36 | "18Kb" |
512 |
9-bit
//
// 10-18 | "36Kb" | 2048 |
11-bit
//
// 10-18 | "18Kb" | 1024 |
10-bit
//
// 5-9
| "36Kb" | 4096 |
12-bit
//
// 5-9
| "18Kb" | 2048 |
11-bit
//
// 1-4
| "36Kb" | 8192 |
13-bit
//
// 1-4
| "18Kb" | 4096 |
12-bit
//
/////////////////////////////////////////////////////////////////
FIFO_DUALCLOCK_MACRO #(
.ALMOST_EMPTY_OFFSET(9'h080), // Sets the almost empty threshold
.ALMOST_FULL_OFFSET(9'h080), // Sets almost full threshold
.DATA_WIDTH(0), // Valid values are 1-72 (37-72 only valid when FIFO_SIZE="36Kb")
.DEVICE("7SERIES"), // Target device: "7SERIES"
.FIFO_SIZE ("18Kb"), // Target BRAM: "18Kb" or "36Kb"
.FIRST_WORD_FALL_THROUGH ("FALSE") // Sets the FIFO FWFT to "TRUE" or "FALSE"
) FIFO_DUALCLOCK_MACRO_inst (
.ALMOSTEMPTY(ALMOSTEMPTY), // 1-bit output almost empty
.ALMOSTFULL(ALMOSTFULL), // 1-bit output almost full
.DO(DO),
// Output data, width defined by DATA_WIDTH parameter
.EMPTY(EMPTY),
// 1-bit output empty
.FULL(FULL),
// 1-bit output full
.RDCOUNT(RDCOUNT),
// Output read count, width determined by FIFO depth
.RDERR(RDERR),
// 1-bit output read error
.WRCOUNT(WRCOUNT),
// Output write count, width determined by FIFO depth
.WRERR(WRERR),
// 1-bit output write error
.DI(DI),
// Input data, width defined by DATA_WIDTH parameter
.RDCLK(RDCLK),
// 1-bit input read clock
.RDEN(RDEN),
// 1-bit input read enable
.RST(RST),
// 1-bit input reset
.WRCLK(WRCLK),
// 1-bit input write clock
.WREN(WREN)
// 1-bit input write enable
);
// End of FIFO_DUALCLOCK_MACRO_inst instantiation
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 244
For More Information � See the 7 Series Programmable Devices User Guides.
Chapter 3: Unimacros
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 245
Chapter 3: Unimacros
FIFO_SYNC_MACRO
Macro: Synchronous First-In, First-Out (FIFO) RAM Buffer
FIFO_SYNC_MACRO
DI(DATA_WIDTH:1:0)
RST
WRERR
ALMOSTFULL FULL
WRCOUNT(f(DATA_WIDTH):0)
CLK
DI(DATA_WIDTH:1:0)
RDEN
RDERR ALMOSTEMPTY
EMPTY
RDCOUNT(f(DATA_WIDTH):0)
First-In, First-Out (FIFO) Buffer
X10964
Introduction
FPGA devices contain several block RAM memories that can be configured as general-purpose 36Kb or 18Kb RAM/ROM memories. Dedicated logic in the block RAM enables you to easily implement FIFOs. The FIFO can be configured as an 18 Kb or 36 Kb memory. This unimacro configures the FIFO such that it uses one clock for reading as well as writing.
Port Descriptions
Port ALMOSTEMPTY ALMOSTFULL DO
EMPTY FULL
Direction Output Output Output
Output Output
Width
Function
1
Almost all valid entries in FIFO have been read.
1
Almost all entries in FIFO memory have been filled.
See
Data output bus addressed by ADDR.
Configurati
on Table.
1
FIFO is empty.
1
All entries in FIFO memory are filled.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 246
Chapter 3: Unimacros
Port RDCOUNT
RDERR WRCOUNT
WRERR CLK DI
RDEN RST WREN
Direction Output
Output Output
Output Input Input
Input Input Input
Width
Function
See
FIFO data read pointer.
Configurati
on Table.
1
When the FIFO is empty, any additional read operation
generates an error flag.
See
FIFO data write pointer.
Configurati
on Table.
1
When the FIFO is full, any additional write operation
generates an error flag.
1
Clock for Read/Write domain operation.
See
Data input bus addressed by ADDR.
Configurati
on Table.
1
Read Enable
1
Asynchronous reset.
1
Write Enable
Port Configuration
This unimacro is a parameterizable version of the primitive, and can be instantiated only. Use this table to correctly configure the unimacro to meet design needs.
DATA_WIDTH 72 - 37 36 - 19
18 - 10
9-5
1-4
36Kb 36Kb 18Kb 36Kb 18Kb 36Kb 18Kb 36Kb 18Kb
FIFO_SIZE
WRCOUNT 9 10 9 11 10 12 11 13 12
RDCOUNT 9 10 9 11 10 12 11 13 12
Design Entry Method
This unimacro is a parameterizable version of the primitive, and can be instantiated only. Consult the Port Configuration section to correctly configure this element to meet your design needs.
Instantiation Inference IP Catalog Macro support
Yes No No Recommended
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 247
Chapter 3: Unimacros
Available Attributes
Attribute ALMOST_EMPTY _OFFSET ALMOST_FULL _OFFSET DATA_WIDTH DEVICE DO_REG
FIFO_SIZE
Type HEX HEX INTEGER STRING BINARY
STRING
Allowed Values Default
Description
13 bit HEX
All zeros
Setting determines the difference between EMPTY and ALMOSTEMPTY conditions. Must be set using hexadecimal notation.
13 bit HEX
All zeros
Setting determines the difference between FULL and ALMOSTFULL conditions. Must be set using hexadecimal notation.
1 - 72
4
Width of DI/DO bus.
"7SERIES"
"7SERIES" Target hardware architecture.
0,1
1
DO_REG must be set to 0 for flags and data to follow
a standard synchronous FIFO operation.
When DO_REG is set to 1, effectively a pipeline register is added to the output of the synchronous FIFO. Data then has a one clock cycle latency. However, the clock-to-out timing is improved.
"18Kb", "36Kb" "18Kb"
Configures FIFO as "18Kb" or "36Kb" memory.
VHDL Instantiation Template Unless they already exist, copy the following four statements and paste them before the entity declaration.
Library UNISIM; use UNISIM.vcomponents.all; library UNIMACRO; use unimacro.Vcomponents.all;
-- FIFO_SYNC_MACRO: Synchronous First-In, First-Out (FIFO) RAM Buffer
--
7 Series
-- Xilinx HDL Language Template, version 2019.1
-- Note - This Unimacro model assumes the port directions to be "downto".
--
Simulation of this model with "to" in the port directions could lead to erroneous results.
-----------------------------------------------------------------
-- DATA_WIDTH | FIFO_SIZE | FIFO Depth | RDCOUNT/WRCOUNT Width --
-- ===========|===========|============|=======================--
-- 37-72 | "36Kb" |
512 |
9-bit
--
-- 19-36 | "36Kb" | 1024 |
10-bit
--
-- 19-36 | "18Kb" |
512 |
9-bit
--
-- 10-18 | "36Kb" | 2048 |
11-bit
--
-- 10-18 | "18Kb" | 1024 |
10-bit
--
-- 5-9
| "36Kb" | 4096 |
12-bit
--
-- 5-9
| "18Kb" | 2048 |
11-bit
--
-- 1-4
| "36Kb" | 8192 |
13-bit
--
-- 1-4
| "18Kb" | 4096 |
12-bit
--
-----------------------------------------------------------------
FIFO_SYNC_MACRO_inst : FIFO_SYNC_MACRO
generic map (
DEVICE => "7SERIES",
-- Target Device: "VIRTEX5, "VIRTEX6", "7SERIES"
ALMOST_FULL_OFFSET => X"0080", -- Sets almost full threshold
ALMOST_EMPTY_OFFSET => X"0080", -- Sets the almost empty threshold
DATA_WIDTH => 0, -- Valid values are 1-72 (37-72 only valid when FIFO_SIZE="36Kb")
FIFO_SIZE => "18Kb")
-- Target BRAM, "18Kb" or "36Kb"
port map (
ALMOSTEMPTY => ALMOSTEMPTY, -- 1-bit output almost empty
ALMOSTFULL => ALMOSTFULL,
-- 1-bit output almost full
DO => DO,
-- Output data, width defined by DATA_WIDTH parameter
EMPTY => EMPTY,
-- 1-bit output empty
FULL => FULL,
-- 1-bit output full
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 248
Chapter 3: Unimacros
RDCOUNT => RDCOUNT,
-- Output read count, width determined by FIFO depth
RDERR => RDERR,
-- 1-bit output read error
WRCOUNT => WRCOUNT,
-- Output write count, width determined by FIFO depth
WRERR => WRERR,
-- 1-bit output write error
CLK => CLK,
-- 1-bit input clock
DI => DI,
-- Input data, width defined by DATA_WIDTH parameter
RDEN => RDEN,
-- 1-bit input read enable
RST => RST,
-- 1-bit input reset
WREN => WREN
-- 1-bit input write enable
);
-- End of FIFO_SYNC_MACRO_inst instantiation
Verilog Instantiation Template
// FIFO_SYNC_MACRO: Synchronous First-In, First-Out (FIFO) RAM Buffer
//
7 Series
// Xilinx HDL Language Template, version 2019.1
/////////////////////////////////////////////////////////////////
// DATA_WIDTH | FIFO_SIZE | FIFO Depth | RDCOUNT/WRCOUNT Width //
// ===========|===========|============|=======================//
// 37-72 | "36Kb" |
512 |
9-bit
//
// 19-36 | "36Kb" | 1024 |
10-bit
//
// 19-36 | "18Kb" |
512 |
9-bit
//
// 10-18 | "36Kb" | 2048 |
11-bit
//
// 10-18 | "18Kb" | 1024 |
10-bit
//
// 5-9
| "36Kb" | 4096 |
12-bit
//
// 5-9
| "18Kb" | 2048 |
11-bit
//
// 1-4
| "36Kb" | 8192 |
13-bit
//
// 1-4
| "18Kb" | 4096 |
12-bit
//
/////////////////////////////////////////////////////////////////
FIFO_SYNC_MACRO #(
.DEVICE("7SERIES"), // Target Device: "7SERIES"
.ALMOST_EMPTY_OFFSET(9'h080), // Sets the almost empty threshold
.ALMOST_FULL_OFFSET(9'h080), // Sets almost full threshold
.DATA_WIDTH(0), // Valid values are 1-72 (37-72 only valid when FIFO_SIZE="36Kb")
.DO_REG(0),
// Optional output register (0 or 1)
.FIFO_SIZE ("18Kb") // Target BRAM: "18Kb" or "36Kb"
) FIFO_SYNC_MACRO_inst (
.ALMOSTEMPTY(ALMOSTEMPTY), // 1-bit output almost empty
.ALMOSTFULL(ALMOSTFULL), // 1-bit output almost full
.DO(DO),
// Output data, width defined by DATA_WIDTH parameter
.EMPTY(EMPTY),
// 1-bit output empty
.FULL(FULL),
// 1-bit output full
.RDCOUNT(RDCOUNT),
// Output read count, width determined by FIFO depth
.RDERR(RDERR),
// 1-bit output read error
.WRCOUNT(WRCOUNT),
// Output write count, width determined by FIFO depth
.WRERR(WRERR),
// 1-bit output write error
.CLK(CLK),
// 1-bit input clock
.DI(DI),
// Input data, width defined by DATA_WIDTH parameter
.RDEN(RDEN),
// 1-bit input read enable
.RST(RST),
// 1-bit input reset
.WREN(WREN)
// 1-bit input write enable
);
// End of FIFO_SYNC_MACRO_inst instantiation
For More Information � See the 7 Series Programmable Devices User Guides.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 249
Chapter 4: Functional Categories
Chapter 4
Functional Categories
This section categorizes, by function, the circuit design elements described in detail later in this guide. The elements (primitives and macros) are listed in alphanumeric order under each functional category.
Advanced Arithmetic Functions Clock Components
Config/BSCAN Components I/O Components RAM/ROM
Registers/Latches Slice/CLB Primitives
Advanced
Design Element GTPE2_CHANNEL GTPE2_COMMON GTHE2_CHANNEL GTHE2_COMMON GTXE2_CHANNEL GTXE2_COMMON XADC
Description Primitive: Gigabit Transceiver for 7 Series Devices Primitive: Gigabit Transceiver for 7 Series Devices Primitive: Gigabit Transceiver for 7 Series Devices Primitive: Gigabit Transceiver for 7 Series Devices Primitive: Gigabit Transceiver for 7 Series Devices Primitive: Gigabit Transceiver for 7 Series Devices Primitive: Dual 12-Bit 1MSPS Analog-to-Digital Converter
Arithmetic Functions
Design Element DSP48E1
Description Primitive: 48-bit Multi-Functional Arithmetic Block
Clock Components
Design Element BUFG BUFGCE BUFGCE_1 BUFGCTRL BUFGMUX BUFGMUX_1 BUFGMUX_CTRL BUFH
Description Primitive: Global Clock Simple Buffer Primitive: Global Clock Buffer with Clock Enable Primitive: Global Clock Buffer with Clock Enable and Output State 1 Primitive: Global Clock Control Buffer Primitive: Global Clock Mux Buffer Primitive: Global Clock Mux Buffer with Output State 1 Primitive: 2-to-1 Global Clock MUX Buffer Primitive: HROW Clock Buffer for a Single Clocking Region
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 250
Chapter 4: Functional Categories
Design Element BUFHCE BUFIO BUFMR BUFMRCE BUFR MMCME2_ADV MMCME2_BASE PLLE2_ADV PLLE2_BASE
Description Primitive: HROW Clock Buffer for a Single Clocking Region with Clock Enable Primitive: Local Clock Buffer for I/O Primitive: Multi-Region Clock Buffer Primitive: Multi-Region Clock Buffer with Clock Enable Primitive: Regional Clock Buffer for I/O and Logic Resources within a Clock Region Primitive: Advanced Mixed Mode Clock Manager Primitive: Base Mixed Mode Clock Manager Primitive: Advanced Phase Locked Loop (PLL) Primitive: Base Phase Locked Loop (PLL)
Config/BSCAN Components
Design Element BSCANE2 CAPTUREE2 DNA_PORT EFUSE_USR FRAME_ECCE2 ICAPE2 STARTUPE2 USR_ACCESSE2
Description Primitive: Boundary-Scan User Instruction Primitive: Register Capture Primitive: Device DNA Access Port Primitive: 32-bit non-volatile design ID Primitive: Configuration Frame Error Correction Primitive: Internal Configuration Access Port Primitive: STARTUP Block Primitive: Configuration Data Access
I/O Components
Design Element
Description
DCIRESET
Primitive: Digitally Controlled Impedance Reset Component
IBUF
Primitive: Input Buffer
IBUF_IBUFDISABLE
Primitive: Single-ended Input Buffer with Input Disable
IBUF_INTERMDISABLE
Primitive: Single-ended Input Buffer with Input Termination Disable and Input Disable
IBUFDS
Primitive: Differential Signaling Input Buffer
IBUFDS_DIFF_OUT
Primitive: Differential Signaling Input Buffer With Differential Output
IBUFDS_DIFF_OUT _IBUFDISABLE
Primitive: Input Differential Buffer with Input Disable and Differential Output
IBUFDS_DIFF_OUT _INTERMDISABLE Primitive: Input Differential Buffer with Input Termination Disable, Input Disable, and Differential Output
IBUFDS_IBUFDISABLE
Primitive: Input Differential Buffer with Input Path Disable
IBUFDS_INTERMDISABLE
Primitive: Input Differential Buffer with Input Termination Disable and Input Disable
IBUFDS_GTE2
Primitive: Gigabit Transceiver Buffer
IDELAYCTRL
Primitive: IDELAYE2/ODELAYE2 Tap Delay Value Control
IDELAYE2
Primitive: Input Fixed or Variable Delay Element
IN_FIFO
Primitive: Input First-In, First-Out (FIFO)
IOBUF
Primitive: Bi-Directional Buffer
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 251
Chapter 4: Functional Categories
Design Element IOBUF_DCIEN IOBUF_INTERMDISABLE
IOBUFDS IOBUFDS_DCIEN
IOBUFDS_DIFF_OUT IOBUFDS_DIFF_OUT_DCIEN
IOBUFDS_DIFF_OUT _INTERMDISABLE IOBUFDS_INTERMDISABLE
ISERDESE2 KEEPER OBUF OBUFDS OBUFT OBUFTDS
ODELAYE2 OSERDESE2 OUT_FIFO PHASER_IN PHASER_IN_PHY PHASER_OUT PHASER_OUT_PHY PHASER_REF PHY_CONTROL PULLDOWN PULLUP
RAM/ROM
Design Element FIFO18E1 FIFO36E1 RAM128X1D RAM128X1S RAM256X1S RAM32M RAM32X1D RAM32X1S
Description Primitive: Bi-Directional Single-ended Buffer with DCI and Input Disable. Primitive: Bi-Directional Single-ended Buffer with Input Termination Disable and Input Path Disable Primitive: 3-State Differential Signaling I/O Buffer with Active-Low Output Enable Primitive: Bi-Directional Differential Buffer with DCI Enable/Disable and Input Disable Primitive: Differential Bi-directional Buffer with Differential Output Primitive: Bi-Directional Differential Buffer with DCI Disable, Input Disable, and Differential Output Primitive: Bi-Directional Differential Buffer with Input Termination Disable, Input Disable, and Differential Output Primitive: Bi-Directional Differential Buffer with Input Termination Disable and Input Disable Primitive: Input SERial/DESerializer with Bitslip Primitive: KEEPER Symbol Primitive: Output Buffer Primitive: Differential Signaling Output Buffer Primitive: 3-State Output Buffer with Active-Low Output Enable Primitive: 3-State Output Buffer with Differential Signaling, Active-Low Output Enable Primitive: Output Fixed or Variable Delay Element Primitive: Output SERial/DESerializer with bitslip Primitive: Output First-In, First-Out (FIFO) Buffer Primitive: MIG Data Alignment and Capture Component Primitive: MIG Data Alignment and Capture Component Primitive: MIG Data Alignment and Capture Component Primitive: MIG Data Alignment and Capture Component Primitive: MIG Data Alignment and Capture Component Primitive: MIG Data Alignment and Capture Component Primitive: Resistor to GND for Input Pads, Open-Drain, and 3-State Outputs Primitive: Resistor to VCC for Input PADs, Open-Drain, and 3-State Outputs
Description Primitive: 18Kb FIFO (First-In-First-Out) Block RAM Memory Primitive: 36Kb FIFO (First-In-First-Out) Block RAM Memory Primitive: 128-Deep by 1-Wide Dual Port Random Access Memory (Select RAM) Primitive: 128-Deep by 1-Wide Random Access Memory (Select RAM) Primitive: 256-Deep by 1-Wide Random Access Memory (Select RAM) Primitive: 32-Deep by 8-bit Wide Multi Port Random Access Memory (Select RAM) Primitive: 32-Deep by 1-Wide Static Dual Port Synchronous RAM Primitive: 32-Deep by 1-Wide Static Synchronous RAM
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 252
Chapter 4: Functional Categories
Design Element RAM32X1S_1 RAM32X2S RAM64M RAM64X1D RAM64X1S RAM64X1S_1 RAMB18E1 RAMB36E1 ROM128X1 ROM256X1 ROM32X1 ROM64X1
Registers/Latches
Design Element FDCE FDPE FDRE FDSE IDDR IDDR_2CLK LDCE LDPE ODDR
Slice/CLB Primitives
Design Element CARRY4 CFGLUT5 LUT1 LUT2 LUT3 LUT4 LUT5 LUT6 LUT6_2 MUXF7 MUXF8 SRL16E
Description Primitive: 32-Deep by 1-Wide Static Synchronous RAM with Negative-Edge Clock Primitive: 32-Deep by 2-Wide Static Synchronous RAM Primitive: 64-Deep by 4-bit Wide Multi Port Random Access Memory (Select RAM) Primitive: 64-Deep by 1-Wide Dual Port Static Synchronous RAM Primitive: 64-Deep by 1-Wide Static Synchronous RAM Primitive: 64-Deep by 1-Wide Static Synchronous RAM with Negative-Edge Clock Primitive: 18K-bit Configurable Synchronous Block RAM Primitive: 36K-bit Configurable Synchronous Block RAM Primitive: 128-Deep by 1-Wide ROM Primitive: 256-Deep by 1-Wide ROM Primitive: 32-Deep by 1-Wide ROM Primitive: 64-Deep by 1-Wide ROM
Description Primitive: D Flip-Flop with Clock Enable and Asynchronous Clear Primitive: D Flip-Flop with Clock Enable and Asynchronous Preset Primitive: D Flip-Flop with Clock Enable and Synchronous Reset Primitive: D Flip-Flop with Clock Enable and Synchronous Set Primitive: Input Double Data-Rate Register Primitive: Input Double Data-Rate Register with Dual Clock Inputs Primitive: Transparent Data Latch with Asynchronous Clear and Gate Enable Primitive: Transparent Data Latch with Asynchronous Preset and Gate Enable Primitive: Dedicated Double Data Rate (DDR) Output Register
Description Primitive: Fast Carry Logic with Look Ahead Primitive: 5-input Dynamically Reconfigurable Look-Up Table (LUT) Primitive: 1-Bit Look-Up Table with General Output Primitive: 2-Bit Look-Up Table with General Output Primitive: 3-Bit Look-Up Table with General Output Primitive: 4-Bit Look-Up-Table with General Output Primitive: 5-Input Lookup Table with General Output Primitive: 6-Input Lookup Table with General Output Primitive: Six-input, 2-output, Look-Up Table Primitive: 2-to-1 Look-Up Table Multiplexer with General Output Primitive: 2-to-1 Look-Up Table Multiplexer with General Output Primitive: 16-Bit Shift Register Look-Up Table (LUT) with Clock Enable
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 253
Chapter 4: Functional Categories
Design Element SRLC32E
Description
Primitive: 32 Clock Cycle, Variable Length Shift Register Look-Up Table (LUT) with Clock Enable
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 254
Chapter 5
Design Elements
About Design Elements This section describes the design elements that can be used with 7 series FPGAs and Zynq�-7000 SoC devices devices. The design elements are organized alphabetically. The following information is provided for each design element, where applicable: � Name of element � Brief description � Schematic symbol (if any) � Logic table (if any) � Port descriptions � Design Entry Method � Available attributes (if any) � Example instantiation templates � For more information
Instantiation Templates Instantiation templates for library elements are also available in Vivado, as well as in a downloadable ZIP file. Because PDF includes headers and footers if you copy text that spans pages, you should copy templates from Vivado or the downloaded ZIP file whenever possible. Instantiation templates can be found on the Web in the Instantiation Templates for 7 Series Devices file.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 255
Chapter 5: Design Elements
BSCANE2
Primitive: Boundary-Scan User Instruction
BSCANE2
TDO
CAPTURE
DRCK
RESET
RUNTEST
SEL
SHIFT
TCK
TDI
TMS
UPDATE
X12097
Introduction
This design element allows access to and from internal logic by the JTAG Boundary Scan logic controller. This allows for communication between the internal running design and the dedicated JTAG pins of the FPGA. Each instance of this design element will handle one JTAG USER instruction (USER1 through USER4) as set with the JTAG_CHAIN attribute.
To handle all four USER instructions, instantiate four of these elements and set the JTAG_CHAIN attribute appropriately.
For specific information on boundary scan for an architecture, see the Configuration User Guide for the specific device.
Port Descriptions
CAPTURE DRCK
Port
RESET RUNTEST
SEL SHIFT TCK TDI
Type Output Output
Output Output
Output Output Output Output
Width 1 1
1 1
1 1 1 1
Function
CAPTURE output from TAP controller. Gated TCK output. When SEL is asserted, DRCK toggles when CAPTURE or SHIFT are asserted. Reset output for TAP controller. Output asserted when TAP controller is in Run Test/Idle state. USER instruction active output. SHIFT output from TAP controller. Test Clock output. Fabric connection to TAP Clock pin. Test Data Input (TDI) output from TAP controller.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 256
Chapter 5: Design Elements
TDO TMS UPDATE
Port
Type Input Output Output
Width 1 1 1
Function Test Data Output (TDO) input for USER function. Test Mode Select output. Fabric connection to TAP. UPDATE output from TAP controller
Design Entry Method
Instantiation Inference IP Catalog Macro support
Recommended No No No
Available Attributes
Attribute JTAG_CHAIN
Type DECIMAL
Allowed Values 1, 2, 3, 4
Default 1
Description Value for USER command.
VHDL Instantiation Template Unless they already exist, copy the following two statements and paste them before the entity declaration.
Library UNISIM; use UNISIM.vcomponents.all;
-- BSCANE2: Boundary-Scan User Instruction
--
7 Series
-- Xilinx HDL Language Template, version 2019.1
BSCANE2_inst : BSCANE2
generic map (
JTAG_CHAIN => 1 -- Value for USER command.
)
port map (
CAPTURE => CAPTURE, -- 1-bit output: CAPTURE output from TAP controller.
DRCK => DRCK,
-- 1-bit output: Gated TCK output. When SEL is asserted, DRCK toggles when CAPTURE or
-- SHIFT are asserted.
RESET => RESET,
-- 1-bit output: Reset output for TAP controller.
RUNTEST => RUNTEST, -- 1-bit output: Output asserted when TAP controller is in Run Test/Idle state.
SEL => SEL,
-- 1-bit output: USER instruction active output.
SHIFT => SHIFT,
-- 1-bit output: SHIFT output from TAP controller.
TCK => TCK,
-- 1-bit output: Test Clock output. Fabric connection to TAP Clock pin.
TDI => TDI,
-- 1-bit output: Test Data Input (TDI) output from TAP controller.
TMS => TMS,
-- 1-bit output: Test Mode Select output. Fabric connection to TAP.
UPDATE => UPDATE, -- 1-bit output: UPDATE output from TAP controller
TDO => TDO
-- 1-bit input: Test Data Output (TDO) input for USER function.
);
-- End of BSCANE2_inst instantiation
Verilog Instantiation Template
// BSCANE2: Boundary-Scan User Instruction
//
7 Series
// Xilinx HDL Language Template, version 2019.1
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 257
Chapter 5: Design Elements
BSCANE2 #(
.JTAG_CHAIN(1) // Value for USER command.
)
BSCANE2_inst (
.CAPTURE(CAPTURE), // 1-bit output: CAPTURE output from TAP controller.
.DRCK(DRCK),
// 1-bit output: Gated TCK output. When SEL is asserted, DRCK toggles when CAPTURE or
// SHIFT are asserted.
.RESET(RESET),
// 1-bit output: Reset output for TAP controller.
.RUNTEST(RUNTEST), // 1-bit output: Output asserted when TAP controller is in Run Test/Idle state.
.SEL(SEL),
// 1-bit output: USER instruction active output.
.SHIFT(SHIFT),
// 1-bit output: SHIFT output from TAP controller.
.TCK(TCK),
// 1-bit output: Test Clock output. Fabric connection to TAP Clock pin.
.TDI(TDI),
// 1-bit output: Test Data Input (TDI) output from TAP controller.
.TMS(TMS),
// 1-bit output: Test Mode Select output. Fabric connection to TAP.
.UPDATE(UPDATE), // 1-bit output: UPDATE output from TAP controller
.TDO(TDO)
// 1-bit input: Test Data Output (TDO) input for USER function.
);
// End of BSCANE2_inst instantiation
For More Information � See the 7 Series Programmable Devices User Guides.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 258
Chapter 5: Design Elements
BUFG
Primitive: Global Clock Simple Buffer
BUFG
I
O
X10654
Introduction
This design element is a high-fanout buffer that connects signals to the global routing resources for low skew distribution of the signal. BUFGs are typically used on clock nets as well other high fanout nets like sets/resets and clock enables.
Port Descriptions
Port I O
Direction Input Output
Width 1 1
Clock input Clock output
Function
Design Entry Method
Instantiation Inference IP Catalog Macro support
Yes Recommended No No
VHDL Instantiation Template Unless they already exist, copy the following two statements and paste them before the entity declaration.
Library UNISIM; use UNISIM.vcomponents.all;
-- BUFG: Global Clock Simple Buffer
--
7 Series
-- Xilinx HDL Language Template, version 2019.1
BUFG_inst : BUFG port map (
O => O, -- 1-bit output: Clock output I => I -- 1-bit input: Clock input );
-- End of BUFG_inst instantiation
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 259
Verilog Instantiation Template
// BUFG: Global Clock Simple Buffer
//
7 Series
// Xilinx HDL Language Template, version 2019.1
BUFG BUFG_inst ( .O(O), // 1-bit output: Clock output .I(I) // 1-bit input: Clock input
);
// End of BUFG_inst instantiation
For More Information � See the 7 Series Programmable Devices User Guides.
Chapter 5: Design Elements
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 260
Chapter 5: Design Elements
BUFGCE
Primitive: Global Clock Buffer with Clock Enable
BUFGCE CE
I
O
X9384
Introduction
This design element is a global clock buffer with a single gated input. Its O output is "0" when clock enable (CE) is Low (inactive). When clock enable (CE) is High, the I input is transferred to the O output.
Logic Table
I X I
Inputs CE
0 1
Outputs O
0 I
Port Descriptions
Port CE I O
Direction Input Input Output
Width 1 1 1
Function Clock buffer active high enable Clock input Clock output
Design Entry Method
Instantiation Inference IP Catalog Macro support
Recommended No No No
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 261
Chapter 5: Design Elements
VHDL Instantiation Template Unless they already exist, copy the following two statements and paste them before the entity declaration.
Library UNISIM; use UNISIM.vcomponents.all;
-- BUFGCE: Global Clock Buffer with Clock Enable
--
7 Series
-- Xilinx HDL Language Template, version 2019.1
BUFGCE_inst : BUFGCE port map (
O => O, -- 1-bit output: Clock output CE => CE, -- 1-bit input: Clock enable input for I0 I => I -- 1-bit input: Primary clock );
-- End of BUFGCE_inst instantiation
Verilog Instantiation Template
// BUFGCE: Global Clock Buffer with Clock Enable
//
7 Series
// Xilinx HDL Language Template, version 2019.1
BUFGCE BUFGCE_inst ( .O(O), // 1-bit output: Clock output .CE(CE), // 1-bit input: Clock enable input for I0 .I(I) // 1-bit input: Primary clock
);
// End of BUFGCE_inst instantiation
For More Information � See the 7 Series Programmable Devices User Guides.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 262
Chapter 5: Design Elements
BUFGCE_1
Primitive: Global Clock Buffer with Clock Enable and Output State 1
BUFGCE_1 CE
I
O
X9385
Introduction
This design element is a global clock buffer with a single gated input. Its O output is "1" when clock enable (CE) is Low (inactive). When clock enable (CE) is High, the I input is transferred to the O output.
Logic Table
I X I
Inputs CE
0 1
Outputs O
1 I
Port Descriptions
Port CE I O
Direction Input Input Output
Width 1 1 1
Function Clock buffer active high enable Clock input Clock output
Design Entry Method
Instantiation Inference IP Catalog Macro support
Recommended No No No
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 263
Chapter 5: Design Elements
VHDL Instantiation Template Unless they already exist, copy the following two statements and paste them before the entity declaration.
Library UNISIM; use UNISIM.vcomponents.all;
-- BUFGCE_1: Global Clock Buffer with Clock Enable and Output State 1
--
7 Series
-- Xilinx HDL Language Template, version 2019.1
BUFGCE_1_inst : BUFGCE_1 port map (
O => O, -- 1-bit output: Clock output CE => CE, -- 1-bit input: Clock enable input for I0 I => I -- 1-bit input: Primary clock );
-- End of BUFGCE_1_inst instantiation
Verilog Instantiation Template
// BUFGCE_1: Global Clock Buffer with Clock Enable and Output State 1
//
7 Series
// Xilinx HDL Language Template, version 2019.1
BUFGCE_1 BUFGCE_1_inst ( .O(O), // 1-bit output: Clock output .CE(CE), // 1-bit input: Clock enable input for I0 .I(I) // 1-bit input: Primary clock
);
// End of BUFGCE_1_inst instantiation
For More Information � See the 7 Series Programmable Devices User Guides.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 264
Chapter 5: Design Elements
BUFGCTRL
Primitive: Global Clock Control Buffer
BUFGCTRL
I0
O
I1
S0
S1
CE0
CE1
IGNORE0
IGNORE1
X10096
Introduction
BUFGCTRL primitive is a 7 series global clock buffer that is designed as a synchronous/ asynchronous "glitch free" 2:1 multiplexer with two clock inputs. Unlike global clock buffers that are found in previous generations of FPGAs, these clock buffers are designed with more control pins to provide a wider range of functionality and more robust input switching. BUFGCTRL is not limited to clocking applications.
Port Descriptions
Port CE0
CE1
IGNORE0
Direction Input
Input
Input
Width 1
1
1
Function
Clock enable input for the I0 clock input. A setup/hold time must be guarenteed when you are using the CE0 pin to enable this input. Failure to meet this requirement could result in a clock glitch.
Clock enable input for the I1 clock input. A setup/hold time must be guarenteed when you are using the CE1 pin to enable this input. Failure to meet this requirement could result in a clock glitch.
Clock ignore input for I0 input. Asserting the IGNORE pin will bypass the BUFGCTRL from detecting the conditions for switching between two clock inputs. In other words, asserting IGNORE causes the MUX to switch the inputs at the instant the select pin changes. IGNORE0 causes the output to switch away from the I0 input immediately when the select pin changes, while IGNORE1 causes the output to switch away from the I1 input immediately when the select pin changes.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 265
Chapter 5: Design Elements
IGNORE1
Port
I0 I1 O S0
S1
Direction Input
Input Input Output Input
Input
Width 1
1 1 1 1
1
Function
Clock ignore input for I1 input. Asserting the IGNORE pin will bypass the BUFGCTRL from detecting the conditions for switching between two clock inputs. In other words, asserting IGNORE causes the MUX to switch the inputs at the instant the select pin changes. IGNORE0 causes the output to switch away from the I0 input immediately when the select pin changes, while IGNORE1 causes the output to switch away from the I1 input immediately when the select pin changes.
Primary clock input into the BUFGCTRL enabled by the CE0 input and selected by the S0 input.
Secondary clock input into the BUFGCTRL enabled by the CE1 input and selected by the S1 input.
Clock output
Clock select input for I0. The S pins represent the clock select pin for each clock input. When using the S pin as input select, there is a setup/hold time requirement. Unlike CE pins, failure to meet this requirement will not result in a clock glitch. However, it can cause the output clock to appear one clock cycle later.
Clock select input for I1. The S pins represent the clock select pin for each clock input. When using the S pin as input select, there is a setup/hold time requirement. Unlike CE pins, failure to meet this requirement will not result in a clock glitch. However, it can cause the output clock to appear one clock cycle later.
Design Entry Method
Instantiation Inference IP Catalog Macro support
Recommended No No No
Available Attributes
Attribute INIT_OUT PRESELECT_I0 PRESELECT_I1
Type DECIMAL BOOLEAN BOOLEAN
Allowed Values Default
0, 1
0
FALSE, TRUE
FALSE
FALSE, TRUE
FALSE
Description
Initializes the BUFGCTRL output to the specified value after configuration.
If TRUE, BUFGCTRL output uses I0 input after configuration.
If TRUE, BUFGCTRL output uses I1 input after configuration.
Note: Both PRESELECT attributes might not be TRUE at the same time.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 266
Chapter 5: Design Elements
VHDL Instantiation Template Unless they already exist, copy the following two statements and paste them before the entity declaration.
Library UNISIM; use UNISIM.vcomponents.all;
-- BUFGCTRL: Global Clock Control Buffer
--
7 Series
-- Xilinx HDL Language Template, version 2019.1
BUFGCTRL_inst : BUFGCTRL
generic map (
INIT_OUT => 0,
-- Initial value of BUFGCTRL output ($VALUES;)
PRESELECT_I0 => FALSE, -- BUFGCTRL output uses I0 input ($VALUES;)
PRESELECT_I1 => FALSE -- BUFGCTRL output uses I1 input ($VALUES;)
)
port map (
O => O,
-- 1-bit output: Clock output
CE0 => CE0,
-- 1-bit input: Clock enable input for I0
CE1 => CE1,
-- 1-bit input: Clock enable input for I1
I0 => I0,
-- 1-bit input: Primary clock
I1 => I1,
-- 1-bit input: Secondary clock
IGNORE0 => IGNORE0, -- 1-bit input: Clock ignore input for I0
IGNORE1 => IGNORE1, -- 1-bit input: Clock ignore input for I1
S0 => S0,
-- 1-bit input: Clock select for I0
S1 => S1
-- 1-bit input: Clock select for I1
);
-- End of BUFGCTRL_inst instantiation
Verilog Instantiation Template
// BUFGCTRL: Global Clock Control Buffer
//
7 Series
// Xilinx HDL Language Template, version 2019.1
BUFGCTRL #(
.INIT_OUT(0),
// Initial value of BUFGCTRL output ($VALUES;)
.PRESELECT_I0("FALSE"), // BUFGCTRL output uses I0 input ($VALUES;)
.PRESELECT_I1("FALSE") // BUFGCTRL output uses I1 input ($VALUES;)
)
BUFGCTRL_inst (
.O(O),
// 1-bit output: Clock output
.CE0(CE0),
// 1-bit input: Clock enable input for I0
.CE1(CE1),
// 1-bit input: Clock enable input for I1
.I0(I0),
// 1-bit input: Primary clock
.I1(I1),
// 1-bit input: Secondary clock
.IGNORE0(IGNORE0), // 1-bit input: Clock ignore input for I0
.IGNORE1(IGNORE1), // 1-bit input: Clock ignore input for I1
.S0(S0),
// 1-bit input: Clock select for I0
.S1(S1)
// 1-bit input: Clock select for I1
);
// End of BUFGCTRL_inst instantiation
For More Information � See the 7 Series Programmable Devices User Guides.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 267
Chapter 5: Design Elements
BUFGMUX
Primitive: Global Clock Mux Buffer
BUFGMUX
I0
O
I1
S
X9251
Introduction
This design element is a global clock buffer, based on BUFGCTRL, that can select between two input clocks: I0 and I1. When the select input (S) is Low, the signal on I0 is selected for output (O). When the select input (S) is High, the signal on I1 is selected for output. BUFGMUX and BUFGMUX_1 are distinguished by the state the output assumes when it switches between clocks in response to a change in the select input. BUFGMUX assumes output state 0 and BUFGMUX_1 assumes output state 1.
Logic Table
I0 I0 X X X
Inputs
I1
S
X
0
I1
1
X
X
Outputs O
I0 I1 0 0
Port Descriptions
Port I0
I1
O S
Direction Input
Input
Output Input
Width 1
1
1 1
Function
Clock buffer input. This input is reflected on the output O when the S input is zero.
Clock buffer input. This input is reflected on the output O when the S input is one.
Clock buffer output.
Clock buffer select input. Selects the I0 input when Low and the I1 input when High.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 268
Chapter 5: Design Elements
Design Entry Method
Instantiation Inference IP Catalog Macro support
Recommended No No No
VHDL Instantiation Template Unless they already exist, copy the following two statements and paste them before the entity declaration.
Library UNISIM; use UNISIM.vcomponents.all;
-- BUFGMUX: Global Clock Mux Buffer
--
7 Series
-- Xilinx HDL Language Template, version 2019.1
BUFGMUX_inst : BUFGMUX port map (
O => O, -- 1-bit output: Clock output I0 => I0, -- 1-bit input: Clock input (S=0) I1 => I1, -- 1-bit input: Clock input (S=1) S => S -- 1-bit input: Clock select );
-- End of BUFGMUX_inst instantiation
Verilog Instantiation Template
// BUFGMUX: Global Clock Mux Buffer
//
7 Series
// Xilinx HDL Language Template, version 2019.1
BUFGMUX #( ) BUFGMUX_inst (
.O(O), // 1-bit output: Clock output .I0(I0), // 1-bit input: Clock input (S=0) .I1(I1), // 1-bit input: Clock input (S=1) .S(S) // 1-bit input: Clock select );
// End of BUFGMUX_inst instantiation
For More Information � See the 7 Series Programmable Devices User Guides.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 269
Chapter 5: Design Elements
BUFGMUX_1
Primitive: Global Clock Mux Buffer with Output State 1
BUFGMUX_1
I0
O
I1
S
X9252
Introduction
This design element is a global clock buffer, based on BUFGCTRL, that can select between two input clocks: I0 and I1. When the select input (S) is Low, the signal on I0 is selected for output (O). When the select input (S) is High, the signal on I1 is selected for output. BUFGMUX and BUFGMUX_1 are distinguished by the state the output assumes when it switches between clocks in response to a change in the select input. BUFGMUX assumes output state 0 and BUFGMUX_1 assumes output state 1.
Logic Table
I0 I0 X X X
Inputs
I1
S
X
0
I1
1
X
X
Outputs O
I0 I1 1 1
Design Entry Method
Instantiation Inference IP Catalog Macro support
Recommended No No No
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 270
Chapter 5: Design Elements
VHDL Instantiation Template Unless they already exist, copy the following two statements and paste them before the entity declaration.
Library UNISIM; use UNISIM.vcomponents.all;
-- BUFGMUX_1: Global Clock Mux Buffer with Output State 1
--
7 Series
-- Xilinx HDL Language Template, version 2019.1
BUFGMUX_1_inst : BUFGMUX_1 port map (
O => O, -- 1-bit output: Clock output I0 => I0, -- 1-bit input: Clock input (S=0) I1 => I1, -- 1-bit input: Clock input (S=1) S => S -- 1-bit input: Clock select );
-- End of BUFGMUX_1_inst instantiation
Verilog Instantiation Template
// BUFGMUX_1: Global Clock Mux Buffer with Output State 1
//
7 Series
// Xilinx HDL Language Template, version 2019.1
BUFGMUX_1 #( ) BUFGMUX_1_inst (
.O(O), // 1-bit output: Clock output .I0(I0), // 1-bit input: Clock input (S=0) .I1(I1), // 1-bit input: Clock input (S=1) .S(S) // 1-bit input: Clock select );
// End of BUFGMUX_1_inst instantiation
For More Information � See the 7 Series Programmable Devices User Guides.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 271
Chapter 5: Design Elements
BUFGMUX_CTRL
Primitive: 2-to-1 Global Clock MUX Buffer
BUFGMUX_CTRL
I0
O
I1
S
X10478
Introduction
This design element is a global clock buffer with two clock inputs, one clock output, and a select line used to cleanly select between one of two clocks driving the global clocking resource. This component is based on BUFGCTRL, with some pins connected to logic High or Low. This element uses the S pin as the select pin for the 2-to-1 MUX. S can switch anytime without causing a glitch on the output clock of the buffer.
Port Descriptions
Port I0
I1
O S
Direction Input
Input
Output Input
Width 1
1
1 1
Function
Clock buffer input. This input is reflected on the output O when the S input is zero.
Clock buffer input. This input is reflected on the output O when the S input is one.
Clock buffer output.
Clock buffer select input. When low, selects I0 input and when high, the I1 input is selected.
Design Entry Method
Instantiation Inference IP Catalog Macro support
Recommended No No No
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 272
Chapter 5: Design Elements
VHDL Instantiation Template Unless they already exist, copy the following two statements and paste them before the entity declaration.
Library UNISIM; use UNISIM.vcomponents.all;
-- BUFGMUX_CTRL: 2-to-1 Global Clock MUX Buffer
--
7 Series
-- Xilinx HDL Language Template, version 2019.1
BUFGMUX_CTRL_inst : BUFGMUX_CTRL port map (
O => O, -- 1-bit output: Clock output I0 => I0, -- 1-bit input: Clock input (S=0) I1 => I1, -- 1-bit input: Clock input (S=1) S => S -- 1-bit input: Clock select );
-- End of BUFGMUX_CTRL_inst instantiation
Verilog Instantiation Template
// BUFGMUX_CTRL: 2-to-1 Global Clock MUX Buffer
//
7 Series
// Xilinx HDL Language Template, version 2019.1
BUFGMUX_CTRL BUFGMUX_CTRL_inst ( .O(O), // 1-bit output: Clock output .I0(I0), // 1-bit input: Clock input (S=0) .I1(I1), // 1-bit input: Clock input (S=1) .S(S) // 1-bit input: Clock select
);
// End of BUFGMUX_CTRL_inst instantiation
For More Information � See the 7 Series Programmable Devices User Guides.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 273
Chapter 5: Design Elements
BUFH
Primitive: HROW Clock Buffer for a Single Clocking Region BUFH
I
O
X11139
Introduction
The BUFH primitive allows direct access to the clock region entry point of the global buffer (BUFG) resource. This allows access to unused portions of the global clocking network to be used as high-speed, low skew local (single clock region) routing resources. Refer to the 7 series FPGA Clocking Resources User Guide for details about using this component.
Port Descriptions
Port I O
Direction Input Output
Width 1 1
Clock input Clock output
Function
Design Entry Method
Instantiation
Yes
Inference
No
IP Catalog
No
Macro support
No
VHDL Instantiation Template Unless they already exist, copy the following two statements and paste them before the entity declaration.
Library UNISIM; use UNISIM.vcomponents.all;
-- BUFH: HROW Clock Buffer for a Single Clocking Region
--
7 Series
-- Xilinx HDL Language Template, version 2019.1
BUFH_inst : BUFH port map (
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 274
O => O, -- 1-bit output: Clock output I => I -- 1-bit input: Clock input ); -- End of BUFH_inst instantiation
Verilog Instantiation Template
// BUFH: HROW Clock Buffer for a Single Clocking Region
//
7 Series
// Xilinx HDL Language Template, version 2019.1
BUFH BUFH_inst ( .O(O), // 1-bit output: Clock output .I(I) // 1-bit input: Clock input
);
// End of BUFH_inst instantiation
For More Information � See the 7 Series Programmable Devices User Guides.
Chapter 5: Design Elements
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 275
Chapter 5: Design Elements
BUFHCE
Primitive: HROW Clock Buffer for a Single Clocking Region with Clock Enable
BUFHCE
CE
I
O
X11140
Introduction
The BUFHCE primitive allows direct access to the clock region entry point of the global buffer (BUFG) resource. This allows access to unused portions of the global clocking network to be used as high-speed, low skew local (single clock region) routing resources. Additionally, the clock enable input (CE) allows for finer-grained control of clock enabling or gating to allow for power reduction for circuitry or portions of the design not constantly used. Refer to the 7 series FPGA Clocking Resources User Guide for details about using this component.
Port Descriptions
Port CE
I O
Direction Input
Input Output
Width 1
1 1
Function
Enables propagation of signal from I to O. When low, performs a glitchless transition of the output to INIT_OUT value.
Clock input
Clock output
Design Entry Method
Instantiation
Yes
Inference
No
IP Catalog
No
Macro support
No
Available Attributes
Attribute
Type
CE_TYPE STRING
Allowed Values Default "SYNC", "ASYNC" "SYNC"
Description
Sets clock enable behavior where "SYNC" allows for a glitchless transition to and from the INIT_OUT value. "ASYNC" is generally used to create a more immediate transition such as when you can expect the clock to be stopped or when using the BUFHCE for a high fanout control or data path routing instead of a clock buffer.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 276
Chapter 5: Design Elements
Attribute
Type
INIT_OUT DECIMAL
Allowed Values Default
0, 1
0
Description
Initial output value, also indicates stop low vs. stop high behavior.
VHDL Instantiation Template Unless they already exist, copy the following two statements and paste them before the entity declaration.
Library UNISIM; use UNISIM.vcomponents.all;
-- BUFHCE: HROW Clock Buffer for a Single Clocking Region with Clock Enable
--
7 Series
-- Xilinx HDL Language Template, version 2019.1
BUFHCE_inst : BUFHCE
generic map (
CE_TYPE => "SYNC", -- "SYNC" (glitchless switching) or "ASYNC" (immediate switch)
INIT_OUT => 0
-- Initial output value (0-1)
)
port map (
O => O, -- 1-bit output: Clock output
CE => CE, -- 1-bit input: Active high enable
I => I -- 1-bit input: Clock input
);
-- End of BUFHCE_inst instantiation
Verilog Instantiation Template
// BUFHCE: HROW Clock Buffer for a Single Clocking Region with Clock Enable
//
7 Series
// Xilinx HDL Language Template, version 2019.1
BUFHCE #(
.CE_TYPE("SYNC"), // "SYNC" (glitchless switching) or "ASYNC" (immediate switch)
.INIT_OUT(0)
// Initial output value (0-1)
)
BUFHCE_inst (
.O(O), // 1-bit output: Clock output
.CE(CE), // 1-bit input: Active high enable
.I(I) // 1-bit input: Clock input
);
// End of BUFHCE_inst instantiation
For More Information � See the 7 Series Programmable Devices User Guides.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 277
Chapter 5: Design Elements
BUFIO
Primitive: Local Clock Buffer for I/O
BUFIO
I
O
X10099
Introduction
This design element is a local clock-in, clock-out buffer. It drives a dedicated clock net within the I/O column, independent of the global clock resources and is ideally suited for sourcesynchronous data capture (forwarded/receiver clock distribution). BUFIO elements can be driven by a dedicated MRCC I/O located in the same clock region, or a BUFMRCE/BUFMR component capable of clocking multiple clock regions. BUFIO can only drive I/O components within the bank in which they exist. They cannot directly drive logic resources (CLB, block RAM, etc.) because the I/O clock network only reaches the I/O column.
Port Descriptions
Port I
O
Direction Input
Output
Width 1
1
Function
Input port to clock buffer. Connect this to an IBUF connected to a top-level port or an associated BUFMR buffer.
Output port from clock buffer. Connect this to the clock inputs to synchronous I/O components like the ISERDESE2, OSERDESE2, IDDR, ODDR or register connected directly to an I/O port (inferred or instantiated).
Design Entry Method
Instantiation
Yes
Inference
No
IP Catalog
No
Macro support
No
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 278
Chapter 5: Design Elements
VHDL Instantiation Template Unless they already exist, copy the following two statements and paste them before the entity declaration.
Library UNISIM; use UNISIM.vcomponents.all;
-- BUFIO: Local Clock Buffer for I/O
--
7 Series
-- Xilinx HDL Language Template, version 2019.1
BUFIO_inst : BUFIO port map (
O => O, -- 1-bit output: Clock output (connect to I/O clock loads). I => I -- 1-bit input: Clock input (connect to an IBUF or BUFMR). );
-- End of BUFIO_inst instantiation
Verilog Instantiation Template
// BUFIO: Local Clock Buffer for I/O
//
7 Series
// Xilinx HDL Language Template, version 2019.1
BUFIO BUFIO_inst ( .O(O), // 1-bit output: Clock output (connect to I/O clock loads). .I(I) // 1-bit input: Clock input (connect to an IBUF or BUFMR).
);
// End of BUFIO_inst instantiation
For More Information � See the 7 Series Programmable Devices User Guides.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 279
Chapter 5: Design Elements
BUFMR
Primitive: Multi-Region Clock Buffer
BUFMR
I
O
X12133
Introduction
The BUFMR is a multi-region clock-in/clock-out buffer. The BUFMR replaces the multi-region/ bank support of the BUFR and BUFIO available in prior Virtex architectures. There are two BUFMRs in every bank and each buffer can be driven by one specific MRCC in the same bank. The BUFMRs drive the BUFIOs and/or BUFRs in the same region/banks and in the region above and below via the I/O clocking backbone. Do not use a BUFMR when driving BUFRs using clock dividers (not in bypass), but instead use a BUFMRCE component.
Port Descriptions
Port I O
Direction Input
Output
Width 1
1
Function
BUFMR clock input pin. Connect to an IBUF input that in turn is directly connected to a MRCC I/O port.
BUFMR clock output pin. Connect to BUFIOs and/or BUFRs to be driven in adjacent regions.
Design Entry Method
Instantiation
Yes
Inference
No
IP Catalog
No
Macro support
No
VHDL Instantiation Template Unless they already exist, copy the following two statements and paste them before the entity declaration.
Library UNISIM; use UNISIM.vcomponents.all;
-- BUFMR: Multi-Region Clock Buffer
--
7 Series
-- Xilinx HDL Language Template, version 2019.1
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 280
Chapter 5: Design Elements
BUFMR_inst : BUFMR port map (
O => O, -- 1-bit output: Clock output (connect to BUFIOs/BUFRs) I => I -- 1-bit input: Clock input (Connect to IBUF) ); -- End of BUFMR_inst instantiation
Verilog Instantiation Template
// BUFMR: Multi-Region Clock Buffer
//
7 Series
// Xilinx HDL Language Template, version 2019.1
BUFMR BUFMR_inst ( .O(O), // 1-bit output: Clock output (connect to BUFIOs/BUFRs) .I(I) // 1-bit input: Clock input (Connect to IBUF)
);
// End of BUFMR_inst instantiation
For More Information � See the 7 Series Programmable Devices User Guides.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 281
Chapter 5: Design Elements
BUFMRCE
Primitive: Multi-Region Clock Buffer with Clock Enable BUFMRCE
CE
I
O
X12098
Introduction
The BUFMRCE is a multi-region clock-in/clock-out buffer with clock with clock enable (CE). Asserting CE stops the output clock to a user specified value. The BUFMRCE replaces the multiregion/bank support of the BUFR and BUFIO available in prior Virtex architectures. There are two BUFMRCEs in every bank and each buffer can be driven by one specific MRCC in the same bank. The BUFMRCE drives the BUFIOs and/or BUFRs in the same region/banks and in the region above and below via the I/O clocking backbone. When using BUFR dividers (not in bypass), the BUFMRCE must be disabled by deasserting the CE pin, the BUFR must be reset (cleared by asserting CLR), and then the CE signal should be asserted. This sequence ensures that all BUFR output clocks are phase aligned. If the dividers within the BUFRs are not used, then this additional circuitry is not necessary. If the clock enable circuitry is not needed, a BUFMR component should be used in place of a BUFMRCE.
Port Descriptions
Port CE I O
Direction Input Input Output
Width 1 1 1
Function
Active high buffer enable input. When low, output will settle to INIT_OUT value.
BUFMR clock input pin. Connect to an IBUF input that in turn is directly connected to a MRCC I/O port.
BUFMR clock output pin. Connect to BUFIOs and/or BUFRs to be driven in the same and adjacent regions.
Design Entry Method
Instantiation
Yes
Inference
No
IP Catalog
No
Macro support
No
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 282
Chapter 5: Design Elements
Available Attributes
Attribute
Type
CE_TYPE
STRING
Allowed Values
Default
"SYNC", "ASYNC"
"SYNC"
INIT_OUT DECIMAL 0, 1
0
Description
Set to "SYNC" for CE to be synchronous to input I and create a glitchless output. Set to "ASYNC" for stopped clock or nonclock operation of the CE signal.
Initial output value, also indicates stop low vs. stop high behavior
VHDL Instantiation Template Unless they already exist, copy the following two statements and paste them before the entity declaration.
Library UNISIM; use UNISIM.vcomponents.all;
-- BUFMRCE: Multi-Region Clock Buffer with Clock Enable
--
7 Series
-- Xilinx HDL Language Template, version 2019.1
BUFMRCE_inst : BUFMRCE
generic map (
CE_TYPE => "SYNC", -- SYNC, ASYNC
INIT_OUT => 0
-- Initial output and stopped polarity, (0-1)
)
port map (
O => O, -- 1-bit output: Clock output (connect to BUFIOs/BUFRs)
CE => CE, -- 1-bit input: Active high buffer enable
I => I -- 1-bit input: Clock input (Connect to IBUF)
);
-- End of BUFMRCE_inst instantiation
Verilog Instantiation Template
// BUFMRCE: Multi-Region Clock Buffer with Clock Enable
//
7 Series
// Xilinx HDL Language Template, version 2019.1
BUFMRCE #(
.CE_TYPE("SYNC"), // SYNC, ASYNC
.INIT_OUT(0)
// Initial output and stopped polarity, (0-1)
)
BUFMRCE_inst (
.O(O), // 1-bit output: Clock output (connect to BUFIOs/BUFRs)
.CE(CE), // 1-bit input: Active high buffer enable
.I(I) // 1-bit input: Clock input (Connect to IBUF)
);
// End of BUFMRCE_inst instantiation
For More Information � See the 7 Series Programmable Devices User Guides.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 283
Chapter 5: Design Elements
BUFR
Primitive: Regional Clock Buffer for I/O and Logic Resources within a Clock Region
BUFR
CLR CE
I
O
X10098
Introduction
The BUFR is a regional clock buffer in 7 series devices that drives clock signals to a dedicated clock net within a clock region, independent from the global clock tree. Each BUFR can drive the regional clock nets in the region in which it is located. Unlike BUFIO components, BUFR components can drive the I/O logic and logic resources (CLB, block RAM, etc.) in the existing clock region. They can be driven by the output from an IBUF, BUFMRCE, MMCM or local interconnect, and are capable of generating divided clock outputs with respect to the clock input. The divide value is an integer between one and eight. BUFR components are ideal for sourcesynchronous applications requiring clock domain crossing or serial-to-parallel conversion. There are two BUFR components in a typical clock region (two regional clock networks). If local clocking is needed in multiple clock regions, the BUFMRCE can drive multiple BUFR components in adjacent clock regions to further extend this clocking capability. Please refer to the BUFMRCE for more details.
Port Descriptions
Port CE
CLR
I O
Direction Input
Input
Input Output
Width 1
1
1 1
Function
Clock enable port. When asserted low, this port disables the output clock. When asserted high, the clock is propagated to the output port (O). This pin cannot be used in "BYPASS" mode. Connect to vcc when BUFR_DIVIDE is set to "BYPASS" or if not used.
Counter asynchronous clear for divided clock output. When asserted high, this port resets the counter used to produce the divided clock output and the output is asserted low. This pin cannot be used in "BYPASS" mode. Connect to gnd when BUFR_DIVIDE is set to "BYPASS" or if not used.
Clock input port. This port is the clock source port for BUFR. It can be driven by an IBUF, BUFMRCE, MMCM, or local interconnect.
Clock output port. This port drives the clock tracks in the clock region of the BUFR. It connects to FPGA clocked components.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 284
Chapter 5: Design Elements
Design Entry Method
Instantiation
Yes
Inference
No
IP Catalog
Yes
Macro support
No
Available Attributes
Attribute BUFR_DIVIDE
SIM_DEVICE
Type STRING
STRING
Allowed_Values
"BYPASS", "1", "2", "3", "4", "5", "6", "7", "8"
"7SERIES"
Default "BYPASS"
"7SERIES"
Description
Specifies whether the output clock is a divided version of the input clock.
For correct simulation behavior, this attribute must be set to "7SERIES" when targeting a 7 series device.
VHDL Instantiation Template Unless they already exist, copy the following two statements and paste them before the entity declaration.
Library UNISIM; use UNISIM.vcomponents.all;
-- BUFR: Regional Clock Buffer for I/O and Logic Resources within a Clock Region
--
7 Series
-- Xilinx HDL Language Template, version 2019.1
BUFR_inst : BUFR
generic map (
BUFR_DIVIDE => "BYPASS", -- Values: "BYPASS, 1, 2, 3, 4, 5, 6, 7, 8"
SIM_DEVICE => "7SERIES" -- Must be set to "7SERIES"
)
port map (
O => O,
-- 1-bit output: Clock output port
CE => CE, -- 1-bit input: Active high, clock enable (Divided modes only)
CLR => CLR, -- 1-bit input: Active high, asynchronous clear (Divided modes only)
I => I
-- 1-bit input: Clock buffer input driven by an IBUF, MMCM or local interconnect
);
-- End of BUFR_inst instantiation
Verilog Instantiation Template
// BUFR: Regional Clock Buffer for I/O and Logic Resources within a Clock Region
//
7 Series
// Xilinx HDL Language Template, version 2019.1
BUFR #(
.BUFR_DIVIDE("BYPASS"), // Values: "BYPASS, 1, 2, 3, 4, 5, 6, 7, 8"
.SIM_DEVICE("7SERIES") // Must be set to "7SERIES"
)
BUFR_inst (
.O(O),
// 1-bit output: Clock output port
.CE(CE), // 1-bit input: Active high, clock enable (Divided modes only)
.CLR(CLR), // 1-bit input: Active high, asynchronous clear (Divided modes only)
.I(I)
// 1-bit input: Clock buffer input driven by an IBUF, MMCM or local interconnect
);
// End of BUFR_inst instantiation
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 285
For More Information � See the 7 Series Programmable Devices User Guides.
Chapter 5: Design Elements
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 286
Chapter 5: Design Elements
CAPTUREE2
Primitive: Register Capture
CAP CLK
CAPTUREE2
X12099
Introduction
This element provides user control and synchronization over when and how the capture register (flip-flop and latch) information task is requested. The readback function is provided through dedicated configuration port instructions. However, without this element, the readback data is synchronized to the configuration clock. Only register (flip-flop and latch) states can be captured. Although LUT RAM, SRL, and block RAM states are readback, they cannot be captured. An asserted high CAP signal indicates that the registers in the device are to be captured at the next Low-to-High clock transition. By default, data is captured after every trigger when transition on CLK while CAP is asserted. To limit the readback operation to a single data capture, add the ONESHOT=TRUE attribute to this element.
Port Descriptions
Port CAP CLK
Direction Input Input
Width 1 1
Capture Input Clock Input
Function
Design Entry Method
Instantiation Inference IP Catalog Macro support
Recommended No No No
Available Attributes
Attribute ONESHOT
Type STRING
Allowed Values "TRUE", "FALSE"
Default "TRUE"
Description
Specifies the procedure for performing single readback per CAP trigger.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 287
Chapter 5: Design Elements
VHDL Instantiation Template Unless they already exist, copy the following two statements and paste them before the entity declaration.
Library UNISIM; use UNISIM.vcomponents.all;
-- CAPTUREE2: Register Capture
--
7 Series
-- Xilinx HDL Language Template, version 2019.1
CAPTUREE2_inst : CAPTUREE2 generic map (
ONESHOT => "TRUE" -- Specifies the procedure for performing single readback per CAP trigger. ) port map (
CAP => CAP, -- 1-bit input: Capture Input CLK => CLK -- 1-bit input: Clock Input );
-- End of CAPTUREE2_inst instantiation
Verilog Instantiation Template
// CAPTUREE2: Register Capture
//
7 Series
// Xilinx HDL Language Template, version 2019.1
CAPTUREE2 #( .ONESHOT("TRUE") // Specifies the procedure for performing single readback per CAP trigger.
) CAPTUREE2_inst (
.CAP(CAP), // 1-bit input: Capture Input .CLK(CLK) // 1-bit input: Clock Input );
// End of CAPTUREE2_inst instantiation
For More Information � See the 7 Series Programmable Devices User Guides.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 288
Chapter 5: Design Elements
CARRY4
Primitive: Fast Carry Logic with Look Ahead
CARRY4
CO(3)
DI(3:0)
S(3)
MUXCY
0
1
D(3)
CO(2)
0(3)
CO(3:0)
S(3:0)
S(2)
MUXCY
0
1
D(2)
CO(1)
XORCY 0(2)
S(1)
MUXCY
0
1
D(1)
CO(0)
XORCY 0(1)
S(0)
MUXCY
0
1
D(0)
XORCY 0(0)
O(3:0)
CYINIT
XORCY Slice Carry Logic
CI
X10937
Introduction
This circuit design represents the fast carry logic for a slice. The carry chain consists of a series of four MUXes and four XORs that connect to the other logic (LUTs) in the slice via dedicated routes to form more complex functions. The fast carry logic is useful for building arithmetic functions like adders, counters, subtractors and add/subs, as well as such other logic functions as wide comparators, address decoders, and some logic gates (specifically, AND and OR).
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 289
Chapter 5: Design Elements
Port Descriptions
O CO DI S CYINIT CI
Port
Direction Output Output Input Input Input Input
Width 4 4 4 4 1 1
Function Carry chain XOR general data out Carry-out of each stage of the carry chain Carry-MUX data input Carry-MUX select line Carry-in initialization input Carry cascade input
Design Entry Method
Instantiation Inference IP Catalog Macro support
Yes Recommended No No
VHDL Instantiation Template Unless they already exist, copy the following two statements and paste them before the entity declaration.
Library UNISIM; use UNISIM.vcomponents.all;
-- CARRY4: Fast Carry Logic Component
--
7 Series
-- Xilinx HDL Language Template, version 2019.1
CARRY4_inst : CARRY4
port map (
CO => CO,
-- 4-bit carry out
O => O,
-- 4-bit carry chain XOR data out
CI => CI,
-- 1-bit carry cascade input
CYINIT => CYINIT, -- 1-bit carry initialization
DI => DI,
-- 4-bit carry-MUX data in
S => S
-- 4-bit carry-MUX select input
);
-- End of CARRY4_inst instantiation
Verilog Instantiation Template
// CARRY4: Fast Carry Logic Component
//
7 Series
// Xilinx HDL Language Template, version 2019.1
CARRY4 CARRY4_inst (
.CO(CO),
// 4-bit carry out
.O(O),
// 4-bit carry chain XOR data out
.CI(CI),
// 1-bit carry cascade input
.CYINIT(CYINIT), // 1-bit carry initialization
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 290
.DI(DI), .S(S) );
// 4-bit carry-MUX data in // 4-bit carry-MUX select input
// End of CARRY4_inst instantiation
For More Information � See the 7 Series Programmable Devices User Guides.
Chapter 5: Design Elements
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 291
Chapter 5: Design Elements
CFGLUT5
Primitive: 5-input Dynamically Reconfigurable Look-Up Table (LUT)
CFGLUT5
I4
I3
I2
O6
I1
O5
I0
CDO CDI
CE
CLK
5-Input Reconfigurable LUT
X10938
Introduction
This element is a runtime, dynamically reconfigurable, 5-input look-up table (LUT) that enables the changing of the logical function of the LUT during circuit operation. Using the CDI pin, a new INIT value can be synchronously shifted in serially to change the logical function. The O6 output pin produces the logical output function, based on the current INIT value loaded into the LUT and the currently selected I0-I4 input pins. Optionally, you can use the O5 output in combination with the O6 output to create two individual 4-input functions sharing the same inputs or a 5input function and a 4-input function that uses a subset of the 5-input logic (see tables below). This component occupies one of the four LUT6 components within a Slice-M.
To cascade this element, connect the CDO pin from each element to the CDI input of the next element. This will allow a single serial chain of data (32-bits per LUT) to reconfigure multiple LUTs.
Port Descriptions
Port O6 O5 I0, I1, I2, I3, I4 CDO
CDI CLK CE
Direction Output Output Input Output
Input Input Input
Width 1 1 1 1
1 1 1
Function
5-LUT output 4-LUT output LUT inputs Reconfiguration data cascaded output (optionally connect to the CDI input of a subsequent LUT) Reconfiguration data serial input Reconfiguration clock Active high reconfiguration clock enable
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 292
Chapter 5: Design Elements
Design Entry Method
Instantiation Inference IP Catalog Macro support
Recommended No No No
� Connect the CLK input to the clock source used to supply the reconfiguration data.
� Connect the CDI input to the source of the reconfiguration data.
� Connect the CE pin to the active high logic if you need to enable/disable LUT reconfiguration.
� Connect the I4-I0 pins to the source inputs to the logic equation. The logic function is output on O6 and O5.
� To cascade this element, connect the CDO pin from each element to the CDI input of the next element to allow a single serial chain of data to reconfigure multiple LUTs.
The INIT attribute should be placed on this design element to specify the initial logical function of the LUT. A new INIT can be loaded into the LUT any time during circuit operation by shifting in 32-bits per LUT in the chain, representing the new INIT value. Disregard the O6 and O5 output data until all 32-bits of new INIT data has been clocked into the LUT. The logical function of the LUT changes as new INIT data is shifted into it. Data should be shifted in MSB (INIT[31]) first and LSB (INIT[0]) last.
In order to understand the O6 and O5 logical value based on the current INIT, see the table below:
1 1 1 1 1 1 1 1 1 0 . . . 1 0 0 0 1 1 0 0 0 0 0 1 1 1 1 0 1 1 1 0 . . . 0 0 0 0 1 0 0 0 0 0
I4 I3 I2 I1 I0
INIT[31] INIT[30] . . . INIT[17] INIT[16] INIT[15] INIT[14] . . . INIT[1] INIT[0]
O6 Value
INIT[15] INIT[14] . . . INIT[1] INIT[0] INIT[15] INIT[14] . . . INIT[1] INIT[0]
O5 Value
For instance, the INIT value of FFFF8000 would represent the following logical equations: � O6 = I4 or (I3 and I2 and I1 and I0) � O5 = I3 and I2 and I1 and I0
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 293
Chapter 5: Design Elements
To use these elements as two, 4-input LUTs with the same inputs but different functions, tie the I4 signal to a logical one. The INIT[31:16] values apply to the logical values of the O6 output and INIT [15:0] apply to the logical values of the O5 output.
Available Attributes
Attribute INIT
Type HEX
Allowed Values
Default
Any 32-bit Value All zeros
Description
Specifies the initial logical expression of this element.
VHDL Instantiation Template Unless they already exist, copy the following two statements and paste them before the entity declaration.
Library UNISIM; use UNISIM.vcomponents.all;
-- CFGLUT5: Reconfigurable 5-input LUT (Mapped to SliceM LUT6)
--
7 Series
-- Xilinx HDL Language Template, version 2019.1
CFGLUT5_inst : CFGLUT5 generic map (
INT => X"00000000") port map (
CDO => CDO, -- Reconfiguration cascade output O5 => O5, -- 4-LUT output O6 => O6, -- 5-LUT output CDI => CDI, -- Reconfiguration data input CE => CE, -- Reconfiguration enable input CLK => CLK, -- Clock input I0 => I0, -- Logic data input I1 => I1, -- Logic data input I2 => I2, -- Logic data input I3 => I3, -- Logic data input I4 => I4 -- Logic data input );
-- End of CFGLUT5_inst instantiation
Verilog Instantiation Template
// CFGLUT5: Reconfigurable 5-input LUT (Mapped to a SliceM LUT6)
//
7 Series
// Xilinx HDL Language Template, version 2019.1
CFGLUT5 #( .INIT(32'h00000000) // Specify initial LUT contents
) CFGLUT5_inst ( .CDO(CDO), // Reconfiguration cascade output .O5(O5), // 4-LUT output .O6(O6), // 5-LUT output .CDI(CDI), // Reconfiguration data input .CE(CE), // Reconfiguration enable input .CLK(CLK), // Clock input .I0(I0), // Logic data input .I1(I1), // Logic data input .I2(I2), // Logic data input
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 294
.I3(I3), .I4(I4) );
// Logic data input // Logic data input
// End of CFGLUT5_inst instantiation
For More Information � See the 7 Series Programmable Devices User Guides.
Chapter 5: Design Elements
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 295
Chapter 5: Design Elements
DCIRESET
Primitive: Digitally Controlled Impedance Reset Component
DCIRESET
RST
LOCKED
X10101
Introduction
This design element is used to reset the Digitally Controlled Impedance (DCI) state machine after configuration has been completed. By toggling the RST input to the DCIRESET primitive while the device is operating, the DCI state-machine is reset and both phases of impedance adjustment proceed in succession. All I/Os using DCI will be unavailable until the LOCKED output from the DCIRESET block is asserted
Port Descriptions
LOCKED
Port
RST
Direction Output
Input
Width 1
1
Function
DCI state-machine LOCK status output. When low, DCI I/O impedance is being calibrated and DCI I/Os are unavailable. Upon a low-to-high assertion, DCI I/Os are available for use.
Active-high asynchronous reset input to DCI state-machine. After RST is asserted, I/Os utilizing DCI will be unavailable until LOCKED is asserted.
Design Entry Method
Instantiation
Yes
Inference
No
IP Catalog
No
Macro support
No
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 296
Chapter 5: Design Elements
VHDL Instantiation Template Unless they already exist, copy the following two statements and paste them before the entity declaration.
Library UNISIM; use UNISIM.vcomponents.all;
-- DCIRESET: Digitally Controlled Impedance Reset Component
--
7 Series
-- Xilinx HDL Language Template, version 2019.1
DCIRESET_inst : DCIRESET
port map (
LOCKED => LOCKED, -- 1-bit output: LOCK status output
RST => RST
-- 1-bit input: Active-high asynchronous reset input
);
-- End of DCIRESET_inst instantiation
Verilog Instantiation Template
// DCIRESET: Digitally Controlled Impedance Reset Component
//
7 Series
// Xilinx HDL Language Template, version 2019.1
DCIRESET DCIRESET_inst (
.LOCKED(LOCKED), // 1-bit output: LOCK status output
.RST(RST)
// 1-bit input: Active-high asynchronous reset input
);
// End of DCIRESET_inst instantiation
For More Information � See the 7 Series Programmable Devices User Guides.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 297
Chapter 5: Design Elements
DNA_PORT
Primitive: Device DNA Access Port
DIN READ SHIFT CLK
DNA_PORT
DOUT
x11148
Introduction
The DNA_PORT allows access to a dedicated shift register that can be loaded with the Device DNA data bits (factory-programmed, read-only unique ID) for a given 7 series device. In addition to shifting out the DNA data bits, this component allows for the inclusion of supplemental bits of your data, or allows for the DNA data to rollover (repeat DNA data after initial data has been shifted out). This component is primarily used with other circuitry to build added copy protection for the FPGA bitstream from possible theft. Connect all inputs and outputs to the design to ensure proper operation.
To access the Device DNA data, first load the shift register by setting the active high READ signal for one clock cycle. After the shift register is loaded, the data can be synchronously shifted out by enabling the active high SHIFT input and capturing the data out the DOUT output port. Additional data can be appended to the end of the 57-bit shift register by connecting the appropriate logic to the DIN port. If DNA data rollover is desired, connect the DOUT port directly to the DIN port to allow for the same data to be shifted out after completing the 57-bit shift operation. If no additional data is necessary, the DIN port can be tied to a logic zero. The attribute SIM_DNA_VALUE can be optionally set to allow for simulation of a possible DNA data sequence. By default, the Device DNA data bits are all zeros in the simulation model.
Port Descriptions
CLK DIN DOUT READ SHIFT
Port
Direction Input Input Output Input Input
Width 1 1 1 1 1
Function Clock input. User data input pin. DNA output data. Active high load DNA, active low read input. Active high shift enable input.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 298
Chapter 5: Design Elements
Design Entry Method
Instantiation Inference IP Catalog Macro support
Recommended No No No
Available Attributes
Attribute SIM_DNA_VALUE
Type HEX
Allowed Values 57-bit HEX value
Default All zeros
Description Specifies a sample 57-bit DNA value for simulation.
VHDL Instantiation Template Unless they already exist, copy the following two statements and paste them before the entity declaration.
Library UNISIM; use UNISIM.vcomponents.all;
-- DNA_PORT: Device DNA Access Port
--
7 Series
-- Xilinx HDL Language Template, version 2019.1
DNA_PORT_inst : DNA_PORT
generic map (
SIM_DNA_VALUE => X"000000000000000" -- Specifies a sample 57-bit DNA value for simulation
)
port map (
DOUT => DOUT, -- 1-bit output: DNA output data.
CLK => CLK,
-- 1-bit input: Clock input.
DIN => DIN,
-- 1-bit input: User data input pin.
READ => READ, -- 1-bit input: Active high load DNA, active low read input.
SHIFT => SHIFT -- 1-bit input: Active high shift enable input.
);
-- End of DNA_PORT_inst instantiation
Verilog Instantiation Template
// DNA_PORT: Device DNA Access Port
//
7 Series
// Xilinx HDL Language Template, version 2019.1
DNA_PORT #(
.SIM_DNA_VALUE(57'h000000000000000) // Specifies a sample 57-bit DNA value for simulation
)
DNA_PORT_inst (
.DOUT(DOUT), // 1-bit output: DNA output data.
.CLK(CLK),
// 1-bit input: Clock input.
.DIN(DIN),
// 1-bit input: User data input pin.
.READ(READ), // 1-bit input: Active high load DNA, active low read input.
.SHIFT(SHIFT) // 1-bit input: Active high shift enable input.
);
// End of DNA_PORT_inst instantiation
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 299
For More Information � See the 7 Series Programmable Devices User Guides.
Chapter 5: Design Elements
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 300
DSP48E1
Primitive: 48-bit Multi-Functional Arithmetic Block
DSP48E2
ACIN[29:0]
ACOUT[29:0]
ALUMODE[3:0]
A[29:0]
BCIN[17:0]
BCOUT[17:0]
B[17:0]
CARRYINSEL[2:0]
C[47:0] D[26:0]
CARRYOUT[3:0]
INMODE[4:0]
OPMODE[6:0]
PCIN[47:0] CARRYCASCIN
PCOUT[47:0]
CARRYIN
CEA1 CEA2
P[47:0]
CEAD
CEALUMODE
CEB1 CEB2
CARRYCASCOUT
CEC
CECARRYIN
CECTRL
MULTISIGNOUT
CED
CEINMODE
CEM CEP
OVERFLOW
CLK
MULTSIGNIN
RSTA
PATTERNBDETECT
RSTALLCARRYIN
RSTALUMODE
RSTB
RSTC
PATTERNDETECT
RSTCTRL
RSTD
RSTINMODE
UNDERFLOW
RSTM
RSTP
x11149
Chapter 5: Design Elements
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 301
Chapter 5: Design Elements
Introduction
This design element is a scalable dedicated block in 7 series devices that lets you create compact, high-speed, arithmetic-intensive operations such as those seen for many DSP algorithms. Functions that the block is capable of include multiplication, addition, subtraction, accumulation, shifting, logical operations, and pattern detection.
Port Descriptions
A<29:0>
Port
ACIN<29:0> ACOUT<29:0> ALUMODE<3:0> B<17:0>
BCIN<17:0> BCOUT<17:0> C<47:0> CARRYCASCIN CARRYCASCOUT
CARRYIN CARRYINSEL <2:0>
Direction Input
Input Output Input Input Input Output Input Input Output Input Input
Width 30
30 30 4 18 18 18 48 1 1 1 3
Function
Data input for pre-adder, multiplier, adder/subtractor/ accumulator, ALU, or concatenation operations. When used with the multiplier or pre-adder, 25 bits of data (A[24:0]) is used and upper bits (A[29:25]) are unused and may be tied to ground. When using the internal adder/subctractor/ accumulator or ALU circuit, all 30 bits are used (A[29:0]). When used in concatenation mode, all 30 bits are used and this constitutes the MSB (upper) bits of the concatenated vector.
Cascaded data input from ACOUT of previous DSP48E1 slice (multiplexed with A). If not used, tie port to all zeros.
Cascaded data output to ACIN of next DSP48E1 slice. If not used, leave unconnected.
Controls the selection of the logic function in the DSP48E1 slice.
The B input of the multiplier. B[17:0] are the least significant bits (LSBs) of the A:B concatenated input to the second-stage adder/subtracter or logic function.
Cascaded data input from BCOUT of previous DSP48E1 slice (muxed with B). If not used, tie port to all zeros.
Cascaded data output to BCIN of next DSP48E1 slice. If not used, leave unconnected.
Data input to the second-stage adder/subtracter, pattern detector, or logic function.
Cascaded carry input from CARRYCASCOUT of previous DSP48E1 slice.
Cascaded carry output to CARRYCASCIN of next DSP48E1 slice. This signal is internally fed back into the CARRYINSEL multiplexer input of the same DSP48E1 slice.
Carry input from the FPGA logic.
Selects the carry source:
� 0 1 1 - PCIN[47] - Rounding PCIN (round towards zero)
� 1 0 0 - CARRYCASCOUT - For larger add/sub/acc
(sequential operation via internal feedback). Must select with PREG=1
� 1 0 1 - ~P[47] - Rounding P (round towards infinity).
Must select with PREG=1
� 1 1 0 - A[24] - XNOR B[17] Rounding A x B
� 1 1 1 - P[47] - For rounding P (round towards zero).
Must select with PREG=1
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 302
Port CARRYOUT<3:0> CEAD CEALUMODE CEA1
CEA2
CEB1
CEB2
CEC CECARRYIN CECTRL CED CEINMODE CEM CEP CLK D<24:0>
Chapter 5: Design Elements
Direction Output Input Input Input
Input
Input
Input
Input Input Input Input Input Input Input Input Input
Width 4 1 1 1
1
1
1
1 1 1 1 1 1 1 1 25
Function
4-bit carry output from each 12-bit field of the accumulate/ adder/logic unit. Normal 48-bit operation uses only CARRYOUT3. SIMD operation can use four carry out bits (CARRYOUT[3:0]).
Active High clock enable for the pre-adder output AD pipeline register. Tie to logic one if not used and ADREG=1. Tie to logic zero if ADREG=0.
Active High clock enable for ALUMODE (control inputs) registers (ALUMODEREG=1). Tie to logic one if not used.
Active High clock enable for the first A (input) register. This port is only used if AREG=2 or INMODE0 = 1. Tie to logic one if not used and AREG=2. Tie to logic zero if AREG=0 or 1. When two registers are used, this is the first sequentially. When Dynamic AB Access is used, this clock enable is applied for INMODE[0]=1.
Active High clock enable for the second A (input) register. This port is only used if AREG=1 or 2. Tie to logic one if not used and AREG=1 or 2. Tie to logic zero if AREG=0. When two registers are used, this is the second sequentially. When one register is used (AREG=1), CEA2 is the clock enable.
Active high, Clock enable for the first B (input) register. This port is only used if BREG=2 or INMODE4=1. Tie to logic one if not used and BREG=2. Tie to logic zero if BREG=0 or 1. When two registers are used, this is the first sequentially. When Dynamic AB Access is used, this clock enable is applied for INMODE[4]=1.
Active High clock enable for the second B (input) register. This port is only used if BREG=1 or 2. Tie to logic one if not used and BREG=1 or 2. Tie to logic zero if BREG=0. When two registers are used, this is the second sequentially. When one register isused (BREG=1), CEB2 is the clock enable.
Active High clock enable for the C (input) register (CREG=1). Tie to logic one if not used.
Active High clock enable for the CARRYIN (input from fabric) register (CARRYINREG=1). Tie to logic one if not used.
Active High clock enable for the OPMODE and CARRYINSEL (control inputs) registers (OPMODEREG=1 or CARRYINSELREG=1). Tie to logic one if not used.
Active High Clock enable for the D (input) registers (DREG=1). Tie to logic one if not used.
Active High clock enable for the INMODE control input registers (INMODEREG=1). Tie to logic one if not used.
Active High Clock enable for the post-multiply M (pipeline) register and the internal multiply round CARRYIN register (MREG=1). Tie to logic one if not used.
Active High clock enable for the P (output) register (PREG=1). Tie to logic one if not used.
The DSP48E1 input clock common to all internal registers and flip-flops.
25-bit data input to the pre-adder or alternative input to the multiplier. The pre-adder implements D + A as determined by the INMODE3 signal.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 303
Chapter 5: Design Elements
Port INMODE<4:0> MULTSIGNIN
MULTSIGNOUT
OPMODE<6:0> OVERFLOW P<47:0> PATTERNBDETECT PATTERNDETECT PCIN<47:0> PCOUT<47:0> RSTA RSTALLCARRYIN RSTALUMODE RSTB RSTC RSTCTRL RSTD RSTINMODE RSTM RSTP
Direction Input Input
Output
Input Output Output Output Output Input Output Input Input Input Input Input Input Input Input Input Input
Width 5 1
1
7 1 48 1 1 48 48 1 1 1 1 1 1 1 1 1 1
Function
These five control bits select the functionality of the preadder, the A, B, and D inputs, and the input registers. These bits should be tied to all zeroes if not used.
Sign of the multiplied result from the previous DSP48E1 slice for MACC extension. Either connect to the MULTSIGNOUT of another DSP block or tie to ground if not used.
Sign of the multiplied result cascaded to the next DSP48E1 slice for MACC extension. Either connect to the MULTSIGNIN of another DSP block or tie to ground if not used.
Controls the input to the X, Y, and Z multiplexers in the DSP48E1 slice dictating the operation or function of the DSP slice.
Active high Overflow indicator when used with the appropriate setting of the pattern detector and PREG=1.
Data output from second stage adder/subtracter or logic function.
Active High match indicator between P[47:0] and the pattern bar.
Active High Match indicator between P[47:0] and the pattern gated by the MASK. Result arrives on the same cycle as P.
Cascaded data input from PCOUT of previous DSP48E1 slice to adder. If used, connect to PCOUT of upstream cascaded DSP slice. If not used, tie port to all zeros.
Cascaded data output to PCIN of next DSP48E1 slice. If used, connect to PCIN of downstream cascaded DSP slice. If not used, leave unconnected.
Active High synchronous Reset for both A (input) registers (AREG=1 or 2). Tie to logic zero if not used.
Active High, synchronous reset for the Carry (internal path) and the CARRYIN registers (CARRYINREG=1). Tie to logic zero if not used.
Active High synchronous Reset for ALUMODE (control inputs) registers (ALUMODEREG=1). Tie to logic zero if not used.
Active High, synchronous Reset for both B (input) registers (BREG=1 or 2). Tie to logic zero if not used.
Active High synchronous reset for the C (input) registers (CREG=1). Tie to logic zero if not used.
Active High synchronous reset for OPMODE and CARRYINSEL (control inputs) registers (OPMODEREG=1 and/or CARRYINSELREG=1). Tie to logic zero if not used.
Active High synchronous reset for the D (input) register and for the pre-adder (output) AD pipeline register (DREG=1 and/or ADREG=1). Tie to logic zero if not used.
Active High synchronous reset for the INMODE (control input) registers (INMODEREG=1). Tie to logic zero if not used.
Active High synchronous reset for the M (pipeline) registers (MREG=1). Tie to logic zero if not used.
Active High, synchronous reset for the P (output) registers (PREG=1). Tie to logic zero if not used.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 304
Chapter 5: Design Elements
Port UNDERFLOW
Direction Output
Width 1
Function
Active High underflow indicator when used with the appropriate setting of the pattern detector and PREG=1.
Design Entry Method
Instantiation Inference IP Catalog Macro support
Yes Recommended Yes Yes
Available Attributes
Attribute ACASCREG
ADREG A_INPUT ALUMODEREG AREG AUTORESET _PATDET
BCASCREG
Type DECIMAL
DECIMAL STRING DECIMAL DECIMAL STRING
DECIMAL
Allowed Values
Default
1, 0, 2
1
1, 0
1
"DIRECT", "CASCADE"
"DIRECT"
1, 0
1
1, 0, 2
"NO_RESET", "RESET_MATCH", "RESET_NOT _MATCH"
1 "NO_RESET"
1, 0, 2
1
Description
In conjunction with AREG, selects the number of A input registers on the A cascade path, ACOUT. This attribute must be equal to or one less than the AREG value:
� AREG=0: ACASCREG must be 0
� AREG=1: ACASCREG must be 1
� AREG=2: ACASCREG can be 1 or 2
Selects the number of AD pipeline registers. Set to 1 to use the AD pipeline registers.
Selects the input to the A port between parallel input ("DIRECT") or the cascaded input from the previous slice ("CASCADE").
Selects the number of ALUMODE input registers. Set to 1 to register the ALUMODE inputs.
Selects the number of A input pipeline registers.
Automatically resets the P Register (accumulated value or counter value) on the next clock cycle, if a pattern detect event has occurred on this clock cycle. The "RESET_MATCH" and "RESET_NOT_MATCH" settings distinguish between whether the DSP48E1 slice should cause an auto reset of the P Register on the next cycle: - if the pattern is matched or - whenever the pattern is not matched on the current cycle but was matched on the previous clock cycle.
In conjunction with BREG, selects the number of B input registers on the B cascade path, BCOUT. This attribute must be equal to or one less than the BREG value:
� BREG=0: BCASCREG must be 0
� BREG=1: BCASCREG must be 1
� BREG=2: BCASCREG can be 1 or 2
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 305
Chapter 5: Design Elements
Attribute B_INPUT
Type STRING
Allowed Values
"DIRECT", "CASCADE"
Default "DIRECT"
BREG
DECIMAL 1, 0, 2
1
CARRYINREG
DECIMAL 1, 0
1
CARRYINSELREG DECIMAL 1, 0
1
CREG DREG INMODEREG MASK
DECIMAL 1, 0
DECIMAL 1, 0
DECIMAL 1, 0
HEX
48-bit HEX
1 1 1 All ones
MREG
OPMODEREG PATTERN PREG
DECIMAL 1, 0
DECIMAL 1, 0
HEX DECIMAL
48-bit HEX 1, 0
1
1 All zeros 1
SEL_MASK
STRING
"MASK", "C", "ROUNDING _MODE1", "ROUNDING _MODE2"
"MASK"
SEL_PATTERN USE_DPORT USE_MULT
STRING
"PATTERN", "C" "PATTERN"
BOOLEAN FALSE, TRUE
STRING
"MULTIPLY", "DYNAMIC", "NONE"
FALSE "MULTIPLY"
Description
Selects the input to the B port between parallel input ("DIRECT") or the cascaded input from the previous slice ("CASCADE").
Selects the number of B input registers.
Selects the number of CARRYIN input registers. Set to 1 to register the CARRYIN inputs.
Selects the number of CARRYINSEL input registers. Set to 1 to register the CARRYINSEL inputs.
Selects the number of C input registers. Set to 1 to register the C inputs.
Selects the number of D input registers. Set to 1 to register the D inputs.
Selects the number of INMODE input registers. Set to 1 to register the INMODE inputs.
This 48-bit value is used to mask out certain bits during a pattern detection. When a MASK bit is set to 1, the corresponding pattern bit is ignored. When a MASK bit is set to 0, the pattern bit is compared.
Selects the number of multiplier output (M) pipeline register stages. Set to 1 to use the M pipeline registers.
Selects the number of OPMODE input registers. Set to 1 to register the OPMODE inputs.
This 48-bit value is used in the pattern detector.
Selects the number of P output registers. Set to 1 to register the P outputs. The registered outputs will include CARRYOUT, CARRYCASCOUT, MULTSIGNOUT, PATTERNB_DETECT, PATTERN_DETECT, and PCOUT.
Selects the mask to be used for the pattern detector. The C and MASK settings are for standard uses of the pattern detector (counter, overflow detection, etc.). ROUNDING_MODE1 (Cbar left shifted by 1) and ROUNDING_MODE2 (C-bar left shifted by 2) select special masks based off of the optionally registered C port. These rounding modes can be used to implement convergent rounding in the DSP48E1 slice using the pattern detector.
Selects the input source for the pattern field. The input source can either be a 48-bit dynamic C input or a 48-bit static PATTERN attribute field.
Determines whether the pre-adder and the D Port are used or not.
Selects usage of the multiplier. Set to "NONE" to save power when using only the Adder/Logic Unit. The "DYNAMIC" setting indicates that the user is switching between A*B and A:B operations on the fly and therefore needs to get the worst-case timing of the two paths.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 306
Chapter 5: Design Elements
Attribute USE_PATTERN _DETECT
USE_SIMD
Type STRING
STRING
Allowed Values "NO_PATDET", "PATDET"
"ONE48", "FOUR12", "TWO24"
Default "NO_PATDET"
"ONE48"
Description
Selects whether the pattern detector and related features are used ("PATDET") or not used ("NO_PATDET"). This attribute is used for speed specification and Simulation Model purposes only.
Selects the mode of operation for the adder/ subtracter. The attribute setting can be one 48bit adder mode ("ONE48"), two 24- bit adder mode ("TWO24"), or four 12-bit adder mode ("FOUR12"). Selecting "ONE48" mode is compatible with Virtex-5 DSP48 operation and is not actually a true SIMD mode. Typical MultiplyAdd operations are supported when the mode is set to "ONE48". When either "TWO24" or "FOUR12" mode is selected, the multiplier must not be used, and USE_MULT must be set to "NONE".
VHDL Instantiation Template Unless they already exist, copy the following two statements and paste them before the entity declaration.
Library UNISIM; use UNISIM.vcomponents.all;
-- DSP48E1: 48-bit Multi-Functional Arithmetic Block
--
7 Series
-- Xilinx HDL Language Template, version 2019.1
DSP48E1_inst : DSP48E1
generic map (
-- Feature Control Attributes: Data Path Selection
A_INPUT => "DIRECT",
-- Selects A input source, "DIRECT" (A port) or "CASCADE" (ACIN port)
B_INPUT => "DIRECT",
-- Selects B input source, "DIRECT" (B port) or "CASCADE" (BCIN port)
USE_DPORT => FALSE,
-- Select D port usage (TRUE or FALSE)
USE_MULT => "MULTIPLY",
-- Select multiplier usage ("MULTIPLY", "DYNAMIC", or "NONE")
USE_SIMD => "ONE48",
-- SIMD selection ("ONE48", "TWO24", "FOUR12")
-- Pattern Detector Attributes: Pattern Detection Configuration
AUTORESET_PATDET => "NO_RESET", -- "NO_RESET", "RESET_MATCH", "RESET_NOT_MATCH"
MASK => X"3fffffffffff",
-- 48-bit mask value for pattern detect (1=ignore)
PATTERN => X"000000000000",
-- 48-bit pattern match for pattern detect
SEL_MASK => "MASK",
-- "C", "MASK", "ROUNDING_MODE1", "ROUNDING_MODE2"
SEL_PATTERN => "PATTERN",
-- Select pattern value ("PATTERN" or "C")
USE_PATTERN_DETECT => "NO_PATDET", -- Enable pattern detect ("PATDET" or "NO_PATDET")
-- Register Control Attributes: Pipeline Register Configuration
ACASCREG => 1,
-- Number of pipeline stages between A/ACIN and ACOUT (0, 1 or 2)
ADREG => 1,
-- Number of pipeline stages for pre-adder (0 or 1)
ALUMODEREG => 1,
-- Number of pipeline stages for ALUMODE (0 or 1)
AREG => 1,
-- Number of pipeline stages for A (0, 1 or 2)
BCASCREG => 1,
-- Number of pipeline stages between B/BCIN and BCOUT (0, 1 or 2)
BREG => 1,
-- Number of pipeline stages for B (0, 1 or 2)
CARRYINREG => 1,
-- Number of pipeline stages for CARRYIN (0 or 1)
CARRYINSELREG => 1,
-- Number of pipeline stages for CARRYINSEL (0 or 1)
CREG => 1,
-- Number of pipeline stages for C (0 or 1)
DREG => 1,
-- Number of pipeline stages for D (0 or 1)
INMODEREG => 1,
-- Number of pipeline stages for INMODE (0 or 1)
MREG => 1,
-- Number of multiplier pipeline stages (0 or 1)
OPMODEREG => 1,
-- Number of pipeline stages for OPMODE (0 or 1)
PREG => 1
-- Number of pipeline stages for P (0 or 1)
)
port map (
-- Cascade: 30-bit (each) output: Cascade Ports
ACOUT => ACOUT,
-- 30-bit output: A port cascade output
BCOUT => BCOUT,
-- 18-bit output: B port cascade output
CARRYCASCOUT => CARRYCASCOUT,
-- 1-bit output: Cascade carry output
MULTSIGNOUT => MULTSIGNOUT,
-- 1-bit output: Multiplier sign cascade output
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 307
Chapter 5: Design Elements
PCOUT => PCOUT,
-- 48-bit output: Cascade output
-- Control: 1-bit (each) output: Control Inputs/Status Bits
OVERFLOW => OVERFLOW,
-- 1-bit output: Overflow in add/acc output
PATTERNBDETECT => PATTERNBDETECT, -- 1-bit output: Pattern bar detect output
PATTERNDETECT => PATTERNDETECT, -- 1-bit output: Pattern detect output
UNDERFLOW => UNDERFLOW,
-- 1-bit output: Underflow in add/acc output
-- Data: 4-bit (each) output: Data Ports
CARRYOUT => CARRYOUT,
-- 4-bit output: Carry output
P => P,
-- 48-bit output: Primary data output
-- Cascade: 30-bit (each) input: Cascade Ports
ACIN => ACIN,
-- 30-bit input: A cascade data input
BCIN => BCIN,
-- 18-bit input: B cascade input
CARRYCASCIN => CARRYCASCIN,
-- 1-bit input: Cascade carry input
MULTSIGNIN => MULTSIGNIN,
-- 1-bit input: Multiplier sign input
PCIN => PCIN,
-- 48-bit input: P cascade input
-- Control: 4-bit (each) input: Control Inputs/Status Bits
ALUMODE => ALUMODE,
-- 4-bit input: ALU control input
CARRYINSEL => CARRYINSEL,
-- 3-bit input: Carry select input
CLK => CLK,
-- 1-bit input: Clock input
INMODE => INMODE,
-- 5-bit input: INMODE control input
OPMODE => OPMODE,
-- 7-bit input: Operation mode input
-- Data: 30-bit (each) input: Data Ports
A => A,
-- 30-bit input: A data input
B => B,
-- 18-bit input: B data input
C => C,
-- 48-bit input: C data input
CARRYIN => CARRYIN,
-- 1-bit input: Carry input signal
D => D,
-- 25-bit input: D data input
-- Reset/Clock Enable: 1-bit (each) input: Reset/Clock Enable Inputs
CEA1 => CEA1,
-- 1-bit input: Clock enable input for 1st stage AREG
CEA2 => CEA2,
-- 1-bit input: Clock enable input for 2nd stage AREG
CEAD => CEAD,
-- 1-bit input: Clock enable input for ADREG
CEALUMODE => CEALUMODE,
-- 1-bit input: Clock enable input for ALUMODE
CEB1 => CEB1,
-- 1-bit input: Clock enable input for 1st stage BREG
CEB2 => CEB2,
-- 1-bit input: Clock enable input for 2nd stage BREG
CEC => CEC,
-- 1-bit input: Clock enable input for CREG
CECARRYIN => CECARRYIN,
-- 1-bit input: Clock enable input for CARRYINREG
CECTRL => CECTRL,
-- 1-bit input: Clock enable input for OPMODEREG and CARRYINSELREG
CED => CED,
-- 1-bit input: Clock enable input for DREG
CEINMODE => CEINMODE,
-- 1-bit input: Clock enable input for INMODEREG
CEM => CEM,
-- 1-bit input: Clock enable input for MREG
CEP => CEP,
-- 1-bit input: Clock enable input for PREG
RSTA => RSTA,
-- 1-bit input: Reset input for AREG
RSTALLCARRYIN => RSTALLCARRYIN, -- 1-bit input: Reset input for CARRYINREG
RSTALUMODE => RSTALUMODE,
-- 1-bit input: Reset input for ALUMODEREG
RSTB => RSTB,
-- 1-bit input: Reset input for BREG
RSTC => RSTC,
-- 1-bit input: Reset input for CREG
RSTCTRL => RSTCTRL,
-- 1-bit input: Reset input for OPMODEREG and CARRYINSELREG
RSTD => RSTD,
-- 1-bit input: Reset input for DREG and ADREG
RSTINMODE => RSTINMODE,
-- 1-bit input: Reset input for INMODEREG
RSTM => RSTM,
-- 1-bit input: Reset input for MREG
RSTP => RSTP
-- 1-bit input: Reset input for PREG
);
-- End of DSP48E1_inst instantiation
Verilog Instantiation Template
// DSP48E1: 48-bit Multi-Functional Arithmetic Block
//
7 Series
// Xilinx HDL Language Template, version 2019.1
DSP48E1 #(
// Feature Control Attributes: Data Path Selection
.A_INPUT("DIRECT"),
// Selects A input source, "DIRECT" (A port) or "CASCADE" (ACIN port)
.B_INPUT("DIRECT"),
// Selects B input source, "DIRECT" (B port) or "CASCADE" (BCIN port)
.USE_DPORT("FALSE"),
// Select D port usage (TRUE or FALSE)
.USE_MULT("MULTIPLY"),
// Select multiplier usage ("MULTIPLY", "DYNAMIC", or "NONE")
.USE_SIMD("ONE48"),
// SIMD selection ("ONE48", "TWO24", "FOUR12")
// Pattern Detector Attributes: Pattern Detection Configuration
.AUTORESET_PATDET("NO_RESET"), // "NO_RESET", "RESET_MATCH", "RESET_NOT_MATCH"
.MASK(48'h3fffffffffff),
// 48-bit mask value for pattern detect (1=ignore)
.PATTERN(48'h000000000000),
// 48-bit pattern match for pattern detect
.SEL_MASK("MASK"),
// "C", "MASK", "ROUNDING_MODE1", "ROUNDING_MODE2"
.SEL_PATTERN("PATTERN"),
// Select pattern value ("PATTERN" or "C")
.USE_PATTERN_DETECT("NO_PATDET"), // Enable pattern detect ("PATDET" or "NO_PATDET")
// Register Control Attributes: Pipeline Register Configuration
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 308
Chapter 5: Design Elements
.ACASCREG(1),
// Number of pipeline stages between A/ACIN and ACOUT (0, 1 or 2)
.ADREG(1),
// Number of pipeline stages for pre-adder (0 or 1)
.ALUMODEREG(1),
// Number of pipeline stages for ALUMODE (0 or 1)
.AREG(1),
// Number of pipeline stages for A (0, 1 or 2)
.BCASCREG(1),
// Number of pipeline stages between B/BCIN and BCOUT (0, 1 or 2)
.BREG(1),
// Number of pipeline stages for B (0, 1 or 2)
.CARRYINREG(1),
// Number of pipeline stages for CARRYIN (0 or 1)
.CARRYINSELREG(1),
// Number of pipeline stages for CARRYINSEL (0 or 1)
.CREG(1),
// Number of pipeline stages for C (0 or 1)
.DREG(1),
// Number of pipeline stages for D (0 or 1)
.INMODEREG(1),
// Number of pipeline stages for INMODE (0 or 1)
.MREG(1),
// Number of multiplier pipeline stages (0 or 1)
.OPMODEREG(1),
// Number of pipeline stages for OPMODE (0 or 1)
.PREG(1)
// Number of pipeline stages for P (0 or 1)
)
DSP48E1_inst (
// Cascade: 30-bit (each) output: Cascade Ports
.ACOUT(ACOUT),
// 30-bit output: A port cascade output
.BCOUT(BCOUT),
// 18-bit output: B port cascade output
.CARRYCASCOUT(CARRYCASCOUT),
// 1-bit output: Cascade carry output
.MULTSIGNOUT(MULTSIGNOUT),
// 1-bit output: Multiplier sign cascade output
.PCOUT(PCOUT),
// 48-bit output: Cascade output
// Control: 1-bit (each) output: Control Inputs/Status Bits
.OVERFLOW(OVERFLOW),
// 1-bit output: Overflow in add/acc output
.PATTERNBDETECT(PATTERNBDETECT), // 1-bit output: Pattern bar detect output
.PATTERNDETECT(PATTERNDETECT), // 1-bit output: Pattern detect output
.UNDERFLOW(UNDERFLOW),
// 1-bit output: Underflow in add/acc output
// Data: 4-bit (each) output: Data Ports
.CARRYOUT(CARRYOUT),
// 4-bit output: Carry output
.P(P),
// 48-bit output: Primary data output
// Cascade: 30-bit (each) input: Cascade Ports
.ACIN(ACIN),
// 30-bit input: A cascade data input
.BCIN(BCIN),
// 18-bit input: B cascade input
.CARRYCASCIN(CARRYCASCIN),
// 1-bit input: Cascade carry input
.MULTSIGNIN(MULTSIGNIN),
// 1-bit input: Multiplier sign input
.PCIN(PCIN),
// 48-bit input: P cascade input
// Control: 4-bit (each) input: Control Inputs/Status Bits
.ALUMODE(ALUMODE),
// 4-bit input: ALU control input
.CARRYINSEL(CARRYINSEL),
// 3-bit input: Carry select input
.CLK(CLK),
// 1-bit input: Clock input
.INMODE(INMODE),
// 5-bit input: INMODE control input
.OPMODE(OPMODE),
// 7-bit input: Operation mode input
// Data: 30-bit (each) input: Data Ports
.A(A),
// 30-bit input: A data input
.B(B),
// 18-bit input: B data input
.C(C),
// 48-bit input: C data input
.CARRYIN(CARRYIN),
// 1-bit input: Carry input signal
.D(D),
// 25-bit input: D data input
// Reset/Clock Enable: 1-bit (each) input: Reset/Clock Enable Inputs
.CEA1(CEA1),
// 1-bit input: Clock enable input for 1st stage AREG
.CEA2(CEA2),
// 1-bit input: Clock enable input for 2nd stage AREG
.CEAD(CEAD),
// 1-bit input: Clock enable input for ADREG
.CEALUMODE(CEALUMODE),
// 1-bit input: Clock enable input for ALUMODE
.CEB1(CEB1),
// 1-bit input: Clock enable input for 1st stage BREG
.CEB2(CEB2),
// 1-bit input: Clock enable input for 2nd stage BREG
.CEC(CEC),
// 1-bit input: Clock enable input for CREG
.CECARRYIN(CECARRYIN),
// 1-bit input: Clock enable input for CARRYINREG
.CECTRL(CECTRL),
// 1-bit input: Clock enable input for OPMODEREG and CARRYINSELREG
.CED(CED),
// 1-bit input: Clock enable input for DREG
.CEINMODE(CEINMODE),
// 1-bit input: Clock enable input for INMODEREG
.CEM(CEM),
// 1-bit input: Clock enable input for MREG
.CEP(CEP),
// 1-bit input: Clock enable input for PREG
.RSTA(RSTA),
// 1-bit input: Reset input for AREG
.RSTALLCARRYIN(RSTALLCARRYIN), // 1-bit input: Reset input for CARRYINREG
.RSTALUMODE(RSTALUMODE),
// 1-bit input: Reset input for ALUMODEREG
.RSTB(RSTB),
// 1-bit input: Reset input for BREG
.RSTC(RSTC),
// 1-bit input: Reset input for CREG
.RSTCTRL(RSTCTRL),
// 1-bit input: Reset input for OPMODEREG and CARRYINSELREG
.RSTD(RSTD),
// 1-bit input: Reset input for DREG and ADREG
.RSTINMODE(RSTINMODE),
// 1-bit input: Reset input for INMODEREG
.RSTM(RSTM),
// 1-bit input: Reset input for MREG
.RSTP(RSTP)
// 1-bit input: Reset input for PREG
);
// End of DSP48E1_inst instantiation
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 309
For More Information � See the 7 Series Programmable Devices User Guides.
Chapter 5: Design Elements
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 310
Chapter 5: Design Elements
EFUSE_USR
Primitive: 32-bit non-volatile design ID
EFUSE_USR
EFUSEUSR[31:0]
X11150
Introduction Provides internal access to the 32 non-volatile, user-programmable eFUSE bits
Port Descriptions
Port EFUSEUSR<31:0>
Direction Output
Width 32
Function User eFUSE register value output.
Design Entry Method
Instantiation Inference IP Catalog Macro support
Recommended No No No
Available Attributes
Attribute
SIM_EFUSE _VALUE
Type HEX
Allowed Values
32'h00000000 to 32'hffffffff
Default 32'h00000000
Description
Value of the 32-bit non-volatile value used in simulation.
VHDL Instantiation Template Unless they already exist, copy the following two statements and paste them before the entity declaration.
Library UNISIM; use UNISIM.vcomponents.all;
-- EFUSE_USR: 32-bit non-volatile design ID
--
7 Series
-- Xilinx HDL Language Template, version 2019.1
EFUSE_USR_inst : EFUSE_USR generic map (
SIM_EFUSE_VALUE => X"00000000" -- Value of the 32-bit non-volatile value used in simulation
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 311
Chapter 5: Design Elements
) port map (
EFUSEUSR => EFUSEUSR );
-- 32-bit output: User eFUSE register value output
-- End of EFUSE_USR_inst instantiation
Verilog Instantiation Template
// EFUSE_USR: 32-bit non-volatile design ID
//
7 Series
// Xilinx HDL Language Template, version 2019.1
EFUSE_USR #( .SIM_EFUSE_VALUE(32'h00000000) // Value of the 32-bit non-volatile value used in simulation
) EFUSE_USR_inst (
.EFUSEUSR(EFUSEUSR) // 32-bit output: User eFUSE register value output );
// End of EFUSE_USR_inst instantiation
For More Information � See the 7 Series Programmable Devices User Guides.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 312
Chapter 5: Design Elements
FDCE
Primitive: D Flip-Flop with Clock Enable and Asynchronous Clear
FDCE
D
Q
CE
C
CLR
X3717
Introduction
This design element is a single D-type flip-flop with clock enable and asynchronous clear. When clock enable (CE) is High and asynchronous clear (CLR) is Low, the data on the data input (D) of this design element is transferred to the corresponding data output (Q) during the Low-to-High clock (C) transition. When CLR is High, it overrides all other inputs and resets the data output (Q) Low. When CE is Low, clock transitions are ignored.
This flip-flop is asynchronously cleared, outputs Low, when power is applied. Power-on conditions are simulated when global set/reset (GSR) is active. GSR defaults to active-High but can be inverted by adding an inverter in front of the GSR input of the STARTUP_E2 symbol.
Logic Table
CLR 1 0 0
Inputs
CE
D
X
X
0
X
1
D
C X X
Outputs Q
0 No Change D
Design Entry Method
Instantiation Inference IP Catalog Macro support
Yes Recommended No No
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 313
Chapter 5: Design Elements
Available Attributes
Attribute INIT
Type BINARY
Allowed Values Default
1, 0
0
Description Sets the initial value of Q output after configuration.
VHDL Instantiation Template Unless they already exist, copy the following two statements and paste them before the entity declaration.
Library UNISIM; use UNISIM.vcomponents.all;
-- FDCE: Single Data Rate D Flip-Flop with Asynchronous Clear and
--
Clock Enable (posedge clk).
--
7 Series
-- Xilinx HDL Language Template, version 2019.1
FDCE_inst : FDCE
generic map (
INIT => '0') -- Initial value of register ('0' or '1')
port map (
Q => Q,
-- Data output
C => C,
-- Clock input
CE => CE, -- Clock enable input
CLR => CLR, -- Asynchronous clear input
D => D
-- Data input
);
-- End of FDCE_inst instantiation
Verilog Instantiation Template
// FDCE: Single Data Rate D Flip-Flop with Asynchronous Clear and
//
Clock Enable (posedge clk).
//
7 Series
// Xilinx HDL Language Template, version 2019.1
FDCE #(
.INIT(1'b0) // Initial value of register (1'b0 or 1'b1)
) FDCE_inst (
.Q(Q),
// 1-bit Data output
.C(C),
// 1-bit Clock input
.CE(CE), // 1-bit Clock enable input
.CLR(CLR), // 1-bit Asynchronous clear input
.D(D)
// 1-bit Data input
);
// End of FDCE_inst instantiation
For More Information � See the 7 Series Programmable Devices User Guides.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 314
Chapter 5: Design Elements
FDPE
Primitive: D Flip-Flop with Clock Enable and Asynchronous Preset
PRE
FDPE
D
Q
CE
C
X3721
Introduction
This design element is a single D-type flip-flop with data (D), clock enable (CE), and asynchronous preset (PRE) inputs and data output (Q). The asynchronous PRE, when High, overrides all other inputs and sets the (Q) output High. Data on the (D) input is loaded into the flip-flop when PRE is Low and CE is High on the Low-to-High clock (C) transition. When CE is Low, the clock transitions are ignored.
This flip-flop is asynchronously preset, outputs High, when power is applied.Power-on conditions are simulated when global set/reset (GSR) is active. GSR defaults to active-High but can be inverted by adding an inverter in front of the GSR input of the STARTUP_E2 symbol.
Logic Table
PRE 1 0 0
Inputs
CE
D
X
X
0
X
1
D
C X X
Outputs Q
1 No Change D
Design Entry Method
Instantiation Inference IP Catalog Macro support
Yes Recommended No No
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 315
Chapter 5: Design Elements
Available Attributes
Attribute INIT
Type BINARY
Allowed Values Default
0, 1
1
Description Sets the initial value of Q output after configuration.
VHDL Instantiation Template Unless they already exist, copy the following two statements and paste them before the entity declaration.
Library UNISIM; use UNISIM.vcomponents.all;
-- FDPE: Single Data Rate D Flip-Flop with Asynchronous Preset and
--
Clock Enable (posedge clk).
--
7 Series
-- Xilinx HDL Language Template, version 2019.1
FDPE_inst : FDPE
generic map (
INIT => '0') -- Initial value of register ('0' or '1')
port map (
Q => Q,
-- Data output
C => C,
-- Clock input
CE => CE, -- Clock enable input
PRE => PRE, -- Asynchronous preset input
D => D
-- Data input
);
-- End of FDPE_inst instantiation
Verilog Instantiation Template
// FDPE: Single Data Rate D Flip-Flop with Asynchronous Preset and
//
Clock Enable (posedge clk).
//
7 Series
// Xilinx HDL Language Template, version 2019.1
FDPE #(
.INIT(1'b0) // Initial value of register (1'b0 or 1'b1)
) FDPE_inst (
.Q(Q),
// 1-bit Data output
.C(C),
// 1-bit Clock input
.CE(CE), // 1-bit Clock enable input
.PRE(PRE), // 1-bit Asynchronous preset input
.D(D)
// 1-bit Data input
);
// End of FDPE_inst instantiation
For More Information � See the 7 Series Programmable Devices User Guides.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 316
Chapter 5: Design Elements
FDRE
Primitive: D Flip-Flop with Clock Enable and Synchronous Reset
FDRE
D
Q
CE
C
R
X3719
Introduction
This design element is a single D-type flip-flop with data (D), clock enable (CE), and synchronous reset (R) inputs and data output (Q). The synchronous reset (R) input, when High, overrides all other inputs and resets the (Q) output Low on the Low-to-High clock (C) transition. The data on the (D) input is loaded into the flip-flop when R is Low and CE is High during the Low-to-High clock transition.
This flip-flop is asynchronously cleared, outputs Low, when power is applied. Power-on conditions are simulated when global set/reset (GSR) is active. GSR defaults to active-High but can be inverted by adding an inverter in front of the GSR input of the STARTUP_E2 symbol.
Logic Table
R 1 0 0
Inputs
CE
D
X
X
0
X
1
D
C X
Outputs Q
0 No Change D
Design Entry Method
Instantiation Inference IP Catalog Macro support
Yes Recommended No No
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 317
Chapter 5: Design Elements
Available Attributes
Attribute INIT
Type BINARY
Allowed Values Default
0, 1
0
Description Sets the initial value of Q output after configuration.
VHDL Instantiation Template Unless they already exist, copy the following two statements and paste them before the entity declaration.
Library UNISIM; use UNISIM.vcomponents.all;
-- FDRE: Single Data Rate D Flip-Flop with Synchronous Reset and
--
Clock Enable (posedge clk).
--
7 Series
-- Xilinx HDL Language Template, version 2019.1
FDRE_inst : FDRE
generic map (
INIT => '0') -- Initial value of register ('0' or '1')
port map (
Q => Q,
-- Data output
C => C,
-- Clock input
CE => CE, -- Clock enable input
R => R,
-- Synchronous reset input
D => D
-- Data input
);
-- End of FDRE_inst instantiation
Verilog Instantiation Template
// FDRE: Single Data Rate D Flip-Flop with Synchronous Reset and
//
Clock Enable (posedge clk).
//
7 Series
// Xilinx HDL Language Template, version 2019.1
FDRE #(
.INIT(1'b0) // Initial value of register (1'b0 or 1'b1)
) FDRE_inst (
.Q(Q),
// 1-bit Data output
.C(C),
// 1-bit Clock input
.CE(CE), // 1-bit Clock enable input
.R(R),
// 1-bit Synchronous reset input
.D(D)
// 1-bit Data input
);
// End of FDRE_inst instantiation
For More Information � See the 7 Series Programmable Devices User Guides.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 318
Chapter 5: Design Elements
FDSE
Primitive: D Flip-Flop with Clock Enable and Synchronous Set
S
FDSE
D
CE
C
Q
X3723
Introduction
FDSE is a single D-type flip-flop with data (D), clock enable (CE), and synchronous set (S) inputs and data output (Q). The synchronous set (S) input, when High, overrides the clock enable (CE) input and sets the Q output High during the Low-to-High clock (C) transition. The data on the D input is loaded into the flip-flop when S is Low and CE is High during the Low-to-High clock (C) transition.
This flip-flop is asynchronously preset, outputs High, when power is applied.Power-on conditions are simulated when global set/reset (GSR) is active. GSR defaults to active-High but can be inverted by adding an inverter in front of the GSR input of the STARTUP_E2 symbol.
Logic Table
S 1 0 0
Inputs
CE
D
X
X
0
X
1
D
C X
Outputs Q
1 No Change D
Design Entry Method
Instantiation Inference IP Catalog Macro support
Yes Recommended No No
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 319
Chapter 5: Design Elements
Available Attributes
Attribute INIT
Type BINARY
Allowed Values Default
0, 1
1
Description Sets the initial value of Q output after configuration.
VHDL Instantiation Template Unless they already exist, copy the following two statements and paste them before the entity declaration.
Library UNISIM; use UNISIM.vcomponents.all;
-- FDSE: Single Data Rate D Flip-Flop with Synchronous Set and
--
Clock Enable (posedge clk).
--
7 Series
-- Xilinx HDL Language Template, version 2019.1
FDSE_inst : FDSE
generic map (
INIT => '0') -- Initial value of register ('0' or '1')
port map (
Q => Q,
-- Data output
C => C,
-- Clock input
CE => CE, -- Clock enable input
S => S,
-- Synchronous Set input
D => D
-- Data input
);
-- End of FDSE_inst instantiation
Verilog Instantiation Template
// FDSE: Single Data Rate D Flip-Flop with Synchronous Set and
//
Clock Enable (posedge clk).
//
7 Series
// Xilinx HDL Language Template, version 2019.1
FDSE #(
.INIT(1'b0) // Initial value of register (1'b0 or 1'b1)
) FDSE_inst (
.Q(Q),
// 1-bit Data output
.C(C),
// 1-bit Clock input
.CE(CE), // 1-bit Clock enable input
.S(S),
// 1-bit Synchronous set input
.D(D)
// 1-bit Data input
);
// End of FDSE_inst instantiation
For More Information � See the 7 Series Programmable Devices User Guides.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 320
Chapter 5: Design Elements
FIFO18E1
Primitive: 18Kb FIFO (First-In-First-Out) Block RAM Memory
DIP(3:0) DI(31:0) RDCLK RDEN REGCE RST RSTREG WRCLK WREN
FIFO18E1
DOP(3:0) DO(31:0) RDCOUNT(11:0) WRCOUNT(11:0) ALMOSTEMPTY ALMOSTFULL
EMPTY FULL
RDERR WRERR
X11151
Introduction
7 series devices contain several block RAM memories, each of which can be separately configured as a FIFO, an automatic error-correction RAM, or as a general-purpose 36Kb or 18Kb RAM/ROM memory. These Block RAM memories offer fast and flexible storage of large amounts of on-chip data. The FIFO18E1 uses the FIFO control logic and the 18Kb Block RAM. This primitive can be used in a 4-bit wide by 4K deep, 9-bit wide by 2K deep, 18-bit wide by 1K deep, or a 36-bit wide by 512 deep configuration. The primitive can be configured in either synchronous or dual-clock (asynchronous) mode, with all associated FIFO flags and status signals.
When using the dual-clock mode with independent clocks, depending on the offset between read and write clock edges, the Empty, Almost Empty, Full and Almost Full flags can deassert one cycle later. Due to the asynchronous nature of the clocks the simulation model only reflects the deassertion latency cycles listed in the User Guide.
Note: For a 36-bit wide by 512 deep FIFO, the "FIFO18_36" mode must be used. For deeper or wider configurations of the FIFO, the FIFO36E1 can be used. If error-correction circuitry is desired, the FIFO36E1 with "FIFO36_72" mode must be used.
Port Descriptions
Port ALMOSTEMPTY
Direction Output
Width 1
Function
Programmable flag to indicate the FIFO is almost empty. The ALMOST_EMPTY_OFFSET attribute specifies the threshold where this flag is triggered relative to full/empty.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 321
Chapter 5: Design Elements
Port ALMOSTFULL
DI<31:0> DIP<3:0> DO<31:0> DOP<3:0> EMPTY
FULL RDCLK RDCOUNT<11:0> RDEN RDERR REGCE
RST
RSTREG
WRCLK WRCOUNT<11:0> WREN WRERR
Direction Output
Input Input Output Output Output
Output Input Output Input Output Input
Input
Input
Input Output Input Output
Width 1
32 4 32 4 1
1 1 12 1 1 1
1
1
1 12 1 1
Function
Programmable flag to indicate that the FIFO is almost full. The ALMOST_FULL_OFFSET attribute specifies the threshold where this flag is triggered relative to full/empty.
FIFO data input bus.
FIFO parity data input bus.
FIFO data output bus.
FIFO parity data output bus.
Active high logic to indicate that the FIFO is currently empty.
Active high logic indicates that the FIFO is full.
Rising edge read clock.
Read count.
Active high FIFO read enable.
Read error occurred.
Output register clock enable for pipelined synchronous FIFO. DO_REG must be set to 1 if using this enable.
Active high (FIFO logic) asynchronous reset (for dual-clock FIFO), synchronous reset (for synchronous FIFO). Must be held for a minimum of 5 WRCLK/RDCLK cycles.
Output register synchronous set/reset. DO_REG must be set to 1 if using this reset.
Rising edge write clock.
Write count.
Active high FIFO write enable.
Write error occurred. When the FIFO is full, any additional write operation generates an error flag. Synchronous with WRCLK.
Design Entry Method
Instantiation Inference IP Catalog Macro support
Yes No Yes Recommended
Available Attributes
Attribute
ALMOST_EMPTY _OFFSET
ALMOST_FULL _OFFSET
DATA_WIDTH
Type HEX HEX DECIMAL
Allowed Values
13'h0000 to 13'h1fff
13'h0000 to 13'h1fff
4, 9, 18, 36
Default 13'h0080 13'h0080 4
Description
Specifies the amount of data contents in the RAM to trigger the ALMOST_EMPTY flag.
Specifies the amount of data contents in the RAM to trigger the ALMOST_FULL flag.
Specifies the desired data width for the FIFO.
Note: If set to 36, FIFO_MODE must be set to FIFO18_36.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 322
Chapter 5: Design Elements
Attribute DO_REG EN_SYN
FIFO_MODE
FIRST_WORD_FALL _THROUGH INIT SIM_DEVICE SRVAL
Type DECIMAL BOOLEAN
STRING
BOOLEAN HEX STRING HEX
Allowed Values 1, 0 FALSE, TRUE
Default 1 FALSE
"FIFO18", "FIFO18_36"
"FIFO18"
Description
Data pipeline register for EN_SYN.
EN_SYN denotes whether the FIFO is operating in either dual-clock (two independent clocks) or synchronous (a single clock) mode. Dual-clock must use DO_REG=1.
Selects "FIFO18" or "FIFO18_36" mode.
Note: If set to "FIFO18_36", DATA_WIDTH must be set to 36.
FALSE, TRUE 36 bit HEX "7SERIES" 36 bit HEX
FALSE All zeros "7SERIES" All zeros
If TRUE, the first write to the FIFO will appear on DO without a first RDEN assertion.
Specifies the initial value on the DO output after configuration.
Must be set to "7SERIES" in order to exhibit proper simulation behavior under all conditions.
Specifies the output value of the FIFO upon assertion of the synchronous reset (RSTREG) signal. Only valid for DO_REG=1.
VHDL Instantiation Template Unless they already exist, copy the following two statements and paste them before the entity declaration.
Library UNISIM; use UNISIM.vcomponents.all;
-- FIFO18E1: 18Kb FIFO (First-In-First-Out) Block RAM Memory
--
7 Series
-- Xilinx HDL Language Template, version 2019.1
FIFO18E1_inst : FIFO18E1
generic map (
ALMOST_EMPTY_OFFSET => X"0080", -- Sets the almost empty threshold
ALMOST_FULL_OFFSET => X"0080", -- Sets almost full threshold
DATA_WIDTH => 4,
-- Sets data width to 4-36
DO_REG => 1,
-- Enable output register (1-0) Must be 1 if EN_SYN = FALSE
EN_SYN => FALSE,
-- Specifies FIFO as dual-clock (FALSE) or Synchronous (TRUE)
FIFO_MODE => "FIFO18",
-- Sets mode to FIFO18 or FIFO18_36
FIRST_WORD_FALL_THROUGH => FALSE, -- Sets the FIFO FWFT to FALSE, TRUE
INIT => X"000000000",
-- Initial values on output port
SIM_DEVICE => "7SERIES",
-- Must be set to "7SERIES" for simulation behavior
SRVAL => X"000000000"
-- Set/Reset value for output port
)
port map (
-- Read Data: 32-bit (each) output: Read output data
DO => DO,
-- 32-bit output: Data output
DOP => DOP,
-- 4-bit output: Parity data output
-- Status: 1-bit (each) output: Flags and other FIFO status outputs
ALMOSTEMPTY => ALMOSTEMPTY, -- 1-bit output: Almost empty flag
ALMOSTFULL => ALMOSTFULL, -- 1-bit output: Almost full flag
EMPTY => EMPTY,
-- 1-bit output: Empty flag
FULL => FULL,
-- 1-bit output: Full flag
RDCOUNT => RDCOUNT,
-- 12-bit output: Read count
RDERR => RDERR,
-- 1-bit output: Read error
WRCOUNT => WRCOUNT,
-- 12-bit output: Write count
WRERR => WRERR,
-- 1-bit output: Write error
-- Read Control Signals: 1-bit (each) input: Read clock, enable and reset input signals
RDCLK => RDCLK,
-- 1-bit input: Read clock
RDEN => RDEN,
-- 1-bit input: Read enable
REGCE => REGCE,
-- 1-bit input: Clock enable
RST => RST,
-- 1-bit input: Asynchronous Reset
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 323
Chapter 5: Design Elements
RSTREG => RSTREG,
-- 1-bit input: Output register set/reset
-- Write Control Signals: 1-bit (each) input: Write clock and enable input signals
WRCLK => WRCLK,
-- 1-bit input: Write clock
WREN => WREN,
-- 1-bit input: Write enable
-- Write Data: 32-bit (each) input: Write input data
DI => DI,
-- 32-bit input: Data input
DIP => DIP
-- 4-bit input: Parity input
);
-- End of FIFO18E1_inst instantiation
Verilog Instantiation Template
// FIFO18E1: 18Kb FIFO (First-In-First-Out) Block RAM Memory
//
7 Series
// Xilinx HDL Language Template, version 2019.1
FIFO18E1 #(
.ALMOST_EMPTY_OFFSET(13'h0080), // Sets the almost empty threshold
.ALMOST_FULL_OFFSET(13'h0080),
// Sets almost full threshold
.DATA_WIDTH(4),
// Sets data width to 4-36
.DO_REG(1),
// Enable output register (1-0) Must be 1 if EN_SYN = FALSE
.EN_SYN("FALSE"),
// Specifies FIFO as dual-clock (FALSE) or Synchronous (TRUE)
.FIFO_MODE("FIFO18"),
// Sets mode to FIFO18 or FIFO18_36
.FIRST_WORD_FALL_THROUGH("FALSE"), // Sets the FIFO FWFT to FALSE, TRUE
.INIT(36'h000000000),
// Initial values on output port
.SIM_DEVICE("7SERIES"),
// Must be set to "7SERIES" for simulation behavior
.SRVAL(36'h000000000)
// Set/Reset value for output port
)
FIFO18E1_inst (
// Read Data: 32-bit (each) output: Read output data
.DO(DO),
// 32-bit output: Data output
.DOP(DOP),
// 4-bit output: Parity data output
// Status: 1-bit (each) output: Flags and other FIFO status outputs
.ALMOSTEMPTY(ALMOSTEMPTY), // 1-bit output: Almost empty flag
.ALMOSTFULL(ALMOSTFULL), // 1-bit output: Almost full flag
.EMPTY(EMPTY),
// 1-bit output: Empty flag
.FULL(FULL),
// 1-bit output: Full flag
.RDCOUNT(RDCOUNT),
// 12-bit output: Read count
.RDERR(RDERR),
// 1-bit output: Read error
.WRCOUNT(WRCOUNT),
// 12-bit output: Write count
.WRERR(WRERR),
// 1-bit output: Write error
// Read Control Signals: 1-bit (each) input: Read clock, enable and reset input signals
.RDCLK(RDCLK),
// 1-bit input: Read clock
.RDEN(RDEN),
// 1-bit input: Read enable
.REGCE(REGCE),
// 1-bit input: Clock enable
.RST(RST),
// 1-bit input: Asynchronous Reset
.RSTREG(RSTREG),
// 1-bit input: Output register set/reset
// Write Control Signals: 1-bit (each) input: Write clock and enable input signals
.WRCLK(WRCLK),
// 1-bit input: Write clock
.WREN(WREN),
// 1-bit input: Write enable
// Write Data: 32-bit (each) input: Write input data
.DI(DI),
// 32-bit input: Data input
.DIP(DIP)
// 4-bit input: Parity input
);
// End of FIFO18E1_inst instantiation
For More Information � See the 7 Series Programmable Devices User Guides.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 324
Chapter 5: Design Elements
FIFO36E1
Primitive: 36Kb FIFO (First-In-First-Out) Block RAM Memory
FIFO36E1
DIP(7:0) DI(63:0) INJECTDBITERR INJECTSBITERR
DOP(7:0) DO(63:0) ECCPARITY(7:0) RDCOUNT(12:0)
RDCLK
WRCOUNT(12:0)
RDEN
ALMOSTEMPTY
REGCE
ALMOSTFULL
RST
DBITERR
RSTREG
EMPTY
WRCLK
FULL
WREN
RDERR
SBITERR
WRERR
X11152
Introduction
7 series devices contain several block RAM memories that can be configured as FIFOs, automatic error-correction RAM, or general-purpose 36Kb or 18Kb RAM/ROM memories. These Block RAM memories offer fast and flexible storage of large amounts of on-chip data. The FIFO36E1 allows access to the Block RAM in the 36Kb FIFO configurations. This component can be configured and used as a 4-bit wide by 8K deep, 9-bit by 4K deep, 18-bit by 2K deep, 36-bit wide by 1K deep, or 72-bit wide by 512 deep synchronous or dual-clock (asynchronous) FIFO RAM with all associated FIFO flags.
When using the dual-clock mode with independent clocks, depending on the offset between read and write clock edges, the Empty, Almost Empty, Full and Almost Full flags can deassert one cycle later. Due to the asynchronous nature of the clocks the simulation model only reflects the deassertion latency cycles listed in the User Guide.
Note: For a 72-bit wide by 512 deep FIFO, the "FIFO36_72" mode must be used. For smaller configurations of the FIFO, the FIFO18E1 can be used. If error-correction circuitry is desired, the "FIFO36_72" mode must be used.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 325
Chapter 5: Design Elements
Port Descriptions
Port ALMOSTEMPTY
ALMOSTFULL
DBITERR
DI<63:0> DIP<7:0> DO<63:0> DOP<7:0> ECCPARITY<7:0>
EMPTY
FULL INJECTDBITERR INJECTSBITERR RDCLK RDCOUNT<12:0> RDEN RDERR REGCE
RST
RSTREG
SBITERR
WRCLK WRCOUNT<12:0> WREN WRERR
Direction Output
Output
Output
Input Input Output Output Output
Output
Output Input Input Input Output Input Output Input
Input
Input
Output
Input Output Input Output
Width 1
1
1
64 8 64 8 8
1
1 1 1 1 13 1 1 1
1
1
1
1 13 1 1
Function
Programmable flag to indicate the FIFO is almost empty. The ALMOST_EMPTY_OFFSET attribute specifies where to trigger this flag.
Programmable flag to indicate the FIFO is almost full. The ALMOST_FULL_OFFSET attribute specifies where to trigger this flag.
Status output from ECC function to indicate a double bit error was detected. EN_ECC_READ needs to be TRUE in order to use this functionality.
FIFO data input bus.
FIFO parity data input bus.
FIFO data output bus.
FIFO parity data output bus.
8-bit data generated by the ECC encoder used by the ECC decoder for memory error detection and correction.
Active high logic to indicate that the FIFO is currently empty.
Active high logic indicates that the FIFO is full.
Inject a double bit error if ECC feature is used.
Inject a single bit error if ECC feature is used.
Rising edge read clock.
Read count.
Active high FIFO read enable.
Read error occurred.
Output register clock enable for pipelined synchronous FIFO. DO_REG must be 1 to use this enable.
Active high (FIFO logic) asynchronous reset (for dual-clock FIFO), synchronous reset (synchronous FIFO) for 5 CLK cycles.
Output register synchronous set/reset. DO_REG must be 1 to use this reset.
Status output from ECC function to indicate a single bit error was detected. EN_ECC_READ needs to be TRUE in order to use this functionality.
Write clock and enable input signals
Write count.
Active high FIFO write enable.
Write error occurred. When the FIFO is full, any additional write operation generates an error flag. Synchronous with WRCLK.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 326
Chapter 5: Design Elements
Design Entry Method
Instantiation Inference IP Catalog Macro support
Yes No Yes Recommended
Available Attributes
Attribute
Type
ALMOST_EMPTY
HEX
_OFFSET
ALMOST_FULL _OFFSET HEX
DATA_WIDTH
DECIMAL
DO_REG
DECIMAL
EN_ECC_READ EN_ECC_WRITE EN_SYN
BOOLEAN BOOLEAN BOOLEAN
FIFO_MODE
STRING
FIRST_WORD_FALL _THROUGH INIT
SIM_DEVICE
BOOLEAN HEX STRING
SRVAL
HEX
Allowed Values
13'h0000 to 13'h1fff
13'h0000 to 13'h1fff
4, 9, 18, 36, 72
Default 13'h0080 13'h0080 4
1, 0
1
FALSE, TRUE FALSE, TRUE FALSE, TRUE
FALSE FALSE FALSE
"FIFO36", "FIFO36_72" FALSE, TRUE 72 bit HEX "7SERIES"
72 bit HEX
"FIFO36" FALSE All zeros "7SERIES" All zeros
Description
Specifies the amount of data contents in the RAM to trigger the ALMOST_EMPTY flag.
Specifies the amount of data contents in the RAM to trigger the ALMOST_FULL flag.
Specifies the desired data width for the FIFO. For data widths of 72, FIFO_MODE must be set to "FIFO36_72"
Enable output register to the FIFO for improved clock-to-out timing at the expense of added read latency (one pipeline delay). DO_REG must be 1 when EN_SYN is set to FALSE.
Enable the ECC decoder circuitry.
Enable the ECC encoder circuitry.
When FALSE, specifies the FIFO to be used in asynchronous mode (two independent clock) or when TRUE in synchronous (a single clock) operation.
Selects regular "FIFO36" or the wide "FIFO36_72" mode. If set to "FIFO36_72", the DATA_WIDTH attribute has to be 72.
If TRUE, the first write to the FIFO will appear on DO without an RDEN assertion.
Specifies the initial value on the DO output after configuration.
Must be set to "7SERIES" in order to exhibit proper simulation behavior under all conditions.
Specifies the output value of the FIFO upon assertion of the synchronous reset (RSTREG) signal. Only valid for DO_REG=1.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 327
Chapter 5: Design Elements
VHDL Instantiation Template Unless they already exist, copy the following two statements and paste them before the entity declaration.
Library UNISIM; use UNISIM.vcomponents.all;
-- FIFO36E1: 36Kb FIFO (First-In-First-Out) Block RAM Memory
--
7 Series
-- Xilinx HDL Language Template, version 2019.1
FIFO36E1_inst : FIFO36E1
generic map (
ALMOST_EMPTY_OFFSET => X"0080", -- Sets the almost empty threshold
ALMOST_FULL_OFFSET => X"0080", -- Sets almost full threshold
DATA_WIDTH => 4,
-- Sets data width to 4-72
DO_REG => 1,
-- Enable output register (1-0) Must be 1 if EN_SYN = FALSE
EN_ECC_READ => FALSE,
-- Enable ECC decoder, FALSE, TRUE
EN_ECC_WRITE => FALSE,
-- Enable ECC encoder, FALSE, TRUE
EN_SYN => FALSE,
-- Specifies FIFO as Asynchronous (FALSE) or Synchronous (TRUE)
FIFO_MODE => "FIFO36",
-- Sets mode to "FIFO36" or "FIFO36_72"
FIRST_WORD_FALL_THROUGH => FALSE, -- Sets the FIFO FWFT to FALSE, TRUE
INIT => X"000000000000000000", -- Initial values on output port
SIM_DEVICE => "7SERIES",
-- Must be set to "7SERIES" for simulation behavior
SRVAL => X"000000000000000000" -- Set/Reset value for output port
)
port map (
-- ECC Signals: 1-bit (each) output: Error Correction Circuitry ports
DBITERR => DBITERR,
-- 1-bit output: Double bit error status
ECCPARITY => ECCPARITY,
-- 8-bit output: Generated error correction parity
SBITERR => SBITERR,
-- 1-bit output: Single bit error status
-- Read Data: 64-bit (each) output: Read output data
DO => DO,
-- 64-bit output: Data output
DOP => DOP,
-- 8-bit output: Parity data output
-- Status: 1-bit (each) output: Flags and other FIFO status outputs
ALMOSTEMPTY => ALMOSTEMPTY,
-- 1-bit output: Almost empty flag
ALMOSTFULL => ALMOSTFULL,
-- 1-bit output: Almost full flag
EMPTY => EMPTY,
-- 1-bit output: Empty flag
FULL => FULL,
-- 1-bit output: Full flag
RDCOUNT => RDCOUNT,
-- 13-bit output: Read count
RDERR => RDERR,
-- 1-bit output: Read error
WRCOUNT => WRCOUNT,
-- 13-bit output: Write count
WRERR => WRERR,
-- 1-bit output: Write error
-- ECC Signals: 1-bit (each) input: Error Correction Circuitry ports
INJECTDBITERR => INJECTDBITERR, -- 1-bit input: Inject a double bit error input
INJECTSBITERR => INJECTSBITERR,
-- Read Control Signals: 1-bit (each) input: Read clock, enable and reset input signals
RDCLK => RDCLK,
-- 1-bit input: Read clock
RDEN => RDEN,
-- 1-bit input: Read enable
REGCE => REGCE,
-- 1-bit input: Clock enable
RST => RST,
-- 1-bit input: Reset
RSTREG => RSTREG,
-- 1-bit input: Output register set/reset
-- Write Control Signals: 1-bit (each) input: Write clock and enable input signals
WRCLK => WRCLK,
-- 1-bit input: Rising edge write clock.
WREN => WREN,
-- 1-bit input: Write enable
-- Write Data: 64-bit (each) input: Write input data
DI => DI,
-- 64-bit input: Data input
DIP => DIP
-- 8-bit input: Parity input
);
-- End of FIFO36E1_inst instantiation
Verilog Instantiation Template
// FIFO36E1: 36Kb FIFO (First-In-First-Out) Block RAM Memory
//
7 Series
// Xilinx HDL Language Template, version 2019.1
FIFO36E1 #( .ALMOST_EMPTY_OFFSET(13'h0080),
// Sets the almost empty threshold
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 328
Chapter 5: Design Elements
.ALMOST_FULL_OFFSET(13'h0080),
// Sets almost full threshold
.DATA_WIDTH(4),
// Sets data width to 4-72
.DO_REG(1),
// Enable output register (1-0) Must be 1 if EN_SYN = FALSE
.EN_ECC_READ("FALSE"),
// Enable ECC decoder, FALSE, TRUE
.EN_ECC_WRITE("FALSE"),
// Enable ECC encoder, FALSE, TRUE
.EN_SYN("FALSE"),
// Specifies FIFO as Asynchronous (FALSE) or Synchronous (TRUE)
.FIFO_MODE("FIFO36"),
// Sets mode to "FIFO36" or "FIFO36_72"
.FIRST_WORD_FALL_THROUGH("FALSE"), // Sets the FIFO FWFT to FALSE, TRUE
.INIT(72'h000000000000000000),
// Initial values on output port
.SIM_DEVICE("7SERIES"),
// Must be set to "7SERIES" for simulation behavior
.SRVAL(72'h000000000000000000)
// Set/Reset value for output port
)
FIFO36E1_inst (
// ECC Signals: 1-bit (each) output: Error Correction Circuitry ports
.DBITERR(DBITERR),
// 1-bit output: Double bit error status
.ECCPARITY(ECCPARITY),
// 8-bit output: Generated error correction parity
.SBITERR(SBITERR),
// 1-bit output: Single bit error status
// Read Data: 64-bit (each) output: Read output data
.DO(DO),
// 64-bit output: Data output
.DOP(DOP),
// 8-bit output: Parity data output
// Status: 1-bit (each) output: Flags and other FIFO status outputs
.ALMOSTEMPTY(ALMOSTEMPTY),
// 1-bit output: Almost empty flag
.ALMOSTFULL(ALMOSTFULL),
// 1-bit output: Almost full flag
.EMPTY(EMPTY),
// 1-bit output: Empty flag
.FULL(FULL),
// 1-bit output: Full flag
.RDCOUNT(RDCOUNT),
// 13-bit output: Read count
.RDERR(RDERR),
// 1-bit output: Read error
.WRCOUNT(WRCOUNT),
// 13-bit output: Write count
.WRERR(WRERR),
// 1-bit output: Write error
// ECC Signals: 1-bit (each) input: Error Correction Circuitry ports
.INJECTDBITERR(INJECTDBITERR), // 1-bit input: Inject a double bit error input
.INJECTSBITERR(INJECTSBITERR),
// Read Control Signals: 1-bit (each) input: Read clock, enable and reset input signals
.RDCLK(RDCLK),
// 1-bit input: Read clock
.RDEN(RDEN),
// 1-bit input: Read enable
.REGCE(REGCE),
// 1-bit input: Clock enable
.RST(RST),
// 1-bit input: Reset
.RSTREG(RSTREG),
// 1-bit input: Output register set/reset
// Write Control Signals: 1-bit (each) input: Write clock and enable input signals
.WRCLK(WRCLK),
// 1-bit input: Rising edge write clock.
.WREN(WREN),
// 1-bit input: Write enable
// Write Data: 64-bit (each) input: Write input data
.DI(DI),
// 64-bit input: Data input
.DIP(DIP)
// 8-bit input: Parity input
);
// End of FIFO36E1_inst instantiation
For More Information � See the 7 Series Programmable Devices User Guides.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 329
Chapter 5: Design Elements
FRAME_ECCE2
Primitive: Configuration Frame Error Correction
FRAME_ECCE2
FAR[25:0] SYNBIT(4:0) SYNDROME(12:0) SYNWORD(6:0) CRCERROR ECCERROR ECCERRORSINGLE SYNDROMEVALID
X12101
Introduction
This design element enables the dedicated, built-in Error Correction Code (ECC) for the configuration memory of the FPGA. This element contains outputs that allow monitoring of the status of the ECC circuitry and the status of the readback CRC circuitry.
Port Descriptions
Port CRCERROR ECCERROR ECCERRORSINGLE FAR<25:0> SYNBIT<4:0> SYNDROME<12:0> SYNDROMEVALID
SYNWORD<6:0>
Direction Output Output Output Output Output Output Output
Output
Width 1 1 1 26 5 13 1
7
Function
Output indicating a CRC error. Output indicating an ECC error. Output Indicating single-bit Frame ECC error detected. Frame Address Register Value output. Output bit address of error. Output location of erroneous bit. Frame ECC output indicating the SYNDROME output is valid. Word output in the frame where an ECC error has been detected.
Design Entry Method
Instantiation Inference IP Catalog Macro support
Recommended No No No
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 330
Chapter 5: Design Elements
Available Attributes
Attribute FARSRC
FRAME_RBT_IN _FILENAME
Type STRING
STRING
Allowed Values "EFAR", "FAR"
String representing file name and location
Default "EFAR"
"NONE"
Description
Sedts whether the output of the FAR[25:0] configuration register points to the FAR or EFAR. Sets configuration option register bit CTL0[7].
This file is output by the ICAP_E2 model and it contains Frame Data information for the Raw Bitstream (RBT) file. The FRAME_ECCE2 model will parse this file, calculate ECC and output any error conditions.
VHDL Instantiation Template Unless they already exist, copy the following two statements and paste them before the entity declaration.
Library UNISIM; use UNISIM.vcomponents.all;
-- FRAME_ECCE2: Configuration Frame Error Correction
--
7 Series
-- Xilinx HDL Language Template, version 2019.1
FRAME_ECCE2_inst : FRAME_ECCE2
generic map (
FARSRC => "EFAR",
-- Determines if the output of FAR[25:0] configuration register points
-- to the FAR or EFAR. Sets configuration option register bit CTL0[7].
FRAME_RBT_IN_FILENAME => "NONE" -- This file is output by the ICAP_E2 model and it contains Frame Data
-- information for the Raw Bitstream (RBT) file. The FRAME_ECCE2 model
-- will parse this file, calculate ECC and output any error conditions.
)
port map (
CRCERROR => CRCERROR,
-- 1-bit output: Output indicating a CRC error.
ECCERROR => ECCERROR,
-- 1-bit output: Output indicating an ECC error.
ECCERRORSINGLE => ECCERRORSINGLE, -- 1-bit output: Output Indicating single-bit Frame ECC error detected.
FAR => FAR,
-- 26-bit output: Frame Address Register Value output.
SYNBIT => SYNBIT,
-- 5-bit output: Output bit address of error.
SYNDROME => SYNDROME,
-- 13-bit output: Output location of erroneous bit.
SYNDROMEVALID => SYNDROMEVALID, -- 1-bit output: Frame ECC output indicating the SYNDROME output is
-- valid.
SYNWORD => SYNWORD
-- 7-bit output: Word output in the frame where an ECC error has been -- detected.
);
-- End of FRAME_ECCE2_inst instantiation
Verilog Instantiation Template
// FRAME_ECCE2: Configuration Frame Error Correction
//
7 Series
// Xilinx HDL Language Template, version 2019.1
FRAME_ECCE2 #(
.FARSRC("EFAR"),
// Determines if the output of FAR[25:0] configuration register points to
// the FAR or EFAR. Sets configuration option register bit CTL0[7].
.FRAME_RBT_IN_FILENAME("NONE") // This file is output by the ICAP_E2 model and it contains Frame Data
// information for the Raw Bitstream (RBT) file. The FRAME_ECCE2 model
// will parse this file, calculate ECC and output any error conditions.
)
FRAME_ECCE2_inst (
.CRCERROR(CRCERROR),
// 1-bit output: Output indicating a CRC error.
.ECCERROR(ECCERROR),
// 1-bit output: Output indicating an ECC error.
.ECCERRORSINGLE(ECCERRORSINGLE), // 1-bit output: Output Indicating single-bit Frame ECC error detected.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 331
Chapter 5: Design Elements
.FAR(FAR), .SYNBIT(SYNBIT), .SYNDROME(SYNDROME), .SYNDROMEVALID(SYNDROMEVALID),
// 26-bit output: Frame Address Register Value output. // 5-bit output: Output bit address of error. // 13-bit output: Output location of erroneous bit. // 1-bit output: Frame ECC output indicating the SYNDROME output is // valid.
.SYNWORD(SYNWORD)
// 7-bit output: Word output in the frame where an ECC error has been // detected.
);
// End of FRAME_ECCE2_inst instantiation
For More Information � See the 7 Series Programmable Devices User Guides.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 332
Chapter 5: Design Elements
GTHE2_CHANNEL
Primitive: Gigabit Transceiver for 7 Series Devices
Introduction
GTHE2 is a gigabit transceiver component for 7 series devices. It is not intended for direct instantiation, and should be configured using the Xilinx IP Catalog. See the 7 series FPGAs Transceivers User Guide for details.
Design Entry Method
Instantiation Inference IP Catalog Macro support
No No Recommended No
For More Information � See the 7 Series Programmable Devices User Guides.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 333
Chapter 5: Design Elements
GTHE2_COMMON
Primitive: Gigabit Transceiver for 7 Series Devices
Introduction
GTHE2 is a gigabit transceiver component for 7 series devices. It is not intended for direct instantiation, and should be configured using the Xilinx IP Catalog. See the 7 series FPGAs Transceivers User Guide for details.
Design Entry Method
Instantiation Inference IP Catalog Macro support
No No Recommended No
For More Information � See the 7 Series Programmable Devices User Guides.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 334
Chapter 5: Design Elements
GTPE2_CHANNEL
Primitive: Gigabit Transceiver for 7 series Devices
Introduction
GTPE2 is a gigabit transceiver component for 7 series devices. It is not intended for direct instantiation, and should be configured using the Xilinx IP Catalog. See the 7 series FPGAs Transceivers User Guide for details.
Design Entry Method
Instantiation Inference IP Catalog Macro support
No No Recommended No
For More Information � See the 7 Series Programmable Devices User Guides.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 335
Chapter 5: Design Elements
GTPE2_COMMON
Primitive: Gigabit Transceiver for 7 series Devices
Introduction
GTPE2 is a gigabit transceiver component for 7 series devices. It is not intended for direct instantiation, and should be configured using the Xilinx IP Catalog. See the 7 series FPGAs Transceivers User Guide for details.
Design Entry Method
Instantiation Inference IP Catalog Macro support
No No Recommended No
For More Information � See the 7 Series Programmable Devices User Guides.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 336
Chapter 5: Design Elements
GTXE2_CHANNEL
Primitive: Gigabit Transceiver for 7 series Devices
Introduction
GTXE2 is a gigabit transceiver component for 7 series devices. It is not intended for direct instantiation, and should be configured using the Xilinx IP Catalog. See the 7 series FPGAs Transceivers User Guide for details.
Design Entry Method
Instantiation Inference IP Catalog Macro support
No No Recommended No
For More Information � See the 7 Series Programmable Devices User Guides.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 337
Chapter 5: Design Elements
GTXE2_COMMON
Primitive: Gigabit Transceiver for 7 series Devices
Introduction
GTXE2 is a gigabit transceiver component for 7 series devices. It is not intended for direct instantiation, and should be configured using the Xilinx IP Catalog. See the 7 series FPGAs Transceivers User Guide for details.
Design Entry Method
Instantiation Inference IP Catalog Macro support
No No Recommended No
For More Information � See the 7 Series Programmable Devices User Guides.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 338
Chapter 5: Design Elements
IBUF
Primitive: Input Buffer IBUF
Input from Device Pad
I
O
X9442
Introduction
This design element is automatically inserted (inferred) by the synthesis tool to any signal directly connected to a top-level input or in-out port of the design. You should generally let the synthesis tool infer this buffer. However, it can be instantiated into the design if required. In order to do so, connect the input port (I) directly to the associated top-level input or in-out port, and connect the output port (O) to the logic sourced by that port. Modify any necessary generic maps (VHDL) or named parameter value assignment (Verilog) in order to change the default behavior of the component.
Port Descriptions
Port O I
Direction Output Input
Width 1 1
Buffer output Buffer input
Function
Design Entry Method
Instantiation Inference IP Catalog Macro support
Yes Recommended No No
In general, IBUFs are inferred by the synthesis tool for specified top-level input ports to the design, so it is not necessary to specify them in the source code. However, if desired, they can be manually instantiated by copying the instantiation code from the appropriate Libraries Guide HDL template and pasting it into the top-level entity/module of your code. You should always put all I/O components on the top-level of the design to help facilitate hierarchical design methods. Connect the I port directly to the top-level input port of the design and the O port to the logic in which this input is to source. Specify the desired generic/defparam values in order to configure the proper behavior of the buffer.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 339
Chapter 5: Design Elements
Available Attributes
Attribute IBUF_LOW_PWR
IOSTANDARD
Type BOOLEAN
STRING
Allowed Values Default
TRUE, FALSE
TRUE
See Data Sheet "DEFAULT"
Description
When set to TRUE, allows for reduced power when using differential or referenced (requiring VREF) input standards like LVDS or HSTL. A setting of FALSE demands more power but delivers higher performance characteristics.Consult the 7 Series FPGA SelectIO Resources User Guide for details.
Assigns an I/O standard to the element.
VHDL Instantiation Template Unless they already exist, copy the following two statements and paste them before the entity declaration.
Library UNISIM; use UNISIM.vcomponents.all;
-- IBUF: Single-ended Input Buffer
--
7 Series
-- Xilinx HDL Language Template, version 2019.1
IBUF_inst : IBUF
generic map (
IBUF_LOW_PWR => TRUE, -- Low power (TRUE) vs. performance (FALSE) setting for referenced I/O standards
IOSTANDARD => "DEFAULT")
port map (
O => O,
-- Buffer output
I => I
-- Buffer input (connect directly to top-level port)
);
-- End of IBUF_inst instantiation
Verilog Instantiation Template
// IBUF: Single-ended Input Buffer
//
7 Series
// Xilinx HDL Language Template, version 2019.1
IBUF #(
.IBUF_LOW_PWR("TRUE"), // Low power (TRUE) vs. performance (FALSE) setting for referenced I/O standards
.IOSTANDARD("DEFAULT") // Specify the input I/O standard
) IBUF_inst (
.O(O),
// Buffer output
.I(I)
// Buffer input (connect directly to top-level port)
);
// End of IBUF_inst instantiation
For More Information � See the 7 Series FPGA SelectIO Resources User Guide (UG471). � See the 7 Series Programmable Devices User Guides.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 340
Chapter 5: Design Elements
IBUF_IBUFDISABLE
Primitive: Single-ended Input Buffer with Input Disable IBUF_IBUFDISABLE
IBUFDISABLE
I
O
X12318
Introduction
This design element is an input buffer used to connect internal logic to an external pin. This element includes an input path disable as an additional power saving feature when the I/O is not used for a sustained amount of time.
Port Descriptions
Port I IBUFDISABLE
O
Direction Input Input
Output
Width 1 1
1
Function
Input port connection. Connect directly to top-level port in the design.
Disables input path through the buffer and forces to a logic high when USE_IBUFDISABLE is set to "TRUE" and this signal is asserted high. If USE_IBUFDISABLE is set to "FALSE" this input is ignored and should be tied to ground. This feature is generally used to reduce power at times when the I/O is idle for a period of time.
Buffer output representing the input path to the device.
Design Entry Method
Instantiation
Yes
Inference
No
IP Catalog
Yes
Macro support
No
Available Attributes
Attribute IBUF_LOW_PWR
IOSTANDARD
Type STRING
STRING
Allowed Values
Default
"TRUE", "FALSE" "TRUE"
See Data Sheet "DEFAULT"
Description
Allows a trade off of lower power consumption versus highest performance when referenced I/O standards are used.
Assigns an I/O standard to the element.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 341
Chapter 5: Design Elements
Attribute USE_IBUFDISABLE
Type STRING
Allowed Values
Default
"TRUE", "FALSE" "TRUE"
Description Enables or disables the feature of IBUFDISABLE.
VHDL Instantiation Template Unless they already exist, copy the following two statements and paste them before the entity declaration.
Library UNISIM; use UNISIM.vcomponents.all;
-- IBUF_IBUFDISABLE: Single-ended Input Buffer with Disable
--
7 Series
-- Xilinx HDL Language Template, version 2019.1
IBUF_IBUFDISABLE_inst : IBUF_IBUFDISABLE
generic map (
IBUF_LOW_PWR => "TRUE", -- Low power (TRUE) vs. performance (FALSE) setting for referenced I/O standards
IOSTANDARD => "DEFAULT", -- Specify the input I/O standard
USE_IBUFDISABLE => "TRUE") -- Set to "TRUE" to enable IBUFDISABLE feature
port map (
O => O,
-- Buffer output
I => I,
-- Buffer input (connect directly to top-level port)
IBUFDISABLE => IBUFDISABLE -- Buffer disable input, high=disable
);
-- End of IBUF_IBUFDISABLE_inst instantiation
Verilog Instantiation Template
// IBUF_IBUFDISABLE: Single-ended Input Buffer with Disable
//
7 Series
// Xilinx HDL Language Template, version 2019.1
IBUF_IBUFDISABLE #(
.IBUF_LOW_PWR("TRUE"), // Low power ("TRUE") vs. performance ("FALSE") for referenced I/O standards
.IOSTANDARD("DEFAULT"), // Specify the input I/O standard
.USE_IBUFDISABLE("TRUE") // Set to "TRUE" to enable IBUFDISABLE feature
) IBUF_IBUFDISABLE_inst (
.O(O),
// Buffer output
.I(I),
// Buffer input (connect directly to top-level port)
.IBUFDISABLE(IBUFDISABLE) // Buffer disable input, high=disable
);
// End of IBUF_IBUFDISABLE_inst instantiation
For More Information � See the 7 Series FPGA SelectIO Resources User Guide (UG471). � See the 7 Series Programmable Devices User Guides.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 342
Chapter 5: Design Elements
IBUF_INTERMDISABLE
Primitive: Single-ended Input Buffer with Input Termination Disable and Input Disable IBUF_INTERMDISABLE
INTERMDISABLE IBUFDISABLE
I
O
X12319
Introduction
This design element is an input buffer used to connect internal logic to an external pin. This element includes an input termination (INTERM) enable/disable as well as an input path disable as additional power saving features when the I/O is not being used for a sustained amount of time.
Port Descriptions
Port I IBUFDISABLE
INTERMDISABLE O
Direction Input Input
Input Output
Width 1 1
1 1
Function
Input port connection. Connect directly to top-level port in the design.
Disables input path through the buffer and forces to a logic high when USE_IBUFDISABLE is set to "TRUE" and this signal is asserted high. If USE_IBUFDISABLE is set to "FALSE" this input is ignored and should be tied to ground. This feature is generally used to reduce power at times when the I/O is idle for a period of time.
Disables input termination. This feature is generally used to reduce power at times when the I/O is idle.
Buffer output representing the input path to the device.
Design Entry Method
Instantiation
Yes
Inference
No
IP Catalog
Yes
Macro support
No
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 343
Chapter 5: Design Elements
Available Attributes
Attribute IBUF_LOW_PWR
IOSTANDARD USE_IBUFDISABLE
Type STRING
Allowed Values Default "TRUE", "FALSE" "TRUE"
STRING STRING
See Data Sheet "DEFAULT" "TRUE", "FALSE" "TRUE"
Description
Allows a trade off of lower power consumption vs. highest performance when referenced I/O standards are used.
Assigns an I/O standard to the element.
Enables or disables the feature of IBUFDISABLE.
VHDL Instantiation Template Unless they already exist, copy the following two statements and paste them before the entity declaration.
Library UNISIM; use UNISIM.vcomponents.all;
-- IBUF_INTERMDISABLE: Single-ended Input Buffer with Termination Input Disable
--
May only be placed in High Range (HR) Banks
--
7 Series
-- Xilinx HDL Language Template, version 2019.1
IBUF_INTERMDISABLE_inst : IBUF_INTERMDISABLE
generic map (
IBUF_LOW_PWR => "TRUE", -- Low power (TRUE) vs. performance (FALSE) setting for referenced I/O standards
IOSTANDARD => "DEFAULT", -- Specify the input I/O standard
USE_IBUFDISABLE => "TRUE") -- Set to "TRUE" to enable IBUFDISABLE feature
port map (
O => O,
-- Buffer output
I => I,
-- Buffer input (connect directly to top-level port)
INTERMDISABLE => INTERMDISABLE, -- Input Termination Disable
IBUFDISABLE => IBUFDISABLE -- Buffer disable input, high=disable
);
-- End of IBUF_INTERMDISABLE_inst instantiation
Verilog Instantiation Template
// IBUF_INTERMDISABLE: Single-ended Input Buffer with Termination Input Disable
//
May only be placed in High Range (HR) Banks
//
7 Series
// Xilinx HDL Language Template, version 2019.1
IBUF_INTERMDISABLE #(
.IBUF_LOW_PWR("TRUE"), // Low power ("TRUE") vs. performance ("FALSE") for referenced I/O standards
.IOSTANDARD("DEFAULT"), // Specify the input I/O standard
.USE_IBUFDISABLE("TRUE") // Set to "TRUE" to enable IBUFDISABLE feature
) IBUF_INTERMDISABLE_inst (
.O(O),
// Buffer output
.I(I),
// Buffer input (connect directly to top-level port)
.IBUFDISABLE(IBUFDISABLE), // Buffer disable input, high=disable
.INTERMDISABLE(INTERMDISABLE) // Input Termination Disable
);
// End of IBUF_INTERMDISABLE_inst instantiation
For More Information � See the 7 Series FPGA SelectIO Resources User Guide (UG471). � See the 7 Series Programmable Devices User Guides.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 344
Chapter 5: Design Elements
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 345
Chapter 5: Design Elements
IBUFDS
Primitive: Differential Signaling Input Buffer
IBUFDS
Inputs from I Device Pads IB
O
X10662
Introduction
This design element is an input buffer that supports low-voltage, differential signaling. In IBUFDS, a design level interface signal is represented as two distinct ports (I and IB), one deemed the "master" and the other the "slave." The master and the slave are opposite phases of the same logical signal (for example, MYNET_P and MYNET_N). Optionally, a programmable differential termination feature is available to help improve signal integrity and reduce external components.
Logic Table
I 0 0 1 1
Inputs IB
0 1 0 1
No Change 0 1 No Change
Outputs O
Port Descriptions
Port I IB O
Direction Input Input Output
Width 1 1 1
Diff_p Buffer Input Diff_n Buffer Input Buffer Output
Function
Design Entry Method
Instantiation Inference IP Catalog Macro support
Recommended No No No
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 346
Chapter 5: Design Elements
Put all I/O components on the top-level of the design to help facilitate hierarchical design methods. Connect the I port directly to the top-level "master" input port of the design, the IB port to the top-level "slave" input port, and the O port to the logic in which this input is to source. Specify the desired generic/defparam values in order to configure the proper behavior of the buffer.
Available Attributes
Attribute DIFF_TERM IBUF_LOW_PWR
IOSTANDARD
Type BOOLEAN BOOLEAN
STRING
Allowed Values Default
TRUE, FALSE
FALSE
TRUE, FALSE
TRUE
See Data Sheet. "DEFAULT"
Description
Turns the built-in differential termination on (TRUE) or off (FALSE).
When set to TRUE, allows for reduced power when using differential or referenced (requiring VREF) input standards like LVDS or HSTL. A setting of FALSE demands more power but delivers higher performance characteristics. Consult the 7 Series FPGA SelectIO Resources User Guide for details.
Assigns an I/O standard to the element.
VHDL Instantiation Template Unless they already exist, copy the following two statements and paste them before the entity declaration.
Library UNISIM; use UNISIM.vcomponents.all;
-- IBUFDS: Differential Input Buffer
--
7 Series
-- Xilinx HDL Language Template, version 2019.1
IBUFDS_inst : IBUFDS generic map (
DIFF_TERM => FALSE, -- Differential Termination IBUF_LOW_PWR => TRUE, -- Low power (TRUE) vs. performance (FALSE) setting for referenced I/O standards IOSTANDARD => "DEFAULT") port map ( O => O, -- Buffer output I => I, -- Diff_p buffer input (connect directly to top-level port) IB => IB -- Diff_n buffer input (connect directly to top-level port) );
-- End of IBUFDS_inst instantiation
Verilog Instantiation Template
// IBUFDS: Differential Input Buffer
//
7 Series
// Xilinx HDL Language Template, version 2019.1
IBUFDS #( .DIFF_TERM("FALSE"), .IBUF_LOW_PWR("TRUE"), .IOSTANDARD("DEFAULT")
) IBUFDS_inst ( .O(O), // Buffer output
// Differential Termination // Low power="TRUE", Highest performance="FALSE" // Specify the input I/O standard
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 347
Chapter 5: Design Elements
.I(I), // Diff_p buffer input (connect directly to top-level port) .IB(IB) // Diff_n buffer input (connect directly to top-level port) ); // End of IBUFDS_inst instantiation
For More Information � See the 7 Series FPGA SelectIO Resources User Guide (UG471). � See the 7 Series Programmable Devices User Guides.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 348
Chapter 5: Design Elements
IBUFDS_DIFF_OUT
Primitive: Differential Signaling Input Buffer With Differential Output
IBUFDS_DIFF_OUT
I
O
IB
OB
X10107
Introduction
This design element is an input buffer that supports differential signaling. In IBUFDS_DIFF_OUT, a design level interface signal is represented as two distinct ports (I and IB), one deemed the "master" and the other the "slave." The master and the slave are opposite phases of the same logical signal (for example, MYNET_P and MYNET_N). The IBUFDS_DIFF_OUT differs from the IBUFDS in that it allows internal access to both phases of the differential signal. Optionally, a programmable differential termination feature is available to help improve signal integrity and reduce external components.
Logic Table
I 0 0 1 1
Inputs IB
0 1 0 1
O No Change 0 1 No Change
Outputs OB
No Change 1 0 No Change
Port Descriptions
Port I IB O OB
Direction Input Input Output Output
Width 1 1 1 1
Function Diff_p Buffer Input (connect to top-level port in the design). Diff_n Buffer Input (connect to top-level port in the design). Diff_p Buffer Output. Diff_n Buffer Output.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 349
Chapter 5: Design Elements
Design Entry Method
Instantiation Inference IP Catalog Macro support
Recommended No No No
It is suggested to put all I/O components on the top-level of the design to help facilitate hierarchical design methods. Connect the I port directly to the top-level "master" input port of the design, the IB port to the top-level "slave" input port, and the O and OB ports to the logic in which this input is to source. Specify the desired generic/parameter values in order to configure the proper behavior of the buffer.
Available Attributes
Attribute DIFF_TERM IBUF_LOW_PWR
IOSTANDARD
Type BOOLEAN BOOLEAN
STRING
Allowed Values Default
TRUE, FALSE
FALSE
TRUE, FALSE
TRUE
See Data Sheet. "DEFAULT"
Description
Turns the built-in differential termination on (TRUE) or off (FALSE).
When set to TRUE, allows for reduced power when using differential or referenced (requiring VREF) input standards like LVDS or HSTL. A setting of FALSE demands more power but delivers higher performance characteristics. Consult the 7 Series FPGA SelectIO Resources User Guide for details.
Assigns an I/O standard to the element.
VHDL Instantiation Template Unless they already exist, copy the following two statements and paste them before the entity declaration.
Library UNISIM; use UNISIM.vcomponents.all;
-- IBUFDS_DIFF_OUT: Differential Input Buffer with Differential Output
--
7 Series
-- Xilinx HDL Language Template, version 2019.1
IBUFDS_DIFF_OUT_inst : IBUFDS_DIFF_OUT
generic map (
DIFF_TERM => FALSE, -- Differential Termination
IBUF_LOW_PWR => TRUE, -- Low power (TRUE) vs. performance (FALSE) setting for referenced I/O standards
IOSTANDARD => "DEFAULT") -- Specify the input I/O standard
port map (
O => O,
-- Buffer diff_p output
OB => OB, -- Buffer diff_n output
I => I, -- Diff_p buffer input (connect directly to top-level port)
IB => IB -- Diff_n buffer input (connect directly to top-level port)
);
-- End of IBUFDS_DIFF_OUT_inst instantiation
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 350
Chapter 5: Design Elements
Verilog Instantiation Template
// IBUFDS_DIFF_OUT: Differential Input Buffer with Differential Output
//
7 Series
// Xilinx HDL Language Template, version 2019.1
IBUFDS_DIFF_OUT #( .DIFF_TERM("FALSE"), // Differential Termination, "TRUE"/"FALSE" .IBUF_LOW_PWR("TRUE"), // Low power="TRUE", Highest performance="FALSE" .IOSTANDARD("DEFAULT") // Specify the input I/O standard
) IBUFDS_DIFF_OUT_inst ( .O(O), // Buffer diff_p output .OB(OB), // Buffer diff_n output .I(I), // Diff_p buffer input (connect directly to top-level port) .IB(IB) // Diff_n buffer input (connect directly to top-level port)
);
// End of IBUFDS_DIFF_OUT_inst instantiation
For More Information � See the 7 Series FPGA SelectIO Resources User Guide (UG471). � See the 7 Series Programmable Devices User Guides.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 351
Chapter 5: Design Elements
IBUFDS_DIFF_OUT_IBUFDISABLE
Primitive: Input Differential Buffer with Input Disable and Differential Output
IBUFDS_DIFF_OUT_IBUFDISABLE
IBUFDISABLE
I
O
IB
OB
X12311
Introduction
This design element is a differential input buffer used to connect internal logic to an external bidirectional pin. This element includes an input path disable as an additional power saving feature when the input is idle for a sustained time. The IOBUFDS_DIFF_OUT_IBUFDISABLE differs from the IOBUFDS_IBUFDISABLE in that it allows internal access to both phases of the differential signal.
Port Descriptions
Port I IB IBUFDISABLE
O OB
Direction Input Input Input
Output Output
Width 1 1 1
1 1
Function
Input p-side port connection. Connect directly to top-level port in the design.
Input n-side port connection. Connect directly to top-level port in the design.
Disables input path through the buffer and forces to a logic high when USE_IBUFDISABLE is set to "TRUE" and this signal is asserted high. If USE_IBUFDISABLE is set to "FALSE" this input is ignored and should be tied to ground. This feature is generally used to reduce power at times when the I/O is idle for a period of time.
Buffer p-side output representing the input path to the device.
Buffer n-side output representing the input path to the device.
Design Entry Method
Instantiation
Yes
Inference
No
IP Catalog
Yes
Macro support
No
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 352
Chapter 5: Design Elements
Available Attributes
Attribute DIFF_TERM IBUF_LOW_PWR
IOSTANDARD USE_IBUFDISABLE
Type STRING STRING
STRING STRING
Allowed Values "TRUE", "FALSE" "TRUE", "FALSE"
See Data Sheet "TRUE", "FALSE"
Default "FALSE" "TRUE"
"DEFAULT" "TRUE"
Description
Turns the built-in differential termination on (TRUE) or off (FALSE).
Allows a trade off of lower power consumption vs. highest performance when referenced I/O standards are used.
Assigns an I/O standard to the element.
Enables or disables the feature of IBUFDISABLE.
VHDL Instantiation Template Unless they already exist, copy the following two statements and paste them before the entity declaration.
Library UNISIM; use UNISIM.vcomponents.all;
-- IBUFDS_DIFF_OUT_IBUFDISABLE: Differential Input Buffer with Differential Output w/ Disable
--
7 Series
-- Xilinx HDL Language Template, version 2019.1
IBUFDS_DIFF_OUT_IBUFDISABLE_inst : IBUFDS_DIFF_OUT_IBUFDISABLE
generic map (
DIFF_TERM => "FALSE", -- Differential Termination
IBUF_LOW_PWR => "TRUE", -- Low power "TRUE" vs. performance "FALSE" setting for referenced I/O standards
IOSTANDARD => "DEFAULT", -- Specify the input I/O standard
USE_IBUFDISABLE => "TRUE") -- Set to "TRUE" to enable IBUFDISABLE feature
port map (
O => O,
-- Buffer diff_p output
OB => OB, -- Buffer diff_n output
I => I, -- Diff_p buffer input (connect directly to top-level port)
IB => IB, -- Diff_n buffer input (connect directly to top-level port)
IBUFDISABLE => IBUFDISABLE -- Buffer disable input, high=disable
);
-- End of IBUFDS_DIFF_OUT_IBUFDISABLE_inst instantiation
Verilog Instantiation Template
// IBUFDS_DIFF_OUT_IBUFDISABLE: Differential Input Buffer with Differential Output with Input Disable
//
7 Series
// Xilinx HDL Language Template, version 2019.1
IBUFDS_DIFF_OUT_IBUFDISABLE #(
.DIFF_TERM("FALSE"),
// Differential Termination, "TRUE"/"FALSE"
.IBUF_LOW_PWR("TRUE"), // Low power="TRUE", Highest performance="FALSE"
.IOSTANDARD("DEFAULT"), // Specify the input I/O standard
.USE_IBUFDISABLE("TRUE") // Set to "TRUE" to enable IBUFDISABLE feature
) IBUFDS_DIFF_OUT_IBUFDISABLE_inst (
.O(O), // Buffer diff_p output
.OB(OB), // Buffer diff_n output
.I(I), // Diff_p buffer input (connect directly to top-level port)
.IB(IB), // Diff_n buffer input (connect directly to top-level port)
.IBUFDISABLE(IBUFDISABLE) // Buffer disable input, high=disable
);
// End of IBUFDS_DIFF_OUT_IBUFDISABLE_inst instantiation
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 353
Chapter 5: Design Elements
For More Information � See the 7 Series FPGA SelectIO Resources User Guide (UG471). � See the 7 Series Programmable Devices User Guides.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 354
Chapter 5: Design Elements
IBUFDS_DIFF_OUT_INTERMDISABLE
Primitive: Input Differential Buffer with Input Termination Disable, Input Disable, and Differential Output
IBUFDS_DIFF_OUT_INTERMDISABLE
INTERMDISABLE
IBUFDISABLE
I IB
O OB
X12308
Introduction
This design element is a differential input buffer used to connect internal logic to an external bidirectional pin. This element includes an uncalibrated input termination (INTERM) disable as well as input path disable as additional power saving features when the I/O is idle for a sustained time. The IOBUFDS_DIFF_OUT_INTERMDISABLE differs from the IOBUFDS_INTERMDISABLE in that it allows internal access to both phases of the differential signal. This element can only be placed in High Range (HR) banks in the 7 series devices.
Port Descriptions
Port I IB IBUFDISABLE
INTERMDISABLE O OB
Direction Input Input Input
Input Output Output
Width 1 1 1
1 1 1
Function
Input p-side port connection. Connect directly to a top-level port in the design.
Input n-side port connection. Connect directly to a top-level port in the design.
Disables input path through the buffer and forces to a logic High when USE_IBUFDISABLE is set to "TRUE" and this signal is asserted high. If USE_IBUFDISABLE is set to "FALSE" this input is ignored and should be tied to ground. This feature is generally used to reduce power at times when the I/O is idle.
Disables input termination. This feature is generally used to reduce power at times when the I/O is idle.
Buffer p-side output representing the input path to the device.
Buffer n-side output representing the input path to the device.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 355
Chapter 5: Design Elements
Design Entry Method
Instantiation
Yes
Inference
No
IP Catalog
Yes
Macro support
No
Available Attributes
Attribute DIFF_TERM IBUF_LOW_PWR
IOSTANDARD USE_IBUFDISABLE
Type STRING STRING
STRING STRING
Allowed Values
Default
"TRUE", "FALSE" "FALSE"
"TRUE", "FALSE" "TRUE"
See Data Sheet "DEFAULT" "TRUE", "FALSE" "TRUE"
Description
Turns the built-in differential termination on (TRUE) or off (FALSE).
Allows a trade off of lower power consumption vs. highest performance when referenced I/O standards are used.
Assigns an I/O standard to the element.
Enables or disables the feature of IBUFDISABLE.
VHDL Instantiation Template Unless they already exist, copy the following two statements and paste them before the entity declaration.
Library UNISIM; use UNISIM.vcomponents.all;
-- IBUFDS_DIFF_OUT_INTERMDISABLE: Differential Input Buffer with Differential Output w/ Disable
--
7 Series
-- Xilinx HDL Language Template, version 2019.1
IBUFDS_DIFF_OUT_INTERMDISABLE_inst : IBUFDS_DIFF_OUT_INTERMDISABLE
generic map (
DIFF_TERM => "FALSE", -- Differential Termination
IBUF_LOW_PWR => "TRUE", -- Low power "TRUE" vs. performance "FALSE" setting for referenced I/O standards
IOSTANDARD => "DEFAULT", -- Specify the input I/O standard
USE_IBUFDISABLE => "TRUE") -- Set to "TRUE" to enable IBUFDISABLE feature
port map (
O => O,
-- Buffer diff_p output
OB => OB, -- Buffer diff_n output
I => I, -- Diff_p buffer input (connect directly to top-level port)
IB => IB, -- Diff_n buffer input (connect directly to top-level port)
IBUFDISABLE => IBUFDISABLE, -- Buffer disable input, high=disable
INTERMDISABLE => INTERMDISABLE -- Input termination disable
);
-- End of IBUFDS_DIFF_OUT_INTERMDISABLE_inst instantiation
Verilog Instantiation Template
// IBUFDS_DIFF_OUT_INTERMDISABLE: Differential Input Buffer with Differential Output with Input Termination Disable
//
May only be placed in High Range (HR) Banks
//
7 Series
// Xilinx HDL Language Template, version 2019.1
IBUFDS_DIFF_OUT_INTERMDISABLE #(
.DIFF_TERM("FALSE"),
// Differential Termination, "TRUE"/"FALSE"
.IBUF_LOW_PWR("TRUE"), // Low power="TRUE", Highest performance="FALSE"
.IOSTANDARD("DEFAULT"), // Specify the input I/O standard
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 356
Chapter 5: Design Elements
.USE_IBUFDISABLE("TRUE") // Set to "TRUE" to enable IBUFDISABLE feature ) IBUFDS_DIFF_OUT_INTERMDISABLE_inst (
.O(O), // Buffer diff_p output .OB(OB), // Buffer diff_n output .I(I), // Diff_p buffer input (connect directly to top-level port) .IB(IB), // Diff_n buffer input (connect directly to top-level port) .IBUFDISABLE(IBUFDISABLE), // Buffer disable input, high=disable .INTERMDISABLE(INTERMDISABLE) // Input Termination Disable ); // End of IBUFDS_DIFF_OUT_INTERMDISABLE_inst instantiation
For More Information � See the 7 Series FPGA SelectIO Resources User Guide (UG471). � See the 7 Series Programmable Devices User Guides.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 357
Chapter 5: Design Elements
IBUFDS_GTE2
Primitive: Gigabit Transceiver Buffer
Introduction
IBUFDS_GTE2 is the gigabit transceiver input pad buffer component in 7 series devices. The REFCLK signal should be routed to the dedicated reference clock input pins on the serial transceiver, and you should instantiate the IBUFDS_GTE2 primitive in your design. See the 7 series FPGAs Transceivers User Guide for more information on PCB layout requirements, including reference clock requirements.
Design Entry Method
Instantiation Inference IP Catalog Macro support
Yes No Recommended No
VHDL Instantiation Template Unless they already exist, copy the following two statements and paste them before the entity declaration.
Library UNISIM; use UNISIM.vcomponents.all;
-- IBUFDS_GTE2: Gigabit Transceiver Buffer
--
7 Series
-- Xilinx HDL Language Template, version 2019.1
IBUFDS_GTE2_inst : IBUFDS_GTE2
generic map (
CLKCM_CFG => TRUE, -- Refer to Transceiver User Guide
CLKRCV_TRST => TRUE, -- Refer to Transceiver User Guide
CLKSWING_CFG => '11' -- Refer to Transceiver User Guide
)
port map (
O => O,
-- 1-bit output: Refer to Transceiver User Guide
ODIV2 => ODIV2, -- 1-bit output: Refer to Transceiver User Guide
CEB => CEB,
-- 1-bit input: Refer to Transceiver User Guide
I => I,
-- 1-bit input: Refer to Transceiver User Guide
IB => IB
-- 1-bit input: Refer to Transceiver User Guide
);
-- End of IBUFDS_GTE2_inst instantiation
Verilog Instantiation Template
// IBUFDS_GTE2: Gigabit Transceiver Buffer
//
7 Series
// Xilinx HDL Language Template, version 2019.1
IBUFDS_GTE2 #(
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 358
Chapter 5: Design Elements
.CLKCM_CFG("TRUE"), // Refer to Transceiver User Guide
.CLKRCV_TRST("TRUE"), // Refer to Transceiver User Guide
.CLKSWING_CFG(2'b11) // Refer to Transceiver User Guide
)
IBUFDS_GTE2_inst (
.O(O),
// 1-bit output: Refer to Transceiver User Guide
.ODIV2(ODIV2), // 1-bit output: Refer to Transceiver User Guide
.CEB(CEB),
// 1-bit input: Refer to Transceiver User Guide
.I(I),
// 1-bit input: Refer to Transceiver User Guide
.IB(IB)
// 1-bit input: Refer to Transceiver User Guide
);
// End of IBUFDS_GTE2_inst instantiation
For More Information � See the 7 Series Programmable Devices User Guides.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 359
Chapter 5: Design Elements
IBUFDS_IBUFDISABLE
Primitive: Input Differential Buffer with Input Path Disable
IBUFDS_IBUFDISABLE
IBUFDISABLE
I O
IB
X12309
Introduction
This design element is an input differential buffer used to connect internal logic to an external bidirectional pin. This element includes an input path disable as an additional power saving feature when the I/O is either is an unused state for a sustained amount of time.
Port Descriptions
Port I IB IBUFDISABLE
O
Direction Input Input Input
Output
Width 1 1 1
1
Function
Input p-side port connection. Connect directly to a top-level port in the design.
Input n-side port connection. Connect directly to a top-level port in the design.
Disables input path through the buffer and forces to a logic High when USE_IBUFDISABLE is set to "TRUE" and this signal is asserted High. If USE_IBUFDISABLE is set to "FALSE" this input is ignored and should be tied to ground. This feature is generally used to reduce power at times when the I/O is idle.
Buffer output representing the input path to the device.
Design Entry Method
Instantiation
Yes
Inference
No
IP Catalog
Yes
Macro support
No
Put all I/O components on the top-level of the design to help facilitate hierarchical design methods. Connect the I port directly to the top-level "master" input port of the design, the IB port to the top-level "slave" input port, and the O port to the logic in which this input is to source. Specify the desired generic/defparam values in order to configure the proper behavior of the buffer.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 360
Chapter 5: Design Elements
Available Attributes
Attribute DIFF_TERM IBUF_LOW_PWR
IOSTANDARD USE_IBUFDISABLE
Type STRING STRING
STRING STRING
Allowed Values Default "TRUE", "FALSE" "FALSE" "TRUE", "FALSE" "TRUE"
See Data Sheet "DEFAULT" "TRUE", "FALSE" "TRUE"
Description
Turns the built-in differential termination on (TRUE) or off (FALSE).
Allows a trade off of lower power consumption vs. highest performance when referenced I/O standards are used.
Assigns an I/O standard to the element.
Enables or disables the feature of IBUFDISABLE.
VHDL Instantiation Template Unless they already exist, copy the following two statements and paste them before the entity declaration.
Library UNISIM; use UNISIM.vcomponents.all;
-- IBUFDS_IBUFDISABLE: Differential Input Buffer w/ Disable
--
7 Series
-- Xilinx HDL Language Template, version 2019.1
IBUFDS_IBUFDISABLE_inst : IBUFDS_IBUFDISABLE generic map (
DIFF_TERM => "FALSE", -- Differential Termination IBUF_LOW_PWR => "TRUE", -- Low power (TRUE) vs. performance (FALSE) setting for referenced I/O standards IOSTANDARD => "DEFAULT", -- Specify the input I/O standard USE_IBUFDISABLE => "TRUE") -- Set to "TRUE" to enable IBUFDISABLE feature port map ( O => O, -- Buffer output I => I, -- Diff_p buffer input (connect directly to top-level port) IB => IB, -- Diff_n buffer input (connect directly to top-level port) IBUFDISABLE => IBUFDISABLE -- Buffer disable input, high=disable );
-- End of IBUFDS_IBUFDISABLE_inst instantiation
Verilog Instantiation Template
// IBUFDS_IBUFDISABLE: Differential Input Buffer with Input Disable
//
7 Series
// Xilinx HDL Language Template, version 2019.1
IBUFDS_IBUFDISABLE #(
.DIFF_TERM("FALSE"),
// Differential Termination
.IBUF_LOW_PWR("TRUE"), // Low power="TRUE", Highest performance="FALSE"
.IOSTANDARD("DEFAULT"), // Specify the input I/O standard
.USE_IBUFDISABLE("TRUE") // Set to "TRUE" to enable IBUFDISABLE feature
) IBUFDS_IBUFDISABLE_inst (
.O(O), // Buffer output
.I(I), // Diff_p buffer input (connect directly to top-level port)
.IB(IB), // Diff_n buffer input (connect directly to top-level port)
.IBUFDISABLE(IBUFDISABLE) // Buffer disable input, high=disable
);
// End of IBUFDS_IBUFDISABLE_inst instantiation
For More Information � See the 7 Series FPGA SelectIO Resources User Guide (UG471).
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 361
� See the 7 Series Programmable Devices User Guides.
Chapter 5: Design Elements
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 362
Chapter 5: Design Elements
IBUFDS_INTERMDISABLE
Primitive: Input Differential Buffer with Input Termination Disable and Input Disable
IBUFDS_INTERMDISABLE
INTERMDISABLE IBUFDISABLE
I
O
IB
X12310
Introduction
This design element is an input differential buffer used to connect internal logic to an external bidirectional pin. This element includes an uncalibrated input termination (INTERM) disable as well as input path disable as additional power saving features when the input is idle for a sustained amount of time. This element may only be placed in High Range (HR) banks in the 7 series devices.
Port Descriptions
Port I IB IBUFDISABLE
INTERMDISABLE O
Direction Input Input Input
Input Output
Width 1 1 1
1 1
Function
Input p-side port connection. Connect directly to a top-level port in the design.
Input n-side port connection. Connect directly to a top-level port in the design.
Disables input path through the buffer and forces to a logic High when USE_IBUFDISABLE is set to "TRUE" and this signal is asserted High. If USE_IBUFDISABLE is set to "FALSE" this input is ignored and should be tied to ground. This feature is generally used to reduce power at times when the I/O is idle.
Disables input termination. This feature is generally used to reduce power at times when the I/O is idle.
Buffer output representing the input path to the device.
Design Entry Method
Instantiation
Yes
Inference
No
IP Catalog
Yes
Macro support
No
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 363
Chapter 5: Design Elements
Available Attributes
Attribute DIFF_TERM IBUF_LOW_PWR
IOSTANDARD USE_IBUFDISABLE
Type STRING STRING
STRING STRING
Allowed Values Default "TRUE", "FALSE" "FALSE" "TRUE", "FALSE" "TRUE"
See Data Sheet "DEFAULT" "TRUE", "FALSE" "TRUE"
Description
Turns the built-in differential termination on (TRUE) or off (FALSE).
Allows a trade off of lower power consumption versus. highest performance when referenced I/O standards are used.
Assigns an I/O standard to the element.
Enables or disables the IBUFDISABLE feature. Generally used when it is not desirable to disable the input path in order to allow a read during write operation.
VHDL Instantiation Template Unless they already exist, copy the following two statements and paste them before the entity declaration.
Library UNISIM; use UNISIM.vcomponents.all;
-- IBUFDS_INTERMDISABLE: Differential Input Buffer with Input Termination Disable
--
May only be placed in High Range (HR) Banks
--
7 Series
-- Xilinx HDL Language Template, version 2019.1
IBUFDS_INTERMDISABLE_inst : IBUFDS_INTERMDISABLE generic map (
DIFF_TERM => "FALSE", -- Differential Termination IBUF_LOW_PWR => "TRUE", -- Low power (TRUE) vs. performance (FALSE) setting for referenced I/O standards IOSTANDARD => "DEFAULT", -- Specify the input I/O standard USE_IBUFDISABLE => "TRUE") -- Set to "TRUE" to enable IBUFDISABLE feature port map ( O => O, -- Buffer output I => I, -- Diff_p buffer input (connect directly to top-level port) IB => IB, -- Diff_n buffer input (connect directly to top-level port) IBUFDISABLE => IBUFDISABLE, -- Buffer disable input, high=disable INTERMDISABLE => INTERMDISABLE -- Input termination disable );
-- End of IBUFDS_IBUFDISABLE_inst instantiation
Verilog Instantiation Template
// IBUFDS_INTERMDISABLE: Differential Input Buffer with Input Termination Disable
//
May only be placed in High Range (HR) Banks
//
7 Series
// Xilinx HDL Language Template, version 2019.1
IBUFDS_INTERMDISABLE #(
.DIFF_TERM("FALSE"),
// Differential Termination
.IBUF_LOW_PWR("TRUE"), // Low power="TRUE", Highest performance="FALSE"
.IOSTANDARD("DEFAULT"), // Specify the input I/O standard
.USE_IBUFDISABLE("TRUE") // Set to "TRUE" to enable IBUFDISABLE feature
) IBUFDS_INTERMDISABLE_inst (
.O(O), // Buffer output
.I(I), // Diff_p buffer input (connect directly to top-level port)
.IB(IB), // Diff_n buffer input (connect directly to top-level port)
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 364
Chapter 5: Design Elements
.IBUFDISABLE(IBUFDISABLE), // Buffer disable input, high=disable .INTERMDISABLE(INTERMDISABLE) // Input Termination Disable ); // End of IBUFDS_INTERMDISABLE_inst instantiation
For More Information � See the 7 Series FPGA SelectIO Resources User Guide (UG471). � See the 7 Series Programmable Devices User Guides.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 365
Chapter 5: Design Elements
ICAPE2
Primitive: Internal Configuration Access Port
CLK CSIB I[31:0] RDWRB
ICAPE2
O[31:0]
x12106
Introduction
This design element gives you access to the configuration functions of the FPGA from the FPGA fabric. Using this component, commands and data can be written to and read from the configuration logic of the FPGA array. Since the improper use of this function can have a negative effect on the functionality and reliability of the FPGA, you should not use this element unless you are very familiar with its capabilities.
Port Descriptions
CLK CSIB I<31:0> O<31:0> RDWRB
Port
Direction Input Input Input Output Input
Width 1 1 32 32 1
Function Clock Input Active Low ICAP Enable Configuration data input bus Configuration data output bus Read/Write Select input
Design Entry Method
Instantiation Inference IP Catalog Macro support
Recommended No No No
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 366
Chapter 5: Design Elements
Available Attributes
Attribute DEVICE_ID
ICAP_WIDTH SIM_CFG_FILE _NAME
Type HEX
STRING STRING
Allowed Values
Default
32'h03651093, 32'h036A2093, 32'h036A4093, 32'h036A6093, 32'h036BF093, 32'h036B1093, 32'h036B3093, 32'h036C2093, 32'h036C4093, 32'h036C6093, 32'h036DF093, 32'h036D1093, 32'h036D3093, 32'h036D5093, 32'h036D9093, 32'h0362C093, 32'h0362D093, 32'h0363B093, 32'h0364C093, 32'h0371F093, 32'h0372C093, 32'h0377F093, 32'h03627093, 32'h03628093, 32'h03631093, 32'h03636093, 32'h03642093, 32'h03647093, 32'h03656093, 32'h03667093, 32'h03671093, 32'h03676093, 32'h03680093, 32'h03681093, 32'h03682093, 32'h03687093, 32'h03691093, 32'h03692093, 32'h03696093, 32'h03702093, 32'h03704093, 32'h03711093, 32'h03722093, 32'h03727093, 32'h03731093, 32'h03747093, 32'h03751093, 32'h03752093, 32'h03762093, 32'h03771093, 32'h03782093
0'h3651093
"X32", "X8", "X16"
"X32"
String representing "NONE" file name and location
Description Specifies the pre-programmed Device ID value to be used for simulation purposes.
Specifies the input and output data width. Specifies the Raw Bitstream (RBT) file to be parsed by the simulation model.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 367
Chapter 5: Design Elements
VHDL Instantiation Template Unless they already exist, copy the following two statements and paste them before the entity declaration.
Library UNISIM; use UNISIM.vcomponents.all;
-- ICAPE2: Internal Configuration Access Port
--
7 Series
-- Xilinx HDL Language Template, version 2019.1
ICAPE2_inst : ICAPE2
generic map (
DEVICE_ID => X"3651093",
-- Specifies the pre-programmed Device ID value to be used for simulation
-- purposes.
ICAP_WIDTH => "X32",
-- Specifies the input and output data width.
SIM_CFG_FILE_NAME => "NONE" -- Specifies the Raw Bitstream (RBT) file to be parsed by the simulation
-- model.
)
port map (
O => O,
-- 32-bit output: Configuration data output bus
CLK => CLK,
-- 1-bit input: Clock Input
CSIB => CSIB, -- 1-bit input: Active-Low ICAP Enable
I => I,
-- 32-bit input: Configuration data input bus
RDWRB => RDWRB -- 1-bit input: Read/Write Select input
);
-- End of ICAPE2_inst instantiation
Verilog Instantiation Template
// ICAPE2: Internal Configuration Access Port
//
7 Series
// Xilinx HDL Language Template, version 2019.1
ICAPE2 #(
.DEVICE_ID(0'h3651093),
// Specifies the pre-programmed Device ID value to be used for simulation
// purposes.
.ICAP_WIDTH("X32"),
// Specifies the input and output data width.
.SIM_CFG_FILE_NAME("NONE") // Specifies the Raw Bitstream (RBT) file to be parsed by the simulation
// model.
)
ICAPE2_inst (
.O(O),
// 32-bit output: Configuration data output bus
.CLK(CLK),
// 1-bit input: Clock Input
.CSIB(CSIB), // 1-bit input: Active-Low ICAP Enable
.I(I),
// 32-bit input: Configuration data input bus
.RDWRB(RDWRB) // 1-bit input: Read/Write Select input
);
// End of ICAPE2_inst instantiation
For More Information � See the 7 Series Programmable Devices User Guides.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 368
Chapter 5: Design Elements
IDDR
Primitive: Input Double Data-Rate Register
IDDR
D CE
C S R
Q1
Q2
X10109
Introduction
This design element is a dedicated input register designed to receive external double data rate (DDR) signals into Xilinx� FPGAs. The IDDR is available with modes that present the data to the FPGA fabric at the time and clock edge they are captured, or on the same clock edge. This feature allows you to avoid additional timing complexities and resource usage.
� OPPOSITE_EDGE mode Data is recovered in the classic DDR methodology. Given a DDR data and clock at pin D and C respectively, Q1 changes after every positive edge of clock C, and Q2 changes after every negative edge of clock C.
� SAME_EDGE mode Data is still recovered by opposite edges of clock C. However, an extra register has been placed behind the negative edge data register. This extra register is clocked with positive clock edge of clock signal C. As a result, DDR data is now presented into the FPGA fabric at the same clock edge. However, because of this feature, the data pair appears to be "separated." Q1 and Q2 no longer have pair 1 and 2. Instead, the first pair presented is Pair 1 and DONT_CARE, followed by Pair 2 and 3 at the next clock cycle.
� SAME_EDGE_PIPELINED mode Recovers data in a similar fashion as the SAME_EDGE mode. In order to avoid the "separated" effect of the SAME_EDGE mode, an extra register has been placed in front of the positive edge data register. A data pair now appears at the Q1 and Q2 pin at the same time. However, using this mode costs you an additional cycle of latency for Q1 and Q2 signals to change.
IDDR also works with the SelectIOTM features, such as the IDELAYE2.
Note: For high speed interfaces, you can use the IDDR_2CLK to specify two independent clocks to capture the data. Use this component when the performance requirements of the IDDR are not adequate, since the IDDR_2CLK requires more clocking resources and can imply placement restrictions that are not necessary when using the IDDR component.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 369
Chapter 5: Design Elements
Port Descriptions
Q1 - Q2 C CE
Port
D
R S
Direction Output Input Input
Input
Input
Input
Width 1 1 1
1
1
1
Function
The IDDR output pins that connect to the FPGA fabric.
Clock input pin.
The enable pin affects the loading of data into the DDR flipflop. When Low, clock transitions are ignored and new data is not loaded into the DDR flip-flop. CE must be high to load new data into the flip-flop.
Input to the IDDR module.This pin connects to a top-level input or bidirectional port, and IDELAYE2 configured for an input delay or to an appropriate input or bidirectional buffer.
Active High reset forcing Q1 and Q2 to a logic zero. Can be synchronous or asynchronous based on the SRTYPE attribute.
Active High reset forcing Q1 and Q2 to a logic one. Can be synchronous or asynchronous based on the SRTYPE attribute.
Note: You cannot have an active set and an active reset in this component. One or both of the signals R and S must be tied to ground.
Design Entry Method
Instantiation Inference IP Catalog Macro support
Recommended No Yes No
Available Attributes
Attribute DDR_CLK_EDGE
INIT_Q1 INIT_Q2 SRTYPE
Type STRING
BINARY BINARY STRING
Allowed Values
Default
"OPPOSITE_EDGE", "SAME_EDGE", "SAME_EDGE_PIPELIN ED"
"OPPOSITE_E DGE"
0, 1
0
0, 1
0
"SYNC" or "ASYNC" "SYNC"
Description
Sets the IDDR mode of operation with respect to clock edge.
Initial value on the Q1 pin after configuration startup or when GSR is asserted.
Initial value on the Q2 pin after configuration startup or when GSR is asserted.
Set/reset type selection. "SYNC" specifies the behavior of the reset (R) and set (S) pins to be synchronous to the positive edge of the C clock pin. "ASYNC" specifies an asynchronous set/reset function.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 370
Chapter 5: Design Elements
VHDL Instantiation Template Unless they already exist, copy the following two statements and paste them before the entity declaration.
Library UNISIM; use UNISIM.vcomponents.all;
-- IDDR: Double Data Rate Input Register with Set, Reset
--
and Clock Enable.
--
7 Series
-- Xilinx HDL Language Template, version 2019.1
IDDR_inst : IDDR generic map (
DDR_CLK_EDGE => "OPPOSITE_EDGE", -- "OPPOSITE_EDGE", "SAME_EDGE" -- or "SAME_EDGE_PIPELINED"
INIT_Q1 => '0', -- Initial value of Q1: '0' or '1' INIT_Q2 => '0', -- Initial value of Q2: '0' or '1' SRTYPE => "SYNC") -- Set/Reset type: "SYNC" or "ASYNC" port map ( Q1 => Q1, -- 1-bit output for positive edge of clock Q2 => Q2, -- 1-bit output for negative edge of clock C => C, -- 1-bit clock input CE => CE, -- 1-bit clock enable input D => D, -- 1-bit DDR data input R => R, -- 1-bit reset S => S -- 1-bit set );
-- End of IDDR_inst instantiation
Verilog Instantiation Template
// IDDR: Input Double Data Rate Input Register with Set, Reset
//
and Clock Enable.
//
7 Series
// Xilinx HDL Language Template, version 2019.1
IDDR #( .DDR_CLK_EDGE("OPPOSITE_EDGE"), // "OPPOSITE_EDGE", "SAME_EDGE" // or "SAME_EDGE_PIPELINED" .INIT_Q1(1'b0), // Initial value of Q1: 1'b0 or 1'b1 .INIT_Q2(1'b0), // Initial value of Q2: 1'b0 or 1'b1 .SRTYPE("SYNC") // Set/Reset type: "SYNC" or "ASYNC"
) IDDR_inst ( .Q1(Q1), // 1-bit output for positive edge of clock .Q2(Q2), // 1-bit output for negative edge of clock .C(C), // 1-bit clock input .CE(CE), // 1-bit clock enable input .D(D), // 1-bit DDR data input .R(R), // 1-bit reset .S(S) // 1-bit set
);
// End of IDDR_inst instantiation
For More Information � See the 7 Series Programmable Devices User Guides.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 371
Chapter 5: Design Elements
IDDR_2CLK
Primitive: Input Double Data-Rate Register with Dual Clock Inputs
IDDR_2CLK
D CE
C CB S R
Q1 Q2
X10489
Introduction
This design element is a dedicated input register designed to receive external double data rate (DDR) signals into Xilinx� FPGAs. You should only use the IDDR_2CLK for very high speed interfaces, since it requires more clocking resources, more power, and can imply certain placement restrictions that are not necessary when using the IDDR component. The IDDR component is also easier to use, uses fewer resources, and has fewer restrictions, though it cannot operate at the same high I/O speeds. The IDDR_2CLK is available with modes that present the data to the FPGA fabric at the time and clock edge they are captured, or on the same clock edge. This feature allows designers to avoid additional timing complexities and resource usage.
� OPPOSITE_EDGE mode Data is presented in the classic DDR methodology. Given a DDR data and clock at pin D and C respectively, Q1 changes after every positive edge of clock C, and Q2 changes after every positive edge of clock CB.
� SAME_EDGE mode Data is still presented by positive edges of each clock. However, an extra register has been placed in front of the CB clocked data register. This extra register is clocked with positive clock edge of clock signal C. As a result, DDR data is now presented into the FPGA fabric at the positive edge of clock C. However, because of this feature, the data pair appears to be "separated." Q1 and Q2 no longer have pair 1 and 2. Instead, the first pair presented is Pair 1 and DON'T CARE, followed by Pair 2 and 3 at the next clock cycle.
� SAME_EDGE_PIPELINED mode Presents data in a similar fashion as the SAME_EDGE mode. In order to avoid the "separated" effect of the SAME_EDGE mode, an extra register has been placed in front of the C clocked data register. A data pair now appears at the Q1 and Q2 pin at the same time during the positive edge of C. However, using this mode requires an additional cycle of latency for Q1 and Q2 signals to change.
IDDR also works with SelectIOTM features, such as the IODELAYE2.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 372
Chapter 5: Design Elements
Port Descriptions
Q1 : Q2
Port
C
CB CE
D
R
S
Direction Output Input Input Input Input Input Input
Width 1 1 1 1 1 1 1
Function
The enable pin affects the loading of data into the DDR flipflop. When Low, clock transitions are ignored and new data is not loaded into the DDR flip-flop. CE must be high to load new data into the flip-flop.
The enable pin affects the loading of data into the DDR flipflop. When Low, clock transitions are ignored and new data is not loaded into the DDR flip-flop. CE must be high to load new data into the flip-flop.
Secondary clock input pin (typically 180 degrees out of phase with the primary clock) used to capture the negative edge data.
The enable pin affects the loading of data into the DDR flipflop. When Low, clock transitions are ignored and new data is not loaded into the DDR flip-flop. CE must be high to load new data into the flip-flop.
The enable pin affects the loading of data into the DDR flipflop. When Low, clock transitions are ignored and new data is not loaded into the DDR flip-flop. CE must be high to load new data into the flip-flop.
The enable pin affects the loading of data into the DDR flipflop. When Low, clock transitions are ignored and new data is not loaded into the DDR flip-flop. CE must be high to load new data into the flip-flop.
The enable pin affects the loading of data into the DDR flipflop. When Low, clock transitions are ignored and new data is not loaded into the DDR flip-flop. CE must be high to load new data into the flip-flop.
Design Entry Method
Instantiation Inference IP Catalog Macro support
Recommended No No No
� Connect the C pin to the appropriate clock source, representing the positive clock edge and CB to the clock source representing the negative clock edge.
� Connect the D pin to the top-level input, or bidirectional port, an IODELAY, or an instantiated input or bidirectional buffer.
� The Q1 and Q2 pins should be connected to the appropriate data sources.
� CE should be tied high when not used, or connected to the appropriate clock enable logic.
� R and S pins should be tied low, if not used, or to the appropriate set or reset generation logic.
� Set all attributes to the component to represent the desired behavior.
� Always instantiate this component in pairs with the same clocking, and to LOC those to the appropriate P and N I/O pair in order not to sacrifice possible I/O resources.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 373
Chapter 5: Design Elements
� Always instantiate this component in the top-level hierarchy of your design, along with any other instantiated I/O components for the design. This helps facilitate hierarchical design flows/practices.
� To minimize CLK skew, both CLK and CLKB should come from global routing (MMCM) and not from the local inversion. MMCM de-skews these clocks whereas the local inversion adds skew.
Available Attributes
Attribute DDR_CLK_EDGE
INIT_Q1 INIT_Q2 SRTYPE
Type STRING
BINARY BINARY STRING
Allowed Values
Default
Description
"OPPOSITE_EDGE","SA "OPPOSITE_ED DDR clock mode recovery mode selection. See
ME_EDGE""SAME_EDGE_ GE"
Introduction for more explanation.
PIPELINED"
0, 1
0
Initial value on the Q1 pin after configuration
startup or when GSR is asserted.
0, 1
0
Initial value on the Q2 pin after configuration
startup or when GSR is asserted.
"SYNC" or "ASYNC"
"SYNC"
Set/reset type selection. SYNC" specifies the behavior of the reset (R) and set (S) pins to be synchronous to the positive edge of the C clock pin. "ASYNC" specifies an asynchronous set/reset function.
VHDL Instantiation Template Unless they already exist, copy the following two statements and paste them before the entity declaration.
Library UNISIM; use UNISIM.vcomponents.all;
-- IDDR_2CLK: Dual-Clock, Input Double Data Rate Input Register with
--
Set, Reset and Clock Enable.
--
7 Series
-- Xilinx HDL Language Template, version 2019.1
IDDR_2CLK_inst : IDDR_2CLK generic map (
DDR_CLK_EDGE => "OPPOSITE_EDGE", -- "OPPOSITE_EDGE", "SAME_EDGE" -- or "SAME_EDGE_PIPELINED"
INIT_Q1 => '0', -- Initial value of Q1: '0' or '1' INIT_Q2 => '0', -- Initial value of Q2: '0' or '1' SRTYPE => "SYNC") -- Set/Reset type: "SYNC" or "ASYNC" port map ( Q1 => Q1, -- 1-bit output for positive edge of clock Q2 => Q2, -- 1-bit output for negative edge of clock C => C, -- 1-bit primary clock input CB => CB, -- 1-bit secondary clock input CE => CE, -- 1-bit clock enable input D => D, -- 1-bit DDR data input R => R, -- 1-bit reset S => S -- 1-bit set );
-- End of IDDR_2CLK_inst instantiation
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 374
Chapter 5: Design Elements
Verilog Instantiation Template
// IDDR_2CLK: Dual-Clock, Input Double Data Rate Input Register with
//
Set, Reset and Clock Enable.
//
7 Series
// Xilinx HDL Language Template, version 2019.1
IDDR_2CLK #( .DDR_CLK_EDGE("OPPOSITE_EDGE"), // "OPPOSITE_EDGE", "SAME_EDGE" // or "SAME_EDGE_PIPELINED" .INIT_Q1(1'b0), // Initial value of Q1: 1'b0 or 1'b1 .INIT_Q2(1'b0), // Initial value of Q2: 1'b0 or 1'b1 .SRTYPE("SYNC") // Set/Reset type: "SYNC" or "ASYNC"
) IDDR_2CLK_inst ( .Q1(Q1), // 1-bit output for positive edge of clock .Q2(Q2), // 1-bit output for negative edge of clock .C(C), // 1-bit primary clock input .CB(CB), // 1-bit secondary clock input .CE(CE), // 1-bit clock enable input .D(D), // 1-bit DDR data input .R(R), // 1-bit reset .S(S) // 1-bit set
);
// End of IDDR_2CLK_inst instantiation
For More Information � See the 7 Series Programmable Devices User Guides.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 375
Chapter 5: Design Elements
IDELAYCTRL
Primitive: IDELAYE2/ODELAYE2 Tap Delay Value Control
IDELAYCTRL
RST REFCLK
RDY
X13416
Introduction
At least one of these design elements must be instantiated when using IDELAYE2 or ODELAYE2. The IDELAYCTRL module provides a reference clock input that allows internal circuitry to derive a voltage bias, independent of PVT (process, voltage, and temperature) variations, in order to define precise delay tap values for the associated IDELAYE2 and ODELAYE2 components. Use the IODELAY_GROUP attribute when instantiating this component to distiguish which IDELAYCTRL is associated with which IDELAYE2 and ODELAYE2.
Port Descriptions
Port RDY
REFCLK
RST
Direction Output
Input
Input
Width 1
1
1
Function
The ready (RDY) signal indicates when the IDELAYE2 and ODELAYE2 modules in the specific region are calibrated. The RDY signal is de-asserted if REFCLK is held High or Low for one clock period or more. If RDY is de-asserted Low, the IDELAYCTRL module must be reset. If not needed, RDY to be unconnected/ignored.
Time reference to IDELAYCTRL to calibrate all IDELAYE2 and ODELAYE2 modules in the same region. REFCLK can be supplied directly from a user-supplied source or the MMCME2/PLLE2 and must be routed on a global clock buffer.
Active-High asynchronous reset. To ensure proper IDELAYE2 and ODELAYE2 operation, IDELAYCTRL must be reset after configuration and the REFCLK signal is stable. A reset pulse width Tidelayctrl_rpw is required.
RST (Module reset) Resets the IDELAYCTRL circuitry. The RST signal is an active High asynchronous reset. To reset the IDELAYCTRL, assert it High for at least 50 ns.
REFCLK (Reference Clock) Provides a voltage bias, independent of process, voltage, and temperature variations, to the tap-delay lines in the IOBs. The frequency of REFCLK must be 200 MHz to guarantee the tap-delay value specified in the applicable data sheet.
RDY (Ready Output) Indicates the validity of the reference clock input, REFCLK. When REFCLK disappears (i.e., REFCLK is held High or Low for one clock period or more), the RDY signal is deasserted.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 376
Chapter 5: Design Elements
Design Entry Method
Instantiation
Yes
Inference
No
IP Catalog
Yes
Macro support
No
VHDL Instantiation Template Unless they already exist, copy the following two statements and paste them before the entity declaration.
Library UNISIM; use UNISIM.vcomponents.all;
-- IDELAYCTRL: IDELAYE2/ODELAYE2 Tap Delay Value Control
--
7 Series
-- Xilinx HDL Language Template, version 2019.1
IDELAYCTRL_inst : IDELAYCTRL
port map (
RDY => RDY,
-- 1-bit output: Ready output
REFCLK => REFCLK, -- 1-bit input: Reference clock input
RST => RST
-- 1-bit input: Active high reset input
);
-- End of IDELAYCTRL_inst instantiation
Verilog Instantiation Template
// IDELAYCTRL: IDELAYE2/ODELAYE2 Tap Delay Value Control
//
7 Series
// Xilinx HDL Language Template, version 2019.1
(* IODELAY_GROUP = <iodelay_group_name> *) // Specifies group name for associated IDELAYs/ODELAYs and IDELAYCTRL
IDELAYCTRL IDELAYCTRL_inst (
.RDY(RDY),
// 1-bit output: Ready output
.REFCLK(REFCLK), // 1-bit input: Reference clock input
.RST(RST)
// 1-bit input: Active high reset input
);
// End of IDELAYCTRL_inst instantiation
For More Information � See the 7 Series Programmable Devices User Guides.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 377
Chapter 5: Design Elements
IDELAYE2
Primitive: Input Fixed or Variable Delay Element
IDELAYE2
CE CLK CINV_CTRL CNTVALUEIN[8:0] DATAIN IDATAIN INC LD LDPIPEEN REGRST
CNTVALUEOUT[4:0] DATAOUT
x12107
Introduction
Every I/O block contains a programmable absolute delay element called IDELAYE2. The IDELAYE2 can be connected to an input register/ISERDESE2 or driven directly into FPGA logic. The IDELAYE2 is a 31-tap, wraparound, delay element with a calibrated tap resolution. Refer to the 7 series FPGA Data Sheet for delay values. The IDELAYE2 allows incoming signals to be delayed on an individual basis. The tap delay resolution is varied by selecting an IDELAYCTRL reference clock from the range specified in the 7 series FPGA Data Sheet.
Port Descriptions
Port C
CE CINVCTRL
CNTVALUEIN <4:0>
Direction Input
Input Input Input
Width 1
1 1 5
Function
All control inputs to IDELAYE2 primitive (RST, CE, and INC) are synchronous to the clock input (C). A clock must be connected to this port when IDELAYE2 is configured in "VARIABLE", "VAR_LOAD" or "VAR_LOAD_PIPE" mode. C can be locally inverted, and must be supplied by a global or regional clock buffer. This clock should be connected to the same clock in the SelectIO logic resources (when using ISERDESE2 and OSERDESE2, C is connected to CLKDIV).
Active high enable for increment/decrement function.
The CINVCTRL pin is used for dynamically switching the polarity of C pin. This is for use in applications when glitches are not an issue. When switching the polarity, do not use the IDELAYE2 control pins for two clock cycles.
Counter value from FPGA logic for dynamically loadable tap value input.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 378
Chapter 5: Design Elements
Port CNTVALUEOUT <4:0> DATAIN DATAOUT IDATAIN INC LD
LDPIPEEN REGRST
Direction Output Input Output Input Input Input
Input Input
Width 5 1 1 1 1 1
1 1
Function
The CNTVALUEOUT pins are used for reporting the dynamically switching value of the delay element. CNTVALUEOUT is only available when IDELAYE2 is in "VAR_LOAD" or "VAR_LOAD_PIPE" mode.
The DATAIN input is directly driven by the FPGA logic providing a logic accessible delay line. The data is driven back into the FPGA logic through the DATAOUT port with a delay set by the IDELAY_VALUE. DATAIN can be locally inverted. The data cannot be driven to an I/O.
Delayed data from either the IDATAIN or DATAIN input paths. DATAOUT connects to an ISERDESE2, input register or FPGA logic.
The IDATAIN input is driven by its associated I/O. The data can be driven to either an ISERDESE2 or input register block, directly into the FPGA logic, or to both through the DATAOUT port with a delay set by the IDELAY_VALUE.
Selects whether tap delay numbers will be incremented or decremented. INC = 1 increments when CE is high. INC=0 decrements.
� In "VARIABLE" mode, loads the value set by the
IDELAY_VALUE attribute. The default value is zero.
� In "VAR_LOAD" mode, loads the value of CNTVALUEIN.
The value present at CNTVALUEIN[4:0] will be the new tap value.
� In "VAR_LOAD_PIPE" mode, loads the value currently in
the pipeline register. The value present in the pipeline register will be the new tap value.
When High, loads the pipeline register with the value currently on the CNTVALUEIN pins.
When high, resets the pipeline register to all zeros. Only used in "VAR_LOAD_PIPE" mode.
Design Entry Method
Instantiation
Yes
Inference
No
IP Catalog
Yes
Macro support
No
Available Attributes
Attribute CINVCTRL_SEL
Type STRING
DELAY_SRC
STRING
Allowed Values "FALSE", "TRUE"
"IDATAIN", "DATAIN"
Default "FALSE"
"IDATAIN"
Description Enables the CINVCTRL_SEL pin to dynamically switch the polarity of the C pin. Select the delay source input to the IDELAYE2
� "IDATAIN": IDELAYE2 chain input is IDATAIN � "DATAIN" : IDELAYE2 chain input is DATAIN
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 379
Chapter 5: Design Elements
Attribute HIGH _PERFORMANCE _MODE IDELAY_TYPE
IDELAY_VALUE
PIPE_SEL REFCLK _FREQUENCY
SIGNAL_PATTERN
Type STRING
STRING
Allowed Values "FALSE", "TRUE"
"FIXED", "VARIABLE", "VAR_LOAD", "VAR_LOAD_PIPE"
Default "FALSE"
"FIXED"
Description
When TRUE, this attribute reduces the output jitter. When FALSE, power consumption is reduced. The difference in power consumption is quantified in the Xilinx Power Estimator tool.
Sets the type of tap delay line.
� "FIXED" - Sets a static delay value.
� "VARIABLE" - Dynamically adjust (inrcement/
decrement) delay value.
� "VAR_LOAD" - Dynamically loads tap values.
� "VAR_LOAD_PIPE" - Pipelined dynamically
loadable tap values.
DECIMAL
0, 1, 2, 3, 4, 5, 6, 7, 8, 0 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 31
STRING
"FALSE", "TRUE"
"FALSE"
1 significant 190-210, 290-310 digit FLOAT Mhz
200.0
STRING
"DATA", "CLOCK" "DATA"
Specifies the fixed number of delay taps in fixed mode or the initial starting number of taps in "VARIABLE" mode (input path). When IDELAY_TYPE is set to "VAR_LOAD" or "VAR_LOAD_PIPE" mode, this value is ignored.
Select pipelined mode.
Sets the tap value (in MHz) used by the timing analyzer for static timing analysis and functional/ timing simulation. The frequency of REFCLK must be within the given datasheet range to guarantee the tap-delay value and performance.
Causes the timing analyzer to account for the appropriate amount of delay-chain jitter in the data or clock path.
VHDL Instantiation Template Unless they already exist, copy the following two statements and paste them before the entity declaration.
Library UNISIM; use UNISIM.vcomponents.all;
-- IDELAYE2: Input Fixed or Variable Delay Element
--
7 Series
-- Xilinx HDL Language Template, version 2019.1
IDELAYE2_inst : IDELAYE2
generic map (
CINVCTRL_SEL => "FALSE",
-- Enable dynamic clock inversion (FALSE, TRUE)
DELAY_SRC => "IDATAIN",
-- Delay input (IDATAIN, DATAIN)
HIGH_PERFORMANCE_MODE => "FALSE", -- Reduced jitter ("TRUE"), Reduced power ("FALSE")
IDELAY_TYPE => "FIXED",
-- FIXED, VARIABLE, VAR_LOAD, VAR_LOAD_PIPE
IDELAY_VALUE => 0,
-- Input delay tap setting (0-31)
PIPE_SEL => "FALSE",
-- Select pipelined mode, FALSE, TRUE
REFCLK_FREQUENCY => 200.0,
-- IDELAYCTRL clock input frequency in MHz (190.0-210.0, 290.0-310.0).
SIGNAL_PATTERN => "DATA"
-- DATA, CLOCK input signal
)
port map (
CNTVALUEOUT => CNTVALUEOUT, -- 5-bit output: Counter value output
DATAOUT => DATAOUT,
-- 1-bit output: Delayed data output
C => C,
-- 1-bit input: Clock input
CE => CE,
-- 1-bit input: Active high enable increment/decrement input
CINVCTRL => CINVCTRL,
-- 1-bit input: Dynamic clock inversion input
CNTVALUEIN => CNTVALUEIN, -- 5-bit input: Counter value input
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 380
Chapter 5: Design Elements
DATAIN => DATAIN, IDATAIN => IDATAIN, INC => INC, LD => LD, LDPIPEEN => LDPIPEEN, REGRST => REGRST );
-- 1-bit input: Internal delay data input -- 1-bit input: Data input from the I/O -- 1-bit input: Increment / Decrement tap delay input -- 1-bit input: Load IDELAY_VALUE input -- 1-bit input: Enable PIPELINE register to load data input -- 1-bit input: Active-high reset tap-delay input
-- End of IDELAYE2_inst instantiation
Verilog Instantiation Template
// IDELAYE2: Input Fixed or Variable Delay Element
//
7 Series
// Xilinx HDL Language Template, version 2019.1
(* IODELAY_GROUP = <iodelay_group_name> *) // Specifies group name for associated IDELAYs/ODELAYs and IDELAYCTRL
IDELAYE2 #(
.CINVCTRL_SEL("FALSE"),
// Enable dynamic clock inversion (FALSE, TRUE)
.DELAY_SRC("IDATAIN"),
// Delay input (IDATAIN, DATAIN)
.HIGH_PERFORMANCE_MODE("FALSE"), // Reduced jitter ("TRUE"), Reduced power ("FALSE")
.IDELAY_TYPE("FIXED"),
// FIXED, VARIABLE, VAR_LOAD, VAR_LOAD_PIPE
.IDELAY_VALUE(0),
// Input delay tap setting (0-31)
.PIPE_SEL("FALSE"),
// Select pipelined mode, FALSE, TRUE
.REFCLK_FREQUENCY(200.0),
// IDELAYCTRL clock input frequency in MHz (190.0-210.0, 290.0-310.0).
.SIGNAL_PATTERN("DATA")
// DATA, CLOCK input signal
)
IDELAYE2_inst (
.CNTVALUEOUT(CNTVALUEOUT), // 5-bit output: Counter value output
.DATAOUT(DATAOUT),
// 1-bit output: Delayed data output
.C(C),
// 1-bit input: Clock input
.CE(CE),
// 1-bit input: Active high enable increment/decrement input
.CINVCTRL(CINVCTRL),
// 1-bit input: Dynamic clock inversion input
.CNTVALUEIN(CNTVALUEIN), // 5-bit input: Counter value input
.DATAIN(DATAIN),
// 1-bit input: Internal delay data input
.IDATAIN(IDATAIN),
// 1-bit input: Data input from the I/O
.INC(INC),
// 1-bit input: Increment / Decrement tap delay input
.LD(LD),
// 1-bit input: Load IDELAY_VALUE input
.LDPIPEEN(LDPIPEEN),
// 1-bit input: Enable PIPELINE register to load data input
.REGRST(REGRST)
// 1-bit input: Active-high reset tap-delay input
);
// End of IDELAYE2_inst instantiation
For More Information � See the 7 Series Programmable Devices User Guides.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 381
Chapter 5: Design Elements
IN_FIFO
Primitive: Input First-In, First-Out (FIFO)
D0(3:0) D1(3:0) D2(3:0) D3(3:0) D4(3:0) D5(3:0) D6(3:0) D7(3:0) D8(3:0) D9(3:0) RDCLK RDEN RESET WRCLK WREN
IN_FIFO
Q0(7:0) Q1(7:0) Q2(7:0) Q3(7:0) Q4(7:0) Q5(7:0) Q6(7:0) Q7(7:0) Q8(7:0) Q9(7:0) ALMOSTEMPTY ALMOSTFULL EMPTY
FULL
X12312
Introduction
The Input FIFO is a new resource located next to the I/O. This dedicated hardware is designed to help transition the data from the input port, input register, IDDR, or ISERDESE2 to the fabric. It has two basic modes. The first is a 4x4 mode where the data coming into the FIFO goes out at the same rate. The second mode is a 4x8 mode where the data coming out is de-serialized by a factor of 2. In other words in 4x8 mode 4 bits go to the IN_FIFO and 8 bits come out. Features of this component include:
� Array dimensions: 80 wide, 8 deep (4x8 mode); 40 wide, 8 deep (4x4 mode)
� Empty and Full flags
� Programmable Almost Empty and Almost Full flags
Port Descriptions
Port ALMOSTEMPTY
Direction Output
Width 1
Function
Active high output flag indicating the FIFO is almost empty. The threshold of the almost empty flag is set by the ALMOST_EMPTY_VALUE attribute.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 382
Chapter 5: Design Elements
Port ALMOSTFULL
D0<3:0> D1<3:0> D2<3:0> D3<3:0> D4<3:0> D5<7:0> D6<7:0> D7<3:0> D8<3:0> D9<3:0> EMPTY FULL Q0<7:0> Q1<7:0> Q2<7:0> Q3<7:0> Q4<7:0> Q5<7:0> Q6<7:0> Q7<7:0> Q8<7:0> Q9<7:0> RDCLK RDEN RESET WRCLK WREN
Direction Output
Input Input Input Input Input Input Input Input Input Input Output Output Output Output Output Output Output Output Output Output Output Output Input Input Input Input Input
Width 1
4 4 4 4 4 8 8 4 4 4 1 1 8 8 8 8 8 8 8 8 8 8 1 1 1 1 1
Function Active high output flag indicating the FIFO is almost full. The threshold of the almost empty flag is set by the ALMOST_FULL_VALUE attribute. Channel 0 input bus. Channel 1 input bus. Channel 2 input bus. Channel 3 input bus. Channel 4 input bus. Channel 5 input bus. Channel 6 input bus. Channel 7 input bus. Channel 8 input bus. Channel 9 input bus. Active high output flag indicating the FIFO is empty. Active high output flag indicating the FIFO is full. Channel 0 input bus. Channel 1 output bus. Channel 2 output bus. Channel 3 output bus. Channel 4 output bus. Channel 5 output bus. Channel 6 output bus. Channel 7 output bus. Channel 8 output bus. Channel 9 output bus. Read clock. Active high read enable. Active high asynchronous reset. Write clock. Active high write enable.
Design Entry Method
Instantiation
Yes
Inference
No
IP Catalog
No
Macro support
No
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 383
Chapter 5: Design Elements
Available Attributes
Attribute
ALMOST_EMPTY _VALUE
Type DECIMAL
Allowed Values 1, 2
ALMOST_FULL _VALUE
DECIMAL 1, 2
ARRAY_MODE
STRING
"ARRAY_MODE_4_X_8", "ARRAY_MODE_4_X_4"
SYNCHRONOUS _MODE
STRING
"FALSE"
Default 1 1 "ARRAY_MODE_4_X_8"
"FALSE"
Description
Specifies the number of entries left before asserting the ALMOSTEMPTY output signal.
Specifies the number of entries left before asserting the ALMOSTFULL output signal.
Specifies deserializer mode:
� "ARRAY_MODE_8_X_8" - Eight
bits in, eight bits out
� "ARRAY_MODE_4_X_8" - Four
bits in, eight bits out
Specify whether the RDCLK and WRCLK are synchrnous to each other.
VHDL Instantiation Template Unless they already exist, copy the following two statements and paste them before the entity declaration.
Library UNISIM; use UNISIM.vcomponents.all;
-- IN_FIFO: Input First-In, First-Out (FIFO)
--
7 Series
-- Xilinx HDL Language Template, version 2019.1
IN_FIFO_inst : IN_FIFO
generic map (
ALMOST_EMPTY_VALUE => 1,
-- Almost empty offset (1-2)
ALMOST_FULL_VALUE => 1,
-- Almost full offset (1-2)
ARRAY_MODE => "ARRAY_MODE_4_X_8", -- ARRAY_MODE_4_X_8, ARRAY_MODE_4_X_4
SYNCHRONOUS_MODE => "FALSE"
-- Clock synchronous (FALSE)
)
port map (
-- FIFO Status Flags: 1-bit (each) output: Flags and other FIFO status outputs
ALMOSTEMPTY => ALMOSTEMPTY, -- 1-bit output: Almost empty
ALMOSTFULL => ALMOSTFULL, -- 1-bit output: Almost full
EMPTY => EMPTY,
-- 1-bit output: Empty
FULL => FULL,
-- 1-bit output: Full
-- Q0-Q9: 8-bit (each) output: FIFO Outputs
Q0 => Q0,
-- 8-bit output: Channel 0
Q1 => Q1,
-- 8-bit output: Channel 1
Q2 => Q2,
-- 8-bit output: Channel 2
Q3 => Q3,
-- 8-bit output: Channel 3
Q4 => Q4,
-- 8-bit output: Channel 4
Q5 => Q5,
-- 8-bit output: Channel 5
Q6 => Q6,
-- 8-bit output: Channel 6
Q7 => Q7,
-- 8-bit output: Channel 7
Q8 => Q8,
-- 8-bit output: Channel 8
Q9 => Q9,
-- 8-bit output: Channel 9
-- D0-D9: 4-bit (each) input: FIFO inputs
D0 => D0,
-- 4-bit input: Channel 0
D1 => D1,
-- 4-bit input: Channel 1
D2 => D2,
-- 4-bit input: Channel 2
D3 => D3,
-- 4-bit input: Channel 3
D4 => D4,
-- 4-bit input: Channel 4
D5 => D5,
-- 8-bit input: Channel 5
D6 => D6,
-- 8-bit input: Channel 6
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 384
Chapter 5: Design Elements
D7 => D7,
-- 4-bit input: Channel 7
D8 => D8,
-- 4-bit input: Channel 8
D9 => D9,
-- 4-bit input: Channel 9
-- FIFO Control Signals: 1-bit (each) input: Clocks, Resets and Enables
RDCLK => RDCLK,
-- 1-bit input: Read clock
RDEN => RDEN,
-- 1-bit input: Read enable
RESET => RESET,
-- 1-bit input: Reset
WRCLK => WRCLK,
-- 1-bit input: Write clock
WREN => WREN
-- 1-bit input: Write enable
);
-- End of IN_FIFO_inst instantiation
Verilog Instantiation Template
// IN_FIFO: Input First-In, First-Out (FIFO)
//
7 Series
// Xilinx HDL Language Template, version 2019.1
IN_FIFO #(
.ALMOST_EMPTY_VALUE(1),
// Almost empty offset (1-2)
.ALMOST_FULL_VALUE(1),
// Almost full offset (1-2)
.ARRAY_MODE("ARRAY_MODE_4_X_8"), // ARRAY_MODE_4_X_8, ARRAY_MODE_4_X_4
.SYNCHRONOUS_MODE("FALSE")
// Clock synchronous (FALSE)
)
IN_FIFO_inst (
// FIFO Status Flags: 1-bit (each) output: Flags and other FIFO status outputs
.ALMOSTEMPTY(ALMOSTEMPTY), // 1-bit output: Almost empty
.ALMOSTFULL(ALMOSTFULL), // 1-bit output: Almost full
.EMPTY(EMPTY),
// 1-bit output: Empty
.FULL(FULL),
// 1-bit output: Full
// Q0-Q9: 8-bit (each) output: FIFO Outputs
.Q0(Q0),
// 8-bit output: Channel 0
.Q1(Q1),
// 8-bit output: Channel 1
.Q2(Q2),
// 8-bit output: Channel 2
.Q3(Q3),
// 8-bit output: Channel 3
.Q4(Q4),
// 8-bit output: Channel 4
.Q5(Q5),
// 8-bit output: Channel 5
.Q6(Q6),
// 8-bit output: Channel 6
.Q7(Q7),
// 8-bit output: Channel 7
.Q8(Q8),
// 8-bit output: Channel 8
.Q9(Q9),
// 8-bit output: Channel 9
// D0-D9: 4-bit (each) input: FIFO inputs
.D0(D0),
// 4-bit input: Channel 0
.D1(D1),
// 4-bit input: Channel 1
.D2(D2),
// 4-bit input: Channel 2
.D3(D3),
// 4-bit input: Channel 3
.D4(D4),
// 4-bit input: Channel 4
.D5(D5),
// 8-bit input: Channel 5
.D6(D6),
// 8-bit input: Channel 6
.D7(D7),
// 4-bit input: Channel 7
.D8(D8),
// 4-bit input: Channel 8
.D9(D9),
// 4-bit input: Channel 9
// FIFO Control Signals: 1-bit (each) input: Clocks, Resets and Enables
.RDCLK(RDCLK),
// 1-bit input: Read clock
.RDEN(RDEN),
// 1-bit input: Read enable
.RESET(RESET),
// 1-bit input: Reset
.WRCLK(WRCLK),
// 1-bit input: Write clock
.WREN(WREN)
// 1-bit input: Write enable
);
// End of IN_FIFO_inst instantiation
For More Information � See the 7 Series Programmable Devices User Guides.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 385
Chapter 5: Design Elements
IOBUF
Primitive: Bi-Directional Buffer
T 3-state input
I
IOBUF
I/O to/from device pad
O
X10663
Introduction
The design element is a bidirectional single-ended I/O Buffer used to connect internal logic to an external bidirectional pin.
Logic Table
Inputs
T
I
1
X
0
1
0
0
Bidirectional IO
Z 1 0
Outputs O
IO 1 0
Port Descriptions
Port O IO I T
Direction Output In/out Input Input
Width 1 1 1 1
Buffer output Buffer In/out Buffer input 3-State enable input
Function
Design Entry Method
Instantiation Inference IP Catalog Macro support
Yes Recommended No No
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 386
Chapter 5: Design Elements
Available Attributes
Attribute DRIVE
IOSTANDARD SLEW
Type INTEGER
STRING STRING
Allowed Values
Default
2, 4, 6, 8, 12, 16, 24 12
See Data Sheet "SLOW", "FAST"
"DEFAULT" "SLOW"
Description
Selects output drive strength (mA) for the SelectIOTM buffers that use the LVTTL, LVCMOS12, LVCMOS15, LVCMOS18, LVCMOS25, or LVCMOS33 interface I/O standard.
Assigns an I/O standard to the element.
Sets the output rise and fall time.
VHDL Instantiation Template Unless they already exist, copy the following two statements and paste them before the entity declaration.
Library UNISIM; use UNISIM.vcomponents.all;
-- IOBUF: Single-ended Bi-directional Buffer
--
7 Series
-- Xilinx HDL Language Template, version 2019.1
IOBUF_inst : IOBUF
generic map (
DRIVE => 12,
IOSTANDARD => "DEFAULT",
SLEW => "SLOW")
port map (
O => O,
-- Buffer output
IO => IO, -- Buffer inout port (connect directly to top-level port)
I => I,
-- Buffer input
T => T
-- 3-state enable input, high=input, low=output
);
-- End of IOBUF_inst instantiation
Verilog Instantiation Template
// IOBUF: Single-ended Bi-directional Buffer
//
All devices
// Xilinx HDL Language Template, version 2019.1
IOBUF #(
.DRIVE(12), // Specify the output drive strength
.IBUF_LOW_PWR("TRUE"), // Low Power - "TRUE", High Performance = "FALSE"
.IOSTANDARD("DEFAULT"), // Specify the I/O standard
.SLEW("SLOW") // Specify the output slew rate
) IOBUF_inst (
.O(O),
// Buffer output
.IO(IO), // Buffer inout port (connect directly to top-level port)
.I(I),
// Buffer input
.T(T)
// 3-state enable input, high=input, low=output
);
// End of IOBUF_inst instantiation
For More Information � See the 7 Series FPGA SelectIO Resources User Guide (UG471). � See the 7 Series Programmable Devices User Guides.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 387
Chapter 5: Design Elements
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 388
Chapter 5: Design Elements
IOBUF_DCIEN
Primitive: Bi-Directional Single-ended Buffer with DCI and Input Disable
IOBUF_DCIEN
I
T DCITERMDISABLE
IBUFDISABLE O
I/O
X12313
Introduction
This design element is a bidirectional single ended I/O buffer used to connect internal logic to an external bidirectional pin. This element includes Digitally Controlled Impedance (DCI) termination enable/disable as well as input path disable as additional power saving features when the I/O is either in an unused state or being used as an output for a sustained amount of time. This element may only be placed in High Performance (HP) banks in the 7 series devices.
Port Descriptions
Port IO I IBUFDISABLE
DCITERMDISABLE
T
O
Direction In/out Input Input
Input
Input
Output
Width 1 1 1
1
1
1
Function
Bi-directional port connection. Connect directly to top-level port in the design.
Buffer input representing the output path to the device.
Disables input path. When this signal is asserted HIGH and the attribute USE_IBUFDISABLE is set to "TRUE", the input path through the input buffer is disabled and forced to a logic HIGH. If USE_IBUFDISABLE is set to "FALSE" this input is ignored and should be tied to ground. This feature is generally used to reduce power at times when the I/O is either idle or during sustained write (output) conditions.
Disables DCI termination. When this signal is asserted HIGH, DCI termination is disabled. This feature is generally used to reduce power at times when the I/O is either idle or during sustained write (output) conditions.
Sets the I/O in a high impedance 3-state mode when the I/O is being used for a read (input) operation. The T pin also affects the IBUFDISABLE function when USE_IBUFDISABLE = "TRUE".
Buffer output representing the input path to the device.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 389
Chapter 5: Design Elements
Design Entry Method
Instantiation
Yes
Inference
No
IP Catalog
Yes
Macro support
No
Available Attributes
Attribute DRIVE IBUF_LOW_PWR IOSTANDARD SLEW
USE_IBUFDISABLE
Type INTEGER STRING STRING STRING
STRING
Allowed Values
2, 4, 6, 8, 12, 16, 24
"TRUE", "FALSE"
Default 12
"TRUE"
See Data Sheet "SLOW", "FAST",
"DEFAULT" "SLOW"
"TRUE", "FALSE" "TRUE"
Description
Selects output drive strength (mA) for the SelectIOTM buffers.
Allows a trade off of lower power consumption vs. highest performance.
Assigns an I/O standard to the element.
Sets the output rise and fall time. See the Data Sheet for recommendations of the best setting for this attribute.
Enables or disables the feature of IBUFDISABLE. Set to FALSE when it is not desirable to have the T pin disable input path to allow a read during write operation. When set to TRUE deasserting T (IO used as output) or asserting IBUFDISABLE will disable the input path through the buffer and forces to a logic high.
VHDL Instantiation Template Unless they already exist, copy the following two statements and paste them before the entity declaration.
Library UNISIM; use UNISIM.vcomponents.all;
-- IOBUF_DCIEN: Single-ended Bi-directional Buffer with Digital Controlled Impedance (DCI)
--
and Input path enable/disable
--
May only be placed in High Performance (HP) Banks
--
7 Series
-- Xilinx HDL Language Template, version 2019.1
IOBUF_DCIEN_inst : IOBUF_DCIEN
generic map (
DRIVE => 12,
IOSTANDARD => "DEFAULT",
IBUF_LOW_PWR => "TRUE",
SLEW => "SLOW")
port map (
O => O,
-- Buffer output
IO => IO, -- Buffer inout port (connect directly to top-level port)
DCITERMDISABLE => DCITERMDISABLE, -- DCI Termination enable input
I => I,
-- Buffer input
IBUFDISABLE => IBUFDISABLE, -- Input disable input, high=disable
T => T
-- 3-state enable input, high=input, low=output
);
-- End of IOBUF_DCIEN_inst instantiation
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 390
Chapter 5: Design Elements
Verilog Instantiation Template
// IOBUF_DCIEN: Single-ended Bi-directional Buffer with Digital Controlled Impedance (DCI)
//
and Input path enable/disable
//
May only be placed in High Performance (HP) Banks
//
7 Series
// Xilinx HDL Language Template, version 2019.1
IOBUF_DCIEN #(
.DRIVE(12), // Specify the output drive strength
.IBUF_LOW_PWR("TRUE"), // Low Power - "TRUE", High Performance = "FALSE"
.IOSTANDARD("DEFAULT"), // Specify the I/O standard
.SLEW("SLOW"),
// Specify the output slew rate
.USE_IBUFDISABLE("TRUE") // Use IBUFDISABLE function, "TRUE" or "FALSE"
) IOBUF_DCIEN_inst (
.O(O),
// Buffer output
.IO(IO), // Buffer inout port (connect directly to top-level port)
.DCITERMDISABLE(DCITERMDISABLE), // DCI Termination enable input
.I(I),
// Buffer input
.IBUFDISABLE(IBUFDISABLE), // Input disable input, high=disable
.T(T)
// 3-state enable input, high=input, low=output
);
// End of IOBUF_DCIEN_inst instantiation
For More Information � See the 7 Series FPGA SelectIO Resources User Guide (UG471). � See the 7 Series Programmable Devices User Guides.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 391
Chapter 5: Design Elements
IOBUF_INTERMDISABLE
Primitive: Bi-Directional Single-ended Buffer with Input Termination Disable and Input Path Disable
IOBUF_INTERMDISABLE
I T INTERMDISABLE IBUFDISABLE
O
I/O
X12314
Introduction
The design element is a bidirectional single-ended I/O Buffer used to connect internal logic to an external bidirectional pin. This element include uncalibrated input termination (INTERM) disable as well as input path disable as additional power saving features when the I/O is either is an unused state or being used as an output for several clock cycles. This element may only be placed in High Range (HR) banks in the 7 series devices.
Port Descriptions
Port O IO I IBUFDISABLE
INTERMDISABLE
T
Direction Output In/out Input Input
Input
Input
Width 1 1 1 1
1
1
Function
Buffer output representing the input path to the device.
Bi-directional port connection. Connect directly to top-level port in the design.
Buffer input representing the output path to the device.
Disables input path through the buffer and forces to a logic high when USE_IBUFDISABLE is set to "TRUE". If USE_IBUFDISABLE is set to "FALSE" this input is ignored and should be tied to ground. This feature is generally used to reduce power at times when the I/O is either idle or during sustained write (output) conditions.
Disables input termination. This feature is generally used to reduce power at times when the I/O is either idle or during sustained write (output) conditions.
Sets the I/O in a high impedance 3-state mode when the I/O is being used for a read (input) operation. The T pin also affects the IBUFDISABLE function when USE_IBUFDISABLE = "TRUE". The T pin also disables INTERM when in a write (output) mode.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 392
Chapter 5: Design Elements
Design Entry Method
Instantiation
Yes
Inference
No
IP Catalog
Yes
Macro support
No
Available Attributes
Attribute DRIVE IBUF_LOW_PWR IOSTANDARD SLEW
USE_IBUFDISABLE
Type INTEGER STRING STRING STRING
STRING
Allowed Values Default
Description
2, 4, 6, 8, 12, 16, 24 12
Selects output drive strength (mA) for the SelectIOTM buffers.
"TRUE", "FALSE" "TRUE"
Allows a trade off of lower power consumption vs. highest performance.
See Data Sheet
"DEFAULT" Assigns an I/O standard to the element.
"SLOW", "FAST" "SLOW"
Sets the output rise and fall time. See the Data Sheet for recommendations of the best setting for this attribute.
"TRUE", "FALSE" "TRUE"
Enables or disables the feature of IBUFDISABLE. Generally used when it is not desirable to have the T pin disable input path to allow a read during write operation.
VHDL Instantiation Template Unless they already exist, copy the following two statements and paste them before the entity declaration.
Library UNISIM; use UNISIM.vcomponents.all;
-- IOBUF_INTERMDISABLE: Single-ended Bi-directional Buffer with Input Termination
--
and Input path enable/disable
--
May only be placed in High Range (HR) Banks
--
7 Series
-- Xilinx HDL Language Template, version 2019.1
IOBUF_INTERMDISABLE_inst : IOBUF_INTERMDISABLE
generic map (
DRIVE => 12,
IOSTANDARD => "DEFAULT", -- Specify the I/O standard
IBUF_LOW_PWR => "TRUE", -- Low Power - "TRUE", High Performance = "FALSE"
USE_IBUFDISABLE => "TRUE", -- Use IBUFDISABLE function "TRUE" or "FALSE"
SLEW => "SLOW")
port map (
O => O,
-- Buffer output
IO => IO, -- Buffer inout port (connect directly to top-level port)
DCITERMDISABLE => DCITERMDISABLE, -- DCI Termination enable input
I => I,
-- Buffer input
IBUFDISABLE => IBUFDISABLE, -- Input disable input, high=disable
INTERMDISABLE => INTERMDISABLE, -- Input termination disable input
T => T
-- 3-state enable input, high=input, low=output
);
-- End of IOBUF_INTERMDISABLE_inst instantiation
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 393
Chapter 5: Design Elements
Verilog Instantiation Template
// IOBUF_INTERMDISABLE: Single-ended Bi-directional Buffer with Input Termination
//
and Input path enable/disable
//
May only be placed in High Range (HR) Banks
//
7 Series
// Xilinx HDL Language Template, version 2019.1
IOBUF_INTERMDISABLE #(
.DRIVE(12), // Specify the output drive strength
.IBUF_LOW_PWR("TRUE"), // Low Power - "TRUE", High Performance = "FALSE"
.IOSTANDARD("DEFAULT"), // Specify the I/O standard
.SLEW("SLOW"),
// Specify the output slew rate
.USE_IBUFDISABLE("TRUE") // Use IBUFDISABLE function, "TRUE" or "FALSE"
) IOBUF_INTERMDISABLE_inst (
.O(O),
// Buffer output
.IO(IO), // Buffer inout port (connect directly to top-level port)
.I(I),
// Buffer input
.IBUFDISABLE(IBUFDISABLE), // Input disable input, high=disable
.INTERMDISABLE(INTERMDISABLE), // Input termination disable input
.T(T)
// 3-state enable input, high=input, low=output
);
// End of IOBUF_INTERMDISABLE_inst instantiation
For More Information � See the 7 Series FPGA SelectIO Resources User Guide (UG471). � See the 7 Series Programmable Devices User Guides.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 394
Chapter 5: Design Elements
IOBUFDS
Primitive: 3-State Differential Signaling I/O Buffer with Active Low Output Enable
IOBUFDS
T 3-state input
IO I
IOB
O
X10664
Introduction
The design element is a bidirectional buffer that supports low-voltage, differential signaling. For the IOBUFDS, a design level interface signal is represented as two distinct ports (IO and IOB), one deemed the "master" and the other the "slave." The master and the slave are opposite phases of the same logical signal (for example, MYNET_P and MYNET_N). Optionally, a programmable differential termination feature is available to help improve signal integrity and reduce external components. Also available is a programmable delay is to assist in the capturing of incoming data to the device.
Logic Table
Inputs
I
T
X
1
0
0
I
0
Bidirectional
IO
IOB
Z
Z
0
1
1
0
Outputs O
No Change 0 1
Port Descriptions
Port O IO IOB I T
Direction Output In/out In/out Input Input
Width 1 1 1 1 1
Buffer output Diff_p In/out Diff_n In/out Buffer input 3-state enable input
Function
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 395
Chapter 5: Design Elements
Design Entry Method
Instantiation Inference IP Catalog Macro support
Recommended No No No
Available Attributes
Attribute DIFF_TERM IBUF_LOW_PWR
IOSTANDARD SLEW
Type BOOLEAN BOOLEAN
STRING STRING
Allowed Values Default
TRUE, FALSE
FALSE
TRUE, FALSE
TRUE
See Data Sheet
"SLOW" or "FAST"
"DEFAULT" "SLOW"
Description
Turns the built-in differential termination on (TRUE) or off (FALSE).
When set to TRUE, allows for reduced power when using differential or referenced (requiring VREF) input standards like LVDS or HSTL. A setting of FALSE demands more power but delivers higher performance characteristics. Consult the 7 Series FPGA SelectIO Resources User Guide for details.
Assigns an I/O standard to the element.
Specifies the slew rate of the output driver. Consult the product Data Sheet for recommendations of the best setting for this attribute.
VHDL Instantiation Template Unless they already exist, copy the following two statements and paste them before the entity declaration.
Library UNISIM; use UNISIM.vcomponents.all;
-- IOBUFDS: Differential Bi-directional Buffer
--
7 Series
-- Xilinx HDL Language Template, version 2019.1
IOBUFDS_inst : IOBUFDS
generic map (
DIFF_TERM => FALSE, -- Differential Termination (TRUE/FALSE)
IBUF_LOW_PWR => TRUE, -- Low Power = TRUE, High Performance = FALSE
IOSTANDARD => "BLVDS_25", -- Specify the I/O standard
SLEW => "SLOW")
-- Specify the output slew rate
port map (
O => O,
-- Buffer output
IO => IO, -- Diff_p inout (connect directly to top-level port)
IOB => IOB, -- Diff_n inout (connect directly to top-level port)
I => I,
-- Buffer input
T => T
-- 3-state enable input, high=input, low=output
);
-- End of IOBUFDS_inst instantiation
Verilog Instantiation Template
// IOBUFDS: Differential Bi-directional Buffer
//
7 Series
// Xilinx HDL Language Template, version 2019.1
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 396
Chapter 5: Design Elements
IOBUFDS #(
.DIFF_TERM("FALSE"),
// Differential Termination ("TRUE"/"FALSE")
.IBUF_LOW_PWR("TRUE"), // Low Power - "TRUE", High Performance = "FALSE"
.IOSTANDARD("BLVDS_25"), // Specify the I/O standard
.SLEW("SLOW")
// Specify the output slew rate
) IOBUFDS_inst (
.O(O),
// Buffer output
.IO(IO), // Diff_p inout (connect directly to top-level port)
.IOB(IOB), // Diff_n inout (connect directly to top-level port)
.I(I),
// Buffer input
.T(T)
// 3-state enable input, high=input, low=output
);
// End of IOBUFDS_inst instantiation
For More Information � See the 7 Series FPGA SelectIO Resources User Guide (UG471). � See the 7 Series Programmable Devices User Guides.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 397
Chapter 5: Design Elements
IOBUFDS_DCIEN
Primitive: Bi-Directional Differential Buffer with DCI Enable/Disable and Input Disable
IOBUFDS_DCIEN
T IO
I IOB
DCITERMDISABLE IBUFDISABLE
O
X12315
Introduction
This design element is a bidirectional differential I/O buffer used to connect internal logic to an external bidirectional pin. This element includes Digitally Controlled Impedance (DCI) termination enable/disable as well as input path disable as additional power saving features when the I/O is either in an unused state or being used as an output for a sustained amount of time. This element may only be placed in High Performance (HP) banks in the 7 series devices.
Port Descriptions
Port IO IOB I IBUFDISABLE
DCITERMDISABLE
T
O
Direction In/out In/out Input Input
Input
Input
Output
Width 1 1 1 1
1
1
1
Function
Bi-directional p-side port connection. Connect directly to top-level port in the design.
Bi-directional p-side port connection. Connect directly to top-level port in the design.
Buffer input representing the output path to the device.
Disables input path. When this signal is asserted HIGH and the attribute USE_IBUFDISABLE is set to "TRUE", the input path through the input buffer is disabled and forced to a logic HIGH.. If USE_IBUFDISABLE is set to "FALSE" this input is ignored and should be tied to ground. This feature is generally used to reduce power at times when the I/O is either idle or during sustained write (output) conditions.
Disables DCI termination. When this signal is asserted HIGH, DCI termination is disabled. This feature is generally used to reduce power at times when the I/O is either idle or during sustained write (output) conditions.
Sets the I/O in a high impedance 3-state mode when the I/O is being used for a read (input) operation. The T pin also affects the IBUFDISABLE function when USE_IBUFDISABLE = "TRUE".
Buffer output representing the input path to the device.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 398
Chapter 5: Design Elements
Design Entry Method
Instantiation
Yes
Inference
No
IP Catalog
Yes
Macro support
No
Available Attributes
Attribute DIFF_TERM IBUF_LOW_PWR IOSTANDARD SLEW
USE_IBUFDISABLE
Type STRING STRING STRING STRING
STRING
Allowed Values Default "TRUE", "FALSE" "FALSE" "TRUE", "FALSE" "TRUE" See Data Sheet "DEFAULT" "SLOW", "FAST", "SLOW"
"TRUE", "FALSE" "TRUE"
Description
Turns the built-in differential termination on (TRUE) or off (FALSE).
Allows a trade off of lower power consumption vs. highest performance.
Assigns an I/O standard to the element.
Sets the output rise and fall time. See the Data Sheet for recommendations of the best setting for this attribute.
Enables or disables the feature of IBUFDISABLE. Set to FALSE when it is not desirable to have the T pin disable input path to allow a read during write operation. When set to TRUE deasserting T (IO used as output) or asserting IBUFDISABLE will disable the input path through the buffer and forces to a logic high.
VHDL Instantiation Template Unless they already exist, copy the following two statements and paste them before the entity declaration.
Library UNISIM; use UNISIM.vcomponents.all;
-- IOBUFDS_DCIEN: Differential Bi-directional Buffer with Digital Controlled Impedance (DCI)
--
and Input path enable/disable
--
May only be placed in High Performance (HP) Banks
--
7 Series
-- Xilinx HDL Language Template, version 2019.1
IOBUFDS_DCIEN_inst : IOBUFDS_DCIEN
generic map (
DIFF_TERM => "FALSE", -- Differential termination (TRUE/FALSE)
IBUF_LOW_PWR => "TRUE", -- Low Power - TRUE, HIGH Performance = FALSE
IOSTANDARD => "BLVDS_25", -- Specify the I/O standard
SLEW => "SLOW", -- Specify the output slew rate
USE_IBUFDISABLE => "TRUE") -- Use IBUFDISABLE function "TRUE" or "FALSE"
port map (
O => O,
-- Buffer output
IO => IO, -- Diff_p inout (connect directly to top-level port)
IOB => IOB, -- Diff_n inout (connect directly to top-level port)
DCITERMDISABLE => DCITERMDISABLE, -- DCI Termination enable input
I => I,
-- Buffer input
IBUFDISABLE => IBUFDISABLE, -- Input disable input, high=disable
T => T
-- 3-state enable input, high=input, low=output
);
-- End of IOBUFDS_DCIEN_inst instantiation
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 399
Chapter 5: Design Elements
Verilog Instantiation Template
// IOBUFDS_DCIEN: Differential Bi-directional Buffer with Digital Controlled Impedance (DCI)
//
and Input path enable/disable
//
May only be placed in High Performance (HP) Banks
//
7 Series
// Xilinx HDL Language Template, version 2019.1
IOBUFDS_DCIEN #(
.DIFF_TERM("FALSE"),
// Differential Termination ("TRUE"/"FALSE")
.IBUF_LOW_PWR("TRUE"), // Low Power - "TRUE", High Performance = "FALSE"
.IOSTANDARD("BLVDS_25"), // Specify the I/O standard
.SLEW("SLOW"),
// Specify the output slew rate
.USE_IBUFDISABLE("TRUE") // Use IBUFDISABLE function, "TRUE" or "FALSE"
) IOBUFDS_DCIEN_inst (
.O(O),
// Buffer output
.IO(IO), // Diff_p inout (connect directly to top-level port)
.IOB(IOB), // Diff_n inout (connect directly to top-level port)
.DCITERMDISABLE(DCITERMDISABLE), // DCI Termination enable input
.I(I),
// Buffer input
.IBUFDISABLE(IBUFDISABLE),
// Input disable input, high=disable
.T(T)
// 3-state enable input, high=input, low=output
);
// End of IOBUFDS_DCIEN_inst instantiation
For More Information � See the 7 Series FPGA SelectIO Resources User Guide (UG471). � See the 7 Series Programmable Devices User Guides.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 400
Chapter 5: Design Elements
IOBUFDS_DIFF_OUT
Primitive: Differential Bi-directional Buffer with Differential Output IOBUFDS_DIFF_OUT
3-state input TM from master
I
IO
O OB
IOB
3-state input TS
from slave
X12205
Introduction
This design element is a bidirectional buffer that supports low-voltage, differential signaling. For the IOBUFDS_DIFF_OUT, a design level interface signal is represented as two distinct ports (IO and IOB), one deemed the "master" and the other the "slave." The master and the slave are opposite phases of the same logical signal (for example, MYNET_P and MYNET_N). The IOBUFDS_DIFF_OUT differs from the IOBUFDS in that it allows internal access to both phases of the differential signal. Optionally, a programmable differential termination feature is available to help improve signal integrity and reduce external components.
Port Descriptions
Port O OB IO IOB I
Direction Output Output In/out In/out Input
Width 1 1 1 1 1
Function Buffer p-side output Buffer n-side output Diff_p In/out (connect directly to top-level port) Diff_n In/out (connect directly to top-level port) Buffer input
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 401
Chapter 5: Design Elements
Port TM
TS
Direction Input
Input
Width 1
1
Function
3-state enable input from master OLOGIC, high=input, low=output
3-state enable input from slave OLOGIC, high=input, low=output
Design Entry Method
Instantiation Inference IP Catalog Macro support
Recommended No No No
Available Attributes
Attribute DIFF_TERM IBUF_LOW_PWR
IOSTANDARD
Type BOOLEAN BOOLEAN
STRING
Allowed Values Default
TRUE, FALSE
FALSE
TRUE, FALSE
TRUE
See Data Sheet "DEFAULT"
Description
Turns the built-in differential termination on (TRUE) or off (FALSE).
When set to TRUE, allows for reduced power when using differential or referenced (requiring VREF) input standards like LVDS or HSTL. A setting of FALSE demands more power but delivers higher performance characteristics. Consult the 7 Series FPGA SelectIO Resources User Guide for details.
Assigns an I/O standard to the element.
VHDL Instantiation Template Unless they already exist, copy the following two statements and paste them before the entity declaration.
Library UNISIM; use UNISIM.vcomponents.all;
-- IOBUFDS_DIFF_OUT: Differential Bi-directional Buffer with Diffirential Output
--
7 Series
-- Xilinx HDL Language Template, version 2019.1
IOBUFDS_DIFF_OUT_inst : IOBUFDS_DIFF_OUT
generic map (
DIFF_TERM => FALSE, -- Differential Termination (TRUE/FALSE)
IBUF_LOW_PWR => TRUE, -- Low Power - TRUE, High Performance = FALSE
IOSTANDARD => "BLVDS_25") -- Specify the I/O standard
port map (
O => O,
-- Buffer p-side output
OB => OB, -- Buffer n-side output
IO => IO, -- Diff_p inout (connect directly to top-level port)
IOB => IOB, -- Diff_n inout (connect directly to top-level port)
I => I,
-- Buffer input
TM => TM, -- 3-state enable input, high=input, low=output
TS => TS -- 3-state enable input, high=input, low=output
);
-- End of IOBUFDS_DIFF_OUT_inst instantiation
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 402
Chapter 5: Design Elements
Verilog Instantiation Template
// IOBUFDS_DIFF_OUT: Differential Bi-directional Buffer with Differential Output
//
7 Series
// Xilinx HDL Language Template, version 2019.1
IOBUFDS_DIFF_OUT #(
.DIFF_TERM("FALSE"), // Differential Termination ("TRUE"/"FALSE")
.IBUF_LOW_PWR("TRUE"), // Low Power - "TRUE", High Performance = "FALSE"
.IOSTANDARD("BLVDS_25") // Specify the I/O standard
) IOBUFDS_DIFF_OUT_inst (
.O(O),
// Buffer p-side output
.OB(OB), // Buffer n-side output
.IO(IO), // Diff_p inout (connect directly to top-level port)
.IOB(IOB), // Diff_n inout (connect directly to top-level port)
.I(I),
// Buffer input
.TM(TM), // 3-state enable input, high=input, low=output
.TS(TS) // 3-state enable input, high=input, low=output
);
// End of IOBUFDS_DIFF_OUT_inst instantiation
For More Information � See the 7 Series FPGA SelectIO Resources User Guide (UG471). � See the 7 Series Programmable Devices User Guides.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 403
Chapter 5: Design Elements
IOBUFDS_DIFF_OUT_DCIEN
Primitive: Bi-Directional Differential Buffer with DCI Disable, Input Disable, and Differential Output
IOBUFDS_DIFF_OUT_DCIEN
I
IO
3-state input TM from master DCITERMDISABLE IBUFDISABLE
O
OB
3-state input TS from slave
IOB
X12321
Introduction
This design element is a bidirectional differential I/O buffer used to connect internal logic to an external bidirectional pin. This element includes Digitally Controlled Impedance (DCI) termination enable/ disable as well as input path disable as additional power saving features when the I/O is in an unused state or being used as an output for a sustained period of time. The IOBUFDS_DIFF_OUT_DCIEN differs from the IOBUFDS_DCIEN in that it allows internal access to both phases of the differential signal. This element may only be placed in High Performance (HP) banks in the 7 series devices.
Port Descriptions
Port IO
IOB
I IBUFDISABLE
Direction In/out
In/out
Input Input
Width 1
1
1 1
Function
Bi-directional p-side port connection. Connect directly to top-level port in the design.
Bi-directional n-side port connection. Connect directly to top-level port in the design.
Buffer input representing the output path to the device.
Disables input path. When this signal is asserted HIGH and the attribute USE_IBUFDISABLE is set to "TRUE", the input path through the input buffer is disabled and forced to a logic HIGH.. If USE_IBUFDISABLE is set to "FALSE" this input is ignored and should be tied to ground. This feature is generally used to reduce power at times when the I/O is either idle or during sustained write (output) conditions.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 404
Chapter 5: Design Elements
Port DCITERMDISABLE
TM
TS
O OB
Direction Input
Input
Input
Output Output
Width 1
1
1
1 1
Function
Disables DCI termination. When this signal is asserted HIGH, DCI termination is disabled. This feature is generally used to reduce power at times when the I/O is either idle or during sustained write (output) conditions.
P-side or master side of the high impedance 3-state mode when the I/O is being used for a read (input) operation. The TM pin also affects the IBUFDISABLE function when USE_IBUFDISABLE = "TRUE".
N-side or slave side of the high impedance 3-state mode when the I/O is being used for a read (input) operation. The TM pin also affects the IBUFDISABLE function when USE_IBUFDISABLE = "TRUE".
Buffer p-side output representing the input path to the device.
Buffer n-side output representing the input path to the device.
Design Entry Method
Instantiation
Yes
Inference
No
IP Catalog
Yes
Macro support
No
Available Attributes
Attribute DIFF_TERM
IBUF_LOW_PWR
IOSTANDARD USE_IBUFDISABLE
Type STRING
STRING
STRING STRING
Allowed Values Default "TRUE", "FALSE" "FALSE"
"TRUE", "FALSE" "TRUE"
See Data Sheet "DEFAULT" "TRUE", "FALSE" "TRUE"
Description
Turns the built-in differential termination on (TRUE) or off (FALSE).
Allows a trade off of lower power consumption vs highest performance.
Assigns an I/O standard to the element.
Enables or disables the feature of IBUFDISABLE. Set to FALSE when it is not desirable to have the T pin disable input path to allow a read during write operation. When set to TRUE deasserting T (IO used as output) or asserting IBUFDISABLE will disable the input path through the buffer and forces to a logic high.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 405
Chapter 5: Design Elements
VHDL Instantiation Template Unless they already exist, copy the following two statements and paste them before the entity declaration.
Library UNISIM; use UNISIM.vcomponents.all;
-- IOBUFDS_DIFF_OUT_DCIEN: Differential Bi-directional Buffer with Differential Output,
--
Digital Controlled Impedance (DCI)and Input path enable/disable
--
May only be placed in High Performance (HP) Banks
--
7 Series
-- Xilinx HDL Language Template, version 2019.1
IOBUFDS_DIFF_OUT_DCIEN_inst : IOBUFDS_DIFF_OUT_DCIEN
generic map (
DIFF_TERM => "FALSE", -- Differential Termination (TRUE/FALSE)
IBUF_LOW_PWR => "TRUE", -- Low Power - TRUE, High Performance = FALSE
IOSTANDARD => "BLVDS_25", -- Specify the I/O standard
USE_IBUFDISABLE => "TRUE") -- Use IBUFDISABLE function, "TRUE" or "FALSE"
port map (
O => O,
-- Buffer p-side output
OB => OB, -- Buffer n-side output
IO => IO, -- Diff_p inout (connect directly to top-level port)
IOB => IOB, -- Diff_n inout (connect directly to top-level port)
DCITERMDISABLE => DCITERMDISABLE, -- DCI Termination enable input
I => I,
-- Buffer input
IBUFTERMDISABLE => IBUFTERMDISABLE, -- input disable input, low=disable
TM => TM, -- 3-state enable input, high=input, low=output
TS => TS -- 3-state enable input, high=output, low=input
);
-- End of IOBUFDS_DIFF_OUT_DCIEN_inst instantiation
Verilog Instantiation Template
// IOBUFDS_DIFF_OUT_DCIEN: Differential Bi-directional Buffer with Differential Output,
//
Digital Controlled Impedance (DCI)and Input path enable/disable
//
May only be placed in High Performance (HP) Banks
//
7 Series
// Xilinx HDL Language Template, version 2019.1
IOBUFDS_DIFF_OUT_DCIEN #(
.DIFF_TERM("FALSE"),
// Differential Termination ("TRUE"/"FALSE")
.IBUF_LOW_PWR("TRUE"), // Low Power - "TRUE", High Performance = "FALSE"
.IOSTANDARD("BLVDS_25"), // Specify the I/O standard
.USE_IBUFDISABLE("TRUE") // Use IBUFDISABLE function, "TRUE" or "FALSE"
) IOBUFDS_DIFF_OUT_DCIEN_inst (
.O(O),
// Buffer p-side output
.OB(OB), // Buffer n-side output
.IO(IO), // Diff_p inout (connect directly to top-level port)
.IOB(IOB), // Diff_n inout (connect directly to top-level port)
.DCITERMDISABLE(DCITERMDISABLE), // DCI Termination enable input
.I(I),
// Buffer input
.IBUFDISABLE(IBUFDISABLE),
// Input disable input, high=disable
.TM(TM), // 3-state enable input, high=input, low=output
.TS(TS) // 3-state enable input, high=input, low=output
);
// End of IOBUFDS_DIFF_OUT_DCIEN_inst instantiation
For More Information � See the 7 Series FPGA SelectIO Resources User Guide (UG471). � See the 7 Series Programmable Devices User Guides.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 406
Chapter 5: Design Elements
IOBUFDS_DIFF_OUT_INTERMDISABLE
Primitive: Bi-Directional Differential Buffer with Input Termination Disable, Input Disable, and Differential Output
IOBUFDS_DIFF_OUT_INTERMDISABLE
INTERMDISABLE IBUFDISABLE
I
TS
IO
TM
IOB
O
OB X12320
Introduction
This design element is a bidirectional differential I/O Buffer used to connect internal logic to an external bidirectional pin. This element includes an uncalibrated input termination (INTERM) disable as well as input path disable as additional power saving features when the I/O is either is an unused state or being used as an output for several clock cycles. The IOBUFDS_DIFF_OUT_INTERMDISABLE differs from the IOBUFDS_INTERMDISABLE in that it allows internal access to both phases of the differential signal. This element may only be placed in High Range (HR) banks in the 7 series devices.
Port Descriptions
Port IO IOB I IBUFDISABLE
INTERMDISABLE
Direction In/out In/out Input Input
Input
Width 1 1 1 1
1
Function
Bi-directional p-side port connection. Connect directly to top-level port in the design.
Bi-directional n-side port connection. Connect directly to top-level port in the design.
Buffer input representing the output path to the device.
Disables input path through the buffer and forces to a logic high when USE_IBUFDISABLE is set to "TRUE". If USE_IBUFDISABLE is set to "FALSE" this input is ignored and should be tied to ground. This feature is generally used to reduce power at times when the I/O is either idle or during sustained write (output) conditions.
Disables input termination. This feature is generally used to reduce power at times when the I/O is either idle or during sustained write (output) conditions.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 407
Chapter 5: Design Elements
Port TM
TS
O OB
Direction Input
Input
Output Output
Width 1
1
1 1
Function
P-side or master side of the high impedance 3-state mode when the I/O is being used for a read (input) operation. The TM pin also affects the IBUFDISABLE function when USE_IBUFDISABLE = "TRUE", and disables INTERM when in a write (output) mode.
N-side or slave side of the high impedance 3-state mode when the I/O is being used for a read (input) operation. The TS pin also affects the IBUFDISABLE function when USE_IBUFDISABLE = "TRUE", and disables INTERM when in a write (output) mode.
Buffer p-side output representing the input path to the device.
Buffer n-side output representing the input path to the device.
Design Entry Method
Instantiation
Yes
Inference
No
IP Catalog
Yes
Macro support
No
Available Attributes
Attribute DIFF_TERM IBUF_LOW_PWR
IOSTANDARD USE_IBUFDISABLE
Type STRING STRING
STRING STRING
Allowed Values Default "TRUE", "FALSE" "FALSE" "TRUE", "FALSE" "TRUE"
See Data Sheet "DEFAULT" "TRUE", "FALSE" "TRUE"
Description
Turns the built-in differential termination on (TRUE) or off (FALSE).
Allows a trade off of lower power consumption vs. highest performance when referenced I/O standards are used.
Assigns an I/O standard to the element.
Enables or disables the feature of IBUFDISABLE. Generally used when it is not desirable to have the T pin disable input path to allow a read during write operation.
VHDL Instantiation Template Unless they already exist, copy the following two statements and paste them before the entity declaration.
Library UNISIM; use UNISIM.vcomponents.all;
-- IOBUFDS_DIFF_OUT_INTERMDISABLE: Differential Global Clock Buffer with Differential Output
--
Input Termination and Input Path Disable
--
May only be placed in High Range (HR) Banks
--
7 Series
-- Xilinx HDL Language Template, version 2019.1
IOBUFDS_DIFF_OUT_INTERMDISABLE_inst : IOBUFDS_DIFF_OUT_INTERMDISABLE generic map (
DIFF_TERM => "FALSE", -- Differential Termination (TRUE/FALSE)
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 408
Chapter 5: Design Elements
IBUF_LOW_PWR => "TRUE", -- Low Power - TRUE, High Performance = FALSE
IOSTANDARD => "BLVDS_25", -- Specify the I/O standard
USE_IBUFDISABLE => "TRUE") -- Use IBUFDISABLE function, "TRUE" or "FALSE"
port map (
O => O,
-- Buffer p-side output
OB => OB, -- Buffer n-side output
IO => IO, -- Diff_p inout (connect directly to top-level port)
IOB => IOB, -- Diff_n inout (connect directly to top-level port)
I => I,
-- Buffer input
IBUFDISABLE => IBUFDISABLE, -- input disable input, high=disable
INTERMDISABLE => INTERMDISABLE, -- Input termination disable input
TM => TM, -- 3-state enable input, high=input, low=output
TS => TS -- 3-state enable input, high=output, low=input
);
-- End of IOBUFDS_DIFF_OUT_INTERMDISABLE_inst instantiation
Verilog Instantiation Template
// IOBUFDS_DIFF_OUT_INTERMDISABLE: Differential Global Clock Buffer with Differential Output
//
Input Termination and Input Path Disable
//
May only be placed in High Range (HR) Banks
//
7 Series
// Xilinx HDL Language Template, version 2019.1
IOBUFDS_DIFF_OUT_INTERMDISABLE #(
.DIFF_TERM("FALSE"),
// Differential Termination, "TRUE"/"FALSE"
.IBUF_LOW_PWR("TRUE"), // Low power="TRUE", Highest performance="FALSE"
.IOSTANDARD("DEFAULT"), // Specify the input I/O standard
.USE_IBUFDISABLE("TRUE") // Set to "TRUE" to enable IBUFDISABLE feature
) IOBUFDS_DIFF_OUT_INTERMDISABLE_inst (
.O(O),
// Buffer p-side output
.OB(OB), // Buffer n-side output
.IO(IO), // Diff_p inout (connect directly to top-level port)
.IOB(IOB), // Diff_n inout (connect directly to top-level port)
.I(I),
// Buffer input
.INTERMDISABLE(INTERMDISABLE), // Input termination disable input
.IBUFDISABLE(IBUFDISABLE),
// Input disable input, high=disable
.TM(TM), // 3-state enable input, high=input, low=output
.TS(TS) // 3-state enable input, high=input, low=output
);
// End of IOBUFDS_DIFF_OUT_INTERMDISABLE_inst instantiation
For More Information � See the 7 Series FPGA SelectIO Resources User Guide (UG471). � See the 7 Series Programmable Devices User Guides.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 409
Chapter 5: Design Elements
IOBUFDS_INTERMDISABLE
Primitive: Bi-Directional Differential Buffer with Input Termination Disable and Input Disable IOBUFDS_INTERMDISABLE
INTERMDISABLE IBUFDISABLE T
I
IO
IOB
O
X12316
Introduction
This design element is a bidirectional differential I/O buffer used to connect internal logic to an external bidirectional pin. This element includes an uncalibrated input termination (INTERM) disable as well as an input path disable as additional power saving features when the I/O is either is an unused state or being used as an output for a sustained amount of time. This element may only be placed in High Range (HR) banks in 7 series devices.
Port Descriptions
Port IO IOB I IBUFDISABLE
INTERMDISABLE T
O
Direction In/out In/out Input Input
Input Input
Output
Width 1 1 1 1
1 1
1
Function
Bi-directional p-side port connection. Connect directly to top-level port in the design.
Bi-directional n-side port connection. Connect directly to top-level port in the design.
Buffer input representing the output path to the device.
Disables input path through the buffer and forces to a logic high when USE_IBUFDISABLE is set to "TRUE". If USE_IBUFDISABLE is set to "FALSE" this input is ignored and should be tied to ground. This feature is generally used to reduce power at times when the I/O is either idle or during sustained write (output) conditions.
Disables input termination. This feature is generally used to reduce power at times when the I/O is either idle or during sustained write (output) conditions.
Sets the I/O in a high impedance 3-state mode when the I/O is being used for a read (input) operation. The T pin also affects the IBUFDISABLE function when USE_IBUFDISABLE = "TRUE". The T pin also disables INTERM when in a write (output) mode.
Buffer output representing the input path to the device.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 410
Chapter 5: Design Elements
Design Entry Method
Instantiation
Yes
Inference
No
IP Catalog
Yes
Macro support
No
Available Attributes
Attribute DIFF_TERM IBUF_LOW_PWR
IOSTANDARD SLEW
USE_IBUFDISABLE
Type STRING STRING
STRING STRING
STRING
Allowed Values
Default
"TRUE", "FALSE" "FALSE"
"TRUE", "FALSE" "TRUE"
See Data Sheet
"SLOW" or "FAST"
"DEFAULT" "SLOW"
"TRUE", "FALSE" "TRUE"
Description
Turns the built-in differential termination on (TRUE) or off (FALSE).
Allows a trade off of lower power consumption vs. highest performance when referenced I/O standards are used.
Assigns an I/O standard to the element.
Sets the output rise and fall time. See the Data Sheet for recommendations of the best setting for this attribute.
Enables or disables the feature of IBUFDISABLE. Generally used when it is not desirable to have the T pin disable input path to allow a read during write operation.
VHDL Instantiation Template Unless they already exist, copy the following two statements and paste them before the entity declaration.
Library UNISIM; use UNISIM.vcomponents.all;
-- IOBUFDS_INTERMDISABLE: Differential Bi-directional Buffer with Input Termination
--
and Input path enable/disable
--
May only be placed in High Range (HR) Banks
--
7 Series
-- Xilinx HDL Language Template, version 2019.1
IOBUFDS_INTERMDISABLE_inst : IOBUFDS_INTERMDISABLE
generic map (
DIFF_TERM => "FALSE", -- Differential termination (TRUE/FALSE)
IBUF_LOW_PWR => "TRUE", -- Low Power - TRUE, HIGH Performance = FALSE
IOSTANDARD => "BLVDS_25", -- Specify the I/O standard
SLEW => "SLOW", -- Specify the output slew rate
USE_IBUFDISABLE => "TRUE") -- Use IBUFDISABLE function "TRUE" or "FALSE"
port map (
O => O,
-- Buffer output
IO => IO, -- Diff_p inout (connect directly to top-level port)
IOB => IOB, -- Diff_n inout (connect directly to top-level port)
DCITERMDISABLE => DCITERMDISABLE, -- DCI Termination enable input
I => I,
-- Buffer input
IBUFDISABLE => IBUFDISABLE, -- Input disable input, high=disable
INTERMDISABLE => INTERMDISABLE, -- Input termination disable input
T => T
-- 3-state enable input, high=input, low=output
);
-- End of IOBUFDS_INTERMDISABLE_inst instantiation
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 411
Chapter 5: Design Elements
Verilog Instantiation Template
// IOBUFDS_INTERMDISABLE: Differential Bi-directional Buffer with Input Termination
//
and Input path enable/disable
//
May only be placed in High Range (HR) Banks
//
7 Series
// Xilinx HDL Language Template, version 2019.1
IOBUFDS_INTERMDISABLE #(
.DIFF_TERM("FALSE"),
// Differential Termination ("TRUE"/"FALSE")
.IBUF_LOW_PWR("TRUE"), // Low Power - "TRUE", High Performance = "FALSE"
.IOSTANDARD("BLVDS_25"), // Specify the I/O standard
.SLEW("SLOW"),
// Specify the output slew rate
.USE_IBUFDISABLE("TRUE") // Use IBUFDISABLE function, "TRUE" or "FALSE"
) IOBUFDS_INTERMDISABLE_inst (
.O(O),
// Buffer output
.IO(IO), // Diff_p inout (connect directly to top-level port)
.IOB(IOB), // Diff_n inout (connect directly to top-level port)
.I(I),
// Buffer input
.IBUFDISABLE(IBUFDISABLE),
// Input disable input, high=disable
.INTERMDISABLE(INTERMDISABLE), // Input termination disable input
.T(T)
// 3-state enable input, high=input, low=output
);
// End of IOBUFDS_INTERMDISABLE_inst instantiation
For More Information � See the 7 Series FPGA SelectIO Resources User Guide (UG471). � See the 7 Series Programmable Devices User Guides.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 412
Chapter 5: Design Elements
ISERDESE2
Primitive: Input SERial/DESerializer with Bitslip
ISERDESE2
BITSLIP
O
CE1
Q1
CE2
CLK
Q2
CLKB
Q3
CLKDIV
Q4
CLKDIVP D
Q5
DDLY
Q6
DYNCLKDIVSEL
Q7
DYNCLKSEL OCLK OCLKB
Q8 SHIFTOUT1
OFB
SHIFTOUT2
RST
SHIFTIN1
SHIFTIN2
X12108
Introduction
The ISERDESE2 in 7 series FPGAs is a dedicated serial-to-parallel converter with specific clocking and logic features designed to facilitate the implementation of high-speed sourcesynchronous applications. The ISERDESE2 avoids the additional timing complexities encountered when designing deserializers in the FPGA fabric. ISERDESE2 features include:
� Dedicated Deserializer/Serial-to-Parallel Converter, which enables high-speed data transfer without requiring the FPGA fabric to match the input data frequency. This converter supports both single data rate (SDR) and double data rate (DDR) modes. In SDR mode, the serial-toparallel converter creates a 2-, 3-, 4-, 5-, 6-, 7-, or 8-bit wide parallel word. In DDR mode, the serial-to-parallel converter creates a 4-, 6-, 8-, 10-, or 14-bit-wide parallel word.
� Bitslip Submodule, which lets designers reorder the sequence of the parallel data stream going into the FPGA fabric. This can be used for training source-synchronous interfaces that include a training pattern.
� Dedicated Support for Strobe-based Memory Interfaces, including the OCLK input pin, to handle the strobe-to-FPGA clock domain crossover entirely within the ISERDESE2 block. This allows for higher performance and a simplified implementation.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 413
Chapter 5: Design Elements
� Dedicated Support for Networking Interfaces � Dedicated Support for Memory Interfaces
Port Descriptions
BITSLIP
Port
CE1, CE2
CLK CLKB
CLKDIV
CLKDIVP D DDLY DYNCLKDIVSEL DYNCLKSEL O
Direction Input
Input
Input Input
Input
Input Input Input Input Input Output
Width 1
1
1 1
1
1 1 1 1 1 1
Function
The BITSLIP pin performs a Bitslip operation synchronous to CLKDIV when asserted (active High). Subsequently, the data seen on the Q1 to Q8 output ports will shift, as in a barrel-shifter operation, one position every time Bitslip is invoked (DDR operation is different from SDR).
Each ISERDESE2 block contains an input clock enable module. When NUM_CE = 1, the CE2 input is not used, and the CE1 input is an active high clock enable connected directly to the input registers in the ISERDESE2. When NUM_CE = 2, the CE1 and CE2 inputs are both used, with CE1 enabling the ISERDESE2 for half of a CLKDIV cycle, and CE2 enabling the ISERDESE2 for the other half. The clock enable module functions as a 2:1 serial-to-parallel converter, clocked by CLKDIV. The clock enable module is needed specifically for bidirectional memory interfaces when ISERDESE2 is configured for 1:4 deserialization in DDR mode. When the attribute NUM_CE = 2, the clock enable module is enabled and both CE1 and CE2 ports are available. When NUM_CE = 1, only CE1 is available and functions as a regular clock enable.
The high-speed clock input (CLK) is used to clock in the input serial data stream.
The high-speed secondary clock input (CLKB) is used to clock in the input serial data stream. In any mode other than "MEMORY_QDR", connect CLKB to an inverted version of CLK. In "MEMORY_QDR" mode CLKB should be connected to a unique, phase shifted clock.
The divided clock input (CLKDIV) is typically a divided version of CLK (depending on the width of the implemented deserialization). It drives the output of the serial-to-parallel converter, the Bitslip submodule, and the CE module.
Only supported in MIG. Sourced by PHASER_IN divided CLK in MEMORY_DDR3 mode. All other modes connect to ground.
The serial input data port (D) is the serial (high-speed) data input port of the ISERDESE2. This port works in conjunction only with the 7 series FPGA I/O resource.
The serial input data port (DDLY) is the serial (high-speed) data input port of the ISERDESE2. This port works in conjunction only with the 7 series FPGA IDELAYE2 resource.
Dynamically select CLKDIV inversion.
Dynamically select CLK and CLKB inversion.
The combinatorial output port (O) is an unregistered output of the ISERDESE2 module. This output can come directly from the data input (D), or from the data input (DDLY) via the IDELAYE2.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 414
Chapter 5: Design Elements
OCLK
Port
OCLKB OFB Q1 - Q8
RST
SHIFTIN1, SHIFTIN2 SHIFTOUT1, SHIFTOUT2
Direction Input
Input Input Output
Input
Input Output
Width 1
1 1 1
1
1 1
Function
The OCLK clock input synchronizes data transfer in strobebased memory interfaces. The OCLK clock is only used when INTERFACE_TYPE is set to "MEMORY". The OCLK clock input is used to transfer strobe-based memory data onto a free-running clock domain. OCLK is a free-running FPGA clock at the same frequency as the strobe on the CLK input. The timing of the domain transfer is set by the user by adjusting the delay of the strobe signal to the CLK input (e.g., using IDELAY). Examples of setting the timing of this domain transfer are given in the Memory Interface Generator (MIG). When INTERFACE_TYPE is "NETWORKING", this port is unused and should be connected to GND.
The OCLK clock input synchronizes data transfer in strobebased memory interfaces. The OCLKB clock is only used when INTERFACE_TYPE is set to "MEMORY".
The serial input data port (OFB) is the serial (high-speed) data input port of the ISERDESE2. This port works in conjunction only with the 7 series FPGA OSERDESE2 port OFB.
The output ports Q1 to Q8 are the registered outputs of the ISERDESE2 module. One ISERDESE2 block can support up to eight bits (i.e., a 1:8 deserialization). Bit widths greater than eight (up to 14) can be supported using Width Expansion. The first data bit received appears on the highest order Q output. The bit ordering at the input of an OSERDESE2 is the opposite of the bit ordering at the output of an ISERDESE2 block. For example, the least significant bit A of the word FEDCBA is placed at the D1 input of an OSERDESE2, but the same bit A emerges from the ISERDESE2 block at the Q8 output. In other words, D1 is the least significant input to the OSERDESE2, while Q8 is the least significant output of the ISERDESE2 block. When width expansion is used, D1 of the master OSERDESE2 is the least significant input, while Q7 of the slave ISERDESE2 block is the least significant output.
The reset input causes the outputs of all data flip-flops in the CLK and CLKDIV domains to be driven low asynchronously. ISERDESE2 circuits running in the CLK domain where timing is critical use an internal, dedicated circuit to retime the RST input to produce a reset signal synchronous to the CLK domain. Similarly, there is a dedicated circuit to retime the RST input to produce a reset signal synchronous to the CLKDIV domain. Because the ISERDESE2 is driven into reset asynchronously but comes out of reset synchronously it must be treated as a synchronous reset to the CLKDIV time domain and have a minimum pulse of one CLKDIV cycle. When building an interface consisting of multiple ISERDESE2 ports, all ISERDESE2 ports in the interface must be synchronized. The internal retiming of the RST input is designed so that all ISERDESE2 blocks that receive the same reset pulse come out of reset synchronized with one another.
If SERDES_MODE="SLAVE", connect SHIFTIN1/2 to the master ISERDESE2 SHIFTOUT1/2 outputs. Otherwise, leave SHIFTOUT1/2 unconnected and/or SHIFTIN1/2 grounded.
If SERDES_MODE="MASTER" and two ISERDESE2s are to be cascaded, connect SHIFTOUT1/2 to the slave ISERDESE2 SHIFTIN1/2 inputs.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 415
Chapter 5: Design Elements
Design Entry Method
Instantiation
Yes
Inference
No
IP Catalog
Yes
Macro support
No
Available Attributes
Attribute DATA_RATE DATA_WIDTH
DYN_CLKDIV_INV _EN DYN_CLK_INV_EN INIT_Q1, INIT_Q2, INIT_Q3, INIT_Q4 INTERFACE_TYPE IOBDELAY
NUM_CE
Type STRING
Allowed Values "DDR", "SDR"
DECIMAL 4, 2, 3, 5, 6, 7, 8, 10, 14
Default "DDR"
4
Description
The DATA_RATE attribute defines whether the incoming data stream is processed as single data rate (SDR) or double data rate (DDR).
Defines the width of the serial-to-parallel converter. The legal value depends on the DATA_RATE attribute (SDR or DDR).
� If DATA_RATE = DDR, value is limited to 4, 6,
8, 10 or 14.
� If DATA_RATE = SDR, value is limited to 2, 3,
4, 5, 6, 7, or 8.
STRING STRING BINARY STRING
STRING
"FALSE", "TRUE"
"FALSE", "TRUE"
1'b0 to 1'b1
"MEMORY", "MEMORY_DDR3", "MEMORY_QDR", "NETWORKING", "OVERSAMPLE" "NONE", "BOTH", "IBUF", "IFD"
"FALSE" "FALSE" 1'b0 "MEMORY"
Enables DYNCLKDIVINVSEL inversion when "TRUE" and disables HDL inversions on CLKDIV pin.
Enables DYNCLKINVSEL inversion when "TRUE" and disables HDL inversions on CLK and CLKB pins.
Specifies the initial value on the Q1 through Q4 outputs after configuration.
Specifies the mode of operation for the ISERDESE2. For details on each mode, please refer to the 7 series FPGA SelectIO Resources User Guide.
"NONE"
Specifies the input sources for the ISERDESE2 module. The D and DDLY pins are dedicated inputs to the ISERDESE2. The D input is a direct connection to the I/O. The DDLY pin is a direct connection to the IODELAYE2. This allows the user to either have a delayed or non-delayed version of the input to the registered (Q1- Q6) or combinatorial path (O) output. The attribute IOBDELAY determines the input applied the output.
� "NONE" - O => D | Q1-Q6 => D
� "IBUF" - O => DDLY | Q1-Q6 => D
� "IFD" - O => D | Q1-Q6 => DDLY
� "BOTH" - O => DDLY | Q1-Q6 => DDLY
DECIMAL 2, 1
2
The NUM_CE attribute defines the number of
clock enables (CE1 and CE2) used.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 416
Chapter 5: Design Elements
Attribute OFB_USED
Type STRING
SERDES_MODE
STRING
SRVAL_Q1,
BINARY
SRVAL_Q2,
SRVAL_Q3, SRVAL_Q4
Allowed Values "FALSE", "TRUE"
Default "FALSE"
"MASTER", "SLAVE" "MASTER"
1'b0 to 1'b1
1'b0
Description
Enables the path from the OLOGIC, OSERDESE2 OFB pin to the ISERDESE2 OFB pin. Disables the use of the D input pin.
Specifies whether the ISERDESE2 module is a master or slave when using width expansion. Set to "MASTER" when not using width explansion.
Specifies the value (set or reset) of Q1 through Q4 outputs when the SR pin is invoked.
VHDL Instantiation Template Unless they already exist, copy the following two statements and paste them before the entity declaration.
Library UNISIM; use UNISIM.vcomponents.all;
-- ISERDESE2: Input SERial/DESerializer with Bitslip
--
7 Series
-- Xilinx HDL Language Template, version 2019.1
ISERDESE2_inst : ISERDESE2
generic map (
DATA_RATE => "DDR",
-- DDR, SDR
DATA_WIDTH => 4,
-- Parallel data width (2-8,10,14)
DYN_CLKDIV_INV_EN => "FALSE", -- Enable DYNCLKDIVINVSEL inversion (FALSE, TRUE)
DYN_CLK_INV_EN => "FALSE", -- Enable DYNCLKINVSEL inversion (FALSE, TRUE)
-- INIT_Q1 - INIT_Q4: Initial value on the Q outputs (0/1)
INIT_Q1 => '0',
INIT_Q2 => '0',
INIT_Q3 => '0',
INIT_Q4 => '0',
INTERFACE_TYPE => "MEMORY", -- MEMORY, MEMORY_DDR3, MEMORY_QDR, NETWORKING, OVERSAMPLE
IOBDELAY => "NONE",
-- NONE, BOTH, IBUF, IFD
NUM_CE => 2,
-- Number of clock enables (1,2)
OFB_USED => "FALSE",
-- Select OFB path (FALSE, TRUE)
SERDES_MODE => "MASTER",
-- MASTER, SLAVE
-- SRVAL_Q1 - SRVAL_Q4: Q output values when SR is used (0/1)
SRVAL_Q1 => '0',
SRVAL_Q2 => '0',
SRVAL_Q3 => '0',
SRVAL_Q4 => '0'
)
port map (
O => O,
-- 1-bit output: Combinatorial output
-- Q1 - Q8: 1-bit (each) output: Registered data outputs
Q1 => Q1,
Q2 => Q2,
Q3 => Q3,
Q4 => Q4,
Q5 => Q5,
Q6 => Q6,
Q7 => Q7,
Q8 => Q8,
-- SHIFTOUT1, SHIFTOUT2: 1-bit (each) output: Data width expansion output ports
SHIFTOUT1 => SHIFTOUT1,
SHIFTOUT2 => SHIFTOUT2,
BITSLIP => BITSLIP,
-- 1-bit input: The BITSLIP pin performs a Bitslip operation synchronous to
-- CLKDIV when asserted (active High). Subsequently, the data seen on the
-- Q1 to Q8 output ports will shift, as in a barrel-shifter operation, one
-- position every time Bitslip is invoked (DDR operation is different from
-- SDR).
-- CE1, CE2: 1-bit (each) input: Data register clock enable inputs CE1 => CE1,
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 417
Chapter 5: Design Elements
CE2 => CE2,
CLKDIVP => CLKDIVP,
-- 1-bit input: TBD
-- Clocks: 1-bit (each) input: ISERDESE2 clock input ports
CLK => CLK,
-- 1-bit input: High-speed clock
CLKB => CLKB,
-- 1-bit input: High-speed secondary clock
CLKDIV => CLKDIV,
-- 1-bit input: Divided clock
OCLK => OCLK,
-- 1-bit input: High speed output clock used when INTERFACE_TYPE="MEMORY"
-- Dynamic Clock Inversions: 1-bit (each) input: Dynamic clock inversion pins to switch clock polarity
DYNCLKDIVSEL => DYNCLKDIVSEL, -- 1-bit input: Dynamic CLKDIV inversion
DYNCLKSEL => DYNCLKSEL,
-- 1-bit input: Dynamic CLK/CLKB inversion
-- Input Data: 1-bit (each) input: ISERDESE2 data input ports
D => D,
-- 1-bit input: Data input
DDLY => DDLY,
-- 1-bit input: Serial data from IDELAYE2
OFB => OFB,
-- 1-bit input: Data feedback from OSERDESE2
OCLKB => OCLKB,
-- 1-bit input: High speed negative edge output clock
RST => RST,
-- 1-bit input: Active high asynchronous reset
-- SHIFTIN1, SHIFTIN2: 1-bit (each) input: Data width expansion input ports
SHIFTIN1 => SHIFTIN1,
SHIFTIN2 => SHIFTIN2
);
-- End of ISERDESE2_inst instantiation
Verilog Instantiation Template
// ISERDESE2: Input SERial/DESerializer with Bitslip
//
7 Series
// Xilinx HDL Language Template, version 2019.1
ISERDESE2 #(
.DATA_RATE("DDR"),
// DDR, SDR
.DATA_WIDTH(4),
// Parallel data width (2-8,10,14)
.DYN_CLKDIV_INV_EN("FALSE"), // Enable DYNCLKDIVINVSEL inversion (FALSE, TRUE)
.DYN_CLK_INV_EN("FALSE"), // Enable DYNCLKINVSEL inversion (FALSE, TRUE)
// INIT_Q1 - INIT_Q4: Initial value on the Q outputs (0/1)
.INIT_Q1(1'b0),
.INIT_Q2(1'b0),
.INIT_Q3(1'b0),
.INIT_Q4(1'b0),
.INTERFACE_TYPE("MEMORY"), // MEMORY, MEMORY_DDR3, MEMORY_QDR, NETWORKING, OVERSAMPLE
.IOBDELAY("NONE"),
// NONE, BOTH, IBUF, IFD
.NUM_CE(2),
// Number of clock enables (1,2)
.OFB_USED("FALSE"),
// Select OFB path (FALSE, TRUE)
.SERDES_MODE("MASTER"),
// MASTER, SLAVE
// SRVAL_Q1 - SRVAL_Q4: Q output values when SR is used (0/1)
.SRVAL_Q1(1'b0),
.SRVAL_Q2(1'b0),
.SRVAL_Q3(1'b0),
.SRVAL_Q4(1'b0)
)
ISERDESE2_inst (
.O(O),
// 1-bit output: Combinatorial output
// Q1 - Q8: 1-bit (each) output: Registered data outputs
.Q1(Q1),
.Q2(Q2),
.Q3(Q3),
.Q4(Q4),
.Q5(Q5),
.Q6(Q6),
.Q7(Q7),
.Q8(Q8),
// SHIFTOUT1, SHIFTOUT2: 1-bit (each) output: Data width expansion output ports
.SHIFTOUT1(SHIFTOUT1),
.SHIFTOUT2(SHIFTOUT2),
.BITSLIP(BITSLIP),
// 1-bit input: The BITSLIP pin performs a Bitslip operation synchronous to
// CLKDIV when asserted (active High). Subsequently, the data seen on the Q1
// to Q8 output ports will shift, as in a barrel-shifter operation, one
// position every time Bitslip is invoked (DDR operation is different from
// SDR).
// CE1, CE2: 1-bit (each) input: Data register clock enable inputs
.CE1(CE1),
.CE2(CE2),
.CLKDIVP(CLKDIVP),
// 1-bit input: TBD
// Clocks: 1-bit (each) input: ISERDESE2 clock input ports
.CLK(CLK),
// 1-bit input: High-speed clock
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 418
Chapter 5: Design Elements
.CLKB(CLKB),
// 1-bit input: High-speed secondary clock
.CLKDIV(CLKDIV),
// 1-bit input: Divided clock
.OCLK(OCLK),
// 1-bit input: High speed output clock used when INTERFACE_TYPE="MEMORY"
// Dynamic Clock Inversions: 1-bit (each) input: Dynamic clock inversion pins to switch clock polarity
.DYNCLKDIVSEL(DYNCLKDIVSEL), // 1-bit input: Dynamic CLKDIV inversion
.DYNCLKSEL(DYNCLKSEL),
// 1-bit input: Dynamic CLK/CLKB inversion
// Input Data: 1-bit (each) input: ISERDESE2 data input ports
.D(D),
// 1-bit input: Data input
.DDLY(DDLY),
// 1-bit input: Serial data from IDELAYE2
.OFB(OFB),
// 1-bit input: Data feedback from OSERDESE2
.OCLKB(OCLKB),
// 1-bit input: High speed negative edge output clock
.RST(RST),
// 1-bit input: Active high asynchronous reset
// SHIFTIN1, SHIFTIN2: 1-bit (each) input: Data width expansion input ports
.SHIFTIN1(SHIFTIN1),
.SHIFTIN2(SHIFTIN2)
);
// End of ISERDESE2_inst instantiation
For More Information � See the 7 Series FPGA SelectIO Resources User Guide (UG471). � See the 7 Series Programmable Devices User Guides.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 419
KEEPER
Primitive: KEEPER Symbol KEEPER
Chapter 5: Design Elements
O
X10669
Introduction
The design element is a weak keeper element that retains the value of the net connected to its bidirectional O pin. For example, if a logic 1 is being driven onto the net, KEEPER drives a weak/ resistive 1 onto the net. If the net driver is then 3-stated, KEEPER continues to drive a weak/ resistive 1 onto the net.
Port Descriptions
Port O
Direction Output
Width 1-Bit
Keeper output
Function
Design Entry Method
Instantiation
Yes
Inference
No
IP Catalog
No
Macro support
No
This element can be connected to a net in the following locations on a top-level schematic file: � A net connected to an input IO Marker � A net connected to both an output IO Marker and 3-statable IO element, such as an OBUFT.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 420
Chapter 5: Design Elements
VHDL Instantiation Template Unless they already exist, copy the following two statements and paste them before the entity declaration.
Library UNISIM; use UNISIM.vcomponents.all;
-- KEEPER: I/O Buffer Weak Keeper
--
7 Series
-- Xilinx HDL Language Template, version 2019.1
KEEPER_inst : KEEPER
port map (
O => O
-- Keeper output (connect directly to top-level port)
);
-- End of KEEPER_inst instantiation
Verilog Instantiation Template
// KEEPER: I/O Buffer Weak Keeper
//
7 Series
// Xilinx HDL Language Template, version 2019.1
KEEPER KEEPER_inst (
.O(O)
// Keeper output (connect directly to top-level port)
);
// End of KEEPER_inst instantiation
For More Information � See the 7 Series Programmable Devices User Guides.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 421
Chapter 5: Design Elements
LDCE
Primitive: Transparent Data Latch with Asynchronous Clear and Gate Enable
LDCE
D
Q
GE
G
CLR
X4979
Introduction
This design element is a transparent data latch with asynchronous clear and gate enable. When the asynchronous clear input (CLR) is High, it overrides the other inputs and resets the data (Q) output Low. Q reflects the data (D) input while the gate (G) input and gate enable (GE) are High and CLR is Low. If (GE) is Low, data on (D) cannot be latched. The data on the (D) input during the High-to-Low gate transition is stored in the latch. The data on the (Q) output remains unchanged as long as (G) or (GE) remains low.
This latch is asynchronously cleared, outputs Low, when power is applied. Power-on conditions are simulated when global set/reset (GSR) is active.
Logic Table
CLR 1 0 0 0 0
Inputs
GE
G
X
X
0
X
1
1
1
0
1
D X X D X D
Outputs Q
0 No Change D No Change D
Design Entry Method
Instantiation Inference IP Catalog Macro support
Yes Recommended No No
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 422
Chapter 5: Design Elements
Available Attributes
Attribute INIT
Type BINARY
Allowed Values Default
0, 1
0
Description Sets the initial value of Q output after configuration.
VHDL Instantiation Template Unless they already exist, copy the following two statements and paste them before the entity declaration.
Library UNISIM; use UNISIM.vcomponents.all;
-- LDCE: Transparent latch with Asynchronous Reset and
--
Gate Enable.
--
7 Series
-- Xilinx HDL Language Template, version 2019.1
LDCE_inst : LDCE
generic map (
INIT => '0') -- Initial value of latch ('0' or '1')
port map (
Q => Q,
-- Data output
CLR => CLR, -- Asynchronous clear/reset input
D => D,
-- Data input
G => G,
-- Gate input
GE => GE
-- Gate enable input
);
-- End of LDCE_inst instantiation
Verilog Instantiation Template
// LDCE: Transparent latch with Asynchronous Reset and Gate Enable.
//
7 Series
// Xilinx HDL Language Template, version 2019.1
LDCE #(
.INIT(1'b0) // Initial value of latch (1'b0 or 1'b1)
) LDCE_inst (
.Q(Q),
// Data output
.CLR(CLR), // Asynchronous clear/reset input
.D(D),
// Data input
.G(G),
// Gate input
.GE(GE)
// Gate enable input
);
// End of LDCE_inst instantiation
For More Information � See the 7 Series Programmable Devices User Guides.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 423
Chapter 5: Design Elements
LDPE
Primitive: Transparent Data Latch with Asynchronous Preset and Gate Enable
PRE
LDPE
D
Q
GE
G
X6954
Introduction
This design element is a transparent data latch with asynchronous preset and gate enable. When the asynchronous preset (PRE) is High, it overrides the other input and presets the data (Q) output High. Q reflects the data (D) input while the gate (G) input and gate enable (GE) are High. The data on the (D) input during the High-to-Low gate transition is stored in the latch. The data on the (Q) output remains unchanged as long as (G) or (GE) remains Low.
This latch is asynchronously preset, output High, when power is applied. Power-on conditions are simulated when global set/reset (GSR) is active.
Logic Table
PRE 1 0 0 0 0
Inputs
GE
G
X
X
0
X
1
1
1
0
1
D X X D X D
Outputs Q
1 No Change D No Change D
Design Entry Method
Instantiation Inference IP Catalog Macro support
Yes Recommended No No
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 424
Chapter 5: Design Elements
Available Attributes
Attribute INIT
Type BINARY
Allowed Values Default
0, 1
1
Description
Specifies the initial value upon power-up or the assertion of GSR for the (Q) port.
VHDL Instantiation Template Unless they already exist, copy the following two statements and paste them before the entity declaration.
Library UNISIM; use UNISIM.vcomponents.all;
-- LDPE: Transparent latch with Asynchronous Set and
--
Gate Enable.
--
7 Series
-- Xilinx HDL Language Template, version 2019.1
LDPE_inst : LDPE
generic map (
INIT => '0') -- Initial value of latch ('0' or '1')
port map (
Q => Q,
-- Data output
CLR => CLR, -- Asynchronous preset/set input
D => D,
-- Data input
G => G,
-- Gate input
GE => GE
-- Gate enable input
);
-- End of LDPE_inst instantiation
Verilog Instantiation Template
// LDPE: Transparent latch with Asynchronous Preset and Gate Enable.
//
7 Series
// Xilinx HDL Language Template, version 2019.1
LDPE #(
.INIT(1'b1) // Initial value of latch (1'b0 or 1'b1)
) LDPE_inst (
.Q(Q),
// Data output
.PRE(PRE), // Asynchronous preset/set input
.D(D),
// Data input
.G(G),
// Gate input
.GE(GE)
// Gate enable input
);
// End of LDPE_inst instantiation
For More Information � See the 7 Series Programmable Devices User Guides.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 425
Chapter 5: Design Elements
LUT1
Primitive: 1-Bit Look-Up Table with General Output
LUT1
I0
O
X9852
Introduction
This design element is a 1-bit look-up table (LUT) with general output (O).
An INIT attribute with an appropriate number of hexadecimal digits for the number of inputs must be attached to the LUT to specify its function. This element provides a look-up table version of a buffer or inverter. These elements are the basic building blocks. Multiple variants of LUTs accommodate additional types of outputs that can be used by different timing models for more accurate pre-layout timing estimation.
The INIT parameter for the FPGA LUT primitive gives the LUT its logical value. By default, this value is zero, thus driving the output to a zero regardless of the input values (acting as a ground). However, in most cases a new INIT value must be determined in order to specify the logic function for the LUT primitive. There are at least two methods by which the LUT value can be determined.
� The Logic Table Method Create a binary logic table of all possible inputs, specify the desired logic value of the output and then create the INIT string from those output values.
� The Equation Method Define parameters for each input to the LUT that correspond to their listed truth value and use those to build the logic equation you are after. This method is easier to understand once you have grasped the concept and is more self-documenting than the above method. However, this method does require the code to first specify the appropriate parameters.
Logic Table
Inputs I0
0 1 INIT = Binary number assigned to the INIT attribute
INIT[0] INIT[1]
Outputs O
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 426
Chapter 5: Design Elements
Design Entry Method
Instantiation Inference IP Catalog Macro support
Yes Recommended No No
Available Attributes
Attribute INIT
Type HEX
Allowed Values Any 2-Bit Value
Default All zeros
Description Initializes look-up tables.
VHDL Instantiation Template Unless they already exist, copy the following two statements and paste them before the entity declaration.
Library UNISIM; use UNISIM.vcomponents.all;
-- LUT1: 1-input Look-Up Table with general output
--
7 Series
-- Xilinx HDL Language Template, version 2019.1
LUT1_inst : LUT1 generic map (
INIT => "00") port map (
O => O, -- LUT general output I0 => I0 -- LUT input );
-- End of LUT1_inst instantiation
Verilog Instantiation Template
// LUT1: 1-input Look-Up Table with general output (Mapped to a LUT6)
//
7 Series
// Xilinx HDL Language Template, version 2019.1
LUT1 #( .INIT(2'b00) // Specify LUT Contents
) LUT1_inst ( .O(O), // LUT general output .I0(I0) // LUT input
);
// End of LUT1_inst instantiation
For More Information � See the 7 Series Programmable Devices User Guides.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 427
Chapter 5: Design Elements
LUT2
Primitive: 2-Bit Look-Up Table with General Output
LUT2
I1 O
I0
X8379
Introduction
This design element is a 2-bit look-up table (LUT) with general output (O).
An INIT attribute with an appropriate number of hexadecimal digits for the number of inputs must be attached to the LUT to specify its function. This element provides a look-up table version of a buffer or inverter. These elements are the basic building blocks. Multiple variants of LUTs accommodate additional types of outputs that can be used by different timing models for more accurate pre-layout timing estimation.
The INIT parameter for the FPGA LUT primitive gives the LUT its logical value. By default, this value is zero, thus driving the output to a zero regardless of the input values (acting as a ground). However, in most cases a new INIT value must be determined in order to specify the logic function for the LUT primitive. There are at least two methods by which the LUT value can be determined.
� The Logic Table Method Create a binary logic table of all possible inputs, specify the desired logic value of the output and then create the INIT string from those output values.
� The Equation Method Define parameters for each input to the LUT that correspond to their listed truth value and use those to build the logic equation you are after. This method is easier to understand once you have grasped the concept and is more self-documenting than the above method. However, this method does require the code to first specify the appropriate parameters.
Logic Table
I1 0 0 1 1
Inputs I0
0 1 0 1
INIT[0] INIT[1] INIT[2] INIT[3]
Outputs O
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 428
Chapter 5: Design Elements
Inputs
I1
I0
INIT = Binary equivalent of the hexadecimal number assigned to the INIT attribute
Outputs O
Design Entry Method
Instantiation Inference IP Catalog Macro support
Yes Recommended No No
Available Attributes
Attribute INIT
Type HEX
Allowed Values Any 4-Bit Value
Default All zeros
Description Initializes look-up tables.
VHDL Instantiation Template Unless they already exist, copy the following two statements and paste them before the entity declaration.
Library UNISIM; use UNISIM.vcomponents.all;
-- LUT2: 2-input Look-Up Table with general output
--
7 Series
-- Xilinx HDL Language Template, version 2019.1
LUT2_inst : LUT2 generic map (
INIT => X"0") port map (
O => O, -- LUT general output I0 => I0, -- LUT input I1 => I1 -- LUT input );
-- End of LUT2_inst instantiation
Verilog Instantiation Template
// LUT2: 2-input Look-Up Table with general output (Mapped to a LUT6)
//
7 Series
// Xilinx HDL Language Template, version 2019.1
LUT2 #( .INIT(4'h0) // Specify LUT Contents
) LUT2_inst ( .O(O), // LUT general output .I0(I0), // LUT input .I1(I1) // LUT input
);
// End of LUT2_inst instantiation
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 429
For More Information � See the 7 Series Programmable Devices User Guides.
Chapter 5: Design Elements
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 430
Chapter 5: Design Elements
LUT3
Primitive: 3-Bit Look-Up Table with General Output
LUT3
I2
I1
O
I0
X8382
Introduction
This design element is a 3-bit look-up table (LUT) with general output (O). A mandatory INIT attribute, with an appropriate number of hexadecimal digits for the number of inputs, must be attached to the LUT to specify its function.
An INIT attribute with an appropriate number of hexadecimal digits for the number of inputs must be attached to the LUT to specify its function. This element provides a look-up table version of a buffer or inverter. These elements are the basic building blocks. Multiple variants of LUTs accommodate additional types of outputs that can be used by different timing models for more accurate pre-layout timing estimation.
The INIT parameter for the FPGA LUT primitive gives the LUT its logical value. By default, this value is zero, thus driving the output to a zero regardless of the input values (acting as a ground). However, in most cases a new INIT value must be determined in order to specify the logic function for the LUT primitive. There are at least two methods by which the LUT value can be determined.
� The Logic Table Method Create a binary logic table of all possible inputs, specify the desired logic value of the output and then create the INIT string from those output values.
� The Equation Method Define parameters for each input to the LUT that correspond to their listed truth value and use those to build the logic equation you are after. This method is easier to understand once you have grasped the concept and is more self-documenting than the above method. However, this method does require the code to first specify the appropriate parameters.
Logic Table
I2 0 0
Inputs
I1
I0
0
0
0
1
INIT[0] INIT[1]
Outputs O
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 431
Chapter 5: Design Elements
Inputs
I2
I1
I0
0
1
0
INIT[2]
0
1
1
INIT[3]
1
0
0
INIT[4]
1
0
1
INIT[5]
1
1
0
INIT[6]
1
1
1
INIT[7]
INIT = Binary equivalent of the hexadecimal number assigned to the INIT attribute
Outputs O
Design Entry Method
Instantiation Inference IP Catalog Macro support
Yes Recommended No No
Available Attributes
Attribute INIT
Type HEX
Allowed Values Any 8-Bit Value
Default All zeros
Description Initializes look-up tables.
VHDL Instantiation Template Unless they already exist, copy the following two statements and paste them before the entity declaration.
Library UNISIM; use UNISIM.vcomponents.all;
-- LUT3: 3-input Look-Up Table with general output (Mapped to a LUT6)
--
7 Series
-- Xilinx HDL Language Template, version 2019.1
LUT3_inst : LUT3 generic map (
INIT => X"00") port map (
O => O, -- LUT general output I0 => I0, -- LUT input I1 => I1, -- LUT input I2 => I2 -- LUT input );
-- End of LUT3_inst instantiation
Verilog Instantiation Template
// LUT3: 3-input Look-Up Table with general output (Mapped to a LUT6)
//
7 Series
// Xilinx HDL Language Template, version 2019.1
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 432
LUT3 #( .INIT(8'h00) // Specify LUT Contents
) LUT3_inst ( .O(O), // LUT general output .I0(I0), // LUT input .I1(I1), // LUT input .I2(I2) // LUT input
); // End of LUT3_inst instantiation
For More Information � See the 7 Series Programmable Devices User Guides.
Chapter 5: Design Elements
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 433
Chapter 5: Design Elements
LUT4
Primitive: 4-Bit Look-Up-Table with General Output
LUT4
I3
I2
I1 I0
O
X8385
Introduction
This design element is a 4-bit look-up table (LUT) with general output (O).
An INIT attribute with an appropriate number of hexadecimal digits for the number of inputs must be attached to the LUT to specify its function. This element provides a look-up table version of a buffer or inverter. These elements are the basic building blocks. Multiple variants of LUTs accommodate additional types of outputs that can be used by different timing models for more accurate pre-layout timing estimation.
The INIT parameter for the FPGA LUT primitive gives the LUT its logical value. By default, this value is zero, thus driving the output to a zero regardless of the input values (acting as a ground). However, in most cases a new INIT value must be determined in order to specify the logic function for the LUT primitive. There are at least two methods by which the LUT value can be determined.
� The Logic Table Method Create a binary logic table of all possible inputs, specify the desired logic value of the output and then create the INIT string from those output values.
� The Equation Method Define parameters for each input to the LUT that correspond to their listed truth value and use those to build the logic equation you are after. This method is easier to understand once you have grasped the concept and is more self-documenting than the above method. However, this method does require the code to first specify the appropriate parameters.
Logic Table
Inputs
I3
I2
I1
I0
0
0
0
0
0
0
0
1
0
0
1
0
Outputs O
INIT[0] INIT[1] INIT[2]
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 434
Chapter 5: Design Elements
Inputs
I3
I2
I1
I0
0
0
1
1
0
1
0
0
0
1
0
1
0
1
1
0
0
1
1
1
1
0
0
0
1
0
0
1
1
0
1
0
1
0
1
1
1
1
0
0
1
1
0
1
1
1
1
0
1
1
1
1
INIT = Binary equivalent of the hexadecimal number assigned to the INIT attribute
Outputs O
INIT[3] INIT[4] INIT[5] INIT[6] INIT[7] INIT[8] INIT[9] INIT[10] INIT[11] INIT[12] INIT[13] INIT[14] INIT[15]
Design Entry Method
Instantiation Inference IP Catalog Macro support
Yes Recommended No No
Available Attributes
Attribute INIT
Type HEX
Allowed Values Any 16-Bit Value
Default All zeros
Description Initializes look-up tables.
VHDL Instantiation Template Unless they already exist, copy the following two statements and paste them before the entity declaration.
Library UNISIM; use UNISIM.vcomponents.all;
-- LUT4: 4-input Look-Up Table with general output
--
7 Series
-- Xilinx HDL Language Template, version 2019.1
LUT4_inst : LUT4 generic map (
INIT => X"0000") port map (
O => O, -- LUT general output I0 => I0, -- LUT input I1 => I1, -- LUT input
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 435
Chapter 5: Design Elements
I2 => I2, -- LUT input I3 => I3 -- LUT input ); -- End of LUT4_inst instantiation
Verilog Instantiation Template
// LUT4: 4-input Look-Up Table with general output (Mapped to a LUT6)
//
7 Series
// Xilinx HDL Language Template, version 2019.1
LUT4 #( .INIT(16'h0000) // Specify LUT Contents
) LUT4_inst ( .O(O), // LUT general output .I0(I0), // LUT input .I1(I1), // LUT input .I2(I2), // LUT input .I3(I3) // LUT input
);
// End of LUT4_inst instantiation
For More Information � See the 7 Series Programmable Devices User Guides.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 436
Chapter 5: Design Elements
LUT5
Primitive: 5-Input look-up Table with General Output
LUT5
I4 I3 I2 I1 I0
O
X10946
Introduction
This design element is a 5-input, 1-output look-up table (LUT) that can either act as an asynchronous 32-bit ROM (with 5-bit addressing) or implement any 5-input logic function. LUTs are the basic logic building blocks and are used to implement most logic functions of the design. One LUT5 is packed into a LUT6 within a slice, or two LUT5s can be packed into a single LUT6 with some restrictions. The functionality of the LUT5, LUT5_L and LUT5_D is the same. However, the LUT5_L and LUT5_D allow the additional specification to connect the LUT5 output signal to an internal slice or CLB connection using the LO output. The LUT5_L specifies that the only connections from the LUT5 will be within a slice or CLB, while the LUT5_D allows the specification to connect the output of the LUT to both inter-slice/CLB logic and external logic as well. The LUT5 does not state any specific output connections and should be used in all cases except where internal slice or CLB signal connections must be implicitly specified.
An INIT attribute consisting of a 32-bit hexadecimal value must be specified to indicate the LUTs logical function. The INIT value is calculated by assigning a 1 to the corresponding INIT bit value when the associated inputs are applied. For instance, a Verilog INIT value of 32'h80000000 (X"80000000" for VHDL) makes the output zero unless all of the inputs are one (a 5-input AND gate). A Verilog INIT value of 32'hfffffffe (X"FFFFFFFE" for VHDL) makes the output one unless all zeros are on the inputs (a 5-input OR gate).
The INIT parameter for the FPGA LUT primitive gives the LUT its logical value. By default, this value is zero, thus driving the output to a zero regardless of the input values (acting as a ground). However, in most cases a new INIT value must be determined in order to specify the logic function for the LUT primitive. There are at least two methods by which the LUT value can be determined.
� The Logic Table Method Create a binary logic table of all possible inputs, specify the desired logic value of the output and then create the INIT string from those output values.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 437
Chapter 5: Design Elements
� The Equation Method Define parameters for each input to the LUT that correspond to their listed truth value and use those to build the logic equation you are after. This method is easier to understand once you have grasped the concept and is more self-documenting than the above method. However, this method does require the code to first specify the appropriate parameters.
Logic Table
I4 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
I3 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1
Inputs
I2
I1
0
0
0
0
0
1
0
1
1
0
1
0
1
1
1
1
0
0
0
0
0
1
0
1
1
0
1
0
1
1
1
1
0
0
0
0
0
1
0
1
1
0
1
0
1
1
1
1
0
0
0
0
0
1
0
1
1
0
1
0
1
1
1
1
I0 0 1 0 1 0 1 0 1 0 1 0 1 0 1 0 1 0 1 0 1 0 1 0 1 0 1 0 1 0 1 0 1
Outputs LO
INIT[0] INIT[1] INIT[2] INIT[3] INIT[4] INIT[5] INIT[6] INIT[7] INIT[8] INIT[9] INIT[10] INIT[11] INIT[12] INIT[13] INIT[14] INIT[15] INIT[16] INIT[17] INIT[18] INIT[19] INIT[20] INIT[21] INIT[22] INIT[23] INIT[24] INIT[25] INIT[26] INIT[27] INIT[28] INIT[29] INIT[30] INIT[31]
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 438
Chapter 5: Design Elements
Inputs
I4
I3
I2
I1
I0
INIT = Binary equivalent of the hexadecimal number assigned to the INIT attribute
Outputs LO
Port Descriptions
Port O I0, I1, I2, I3, I4
Direction Output Input
Width 1 1
5-LUT output LUT inputs
Function
Design Entry Method
Instantiation Inference IP Catalog Macro support
Yes Recommended No No
Available Attributes
Attribute INIT
Type HEX
Allowed Values Any 32-Bit Value
Default All zeros
Description Initializes look-up tables.
VHDL Instantiation Template Unless they already exist, copy the following two statements and paste them before the entity declaration.
Library UNISIM; use UNISIM.vcomponents.all;
-- LUT5: 5-input Look-Up Table with general output (Mapped to SliceM LUT6)
--
7 Series
-- Xilinx HDL Language Template, version 2019.1
LUT5_inst : LUT5 generic map (
INIT => X"00000000") -- Specify LUT Contents port map (
O => O, -- LUT general output I0 => I0, -- LUT input I1 => I1, -- LUT input I2 => I2, -- LUT input I3 => I3, -- LUT input I4 => I4 -- LUT input );
-- End of LUT5_inst instantiation
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 439
Chapter 5: Design Elements
Verilog Instantiation Template
// LUT5: 5-input Look-Up Table with general output (Mapped to a LUT6)
//
7 Series
// Xilinx HDL Language Template, version 2019.1
LUT5 #( .INIT(32'h00000000) // Specify LUT Contents
) LUT5_inst ( .O(O), // LUT general output .I0(I0), // LUT input .I1(I1), // LUT input .I2(I2), // LUT input .I3(I3), // LUT input .I4(I4) // LUT input
);
// End of LUT5_inst instantiation
For More Information � See the 7 Series Programmable Devices User Guides.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 440
Chapter 5: Design Elements
LUT6
Primitive: 6-Input Looku-Up Table with General Output
LUT6
I5
I4
I4 LUT5
I3
I3
O
I2
I2
I1 I0
I1 I4 LUT5
I0
I3
I2
I1
I0
X10949
Introduction
This design element is a 6-input, 1-output look-up table (LUT) that can either act as an asynchronous 64-bit ROM (with 6-bit addressing) or implement any 6-input logic function. LUTs are the basic logic building blocks and are used to implement most logic functions of the design. A LUT6 is mapped to one of the four look-up tables in the slice. The functionality of the LUT6, LUT6_L and LUT6_D is the same. However, the LUT6_L and LUT6_D allow the additional specification to connect the LUT6 output signal to an internal slice, or CLB connection, using the LO output. The LUT6_L specifies that the only connections from the LUT6 will be within a slice, or CLB, while the LUT6_D allows the specification to connect the output of the LUT to both inter-slice/CLB logic and external logic as well. The LUT6 does not state any specific output connections and should be used in all cases except where internal slice or CLB signal connections must be implicitly specified.
An INIT attribute consisting of a 64-bit Hexadecimal value must be specified to indicate the LUTs logical function. The INIT value is calculated by assigning a 1 to corresponding INIT bit value when the associated inputs are applied. For instance, a Verilog INIT value of 64'h8000000000000000 (X"8000000000000000" for VHDL) makes the output zero unless all of the inputs are one (a 6-input AND gate). A Verilog INIT value of 64'hfffffffffffffffe (X"FFFFFFFFFFFFFFFE" for VHDL) makes the output one unless all zeros are on the inputs (a 6input OR gate).
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 441
Chapter 5: Design Elements
The INIT parameter for the FPGA LUT primitive gives the LUT its logical value. By default, this value is zero, thus driving the output to a zero regardless of the input values (acting as a ground). However, in most cases a new INIT value must be determined in order to specify the logic function for the LUT primitive. There are at least two methods by which the LUT value can be determined.
� The Logic Table Method Create a binary logic table of all possible inputs, specify the desired logic value of the output and then create the INIT string from those output values.
� The Equation Method Define parameters for each input to the LUT that correspond to their listed truth value and use those to build the logic equation you are after. This method is easier to understand once you have grasped the concept and is more self-documenting than the above method. However, this method does require the code to first specify the appropriate parameters.
Logic Table
I5 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
I4 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1
I3 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 1
Inputs I2
0 0 0 0 1 1 1 1 0 0 0 0 1 1 1 1 0 0 0 0 1 1 1 1 0
I1 0 0 1 1 0 0 1 1 0 0 1 1 0 0 1 1 0 0 1 1 0 0 1 1 0
I0 0 1 0 1 0 1 0 1 0 1 0 1 0 1 0 1 0 1 0 1 0 1 0 1 0
Outputs O
INIT[0] INIT[1] INIT[2] INIT[3] INIT[4] INIT[5] INIT[6] INIT[7] INIT[8] INIT[9] INIT[10] INIT[11] INIT[12] INIT[13] INIT[14] INIT[15] INIT[16] INIT[17] INIT[18] INIT[19] INIT[20] INIT[21] INIT[22] INIT[23] INIT[24]
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 442
Chapter 5: Design Elements
I5 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
I4 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
I3 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1
Inputs I2
0 0 0 1 1 1 1 0 0 0 0 1 1 1 1 0 0 0 0 1 1 1 1 0 0 0 0 1 1 1 1 0 0 0 0 1 1 1 1
I1 0 1 1 0 0 1 1 0 0 1 1 0 0 1 1 0 0 1 1 0 0 1 1 0 0 1 1 0 0 1 1 0 0 1 1 0 0 1 1
I0 1 0 1 0 1 0 1 0 1 0 1 0 1 0 1 0 1 0 1 0 1 0 1 0 1 0 1 0 1 0 1 0 1 0 1 0 1 0 1
Outputs O
INIT[25] INIT[26] INIT[27] INIT[28] INIT[29] INIT[30] INIT[31] INIT[32] INIT[33] INIT[34] INIT[35] INIT[36] INIT[37] INIT[38] INIT[39] INIT[40] INIT[41] INIT[42] INIT[43] INIT[44] INIT[45] INIT[46] INIT[47] INIT[48] INIT[49] INIT[50] INIT[51] INIT[52] INIT[53] INIT[54] INIT[55] INIT[56] INIT[57] INIT[58] INIT[59] INIT[60] INIT[61] INIT[62] INIT[63]
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 443
Chapter 5: Design Elements
Inputs
I5
I4
I3
I2
I1
I0
INIT = Binary equivalent of the hexadecimal number assigned to the INIT attribute
Outputs O
Port Descriptions
Port O I0, I1, I2, I3, I4, I5
Direction Output Input
Width 1 1
6/5-LUT output LUT inputs
Function
Design Entry Method
Instantiation Inference IP Catalog Macro support
Yes Recommended No No
Available Attributes
Attribute INIT
Type HEX
Allowed Values Any 64-Bit Value
Default All zeros
Description Initializes look-up tables.
VHDL Instantiation Template Unless they already exist, copy the following two statements and paste them before the entity declaration.
Library UNISIM; use UNISIM.vcomponents.all;
-- LUT6: 6-input Look-Up Table with general output
--
7 Series
-- Xilinx HDL Language Template, version 2019.1
LUT6_inst : LUT6 generic map (
INIT => X"0000000000000000") -- Specify LUT Contents port map (
O => O, -- LUT general output I0 => I0, -- LUT input I1 => I1, -- LUT input I2 => I2, -- LUT input I3 => I3, -- LUT input I4 => I4, -- LUT input I5 => I5 -- LUT input );
-- End of LUT6_inst instantiation
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 444
Verilog Instantiation Template
// LUT6: 6-input Look-Up Table with general output
//
7 Series
// Xilinx HDL Language Template, version 2019.1
LUT6 #( .INIT(64'h0000000000000000) // Specify LUT Contents
) LUT6_inst ( .O(O), // LUT general output .I0(I0), // LUT input .I1(I1), // LUT input .I2(I2), // LUT input .I3(I3), // LUT input .I4(I4), // LUT input .I5(I5) // LUT input
);
// End of LUT6_inst instantiation
For More Information � See the 7 Series Programmable Devices User Guides.
Chapter 5: Design Elements
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 445
Chapter 5: Design Elements
LUT6_2
Primitive: Six-input, 2-output, Look-Up Table
LUT6_2
I5
I4
I4 LUT5
I3
I3
O6
I2
I2
I1 I0
I1 I4 LUT5
I0
I3
I2
O5
I1
I0
X10961
Introduction
This design element is a 6-input, 2-output look-up table (LUT) that can either act as a dual asynchronous 32-bit ROM (with 5-bit addressing), implement any two 5-input logic functions with shared inputs, or implement a 6-input logic function and a 5-input logic function with shared inputs and shared logic values. LUTs are the basic logic building blocks and are used to implement most logic functions of the design. A LUT6_2 will be mapped to one of the four lookup tables in the slice.
An INIT attribute consisting of a 64-bit hexadecimal value must be specified to indicate the LUTs logical function. The INIT value is calculated by assigning a 1 to corresponding INIT bit value when the associated inputs are applied. For instance, a Verilog INIT value of 64'hfffffffffffffffe (X"FFFFFFFFFFFFFFFE" for VHDL) makes the O6 output 1 unless all zeros are on the inputs and the O5 output a 1, or unless I[4:0] are all zeroes (a 5-input and 6-input OR gate). The lower half (bits 31:0) of the INIT values apply to the logic function of the O5 output.
The INIT parameter for the FPGA LUT primitive gives the LUT its logical value. By default, this value is zero, thus driving the output to a zero regardless of the input values (acting as a ground). However, in most cases a new INIT value must be determined in order to specify the logic function for the LUT primitive. There are at least two methods by which the LUT value can be determined.
� The Logic Table Method Create a binary logic table of all possible inputs, specify the desired logic value of the output and then create the INIT string from those output values.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 446
Chapter 5: Design Elements
� The Equation Method Define parameters for each input to the LUT that correspond to their listed truth value and use those to build the logic equation you are after. This method is easier to understand once you have grasped the concept and is more self-documenting than the above method. However, this method does require the code to first specify the appropriate parameters.
Logic Table
I5 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
I4 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
Inputs
I3
I2
0
0
0
0
0
0
0
0
0
1
0
1
0
1
0
1
1
0
1
0
1
0
1
0
1
1
1
1
1
1
1
1
0
0
0
0
0
0
0
0
0
1
0
1
0
1
0
1
1
0
1
0
1
0
1
0
1
1
1
1
1
1
1
1
I1 0 0 1 1 0 0 1 1 0 0 1 1 0 0 1 1 0 0 1 1 0 0 1 1 0 0 1 1 0 0 1 1
I0 0 1 0 1 0 1 0 1 0 1 0 1 0 1 0 1 0 1 0 1 0 1 0 1 0 1 0 1 0 1 0 1
O5 INIT[0] INIT[1] INIT[2] INIT[3] INIT[4] INIT[5] INIT[6] INIT[7] INIT[8] INIT[9] INIT[10] INIT[11] INIT[12] INIT[13] INIT[14] INIT[15] INIT[16] INIT[17] INIT[18] INIT[19] INIT[20] INIT[21] INIT[22] INIT[23] INIT[24] INIT[25] INIT[26] INIT[27] INIT[28] INIT[29] INIT[30] INIT[31]
Outputs O6
INIT[0] INIT[1] INIT[2] INIT[3] INIT[4] INIT[5] INIT[6] INIT[7] INIT[8] INIT[9] INIT[10] INIT[11] INIT[12] INIT[13] INIT[14] INIT[15] INIT[16] INIT[17] INIT[18] INIT[19] INIT[20] INIT[21] INIT[22] INIT[23] INIT[24] INIT[25] INIT[26] INIT[27] INIT[28] INIT[29] INIT[30] INIT[31]
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 447
Chapter 5: Design Elements
Inputs
I5
I4
I3
I2
I1
I0
O5
1
0
0
0
0
0
INIT[0]
1
0
0
0
0
1
INIT[1]
1
0
0
0
1
0
INIT[2]
1
0
0
0
1
1
INIT[3]
1
0
0
1
0
0
INIT[4]
1
0
0
1
0
1
INIT[5]
1
0
0
1
1
0
INIT[6]
1
0
0
1
1
1
INIT[7]
1
0
1
0
0
0
INIT[8]
1
0
1
0
0
1
INIT[9]
1
0
1
0
1
0
INIT[10]
1
0
1
0
1
1
INIT[11]
1
0
1
1
0
0
INIT[12]
1
0
1
1
0
1
INIT[13]
1
0
1
1
1
0
INIT[14]
1
0
1
1
1
1
INIT[15]
1
1
0
0
0
0
INIT[16]
1
1
0
0
0
1
INIT[17]
1
1
0
0
1
0
INIT[18]
1
1
0
0
1
1
INIT[19]
1
1
0
1
0
0
INIT[20]
1
1
0
1
0
1
INIT[21]
1
1
0
1
1
0
INIT[22]
1
1
0
1
1
1
INIT[23]
1
1
1
0
0
0
INIT[24]
1
1
1
0
0
1
INIT[25]
1
1
1
0
1
0
INIT[26]
1
1
1
0
1
1
INIT[27]
1
1
1
1
0
0
INIT[28]
1
1
1
1
0
1
INIT[29]
1
1
1
1
1
0
INIT[30]
1
1
1
1
1
1
INIT[31]
INIT = Binary equivalent of the hexadecimal number assigned to the INIT attribute
Outputs O6
INIT[32] INIT[33] INIT[34] INIT[35] INIT[36] INIT[37] INIT[38] INIT[39] INIT[40] INIT[41] INIT[42] INIT[43] INIT[44] INIT[45] INIT[46] INIT[47] INIT[48] INIT[49] INIT[50] INIT[51] INIT[52] INIT[53] INIT[54] INIT[55] INIT[56] INIT[57] INIT[58] INIT[59] INIT[60] INIT[61] INIT[62] INIT[63]
Port Descriptions
Port O6 O5 I0, I1, I2, I3, I4, I5
Direction Output Output Input
Width 1 1 1
6/5-LUT output 5-LUT output LUT inputs
Function
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 448
Chapter 5: Design Elements
Design Entry Method
Instantiation Inference IP Catalog Macro support
Yes Recommended No No
Available Attributes
Attribute INIT
Type HEX
Allowed Values Any 64-Bit Value
Default All zeros
Description Specifies the LUT5/6 output function.
VHDL Instantiation Template Unless they already exist, copy the following two statements and paste them before the entity declaration.
Library UNISIM; use UNISIM.vcomponents.all;
-- LUT6_2: 6-input 2 output Look-Up Table
--
7 Series
-- Xilinx HDL Language Template, version 2019.1
LUT6_2_inst : LUT6_2 generic map (
INIT => X"0000000000000000") -- Specify LUT Contents port map (
O6 => O6, -- 6/5-LUT output (1-bit) O5 => O5, -- 5-LUT output (1-bit) I0 => I0, -- LUT input (1-bit) I1 => I1, -- LUT input (1-bit) I2 => I2, -- LUT input (1-bit) I3 => I3, -- LUT input (1-bit) I4 => I4, -- LUT input (1-bit) I5 => I5 -- LUT input (1-bit) );
-- End of LUT6_2_inst instantiation
Verilog Instantiation Template
// LUT6_2: 6-input, 2 output Look-Up Table
//
7 Series
// Xilinx HDL Language Template, version 2019.1
LUT6_2 #( .INIT(64'h0000000000000000) // Specify LUT Contents
) LUT6_2_inst ( .O6(O6), // 1-bit LUT6 output .O5(O5), // 1-bit lower LUT5 output .I0(I0), // 1-bit LUT input .I1(I1), // 1-bit LUT input .I2(I2), // 1-bit LUT input .I3(I3), // 1-bit LUT input .I4(I4), // 1-bit LUT input .I5(I5) // 1-bit LUT input (fast MUX select only available to O6 output)
);
// End of LUT6_2_inst instantiation
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 449
For More Information � See the 7 Series Programmable Devices User Guides.
Chapter 5: Design Elements
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 450
Chapter 5: Design Elements
MMCME2_ADV
Primitive: Advanced Mixed Mode Clock Manager
MMCME2_ADV
CLKFBIN
CLKFBOUT
CLKINSEL
CLKFBOUTB
CLKIN1
CLKFBSTOPPED
CLKIN2
CLKINSTOPPED
DADDR[6:0]
CLKOUT0
DCLK
CLKOUT0B
DEN
CLKOUT1
DI[15:0]
CLKOUT1B
DWE
CLKOUT2
PSCLK
CLKOUT2B
PSEN
CLKOUT3
PSINCDEC
CLKOUT3B
PWRDWN
CLKOUT4
RST
CLKOUT5
CLKOUT6
DO[15:0]
DRDY LOCKED PSDONE
X12109
Introduction
The MMCME2 is a mixed signal block designed to support frequency synthesis, clock network deskew, and jitter reduction. The clock outputs can each have an individual divide, phase shift and duty cycle based on the same VCO frequency. Additionally, the MMCME2 supports dynamic phase shifting and fractional divides.
Port Descriptions
CLKFBIN
Port
Direction Input
Width 1
Function Feedback clock pin to the MMCM
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 451
Chapter 5: Design Elements
Port CLKFBOUT CLKFBOUTB CLKFBSTOPPED CLKINSEL CLKINSTOPPED CLKIN1 CLKIN2 CLKOUT0 CLKOUT0B CLKOUT1 CLKOUT1B CLKOUT2 CLKOUT2B CLKOUT3 CLKOUT3B CLKOUT4 CLKOUT5 CLKOUT6 DADDR<6:0>
DCLK DEN
DI<15:0>
DO<15:0> DRDY
DWE
LOCKED
PSCLK PSDONE
Direction Output Output Output Input Output Input Input Output Output Output Output Output Output Output Output Output Output Output Input
Input Input
Input
Output Output
Input
Output
Input Output
Width 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 7
1 1
16
16 1
1
1
1 1
Function
Dedicated MMCM Feedback clock output
Inverted CLKFBOUT
Status pin indicating that the feedback clock has stopped.
Controls the state of the input MUX, High = CLKIN1, Low = CLKIN2.
Status pin indicating that the input clock has stopped.
Primary clock input.
Secondary clock input to dynamically switch the MMCM reference clock.
CLKOUT0 output
Inverted CLKOUT0 output
CLKOUT1 output
Inverted CLKOUT1 output
CLKOUT2 output
Inverted CLKOUT2 output
CLKOUT3 output
Inverted CLKOUT3 output
CLKOUT4 output
CLKOUT5 output
CLKOUT6 output
Dynamic reconfiguration address. Provides a reconfiguration address for the dynamic reconfiguration. When not used, all bits must be assigned zeros.
The reference clock for the dynamic reconfiguration port.
Dynamic reconfiguration enable. Provides the enable control signal to access the dynamic reconfiguration feature. When the dynamic reconfiguration feature is not used, DEN must be tied Low.
Dynamic reconfiguration data input. Provides reconfiguration data. When not used, all bits must be set to zero.
Dynamic reconfiguration output. Provides MMCM data output when using dynamic reconfiguration.
Dynamic reconfiguration ready output. Provides the response to the DEN signal for the MMCMs dynamic reconfiguration feature.
Dynamic reconfiguration write enable. Provides the write enable control signal to write the DI data into the DADDR address. When not used, it must be tied Low.
An output from the MMCM that indicates when the MMCM has achieved phase alignment within a predefined window and frequency matching within a predefined PPM range. The MMCM automatically locks after power on, no extra reset is required. LOCKED will be deasserted if the input clock stops or the phase alignment is violated (e.g., input clock phase shift). The MMCM must be reset after LOCKED is deasserted.
Phase shift clock.
Phase shift done.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 452
Chapter 5: Design Elements
Port PSEN PSINCDEC PWRDWN RST
Direction Input Input Input Input
Width 1 1 1 1
Function
Phase shift enable
Phase shift increment/decrement control.
Powers down instantiated but unused MMCMs.
Asynchronous reset signal. The MMCM will synchronously re-enable itself when this signal is released (i.e., MMCM reenabled). A reset is required when the input clock conditions change (e.g., frequency).
Design Entry Method
Instantiation Inference IP Catalog Macro support
Yes No Recommended No
Available Attributes
Attribute BANDWIDTH
CLKFBOUT_MULT_F
CLKFBOUT_PHASE
CLKIN1_PERIOD, CLKIN2_PERIOD
CLKOUT1_DIVIDE, CLKOUT2_DIVIDE, CLKOUT3_DIVIDE, CLKOUT4_DIVIDE, CLKOUT5_DIVIDE, CLKOUT6_DIVIDE
Type STRING 3 significant digit FLOAT
3 significant digit FLOAT FLOAT (nS)
DECIMAL
Allowed Values
"OPTIMIZED", "HIGH", "LOW"
Default "OPTIMIZED"
2.000 to 64.000
5.000
-360.000 to 360.000
0.000
0.000 to 100.000 0.000
1 to 128
1
Description
Specifies the MMCM programming algorithm affecting the jitter, phase margin and other characteristics of the MMCM.
Specifies the amount to multiply all CLKOUT clock outputs if a different frequency is desired. This number, in combination with the associated CLKOUT#_DIVIDE value and DIVCLK_DIVIDE value, will determine the output frequency.
Specifies the phase offset in degrees of the clock feedback output. Shifting the feedback clock results in a negative phase shift of all output clocks to the MMCM.
Specifies the input period in ns to the MMCM CLKIN inputs. Resolution is down to the ps. For example a value of 33.333 would indicate a 30 MHz input clock. This information is mandatory and must be supplied. CLKIN1_PERIOD relates to the input period on the CLKIN1 input while CLKIN2_PERIOD relates to the input clock period on the CLKIN2 input.
Specifies the amount to divide the associated CLKOUT clock output if a different frequency is desired. This number in combination with the CLKFBOUT_MULT_F and DIVCLK_DIVIDE values will determine the output frequency.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 453
Chapter 5: Design Elements
Attribute CLKOUT0_DIVIDE _F
Type
3 significant digit FLOAT
CLKOUT0_DUTY _CYCLE to CLKOUT6_DUTY _CYCLE
CLKOUT0_PHASE to CLKOUT6_PHASE
3 significant digit FLOAT
3 significant digit FLOAT
CLKOUT4 _CASCADE
BOOLEAN
COMPENSATION
STRING
DIVCLK_DIVIDE
REF_JITTER1, REF_JITTER2
DECIMAL
3 significant digit FLOAT
SS_EN
STRING
Allowed Values
Default
1.000 to 128.000 1.000
0.001 to 0.999
0.500
-360.000 to 360.000
0.000
FALSE, TRUE
FALSE
"ZHOLD", "BUF_IN", "EXTERNAL", "INTERNAL"
"ZHOLD"
1 to 106
1
0.000 to 0.999
0.010
"FALSE", "TRUE" "FALSE"
Description
Specifies the amount to divide the associated CLKOUT clock output if a different frequency is desired. This number in combination with the CLKFBOUT_MULT_F and DIVCLK_DIVIDE values will determine the output frequency.
Specifies the Duty Cycle of the associated CLKOUT clock output in percentage (i.e., 0.50 will generate a 50% duty cycle).
Specifies the phase offset in degrees of the clock feedback output. Shifting the feedback clock results in a negative phase shift of all output clocks to the MMCM.
Cascades the output divider (counter) into the input of the CLKOUT4 divider for an output clock divider that is greater than 128.
Clock input compensation. Should be set to ZHOLD. Defines how the MMCM feedback is configured.
� "ZHOLD" - MMCM is configured to
provide a negative hold time at the I/O registers.
� "INTERNAL" - MMCM is using its own
internal feedback path so no delay is being compensated.
� "EXTERNAL" - a network external to
the FPGA is being compensated.
� "BUF_IN" - configuration does not
match with the other compensation modes and no delay will be compensated. This is the case if a clock input is driven by a BUFG/ BUFH/BUFR/GT.
Specifies the division ratio for all output clocks with respect to the input clock. Effectively divides the CLKIN going into the PFD.
Allows specification of the expected jitter on the CLKIN inputs in order to better optimize MMCM performance. A bandwidth setting of OPTIMIZED will attempt to choose the best parameter for input clocking when unknown. If known, then the value provided should be specified in terms of the UI percentage (the maximum peak to peak value) of the expected jitter on the input clock. REF_JITTER1 relates to the input jitter on CLKIN1 while REF_JITTER2 relates to the input jitter on CLKIN2.
Enables the spread spectrum feature for the MMCM. Used in conjunction with SS_MODE and SS_MOD_PERIOD attributes.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 454
Chapter 5: Design Elements
Attribute SS_MOD_PERIOD
Type DECIMAL (nS)
Allowed Values
Default
4000 to 40000
10000
SS_MODE STARTUP_WAIT
STRING BOOLEAN
"CENTER_HIGH", "CENTER_LOW", "DOWN_HIGH", "DOWN_LOW"
FALSE, TRUE
"CENTER _HIGH"
FALSE
CLKFBOUT_USE
BOOLEAN
_FINE_PS to
CLKOUT6_USE _FINE_PS
FALSE, TRUE
FALSE
Description Specifies the spread spectrum modulation period (ns). Controls the spread spectrum frequency deviation and the spread type.
Delays configuration DONE signal from asserting until MMCM is locked. Counter variable fine phase shift enable.
VHDL Instantiation Template Unless they already exist, copy the following two statements and paste them before the entity declaration.
Library UNISIM; use UNISIM.vcomponents.all;
-- MMCME2_ADV: Advanced Mixed Mode Clock Manager
--
7 Series
-- Xilinx HDL Language Template, version 2019.1
MMCME2_ADV_inst : MMCME2_ADV
generic map (
BANDWIDTH => "OPTIMIZED",
-- Jitter programming (OPTIMIZED, HIGH, LOW)
CLKFBOUT_MULT_F => 5.0,
-- Multiply value for all CLKOUT (2.000-64.000).
CLKFBOUT_PHASE => 0.0,
-- Phase offset in degrees of CLKFB (-360.000-360.000).
-- CLKIN_PERIOD: Input clock period in ns to ps resolution (i.e. 33.333 is 30 MHz).
CLKIN1_PERIOD => 0.0,
CLKIN2_PERIOD => 0.0,
-- CLKOUT0_DIVIDE - CLKOUT6_DIVIDE: Divide amount for CLKOUT (1-128)
CLKOUT1_DIVIDE => 1,
CLKOUT2_DIVIDE => 1,
CLKOUT3_DIVIDE => 1,
CLKOUT4_DIVIDE => 1,
CLKOUT5_DIVIDE => 1,
CLKOUT6_DIVIDE => 1,
CLKOUT0_DIVIDE_F => 1.0,
-- Divide amount for CLKOUT0 (1.000-128.000).
-- CLKOUT0_DUTY_CYCLE - CLKOUT6_DUTY_CYCLE: Duty cycle for CLKOUT outputs (0.01-0.99).
CLKOUT0_DUTY_CYCLE => 0.5,
CLKOUT1_DUTY_CYCLE => 0.5,
CLKOUT2_DUTY_CYCLE => 0.5,
CLKOUT3_DUTY_CYCLE => 0.5,
CLKOUT4_DUTY_CYCLE => 0.5,
CLKOUT5_DUTY_CYCLE => 0.5,
CLKOUT6_DUTY_CYCLE => 0.5,
-- CLKOUT0_PHASE - CLKOUT6_PHASE: Phase offset for CLKOUT outputs (-360.000-360.000).
CLKOUT0_PHASE => 0.0,
CLKOUT1_PHASE => 0.0,
CLKOUT2_PHASE => 0.0,
CLKOUT3_PHASE => 0.0,
CLKOUT4_PHASE => 0.0,
CLKOUT5_PHASE => 0.0,
CLKOUT6_PHASE => 0.0,
CLKOUT4_CASCADE => FALSE,
-- Cascade CLKOUT4 counter with CLKOUT6 (FALSE, TRUE)
COMPENSATION => "ZHOLD",
-- ZHOLD, BUF_IN, EXTERNAL, INTERNAL
DIVCLK_DIVIDE => 1,
-- Master division value (1-106)
-- REF_JITTER: Reference input jitter in UI (0.000-0.999).
REF_JITTER1 => 0.0,
REF_JITTER2 => 0.0,
STARTUP_WAIT => FALSE,
-- Delays DONE until MMCM is locked (FALSE, TRUE)
-- Spread Spectrum: Spread Spectrum Attributes
SS_EN => "FALSE",
-- Enables spread spectrum (FALSE, TRUE)
SS_MODE => "CENTER_HIGH",
-- CENTER_HIGH, CENTER_LOW, DOWN_HIGH, DOWN_LOW
SS_MOD_PERIOD => 10000,
-- Spread spectrum modulation period (ns) (VALUES)
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 455
Chapter 5: Design Elements
-- USE_FINE_PS: Fine phase shift enable (TRUE/FALSE)
CLKFBOUT_USE_FINE_PS => FALSE,
CLKOUT0_USE_FINE_PS => FALSE,
CLKOUT1_USE_FINE_PS => FALSE,
CLKOUT2_USE_FINE_PS => FALSE,
CLKOUT3_USE_FINE_PS => FALSE,
CLKOUT4_USE_FINE_PS => FALSE,
CLKOUT5_USE_FINE_PS => FALSE,
CLKOUT6_USE_FINE_PS => FALSE
)
port map (
-- Clock Outputs: 1-bit (each) output: User configurable clock outputs
CLKOUT0 => CLKOUT0,
-- 1-bit output: CLKOUT0
CLKOUT0B => CLKOUT0B,
-- 1-bit output: Inverted CLKOUT0
CLKOUT1 => CLKOUT1,
-- 1-bit output: CLKOUT1
CLKOUT1B => CLKOUT1B,
-- 1-bit output: Inverted CLKOUT1
CLKOUT2 => CLKOUT2,
-- 1-bit output: CLKOUT2
CLKOUT2B => CLKOUT2B,
-- 1-bit output: Inverted CLKOUT2
CLKOUT3 => CLKOUT3,
-- 1-bit output: CLKOUT3
CLKOUT3B => CLKOUT3B,
-- 1-bit output: Inverted CLKOUT3
CLKOUT4 => CLKOUT4,
-- 1-bit output: CLKOUT4
CLKOUT5 => CLKOUT5,
-- 1-bit output: CLKOUT5
CLKOUT6 => CLKOUT6,
-- 1-bit output: CLKOUT6
-- DRP Ports: 16-bit (each) output: Dynamic reconfiguration ports
DO => DO,
-- 16-bit output: DRP data
DRDY => DRDY,
-- 1-bit output: DRP ready
-- Dynamic Phase Shift Ports: 1-bit (each) output: Ports used for dynamic phase shifting of the outputs
PSDONE => PSDONE,
-- 1-bit output: Phase shift done
-- Feedback Clocks: 1-bit (each) output: Clock feedback ports
CLKFBOUT => CLKFBOUT,
-- 1-bit output: Feedback clock
CLKFBOUTB => CLKFBOUTB,
-- 1-bit output: Inverted CLKFBOUT
-- Status Ports: 1-bit (each) output: MMCM status ports
CLKFBSTOPPED => CLKFBSTOPPED, -- 1-bit output: Feedback clock stopped
CLKINSTOPPED => CLKINSTOPPED, -- 1-bit output: Input clock stopped
LOCKED => LOCKED,
-- 1-bit output: LOCK
-- Clock Inputs: 1-bit (each) input: Clock inputs
CLKIN1 => CLKIN1,
-- 1-bit input: Primary clock
CLKIN2 => CLKIN2,
-- 1-bit input: Secondary clock
-- Control Ports: 1-bit (each) input: MMCM control ports
CLKINSEL => CLKINSEL,
-- 1-bit input: Clock select, High=CLKIN1 Low=CLKIN2
PWRDWN => PWRDWN,
-- 1-bit input: Power-down
RST => RST,
-- 1-bit input: Reset
-- DRP Ports: 7-bit (each) input: Dynamic reconfiguration ports
DADDR => DADDR,
-- 7-bit input: DRP address
DCLK => DCLK,
-- 1-bit input: DRP clock
DEN => DEN,
-- 1-bit input: DRP enable
DI => DI,
-- 16-bit input: DRP data
DWE => DWE,
-- 1-bit input: DRP write enable
-- Dynamic Phase Shift Ports: 1-bit (each) input: Ports used for dynamic phase shifting of the outputs
PSCLK => PSCLK,
-- 1-bit input: Phase shift clock
PSEN => PSEN,
-- 1-bit input: Phase shift enable
PSINCDEC => PSINCDEC,
-- 1-bit input: Phase shift increment/decrement
-- Feedback Clocks: 1-bit (each) input: Clock feedback ports
CLKFBIN => CLKFBIN
-- 1-bit input: Feedback clock
);
-- End of MMCME2_ADV_inst instantiation
Verilog Instantiation Template
// MMCME2_ADV: Advanced Mixed Mode Clock Manager
//
7 Series
// Xilinx HDL Language Template, version 2019.1
MMCME2_ADV #(
.BANDWIDTH("OPTIMIZED"),
// Jitter programming (OPTIMIZED, HIGH, LOW)
.CLKFBOUT_MULT_F(5.0),
// Multiply value for all CLKOUT (2.000-64.000).
.CLKFBOUT_PHASE(0.0),
// Phase offset in degrees of CLKFB (-360.000-360.000).
// CLKIN_PERIOD: Input clock period in ns to ps resolution (i.e. 33.333 is 30 MHz).
.CLKIN1_PERIOD(0.0),
.CLKIN2_PERIOD(0.0),
// CLKOUT0_DIVIDE - CLKOUT6_DIVIDE: Divide amount for CLKOUT (1-128)
.CLKOUT1_DIVIDE(1),
.CLKOUT2_DIVIDE(1),
.CLKOUT3_DIVIDE(1),
.CLKOUT4_DIVIDE(1),
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 456
Chapter 5: Design Elements
.CLKOUT5_DIVIDE(1),
.CLKOUT6_DIVIDE(1),
.CLKOUT0_DIVIDE_F(1.0),
// Divide amount for CLKOUT0 (1.000-128.000).
// CLKOUT0_DUTY_CYCLE - CLKOUT6_DUTY_CYCLE: Duty cycle for CLKOUT outputs (0.01-0.99).
.CLKOUT0_DUTY_CYCLE(0.5),
.CLKOUT1_DUTY_CYCLE(0.5),
.CLKOUT2_DUTY_CYCLE(0.5),
.CLKOUT3_DUTY_CYCLE(0.5),
.CLKOUT4_DUTY_CYCLE(0.5),
.CLKOUT5_DUTY_CYCLE(0.5),
.CLKOUT6_DUTY_CYCLE(0.5),
// CLKOUT0_PHASE - CLKOUT6_PHASE: Phase offset for CLKOUT outputs (-360.000-360.000).
.CLKOUT0_PHASE(0.0),
.CLKOUT1_PHASE(0.0),
.CLKOUT2_PHASE(0.0),
.CLKOUT3_PHASE(0.0),
.CLKOUT4_PHASE(0.0),
.CLKOUT5_PHASE(0.0),
.CLKOUT6_PHASE(0.0),
.CLKOUT4_CASCADE("FALSE"),
// Cascade CLKOUT4 counter with CLKOUT6 (FALSE, TRUE)
.COMPENSATION("ZHOLD"),
// ZHOLD, BUF_IN, EXTERNAL, INTERNAL
.DIVCLK_DIVIDE(1),
// Master division value (1-106)
// REF_JITTER: Reference input jitter in UI (0.000-0.999).
.REF_JITTER1(0.0),
.REF_JITTER2(0.0),
.STARTUP_WAIT("FALSE"),
// Delays DONE until MMCM is locked (FALSE, TRUE)
// Spread Spectrum: Spread Spectrum Attributes
.SS_EN("FALSE"),
// Enables spread spectrum (FALSE, TRUE)
.SS_MODE("CENTER_HIGH"),
// CENTER_HIGH, CENTER_LOW, DOWN_HIGH, DOWN_LOW
.SS_MOD_PERIOD(10000),
// Spread spectrum modulation period (ns) (VALUES)
// USE_FINE_PS: Fine phase shift enable (TRUE/FALSE)
.CLKFBOUT_USE_FINE_PS("FALSE"),
.CLKOUT0_USE_FINE_PS("FALSE"),
.CLKOUT1_USE_FINE_PS("FALSE"),
.CLKOUT2_USE_FINE_PS("FALSE"),
.CLKOUT3_USE_FINE_PS("FALSE"),
.CLKOUT4_USE_FINE_PS("FALSE"),
.CLKOUT5_USE_FINE_PS("FALSE"),
.CLKOUT6_USE_FINE_PS("FALSE")
)
MMCME2_ADV_inst (
// Clock Outputs: 1-bit (each) output: User configurable clock outputs
.CLKOUT0(CLKOUT0),
// 1-bit output: CLKOUT0
.CLKOUT0B(CLKOUT0B),
// 1-bit output: Inverted CLKOUT0
.CLKOUT1(CLKOUT1),
// 1-bit output: CLKOUT1
.CLKOUT1B(CLKOUT1B),
// 1-bit output: Inverted CLKOUT1
.CLKOUT2(CLKOUT2),
// 1-bit output: CLKOUT2
.CLKOUT2B(CLKOUT2B),
// 1-bit output: Inverted CLKOUT2
.CLKOUT3(CLKOUT3),
// 1-bit output: CLKOUT3
.CLKOUT3B(CLKOUT3B),
// 1-bit output: Inverted CLKOUT3
.CLKOUT4(CLKOUT4),
// 1-bit output: CLKOUT4
.CLKOUT5(CLKOUT5),
// 1-bit output: CLKOUT5
.CLKOUT6(CLKOUT6),
// 1-bit output: CLKOUT6
// DRP Ports: 16-bit (each) output: Dynamic reconfiguration ports
.DO(DO),
// 16-bit output: DRP data
.DRDY(DRDY),
// 1-bit output: DRP ready
// Dynamic Phase Shift Ports: 1-bit (each) output: Ports used for dynamic phase shifting of the outputs
.PSDONE(PSDONE),
// 1-bit output: Phase shift done
// Feedback Clocks: 1-bit (each) output: Clock feedback ports
.CLKFBOUT(CLKFBOUT),
// 1-bit output: Feedback clock
.CLKFBOUTB(CLKFBOUTB),
// 1-bit output: Inverted CLKFBOUT
// Status Ports: 1-bit (each) output: MMCM status ports
.CLKFBSTOPPED(CLKFBSTOPPED), // 1-bit output: Feedback clock stopped
.CLKINSTOPPED(CLKINSTOPPED), // 1-bit output: Input clock stopped
.LOCKED(LOCKED),
// 1-bit output: LOCK
// Clock Inputs: 1-bit (each) input: Clock inputs
.CLKIN1(CLKIN1),
// 1-bit input: Primary clock
.CLKIN2(CLKIN2),
// 1-bit input: Secondary clock
// Control Ports: 1-bit (each) input: MMCM control ports
.CLKINSEL(CLKINSEL),
// 1-bit input: Clock select, High=CLKIN1 Low=CLKIN2
.PWRDWN(PWRDWN),
// 1-bit input: Power-down
.RST(RST),
// 1-bit input: Reset
// DRP Ports: 7-bit (each) input: Dynamic reconfiguration ports
.DADDR(DADDR),
// 7-bit input: DRP address
.DCLK(DCLK),
// 1-bit input: DRP clock
.DEN(DEN),
// 1-bit input: DRP enable
.DI(DI),
// 16-bit input: DRP data
.DWE(DWE),
// 1-bit input: DRP write enable
// Dynamic Phase Shift Ports: 1-bit (each) input: Ports used for dynamic phase shifting of the outputs
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 457
Chapter 5: Design Elements
.PSCLK(PSCLK),
// 1-bit input: Phase shift clock
.PSEN(PSEN),
// 1-bit input: Phase shift enable
.PSINCDEC(PSINCDEC),
// 1-bit input: Phase shift increment/decrement
// Feedback Clocks: 1-bit (each) input: Clock feedback ports
.CLKFBIN(CLKFBIN)
// 1-bit input: Feedback clock
);
// End of MMCME2_ADV_inst instantiation
For More Information � See the 7 Series Programmable Devices User Guides.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 458
Chapter 5: Design Elements
MMCME2_BASE
Primitive: Base Mixed Mode Clock Manager
MMCME3_BASE
CLKFBIN
CLKFBOUT
CLKFBOUTB
CLKOUT0
CLKOUT0B
CLKIN1
CLKOUT1 CLKOUT1B
CLKOUT2
CLKOUT2B
PWRDWN
CLKOUT3 CLKOUT3B
CLKOUT4
CLKOUT5
CLKOUT6 RST
LOCKED
X13409
Introduction
The MMCME2 is a mixed signal block designed to support frequency synthesis, clock network deskew, and jitter reduction. The clock outputs can each have an individual divide, phase shift and duty cycle based on the same VCO frequency. Additionally, the MMCME2 supports dynamic phase shifting and fractional divides.
Port Descriptions
Port CLKFBIN CLKFBOUT CLKFBOUTB CLKOUT0 CLKOUT0B CLKOUT1 CLKOUT1B
Direction Input Output Output Output Output Output Output
Width 1 1 1 1 1 1 1
Function Feedback clock pin to the MMCM Dedicated MMCM Feedback clock output Inverted CLKFBOUT output CLKOUT0 output Inverted CLKOUT0 output CLKOUT1 output Inverted CLKOUT1 output
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 459
Chapter 5: Design Elements
Port CLKOUT2 CLKOUT2B CLKOUT3 CLKOUT3B CLKOUT4 CLKOUT5 CLKOUT6 CLKIN1 PWRDWN RST
LOCKED
Direction Output Output Output Output Output Output Output Input Input Input
Output
Width 1 1 1 1 1 1 1 1 1 1
1
Function
CLKOUT2 output
Inverted CLKOUT2 output
CLKOUT3 output
Inverted CLKOUT3 output
CLKOUT4 output
CLKOUT5 output
CLKOUT6 output
General clock input.
Powers down instantiated but unused MMCMs.
Asynchronous reset signal. The MMCM will synchronously re-enable itself when this signal is released (i.e., MMCM reenabled). A reset is required when the input clock conditions change (e.g., frequency).
An output from the MMCM that indicates when the MMCM has achieved phase alignment within a predefined window and frequency matching within a predefined PPM range. The MMCM automatically locks after power on, no extra reset is required. LOCKED will be deasserted if the input clock stops or the phase alignment is violated (e.g., input clock phase shift). The MMCM must be reset after LOCKED is deasserted.
Design Entry Method
Instantiation Inference IP Catalog Macro support
Yes No Recommended No
Available Attributes
Attribute BANDWIDTH CLKFBOUT_MULT_F
CLKFBOUT_PHASE CLKIN1_PERIOD
Type STRING
3 significant digit FLOAT
3 significant digit FLOAT
FLOAT(nS)
Allowed Values
Default
"OPTIMIZED", "OPTIMIZED" "HIGH", "LOW"
2.000 to 64.000 5.000
-360.000 to 360.000
0.000
0.000 to 100.000 0.000
Description
Specifies the MMCM programming algorithm affecting the jitter, phase margin and other characteristics of the MMCM.
Specifies the amount to multiply all CLKOUT clock outputs if a different frequency is desired. This number, in combination with the associated CLKOUT#_DIVIDE value and DIVCLK_DIVIDE value, will determine the output frequency.
Specifies the phase offset in degrees of the clock feedback output. Shifting the feedback clock results in a negative phase shift of all output clocks to the MMCM.
Specifies the input period in ns to the MMCM CLKIN1 input. Resolution is down to the ps (3 decimal places). For example, a value of 33.333 would indicate a 30 MHz input clock. This information is mandatory and must be supplied.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 460
Chapter 5: Design Elements
Attribute CLKOUT1_DIVIDE, CLKOUT2_DIVIDE, CLKOUT3_DIVIDE, CLKOUT4_DIVIDE, CLKOUT5_DIVIDE, CLKOUT6_DIVIDE CLKOUT0_DIVIDE_F
CLKOUT0_DUTY _CYCLE to CLKOUT6_DUTY _CYCLE CLKOUT0_PHASE to CLKOUT6_PHASE
CLKOUT4_CASCADE
DIVCLK_DIVIDE
REF_JITTER1
STARTUP_WAIT
Type DECIMAL
Allowed Values
Default
1 to 128
1
3 significant 1.000 to 128.000 1.000 digit FLOAT
3 significant 0.001 to 0.999 digit FLOAT
0.500
3 significant -360.000 to digit FLOAT 360.000
0.000
BOOLEAN
FALSE, TRUE
FALSE
DECIMAL
1 to 106
1
3 significant 0.000 to 0.999 digit FLOAT
0.010
BOOLEAN
FALSE, TRUE
FALSE
Description
Specifies the amount to divide the associated CLKOUT clock output if a different frequency is desired. This number in combination with the CLKFBOUT_MULT_F and DIVCLK_DIVIDE values will determine the output frequency.
Specifies the amount to divide the associated CLKOUT clock output if a different frequency is desired. This number in combination with the CLKFBOUT_MULT_F and DIVCLK_DIVIDE values will determine the output frequency.
Specifies the Duty Cycle of the associated CLKOUT clock output in percentage (i.e., 0.50 will generate a 50% duty cycle).
Specifies the phase offset in degrees of the clock feedback output. Shifting the feedback clock results in a negative phase shift of all output clocks to the MMCM.
Cascades the output divider (counter) CLKOUT6 into the input of the CLKOUT4 divider for an output clock divider that is greater than 128.
Specifies the division ratio for all output clocks with respect to the input clock. Effectively divides the CLKIN going into the PFD.
Allows specification of the expected jitter on CLKIN1 in order to better optimize MMCM performance. A bandwidth setting of OPTIMIZED will attempt to choose the best parameter for input clocking when unknown. If known, then the value provided should be specified in terms of the UI percentage (the maximum peak to peak value) of the expected jitter on the input clock.
Delays configuration DONE signal from asserting until MMCM is locked.
VHDL Instantiation Template Unless they already exist, copy the following two statements and paste them before the entity declaration.
Library UNISIM; use UNISIM.vcomponents.all;
-- MMCME2_BASE: Base Mixed Mode Clock Manager
--
7 Series
-- Xilinx HDL Language Template, version 2019.1
MMCME2_BASE_inst : MMCME2_BASE
generic map (
BANDWIDTH => "OPTIMIZED", -- Jitter programming (OPTIMIZED, HIGH, LOW)
CLKFBOUT_MULT_F => 5.0, -- Multiply value for all CLKOUT (2.000-64.000).
CLKFBOUT_PHASE => 0.0,
-- Phase offset in degrees of CLKFB (-360.000-360.000).
CLKIN1_PERIOD => 0.0,
-- Input clock period in ns to ps resolution (i.e. 33.333 is 30 MHz).
-- CLKOUT0_DIVIDE - CLKOUT6_DIVIDE: Divide amount for each CLKOUT (1-128)
CLKOUT1_DIVIDE => 1,
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 461
Chapter 5: Design Elements
CLKOUT2_DIVIDE => 1,
CLKOUT3_DIVIDE => 1,
CLKOUT4_DIVIDE => 1,
CLKOUT5_DIVIDE => 1,
CLKOUT6_DIVIDE => 1,
CLKOUT0_DIVIDE_F => 1.0, -- Divide amount for CLKOUT0 (1.000-128.000).
-- CLKOUT0_DUTY_CYCLE - CLKOUT6_DUTY_CYCLE: Duty cycle for each CLKOUT (0.01-0.99).
CLKOUT0_DUTY_CYCLE => 0.5,
CLKOUT1_DUTY_CYCLE => 0.5,
CLKOUT2_DUTY_CYCLE => 0.5,
CLKOUT3_DUTY_CYCLE => 0.5,
CLKOUT4_DUTY_CYCLE => 0.5,
CLKOUT5_DUTY_CYCLE => 0.5,
CLKOUT6_DUTY_CYCLE => 0.5,
-- CLKOUT0_PHASE - CLKOUT6_PHASE: Phase offset for each CLKOUT (-360.000-360.000).
CLKOUT0_PHASE => 0.0,
CLKOUT1_PHASE => 0.0,
CLKOUT2_PHASE => 0.0,
CLKOUT3_PHASE => 0.0,
CLKOUT4_PHASE => 0.0,
CLKOUT5_PHASE => 0.0,
CLKOUT6_PHASE => 0.0,
CLKOUT4_CASCADE => FALSE, -- Cascade CLKOUT4 counter with CLKOUT6 (FALSE, TRUE)
DIVCLK_DIVIDE => 1,
-- Master division value (1-106)
REF_JITTER1 => 0.0,
-- Reference input jitter in UI (0.000-0.999).
STARTUP_WAIT => FALSE
-- Delays DONE until MMCM is locked (FALSE, TRUE)
)
port map (
-- Clock Outputs: 1-bit (each) output: User configurable clock outputs
CLKOUT0 => CLKOUT0,
-- 1-bit output: CLKOUT0
CLKOUT0B => CLKOUT0B, -- 1-bit output: Inverted CLKOUT0
CLKOUT1 => CLKOUT1,
-- 1-bit output: CLKOUT1
CLKOUT1B => CLKOUT1B, -- 1-bit output: Inverted CLKOUT1
CLKOUT2 => CLKOUT2,
-- 1-bit output: CLKOUT2
CLKOUT2B => CLKOUT2B, -- 1-bit output: Inverted CLKOUT2
CLKOUT3 => CLKOUT3,
-- 1-bit output: CLKOUT3
CLKOUT3B => CLKOUT3B, -- 1-bit output: Inverted CLKOUT3
CLKOUT4 => CLKOUT4,
-- 1-bit output: CLKOUT4
CLKOUT5 => CLKOUT5,
-- 1-bit output: CLKOUT5
CLKOUT6 => CLKOUT6,
-- 1-bit output: CLKOUT6
-- Feedback Clocks: 1-bit (each) output: Clock feedback ports
CLKFBOUT => CLKFBOUT, -- 1-bit output: Feedback clock
CLKFBOUTB => CLKFBOUTB, -- 1-bit output: Inverted CLKFBOUT
-- Status Ports: 1-bit (each) output: MMCM status ports
LOCKED => LOCKED,
-- 1-bit output: LOCK
-- Clock Inputs: 1-bit (each) input: Clock input
CLKIN1 => CLKIN1,
-- 1-bit input: Clock
-- Control Ports: 1-bit (each) input: MMCM control ports
PWRDWN => PWRDWN,
-- 1-bit input: Power-down
RST => RST,
-- 1-bit input: Reset
-- Feedback Clocks: 1-bit (each) input: Clock feedback ports
CLKFBIN => CLKFBIN
-- 1-bit input: Feedback clock
);
-- End of MMCME2_BASE_inst instantiation
Verilog Instantiation Template
// MMCME2_BASE: Base Mixed Mode Clock Manager
//
7 Series
// Xilinx HDL Language Template, version 2019.1
MMCME2_BASE #(
.BANDWIDTH("OPTIMIZED"), // Jitter programming (OPTIMIZED, HIGH, LOW)
.CLKFBOUT_MULT_F(5.0),
// Multiply value for all CLKOUT (2.000-64.000).
.CLKFBOUT_PHASE(0.0),
// Phase offset in degrees of CLKFB (-360.000-360.000).
.CLKIN1_PERIOD(0.0),
// Input clock period in ns to ps resolution (i.e. 33.333 is 30 MHz).
// CLKOUT0_DIVIDE - CLKOUT6_DIVIDE: Divide amount for each CLKOUT (1-128)
.CLKOUT1_DIVIDE(1),
.CLKOUT2_DIVIDE(1),
.CLKOUT3_DIVIDE(1),
.CLKOUT4_DIVIDE(1),
.CLKOUT5_DIVIDE(1),
.CLKOUT6_DIVIDE(1),
.CLKOUT0_DIVIDE_F(1.0), // Divide amount for CLKOUT0 (1.000-128.000).
// CLKOUT0_DUTY_CYCLE - CLKOUT6_DUTY_CYCLE: Duty cycle for each CLKOUT (0.01-0.99).
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 462
Chapter 5: Design Elements
.CLKOUT0_DUTY_CYCLE(0.5),
.CLKOUT1_DUTY_CYCLE(0.5),
.CLKOUT2_DUTY_CYCLE(0.5),
.CLKOUT3_DUTY_CYCLE(0.5),
.CLKOUT4_DUTY_CYCLE(0.5),
.CLKOUT5_DUTY_CYCLE(0.5),
.CLKOUT6_DUTY_CYCLE(0.5),
// CLKOUT0_PHASE - CLKOUT6_PHASE: Phase offset for each CLKOUT (-360.000-360.000).
.CLKOUT0_PHASE(0.0),
.CLKOUT1_PHASE(0.0),
.CLKOUT2_PHASE(0.0),
.CLKOUT3_PHASE(0.0),
.CLKOUT4_PHASE(0.0),
.CLKOUT5_PHASE(0.0),
.CLKOUT6_PHASE(0.0),
.CLKOUT4_CASCADE("FALSE"), // Cascade CLKOUT4 counter with CLKOUT6 (FALSE, TRUE)
.DIVCLK_DIVIDE(1),
// Master division value (1-106)
.REF_JITTER1(0.0),
// Reference input jitter in UI (0.000-0.999).
.STARTUP_WAIT("FALSE")
// Delays DONE until MMCM is locked (FALSE, TRUE)
)
MMCME2_BASE_inst (
// Clock Outputs: 1-bit (each) output: User configurable clock outputs
.CLKOUT0(CLKOUT0),
// 1-bit output: CLKOUT0
.CLKOUT0B(CLKOUT0B), // 1-bit output: Inverted CLKOUT0
.CLKOUT1(CLKOUT1),
// 1-bit output: CLKOUT1
.CLKOUT1B(CLKOUT1B), // 1-bit output: Inverted CLKOUT1
.CLKOUT2(CLKOUT2),
// 1-bit output: CLKOUT2
.CLKOUT2B(CLKOUT2B), // 1-bit output: Inverted CLKOUT2
.CLKOUT3(CLKOUT3),
// 1-bit output: CLKOUT3
.CLKOUT3B(CLKOUT3B), // 1-bit output: Inverted CLKOUT3
.CLKOUT4(CLKOUT4),
// 1-bit output: CLKOUT4
.CLKOUT5(CLKOUT5),
// 1-bit output: CLKOUT5
.CLKOUT6(CLKOUT6),
// 1-bit output: CLKOUT6
// Feedback Clocks: 1-bit (each) output: Clock feedback ports
.CLKFBOUT(CLKFBOUT), // 1-bit output: Feedback clock
.CLKFBOUTB(CLKFBOUTB), // 1-bit output: Inverted CLKFBOUT
// Status Ports: 1-bit (each) output: MMCM status ports
.LOCKED(LOCKED),
// 1-bit output: LOCK
// Clock Inputs: 1-bit (each) input: Clock input
.CLKIN1(CLKIN1),
// 1-bit input: Clock
// Control Ports: 1-bit (each) input: MMCM control ports
.PWRDWN(PWRDWN),
// 1-bit input: Power-down
.RST(RST),
// 1-bit input: Reset
// Feedback Clocks: 1-bit (each) input: Clock feedback ports
.CLKFBIN(CLKFBIN)
// 1-bit input: Feedback clock
);
// End of MMCME2_BASE_inst instantiation
For More Information � See the 7 Series Programmable Devices User Guides.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 463
Chapter 5: Design Elements
MUXF7
Primitive: 2-to-1 Look-Up Table Multiplexer with General Output
MUXF7
I0
O
I1
S
X10684
Introduction
This design element is a two input multiplexer which, in combination with two LUT6 elements will let you create any 7-input function, an 8-to-1 multiplexer, or other logic functions up to 12bits wide. Local outputs of the LUT6 element are connected to the I0 and I1 inputs of the MUXF7. The S input is driven from any internal net. When Low, S selects I0. When High, S selects I1.
The O output is a general interconnect.
Logic Table
S
0
I0
1
X
X
0
X
1
Inputs
I0
I1
X
I1
0
1
Outputs O
I0 I1 0 1
Port Descriptions
Port O I0 I1 S
Direction Output Input Input Input
Width 1 1 1 1
Function Output of MUX to general routing. Input (tie to LUT6 LO out). Input (tie to LUT6 LO out). Input select to MUX.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 464
Chapter 5: Design Elements
Design Entry Method
Instantiation Inference IP Catalog Macro support
Yes Recommended No No
VHDL Instantiation Template Unless they already exist, copy the following two statements and paste them before the entity declaration.
Library UNISIM; use UNISIM.vcomponents.all;
-- MUXF7: CLB MUX to tie two LUT6's together with general output
--
7 Series
-- Xilinx HDL Language Template, version 2019.1
MUXF7_inst : MUXF7
port map (
O => O, -- Output of MUX to general routing
I0 => I0, -- Input (tie to LUT6 O6 pin)
I1 => I1, -- Input (tie to LUT6 O6 pin)
S => S
-- Input select to MUX
);
-- End of MUXF7_inst instantiation
Verilog Instantiation Template
// MUXF7: CLB MUX to tie two LUT6's together with general output
//
7 Series
// Xilinx HDL Language Template, version 2019.1
MUXF7 MUXF7_inst (
.O(O), // Output of MUX to general routing
.I0(I0), // Input (tie to LUT6 O6 pin)
.I1(I1), // Input (tie to LUT6 O6 pin)
.S(S)
// Input select to MUX
);
// End of MUXF7_inst instantiation
For More Information � See the 7 Series Programmable Devices User Guides.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 465
Chapter 5: Design Elements
MUXF8
Primitive: 2-to-1 Look-Up Table Multiplexer with General Output
MUXF8
I0
O
I1 S
X10687
Introduction
This design element is a two input multiplexer which, in combination with two MUXF7 multiplexers and their four associated LUT6 elements, will let you create any 8-input function, a 16-to-1 multiplexer, or other logic functions up to 24-bits wide. Local outputs of MUXF7 are connected to the I0 and I1 inputs of the MUXF8. The S input is driven from any internal net. When Low, S selects I0. When High, S selects I1.
The O output is a general interconnect.
Logic Table
S 0 1 X X
Inputs
I0
I1
I0
X
X
I1
0
0
1
1
Outputs O
I0 I1 0 1
Port Descriptions
Port O I0 I1 S
Direction Output Input Input Input
Width 1 1 1 1
Function Output of MUX to general routing Input (tie to MUXF7 LO out) Input (tie to MUXF7 LO out) Input select to MUX
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 466
Chapter 5: Design Elements
Design Entry Method
Instantiation Inference IP Catalog Macro support
Yes Recommended No No
VHDL Instantiation Template Unless they already exist, copy the following two statements and paste them before the entity declaration.
Library UNISIM; use UNISIM.vcomponents.all;
-- MUXF8: CLB MUX to tie two MUXF7's together with general output
--
7 Series
-- Xilinx HDL Language Template, version 2019.1
MUXF8_inst : MUXF8
port map (
O => O, -- Output of MUX to general routing
I0 => I0, -- Input (tie to MUXF7 L/LO out)
I1 => I1, -- Input (tie to MUXF7 L/LO out)
S => S
-- Input select to MUX
);
-- End of MUXF8_inst instantiation
Verilog Instantiation Template
// MUXF8: CLB MUX to tie two MUXF7's together with general output
//
7 Series
// Xilinx HDL Language Template, version 2019.1
MUXF8 MUXF8_inst (
.O(O), // Output of MUX to general routing
.I0(I0), // Input (tie to MUXF7 L/LO out)
.I1(I1), // Input (tie to MUXF7 L/LO out)
.S(S)
// Input select to MUX
);
// End of MUXF8_inst instantiation
For More Information � See the 7 Series Programmable Devices User Guides.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 467
Chapter 5: Design Elements
OBUF
Primitive: Output Buffer
OBUF
I
O
Output to device pad
x13417
Introduction
This design element is a simple output buffer used to drive output signals to the FPGA device pins that do not need to be 3-stated (constantly driven). Either an OBUF, OBUFT, OBUFDS, or OBUFTDS must be connected to every output port in the design.
This element isolates the internal circuit and provides drive current for signals leaving a chip. It exists in input/output blocks (IOB). Its output (O) is connected to an OPAD or an IOPAD. The interface standard used by this element is LVCMOS18. Also, this element has selectable drive and slew rates using the DRIVE and SLOW or FAST constraints.
Port Descriptions
Port O I
Direction Output
Input
Width 1
1
Function
Output of OBUF to be connected directly to top-level output port.
Input of OBUF. Connect to the logic driving the output port.
Design Entry Method
Instantiation Inference IP Catalog Macro support
Yes Recommended No No
Available Attributes
Attribute DRIVE
IOSTANDARD SLEW
Type INTEGER
STRING STRING
Allowed Values Default
2, 4, 6, 8, 12, 16, 12 24
See Data Sheet
"SLOW" or "FAST"
"DEFAULT" "SLOW"
Description
Specifies the output current drive strength of the I/O. It is suggested that you set this to the lowest setting tolerable for the design drive and timing requirements.
Assigns an I/O standard to the element.
Specifies the slew rate of the output driver. Consult the product Data Sheet for recommendations of the best setting for this attribute.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 468
Chapter 5: Design Elements
VHDL Instantiation Template Unless they already exist, copy the following two statements and paste them before the entity declaration.
Library UNISIM; use UNISIM.vcomponents.all;
-- OBUF: Single-ended Output Buffer
--
7 Series
-- Xilinx HDL Language Template, version 2019.1
OBUF_inst : OBUF
generic map (
DRIVE => 12,
IOSTANDARD => "DEFAULT",
SLEW => "SLOW")
port map (
O => O,
-- Buffer output (connect directly to top-level port)
I => I
-- Buffer input
);
-- End of OBUF_inst instantiation
Verilog Instantiation Template
// OBUF: Single-ended Output Buffer
//
7 Series
// Xilinx HDL Language Template, version 2019.1
OBUF #(
.DRIVE(12), // Specify the output drive strength
.IOSTANDARD("DEFAULT"), // Specify the output I/O standard
.SLEW("SLOW") // Specify the output slew rate
) OBUF_inst (
.O(O),
// Buffer output (connect directly to top-level port)
.I(I)
// Buffer input
);
// End of OBUF_inst instantiation
For More Information � See the 7 Series FPGA SelectIO Resources User Guide (UG471). � See the 7 Series Programmable Devices User Guides.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 469
Chapter 5: Design Elements
OBUFDS
Primitive: Differential Signaling Output Buffer
OBUFDS
O I
OB
x13418
Introduction
This design element is a single output buffer that supports low-voltage, differential signaling. OBUFDS isolates the internal circuit and provides drive current for signals leaving the chip. Its output is represented as two distinct ports (O and OB), one deemed the "master" and the other the "slave." The master and the slave are opposite phases of the same logical signal (for example, MYNET and MYNETB).
Logic Table
Inputs
I
O
0
0
1
1
Outputs OB
1 0
Port Descriptions
Port O OB I
Direction Output Output Input
Width 1 1 1
Function Diff_p output (connect directly to top level port) Diff_n output (connect directly to top level port) Buffer input
Design Entry Method
Instantiation Inference IP Catalog Macro support
Recommended No No No
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 470
Chapter 5: Design Elements
Available Attributes
Attribute IOSTANDARD SLEW
Type STRING STRING
Allowed Values Default
See Data Sheet "DEFAULT"
"SLOW" or "FAST"
"SLOW"
Description
Assigns an I/O standard to the element.
Specifies the slew rate of the output driver. Consult the product Data Sheet for recommendations of the best setting for this attribute.
VHDL Instantiation Template Unless they already exist, copy the following two statements and paste them before the entity declaration.
Library UNISIM; use UNISIM.vcomponents.all;
-- OBUFDS: Differential Output Buffer
--
7 Series
-- Xilinx HDL Language Template, version 2019.1
OBUFDS_inst : OBUFDS
generic map (
IOSTANDARD => "DEFAULT", -- Specify the output I/O standard
SLEW => "SLOW")
-- Specify the output slew rate
port map (
O => O,
-- Diff_p output (connect directly to top-level port)
OB => OB, -- Diff_n output (connect directly to top-level port)
I => I
-- Buffer input
);
-- End of OBUFDS_inst instantiation
Verilog Instantiation Template
// OBUFDS: Differential Output Buffer
//
7 Series
// Xilinx HDL Language Template, version 2019.1
OBUFDS #(
.IOSTANDARD("DEFAULT"), // Specify the output I/O standard
.SLEW("SLOW")
// Specify the output slew rate
) OBUFDS_inst (
.O(O),
// Diff_p output (connect directly to top-level port)
.OB(OB), // Diff_n output (connect directly to top-level port)
.I(I)
// Buffer input
);
// End of OBUFDS_inst instantiation
For More Information � See the 7 Series FPGA SelectIO Resources User Guide (UG471). � See the 7 Series Programmable Devices User Guides.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 471
Chapter 5: Design Elements
OBUFT
Primitive: 3-State Output Buffer with Active Low Output Enable
OBUFT T
I
O
x13419
Introduction
This design element is a single, 3-state output buffer with input I, output O, and active-Low output enables (T). This element uses the LVCMOS18 standard and has selectable drive and slew rates using the DRIVE and SLOW or FAST constraints.
When T is Low, data on the inputs of the buffers is transferred to the corresponding outputs. When T is High, the output is high impedance (off or Z state). OBUFTs are generally used when a single-ended output is needed with a 3-state capability, such as the case when building bidirectional I/O.
Logic Table
T 1 0 0
Inputs I
X 1 0
Outputs O
Z 1 0
Port Descriptions
Port O I T
Direction Output Input Input
Width 1 1 1
Function Buffer output (connect directly to top-level port) Buffer input 3-state enable input
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 472
Chapter 5: Design Elements
Design Entry Method
Instantiation Inference IP Catalog Macro support
Yes Recommended No No
Available Attributes
Attribute DRIVE
Type INTEGER
IOSTANDARD SLEW
STRING STRING
Allowed Values
Default
2, 4, 6, 8, 12, 16, 12 24
See Data Sheet
"SLOW" or "FAST"
"DEFAULT" "SLOW"
Description
Specifies the output current drive strength of the I/O. It is suggested that you set this to the lowest setting tolerable for the design drive and timing requirements.
Assigns an I/O standard to the element.
Specifies the slew rate of the output driver. See the Data Sheet for recommendations of the best setting for this attribute.
VHDL Instantiation Template Unless they already exist, copy the following two statements and paste them before the entity declaration.
Library UNISIM; use UNISIM.vcomponents.all;
-- OBUFT: Single-ended 3-state Output Buffer
--
7 Series
-- Xilinx HDL Language Template, version 2019.1
OBUFT_inst : OBUFT
generic map (
DRIVE => 12,
IOSTANDARD => "DEFAULT",
SLEW => "SLOW")
port map (
O => O,
-- Buffer output (connect directly to top-level port)
I => I,
-- Buffer input
T => T
-- 3-state enable input
);
-- End of OBUFT_inst instantiation
Verilog Instantiation Template
// OBUFT: Single-ended 3-state Output Buffer
//
All devices
// Xilinx HDL Language Template, version 2019.1
OBUFT #(
.DRIVE(12), // Specify the output drive strength
.IOSTANDARD("DEFAULT"), // Specify the output I/O standard
.SLEW("SLOW") // Specify the output slew rate
) OBUFT_inst (
.O(O),
// Buffer output (connect directly to top-level port)
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 473
Chapter 5: Design Elements
.I(I), .T(T) );
// Buffer input // 3-state enable input
// End of OBUFT_inst instantiation
For More Information � See the 7 Series FPGA SelectIO Resources User Guide (UG471). � See the 7 Series Programmable Devices User Guides.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 474
Chapter 5: Design Elements
OBUFTDS
Primitive: 3-State Output Buffer with Differential Signaling, Active-Low Output Enable
OBUFTDS
T
O I
OB
X13420
Introduction
This design element is an output buffer that supports low-voltage, differential signaling. For the OBUFTDS, a design level interface signal is represented as two distinct ports (O and OB), one deemed the "master" and the other the "slave." The master and the slave are opposite phases of the same logical signal (for example, MYNET_P and MYNET_N).
Logic Table
Inputs
I
T
X
1
0
0
1
0
O Z 0 1
Outputs OB
Z 1 0
Port Descriptions
Port O OB I T
Direction Output Output Input Input
Width 1 1 1 1
Function Diff_p output (connect directly to top level port) Diff_n output (connect directly to top level port) Buffer input 3-state enable input
Design Entry Method
Instantiation Inference IP Catalog Macro support
Recommended No No No
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 475
Chapter 5: Design Elements
Available Attributes
Attribute IOSTANDARD SLEW
Type STRING STRING
Allowed Values Default
See Data Sheet "DEFAULT"
"SLOW" or "FAST"
"SLOW"
Description
Assigns an I/O standard to the element.
Specifies the slew rate of the output driver. Consult the product Data Sheet for recommendations of the best setting for this attribute.
VHDL Instantiation Template Unless they already exist, copy the following two statements and paste them before the entity declaration.
Library UNISIM; use UNISIM.vcomponents.all;
-- OBUFTDS: Differential 3-state Output Buffer
--
7 Series
-- Xilinx HDL Language Template, version 2019.1
OBUFTDS_inst : OBUFTDS
generic map (
IOSTANDARD => "DEFAULT")
port map (
O => O,
-- Diff_p output (connect directly to top-level port)
OB => OB, -- Diff_n output (connect directly to top-level port)
I => I,
-- Buffer input
T => T
-- 3-state enable input
);
-- End of OBUFTDS_inst instantiation
Verilog Instantiation Template
// OBUFTDS: Differential 3-state Output Buffer
//
7 Series
// Xilinx HDL Language Template, version 2019.1
OBUFTDS #(
.IOSTANDARD("DEFAULT"), // Specify the output I/O standard
.SLEW("SLOW")
// Specify the output slew rate
) OBUFTDS_inst (
.O(O),
// Diff_p output (connect directly to top-level port)
.OB(OB), // Diff_n output (connect directly to top-level port)
.I(I),
// Buffer input
.T(T)
// 3-state enable input
);
// End of OBUFTDS_inst instantiation
For More Information � See the 7 Series FPGA SelectIO Resources User Guide (UG471). � See the 7 Series Programmable Devices User Guides.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 476
Chapter 5: Design Elements
ODDR
Primitive: Dedicated Dual Data Rate (DDR) Output Register
ODDR
D1 D2
CE C S R
Q
X10116
Introduction
This design element is a dedicated output register for use in transmitting dual data rate (DDR) signals from FPGA devices. The ODDR interface with the FPGA fabric is not limited to opposite clock edges. It can be configured to present date from the FPGA fabric at the same clock edge. This feature allows designers to avoid additional timing complexities and CLB usage. The ODDR also works with SelectIOTM features.
ODDR Modes
This element has two modes of operation. These modes are set by the DDR_CLK_EDGE attribute.
� OPPOSITE_EDGE mode The data transmit interface uses classic DDR methodology. Given a data and clock at pin D1-2 and C respectively, D1 is sampled at every positive edge of clock C and D2 is sampled at every negative edge of clock C. Q changes every clock edge.
� SAME_EDGE mode Data is still transmitted at the output of the ODDR by opposite edges of clock C. However, the two inputs to the ODDR are clocked with a positive clock edge of clock signal C and an extra register is clocked with a negative clock edge of clock signal C. Using this feature, DDR data can now be presented into the ODDR at the same clock edge.
Port Descriptions
Port Q
C CE
D1 : D2
Direction Output
Input Input
Input
Width 1
1 1
1 (each)
Function
Data Output (DDR) - The ODDR output that connects to the IOB pad.
Clock Input - The C pin represents the clock input pin.
Clock Enable Input - When asserted High, this port enables the clock input on port C.
Data Input - This pin is where the DDR data is presented into the ODDR module.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 477
Chapter 5: Design Elements
Port R S
Direction Input Input
Width 1 1
Function
Reset - Depends on how SRTYPE is set.
Set - Active High asynchronous set pin. This pin can also be Synchronous depending on the SRTYPE attribute.
Design Entry Method
Instantiation Inference IP Catalog Macro support
Recommended No No No
Available Attributes
Attribute DDR_CLK_EDGE
INIT SRTYPE
Type STRING
INTEGER STRING
Allowed Values
"OPPOSITE_EDGE", "SAME_EDGE" 0, 1 "SYNC", "ASYNC"
Default "OPPOSITE_EDGE"
0 "SYNC"
Description DDR clock mode recovery mode selection.
Q initialization value. Set/Reset type selection.
VHDL Instantiation Template Unless they already exist, copy the following two statements and paste them before the entity declaration.
Library UNISIM; use UNISIM.vcomponents.all;
-- ODDR: Output Double Data Rate Output Register with Set, Reset
--
and Clock Enable.
--
7 Series
-- Xilinx HDL Language Template, version 2019.1
ODDR_inst : ODDR
generic map(
DDR_CLK_EDGE => "OPPOSITE_EDGE", -- "OPPOSITE_EDGE" or "SAME_EDGE"
INIT => '0', -- Initial value for Q port ('1' or '0')
SRTYPE => "SYNC") -- Reset Type ("ASYNC" or "SYNC")
port map (
Q => Q, -- 1-bit DDR output
C => C, -- 1-bit clock input
CE => CE, -- 1-bit clock enable input
D1 => D1, -- 1-bit data input (positive edge)
D2 => D2, -- 1-bit data input (negative edge)
R => R, -- 1-bit reset input
S => S
-- 1-bit set input
);
-- End of ODDR_inst instantiation
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 478
Chapter 5: Design Elements
Verilog Instantiation Template
// ODDR: Output Double Data Rate Output Register with Set, Reset
//
and Clock Enable.
//
7 Series
// Xilinx HDL Language Template, version 2019.1
ODDR #( .DDR_CLK_EDGE("OPPOSITE_EDGE"), // "OPPOSITE_EDGE" or "SAME_EDGE" .INIT(1'b0), // Initial value of Q: 1'b0 or 1'b1 .SRTYPE("SYNC") // Set/Reset type: "SYNC" or "ASYNC"
) ODDR_inst ( .Q(Q), // 1-bit DDR output .C(C), // 1-bit clock input .CE(CE), // 1-bit clock enable input .D1(D1), // 1-bit data input (positive edge) .D2(D2), // 1-bit data input (negative edge) .R(R), // 1-bit reset .S(S) // 1-bit set
);
// End of ODDR_inst instantiation
For More Information � See the 7 Series Programmable Devices User Guides.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 479
Chapter 5: Design Elements
ODELAYE2
Primitive: Output Fixed or Variable Delay Element
ODELAYE2
C
CNTVALUEOUT[4:0]
CE
DATA_OUT
CINVCTRL
CLKIN
CNTVALUEIN[4:0]
INC
LD
LDPIPEEN
ODATAIN
REGRST
x12110
Introduction
This design element can be used to provide a fixed delay or an adjustable delay to the output path of the 7 series FPGA. This delay can be useful for the purpose of external data alignment, external phase offset and simultaneous switching noise (SSN) mitigation, as well as allowing for the tracking of external data alignment over process, temperature, and voltage (PVT). When used in conjunction with the IDELAYCTRL component circuitry, can provide precise time increments of delay. When used in variable mode, the output path can be adjusted for increasing and decreasing amounts of delay. The ODELAYE2 is not available on the High Range (HR) banks in the 7 series devices.
Port Descriptions
Port C
CE
Direction Input
Input
Width 1
1
Function
All control inputs to ODELAYE2 primitive (CNTVALUEIN, RST, CE, LD, LDPIPEEN and INC) are synchronous to the clock input (C). A clock must be connected to this port when the ODELAYE2 is configured in "VARIABLE", "VAR_LOAD" or "VAR_LOAD_PIPE" mode. C can be locally inverted, and must be supplied by a global or regional clock buffer. This clock should be connected to the same clock in the SelectIO logic resources (when using OSERDESE2, C is connected to CLKDIV). If the ODELAYE2 is configured as "FIXED", connect this port to gnd.
Active high enable increment/decrement function. If the ODELAYE2 is configured as "FIXED", connect this port to gnd.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 480
Chapter 5: Design Elements
Port CINVCTRL
CLKIN CNTVALUEIN<4:0>
CNTVALUEOUT<4:0>
DATAOUT INC LD LDPIPEEN ODATAIN REGRST
Direction Input
Input Input
Output
Output Input Input Input Input Input
Width 1
1 5
5
1 1 1 1 1 1
Function
The CINVCTRL pin is used for dynamically switching the polarity of C pin. This is for use in applications when glitches are not an issue. When switching the polarity, do not use the ODELAYE2 control pins for two clock cycles. If the ODELAYE2 is configured as "FIXED", connect this port to gnd.
Delayed Clock input into the ODELAYE2.
Counter value from FPGA logic for dynamically loadable tap value input when configigured in "VAR_LOAD" or "VAR_LOAD_PIPE" modes. If the ODELAYE2 is configured as "FIXED" or "VARIABLE", connect this port to gnd.
The CNTVALUEOUT pins are used for reporting the dynamically switching value of the delay element. CNTVALUEOUT is only available when ODELAYE2 is in "VAR_LOAD" or "VAR_LOAD_PIPE" mode.
Delayed data/clock from either the CLKIN or ODATAIN ports. DATAOUT connects to an I/O port in the case of data or back to the clocking structure in the case of a clock..
The increment/decrement is controlled by the enable signal (CE). This interface is only available when ODELAYE2 is in VARIABLE, VAR_LOAD, or VAR_LOAD_PIPE mode.
Load initial value or loaded value to the counter.
Enable PIPELINE register to load data from LD pins.
The ODATAIN input is the output data to be delayed driven by the OSERDESE2 or output register.
The REGRST signal is an active-high reset and is synchronous to the input clock signal (C). When asserted, the tap value reverts to a zero state unless LDPIPEEN is also assreted in which case the tap value results in the value on the CNTVALUEIN port.
Design Entry Method
Instantiation
Yes
Inference
No
IP Catalog
Yes
Macro support
No
Available Attributes
Attribute CINVCTRL_SEL
DELAY_SRC
Type STRING
STRING
Allowed Values "FALSE", "TRUE"
"ODATAIN", "CLKIN"
Default
Description
"FALSE" "ODATAIN"
Enables the CINVCTRL_SEL pin to dynamically switch the polarity of the C pin.
Select the data input source:
� "ODATAIN": ODELAYE2 chain input is
ODATAIN
� "CLKIN": ODELAYE2 chain input is CLKIN
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 481
Chapter 5: Design Elements
Attribute HIGH _PERFORMANCE _MODE
ODELAY_TYPE
Type STRING
STRING
ODELAY_VALUE
DECIMAL
PIPE_SEL
REFCLK _FREQUENCY
STRING
1 significant digit FLOAT
SIGNAL_PATTERN STRING
Allowed Values "FALSE", "TRUE"
"FIXED", "VARIABLE", "VAR_LOAD", "VAR_LOAD_PIPE"
Default "FALSE"
"FIXED"
Description
When TRUE, this attribute reduces the output jitter. When FALSE, power consumption is reduced. The difference in power consumption is quantified in the Xilinx Power Estimator tool.
Sets the type of tap delay line.
� "FIXED": Sets a static delay value
� "VARIABLE": Dynamically adjust (incement/
decrement) delay value
� "VAR_LOAD": Dynamically loads tap values
� "VAR_LOAD_PIPE": Pipelined dynamically
loadable tap values
0, 1, 2, 3, 4, 5, 6, 7, 8, 0 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 31
"FALSE", "TRUE"
"FALSE"
190-210, 290-310Mhz
200.0
"DATA", "CLOCK" "DATA"
Specifies the fixed number of delay taps in fixed mode or the initial starting number of taps in "VARIABLE" mode (output path). When IDELAY_TYPE is set to "VAR_LOAD" or "VAR_LOAD_PIPE" mode, this value is ignored.
Select pipelined mode.
Sets the tap value (in MHz) used by the Timing Analyzer for static timing analysis and functional/timing simulation. The frequency of REFCLK must be within the given datasheet range to guarantee the tap-delay value and performance.
Causes timing analysis to account for the appropriate amount of delay-chain jitter when presented with either a "DATA" pattern with irregular transitions or a "CLOCK" pattern with a regular rise/fall pattern.
VHDL Instantiation Template Unless they already exist, copy the following two statements and paste them before the entity declaration.
Library UNISIM; use UNISIM.vcomponents.all;
-- ODELAYE2: Output Fixed or Variable Delay Element
--
7 Series
-- Xilinx HDL Language Template, version 2019.1
ODELAYE2_inst : ODELAYE2
generic map (
CINVCTRL_SEL => "FALSE",
-- Enable dynamic clock inversion (FALSE, TRUE)
DELAY_SRC => "ODATAIN",
-- Delay input (ODATAIN, CLKIN)
HIGH_PERFORMANCE_MODE => "FALSE", -- Reduced jitter ("TRUE"), Reduced power ("FALSE")
ODELAY_TYPE => "FIXED",
-- FIXED, VARIABLE, VAR_LOAD, VAR_LOAD_PIPE
ODELAY_VALUE => 0,
-- Output delay tap setting (0-31)
PIPE_SEL => "FALSE",
-- Select pipelined mode, FALSE, TRUE
REFCLK_FREQUENCY => 200.0,
-- IDELAYCTRL clock input frequency in MHz (190.0-210.0, 290.0-310.0).
SIGNAL_PATTERN => "DATA"
-- DATA, CLOCK input signal
)
port map (
CNTVALUEOUT => CNTVALUEOUT, -- 5-bit output: Counter value output
DATAOUT => DATAOUT,
-- 1-bit output: Delayed data/clock output
C => C,
-- 1-bit input: Clock input
CE => CE,
-- 1-bit input: Active high enable increment/decrement input
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 482
Chapter 5: Design Elements
CINVCTRL => CINVCTRL,
-- 1-bit input: Dynamic clock inversion input
CLKIN => CLKIN,
-- 1-bit input: Clock delay input
CNTVALUEIN => CNTVALUEIN, -- 5-bit input: Counter value input
INC => INC,
-- 1-bit input: Increment / Decrement tap delay input
LD => LD,
-- 1-bit input: Loads ODELAY_VALUE tap delay in VARIABLE mode, in VAR_LOAD or
-- VAR_LOAD_PIPE mode, loads the value of CNTVALUEIN
LDPIPEEN => LDPIPEEN, ODATAIN => ODATAIN, REGRST => REGRST );
-- 1-bit input: Enables the pipeline register to load data -- 1-bit input: Output delay data input -- 1-bit input: Active-high reset tap-delay input
-- End of ODELAYE2_inst instantiation
Verilog Instantiation Template
// ODELAYE2: Output Fixed or Variable Delay Element
//
7 Series
// Xilinx HDL Language Template, version 2019.1
(* IODELAY_GROUP = <iodelay_group_name> *) // Specifies group name for associated IDELAYs/ODELAYs and IDELAYCTRL
ODELAYE2 #(
.CINVCTRL_SEL("FALSE"),
// Enable dynamic clock inversion (FALSE, TRUE)
.DELAY_SRC("ODATAIN"),
// Delay input (ODATAIN, CLKIN)
.HIGH_PERFORMANCE_MODE("FALSE"), // Reduced jitter ("TRUE"), Reduced power ("FALSE")
.ODELAY_TYPE("FIXED"),
// FIXED, VARIABLE, VAR_LOAD, VAR_LOAD_PIPE
.ODELAY_VALUE(0),
// Output delay tap setting (0-31)
.PIPE_SEL("FALSE"),
// Select pipelined mode, FALSE, TRUE
.REFCLK_FREQUENCY(200.0),
// IDELAYCTRL clock input frequency in MHz (190.0-210.0, 290.0-310.0).
.SIGNAL_PATTERN("DATA")
// DATA, CLOCK input signal
)
ODELAYE2_inst (
.CNTVALUEOUT(CNTVALUEOUT), // 5-bit output: Counter value output
.DATAOUT(DATAOUT),
// 1-bit output: Delayed data/clock output
.C(C),
// 1-bit input: Clock input
.CE(CE),
// 1-bit input: Active high enable increment/decrement input
.CINVCTRL(CINVCTRL),
// 1-bit input: Dynamic clock inversion input
.CLKIN(CLKIN),
// 1-bit input: Clock delay input
.CNTVALUEIN(CNTVALUEIN), // 5-bit input: Counter value input
.INC(INC),
// 1-bit input: Increment / Decrement tap delay input
.LD(LD),
// 1-bit input: Loads ODELAY_VALUE tap delay in VARIABLE mode, in VAR_LOAD or
// VAR_LOAD_PIPE mode, loads the value of CNTVALUEIN
.LDPIPEEN(LDPIPEEN), .ODATAIN(ODATAIN), .REGRST(REGRST) );
// 1-bit input: Enables the pipeline register to load data // 1-bit input: Output delay data input // 1-bit input: Active-high reset tap-delay input
// End of ODELAYE2_inst instantiation
For More Information � See the 7 Series FPGA SelectIO Resources User Guide (UG471). � See the 7 Series Programmable Devices User Guides.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 483
Chapter 5: Design Elements
OSERDESE2
Primitive: Output SERial/DESerializer with bitslip
OSERDESE2
CLK CLKDIV D1 D2 D3 D4 D5 D6 D7 D8 OCE RST SHIFTIN1 SHIFTIN2 T1 T2 T3 T4 TBYTEIN TCE
OFB OQ SHIFTOUT1 SHIFTOUT2 TBYTEOUT TFB TQ
X12111
Introduction
The OSERDESE2 is a dedicated parallel-to-serial converter with specific clocking and logic resources designed to facilitate the implementation of high-speed source-synchronous interfaces. Every OSERDESE2 module includes a dedicated serializer for data and 3-state control. Both data and 3-state serializers can be configured in single data rate (SDR) and double data rate (DDR) mode. Data serialization can be up to 8:1 (10:1 or 14:1 if using OSERDESE2 Width Expansion). 3-state serialization can be up to 4:1.
Port Descriptions
Port CLK
Direction Input
Width 1
Function
A high speed clock input that drives the serial side of the parallel-to-serial converters.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 484
Chapter 5: Design Elements
CLKDIV
Port
D1 - D8
OCE OFB
OQ
RST
SHIFTIN1 / SHIFTIN2 SHIFTOUT1 / SHIFTOUT2 TBYTEIN TBYTEOUT TCE TFB
TQ
T1 - T4
Direction Input Input
Input Output Output
Input
Input Output Input Output Input Output Output Input
Width 1 1
1 1 1
1
1 1 1 1 1 1 1 1
Function
A divided high-speed clock input that drives the parallel side of the parallel-to-serial converters. This clock is the divided version of the clock connected to the CLK port.
Incoming parallel data enters the module through ports D1 to D8. These ports are connected to the FPGA fabric, and can be configured from two to eight bits (i.e., a 8:1 serialization). Bit widths greater than six (up to 14) can be supported by using a second OSERDESE2 in SLAVE mode.
OCE is an active High clock enable for the data path.
The output feedback port (OFB) is the serial (high-speed) data output port of the OSERDESE2.
The OQ port is the data output port of the module. Data at the input port D1 will appear first at OQ. This port connects the output of the data parallel-to-serial converter to the data input of the IOB. This port can not drive the ODELAYE2; the OFB pin must be used.
The reset input causes the outputs of all data flip-flops in the CLK and CLKDIV domains to be driven Low asynchronously. OSERDESE2 circuits running in the CLK domain where timing is critical use an internal, dedicated circuit to retime the RST input to produce a reset signal synchronous to the CLK domain. Similarly, there is a dedicated circuit to retime the RST input to produce a reset signal synchronous to the CLKDIV domain. Because there are OSERDESE2 circuits that retime the RST input, you only need to provide a reset pulse to the RST input that meets timing on the CLKDIV frequency domain (synchronous to CLKDIV). Therefore, RST should be driven High for a minimum of one CLKDIV cycle. When building an interface consisting of multiple OSERDESE2 ports, all ports must be synchronized. The internal retiming of the RST input is designed so that all OSERDESE2 blocks that receive the same reset pulse come out of reset synchronized with one another.
Cascade Input for data input expansion. Connect to SHIFTOUT1/2 of slave.
Cascade out for data input expansion. Connect to SHIFTIN1/2 of master.
Byte group tristate input from source
Byte group tristate output to IOB
Active High clock enable for the 3-state control path.
3-state control output of the module sent to the ODELAYE2. When used, this port connects the output of the 3-state parallel-to-serial converter to the control/3-state input of the ODELAYE2.
This port is the 3-state control output of the module. When used, this port connects the output of the 3-state parallelto-serial converter to the control/3-state input of the IOB.
Parallel 3-state signals enter the module through ports T1 to T4. The ports are connected to the FPGA fabric, and can be configured as one, two, or four bits.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 485
Chapter 5: Design Elements
Design Entry Method
Instantiation
Yes
Inference
No
IP Catalog
Yes
Macro support
No
Available Attributes
Attribute DATA_RATE_OQ DATA_RATE_TQ DATA_WIDTH
INIT_OQ INIT_TQ SERDES_MODE SRVAL_OQ SRVAL_TQ TBYTE_CTL TBYTE_SRC TRISTATE_WIDTH
Type STRING STRING DECIMAL
BINARY BINARY STRING BINARY BINARY STRING STRING DECIMAL
Allowed Values Default
"DDR", "SDR"
"DDR"
"DDR", "BUF", "SDR"
4, 2, 3, 5, 6, 7, 8, 10, 14
"DDR" 4
1'b0 to 1'b1
1'b0 to 1'b1
"MASTER", "SLAVE"
1'b0 to 1'b1
1'b0 1'b0 "MASTER"
1'b0
1'b0 to 1'b1
1'b0
"FALSE", "TRUE" "FALSE"
"FALSE", "TRUE" "FALSE"
4, 1
4
Description
Defines whether data is processed as single data rate (SDR) or double data rate (DDR).
Defines whether 3-state control is to be processed as single data rate (SDR) or double data rate (DDR).
Defines the parallel data input width of the parallelto-serial converter. Possible values depend on the DATA_RATE_OQ attribute. When DATA_RATE_OQ is SDR, possible values are 2, 3, 4, 5, 6, 7, and 8. When DATA_RATE_OQ is DDR, the possible values for the DATA_WIDTH attribute are 4, 6, 8, 10 and 14. When DATA_WIDTH is larger than eight, a pair of OSERDESE2 must be configured into a master-slave configuration.
Defines the initial value of OQ output.
Defines the initial value of TQ output.
Defines whether the module is a master or slave when using width expansion.
Defines the value of OQ outputs when the SR is invoked.
Defines the value of YQ outputs when the SR is invoked.
Enable Tristate BYTE operation for DDR3 mode. This allows the tristate signal to take value from one of the tristate outputs which is acting as a source.
Enable OSERDESE2 to act as a source for Tristate Byte operation in DDR3 mode.
Defines the parallel 3-state input width of the 3-state control parallel-to-serial converter. Possible values depend on the DATA_RATE_TQ attribute. When DATA_RATE_TQ is SDR or BUF, the TRISTATE_WIDTH attribute can only be set to 1. When DATA_RATE_TQ = DDR, the possible values for the TRISTATE_WIDTH attribute is 4. TRISTATE_WIDTH cannot be set to widths larger than 4. When a DATA_WIDTH is larger than four, set the TRISTATE_WIDTH to 1.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 486
Chapter 5: Design Elements
VHDL Instantiation Template Unless they already exist, copy the following two statements and paste them before the entity declaration.
Library UNISIM; use UNISIM.vcomponents.all;
-- OSERDESE2: Output SERial/DESerializer with bitslip
--
7 Series
-- Xilinx HDL Language Template, version 2019.1
OSERDESE2_inst : OSERDESE2
generic map (
DATA_RATE_OQ => "DDR", -- DDR, SDR
DATA_RATE_TQ => "DDR", -- DDR, BUF, SDR
DATA_WIDTH => 4,
-- Parallel data width (2-8,10,14)
INIT_OQ => '0',
-- Initial value of OQ output (1'b0,1'b1)
INIT_TQ => '0',
-- Initial value of TQ output (1'b0,1'b1)
SERDES_MODE => "MASTER", -- MASTER, SLAVE
SRVAL_OQ => '0',
-- OQ output value when SR is used (1'b0,1'b1)
SRVAL_TQ => '0',
-- TQ output value when SR is used (1'b0,1'b1)
TBYTE_CTL => "FALSE", -- Enable tristate byte operation (FALSE, TRUE)
TBYTE_SRC => "FALSE", -- Tristate byte source (FALSE, TRUE)
TRISTATE_WIDTH => 4
-- 3-state converter width (1,4)
)
port map (
OFB => OFB,
-- 1-bit output: Feedback path for data
OQ => OQ,
-- 1-bit output: Data path output
-- SHIFTOUT1 / SHIFTOUT2: 1-bit (each) output: Data output expansion (1-bit each)
SHIFTOUT1 => SHIFTOUT1,
SHIFTOUT2 => SHIFTOUT2,
TBYTEOUT => TBYTEOUT, -- 1-bit output: Byte group tristate
TFB => TFB,
-- 1-bit output: 3-state control
TQ => TQ,
-- 1-bit output: 3-state control
CLK => CLK,
-- 1-bit input: High speed clock
CLKDIV => CLKDIV,
-- 1-bit input: Divided clock
-- D1 - D8: 1-bit (each) input: Parallel data inputs (1-bit each)
D1 => D1,
D2 => D2,
D3 => D3,
D4 => D4,
D5 => D5,
D6 => D6,
D7 => D7,
D8 => D8,
OCE => OCE,
-- 1-bit input: Output data clock enable
RST => RST,
-- 1-bit input: Reset
-- SHIFTIN1 / SHIFTIN2: 1-bit (each) input: Data input expansion (1-bit each)
SHIFTIN1 => SHIFTIN1,
SHIFTIN2 => SHIFTIN2,
-- T1 - T4: 1-bit (each) input: Parallel 3-state inputs
T1 => T1,
T2 => T2,
T3 => T3,
T4 => T4,
TBYTEIN => TBYTEIN,
-- 1-bit input: Byte group tristate
TCE => TCE
-- 1-bit input: 3-state clock enable
);
-- End of OSERDESE2_inst instantiation
Verilog Instantiation Template
// OSERDESE2: Output SERial/DESerializer with bitslip
//
7 Series
// Xilinx HDL Language Template, version 2019.1
OSERDESE2 #( .DATA_RATE_OQ("DDR"), .DATA_RATE_TQ("DDR"),
// DDR, SDR // DDR, BUF, SDR
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 487
Chapter 5: Design Elements
.DATA_WIDTH(4),
// Parallel data width (2-8,10,14)
.INIT_OQ(1'b0),
// Initial value of OQ output (1'b0,1'b1)
.INIT_TQ(1'b0),
// Initial value of TQ output (1'b0,1'b1)
.SERDES_MODE("MASTER"), // MASTER, SLAVE
.SRVAL_OQ(1'b0),
// OQ output value when SR is used (1'b0,1'b1)
.SRVAL_TQ(1'b0),
// TQ output value when SR is used (1'b0,1'b1)
.TBYTE_CTL("FALSE"), // Enable tristate byte operation (FALSE, TRUE)
.TBYTE_SRC("FALSE"), // Tristate byte source (FALSE, TRUE)
.TRISTATE_WIDTH(4)
// 3-state converter width (1,4)
)
OSERDESE2_inst (
.OFB(OFB),
// 1-bit output: Feedback path for data
.OQ(OQ),
// 1-bit output: Data path output
// SHIFTOUT1 / SHIFTOUT2: 1-bit (each) output: Data output expansion (1-bit each)
.SHIFTOUT1(SHIFTOUT1),
.SHIFTOUT2(SHIFTOUT2),
.TBYTEOUT(TBYTEOUT), // 1-bit output: Byte group tristate
.TFB(TFB),
// 1-bit output: 3-state control
.TQ(TQ),
// 1-bit output: 3-state control
.CLK(CLK),
// 1-bit input: High speed clock
.CLKDIV(CLKDIV),
// 1-bit input: Divided clock
// D1 - D8: 1-bit (each) input: Parallel data inputs (1-bit each)
.D1(D1),
.D2(D2),
.D3(D3),
.D4(D4),
.D5(D5),
.D6(D6),
.D7(D7),
.D8(D8),
.OCE(OCE),
// 1-bit input: Output data clock enable
.RST(RST),
// 1-bit input: Reset
// SHIFTIN1 / SHIFTIN2: 1-bit (each) input: Data input expansion (1-bit each)
.SHIFTIN1(SHIFTIN1),
.SHIFTIN2(SHIFTIN2),
// T1 - T4: 1-bit (each) input: Parallel 3-state inputs
.T1(T1),
.T2(T2),
.T3(T3),
.T4(T4),
.TBYTEIN(TBYTEIN),
// 1-bit input: Byte group tristate
.TCE(TCE)
// 1-bit input: 3-state clock enable
);
// End of OSERDESE2_inst instantiation
For More Information � See the 7 Series FPGA SelectIO Resources User Guide (UG471). � See the 7 Series Programmable Devices User Guides.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 488
Chapter 5: Design Elements
OUT_FIFO
Primitive: Output First-In, First-Out (FIFO) Buffer
OUT_FIFO
D0[7:0] D1[7:0]
Q0[3:0] Q1[3:0]
D2[7:0] D3[7:0] D4[7:0] D5[7:0] D6[7:0] D7[7:0] D8[7:0] D9[7:0] RDCLK RDEN RESET WRCLK WREN
Q2[3:0] Q3[3:0] Q4[3:0] Q5[3:0] Q6[3:0] Q7[3:0] Q8[3:0]
Q9[3:0] ALMOSTEMPTY
ALMOSTFULL EMPTY FULL
X12317
The Output FIFO is a new resource located next to the I/O. This dedicated hardware is designed to help transition the data from fabric to the I/O, ODDR or OSERDESE2. It has two basic modes the first is a 4x4 mode where the data coming into the FIFO goes out at the same rate. The second mode is a 8x4 mode where the data coming out is serialized by a factor of 2. In other words in 8x4 mode 8 bits go to the OUT_FIFO and 4 bits come out.
The Output FIFO is a new resource located next to the I/O. This dedicated hardware is designed to help transition the data from fabric to the I/O, ODDR or OSERDESE2. It has two basic modes the first is a 4x4 mode where the data coming into the FIFO goes out at the same rate. The second mode is a 8x4 mode where the data coming out is serialized by a factor of 2. In other words in 8x4 mode 8 bits go to the OUT_FIFO and 4 bits come out. Features of this component include:
� Array dimensions: 80 wide, 8 deep (8x4 mode); 40 wide, 8 deep (4x4 mode) � Empty and Full flags � Programmable Almost Empty and Almost Full flags
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 489
Chapter 5: Design Elements
Port Descriptions
Port ALMOSTEMPTY
Type Output
ALMOSTFULL
Output
D0<7:0> D1<7:0> D2<7:0> D3<7:0> D4<7:0> D5<7:0> D6<7:0> D7<7:0> D8<7:0> D9<7:0> EMPTY FULL Q0<3:0> Q1<3:0> Q2<3:0> Q3<3:0> Q4<3:0> Q5<7:0> Q6<7:0> Q7<3:0> Q8<3:0> Q9<3:0> RDCLK RDEN RESET WRCLK WREN
Input Input Input Input Input Input Input Input Input Input Output Output Output Output Output Output Output Output Output Output Output Output Input Input Input Input Input
Design Entry Method
Instantiation Inference IP Catalog Macro support
Width 1
1
8 8 8 8 8 8 8 8 8 8 1 1 4 4 4 4 4 8 8 4 4 4 1 1 1 1 1
Function
Active high output flag indicating the FIFO is almost empty. The threshold of the almost empty flag is set by the ALMOST_EMPTY_VALUE attribute. Active high output flag indicating the FIFO is almost full. The threshold of the almost empty flag is set by the ALMOST_FULL_VALUE attribute. Channel 0 input bus. Channel 1 input bus. Channel 2 input bus. Channel 3 input bus. Channel 4 input bus. Channel 5 input bus. Channel 6 input bus. Channel 7 input bus. Channel 8 input bus. Channel 9 input bus. Active high output flag indicating the FIFO is empty. Active high output flag indicating the FIFO is full. Channel 0 output bus. Channel 1 output bus. Channel 2 output bus. Channel 3 output bus. Channel 4 output bus. Channel 5 output bus. Channel 6 output bus. Channel 7 output bus. Channel 8 output bus. Channel 9 output bus. Read clock Active high read enable Active high asynchronous reset Write clock Active high write enable
Yes No Yes No
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 490
Chapter 5: Design Elements
Available Attributes
Attribute ALMOST_EMPTY _VALUE
ALMOST_FULL _VALUE
ARRAY_MODE
Type DECIMAL
Allowed Values 1, 2
DECIMAL 1, 2
STRING
"ARRAY_MODE_8_X_4", "ARRAY_MODE_4_X_4"
OUTPUT _DISABLE
SYNCHRONOUS _MODE
STRING STRING
"FALSE", "TRUE" "FALSE"
Default 1
1
"ARRAY_MODE _8_X_4"
Description
Specifies the number of entries left before asserting the ALMOSTEMPTY output signal.
Specifies the number of entries left before asserting the ALMOSTFULL output signal.
Specifies serializer mode:
� "ARRAY_MODE_4_X_4" - four bits in,
four bits out
� "ARRAY_MODE_4_X_8" - Four bits in,
eight bits out
"FALSE" "FALSE"
Disable output. Must always be set to false.
VHDL Instantiation Template Unless they already exist, copy the following two statements and paste them before the entity declaration.
Library UNISIM; use UNISIM.vcomponents.all;
-- OUT_FIFO: Output First-In, First-Out (FIFO) Buffer
--
7 Series
-- Xilinx HDL Language Template, version 2019.1
OUT_FIFO_inst : OUT_FIFO
generic map (
ALMOST_EMPTY_VALUE => 1,
-- Almost empty offset (1-2)
ALMOST_FULL_VALUE => 1,
-- Almost full offset (1-2)
ARRAY_MODE => "ARRAY_MODE_8_X_4", -- ARRAY_MODE_8_X_4, ARRAY_MODE_4_X_4
OUTPUT_DISABLE => "FALSE",
-- Disable output (FALSE, TRUE)
SYNCHRONOUS_MODE => "FALSE"
-- Must always be set to false.
)
port map (
-- FIFO Status Flags: 1-bit (each) output: Flags and other FIFO status outputs
ALMOSTEMPTY => ALMOSTEMPTY, -- 1-bit output: Almost empty flag
ALMOSTFULL => ALMOSTFULL, -- 1-bit output: Almost full flag
EMPTY => EMPTY,
-- 1-bit output: Empty flag
FULL => FULL,
-- 1-bit output: Full flag
-- Q0-Q9: 4-bit (each) output: FIFO Outputs
Q0 => Q0,
-- 4-bit output: Channel 0 output bus
Q1 => Q1,
-- 4-bit output: Channel 1 output bus
Q2 => Q2,
-- 4-bit output: Channel 2 output bus
Q3 => Q3,
-- 4-bit output: Channel 3 output bus
Q4 => Q4,
-- 4-bit output: Channel 4 output bus
Q5 => Q5,
-- 8-bit output: Channel 5 output bus
Q6 => Q6,
-- 8-bit output: Channel 6 output bus
Q7 => Q7,
-- 4-bit output: Channel 7 output bus
Q8 => Q8,
-- 4-bit output: Channel 8 output bus
Q9 => Q9,
-- 4-bit output: Channel 9 output bus
-- D0-D9: 8-bit (each) input: FIFO inputs
D0 => D0,
-- 8-bit input: Channel 0 input bus
D1 => D1,
-- 8-bit input: Channel 1 input bus
D2 => D2,
-- 8-bit input: Channel 2 input bus
D3 => D3,
-- 8-bit input: Channel 3 input bus
D4 => D4,
-- 8-bit input: Channel 4 input bus
D5 => D5,
-- 8-bit input: Channel 5 input bus
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 491
Chapter 5: Design Elements
D6 => D6,
-- 8-bit input: Channel 6 input bus
D7 => D7,
-- 8-bit input: Channel 7 input bus
D8 => D8,
-- 8-bit input: Channel 8 input bus
D9 => D9,
-- 8-bit input: Channel 9 input bus
-- FIFO Control Signals: 1-bit (each) input: Clocks, Resets and Enables
RDCLK => RDCLK,
-- 1-bit input: Read clock
RDEN => RDEN,
-- 1-bit input: Read enable
RESET => RESET,
-- 1-bit input: Active high reset
WRCLK => WRCLK,
-- 1-bit input: Write clock
WREN => WREN
-- 1-bit input: Write enable
);
-- End of OUT_FIFO_inst instantiation
Verilog Instantiation Template
// OUT_FIFO: Output First-In, First-Out (FIFO) Buffer
//
7 Series
// Xilinx HDL Language Template, version 2019.1
OUT_FIFO #(
.ALMOST_EMPTY_VALUE(1),
// Almost empty offset (1-2)
.ALMOST_FULL_VALUE(1),
// Almost full offset (1-2)
.ARRAY_MODE("ARRAY_MODE_8_X_4"), // ARRAY_MODE_8_X_4, ARRAY_MODE_4_X_4
.OUTPUT_DISABLE("FALSE"),
// Disable output (FALSE, TRUE)
.SYNCHRONOUS_MODE("FALSE")
// Must always be set to false.
)
OUT_FIFO_inst (
// FIFO Status Flags: 1-bit (each) output: Flags and other FIFO status outputs
.ALMOSTEMPTY(ALMOSTEMPTY), // 1-bit output: Almost empty flag
.ALMOSTFULL(ALMOSTFULL), // 1-bit output: Almost full flag
.EMPTY(EMPTY),
// 1-bit output: Empty flag
.FULL(FULL),
// 1-bit output: Full flag
// Q0-Q9: 4-bit (each) output: FIFO Outputs
.Q0(Q0),
// 4-bit output: Channel 0 output bus
.Q1(Q1),
// 4-bit output: Channel 1 output bus
.Q2(Q2),
// 4-bit output: Channel 2 output bus
.Q3(Q3),
// 4-bit output: Channel 3 output bus
.Q4(Q4),
// 4-bit output: Channel 4 output bus
.Q5(Q5),
// 8-bit output: Channel 5 output bus
.Q6(Q6),
// 8-bit output: Channel 6 output bus
.Q7(Q7),
// 4-bit output: Channel 7 output bus
.Q8(Q8),
// 4-bit output: Channel 8 output bus
.Q9(Q9),
// 4-bit output: Channel 9 output bus
// D0-D9: 8-bit (each) input: FIFO inputs
.D0(D0),
// 8-bit input: Channel 0 input bus
.D1(D1),
// 8-bit input: Channel 1 input bus
.D2(D2),
// 8-bit input: Channel 2 input bus
.D3(D3),
// 8-bit input: Channel 3 input bus
.D4(D4),
// 8-bit input: Channel 4 input bus
.D5(D5),
// 8-bit input: Channel 5 input bus
.D6(D6),
// 8-bit input: Channel 6 input bus
.D7(D7),
// 8-bit input: Channel 7 input bus
.D8(D8),
// 8-bit input: Channel 8 input bus
.D9(D9),
// 8-bit input: Channel 9 input bus
// FIFO Control Signals: 1-bit (each) input: Clocks, Resets and Enables
.RDCLK(RDCLK),
// 1-bit input: Read clock
.RDEN(RDEN),
// 1-bit input: Read enable
.RESET(RESET),
// 1-bit input: Active high reset
.WRCLK(WRCLK),
// 1-bit input: Write clock
.WREN(WREN)
// 1-bit input: Write enable
);
// End of OUT_FIFO_inst instantiation
For More Information � See the 7 Series Programmable Devices User Guides.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 492
Chapter 5: Design Elements
PHASER_IN
Primitive: MIG Data Alignment and Capture Component
Introduction
PHASER_IN works with other Phaser elements to handle data alignment and capture of highspeed memory interfaces. Its only intended use is by the Memory Interface Generator (MIG), and it is not intended to be instantiated, used, or modified outside of Xilinx generated IP.
Design Entry Method
Instantiation Inference IP Catalog Macro support
No No Recommended No
For More Information � See the 7 Series Programmable Devices User Guides.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 493
Chapter 5: Design Elements
PHASER_IN_PHY
Primitive: MIG Data Alignment and Capture Component
Introduction
PHASER_IN_PHY works with other Phaser elements to handle data alignment and capture of high-speed memory interfaces. Its only intended use is by the Memory Interface Generator (MIG), and it is not intended to be instantiated, used, or modified outside of Xilinx generated IP.
Design Entry Method
Instantiation Inference IP Catalog Macro support
No No Recommended No
For More Information � See the 7 Series Programmable Devices User Guides.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 494
Chapter 5: Design Elements
PHASER_OUT
Primitive: MIG Data Alignment and Capture Component
Introduction
PHASER_OUT works with other Phaser elements to handle data alignment and capture of highspeed memory interfaces. Its only intended use is by the Memory Interface Generator (MIG), and it is not intended to be instantiated, used, or modified outside of Xilinx generated IP.
Design Entry Method
Instantiation Inference IP Catalog Macro support
No No Recommended No
For More Information � See the 7 Series Programmable Devices User Guides.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 495
Chapter 5: Design Elements
PHASER_OUT_PHY
Primitive: MIG Data Alignment and Capture Component
Introduction
PHASER_OUT_PHY works with other Phaser elements to handle data alignment and capture of high-speed memory interfaces. Its only intended use is by the Memory Interface Generator (MIG), and it is not intended to be instantiated, used, or modified outside of Xilinx generated IP.
Design Entry Method
Instantiation Inference IP Catalog Macro support
No No Recommended No
For More Information � See the 7 Series Programmable Devices User Guides.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 496
Chapter 5: Design Elements
PHASER_REF
Primitive: MIG Data Alignment and Capture Component
Introduction
PHASER_REF works with other Phaser elements to handle data alignment and capture of highspeed memory interfaces. Its only intended use is by the Memory Interface Generator (MIG), and it is not intended to be instantiated, used, or modified outside of Xilinx generated IP.
Design Entry Method
Instantiation Inference IP Catalog Macro support
No No Recommended No
For More Information � See the 7 Series Programmable Devices User Guides.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 497
Chapter 5: Design Elements
PHY_CONTROL
Primitive: MIG Data Alignment and Capture Component
Introduction
PHY_CONTROL works with other Phaser elements to handle data alignment and capture of high-speed memory interfaces. Its only intended use is by the Memory Interface Generator (MIG), and it is not intended to be instantiated, used, or modified outside of Xilinx generated IP.
Design Entry Method
Instantiation Inference IP Catalog Macro support
No No Recommended No
For More Information � See the 7 Series Programmable Devices User Guides.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 498
Chapter 5: Design Elements
PLLE2_ADV
Primitive: Advanced Phase Locked Loop (PLL)
PLLE2_ADV
DADDR[6:0] DI[15:0] CLKFBIN CLKIN1 CLKIN2 CLKINSEL DCLK DEN DWE PWRDWN RST
DO[15:0] CLKFBOUT
CLKOUT0 CLKOUT1 CLKOUT2 CLKOUT3 CLKOUT4 CLKOUT5
DRDY LOCKED
X12112
Introduction
PLLE2 is a mixed signal block designed to support frequency synthesis, clock network deskew, and jitter reduction. The clock outputs can each have an individual divide (1 to 128), phase shift, and duty cycle based on the same VCO frequency. Output clocks are phase aligned to each other (unless phase shifted) and aligned to the input clock with a proper feedback configuration.
PLLE2 complements the MMCM element by supporting higher speed clocking while MMCM has more features to handle most general clocking needs. PLLE2_BASE is intended for most uses of this PLL component while PLLE2_ADV is intended for use when clock switch-over or dynamic reconfiguration is required.
Port Descriptions
Port CLKFBIN CLKFBOUT CLKINSEL
CLKIN1 CLKIN2 CLKOUT0
Direction Input Output Input
Input Input Output
Width 1 1 1
1 1 1
Function
Feedback clock pin to the PLL Dedicated PLL Feedback clock output Signal controls the state of the input MUX, High = CLKIN1, Low = CLKIN2. Primary clock input. Secondary clock input. CLKOUT0 output
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 499
Chapter 5: Design Elements
Port CLKOUT1 CLKOUT2 CLKOUT3 CLKOUT4 CLKOUT5 DADDR<6:0>
DCLK DEN
DI<15:0> DO<15:0> DRDY DWE
LOCKED
PWRDWN RST
Direction Output Output Output Output Output Input
Input Input
Input Output Output Input
Output
Input Input
Width 1 1 1 1 1 7
1 1
16 16 1 1
1
1 1
Function
Configurable clock output CLKOUT1.
Configurable clock output CLKOUT2.
Configurable clock output CLKOUT3.
Configurable clock output CLKOUT4.
Configurable clock output CLKOUT5.
The dynamic reconfiguration address (DADDR) input bus provides a reconfiguration address for the dynamic reconfiguration. When not used, all bits must be assigned zeros.
The DCLK signal is the reference clock for the dynamic reconfiguration port.
The dynamic reconfiguration enable (DEN) provides the enable control signal to access the dynamic reconfiguration feature. When the dynamic reconfiguration feature is not used, DEN must be tied Low.
The dynamic reconfiguration data input (DI) bus provides reconfiguration data. When not used, all bits must be set to zero.
The dynamic reconfiguration output bus provides PLL data output when using dynamic reconfiguration.
The dynamic reconfiguration ready output (DRDY) provides the response to the DEN signal for the PLLs dynamic reconfiguration feature.
The dynamic reconfiguration write enable (DWE) input pin provides the write enable control signal to write the DI data into the DADDR address. When not used, it must be tied Low.
An output from the PLL that indicates when the PLL has achieved phase alignment within a predefined window and frequency matching within a predefined PPM range. The PLL automatically locks after power on, no extra reset is required. LOCKED will be deasserted if the input clock stops or the phase alignment is violated (e.g., input clock phase shift). The PLL automatically reacquires lock after LOCKED is deasserted.
Powers down instantiated but unused PLLs.
The RST signal is an asynchronous reset for the PLL. The PLL will synchronously re-enable itself when this signal is released and go through a new phase alignment and lock cycle. A reset is required when the input clock conditions change (e.g., frequency).
Design Entry Method
Instantiation
Yes
Inference
No
IP Catalog
Yes
Macro support
No
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 500
Chapter 5: Design Elements
Available Attributes
Attribute BANDWIDTH
Type STRING
CLKFBOUT_MULT DECIMAL
Allowed Values
"OPTIMIZED", "HIGH", "LOW"
Default "OPTIMIZED"
2 to 64
5
CLKFBOUT_PHASE 3 significant digit FLOAT
-360.000 to 360.000
0.000
CLKIN1_PERIOD, CLKIN2_PERIOD
FLOAT (nS)
0.000 to 52.631
0.000
CLKOUT0_DIVIDE, CLKOUT1_DIVIDE, CLKOUT2_DIVIDE, CLKOUT3_DIVIDE, CLKOUT4_DIVIDE, CLKOUT5_DIVIDE
CLKOUT0_DUTY _CYCLE, CLKOUT1_DUTY _CYCLE, CLKOUT2_DUTY _CYCLE, CLKOUT3_DUTY _CYCLE, CLKOUT4_DUTY _CYCLE, CLKOUT5_DUTY _CYCLE
CLKOUT0_PHASE, CLKOUT1_PHASE, CLKOUT2_PHASE, CLKOUT3_PHASE, CLKOUT4_PHASE, CLKOUT5_PHASE
DECIMAL
3 significant digit FLOAT
3 significant digit FLOAT
1 to 128 0.001 to 0.999
-360.000 to 360.000
1 0.500
0.000
Description
Specifies the PLLE2 programming algorithm affecting the jitter, phase margin and other characteristics of the PLLE2.
Specifies the amount to multiply all CLKOUT clock outputs if a different frequency is desired. This number, in combination with the associated CLKOUT#_DIVIDE value and DIVCLK_DIVIDE value, will determine the output frequency.
Specifies the phase offset in degrees of the clock feedback output. Shifting the feedback clock results in a negative phase shift of all output clocks to the PLL.
Specifies the input period in ns to the PLLE2 CLKIN inputs. Resolution is down to the ps. For example a value of 33.333 would indicate a 30 MHz input clock. This information is mandatory and must be supplied. CLKIN1_PERIOD relates to the input period on the CLKIN1 input while CLKIN2_PERIOD relates to the input clock period on the CLKIN2 input.
Specifies the amount to divide the associated CLKOUT clock output if a different frequency is desired. This number in combination with the CLKFBOUT_MULT and DIVCLK_DIVIDE values will determine the output frequency.
Specifies the Duty Cycle of the associated CLKOUT clock output in percentage (i.e., 0.500 will generate a 50% duty cycle).
Specifies the phase offset in degrees of the clock feedback output. Shifting the feedback clock results in a negative phase shift of all output clocks to the PLL.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 501
Chapter 5: Design Elements
Attribute COMPENSATION
Type STRING
Allowed Values
"ZHOLD", "BUF_IN", "EXTERNAL", "INTERNAL"
Default "ZHOLD"
DIVCLK_DIVIDE
DECIMAL
1 to 56
1
REF_JITTER1, REF_JITTER2
3 significant digit FLOAT
0.000 to 0.999
0.010
STARTUP_WAIT
STRING
"FALSE", "TRUE" "FALSE"
Description
Clock input compensation. Suggested to be set to "ZHOLD". Defines how the PLL feedback is configured.
� "ZHOLD" - PLL is configured to provide a
negative hold time at the I/O registers.
� "INTERNAL" - PLL is using its own
internal feedback path so no delay is being compensated.
� "EXTERNAL" - a network external to the
FPGA is being compensated.
� "BUF_IN" - the configuration does not
match with the other compensation modes and no delay will be compensated.
Specifies the division ratio for all output clocks with respect to the input clock. Effectively divides the CLKIN going into the PFD.
Allows specification of the expected jitter on the CLKIN inputs in order to better optimize PLL performance. A bandwidth setting of OPTIMIZED will attempt to choose the best parameter for input clocking when unknown. If known, then the value provided should be specified in terms of the UI percentage (the maximum peak to peak value) of the expected jitter on the input clock. REF_JITTER1 relates to the input jitter on CLKIN1 while REF_JITTER2 relates to the input jitter on CLKIN2.
When "TRUE", wait for the PLLE2(s) that have this attribute attached to them will delay DONE from going high until a LOCK is achieved.
VHDL Instantiation Template Unless they already exist, copy the following two statements and paste them before the entity declaration.
Library UNISIM; use UNISIM.vcomponents.all;
-- PLLE2_ADV: Advanced Phase Locked Loop (PLL)
--
7 Series
-- Xilinx HDL Language Template, version 2019.1
PLLE2_ADV_inst : PLLE2_ADV
generic map (
BANDWIDTH => "OPTIMIZED", -- OPTIMIZED, HIGH, LOW
CLKFBOUT_MULT => 5,
-- Multiply value for all CLKOUT, (2-64)
CLKFBOUT_PHASE => 0.0,
-- Phase offset in degrees of CLKFB, (-360.000-360.000).
-- CLKIN_PERIOD: Input clock period in nS to ps resolution (i.e. 33.333 is 30 MHz).
CLKIN1_PERIOD => 0.0,
CLKIN2_PERIOD => 0.0,
-- CLKOUT0_DIVIDE - CLKOUT5_DIVIDE: Divide amount for CLKOUT (1-128)
CLKOUT0_DIVIDE => 1,
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 502
Chapter 5: Design Elements
CLKOUT1_DIVIDE => 1,
CLKOUT2_DIVIDE => 1,
CLKOUT3_DIVIDE => 1,
CLKOUT4_DIVIDE => 1,
CLKOUT5_DIVIDE => 1,
-- CLKOUT0_DUTY_CYCLE - CLKOUT5_DUTY_CYCLE: Duty cycle for CLKOUT outputs (0.001-0.999).
CLKOUT0_DUTY_CYCLE => 0.5,
CLKOUT1_DUTY_CYCLE => 0.5,
CLKOUT2_DUTY_CYCLE => 0.5,
CLKOUT3_DUTY_CYCLE => 0.5,
CLKOUT4_DUTY_CYCLE => 0.5,
CLKOUT5_DUTY_CYCLE => 0.5,
-- CLKOUT0_PHASE - CLKOUT5_PHASE: Phase offset for CLKOUT outputs (-360.000-360.000).
CLKOUT0_PHASE => 0.0,
CLKOUT1_PHASE => 0.0,
CLKOUT2_PHASE => 0.0,
CLKOUT3_PHASE => 0.0,
CLKOUT4_PHASE => 0.0,
CLKOUT5_PHASE => 0.0,
COMPENSATION => "ZHOLD", -- ZHOLD, BUF_IN, EXTERNAL, INTERNAL
DIVCLK_DIVIDE => 1,
-- Master division value (1-56)
-- REF_JITTER: Reference input jitter in UI (0.000-0.999).
REF_JITTER1 => 0.0,
REF_JITTER2 => 0.0,
STARTUP_WAIT => "FALSE" -- Delay DONE until PLL Locks, ("TRUE"/"FALSE")
)
port map (
-- Clock Outputs: 1-bit (each) output: User configurable clock outputs
CLKOUT0 => CLKOUT0, -- 1-bit output: CLKOUT0
CLKOUT1 => CLKOUT1, -- 1-bit output: CLKOUT1
CLKOUT2 => CLKOUT2, -- 1-bit output: CLKOUT2
CLKOUT3 => CLKOUT3, -- 1-bit output: CLKOUT3
CLKOUT4 => CLKOUT4, -- 1-bit output: CLKOUT4
CLKOUT5 => CLKOUT5, -- 1-bit output: CLKOUT5
-- DRP Ports: 16-bit (each) output: Dynamic reconfiguration ports
DO => DO,
-- 16-bit output: DRP data
DRDY => DRDY,
-- 1-bit output: DRP ready
-- Feedback Clocks: 1-bit (each) output: Clock feedback ports
CLKFBOUT => CLKFBOUT, -- 1-bit output: Feedback clock
LOCKED => LOCKED,
-- 1-bit output: LOCK
-- Clock Inputs: 1-bit (each) input: Clock inputs
CLKIN1 => CLKIN1,
-- 1-bit input: Primary clock
CLKIN2 => CLKIN2,
-- 1-bit input: Secondary clock
-- Control Ports: 1-bit (each) input: PLL control ports
CLKINSEL => CLKINSEL, -- 1-bit input: Clock select, High=CLKIN1 Low=CLKIN2
PWRDWN => PWRDWN,
-- 1-bit input: Power-down
RST => RST,
-- 1-bit input: Reset
-- DRP Ports: 7-bit (each) input: Dynamic reconfiguration ports
DADDR => DADDR,
-- 7-bit input: DRP address
DCLK => DCLK,
-- 1-bit input: DRP clock
DEN => DEN,
-- 1-bit input: DRP enable
DI => DI,
-- 16-bit input: DRP data
DWE => DWE,
-- 1-bit input: DRP write enable
-- Feedback Clocks: 1-bit (each) input: Clock feedback ports
CLKFBIN => CLKFBIN -- 1-bit input: Feedback clock
);
-- End of PLLE2_ADV_inst instantiation
Verilog Instantiation Template
// PLLE2_ADV: Advanced Phase Locked Loop (PLL)
//
7 Series
// Xilinx HDL Language Template, version 2019.1
PLLE2_ADV #(
.BANDWIDTH("OPTIMIZED"), // OPTIMIZED, HIGH, LOW
.CLKFBOUT_MULT(5),
// Multiply value for all CLKOUT, (2-64)
.CLKFBOUT_PHASE(0.0),
// Phase offset in degrees of CLKFB, (-360.000-360.000).
// CLKIN_PERIOD: Input clock period in nS to ps resolution (i.e. 33.333 is 30 MHz).
.CLKIN1_PERIOD(0.0),
.CLKIN2_PERIOD(0.0),
// CLKOUT0_DIVIDE - CLKOUT5_DIVIDE: Divide amount for CLKOUT (1-128)
.CLKOUT0_DIVIDE(1),
.CLKOUT1_DIVIDE(1),
.CLKOUT2_DIVIDE(1),
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 503
Chapter 5: Design Elements
.CLKOUT3_DIVIDE(1),
.CLKOUT4_DIVIDE(1),
.CLKOUT5_DIVIDE(1),
// CLKOUT0_DUTY_CYCLE - CLKOUT5_DUTY_CYCLE: Duty cycle for CLKOUT outputs (0.001-0.999).
.CLKOUT0_DUTY_CYCLE(0.5),
.CLKOUT1_DUTY_CYCLE(0.5),
.CLKOUT2_DUTY_CYCLE(0.5),
.CLKOUT3_DUTY_CYCLE(0.5),
.CLKOUT4_DUTY_CYCLE(0.5),
.CLKOUT5_DUTY_CYCLE(0.5),
// CLKOUT0_PHASE - CLKOUT5_PHASE: Phase offset for CLKOUT outputs (-360.000-360.000).
.CLKOUT0_PHASE(0.0),
.CLKOUT1_PHASE(0.0),
.CLKOUT2_PHASE(0.0),
.CLKOUT3_PHASE(0.0),
.CLKOUT4_PHASE(0.0),
.CLKOUT5_PHASE(0.0),
.COMPENSATION("ZHOLD"), // ZHOLD, BUF_IN, EXTERNAL, INTERNAL
.DIVCLK_DIVIDE(1),
// Master division value (1-56)
// REF_JITTER: Reference input jitter in UI (0.000-0.999).
.REF_JITTER1(0.0),
.REF_JITTER2(0.0),
.STARTUP_WAIT("FALSE") // Delay DONE until PLL Locks, ("TRUE"/"FALSE")
)
PLLE2_ADV_inst (
// Clock Outputs: 1-bit (each) output: User configurable clock outputs
.CLKOUT0(CLKOUT0), // 1-bit output: CLKOUT0
.CLKOUT1(CLKOUT1), // 1-bit output: CLKOUT1
.CLKOUT2(CLKOUT2), // 1-bit output: CLKOUT2
.CLKOUT3(CLKOUT3), // 1-bit output: CLKOUT3
.CLKOUT4(CLKOUT4), // 1-bit output: CLKOUT4
.CLKOUT5(CLKOUT5), // 1-bit output: CLKOUT5
// DRP Ports: 16-bit (each) output: Dynamic reconfiguration ports
.DO(DO),
// 16-bit output: DRP data
.DRDY(DRDY),
// 1-bit output: DRP ready
// Feedback Clocks: 1-bit (each) output: Clock feedback ports
.CLKFBOUT(CLKFBOUT), // 1-bit output: Feedback clock
.LOCKED(LOCKED),
// 1-bit output: LOCK
// Clock Inputs: 1-bit (each) input: Clock inputs
.CLKIN1(CLKIN1),
// 1-bit input: Primary clock
.CLKIN2(CLKIN2),
// 1-bit input: Secondary clock
// Control Ports: 1-bit (each) input: PLL control ports
.CLKINSEL(CLKINSEL), // 1-bit input: Clock select, High=CLKIN1 Low=CLKIN2
.PWRDWN(PWRDWN),
// 1-bit input: Power-down
.RST(RST),
// 1-bit input: Reset
// DRP Ports: 7-bit (each) input: Dynamic reconfiguration ports
.DADDR(DADDR),
// 7-bit input: DRP address
.DCLK(DCLK),
// 1-bit input: DRP clock
.DEN(DEN),
// 1-bit input: DRP enable
.DI(DI),
// 16-bit input: DRP data
.DWE(DWE),
// 1-bit input: DRP write enable
// Feedback Clocks: 1-bit (each) input: Clock feedback ports
.CLKFBIN(CLKFBIN) // 1-bit input: Feedback clock
);
// End of PLLE2_ADV_inst instantiation
For More Information � See the 7 Series Programmable Devices User Guides.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 504
Chapter 5: Design Elements
PLLE2_BASE
Primitive: Base Phase Locked Loop (PLL)
PLLE2_BASE
CLKIN1 CLKFBIN
CLKOUT0 CLKOUT1 CLKOUT2
CLKOUT3
RST
CLKOUT4
PWRDWN
CLKOUT5
CLKFBOUT
LOCKED
Phase Locked Loop Clock Circuit
X10951
Introduction
PLLE2 is a mixed signal block designed to support frequency synthesis, clock network deskew, and jitter reduction. The clock outputs can each have an individual divide (1 to 128), phase shift, and duty cycle based on the same VCO frequency. Output clocks are phase aligned to each other (unless phase shifted) and aligned to the input clock with a proper feedback configuration.
PLLE2 complements the MMCM element by supporting higher speed clocking while MMCM has more features to handle most general clocking needs. PLLE2_BASE is intended for most uses of this PLL component while PLLE2_ADV is intended for use when clock switch-over or dynamic reconfiguration is required.
Port Descriptions
Port CLKFBIN CLKFBOUT CLKIN1 CLKOUT0 CLKOUT1 CLKOUT2 CLKOUT3 CLKOUT4 CLKOUT5
DIrection Input Output Input Output Output Output Output Output Output
Width 1 1 1 1 1 1 1 1 1
Function Feedback clock pin to the PLL Dedicated PLL Feedback clock output General clock input. Configurable clock output CLKOUT0. Configurable clock output CLKOUT1. Configurable clock output CLKOUT2. Configurable clock output CLKOUT3. Configurable clock output CLKOUT4. Configurable clock output CLKOUT5.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 505
Chapter 5: Design Elements
LOCKED
Port
PWRDWN RST
DIrection Output
Input Input
Width 1
1 1
Function
An output from the PLL that indicates when the PLL has achieved phase alignment within a predefined window and frequency matching within a predefined PPM range. The PLL automatically locks after power on, no extra reset is required. LOCKED will be deasserted if the input clock stops or the phase alignment is violated (e.g., input clock phase shift). The PLL automatically reacquires lock after LOCKED is deasserted.
Powers down instantiated but unused PLLs.
The RST signal is an asynchronous reset for the PLL. The PLL will synchronously re-enable itself when this signal is released and go through a new phase alignment and lock cycle. A reset is required when the input clock conditions change (e.g., frequency).
Design Entry Method
Instantiation
Yes
Inference
No
IP Catalog
Yes
Macro support
No
Available Attributes
Attribute BANDWIDTH
CLKFBOUT_MULT
CLKFBOUT_PHASE
CLKIN1_PERIOD
CLKOUT0_DIVIDE, CLKOUT1_DIVIDE, CLKOUT2_DIVIDE, CLKOUT3_DIVIDE, CLKOUT4_DIVIDE, CLKOUT5_DIVIDE
Type STRING DECIMAL
3 significant digit FLOAT FLOAT (nS)
DECIMAL
Allowed Values
Default
"OPTIMIZED", "HIGH", "LOW"
"OPTIMIZED"
2 to 64
5
-360.000 to 360.000
0.000
0.000 to 52.631 0.000
1 to 128
1
Description
Specifies the PLLE2 programming algorithm affecting the jitter, phase margin and other characteristics of the PLLE2.
Specifies the amount to multiply all CLKOUT clock outputs if a different frequency is desired. This number, in combination with the associated CLKOUT#_DIVIDE value and DIVCLK_DIVIDE value, will determine the output frequency.
Specifies the phase offset in degrees of the clock feedback output. Shifting the feedback clock results in a negative phase shift of all output clocks to the PLL.
Specifies the input period in ns to the PLL CLKIN1 input. Resolution is down to the ps (3 decimal places). For example a value of 33.333 would indicate a 30 MHz input clock. This information is mandatory and must be supplied.
Specifies the amount to divide the associated CLKOUT clock output if a different frequency is desired. This number in combination with the CLKFBOUT_MULT and DIVCLK_DIVIDE values will determine the output frequency.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 506
Chapter 5: Design Elements
Attribute CLKOUT0_DUTY _CYCLE, CLKOUT1_DUTY _CYCLE, CLKOUT2_DUTY _CYCLE, CLKOUT3_DUTY _CYCLE, CLKOUT4_DUTY _CYCLE, CLKOUT5_DUTY _CYCLE CLKOUT0_PHASE, CLKOUT1_PHASE, CLKOUT2_PHASE, CLKOUT3_PHASE, CLKOUT4_PHASE, CLKOUT5_PHASE DIVCLK_DIVIDE
REF_JITTER1
STARTUP_WAIT
Type
3 significant digit FLOAT
Allowed Values
Default
0.001 to 0.999
0.500
3 significant digit FLOAT
-360.000 to 360.000
0.000
DECIMAL
1 to 56
1
3 significant digit FLOAT
0.000 to 0.999
0.010
STRING
"FALSE", "TRUE" "FALSE"
Description Specifies the Duty Cycle of the associated CLKOUT clock output in percentage (i.e., 0.500 will generate a 50% duty cycle).
Specifies the phase offset in degrees of the clock feedback output. Shifting the feedback clock results in a negative phase shift of all output clocks to the PLL.
Specifies the division ratio for all output clocks with respect to the input clock. Effectively divides the CLKIN going into the PFD. Allows specification of the expected jitter on CLKIN1 in order to better optimize PLL performance. A bandwidth setting of OPTIMIZED will attempt to choose the best parameter for input clocking when unknown. If known, then the value provided should be specified in terms of the UI percentage (the maximum peak to peak value) of the expected jitter on the input clock. When "TRUE", wait for the PLLE2(s) that have this attribute attached to them will delay DONE from going high until a LOCK is achieved.
VHDL Instantiation Template Unless they already exist, copy the following two statements and paste them before the entity declaration.
Library UNISIM; use UNISIM.vcomponents.all;
-- PLLE2_BASE: Base Phase Locked Loop (PLL)
--
7 Series
-- Xilinx HDL Language Template, version 2019.1
PLLE2_BASE_inst : PLLE2_BASE
generic map (
BANDWIDTH => "OPTIMIZED", -- OPTIMIZED, HIGH, LOW
CLKFBOUT_MULT => 5,
-- Multiply value for all CLKOUT, (2-64)
CLKFBOUT_PHASE => 0.0,
-- Phase offset in degrees of CLKFB, (-360.000-360.000).
CLKIN1_PERIOD => 0.0,
-- Input clock period in ns to ps resolution (i.e. 33.333 is 30 MHz).
-- CLKOUT0_DIVIDE - CLKOUT5_DIVIDE: Divide amount for each CLKOUT (1-128)
CLKOUT0_DIVIDE => 1,
CLKOUT1_DIVIDE => 1,
CLKOUT2_DIVIDE => 1,
CLKOUT3_DIVIDE => 1,
CLKOUT4_DIVIDE => 1,
CLKOUT5_DIVIDE => 1,
-- CLKOUT0_DUTY_CYCLE - CLKOUT5_DUTY_CYCLE: Duty cycle for each CLKOUT (0.001-0.999).
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 507
Chapter 5: Design Elements
CLKOUT0_DUTY_CYCLE => 0.5,
CLKOUT1_DUTY_CYCLE => 0.5,
CLKOUT2_DUTY_CYCLE => 0.5,
CLKOUT3_DUTY_CYCLE => 0.5,
CLKOUT4_DUTY_CYCLE => 0.5,
CLKOUT5_DUTY_CYCLE => 0.5,
-- CLKOUT0_PHASE - CLKOUT5_PHASE: Phase offset for each CLKOUT (-360.000-360.000).
CLKOUT0_PHASE => 0.0,
CLKOUT1_PHASE => 0.0,
CLKOUT2_PHASE => 0.0,
CLKOUT3_PHASE => 0.0,
CLKOUT4_PHASE => 0.0,
CLKOUT5_PHASE => 0.0,
DIVCLK_DIVIDE => 1,
-- Master division value, (1-56)
REF_JITTER1 => 0.0,
-- Reference input jitter in UI, (0.000-0.999).
STARTUP_WAIT => "FALSE" -- Delay DONE until PLL Locks, ("TRUE"/"FALSE")
)
port map (
-- Clock Outputs: 1-bit (each) output: User configurable clock outputs
CLKOUT0 => CLKOUT0, -- 1-bit output: CLKOUT0
CLKOUT1 => CLKOUT1, -- 1-bit output: CLKOUT1
CLKOUT2 => CLKOUT2, -- 1-bit output: CLKOUT2
CLKOUT3 => CLKOUT3, -- 1-bit output: CLKOUT3
CLKOUT4 => CLKOUT4, -- 1-bit output: CLKOUT4
CLKOUT5 => CLKOUT5, -- 1-bit output: CLKOUT5
-- Feedback Clocks: 1-bit (each) output: Clock feedback ports
CLKFBOUT => CLKFBOUT, -- 1-bit output: Feedback clock
LOCKED => LOCKED,
-- 1-bit output: LOCK
CLKIN1 => CLKIN1,
-- 1-bit input: Input clock
-- Control Ports: 1-bit (each) input: PLL control ports
PWRDWN => PWRDWN,
-- 1-bit input: Power-down
RST => RST,
-- 1-bit input: Reset
-- Feedback Clocks: 1-bit (each) input: Clock feedback ports
CLKFBIN => CLKFBIN -- 1-bit input: Feedback clock
);
-- End of PLLE2_BASE_inst instantiation
Verilog Instantiation Template
// PLLE2_BASE: Base Phase Locked Loop (PLL)
//
7 Series
// Xilinx HDL Language Template, version 2019.1
PLLE2_BASE #(
.BANDWIDTH("OPTIMIZED"), // OPTIMIZED, HIGH, LOW
.CLKFBOUT_MULT(5),
// Multiply value for all CLKOUT, (2-64)
.CLKFBOUT_PHASE(0.0),
// Phase offset in degrees of CLKFB, (-360.000-360.000).
.CLKIN1_PERIOD(0.0),
// Input clock period in ns to ps resolution (i.e. 33.333 is 30 MHz).
// CLKOUT0_DIVIDE - CLKOUT5_DIVIDE: Divide amount for each CLKOUT (1-128)
.CLKOUT0_DIVIDE(1),
.CLKOUT1_DIVIDE(1),
.CLKOUT2_DIVIDE(1),
.CLKOUT3_DIVIDE(1),
.CLKOUT4_DIVIDE(1),
.CLKOUT5_DIVIDE(1),
// CLKOUT0_DUTY_CYCLE - CLKOUT5_DUTY_CYCLE: Duty cycle for each CLKOUT (0.001-0.999).
.CLKOUT0_DUTY_CYCLE(0.5),
.CLKOUT1_DUTY_CYCLE(0.5),
.CLKOUT2_DUTY_CYCLE(0.5),
.CLKOUT3_DUTY_CYCLE(0.5),
.CLKOUT4_DUTY_CYCLE(0.5),
.CLKOUT5_DUTY_CYCLE(0.5),
// CLKOUT0_PHASE - CLKOUT5_PHASE: Phase offset for each CLKOUT (-360.000-360.000).
.CLKOUT0_PHASE(0.0),
.CLKOUT1_PHASE(0.0),
.CLKOUT2_PHASE(0.0),
.CLKOUT3_PHASE(0.0),
.CLKOUT4_PHASE(0.0),
.CLKOUT5_PHASE(0.0),
.DIVCLK_DIVIDE(1),
// Master division value, (1-56)
.REF_JITTER1(0.0),
// Reference input jitter in UI, (0.000-0.999).
.STARTUP_WAIT("FALSE") // Delay DONE until PLL Locks, ("TRUE"/"FALSE")
)
PLLE2_BASE_inst (
// Clock Outputs: 1-bit (each) output: User configurable clock outputs
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 508
Chapter 5: Design Elements
.CLKOUT0(CLKOUT0), // 1-bit output: CLKOUT0
.CLKOUT1(CLKOUT1), // 1-bit output: CLKOUT1
.CLKOUT2(CLKOUT2), // 1-bit output: CLKOUT2
.CLKOUT3(CLKOUT3), // 1-bit output: CLKOUT3
.CLKOUT4(CLKOUT4), // 1-bit output: CLKOUT4
.CLKOUT5(CLKOUT5), // 1-bit output: CLKOUT5
// Feedback Clocks: 1-bit (each) output: Clock feedback ports
.CLKFBOUT(CLKFBOUT), // 1-bit output: Feedback clock
.LOCKED(LOCKED),
// 1-bit output: LOCK
.CLKIN1(CLKIN1),
// 1-bit input: Input clock
// Control Ports: 1-bit (each) input: PLL control ports
.PWRDWN(PWRDWN),
// 1-bit input: Power-down
.RST(RST),
// 1-bit input: Reset
// Feedback Clocks: 1-bit (each) input: Clock feedback ports
.CLKFBIN(CLKFBIN) // 1-bit input: Feedback clock
);
// End of PLLE2_BASE_inst instantiation
For More Information � See the 7 Series Programmable Devices User Guides.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 509
Chapter 5: Design Elements
PULLDOWN
Primitive: Resistor to GND for Input Pads, Open-Drain, and 3-State Outputs
PULLDOWN
X10690
Introduction
This resistor element is connected to input, output, or bidirectional pads to guarantee a logic Low level for nodes that might float.
Port Descriptions
Port O
Direction Output
Width 1
Function Pulldown output (connect directly to top level port)
Design Entry Method
Instantiation
Yes
Inference
No
IP Catalog
No
Macro support
No
VHDL Instantiation Template Unless they already exist, copy the following two statements and paste them before the entity declaration.
Library UNISIM; use UNISIM.vcomponents.all;
-- PULLDOWN: I/O Buffer Weak Pull-down
--
7 Series
-- Xilinx HDL Language Template, version 2019.1
PULLDOWN_inst : PULLDOWN
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 510
Chapter 5: Design Elements
port map ( O => O
);
-- Pulldown output (connect directly to top-level port)
-- End of PULLDOWN_inst instantiation
Verilog Instantiation Template
// PULLDOWN: I/O Buffer Weak Pull-down
//
7 Series
// Xilinx HDL Language Template, version 2019.1
PULLDOWN PULLDOWN_inst (
.O(O)
// Pulldown output (connect directly to top-level port)
);
// End of PULLDOWN_inst instantiation
For More Information � See the 7 Series Programmable Devices User Guides.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 511
Chapter 5: Design Elements
PULLUP
Primitive: Resistor to VCC for Input PADs, Open-Drain, and 3-State Outputs PULLUP
X10691
Introduction
This design element allows for an input, 3-state output, or bi-directional port to be driven to a weak high value when not being driven by an internal or external source. This element establishes a High logic level for open-drain elements and macros when all the drivers are off.
Port Descriptions
Port O
Direction Output
Width 1
Function Pullup output (connect directly to top level port)
Design Entry Method
Instantiation
Yes
Inference
No
IP Catalog
No
Macro support
No
VHDL Instantiation Template Unless they already exist, copy the following two statements and paste them before the entity declaration.
Library UNISIM; use UNISIM.vcomponents.all;
-- PULLUP: I/O Buffer Weak Pull-up
--
7 Series
-- Xilinx HDL Language Template, version 2019.1
PULLUP_inst : PULLUP
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 512
Chapter 5: Design Elements
port map ( O => O
);
-- Pullup output (connect directly to top-level port)
-- End of PULLUP_inst instantiation
Verilog Instantiation Template
// PULLUP: I/O Buffer Weak Pull-up
//
7 Series
// Xilinx HDL Language Template, version 2019.1
PULLUP PULLUP_inst (
.O(O)
// Pullup output (connect directly to top-level port)
);
// End of PULLUP_inst instantiation
For More Information � See the 7 Series Programmable Devices User Guides.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 513
Chapter 5: Design Elements
RAM128X1D
Primitive: 128-Deep by 1-Wide Dual Port Random Access Memory (Select RAM)
RAM128X1D
D
SPO
A[6:0] DPRA[6:0]
DPO
WE
WCLK
X10963
Introduction
This design element is a 128-bit deep by 1-bit wide random access memory and has a read/write port that writes the value on the D input data pin when the write enable (WE) is high to the memory cell specified by the A address bus. This happens shortly after the rising edge of the WCLK and that same value is reflected in the data output SPO. When WE is low, an asynchronous read is initiated in which the contents of the memory cell specified by the A address bus is output asynchronously to the SPO output. The read port can perform asynchronous read access of the memory by changing the value of the address bus DPRA, and by outputting that value to the DPO data output.
Port Descriptions
SPO DPO D A DPRA WE WCLK
Port
Direction Output Output Input Input Input Input Input
Width 1 1 1 7 7 1 1
Function Read/Write port data output addressed by A Read port data output addressed by DPRA Write data input addressed by A Read/Write port address bus Read port address bus Write Enable Write clock (reads are asynchronous)
If instantiated, the following connections should be made to this component:
� Tie the WCLK input to the desired clock source, the D input to the data source to be stored and the DPO output to an FDCE D input or other appropriate data destination.
� Optionally, the SPO output can also be connected to the appropriate data destination or else left unconnected.
� Connect the WE clock enable pin to the proper write enable source in the design.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 514
Chapter 5: Design Elements
� Connect the 7-bit A bus to the source for the read/write addressing and the 7-bit DPRA bus to the appropriate read address connections.
You can use the INIT attribute to specify the initial contents of the RAM. If left unspecified, the initial contents default to all zeros.
Design Entry Method
Instantiation Inference IP Catalog Macro support
Yes Recommended No No
Available Attributes
Attribute Type
INIT
HEX
Allowed Values Any 128-bit value
Default All zeros
Description Specifies the initial contents of the RAM.
VHDL Instantiation Template Unless they already exist, copy the following two statements and paste them before the entity declaration.
Library UNISIM; use UNISIM.vcomponents.all;
-- RAM128X1D: 128-deep by 1-wide positive edge write, asynchronous read
--
dual-port distributed LUT RAM (Mapped to two SliceM LUT6s)
--
7 Series
-- Xilinx HDL Language Template, version 2019.1
RAM128X1D_inst : RAM128X1D
generic map (
INIT => X"00000000000000000000000000000000")
port map (
DPO => DPO,
-- Read/Write port 1-bit ouput
SPO => SPO,
-- Read port 1-bit output
A => A,
-- Read/Write port 7-bit address input
D => D,
-- RAM data input
DPRA => DPRA, -- Read port 7-bit address input
WCLK => WCLK, -- Write clock input
WE => WE
-- RAM data input
);
-- End of RAM128X1D_inst instantiation
Verilog Instantiation Template
// RAM128X1D: 128-deep by 1-wide positive edge write, asynchronous read
//
dual-port distributed LUT RAM
//
7 Series
// Xilinx HDL Language Template, version 2019.1
(Mapped to two SliceM LUT6s)
RAM128X1D #( .INIT(128'h00000000000000000000000000000000)
) RAM128X1D_inst ( .DPO(DPO), // Read port 1-bit output
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 515
.SPO(SPO), // Read/write port 1-bit output
.A(A),
// Read/write port 7-bit address input
.D(D),
// RAM data input
.DPRA(DPRA), // Read port 7-bit address input
.WCLK(WCLK), // Write clock input
.WE(WE)
// Write enable input
);
// End of RAM128X1D_inst instantiation
For More Information � See the 7 Series Programmable Devices User Guides.
Chapter 5: Design Elements
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 516
Chapter 5: Design Elements
RAM128X1S
Primitive: 128-Deep by 1-Wide Random Access Memory (Select RAM)
RAM128X1S
D
O
A[7:0]
WE
WCLK
X10954
Introduction
This design element is a 128-bit deep by 1-bit wide random access memory with synchronous write and asynchronous read capability. This RAM is implemented using the LUT resources of the device (also known as Select RAM), and does not consume any of the block RAM resources of the device. If a synchronous read capability is preferred, a register can be attached to the output and placed in the same slice as long as the same clock is used for both the RAM and the register. The RAM128X1S has an active-High write enable, WE, so that when that signal is High, and a rising edge occurs on the WCLK pin, a write is performed recording the value of the D input data pin into the memory array. The output O displays the contents of the memory cell addressed by A, regardless of the WE value. When a write is performed, the output is updated to the new value shortly after the write completes.
Port Descriptions
O D A WE WCLK
Port
Direction Output Input Input Input Input
Width 1 1 7 1 1
Function Read/Write port data output addressed by A Write data input addressed by A Read/Write port address bus Write Enable Write clock (reads are asynchronous)
Design Entry Method
Instantiation Inference IP Catalog Macro support
Yes Recommended No No
If instantiated, the following connections should be made to this component:
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 517
Chapter 5: Design Elements
� Tie the WCLK input to the desired clock source, the D input to the data source to be stored, and the O output to an FDCE D input or other appropriate data destination.
� Connect the WE clock enable pin to the proper write enable source in the design.
� Connect the 7-bit A bus to the source for the read/write.
You can use the INIT attribute to specify the initial contents of the RAM. If left unspecified, the initial contents default to all zeros.
Available Attributes
Attribute Type
INIT
HEX
Allowed Values Any 128-bit value
Default All zeros
Description Specifies the initial contents of the RAM.
VHDL Instantiation Template Unless they already exist, copy the following two statements and paste them before the entity declaration.
Library UNISIM; use UNISIM.vcomponents.all;
-- RAM128X1S: 128-deep x 1 positive edge write, asynchronous read
--
single-port distributed RAM (Mapped to SliceM LUT6)
--
7 Series
-- Xilinx HDL Language Template, version 2019.1
RAM128X1S_inst : RAM128X1S
generic map (
INIT => X"00000000000000000000000000000000")
port map (
O => O,
-- 1-bit data output
A0 => A0, -- Address[0] input bit
A1 => A1, -- Address[1] input bit
A2 => A2, -- Address[2] input bit
A3 => A3, -- Address[3] input bit
A4 => A4, -- Address[4] input bit
A5 => A5, -- Address[5] input bit
A6 => A6, -- Address[6] input bit
D => D,
-- 1-bit data input
WCLK => WCLK, -- Write clock input
WE => WE
-- RAM data input
);
-- End of RAM128X1S_inst instantiation
Verilog Instantiation Template
// RAM128X1S: 128 x 1 positive edge write, asynchronous read single-port
//
distributed RAM (Mapped to two SliceM LUT6s)
//
7 Series
// Xilinx HDL Language Template, version 2019.1
RAM128X1S #(
.INIT(128'h00000000000000000000000000000000) // Initial contents of RAM
) RAM128X1S_inst (
.O(O),
// 1-bit data output
.A0(A0),
// Address[0] input bit
.A1(A1),
// Address[1] input bit
.A2(A2),
// Address[2] input bit
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 518
.A3(A3), .A4(A4), .A5(A5), .A6(A6), .D(D), .WCLK(WCLK), .WE(WE) );
// Address[3] input bit // Address[4] input bit // Address[5] input bit // Address[6] input bit // 1-bit data input // Write clock input // Write enable input
// End of RAM128X1S_inst instantiation
For More Information � See the 7 Series Programmable Devices User Guides.
Chapter 5: Design Elements
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 519
Chapter 5: Design Elements
RAM256X1S
Primitive: 256-Deep by 1-Wide Random Access Memory (Select RAM)
RAM256X1S
D
O
A[7:0]
WE
WCLK
X10956
Introduction
This design element is a 256-bit deep by 1-bit wide random access memory with synchronous write and asynchronous read capability. This RAM is implemented using the LUT resources of the device (also known as Select RAM), and does not consume any of the block RAM resources of the device. If a synchronous read capability is preferred, a register can be attached to the output and placed in the same slice as long as the same clock is used for both the RAM and the register. The RAM256X1S has an active-High write enable, WE, so that when that signal is High, and a rising edge occurs on the WCLK pin, a write is performed recording the value of the D input data pin into the memory array. The output O displays the contents of the memory cell addressed by A, regardless of the WE value. When a write is performed, the output is updated to the new value shortly after the write completes.
Port Descriptions
O D A WE WCLK
Port
Direction Output Input Input Input Input
Width 1 1 8 1 1
Function Read/Write port data output addressed by A Write data input addressed by A Read/Write port address bus Write Enable Write clock (reads are asynchronous)
Design Entry Method
Instantiation Inference IP Catalog Macro support
Yes Recommended No No
If instantiated, the following connections should be made to this component:
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 520
Chapter 5: Design Elements
� Tie the WCLK input to the desired clock source, the D input to the data source to be stored, and the O output to an FDCE D input or other appropriate data destination.
� Connect the WE clock enable pin to the proper write enable source in the design.
� Connect the 8-bit A bus to the source for the read/write.
You can use the INIT attribute to specify the initial contents of the RAM. If left unspecified, the initial contents default to all zeros.
Available Attributes
Attribute Type
INIT
HEX
Allowed Values Any 256-bit value
Default All zeros
Description Specifies the initial contents of the RAM.
VHDL Instantiation Template Unless they already exist, copy the following two statements and paste them before the entity declaration.
Library UNISIM; use UNISIM.vcomponents.all;
-- RAM256X1S: 256-deep by 1-wide positive edge write, asynchronous read
--
single-port distributed LUT RAM (Mapped to four SliceM LUT6s)
--
7 Series
-- Xilinx HDL Language Template, version 2019.1
RAM256X1S_inst : RAM256X1S generic map (
INIT => X"0000000000000000000000000000000000000000000000000000000000000000") port map (
O => O, -- Read/Write port 1-bit ouput A => A, -- Read/Write port 8-bit address input D => D, -- RAM data input WCLK => WCLK, -- Write clock input WE => WE -- Write enable input );
-- End of RAM256X1S_inst instantiation
Verilog Instantiation Template
// RAM256X1S: 256-deep by 1-wide positive edge write, asynchronous read
//
single-port distributed LUT RAM
//
7 Series
// Xilinx HDL Language Template, version 2019.1
(Mapped to four SliceM LUT6s)
RAM256X1S #(
.INIT(256'h0000000000000000000000000000000000000000000000000000000000000000)
) RAM256X1S_inst (
.O(O),
// Read/write port 1-bit output
.A(A),
// Read/write port 8-bit address input
.WE(WE),
// Write enable input
.WCLK(WCLK), // Write clock input
.D(D)
// RAM data input
);
// End of RAM256X1S_inst instantiation
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 521
For More Information � See the 7 Series Programmable Devices User Guides.
Chapter 5: Design Elements
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 522
Chapter 5: Design Elements
RAM32M
Primitive: 32-Deep by 8-bit Wide Multi Port Random Access Memory (Select RAM)
RAM32M
DIA[1:0] DIB[1:0] DIC[1:0] DID[1:0] ADDRA[4:0] ADDRB[4:0] ADDRC[4:0] ADDRD[4:0]
WE WCLK
DOA[1:0] DOB[1:0] DOC[1:0] DOD[1:0]
X10952
Introduction
This design element is a 32-bit deep by 8-bit wide, multi-port, random access memory with synchronous write and asynchronous independent, 2-bit, wide-read capability. This RAM is implemented using the LUT resources of the device known as SelectRAMTM+, and does not consume any of the Block RAM resources of the device. The RAM32M is implemented in a single slice and consists of one 8-bit write, 2-bit read port and three separate 2-bit read ports from the same memory, which allows for byte-wide write and independent 2-bit read access RAM.
� If the DIA, DIB, DIC, and DID inputs are all tied to the same data inputs, the RAM can become a 1 read/write port, 3 independent read port, 32x2 quad port memory.
� If DID is grounded, DOD is not used.
� If ADDRA, ADDRB, and ADDRC are tied to the same address, the RAM becomes a 32x6 simple dual port RAM.
� If ADDRD is tied to ADDRA, ADDRB, and ADDRC, then the RAM is a 32x8 single port RAM.
There are several other possible configurations for this RAM.
Port Descriptions
DOA DOB DOC
Port
Direction Output Output Output
Width 2 2 2
Function Read port data outputs addressed by ADDRA Read port data outputs addressed by ADDRB Read port data outputs addressed by ADDRC
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 523
Chapter 5: Design Elements
DOD DIA
DIB
DIC
DID ADDRA ADDRB ADDRC ADDRD WE WCLK
Port
Direction Output Input
Input
Input
Input Input Input Input Input Input Input
Width 2 2
2
2
2 5 5 5 5 1 1
Function
Read/Write port data outputs addressed by ADDRD Write data inputs addressed by ADDRD (read output is addressed by ADDRA) Write data inputs addressed by ADDRD (read output is addressed by ADDRB) Write data inputs addressed by ADDRD (read output is addressed by ADDRC) Write data inputs addressed by ADDRD Read address bus A Read address bus B Read address bus C 8-bit data write port, 2-bit data read port address bus D Write Enable Write clock (reads are asynchronous)
Design Entry Method
Instantiation Inference IP Catalog Macro support
Yes Recommended No No
This element can be inferred by some synthesis tools by describing a RAM with a synchronous write and asynchronous read capability. Consult your synthesis tool documentation for details on RAM inference capabilities and coding examples. You should instantiate this component if you have a need to implicitly specify the RAM function, or if you need to manually place or relationally place the component. If a synchronous read capability is desired, the outputs can be connected to an FDRSE (FDCPE if asynchronous reset is needed) in order to improve the output timing of the function. However, this is not necessary for the proper operation of the RAM. If you want to have the data clocked on the negative edge of a clock, an inverter can be described on the clock input to this component. This inverter will be absorbed into the block giving the ability to write to the RAM on falling clock edges.
If instantiated, the following connections should be made to this component:
� Connect the WCLK input to the desired clock source
� Connect the DIA, DIB, DIC, and DID inputs to the data source to be stored
� Connect the DOA, DOB, DOC, and DOD outputs to an FDCE D input or other appropriate data destination, or leave unconnected if not used
� Connect the WE clock enable pin to the proper write enable source in the design
� Connect the ADDRD bus to the source for the read/write addressing
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 524
Chapter 5: Design Elements
� Connect the ADDRA, ADDRB, and ADDRC buses to the appropriate read address connections
The optional INIT_A, INIT_B, INIT_C and INIT_D attributes let you specify the initial memory contents of each port using a 64-bit hexadecimal value. The INIT value correlates to the RAM addressing by the following equation: ADDRy[z] = INIT_y[2*z+1:2*z]. For instance, if the RAM ADDRC port is addressed to 00001, then the INIT_C[3:2] values would be the initial values shown on the DOC port before the first write occurs at that address. If left unspecified, the initial contents will be all zeros.
Available Attributes
Attribute INIT_A INIT_B INIT_C INIT_D
Type HEX HEX HEX HEX
Allowed Values Any 64-bit value Any 64-bit value Any 64-bit value Any 64-bit value
Default All zeros All zeros All zeros All zeros
Description Specifies the initial contents of the RAM on port A. Specifies the initial contents of the RAM on port B. Specifies the initial contents of the RAM on port C. Specifies the initial contents of the RAM on port D.
VHDL Instantiation Template Unless they already exist, copy the following two statements and paste them before the entity declaration.
Library UNISIM; use UNISIM.vcomponents.all;
-- RAM32M: 32-deep by 8-wide Multi Port LUT RAM (Mapped to four SliceM LUT6s)
--
7 Series
-- Xilinx HDL Language Template, version 2019.1
RAM32M_inst : RAM32M
generic map (
INIT_A => X"0000000000000000", -- Initial contents of A port
INIT_B => X"0000000000000000", -- Initial contents of B port
INIT_C => X"0000000000000000", -- Initial contents of C port
INIT_D => X"0000000000000000") -- Initial contents of D port
port map (
DOA => DOA, -- Read port A 2-bit output
DOB => DOB, -- Read port B 2-bit output
DOC => DOC, -- Read port C 2-bit output
DOD => DOD, -- Read/Write port D 2-bit output
ADDRA => ADDRA, -- Read port A 5-bit address input
ADDRB => ADDRB, -- Read port B 5-bit address input
ADDRC => ADDRC, -- Read port C 5-bit address input
ADDRD => ADDRD, -- Read/Write port D 5-bit address input
DIA => DIA, -- RAM 2-bit data write input addressed by ADDRD,
-- read addressed by ADDRA
DIB => DIB, -- RAM 2-bit data write input addressed by ADDRD,
-- read addressed by ADDRB
DIC => DIC, -- RAM 2-bit data write input addressed by ADDRD,
-- read addressed by ADDRC
DID => DID, -- RAM 2-bit data write input addressed by ADDRD,
-- read addressed by ADDRD
WCLK => WCLK, -- Write clock input
WE => WE
-- Write enable input
);
-- End of RAM32M_inst instantiation
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 525
Chapter 5: Design Elements
Verilog Instantiation Template
// RAM32M: 32-deep by 8-wide Multi Port LUT RAM (Mapped to four SliceM LUT6s)
//
7 Series
// Xilinx HDL Language Template, version 2019.1
RAM32M #(
.INIT_A(64'h0000000000000000), // Initial contents of A Port
.INIT_B(64'h0000000000000000), // Initial contents of B Port
.INIT_C(64'h0000000000000000), // Initial contents of C Port
.INIT_D(64'h0000000000000000) // Initial contents of D Port
) RAM32M_inst (
.DOA(DOA),
// Read port A 2-bit output
.DOB(DOB),
// Read port B 2-bit output
.DOC(DOC),
// Read port C 2-bit output
.DOD(DOD),
// Read/write port D 2-bit output
.ADDRA(ADDRA), // Read port A 5-bit address input
.ADDRB(ADDRB), // Read port B 5-bit address input
.ADDRC(ADDRC), // Read port C 5-bit address input
.ADDRD(ADDRD), // Read/write port D 5-bit address input
.DIA(DIA),
// RAM 2-bit data write input addressed by ADDRD,
// read addressed by ADDRA
.DIB(DIB),
// RAM 2-bit data write input addressed by ADDRD,
// read addressed by ADDRB
.DIC(DIC),
// RAM 2-bit data write input addressed by ADDRD,
// read addressed by ADDRC
.DID(DID),
// RAM 2-bit data write input addressed by ADDRD,
// read addressed by ADDRD
.WCLK(WCLK), // Write clock input
.WE(WE)
// Write enable input
);
// End of RAM32M_inst instantiation
For More Information � See the 7 Series Programmable Devices User Guides.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 526
Chapter 5: Design Elements
RAM32X1D
Primitive: 32-Deep by 1-Wide Static Dual Port Synchronous RAM
RAM32X1D
WE
D
SPO
WCLK
A[4:0]
DPO
DPRA[4:0]
X14052
Introduction
This design element is a 32-bit deep by 1-bit wide static dual port random access memory with synchronous write capability. The device has two separate address ports: the read address (DPRA4:DPRA0) and the write address (A4:A0). These two address ports are completely asynchronous. The read address controls the location of the data driven out of the output pin (DPO), and the write address controls the destination of a valid write transaction. When the write enable (WE) is Low, transitions on the write clock (WCLK) are ignored and data stored in the RAM is not affected. When WE is High, any positive transition on WCLK loads the data on the data input (D) into the memory cell selected by the 5-bit write address. For predictable performance, write address and data inputs must be stable before a Low-to-High WCLK transition. This RAM block assumes an active-High WCLK. WCLK can be active-High or activeLow. Any inverter placed on the WCLK input net is absorbed into the block. You can initialize RAM32X1D during configuration using the INIT attribute. Mode selection is shown in the following logic table.
The SPO output reflects the data in the memory cell addressed by A4:A0. The DPO output reflects the data in the memory cell addressed by DPRA4:DPRA0. The write process is not affected by the address on the read address port.
You can use the INIT attribute to specify the initial contents of the RAM. If left unspecified, the initial contents default to all zeros.
Logic Table
WE (Mode) 0 (read) 1 (read) 1 (read) 1 (write)
Inputs WCLK X 0 1
D X X X D
SPO data_a data_a data_a D
Outputs DPO
data_d data_d data_d data_d
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 527
Chapter 5: Design Elements
WE (Mode) 1 (read)
Inputs WCLK
D X
SPO data_a
Outputs DPO
data_d
Design Entry Method
Instantiation Inference IP Catalog Macro support
Yes Recommended No No
Available Attributes
Attribute Type
INIT
HEX
Allowed Values Any 32-bit value
Default All zeros
Description Specifies the initial contents of the RAM.
VHDL Instantiation Template Unless they already exist, copy the following two statements and paste them before the entity declaration.
Library UNISIM; use UNISIM.vcomponents.all;
-- RAM32X1D: 32 x 1 positive edge write, asynchronous read
--
dual-port distributed RAM (Mapped to SliceM LUT6)
--
7 Series
-- Xilinx HDL Language Template, version 2019.1
RAM32X1D_inst : RAM32X1D
generic map (
INIT => X"00000000") -- Initial contents of RAM
port map (
DPO => DPO,
-- Read-only 1-bit data output
SPO => SPO,
-- R/W 1-bit data output
A0 => A0,
-- R/W address[0] input bit
A1 => A1,
-- R/W address[1] input bit
A2 => A2,
-- R/W address[2] input bit
A3 => A3,
-- R/W address[3] input bit
A4 => A4,
-- R/W address[4] input bit
D => D,
-- Write 1-bit data input
DPRA0 => DPRA0, -- Read-only address[0] input bit
DPRA1 => DPRA1, -- Read-only address[1] input bit
DPRA2 => DPRA2, -- Read-only address[2] input bit
DPRA3 => DPRA3, -- Read-only address[3] input bit
DPRA4 => DPRA4, -- Read-only address[4] input bit
WCLK => WCLK, -- Write clock input
WE => WE
-- Write enable input
);
-- End of RAM32X1D_inst instantiation
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 528
Chapter 5: Design Elements
Verilog Instantiation Template
// RAM32X1D: 32 x 1 positive edge write, asynchronous read dual-port
//
distributed RAM (Mapped to a SliceM LUT6)
//
7 Series
// Xilinx HDL Language Template, version 2019.1
RAM32X1D #(
.INIT(32'h00000000) // Initial contents of RAM
) RAM32X1D_inst (
.DPO(DPO),
// Read-only 1-bit data output
.SPO(SPO),
// Rw/ 1-bit data output
.A0(A0),
// Rw/ address[0] input bit
.A1(A1),
// Rw/ address[1] input bit
.A2(A2),
// Rw/ address[2] input bit
.A3(A3),
// Rw/ address[3] input bit
.A4(A4),
// Rw/ address[4] input bit
.D(D),
// Write 1-bit data input
.DPRA0(DPRA0), // Read-only address[0] input bit
.DPRA1(DPRA1), // Read-only address[1] input bit
.DPRA2(DPRA2), // Read-only address[2] input bit
.DPRA3(DPRA3), // Read-only address[3] input bit
.DPRA4(DPRA4), // Read-only address[4] input bit
.WCLK(WCLK), // Write clock input
.WE(WE)
// Write enable input
);
// End of RAM32X1D_inst instantiation
For More Information � See the 7 Series Programmable Devices User Guides.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 529
Chapter 5: Design Elements
RAM32X1S
Primitive: 32-Deep by 1-Wide Static Synchronous RAM
RAM32X1S
WE
D
O
WCLK
A[4:0]
X14055
Introduction
This design element is a 32-bit deep by 1-bit wide static random access memory with synchronous write capability. When the write enable is Low, transitions on the write clock (WCLK) are ignored and data stored in the RAM is not affected. When (WE) is High, any positive transition on (WCLK) loads the data on the data input (D) into the memory cell selected by the 5bit address (A4-A0). For predictable performance, address and data inputs must be stable before a Low-to-High (WCLK) transition. This RAM block assumes an active-High (WCLK). However, (WCLK) can be active-High or active-Low. Any inverter placed on the (WCLK) input net is absorbed into the block.
The signal output on the data output pin (O) is the data that is stored in the RAM at the location defined by the values on the address pins.
You can use the INIT attribute to specify the initial contents of the RAM. If left unspecified, the initial contents default to all zeros.
Logic Table
Inputs
WE (Mode)
WCLK
0 (read)
X
1 (read)
0
1 (read)
1
1 (write)
1 (read)
D X X X D X
Data Data Data D Data
Outputs O
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 530
Chapter 5: Design Elements
Design Entry Method
Instantiation Inference IP Catalog Macro support
Yes Recommended No No
Available Attributes
Attribute Type
INIT
HEX
Allowed Values Any 32-bit value
Default All zeros
Description Specifies initial contents of the RAM.
VHDL Instantiation Template Unless they already exist, copy the following two statements and paste them before the entity declaration.
Library UNISIM; use UNISIM.vcomponents.all;
-- RAM32X1S: 32 x 1 posedge write distributed (LUT) RAM (Mapped to SliceM LUT6)
--
7 Series
-- Xilinx HDL Language Template, version 2019.1
RAM32X1S_inst : RAM32X1S
generic map (
INIT => X"00000000")
port map (
O => O,
-- RAM output
A0 => A0,
-- RAM address[0] input
A1 => A1,
-- RAM address[1] input
A2 => A2,
-- RAM address[2] input
A3 => A3,
-- RAM address[3] input
A4 => A4,
-- RAM address[4] input
D => D,
-- RAM data input
WCLK => WCLK, -- Write clock input
WE => WE
-- Write enable input
);
-- End of RAM32X1S_inst instantiation
Verilog Instantiation Template
// RAM32X1S: 32 x 1 posedge write distributed (LUT) RAM (Mapped to a SliceM LUT6)
//
7 Series
// Xilinx HDL Language Template, version 2019.1
RAM32X1S #(
.INIT(32'h00000000) // Initial contents of RAM
) RAM32X1S_inst (
.O(O),
// RAM output
.A0(A0),
// RAM address[0] input
.A1(A1),
// RAM address[1] input
.A2(A2),
// RAM address[2] input
.A3(A3),
// RAM address[3] input
.A4(A4),
// RAM address[4] input
.D(D),
// RAM data input
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 531
.WCLK(WCLK), // Write clock input
.WE(WE)
// Write enable input
);
// End of RAM32X1S_inst instantiation
For More Information � See the 7 Series Programmable Devices User Guides.
Chapter 5: Design Elements
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 532
Chapter 5: Design Elements
RAM32X1S_1
Primitive: 32-Deep by 1-Wide Static Synchronous RAM with Negative-Edge Clock
RAM32x1S_1
WE D WCLK A0 A1 A2 A3 A4
Q
X8417
Introduction
This design element is a 32-bit deep by 1-bit wide static random access memory with synchronous write capability. When the write enable is Low, transitions on the write clock (WCLK) are ignored and data stored in the RAM is not affected. When (WE) is High, any negative transition on (WCLK) loads the data on the data input (D) into the memory cell selected by the 5bit address (A4:A0). For predictable performance, address and data inputs must be stable before a High-to-Low (WCLK) transition. This RAM block assumes an active-Low (WCLK). However, (WCLK) can be active-High or active-Low. Any inverter placed on the (WCLK) input net is absorbed into the block.
The signal output on the data output pin (O) is the data that is stored in the RAM at the location defined by the values on the address pins.
You can use the INIT attribute to specify the initial contents of the RAM. If left unspecified, the initial contents default to all zeros.
Logic Table
Inputs
WE (Mode)
WCLK
0 (read)
X
1 (read)
0
1 (read)
1
1 (write)
1 (read)
Data = memory cell addressed by bits A4:A0
D X X X D X
Data Data Data D Data
Outputs O
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 533
Chapter 5: Design Elements
Design Entry Method
Instantiation Inference IP Catalog Macro support
Yes Recommended No No
Available Attributes
Attribute Type
INIT
HEX
Allowed Values Any 32-bit value
Default All zeros
Description Specifies the initial contents of the RAM.
VHDL Instantiation Template Unless they already exist, copy the following two statements and paste them before the entity declaration.
Library UNISIM; use UNISIM.vcomponents.all;
-- RAM32X1S_1: 32 x 1 negedge write distributed (LUT) RAM (Mapped to SliceM LUT6)
--
7 Series
-- Xilinx HDL Language Template, version 2019.1
RAM32X1S_1_inst : RAM32X1S_1
generic map (
INIT => X"00000000")
port map (
O => O,
-- RAM output
A0 => A0,
-- RAM address[0] input
A1 => A1,
-- RAM address[1] input
A2 => A2,
-- RAM address[2] input
A3 => A3,
-- RAM address[3] input
A4 => A4,
-- RAM address[4] input
D => D,
-- RAM data input
WCLK => WCLK, -- Write clock input
WE => WE
-- Write enable input
);
-- End of RAM32X1S_1_inst instantiation
Verilog Instantiation Template
// RAM32X1S_1: 32 x 1 negedge write distributed (LUT) RAM (Mapped to a SliceM LUT6)
//
7 Series
// Xilinx HDL Language Template, version 2019.1
RAM32X1S_1 #(
.INIT(32'h00000000) // Initial contents of RAM
)RAM32X1S_1_inst (
.O(O),
// RAM output
.A0(A0),
// RAM address[0] input
.A1(A1),
// RAM address[1] input
.A2(A2),
// RAM address[2] input
.A3(A3),
// RAM address[3] input
.A4(A4),
// RAM address[4] input
.D(D),
// RAM data input
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 534
.WCLK(WCLK), // Write clock input
.WE(WE)
// Write enable input
);
// End of RAM32X1S_1_inst instantiation
For More Information � See the 7 Series Programmable Devices User Guides.
Chapter 5: Design Elements
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 535
Chapter 5: Design Elements
RAM32X2S
Primitive: 32-Deep by 2-Wide Static Synchronous RAM
RAM32x2S
WE
D0
O0
D1
O1
WCLK
A0
A1
A2
A3
A4
X4947
Introduction
This design element is a 32-bit deep by 2-bit wide static random access memory with synchronous write capability. When the write enable (WE) is Low, transitions on the write clock (WCLK) are ignored and data stored in the RAM is not affected. When (WE) is High, any positive transition on (WCLK) loads the data on the data input (D1-D0) into the word selected by the 5bit address (A4-A0). For predictable performance, address and data inputs must be stable before a Low-to-High (WCLK) transition. This RAM block assumes an active-High (WCLK). However, (WCLK) can be active-High or active-Low. Any inverter placed on the (WCLK) input net is absorbed into the block. The signal output on the data output pins (O1-O0) is the data that is stored in the RAM at the location defined by the values on the address pins.
You can use the INIT_00 and INIT_01 properties to specify the initial contents of RAM32X2S.
Logic Table
Inputs
WE (Mode)
WCLK
0 (read)
X
1 (read)
0
1 (read)
1
1 (write)
1 (read)
Data = word addressed by bits A4:A0
D X X X D1:D0 X
Data Data Data D1:D0 Data
Outputs O0-O1
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 536
Chapter 5: Design Elements
Design Entry Method
Instantiation Inference IP Catalog Macro support
Yes Recommended No No
Available Attributes
Attribute INIT_00 INIT_01
Type HEX HEX
Allowed Values Any 32-bit value Any 32-bit value
Default All zeros All zeros
INIT for bit 0 of RAM. INIT for bit 1 of RAM.
Descriptions
VHDL Instantiation Template Unless they already exist, copy the following two statements and paste them before the entity declaration.
Library UNISIM; use UNISIM.vcomponents.all;
-- RAM32X2S: 32 x 2 posedge write distributed (LUT) RAM (Mapped to SliceM LUT6)
--
7 Series
-- Xilinx HDL Language Template, version 2019.1
RAM32X2S_inst : RAM32X2S
generic map (
INIT_00 => X"00000000", -- INIT for bit 0 of RAM
INIT_01 => X"00000000") -- INIT for bit 1 of RAM
port map (
O0 => O0,
-- RAM data[0] output
O1 => O1,
-- RAM data[1] output
A0 => A0,
-- RAM address[0] input
A1 => A1,
-- RAM address[1] input
A2 => A2,
-- RAM address[2] input
A3 => A3,
-- RAM address[3] input
A4 => A4,
-- RAM address[4] input
D0 => D0,
-- RAM data[0] input
D1 => D1,
-- RAM data[1] input
WCLK => WCLK, -- Write clock input
WE => WE
-- Write enable input
);
-- End of RAM32X2S_inst instantiation
Verilog Instantiation Template
// RAM32X2S: 32 x 2 posedge write distributed (LUT) RAM (Mapped to a SliceM LUT6)
//
7 Series
// Xilinx HDL Language Template, version 2019.1
RAM32X2S #(
.INIT_00(32'h00000000), // INIT for bit 0 of RAM
.INIT_01(32'h00000000) // INIT for bit 1 of RAM
) RAM32X2S_inst (
.O0(O0),
// RAM data[0] output
.O1(O1),
// RAM data[1] output
.A0(A0),
// RAM address[0] input
.A1(A1),
// RAM address[1] input
.A2(A2),
// RAM address[2] input
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 537
.A3(A3),
// RAM address[3] input
.A4(A4),
// RAM address[4] input
.D0(D0),
// RAM data[0] input
.D1(D1),
// RAM data[1] input
.WCLK(WCLK), // Write clock input
.WE(WE)
// Write enable input
);
// End of RAM32X2S_inst instantiation
For More Information � See the 7 Series Programmable Devices User Guides.
Chapter 5: Design Elements
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 538
Chapter 5: Design Elements
RAM64M
Primitive: 64-Deep by 4-bit Wide Multi Port Random Access Memory (Select RAM)
RAM64M
DIA
DIB DIC DID ADDRA[5:0] ADDRB[5:0] ADDRC[5:0] ADDRD[5:0] WE WCLK
DOA DOB DOC DOD
X14049
Introduction
This design element is a 64-bit deep by 4-bit wide, multi-port, random access memory with synchronous write and asynchronous independent bit wide read capability. This RAM is implemented using the LUT resources of the device (also known as SelectRAMTM+) and does not consume any of the block RAM resources of the device. The RAM64M component is implemented in a single slice, and consists of one 4-bit write, 1-bit read port, and three separate 1-bit read ports from the same memory allowing for 4-bit write and independent bit read access RAM.
� If the DIA, DIB, DIC, and DID inputs are all tied to the same data inputs, the RAM can become a 1 read/write port, 3 independent read port 64x1 quad port memory.
� If DID is grounded, DOD is not used.
� If ADDRA, ADDRB, and ADDRC are tied to the same address, the RAM becomes a 64x3 simple dual port RAM.
� If ADDRD is tied to ADDRA, ADDRB, and ADDRC, the RAM is a 64x4 single port RAM.
There are several other possible configurations for this RAM.
Port Descriptions
DOA DOB DOC
Port
Direction Output Output Output
Width 1 1 1
Function Read port data outputs addressed by ADDRA Read port data outputs addressed by ADDRB Read port data outputs addressed by ADDRC
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 539
Chapter 5: Design Elements
DOD DIA
DIB
DIC
DID ADDRA ADDRB ADDRC ADDRD WE WCLK
Port
Direction Output Input
Input
Input
Input Input Input Input Input Input Input
Width 1 1
1
1
1 6 6 6 6 1 1
Function
Read/Write port data outputs addressed by ADDRD Write data inputs addressed by ADDRD (read output is addressed by ADDRA) Write data inputs addressed by ADDRD (read output is addressed by ADDRB) Write data inputs addressed by ADDRD (read output is addressed by ADDRC) Write data inputs addressed by ADDRD Read address bus A Read address bus B Read address bus C 4-bit data write port, 1-bit data read port address bus D Write Enable Write clock (reads are asynchronous)
Design Entry Method
Instantiation Inference IP Catalog Macro support
Yes Recommended No No
This element can be inferred by some synthesis tools by describing a RAM with a synchronous write and asynchronous read capability. Consult your synthesis tool documentation for details on RAM inference capabilities and coding examples. Xilinx suggests that you instantiate this component if you have a need to implicitly specify the RAM function, or if you need to manually place or relationally place the component. If a synchronous read capability is desired, the outputs can be connected to an FDRE (FDCE if asynchronous reset is needed) in order to improve the output timing of the function. However, this is not necessary for the proper operation of the RAM. If you want to have the data clocked on the negative edge of a clock, an inverter can be described on the clock input to this component. This inverter will be absorbed into the block giving the ability to write to the RAM on falling clock edges.
If instantiated, the following connections should be made to this component:
� Connect the WCLK input to the desired clock source, the DIA, DIB, DIC
� Connect the DIA, DIB, DIC, and DID inputs to the data source to be stored
� Connect the DOA, DOB, DOC, and DOD outputs to an FDCE D input or other appropriate data destination, or leave unconnected if not used
� Connect the WE clock enable pin to the proper write enable source in the design
� Connect the ADDRD bus to the source for the read/write addressing
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 540
Chapter 5: Design Elements
� Connect the ADDRA, ADDRB, and ADDRC buses to the appropriate read address connections
The optional INIT_A, INIT_B, INIT_C and INIT_D attributes let you specify the initial memory contents of each port using a 64-bit hexadecimal value. The INIT value correlates to the RAM addressing by the following equation: ADDRy[z] = INIT_y[z]. For instance, if the RAM ADDRC port is addressed to 00001, then the INIT_C[1] values would be the initial values shown on the DOC port before the first write occurs at that address. If left unspecified, the initial contents will default to all zeros.
Available Attributes
Attribute INIT_A INIT_B INIT_C INIT_D
Type HEX HEX HEX HEX
Allowed Values Any 64-bit value Any 64-bit value Any 64-bit value Any 64-bit value
Default All zero All zero All zero All zero
Description Specifies the initial contents of the RAM on port A. Specifies the initial contents of the RAM on port B. Specifies the initial contents of the RAM on port C. Specifies the initial contents of the RAM on port D.
VHDL Instantiation Template Unless they already exist, copy the following two statements and paste them before the entity declaration.
Library UNISIM; use UNISIM.vcomponents.all;
-- RAM64M: 64-deep by 4-wide Multi Port LUT RAM (Mapped to four SliceM LUT6s)
--
7 Series
-- Xilinx HDL Language Template, version 2019.1
RAM64M_inst : RAM64M
generic map (
INIT_A => X"0000000000000000", -- Initial contents of A port
INIT_B => X"0000000000000000", -- Initial contents of B port
INIT_C => X"0000000000000000", -- Initial contents of C port
INIT_D => X"0000000000000000") -- Initial contents of D port
port map (
DOA => DOA, -- Read port A 1-bit output
DOB => DOB, -- Read port B 1-bit output
DOC => DOC, -- Read port C 1-bit output
DOD => DOD, -- Read/Write port D 1-bit output
ADDRA => ADDRA, -- Read port A 6-bit address input
ADDRB => ADDRB, -- Read port B 6-bit address input
ADDRC => ADDRC, -- Read port C 6-bit address input
ADDRD => ADDRD, -- Read/Write port D 6-bit address input
DIA => DIA, -- RAM 1-bit data write input addressed by ADDRD,
-- read addressed by ADDRA
DIB => DIB, -- RAM 1-bit data write input addressed by ADDRD,
-- read addressed by ADDRB
DIC => DIC, -- RAM 1-bit data write input addressed by ADDRD,
-- read addressed by ADDRC
DID => DID, -- RAM 1-bit data write input addressed by ADDRD,
-- read addressed by ADDRD
WCLK => WCLK, -- Write clock input
WE => WE
-- Write enable input
);
-- End of RAM64M_inst instantiation
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 541
Chapter 5: Design Elements
Verilog Instantiation Template
// RAM64M: 64-deep by 4-wide Multi Port LUT RAM (Mapped to four SliceM LUT6s)
//
7 Series
// Xilinx HDL Language Template, version 2019.1
RAM64M #(
.INIT_A(64'h0000000000000000), // Initial contents of A Port
.INIT_B(64'h0000000000000000), // Initial contents of B Port
.INIT_C(64'h0000000000000000), // Initial contents of C Port
.INIT_D(64'h0000000000000000) // Initial contents of D Port
) RAM64M_inst (
.DOA(DOA),
// Read port A 1-bit output
.DOB(DOB),
// Read port B 1-bit output
.DOC(DOC),
// Read port C 1-bit output
.DOD(DOD),
// Read/write port D 1-bit output
.DIA(DIA),
// RAM 1-bit data write input addressed by ADDRD,
// read addressed by ADDRA
.DIB(DIB),
// RAM 1-bit data write input addressed by ADDRD,
// read addressed by ADDRB
.DIC(DIC),
// RAM 1-bit data write input addressed by ADDRD,
// read addressed by ADDRC
.DID(DID),
// RAM 1-bit data write input addressed by ADDRD,
// read addressed by ADDRD
.ADDRA(ADDRA), // Read port A 6-bit address input
.ADDRB(ADDRB), // Read port B 6-bit address input
.ADDRC(ADDRC), // Read port C 6-bit address input
.ADDRD(ADDRD), // Read/write port D 6-bit address input
.WE(WE),
// Write enable input
.WCLK(WCLK) // Write clock input
);
// End of RAM64M_inst instantiation
For More Information � See the 7 Series Programmable Devices User Guides.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 542
Chapter 5: Design Elements
RAM64X1D
Primitive: 64-Deep by 1-Wide Dual Port Static Synchronous RAM
RAM64X1D
WE
D
SPO
WCLK
A[5:0] DPRA[5:0]
DPO
X14048
Introduction
This design element is a 64-bit deep by 1-bit wide static dual port random access memory with synchronous write capability. The device has two separate address ports: the read address (DPRA5:DPRA0) and the write address (A5:A0). These two address ports are completely asynchronous. The read address controls the location of the data driven out of the output pin (DPO), and the write address controls the destination of a valid write transaction. When the write enable (WE) is Low, transitions on the write clock (WCLK) are ignored and data stored in the RAM is not affected.
When WE is High, any positive transition on WCLK loads the data on the data input (D) into the memory cell selected by the 6-bit (A0:A5) write address. For predictable performance, write address and data inputs must be stable before a Low-to-High WCLK transition. This RAM block assumes an active-High WCLK. WCLK can be active-High or active-Low. Any inverter placed on the WCLK input net is absorbed into the block.
The SPO output reflects the data in the memory cell addressed by A5:A0. The DPO output reflects the data in the memory cell addressed by DPRA5:DPRA0. The write process is not affected by the address on the read address port.
You can use the INIT attribute to specify the initial contents of the RAM. If left unspecified, the initial contents default to all zeros.
Logic Table
WE (mode) 0 (read) 1 (read) 1 (read)
Inputs WCLK X 0 1
D X X X
SPO data_a data_a data_a
Outputs DPO
data_d data_d data_d
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 543
Chapter 5: Design Elements
Inputs
WE (mode)
WCLK
D
1 (write)
D
1 (read)
X
data_a = memory cell addressed by bits A5:A0 data_d = memory cell addressed by bits DPRA5:DPRA0
SPO D data_a
Outputs DPO
data_d data_d
Design Entry Method
Instantiation Inference IP Catalog Macro support
Yes Recommended No No
Available Attributes
Attribute Type
INIT
HEX
Allowed Values Any 64-bit value
Default All zeros
Description Specifies the initial contents of the RAM.
VHDL Instantiation Template Unless they already exist, copy the following two statements and paste them before the entity declaration.
Library UNISIM; use UNISIM.vcomponents.all;
-- RAM64X1D: 64 x 1 negative edge write, asynchronous read
--
dual-port distributed RAM (Mapped to SliceM LUT6)
--
7 Series
-- Xilinx HDL Language Template, version 2019.1
RAM64X1D_1_inst : RAM64X1D_1
generic map (
INIT => X"0000000000000000") -- Initial contents of RAM
port map (
DPO => DPO,
-- Read-only 1-bit data output
SPO => SPO,
-- R/W 1-bit data output
A0 => A0,
-- R/W address[0] input bit
A1 => A1,
-- R/W address[1] input bit
A2 => A2,
-- R/W address[2] input bit
A3 => A3,
-- R/W address[3] input bit
A4 => A4,
-- R/W address[4] input bit
A5 => A5,
-- R/W address[5] input bit
D => D,
-- Write 1-bit data input
DPRA0 => DPRA0, -- Read-only address[0] input bit
DPRA1 => DPRA1, -- Read-only address[1] input bit
DPRA2 => DPRA2, -- Read-only address[2] input bit
DPRA3 => DPRA3, -- Read-only address[3] input bit
DPRA4 => DPRA4, -- Read-only address[4] input bit
DPRA5 => DPRA5, -- Read-only address[5] input bit
WCLK => WCLK, -- Write clock input
WE => WE
-- Write enable input
);
-- End of RAM64X1D_1_inst instantiation
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 544
Chapter 5: Design Elements
Verilog Instantiation Template
// RAM64X1D: 64 x 1 positive edge write, asynchronous read dual-port
//
distributed RAM (Mapped to a SliceM LUT6)
//
7 Series
// Xilinx HDL Language Template, version 2019.1
RAM64X1D #(
.INIT(64'h0000000000000000) // Initial contents of RAM
) RAM64X1D_inst (
.DPO(DPO),
// Read-only 1-bit data output
.SPO(SPO),
// Rw/ 1-bit data output
.A0(A0),
// Rw/ address[0] input bit
.A1(A1),
// Rw/ address[1] input bit
.A2(A2),
// Rw/ address[2] input bit
.A3(A3),
// Rw/ address[3] input bit
.A4(A4),
// Rw/ address[4] input bit
.A5(A5),
// Rw/ address[5] input bit
.D(D),
// Write 1-bit data input
.DPRA0(DPRA0), // Read-only address[0] input bit
.DPRA1(DPRA1), // Read-only address[1] input bit
.DPRA2(DPRA2), // Read-only address[2] input bit
.DPRA3(DPRA3), // Read-only address[3] input bit
.DPRA4(DPRA4), // Read-only address[4] input bit
.DPRA5(DPRA5), // Read-only address[5] input bit
.WCLK(WCLK), // Write clock input
.WE(WE)
// Write enable input
);
// End of RAM64X1D_inst instantiation
For More Information � See the 7 Series Programmable Devices User Guides.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 545
Chapter 5: Design Elements
RAM64X1S
Primitive: 64-Deep by 1-Wide Static Synchronous RAM
RAM64X1S
WE
D
O
WCLK
A[5:0]
X14047
Introduction
This design element is a 64-bit deep by 1-bit wide static random access memory (RAM) with synchronous write capability. When the write enable is set Low, transitions on the write clock (WCLK) are ignored and data stored in the RAM is not affected. When WE is set High, any positive transition on WCLK loads the data on the data input (D) into the memory cell selected by the 6-bit address (A5:A0). This RAM block assumes an active-High WCLK. However, WCLK can be active-High or active-Low. Any inverter placed on the WCLK input net is absorbed into the block.
The signal output on the data output pin (O) is the data that is stored in the memory cell defined by the values on the address pins.
You can use the INIT attribute to specify the initial contents of the RAM. If left unspecified, the initial contents default to all zeros.
Logic Table Mode selection is shown in the following logic table
Inputs
WE (mode)
WCLK
D
0 (read)
X
X
1 (read)
0
X
1 (read)
1
X
1 (write)
D
1 (read)
X
Data = memory cell addressed by bits A5:A0
Data Data Data D Data
Outputs O
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 546
Chapter 5: Design Elements
Design Entry Method
Instantiation Inference IP Catalog Macro support
Yes Recommended No No
Available Attributes
Attribute Type
INIT
HEX
Allowed Values Any 64-bit value
Default All zeros
Description Specifies the initial contents of the RAM.
VHDL Instantiation Template Unless they already exist, copy the following two statements and paste them before the entity declaration.
Library UNISIM; use UNISIM.vcomponents.all;
-- RAM64X1S: 64 x 1 positive edge write, asynchronous read single-port distributed RAM (Mapped to SliceM LUT6)
--
7 Series
-- Xilinx HDL Language Template, version 2019.1
RAM64X1S_inst : RAM64X1S
generic map (
INIT => X"0000000000000000")
port map (
O => O,
-- 1-bit data output
A0 => A0,
-- Address[0] input bit
A1 => A1,
-- Address[1] input bit
A2 => A2,
-- Address[2] input bit
A3 => A3,
-- Address[3] input bit
A4 => A4,
-- Address[4] input bit
A5 => A5,
-- Address[5] input bit
D => D,
-- 1-bit data input
WCLK => WCLK, -- Write clock input
WE => WE
-- Write enable input
);
-- End of RAM64X1S_inst instantiation
Verilog Instantiation Template
// RAM64X1S: 64 x 1 positive edge write, asynchronous read single-port
//
distributed RAM (Mapped to a SliceM LUT6)
//
7 Series
// Xilinx HDL Language Template, version 2019.1
RAM64X1S #(
.INIT(64'h0000000000000000) // Initial contents of RAM
) RAM64X1S_inst (
.O(O),
// 1-bit data output
.A0(A0),
// Address[0] input bit
.A1(A1),
// Address[1] input bit
.A2(A2),
// Address[2] input bit
.A3(A3),
// Address[3] input bit
.A4(A4),
// Address[4] input bit
.A5(A5),
// Address[5] input bit
.D(D),
// 1-bit data input
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 547
.WCLK(WCLK), // Write clock input
.WE(WE)
// Write enable input
);
// End of RAM64X1S_inst instantiation
For More Information � See the 7 Series Programmable Devices User Guides.
Chapter 5: Design Elements
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 548
Chapter 5: Design Elements
RAM64X1S_1
Primitive: 64-Deep by 1-Wide Static Synchronous RAM with Negative-Edge Clock
RAM64x1S_1
WE D WCLK A0 A1 A2 A3 A4 A5
O
X9266
Introduction
This design element is a 64-bit deep by 1-bit wide static random access memory with synchronous write capability. When the write enable is Low, transitions on the write clock (WCLK) are ignored and data stored in the RAM is not affected. When (WE) is High, any negative transition on (WCLK) loads the data on the data input (D) into the memory cell selected by the 6bit address (A5:A0). For predictable performance, address and data inputs must be stable before a High-to-Low (WCLK) transition. This RAM block assumes an active-Low (WCLK). However, (WCLK) can be active-High or active-Low. Any inverter placed on the (WCLK) input net is absorbed into the block.
The signal output on the data output pin (O) is the data that is stored in the memory cell defined by the values on the address pins.
You can use the INIT attribute to specify the initial contents of the RAM. If left unspecified, the initial contents default to all zeros.
Logic Table
Inputs
WE (mode)
WCLK
0 (read)
X
1 (read)
0
1 (read)
1
1 (write)
1 (read)
Data = memory cell addressed by bits A5:A0
D X X X D X
Data Data Data D Data
Outputs O
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 549
Chapter 5: Design Elements
Design Entry Method
Instantiation Inference IP Catalog Macro support
Yes Recommended No No
Available Attributes
Attribute Type
INIT
HEX
Allowed Values Any 64-bit value
Default All zeros
Description Specifies the initial contents of the RAM.
VHDL Instantiation Template Unless they already exist, copy the following two statements and paste them before the entity declaration.
Library UNISIM; use UNISIM.vcomponents.all;
-- RAM64X1S_1: 64 x 1 negative edge write, asynchronous read single-port distributed RAM (Mapped to SliceM LUT6)
--
7 Series
-- Xilinx HDL Language Template, version 2019.1
RAM64X1S_1_inst : RAM64X1S_1
generic map (
INIT => X"0000000000000000")
port map (
O => O,
-- 1-bit data output
A0 => A0,
-- Address[0] input bit
A1 => A1,
-- Address[1] input bit
A2 => A2,
-- Address[2] input bit
A3 => A3,
-- Address[3] input bit
A4 => A4,
-- Address[4] input bit
A5 => A5,
-- Address[5] input bit
D => D,
-- 1-bit data input
WCLK => WCLK, -- Write clock input
WE => WE
-- Write enable input
);
-- End of RAM64X1S_1_inst instantiation
Verilog Instantiation Template
// RAM64X1S_1: 64 x 1 negative edge write, asynchronous read single-port
//
distributed RAM (Mapped to a SliceM LUT6)
//
7 Series
// Xilinx HDL Language Template, version 2019.1
RAM64X1S_1 #(
.INIT(64'h0000000000000000) // Initial contents of RAM
) RAM64X1S_1_inst (
.O(O),
// 1-bit data output
.A0(A0),
// Address[0] input bit
.A1(A1),
// Address[1] input bit
.A2(A2),
// Address[2] input bit
.A3(A3),
// Address[3] input bit
.A4(A4),
// Address[4] input bit
.A5(A5),
// Address[5] input bit
.D(D),
// 1-bit data input
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 550
.WCLK(WCLK), // Write clock input
.WE(WE)
// Write enable input
);
// End of RAM64X1S_1_inst instantiation
For More Information � See the 7 Series Programmable Devices User Guides.
Chapter 5: Design Elements
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 551
Chapter 5: Design Elements
RAMB18E1
Primitive: 18K-bit Configurable Synchronous Block RAM
RAMB18E1
ADDRARDADDR(13:0) DOADO(15:0)
ADDRBWRADDR(13:0)
DIADI(15:0)
DIBDI(15:0)
DIPADIP(1:0) DIPBDIP(1:0)
DOBDO(15:0)
WEA(1:0)
WEBWE(3:0)
CLKARDCLK
CLKBWRCLK
DOPADOP(1:0)
ENARDEN
ENBWREN
REGCEAREGCE
REGCEB RSTRAMARSTRAM
DOPBDOP(1:0)
RSTRAMB
RSTREGARSTREG
RSTREGB
X11175
Introduction
7 series devices contain several block RAM memories that can be configured as FIFOs, automatic error correction RAM, or general-purpose 36Kb or 18Kb RAM/ROM memories. These block RAM memories offer fast and flexible storage of large amounts of on-chip data. The RAMB18E1 allows access to the block RAM in the 18Kb configuration.
This element can be configured and used as a 1-bit wide by 16K deep to an 18-bit wide by 1024bit deep true dual port RAM. This element can also be configured as a 36-bit wide by 512 deep simple dual port RAM. Both read and write operations are fully synchronous to the supplied clock(s) to the component. However, the READ and WRITE ports can operate fully independent and asynchronous to each other, accessing the same memory array. When configured in the wider data width modes, byte-enable write operations are possible, and an optional output register can be used to reduce the clock-to-out times of the RAM.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 552
Chapter 5: Design Elements
Port Descriptions
Port ADDRARDADDR <13:0> ADDRBWRADDR <13:0> CLKARDCLK CLKBWRCLK DIADI<15:0>
DIBDI<15:0>
DIPADIP<1:0>
DIPBDIP<1:0>
DOADO<15:0>
DOBDO<15:0>
DOPADOP<1:0>
DOPBDOP<1:0>
ENARDEN ENBWREN REGCEAREGCE REGCEB RSTRAMARSTRAM
RSTRAMB
Direction Input Input Input Input Input
Input
Input
Input
Output
Output
Output
Output
Input Input Input Input Input
Input
Width 14 14 1 1 16
16
2
2
16
16
2
2
1 1 1 1 1
1
Function
Port A address input bus/Read address input bus.
Port B address input bus/Write address input bus.
Rising edge port A clock input/Read clock input.
Rising edge port B clock input/Write clock input.
Port A data input bus/Data input bus addressed by WRADDR. When RAM_MODE="SDP", DIADI is the logical DI<15:0>.
Port B data input bus/Data input bus addressed by WRADDR. When RAM_MODE="SDP", DIBDI is the logical DI<31:16>.
Port A parity data input bus/Data parity input bus addressed by WRADDR. When RAM_MODE="SDP", DIPADIP is the logical DIP<1:0>.
Port B parity data input bus/Data parity input bus addressed by WRADDR. When RAM_MODE="SDP", DIPBDIP is the logical DIP<3:2>.
Port A data output bus/Data output bus addressed by RDADDR. When RAM_MODE="SDP", DOADO is the logical DO<15:0>.
Port B data output bus/Data output bus addressed by RDADDR. When RAM_MODE="SDP", DOBDO is the logical DO<31:16>.
Port A parity data output bus/Data parity output bus addressed by RDADDR. When RAM_MODE="SDP", DOPADOP is the logical DOP<1:0>.
Port B parity data output bus/Data parity output bus addressed by RDADDR. When RAM_MODE="SDP", DOPBDOP is the logical DOP<3:2>.
Port A RAM enable/Read enable.
Port B RAM enable/Write enable.
Port A output register clock enable input/Output register clock enable input (valid only when DOA_REG=1).
Port B output register clock enable (valid only when DOB_REG=1 and RAM_MODE="TDP").
Synchronous data latch set/reset to value indicated by SRVAL_A. RSTRAMARSTRAM sets/resets the BRAM data output latch when DO_REG=0 or 1. If DO_REG=1 there is a cycle of latency between the internal data latch node that is reset by RSTRAMARSTRAM and the DO output of the BRAM. This signal resets port A RAM output when RAM_MODE="TDP" and the entire RAM output when RAM_MODE="SDP".
Synchronous data latch set/reset to value indicated by SRVAL_B. RSTRAMB sets/resets the BRAM data output latch when DO_REG=0 or 1. If DO_REG=1 there is a cycle of latency between the internal data latch node that is reset by RSTRAMB and the DO output of the BRAM. Not used when RAM_MODE="SDP".
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 553
Chapter 5: Design Elements
Port RSTREGARSTREG
RSTREGB
WEA<1:0> WEBWE<3:0>
Direction Input
Input
Input Input
Width 1
1
2 4
Function
Synchronous output register set/reset to value indicated by SRVAL_A. RSTREGARSTREG sets/resets the output register when DO_REG=1. RSTREG_PRIORITY_A determines if this signal gets priority over REGCEAREGCE. This signal resets port A output when RAM_MODE="TDP" and the entire output port when RAM_MODE="SDP".
Synchronous output register set/reset to value indicated by SRVAL_B. RSTREGB sets/resets the output register when DO_REG=1. RSTREG_PRIORITY_B determines if this signal gets priority over REGCEB. Not used when RAM_MODE="SDP".
Port A byte-wide write enable. Not used when RAM_MODE="SDP". See User Guide for WEA mapping for different port widths.
Port B byte-wide write enable/Write enable. See User Guide for WEBWE mapping for different port widths.
Design Entry Method
Instantiation Inference IP Catalog Macro support
Yes Recommended Yes Yes
Available Attributes
Attribute RDADDR _COLLISION _HWCONFIG
SIM_COLLISION _CHECK
Type STRING
STRING
Allowed Values "DELAYED_WRITE", "PERFORMANCE"
"ALL", "GENERATE_X_ONLY", "NONE", "WARNING_ONLY"
Default "DELAYED _WRITE"
"ALL"
Description
When set to "PERFORMANCE" allows for higher clock performance (frequency) in READ_FIRST mode. If using the same clock on both ports of the RAM with "PERFORMANCE" mode, the address overlap collision rules apply where in "DELAYED_WRITE" mode, you can safely use the BRAM without incurring collisions.
Allows modification of the simulation behavior so that if a memory collision occurs
� "ALL" = warning produced and affected
outputs/memory go unknown (X)
� "WARNING_ONLY" = warning produced
and affected outputs/memory retain last value
� "GENERATE_X_ONLY" = no warning and
affected outputs/memory go unknown (X)
� "NONE" = no warning and affected
outputs/memory retain last value
Note: Use this setting carefully. Setting it to a value other than "ALL" can mask design problems during simulation.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 554
Chapter 5: Design Elements
Attribute
Type
DOA_REG, DOB_REG DECIMAL
INIT_A, INIT_B
HEX
INIT_00 to INIT_3F HEX
INIT_FILE
STRING
INITP_00 to INITP_07 HEX
RAM_MODE
STRING
READ_WIDTH_A
DECIMAL
READ_WIDTH_B
DECIMAL
RSTREG_PRIORITY _A, RSTREG_PRIORITY _B
SIM_DEVICE
STRING STRING
SRVAL_A, SRVAL_B HEX
Allowed Values 0, 1
Default 0
18 bit HEX
18'h00000
256 bit HEX
All zeros
String representing file None name and location
256 bit HEX
All zeros
"TDP", "SDP"
"TDP"
0, 1, 2, 4, 9, 18, 36, 72 0
0, 1, 2, 4, 9, 18
0
"RSTREG", "REGCE"
"RSTREG"
Description
A value of 1 enables the output registers to the RAM enabling quicker clock-to-out from the RAM at the expense of an added clock cycle of read latency. A value of 0 allows a read in one clock cycle but will result in slower clock-to-out timing. Applies to port A/B in TDP mode and up to 18 lower bits (including parity bits) in SDP mode.
Specifies the initial value on the port output after configuration. Applies to Port A/B in TDP mode and up to 18 lower bits (including parity bits) in SDP mode.
Allows specification of the initial contents of the 16Kb data memory array.
File name of file used to specify initial RAM contents.
Allows specification of the initial contents of the 2Kb parity data memory array.
Selects simple dual port (SDP) or true dual port (TDP) mode.
Specifies the desired data width for a read on Port A, including parity bits. This value must be 0 if the Port A is not used. Otherwise, it should be set to the desired port width. In "SDP" mode, this is the read width including parity bits.
Specifies the desired data width for a read on Port B including parity bits. This value must be 0 if the Port B is not used. Otherwise, it should be set to the desired port width. Not used for "SDP" mode.
Selects register priority for RSTREG or REGCE. Applies to port A/B in TDP mode and up to 18 lower bits (including parity bits) in SDP mode.
"7SERIES" 18 bit HEX
""7SERIES"" Must be set to "7SERIES" in order to exhibit proper simulation behavior under all conditions.
18'h00000
Specifies the output value of the RAM upon assertion of the synchronous reset (RSTREG) signal.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 555
Chapter 5: Design Elements
Attribute WRITE_MODE_A, WRITE_MODE_B
WRITE_WIDTH_A WRITE_WIDTH_B
Type STRING
Allowed Values
"WRITE_FIRST", "NO_CHANGE", "READ_FIRST"
DECIMAL 0, 1, 2, 4, 9, 18 DECIMAL 0, 1, 2, 4, 9, 18, 36, 72
Default "WRITE _FIRST"
0 0
Description
Specifies output behavior of the port being written to.
� "WRITE_FIRST" = written value appears on
output port of the RAM
� "READ_FIRST" = previous RAM contents
for that memory location appear on the output port
� "NO_CHANGE" = previous value on the
output port remains the same.
When RAM_MODE="SDP", WRITE_MODE can not be set to "NO_CHANGE". For simple dual port implementations you should set this attribute to "READ_FIRST" if using the same clock on both ports, or set it to "WRITE_FIRST" if using different clocks. This generally yields an improved collision or address overlap behavior.
Specifies the desired data width for a write to Port A including parity bits. This value must be 0 if the port is not used. Otherwise should be set to the desired write width. Not used in SDP mode.
Specifies the desired data width for a write to Port B including parity bits. This value must be 0 if the port is not used. Otherwise should be set to the desired write width. In SDP mode, this is the write width including parity bits.
VHDL Instantiation Template Unless they already exist, copy the following two statements and paste them before the entity declaration.
Library UNISIM; use UNISIM.vcomponents.all;
-- RAMB18E1: 18K-bit Configurable Synchronous Block RAM
--
7 Series
-- Xilinx HDL Language Template, version 2019.1
RAMB18E1_inst : RAMB18E1 generic map (
-- Address Collision Mode: "PERFORMANCE" or "DELAYED_WRITE" RDADDR_COLLISION_HWCONFIG => "DELAYED_WRITE", -- Collision check: Values ("ALL", "WARNING_ONLY", "GENERATE_X_ONLY" or "NONE") SIM_COLLISION_CHECK => "ALL", -- DOA_REG, DOB_REG: Optional output register (0 or 1) DOA_REG => 0, DOB_REG => 0, -- INITP_00 to INITP_07: Initial contents of parity memory array INITP_00 => X"0000000000000000000000000000000000000000000000000000000000000000", INITP_01 => X"0000000000000000000000000000000000000000000000000000000000000000", INITP_02 => X"0000000000000000000000000000000000000000000000000000000000000000", INITP_03 => X"0000000000000000000000000000000000000000000000000000000000000000", INITP_04 => X"0000000000000000000000000000000000000000000000000000000000000000", INITP_05 => X"0000000000000000000000000000000000000000000000000000000000000000", INITP_06 => X"0000000000000000000000000000000000000000000000000000000000000000", INITP_07 => X"0000000000000000000000000000000000000000000000000000000000000000", -- INIT_00 to INIT_3F: Initial contents of data memory array
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 556
Chapter 5: Design Elements
INIT_00 => X"0000000000000000000000000000000000000000000000000000000000000000",
INIT_01 => X"0000000000000000000000000000000000000000000000000000000000000000",
INIT_02 => X"0000000000000000000000000000000000000000000000000000000000000000",
INIT_03 => X"0000000000000000000000000000000000000000000000000000000000000000",
INIT_04 => X"0000000000000000000000000000000000000000000000000000000000000000",
INIT_05 => X"0000000000000000000000000000000000000000000000000000000000000000",
INIT_06 => X"0000000000000000000000000000000000000000000000000000000000000000",
INIT_07 => X"0000000000000000000000000000000000000000000000000000000000000000",
INIT_08 => X"0000000000000000000000000000000000000000000000000000000000000000",
INIT_09 => X"0000000000000000000000000000000000000000000000000000000000000000",
INIT_0A => X"0000000000000000000000000000000000000000000000000000000000000000",
INIT_0B => X"0000000000000000000000000000000000000000000000000000000000000000",
INIT_0C => X"0000000000000000000000000000000000000000000000000000000000000000",
INIT_0D => X"0000000000000000000000000000000000000000000000000000000000000000",
INIT_0E => X"0000000000000000000000000000000000000000000000000000000000000000",
INIT_0F => X"0000000000000000000000000000000000000000000000000000000000000000",
INIT_10 => X"0000000000000000000000000000000000000000000000000000000000000000",
INIT_11 => X"0000000000000000000000000000000000000000000000000000000000000000",
INIT_12 => X"0000000000000000000000000000000000000000000000000000000000000000",
INIT_13 => X"0000000000000000000000000000000000000000000000000000000000000000",
INIT_14 => X"0000000000000000000000000000000000000000000000000000000000000000",
INIT_15 => X"0000000000000000000000000000000000000000000000000000000000000000",
INIT_16 => X"0000000000000000000000000000000000000000000000000000000000000000",
INIT_17 => X"0000000000000000000000000000000000000000000000000000000000000000",
INIT_18 => X"0000000000000000000000000000000000000000000000000000000000000000",
INIT_19 => X"0000000000000000000000000000000000000000000000000000000000000000",
INIT_1A => X"0000000000000000000000000000000000000000000000000000000000000000",
INIT_1B => X"0000000000000000000000000000000000000000000000000000000000000000",
INIT_1C => X"0000000000000000000000000000000000000000000000000000000000000000",
INIT_1D => X"0000000000000000000000000000000000000000000000000000000000000000",
INIT_1E => X"0000000000000000000000000000000000000000000000000000000000000000",
INIT_1F => X"0000000000000000000000000000000000000000000000000000000000000000",
INIT_20 => X"0000000000000000000000000000000000000000000000000000000000000000",
INIT_21 => X"0000000000000000000000000000000000000000000000000000000000000000",
INIT_22 => X"0000000000000000000000000000000000000000000000000000000000000000",
INIT_23 => X"0000000000000000000000000000000000000000000000000000000000000000",
INIT_24 => X"0000000000000000000000000000000000000000000000000000000000000000",
INIT_25 => X"0000000000000000000000000000000000000000000000000000000000000000",
INIT_26 => X"0000000000000000000000000000000000000000000000000000000000000000",
INIT_27 => X"0000000000000000000000000000000000000000000000000000000000000000",
INIT_28 => X"0000000000000000000000000000000000000000000000000000000000000000",
INIT_29 => X"0000000000000000000000000000000000000000000000000000000000000000",
INIT_2A => X"0000000000000000000000000000000000000000000000000000000000000000",
INIT_2B => X"0000000000000000000000000000000000000000000000000000000000000000",
INIT_2C => X"0000000000000000000000000000000000000000000000000000000000000000",
INIT_2D => X"0000000000000000000000000000000000000000000000000000000000000000",
INIT_2E => X"0000000000000000000000000000000000000000000000000000000000000000",
INIT_2F => X"0000000000000000000000000000000000000000000000000000000000000000",
INIT_30 => X"0000000000000000000000000000000000000000000000000000000000000000",
INIT_31 => X"0000000000000000000000000000000000000000000000000000000000000000",
INIT_32 => X"0000000000000000000000000000000000000000000000000000000000000000",
INIT_33 => X"0000000000000000000000000000000000000000000000000000000000000000",
INIT_34 => X"0000000000000000000000000000000000000000000000000000000000000000",
INIT_35 => X"0000000000000000000000000000000000000000000000000000000000000000",
INIT_36 => X"0000000000000000000000000000000000000000000000000000000000000000",
INIT_37 => X"0000000000000000000000000000000000000000000000000000000000000000",
INIT_38 => X"0000000000000000000000000000000000000000000000000000000000000000",
INIT_39 => X"0000000000000000000000000000000000000000000000000000000000000000",
INIT_3A => X"0000000000000000000000000000000000000000000000000000000000000000",
INIT_3B => X"0000000000000000000000000000000000000000000000000000000000000000",
INIT_3C => X"0000000000000000000000000000000000000000000000000000000000000000",
INIT_3D => X"0000000000000000000000000000000000000000000000000000000000000000",
INIT_3E => X"0000000000000000000000000000000000000000000000000000000000000000",
INIT_3F => X"0000000000000000000000000000000000000000000000000000000000000000",
-- INIT_A, INIT_B: Initial values on output ports
INIT_A => X"00000",
INIT_B => X"00000",
-- Initialization File: RAM initialization file
INIT_FILE => "NONE",
-- RAM Mode: "SDP" or "TDP"
RAM_MODE => "TDP",
-- READ_WIDTH_A/B, WRITE_WIDTH_A/B: Read/write width per port
READ_WIDTH_A => 0,
-- 0-72
READ_WIDTH_B => 0,
-- 0-18
WRITE_WIDTH_A => 0,
-- 0-18
WRITE_WIDTH_B => 0,
-- 0-72
-- RSTREG_PRIORITY_A, RSTREG_PRIORITY_B: Reset or enable priority ("RSTREG" or "REGCE")
RSTREG_PRIORITY_A => "RSTREG",
RSTREG_PRIORITY_B => "RSTREG",
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 557
Chapter 5: Design Elements
-- SRVAL_A, SRVAL_B: Set/reset value for output
SRVAL_A => X"00000",
SRVAL_B => X"00000",
-- Simulation Device: Must be set to "7SERIES" for simulation behavior
SIM_DEVICE => "7SERIES",
-- WriteMode: Value on output upon a write ("WRITE_FIRST", "READ_FIRST", or "NO_CHANGE")
WRITE_MODE_A => "WRITE_FIRST",
WRITE_MODE_B => "WRITE_FIRST"
)
port map (
-- Port A Data: 16-bit (each) output: Port A data
DOADO => DOADO,
-- 16-bit output: A port data/LSB data
DOPADOP => DOPADOP,
-- 2-bit output: A port parity/LSB parity
-- Port B Data: 16-bit (each) output: Port B data
DOBDO => DOBDO,
-- 16-bit output: B port data/MSB data
DOPBDOP => DOPBDOP,
-- 2-bit output: B port parity/MSB parity
-- Port A Address/Control Signals: 14-bit (each) input: Port A address and control signals (read port
-- when RAM_MODE="SDP")
ADDRARDADDR => ADDRARDADDR,
-- 14-bit input: A port address/Read address
CLKARDCLK => CLKARDCLK,
-- 1-bit input: A port clock/Read clock
ENARDEN => ENARDEN,
-- 1-bit input: A port enable/Read enable
REGCEAREGCE => REGCEAREGCE,
-- 1-bit input: A port register enable/Register enable
RSTRAMARSTRAM => RSTRAMARSTRAM, -- 1-bit input: A port set/reset
RSTREGARSTREG => RSTREGARSTREG, -- 1-bit input: A port register set/reset
WEA => WEA,
-- 2-bit input: A port write enable
-- Port A Data: 16-bit (each) input: Port A data
DIADI => DIADI,
-- 16-bit input: A port data/LSB data
DIPADIP => DIPADIP,
-- 2-bit input: A port parity/LSB parity
-- Port B Address/Control Signals: 14-bit (each) input: Port B address and control signals (write port
-- when RAM_MODE="SDP")
ADDRBWRADDR => ADDRBWRADDR,
-- 14-bit input: B port address/Write address
CLKBWRCLK => CLKBWRCLK,
-- 1-bit input: B port clock/Write clock
ENBWREN => ENBWREN,
-- 1-bit input: B port enable/Write enable
REGCEB => REGCEB,
-- 1-bit input: B port register enable
RSTRAMB => RSTRAMB,
-- 1-bit input: B port set/reset
RSTREGB => RSTREGB,
-- 1-bit input: B port register set/reset
WEBWE => WEBWE,
-- 4-bit input: B port write enable/Write enable
-- Port B Data: 16-bit (each) input: Port B data
DIBDI => DIBDI,
-- 16-bit input: B port data/MSB data
DIPBDIP => DIPBDIP
-- 2-bit input: B port parity/MSB parity
);
-- End of RAMB18E1_inst instantiation
Verilog Instantiation Template
// RAMB18E1: 18K-bit Configurable Synchronous Block RAM
//
7 Series
// Xilinx HDL Language Template, version 2019.1
RAMB18E1 #( // Address Collision Mode: "PERFORMANCE" or "DELAYED_WRITE" .RDADDR_COLLISION_HWCONFIG("DELAYED_WRITE"), // Collision check: Values ("ALL", "WARNING_ONLY", "GENERATE_X_ONLY" or "NONE") .SIM_COLLISION_CHECK("ALL"), // DOA_REG, DOB_REG: Optional output register (0 or 1) .DOA_REG(0), .DOB_REG(0), // INITP_00 to INITP_07: Initial contents of parity memory array .INITP_00(256'h0000000000000000000000000000000000000000000000000000000000000000), .INITP_01(256'h0000000000000000000000000000000000000000000000000000000000000000), .INITP_02(256'h0000000000000000000000000000000000000000000000000000000000000000), .INITP_03(256'h0000000000000000000000000000000000000000000000000000000000000000), .INITP_04(256'h0000000000000000000000000000000000000000000000000000000000000000), .INITP_05(256'h0000000000000000000000000000000000000000000000000000000000000000), .INITP_06(256'h0000000000000000000000000000000000000000000000000000000000000000), .INITP_07(256'h0000000000000000000000000000000000000000000000000000000000000000), // INIT_00 to INIT_3F: Initial contents of data memory array .INIT_00(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_01(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_02(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_03(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_04(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_05(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_06(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_07(256'h0000000000000000000000000000000000000000000000000000000000000000),
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 558
Chapter 5: Design Elements
.INIT_08(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_09(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_0A(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_0B(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_0C(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_0D(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_0E(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_0F(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_10(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_11(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_12(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_13(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_14(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_15(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_16(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_17(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_18(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_19(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_1A(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_1B(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_1C(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_1D(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_1E(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_1F(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_20(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_21(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_22(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_23(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_24(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_25(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_26(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_27(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_28(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_29(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_2A(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_2B(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_2C(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_2D(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_2E(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_2F(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_30(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_31(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_32(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_33(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_34(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_35(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_36(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_37(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_38(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_39(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_3A(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_3B(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_3C(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_3D(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_3E(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_3F(256'h0000000000000000000000000000000000000000000000000000000000000000),
// INIT_A, INIT_B: Initial values on output ports
.INIT_A(18'h00000),
.INIT_B(18'h00000),
// Initialization File: RAM initialization file
.INIT_FILE("NONE"),
// RAM Mode: "SDP" or "TDP"
.RAM_MODE("TDP"),
// READ_WIDTH_A/B, WRITE_WIDTH_A/B: Read/write width per port
.READ_WIDTH_A(0),
// 0-72
.READ_WIDTH_B(0),
// 0-18
.WRITE_WIDTH_A(0),
// 0-18
.WRITE_WIDTH_B(0),
// 0-72
// RSTREG_PRIORITY_A, RSTREG_PRIORITY_B: Reset or enable priority ("RSTREG" or "REGCE")
.RSTREG_PRIORITY_A("RSTREG"),
.RSTREG_PRIORITY_B("RSTREG"),
// SRVAL_A, SRVAL_B: Set/reset value for output
.SRVAL_A(18'h00000),
.SRVAL_B(18'h00000),
// Simulation Device: Must be set to "7SERIES" for simulation behavior
.SIM_DEVICE("7SERIES"),
// WriteMode: Value on output upon a write ("WRITE_FIRST", "READ_FIRST", or "NO_CHANGE")
.WRITE_MODE_A("WRITE_FIRST"),
.WRITE_MODE_B("WRITE_FIRST")
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 559
Chapter 5: Design Elements
)
RAMB18E1_inst (
// Port A Data: 16-bit (each) output: Port A data
.DOADO(DOADO),
// 16-bit output: A port data/LSB data
.DOPADOP(DOPADOP),
// 2-bit output: A port parity/LSB parity
// Port B Data: 16-bit (each) output: Port B data
.DOBDO(DOBDO),
// 16-bit output: B port data/MSB data
.DOPBDOP(DOPBDOP),
// 2-bit output: B port parity/MSB parity
// Port A Address/Control Signals: 14-bit (each) input: Port A address and control signals (read port
// when RAM_MODE="SDP")
.ADDRARDADDR(ADDRARDADDR),
// 14-bit input: A port address/Read address
.CLKARDCLK(CLKARDCLK),
// 1-bit input: A port clock/Read clock
.ENARDEN(ENARDEN),
// 1-bit input: A port enable/Read enable
.REGCEAREGCE(REGCEAREGCE),
// 1-bit input: A port register enable/Register enable
.RSTRAMARSTRAM(RSTRAMARSTRAM), // 1-bit input: A port set/reset
.RSTREGARSTREG(RSTREGARSTREG), // 1-bit input: A port register set/reset
.WEA(WEA),
// 2-bit input: A port write enable
// Port A Data: 16-bit (each) input: Port A data
.DIADI(DIADI),
// 16-bit input: A port data/LSB data
.DIPADIP(DIPADIP),
// 2-bit input: A port parity/LSB parity
// Port B Address/Control Signals: 14-bit (each) input: Port B address and control signals (write port
// when RAM_MODE="SDP")
.ADDRBWRADDR(ADDRBWRADDR),
// 14-bit input: B port address/Write address
.CLKBWRCLK(CLKBWRCLK),
// 1-bit input: B port clock/Write clock
.ENBWREN(ENBWREN),
// 1-bit input: B port enable/Write enable
.REGCEB(REGCEB),
// 1-bit input: B port register enable
.RSTRAMB(RSTRAMB),
// 1-bit input: B port set/reset
.RSTREGB(RSTREGB),
// 1-bit input: B port register set/reset
.WEBWE(WEBWE),
// 4-bit input: B port write enable/Write enable
// Port B Data: 16-bit (each) input: Port B data
.DIBDI(DIBDI),
// 16-bit input: B port data/MSB data
.DIPBDIP(DIPBDIP)
// 2-bit input: B port parity/MSB parity
);
// End of RAMB18E1_inst instantiation
For More Information � See the 7 Series Programmable Devices User Guides.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 560
Chapter 5: Design Elements
RAMB36E1
Primitive: 36K-bit Configurable Synchronous Block RAM
RAMB36E1
ADDRARDADDR(15:0) DOADO(31:0)
ADDRBWRADDR(15:0)
DIADI(31:0) DIBDI(31:0)
DOBDO(31:0)
DIPADIP(3:0) DIPBDIP(3:0)
DOPADOP(3:0)
WEA(3:0)
WEBWE(7:0)
DOPBDOP(3:0)
CASCADEINA
CASCADEINB CLKARDCLK
ECCPARITY(7:0)
CLKBWRCLK ENARDEN
RDADDRECC(8:0)
ENBWREN
INJECTDBITERR
CASCADEOUTA
INJECTSBITERR
REGCEAREGCE REGCEB
CASCADEOUTB
RSTRAMARSTRAM RSTRAMB
DBITERR
RSTREGARSTREG
RSTREGB
SBITERR
X11176
Introduction
7 series devices contain several block RAM memories that can be configured as FIFOs, automatic error correction RAM, or general-purpose 36Kb or 18Kb RAM/ROM memories. These block RAM memories offer fast and flexible storage of large amounts of on-chip data. The RAMB36E1 allows access to the block RAM in the 36Kb configuration. This element can be cascaded to create a larger ram. This element can be configured and used as a 1-bit wide by 32K deep to a 36-bit wide by 1K deep true dual port RAM. This element can also be configured as a 72-bit wide by 512 deep simple dual port RAM. Both read and write operations are fully synchronous to the
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 561
Chapter 5: Design Elements
supplied clock(s) to the component. However, the READ and WRITE ports can operate fully independent and asynchronous to each other, accessing the same memory array. When configured in the wider data width modes, byte-enable write operations are possible, and an optional output register can be used to reduce the clock-to-out times of the RAM. Error detection and correction circuitry can also be enabled to uncover and rectify possible memory corruptions.
Port Descriptions
Port ADDRARDADDR<15:0> ADDRBWRADDR<15:0> CASCADEINA CASCADEINB CASCADEOUTA CASCADEOUTB CLKARDCLK CLKBWRCLK DBITERR
DIADI<31:0>
DIBDI<31:0>
DIPADIP<3:0>
DIPBDIP<3:0>
DOADO<31:0>
DOBDO<31:0>
DOPADOP<3:0>
DOPBDOP<3:0>
ECCPARITY<7:0>
Direction Input Input Input Input Output Output Input Input Output
Input
Input
Input
Input
Output
Output
Output
Output
Output
Width 16 16 1 1 1 1 1 1 1
32
32
4
4
32
32
4
4
8
Function
Port A address input bus/Read address input bus.
Port B address input bus/Write address input bus.
Port A cascade input. Never use when RAM_MODE="SDP".
Port B cascade input. Never use when RAM_MODE="SDP".
Port A cascade output. Never use when RAM_MODE="SDP".
Port B cascade output. Never use when RAM_MODE="SDP".
Rising edge port A clock input/Read clock input.
Rising edge port B clock input/Write clock input.
Status output from ECC function to indicate a double bit error was detected. EN_ECC_READ needs to be TRUE in order to use this functionality. Not used when RAM_MODE="TDP".
Port A data input bus/Data input bus addressed by WRADDR. When RAM_MODE="SDP", DIADI is the logical DI<31:0>.
Port B data input bus/Data input bus addressed by WRADDR. When RAM_MODE="SDP", DIBDI is the logical DI<63:32>.
Port A parity data input bus/Data parity input bus addressed by WRADDR. When RAM_MODE="SDP", DIPADIP is the logical DIP<3:0>.
Port B parity data input bus/Data parity input bus addressed by WRADDR. When RAM_MODE="SDP", DIPBDIP is the logical DIP<7:4>.
Port A data output bus/Data output bus addressed by RDADDR. When RAM_MODE="SDP", DOADO is the logical DO<31:0>.
Port B data output bus/Data output bus addressed by RDADDR. When RAM_MODE="SDP", DOBDO is the logical DO<63:32>.
Port A parity data output bus/Data parity output bus addressed by RDADDR. When RAM_MODE="SDP", DOPADOP is the logical DOP<3:0>.
Port B parity data output bus/Data parity output bus addressed by RDADDR. When RAM_MODE="SDP", DOPBDOP is the logical DOP<7:4>.
8-bit data generated by the ECC encoder used by the ECC decoder for memory error detection and correction. Not used if RAM_MODE="TDP".
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 562
Chapter 5: Design Elements
Port ENARDEN ENBWREN INJECTDBITERR INJECTSBITERR RDADDRECC<8:0> REGCEAREGCE REGCEB RSTRAMARSTRAM
RSTRAMB
RSTREGARSTREG
RSTREGB
SBITERR
WEA<3:0> WEBWE<7:0>
Direction Input Input Input Input Output Input Input Input
Input
Input
Input
Output
Input Input
Width 1 1 1 1 9 1 1 1
1
1
1
1
4 8
Function
Port A RAM enable/Read enable.
Port B RAM enable/Write enable.
Inject a double bit error if ECC feature is used.
Inject a single bit error if ECC feature is used.
ECC read address. Not used when RAM_MODE="TDP".
Port A output register clock enable input/Output register clock enable input (valid only when DO_REG=1).
Port B output register clock enable (valid only when DO_REG=1 and RAM_MODE="TDP").
Synchronous data latch set/reset to value indicated by SRVAL_A. RSTRAMARSTRAM sets/resets the BRAM data output latch when DO_REG=0 or 1. If DO_REG=1 there is a cycle of latency between the internal data latch node that is reset by RSTRAMARSTRAM and the DO output of the BRAM. This signal resets port A RAM output when RAM_MODE="TDP" and the entire RAM output when RAM_MODE="SDP".
Synchronous data latch set/reset to value indicated by SRVAL_B. RSTRAMB sets/resets the BRAM data output latch when DO_REG=0 or 1. If DO_REG=1 there is a cycle of latency between the internal data latch node that is reset by RSTRAMB and the DO output of the BRAM. Not used when RAM_MODE="SDP".
Synchronous output register set/reset to value indicated by SRVAL_A. RSTREGARSTREG sets/resets the output register when DO_REG=1. RSTREG_PRIORITY_A determines if this signal gets priority over REGCEAREGCE. This signal resets port A output when RAM_MODE="TDP" and the entire output port when RAM_MODE="SDP".
Synchronous output register set/reset to value indicated by SRVAL_B. RSTREGB sets/resets the output register when DO_REG=1. RSTREG_PRIORITY_B determines if this signal gets priority over REGCEB. Not used when RAM_MODE="SDP".
Status output from ECC function to indicate a single bit error was detected. EN_ECC_READ needs to be TRUE in order to use this functionality. Not used when RAM_MODE="TDP".
Port A byte-wide write enable. Not used when RAM_MODE="SDP". See User Guide for WEA mapping for different port widths.
Port B byte-wide write enable/Write enable. See User Guide for WEBWE mapping for different port widths.
Design Entry Method
Instantiation Inference IP Catalog Macro support
Yes Recommended Yes Yes
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 563
Chapter 5: Design Elements
Available Attributes
Attribute RDADDR _COLLISION _HWCONFIG
SIM_COLLISION _CHECK
Type STRING
STRING
Allowed Values "DELAYED_WRITE", "PERFORMANCE"
"ALL", "GENERATE_X_ONLY", "NONE", "WARNING_ONLY"
Default "DELAYED _WRITE"
"ALL"
Description
When set to "PERFORMANCE" allows for higher clock performance (frequency) in READ_FIRST mode. If using the same clock on both ports of the RAM with "PERFORMANCE" mode, the address overlap collision rules apply where in "DELAYED_WRITE" mode, you can safely use the BRAM without incurring collisions.
Allows modification of the simulation behavior so that if a memory collision occurs
� "ALL" = warning produced and affected
outputs/memory go unknown (X)
� "WARNING_ONLY" = warning produced
and affected outputs/memory retain last value
� "GENERATE_X_ONLY" = no warning and
affected outputs/memory go unknown (X)
� "NONE" = no warning and affected
outputs/memory retain last value
Note: Use this setting carefully. Setting it to a value other than "ALL" can mask design problems during simulation.
DOA_REG, DOB_REG DECIMAL 0, 1
0
EN_ECC_READ EN_ECC_WRITE INIT_A, INIT_B
BOOLEAN BOOLEAN HEX
FALSE, TRUE FALSE, TRUE 36 bit HEX
FALSE FALSE All zeros
INIT_00 to INIT_7F HEX
INIT_FILE
STRING
INITP_00 to INITP_0F HEX
RAM_EXTENSION _A, STRING RAM_EXTENSION _B
256 bit HEX
All zeros
String representing file name and location
256 bit HEX
None All zeros
"NONE", "LOWER", "UPPER"
"NONE"
A value of 1 enables the output registers to the RAM, which gives you quicker clock-toout from the RAM at the expense of an added clock cycle of read latency. A value of 0 allows a read-in-one clock cycle but will result in slower clock-to-out timing. The number of registers activated is the same as the port width and includes parity bits. In SDP mode, DOA_REG and DOB_REG should always be set to the same value.
Enable the ECC decoder circuitry.
Enable the ECC encoder circuitry.
Specifies the initial value on the port output after configuration. In SDP mode, INIT_A and INIT_B should always be set to the same value.
Allows specification of the initial contents of the 32Kb data memory array.
File name of file used to specify initial RAM contents.
Allows specification of the initial contents of the 4Kb parity data memory array.
Selects cascade mode. If not cascading two BlockRAMs to form a 64K x 1 RAM set to "NONE". If cascading RAMs, set to either "UPPER" or "LOWER" to indicate relative RAM location for proper configuration of the RAM. Not used if RAM_MODE="SDP".
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 564
Chapter 5: Design Elements
Attribute RAM_MODE
Type STRING
Allowed Values "TDP", "SDP"
READ_WIDTH_A, READ_WIDTH_B, WRITE_WIDTH_A, WRITE_WIDTH_B
DECIMAL 0, 1, 2, 4, 9, 18, 36, 72
RSTREG_PRIORITY STRING _A, RSTREG_PRIORITY _B
"RSTREG", "REGCE"
SIM_DEVICE
STRING
"7SERIES"
SRVAL_A, SRVAL_B HEX
36 bit HEX
WRITE_MODE_A, WRITE_MODE_B
STRING
"WRITE_FIRST", "NO_CHANGE", "READ_FIRST"
Default "TDP" 0
"RSTREG"
"7SERIES" All zeros
"WRITE _FIRST"
Description
Selects simple dual port (SDP) or true dual port (TDP) mode.
Specifies the desired data width for a read/ write on port A/B, including parity bits. This value must be 0 if the port is not used. Otherwise, it should be set to the desired port width.
Selects register priority for "RSTREG" or "REGCE". In SDP mode, RSTREG_PRIORITY_A and RSTREG_PRIORITY_B should always be set to the same value.
Must be set to "7SERIES" in order to exhibit proper simulation behavior under all conditions.
Specifies the output value of the RAM upon assertion of the synchronous reset (RSTREG) signal. In SDP mode, SRVAL_A and SRVAL_B should always be set to the same value.
Specifies output behavior of the port being written to.
� "WRITE_FIRST" = written value appears
on output port of the RAM
� "READ_FIRST" = previous RAM contents
for that memory location appears on the output port
� "NO_CHANGE" = previous value on the
output port remains the same
When RAM_MODE="SDP", WRITE_MODE can not be set to "NO_CHANGE". For simple dual port implementations, it is generally suggested to set WRITE_MODE to "READ_FIRST" if using the same clock on both ports and to set it to "WRITE_FIRST" if using different clocks. This generally yields an improved collision or address overlap behavior when using the BRAM in this configuration.
VHDL Instantiation Template Unless they already exist, copy the following two statements and paste them before the entity declaration.
Library UNISIM; use UNISIM.vcomponents.all;
-- RAMB36E1: 36K-bit Configurable Synchronous Block RAM
--
7 Series
-- Xilinx HDL Language Template, version 2019.1
RAMB36E1_inst : RAMB36E1 generic map (
-- Address Collision Mode: "PERFORMANCE" or "DELAYED_WRITE" RDADDR_COLLISION_HWCONFIG => "DELAYED_WRITE", -- Collision check: Values ("ALL", "WARNING_ONLY", "GENERATE_X_ONLY" or "NONE") SIM_COLLISION_CHECK => "ALL",
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 565
Chapter 5: Design Elements
-- DOA_REG, DOB_REG: Optional output register (0 or 1)
DOA_REG => 0,
DOB_REG => 0,
EN_ECC_READ => FALSE,
-- Enable ECC decoder,
-- FALSE, TRUE
EN_ECC_WRITE => FALSE,
-- Enable ECC encoder,
-- FALSE, TRUE
-- INITP_00 to INITP_0F: Initial contents of the parity memory array
INITP_00 => X"0000000000000000000000000000000000000000000000000000000000000000",
INITP_01 => X"0000000000000000000000000000000000000000000000000000000000000000",
INITP_02 => X"0000000000000000000000000000000000000000000000000000000000000000",
INITP_03 => X"0000000000000000000000000000000000000000000000000000000000000000",
INITP_04 => X"0000000000000000000000000000000000000000000000000000000000000000",
INITP_05 => X"0000000000000000000000000000000000000000000000000000000000000000",
INITP_06 => X"0000000000000000000000000000000000000000000000000000000000000000",
INITP_07 => X"0000000000000000000000000000000000000000000000000000000000000000",
INITP_08 => X"0000000000000000000000000000000000000000000000000000000000000000",
INITP_09 => X"0000000000000000000000000000000000000000000000000000000000000000",
INITP_0A => X"0000000000000000000000000000000000000000000000000000000000000000",
INITP_0B => X"0000000000000000000000000000000000000000000000000000000000000000",
INITP_0C => X"0000000000000000000000000000000000000000000000000000000000000000",
INITP_0D => X"0000000000000000000000000000000000000000000000000000000000000000",
INITP_0E => X"0000000000000000000000000000000000000000000000000000000000000000",
INITP_0F => X"0000000000000000000000000000000000000000000000000000000000000000",
-- INIT_00 to INIT_7F: Initial contents of the data memory array
INIT_00 => X"0000000000000000000000000000000000000000000000000000000000000000",
INIT_01 => X"0000000000000000000000000000000000000000000000000000000000000000",
INIT_02 => X"0000000000000000000000000000000000000000000000000000000000000000",
INIT_03 => X"0000000000000000000000000000000000000000000000000000000000000000",
INIT_04 => X"0000000000000000000000000000000000000000000000000000000000000000",
INIT_05 => X"0000000000000000000000000000000000000000000000000000000000000000",
INIT_06 => X"0000000000000000000000000000000000000000000000000000000000000000",
INIT_07 => X"0000000000000000000000000000000000000000000000000000000000000000",
INIT_08 => X"0000000000000000000000000000000000000000000000000000000000000000",
INIT_09 => X"0000000000000000000000000000000000000000000000000000000000000000",
INIT_0A => X"0000000000000000000000000000000000000000000000000000000000000000",
INIT_0B => X"0000000000000000000000000000000000000000000000000000000000000000",
INIT_0C => X"0000000000000000000000000000000000000000000000000000000000000000",
INIT_0D => X"0000000000000000000000000000000000000000000000000000000000000000",
INIT_0E => X"0000000000000000000000000000000000000000000000000000000000000000",
INIT_0F => X"0000000000000000000000000000000000000000000000000000000000000000",
INIT_10 => X"0000000000000000000000000000000000000000000000000000000000000000",
INIT_11 => X"0000000000000000000000000000000000000000000000000000000000000000",
INIT_12 => X"0000000000000000000000000000000000000000000000000000000000000000",
INIT_13 => X"0000000000000000000000000000000000000000000000000000000000000000",
INIT_14 => X"0000000000000000000000000000000000000000000000000000000000000000",
INIT_15 => X"0000000000000000000000000000000000000000000000000000000000000000",
INIT_16 => X"0000000000000000000000000000000000000000000000000000000000000000",
INIT_17 => X"0000000000000000000000000000000000000000000000000000000000000000",
INIT_18 => X"0000000000000000000000000000000000000000000000000000000000000000",
INIT_19 => X"0000000000000000000000000000000000000000000000000000000000000000",
INIT_1A => X"0000000000000000000000000000000000000000000000000000000000000000",
INIT_1B => X"0000000000000000000000000000000000000000000000000000000000000000",
INIT_1C => X"0000000000000000000000000000000000000000000000000000000000000000",
INIT_1D => X"0000000000000000000000000000000000000000000000000000000000000000",
INIT_1E => X"0000000000000000000000000000000000000000000000000000000000000000",
INIT_1F => X"0000000000000000000000000000000000000000000000000000000000000000",
INIT_20 => X"0000000000000000000000000000000000000000000000000000000000000000",
INIT_21 => X"0000000000000000000000000000000000000000000000000000000000000000",
INIT_22 => X"0000000000000000000000000000000000000000000000000000000000000000",
INIT_23 => X"0000000000000000000000000000000000000000000000000000000000000000",
INIT_24 => X"0000000000000000000000000000000000000000000000000000000000000000",
INIT_25 => X"0000000000000000000000000000000000000000000000000000000000000000",
INIT_26 => X"0000000000000000000000000000000000000000000000000000000000000000",
INIT_27 => X"0000000000000000000000000000000000000000000000000000000000000000",
INIT_28 => X"0000000000000000000000000000000000000000000000000000000000000000",
INIT_29 => X"0000000000000000000000000000000000000000000000000000000000000000",
INIT_2A => X"0000000000000000000000000000000000000000000000000000000000000000",
INIT_2B => X"0000000000000000000000000000000000000000000000000000000000000000",
INIT_2C => X"0000000000000000000000000000000000000000000000000000000000000000",
INIT_2D => X"0000000000000000000000000000000000000000000000000000000000000000",
INIT_2E => X"0000000000000000000000000000000000000000000000000000000000000000",
INIT_2F => X"0000000000000000000000000000000000000000000000000000000000000000",
INIT_30 => X"0000000000000000000000000000000000000000000000000000000000000000",
INIT_31 => X"0000000000000000000000000000000000000000000000000000000000000000",
INIT_32 => X"0000000000000000000000000000000000000000000000000000000000000000",
INIT_33 => X"0000000000000000000000000000000000000000000000000000000000000000",
INIT_34 => X"0000000000000000000000000000000000000000000000000000000000000000",
INIT_35 => X"0000000000000000000000000000000000000000000000000000000000000000",
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 566
Chapter 5: Design Elements
INIT_36 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_37 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_38 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_39 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_3A => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_3B => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_3C => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_3D => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_3E => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_3F => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_40 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_41 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_42 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_43 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_44 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_45 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_46 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_47 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_48 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_49 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_4A => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_4B => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_4C => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_4D => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_4E => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_4F => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_50 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_51 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_52 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_53 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_54 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_55 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_56 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_57 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_58 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_59 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_5A => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_5B => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_5C => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_5D => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_5E => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_5F => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_60 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_61 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_62 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_63 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_64 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_65 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_66 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_67 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_68 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_69 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_6A => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_6B => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_6C => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_6D => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_6E => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_6F => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_70 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_71 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_72 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_73 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_74 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_75 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_76 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_77 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_78 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_79 => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_7A => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_7B => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_7C => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_7D => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_7E => X"0000000000000000000000000000000000000000000000000000000000000000", INIT_7F => X"0000000000000000000000000000000000000000000000000000000000000000", -- INIT_A, INIT_B: Initial values on output ports INIT_A => X"000000000", INIT_B => X"000000000", -- Initialization File: RAM initialization file INIT_FILE => "NONE",
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 567
Chapter 5: Design Elements
-- RAM Mode: "SDP" or "TDP"
RAM_MODE => "TDP",
-- RAM_EXTENSION_A, RAM_EXTENSION_B: Selects cascade mode ("UPPER", "LOWER", or "NONE")
RAM_EXTENSION_A => "NONE",
RAM_EXTENSION_B => "NONE",
-- READ_WIDTH_A/B, WRITE_WIDTH_A/B: Read/write width per port
READ_WIDTH_A => 0,
-- 0-72
READ_WIDTH_B => 0,
-- 0-36
WRITE_WIDTH_A => 0,
-- 0-36
WRITE_WIDTH_B => 0,
-- 0-72
-- RSTREG_PRIORITY_A, RSTREG_PRIORITY_B: Reset or enable priority ("RSTREG" or "REGCE")
RSTREG_PRIORITY_A => "RSTREG",
RSTREG_PRIORITY_B => "RSTREG",
-- SRVAL_A, SRVAL_B: Set/reset value for output
SRVAL_A => X"000000000",
SRVAL_B => X"000000000",
-- Simulation Device: Must be set to "7SERIES" for simulation behavior
SIM_DEVICE => "7SERIES",
-- WriteMode: Value on output upon a write ("WRITE_FIRST", "READ_FIRST", or "NO_CHANGE")
WRITE_MODE_A => "WRITE_FIRST",
WRITE_MODE_B => "WRITE_FIRST"
)
port map (
-- Cascade Signals: 1-bit (each) output: BRAM cascade ports (to create 64kx1)
CASCADEOUTA => CASCADEOUTA,
-- 1-bit output: A port cascade
CASCADEOUTB => CASCADEOUTB,
-- 1-bit output: B port cascade
-- ECC Signals: 1-bit (each) output: Error Correction Circuitry ports
DBITERR => DBITERR,
-- 1-bit output: Double bit error status
ECCPARITY => ECCPARITY,
-- 8-bit output: Generated error correction parity
RDADDRECC => RDADDRECC,
-- 9-bit output: ECC read address
SBITERR => SBITERR,
-- 1-bit output: Single bit error status
-- Port A Data: 32-bit (each) output: Port A data
DOADO => DOADO,
-- 32-bit output: A port data/LSB data
DOPADOP => DOPADOP,
-- 4-bit output: A port parity/LSB parity
-- Port B Data: 32-bit (each) output: Port B data
DOBDO => DOBDO,
-- 32-bit output: B port data/MSB data
DOPBDOP => DOPBDOP,
-- 4-bit output: B port parity/MSB parity
-- Cascade Signals: 1-bit (each) input: BRAM cascade ports (to create 64kx1)
CASCADEINA => CASCADEINA,
-- 1-bit input: A port cascade
CASCADEINB => CASCADEINB,
-- 1-bit input: B port cascade
-- ECC Signals: 1-bit (each) input: Error Correction Circuitry ports
INJECTDBITERR => INJECTDBITERR, -- 1-bit input: Inject a double bit error
INJECTSBITERR => INJECTSBITERR, -- 1-bit input: Inject a single bit error
-- Port A Address/Control Signals: 16-bit (each) input: Port A address and control signals (read port
-- when RAM_MODE="SDP")
ADDRARDADDR => ADDRARDADDR,
-- 16-bit input: A port address/Read address
CLKARDCLK => CLKARDCLK,
-- 1-bit input: A port clock/Read clock
ENARDEN => ENARDEN,
-- 1-bit input: A port enable/Read enable
REGCEAREGCE => REGCEAREGCE,
-- 1-bit input: A port register enable/Register enable
RSTRAMARSTRAM => RSTRAMARSTRAM, -- 1-bit input: A port set/reset
RSTREGARSTREG => RSTREGARSTREG, -- 1-bit input: A port register set/reset
WEA => WEA,
-- 4-bit input: A port write enable
-- Port A Data: 32-bit (each) input: Port A data
DIADI => DIADI,
-- 32-bit input: A port data/LSB data
DIPADIP => DIPADIP,
-- 4-bit input: A port parity/LSB parity
-- Port B Address/Control Signals: 16-bit (each) input: Port B address and control signals (write port
-- when RAM_MODE="SDP")
ADDRBWRADDR => ADDRBWRADDR,
-- 16-bit input: B port address/Write address
CLKBWRCLK => CLKBWRCLK,
-- 1-bit input: B port clock/Write clock
ENBWREN => ENBWREN,
-- 1-bit input: B port enable/Write enable
REGCEB => REGCEB,
-- 1-bit input: B port register enable
RSTRAMB => RSTRAMB,
-- 1-bit input: B port set/reset
RSTREGB => RSTREGB,
-- 1-bit input: B port register set/reset
WEBWE => WEBWE,
-- 8-bit input: B port write enable/Write enable
-- Port B Data: 32-bit (each) input: Port B data
DIBDI => DIBDI,
-- 32-bit input: B port data/MSB data
DIPBDIP => DIPBDIP
-- 4-bit input: B port parity/MSB parity
);
-- End of RAMB36E1_inst instantiation
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 568
Chapter 5: Design Elements
Verilog Instantiation Template
// RAMB36E1: 36K-bit Configurable Synchronous Block RAM
//
7 Series
// Xilinx HDL Language Template, version 2019.1
RAMB36E1 #(
// Address Collision Mode: "PERFORMANCE" or "DELAYED_WRITE"
.RDADDR_COLLISION_HWCONFIG("DELAYED_WRITE"),
// Collision check: Values ("ALL", "WARNING_ONLY", "GENERATE_X_ONLY" or "NONE")
.SIM_COLLISION_CHECK("ALL"),
// DOA_REG, DOB_REG: Optional output register (0 or 1)
.DOA_REG(0),
.DOB_REG(0),
.EN_ECC_READ("FALSE"),
// Enable ECC decoder,
// FALSE, TRUE
.EN_ECC_WRITE("FALSE"),
// Enable ECC encoder,
// FALSE, TRUE
// INITP_00 to INITP_0F: Initial contents of the parity memory array
.INITP_00(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INITP_01(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INITP_02(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INITP_03(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INITP_04(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INITP_05(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INITP_06(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INITP_07(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INITP_08(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INITP_09(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INITP_0A(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INITP_0B(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INITP_0C(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INITP_0D(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INITP_0E(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INITP_0F(256'h0000000000000000000000000000000000000000000000000000000000000000),
// INIT_00 to INIT_7F: Initial contents of the data memory array
.INIT_00(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_01(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_02(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_03(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_04(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_05(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_06(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_07(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_08(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_09(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_0A(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_0B(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_0C(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_0D(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_0E(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_0F(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_10(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_11(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_12(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_13(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_14(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_15(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_16(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_17(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_18(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_19(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_1A(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_1B(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_1C(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_1D(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_1E(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_1F(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_20(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_21(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_22(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_23(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_24(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_25(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_26(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_27(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_28(256'h0000000000000000000000000000000000000000000000000000000000000000),
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 569
Chapter 5: Design Elements
.INIT_29(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_2A(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_2B(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_2C(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_2D(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_2E(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_2F(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_30(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_31(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_32(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_33(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_34(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_35(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_36(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_37(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_38(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_39(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_3A(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_3B(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_3C(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_3D(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_3E(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_3F(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_40(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_41(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_42(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_43(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_44(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_45(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_46(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_47(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_48(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_49(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_4A(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_4B(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_4C(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_4D(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_4E(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_4F(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_50(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_51(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_52(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_53(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_54(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_55(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_56(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_57(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_58(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_59(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_5A(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_5B(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_5C(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_5D(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_5E(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_5F(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_60(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_61(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_62(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_63(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_64(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_65(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_66(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_67(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_68(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_69(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_6A(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_6B(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_6C(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_6D(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_6E(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_6F(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_70(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_71(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_72(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_73(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_74(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_75(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_76(256'h0000000000000000000000000000000000000000000000000000000000000000), .INIT_77(256'h0000000000000000000000000000000000000000000000000000000000000000),
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 570
Chapter 5: Design Elements
.INIT_78(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_79(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_7A(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_7B(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_7C(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_7D(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_7E(256'h0000000000000000000000000000000000000000000000000000000000000000),
.INIT_7F(256'h0000000000000000000000000000000000000000000000000000000000000000),
// INIT_A, INIT_B: Initial values on output ports
.INIT_A(36'h000000000),
.INIT_B(36'h000000000),
// Initialization File: RAM initialization file
.INIT_FILE("NONE"),
// RAM Mode: "SDP" or "TDP"
.RAM_MODE("TDP"),
// RAM_EXTENSION_A, RAM_EXTENSION_B: Selects cascade mode ("UPPER", "LOWER", or "NONE")
.RAM_EXTENSION_A("NONE"),
.RAM_EXTENSION_B("NONE"),
// READ_WIDTH_A/B, WRITE_WIDTH_A/B: Read/write width per port
.READ_WIDTH_A(0),
// 0-72
.READ_WIDTH_B(0),
// 0-36
.WRITE_WIDTH_A(0),
// 0-36
.WRITE_WIDTH_B(0),
// 0-72
// RSTREG_PRIORITY_A, RSTREG_PRIORITY_B: Reset or enable priority ("RSTREG" or "REGCE")
.RSTREG_PRIORITY_A("RSTREG"),
.RSTREG_PRIORITY_B("RSTREG"),
// SRVAL_A, SRVAL_B: Set/reset value for output
.SRVAL_A(36'h000000000),
.SRVAL_B(36'h000000000),
// Simulation Device: Must be set to "7SERIES" for simulation behavior
.SIM_DEVICE("7SERIES"),
// WriteMode: Value on output upon a write ("WRITE_FIRST", "READ_FIRST", or "NO_CHANGE")
.WRITE_MODE_A("WRITE_FIRST"),
.WRITE_MODE_B("WRITE_FIRST")
)
RAMB36E1_inst (
// Cascade Signals: 1-bit (each) output: BRAM cascade ports (to create 64kx1)
.CASCADEOUTA(CASCADEOUTA),
// 1-bit output: A port cascade
.CASCADEOUTB(CASCADEOUTB),
// 1-bit output: B port cascade
// ECC Signals: 1-bit (each) output: Error Correction Circuitry ports
.DBITERR(DBITERR),
// 1-bit output: Double bit error status
.ECCPARITY(ECCPARITY),
// 8-bit output: Generated error correction parity
.RDADDRECC(RDADDRECC),
// 9-bit output: ECC read address
.SBITERR(SBITERR),
// 1-bit output: Single bit error status
// Port A Data: 32-bit (each) output: Port A data
.DOADO(DOADO),
// 32-bit output: A port data/LSB data
.DOPADOP(DOPADOP),
// 4-bit output: A port parity/LSB parity
// Port B Data: 32-bit (each) output: Port B data
.DOBDO(DOBDO),
// 32-bit output: B port data/MSB data
.DOPBDOP(DOPBDOP),
// 4-bit output: B port parity/MSB parity
// Cascade Signals: 1-bit (each) input: BRAM cascade ports (to create 64kx1)
.CASCADEINA(CASCADEINA),
// 1-bit input: A port cascade
.CASCADEINB(CASCADEINB),
// 1-bit input: B port cascade
// ECC Signals: 1-bit (each) input: Error Correction Circuitry ports
.INJECTDBITERR(INJECTDBITERR), // 1-bit input: Inject a double bit error
.INJECTSBITERR(INJECTSBITERR), // 1-bit input: Inject a single bit error
// Port A Address/Control Signals: 16-bit (each) input: Port A address and control signals (read port
// when RAM_MODE="SDP")
.ADDRARDADDR(ADDRARDADDR),
// 16-bit input: A port address/Read address
.CLKARDCLK(CLKARDCLK),
// 1-bit input: A port clock/Read clock
.ENARDEN(ENARDEN),
// 1-bit input: A port enable/Read enable
.REGCEAREGCE(REGCEAREGCE),
// 1-bit input: A port register enable/Register enable
.RSTRAMARSTRAM(RSTRAMARSTRAM), // 1-bit input: A port set/reset
.RSTREGARSTREG(RSTREGARSTREG), // 1-bit input: A port register set/reset
.WEA(WEA),
// 4-bit input: A port write enable
// Port A Data: 32-bit (each) input: Port A data
.DIADI(DIADI),
// 32-bit input: A port data/LSB data
.DIPADIP(DIPADIP),
// 4-bit input: A port parity/LSB parity
// Port B Address/Control Signals: 16-bit (each) input: Port B address and control signals (write port
// when RAM_MODE="SDP")
.ADDRBWRADDR(ADDRBWRADDR),
// 16-bit input: B port address/Write address
.CLKBWRCLK(CLKBWRCLK),
// 1-bit input: B port clock/Write clock
.ENBWREN(ENBWREN),
// 1-bit input: B port enable/Write enable
.REGCEB(REGCEB),
// 1-bit input: B port register enable
.RSTRAMB(RSTRAMB),
// 1-bit input: B port set/reset
.RSTREGB(RSTREGB),
// 1-bit input: B port register set/reset
.WEBWE(WEBWE),
// 8-bit input: B port write enable/Write enable
// Port B Data: 32-bit (each) input: Port B data
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 571
Chapter 5: Design Elements
.DIBDI(DIBDI), .DIPBDIP(DIPBDIP) );
// 32-bit input: B port data/MSB data // 4-bit input: B port parity/MSB parity
// End of RAMB36E1_inst instantiation
For More Information � See the 7 Series Programmable Devices User Guides.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 572
Chapter 5: Design Elements
ROM128X1
Primitive: 128-Deep by 1-Wide ROM
ROM128X1
A0
O
A1
A2
A3
A4 A5 A6
X9731
Introduction
This design element is a 128-word by 1-bit read-only memory. The data output (O) reflects the word selected by the 7-bit address (A6:A0). The ROM is initialized to a known value during configuration with the INIT parameter. The value consists of 32 hexadecimal digits that are written into the ROM from the most-significant digit A=FH to the least-significant digit A=0H.
An error occurs if INIT is not specified.
Logic Table
I0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1
I1 0 0 0 0 1 1 1 1 0 0 0 0 1 1 1
Input I2
0 0 1 1 0 0 1 1 0 0 1 1 0 0 1
I3 0 1 0 1 0 1 0 1 0 1 0 1 0 1 0
Output O
INIT(0) INIT(1) INIT(2) INIT(3) INIT(4) INIT(5) INIT(6) INIT(7) INIT(8) INIT(9) INIT(10) INIT(11) INIT(12) INIT(13) INIT(14)
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 573
Chapter 5: Design Elements
I0 1
I1 1
Input I2
1
I3 1
Output O
INIT(15)
Design Entry Method
Instantiation Inference IP Catalog Macro support
Yes Recommended No No
Available Attributes
Attribute Type
INIT
HEX
Allowed Values Any 128-Bit Value
Default All zeros
Description Specifies the contents of the ROM.
VHDL Instantiation Template Unless they already exist, copy the following two statements and paste them before the entity declaration.
Library UNISIM; use UNISIM.vcomponents.all;
-- ROM128X1: 128 x 1 Asynchronous Distributed (LUT) ROM
--
7 Series
-- Xilinx HDL Language Template, version 2019.1
ROM128X1_inst : ROM128X1 generic map (
INIT => X"00000000000000000000000000000000") port map (
O => O, -- ROM output A0 => A0, -- ROM address[0] A1 => A1, -- ROM address[1] A2 => A2, -- ROM address[2] A3 => A3, -- ROM address[3] A4 => A4, -- ROM address[4] A5 => A5, -- ROM address[5] A6 => A6 -- ROM address[6] );
-- End of ROM128X1_inst instantiation
Verilog Instantiation Template
// ROM128X1: 128 x 1 Asynchronous Distributed (LUT) ROM (Mapped to two SliceM LUT6s)
//
7 Series
// Xilinx HDL Language Template, version 2019.1
ROM128X1 #( .INIT(128'h00000000000000000000000000000000) // Contents of ROM
) ROM128X1_inst ( .O(O), // ROM output .A0(A0), // ROM address[0] .A1(A1), // ROM address[1] .A2(A2), // ROM address[2]
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 574
.A3(A3), // ROM address[3] .A4(A4), // ROM address[4] .A5(A5), // ROM address[5] .A6(A6) // ROM address[6] ); // End of ROM128X1_inst instantiation
For More Information � See the 7 Series Programmable Devices User Guides.
Chapter 5: Design Elements
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 575
Chapter 5: Design Elements
ROM256X1
Primitive: 256-Deep by 1-Wide ROM
ROM256X1
A0 A1
A2 A3 A4 A5 A6 A7
O
X9732
Introduction
This design element is a 256-word by 1-bit read-only memory. The data output (O) reflects the word selected by the 8-bit address (A7:A0). The ROM is initialized to a known value during configuration with the INIT parameter. The value consists of 64 hexadecimal digits that are written into the ROM from the most-significant digit A=FH to the least-significant digit A=0H.
An error occurs if the INIT is not specified.
Logic Table
I0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1
I1 0 0 0 0 1 1 1 1 0 0 0 0 1 1 1
Input I2
0 0 1 1 0 0 1 1 0 0 1 1 0 0 1
I3 0 1 0 1 0 1 0 1 0 1 0 1 0 1 0
INIT(0) INIT(1) INIT(2) INIT(3) INIT(4) INIT(5) INIT(6) INIT(7) INIT(8) INIT(9) INIT(10) INIT(11) INIT(12) INIT(13) INIT(14)
Output O
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 576
Chapter 5: Design Elements
I0 1
I1 1
Input I2
1
I3 1
INIT(15)
Output O
Design Entry Method
Instantiation Inference IP Catalog Macro support
Yes Recommended No No
Available Attributes
Attribute Type
INIT
HEX
Allowed Values Any 256-Bit Value
Default All zeros
Description Specifies the contents of the ROM.
VHDL Instantiation Template Unless they already exist, copy the following two statements and paste them before the entity declaration.
Library UNISIM; use UNISIM.vcomponents.all;
-- ROM256X1: 256 x 1 Asynchronous Distributed (LUT) ROM
--
7 Series
-- Xilinx HDL Language Template, version 2019.1
ROM256X1_inst : ROM256X1 generic map (
INIT => X"0000000000000000000000000000000000000000000000000000000000000000") port map (
O => O, -- ROM output A0 => A0, -- ROM address[0] A1 => A1, -- ROM address[1] A2 => A2, -- ROM address[2] A3 => A3, -- ROM address[3] A4 => A4, -- ROM address[4] A5 => A5, -- ROM address[5] A6 => A6, -- ROM address[6] A7 => A7 -- ROM address[7] );
-- End of ROM256X1_inst instantiation
Verilog Instantiation Template
// ROM256X1: 256 x 1 Asynchronous Distributed (LUT) ROM (Mapped to four SliceM LUT6s)
//
7 Series
// Xilinx HDL Language Template, version 2019.1
ROM256X1 #( .INIT(256'h0000000000000000000000000000000000000000000000000000000000000000) // Contents of ROM
) ROM256X1_inst ( .O(O), // ROM output .A0(A0), // ROM address[0] .A1(A1), // ROM address[1]
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 577
.A2(A2), // ROM address[2] .A3(A3), // ROM address[3] .A4(A4), // ROM address[4] .A5(A5), // ROM address[5] .A6(A6), // ROM address[6] .A7(A7) // ROM address[7] ); // End of ROM256X1_inst instantiation
For More Information � See the 7 Series Programmable Devices User Guides.
Chapter 5: Design Elements
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 578
Chapter 5: Design Elements
ROM32X1
Primitive: 32-Deep by 1-Wide ROM
ROM32X1
A0
O
A1
A2
A3
A4
X4130
Introduction
This design element is a 32-word by 1-bit read-only memory. The data output (O) reflects the word selected by the 5-bit address (A4:A0). The ROM is initialized to a known value during configuration with the INIT parameter. The value consists of eight hexadecimal digits that are written into the ROM from the most-significant digit A=1FH to the least-significant digit A=00H.
For example, INIT=10A78F39 produces the data stream: 0001 0000 1010 0111 1000 1111 0011 1001.
An error occurs if the INIT is not specified.
Logic Table
I0 0 0 0 0 0 0 0 0 1 1 1 1 1 1
I1 0 0 0 0 1 1 1 1 0 0 0 0 1 1
Input I2
0 0 1 1 0 0 1 1 0 0 1 1 0 0
I3 0 1 0 1 0 1 0 1 0 1 0 1 0 1
INIT(0) INIT(1) INIT(2) INIT(3) INIT(4) INIT(5) INIT(6) INIT(7) INIT(8) INIT(9) INIT(10) INIT(11) INIT(12) INIT(13)
Output O
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 579
Chapter 5: Design Elements
I0 1 1
I1 1 1
Input I2
1 1
I3 0 1
INIT(14) INIT(15)
Output O
Design Entry Method
Instantiation Inference IP Catalog Macro support
Yes Recommended No No
Available Attributes
Attribute Type
INIT
HEX
Allowed Values Any 32-Bit Value
Default All zeros
Description Specifies the contents of the ROM.
VHDL Instantiation Template Unless they already exist, copy the following two statements and paste them before the entity declaration.
Library UNISIM; use UNISIM.vcomponents.all;
-- ROM32X1: 32 x 1 Asynchronous Distributed (LUT) ROM
--
7 Series
-- Xilinx HDL Language Template, version 2019.1
ROM32X1_inst : ROM32X1 generic map (
INIT => X"00000000") port map (
O => O, -- ROM output A0 => A0, -- ROM address[0] A1 => A1, -- ROM address[1] A2 => A2, -- ROM address[2] A3 => A3, -- ROM address[3] A4 => A4 -- ROM address[4] ); -- End of ROM32X1_inst instantiation
Verilog Instantiation Template
// ROM32X1: 32 x 1 Asynchronous Distributed (LUT) ROM (Mapped to a SliceM LUT6)
//
7 Series
// Xilinx HDL Language Template, version 2019.1
ROM32X1 #( .INIT(32'h00000000) // Contents of ROM
) ROM32X1_inst ( .O(O), // ROM output .A0(A0), // ROM address[0] .A1(A1), // ROM address[1] .A2(A2), // ROM address[2]
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 580
.A3(A3), // ROM address[3] .A4(A4) // ROM address[4] ); // End of ROM32X1_inst instantiation
For More Information � See the 7 Series Programmable Devices User Guides.
Chapter 5: Design Elements
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 581
Chapter 5: Design Elements
ROM64X1
Primitive: 64-Deep by 1-Wide ROM
ROM64x1
A0
O
A1
A2
A3
A4
A5
X9730
Introduction
This design element is a 64-word by 1-bit read-only memory. The data output (O) reflects the word selected by the 6-bit address (A5:A0). The ROM is initialized to a known value during configuration with the INIT parameter. The value consists of 16 hexadecimal digits that are written into the ROM from the most-significant digit A=FH to the least-significant digit A=0H.
An error occurs if INIT is not specified.
Logic Table
I0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1
Input
I1
I2
0
0
0
0
0
1
0
1
1
0
1
0
1
1
1
1
0
0
0
0
0
1
0
1
1
0
1
0
1
1
1
1
I3 0 1 0 1 0 1 0 1 0 1 0 1 0 1 0 1
INIT(0) INIT(1) INIT(2) INIT(3) INIT(4) INIT(5) INIT(6) INIT(7) INIT(8) INIT(9) INIT(10) INIT(11) INIT(12) INIT(13) INIT(14) INIT(15)
Output O
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 582
Chapter 5: Design Elements
Design Entry Method
Instantiation Inference IP Catalog Macro support
Yes Recommended No No
Available Attributes
Attribute Type
INIT
HEX
Allowed Values Any 64-Bit Value
Default All zeros
Description Specifies the contents of the ROM.
VHDL Instantiation Template Unless they already exist, copy the following two statements and paste them before the entity declaration.
Library UNISIM; use UNISIM.vcomponents.all;
-- ROM64X1: 64 x 1 Asynchronous Distributed (LUT) ROM
--
7 Series
-- Xilinx HDL Language Template, version 2019.1
ROM64X1_inst : ROM64X1 generic map (
INIT => X"0000000000000000") port map (
O => O, -- ROM output A0 => A0, -- ROM address[0] A1 => A1, -- ROM address[1] A2 => A2, -- ROM address[2] A3 => A3, -- ROM address[3] A4 => A4, -- ROM address[4] A5 => A5 -- ROM address[5] );
-- End of ROM64X1_inst instantiation
Verilog Instantiation Template
// ROM64X1: 64 x 1 Asynchronous Distributed (LUT) ROM (Mapped to a SliceM LUT6)
//
7 Series
// Xilinx HDL Language Template, version 2019.1
ROM64X1 #( .INIT(64'h0000000000000000) // Contents of ROM
) ROM64X1_inst ( .O(O), // ROM output .A0(A0), // ROM address[0] .A1(A1), // ROM address[1] .A2(A2), // ROM address[2] .A3(A3), // ROM address[3] .A4(A4), // ROM address[4] .A5(A5) // ROM address[5]
);
// End of ROM64X1_inst instantiation
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 583
For More Information � See the 7 Series Programmable Devices User Guides.
Chapter 5: Design Elements
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 584
Chapter 5: Design Elements
SRL16E
Primitive: 16-Bit Shift Register Look-Up Table (LUT) with Clock Enable
SRL16E
D
Q
CE
CLK
A0
A1
A2
A3
X8423
Introduction
This design element is a shift register look-up table (LUT). The inputs A3, A2, A1, and A0 select the depth of the shift register. The shift register can be of a fixed, static depth or it can be dynamically adjusted.
To create a fixed-depth shift register: Drive the A3 through A0 inputs with static values. The depth of the shift register can vary from 1 bit to 16 bits, as determined by the following formula:
Depth = (8 x A3) + (4 x A2) + (2 x A1) + A0 + 1
If A3, A2, A1, and A0 are all zeros (0000), the shift register is one bit deep. If they are all ones (1111), it is 16 bits deep.
To change the depth of the shift register dynamically: Change the values driving the A3 through A0 inputs. For example, if A2, A1, and A0 are all ones (111) and A3 toggles between a one (1) and a zero (0), the depth of the shift register changes from 16 bits to 8 bits. Internally, the depth of the shift register is always 16 bits and the input lines A3 through A0 select which of the 16 bits reach the output. The shift register LUT contents are initialized by assigning a four-digit hexadecimal number to an INIT attribute. The first, or the left-most, hexadecimal digit is the most significant bit. If an INIT value is not specified, it defaults to a value of four zeros (0000) so that the shift register LUT is cleared during configuration.
When CE is High, the data (D) is loaded into the first bit of the shift register during the clock (CLK) transition. During subsequent clock transitions, when CE is High, data shifts to the next highest bit position as new data is loaded. The data appears on the Q output when the shift register length determined by the address inputs is reached. When CE is Low, the register ignores clock transitions and retains current data within the shift register.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 585
Chapter 5: Design Elements
Two SLR16E components may be placed within the same LUT within a CLBM as long as they have the same clock, clock enable and depth selection address signals as well as the same IS_CLK_INVERTED attribute value. This allows up to 16 SRL16E components to be placed into a single CLB. Optionally, LUTNM or HLUTNMs may be placed on two SRL16E components to specify specific grouping within a LUT.
Note: When using SRLs with initialized values, you should use safe clock start-up techniques to ensure the initialized data is not corrupted upon completion of configuration. Refer to UG949: UltraFast Design Methodology Guide for details on controlling and synchronizing clock startup.
Logic Table
Am
Am
0
Am
1
m= 0, 1, 2, 3
Inputs
CE
CLK
X
D X D
Output Q
Q(Am) Q(Am - 1)
Port Descriptions
Port CE CLK D Q A0
A1
A2
A3
Direction Input Input Input Output Input
Input
Input
Input
Width 1 1 1 1 1
1
1
1
Function
Active-High clock enable
Shift register clock. Polarity is determined by the IS_CLK_INVERTED attribute.
SRL data input
SRL data output
The value placed on the A0 - A3 inputs specifies the shift register depth. Depth = (8 x A3) + (4 x A2) + (2 x A1) + A0 + 1 .
The value placed on the A0 - A3 inputs specifies the shift register depth. Depth = (8 x A3) + (4 x A2) + (2 x A1) + A0 + 1 .
The value placed on the A0 - A3 inputs specifies the shift register depth. Depth = (8 x A3) + (4 x A2) + (2 x A1) + A0 + 1 .
The value placed on the A0 - A3 inputs specifies the shift register depth. Depth = (8 x A3) + (4 x A2) + (2 x A1) + A0 + 1 .
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 586
Chapter 5: Design Elements
Design Entry Method
Instantiation Inference IP Catalog Macro support
Yes Recommended No No
Available Attributes
Attribute Type
INIT
HEX
Allowed Values Any 16-Bit Value
Default All zeros
Description
Specifies the initial contents in the shift register upon completion of configuration.
VHDL Instantiation Template Unless they already exist, copy the following two statements and paste them before the entity declaration.
Library UNISIM; use UNISIM.vcomponents.all;
-- SRL16E: 16-bit shift register LUT with clock enable operating on posedge of clock (Mapped to SliceM LUT6)
--
7 Series
-- Xilinx HDL Language Template, version 2019.1
SRL16E_inst : SRL16E
generic map (
INIT => X"0000")
port map (
Q => Q,
-- SRL data output
A0 => A0,
-- Select[0] input
A1 => A1,
-- Select[1] input
A2 => A2,
-- Select[2] input
A3 => A3,
-- Select[3] input
CE => CE,
-- Clock enable input
CLK => CLK, -- Clock input
D => D
-- SRL data input
);
-- End of SRL16E_inst instantiation
Verilog Instantiation Template
// SRL16E: 16-bit shift register LUT with clock enable operating
//
on posedge of clock (Mapped to a SliceM LUT6)
//
7 Series
// Xilinx HDL Language Template, version 2019.1
SRL16E #(
.INIT(16'h0000) // Initial Value of Shift Register
) SRL16E_inst (
.Q(Q),
// SRL data output
.A0(A0),
// Select[0] input
.A1(A1),
// Select[1] input
.A2(A2),
// Select[2] input
.A3(A3),
// Select[3] input
.CE(CE),
// Clock enable input
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 587
.CLK(CLK), .D(D) );
// Clock input // SRL data input
// End of SRL16E_inst instantiation
For More Information � See the 7 Series Programmable Devices User Guides.
Chapter 5: Design Elements
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 588
Chapter 5: Design Elements
SRLC32E
Primitive: 32 Clock Cycle, Variable Length Shift Register Look-Up Table (LUT) with Clock Enable
SRLC32E
D
Q31
Q31
A[4:0]
Q30 Q
Q1 Q0
CE CLK
X10958
Introduction This design element is a shift register look-up table (LUT). The inputs A4, A3, A2, A1, and A0 select the depth of the shift register.
The shift register can be of a fixed, static depth or it can be dynamically adjusted.
To create a fixed-depth shift register: Drive the A4 through A0 inputs with static values. The depth of the shift register can vary from 1 bit to 32 bits, as determined by the following formula:
Depth = (16 x A4) + (8 x A3) + (4 x A2) + (2 x A1) + A0 + 1
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 589
Chapter 5: Design Elements
If A4, A3, A2, A1, and A0 are all zeros (00000), the shift register is one bit deep. If they are all ones (11111), it is 32 bits deep.
To change the depth of the shift register dynamically: Change the values driving the A4 through A0 inputs. For example, if A3, A2, A1, and A0 are all ones (1111) and A4 toggles between a one (1) and a zero (0), the depth of the shift register changes from 32 bits to 16 bits. Internally, the depth of the shift register is always 32 bits and the input lines A4 through A0 select which of the 32 bits reach the output. The shift register LUT contents are initialized by assigning a eight-digit hexadecimal number to an INIT attribute. The first, or the left-most, hexadecimal digit is the most significant bit. If an INIT value is not specified, it defaults to a value of eight zeros (00000000) so that the shift register LUT is cleared during configuration.
When CE is High, the data (D) is loaded into the first bit of the shift register during the clock (CLK) transition. During subsequent clock transitions, when CE is High, data shifts to the next highest bit position as new data is loaded. The data appears on the Q output when the shift register length determined by the address inputs is reached. When CE is Low, the register ignores clock transitions and retains current data within the shift register.
Two or more SLRC32E components may be cascaded to create deeper than 32-bit shift registers. To do so, connect the Q31 output of one SRLC32E component to the D input of another.
Note: When using SRLs with initialized values, you should use safe clock start-up techniques to ensure the initialized data is not corrupted upon completion of configuration. Refer to UG949: UltraFast Design Methodology Guide for details on controlling and synchronizing clock startup.
Port Descriptions
A<4:0>
Port
CE CLK
D Q Q31
Direction Input
Input Input Input Output Output
Width 5
1 1 1 1 1
Function
The value placed on the A0 - A3 inputs specifies the shift register depth. Depth = (16 x A4) + (8 x A3) + (4 x A2) + (2 x A1) + A0 + 1 .
Active-High clock enable
Shift register clock. Polarity is determined by the IS_CLK_INVERTED attribute.
SRL data input
SRL data output
SRL data output used to connect more than one SRLC32E component to form deeper than 32-bit shift registers.
Design Entry Method
Instantiation Inference IP Catalog Macro support
Yes Recommended No No
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 590
Chapter 5: Design Elements
Available Attributes
Attribute Type
INIT
HEX
Allowed Values Any 32-Bit Value
Default All zeros
Description
Specifies the initial contents in the shift register upon completion of configuration.
VHDL Instantiation Template Unless they already exist, copy the following two statements and paste them before the entity declaration.
Library UNISIM; use UNISIM.vcomponents.all;
-- SRLC32E: 32-bit variable length shift register LUT
--
with clock enable (Mapped to a SliceM LUT6)
--
7 Series
-- Xilinx HDL Language Template, version 2019.1
SRLC32E_inst : SRLC32E
generic map (
INIT => X"00000000")
port map (
Q => Q,
-- SRL data output
Q31 => Q31, -- SRL cascade output pin
A => A,
-- 5-bit shift depth select input
CE => CE,
-- Clock enable input
CLK => CLK, -- Clock input
D => D
-- SRL data input
);
-- End of SRLC32E_inst instantiation
Verilog Instantiation Template
// SRLC32E: 32-bit variable length cascadable shift register LUT
//
with clock enable
//
7 Series
// Xilinx HDL Language Template, version 2019.1
(Mapped to a SliceM LUT6)
SRLC32E #(
.INIT(32'h00000000) // Initial Value of Shift Register
) SRLC32E_inst (
.Q(Q),
// SRL data output
.Q31(Q31), // SRL cascade output pin
.A(A),
// 5-bit shift depth select input
.CE(CE), // Clock enable input
.CLK(CLK), // Clock input
.D(D)
// SRL data input
);
// End of SRLC32E_inst instantiation
For More Information � See the 7 Series Programmable Devices User Guides.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 591
Chapter 5: Design Elements
STARTUPE2
Primitive: STARTUP Block
STARTUPE2
CLK GSR GTS KEYCLEARB PACK USRCCLKO USRCCLKTS USRDONEO USRDONETS
CFGCLK CFGMCLK
EOS PREQ
X14478
Introduction
This design element is used to interface device pins and logic to the global asynchronous set/ reset (GSR) signal, the global 3-state (GTS) dedicated routing or the internal configuration signals or a few of the dedicated configuration pins.
Port Descriptions
CFGCLK CFGMCLK CLK EOS GSR
Port
GTS
KEYCLEARB
PACK PREQ USRCCLKO
USRCCLKTS
Direction Output Output Input Output Input
Input
Input
Input Output Input
Input
Width 1 1 1 1 1
1
1
1 1 1
1
Function
Configuration main clock output.
Configuration internal oscillator clock output.
User start-up clock input.
Active high output signal indicating the End Of Startup.
Global Set/Reset input (GSR cannot be used for the port name) .
Global 3-state input (GTS cannot be used for the port name) .
Clear AES Decrypter Key input from Battery-Backed RAM (BBRAM) .
PROGRAM acknowledge input.
PROGRAM request to fabric output.
User CCLK input. For Zynq-7000 devices, this input must be tied to GND.
User CCLK 3-state enable input. For Zynq-7000 devices, this input must be tied to VCC.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 592
Chapter 5: Design Elements
Port USRDONEO USRDONETS
Direction Input Input
Width 1 1
Function User DONE pin output control. User DONE 3-state enable output.
Design Entry Method
Instantiation Inference IP Catalog Macro support
Recommended No No No
Available Attributes
Attribute PROG_USR
SIM_CCLK_FREQ
Type STRING
FLOAT (nS)
Allowed Values Default "FALSE", "TRUE" "FALSE"
0.0 to 10.0
0.0
Description
Activate program event security feature. Requires encrypted bitstreams.
Set the Configuration Clock Frequency(ns) for simulation.
VHDL Instantiation Template Unless they already exist, copy the following two statements and paste them before the entity declaration.
Library UNISIM; use UNISIM.vcomponents.all;
-- STARTUPE2: STARTUP Block
--
7 Series
-- Xilinx HDL Language Template, version 2019.1
STARTUPE2_inst : STARTUPE2
generic map (
PROG_USR => "FALSE", -- Activate program event security feature. Requires encrypted bitstreams.
SIM_CCLK_FREQ => 0.0 -- Set the Configuration Clock Frequency(ns) for simulation.
)
port map (
CFGCLK => CFGCLK,
-- 1-bit output: Configuration main clock output
CFGMCLK => CFGMCLK,
-- 1-bit output: Configuration internal oscillator clock output
EOS => EOS,
-- 1-bit output: Active high output signal indicating the End Of Startup.
PREQ => PREQ,
-- 1-bit output: PROGRAM request to fabric output
CLK => CLK,
-- 1-bit input: User start-up clock input
GSR => GSR,
-- 1-bit input: Global Set/Reset input (GSR cannot be used for the port name)
GTS => GTS,
-- 1-bit input: Global 3-state input (GTS cannot be used for the port name)
KEYCLEARB => KEYCLEARB, -- 1-bit input: Clear AES Decrypter Key input from Battery-Backed RAM (BBRAM)
PACK => PACK,
-- 1-bit input: PROGRAM acknowledge input
USRCCLKO => USRCCLKO, -- 1-bit input: User CCLK input
-- For Zynq-7000 devices, this input must be tied to GND
USRCCLKTS => USRCCLKTS, -- 1-bit input: User CCLK 3-state enable input
-- For Zynq-7000 devices, this input must be tied to VCC
USRDONEO => USRDONEO, -- 1-bit input: User DONE pin output control
USRDONETS => USRDONETS -- 1-bit input: User DONE 3-state enable output
);
-- End of STARTUPE2_inst instantiation
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 593
Chapter 5: Design Elements
Verilog Instantiation Template
// STARTUPE2: STARTUP Block
//
7 Series
// Xilinx HDL Language Template, version 2019.1
STARTUPE2 #(
.PROG_USR("FALSE"), // Activate program event security feature. Requires encrypted bitstreams.
.SIM_CCLK_FREQ(0.0) // Set the Configuration Clock Frequency(ns) for simulation.
)
STARTUPE2_inst (
.CFGCLK(CFGCLK),
// 1-bit output: Configuration main clock output
.CFGMCLK(CFGMCLK),
// 1-bit output: Configuration internal oscillator clock output
.EOS(EOS),
// 1-bit output: Active high output signal indicating the End Of Startup.
.PREQ(PREQ),
// 1-bit output: PROGRAM request to fabric output
.CLK(CLK),
// 1-bit input: User start-up clock input
.GSR(GSR),
// 1-bit input: Global Set/Reset input (GSR cannot be used for the port name)
.GTS(GTS),
// 1-bit input: Global 3-state input (GTS cannot be used for the port name)
.KEYCLEARB(KEYCLEARB), // 1-bit input: Clear AES Decrypter Key input from Battery-Backed RAM (BBRAM)
.PACK(PACK),
// 1-bit input: PROGRAM acknowledge input
.USRCCLKO(USRCCLKO), // 1-bit input: User CCLK input
// For Zynq-7000 devices, this input must be tied to GND
.USRCCLKTS(USRCCLKTS), // 1-bit input: User CCLK 3-state enable input
// For Zynq-7000 devices, this input must be tied to VCC
.USRDONEO(USRDONEO), // 1-bit input: User DONE pin output control
.USRDONETS(USRDONETS) // 1-bit input: User DONE 3-state enable output
);
// End of STARTUPE2_inst instantiation
For More Information � See the 7 Series Programmable Devices User Guides.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 594
Chapter 5: Design Elements
USR_ACCESSE2
Primitive: Configuration Data Access
USR_ACCESSE2
DATA(31:0) CFGCLK
DATAVALID
X12114
Introduction
The USR_ACCESSE2 design element enables access to the 32-bit AXSS register within the configuration logic. This enables FPGA logic to access static data that can be set from the bitstream. The USR_ACCESSE2 register AXSS can be used to provide a single 32-bit constant value to the FPGA logic. The register contents can be defined during bitstream generation, avoiding the need to re-compile the design as would be required if distributed RAM was used to hold the constant. A constant can be used to track the version of the design, or any other information you require.
Port Descriptions
Port CFGCLK DATA<31:0>
DATAVALID
Direction Output Output
Output
Width 1 32
1
Function
Configuration Clock output Configuration Data reflecting the contents of the AXSS register Active high data valid output
Design Entry Method
Instantiation Inference IP Catalog Macro support
Recommended No No No
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 595
Chapter 5: Design Elements
VHDL Instantiation Template Unless they already exist, copy the following two statements and paste them before the entity declaration.
Library UNISIM; use UNISIM.vcomponents.all;
-- USR_ACCESSE2: Configuration Data Access
--
7 Series
-- Xilinx HDL Language Template, version 2019.1
USR_ACCESSE2_inst : USR_ACCESSE2
port map (
CFGCLK => CFGCLK,
-- 1-bit output: Configuration Clock output
DATA => DATA,
-- 32-bit output: Configuration Data output
DATAVALID => DATAVALID -- 1-bit output: Active high data valid output
);
-- End of USR_ACCESSE2_inst instantiation
Verilog Instantiation Template
// USR_ACCESSE2: Configuration Data Access
//
7 Series
// Xilinx HDL Language Template, version 2019.1
USR_ACCESSE2 USR_ACCESSE2_inst (
.CFGCLK(CFGCLK),
// 1-bit output: Configuration Clock output
.DATA(DATA),
// 32-bit output: Configuration Data output
.DATAVALID(DATAVALID) // 1-bit output: Active high data valid output
);
// End of USR_ACCESSE2_inst instantiation
For More Information � See the 7 Series FPGA SelectIO Resources User Guide (UG471). � See the 7 Series Programmable Devices User Guides.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 596
Chapter 5: Design Elements
XADC
Primitive: Dual 12-Bit 1MSPS Analog-to-Digital Converter
XADC
DADDR(6:0)
ALM(7:0)
DI(15:0)
CHANNEL(4:0)
VAUXN(15:0)
DO(15:0)
VAUXP(15:0) MUXADDR(4:0)
CONVST
BUSY
CONVSTCLK
DRDY
DCLK
EOC
DEN
EOS
DWE
JTAGBUSY
RESET
JTAGLOCKED
VN
JTAGMODIFIED
VP
OT
X12115
Introduction
XADC includes a dual 12-bit, 1 Mega sample per second (MSPS) ADC and on-chip sensors. These ADCs are fully tested and specified (see the respective 7 series FPGAs data sheet). The ADCs provide a general-purpose, high-precision analog interface for a range of applications. The dual ADCs support a range of operating modes, for example, externally triggered and simultaneous sampling on both ADCs and various analog input signal types, for example, unipolar, and differential. The ADCs can access up to 17 external analog input channels.
XADC also includes a number of on-chip sensors that support measurement of the on-chip power supply voltages and die temperature. The ADC conversion data is stored in dedicated registers called status registers. These registers are accessible via the FPGA interconnect using a 16-bit synchronous read and write port called the Dynamic Reconfiguration Port (DRP). ADC conversion data is also accessible via the JTAG TAP. In the latter case, users are not required to instantiate the XADC because it is a dedicated interface that uses the existing FPGA JTAG infrastructure. If the XADC is not instantiated in a design, the device operates in a predefined mode (called default mode) that monitors on-chip temperature and supply voltages.
XADC operation is user defined by writing to the control registers using either the DRP or JTAG interface. It is also possible to initialize these register contents when the XADC is instantiated in a design using the block attributes.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 597
Chapter 5: Design Elements
Port Descriptions
ALM<7:0>
Port
BUSY
CHANNEL<4:0>
CONVST
CONVSTCLK
DADDR<6:0> DCLK DEN DI<15:0> DO<15:0> DRDY DWE EOC
EOS
JTAGBUSY JTAGLOCKED
JTAGMODIFIED MUXADDR<4:0>
Direction Output
Output Output Input
Input
Input Input Input Input Output Output Input Output Output
Output Output Output Output
Width 8
1 5 1
1
7 1 1 16 16 1 1 1 1
1 1 1 5
Function
Output alarm for temperature, Vccint, Vccaux and Vccbram.
� ALM[0] - XADC temperature sensor alarm output.
� ALM[1] - XADC Vccint sensor alarm output.
� ALM[2] - XADC Vccaux sensor alarm output.
� ALM[3] - XADC Vccbram sensor alarm output.
� ALM[6:4] - Not defined.
ADC busy signal. This signal transitions High during an ADC conversion. This signal also transitions High for an extended period during an ADC or sensor calibration.
Channel selection outputs. The ADC input MUX channel selection for the current ADC conversion is placed on these outputs at the end of an ADC conversion.
Convert start input. This input controls the sampling instant on the ADC(s) input and is only used in event mode timing. This input comes from the general-purpose interconnect in the FPGA logic.
Convert start clock input. This input is connected to a clock net. Like CONVST, this input controls the sampling instant on the ADC(s) inputs and is only used in event mode timing. This input comes from the local clock distribution network in the FPGA logic. Thus, for the best control over the sampling instant (delay and jitter), a global clock input can be used as the CONVST source.
Address bus for the dynamic reconfiguration port.
Clock input for the dynamic reconfiguration port.
Enable signal for the dynamic reconfiguration port.
Input data bus for the dynamic reconfiguration port.
Output data bus for dynamic reconfiguration port.
Data ready signal for the dynamic reconfiguration port.
Write enable for the dynamic reconfiguration port.
End of Conversion signal. This signal transitions to an active High at the end of an ADC conversion when the measurement is written to the status registers.
End of Sequence. This signal transitions to active High when the measurement data from the last channel in an automatic channel sequence is written to the status registers.
Used to indicate that a JTAG DRP transaction is in progress.
Indicates that a DRP port lock request has been made by the JTAG interface. This signal is also used to indicate that the DRP is ready for access (when Low).
Used to indicate that a JTAG Write to the DRP has occurred.
These outputs are used in external multiplexer mode. They indicate the address of the next channel in a sequence to be converted. They provide the channel address for an external multiplexer.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 598
Chapter 5: Design Elements
Port OT RESET VAUXN<15:0> VAUXP<15:0> VN VP
Direction Output Input Input Input Input Input
Width 1 1 16 16 1 1
Function Over-Temperature alarm Reset signal for the XADC control logic. N-side auxiliary analog input P-side auxiliary analog input N-side analog input P-side analog input
Design Entry Method
Instantiation Inference IP Catalog Macro support
Yes No Recommended No
Available Attributes
Attribute INIT_4A INIT_4B INIT_4C INIT_4D INIT_4E INIT_4F INIT_5C INIT_40 INIT_41 INIT_42 INIT_43 INIT_44 INIT_45 INIT_46 INIT_47 INIT_48 INIT_49 INIT_50 INIT_51 INIT_52 INIT_53 INIT_54 INIT_55 INIT_56
Type HEX HEX HEX HEX HEX HEX HEX HEX HEX HEX HEX HEX HEX HEX HEX HEX HEX HEX HEX HEX HEX HEX HEX HEX
Allowed Values 16'h0000 to 16'hffff 16'h0000 to 16'hffff 16'h0000 to 16'hffff 16'h0000 to 16'hffff 16'h0000 to 16'hffff 16'h0000 to 16'hffff 16'h0000 to 16'hffff 16'h0000 to 16'hffff 16'h0000 to 16'hffff 16'h0000 to 16'hffff 16'h0000 to 16'hffff 16'h0000 to 16'hffff 16'h0000 to 16'hffff 16'h0000 to 16'hffff 16'h0000 to 16'hffff 16'h0000 to 16'hffff 16'h0000 to 16'hffff 16'h0000 to 16'hffff 16'h0000 to 16'hffff 16'h0000 to 16'hffff 16'h0000 to 16'hffff 16'h0000 to 16'hffff 16'h0000 to 16'hffff 16'h0000 to 16'hffff
Default 16'h0000 16'h0000 16'h0000 16'h0000 16'h0000 16'h0000 16'h0000 16'h0000 16'h0000 16'h0800 16'h0000 16'h0000 16'h0000 16'h0000 16'h0000 16'h0000 16'h0000 16'h0000 16'h0000 16'h0000 16'h0000 16'h0000 16'h0000 16'h0000
Description Sequence register 2 Sequence register 3 Sequence register 4 Sequence register 5 Sequence register 6 Sequence register 7 Vbram lower alarm threshold Configuration register 0 Configuration register 1 Configuration register 2 Test register 0 Test register 1 Test register 2 Test register 3 Test register 4 Sequence register 0 Sequence register 1 Alarm limit register 0 Alarm limit register 1 Alarm limit register 2 Alarm limit register 3 Alarm limit register 4 Alarm limit register 5 Alarm limit register 6
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 599
Chapter 5: Design Elements
Attribute
Type
INIT_57
HEX
INIT_58
HEX
INIT_59, INIT_5A, HEX INIT_5B, INIT_5D, INIT_5E, INIT_5F
SIM_DEVICE
STRING
SIM_MONITOR _FILE
STRING
Allowed Values 16'h0000 to 16'hffff 16'h0000 to 16'hffff 16'h0000 to 16'hffff
Default 16'h0000 16'h0000 16'h0000
Description Alarm limit register 7 Vbram upper alarm threshold Reserved for future use
"7SERIES", "ZYNQ"
String representing file name and location
"7SERIES" "design.txt"
Selects target device to allow for proper simulation.
Specify the file name (and directory if different from simulation directory) of file containing analog voltage and temperature data for XADC simulation behavior.
VHDL Instantiation Template Unless they already exist, copy the following two statements and paste them before the entity declaration.
Library UNISIM; use UNISIM.vcomponents.all;
-- XADC: Dual 12-Bit 1MSPS Analog-to-Digital Converter
--
7 Series
-- Xilinx HDL Language Template, version 2019.1
XADC_inst : XADC
generic map (
-- INIT_40 - INIT_42: XADC configuration registers
INIT_40 => X"0000",
INIT_41 => X"0000",
INIT_42 => X"0800",
-- INIT_48 - INIT_4F: Sequence Registers
INIT_48 => X"0000",
INIT_49 => X"0000",
INIT_4A => X"0000",
INIT_4B => X"0000",
INIT_4C => X"0000",
INIT_4D => X"0000",
INIT_4F => X"0000",
INIT_4E => X"0000",
-- Sequence register 6
-- INIT_50 - INIT_58, INIT5C: Alarm Limit Registers
INIT_50 => X"0000",
INIT_51 => X"0000",
INIT_52 => X"0000",
INIT_53 => X"0000",
INIT_54 => X"0000",
INIT_55 => X"0000",
INIT_56 => X"0000",
INIT_57 => X"0000",
INIT_58 => X"0000",
INIT_5C => X"0000",
-- Simulation attributes: Set for proper simulation behavior
SIM_DEVICE => "7SERIES",
-- Select target device (values)
SIM_MONITOR_FILE => "design.txt" -- Analog simulation data file name
)
port map (
-- ALARMS: 8-bit (each) output: ALM, OT
ALM => ALM,
-- 8-bit output: Output alarm for temp, Vccint, Vccaux and Vccbram
OT => OT,
-- 1-bit output: Over-Temperature alarm
-- Dynamic Reconfiguration Port (DRP): 16-bit (each) output: Dynamic Reconfiguration Ports
DO => DO,
-- 16-bit output: DRP output data bus
DRDY => DRDY,
-- 1-bit output: DRP data ready
-- STATUS: 1-bit (each) output: XADC status ports
BUSY => BUSY,
-- 1-bit output: ADC busy output
CHANNEL => CHANNEL,
-- 5-bit output: Channel selection outputs
EOC => EOC,
-- 1-bit output: End of Conversion
EOS => EOS,
-- 1-bit output: End of Sequence
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 600
Chapter 5: Design Elements
JTAGBUSY => JTAGBUSY,
-- 1-bit output: JTAG DRP transaction in progress output
JTAGLOCKED => JTAGLOCKED,
-- 1-bit output: JTAG requested DRP port lock
JTAGMODIFIED => JTAGMODIFIED, -- 1-bit output: JTAG Write to the DRP has occurred
MUXADDR => MUXADDR,
-- 5-bit output: External MUX channel decode
-- Auxiliary Analog-Input Pairs: 16-bit (each) input: VAUXP[15:0], VAUXN[15:0]
VAUXN => VAUXN,
-- 16-bit input: N-side auxiliary analog input
VAUXP => VAUXP,
-- 16-bit input: P-side auxiliary analog input
-- CONTROL and CLOCK: 1-bit (each) input: Reset, conversion start and clock inputs
CONVST => CONVST,
-- 1-bit input: Convert start input
CONVSTCLK => CONVSTCLK,
-- 1-bit input: Convert start input
RESET => RESET,
-- 1-bit input: Active-high reset
-- Dedicated Analog Input Pair: 1-bit (each) input: VP/VN
VN => VN,
-- 1-bit input: N-side analog input
VP => VP,
-- 1-bit input: P-side analog input
-- Dynamic Reconfiguration Port (DRP): 7-bit (each) input: Dynamic Reconfiguration Ports
DADDR => DADDR,
-- 7-bit input: DRP address bus
DCLK => DCLK,
-- 1-bit input: DRP clock
DEN => DEN,
-- 1-bit input: DRP enable signal
DI => DI,
-- 16-bit input: DRP input data bus
DWE => DWE
-- 1-bit input: DRP write enable
);
-- End of XADC_inst instantiation
Verilog Instantiation Template
// XADC: Dual 12-Bit 1MSPS Analog-to-Digital Converter
//
7 Series
// Xilinx HDL Language Template, version 2019.1
XADC #(
// INIT_40 - INIT_42: XADC configuration registers
.INIT_40(16'h0000),
.INIT_41(16'h0000),
.INIT_42(16'h0800),
// INIT_48 - INIT_4F: Sequence Registers
.INIT_48(16'h0000),
.INIT_49(16'h0000),
.INIT_4A(16'h0000),
.INIT_4B(16'h0000),
.INIT_4C(16'h0000),
.INIT_4D(16'h0000),
.INIT_4F(16'h0000),
.INIT_4E(16'h0000),
// Sequence register 6
// INIT_50 - INIT_58, INIT5C: Alarm Limit Registers
.INIT_50(16'h0000),
.INIT_51(16'h0000),
.INIT_52(16'h0000),
.INIT_53(16'h0000),
.INIT_54(16'h0000),
.INIT_55(16'h0000),
.INIT_56(16'h0000),
.INIT_57(16'h0000),
.INIT_58(16'h0000),
.INIT_5C(16'h0000),
// Simulation attributes: Set for proper simulation behavior
.SIM_DEVICE("7SERIES"),
// Select target device (values)
.SIM_MONITOR_FILE("design.txt") // Analog simulation data file name
)
XADC_inst (
// ALARMS: 8-bit (each) output: ALM, OT
.ALM(ALM),
// 8-bit output: Output alarm for temp, Vccint, Vccaux and Vccbram
.OT(OT),
// 1-bit output: Over-Temperature alarm
// Dynamic Reconfiguration Port (DRP): 16-bit (each) output: Dynamic Reconfiguration Ports
.DO(DO),
// 16-bit output: DRP output data bus
.DRDY(DRDY),
// 1-bit output: DRP data ready
// STATUS: 1-bit (each) output: XADC status ports
.BUSY(BUSY),
// 1-bit output: ADC busy output
.CHANNEL(CHANNEL),
// 5-bit output: Channel selection outputs
.EOC(EOC),
// 1-bit output: End of Conversion
.EOS(EOS),
// 1-bit output: End of Sequence
.JTAGBUSY(JTAGBUSY),
// 1-bit output: JTAG DRP transaction in progress output
.JTAGLOCKED(JTAGLOCKED),
// 1-bit output: JTAG requested DRP port lock
.JTAGMODIFIED(JTAGMODIFIED), // 1-bit output: JTAG Write to the DRP has occurred
.MUXADDR(MUXADDR),
// 5-bit output: External MUX channel decode
// Auxiliary Analog-Input Pairs: 16-bit (each) input: VAUXP[15:0], VAUXN[15:0]
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 601
Chapter 5: Design Elements
.VAUXN(VAUXN),
// 16-bit input: N-side auxiliary analog input
.VAUXP(VAUXP),
// 16-bit input: P-side auxiliary analog input
// CONTROL and CLOCK: 1-bit (each) input: Reset, conversion start and clock inputs
.CONVST(CONVST),
// 1-bit input: Convert start input
.CONVSTCLK(CONVSTCLK),
// 1-bit input: Convert start input
.RESET(RESET),
// 1-bit input: Active-high reset
// Dedicated Analog Input Pair: 1-bit (each) input: VP/VN
.VN(VN),
// 1-bit input: N-side analog input
.VP(VP),
// 1-bit input: P-side analog input
// Dynamic Reconfiguration Port (DRP): 7-bit (each) input: Dynamic Reconfiguration Ports
.DADDR(DADDR),
// 7-bit input: DRP address bus
.DCLK(DCLK),
// 1-bit input: DRP clock
.DEN(DEN),
// 1-bit input: DRP enable signal
.DI(DI),
// 16-bit input: DRP input data bus
.DWE(DWE)
// 1-bit input: DRP write enable
);
// End of XADC_inst instantiation
For More Information � See the 7 Series Programmable Devices User Guides.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 602
Appendix A
Additional Resources and Legal Notices
Xilinx Resources For support resources such as Answers, Documentation, Downloads, and Forums, see Xilinx Support.
Solution Centers See the Xilinx Solution Centers for support on devices, software tools, and intellectual property at all stages of the design cycle. Topics include design assistance, advisories, and troubleshooting tips.
Documentation Navigator and Design Hubs Xilinx Documentation Navigator provides access to Xilinx documents, videos, and support resources, which you can filter and search to find information. To open the Xilinx Documentation Navigator (DocNav): � From the Vivado IDE, select HelpDocumentation and Tutorials. � On Windows, select StartAll ProgramsXilinx Design ToolsDocNav. � At the Linux command prompt, enter docnav. Xilinx Design Hubs provide links to documentation organized by design tasks and other topics, which you can use to learn key concepts and address frequently asked questions. To access the Design Hubs: � In the Xilinx Documentation Navigator, click the Design Hubs View tab. � On the Xilinx website, see the Design Hubs page.
Note: For more information on Documentation Navigator, see the Documentation Navigator page on the Xilinx website.
UG953 (v2019.1) May 22, 2019 7 Series FPGA and Zynq-7000 SoC Libraries Guide
Send Feedback
www.xilinx.com 603
