TI00436P/00/EN/29.20 71475825 2020-04-01
Products
Solutions
Services

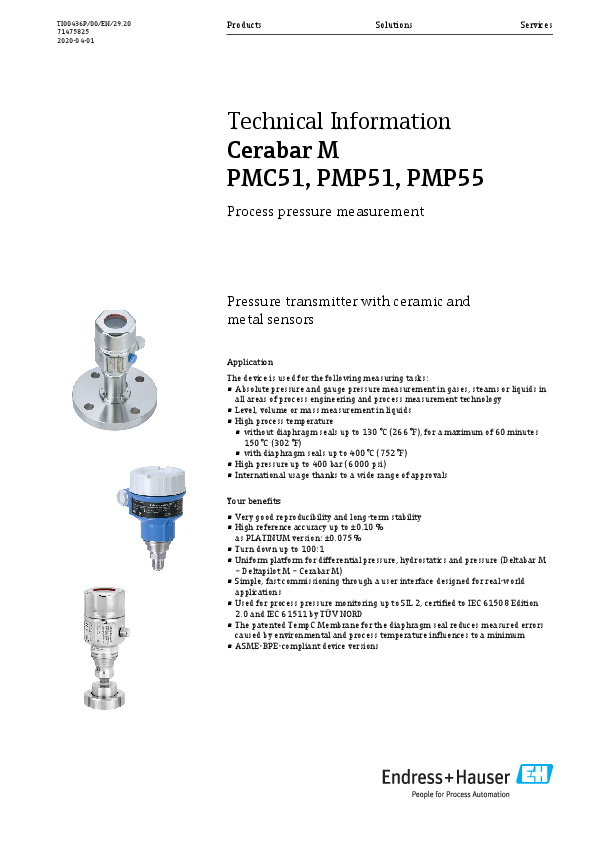

Technical Information Cerabar M PMC51, PMP51, PMP55
Process pressure measurement
Pressure transmitter with ceramic and metal sensors
Application The device is used for the following measuring tasks: � Absolute pressure and gauge pressure measurement in gases, steams or liquids in
all areas of process engineering and process measurement technology � Level, volume or mass measurement in liquids � High process temperature
� without diaphragm seals up to 130 �C (266 �F), for a maximum of 60 minutes 150 �C (302 �F)
� with diaphragm seals up to 400 �C (752 �F) � High pressure up to 400 bar (6 000 psi) � International usage thanks to a wide range of approvals Your benefits � Very good reproducibility and long-term stability � High reference accuracy up to �0.10 %
as PLATINUM version: �0.075 % � Turn down up to 100:1 � Uniform platform for differential pressure, hydrostatics and pressure (Deltabar M
� Deltapilot M � Cerabar M) � Simple, fast commissioning through a user interface designed for real-world
applications � Used for process pressure monitoring up to SIL 2, certified to IEC 61508 Edition
2.0 and IEC 61511 by T�V NORD � The patented TempC Membrane for the diaphragm seal reduces measured errors
caused by environmental and process temperature influences to a minimum � ASME-BPE-compliant device versions
Table of contents
Cerabar M PMC51, PMP51, PMP55
Document information . . . . . . . . . . . . . . . . . . . . . . . 4 Document function . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Symbols used . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Terms and abbreviations . . . . . . . . . . . . . . . . . . . . . . . . 6 Turn down calculation . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Function and system design . . . . . . . . . . . . . . . . . . . 8 Device selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Measuring principle . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Level measurement (level, volume and mass) . . . . . . . . . . 11 Electrical differential pressure measurement with gauge pressure sensors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Communication protocol . . . . . . . . . . . . . . . . . . . . . . . . 12 Input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Measured variable . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Measuring range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Output signal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Signal range 4 to 20 mA . . . . . . . . . . . . . . . . . . . . . . . . 15 Signal on alarm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Load - 4 to 20 mA Analog 4...20 mA HART . . . . . . . . . . . 15 Damping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Firmware version . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Protocol-specific data HART . . . . . . . . . . . . . . . . . . . . . 16 Wireless HART data . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Protocol-specific data PROFIBUS PA . . . . . . . . . . . . . . . . 16 Protocol-specific data FOUNDATION Fieldbus . . . . . . . . . . 17 Power supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 Terminal assignment . . . . . . . . . . . . . . . . . . . . . . . . . . 20 Supply voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 Current consumption . . . . . . . . . . . . . . . . . . . . . . . . . . 21 Electrical connection . . . . . . . . . . . . . . . . . . . . . . . . . . 21 Terminals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 Cable entry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 Device plugs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 Cable specification . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 Start-up current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 Residual ripple . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 Influence of power supply . . . . . . . . . . . . . . . . . . . . . . . 24 Overvoltage protection (optional) . . . . . . . . . . . . . . . . . . 24 Performance characteristics for measuring devices with ceramic process isolating diaphragm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 Response time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 Reference operating conditions . . . . . . . . . . . . . . . . . . . 25 Maximum measured error (total performance) . . . . . . . . . 25 Resolution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 Total error . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28 Long-term stability . . . . . . . . . . . . . . . . . . . . . . . . . . . 28 Response time T63 and T90 . . . . . . . . . . . . . . . . . . . . . 29 Installation factors . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Performance characteristics for measuring devices with metal process isolating diaphragm . . 32 Response time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32 Reference operating conditions . . . . . . . . . . . . . . . . . . . 32 Maximum measured error (total performance) . . . . . . . . . 32 Resolution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35 Total error . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35 Long-term stability . . . . . . . . . . . . . . . . . . . . . . . . . . . 36 Response time T63 and T90 . . . . . . . . . . . . . . . . . . . . . 36 Installation factors . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38 Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39 General installation instructions . . . . . . . . . . . . . . . . . . . 39 Measuring arrangement for devices without diaphragm seal � PMC51, PMP51 . . . . . . . . . . . . . . . . . . . . . . . . . 39 Measuring arrangement for devices with diaphragm seal � PMP55 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39 Wall and pipe mounting, transmitter (optional) . . . . . . . . 40 Wall and pipe-mounting manifold (optional) . . . . . . . . . . 40 "Separate housing" version . . . . . . . . . . . . . . . . . . . . . . . 41 Oxygen applications . . . . . . . . . . . . . . . . . . . . . . . . . . . 42 PWIS cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42 Ultrapure gas applications (PMC51 und PMP51) . . . . . . . . 42 Applications with hydrogen . . . . . . . . . . . . . . . . . . . . . . 42 Environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43 Ambient temperature range . . . . . . . . . . . . . . . . . . . . . 43 Storage temperature range . . . . . . . . . . . . . . . . . . . . . . 43 Climate class . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43 Degree of protection . . . . . . . . . . . . . . . . . . . . . . . . . . 43 Vibration resistance . . . . . . . . . . . . . . . . . . . . . . . . . . . 43 Electromagnetic compatibility . . . . . . . . . . . . . . . . . . . . 44 Operation in very corrosive environment . . . . . . . . . . . . . 44 Process . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45 Process temperature range PMC51 . . . . . . . . . . . . . . . . . 45 Process temperature limits . . . . . . . . . . . . . . . . . . . . . . 45 Process temperature limits of flexible capillary armoring: PMP55 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46 Pressure specifications . . . . . . . . . . . . . . . . . . . . . . . . . 47 Mechanical construction . . . . . . . . . . . . . . . . . . . . 48 Device height . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48 F31 housing, aluminum . . . . . . . . . . . . . . . . . . . . . . . . 48 F15 housing, stainless steel (hygienic) . . . . . . . . . . . . . . 49 PMC51: process connections with internal process isolating diaphragm . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 PMC51: process connections with internal process isolating diaphragm . . . . . . . . . . . . . . . . . . . . . . . . . . . 52 PMC51: process connections with internal process isolating diaphragm - height H . . . . . . . . . . . . . . . . . . . 52 PMC51: process connections with flush-mounted process isolating diaphragm . . . . . . . . . . . . . . . . . . . . . . . . . . . 53 PMC51: process connections with flush-mounted process isolating diaphragm . . . . . . . . . . . . . . . . . . . . . . . . . . . 54 PMC51: process connections with flush-mounted process isolating diaphragm - height H . . . . . . . . . . . . . . . . . . . 54
2
Endress+Hauser
Cerabar M PMC51, PMP51, PMP55
PMC51: process connections with flush-mounted process isolating diaphragm . . . . . . . . . . . . . . . . . . . . . . . . . . . 55 PMC51: process connections with flush-mounted process isolating diaphragm . . . . . . . . . . . . . . . . . . . . . . . . . . . 58 PMC51: process connections with flush-mounted process isolating diaphragm - height H . . . . . . . . . . . . . . . . . . . 58 PMC51: hygienic process connections with flush mount process isolating diaphragm . . . . . . . . . . . . . . . . . . . . . 59 PMP51: process connections with internal process isolating diaphragm . . . . . . . . . . . . . . . . . . . . . . . . . . . 64 PMP51: process connections with internal process isolating diaphragm . . . . . . . . . . . . . . . . . . . . . . . . . . . 65 PMP51: process connections with flush-mounted process isolating diaphragm . . . . . . . . . . . . . . . . . . . . . . . . . . . 66 ANSI threaded connection . . . . . . . . . . . . . . . . . . . . . . 68 PMP51: process connections with flush-mounted process isolating diaphragm . . . . . . . . . . . . . . . . . . . . . . . . . . . 69 PMP51: process connections with flush-mounted process isolating diaphragm . . . . . . . . . . . . . . . . . . . . . . . . . . . 70 PMP51: process connections with flush-mounted process isolating diaphragm . . . . . . . . . . . . . . . . . . . . . . . . . . . 71 PMP51: hygienic process connections with flush mount process isolating diaphragm . . . . . . . . . . . . . . . . . . . . . 72 Valve manifold DA63M- (optional) . . . . . . . . . . . . . . . . . 76 PMP51: process connections . . . . . . . . . . . . . . . . . . . . . 77 PMP55 basic device - examples . . . . . . . . . . . . . . . . . . . 78 Process connections for PMP55 with flush-mounted process isolating diaphragm . . . . . . . . . . . . . . . . . . . . . 79 PMP55: process connections with flush-mounted process isolating diaphragm . . . . . . . . . . . . . . . . . . . . . . . . . . . 80 PMP55: process connections with flush-mounted process isolating diaphragm . . . . . . . . . . . . . . . . . . . . . . . . . . . 81 PMP55: process connections with flush-mounted process isolating diaphragm . . . . . . . . . . . . . . . . . . . . . . . . . . . 82 PMP55: hygienic process connections with flushmounted process isolating diaphragm . . . . . . . . . . . . . . . . . . . . . 83 PMP55: hygienic process connections with flush mount process isolating diaphragm . . . . . . . . . . . . . . . . . . . . . 84 PMP55: process connections with flush-mounted process isolating diaphragm . . . . . . . . . . . . . . . . . . . . . . . . . . . 90 PMP55: process connections with flush-mounted process isolating diaphragm . . . . . . . . . . . . . . . . . . . . . . . . . . . 92 PMP55 process connections . . . . . . . . . . . . . . . . . . . . . 95 Wall and pipe mounting with "Separate housing" version . . . 98 Reduction in installation height . . . . . . . . . . . . . . . . . . . 99 Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99 Flushing rings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100 Materials not in contact with process . . . . . . . . . . . . . . 101 Materials in contact with the process . . . . . . . . . . . . . . 104 Seals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105 Fill fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105 Operability . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107 Operating concept . . . . . . . . . . . . . . . . . . . . . . . . . . . 107 Local operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107 Operating languages . . . . . . . . . . . . . . . . . . . . . . . . . 110 Remote operation . . . . . . . . . . . . . . . . . . . . . . . . . . . 111 System integration (Except analog electronics) . . . . . . . . 112 Planning instructions for diaphragm seal systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113 Applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113 Function and design . . . . . . . . . . . . . . . . . . . . . . . . . . 114
Diaphragm seal filling oils . . . . . . . . . . . . . . . . . . . . . . 115 Operating temperature range . . . . . . . . . . . . . . . . . . . . 116 Cleaning instructions . . . . . . . . . . . . . . . . . . . . . . . . . 116 Installation instructions . . . . . . . . . . . . . . . . . . . . . . . 116 Vacuum applications . . . . . . . . . . . . . . . . . . . . . . . . . 117 Certificates and approvals . . . . . . . . . . . . . . . . . . 119 CE mark . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119 RoHS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119 RCM-Tick marking . . . . . . . . . . . . . . . . . . . . . . . . . . . 119 Ex approvals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119 EAC conformity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119 Suitable for hygiene applications . . . . . . . . . . . . . . . . . 119 Certificate of current Good Manufacturing Practices (cGMP) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120 Certificate of Compliance ASME BPE 2012 . . . . . . . . . . . 120 Functional safety SIL . . . . . . . . . . . . . . . . . . . . . . . . . 120 CRN approvals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120 Other standards and guidelines . . . . . . . . . . . . . . . . . . 120 AD2000 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120 Pressure Equipment Directive 2014/68/EU (PED) . . . . . . 121 Manufacturer declaration . . . . . . . . . . . . . . . . . . . . . . 121 Marine approval . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121 Drinking water approval . . . . . . . . . . . . . . . . . . . . . . . 122 Classification of process sealing between electrical systems and (flammable or combustible) process fluids in accordance with ANSI/ ISA 12.27.01 . . . . . . . . . . . . . . 122 Inspection certificate . . . . . . . . . . . . . . . . . . . . . . . . . 122 Calibration; unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . 122 Calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123 Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123 Ordering information . . . . . . . . . . . . . . . . . . . . . . 124 Special device versions . . . . . . . . . . . . . . . . . . . . . . . . 124 Scope of delivery . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124 Measuring point (TAG) . . . . . . . . . . . . . . . . . . . . . . . . 124 Configuration data sheet (HART, PROFIBUS PA, FOUNDATION Fieldbus electronics) . . . . . . . . . . . . . . . 124 Configuration data sheet (Analog electronics) . . . . . . . . . 127 Additional documentation . . . . . . . . . . . . . . . . . . 128 Field of Activities . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128 Technical Information . . . . . . . . . . . . . . . . . . . . . . . . 128 Special Documentation . . . . . . . . . . . . . . . . . . . . . . . . 128 Operating Instructions . . . . . . . . . . . . . . . . . . . . . . . . 128 Brief operating instruction . . . . . . . . . . . . . . . . . . . . . 128 Functional safety manual (SIL) . . . . . . . . . . . . . . . . . . . 128 Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . 128 Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 131 Manifolds . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 131 Additional mechanical accessories . . . . . . . . . . . . . . . . 131 Welding necks and weld-in adapters . . . . . . . . . . . . . . . 131 Mounting bracket for wall and pipe mounting . . . . . . . . . 132 M12 connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 132 Service-specific accessories . . . . . . . . . . . . . . . . . . . . . 132 Registered trademarks . . . . . . . . . . . . . . . . . . . . . 132 HART� . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 132 PROFIBUS� . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 132 FOUNDATIONTMFieldbus . . . . . . . . . . . . . . . . . . . . . . 132
Endress+Hauser
3
Document function Symbols used
4
Cerabar M PMC51, PMP51, PMP55
Document information
The document contains all the technical data on the device and provides an overview of the accessories and other products that can be ordered for the device.
Safety symbols
Symbol
Meaning
DANGER
DANGER! This symbol alerts you to a dangerous situation. Failure to avoid this situation will result in seriousor fatal injury.
WARNING!
WARNING This symbol alerts you to a dangerous situation. Failure to avoid this situation can result in
seriousor fatal injury.
CAUTION
CAUTION! This symbol alerts you to a dangerous situation. Failure to avoid this situation can result in minoror medium injury.
NOTICE
NOTICE! This symbol contains information on procedures and other facts which do not result in personalinjury.
Electrical symbols
Symbol
Meaning
Protective ground connection A terminal which must be connected to ground prior to establishing any other connections.
Symbol
Meaning
Ground connection A grounded terminal which, as far as the operator is concerned, is grounded via a grounding system.
Symbols for certain types of information
Symbol
Meaning
Permitted Procedures, processes or actions that are permitted.
Preferred Procedures, processes or actions that are preferred.
Forbidden Procedures, processes or actions that are forbidden.
Tip Indicates additional information.
Reference to documentation
A
Reference to page
Reference to graphic
Visual inspection
Symbols in graphics
Symbol 1, 2, 3 ...
1. , 2. , 3. ...
Meaning Item numbers Series of steps
Endress+Hauser
Cerabar M PMC51, PMP51, PMP55
Documentation
Symbol
Meaning
A, B, C, ...
Views
A-A, B-B, C-C, ... Sections
See chapter "Additional documentation" 128 The document types listed are available: In the Download Area of the Endress+Hauser Internet site: www.endress.com Download
Endress+Hauser
5
Terms and abbreviations
Cerabar M PMC51, PMP51, PMP55
1
2
3
4
0
LRL
LRV
URV
URL
MWP
p
OPL
A0029505
Item Term/abbreviation 1 OPL
2 MWP
3 Maximum sensor measuring range
4 Calibrated/adjusted span
p-
-
LRL
-
URL
-
LRV
-
URV
-
TD (Turn down)
Explanation
The OPL (over pressure limit = sensor overload limit) for the measuring device depends on the lowest-rated element, with regard to pressure, of the selected components, i.e. the process connection has to be taken into consideration in addition to the measuring cell. Also observe pressure-temperature dependency. For the relevant standards and additional notes see the 47 section. The OPL may only be applied for a limited period of time.
The MWP (maximum working pressure) for the sensors depends on the lowest-rated element, with regard to pressure, of the selected components, i.e. the process connection has to be taken into consideration in addition to the measuring cell. Also observe pressure-temperature dependency. For the relevant standards and additional notes see the 47 section. The MWP may be applied at the device for an unlimited period. The MWP can also be found on the nameplate.
Span between LRL and URL This sensor measuring range is equivalent to the maximum calibratable/adjustable span.
Span between LRV and URV Factory setting: 0 to URL Other calibrated spans can be ordered as customized spans.
Pressure
Lower range limit
Upper range limit
Lower range value
Upper range value
Turn down Example - see the following section.
6
Endress+Hauser
Cerabar M PMC51, PMP51, PMP55
Turn down calculation
1 = 2
3
LRL LRV
URV
URL
1 Calibrated/adjusted span 2 Zero point-based span 3 URL sensor
A0029545
Example
� Sensor:10 bar (150 psi) � Upper range value (URL) = 10 bar (150 psi) Turn down (TD):
� Calibrated/adjusted span: 0 to 5 bar (0 to 75 psi) � Lower range value (LRV) = 0 bar (0 psi) � Upper range value (URV) = 5 bar (75 psi)
URL
TD =
|URV
-
LRV|
10 bar (150 psi)
TD =
=2
|5 bar (75 psi) - 0 bar (0 psi)|
In this example, the TD is 2:1. This span is based on the zero point.
Endress+Hauser
7
Device selection
Function and system design
Cerabar M PMC51, PMP51, PMP55
PMC51 with capacitive measuring cell and ceramic process isolating diaphragm (Ceraphire�)
A0023673
PMP51 with piezoresistive measuring cell and metal welded process isolating diaphragm
A0023675
PMP55 with diaphragm seal
A0023676
Field of application � Gauge pressure and absolute pressure � Level
Process connections PMC51: � Thread � EN flanges DN 25 � DN 80 � ANSI flanges 1" � 4" � JIS flanges 50 A � 100 A � Flush mount hygienic connections PMP51: � Thread � EN flanges DN 25 � DN 80 � ANSI flanges 1" � 4" � Prepared for diaphragm seal mount � Flush mount hygienic connections PMP55: Wide range of diaphragm seals
Measuring ranges � PMC51: From �100/0 to 100 mbar (�1.5/0 to 1.5 psi) to �1/0 to 40 bar (�15/0 to 600 psi) � PMP51: From �400/0 to 400 mbar (�6/0 to 6 psi) to �1/0 to 400 bar (�15/0 to 6000 psi) � PMP55: From �400/0 to 400 mbar (�6/0 to 6 psi) to �1/0 to 400 bar (�15/0 to 6000 psi)
8
Endress+Hauser
Cerabar M PMC51, PMP51, PMP55
OPL � PMC51: max. 60 bar (900 psi) � PMP51: max. 600 bar (9 000 psi) � PMP55: max. 600 bar (9 000 psi) Process temperature range � PMC51: �20 to +130 �C (�4 to +266 �F)
For a maximum of 60 minutes: +150 �C (+302 �F) � PMP51: �40 to +130 �C (�40 to +266 �F)
For a maximum of 60 minutes: +150 �C (+302 �F) � PMP55: �70 to +400 �C (�94 to +752 �F)
(depending on the filling oil) Ambient temperature range � Without LCD: �40 to +85 �C (�40 to +185 �F) � With LCD display: �20 to +70 �C (�4 to +158 �F)
(extended temperature application range�40 to +85 �C (�40 to +185 �F) with limitations in optical properties, such as display speed and contrast) � Separate housing:�20 to +60 �C (�4 to +140 �F) � PMP55: Diaphragm seal systems depending on the version Reference accuracy � PMC51: up to �0.10% of the set span PLATINUM version: up to �0.075% of the set span � PMP51: up to �0.10% of the set span PLATINUM version: up to �0.075% of the set span � PMP55: up to �0.10% of the set span Supply voltage � 11.5 to 45 V DC (versions with plug-in connection 35 V DC) � For intrinsically safe device versions: 11.5 to 30 V DC Output 4 to 20 mA, 4 to 20 mA with superimposed HART protocol, PROFIBUS PA or FOUNDATION Fieldbus Options � Inspection certificate 2.2 or 3.1 or other certificates � 3A approval and EHEDG approval � Specific firmware versions � Initial device settings � Separate housing � Broad range of accessories � NACE-compliant materials Specialties � PMC51: � Metal-free measurement with PVDF connection � Special cleaning of the transmitter to remove paint-wetting impairment substances, for use in
paint shops � PMP51:
� Process connections with minimum oil volume � Gas-tight, elastomer-free � PMP55: � Wide range of diaphragm seals � For extreme medium temperatures � Process connections with minimum oil volume � Fully welded versions
Endress+Hauser
9
Measuring principle
Cerabar M PMC51, PMP51, PMP55 Ceramic process isolating diaphragm used in PMC51 (Ceraphire�)
12
3
4
p
1 Air pressure (gauge pressure sensors) 2 Ceramic substrate 3 Electrodes 4 Ceramic process isolating diaphragm
A0020465
The ceramic sensor is a dry sensor, i.e. the process pressure acts directly on the robust ceramic process isolating diaphragm and deflects it. A pressure-dependent change in capacitance is measured at the electrodes of the ceramic substrate and the process isolating diaphragm. The measuring range is determined by the thickness of the ceramic process isolating diaphragm. Advantages: � Guaranteed overload resistance up to 40 times the nominal pressure � Thanks to ultrapure 99.9% ceramic (Ceraphire�, see also "www.endress.com/ceraphire")
� extremely high chemical stability, comparable with Alloy C � high mechanical stability � Can be used in absolute vacuum
Metallic process isolating diaphragm used in PMP51 and PMP55
1 2
3 4
p
1 Silicon measuring element, substrate 2 Wheatstone bridge 3 Channel with fill fluid 4 Metallic process isolating diaphragm
A0016448
PMP51 The operating pressure deflects the process isolating diaphragm and a fill fluid transfers the pressure to a resistance bridge (semiconductor technology). The pressure-dependent change in the bridge output voltage is measured and evaluated. Advantages: � Can be used for process pressure up to 400 bar (6 000 psi) � High long-term stability � Guaranteed overload resistance up to 4 times the nominal pressure � Significantly less thermal effect compared to diaphragm seal systems
10
Endress+Hauser
Cerabar M PMC51, PMP51, PMP55
Level measurement (level, volume and mass)
PMP55 The operating pressure acts on the process isolating diaphragm of the diaphragm seal and is transferred to the process isolating diaphragm of the sensor by a diaphragm seal fill fluid. The process isolating diaphragm is deflected and a fill fluid transfers the pressure to a resistance bridge. The pressure-dependent change in the bridge output voltage is measured and evaluated. Advantages: � Depending on the version, can be used for process pressure up to 400 bar (6 000 psi) and
simultaneous extreme process temperatures � High long-term stability � Guaranteed overload resistance up to 4 times the nominal pressure
p h= g h
h Height (level) p Pressure Density of the medium g Gravitation constant
A0023678
Your benefits � Choice of different level measuring modes in the device software � Volume and mass measurements in any tank shapes by means of a freely programmable
characteristic curve � Choice of diverse level units � Has a wide range of uses, even in the following cases:
� in the event of foam formation � in tanks with agitators of screen fittings � in the event of liquid gases Electrical differential pressure measurement with gauge pressure sensors
Cerabar M
FXN 520
Fieldgate FXA520
1 Shut-off valves 2 e.g. filter
Multidrop-Connector FXN520
1
�
2
1
A0023680
In the example given, two Cerabar M devices (each with a gauge pressure sensor) are interconnected. The pressure difference can thus be measured using two independent Cerabar M devices.
Endress+Hauser
11
Cerabar M PMC51, PMP51, PMP55
Communication protocol
LWARNING Risk of explosion! If using intrinsically safe devices, strict compliance with the rules for interconnecting intrinsically
safe circuits as stipulated in IEC60079-14 (proof of intrinsic safety) is mandatory.
� 4 to 20 mA without communication protocol (analog electronics) � 4 to 20 mA with HART communication protocol � PROFIBUS PA
� The Endress+Hauser devices meet the requirements of the FISCO model. � Due to a low current consumption of 11 mA � 1 mA, the following number of devices can be
operated on one bus segment if installing as per FISCO: up to 8 devices for Ex ia, CSA IS and FM IS applications or up to 31 devices for all other applications e.g. in non-hazardous areas, Ex nA etc. Further information on PROFIBUS PA can be found in Operating Instructions BA00034S "PROFIBUS DP/PA: Guidelines for planning and commissioning" and in the PNO Guideline. � FOUNDATION Fieldbus � The Endress+Hauser devices meet the requirements of the FISCO model. � Due to a low current consumption of 16 mA � 1 mA, the following number of devices can be operated on one bus segment if installing as per FISCO: up to 6 devices for Ex ia, CSA IS and FM IS applications or up to 22 devices for all other applications e.g. in non-hazardous areas, Ex nA etc. Further information on FOUNDATION Fieldbus, such as requirements for bus system components, can be found in Operating Instructions BA00013S "FOUNDATION Fieldbus Overview".
12
Endress+Hauser
Cerabar M PMC51, PMP51, PMP55
Input
Measured variable
Measured process variables � Analog electronics: Absolute pressure and gauge pressure � HART, PROFIBUS PA, FOUNDATION Fieldbus: Absolute pressure and gauge pressure, from which
level (level, volume or mass) is derived
Measuring range
PMC51 � with ceramic process isolating diaphragm (Ceraphire�) for gauge pressure
Sensor
Maximum sensor measuring range Smallest calibratable
lower (LRL)
upper (URL)
measuring span (preset at the factory) 1)
[bar (psi)]
[bar (psi)]
[bar (psi)]
100 mbar (1.5 psi) �0.1 (�1.5)
+0.1 (+1.5)
0.01 (0.15)
250 mbar (3.75 psi)
�0.25 (�3.75) +0.25 (+3.75) 0.01 (0.15)
400 mbar (6 psi) �0.4 (�6)
+0.4 (+6)
0.02 (0.3)
1 bar (15 psi)
�1 (�15)
+1 (+15)
0.05 (1)
2 bar (30 psi)
�1 (�15)
+2 (+30)
0.1 (1.5)
4 bar (60 psi)
�1 (�15)
+4 (+60)
0.2 (3)
10 bar (150 psi) �1 (�15)
+10 (+150)
0.5 (7.5)
40 bar (600 psi) �1 (�15)
+40 (+600)
2 (30)
MWP
OPL
Vacuum
resistance
[bar (psi)] 2.7 (40.5) 3.3 (49.5)
[bar (psi)] [barabs (psiabs)]
4 (60)
0.7 (10.5)
5 (75)
0.5 (7.5)
5.3 (79.5) 8 (120) 0
6.7 (100.5) 10 (150) 0
12 (180)
18 (270) 0
16.7 (250.5) 25 (375) 0
26.7 (400.5) 40 (600) 0
40 (600)
60 (900) 0
Option 2)
1C 1E
1F 1H 1K 1M 1P 1S
1) Factory calibration turn down: Max 20:1, higher on request or configurable in the device. 2) Product Configurator, "Sensor range" ordering feature
PMC51 � with ceramic process isolating diaphragm (Ceraphire�) for absolute pressure
Sensor
100 mbar (1.5 psi) 250 mbar (3.75 psi) 400 mbar (6 psi) 1 bar (15 psi) 2 bar (30 psi) 4 bar (60 psi) 10 bar (150 psi) 40 bar (600 psi)
Maximum sensor measuring range
lower (LRL) upper (URL)
[barabs (psiabs)] 0
[barabs (psiabs)] +0.1 (+1.5)
0
+0.25 (+3.75)
0
+0.4 (+6)
0
+1 (+15)
0
+2 (+30)
0
+4 (+60)
0
+10 (+150)
0
+40 (+600)
Smallest calibratable measuring span (preset at the factory) 1)
[bar (psi)]
0.01 (0.15)
0.01 (0.15)
0.02 (0.3) 0.05 (1) 0.1 (1.5) 0.2 (3) 0.5 (7.5) 2 (30)
MWP
OPL
Vacuum resistance
Option 2)
[barabs (psiabs)] [barabs (psiabs)] [barabs (psiabs)]
2.7 (40.5)
4 (60)
0
2C
3.3 (49.5)
5 (75)
0
2E
5.3 (79.5)
8 (120)
0
2F
6.7 (100.5)
10 (150)
0
2H
12 (180)
18 (270)
0
2K
16.7 (250.5) 25 (375)
0
2M
26.7 (400.5) 40 (600)
0
2P
40 (600)
60 (900)
0
2S
1) Factory calibration turn down: Max 20:1, higher on request or configurable in the device. 2) Product Configurator, "Sensor range" ordering feature
Endress+Hauser
13
Cerabar M PMC51, PMP51, PMP55
PMP51 and PMP55 � metallic process isolating diaphragm for gauge pressure
Sensor
Maximum sensor measuring range
lower (LRL)
upper (URL)
Lowest calibratable span (preset at factory) 1)
400 mbar (6 psi)
1 bar (15 psi)
2 bar (30 psi)
4 bar (60 psi)
10 bar (150 psi)
40 bar (600 psi)
100 bar (1 500 psi)
400 bar (6 000 psi)
[bar (psi)] �0.4 (�6) �1 (�15) �1 (�15) �1 (�15) �1 (�15) �1 (�15) �1 (�15)
�1 (�15)
[bar (psi)] +0.4 (+6) +1 (+15) +2 (+30) +4 (+60) +10 (+150) +40 (+600) +100 (+1500)
[bar (psi)] 0.02 (0.3) 0.05 (1) 0.1 (1.5) 0.2 (3) 0.5 (7.5) 2 (30) 5 (75)
+400 (+6000) 20 (300)
MWP
OPL
Vacuum resistance 2)
Silicone oil/ Inert oil/ Synthetic oil
[bar (psi)] 4 (60)
[bar (psi)] [barabs (psiabs)] 6 (90)
6.7 (100) 10 (150)
13.3 (200) 20 (300)
18.7 (280.5) 28 (420)
26.7 (400.5) 40 (600)
0.01/0.04/0.01 (0.15/0.6/0.15)
100 (1500) 160 (2400)
100 (1500) 400 (6000)
400 (6000) 600 (9000)
Option 3)
1F 1H 1K 1M 1P 1S 1U 1W
1) Highest factory-configurable turn down: 20:1, higher available on request or can be set in device. 2) The vacuum resistance applies to the measuring cell at reference conditions. A ceramic process isolating diaphragm is recommended for
applications in the limit range. The pressure and temperature application limits of the selected filling oil must also be observed for the PMP55 115. 3) Product Configurator, order code for "Sensor range"
PMP51 and PMP55 � metallic process isolating diaphragm for absolute pressure
Sensor
Maximum sensor measuring 1) lower (LRL) upper (URL)
Lowest calibratable span (preset at factory) 2)
400 mbar (6 psi)
[barabs (psiabs)] 0
1 bar (15 psi) 0
2 bar (30 psi) 0
4 bar (60 psi) 0
10 bar (150 psi) 0
40 bar (600 psi) 0
100 bar
0
(1 500 psi)
400 bar
0
(6 000 psi)
[barabs (psiabs)] [bar (psi)]
+0.4 (+6) +1 (+15) +2 (+30) +4 (+60) +10 (+150) +40 (+600) +100 (+1500)
0.02 (0.3) 0.05 (1) 0.1 (1.5) 0.2 (3) 0.5 (7.5) 2 (30) 5 (75)
+400 (+6000) 20 (300)
MWP
OPL
Vacuum resistance 3)
Option 4)
Silicone oil/ Inert oil/ Synthetic oil
[barabs (psiabs)]
[barabs (psiabs)]
[barabs (psiabs)]
4 (60)
6 (90)
2F
6.7 (100)
10 (150)
2H
13.3 (200)
20 (300)
2K
18.7 (280.5) 28 (420)
2M
26.7 (400.5) 40 (600)
0.01/0.04/0.01 (0.15/0.6/0.15)
2P
100 (1500)
160 (2400)
2S
100 (1500)
400 (6000)
2U
400 (6000)
600 (9000)
2W
1) PMP55: Within the sensor measuring range, the minimum upper range value of 80 mbarabs (1.16 psiabs) must be observed.
2) Highest factory-configurable turn down: 20:1, higher available on request or can be set in device. 3) The vacuum resistance applies to the measuring cell at reference conditions. A ceramic process isolating diaphragm is recommended for
applications in the limit range. The pressure and temperature application limits of the selected filling oil must also be observed for the PMP55 115. 4) Product Configurator, order code for "Sensor range"
14
Endress+Hauser
Cerabar M PMC51, PMP51, PMP55
Output signal
Signal range 4 to 20 mA Signal on alarm
Load - 4 to 20 mA Analog 4...20 mA HART
Output
� 4 to 20 mA analog, 2-wire � 4 to 20 mA with superimposed digital communication protocol HART 6.0, 2-wire � Digital communication signal PROFIBUS PA (Profile 3.02) � Digital communication signal FOUNDATION Fieldbus
Output 4 to 20mA 4 to 20mA HART PROFIBUS PA FOUNDATION Fieldbus
Option 1) 1 2 3 4
1) Product Configurator, "Output" ordering feature
4 to 20 mA Analog, 4 to 20 mA HART: 3.8 to 20.5 mA
As per NAMUR NE 43 � 4 to 20 mA Analog:
� Signal overshoot: > 20.5 mA � Signal undershoot: < 3.8 mA � Min Alarm (3.6 mA) � 4 to 20 mA HART: Options: � Max. alarm: can be set from 21 to 23 mA (factory setting: 22 mA) � Hold measured value: last measured value is held � Min. alarm: 3.6 mA � PROFIBUS PA: can be set in the Analog Input block Options: Last Valid Out Value (factory setting), Fail-safe Value, Status Bad � FOUNDATION Fieldbus: can be set in the Analog Input block Options: Last Good Value, Fail-safe Value (factory setting), Wrong Value
R L max [W] 1456 1239
804
369
11.5 20 30 1 2
40 45 U [V]
3
RLmax
�
U � 11.5 23 mA
V
A0023090
1 Supply voltage 11.5 to 30 V DC for intrinsically safe device versions (not for analog) 2 Supply voltage 11.5 to 45 V DC (versions with plug-in connector 35 V DC) for other types of protection and
for uncertified device versions 3 RLmax Maximum load resistance U Supply voltage
When operating via a handheld terminal or via a PC with an operating program, a minimum communication resistance of 250 must be taken into account.
Endress+Hauser
15
Cerabar M PMC51, PMP51, PMP55
Damping
A damping affects all outputs (output signal, display): � Via on-site display, handheld terminal or PC with operating program, continuous from 0...999 s � Via DIP-switch on the electronic insert, switch position
"on" (= set value) and "off" (= damping switched off) � Factory setting: 2 s
Firmware version
Designation 01.00.zz, FF, DevRev01 01.00.zz, PROFIBUS PA, DevRev01 01.00.zz, HART, DevRev01
Option 1) 76 77 78
1) Product Configurator, "Firmware version" ordering feature
Protocol-specific data HART
Manufacturer ID Device Type Code Device Revision HART specification DD Revision Device description files (DTM, DD)
HART load HART device variables
Supported functions
17 (11 hex)
25 (19 hex)
01 (01 hex) - SW version 01.00.zz
6
� 01 (Dutch)) � 02 (Russian))
Information and files can be found:
� www.endress.com � www.fieldcommgroup.org
Min. 250
The measured values can be freely assigned to the device variables:
Measured values for PV (primary variable) � Pressure � Level � Tank content
Measured values for SV, TV (second and third variable) � Pressure � Level
Measured values for QV (fourth variable) Temperature
� Burst mode � Additional Transmitter Status � Device Locking � Alternative operating modes
Wireless HART data Protocol-specific data PROFIBUS PA
Minimum starting voltage Start-up current Starting time Minimum operating voltage Multidrop current Time for connection setup
11.5 V 1) 12 mA (default) or 22 mA (customer setting) 5 s 11.5 V 1) 4 mA 1 s
1) Or higher if operating near ambient temperature limits (�40 to +85 �C (�40 to +185))
Manufacturer ID Ident number Profile Version
GSD Revision
17 (11 hex)
1554 hex
3.02 SW Version 01.00.zz
5
16
Endress+Hauser
Cerabar M PMC51, PMP51, PMP55
Protocol-specific data FOUNDATION Fieldbus
DD Revision GSD File DD Files Output values
Input values Supported functions
1
Information and files can be found:
� www.endress.com � www.profibus.org
Measured values for PV (via Analog Input Function Block) � Pressure � Level � Tank content
Measured values for SV � Pressure � Temperature
Input value sent from PLC, can be shown on display
� Identification & Maintenance Simple device identification via control system and nameplate
� Condensed status � Automatic ident number adaptation and switchable to following
ident numbers: � 9700: Profile-specific transmitter identification number with the
"Classic" or "Condensed" status. � 151C: Compatibility mode for the old Cerabar M (PMC41,
PMC45, PMP41, PMP45, PMP46, PMP48). � 1553: Identification number for the new Cerabar M (PMC51,
PMP51 , PMP55). � Device locking: The device can be locked by hardware or software.
Device Type Device Revision DD Revision Device description files (DTM, DD)
CFF Revision ITK Version ITK-Certification Driver-No. Link-Master (LAS) capable Link Master / Basic Device selectable Number of VCRs Number of Link Objects in VFD Number of FB-Schedule Objects
0x1019 01 (hex) 0x01021 Information and files can be found: � www.endress.com � www.fieldcommgroup.org 0x000102 5.2.0 IT067700 yes Yes; Factory setting: Basic Device 44 50 40
Virtual communication references (VCRs)
Permanent Entries
44
Client VCRs
0
Server VCRs
5
Source VCRs
8
Sink VCRs
0
Subscriber VCRs
12
Publisher VCRs
19
Endress+Hauser
17
Cerabar M PMC51, PMP51, PMP55
Link settings
Slot time
4
Min. Inter PDU delay
12
Max. response delay
40
Transducer Blocks
Block TRD1 Block
Content
Contains all parameters related to the measurement
Diagnostic Block Contains diagnostic information
Display Block
Contains parameters to configure the onsite display
Output values
� Pressure or level (channel 1) � Process temperature (channel 2) � Measured pressure value (channel 3) � Max. pressure (channel 4) � Level before linearization (channel 5)
Error code via DI channels (channel 10 to 15)
No output values
Function blocks
Block
Content
Resource Block The Resource Block contains all the data that uniquely identify the device. It is an electronic version of a nameplate of the device.
Analog Input Block 1 Analog Input Block 2
The AI Block receives the measuring data from the Sensor Block, (selectable via a channel number) and makes the data available to other function blocks at its output. Enhancement: digital outputs for process alarms, fail safe mode.
Digital Input Block
This block contains the discrete data of the Diagnose Block (selectable via a channel number 10 to 15) and provides them for other blocks at the output.
Digital Output Block
This block converts the discrete input and thus initiates an action (selectable via a channel number) in the DP Flow Block or in the im TRD1 Block. Channel 20 resets the counter for max. pressure transgressions value.
PID Block
The PID Block serves as a proportional-integralderivative controller and is used almost universally for closed-loop-control in the field including cascade and feedforward. Input IN can be indicated on the display. The selection is performed in the Display Block (DISPLAY_MAIN_LINE_CONTENT).
Arithmetic Block This block is designed to permit simple use of popular measurement math functions. The user does not have to know how to write equations. The math algorithm is selected by name, chosen by the user for the function to be performed.
Input Selector Block
The Input Selector Block facilitates the selection of up to four inputs and generates an output based on the configured action. This block normally receives its inputs from AI Blocks. The block performs maximum, minimum, average and `first good' signal selection. Inputs IN1 to IN4 can be indicated on the display. The selection is performed in the Display Block (DISPLAY_MAIN_LINE_1_CONTENT).
Signal Characterizer Block
DThe Signal Characterizer Block has two sections, each with an output that is a nonlinear function of the respective input. The non-linear function is generated by a single look-up table with 21 arbitrary x-y pairs.
Integrator Block
The Integrator Block integrates a variable as a function of the time or accumulates the counts from a Pulse Input Block. The block may be used as a totalizer that counts up until reset or as a batch totalizer that has a setpoint, where the integrated or accumulated value is compared to pre-trip and trip settings, generating a binary signal when the setpoint is reached.
Number Execution of blocks time
1
2
25 ms
1
20 ms
1
20 ms
1
40 ms
1
35 ms
1
30 ms
1
40 ms
1
35 ms
Functionality enhanced enhanced
standard standard standard
standard standard
standard standard
18
Endress+Hauser
Cerabar M PMC51, PMP51, PMP55
Additional function block information:
Instantiate Function Block
YES
Number of additional instantiatable function blocks
20
Endress+Hauser
19
Terminal assignment
Cerabar M PMC51, PMP51, PMP55
Power supply
LWARNING An incorrect connection compromises electrical safety! When using the measuring device in hazardous areas, the relevant national standards and
regulations as well as the Safety Instructions or Installation or Control Drawings must be observed 128.
All explosion protection data are given in separate documentation which is available upon
request. The Ex documentation is supplied as standard with all Ex-systems 128.
In accordance with IEC/EN61010 a suitable circuit breaker must be provided for the device. HART: Overvoltage protection HAW569-DA2B for the non-hazardous area, ATEX II 2 (1) Ex ia
IIC and IEC Ex ia can be ordered as an option (see the "Ordering information" section).
Protective circuits against reverse polarity, HF influences and overvoltage peaks are installed.
1
7
Supply voltage 20
6
- +
2
5 4
3
A0023505
1 External grounding terminal (only for devices with certainly approvals or if "Measuring point" (TAG) is ordered)
2 Internal grounding terminal 3 Supply voltage 20 4 4...20 mA for HART devices 5 For HART and FOUNDATION Fieldbus devices: With a handheld terminal, all the parameters can be
configured anywhere along the bus line via menu operation. 6 Terminals 7 For HART devices: test terminals, see section "Taking 4 to 20 mA test signal" 20
4 to 20 mA HART
Type of protection
Intrinsically safe
� Other types of protection � Devices without certificate
Supply voltage
11.5 to 30 V DC
11.5 to 45 V DC (versions with plug-in connection 35 V DC)
Taking 4 to 20 mA test signal A 4 to 20 mA test signal may be measured via the test terminals without interrupting the measurement.
PROFIBUS PA Version for non-hazardous areas: 9 to 32 V DC
Endress+Hauser
Cerabar M PMC51, PMP51, PMP55
Current consumption Electrical connection
Terminals Cable entry
FOUNDATION Fieldbus Version for non-hazardous areas: 9 to 32 V DC
� PROFIBUS PA: 11 mA �1 mA, switch-on current corresponds to IEC 61158-2, Clause 21 � FOUNDATION Fieldbus: 16 mA �1 mA, switch-on current corresponds to IEC 61158-2, Clause 21
Cable entry M20 gland G �" thread NPT �" thread M12 plug 7/8" plug HAN7D plug 90 deg PE cable 5m M16 valve connector
Degree of protection IP66/67 NEMA 4X/6P IP66/67 NEMA 4X/6P IP66/67 NEMA 4X/6P IP66/67 NEMA 4X/6P IP66/67 NEMA 4X/6P IP65 IP66/68 NEMA4X/6P + pressure compensation via cable IP64
1) Product Configurator, order code for "Electrical connection"
Option 1) A C D I M P S V
PROFIBUS PA The digital communication signal is transmitted over the bus via a 2-wire connection. The bus also provides the power supply. For further information on the network structure and grounding, and for further bus system components such as bus cables, see the relevant documentation, e.g. Operating Instructions BA00034S "PROFIBUS DP/PA: Guidelines for planning and commissioning" and the PNO Guideline.
FOUNDATION Fieldbus The digital communication signal is transmitted over the bus via a 2-wire connection. The bus also provides the power supply. For further information on the network structure and grounding and for further bus system components such as bus cables, see the relevant documentation, e.g. Operating Instructions BA00013S "FOUNDATION Fieldbus Overview" and the FOUNDATION Fieldbus Guideline.
� Supply voltage and internal ground terminal: 0.5 to 2.5 mm2 (20 to 14 AWG) � External ground terminal: 0.5 to 4 mm2 (20 to 12 AWG)
Approval
Standard, CSA GP ATEX II1/2G or II2G Ex ia, IEC Ex ia Ga/Gb or Ex ia Gb, FM/ CSA IS
ATEX II1/2D Ex t, II1/2GD Ex ia, II3G Ex nA, IEC Ex t Da/Db
Type Plastic M20x1.5
Clamping area 5 to 10 mm (0.2 to 0.39 in)
Metal M20x1.5 (Ex e)
7 to 10.5 mm (0.28 to 0.41 in)
For other technical data, see the housing section 48
Endress+Hauser
21
Device plugs
Devices with valve connector (HART) A
Cerabar M PMC51, PMP51, PMP55
B
+
�
�
21
BU BN GNYE
� +
1 BN = brown, BU = blue, GNYE = green A Electrical connection for devices with valve connector B View of the plug connector at the device
Material: PA 6.6 Devices with Harting plug Han7D (HART)
A
B
�1
3
+
2+
A0023097
+�
Han7D
+�
A Electrical connection for devices with Harting plug Han7D B View of the plug-in connector at the device
Material: CuZn, contacts for plug-in jack and connector are gold-plated Connecting the cable version (all device versions)
+ �
PE
12 3
4
1 RD = red 2 BK = black 3 GNYE = green 4 4...20 mA
A0019990
+ �
A0019991
22
Endress+Hauser
Cerabar M PMC51, PMP51, PMP55
Devices with M12 plug(Analog, HART, PROFIBUS PA)
4 3
12
1 Signal + 2 Not assigned 3 Signal � 4 Ground
Endress+Hauser offers the following accessories for devices with an M12 plug: Plug-in jack M 12x1, straight � Material: body PA; coupling nut CuZn, nickel-plated � Degree of protection (fully locked): IP66/67 � Order number: 52006263 Plug-in jack M 12x1, elbowed � Material: body PBT/PA; coupling nut GD-Zn, nickel-plated � Degree of protection (fully locked): IP66/67 � Order number: 71114212 Cable 4x0.34 mm2 (20 AWG) with M12 socket, elbowed, screw plug, length 5 m (16 ft) � Material: body PUR; coupling nut CuSn/Ni; cable PVC � Degree of protection (fully locked): IP66/67 � Order number: 52010285 Devices with 7/8" plug (Analog, HART, FOUNDATION Fieldbus)
A0011175
Cable specification
1 3
24
1 Signal 2 Signal + 3 Not assigned 4 Shield
External thread: 7/8 - 16 UNC � Material: 316L (1.4401) � Protection: IP66/68
Analog � Endress+Hauser recommends using twisted, shielded two-wire cables. � The cable outer diameter depends on the cable entry used. HART � Endress+Hauser recommends using twisted, shielded two-wire cables. � The cable outer diameter depends on the cable entry used.
A0011176
Endress+Hauser
23
Cerabar M PMC51, PMP51, PMP55
Start-up current Residual ripple Influence of power supply Overvoltage protection (optional)
PROFIBUS PA Use a twisted, shielded two-wire cable, preferably cable type A
For further information on the cable specifications, see Operating Instructions BA00034S "PROFIBUS DP/PA: Guidelines for planning and commissioning", the PNO Guideline 2.092 PROFIBUS PA User and Installation Guideline" and IEC 61158-2 (MBP).
FOUNDATION Fieldbus Use a twisted, shielded two-wire cable, preferably cable type A
For further information on the cable specifications, see Operating Instructions BA00013S "FOUNDATION Fieldbus Overview", FOUNDATION Fieldbus Guideline and IEC 61158-2 (MBP).
� Analog electronics:: 12 mA � HART: 12 mA or 22 mA (selectable)
No influence on 4 to 20 mA signal up to �5 % residual ripple within the permitted voltage range [according to HART hardware specification HCF_SPEC-54 (DIN IEC 60381-1)].
0.001 % of URL/V
The device can be fitted with overvoltage protection. The overvoltage protection is mounted at the factory on the housing thread (M20x1.5) for the cable gland and is approx. 70 mm (2.76 in) in length (take additional length into account when installing). The device is connected as illustrated in the following graphic. For details refer to TI01013KDE, XA01003KA3 and BA00304KA2. Ordering information: Product Configurator, "Mounted accessories" ordering feature, option NA
Wiring
+
A
-
1
3
+
2
rt
+
B
-
sw
-
4
A Without direct shield grounding B With direct shield grounding 1 Incoming connection cable 2 HAW569-DA2B 3 Unit to be protected 4 Connection cable
A0023111
24
Endress+Hauser
Cerabar M PMC51, PMP51, PMP55
Response time Reference operating conditions Maximum measured error (total performance)
Performance characteristics for measuring devices with ceramic process isolating diaphragm
HART � Acyclic: min. 330 ms, typically 590 ms (depending on command # and number of preambles) � Cyclic (burst): min. 160 ms, typically 350 ms (depending on command # and number of
preambles)
PROFIBUS PA � Acyclic: approx. 23 ms to 35 ms (depending on Min. Slave Interval) � Cyclic: approx. 8 ms to 13 ms (depending on Min. Slave Interval)
FOUNDATION Fieldbus � Acyclic: typically 70 ms (for standard bus parameter settings) � Cyclic: max. 20 ms (for standard bus parameter settings)
� As per IEC 62828-2 / IEC 60770 � Ambient temperature TA = constant, in the range of +21 to +33 �C (+70 to +91 �F) � Humidity j = constant, in the range: 5 to 80 % RH � 5 % � Ambient pressure pA = constant, in the range: 860 to 1 060 mbar (12.47 to 15.37 psi) � Position of the measuring cell: horizontal �1� � Input of LOW SENSOR TRIM and HIGH SENSOR TRIM for lower range value and upper range value � Zero based span � Material of the process isolating diaphragm: Al2O3 aluminum oxide ceramic FDA, ultrapure 99.9 % � Supply voltage: 24 V DC �3 V DC � Load with HART: 250 � Turn down (TD) = URL/|URV - LRV|
The performance characteristics refer to the accuracy of the measuring device. The factors influencing accuracy can be divided into two groups � Total performance of measuring device � Installation factors All performance characteristics are in conformance with � 3 sigma. The total performance of the measuring device comprises the reference accuracy and the ambient temperature effect and is calculated using the following formula: Total performance = � ( (E1)� + (E2)�) E1 = Reference accuracy E2 = Temperature effect per �28 �C (50 �F) (corresponds to the range from �3 to +53 �C (+27 to +127 �F)) Calculation of E2: E2 = E2M + E2E E2M = Main temperature error E2E = Electronics error The values refer to the calibrated span
Endress+Hauser
25
Cerabar M PMC51, PMP51, PMP55
Calculation of the total performance with the Endress+Hauser Applicator Detailed measured errors, such as for other temperature ranges, for example, can be calculated with the Applicator "Sizing Pressure Performance".
A0038927
Reference accuracy [E1] Reference accuracy comprises the non-linearity [IEC 62828-1 / DIN EN 61298-2] including the hysteresis [IEC 62828-1 / DIN EN 61298-2] and the non-repeatability [IEC 62828-1 / DIN EN 61298-2] in accordance with the limit point method as per [IEC 62828-1 / DIN EN 60770-2].
Gauge pressure sensors 100 mbar (1.5 psi) sensor � Standard: TD 1:1 to 10:1 = �0.15 %; TD >10:1 to 20:1 = �0.2 % � Platinum: TD 1:1 to 10:1 = �0.075 %; TD >10:1 to 20:1 = �0.0075 % � TD 250 mbar (3.75 psi), 400 mbar (6 psi), 1 bar (15 psi), 2 bar (30 psi), 4 bar (60 psi) and 10 bar (150 psi) sensor � Standard: TD 1:1 to 10:1 = �0.1 %; TD >10:1 to 20:1 = �0.2 % � Platinum: TD 1:1 to 10:1 = �0.075 %; TD >10:1 to 20:1 = �0.1 % 40 bar (600 psi) sensor � Standard: TD 1:1 to 10:1 = �0.1 %; TD >10:1 to 20:1 = �0.2 % � Platinum: TD 1:1 to 10:1 = �0.075 %; TD >10:1 to 20:1 = �0.0075 % � TD
Gauge pressure sensors with hygienic process connections 100 mbar (1.5 psi) sensor � Standard: TD 1:1 to 10:1 = �0.10 %; TD >10:1 to 20:1 = �0.2 % � Platinum: TD 1:1 to 10:1 = �0.075 %; TD >10:1 to 20:1 = �0.0075 % � TD 250 mbar (3.75 psi), 400 mbar (6 psi), 1 bar (15 psi), 2 bar (30 psi), 4 bar (60 psi) and 10 bar (150 psi) sensor � Standard: TD 1:1 to 10:1 = �0.1 %; TD >10:1 to 20:1 = �0.2 % � Platinum: TD 1:1 to 10:1 = �0.075 %; TD >10:1 to 20:1 = �0.1 % 40 bar (600 psi) sensor � Standard: TD 1:1 to 10:1 = �0.1 %; TD >10:1 to 20:1 = �0.2 % � Platinum: TD 1:1 to 10:1 = �0.075 %; TD >10:1 to 20:1 = �0.0075 % � TD
Absolute pressure sensors 100 mbar (1.5 psi) sensor � Standard: TD 1:1 to 10:1 = �0.15 %; TD >10:1 to 20:1 = �0.015 % � TD � Platinum: TD 1:1 to 10:1 = �0.075 %; TD >10:1 to 20:1 = �0.015 % � TD 250 mbar (3.75 psi), 400 mbar (6 psi), 1 bar (15 psi), 2 bar (30 psi), 4 bar (60 psi) and 10 bar (150 psi) sensor � Standard: TD 1:1 to 10:1 = �0.1 %; TD >10:1 to 20:1 = �0.2 % � Platinum: TD 1:1 to 10:1 = �0.075 %; TD >10:1 to 20:1 = �0.1 % 40 bar (600 psi) sensor � Standard: TD 1:1 to 10:1 = �0.1 %; TD >10:1 to 20:1 = �0.2 % � Platinum: TD 1:1 to 10:1 = �0.075 %; TD >10:1 to 20:1 = �0.0075 % � TD
26
Endress+Hauser
Cerabar M PMC51, PMP51, PMP55
Resolution
Absolute pressure sensors with hygienic process connections 100 mbar (1.5 psi) sensor � Standard: TD 1:1 to 10:1 = �0.1 %; TD >10:1 to 20:1 = �0.15 % � TD � Platinum: TD 1:1 to 10:1 = �0.075 %; TD >10:1 to 20:1 = �0.015 % � TD 250 mbar (3.75 psi), 400 mbar (6 psi), 1 bar (15 psi), 2 bar (30 psi), 4 bar (60 psi) and 10 bar (150 psi) sensor � Standard: TD 1:1 to 10:1 = �0.1 %; TD >10:1 to 20:1 = �0.2 % � Platinum: TD 1:1 to 10:1 = �0.075 %; TD >10:1 to 20:1 = �0.1 % 40 bar (600 psi) sensor � Standard: TD 1:1 to 10:1 = �0.1 %; TD >10:1 to 20:1 = �0.2 % � Platinum: TD 1:1 to 10:1 = �0.075 %; TD >10:1 to 20:1 = �0.0075 % � TD
Temperature effect [E2]
E2M - Main temperature error The output changes due to the effect of the ambient temperature [IEC 62828-1 / IEC 61298-3] with respect to the reference temperature [IEC 62828-1 / DIN 16086]. The values specify the maximum error due to min./max. ambient or process temperature conditions. 100 mbar (1.5 psi), 250 mbar (3.75 psi) and 400 mbar (6 psi) sensor � Standard: �(0.277 % � TD + 0.275 %) � Platinum: �(0.277 % � TD + 0.275 %) 1 bar (15 psi), 2 bar (30 psi), 4 bar (60 psi), 10 bar (150 psi) and 40 bar (600 psi) sensor � Standard: �(0.157 % � TD + 0.235 %) � Platinum: �(0.157 % � TD + 0.235 %)
With hygienic process connections 100 mbar (1.5 psi), 250 mbar (3.75 psi) and 400 mbar (6 psi) sensor � Standard: �(0.277 % � TD + 0.275 %) � Platinum: �(0.277 % � TD + 0.275 %) 1 bar (15 psi), 2 bar (30 psi), 4 bar (60 psi), 10 bar (150 psi) and 40 bar (600 psi) sensor � Standard: �(0.157 % � TD + 0.235 %) � Platinum: �(0.157 % � TD + 0.235 %)
E2E - Electronics error � Analog output (4 to 20 mA): 0.2 % � Digital output (HART/PA/FF): 0 %
� Current output: 1 A � Display: can be set (factory setting: presentation of the maximum accuracy of the transmitter)
Endress+Hauser
27
Total error
Cerabar M PMC51, PMP51, PMP55
The total error of the measuring device comprises the total performance and the influence of longterm stability and is calculated using the following formula: Total error = total performance + long-term stability Calculation of the total error with the Endress+Hauser Applicator Detailed measured errors, such as for other temperature ranges, for example, can be calculated with the Applicator "Sizing Pressure Performance".
A0038927
Calculation of the diaphragm seal error with the Endress+Hauser Applicator Diaphragm seal errors are not taken into consideration. Diaphragm seal errors are calculated separately in the Applicator "Sizing Diaphragm Seal".
Long-term stability
The specifications refer to the upper range limit (URL). 400 mbar (6 psi) and 1 bar (15 psi) sensor � 1 year: �0.20 % � 5 years: �0.40 % � 10 years: �0.50 % 2 bar (30 psi), 4 bar (60 psi), 10 bar (150 psi) and 40 bar (600 psi) sensor � 1 year: �0.10 % � 5 years: �0.25 % � 10 years: �0.40 % With hygienic process connections 400 mbar (6 psi) and 1 bar (15 psi) sensor � 1 year: �0.35 % � 5 years: �0.50 % � 10 years: �0.60 % 2 bar (30 psi), 4 bar (60 psi), 10 bar (150 psi) and 40 bar (600 psi) sensor � 1 year: �0.20 % � 5 years: �0.35 % � 10 years: �0.50 %
A0038925
28
Endress+Hauser
Cerabar M PMC51, PMP51, PMP55
Response time T63 and T90
Dead time, time constant Presentation of the dead time and the time constant as per DIN 16086:
I 100 %
90 %
63 %
t1 t2 t3
Dynamic behavior, current output (analog electronics)
Max.
Dead time (t1) 60 ms
Time constant T63 (= t2) 40 ms
t
A0019786
Time constant T90 (= t3) 50 ms
Dynamic behavior, current output (HART electronics)
Max.
Dead time (t1) 50 ms
Time constant T63 (= t2) 85 ms
Time constant T90 (= t3) 200 ms
Dynamic behavior, digital output (HART electronics)
Dead time (t1)
min. Max.
210 ms 1010 ms
Dead time (t1) + Time constant T63 (= t2) 295 ms 1095 ms
Dead time (t1) + Time constant T90 (= t3) 360 ms 1160 ms
Reading cycle � Acyclic: max. 3/s, typical 1/s (depends on command # and number of preambles) � Cyclic (burst): max. 3/s, typical 2/s The device commands the BURST MODE function for cyclic value transmission via the HART communication protocol.
Cycle time (update time) Cyclic (burst): min. 300 ms
Endress+Hauser
29
Cerabar M PMC51, PMP51, PMP55
Dynamic behavior, PROFIBUS PA
Dead time (t1)
min. Max.
85 ms 1185 ms
Dead time (t1) + Time constant T63 (= t2) 170 ms 1270 ms
Dead time (t1) + Time constant T90 (= t3) 235 ms 1335 ms
Reading cycle (PLC) � Acyclic: typically 25/s � Cyclic: typically 30/s (dependent on the number and type of function blocks used in a closed-
control loop)
Cycle time (update time) min. 100 ms The cycle time in a bus segment in cyclic data communication depends on the number of devices, on the segment coupler used and on the internal PLC cycle time.
Dynamic behavior, FOUNDATION Fieldbus
Dead time (t1)
min. Max.
95 ms 1095 ms
Dead time (t1) + Time constant T63 (= t2) 180 ms 1180 ms
Dead time (t1) + Time constant T90 (= t3) 245 ms 1245 ms
Reading cycle � Acyclic: typically 5/s � Cyclic: max. 10/s (dependent on the number and type of function blocks used in a closed-control
loop)
Cycle time (update time) Cyclic: min. 100 ms
30
Endress+Hauser
Cerabar M PMC51, PMP51, PMP55
Installation factors
Influence of installation position C
90� A
90� B
A0023697
Measuring error in mbar (psi)
Process isolating diaphragm axis is horizontal (A)
Process isolating diaphragm pointing upwards (B)
Calibration position, no measuring error < +0.2 mbar (+0.003 psi)
Process isolating diaphragm pointing downwards (C)
< �0.2 mbar (�0.003 psi)
A position-dependent zero point shift can be corrected on the device.
Warm-up period � 4 to 20 mA analog: 1.5 s � 4 to 20 mA HART: 5 s � PROFIBUS PA: 8 s � FOUNDATION Fieldbus: 20 s (after a TOTAL reset 45 s)
Endress+Hauser
31
Cerabar M PMC51, PMP51, PMP55
Response time Reference operating conditions Maximum measured error (total performance)
Performance characteristics for measuring devices with metal process isolating diaphragm
HART � Acyclic: min. 330 ms, typically 590 ms (depending on command # and number of preambles) � Cyclic (burst): min. 160 ms, typically 350 ms (depending on command # and number of
preambles)
PROFIBUS PA � Acyclic: approx. 23 ms to 35 ms (depending on Min. Slave Interval) � Cyclic: approx. 8 ms to 13 ms (depending on Min. Slave Interval)
FOUNDATION Fieldbus � Acyclic: typically 70 ms (for standard bus parameter settings) � Cyclic: max. 20 ms (for standard bus parameter settings)
� As per IEC 62828-2 / IEC 60770 � Ambient temperature TA = constant, in the range of +21 to +33 �C (+70 to +91 �F) � Humidity j = constant, in the range: 5 to 80 % RH � Ambient pressure pA = constant, in the range: 860 to 1 060 mbar (12.47 to 15.37 psi) � Position of the measuring cell: constant, in range: �1� horizontally � Input of LOW SENSOR TRIM and HIGH SENSOR TRIM for lower range value and upper range value � Zero based span � Material of the process isolating diaphragm: AISI 316L � Filling oil PMP51: synthetic oil as per FDA 21 CFR 178.3620 (b)(1) and NSF H-1 � Supply voltage: 24 V DC �3 V DC � Load with HART: 250
The performance characteristics refer to the accuracy of the measuring device. The factors influencing accuracy can be divided into two groups � Total performance of measuring device � Installation factors All performance characteristics are in conformance with � 3 sigma. The total performance of the measuring device comprises the reference accuracy and the ambient temperature effect and is calculated using the following formula: Total performance = � ( (E1)� + (E2)�) E1 = Reference accuracy E2 = Temperature effect per �28 �C (50 �F) (corresponds to the range from �3 to +53 �C (+27 to +127 �F)) Calculation of E2: E2 = E2M + E2E E2M = Main temperature error E2E = Electronics error E2LT = Low temperature error � The values apply for process isolating diaphragm made of 316L (1.4435) � The values refer to the calibrated span
32
Endress+Hauser
Cerabar M PMC51, PMP51, PMP55
Endress+Hauser
Reference accuracy [E1] Reference accuracy comprises the non-linearity [IEC 62828-1 / DIN EN 61298-2] including the hysteresis [IEC 62828-1 / DIN EN 61298-2] and the non-repeatability [IEC 62828-1 / DIN EN 61298-2] in accordance with the limit point method as per [IEC 62828-1 / DIN EN 60770-2].
PMP51 400 mbar (6 psi) sensor � Standard: TD 1:1 = �0.1 %; TD >1:1 to 20:1 = �0.15 % � TD � Platinum: 1 bar (15 psi) sensor � Standard: TD 1:1 to 5:1 = �0.1 %; TD >5:1 to 20:1 =�0.03 % � TD � Platinum: TD 1:1 to 2.5:1 = �0.075 %; TD >2.5:1 to 20:1 =�0.03 � TD 2 bar (30 psi) sensor � Standard: TD 1:1 to 10:1 = �0.1 %; TD >10:1 to 20:1 = �0.015 % � TD � Platinum: TD 1:1 to 5:1 = �0.075 %; TD >5:1 to 20:1 = �0.015 % � TD 4 bar (60 psi) sensor � Standard: TD 1:1 to 10:1 = �0.1 %; TD >10:1 to 20:1 = �0.2 % � Platinum: TD 1:1 to 10:1 = �0.075 %; TD >10:1 to 20:1 = �0.0075 % � TD 10 bar (150 psi) and 40 bar (600 psi) sensor � Standard: TD 1:1 to 10:1 = �0.1 %; TD >10:1 to 20:1 = �0.2 % � Platinum: TD 1:1 to 10:1 = �0.075 %; TD >10:1 to 20:1 = �0.1 % 100 bar (1 500 psi) sensor � Standard: TD 1:1 to 10:1 = �0.1 %; TD >10:1 to 20:1 = �0.2 % � Platinum: TD 1:1 to 10:1 = �0.075 %; TD >10:1 to 20:1 = �0.15 % 400 bar (6 000 psi) sensor � Standard: TD 1:1 to 5:1 = �0.1 %; TD >5:1 to 20:1 = �0.03 % � TD � Platinum: TD 1:1 to 5:1 = �0.1 %; TD >5:1 to 20:1 = �0.03 % � TD
PMP51 with hygienic process connections 400 mbar (6 psi) sensor � Standard: TD 1:1 = �0.1 %; TD >1:1 to 10:1 = �0.3 % � TD � Platinum: 1 bar (15 psi) sensor � Standard: TD 1:1 = �0.1 %; TD >1:1 to 10:1 = �0.3 % � TD � Platinum: TD 1:1 = �0.1 %; TD >1:1 to 10:1 = �0.2 % � TD 2 bar (30 psi) sensor � Standard: TD 1:1 to 5:1 = �0.1 %; TD >5:1 to 10:1 = �0.2 % � Platinum: TD 1:1 to 5:1 = �0.075 %; TD >5:1 to 10:1 = �0.1 % 4 bar (60 psi), 10 bar (150 psi) and 40 bar (600 psi) sensor � Standard: TD 1:1 to 10:1 = �0.1 %; TD >10:1 to 20:1 = �0.2 % � Platinum: TD 1:1 to 10:1 = �0.075 %; TD >10:1 to 20:1 = �0.1 %
PMP55 400 mbar (6 psi) sensor � Standard: TD 1:1 = �0.15 %; TD >1:1 to 20:1 = �0.15 % � TD � Platinum: not available 1 bar (15 psi) sensor � Standard: TD 1:1 to 5:1 = �0.15 %; TD >5:1 to 20:1 = �0.03 % � TD � Platinum: TD 1:1 to 2.5:1 = �0.075 %; TD >2.5:1 to 20:1 = �0.03 % � TD 2 bar (30 psi) sensor � Standard: TD 1:1 to 10:1 = �0.15 %; TD >10:1 to 20:1 = �0.015 % � TD � Platinum: TD 1:1 to 5:1 = �0.075 %; TD >5:1 to 20:1 = �0.015 % � TD 4 bar (60 psi) sensor � Standard: TD 1:1 to 10:1 = �0.15 %; TD >10:1 to 20:1 = �0.2 % � Platinum: TD 1:1 to 10:1 = �0.075 %; TD >10:1 to 20:1 = �0.0075 % � TD 10 bar (150 psi) and 40 bar (600 psi) sensor � Standard: TD 1:1 to 10:1 = �0.15 %; TD >10:1 to 20:1 = �0.2 % � Platinum: TD 1:1 to 10:1 = �0.075 %; TD >10:1 to 20:1 = �0.1 %
33
Cerabar M PMC51, PMP51, PMP55
100 bar (1 500 psi) sensor � Standard: TD 1:1 to 10:1 = �0.15 %; TD >10:1 to 20:1 = �0.2 % � Platinum: TD 1:1 to 10:1 = �0.075 %; TD >10:1 to 20:1 = �0.15 % 400 bar (6 000 psi) sensor � Standard: TD 1:1 to 5:1 = �0.15 %; TD >5:1 to 20:1 = �0.03 % � TD � Platinum: TD 1:1 to 5:1 = �0.15 %; TD >5:1 to 20:1 = �0.03 % � TD
Platinum only for direct diaphragm seal mounting.
Temperature effect [E2]
E2M - Main temperature error The output changes due to the effect of the ambient temperature [IEC 62828-1 / IEC 61298-3] with respect to the reference temperature [IEC 62828-1 / DIN 16086]. The values specify the maximum error due to min./max. ambient or process temperature conditions. 400 mbar (6 psi) sensor �(0.08 % � TD + 0.16 %) 1 bar (15 psi) sensor �(0.08 % � TD + 0.16 %) 2 bar (30 psi) sensor �(0.08 % � TD + 0.16 %) 4 bar (60 psi) sensor �(0.08 % � TD + 0.16 %) 10 bar (150 psi) and 40 bar (600 psi) sensor �(0.06 % � TD + 0.06 %) 100 bar (1 500 psi) sensor �(0.03 % � TD + 0.12 %) 400 bar (6 000 psi) sensor �(0.03 % � TD + 0.12 %)
PMP51 with hygienic process connections 400 mbar (6 psi) sensor with Clamp �" � Standard: �(0.4 % � TD + 0.1 %) � Platinum: 400 mbar (6 psi) and 1 bar (15 psi) sensor � Standard: �(0.25 % � TD + 0.1 %) � Platinum: �(0.25 % � TD + 0.1 %) 2 bar (30 psi), 4 bar (60 psi), 10 bar (150 psi) and 40 bar (600 psi) sensor � Standard: �(0.2 % � TD + 0.1 %) � Platinum: �(0.2 % � TD + 0.1 %)
E2E - Electronics error � Analog output (4 to 20 mA): 0.2 % � Digital output (HART/PA/FF): 0 %
Calculation of the total performance with the Endress+Hauser Applicator Detailed measured errors, such as for other temperature ranges, for example, can be calculated with the Applicator "Sizing Pressure Performance".
34
Endress+Hauser
Cerabar M PMC51, PMP51, PMP55
A0038927
Calculation of the diaphragm seal error with the Endress+Hauser Applicator Diaphragm seal errors are not taken into consideration. Diaphragm seal errors are calculated separately in the Applicator "Sizing Diaphragm Seal".
Resolution Total error
A0038925
� Current output: 1 A � Display: can be set (factory setting: presentation of the maximum accuracy of the transmitter)
The total error of the measuring device comprises the total performance and the influence of longterm stability and is calculated using the following formula: Total error = total performance + long-term stability Calculation of the total error with the Endress+Hauser Applicator Detailed measured errors, such as for other temperature ranges, for example, can be calculated with the Applicator "Sizing Pressure Performance".
Endress+Hauser
A0038927
Calculation of the diaphragm seal error with the Endress+Hauser Applicator Diaphragm seal errors are not taken into consideration. Diaphragm seal errors are calculated separately in the Applicator "Sizing Diaphragm Seal".
35
Cerabar M PMC51, PMP51, PMP55
Long-term stability Response time T63 and T90
The specifications refer to the upper range limit (URL). � 1 year: �0.10 % � 5 years: �0.20 % � 10 years: �0.25 %
PMP51 with hygienic process connections 400 mbar (6 psi) and 1 bar (15 psi) sensor � 1 year: �0.25 % � 5 years: �0.48 % � 10 years: �0.58 % 2 bar (30 psi), 4 bar (60 psi), 10 bar (150 psi) and 40 bar (600 psi) sensor � 1 year: �0.10 % � 5 years: �0.33 % � 10 years: �0.43 %
Dead time, time constant Presentation of the dead time and the time constant as per DIN 16086:
I 100 %
90 %
63 %
A0038925
tt
1
2
t 3
Dynamic behavior, current output (analog electronics)
Max. Max.
Device PMP51 PMP55
Dead time (t1) 40 ms
Time constant T63 (= t2) 40 ms
PMP51 + influence of the diaphragm seal
Dynamic behavior, current output (HART electronics)
Max. Max.
Device PMP51 PMP55
Dead time (t1) 70 ms
Time constant T63 (= t2) 80 ms
PMP51 + influence of the diaphragm seal
t
A0019786
Time constant T90 (= t3) 50 ms
Time constant T90 (= t3) 185 ms
36
Endress+Hauser
Cerabar M PMC51, PMP51, PMP55
Dynamic behavior, digital output (HART electronics)
Device
min. Max. Max.
PMP51 PMP55
Dead time (t1) 210 ms
Dead time (t1) + Time constant T63 (= t2) 285 ms
1010 ms
1085 ms
PMP51 + influence of the diaphragm seal
Dead time (t1) + Time constant T90 (= t3) 345 ms 1145 ms
Reading cycle � Acyclic: max. 3/s, typical 1/s (depends on command # and number of preambles) � Cyclic (burst): max. 3/s, typical 2/s The device commands the BURST MODE function for cyclic value transmission via the HART communication protocol.
Cycle time (update time) Cyclic (burst): min. 300 ms
Dynamic behavior, PROFIBUS PA
Device
min. Max. Max.
PMP51 PMP55
Dead time (t1) 85 ms
Dead time (t1) + Time constant T63 (= t2) 160 ms
1185 ms
1260 ms
PMP51 + influence of the diaphragm seal
Dead time (t1) + Time constant T90 (= t3) 220 ms 1320 ms
Reading cycle (PLC) � Acyclic: typically 25/s � Cyclic: typically 30/s (dependent on the number and type of function blocks used in a closed-
control loop)
Cycle time (update time) min. 100 ms The cycle time in a bus segment in cyclic data communication depends on the number of devices, on the segment coupler used and on the internal PLC cycle time.
Dynamic behavior, FOUNDATION Fieldbus
Device
min. Max. Max.
PMP51 PMP55
Dead time (t1) 95 ms
Dead time (t1) + Time constant T63 (= t2) 170 ms
1095 ms
1170 ms
PMP51 + influence of the diaphragm seal
Dead time (t1) + Time constant T90 (= t3) 230 ms 1230 ms
Reading cycle � Acyclic: typically 5/s � Cyclic: max. 10/s (dependent on the number and type of function blocks used in a closed-control
loop)
Cycle time (update time) Cyclic: min. 100 ms
Endress+Hauser
37
Cerabar M PMC51, PMP51, PMP55
Installation factors
Influence of installation position C
90� A
90� B
Measuring error in mbar (psi)
PMP51 with �" thread and silicone oil PMP51 with thread > �" and flanges
A0023697
Process isolating diaphragm axis is horizontal (A)
Calibration position, no measuring error
Process isolating diaphragm pointing upwards (B)
< +4 mbar (+0.06 psi)
< +10 mbar (+0.145 psi) The value is doubled for inert oil.
Process isolating diaphragm pointing downwards (C)
< �4 mbar (�0.06 psi)
< �10 mbar (�0.145 psi) The value is doubled for inert oil.
A position-dependent zero point shift can be corrected on the device.
Warm-up period � 4 to 20 mA analog: 1.5 s � 4 to 20 mA HART: 5 s � PROFIBUS PA: 8 s � FOUNDATION Fieldbus: 20 s (after a TOTAL reset 45 s)
38
Endress+Hauser
Cerabar M PMC51, PMP51, PMP55
Installation
General installation instructions
The position-dependent zero point shift can be corrected: � directly at the device via operating keys on the electronic insert � directly at the device via operating keys on the display(except analog electronics) � via digital communication if the cover is not open(except analog electronics). � Endress+Hauser offers a mounting bracket for installing the device on pipes or walls. � Use flushing rings for flange and cell diaphragm seals if medium buildup or clogging can be
expected at the diaphragm seal connection. The flushing ring can be inserted between the process connection and the diaphragm seal. Thanks to the two lateral flushing bore holes, material buildup in front of the process isolating diaphragm can be rinsed away and the pressure chamber can be ventilated. � To guarantee the leak-tightness of the transmitter, Endress+Hauser recommends that only genuine cable glands be used (also available as spare parts).
Measuring arrangement for devices without diaphragm seal � PMC51, PMP51
Cerabar M transmitters without diaphragm seals are mounted as per the norms for a manometer (DIN EN 837-2). We recommend the use of shutoff devices and siphons. The orientation depends on the measuring application.
Pressure measurement in gases Mount Cerabar M with shutoff device above the tapping point so that any condensate can flow into the process.
Pressure measurement in steams Use a siphon if measuring pressure in steams. The siphon reduces the temperature to almost the ambient temperature. Fill the siphon with liquid before commissioning. Preferably mount the Cerabar M with a siphon below the tapping point. Advantages: � Defined water column only causes minimal/negligible measured errors � Only minimal/negligible thermal effects on the device
The device may also be mounted above the tapping point. Pay attention to the maximum permitted ambient temperature of the transmitter! � Fill the siphon with liquid before commissioning.
Pressure measurement in liquids Mount Cerabar M with shutoff device below or at the same level as the tapping point.
Level measurement � Mount Cerabar M below the lowest measuring point (zero point of the measurement). � Do not mount the device at the following positions: In the filling curtain, in the tank outlet or at a
point in the vessel which could be affected by pressure pulses from an agitator or a pump. � The calibration and functional test can be carried out more easily if you mount the device
downstream of a shutoff device.
Measuring arrangement for devices with diaphragm seal � PMP55
113
Endress+Hauser
39
Cerabar M PMC51, PMP51, PMP55
Wall and pipe mounting, transmitter (optional)
Endress+Hauser offers the following mounting bracket for installing the device on pipes or walls:
Wall and pipe-mounting manifold (optional)
A0032492
Ordering information: � Product configurator "Accessory Enclosed" ordering feature, option PA. � included in the delivery for devices with a separate housing (available for order via feature
"Separate housing") � available for order as a separate accessory (Part No.: 71102216). Further details 98.
72 (2.83)
89 (3.5)
R 30
72 (2.83) 32 (1.26)
Technical data (e.g. dimensions or order numbers for screws) see accessory document SD01553P/00/EN. Ordering information: Product Configurator, order code for "Accessories enclosed", option "PK"
A0030607
40
Endress+Hauser
Cerabar M PMC51, PMP51, PMP55
"Separate housing" version
With the "separate housing" version, you are able to mount the housing with the electronics insert at a distance from the measuring point. This allows for trouble-free measurement: � Under particularly difficult measuring conditions (at installation locations that are cramped or
difficult to access) � If rapid cleaning of the measuring point is required � If the measuring point is exposed to vibrations You can choose between different cable versions: � PE: 2 m (6.6 ft), 5 m (16 ft) and 10 m (33 ft) � FEP: 5 m (16 ft). Ordering information: � Product Configurator, "Separate housing" ordering feature � Product Configurator, "Enclosed accessories" ordering feature, option PA For the dimensions 98 In the case of the "separate housing" version, the sensor is delivered with the process connection and cable ready mounted. The housing and a mounting bracket are enclosed as separate units. The cable is provided with a socket at both ends. These sockets are simply connected to the housing and the sensor.
5 4
r � 120 (4.72)
1
2
3
A0023567
1 Process connection with sensor - see the following section for the degrees of protection 2 Process connection adapter (weight 0.93 kg (2.05 lb)) 3 Cable (weight 0.05 kg/Meter (0.11 lb)), both ends are fitted with a socket 4 Mounting bracket provided, suitable for pipe and wall mounting (for pipes from 1 1/4" up to 2" diameter) 5 Housing with electronic insert - degrees of protection 43
Engineering unit mm (in)
Degree of protection for the process connection and sensor with the use of � FEP-cabel:
� IP 69 1) � IP 66 NEMA 4/6P � IP 68 (1,83 mH2O f�r 24 h) NEMA 4/6P � PE-cabel: � IP 66 NEMA 4/6P � IP 68 (1,83 mH2O f�r 24 h) NEMA 4/6P Technical data of the PE and FEP cable: � Minimum bending radius: 120 mm (4.72 in) � Cable extraction force: max.450 N (101.16 lbf) � Resistance to UV light
1) Identification of IP protection category according to DIN EN 60529. The earlier designation "IP69K" according to DIN 40050 Part 9 is no longer valid (the standard was withdrawn on November 1, 2012). The tests required for both standards are identical.
Endress+Hauser
41
Cerabar M PMC51, PMP51, PMP55
Use in hazardous area: � Intrinsically safe installations (Ex ia/IS) � FM/CSA IS: for Div.1 installation only
Oxygen applications
Oxygen and other gases can react explosively to oils, grease and plastics, such that, among other things, the following precautions must be taken: � All components of the system, such as measuring devices, must be cleaned in accordance with the
BAM (DIN 19247) requirements. � Dependent on the materials used, a certain maximum temperature and a maximum pressure for
oxygen applications must not be exceeded. The devices suitable for gaseous oxygen applications are listed in the following table with the specification pmax.
Order code for devices 1),
pmax for oxygen applications
cleaned for oxygen applications
PMC51 2) � devices with sensors, Over pressure limit (OPL) of the sensor 3) 4) nominal value < 10 bar (150 psi)
PMC51 2) � devices with sensors, 40 bar (600 psi) nominal value 10 bar (150 psi)
PMP51 , PMP55 5)
Depends on the lowest-rated element, with regard to pressure, of the selected components: over pressure limit (OPL) of the sensor 3), process connection (1.5 x PN) or fill fluid (80 bar (1 200 psi)
Tmax for oxygen applications 60 �C (140 �F)
60 �C (140 �F)
60 �C (140 �F)
1) Devices only, not accessories or enclosed accessories. 2) Product Configurator, order code for "Service" option "HB 3) Product Configurator, order code for "Sensor range" 4) PMC51 with PVDF thread or PVDF flange pmax = 15 bar (225 psi)15 bar (225 psi)
5) Product Configurator, order code for "Service" option "HB
PWIS cleaning
Special cleaning of the transmitter to remove paint-wetting substances, for use in paint shops, for instance. Ordering information: Ordering information: Product Configurator, "Service" ordering feature, option HC The stability of the materials used must be checked before using them in the medium.
Ultrapure gas applications (PMC51 und PMP51)
Endress+Hauser also provides devices which have been cleaned of oil and grease for special applications, such as for ultrapure gas. No special restrictions regarding the process conditions apply to these devices. Ordering information: Product Configurator, "Service" ordering feature, option "HA"
Applications with hydrogen
A ceramic process isolating diaphragm or a gold-plated metal process isolating diaphragm offers universal protection against hydrogen diffusion, both in gas applications and in applications with aqueous solutions.
Applications with hydrogen in aqueous solutions Agold/rhodium-plated metal process isolating diaphragm (AU/Rh) offers effective protection against hydrogen diffusion.
42
Endress+Hauser
Cerabar M PMC51, PMP51, PMP55
Environment
Ambient temperature range
Version Without LCD display With LCD display 1) With M12 plug , elbowed With separate housing
Diaphragm seal systems 2)
PMC51
PMP51
�40 to +85 �C (�40 to +185 �F)
�20 to +70 �C (�4 to +158 �F)
�25 to +85 �C (�13 to +185 �F)
�20 to +60 �C (�4 to +140 �F) (installation without insulation)
--
--
PMP55
-- 113
1) Extended temperature application range (�40 to +85 �C (�40 to +185 �F)) with restrictions in optical properties such as display speed and contrast
2) Ambient temperature range and process temperature range are mutually dependent - see chapter "Thermal insulation" 116
Storage temperature range
Climate class Degree of protection Vibration resistance
NOTICE High temperatures or vibrations can destroy the device!
For high-temperature applications, either a PMP55 with a temperature isolator or with a
capillary can be used. If vibrations also occur in the application, Endress+Hauser recommends you use a PMP55 with a capillary. If a PMP55 with a temperature isolator or capillary is used, we recommend a suitable bracket for mounting (see "Wall and pipe mounting, transmitter (optional) 40.
Version Without LCD display With LCD display With M12 plug , elbowed With separate housing Diaphragm seal systems 1)
PMC51
PMP51
�40 to +90 �C (�40 to +185 �F)
�40 to +85 �C (�40 to +185 �F)
�25 to +85 �C (�13 to +185 �F)
�40 to +60 �C (�40 to +140 �F)
--
--
PMP55
-- 113
1) Devices with PVC-sheathed capillary: �25 to +90 �C (�13 to +194 �F)
Class 4K4H (air temperature: �20 to +55 �C (�4 to +131 �F), relative humidity: 4 to 100%) satisfied as per DIN EN 60721-3-4 (condensation possible)
� Depending on the used electrical connection 21 Ordering information: Product Configurator, "Electrical connection" ordering feature
� Separate housing 41
Device/accessory
Devices without mounting bracket
Test standard
GL VI-7-2 � Part 7: Guidelines for the Performance of Type
Approvals � Chapter 2: Test Requirements for Electrical /
Electronic Equipment and Systems
IEC 62828-1 / IEC 61298-3 IEC 60068-2-6
Devices with mounting IEC 62828-1 / IEC 61298-3
bracket
IEC 60068-2-6
Vibration resistance
Guaranteed for 5 to 25 Hz: �1.6 mm (0.06 in); 25 to 100 Hz: 4 g in all 3 axes
Guaranteed for 10 to 60 Hz: �0.35 mm (0.01 in); 60 to 2000 Hz: 5 g in all 3 axes
Guaranteed for 10 to 60 Hz: �0.15 mm (0.01 in); 60 to 500 Hz: 2 g in all 3 axes
Endress+Hauser
43
Cerabar M PMC51, PMP51, PMP55
Electromagnetic compatibility Operation in very corrosive environment
NOTICE Strong vibrations can destroy the device!
For applications with strong vibrations, use PMC51/ PMP51 with a separate housing. For applications with strong vibrations, use PMP55 with a capillary. We recommend the use of a suitable bracket for mounting ( 40).
� Electromagnetic compatibility as per all the relevant requirements of the EN 61326 series and NAMUR Recommendation EMC (NE21).
� Max. deviation : < 0.5 % of the span Further details can be found in the manufacturer declaration.
PMP55: For corrosive environments (e.g. maritime environment / coastal areas), Endress+Hauser recommends the use of a PVC or PTFE armor for the capillaries. The transmitter can also be protected by a special coating (Technical Special Product (TSP)).
44
Endress+Hauser
Cerabar M PMC51, PMP51, PMP55
Process
Process temperature range PMC51
�F Tp �C
+302 +150
C
+284 +140
+266 +130
B
+248 +120
+230 +110
A
+212 +100
...
...
+50 +10
Ta Tp
+32
0
+14 -10
...
...
-40 -40
�C
-40 ... -10 0 +10 ... +60 +70 +80 +90 Ta
�F -40 ... +14 +32 +50 ... +140 +158 +176 +194
A0023699
A, B and C see next section. Ta = Ambient temperature. Tp = Process temperature
Process temperature limits
For oxygen applications 42
PMC51 (with ceramic process isolating diaphragm) � A: �40 to +100 �C (�40 to +212 �F) for process connections with threaded connection or flange � B: �20 to +130 �C (�4 to +266 �F) for hygienic process connections � C: For max. 60 minutes: +150 �C (+302 �F) for hygienic process connections � With applications involving saturated steam, a device with a metal process isolating diaphragm
must be used, or a siphon for temperature isolation should be provided during installation. � Observe the process temperature range of the seal. See also the following table.
Seal
Notes
Process temperature range
Option 1)
Thread or flange
Hygienic process connections
FKM Viton
-
�20 to +100 �C (�4 to +212 �F) -
A
FKM Viton
cleaned for O2 application
�5 to +60 �C (+23 to +140 �F) -
A 2)
FKM Viton
FDA , 3A Class I, USP Class VI
�5 to +100 �C (+23 to +212 �F) �5 to +150 �C (+23 to +302 �F) B
FFKM Perlast G75LT -
�20 to +100 �C (�4 to +212 �F) �20 to +150 �C (�4 to +302 �F) C
NBR
FDA 21 CFR 177.2600
�10 to +100 �C (+14 to +212 �F) -
F
NBR, low temperature -
�40 to +100 �C (�40 to +212 �F) -
H
HNBR
FDA 21 CFR 177.2600, 3A Class I, KTW, AFNOR, BAM
�25 to +100 �C (�13 to +212 �F) �20 to +100 �C (�4 to +212 �F) G
EPDM 70
FDA 21 CFR 177.2600
�40 to +100 �C (�40 to +212 �F) -
J
EPDM 331
FDA 21 CFR 177.2600, 3A Class II, USP Class �20 to +100 �C (�4 to +212 �F) �20 to +150 �C (�4 to +302 �F) K VI, DVGW (UBA "KTW", W270), NSF61
FFKM Kalrez 6375 -
+5 to +100 �C (+41 to +212 �F) -
L
FFKM Kalrez 7075 -
+5 to +100 �C (+41 to +212 �F) -
M
FFKM Kalrez 6221 FDA 21 CFR 177.2600, USP Class VI
�5 to +100 �C (+23 to +212 �F) �5 to +150 �C (+23 to +302 �F) N
Fluoroprene XP40
FDA 21 CFR 177.2600, USP Class VI, 3A Class I +5 to +100 �C (+41 to +212 �F) +5 to +150 �C (+41 to +302 �F) P
VMQ silicone
FDA 21 CFR 177.2600
�35 to +85 �C (�31 to +185 �F) �20 to +85 �C (�4 to +185 �F) S
1) Product Configurator, order code for "Seal" 2) With "HB" option, see Product Configurator, order code for "Service"
Endress+Hauser
45
Cerabar M PMC51, PMP51, PMP55
Applications with jumps in temperature Extreme jumps in temperature can result in temporary measuring errors. Temperature compensation takes effect after several minutes. Internal temperature compensation is faster the smaller the jump in temperature and the longer the time interval involved.
For further information please contact your local Endress+Hauser Sales Center.
PMP51 (with metal process isolating diaphragm)
Designation
Temperature operating range
Process connections with internal process isolating diaphragm �40 to +125 �C (�40 to +257 �F)
Process connections with flush mount process isolating diaphragm 1)
�40 to +100 �C (�40 to +212 �F)
Hygienic process connections
�40 to +130 �C (�40 to +266 �F) For a maximum of 60 minutes: 150 �C (302 �F)
1) Process connection thread ISO 228 G �" A, DIN 3852: supplied seal for process temperature to �20 �C (�4 �F)
PMP55 (with diaphragm seal) Depends on diaphragm seal and filling oil: �70 �C (�94 �F) up to +400 �C (+752 �F). Observe the temperature application limits 115.
Devices with PTFE coated process isolating diaphragm The non-stick coating has excellent gliding properties and is used to protect the process isolating diaphragm against abrasive media. NOTICE Destruction of the device due to incorrect use of PTFE foil!
The PTFE foil is designed to protect the unit against abrasion. It does not provide protection
against corrosive media.
Range of application of the PTFE foil For the range of application of the 0.25 mm (0.01 in) PTFE foil on an AISI 316L (1.4404/1.4435) process isolating diaphragm, see the following diagram:
[psi pg] 3625 2900
2175
1450
725 0 -40 77 122 167 212 257 302 347 392 [�F]
For vacuum applications: pabs 1 bar (14.5 psi) to 0.05 bar (0.725 psi) up to max. +150 �C (302 �F).
Process temperature limits of flexible capillary armoring: PMP55
� 316L: No restrictions � PTFE: No restrictions � PVC: See the following diagram
A0026949-EN
46
Endress+Hauser
Cerabar M PMC51, PMP51, PMP55
Pressure specifications
[�F] Tp [�C] 572 300
392 200
392 100
+32
0
Tp Ta
-94 -70
-40 -25
0
-40 -22 +32
[�C]
40
+80
Ta
[�F]
113
+185
A0028227
LWARNING The maximum pressure for the measuring device depends on the lowest-rated element with regard to pressure. For pressure specifications, see the "Measuring range" section and the "Mechanical construction"
section.
Only operate the measuring device within the prescribed limits! The Pressure Equipment Directive (2014/68/EU) uses the abbreviation "PS". The abbreviation "PS"
corresponds to the MWP (maximum working pressure) of the measuring device.
MWP (Maximum Working Pressure): The MWP (maximum working pressure) is specified on the
nameplate. This value refers to a reference temperature of +20 �C (+68 �F) and may be applied to the device for an unlimited time. Observe the temperature dependency of the MWP. For the pressure values permitted at higher temperatures for flanges, please refer to standards EN 1092-1 (with regard to their stability-temperature property, the materials 1.4435 and 1.4404 are grouped together under EN 1092-1; the chemical composition of the two materials can be identical.), ASME B 16.5a, JIS B 2220 (the latest version of the standard applies in each case).
OPL (Over Pressure Limit = sensor overload limit): The test pressure corresponds to the over
pressure limit of the sensor and may only be applied for a limited time period so that no permanent damage develops. In the case of sensor range and process connection combinations where the over pressure limit (OPL) of the process connection is smaller than the nominal value of the sensor, the device is set at the factory, at the very maximum, to the OPL value of the process connection. If you want to use the entire sensor range, select a process connection with a higher OPL value.
Oxygen applications: In oxygen applications, the values for pmax and Tmax for oxygen applications
may not be exceeded 42 .
Devices with ceramic process isolating diaphragm: Avoid steam hammering! Steam hammering
can cause zero point drift. Recommendation: Residue (water droplets or condensation) may remain on the process isolating diaphragm following CIP cleaning and can result in local steam hammering the next time steam cleaning takes place. In practice, drying the process isolating diaphragm (e.g. by blowing off excess moisture) has proven to be a successful way of avoiding steam hammering.
Endress+Hauser
47
Cerabar M PMC51, PMP51, PMP55
Device height F31 housing, aluminum
Mechanical construction
For the dimensions, see the Product Configurator: www.endress.com Search for product click "Configuration" to the right of the product image after configuration click "CAD" The following dimensions are rounded values. For this reason, they may deviate slightly from the dimensions given on www.endress.com.
The device height is calculated from � the height of the housing � the height of optional mounted parts such as temperature isolators or capillaries � the height of the relevant process connection. The individual heights of the components can be found in the following sections. To calculate the device height, simply add up the individual heights of the components. If necessary, the installation space (the space used to install the device) must also be taken into account. You can use the following table for this:
Section
Page
Height Example
Housing height
48 ff. (A)
Optional mounted parts 78
(B)
Process connections
50
(H)
64
I A
Installation space
-
(I)
A
Installation space
115 (4.53) 94 (3.7) 1 2
H
A0032951
B
H
A0032304
112 (4.41) 127 (5)
103 (4.06)
1 Cover with viewing window 2 Cover without viewing window
Engineering unit mm (in). Front view, left-hand side view, top view
A0023569
Material
Aluminium 2) Aluminum with glass viewing window 2)
Weight kg (lbs) With display 1.1 (2.43)
Without display 1.0 (2.21)
1) Product Configurator, "Housing" ordering feature 2) Degree of protection dependent on cable entry used 43
Option 1)
I J
48
Endress+Hauser
Cerabar M PMC51, PMP51, PMP55
F15 housing, stainless steel (hygienic)
100 (3.94)
1 2
93 (3.66) 112 (4.41)
1 Cover with viewing window 2 Cover without viewing window
Engineering unit mm (in). Front view, left-hand side view, top view
76 (3)
A0023570
Material
Stainless steel 2) Stainless steel with glass viewing window 2) Stainless steel with plastic viewing window 2)
Weight kg (lbs)
With display Without display
1.1 (2.43)
1.0 (2.21)
1) Product Configurator, "Housing" ordering feature 2) Product Configurator, "Housing" ordering feature 43
Option 1)
Q R S
Endress+Hauser
49
PMC51: process connections with internal process isolating diaphragm
ISO 228 G threaded connection A
�8 (0.31)
�3 (0.12) �6 (0.24) G �"
C
17 (0.67)
20 (0.79)
3 (0.12)
H
Cerabar M PMC51, PMP51, PMP55
B
A0020935
G �" �17.5 (0.24) G �"
13 (0.51) 17 (0.67) 20 (0.79)
H
A0020936
H
20 (0.79)
17 (0.67)
�11.4 (0.45) �17.5 (0.24) G �"
Engineering unit mm (in) Height H 52
A0020937
Item Designation
Material
AISI 316L
Alloy C276 (2.4819)
A Thread ISO 228 G �" A EN 837 PVDF � Mount only with enclosed mounting bracket � MWP 10 bar (150 psi), OPL max. 15 bar (225 psi) � Process temperature range: �10 to +60 �C (+14 to +140 �F)
B
Thread ISO 228 G �" A, G �" (female))
AISI 316L Alloy C276 (2.4819)
C
Thread ISO 228 G �" A, Bore 11.4 mm (0.45 in)
AISI 316L Alloy C276 (2.4819)
1) CSA approval: Product Configurator, "Approval" ordering feature 2) Product Configurator, "Process connection" ordering feature
Weight kg (lb)
Approval 1) Option 2)
CRN
GCJ
CRN
GCC
-
GCF
0.63 (1.39) CRN CRN CRN CRN
GLJ GLC GMJ GMC
50
Endress+Hauser
Cerabar M PMC51, PMP51, PMP55
ANSI threaded connection
A
B
H
25 (0.98)
25 (0.98) 25 (0.98)
H H
NPT �" NPT �"
C
A0020938
D
�11.4 (0.45) NPT �"
A0020939
H
�3 (0.12) NPT �"
Engineering unit mm (in). Height H 52
A0020940
NPT �" �26.5 (1.04)
25 (0.98)
A0020943
Item Designation
Material
AISI 316L
A
ANSI �" MNPT, �" FNPT
Alloy C276 (2.4819)
B
ANSI �" MNPT, Bore 11.4 mm (0.45 in)
AISI 316L Alloy C276 (2.4819)
C
ANSI �" MNPT, Bore 3 mm (0.12 in)
PVDF � Mount only with enclosed mounting bracket � MWP 10 bar (150 psi), OPL max. 15 bar (225 psi) � Process temperature range: +10 to +60 �C (+14 to +140 �F)
D
ANSI �" FNPT Bore 11.4 mm (0.45 in)
AISI 316L Alloy C276 (2.4819)
1) CSA approval: Product Configurator, "Approval" ordering feature 2) Product Configurator, "Process connection" ordering feature
Weight kg (lb)
0.63 (1.39)
Approval 1)
CRN CRN CRN CRN -
Option 2)
RLJ RLC RKJ RKC RJF
CRN
R1J
CRN
R1C
Endress+Hauser
51
Cerabar M PMC51, PMP51, PMP55
PMC51: process connections with internal process isolating diaphragm
JIS threaded connection A
�8 (0.31)
�3 (0.12) �5 (0.2) G �"
Engineering unit mm (in). Height H 52
B
A0021444
�11.4 (0.45) R �"
20 (0.79) 3 (0.12)
H 23 (0.91) 13.2 (0.52)
H
A0021445
17 (0.67) 20 (0.79) 3 (0.12)
H 17 (0.67) 20 (0.79)
H
Item
Designation
Material
A
JIS B0202 G �" (male))
B
JIS B0203 R �" (male))
AISI 316L
1) Product Configurator, order code for "Process connection"
DIN 13 threaded connection
A
B
Weight kg (lb)
0.63 (1.39)
�8 (0.31)
�3 (0.12) �6 (0.24) M20x1.5
Engineering unit mm (in). Height H 52
A0020945
�11.4 (0.45)
�17.5 (0.69) M20x1.5
Option 1) GNJ GOJ
A0037361
Item Designation
A DIN 13 M20 x 1.5, EN 837 bore 3 mm (0.12 in)
B
DIN 13 M20 x 1.5 11.4 mm (0.45 in)
Material
AISI 316L Alloy C276 (2.4819) AISI 316L
Weight kg (lb)
0.63 (1.39)
Option 1)
G5J G6J G1J
1) Product Configurator, order code for "Process connection"
PMC51: process connections with internal process isolating diaphragm - height H
F31 housing 27 mm (1.06 in)
F15 housing 34 mm (1.34 in)
52
Endress+Hauser
Cerabar M PMC51, PMP51, PMP55
PMC51: process connections DIN 13 threaded connection
with flush-mounted process
isolating diaphragm
60
22 (0.87) 11 (0.43)
H
�40.5 (1.59) M44x1.25
Engineering unit mm (in). Height H 54
Designation DIN 13 M44 x 1.25
Material AISI 316L
Weight kg (lb) 0.63 (1.39)
1) Product Configurator, order code for "Process connection"
ISO 228 G threaded connection
A
60
B
A0020950
Option 1) G4J
70
28 (1.1) 25 (0.98)
H 33.5 (1.32) 30 (1.18)
H
G 1�" �55 (2.17)
Engineering unit mm (in). Height H 54
A0020946
G 2" �68 (2.68)
Item
Designation
Material
A
Thread ISO 228 G 1 �" A
B
Thread ISO 228 G 2" A
AISI 316L AISI 316L
1) Product Configurator, order code for "Process connection"
Weight kg (lb)
0.63 (1.39)
A0020947
Option 1) GVJ GWJ
Endress+Hauser
53
PMC51: process connections with flush-mounted process isolating diaphragm
ANSI threaded connection
A
60
Cerabar M PMC51, PMP51, PMP55
B
70
27 (1.06) H
33.5 (1.32) H
NPT 1�"
NPT 2"
Engineering unit mm (in). Height H 54
A0020948
A0020949
Item Designation
A
Thread ANSI 1 �" MNPT
B
Thread ANSI 2" MNPT
Material
AISI 316L AISI 316L
Weight kg (lb)
0.63 (1.39)
1) CSA approval: Product Configurator, order code for "Approval" 2) Product Configurator, order code for "Process connection"
PMC51: process connections with flush-mounted process isolating diaphragm - height H
Process connection DIN 13 M44 x 1.25 Thread ISO 228 G 1 �" A Thread ISO 228 G 2" A Thread ANSI 1 �" MNPT Thread ANSI 2" MNPT
F31 housing 53 mm (2.09 in) 50 mm (1.97 in) 45 mm (1.77 in) 48 mm (1.89 in) 45 mm (1.77 in)
Approval 1)
Option 2)
CRN
U7J
CRN
U8J
F15 housing 60 mm (2.36 in) 57 mm (2.24 in) 52 mm (2.05 in) 55 mm (2.17 in) 52 mm (2.05 in)
54
Endress+Hauser
Cerabar M PMC51, PMP51, PMP55
PMC51: process connections with flush-mounted process isolating diaphragm
EN/DIN flanges, connection dimensions as per EN 1092-1/DIN 2527 g2
H 2
b
26 g
k
D
D Diameter of flange b Thickness g Raised face k Hole circle g2 Diameter of hole
Engineering unit mm. Height H 58
A0020955
Flange Material
Nominal diameter
AISI 316L AISI 316L AISI 316L ECTFE 3) AISI 316L PVDF 4) ECTFE 3) AISI 316L ECTFE 3)
DN 25 DN 32 DN 40 DN 40 DN 50 DN 50 DN 50 DN 80 DN 80
Nominal pressure
PN 10-40 PN 10-40 PN 10-40 PN 10-40 PN 10-40 PN 10-16 PN 25-40 PN 10-40 PN 25-40
Shape 2)
B1 (D) B1 (D) B1 (D) B2 (E) B1 (D) B2 (E) B2 (E) B1 (D) B2 (E)
Boltholes
Weight
Db mm mm
g
Number
mm
g2 k mm mm kg (lb)
115 18 68 4
14 85 1.4 (3.09)
140 18 78 4
18 100 2.0 (4.41)
150 18 88 4
18 110 2.4 (5.29)
150 21 88 4
18 110 2.6 (5.73)
165 20 102 4
18 125 3.2 (7.06)
165 21.4 102 4
18 125 0.6 (1.32)
165 20 102 4
18 125 3.2 (7.06)
200 24 138 8
18 160 5.4 (11.91)
200 24 138 8
18 160 5.5 (12.13)
Option 1)
CNJ CPJ CQJ CQP CXJ CFF CRP CZJ CSP
1) Product Configurator, order code for "Process connection" 2) Description as per DIN 2527 provided in brackets 3) ECTFE coating on AISI 316L (1.4404). When using in hazardous areas, avoid electrostatic charging of the plastic surfaces. 4) MWP 10 bar (150 psi), OPL max. 15 bar (225 psi); process temperature range: �10 to +60 �C (+14 to +140 �F)
Endress+Hauser
55
Cerabar M PMC51, PMP51, PMP55
ASME flanges, connection dimensions as per ANSI B 16.5, raised face RF g2
H 0.08
b
D Diameter of flange b Thickness g Raised face k Hole circle g2 Diameter of hole
Engineering unit in. Height H 58
1.024 g k D
A0020956
Flange Material
AISI 316/316L 3) AISI 316/316L 3) AISI 316/316L 3) AISI 316/316L 3) AISI 316/316L 3) ECTFE 5) PVDF 6) AISI 316/316L 3) AISI 316/316L 3) ECTFE 5) PVDF 6) AISI 316/316L 3) AISI 316/316L 3) ECTFE 5) AISI 316/316L 3)
Nominal diameter [in] 1 1 1 � 1 � 2 2 2 2 3 3 3 3 4 4 4
Class [lb./sq.in] 150 300 150 300 150 150 150 300 150 150 150 300 150 150 300
Boltholes
Weight
D
b
g
Number g2 k
[in] [in] [in]
[in] [in] [kg (lb)]
4.25 1.18 2
4
0.62 3.12 0.9 (1.98)
4.88 1.18 2
4
0.75 3.5 1.4 (3.09)
5
0.69 2.88 4
0.62 3.88 1.0 (2.21)
6.12 0.81 2.88 4
0.88 4.5 2.6 (5.73)
6
0.75 3.62 4
0.75 4.75 2.4 (5.29)
6
0.75 3.62 4
0.75 4.75 2.4 (5.29)
6
0.75 3.62 4
0.75 4.75 0.5 (1.1)
6.5 0.88 3.62 8
0.75 5
3.2 (7.06)
7.5 0.94 5
4
0.75 6
4.9 (10.8)
7.5 0.94 5
4
0.75 6
4.9 (10.8)
7.5 0.94 5
4
0.75 6
0.9 (1.98)
8.25 1.12 5
8
0.88 6.62 6.8 (14.99)
9
0.94 6.19 8
0.75 7.5 7.1 (15.66)
9
0.94 6.19 8
0.75 7.5 7.1 (15.66)
10 1.25 6.19 8
0.88 7.88 11.6 (25.58)
Approval 1)
CRN CRN CRN CRN CRN CRN CRN CRN
Option 2)
ACJ 4) ANJ 4) AEJ AQJ AFJ AFN AFF ARJ AGJ AGN AGF ASJ AHJ AHN ATJ
1) CSA approval: Product Configurator, order code for "Approval" 2) Product Configurator, order code for "Process connection" 3) Combination of AISI 316 for required pressure resistance and AISI 316L for required chemical resistance (dual rated) 4) Screws must be 15 mm (0.59 in) longer than the standard flange screws. 5) ECTFE coating on AISI 316/316L. When using in hazardous areas, avoid electrostatic charging of the plastic surfaces. 6) MWP 10 bar (150 psi), OPL max. 15 bar (225 psi); process temperature range: �10 to +60 �C (+14 to +140 �F)
56
Endress+Hauser
Cerabar M PMC51, PMP51, PMP55
JIS flanges, connection dimensions as per JIS B 2220 BL, raised face RF g2
H 2
b
26 g
k
D
D Diameter of flange b Thickness g Raised face k Hole circle g2 Diameter of hole
Engineering unit mm. Height H 58
A0020955
Flange Material
Nominal diameter
Nominal pressure
AISI 316L (1.4435)
50 A 80 A 100 A
10 K 10 K 10 K
1) Product Configurator, order code for "Process connection"
Boltholes
Weight
D
b
g
Number
mm mm mm
g2
k
mm mm kg (lb)
155 16 96 4
19 120 2.0 (4.41)
185 18 127 8
19 150 3.3 (7.28)
210 18 151 8
19 175 4.4 (9.7)
Option 1)
KFJ KGJ KHJ
Endress+Hauser
57
Cerabar M PMC51, PMP51, PMP55
PMC51: process connections with flush-mounted process isolating diaphragm
China standard flanges, connection dimensions HG/T 20592-2009 (DN-flanges) or HG/T 20615-2009 ("-flanges), raised face RF
g2
H 2
b
26 g
k
D
D Diameter of flange b Thickness g Raised face k Hole circle g2 Diameter of hole dM Max. diaphragm diameter
Engineering unit mm
A0020955
Flange 1) Nominal diameter
Class/nominal pressure
DN DN50 DN80 [in] 2" 2" 3" 3"
40 bar 40 bar
150lb./sq.in 300 lb./sq.in 150 lb./sq.in 300 lb./sq.in
D [mm]
b [mm]
g [mm]
m [mm]
Boltholes
Number
g2 [mm]
k [mm]
Weight [kg (lb)]
Option 2)
165 20 200 24
102 27.5 4 138 45.5 8
18
125 3 (6.6)
7HJ
18
160 5.5 (12.13) 7KJ
150 17.5 92.1 22.55 4
165 20.7 92.1 22.55 8
190 22.3 127 40
4
210 27
127 40
8
18
120.7 2.2 (4.85) 7PJ
18
127 3 (6.62)
7RJ
18
152.4 4.7 (10.36) 7VJ
22
168.3 6.6 (14.55) 7XJ
1) Material: AISI 316L 2) Product Configurator, order code for "Process connection"
PMC51: process connections with flush-mounted process isolating diaphragm - height H
F31 housing 94 mm (3.7 in)
F15 housing 98 mm (3.86 in)
58
Endress+Hauser
Cerabar M PMC51, PMP51, PMP55
PMC51: hygienic process connections with flush mount process isolating diaphragm
In order to guarantee a hygiene approval, a seal with appropriate approval must be selected for the hygienic process connection: � For 3A approval, you require a seal made of EPDM or HNBR 45 � For EHEDG approval, you require a seal made of VMQ silicone, FFKM Kalrez 45
A
61 (2.4)
52 (2.05)
H
B
61 (2.4)
52 (2.05)
H
97 (3.82)
11 (0.43)
97 (3.82)
10 (0.39)
48 (1.89)
38 (1.5) 56 (2.2)
C
61 (2.4)
52 (2.05)
H
A0027838
D
42 (1.65) 68 (2.68)
61 (2.4) 52 (2.05)
H
A0027839
100 (3.94)
11 (0.43)
100 (3.94)
10 (0.39)
48 (1.89)
38 (1.5) 55 (2.17) Engineering unit mm (in)
A0027840
42 (1.65) 67 (2.64)
A0027842
Item Designation
A
DIN 11851 DN40
B
DIN 11851 DN50
C
DIN 11864 DN40,
Pipe DIN 11866-A
D
DIN 11864 DN50,
Pipe DIN 11866-A
Nominal pressure
PN 25 PN 25 PN 16
PN 16
Material 1)
AISI 316L (1.4435)
Weight kg (lb) 0.7 (1.54) 0.9 (1.98) 0.66 (1.46)
0.29 (0.64)
Approval 2)
EHEDG, 3A with seal FDA, ASME-BPE, CRN EHEDG, 3A with seal FDA, ASME-BPE, CRN EHEDG, 3A with seal FDA, ASME-BPE
EHEDG, 3A with seal FDA, ASME-BPE
Option 3)
MZJ 4) MRJ 4) NCJ 4)
NDJ 4)
1) Delta-ferrite content < 1 %. The roughness of the surface in contact with the medium is Ra < 0.76 �m (30 �in).
2) CSA approval: Product Configurator, order code for "Approval" 3) Product Configurator, order code for "Process connection" 4) Endress+Hauser supplies these slotted-nuts in stainless steel AISI 304 (DIN/EN material number 1.4301) or in AISI 304L (DIN/EN material
number 1.4307).
Endress+Hauser
59
E 61 (2.4)
52 (2.05)
42 (1.65) 56,5 (2.22) 64 (2.52)
G
66 (2.6)
52 (2.05)
13 (0.51) H
97 (3.82)
H
F
A0027845
H
Cerabar M PMC51, PMP51, PMP55
76.7 (3.02) 52 (2.05)
H
97 (3.82)
42 (1.65) 83.5 (3.29) 91 (3.58)
84 (3.31) 75 (2.95) 52 (2.05)
A0027846
85 (3.35) H
85 (3.35)
12,3 (0.48)
12,3 (0.48)
38 (1.5) 50 (1.97)
Engineering unit mm (in)
A0027847
42 (1.65) 68 (2.68)
A0027848
Item Designation
Nominal pressure Material 1) Weight
Approval 2)
Option 3)
kg (lb)
E Tri-Clamp ISO 2852, DN40-DN51 (2") PN 40
0.65 (1.44) EHEDG, 3A with seal FDA, CRN, ASME-BPE TDJ 4)
F Tri-Clamp ISO 2852, DN76.1 (3") G Varivent F pipe, DN25-32
PN 40 PN 40
AISI 316L (1.4435)
0.9 (1.98) 0.46 (1)
EHEDG, 3A with seal FDA, CRN, ASME-BPE TFJ
EHEDG, 3A with seal FDA, ASME-BPE
TQJ
H Varivent N pipe, DN40�162
PN 40
1 (2.21) EHEDG, 3A with seal FDA, ASME-BPE
TRJ
1) Delta ferrite content < 1 %. The roughness of the surface in contact with the medium is Ra < 0.76 �m (30 �in).
2) CSA approval: Product Configurator, order code for "Approval" 3) Product Configurator, order code for "Process connection" 4) Endress+Hauser supplies these slotted-nuts in stainless steel AISI 304 (DIN/EN material number 1.4301) or in AISI 304L (DIN/EN material
number 1.4307).
60
Endress+Hauser
Cerabar M PMC51, PMP51, PMP55
I
105 (4.13)
J
84 (3.31)
61 (2.4)
H
52 (2.05)
16 (0.63)
80 (3.15)
42 (1.65) 65 (2.56)
K
90 (3.54)
70 (2.76)
52 (2.05)
H
A0027849
100 (3.94) 82 (3.23) �61 (2.4) 52 (2.05)
42 (1.65) 69 (2.72)
12,5 (0.49)
85 (3.35)
H
A0033047
80 (3.15)
17 (0.67)
51 (2)
38 (1.5) 50 (1.97)
Engineering unit mm (in)
A0027851
Item Designation
I
DRD, DN50 (65 mm)
J
APV Inline, DN50
K
NEUMO BioControl, DN50
Nominal pressure
PN 25 PN 40 PN 16
Material 1)
AISI 316L (1.4435)
Weight kg (lb) 0.9 (1.98) 0.52 (1.15) 1.34 (2.6)
Approval 2)
FDA 3A with seal FDA, CRN, ASME-BPE 3A with seal FDA, ASME-BPE
Option 3)
TIJ 4) TMJ S4J 5)
1) Delta ferrite content < 1 %. The roughness of the surface in contact with the medium is Ra < 0.76 �m (30 �in).
2) CSA approval: Product Configurator, order code for "Approval" 3) Product Configurator, order code for "Process connection" 4) Endress+Hauser supplies these slotted-nuts in stainless steel AISI 304 (DIN/EN material number 1.4301) or in AISI 304L (DIN/EN material
number 1.4307). 5) 4 screws DIN912 M8 x 45 are enclosed (material A4-80)
Endress+Hauser
61
L
61 (2.4)
52 (2.05)
H
Cerabar M PMC51, PMP51, PMP55
M
61 (2.4)
52 (2.05)
H
97 (3.82)
97 (3.82)
4 (0.16)
4 (0.16)
38 (1.5) 55 (2.17)
Engineering unit mm (in)
A0027852
38 (1.5) 65 (2.56)
A0027853
Item Designation
L
SMS 1 �"
M
SMS 2"
Nominal pressure
PN 25 PN 25
Material 1)
AISI 316L (1.4435)
Weight kg (lb) 0.65 (1.43) 0.65 (1.43)
Approval 2)
3A, ASME-BPE 3A, ASME-BPE
Option 3)
TXJ 4) T7J 4)
1) Delta ferrite content < 1 %. The roughness of the surface in contact with the medium is Ra < 0.76 �m (30 �in).
2) CSA approval: Product Configurator, order code for "Approval" 3) Product Configurator, order code for "Process connection" 4) Endress+Hauser supplies the slotted-nuts in stainless steel AISI 304 (DIN/EN material number 1.4301) or in AISI 304L (DIN/EN material
number 1.4307).
Height H
Item A B C D E F G H I J K L M
Process connection DIN 11851 DN40 DIN 11851 DN50 DIN 11864 DN40, pipe DIN 11866-A DIN 11864 DN50, pipe DIN 11866-A Tri-Clamp ISO 2852, DN40-DN51 (2") Tri-Clamp ISO 2852, DN76.1 (3") Varivent F pipe, DN25-32 Varivent N pipe, DN40�162 DRD, DN50 (65 mm) APV Inline, DN50 NEUMO BioControl, DN50 SMS 1 �" SMS 2"
F31 housing 48 mm (1.89 in) 70 mm (2.76 in) 48 mm (1.89 in) 70 mm (2.76 in) 70 mm (2.76 in) 70 mm (2.76 in) 48 mm (1.89 in) 70 mm (2.76 in) 70 mm (2.76 in) 70 mm (2.76 in) 48 mm (1.89 in) 48 mm (1.89 in) 48 mm (1.89 in)
F15 housing 54 mm (2.13 in) 77 mm (3.03 in) 54 mm (2.13 in) 77 mm (3.03 in) 77 mm (3.03 in) 77 mm (3.03 in) 54 mm (2.13 in) 77 mm (3.03 in) 77 mm (3.03 in) 77 mm (3.03 in) 54 mm (2.13 in) 54 mm (2.13 in) 54 mm (2.13 in)
62
Endress+Hauser
Cerabar M PMC51, PMP51, PMP55
Universal process adapter
68.5 (2.7)
dM = �26 (1) �43.5 (1.71)
1
6
2
4.1
3
5
6 4.2
5
1 Top section: AISI 316L (1.4404) 2 Bottom section: AISI 316L (1.4435) 3 Slotted-nut: AISI 304 (1.4301) or AISI 304L (1.4307) 4.1 Form seal: silicone or EPDM 4.2 Profile seal: EPDM and stainless steel 5 Measuring cell seal 6 Ceramic sensor
Engineering unit mm (in)
A0023744
The roughness of the surface in contact with the medium is Ra < 0.76 �m (30 �in). Silicone form seal: FDA 21CFR177.2600/USP Class VI, order number: 52023572 EPDM form seal: FDA, USP Class VI; 5 pcs, order number: 71100719 EPDM and stainless steel profile seal: FDA, USP Class VI; 1 pc, order number: 71431380
Designation
Universal process adapter Form seal made of silicone (4.1) Universal process adapter Form seal made of � EPDM (4.1) or � EPDM and stainless steel (4.2)
Nominal pressure bar (psi)
10 (145)
Weight [kg (lb)] 0.74 (1.63)
Process connection approval
ASME-BPE For more, see Product Configurator ASME-BPE For more, see Product Configurator
Option 1) UPJ UNJ
1) Product Configurator, order code for "Process connection"
Material of the form seal (exchangeable Material of the measuring cell seal on
seal)
ceramic sensor (seal not exchangeable)
Silicone
EPDM
EPDM or EPDM and stainless steel
EPDM
Approval of measuring cell seal
FDA 2) 3A Class II, USP Class VI. DVGW, KTW, W270, WRAS, ACS, NSF61 FDA 2)
1) Product Configurator, order code for "Seal" 2) Food-safe FDA 21 CFR 177.2600
Option 1) K J
Endress+Hauser
63
PMP51: process connections with internal process isolating diaphragm A
ISO 228 G threaded connection
B
�11.4 (0.45)
Cerabar M PMC51, PMP51, PMP55
C �11.4 (0.45)
36 (1.42) 20 (0.79)
36 (1.42) 20 (0.79)
36 (1.42) 20 (0.79)
17 (0.67)
13 (0.51) 17 (0.67)
3 (0.12) 3 (0.12)
�3.2 (0.13) �6 (0.24) �17.5 (0.69) G �" A
Engineering unit mm (in)
A0032664
G �" �17.5 (0.69) G �" A
A0021591
�17.5 (0.69) G �" A
A0021592
Item Designation
A
Thread ISO 228 G �" A EN 837
B
Thread ISO 228 G �" A, G �" (female)
C
Thread ISO 228 G �" A, Bore 11.4 mm (0.45 in)
Material AISI 316L Alloy C276 (2.4819) AISI 316L Alloy C276 (2.4819) AISI 316L Alloy C276 (2.4819)
1) Product Configurator, "Process connection" ordering feature
DIN 13 threaded connection
A
B
Weight kg (lb) 0.63 (1.39)
Option 1) GCJ GCC GLJ GLC GMJ GMC
�11.4 (0.45)
36 (1.42) 20 (0.79)
36 (1.42) 20 (0.79)
3 (0.12) 3 (0.12)
17 (0.67)
�17.5 (0.69) M20x1.5
Engineering unit mm (in)
A0021609
�3.2 (0.13) �6 (0.24) �17.5 (0.69) M20x1.5
A0021588
Item A
Designation
DIN 13 M20 x 1,5 Bore 11.4 mm (0.45 in)
B
DIN 13 M20 x 1,5, EN 837, Bore 3 mm (0.12 in)
Material AISI 316L Alloy C276 (2.4819) AISI 316L Alloy C276 (2.4819)
1) Product Configurator, "Process connection" ordering feature
Weight kg (lb) 0.6 (1.32)
Option 1) G1J G2J G5J G6J
64
Endress+Hauser
Cerabar M PMC51, PMP51, PMP55
PMP51: process connections with internal process isolating diaphragm
ANSI threaded connection A
�21.4 (0.84)
NPT �" NPT �"
C
15 (0.59) 25 (0.98)
36 (1.42)
B
A0021112
�21.4 (0.84)
�11.4 (0.45) NPT �"
25 (0.98)
36 (1.42)
A0021113
36 (1.42)
7 (0.28) 10 (0.39)
8 (0.31) 20 (0.79)
NPT �" �38 (1.5)
Engineering unit mm (in)
A0020933
Item Designation
Material
A
ANSI �" MNPT, �" FNPT
B
ANSI �" MNPT, Bore 11.4 mm (0.45 in) = 400 bar (6 000 psi)
C
ANSI �" FNPT
AISI 316L Alloy C276 (2.4819) AISI 316L Alloy C276 (2.4819) AISI 316L Alloy C276 (2.4819)
1) CSA approval: Product Configurator, "Approval" ordering feature 2) Product Configurator, "Process connection" ordering feature
Weight kg (lb) 0.63 (1.39)
0.7 (1.54)
Approval 1)
CRN CRN CRN CRN CRN CRN
Option 2)
RLJ RLC RKJ RKC R1J R1C
Endress+Hauser
65
PMP51: process connections with flush-mounted process isolating diaphragm A
ISO 228 G threaded connection B
3 (0.12) 34 (1.34)
1 C
�18.4 (0.72)
�18 (0.71) G �" A �23.6 (0.93) �26.5 (1.04)
2 (0.08) 3.5 (0.14) 14 (0.55)
A0021613
D
Cerabar M PMC51, PMP51, PMP55
3 (0.12) 38 (1.5)
2 (0.08) 3.5 (0.14) 18 (0.71)
�28 (1.1) �30 (1.18) G 1" A �36 (1.42) �39 (1.54)
A0021614
1 (0.04) 33 (1.3)
8 (0.31) 34 (1.34)
2 (0.08) 30 (1.18)
�28 (1.1) �36 (1.42) G 1�" A �55 (2.17)
Engineering unit mm (in)
2 (0.08) 26 (1.02)
A0021615
�28 (1.1) �56.3 (2.22) G 2" A �68 (2.68)
Item
Designation
A
Thread ISO 228 G �" A DIN 3852 FKM form seal (item 1) pre-installed
B
Thread ISO 228 G 1" A
C
Thread ISO 228 G 1 �" A
D
Thread ISO 228 G 2" A
1) Product Configurator, order code for "Process connection"
Material
AISI 316L Alloy C276 (2.4819) AISI 316L AISI 316L AISI 316L
Weight kg (lb)
0.4 (0.88)
0.7 (1.54) 1.1 (2.43) 1.5 (3.31)
A0021616
Option 1)
GRJ GRC GTJ GVJ GWJ
66
Endress+Hauser
Cerabar M PMC51, PMP51, PMP55
DIN 13 threaded connection A
3 (0.12) 34 (1.34)
�17.7 (0.7)
Engineering unit mm (in)
�17.5 (0.69) M20x1.5 �23.6 (0.93) �26.5 (1.04)
Designation
Material
DIN 13 M20 x 1.5
AISI 316L Alloy C276 (2.4819)
1) Product Configurator, order code for "Process connection"
2 (0.08) 3.5 (0.14) 14 (0.55)
A0021622
Weight kg (lb)
0.6 (1.32)
Option 1)
G7J G8J
Endress+Hauser
67
ANSI threaded connection
A
�28 (1.1) NPT �"
C
38 (1.5) 22 (0.87)
Cerabar M PMC51, PMP51, PMP55
B
33 (1.3) 23 (0.91)
A0023747
D
�28 (1.1) NPT 1"
A0021624
30 (1.18) 31 (1.22)
36 (1.42) 27 (1.06)
�28 (1.1) NPT 1�"
Engineering unit mm (in)
Position
Designation
Material
A
ANSI �" MNPT
B
ANSI 1" MNPT
C
ANSI 1 �" MNPT
D
ANSI 2" MNPT
AISI 316L
1) CSA approval: Product Configurator, order code for "Approval" 2) Product Configurator, "Process connection" section
A0021625
�28 (1.1) NPT 2"
Weight kg (lb) 0.6 (1.32) 0.7 (1.54) 1 (2.21) 1.3 (2.87)
Approval 1)
CRN CRN CRN
A0021626
Option 2)
U4J U5J U7J U8J
68
Endress+Hauser
Cerabar M PMC51, PMP51, PMP55
PMP51: process connections with flush-mounted process isolating diaphragm
EN/DIN flanges, connection dimensions as per EN 1092-1/DIN 2527 g2
2 b
41
dM = �28
60 m
g
k
D
D Diameter of flange b Thickness g Raised face m Width of raised face k Hole circle g2 Diameter of hole dM Max. diameter of the process isolating diaphragm
Engineering unit mm
A0022643
Flange 1) Nominal diameter
DN 25 DN 32 DN 40 DN 50 DN 80
Nominal pressure
PN 10-40 PN 10-40 PN 10-40 PN 10-40 PN 10-40
Shape 3)
B1 (D) B1 (D) B1 (D) B1 (D) B1 (D)
D [mm]
b [mm]
g [mm]
m [mm]
Boltholes Quantity
g2 [mm]
k [mm]
Weight Flange
[kg (lb)]
115 18
68 4) 4
4
14
85
1.2 (2.65)
140 18
78 4) 9
4
18
100 1.9 (4.19)
150 18
88 4) 14
4
18
110 2.2 (4.85)
165 20
102 -
4
18
125 3.0 (6.62)
200 24
138 -
8
18
160 5.3 (11.69)
Option 2)
CNJ CPJ CQJ CXJ CZJ
1) Material: AISI 316L 2) Product Configurator, "Process connection" section 3) Description as per DIN 2527 provided in brackets 4) With these process connections the raised face is smaller than described in the standard. Due to the smaller raised face, a special seal must be
used.
Endress+Hauser
69
Cerabar M PMC51, PMP51, PMP55
PMP51: process connections with flush-mounted process isolating diaphragm
ASME flanges, connection dimensions as per ASME B 16.5, raised face RF* g2
c b
1.61
D Diameter of flange b Thickness g Raised face c Raised face k Hole circle g2 Diameter of hole dM Max. diaphragm diameter
Engineering unit in. (*all apart from AN, see table below)
dM = �1.1 2.36 m g k D
A0022645
Flange 1)
Boltholes
Weight
Approval 2) Option 3)
Nominal diameter Class/nominal pressure D b g
[in]
lb./sq.in
[in] [in] [in]
c
m Quantity g2 k
[in] [in]
[in] [in] [kg (lb)]
1
300
4.88 0.69 2 4)
0.06 0.2 4
0.75 3.5 1.3 (2.87) CRN
ANJ
1 �
150
5
0.69 2.88 4) 0.08 0.52 4
0.62 3.88 1.5 (3.31) CRN
AEJ
1 �
300
6.12 0.81 2.88 4) 0.08 0.52 4
0.88 4.5 2.6 (5.73) CRN
AQJ
2
150
6 0.75 3.62 0.08 -
4
0.75 4.75 2.4 (5.29) CRN
AFJ
2
300
6.5 0.88 3.62 0.08 -
8
0.75 5 3.2 (7.06) CRN
ARJ
3
150
7.5 0.94 5
0.08 -
4
0.75 6 4.9 (10.8) CRN
AGJ
3
300
8.25 1.12 5
0.08 -
8
0.88 6.62 6.7 (14.77) CRN
ASJ
4
150
9 0.94 6.19 0.08 -
8
0.75 7.5 7.1 (15.66) CRN
AHJ
4
300
10 1.25 6.19 0.08 -
8
0.88 7.88 11.6 (25.88) CRN
ATJ
1) Material: AISI 316/316L; Combination of AISI 316 for required pressure resistance and AISI 316L for required chemical resistance (dual rated) 2) CSA approval: Product Configurator, "Approval" ordering feature 3) Product Configurator, "Process connection" section 4) With these process connections the raised face is smaller than described in the standard. Due to the smaller raised face, a special seal must be
used.
70
Endress+Hauser
Cerabar M PMC51, PMP51, PMP55
PMP51: process connections with flush-mounted process isolating diaphragm
China standard flanges, connection dimensions HG/T 20592-2009 (DN-flanges) or HG/T 20615-2009 ("-flanges), raised face RF
g2
2 b
1.61
D Diameter of flange b Thickness g Raised face k Hole circle g2 Diameter of hole dM Max. diaphragm diameter
Engineering unit mm
dM = �1.1 2.36 m g k D
A0036339
Flange 1) Nominal diameter
Class/nominal pressure
DN DN50 DN80 [in] 2" 2" 3" 3"
40 bar 40 bar
150lb./sq.in 300 lb./sq.in 150 lb./sq.in 300 lb./sq.in
D [mm]
b [mm]
g [mm]
m [mm]
Boltholes
Number
g2 [mm]
k [mm]
Weight [kg (lb)]
Option 2)
165 20 200 24
102 27.5 4 138 45.5 8
18
125 3 (6.6)
7HJ
18
160 5.5 (12.13) 7KJ
150 17.5 92.1 22.55 4
165 20.7 92.1 22.55 8
190 22.3 127 40
4
210 27
127 40
8
18
120.7 2.2 (4.85) 7PJ
18
127 3 (6.62)
7RJ
18
152.4 4.7 (10.36) 7VJ
22
168.3 6.6 (14.55) 7XJ
1) Material: AISI 316L 2) Product Configurator, order code for "Process connection"
Endress+Hauser
71
PMP51: hygienic process
connections with flush mount process isolating
diaphragm
A
B
Cerabar M PMC51, PMP51, PMP55
C
47 (1.85)
47 (1.85)
47 (1.85)
dM = �17 (0.67) �28 (1.1) 34 (1.34)
D
A0023749
E
dM = �22 (0.87) �43,5 (1.71)
50,5 (1.99)
A0023772
F
dM = �28 (1.1) �43,5 (1.71)
50,5 (1.99)
A0023773
47 (1.85)
47 (1.85) 21 (0.83)
21 (0.83)
47 (1.85)
dM = �28 (1.1) �56,5 (2.22) 64 (2.52)
G
A0023775
H
dM = �28 (1.1) �44 (1.73) 63 (2.48)
A0023777
dM = �28 (1.1) �50 (1.97) 70 (2.76)
A0023859
47 (1.85)
47 (1.85) 22 (0.87)
21 (0.83)
dM = �28 (1.1) �56 (2.2) 78 (3.07)
Engineering unit mm (in)
A0023861
dM = �28 (1.1) �69 (2.72) 92 (3.62)
A0023863
Item 1) 2) Designation
A
Clamp ISO2852, DN 18-22, DIN 32676 DN 15-20
B
Tri-Clamp ISO2852 DN 25 (1"), DIN 32676 DN 25
C
Tri-Clamp ISO2852 DN 38 (1�"), DIN 32676 DN 40
D
Tri-Clamp ISO2852 DN 40-51 (2"), DIN 32676 DN 50
E
DIN 11851 DN 25
F
DIN 11851 DN 32
G
DIN 11851 DN 40
H
DIN 11851 DN 50
Nominal pressure
PN 40 PN 40 PN 40 PN 40 PN 40 PN 40 PN 40 PN 25
Weight kg (lb) 0.5 (1.10) 0.6 (1.32) 0.6 (1.32) 0.7 (1.54) 0.7 (1.54) 0.8 (1.76) 0.9 (1.98) 1.1 (2.43)
Approval
EHEDG, 3A, ASME-BPE EHEDG, 3A, ASME-BPE EHEDG, 3A, ASME-BPE EHEDG, 3A, ASME-BPE EHEDG, 3A, ASME-BPE EHEDG, 3A, ASME-BPE EHEDG, 3A, ASME-BPE EHEDG, 3A, ASME-BPE
Option 3)
TBJ TCJ TJJ TDJ MXJ MIJ MZJ MRJ
1) Material: AISI 316L (1.4435) 2) The roughness of the surface in contact with the medium is Ra0.76 �m (30 �in). Optionally available as an ASME-BPE-compliant version for use
in biochemical processes, wetted surfaces Ra0.38 �m (15 �in), electropolished; to be ordered using order feature 570 "Service", option "HK" in the
order code. 3) Product Configurator, order code for "Process connection"
72
Endress+Hauser
Cerabar M PMC51, PMP51, PMP55
I
J
K
47 (1.85)
47 (1.85) 26 (1.02)
47 (1.85) 25 (0.98)
20 (0.79)
dM = �22 (0.87) �36 (1.42)
51 (2.01)
A0023864
L
M
dM = �28 (1.1) �55 (2.17) 74 (2.91)
A0023865
N
dM = �28 (1.1) �65 (2.56) 84 (3.31)
A0023867
47 (1.85)
47 (1.85)
47 (1.85)
dM = �22 (0.87) �31 (1.22)
53 (2.09)
Engineering unit mm (in)
A0023869
dM = �28 (1.1)
�50 (1.97) 66 (2.6)
A0023873
dM = �28 (1.1) �68 (2.68) 84 (3.31)
A0023875
Item 1) 2)
Designation
I
SMS 1"
J
SMS 1�"
K
SMS 2"
L
Varivent B pipe DN 10-15
M
Varivent F pipe DN 25-32
N
Varivent N pipe DN 40-162
Nominal pressure
PN 25 PN 25 PN 25 PN 40 PN 40 PN 40
Weight kg (lb) 0.7 (1.54) 0.8 (1.76) 0.9 (1.98) 0.7 (1.54) 0.9 (1.98) 1.1 (2.43)
Approval
3A, ASME-BPE 3A, ASME-BPE 3A, ASME-BPE EHEDG, 3A, ASME-BPE EHEDG, 3A, ASME-BPE EHEDG, 3A, ASME-BPE
Option 3)
T6J T7J TXJ TPJ TQJ TRJ
1) Material: AISI 316L (1.4435) 2) The roughness of the surface in contact with the medium is Ra0.76 �m (30 �in). Optionally available as an ASME-BPE-compliant version for use
in biochemical processes, wetted surfaces Ra0.38 �m (15 �in), electropolished; to be ordered using order feature 570 "Service", option "HK" in the
order code. 3) Product Configurator, order code for "Process connection"
Endress+Hauser
73
O
R
2 (0.08)
dM = �22 (0.87) �30.4 (1.2)
�50 (1.97) 64 (2.52)
Q
47 (1.85)
Cerabar M PMC51, PMP51, PMP55
P
47 (1.85)
dM = �28 (1.1)
�49.9 (1.96) �70 (2.76) 90 (3.54)
A0023879
R
A0023880
47 (1.85)
47 (1.85)
dM = �28 (1.1) Engineering unit mm (in)
�53 (2.09) �65 (2.56) �84 (3.31) 105 (4.13)
A0023881
dM = �28 (1.1) �69 (2.72) �82 (3.23) 100 (3.94)
A0023882
Item 1) 2) Designation
O
NEUMO BioControl D 25
P
NEUMO BioControl D 50
Q
DRD DN 50
R
APV Inline DN 50
Nominal pressure
PN 16 PN 16 PN 25 PN 40
Boltholes
Number Diameter
mm (in)
4
R: 3.5 (0.14)
4
9 (0.35)
4
11.5 (0.45)
6
8.6 (0.34)
2
M8
Weight kg (lb)
Approval
0.8 (1.76) 1.2 (2.65) 1.0 (2.21) 1.2 (2.65)
EHEDG, 3A, ASME-BPE EHEDG, 3A, ASME-BPE ASME-BPE EHEDG, 3A, ASME-BPE
Option 3)
S1J S4J TIJ TPJ
1) Material: AISI 316L (1.4435) 2) The roughness of the surface in contact with the medium is Ra0.76 �m (30 �in). Optionally available as an ASME-BPE-compliant version for use
in biochemical processes, wetted surfaces Ra0.38 �m (15 �in), electropolished; to be ordered using order feature 570 "Service", option "HK" in the
order code. 3) Product Configurator, order code for "Process connection"
74
Endress+Hauser
Cerabar M PMC51, PMP51, PMP55
S
1 �15.5 (0.6)
2 T
�17.5 (0.69) �18 (0.7) G �" �26 (1.02)
2 (0.08) 2 (0.08) 21 (0.83)
13 (0.51) 38 (1.5)
A0023883
U
18 (0.74) 38 (1.5)
18 (0.74) 38 (1.5)
30 (1.18)
30 (1.18)
�17.5 (0.69) �29 (1.14) G 1"
Engineering unit mm (in)
A0023884
�17.5 (0.69) �25 (0.98) �30 (1.18) G 1"
A0023886
Item 1) 2) Designation
Seal
Nominal pressure Weight Approval
Option 3)
Item Designation
kg (lb)
S
Thread ISO228 G �" 1 FKM form seal pre-installed
PN 40
0.5 (1.1) ASME-BPE
G0J
2 FKM O-ring pre-installed
T
Thread ISO228 G1" -
Sealing via O-ring. VMQ O-ring included with the PN 40
accessories QE and QF.
0.8 (1.76) 3A, ASME-BPE GZJ 4)
U
Thread ISO228 G1" 1 Metal joint
PN 100
0.8 (1.76) ASME-BPE
GXJ
1) Material: AISI 316L (1.4435) 2) The roughness of the surface in contact with the medium is Ra0.76 �m (30 �in). Optionally available as an ASME-BPE-compliant version for use
in biochemical processes, wetted surfaces Ra0.38 �m (15 �in), electropolished; to be ordered using order feature 570 "Service", option "HK" in the
order code. 3) Product Configurator, order code for "Process connection" 4) EHEDG in combination with EHEDG certified process adapter or weld in adapter; for details see TI00426F.
Endress+Hauser
75
Cerabar M PMC51, PMP51, PMP55
Valve manifold DA63M(optional)
A
Endress+Hauser supplies milled valve manifolds via the transmitter's product structure in the following versions:
B
C
NPT �" NPT �" FNPT �" FNPT �" G �" G �"
97 (3.82)
A 2-way valve manifold FNPT x FNPT B 2-way valve manifold MNPT x FNPT C 2-way valve manifold G �" + adjusting nut Engineering unit mm (in)
114 (4.49)
117 (4.61)
A0032414
2-way valve manifolds in 316L or AlloyC can be � ordered as an enclosed accessory (seal for mounting is enclosed) � ordered as a mounted accessory (mounted valve manifolds are supplied with a documented
leakage test). Certificates ordered with the equipment (e.g. 3.1 material certificate and NACE) and tests (e.g. PMI and pressure test) apply to the transmitter and the valve manifold. For other details (order option, dimension, weight, materials), see SD01553P/00/EN "Mechanical accessories for pressure measuring devices". During the operating life of the valves, it may be necessary to re-tighten the packing.
Mounting on valve manifold
Engineering unit mm (in)
max. 280 (11)
Ordering information: Product Configurator, order code for "Accessories mounted".
A0032416
76
Endress+Hauser
Cerabar M PMC51, PMP51, PMP55
PMP51: process connections Prepared for diaphragm seal mount 12 3 4
�2.5 (0.1) �7.95 (0.31)
1 Setscrew with a hexagonal recess 4 mm (0.16 in), material A2-70 2 Bearing DIN 5401 (1.3505) 3 Hole for fill fluid 4 With aluminium housing F31: 56 mm (2.2 in), with stainless steel housing F15: 66 mm (2.6 in) Engineering unit mm (in)
5 (0.2)
A0021633
Material AISI 316L (1.4404)
Designation Prepared for diaphragm seal mount
Weight kg (lb) 1.9 (4.19)
Approval 1) CRN
Option 2) XSJ
1) CSA approval: Product Configurator, "Approval" ordering feature 2) Product Configurator, "Process connection" ordering feature
Endress+Hauser
77
PMP55 basic device examples
Cerabar M PMC51, PMP51, PMP55
1
112 (4.41) 127 (5)
95 (3.74) 114 (4.49)
2
2
max. 115 (4.53) 40 (1.57)
5 3
2
6
4
A0023755
1 PMP55 basic device 2 With aluminium housing F31: 56 mm (2.2 in), with stainless steel housing F15: 66 mm (2.6 in) 3 Outer diameter of the capillary - see following table 4 Process connections with capillary tubes are 40 mm (1.57 in) higher than process connections without
capillary tubes 5 Diaphragm seal with temperature isolator 6 Diaphragm seal, here e.g. flange diaphragm seal
Engineering unit mm (in).
Outer diameter of capillary
Designation Flexible armor made from 316L Flexible armor with PVC-coating Flexible armor with PTFE-coating
Outer diameter 8 mm (0.31 in) 10 mm (0.39 in) 12.5 mm (0.49 in)
Diaphragm seal connection
Designation Direct Temperature isolator ..... m capillary ..... ft capillary
OptionProduct Configurator, "Diaphragm seal connection" ordering feature A B D E
78
Endress+Hauser
Cerabar M PMC51, PMP51, PMP55
Process connections for PMP55 with flush-mounted process isolating diaphragm
� The weights of the diaphragm seals are given in the tables. For weight of housing, see 48
� The following drawings are schematic diagrams. In other words, the dimensions of a diaphragm seal supplied may deviate from the dimensions given in this document.
� Observe the information in the "Planning instructions for diaphragm seal systems" section 113
� For further information please contact your local Endress+Hauser Sales Center. Diaphragm seal cell structure (Pancake)
dM
200 (7.87)
D
D Diameter dM Max. diameter of the process isolating diaphragm b Thickness
Engineering unit mm (in)
b
A0021635
Flange Material
Nominal diameter
AISI 316L
DN 50 DN 80 DN 100 [in] 2 3 4
Nominal pressure 3)
PN 16-400 4) PN 16-400 4) PN 16-400 4) [lb/sq.in] 150-2500 150-2500 150-2500
D [mm] 102 138 162 [in (mm)] 3.89 (99) 5.00 (127) 6.22 (158)
b [mm] 20 20 20 [in (mm)] 0.79 (20) 0.79 (20) 0.79 (20)
Diaphragm seal
dM [mm]
Weight [kg (lb)]
59
1.3 (2.87)
89
2.3 (5.07)
89
3.1 (6.84)
[in (mm)]
2.32 (59) 1.3 (2.87)
3.50 (89) 2.3 (5.07)
3.50 (89) 3.1 (6.84)
Approval 1)
-
CRN CRN CRN
Option 2)
UIJ 5) UJJ 5) UKJ
ULJ 5) UMJ 5) URJ
1) CSA approval: Product Configurator, order code for "Approval" 2) Product Configurator, order code for "Process connection" 3) The specified nominal pressure applies to the diaphragm seal. The maximum pressure for the measuring device is dependent on the lowest-rated
element, with regard to pressure, of the selected components 47. 4) For PTFE coating MWP = 250 bar (3 625 psi), for details, see "Range of application of the PTFE foil" 46 5) With TempC Membrane.
Endress+Hauser
79
PMP55: process connections with flush-mounted process isolating diaphragm
Thread ISO 228 and ANSI
SW/AF
Cerabar M PMC51, PMP51, PMP55
SW/AF
h
h
x 1
x 1
d M
d 1
G
d 2
d1 Diameter d2 Diameter G Thread x1 Screw-in length AF Across flats dM Max. diameter of the process isolating diaphragm h Height
Engineering unit mm (in). Left: thread ISO 228, right: thread ANSI
d M
NPT d
2
A0021639
Threaded connection
Material
G
AISI 316L Alloy C276 AISI 316L Alloy C276 AISI 316L Alloy C276
G 1" A G 1 �" A G 2"
Nominal pressure PN 400
400
400
d1 [mm] 30
44
56
d2 [mm] 39
55
68
x1 [mm] 21
30
30
SW/AF 41 50 65
Diaphragm seal
dM
h
Weight
[mm] [mm] [kg (lb)]
30
19
0.4 (0.88)
0.5 (1.1)
42
20
0.9 (1.98)
1.0 (2.21)
50
20
1.9 (4.19)
2.1 (4.63)
Approval 1)
-
Option 2)
GTJ GTC GVJ GVC GWJ GWC
AISI 316L 1" MNPT
400
Alloy C276
AISI 316L 1 �" MNPT 400
Alloy C276
AISI 316L 2" MNPT
400
Alloy C276
�
45
28
41
24
17
0.6 (1.32) CRN
U5J
0.7 (1.54) CRN
U5C
�
60
30
41
36
20
0.9 (1.98) CRN
U7J
52
30
46
32
20
1.0 (2.21) CRN
U7C
�
78
30
65
38
35
1.8 (3.97) CRN
U8J
2.0 (4.41) CRN
U8C
1) CSA approval: Product Configurator, order code for "Approval" 2) Product Configurator, order code for "Process connection"
80
Endress+Hauser
Cerabar M PMC51, PMP51, PMP55
PMP55: process connections with flush-mounted process isolating diaphragm
Tri-Clamp ISO 2852
h
d M
C 7
C7 Diameter h Height dM Max. diameter of the process isolating diaphragm Engineering unit mm (in)
A0021644
Material 1). Nominal diameter ISO 2852
Nominal diameter DIN 32676
ND 25 / 33.7 DN 25
ND 38
DN 40
AISI 316L ND 51 / 40 ND 63.5
DN 50 �
ND 76.1
�
Nominal diameter
[in] 1 1 � 2 2 � 3
C7
dM
Standard With TempC Membrane
[mm] [mm] [mm]
50.5 24
-
50.5 36
36
64 48
41
77.5 61
61
91 73
61
h
Weight
[mm] [kg (lb)] 37 0.32
(0.71) 30 1 (2.21)
30 1.1 (2.43)
30 0.7 (1.54)
30 1.2 (2.65)
Approval 2)
EHEDG, 3A, CRN, ASME-BPE EHEDG, 3A, CRN, ASME-BPE EHEDG, 3A, CRN, ASME-BPE EHEDG, 3A, ASME-BPE EHEDG, 3A, CRN, ASME-BPE
Option 3)
TCJ TJJ 4) 5) TDJ 4) 5) TEJ 6) TFJ 5)
1) Surface roughness of the surfaces in contact with the medium Ra < 0.76 �m (29.9 �in) as standard. Lower surface roughness available on request
2) CSA approval: Product Configurator, order code for "Approval" 3) Product Configurator, order code for "Process connection" 4) Process connections without TempC Membrane: optionally available as ASME-BPE-compliant diaphragm seal version for use in biochemical
processes, wetted surfaces Ra < 0.38 �m (15 �in)), electropolished (the electropolished version with nominal diameter DN 40 / 1 � inch has a
standard diameter dM of 35 mm); ordering information: Product Configurator, order code for "Service", option HK
5) Alternatively available with TempC Membrane. 6) With TempC Membrane
PN max. = 40 bar (580 psi). The maximum PN depends on the used clamp.
Endress+Hauser
81
PMP55: process connections with flush-mounted process isolating diaphragm
Pipe diaphragm seal Tri-Clamp ISO 2852
Cerabar M PMC51, PMP51, PMP55
h D d
2
d 3
L
h Height D Diameter d2 Diameter d3 Diameter L Installed length
Engineering unit mm (in)
A0021671
Material 1 Nominal
)
diameter
ISO 2852
Nominal diameter
[in]
DN 10
�
DN 25
1
AISI 316L
DN 38
1 �
DN 51
2
Nominal pressure
PN 40 PN 40 PN 40 PN 40
D
[mm] 10.5 22.5 35.5 48.6
d2
[mm] 25 50.5 50.5 64
d3
[mm] 34 54 69 78
h
[mm] 41.5 67 67 79
L
[mm] 140 126 126 100
1) Surface roughness of the surfaces in contact with the medium Ra < 0.76 �m (29.9 �in) as standard.
2) CSA approval: Product Configurator, order code for "Approval" 3) Product Configurator, order code for "Process connection" 4) incl. 3.1 and pressure test according to Pressure Equipment Directive, Category II
Weight
Approval Option 3)
2)
[kg (lb)] 0.6 (1.32) 3A, CRN 1.7 (3.75) 3A, CRN 1.0 (2.21) 3A, CRN 1.7 (3.75) 3A, CRN
SIJ SBJ SCJ 4) SDJ 4)
82
Endress+Hauser
Cerabar M PMC51, PMP51, PMP55
PMP55: hygienic process connections with flushmounted process isolating diaphragm
Varivent for pipes
dM D
D Diameter dM Max. diameter of the process isolating diaphragm Engineering unit mm (in)
30 (1.18)
A0021672
Material 1) Designation
Nominal pressure
AISI 316L Type F for tubes DN 25 - DN 32 PN 40
AISI 316L Type N for tubes DN 40 - DN 162
PN 40
D
dM
Standard With TempC diaphragm
[mm] [mm] [mm]
50 34
36
68 58
61
Weight Approval
Option 2)
[kg (lb)]
0.4 (0.88) EHEDG, 3A, ASME- TQJ 3) BPE
0.8 (1.76) EHEDG, 3A, ASME- TRJ 4) 3) BPE
1) Surface roughness of the wetted surfaces Ra < 0.76 �m (29.9 �in) as standard.
2) Product Configurator, order code for "Process connection" 3) Alternatively available with TempC diaphragm. 4) Diaphragm seal versions optionally in conformity with ASME-BPE for use in biochemical processes, wetted surfaces Ra < 0.38 �m (15 �in)) ,
electropolished; ordering information: Product Configurator "Service" ordering feature, option HK. In combination with the "Electropolished" option, the wetted parts of the Varivent connection type N are made of 316L (1.4435).
Endress+Hauser
83
PMP55: hygienic process connections with flush mount process isolating diaphragm
DRD DN50 (65 mm)
4 x �11.5 (0.45)
Cerabar M PMC51, PMP51, PMP55
23.6 (0.93) 30 (1.18)
�65-1.2 (2.56-0.05)
dM
�84 (3.31) �105 (4.13)
dM Max. diameter of the process isolating diaphragm Engineering unit mm (in)
A0021673
Material 1) Nominal pressure
AISI 316L
PN 25
dM Standard [mm] 50
With TempC Membrane [mm] 48
Weight
Option 2)
[kg (lb)] 0.75 (1.65)
TIJ 3)
1) Surface roughness of the surfaces in contact with the medium Ra < 0.76 �m (29.9 �in) as standard.
2) Product Configurator, order code for "Process connection" 3) Alternatively available with TempC Membrane.
SMS nozzles with coupling nut
f m
h
d M
G
D
D Diameter f Nozzle height G Thread h Height m Height dM Max. diameter of the process isolating diaphragm
Engineering unit mm (in)
A0021674
Material 1) Nominal diameter Nominal pressure D
f
G
[mm] [mm]
m
h
dM Weight
[mm] [mm] [mm] [kg (lb)]
Approval
Option 2)
1
PN 25
54 3.5 Rd 40 � 1/6 20 42.5 24 0.25 (0.55) 3A, ASME-BPE T6J
AISI 316L 1 �
PN 25
74 4
Rd 60 � 1/6 25 57 36 0.65 (1.43)
T7J 3)
2
PN 25
84 4
Rd 70 � 1/6 26 62 48 1.05 (2.32)
TXJ 3)
1) Surface roughness of the surfaces in contact with the medium Ra < 0.76 �m (29.9 �in) as standard.
2) Product Configurator, order code for "Process connection" 3) Alternatively available with TempC Membrane.
84
Endress+Hauser
Cerabar M PMC51, PMP51, PMP55 APV-RJT nozzles with coupling nut
f m
h
d M
G
D
D Diameter f Nozzle height G Thread h/m Height dM Max. diameter of the process isolating diaphragm
Engineering unit mm (in)
A0021674
Material 1) AISI 316L
Nominal diameter [in] 1 1 � 2
Nominal pressure [bar] PN 40 PN 40 PN 40
D
f
G
[mm] [mm]
77
6.5 1 13/16 � 1/8"
72
6.4 2 5/16 � 1/8"
86
6.4 2 7/8 � 1/8"
m
h
dM
Weight
[mm] [mm] [mm] [kg (lb)]
22
42.6 21
0.45 (0.99)
22
42.6 28
0.75 (1.65)
22
42.6 38
1.2 (2.65)
Option 2)
T0J T1J T2J
1) Surface roughness of the surfaces in contact with the medium Ra < 0.76 �m (29.9 �in) as standard. 2) Product Configurator, order code for "Process connection"
APV-ISS nozzles with coupling nut
SW/AF
50 (1.97)
4 (0.16) 30 (1.18)
dM
G D
D Diameter G Thread AF Across flats dM Max. diameter of the process isolating diaphragm Engineering unit mm (in)
A0021677
Material 1) AISI 316L
Nominal diameter [in] 1 1 � 2
Nominal pressure [bar] PN 40 PN 40 PN 40
D [mm] 54.1 72 89
G
1 �" � 1/8" 2" � 1/8" 2 �" � 1/8"
SW/AF
46.8 62 77
dM [mm] 24 34 45
Weight [kg (lb)] 0.4 (0.88) 0.6 (1.32) 1.1 (2.43)
1) Surface roughness of the surfaces in contact with the medium Ra < 0.76 �m (29.9 �in) as standard. 2) Product Configurator, order code for "Process connection"
Option 2)
T3J T4J T5J
Endress+Hauser
85
Cerabar M PMC51, PMP51, PMP55 Aseptic pipe union, nozzle, DIN 11864-1 Form A; pipe DIN 11866-A
max. 100 (3.94)
m f
30 (1.18)
dM
D
G
D Diameter f Nozzle height G Thread m Height dM Max. diameter of the process isolating diaphragm
Engineering unit mm (in)
A0023764
Material 1) Nozzle
Slotted-nut
Diaphragm seal Approval
Option 2)
Nominal diameter Nominal pressure D
f
G
[in]
[bar]
[mm] [mm]
m dM Weight [mm] [kg (lb)]
AISI 316L
DN 40 DN 50
PN 40 PN 25
55 10 Rd 65 x 1/6" 21 36 0.63 (1.39) EHEDG, 3A, ASME-BPE NCJ 67 11 Rd 78 x 1/6" 22 48 0.92 (2.03) EHEDG, 3A, ASME-BPE NDJ
1) Surface roughness of the surfaces in contact with the medium Ra < 0.76 �m (29.9 �in) as standard. 2) Product Configurator, order code for "Process connection"
Aseptic flange connection, DIN 11864-2 Form A; pipe DIN 11866-1
dM
d K
D
D Diameter k Hole circle d Diameter dM Max. diameter of the process isolating diaphragm Engineering unit mm (in)
10 (0.39) 30 (1.18)
A0023765
86
Endress+Hauser
Cerabar M PMC51, PMP51, PMP55
Material 1) AISI 316L
Collar flange Nominal diameter [in] DN 32 DN 40 DN 50
Nominal pressure [bar] PN 16
Diaphragm seal
K
d
D
dM
Weight
[mm] [mm] [mm] [mm] [kg (lb)]
59
47.7 76
25
1.5 (3.31)
65
53.7 82
35
1.7 (3.75)
77
65.7 94
45
2.2 (4.85)
Approval
EHEDG, 3A, ASME-BPE EHEDG, 3A, ASME-BPE EHEDG, 3A, ASME-BPE
Option 2)
NFJ NXJ NZJ
1) Surface roughness of the surfaces in contact with the medium Ra < 0.76 �m (29.9 �in) as standard. 2) Product Configurator, order code for "Process connection"
Taper adapter with slotted-nut, DIN 11851
f 40 (1.57)
m
dM
D
G
D Diameter f Adapter height G Thread m Height dM Max. diameter of the process isolating diaphragm
Engineering unit mm (in)
A0021678
Material 1) Taper adapter
Nominal diameter
Nominal pressure
PN
[in] DN 32
[bar] PN 40
DN 40
PN 40
AISI 316L DN 50 DN 65
PN 25 PN 25
DN 80
PN 25
D
f
Slotted-nut
G
m
Diaphragm seal dM
Weight
Approval
[mm] [mm]
50 10 Rd 58 x 1/6"
56 10 Rd 65 x 1/6"
68.5 11
Rd 78 x 1/6"
86 12 Rd 95 x 1/6"
100 12
Rd 110 x 1/4"
Standard With TempC Membrane
[mm] [mm] [mm]
21 32
28
21 38
36
19 52
48
21 66
61
26 81
61
[kg (lb)]
0.45 (0.99) EHEDG, 3A, ASME-BPE
0.45 (0.99) EHEDG, 3A, ASME-BPE
1.1 (2.43) EHEDG, 3A, ASME-BPE
2.0 (4.41) EHEDG, 3A, ASME-BPE
2.55 (5.62) EHEDG, 3A, ASME-BPE
1) Surface roughness of the surfaces in contact with the medium Ra < 0.76 �m (29.9 �in) as standard.
2) Product Configurator, order code for "Process connection" 3) Alternatively available with TempC Membrane.
Option 2)
MIJ 3) MZJ 3) MRJ 3) MSJ 3) MTJ 3)
Endress+Hauser
87
NEUMO BioControl
Cerabar M PMC51, PMP51, PMP55
d 2
h d
d M
d3 d1
D
D Diameter h/d Height d1/ d3 diameter d2 Diameter of hole dM Max. diameter of the process isolating diaphragm
Engineering unit mm (in)
A0023435
Material 1) NEUMO BioControl Process temperature range: �10 to +200 �C (+14 to +392 �F)
Nominal Nominal D
d
d2
diameter pressure
d3
d1
h
Diaphragm seal
dM
Standard With TempC Membrane
[bar]
[mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm]
DN 50
PN 16
90 17 4 x � 9 50 70 27 40
36
AISI 316L DN 80
PN 16
140 25 4 x � 11 87.4 115 37 61
61
Approval Weight
[kg (lb)]
1.1 (2.43)
3A, ASMEBPE
2.6 (5.73)
EHEDG, 3A, ASMEBPE
Option 2)
S4J 3) S6J 4)
1) Surface roughness of the surfaces in contact with the medium Ra < 0.76 �m (29.9 �in) as standard.
2) Product Configurator, order code for "Process connection" 3) Alternatively available with TempC Membrane. 4) With TempC Membrane
88
Endress+Hauser
Cerabar M PMC51, PMP51, PMP55 Universal process adapter
1
1 Silicone form seal Engineering unit mm (in)
dM = �36 (1.42) �43.5 (1.71)
50 (1.97)
A0026277
Designation
Universal adapter with silicone form seal (spare part no.: 52023572) FDA 21CFR177.2600/USP Class VI
Nominal pressure Material 1)
Weight Approval 2)
Option 3)
[kg (lb)]
PN 10
AISI 316L (1.4435) 0.8 (1.76) EHEDG, 3A, ASME-BPE UPJ 4) 5)
1) The roughness of the surface in contact with the medium is Ra< 0.76 �m (29.9 �in). Optionally available as an ASME-BPE-compliant version for
use in biochemical processes, surfaces in contact with medium Ra< 0.38 �m (15 �in) electropolished, ordering information: Product Configurator,
order code for "Service", option "HK" 2) EHEDG or 3A approval only with approved process connection. 3) Product Configurator, order code for "Process connection" 4) Endress+Hauser supplies these slotted-nuts in stainless steel AISI 304 (1.4301) or in AISI 304L (1.4307). 5) Alternatively available with TempC Membrane.
Endress+Hauser
89
Cerabar M PMC51, PMP51, PMP55
PMP55: process connections with flush-mounted process isolating diaphragm
EN/DIN flanges, connection dimensions as per EN 1092-1/DIN 2527 and DIN 2501-1 A0021680
g2
f b
dM
g
k
D
D Diameter of flange b Thickness g Raised face f Raised face k Hole circle g2 Diameter of hole dM Max. diameter of the process isolating diaphragm
Engineering unit mm
A0021680
Flange 1) 2) 3) Nominal diameter
DN 25 DN 25 DN 25 DN 25 DN 32 DN 40 DN 50 DN 50 DN 50 DN 50 DN 50 DN 80 DN 80 DN 100
Nominal pressure
10-40 63-160 250 400 10-40 10-40 10-40 63 100-160 250 400 10-40 100 100
Boltholes
Diaphragm seal
Shape 5) D
b
g
f
Quantity g2
k
dM
Weight
[mm] [mm] [mm] [mm]
[mm] [mm] [mm] [kg (lb)]
B1 (D) 115 18 68 3
4
14 85 32 2.1 (4.63)
B2 (E) 140 24 68 2
4
18 100 28 2.5 (5.51)
B2 (E) 150 28 68 2
4
22 105 28 3.7 (8.16)
B2 (E) 180 38 68 2
4
26 130 28 7.0 (15.44)
B1 (D) 140 18 77 2.6 4
18 100 34 1.9 (4.19)
B1 (D) 150 18 87 2.6 4
18 110 48 2.2 (4.85)
B1 (D) 165 20 102 3
4
18 125 59 3.0 (6.62)
B2 (E) 180 26 102 3
4
22 135 59 4.6 (10.14)
B2 (E) 195 30 102 3
4
26 145 59 6.2 (13.67)
B2 (E) 200 38 102 3
8
26 150 59 7.7 (16.98)
B2 (E) 235 52 102 3
8
30 180 59 14.7 (32.41)
B1 (D) 200 24 138 3.5 8
18 160 89 5.3 (11.69)
B2 (E) 230 32 138 4
8
24 180 89 8.9 (19.62)
B2 (E) 265 36 175 5
8
30 210 89 13.7 (30.21)
Option 4)
CNJ 6) QIJ QJJ QSJ CPJ CQJ CXJ 6) PDJ QOJ QMJ QVJ CZJ 6) PPJ PQJ
1) Material: AISI 316L 2) The roughness of the surface in contact with the medium, including the raised face of the flanges (all standards) made of Alloy C276, Monel,
tantalum, rhodium>gold or PTFE is Ra< 0.8 �m (31.5 �in). Lower surface roughness on request.
3) The flange raised face is made of the same material as the process isolating diaphragm. 4) Product Configurator, "Process connection" section 5) Description as per DIN 2527 provided in brackets 6) Alternatively available with TempC membrane. Diameter of process isolating diagram modified in TempC version: DN25: 28 mm; DN50: 61 mm.
90
Endress+Hauser
Cerabar M PMC51, PMP51, PMP55
EN/DIN flanges with barrel (extended diaphragm seal), connection dimensions as per EN 1092- 1/DIN 2527 and DIN 2501-1
g2
b
3
L
dM
d3
g
k
D
D Diameter of flange b Thickness g Raised face k Hole circle g2 Diameter of hole dM Max. diameter of the process isolating diaphragm d3 Barrel (extended diaphragm seal) diameter L Barrel (extended diaphragm seal) length
Engineering unit mm
A0023914
Flange 1) 2) Nominal diameter
DN 50 DN 80
Nominal pressure
PN 10-40 PN 10-40
Shape 4)
B1 (D) B1 (D)
D [mm] 165 200
b [mm] 20 24
g [mm] 102 138
Boltholes
Quantity
g2 [mm]
4
18
8
18
k [mm] 125 160
Diaphragm seal
dM Weight
dM [kg (lb)]
47
5)
72
5)
Option 3)
FDJ 5) FEJ 5)
1) Material: AISI 316L 2) In the case of process isolating diaphragms made of Alloy C276, Monel or tantalum, the raised face of the flange and the barrel pipe are made of
316L 3) Product Configurator, "Process connection" section 4) Description as per DIN 2527 provided in brackets 5) Available with 50 mm (1.97 in), 100 mm (3.94 in) and 200 mm (7.87 in)barrel, (extended diaphragm seal), for barrel (extended diaphragm
seal) diameter and weight see the following table
Option 1)
Nominal diameter
Nominal pressure
FDJ
DN 50
FEJ
DN 80
PN 10-40 PN 10-40
1) Product Configurator, order code for "Process connection"
(L) [mm] 50 / 100 / 200 50 /100 / 200
d3 [mm] 48.3 76
Weight [kg (lb)] 3.2 (7.1)/ 3.8 (8.4)/ 4.4 (9.7) 6.2 (13.7)/ 6.7 (14.8)/ 7.8 (17.2)
Endress+Hauser
91
Cerabar M PMC51, PMP51, PMP55
PMP55: process connections with flush-mounted process isolating diaphragm
ASME flanges, connection dimensions as per ASME B 16.5, raised face RF g2
f b
dM
g
k
D
D Diameter of flange b Thickness g Raised face f Raised face k Hole circle g2 Diameter of hole dM Max. diaphragm diameter
Engineering unit in
A0023913
Flange 1) 2) 3) Nominal diameter [in] 1 1 1 1 1 1 � 1 � 2 2 2 2 2 3 3 4 4
Class [lb./sq.in] 150 300 400/600 900/1500 2500 150 300 150 300 400/600 900/1500 2500 150 300 150 300
Boltholes
Diaphragm seal
D
b
g
f
Quantity g2
k
dM Weight
[in] [in] [in] [in]
[in] [in] [in] [kg (lb)]
4.25 0.56 2
0.08 4
0.62 3.12 1.26 1.2 (2.65)
4.88 0.69 2
0.08 4
0.75 3.5 1.26 1.3 (2.87)
4.88 0.69 2
0.25 4
0.75 3.5 1.26 1.4 (3.09)
5.88 1.12 2
0.25 4
1
4
1.26 3.2 (7.06)
6.25 1.38 2
0.25 4
1
4.25 1.26 4.6 (10.14)
5
0.69 2.88 0.06 4
0.62 3.88 1.89 1.5 (3.31)
6.12 0.81 2.88 0.06 4
0.88 4.5 1.89 2.6 (5.73)
6
0.75 3.62 0.06 4
0.75 4.75 2.32 2.2 (4.85)
6.5 0.88 3.62 0.06 8
0.75 5
2.32 3.4 (7.5)
6.5 1
3.62 0.25 8
0.75 5
2.32 4.3 (9.48)
8.5 1.5 3.62 0.25 8
1
6.5 2.32 10.3 (22.71)
9.25 2
3.62 0.25 8
1.12 6.75 2.32 15.8 (34.84)
7.5 0.94 5
0.06 4
0.75 6
3.5 5.1 (11.25)
8.25 1.12 5
0.06 8
0.75 6
3.5 7.0 (15.44)
9
0.94 6.19 0.06 8
0.75 7.5 3.5 7.2 (15.88)
10 1.25 6.19 0.06 8
0.88 7.88 3.5 11.7 (25.8)
Approval 4)
CRN 6) CRN CRN CRN CRN CRN CRN CRN CRN CRN CRN CRN CRN CRN CRN CRN
Option 5)
ACJ 7) ANJ 7) A0J A2J A4J AEJ AQJ AFJ 7) ARJ 7) A1J A3J A5J AGJ 7) ASJ 7) AHJ ATJ
1) Material AISI 316/316L: Combination of AISI 316 for required pressure resistance and AISI 316L for required chemical resistance (dual rated) 2) The roughness of the surface in contact with the medium including the raised face of the flanges (all standards) made of Alloy C276, Monel,
tantalum, rhodium>gold or PTFE is Ra< 0.8 �m (31.5 �in). Lower surface roughness on request.
3) The flange raised face is made of the same material as the process isolating diaphragm. 4) CSA approval: Product Configurator, order code for "Approval" 5) Product Configurator, order code for "Process connection" 6) CRN approval not for TempC membrane. 7) Alternatively available with TempC membrane. Diameter of process isolating diaphragm is modified in TempC version: nominal diameter 1": 1.1
in; 2": 2.40 in.
92
Endress+Hauser
Cerabar M PMC51, PMP51, PMP55
ASME flanges with barrel (extended diaphragm seal), connection dimensions as per ASME B 16.5, raised face RF
g2
b
f
L
dM
d3
g
k
D
D Diameter of flange b Thickness g Raised face k Hole circle g2 Diameter of hole dM Max. diameter of the process isolating diaphragm d3 Barrel (extended diaphragm seal) diameter L Barrel (extended diaphragm seal) length
Engineering unit in
A0021683
Flange 1) 2) Nominal diameter [in] 2 3 3 4 4
Class [lb./sq.in] 150 150 300 150 300
D [in] 6 7.5 8.25 9 10
b [in] 0.75 0.94 1.12 0.94 1.25
g [in] 3.62 5 5 6.19 6.19
f [in] 0.06 0.06 0.06 0.06 0.06
Boltholes Quantity
4 4 8 8 8
g2 [in] 0.75 0.75 0.88 0.75 0.88
k [in] 4.75 6 6.62 7.5 7.88
Diaphragm seal
dM
Weight
[in] [kg (lb)]
1.85 5)
2.83 5)
2.83 5)
3.5
5)
3.5
5)
Approval 3)
CRN CRN CRN CRN CRN
Option 4)
FMJ 5) FNJ 5) FWJ 5) FOJ 5) FXJ 5)
1) Material: AISI 316/316L. Combination of AISI 316 for required pressure resistance and AISI 316L for required chemical resistance (dual rated) 2) In the case of process isolating diaphragms made of Alloy C276, Monel or tantalum, the raised face of the flange and the barrel pipe are made of
316L. 3) CSA approval: Product Configurator, "Approval" ordering feature 4) Product Configurator, "Process connection" section 5) Available with 2", 4", 6" and 8" barrel (extended diaphragm seal), for barrel (extended diaphragm seal) diameter and weight see the following
table
Option 1) Nominal Class
(L)
diameter
[in]
[lb./sq.in] in (mm)
FMJ
2
150
2 (50.8) / 4 (101.6) / 6 (152.4) / 8 (203.2)
FNJ
3
150
2 (50.8) / 4 (101.6) / 6 (152.4) / 8 (203.2)
FWJ
3
300
2 (50.8) / 4 (101.6) / 6 (152.4) / 8 (203.2)
FOJ
4
150
2 (50.8) / 4 (101.6) / 6 (152.4) / 8 (203.2)
FXJ
4
300
2 (50.8) / 4 (101.6) / 6 (152.4) / 8 (203.2)
d3
Weight
in (mm) [kg (lb)] 1.9 (48.3) 3.0 (6.6)/ 3.4 (7.5)/ 3.9 (8.6)/ 4.4 (9.7) 2.99 (76) 6.0 (13.2) / 6.6 (14.5) / 7.1 (15.7) / 7.8 (17.2) 2.99 (76) 7.9 (17.4) / 8.5 (18.7) / 9.0 (19.9) / 9.6 (21.2) 3.7 (94) 8.6 (19) / 9.9 (21.8) / 11.2 (24.7) / 12.4 (27.3) 3.7 (94) 13.1 (28.9)/ 14.4 (31.6)/ 15.7 (34.6)/ 16.9 (37.3)
1) Product Configurator, order code for "Process connection"
Endress+Hauser
93
Cerabar M PMC51, PMP51, PMP55
JIS flanges, connection dimensions as per JIS B 2220 BL, raised face RF g2
f b
dM
g
k
D
D Diameter of flange b Thickness g Raised face f Thickness of raised face k Hole circle g2 Diameter of hole dM Max. diaphragm diameter
Engineering unit mm
A0021680
Flange 1) 2) 3) Nominal diameter
25 A 40 A 50 A 80 A 100 A
Nominal pressure
10 K 10 K 10 K 10 K 10 K
D [mm] 125 140 155 185 210
b [mm] 14 16 16 18 18
g [mm] 67 81 96 127 151
f [mm] 1 2 2 2 2
Boltholes Quantity
4 4 4 8 8
g2 [mm] 19 19 19 19 19
k [mm] 90 105 120 150 175
Diaphragm seal
dM
Weight
[mm] [kg (lb)]
32
1.5 (3.31)
48
2.0 (4.41)
59
2.3 (5.07)
89
3.3 (7.28)
89
4.4 (9.7)
Option 4)
KCJ KEJ KFJ KGJ KHJ
1) material: AISI 316L 2) The roughness of the surface in contact with the medium including the raised face of the flanges (all standards) made of Alloy C276, Monel,
tantalum, rhodium>gold or PTFE is Ra< 0.8 �m (31.5 �in). Lower surface roughness on request.
3) The flange raised face is made of the same material as the process isolating diaphragm. 4) Product Configurator, "Process connection" section
94
Endress+Hauser
Cerabar M PMC51, PMP51, PMP55
PMP55 process connections Welded separators
A
B
�72.6 (2.86)
�72.6 (2.86)
C �72.6 (2.86)
14 (0.55) 20 (0.79)
70 (2.76)
14 (0.55) 21.5 (0.85)
70 (2.76)
14 (0.55) 17 (0.67) 20 (0.79)
70 (2.76)
�18.4 (0.72)
�4 (0.16) �6 (0.24) G �"A Engineering unit mm (in)
3 (0.12)
�4 (0.16) NPT �" � 14
�11.4 (0.45)
�17.5 (0.69) M20x1.5
A0021685
Item Designation
A
Welded, ISO 228 G � A EN837
B
Welded, ANSI � MNPT
C
Welded, thread DIN13 M20x1.5
Material
Measuring range [bar (psi)]
AISI 316L 160 (2320)
1) Product Configurator, order code for "Process connection" 2) CSA approval: Product Configurator, order code for "Approval"
Nominal pressure PN 160
Approval
CRN 2) -
Weight [kg (lb)]
1.43 (3.15)
Option 1)
UBJ UCJ UFJ
Threaded separators
A
B
�118 (4.65)
�118 (4.65)
94.5 (3.72)
76 (2.99)
27 NPT �" �30 (1.18)
Engineering unit mm (in)
19 (0.75) 12 (0.47) 26 (1.02)
36
NPT 1" �52 (2.05)
27 (1.06) 15 (0.59) 44 (1.75)
A0021684
Item Designation
A Threaded, �" NPT with FKM Viton seal �20 to +200 �C (�4 to +392 �F)
B Threaded, 1" NPT with FKM Viton seal �20 to +200 �C (�4 to +392 �F)
Material
Measuring range Nominal pressure Weight
Option 1)
[bar (psi)]
[kg (lb)]
AISI 316L screws made of A4
250 (3625)
PN 250
4.75 (10.47) UGJ 5.0 (11.03) UHJ
1) Product Configurator, order code for "Process connection"
Endress+Hauser
95
Cerabar M PMC51, PMP51, PMP55
max. 89 (3.5) max. 89 (3.5)
A 100 (3.94)
B 100 (3.94)
22 �6 (0.24) G �"
Engineering unit mm (in)
22 NPT �"
A0027135
Item Designation
A Threaded, ISO 228 G � A EN837 with PTFE seal �40 to +260 �C (�40 to +500 �F)
B Threaded, ANSI � MNPT with PTFE seal �40 to +260 �C (�40 to +500 �F)
Material
Measuring range Nominal pressure Weight
Option 1)
[bar (psi)]
[kg (lb)]
AISI 316L, screws made of A4
40 (580)
PN 40
UDJ 2) 1.43 (3.15) UEJ 2)
1) Product Configurator, order code for "Process connection" 2) In combination with silicone oil, inert oil and vegetable oil.
A 95 (3.74)
B 95 (3.74)
max. 83 (3.27) max. 84 (3.31)
27 �6 (0.24) G �"
Engineering unit mm (in)
27 NPT �"
A0032474
Item Designation
A Threaded, ISO 228 G � A EN837 with metal seal (silver-plated) �60 to +400 �C (�76 to +752 �F)
B Threaded, ANSI � MNPT with metal seal (silverplated) �60 to +400 �C (�76 to +752 �F)
Material
Measuring range Nominal pressure Weight
Option 1)
[bar (psi)]
[kg (lb)]
AISI 316L, screws made of A4
40 (580)
PN 40
UDJ 2) 1.38 kg (3.04 lb) UEJ 2)
1) Product Configurator, order code for "Process connection" 2) In combination with high-temperature oil.
96
Endress+Hauser
Cerabar M PMC51, PMP51, PMP55
A �115 (4.53)
B �115 (4.53)
84 (3.31)
100 (3.94) 20 (0.79)
22
�2.5 (0.1) G �" Engineering unit mm (in)
17 (0.67) 3 (0.12)
36
�2.5 (0.1) NPT �"
19 (0.75)
A0021688
Item Designation
Material
Measuring range Nominal pressure 1) Weight
Option 2)
[bar (psi)]
[kg (lb)]
A Threaded, ISO 228 G � A EN837, with integrated seal
lip �60 to +400 �C (�76 to +752 �F) B Threaded, ANSI � MNPT, with integrated seal lip
AISI 316L, screws made of A4
> 40 (580)
�60 to +400 �C (�76 to +752 �F)
PN 400
UDJ 4.75 (10.47)
UEJ
1) This separator is assembled prior to delivery and must not be disassembled! 2) Product Configurator, order code for "Process connection"
Endress+Hauser
97
Wall and pipe mounting with "Separate housing" version
Cerabar M PMC51, PMP51, PMP55
�42...60 (1.65...2.36)
86 (3.39)
70 (2.76)
A
69 (2.72)
1 2
112 (4.4) 127 (5)
52 (2.05) �6 (0.24)
L 50 (1.97)
122 (4.8) 158 (6.22)
B
1 2
63 (2.48)
140 (5.51) 175 (6.89)
81 (3.19)
95 (3.74) 114 (4.49) 6 (0.24)
�52 (2.05)
1 Housing cover with viewing window 2 Housing cover without viewing window L PE: 2 m (6.6 ft), 5 m (16 ft) and 10 m (33 ft), FEP: 5 m (16 ft). Engineering unit mm (in)
�20 (0.79)
A0023601
Item Designation
A
Dimensions with F31 housing
B
Dimensions with F15 housing
Weight (kg (lb) Housing (F31 or F15) 48
1) Product Configurator, "Separate housing" ordering feature
Mounting bracket 0,5 (1.10)
Option 1) U
Also available for order as a separate accessory: part number 71102216
98
Endress+Hauser
Cerabar M PMC51, PMP51, PMP55
Reduction in installation height
If the separate housing is used, the mounting height of the process connection is reduced compared to the dimensions of the standard version.
29 (1.14) 44 (1.73) 17 (0.67) 36 (1.42) 81 (3.19)
r � 120 (4.72) F31
r � 120 (4.72) F15
1 2
1 2
�54.1 (2.13)
1
1
Weight
1 Process connection adapter Engineering unit mm (in)
A0023602
Component part
Housing
Process connection
Capillary with armoring made of AISI 316L (1.4404)
Capillary with armoring made of AISI 316L (PVC)
Capillary with armoring made of AISI 316L (PTFE)
Weight See "Housing" section See "Process connections" section 0.16 kg/m (0.35 lb/m) + 0.2 kg (0.44 lb) (weight per capillary line)
0.21 kg/m (0.46 lb/m) + 0.2 kg (0.44 lb) (weight per capillary line)
0.29 kg/m (0.64 lb/m) + 0.2 kg (0.44 lb) (weight per capillary line)
Endress+Hauser
99
Flushing rings
Cerabar M PMC51, PMP51, PMP55
A0028007
Use flushing rings if there is a risk of medium buildup or clogging at the process connection. The flushing ring is fitted between the process connection and the process connection provided by the customer. Using the two lateral flushing holes, medium buildup or clogging in front of the process isolating diaphragm can be rinsed away and the pressure chamber vented. Various nominal widths and forms allow adaption to the respective process flange. For other details (dimension, weight, materials), see SD01553P/00/EN "Mechanical accessories for pressure measuring devices".
Order options Flushing rings can be ordered as a separate accessory or as an order option for the device.
Material
Nominal diameter
AISI 316L
EN1092-1 DN25 DN50 DN80 ASME B16.5 NPS 1" NPS 2" NPS 3"
Approval 1)
-
CRN CRN
Accessory 2) Part number
71377379 71377380 71377383
71377369 71377370 71377371
Order option 3) 4) Cerabar PMP55
PO PP PQ
PK PL PM
1) CSA approval: Product Configurator, order code for "Approval" 2) Inspection certification according to EN10204-3.1 material 3) Product Configurator order code for "Accessories enclosed" 4) Certificates ordered with the equipment (3.1 material certificate and NACE declaration of conformity and
PMI tests) apply to the transmitters and flushing rings listed in the table.
Endress+Hauser offers additional flushing rings as Technical Special Products (TSP).
100
Endress+Hauser
Cerabar M PMC51, PMP51, PMP55
Materials not in contact with F31 housing process
14
15
16
1
13 8
9 12 11 10
Front view, left-hand side view, top view
6
5 7
2 3 4
A0023615
Item number Component part
Material
1
F31 housing, RAL 5012 (blue)
Die-cast aluminum with protective powder-coating on polyester base
2
Cover, RAL 7035 (gray)
Die-cast aluminum with protective powder-coating on
polyester base
3
Cover seal
EPDM
4
Sight glass
Mineral glass
5
Sight glass seal
Silicone (VMQ)
6
External ground terminal
AISI 304 (1.4301)
7
Nameplates
Plastic film
8
Fastening for wired-on tag plate
AISI 304 (1.4301)/AISI 316 (1.4401)
9
Pressure compensation filter
AISI 316L (1.4404) and PBT-FR
10
Pressure compensation filter, O-ring VMQ or EPDM
11
Sealing ring
EPDM
12
Snap ring
PC Plastic
13
Seal of cable gland and blind plug EPDM/NBR
14
Cable gland
Polyamide (PA), for dust ignition-proof: CuZn nickelplated
15
Blind plug
PBT-GF30 FR
for dust ignition-proof, Ex d, FM XP and CSA XP: AISI 316L (1.4435)
16
Cover clamp
Clamp AISI 316L (1.4435), screw A4
Endress+Hauser
101
Cerabar M PMC51, PMP51, PMP55
F15 housing
14
1
11
13
12
Front view, left-hand side view, top view
10 9
87 6
5
2 3
4
A0023616
Item number Component part
1
F15 housing
2
Cover
3
Cover seal
4
Sight glass for non-hazardous area, ATEX Ex ia, NEPSI
Zone 0/1 Ex ia, IECEx Zone 0/1 Ex ia, FM NI, FM IS,
CSA IS
4
Sight glass for ATEX 1/2 D, ATEX 1/3 D, ATEX 1 GD,
ATEX 1/2 GD, ATEX 3 G, FM DIP, CSA dust ignition-
proof
5
Sight glass seal
6
External ground terminal
7
Fastening for wired-on tag plate
8
Pressure compensation filter
9
Pressure compensation filter, O-ring
10
Nameplates
11
Cable gland
12
Seal of cable gland and blind plug
13
Sealing ring
14
Screw
Material AISI 316L (1.4404)
Silicone with PTFE coating Polycarbonate (PC)
Mineral glass
Silicone (VMQ) AISI 304 (1.4301) AISI 304 (1.4301)/AISI 316 (1.4401) AISI 316L (1.4404) and PBT-FR VMQ or EPDM Lasered on Polyamide (PA), for dust ignitionproof: CuZn nickel-plated NBR/Silicone/EPDM EPDM A4-50
102
Endress+Hauser
Cerabar M PMC51, PMP51, PMP55 Connecting parts
1
1
9
4
2
3
4
5
6 7 8
10 11 12
A0032952
5
6
A0023900
Item number Component part
Material
1
Connection between the housing and
AISI 316L (1.4404)
process connection
2
Mounting bracket
Bracket AISI 316L (1.4404)
3
Screw and nuts A4-70
4
Half-shells: AISI 316L (1.4404)
5
Seal for cable from separate housing
FKM, EPDM
6
� Gland for cable from separate housing: � AISI 316L (1.4404)
� Screws:
� A2
7
PE cable for separate housing
Abrasion-proof cable with strain-relief Dynema members; shielded using aluminum-coated film; insulated with polyethylene (PE-LD), black; copper wires, twisted, UV-resistant
8
FEP cable for separate housing
Abrasion-proof cable; shielded using galvanized steel wire netting; insulated with fluorinated ethylene propylene (FEP), black; copper wires, twisted, UV-resistant
9
Process connection adapter for separate
AISI 316L (1.4404)
housing
10
Cell body
AISI 316L (1.4404)
11
Connection between body of measuring cell AISI 316L (1.4404)
and capillary
12
Heat-shrink tubing (available only if flexible Polyolefin
armor for capillary has PVC coating or PTFE
hose)
Endress+Hauser
103
A
1 2
B
1 2 3
Cerabar M PMC51, PMP51, PMP55
C 1 2 3
5
4
A0028087
Item Component part
1
Capillary
2
Flexible armor for capillary
3
Coating/armor
4
Single-ear clamp
5
Shrink tubing at capillary junction
A Standard 1) Armor for capillary AISI 316 Ti (1.4571) AISI 316L (1.4404) 2) -
B PVC-coated Armor for capillary
AISI 316 Ti (1.4571)
AISI 316L (1.4404) PVC 3)
-
Polyolefin
C PTFE hose Armor for capillary
AISI 316 Ti (1.4571)
AISI 316L (1.4404) PTFE 4)
1.4301
-
1) If no option is specified when ordering, order option "SA" is supplied. 2) Product Configurator, order code for "Armor for capillary:" option "SA" 3) Product Configurator, order code for "Armor for capillary:" option "SB" 4) Product Configurator, order code for "Armor for capillary:" option "SC"
Materials in contact with the process
NOTICE
The device components in contact with the process are specified in the "Mechanical construction"
48 and "Ordering information" 124 sections.
Delta-ferrite content The delta- ferrite content of the wetted parts material can be guaranteed and certified to 3% if the option "KF" is chosen in the Product Configurator "Material of the process isolating diaphragm" ordering feature. When PMC51 with hygienic process connections is chosen, the deltaferrite content can be guaranteed and certified to 1% if the option "KF" is chosen in the Product Configurator "Material of the process isolating diaphragm" ordering feature.
TSE Certificate of Suitability (Transmissible Spongiform Encephalopathy) The following applies to all process wetted device components: � They do not contain any materials derived from animals. � No auxiliaries or operating materials derived from animals are used in production or processing.
Process connections � "Clamp connections" and "Hygienic process connections" (see also "Ordering information" section):
AISI 316L (DIN/EN material number 1.4435) � Endress+Hauser supplies process connections with a threaded connection as well as DIN/ EN
flanges made of stainless steel as per AISI 316L (DIN/EN material number 1.4404 or 1.4435). With regard to their stability-temperature property, the materials 1.4404 and 1.4435 are grouped together under 13E0 in EN 1092-1: 2001 Tab. 18. The chemical composition of the two materials can be identical. � Some process connections are also available in alloy C276 (DIN/EN material number 2.4819). For this purpose see the information in the "Mechanical construction" section.
104
Endress+Hauser
Cerabar M PMC51, PMP51, PMP55
Seals Fill fluid
Process isolating diaphragm
Device Designation PMC51 Al2O3 aluminum oxide ceramic (FDA 2) , USP Class VI+121�C), ultrapure 99.9 % (see also
www.endress.com/ceraphire) PMP51 AISI 316L (DIN/EN material number 1.4435)
AISI 316L with gold-rhodium coating Alloy C276 (DIN/EN material number 2.4819) PMP55 AISI 316L (DIN/EN material number 1.4435) AISI 316L, TempC AISI 316L with gold-rhodium coating AISI 316L with 0.25 mm (0.01 in) PTFE coating Alloy C276 (DIN/EN material number 2.4819) Monel (2.4360) Tantalum (UNS R05200)
Option 1) Standard
A M B A E M S B 3) C 3) D 3)
1) Product Configurator, order code for "Membrane material" 2) The US Food & Drug Administration (FDA) has no objections to the use of ceramics made from aluminum
oxide as a surface material in contact with foodstuffs. This declaration is based on the FDA certificates of our ceramic suppliers. 3) The material of the flange raised face is made of the same material as the process isolating diaphragm.
Type Designation PMC51 FKM Viton
FKM Viton, FDA, 3A Class I, USP Class VI FFKM Perlast G75LT NBR HNBR, FDA, 3A Class II, KTW, AFNOR, BAM NBR, Low temperature EPDM, FDA EPDM, FDA, 3A Class II, USP Class VI+121�C, DVGW, KTW, W270, WRAS, ACS, NSF61 FFKM Kalrez 6375 FFKM Kalrez 7075 FFKM Kalrez 6221, FDA, USP Class VI Fluoroprene XP40, FDA, USP Class VI+121�C, 3A Class I VMQ Silicone, FDA
1) Product Configurator, "Seal" ordering feature
Option 1) A B C F G H J K L M N P S
Designation Silicone oil Inert oil Synthetic oil as per FDA 21 CFR 178.3620 (b)(1) and NSF H-1
1) Product Configurator, order code for "Fill fluid"
Option PMP51 1) 1 2 3
Endress+Hauser
105
Cerabar M PMC51, PMP51, PMP55
Designation Silicone oil, suitable for foods FDA 21 CFR 175.105 Inert oil Vegetable oil, suitable for foods FDA 21 CFR 172.856 High-temperature oil Low-temperature oil
Option PMP55 1) 1 2 4 5 6
1) Only select FDA-approved filling oils for diaphragm seal devices with 3-A and EHEDG certification!
106
Endress+Hauser
Cerabar M PMC51, PMP51, PMP55
Operating concept Local operation
Operability
Operator-oriented menu structure for user-specific tasks � Commissioning � Operation � Diagnosis � Expert level
Quick and safe commissioning Guided menus for applications
Reliable operation � Local operation possible in several languages � Standardized operation at the device and in the operating tools � Parameters relating to measured values can be locked/unlocked using the device's write protection
switch, using the device software or via remote control
Efficient diagnostic behavior increases measurement availability � Remedial measures are integrated in plain text � Diverse simulation options
Local display (optional) for devices with HART-, PROFIBUS PA- or FOUNDATION FieldbusElektronik A 4-line liquid crystal display (LCD) is used for display and operation. The local display shows measured values, dialog texts as well as fault and notice messages in plain text, thereby supporting the user at every stage of operation. The liquid crystal display of the device can be turned in 90� stages. Depending on the orientation of the device, this makes it easy to operate the device and read the measured values. Functions � 8-digit measured value display including sign and decimal point, bar graph for 4 to 20 mA HART
as current display; or for PROFIBUS PA as graphic display of the standardized value of the AI Block; for FOUNDATION Fieldbus as graphic display of the transducer output in relation to the set pressure range. � Simple and complete menu guidance as parameters are split into several levels and groups � Each parameter is given a 3-digit ID number for easy navigation � Possibility of configuring the display to suit individual requirements and preferences, such as language, alternating display, contrast setting, display of other measured values such as sensor temperature etc. � Comprehensive diagnostic functions (fault and warning message, peak-hold indicators etc.)
Overview
4 3
2
�+E
1
1 Operating keys 2 Bar graph 3 Symbol 4 Header line 5 Parameter identification number
5
A0016498
Endress+Hauser
107
Cerabar M PMC51, PMP51, PMP55
Ordering information: Product Configurator, "Output, Operation" ordering feature
Function
Position adjustment (zero point correction) Setting lower range value and upper range value - reference pressure present at the device Device reset Locking and unlocking parameters relevant to the measured value Value acceptance indicated by the green LED Switching damping on and off
Operation via display
Analog electronic HART PROFIBUS PA FOUNDATION Fieldbus
Local display (optional) for devices with analog electronics A 4-line liquid crystal display (LCD) is used. The local display shows measured values, fault messages and notice messages. The liquid crystal display of the device can be turned in 90� stages. Depending on the orientation of the device, this makes it easy to operate the device and read the measured values. Functions: � 8-digit measured value display including sign and decimal point, bar graph for 4 to 20 mA as
current display. � Diagnostic functions (fault and warning message etc.)
Overview
3 2
1
1 Bar graph 2 Symbol 3 Parameter name
A0023993
Ordering information: Product Configurator, "Display, operation" ordering feature Operating keys and elements located inside on the electronic insert
Function
Position adjustment (zero point correction) Setting lower range value and upper range value - reference pressure present at the device Device reset Locking and unlocking parameters relevant to the measured value Value acceptance indicated by the green LED Switching damping on and off
Operation with operating keys and elements on the electronic insert
Analog electronics HART PROFIBUS PA FOUNDATION Fieldbus
Ordering information: 108
Endress+Hauser
Cerabar M PMC51, PMP51, PMP55
Product Configurator, "Output, Operation" ordering feature Analog
3
on
2
Display
Zero
1
Span
on
1
off
off
damping
damping
4
A0032657
1 Operating keys for lower range value (zero), upper range value (span), position zero adjustment or reset 2 Green LED to indicate successful operation 3 Slot for optional local display 4 DIP switch for switching damping on/off
HART
on
2
Display
Zero
3
1 2 3 4 5 off
1
Span
on
off
damping SW / Alarm min SW / SW / P2=High
delta p only
HAR RT
FIELD COMMUNICATION PROTOCOL
damping SW / Alarm min SW / SW / P2=High
87654
1 Operating keys for lower range value (zero) and upper range value (span) 2 Green LED to indicate successful operation 3 Slot for optional local display 4 DIP switch only for Deltabar M 5 DIP switch only for Deltabar M 6 DIP switch for alarm current SW / Alarm Min (3.6 mA) 7 DIP switch for switching damping on/off 8 DIP switch for locking/unlocking parameters relevant to the measured value
A0032658
Endress+Hauser
109
Cerabar M PMC51, PMP51, PMP55
PROFIBUS PA
2
1
Zero Display
3
1
damp 2
on
not used 3
delta p on:�
off:SW 4
only on:P2=High off:SW 5
off
on
SW
off
HW
Address
54
damping SW / SW / P2=High
on 1 2 3 4 5 off
10 9 8 7 6
1 Green LED to indicate successful operation 2 Operating key for position zero adjustment (Zero) or reset 3 Slot for optional local display 4 DIP-switch for bus address SW / HW 5 DIP-switch for hardware address 6 DIP switch only for Deltabar M 7 DIP switch only for Deltabar M 8 Not used 9 DIP switch for switching damping on/off 10 DIP switch for locking/unlocking parameters relevant to the measured value
FOUNDATION Fieldbus
2
Display
Zero
1
3
TM
on
FOUNDATION
off
on 1 2 3 4 5 off
A0032659
damping simulation SW / SW / P2=High
delta p only
damping Simulation SW / SW / P2=High
Operating languages
87654
1 Operating key for position zero adjustment (Zero) or reset 2 Green LED to indicate successful operation 3 Slot for optional local display 4 DIP switch only for Deltabar M 5 DIP switch only for Deltabar M 6 DIP-switch for simulation mode 7 DIP switch for switching damping on/off 8 DIP switch for locking/unlocking parameters relevant to the measured value
You can also choose another language in addition to the standard language "English":
Designation English German French Spanish Italian Dutch
Option 1) AA AB AC AD AE AF
A0032660
110
Endress+Hauser
Cerabar M PMC51, PMP51, PMP55
Remote operation Endress+Hauser
Designation Chinese Japanese
Option 1) AK AL
1) Product Configurator "Additional Operation Language" ordering feature
All software parameters are accessible depending on the position of the write protection switch on the device.
Hardware and software for remote operation FieldCare 111 FieldXpert SFX100 111 NI-FBUS Configurator 112
HART 1) --
PROFIBUS PA 2) -- --
FOUNDATION Fieldbus
1) Commubox FXA195 required 2) Profiboard or Proficard required
FieldCare FieldCare is an Endress+Hauser asset management tool based on FDT technology. With FieldCare, you can configure all Endress+Hauser devices as well as devices from other manufacturers that support the FDT standard. FieldCare supports the following functions: � Configuration of transmitters in offline and online mode � Loading and saving device data (upload/download) � Documentation of the measuring point Connection options: � HART via Commubox FXA195 and USB interface of a computer � PROFIBUS PA via segment coupler and PROFIBUS interface card � Service interface with Commubox FXA291 and ToF adapter FXA291 (USB).
For further information, please contact your local Endress+Hauser Sales Center.
Field Xpert SFX100 Field Xpert is an industrial PDA with integrated 3.5" touchscreen from Endress+Hauser based on Windows Mobile. It offers wireless communication via the optional VIATOR Bluetooth modem from Endress+Hauser. Field Xpert also works as a stand-alone device for asset management applications. For details refer to BA00060S/04/EN.
Commubox FXA195 For intrinsically safe HART communication with FieldCare via the USB interface. For details refer to TI00404F/00/EN.
Commubox FXA291 The Commubox FXA291 connects Endress+Hauser field devices with a CDI interface (= Endress+Hauser Common Data Interface) to the USB interface of a personal computer or laptop. For details refer to TI00405C/07/EN.
For the following Endress+Hauser devices you will need the "ToF Adapter FXA291" as an additional accessory: � Cerabar M � Deltabar M � Deltapilot M
ToF Adapter FXA291 The ToF adapter FXA291 connects the Commubox FXA291 with devices of the ToF platform, pressure equipment and Gammapilot via the USB interface of a personal computer or a notebook. For details refer to KA00271F.
111
Cerabar M PMC51, PMP51, PMP55
System integration (Except analog electronics)
Profiboard For connecting a PC to the PROFIBUS.
Proficard For connecting a laptop to the PROFIBUS.
FF configuration program FF configuration program, such as NI-FBUS Configurator, to � connect devices with "FOUNDATION Fieldbus signal" into an FF-network � set FF-specific parameters
Operation with NI-FBUS Configurator: The NI-FBUS Configurator is an easy-to-use graphical environment for creating linkages, loops, and a schedule based on the fieldbus concepts. You can use the NI-FBUS Configurator to configure a fieldbus network as follows: � Set block and device tags � Set device addresses � Create and edit function block control strategies (function block applications) � Configure vendor-defined function and transducer blocks � Create and edit schedules � Reading and writing of data from control and regulation systems � Invoke methods specified in the manufacturer-specific DD (e.g. basic device settings) � Display DD menus (e.g. tab for calibration data) � Download a configuration � Verify a configuration and compare it to a saved configuration � Monitor a downloaded configuration � Replace a virtual device by a real device � Save and print a configuration
The device can be given a tag name (max. 8 alphanumeric characters)
Designation Tagging (TAG), see aditional spec. Bus address, see aditional spec.
Option 1) Z1 Z2
1) Product configurator "Marking" ordering feature
112
Endress+Hauser
Cerabar M PMC51, PMP51, PMP55
Planning instructions for diaphragm seal systems
NOTICE Diaphragm seal systems sized/ordered incorrectly The performance and the permitted range of application of a diaphragm seal system depend on the process isolating diaphragm used, the filling oil, the coupling, the unit design and on the specific process and ambient conditions present in the individual application.
To help you select the right diaphragm seal systems for your particular applications, Endress
+Hauser provides its customers with the "Applicator Sizing Diaphragm Seal" selection tool, which is available free of charge at "www.endress.com/applicator" or as a download.
Applications
A0034616
For further details, or for information on an optimum diaphragm seal solution, please contact your local Endress+Hauser Sales Center. Diaphragm seal systems should be used if the process and the device need to be separated. Diaphragm seal systems offer clear advantages in the following instances: � In the case of extreme process temperatures � For aggressive media � If extreme measuring point cleaning is necessary, or in the event of very damp mounting locations � If the measuring point is exposed to severe vibrations � For mounting locations that are difficult to access
Endress+Hauser
113
Function and design 114
Cerabar M PMC51, PMP51, PMP55
Diaphragm seals separate the measuring system from the process. A diaphragm seal system consists of: � A diaphragm seal � A capillary tube or a temperature isolator if necessary � Fill fluid and � a pressure transmitter. The process pressure acts via the process isolating diaphragm of a diaphragm seal on the liquid-filled system, which transfers the process pressure to the sensor of the pressure transmitter. Endress+Hauser delivers all diaphragm seal systems as welded versions. The system is hermetically sealed, which ensures greater reliability. The diaphragm seal determines the application range of the system on the basis of � The diameter of the process isolating diaphragm � The process isolating diaphragm: stiffness and material � The design (oil volume)
Diameter of the process isolating diaphragm The greater the diameter of the process isolating diaphragm (less stiff), the smaller the temperature effect on the measurement result.
Stiffness of the process isolating diaphragm The stiffness depends on the diameter of the process isolating diaphragm, the material, any existing coating, the thickness and shape of the process isolating diaphragm. The thickness of the process isolating diaphragm and the shape are determined by the design. The stiffness of a process isolating diaphragm of a diaphragm seal influences the temperature application range and the measuring error caused by temperature effects.
The Endress+Hauser TempC membrane: Highest accuracy and process safety when measuring pressure and differential pressure using diaphragm seals To measure with even greater accuracy in these applications and increase process safety, Endress +Hauser has developed the TempC diaphragm which is based on a completely revolutionary technology. This diaphragm guarantees the utmost level of accuracy and process safety in diaphragm seal applications. � The very low temperature effect minimizes the effect of process and ambient temperature
fluctuations, thereby guaranteeing accurate and reliable measurements. Measurement inaccuracies caused by temperature are reduced to a minimum. � The TempC membrane can be used at temperatures between �70 �C (�94 �F) and +400 �C (+752 �F). This guarantees maximum process safety even for very long sterilization and cleaning cycles (SIP/CIP) in tanks and pipes at high temperatures. � With a smaller process connection, the new diaphragm measures at least as accurately as a conventional diaphragm with a larger diameter. With a smaller process connection, the new membrane measures at least as accurately as a conventional membrane with a larger diameter. � Due to the geometry of the membrane, an overshoot occurs initially immediately following a temperature shock. This results in a transient response, the duration and deviation of which are significantly less compared to traditional membrane types. In the case of batch processes, these shorter recovery times mean a far higher level of availability of the production facilities. For TempC membranes, the effect of the overshoot on the output signal can be reduced by adjusting the damping. � In addition, TempC Membrane convinces customers by its better hygiene cleanability as well as insensitivity to strong pressure load changes. Ordering information: See the Product Configurator for the individual process connection and the choice of process isolating diaphragm. Selection in the Applicator: Under "Transmitter data" in the "Membrane material" field.
Capillary As standard, capillaries with an internal diameter of 1 mm (0.04 in) are used. The capillary tube influences the thermal change, the ambient temperature operating range and the response time of a diaphragm seal system as a result of its length and internal diameter.
Endress+Hauser
Cerabar M PMC51, PMP51, PMP55
Filling oil Observe the temperatures and pressures during commissioning and cleaning. A further selection criterion is the compatibility of the filling oil with the requirements of the medium. For example, only filling oils that do not present a health hazard are used in the food industry, e.g. vegetable oil or silicone oil. (See also the following section "Diaphragm seal filling oils".) The filling oil used influences the thermal change, the temperature application range of a diaphragm seal system and the response time. A temperature change results in a volume change in the filling oil. The volume change depends on the thermal expansion coefficient of the filling oil and on the volume of the fill fluid at calibration temperature (constant in the range: +21 to +33 �C (+70 to +91 �F)). For example, the filling oil expands in the event of a temperature increase. The additional volume presses against the process isolating diaphragm of a diaphragm seal. The stiffer a process isolating diaphragm is, the greater its return force, which counteracts a volume change and acts together with the process pressure on the measuring cell, thus shifting the zero point.
Pressure transmitter The pressure transmitter influences the temperature application range, the thermal change and the response time as a result of its volume change. The volume change is the volume that has to be shifted in order to pass through the complete measuring range. Pressure transmitters from Endress+Hauser are optimized with regard to minimum volume change.
Diaphragm seal filling oils
Medium Silicone oil High-temperature oil Low temperature oil Vegetable oil Inert oil
Pabs = 0.05 bar (0.725 psi) 1) �40 to +180 �C (�40 to +356 �F) �20 to +200 �C (�4 to +392 �F) �70 to +120 �C (�94 to +248 �F) �10 to +160 �C (+14 to +320 �F) �40 to +100 �C (�40 to +212 �F)
Pabs = 1 bar (14.5 psi) 2) �40 to +250 �C (�40 to +482 �F) �20 to +400 �C (�4 to +752 �F) 3) 4) 5) �70 to +180 �C (�94 to +356 �F) �10 to +220 �C (+14 to +428 �F) �40 to +175 �C (�40 to +347 �F) 6) 7)
1) Permitted temperature range at pabs = 0.05 bar (0.725 psi) (observe temperature limits of the device and the system!)
2) Permitted temperature range at pabs 1 bar (14.5 psi) (observe temperature limits of the device and the system!)
3) 325 �C (617 �F) at 1 bar (14.5 psi)absolute pressure. 4) 350 �C (662 �F) at 1 bar (14.5 psi) absolute pressure (max. 200 hours). 5) 400 �C (752 �F) at 1 bar (14.5 psi) absolute pressure (max. 10 hours). 6) 150 �C (302 �F) at 1 bar (14.5 psi)absolute pressure. 7) 175 �C (347 �F) at 1 bar (14.5 psi) absolute pressure (max. 200 hours).
The calculation of the operating temperature range of a diaphragm seal system depends on the fill fluid, capillary length and capillary internal diameter, process temperature and oil volume of the diaphragm seal. Detailed calculations, e.g. for temperature ranges, vacuum pressure ranges and temperature ranges, are done separately in the Applicator "Sizing Diaphragm Seal".
Endress+Hauser
A0038925
115
Cerabar M PMC51, PMP51, PMP55
Operating temperature range
The operating temperature range of a diaphragm seal system depends on the fill fluid, capillary length and internal diameter, process temperature and oil volume of the diaphragm seal. The range of application can be extended by using a fill fluid with a smaller expansion coefficient and a shorter capillary.
Cleaning instructions
Endress+Hauser offer flushing rings as accessories to clean process isolating diaphragms without taking the transmitters out of the process.
For further information please contact your local Endress+Hauser Sales Center.
We recommend you perform CIP (cleaning in place (hot water)) before SIP (sterilization in place (steam)) for pipe diaphragm seals. A frequent use of sterilization in place (SIP) will increase the stress on the process isolating diaphragm. Under unfavorable circumstances in the long term view we cannot exclude that a frequent temperature change could lead to a material fatigue of the process isolating diaphragm and possibly to a leakage.
Installation instructions
Diaphragm seal systems � A diaphragm seal together with the transmitter form a closed, calibrated system, which is filled
through openings in the diaphragm seal and in the transmitter's measurement system. These openings are sealed and must not be opened. � In the case of devices with diaphragm seals and capillaries, the zero point shift caused by the hydrostatic pressure of the filling liquid column in the capillaries must be taken into account when selecting the measuring cell. If a measuring cell with a small measuring range is selected, a position adjustment can cause range violation. � For devices with a temperature isolator or capillary, a suitable fastening device (mounting bracket) is recommended. � When mounting, sufficient strain relief must be provided for the capillary line to prevent the capillary from bending (capillary bending radius 100 mm (3.94 in)
Capillary In order to obtain more precise measurement results and to avoid a defect in the device, mount the capillaries as follows: � Vibration-free (in order to avoid additional pressure fluctuations) � Not in the vicinity of heating or cooling lines � Insulate if the ambient temperature is below or above the reference temperature � With a bending radius 100 mm (3.94 in)
Thermal insulation The PMP55 may only be insulated up to a certain height. The maximum permitted insulation height is indicated on the devices and applies to an insulation material with a heat conductivity 0.04 W/(m x K) and to the maximum permitted ambient and process temperature. The data were determined under the most critical application "quiescent air". Maximum permitted insulation height, here indicated on a PMP55 with a flange:
A
1
2
116
B
A Ambient temperature 70 �C (158 �F) B Process temperature 1 Maximum permitted insulation height 2 Insulation material
A0020474
Endress+Hauser
Cerabar M PMC51, PMP51, PMP55
Mounting with temperature isolator Endress+Hauser recommends the use of temperature isolators in the event of constant extreme medium temperatures which lead to the maximum permissible electronics temperature of +85 �C (+185 �F) being exceeded. Depending on the filling oil used, diaphragm seal systems with temperature isolators can be used for maximum temperatures of up to +400 �C (+752 �F) 115, "Diaphragm seal filling oils" section. To minimize the influence of rising heat, Endress+Hauser recommends the device be mounted horizontally or with the housing pointing downwards. The additional installation height also brings about a zero point shift of maximum 21 mbar (0.315 psi) due to the hydrostatic column in the temperature isolator. You can correct this zero point shift at the device.
A 1
B 1
C 1
Vacuum applications
Tp
Ta
[�F] Tp [�C]
+752 +662 +572 +482 +392 +302 +212 +122 +32 -58 -148
+400
+350
+300
+250
+200
+150
+100 C +50 A 0
-50 -100
-60
-76
B
-40 -40
A No insulation B Insulation 30 mm (1.18 in) C Maximum insulation 1 Transmitter 2 Insulation material
Tp 2
Ta
Tp
Ta 2
AC B
[�C]
-20
0
+20
+40
+60
+80
[�F]Ta
-4
+32
+68 +104 +140 +176
A0039378
Mounting instructions For vacuum applications, pressure transmitters with a ceramic measuring membrane (oil-free) are preferable. For applications under vacuum, Endress+Hauser recommends mounting the pressure transmitter below the diaphragm seal. This prevents vacuum loading of the diaphragm seal caused by the presence of fill fluid in the capillary. When the pressure transmitter is mounted above the diaphragm seal, the maximum height difference H1 in accordance with the illustrations below must not be exceeded. The following diagram depicts installation above the lower diaphragm seal:
Endress+Hauser
117
Cerabar M PMC51, PMP51, PMP55
H1
A0023994
The maximum height difference depends on the density of the filling oil and the smallest ever pressure that is permitted to occur at the diaphragm seal (empty vessel), see illustration below. The following diagram depicts the maximum installation height above the lower diaphragm seal for vacuum applications.
[ft]
39
1
2
33
3
4
26
A 20 5
13
6.6
0.0 1 1.45 3 4.35 6 7.25 9 10.15 12 13.05 14.5 [psiabs] B
A Height difference H1 B Pressure at diaphragm seal 1 Low temperature oil 2 Vegetable oil 3 Silicone oil 4 High-temperature oil 5 Inert oil
A0023986-EN
118
Endress+Hauser
Cerabar M PMC51, PMP51, PMP55
CE mark RoHS RCM-Tick marking
Certificates and approvals
The device meets the legal requirements of the relevant EC directives. Endress+Hauser confirms that the device has been successfully tested by applying the CE mark. The measuring system complies with the substance restrictions of the Restriction on Hazardous Substances Directive 2011/65/EU (RoHS 2). The supplied product or measuring system meets the ACMA (Australian Communications and Media Authority) requirements for network integrity, interoperability, performance characteristics as well as health and safety regulations. Here, especially the regulatory arrangements for electromagnetic compatibility are met. The products are labelled with the RCM- Tick marking on the name plate.
Ex approvals
EAC conformity Suitable for hygiene applications
A0029561
� ATEX � IECEx � FM � CSA � NEPSI � Also combinations of different approvals All explosion protection data are given in separate documentation which is available upon request. The Ex documentation is supplied as standard with all devices approved for use in explosion hazardous areas 128.
The measuring system meets the legal requirements of the applicable EAC guidelines. These are listed in the corresponding EAC Declaration of Conformity together with the standards applied. Endress+Hauser confirms successful testing of the device by affixing to it the EAC mark.
The device has been developed for use in hygienic processes. The materials in contact with the process meet FDA requirements as well as the 3-A Sanitary Standard No. 74-XX. Endress+Hauser confirms compliance with the requirements by affixing the 3A mark to the device. The following serial number-specific declarations (with a copy of the certification) can be ordered with the device (optional): Product Configurator, order code for "Additional approval" option "LD" Product Configurator, order code for "Additional approval" option "LB" NOTICE Risk of contamination if incorrect seals and parts are used!
To avoid the risk of contamination, the device must be installed in accordance with EHEDG
"Hygienic Equipment Design Criteria (HDC)", "Subgroup Design Principles" Doc. 8.
Suitable assemblies and seals must be used to ensure hygiene-compliant design according to the
specifications of 3-A SSI and EHEDG Position Paper (in their current version).
The leak-proof connections can be cleaned with the cleaning methods typical of this industry
(CIP and SIP). Attention must be paid to the pressure and temperature specifications of the sensor and process connections for CIP and SIP processes (clean in place/sterilization in place).
For diaphragm seal devices with 3-A and EHEDG certificates, only select filling oils with FDA
approval!
Endress+Hauser
119
Cerabar M PMC51, PMP51, PMP55
TYPE EL
February 2010
A0024005
74 -
A0020029
Certificate of current Good Manufacturing Practices (cGMP) Certificate of Compliance ASME BPE 2012 Functional safety SIL CRN approvals Other standards and guidelines
AD2000
If cleaning in place (CIP) is required, adapters are available that comply with 3-A requirements. Information on 3-A and EHEDG-tested adapters can be found in the "Weld-in adapters, process adapters and flanges" documentation, TI00426F.
Product Configurator, order code for "Test, Certificate" option "JG" � The certificate is only available in English � Materials of construction of product wetted parts � TSE compliance � Polishing and surface finish � Material/ compound compliance table (USP Class VI, FDA conformity)
Ordering information: Product Configurator, "Additional approval" ordering feature, option "LW"
The Cerabar M with 4 to 20 mA output signal has been developed to assessed and certified by T�V NORD CERT as per IEC 61508 Edition 2.0 and IEC 61511. These devices can be used to monitor the process level and pressure up to SIL 2. For a detailed description of the safety functions with Cerabar M, settings and functional safety data, see the "Functional safety manual - Cerabar M" SD00347P. Ordering information: Product Configurator, "Additional approval" ordering feature, option "LA"
Some device versions have CRN approval. A CRN-approved process connection with a CSA approval must be ordered for a CRN-approved device.PMP55 devices with a capillary are not CRNapproved.These devices are fitted with a separate plate bearing the registration number0F10525.5C Ordering information: Product Configurator, "Process connection" section and Product Configurator, "Approval" ordering feature
The applicable European guidelines and standards can be found in the relevant EU Declarations of Conformity. The following were also applied:
IEC 62828-1 / DIN EN 60770 and IEC 62828-2 / DIN EN 60770: Transmitters for use in industrial-process control systems. Part 1: Methods for inspection and routine testing
DIN 16086: Electrical pressure measuring instruments, pressure sensors, pressure transmitters, pressure measuring instruments, concepts, specifications in data sheets
EN 61326-Series: EMC product family standard for electrical equipment for measurement, control and laboratory use.
EN 60529: Degrees of protection by housing (IP code)
The pressure retaining material 316L (1.4435/1.4404) corresponds to AD2000 - W2/W10.
120
Endress+Hauser
Cerabar M PMC51, PMP51, PMP55
Pressure Equipment Directive 2014/68/EU (PED)
Pressure equipment with allowable pressure 200 bar (2 900 psi) Pressure equipment (having a maximum allowable pressure PS 200 bar (2 900 psi)) can be classified as pressurized equipment in accordance with Pressure Equipment Directive 2014/68/EU. If the maximum allowable pressure is 200 bar (2 900 psi) and the pressurized volume of the pressure equipment is 0.1 l, the pressure equipment is subject to the Pressure Equipment Directive (cf. Pressure Equipment Directive 2014/68/EU, Article 4, point 3). The Pressure Equipment Directive only requires that the pressure equipment shall be designed and manufactured in accordance with the "sound engineering practice of a Member State".
Reasons: � Pressure Equipment Directive (PED) 2014/68/EU Article 4, point 3 � Pressure equipment directive 2014/68/EU, Commission's Working Group "Pressure", Guideline
A-05 + A-06
Note: A partial examination shall be performed for pressure instruments that are part of safety equipment for the protection of a pipe or vessel from exceeding allowable limits (equipment with safety function in accordance with Pressure Equipment Directive 2014/68/EU, Article 2, point 4).
Pressure equipment with allowable pressure > 200 bar (2 900 psi) Pressure equipment designated for application in every process fluid having a pressurized volume of < 0,1 l and a max. allowable pressure PS > 200 bar (2 900 psi)shall satisfy the essential safety requirements set out in Annex I of the Pressure Equipment Directive 2014/68/EU. According to Article 13 pressure equipment shall be classified by category in accordance with Annex II. The conformity assessment of the pressure equipment shall be determined by the category I underconsideration of the above-mentioned low pressurized volume. These devices shall be provided with CE marking.
Reasons: � Pressure Equipment Directive 2014/68/EU, Article 13, Annex II � Pressure equipment directive 2014/68/EU, Commission�s Working Group "Pressure", Guideline
A-05
Note: A partial examination shall be performed for pressure instruments that are part of safety equipment for the protection of a pipe or vessel from exceeding allowable limits (equipment with safety function in accordance with Pressure Equipment Directive 2014/68/EU, Article 2, point 4).
The following also applies: � PMP51 /PMP55with threaded connection and internal process isolating diaphragm PN > 200:
Suitable for stable gases in group 1, category I, module A � PMP55 with pipe diaphragm seal 1.5"/PN40:
Suitable for stable gases in group 1, category II, module A2 � PMP55 with separators PN400:
Suitable for stable gases in group 1, category I, module A
Manufacturer declaration
Depending on the desired configuration, the following documents can be ordered additionally with the device: � TSE-free, materials free from animal origin � Regulation (EC) No. 2023/2006 (GMP) � Regulation (EC) No. 1935/2004 on materials and articles intended to come into contact with food
Downloading the Declaration of Conformity www.endress.com Download
Marine approval
Designation GL (Germanischer Lloyd) ABS (American Bureau of Shipping)
Option 1) LE LF
Endress+Hauser
121
Cerabar M PMC51, PMP51, PMP55
Designation LR (Lloyd's Register ) BV (Bureau Veritas) DNV (Det Norske Veritas)
Option 1) LG LH LI
1) Product Configurator, "Additional approval" ordering feature
Drinking water approval
NSF 61 - approval forPMC51 and PMP51 UBA / W270 - approval for PMC51 and PMP51 Ordering information: Product Configurator, "Additional approval" ordering feature, option "LR"
Classification of process sealing between electrical systems and (flammable or combustible) process fluids in accordance with ANSI/ ISA 12.27.01
Endress+Hauser instruments are designed according to ANSI/ISA 12.27.01 either as single seal or dual seal devices with annunciation, allowing the user to waive the use and save the cost of installing external secondary process seals in the conduit as required by the process sealing sections of ANSI/ NFPA 70 (NEC) and CSA 22.1 (CEC). These instruments comply with the North-American installation practice and provide a very safe and cost-saving installation for pressurized applications with hazardous fluids. Further information can be found in the control drawings of the relevant devices.
Inspection certificate
Designation
3.1 Material certificate, wetted metallic parts, EN10204-3.1 inspection certificate
Conformity to NACE MR0175, wetted metallic parts
Conformity to NACE MR0103, wetted metallic parts
Conformity to AD2000, wetted metallic parts, excepting process membrane
Surface finish measurement ISO4287/Ra, wetted metallic parts, Inspection certificate
Helium leak test, internal procedure, inspection certificate
Pressure test, internal procedure, inspection certificate
3.1 Material certificate+Delta-Ferrit measurement, internal procedure, wetted metallic parts, EN10204-3.1 inspection certificate
3.1 Material certificate+PMI test (XRF), internal procedure, wetted metallic parts, EN10204-3.1 inspection certificate
Welding documentation, wetted/pressurized seams
PMC51 PMP51 PMP55 Option 1)
JA 2)
JB 2)
JE 2)
JF
KB
KD
KE
KF
KG
KS
1) Product Configurator, "Test, certificate" ordering feature 2) The selection of this feature for coated process isolating diaphragm / process connections refers to the
metallic base material.
Calibration; unit
Designation Sensor range; % Sensor range; mbar/bar Sensor range; kPa/MPa Sensor range; mm/mH2O Sensor range; inH2O/ftH2O Sensor range; psi
Option 1) A B C D E F
122
Endress+Hauser
Cerabar M PMC51, PMP51, PMP55
Calibration Service
Designation Customized pressure; see additional specification Customized level; see additional specification
1) Product Configurator, "Calibration; unit" ordering feature
Designation Factory calib. certificate 5-point DKD/DAkkS calib. certificate 10-point 2)
1) Product Configurator "Calibration" ordering feature 2)
Designation Cleaned from oil+grease 2) Cleaned for oxygen service 2) Cleaned from PWIS (PWIS = paint wetting impairment substances) 2) Adjusted min alarm current Adjusted HART Burst Mode PV
1) Product Configurator "Service" ordering feature 2) Only device, not accessory or enclosed accessory
Option 1) J K
Option 1) F1 F2
Option 1) HA HB HC IA IB
Endress+Hauser
123
Cerabar M PMC51, PMP51, PMP55
Special device versions Scope of delivery Measuring point (TAG)
Configuration data sheet (HART, PROFIBUS PA, FOUNDATION Fieldbus electronics)
Ordering information
Detailed ordering information is available as follows: � In the Product Configurator on the Endress+Hauser website:www.endress.com Click "Corporate"
Select your country Click "Products" Select the product using the filters and search field Open product page The "Configure" button to the right of the product image opens the Product Configurator. � From your Endress+Hauser Sales Center:www.addresses.endress.com
Product Configurator - the tool for individual product configuration � Up-to-the-minute configuration data � Depending on the device: direct input of information specific to the measuring point, such as
measuring range or operating language � Automatic verification of exclusion criteria � Automatic generation of the order code with its breakdown in PDF or Excel output format � Ability to order directly in the Endress+Hauser Online Shop
Endress+Hauser offers special device versions as Technical Special Products (TSP). For further information please contact your local Endress+Hauser Sales Center.
� Device � Optional accessories � Brief Operating Instruction � Calibration certificates � Optional certificates
Order code for Option Location of measuring point identification
Definition of measuring point identification
Identification on electronic nameplate (ENP) Identification on display module
895: Marking
Z1: Tagging (TAG), see additional spec.
To be selected in the additional specification: � Tie-on label, stainless steel � Adhesive paper label � Label provided � RFID TAG � RFID TAG + tie-on label, stainless steel � RFID TAG + adhesive paper label � RFID TAG + label provided
To be specified in additional specification: 3 lines each with a maximum of 18 characters
The measuring point designation appears on the selected label and/or the RFID TAG.
32 characters
10 characters
Pressure If the option "J" was selected for the order code for "Calibration; Unit" in the Product Configurator, the following configuration data sheet must be completed and included with the order.
Pressure unit
mbar bar psi
mmH2O mH2O ftH2O inH2O
mmHg kgf/cm2
Pa kPa MPa
124
Endress+Hauser
Cerabar M PMC51, PMP51, PMP55
Calibration Range / Output
Low range value (LRV): Upper range value (URV):
__________ __________
[Pressure engineering unit] [Pressure engineering unit]
Display
1st Value Display 1) Main Value
2nd Value Display 1)
None (Default) Main Value [%] Pressure Current [mA] (HART only) Temperature
1) Depending on sensor and communication version
Damping Damping:
___________ sec (Default 2 sec)
Lowest calibratable span (preset at factory) 13
Endress+Hauser
125
Cerabar M PMC51, PMP51, PMP55
Level If the option "K" was selected for the order code for "Calibration; Unit" in the Product Configurator, the following configuration data sheet must be completed and included with the order.
Pressure unit
mbar bar psi
mmH2O mH2O ftH2O inH2O
mmHg kgf/cm2
Pa kPa MPa
Empty pressure [a]:
___________
Low pressure value (empty) [Pressure
engineering unit]
Full pressure [b]: High pressure value (full)
___________ [Pressure engineering unit]
Output unit (scaled unit)
Mass
Lengths
Volume
Volume
kg t lb
m dm cm mm ft inch
l hl m3 ft3 in3
gal Igal
Empty calibration [a]: Low level value (empty)
___________ [Scaled unit]
Example
Full calibration [b]: ___________ High level value [Scaled unit] (full)
Percent %
B A
A 0 mbar / 0m B 300 mbar (4.5 psi) /
3 m (9.8 ft)
A0024007
Display
1st Value Display 1) Main Value
2nd Value Display
None (Default) Main Value [%] Pressure Current [mA] (HART only) Temperature
1) Depending on sensor and communication version
Damping Damping:
___________ sec (Default 2 sec)
126
Endress+Hauser
Cerabar M PMC51, PMP51, PMP55
Configuration data sheet (Analog electronics)
Pressure If the option "J" was selected in the "Kalibration; Einheit" ordering feature of the Product Configurator, the following configuration data sheet must be completed and included with the order.
Pressure Engineering Unit
mbar bar psi
mmH2O mH2O ftH2O inH2O
mmHg kgf/cm2
Pa kPa MPa
Calibration Range / Output
Low range value (LRV): Upper range value (URV):
__________ __________
[Pressure engineering unit] [Pressure engineering unit]
Display Information
1st Value Display 1) Main Value
2st Value Display none (Default)
1) Depending on sensor and comunication variant
Damping Damping:
___________ sec (Default 2 sec)
Smallest span (factory calibration) 13
Endress+Hauser
127
Cerabar M PMC51, PMP51, PMP55
Additional documentation
Field of Activities
Pressure measurement, powerful instruments for process pressure, differential pressure, level and flow: FA00004P/00/EN
Technical Information
� Deltabar M: TI00434P/00/EN � Deltapilot M: TI00437P/00/EN � EMC test procedures: TI00241F/00/EN � Weld-in adapter, adapter and flanges: TI00426F/00/EN
Special Documentation
Mechanical accessories for pressure measuring devices: SD01553P/00/EN
Operating Instructions
� 4...20 mA Analog: BA00385P/00/EN � 4...20 mA HART: BA00382P/00/EN � PROFIBUS PA: BA00383P/00/EN � FOUNDATION Fieldbus: BA00384P/00/EN
Brief operating instruction
� 4...20 mA Analog: KA01036P/00/EN � 4...20 mA HART: KA01030P/00/EN � PROFIBUS PA: KA01031P/00/EN � FOUNDATION Fieldbus: KA01032P/00/EN
Functional safety manual (SIL)
Cerabar M (4...20 mA): SD00347P/00/EN
Safety instructions
Directive Approval Category Type Housing Electronics
F31 F15
ATEX
Ex ia IIC II 1/2 G PMC51 4 to 20 mA HART PMP51 PMP55
ATEX
Ex t IIC
II 1/2 D PMC51 4 to 20 mA HART PMP51 PMP55
ATEX
Ex d
II 2 G
PMP51 PMP55
4 to 20 mA HART, PROFIBUS PA, FOUNDATION Fieldbus
ATEX
Ex nA
II 3 G
PMC51 4 to 20 mA HART, PROFIBUS PA, FOUNDATION Fieldbus PMP51 PMP55
ATEX
Ex ia IIC II 2 G
PMC51 4 to 20 mA HART PMP51 PMP55
ATEX
Ex ia IIC II 1/2 D PMC51 4 to 20 mA HART
ATEX
Ex ic IIC II 3 G
PMC51 4 to 20 mA HART PMP51 PMP55
ATEX
Ex ia
II 1/2 G PMC51 4 to 20 mA HART
Ex ia IIIC II 1/2 D PMP51
PMP55
ATEX
Ex ia IIC II 2 G
PMP51 4 to 20 mA HART
II 1/2 G PMP55
ATEX
Ex d IIC II 2 G
PMP51
Ex ia IIC II 1/2 G PMP55
4 to 20 mA HART, PROFIBUS PA, FOUNDATION Fieldbus
Documentation Option 1) XA00464P/00 BA XA00466P/00 BB XA00467P/00 BC XA00469P/00 BD XA00464P/00 BE XA00465P/00 BF XA00489P/00 BG XA00468P/00 B1 XA00468P/00 B2 XA00504P/00 8A
1) Product Configurator, order code for "Approval"
128
Endress+Hauser
Cerabar M PMC51, PMP51, PMP55
Directive Approval EPL Type Housing Electronics
F31 F15
IECEx
Ex ia IIC Ga/Gb PMC51 4 to 20 mA HART PMP51 PMP55
IECEx
Ex d IIC Gb
PMP51 PMP55
4 to 20 mA HART, PROFIBUS PA, FOUNDATION Fieldbus
IECEx
Ex t IIIC Da/Db PMP51 4 to 20 mA HART PMP55
IECEx
Ex ic
Gc
PMC51 4 to 20 mA HART
PMP51
PMP55
IECEx
Ex ia IIIC Da/Db PMC51 4 to 20 mA HART
IECEx
Ex ia IIC Ga/Gb PMC51 4 to 20 mA HART Ex ia IIIC Da/Db PMP51
PMP55
1) Product Configurator, order code for "Approval"
Documentation Option 1) XA00470P/00 IA
XA00471P/00 IB XA00472P/00 ID XA00488P/00 IE
XA00487P/00 IF XA00473P/00 I1
Directive NEPSI
Approval Ex ia IIC T6
NEPSI
Ex d IIC T6 Gb
Type
PMC51 PMP51 PMP55 PMP51 PMP55
Housing
F31 F15
1) Product Configurator, order code for "Approval"
Electronics 4 to 20 mA HART 4 to 20 mA HART
Documentation XA00533P/00 XA00515P/00
Option 1) NA NB
Directive Approval
Electronics
INMETRO Ex ia IIC T6...T4 Ga/Gb 4 to 20 mA HART, PROFIBUS PA, Ex ia IIC T6...T3 Ga/Gb FOUNDATION Fieldbus
INMETRO Ex d IIC T6/T4 Gb
4 to 20 mA HART, PROFIBUS PA, FOUNDATION Fieldbus
1) Product Configurator, order code for "Approval"
Documentation Option 1) XA01302P/00 MA
XA01284P/00 MR
Installation/Control Drawings
Directive Approval
FM
FM IS Cl.I,II,III Div.1 Gr.A-G, AEx ia
FM NI Cl.I Div.2 Gr.A-D
FM IS: Zone 0,1,2,20,21,22/FM NI: Zone 2
FM
FM XP Cl.I, II Div.1 Gr.A-D, AEx d
(Factory sealed) Zone 1,2
FM
FM DIP Cl.II, III Div.1 Gr.A-D Zone 21, 22
FM
FM NI Cl.I Div.2 Gr.A-D, Zone 2
Type Housing Electronics
F31 F15
PMC51 � 4 to 20 mA HART
PMP51
� PROFIBUS PA, FOUNDATION
PMP55
Fieldbus
PMP51 PMP55
� 4 to 20 mA HART � PROFIBUS PA � FOUNDATION Fieldbus
PMP51 4 to 20 mA HART PMP55
PMC51 4 to 20 mA HART PMP51 PMP55
Documentation Option 1)
� XA00563P/00 FA � XA00564P/00
XA01163P/00 FB
In preparation FC
FM3035394
FD
Endress+Hauser
129
Cerabar M PMC51, PMP51, PMP55
Directive Approval
Type Housing Electronics
F31 F15
FM
FM IS/XP Cl.I, II Div.1 Gr.A-G, Zone 1,2
PMP51 PMP55
� 4 to 20 mA HART � PROFIBUS PA, FOUNDATION
Fieldbus
CSA
C/US IS Cl.I,II,III Div.1 Gr.A-G,
C/US IS Cl.I Div.2 Gr.A-D, Ex ia
PMC51 � 4 to 20 mA HART
PMP51
� PROFIBUS PA, FOUNDATION
PMP55
Fieldbus
CSA
CSA C/US CP Cl.I, II Div.1 Gr.B-G, Ex d
(factory sealed) Zone 1,2
PMP51 PMP55
4 to 20 mA HART
CSA
CSA C/US Cl.II, III Div.1 Gr.E-G, Zone 21,22
PMP51 4 to 20 mA HART PMP55
CSA
CSA C/US IS/XP CL.I, II Div.1 Gr.A-G/B-G, Zone 1,2 PMP51 � 4 to 20 mA HART
PMP55
� PROFIBUS PA, FOUNDATION
Fieldbus
FM
FM/CSA IS + XP Cl.I, II Div.1 Gr.A-D/B-G
CSA
FM IS/FM XP Cl.I, II Div.1 Gr.A-G+
CSA IS/XP Cl.I, II Div.1 Gr.A-G, Zone 1,2
PMP55 4 to 20 mA HART
Documentation Option 1)
� XA01160P/00 F1 � XA00567P/00
� XA00556P/00 CA � XA00558P/00
XA00577P/00 CB
In preparation CC
� XA00577P/00 C1 � XA00561P/00
In preparation 8B
1) Product Configurator, order code for "Approval"
Combination certificate
Directive
KEMA/ FM / CSA
Approval
ATEX II Ex ia + FM/CSA IS ATEX II 1/2G Ex ia IIC T6 + FM/CSA IS CL.I Div.1 Gr.AD, FM/CSA: Zone 0,1,2
1) Product Configurator, order code for "Approval"
Type Electronics
PMC51 4 to 20 mA HART, PROFIBUS PA, FOUNDATION Fieldbus
4 to 20 mA HART
PROFIBUS PA, FOUNDATION Fieldbus
Documentation XA00464P/00
XA00556P/00 + XA00536P/00 XA00564P/00
Option 1) 8C
Directive KEMA/ FM / CSA
Approval
ATEX II Ex ia + FM/CSA IS ATEX II 1/2G Ex ia IIC T6 + FM/CSA IS CL.I Div.1 Gr.A-D, FM/CSA: Zone 0,1,2
Electronics 4 to 20 mA HART
PROFIBUS PA, FOUNDATION Fieldbus
Documentation
� ZD00236P/00 � ZD00239P/00
XA00474P/00
Option 1) 8C
1) Product Configurator, order code for "Approval"
130
Endress+Hauser
Cerabar M PMC51, PMP51, PMP55
Accessories
Manifolds
76 For details see SD01553P/00/EN "Mechanical accessories for pressure measuring devices".
Additional mechanical accessories
Oval flange adapters, pressure gauge valves, shutoff valves, siphons, condensate pots, cable shortening kits, adapter test, flushing rings, block&bleed valves, protective roofs. For details see SD01553P/00/EN "Mechanical accessories for pressure measuring devices".
Welding necks and weld-in adapters Designation
For dimensions and technical data see Technical Information TI00426F/00. PMC51 PMP51 PMP55 Option 1)
Weld-in adapter G1/2, 316L,
QA
Weld-in adapter G1/2, 316L, 3.1 EN10204-3.1 material, inspection certificate
QB
Weld-in tool adapter G1/2, brass
QC
Weld-in adapter G1, 316L, conical metal joint
QE
Weld-in adapter G1, 316L, 3.1 EN10204-3.1 material, inspection certificate, conical metal joint
QF
Weld-in tool adapter G1, brass conical metal joint
QG
Weld-in adapter G1/2, 316L, for G1/2 A DIN 3852
QM
Weld-in adapter G1/2, 316L, 3.1, for G1/2 A DIN 3852, EN10204-3.1 material, inspection certificate
QN
Weld-in adapter G1-1/2, 316L
QJ
Weld-in adapter G1-1/2, 316L, 3.1 EN10204-3.1 material, inspection certificate
QK
Weld-in tool adapter G1-1/2, brass
QL
Weld-in flange DRD DN50 65mm, 316L
QP
Weld-in fl. DRD DN50 65mm, 316L 3.1 EN10204-3.1 material, inspection certificate
QR
Weld-in tool flange DRD DN50 65mm, brass
QS
Weld-in adapter Uni D65, 316L
QT
Weld-in adapter Uni D65, 316L, 3.1 EN10204-3.1 material, inspection certificate
QU
Weld-in tool adapter Uni D65/D85, brass
Q1
Weld-in adapter Uni D85, 316L
Q2
Weld-in adapter Uni D85, 316L, 3.1 EN10204-3.1 material, inspection certificate
Q3
Adapter Uni > DIN11851 DN40, 316L, slotted-nut
RA
Adapter Uni > DIN11851 DN50, 316L, slotted-nut
RB
Adapter Uni > DRD DN50 65mm, 316L
RC
Adapter Uni > Clamp 2", 316L
RD
Adapter Uni > Clamp 3", 316L
RE
Adapter Uni > Varivent N, 316L
RF
Adapter Uni > Cherry Burell 2", 316L
RH
Adapter Uni > DIN11851 DN40, 316L, 3.1, slotted-nut, EN10204-3.1 material, inspection certificate
R1
Adapter Uni > DIN11851 DN50, 316L, 3.1, slotted-nut, EN10204-3.1 material, inspection certificate
R2
Adapter Uni > DRD DN50 65mm, 316L, 3.1 EN10204-3.1 material, inspection certificate
R3
Adapter Uni > Clamp 2", 316L, 3.1 EN10204-3.1 material, inspection certificate
R4
Adapter Uni > Clamp 3", 316L, 3.1 EN10204-3.1 material, inspection certificate
R5
Endress+Hauser
131
Cerabar M PMC51, PMP51, PMP55
Designation Adapter Uni > Varivent, 316L, 3.1 EN10204-3.1 material, inspection certificate Adapter Uni > Cherry Burell, 316L, 3.1 EN10204-3.1 material, inspection certificate
1) Product Configurator, order code for "Accessories"
PMC51 PMP51 PMP55 Option 1)
R6
R7
Mounting bracket for wall and pipe mounting M12 connector Service-specific accessories
For dimensions and technical data see Technical Information TI00426F/00. 40
22 Accessories DeviceCare SFE100
FieldCare SFE500
Description
Configuration tool for HART, PROFIBUS and FOUNDATION Fieldbus field devices
Technical Information TI01134S DeviceCare is available for download at www.software-products.endress.com.
You need to register in the Endress+Hauser software portal to download the application.
FDT-based plant asset management tool FieldCare can configure all smart field units in your plant and helps you manage them. By using the status information, FieldCare is also a simple but effective way of checking the status and condition of the field devices.
Technical Information TI00028S
HART� PROFIBUS� FOUNDATIONTMFieldbus
Registered trademarks
Registered trademark of the FieldComm Group, Austin, USA Registered trademark of the PROFIBUS User Organization, Karlsruhe, Germany Registered trademark of the FieldComm Group, Austin, USA
132
Endress+Hauser
*71475825*
71475825
www.addresses.endress.com
