January 5, 2021 8:57 AM. Product Specifications. Construction • Ideal for use in shallow plenum or low ceiling spaces.
April 6, 2021 3:27 PM ... Easy Access Lumens and CCT Switches ... Reference the online Product Configurator to confirm MTO (make-to-order) ...

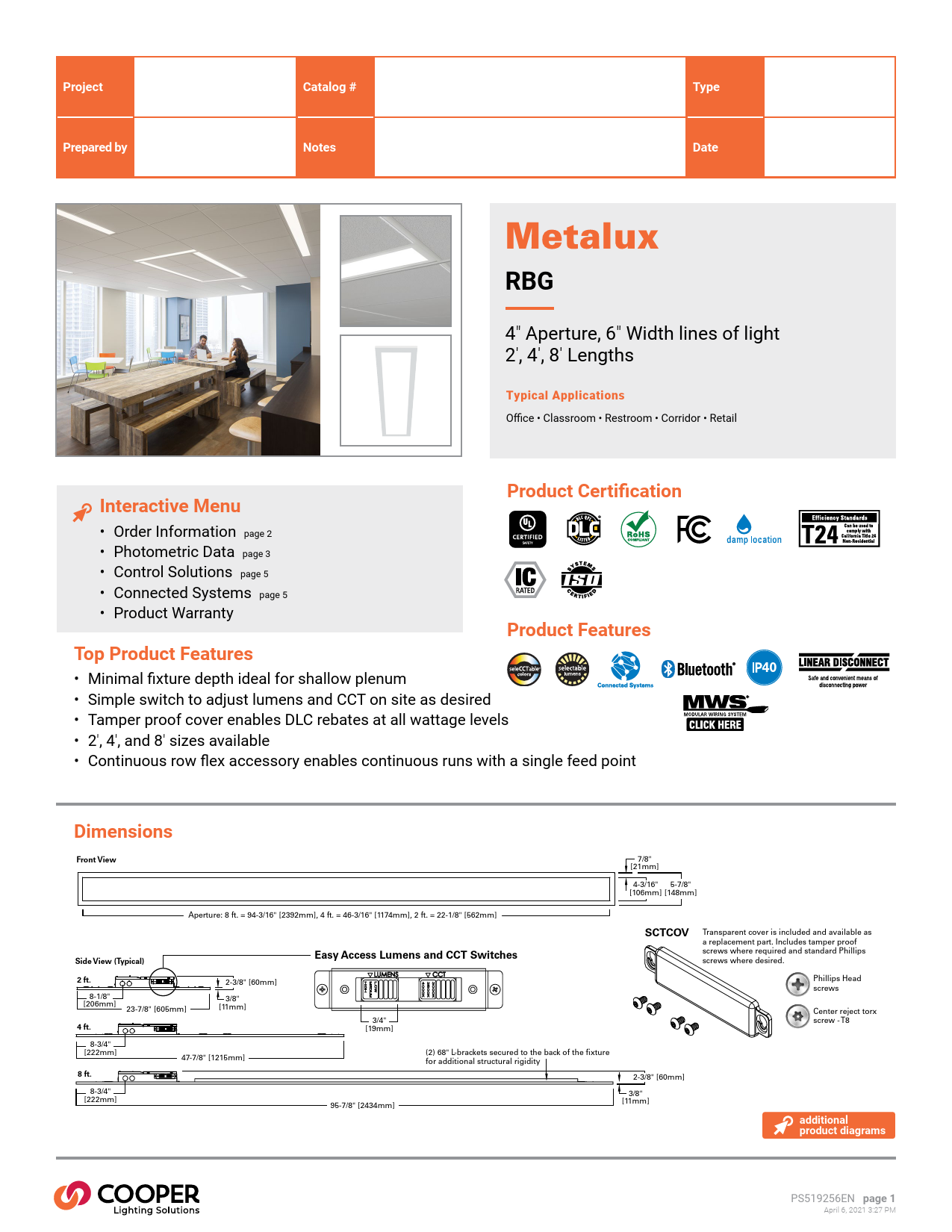

Project Prepared by Catalog # Notes Type Date RBG 4" Aperture, 6" Width lines of light 2', 4', 8' Lengths Typical Applications Office · Classroom · Restroom · Corridor · Retail Interactive Menu Product Certification · Order Information page 2 · Photometric Data page 3 · Control Solutions page 5 · Connected Systems page 5 · Product Warranty Product Features Top Product Features 40 · Minimal fixture depth ideal for shallow plenum · Simple switch to adjust lumens and CCT on site as desired · Tamper proof cover enables DLC rebates at all wattage levels · 2', 4', and 8' sizes available · Continuous row flex accessory enables continuous runs with a single feed point Dimensions Front View 7/8" [21mm] 4-3/16" 5-7/8" [106mm] [148mm] Aperture: 8 ft. = 94-3/16" [2392mm], 4 ft. = 46-3/16" [1174mm], 2 ft. = 22-1/8" [562mm] Side View (Typical) 2 ft. 8-1/8" [206mm] 23-7/8" [605mm] 2-3/8" [60mm] 3/8" [11mm] 4 ft. 8-3/4" [222mm] 8 ft. 8-3/4" [222mm] 47-7/8" [1215mm] Easy Access Lumens and CCT Switches 3/4" [19mm] (2) 68" L-brackets secured to the back of the fixture for additional structural rigidity 95-7/8" [2434mm] SCTCOV 2-3/8" [60mm] 3/8" [11mm] Transparent cover is included and available as a replacement part. Includes tamper proof screws where required and standard Phillips screws where desired. Phillips Head screws Center reject torx screw - T8 additional product diagrams PS519256EN page 1 April 6, 2021 3:27 PM RBG LED Stock Products (All stock products feature lumen select (500, 750 or 1000 lumens per foot) and CCT select (3000K, 3500K or 4000K), and 10% - 100% 0-10V dimming) Catalog Number UPC Description 2RBG6-SL1-L8SCT3 080083865826 4 3/16" Aperture Slot, 6" grid spacing, 2' length, lumen and CCT selectable, 10% - 100% 0-10V dimming 4RBG6-SL1-L8SCT3 080083866465 4 3/16" Aperture Slot, 6" grid spacing, 4' length, lumen and CCT selectable, 10% - 100% 0-10V dimming 8RBG6-SL1-L8SCT3 080083866502 4 3/16" Aperture Slot, 6" grid spacing, 8' length, lumen and CCT selectable, 10% - 100% 0-10V dimming Order Information Some combinations are limited. Reference the online Product Configurator to confirm MTO (make-to-order) options. SAMPLE ORDER NUMBER: 4RBG6-SL1-L8SCT3-SWPD1-U Rating Series Mounting Lumen Output Efficacy Voltage Emergency Rating [Blank]=Standard Series Mounting 2RBG6=2' Length, 6" Grid 4RBG6=4' Length, 6" Grid 8RBG6=8' Length, 6" Grid [Blank]=Recessed or Surface/Suspension Mounting (1) Lumen Output SL1=Selectable Lumens 500, 750 and 1000 lumens per foot (2), (3) 50D=500 lms/ft. 75D=750 lms/ft. 100D=1000 lms/ft. Efficacy [Blank]=Standard Voltage [Blank]=Universal Voltage 120-277 347V=347 Volt (4) 48V=48 Volt Low-voltage (Class 2) (5), (C) Notes Notes (1) With optional mount kit. Notes (2) Available with standard driver only. (3) Lumen selectable and CCT selectable only available together, with a standard 0-10V dimming (10%) driver. Notes (4) Offered with UNV (Blank) and HCD drivers only. (5) 2' unit only at 1000 lms/ft. (C) Consult WaveLinx Low-Voltage or DLVP system pages for additional details and compatibility. Emergency (6), (7) [Blank]=None EL7W=7-watt, 120V-277V emergency battery pack installed EL14W=14-watt 120V-277V emergency battery pack installed ETRD=Emergency Transfer Relay with dimming control Notes (6) In Emergency mode the fixture will default to 4000K regardless of the CCT setting. (7) Integrated Emergency is not available on the 2 foot length option, or with any alternate driver options. CCT Factory Wiring Driver Type Integrated Sensing System Packaging CCT L8SCT3=80CRI, Selctable CCT 3000K, 3500K, 4000K (8) L830=80 CRI, 3000K L835=80 CRI, 3500K L840=80 CRI, 4000K Factory Wiring 90-A3/8-4/18GDIM=3/8" Flex with 0-10V Dimming Leads 90-A3/8-5/18GDIM=3/8" Flex with 0-10V Dimming Leads, with red wire for EM control Driver Type Integrated Sensing Systems (15) [Blank]=10% dimming with Lumen and CCT selection switches (10%-100%) HCD=0-10V Dimming Driver (1%-100% Dimming) (9) SR=Sensor-ready Dimming Driver (1%-100% Dimming) (10) 5LTD=Fifth Light DALI Driver (10%-100% Dimming) (E), (10), (11) 5LTHD=Fifth Light Dimming Driver (1%-100% Dimming) (E), (12) LV=Low-voltage System Dimming Driver (0%-100% Dimming) (C) SD=Step Dimming Driver (50% or 100% Dimming) (13) LH=Lutron HiLume (LDE1 series) 1%-100% EcoSystem Driver with Soft-on Fade to Black dimming (F) L5=Lutron 5 Series (LDE5-Series) 5%-100% EcoSystem Driver (F) WN=WaveLinx Wireless Fixture, No Sensor. (14), (A), (G), (H) [Blank]=No Sensor WAA=WaveLinx Wireless Integrated Sensor (16), (A) WAB=WaveLinx Lite Wireless Integrated Sensor (17), (B) WLA=Low-voltage Integrated Sensor (18), (C) SVPD2=0-10V Stand-alone Integrated Sensor (D) Packaging [Blank]=Unit Pack Notes (8) Lumen selectable and CCT selectable only available together, with a standard 0-10V dimming (10%) driver. Flexible Metal Conduit Options Most common options listed. Multiple flex options are available for use in 0-10V dimming control, DALI dimming control and/or emergency. Use online configurator to specify other options. This option is factory-installed and pre-wired to driver, fitted to luminaire junction box with 90° enclosed FMC connector. Not all options may be combined and installation ratings vary by type. Also available as an accessory for field installation for row mounting with 14Ga. wires. See notes in accessories section. Notes: Factory installed dimming option 3/8" flexible metal conduit with 2-#18 power and ground wires and 2-#18 UL-listed jacketed 0-10V +/- control wires. Notes (9) 2' unit only at 1000 lms/ft. (10) Not available on the 2' version. (11) 347V 1% dimming not available at 750 or 1000 lm/ft for the 8' version. (12) 1% Dali driver not available at 1000 lm/ft for 8' version. (13) Step dimming not available in 2' version and limited to 750 and 1000 lm/ft settings on the 4' version. (14) WN only available with 4' 750 and 1000 lm/ft. (A) Consult WaveLinx system pages for additional details and compatibility. (C) Consult WaveLinx Low-Voltage or DLVP system pages for additional details and compatibility. (E) Consult Fifth Light system pages for additional details and compatibility. (F) Consult Marketplace Options - Lutron system pages for additional details and compatibility. Compatible only with driver series shown. Requires field commissioning to operate or dim. Contact Lutron at www.lutron.com. (G) Not compatible with GTR, ETRD, or integrated sensor options. (H) Available with UNV voltage only. Notes (15) Sensors available with the 4' and 8' versions. (16) WAA sensor to be used with CD or W2A driver. (17) WAB sensor to be used with CD driver. (18) WLA sensor to be used with LV driver. (A) Consult WaveLinx system pages for additional details and compatibility. (B) WaveLinx Lite devices are not currently compatible with the WaveLinx Wireless Area Controller. Consult WaveLinx Lite system pages for additional details and compatibility. (C) Consult WaveLinx Low-Voltage or DLVP system pages for additional details and compatibility. (D) Consult SVPD series system pages for additional details and compatibility. Accessories Accessories 2RBSURF6=2' surface/suspension mount kit 4RBSURF6=4' surface/suspension mount kit 8RBSURF6=8' surface/suspension mount kit DF-62W-U=Drywall Flange Kit, 6" x 2' DF-64W-U=Drywall Flange Kit, 6" x 4' DF-68W-U=Drywall Flange Kit, 6" x 8' SCTCOV-PK=Selectable CCT and lumen switch, tamper-resistant replacement cover accessory. Kit is included with each product. 90-5-14GDIM-6=Five 14 gauge conductor conduit assembly 72" for use with 2' and 4' versions (19) 90-5-14GDIM-9=Five 14 gauge conductor conduit assembly 108" for use with 8' version (19) FPEQ=Earthquake clip kit for use where required Notes (19) 14A Rated, max. units per feed @120V: 2'=23, 4'=17, 8'=10; @277V; 2'=66, 4'=47, 8'=26 Flex Assembly (Conduit) 3/8" metal conduit with snap-in 90 degree fitting used for continuous runs from one electrical feed. See notes in accessories for more details. Catalog 90-5-14GDIM-6 90-5-14GDIM-9 UPC 80083909766 80083909780 Description 90 Degree connector, 5 wire with EM and Dimming, 6' length 90 Degree connector, 5 wire with EM and Dimming, 9' length 90 deg. conduit fitting w/screw clamp conduit connection and snap-in KO connection Green Gray Violet Red White Black Green Gray Violet Red White Black PS519256EN page 2 April 6, 2021 3:27 PM Product Specifications Construction · Ideal for use in shallow plenum or low ceiling spaces · under 2-3/8" with room to spare in tight spaces · Aluminum extruded frame, precision welded and ground for a seamless appearance · Architectural matte white powder coat paint · Steel back plate, attached to the frame with multiple screws to ensure a tight fit · Integral grid clips · Junction / wiring box incorporates 8 qty. 7/8" KO's (2 on the top, 2 each on 3 sides of the box) for quick and easy electrical entry from a variety of directions · Factory or field installed flexible conduit with dimming leads options available. Integrated Controls · 0-10V dimming drivers to 1% standard · WaveLinx wireless sensor compatible for standalone, controlled, connected, and IoT capability · SVPD sensor compatible for out-of-the-box functionality · Low-voltage sensor and driver compatible for WaveLinx Low-Voltage and DLVP applications · DALI 2.0, Lutron, and step-dimming available LED and Light Engine · Stock driver enables selectable lumens and color · approximately 500, 750 or 1000 lumens per foot AND 3000K, 3500K or 4000K CCT with easy access selector switch · UNV 120 - 277V driver with 0-10V dimming to 10% standard · 347V version available · 48V - Low Voltage version available · DALI 2.0, 1% dimming, Lutron and Step dimming versions available in fixed lumens and fixed colors in 3000K, 3500K or 4000K. Emergency Battery Options · Optional 120-277V emergency battery available in 7W or 14W · 90-minute backup period for code compliance · Integrated test switch with laser pointer and testing from floor feature for ease of use · Generator transfer option available Optical System · Acrylic light guide with embossed optical control features optimizes light extraction · Scratch and impact resistant diffuser provides uniformity and reduced glare at the aperture RBG LED Compliance · cULus listed for 25C ambient environments · IC rated for direct insulation contact · RoHS compliant · Damp location listed standard · IP40 - ingress protection · IESNA LM-79 and LM-80 compliant · NEMA 410 compliant · DesignLights Consortium qualified and classified for DLC Standard · Can be used for State of California Title 24 high efficacy luminaire Warranty · Five year warranty standard · Ten year warranty available Photometric Data Note: The suffix "-Hi", "-LO", "-Mid" represents the lumen selector switch setting. This is not part of the catalog number. 2RBG6-SL1-L8SCT3-3500K-HI 753 180° 170°160° 150° Electronic Driver 557 140° 130° Linear LED 3500K 372 120° Spacing criterion: (II) 1.26 x mounting 110° height, () 1.24 x mounting height 186 100° Lumens: 2090 0.0 90° 80° Input Watts: 19.4W 70° Efficacy: 107.7 LPW 60° 50° 40° 30° 0° 10° 20° Test Report: 2RBG6-SL1-L8SCT33500K-HI.IES 0-deg 45-deg 90-deg 4RBG6-SL1-L8SCT3-3500K-LO 786 180° 170°160° 150° Electronic Driver 590 140° 130° Linear LED 3500K 393 120° Spacing criterion: (II) 1.25 x mounting 197 110° height, () 1.24 x mounting height 100° Lumens: 2241 0.0 90° Input Watts: 18.3W 80° 70° Efficacy: 122.5 LPW 60° 50° 40° 30° 0° 10° 20° Test Report: 4RBG6-SL1-L8SCT33500K-LO.IES 0-deg 45-deg 90-deg View IES files 1462 1097 731 366 0.0 0-deg 180° 170°160° 150° 140° 130° 120° 110° 100° 90° 80° 70° 60° 50° 40° 30° 0° 10° 20° 45-deg 90-deg 4RBG6-SL1-L8SCT3-3500K-HI Electronic Driver Linear LED 3500K Spacing criterion: (II) 1.25 x mounting height, () 1.24 x mounting height Lumens: 4174 Input Watts: 36.1W Efficacy: 115.6 LPW Test Report: 4RBG6-SL1-L8SCT33500K-HI.IES 2517 1888 1259 629 0.0 0-deg 180° 170°160° 150° 140° 130° 120° 110° 100° 90° 80° 70° 60° 50° 40° 30° 0° 10° 20° 45-deg 90-deg 8RBG6-SL1-L8SCT3-3500K-MID Electronic Driver Linear LED 3500K Spacing criterion: (II) 1.26 x mounting height, () 1.24 x mounting height Lumens: 7052 Input Watts: 62.1W Efficacy: 113.5 LPW Test Report: 8RBG6-SL1-L8SCT33500K-MID.IES PS519256EN page 3 April 6, 2021 3:27 PM Energy and Performance Data by Catalog Number Catalog No. UPC Size 2RBG6-SL1-L8SCT3 080083865826 2FT 4RBG6-SL1-L8SCT3 080083866465 4FT 8RBG6-SL1-L8SCT3 080083866502 8FT Note: DLC listings are separate for each wattage selection. Lumen Output Lumen Setting CCT 3000 Low 1176 Medium 1722 High 2031 3500 1207 1763 2090 4000 1223 1790 2107 3000 2203 3258 4100 3500 2241 3315 4147 4000 2262 3339 4195 3000 4704 6888 8124 3500 4828 7052 8360 4000 4892 7160 8428 Wattage Lumen Setting Low Medium High 10.9 16.1 19.4 10.8 16.1 19.4 10.8 16 19.4 18.3 27.6 36.1 18.3 27.7 36.1 18.2 27.5 35.9 41.7 62.1 74.8 41.4 62.1 74.8 41.4 62.1 74.8 RBG LED Efficacy Lumen Setting Low 107.9 Medium 107 High 104.7 111.8 109.5 107.7 113.2 111.9 108.6 120.4 118 113.6 122.5 119.7 114.9 124.3 121.4 116.9 112.8 110.9 108.7 116.6 113.5 111.8 118.1 115.3 112.7 Lumen Maintenance Size 2' 4' Ambient Temperature TM-21 Lumen Maintenance (60,000 hours) (1) 25ºC 90% Theoretical L70 (hours) (2) 200,000 8' 25ºC 89% 175,000 Notes: (1) Supported by IES TM-21 standards. (2) Theoretical values represent estimations commonly used; however, refer to the IES position on LED Product Lifetime Prediction, IES PS-10-18, that explains proper use of IES TM-21 and LM-80. Load Data (Stock UNV Products) 2' 4' 8' Thd < 20% Power Factor > .9 Weight (lbs.) 3.8 6.6 15 Low Temp. Start -20ºC Shipping Data (Stock UNV products) Size Pallet Size Wt. Units per Pallet 2' 54" x 48" 4.6 lbs. 140 4' 54" x 48" 6.7 lbs. 75 8' 100" x 48" 13.7 lbs. 65 PS519256EN page 4 April 6, 2021 3:27 PM Control Systems · WaveLinx Wireless · WaveLinx Wired · WaveLinx Lite · DLVP · VividTune TOP VIEW: CL 4.5m (15FT) 0m (0ft) CL 4.5m (15FT) TOP VIEW: 4.5m (15FT) 0m (0ft) 4.5m (15FT) RBG LED CL The RBG with Integrated Sensor technology provides automatic energy savings without sacrificing performance. The RBG delivers superior lighting with integrated occupancy and daylighting controls. CFLor standalone and controlled applications, the WaveLinx Lite integral sensor provides out-of-the-box functionality with no gateways required and factory startup is not needed. When more connectivity is required, the WaveLinx Wireless sensor meets modern code and utility requirements, delivers energy and cost savings, while enabling buildings to become smart buildings. The WaveLinx Wireless Connected Lighting System combined with Trellix provides an open IoT platform and infrastructure that connects intelligent sensors leveraging the real-estate of the Note: The "bpeahm"ypasttiecrn al light fixture to solve higher complexity problems to deliver obtained depends strongly on the detector used with actionable insights through the aggregation of valuable data. this array. The pattern shown is intended solely as a general guide and is not to scale. SIDE VIEW: 0m (0ft) 2.4m (8ft) 3.0m (10ft) 4.5m (15FT) 4.5m (15FT) 2.25m 0m (7.5FT) (0ft) 2.25m (7.5ft) 4.5m (15ft) Note: Installation of integrated sensors within 3-ft (1m) of HVAC air vents is not recommended. The pattern shown Note: The "beam" pattern obtained depends strongly is intended solely as a general guide and is not to scale. on the detector used with this array. The pattern shown is intended solely as a general guide and is not to scale. SSIyDEsVtIEeW:ms comparison chart Cooper Lighting Solutions provides many lighting system solutions designed to(00fsmt)atisfy code requirements and meet the unique needs of any project. 2.4m (8ft) 3.0m (10ft) 4.5m (15FT) 4.5m (15FT) 2.25m 0m 2.25m 4.5m Standalone (7.5FT) (0ft) (7.5ft) (15ft) Occupancy Yes Daylighting Yes Gateways Devices Software Areas Zones Scheduling VividTuneTM Plug-Load Control Low-Voltage Power Integration Dashboards Configuration Controlled WaveLinx Lite Yes Yes 50 per Area (1400 per site) WaveLinx Lite Mobile App 28 per Site 16 per Area Installer Connected WaveLinx Wireless Yes Yes 1 WAC 150 per WAC WaveLinx Mobile App 16 per WAC 16 per Area Local Yes Yes Yes Technician SCALABILITY Enterprise Trellix Yes Yes 300 WACs 45,000 per Core Enterprise Trellix Core up to 4,800 up to 76,800 Global Yes Yes Yes BACnet, API Energy, Occupancy Technician / IT devices areas floors buildings WaveLinx Lite expands from a single standalone device up to Enterprise with 45,000 devices PS519256EN page 5 April 6, 2021 3:27 PM RBG LED Back Details Back View 2 ft. 6-7/8" [174mm] 4 ft. 5-7/8" [148mm] With EM/Sensor Box 7/8" [23mm] 1-7/8" [48mm] 7/8" [20mm] 7-1/2" [190mm] 8 ft. 68"[1727mm] 7-1/2" [190mm] (2) 68" L-brackets secured to the back of the fixture for additional structural rigidity Mounting Choices Grid 9/16", 15/16" Inverted T, Slot Grid 6" [152mm] 6" [152mm] Ceiling Compatibility 9/16"or 15/16" Grid/Lay-in Standard 9/16"or 15/16" Concealed T 9/16"or 15/16" Slot Grid 9/16"or 5/16" T-grid Hard Ceiling Recessed Use drywall frame kit: 2 ft.=DF-62W-U 4 ft.=DF-64W-U 8 ft.=DF-68W-U Slot grid 6" [152mm] See accessory section for ordering information Surface/Suspension Use 2RBSURF6, 4RBSURF6, 8RBSURF6 3-1/16" [78mm] (Surface mount box may be suspended. One CCA-48-PFSDIM-U and one CCA-48-NPF-U are recommended for 2 point suspension up to 48 inches. Other lengths are available. See website for details. Surface/Suspension Mount Box Detail Length 2 ft. 4 ft. 8 ft. Catalog 2RBSURF6 4RBSURF6 8RBSURF6 UPC 080083873937 080083873951 080083873982 Distance Distance between slots between slots on the long rail on the short rails (center-to-center) (center-to-center) Slot quantity on the long rail 16" [406mm] 22-13/16" [579mm] 2 16" [406mm] 46-13/16" [1189mm] 3 16" [406mm] 94-13/16" [2408mm] 6 Slots size 1/4" [6mm] x 13/16" [20mm] 1/4" [6mm] x 13/16" [20mm] 1/4" [6mm] x 13/16" [20mm] Cooper Lighting Solutions 1121 Highway 74 South Peachtree City, GA 30269 P: 770-486-4800 www.cooperlighting.com © 2021 Cooper Lighting Solutions All Rights Reserved. Specifications and dimensions subject to change without notice. PS519256EN page 6 April 6, 2021 3:27 PMAdobe PDF Library 15.0
