ANIMAL TRAP. Visit our website at: http://www.harborfreight.com. Email our technical support at: productsupport@harborfreight.com. 63008. Owner's Manual ...

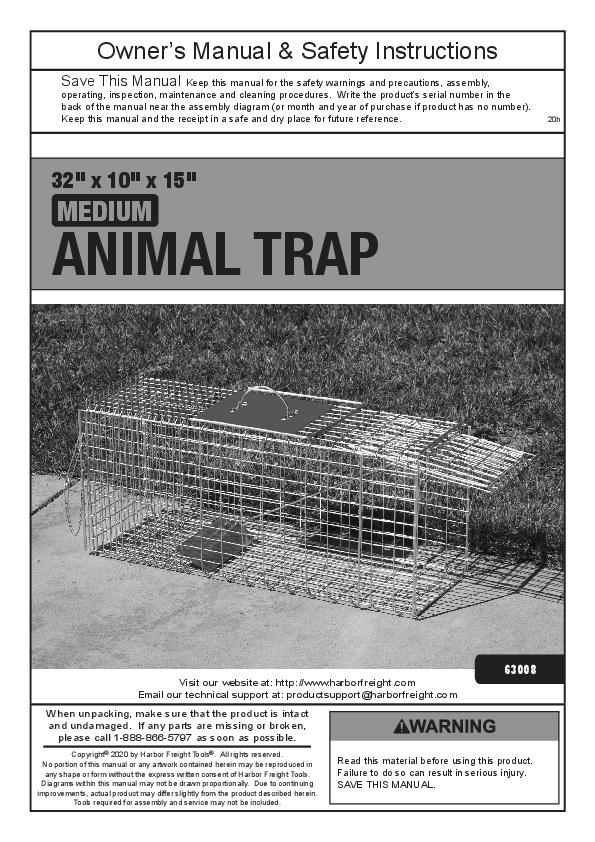

Owner's Manual & Safety Instructions Save This Manual Keep this manual for the safety warnings and precautions, assembly, operating, inspection, maintenance and cleaning procedures. Write the product's serial number in the back of the manual near the assembly diagram (or month and year of purchase if product has no number). Keep this manual and the receipt in a safe and dry place for future reference. 20h 32" x 10" x 15" MEDIUM ANIMAL TRAP Visit our website at: http://www.harborfreight.com Email our technical support at: productsupport@harborfreight.com 63008 When unpacking, make sure that the product is intact and undamaged. If any parts are missing or broken, please call 1-888-866-5797 as soon as possible. Copyright© 2020 by Harbor Freight Tools®. All rights reserved. No portion of this manual or any artwork contained herein may be reproduced in any shape or form without the express written consent of Harbor Freight Tools. Diagrams within this manual may not be drawn proportionally. Due to continuing improvements, actual product may differ slightly from the product described herein. Tools required for assembly and service may not be included. Read this material before using this product. Failure to do so can result in serious injury. SAVE THIS MANUAL. Specifications Dimensions Cage Wire Thickness 32" x 10" x 15" 3/16" Page 2 For technical questions, please call 1-888-866-5797. Item 63008 IMPORTANT SAFETY INFORMATION 1. Use only where inaccessible to pets and children. 2. Wear ANSI-approved safety goggles, heavyduty leather work gloves, long sleeved shirt, pants, and close-toed shoes during set-up, when setting trap, retrieving trap, or releasing animal. 3. Wear insect repellent before carrying trap with animal inside. 4. Contact animal control professional if nk, dangerous animal, or diseased animal is caught. 5. Follow applicable laws for allowable traps and required checking frequency. 6. Set up only according to these instructions. Improper set-up can create hazards. 7. Avoid sharp edges when setting up. 8. Keep set-up area clean and well lit. 9. Keep bystanders out of the area during set-up. 10. Do not set up when tired or when under the influence of alcohol, drugs or medication. 11. This product is not a toy. Do not allow children to play with or near this item. 12. Use as intended only. 13. Inspect before every use; do not use if parts are loose or damaged. 14. Maintain product labels and nameplates. These carry important safety information. If unreadable or missing, contact Harbor Freight Tools for a replacement. 15. Keep product usage area clean. Animal Trap can be hosed off to clean it. 16. Check door lock and set-up latches when setting trap. 17. Use caution when transporting animal in Animal Trap. Be cautious of bites or scratching. Carrying the trap with an animal inside can injure the animal. Item 63008 For technical questions, please call 1-888-866-5797. Page 3 Setup Instructions Read the ENTIRE IMPORTANT SAFETY INFORMATION section at the beginning of this document including all text under subheadings therein before set up or use of this product. 1. The Animal Trap comes assembled and collapsed flat for transportation and storage. See Figure A. 4. Close the Quick Release Rear Door and clamp it in place with the Squeeze Clamp. See Figure C. Figure A 2. To open collapsed Animal Trap, lift up the handle. The Trap will unfold into a long box. 3. Swing down the Cage Support Brace to frame the cage walls, and hook it to the Cage using the attached clips. See Figure B. Figure C 5. If the ground permits, press the Anchor Stake into the ground. The Stake will help prevent the trap from rolling and potentially injuring the animal. Do not put Trap on a wooden deck or any other surface that you do not want scratched. 6. To open the Trap Door: a. Pull up on the Upper Latch, and keep it out of the way. See Figure D. Figure B Page 4 1 Figure D For technical questions, please call 1-888-866-5797. 2 Item 63008 b. Press in on the Outer Spring Plate while pressing down the lever that holds the Outer Spring Plate to the Door. See Figure E. d. Hook the Trigger Hook onto one of the Bars on the Front Door. The Trigger Hook will keep the door open. See Figure G. 2 Figure E c. Pull the Door up. See Figure F. 3 Figure F Figure G 37. For a more sensitive setting (for smaller animals), hook the Trigger Hook onto the Bar using only the tip of the Hook. If needed, use a pair of pliers (not included) to bend the Trigger Hook accordingly. Note: For best results, the trap should spring at the slightest pressure on the Trigger Pan. Even heavier animals tread lightly in unfamiliar surroundings, so the Trigger Hook should be adjusted in such a way that it is held in place by friction alone. 8. Fine-tune and test the pressure setting by pressing gently on the Trigger Pan with a pencil or screwdriver. 9. Continue to make adjustments until a setting appropriate to the intended animal is found. 10. Put Bait between Trigger Pan and Back Door. Bait should be far enough from the Trap walls to prevent it from being reached from the outside. Do not put bait on Trigger Pan. Item 63008 For technical questions, please call 1-888-866-5797. Page 5 Item 63008 Outer Spring Plate Upper Latch Cage Support Brace Handle Cage Rear Door Anchor Stake For technical questions, please call 1-888-866-5797. Trap Door Trigger Hook Bar Trigger Pan Squeeze Clamp Page 6 Functions To Release Animals 1. Contact local animal control authorities for guidance on safe release of animals. 2. Release in area away from residences that has ample natural cover. To Collapse Trap 1. Undo the clips holding the Cage Support Brace and fold it out of the way. 2. Fold the Rear Door into the Trap. 3. Lift the Front Door up and open. 4. Allow Trap to fold in direction of arrow. See . 3. Release through Rear Door. a. Unclip Squeeze Clamp and allow Rear Door to fall open. b. Stand away from trap. Record Serial Number Here: Note: If product has no serial number, record month and year of purchase instead. Note: Replacement parts are not available for this product. Reference UPC 193175327260. Item 63008 For technical questions, please call 1-888-866-5797. Page 7 Limited 90 Day Warranty Harbor Freight Tools Co. makes every effort to assure that its products meet high quality and durability standards, and warrants to the original purchaser that this product is free from defects in materials and workmanship for the period of 90 days from the date of purchase. This warranty does not apply to damage due directly or indirectly, to misuse, abuse, negligence or accidents, repairs or alterations outside our facilities, criminal activity, improper installation, normal wear and tear, or to lack of maintenance. We shall in no event be liable for death, injuries to persons or property, or for incidental, contingent, special or consequential damages arising from the use of our product. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation of exclusion may not apply to you. THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS. To take advantage of this warranty, the product or part must be returned to us with transportation charges prepaid. Proof of purchase date and an explanation of the complaint must accompany the merchandise. If our inspection verifies the defect, we will either repair or replace the product at our election or we may elect to refund the purchase price if we cannot readily and quickly provide you with a replacement. We will return repaired products at our expense, but if we determine there is no defect, or that the defect resulted from causes not within the scope of our warranty, then you must bear the cost of returning the product. This warranty gives you specific legal rights and you may also have other rights which vary from state to state. 26541 Agoura Road · Calabasas, CA 91302 · 1-888-866-5797macOS Version 10.14.6 (Build 18G6020) Quartz PDFContext
