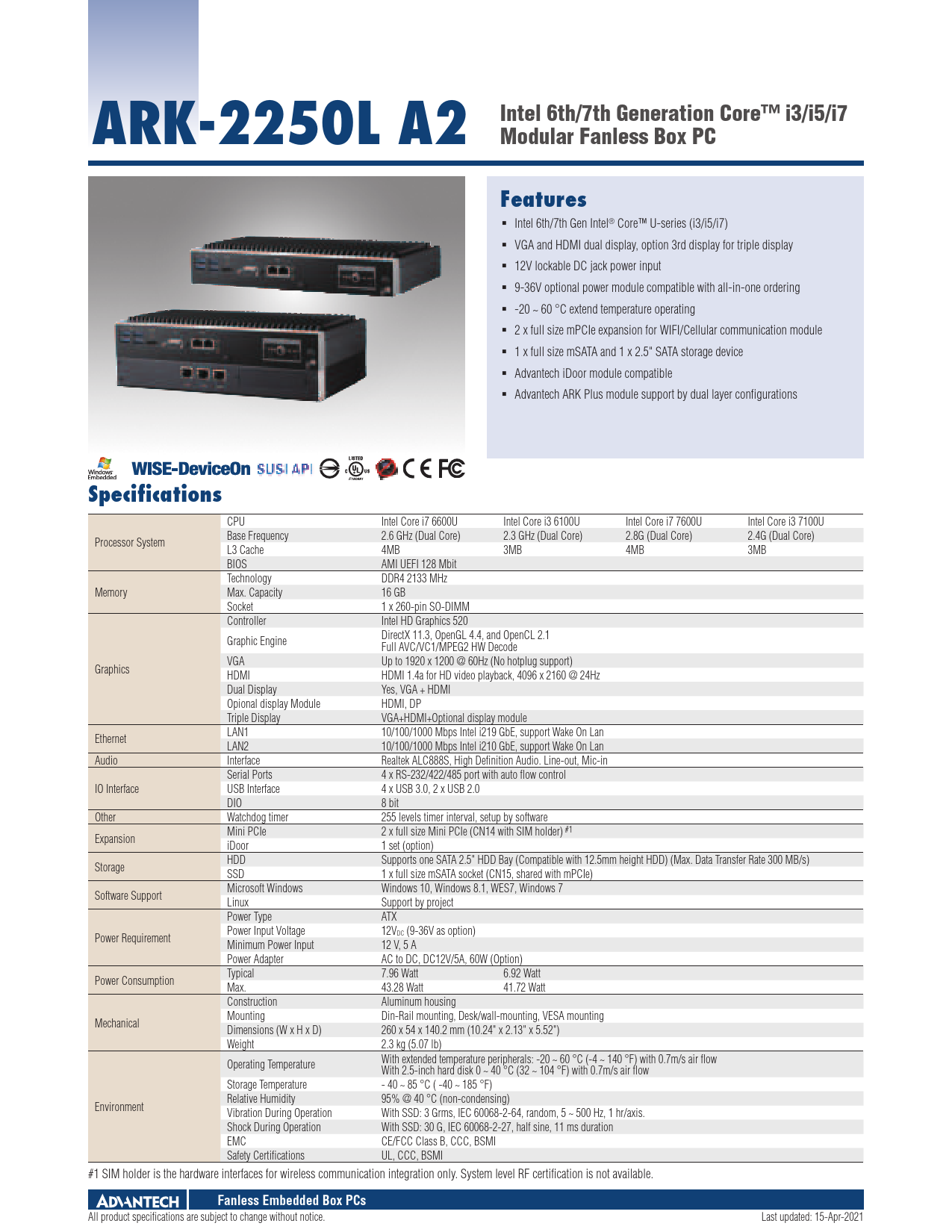

Document preview
File info: application/pdf · 4 pages · 1.31MB

ARK-2250L A2

Intel 6th/7th Generation Core™ i3/i5/i7 Modular Fanless Box PC

Features

  • Intel 6th/7th Gen Intel® Core™ U-series (i3/i5/i7) processors
  • VGA and HDMI dual display, with an option for a third display for triple display output
  • 12V lockable DC jack power input
  • 9-36V optional power module compatible with all-in-one ordering
  • -20~60 °C extended temperature operating range
  • 2 x full-size mPCIe expansion slots for WIFI/Cellular communication modules
  • 1 x full-size mSATA slot and 1 x 2.5" SATA storage device bay
  • Advantech iDoor module compatible for modular expansion
  • Advantech ARK Plus module support via dual-layer configurations

Specifications

SpecificationIntel Core i7 6600UIntel Core i3 6100UIntel Core i7 7600UIntel Core i3 7100U
Processor System
CPUIntel Core i7 6600UIntel Core i3 6100UIntel Core i7 7600UIntel Core i3 7100U
Base Frequency2.6 GHz (Dual Core)2.3 GHz (Dual Core)2.8G (Dual Core)2.4G (Dual Core)
L3 Cache4MB3MB4MB3MB
Memory
BIOSAMI UEFI 128 MbitAMI UEFI 128 MbitAMI UEFI 128 MbitAMI UEFI 128 Mbit
TechnologyDDR4 2133 MHzDDR4 2133 MHzDDR4 2133 MHzDDR4 2133 MHz
Max. Capacity16 GB16 GB16 GB16 GB
Socket1 x 260-pin SO-DIMM1 x 260-pin SO-DIMM1 x 260-pin SO-DIMM1 x 260-pin SO-DIMM
Graphics
ControllerIntel HD Graphics 520Intel HD Graphics 520Intel HD Graphics 520Intel HD Graphics 520
Graphic EngineDirectX 11.3, OpenGL 4.4, and OpenCL 2.1 Full AVC/VC1/MPEG2 HW DecodeDirectX 11.3, OpenGL 4.4, and OpenCL 2.1 Full AVC/VC1/MPEG2 HW DecodeDirectX 11.3, OpenGL 4.4, and OpenCL 2.1 Full AVC/VC1/MPEG2 HW DecodeDirectX 11.3, OpenGL 4.4, and OpenCL 2.1 Full AVC/VC1/MPEG2 HW Decode
VGAUp to 1920 x 1200 @ 60Hz (No hotplug support)Up to 1920 x 1200 @ 60Hz (No hotplug support)Up to 1920 x 1200 @ 60Hz (No hotplug support)Up to 1920 x 1200 @ 60Hz (No hotplug support)
HDMIHDMI 1.4a for HD video playback, 4096 x 2160 @ 24HzHDMI 1.4a for HD video playback, 4096 x 2160 @ 24HzHDMI 1.4a for HD video playback, 4096 x 2160 @ 24HzHDMI 1.4a for HD video playback, 4096 x 2160 @ 24Hz
Dual DisplayYes, VGA + HDMIYes, VGA + HDMIYes, VGA + HDMIYes, VGA + HDMI
Optional display ModuleHDMI, DPHDMI, DPHDMI, DPHDMI, DP
Triple DisplayVGA+HDMI+Optional display moduleVGA+HDMI+Optional display moduleVGA+HDMI+Optional display moduleVGA+HDMI+Optional display module
Ethernet
LAN110/100/1000 Mbps Intel i219 GbE, support Wake On Lan10/100/1000 Mbps Intel i219 GbE, support Wake On Lan10/100/1000 Mbps Intel i219 GbE, support Wake On Lan10/100/1000 Mbps Intel i219 GbE, support Wake On Lan
LAN210/100/1000 Mbps Intel i210 GbE, support Wake On Lan10/100/1000 Mbps Intel i210 GbE, support Wake On Lan10/100/1000 Mbps Intel i210 GbE, support Wake On Lan10/100/1000 Mbps Intel i210 GbE, support Wake On Lan
Audio
InterfaceRealtek ALC888S, High Definition Audio. Line-out, Mic-inRealtek ALC888S, High Definition Audio. Line-out, Mic-inRealtek ALC888S, High Definition Audio. Line-out, Mic-inRealtek ALC888S, High Definition Audio. Line-out, Mic-in
I/O Interface
Serial Ports4 x RS-232/422/485 port with auto flow control4 x RS-232/422/485 port with auto flow control4 x RS-232/422/485 port with auto flow control4 x RS-232/422/485 port with auto flow control
USB Interface4 x USB 3.0, 2 x USB 2.04 x USB 3.0, 2 x USB 2.04 x USB 3.0, 2 x USB 2.04 x USB 3.0, 2 x USB 2.0
DIO8 bit8 bit8 bit8 bit
Watchdog timer255 levels timer interval, setup by software255 levels timer interval, setup by software255 levels timer interval, setup by software255 levels timer interval, setup by software
Other
Mini PCIe2 x full size Mini PCIe (CN14 with SIM holder) #12 x full size Mini PCIe (CN14 with SIM holder) #12 x full size Mini PCIe (CN14 with SIM holder) #12 x full size Mini PCIe (CN14 with SIM holder) #1
iDoor1 set (option)1 set (option)1 set (option)1 set (option)
Expansion
HDDSupports one SATA 2.5" HDD Bay (Compatible with 12.5mm height HDD) (Max. Data Transfer Rate 300 MB/s)Supports one SATA 2.5" HDD Bay (Compatible with 12.5mm height HDD) (Max. Data Transfer Rate 300 MB/s)Supports one SATA 2.5" HDD Bay (Compatible with 12.5mm height HDD) (Max. Data Transfer Rate 300 MB/s)Supports one SATA 2.5" HDD Bay (Compatible with 12.5mm height HDD) (Max. Data Transfer Rate 300 MB/s)
SSD1 x full size mSATA socket (CN15, shared with mPCIe)1 x full size mSATA socket (CN15, shared with mPCIe)1 x full size mSATA socket (CN15, shared with mPCIe)1 x full size mSATA socket (CN15, shared with mPCIe)
Software Support
Microsoft WindowsWindows 10, Windows 8.1, WES7, Windows 7Windows 10, Windows 8.1, WES7, Windows 7Windows 10, Windows 8.1, WES7, Windows 7Windows 10, Windows 8.1, WES7, Windows 7
LinuxSupport by projectSupport by projectSupport by projectSupport by project
Power Requirement
Power TypeATXATXATXATX
Power Input Voltage12VDC (9-36V as option)12VDC (9-36V as option)12VDC (9-36V as option)12VDC (9-36V as option)
Minimum Power Input12 V, 5 A12 V, 5 A12 V, 5 A12 V, 5 A
Power AdapterAC to DC, DC12V/5A, 60W (Option)AC to DC, DC12V/5A, 60W (Option)AC to DC, DC12V/5A, 60W (Option)AC to DC, DC12V/5A, 60W (Option)
Power Consumption
Typical7.96 Watt6.92 Watt7.96 Watt6.92 Watt
Max.43.28 Watt41.72 Watt43.28 Watt41.72 Watt
Mechanical
ConstructionAluminum housingAluminum housingAluminum housingAluminum housing
MountingDin-Rail mounting, Desk/wall-mounting, VESA mountingDin-Rail mounting, Desk/wall-mounting, VESA mountingDin-Rail mounting, Desk/wall-mounting, VESA mountingDin-Rail mounting, Desk/wall-mounting, VESA mounting
Dimensions (W x H x D)260 x 54 x 140.2 mm (10.24" x 2.13" x 5.52")260 x 54 x 140.2 mm (10.24" x 2.13" x 5.52")260 x 54 x 140.2 mm (10.24" x 2.13" x 5.52")260 x 54 x 140.2 mm (10.24" x 2.13" x 5.52")
Weight2.3 kg (5.07 lb)2.3 kg (5.07 lb)2.3 kg (5.07 lb)2.3 kg (5.07 lb)
Environment
Operating TemperatureWith extended temperature peripherals: -20 ~ 60 °C (-4 ~ 140 °F) with 0.7m/s air flow; With 2.5-inch hard disk 0 ~ 40 °C (32 ~ 104 °F) with 0.7m/s air flowWith extended temperature peripherals: -20 ~ 60 °C (-4 ~ 140 °F) with 0.7m/s air flow; With 2.5-inch hard disk 0 ~ 40 °C (32 ~ 104 °F) with 0.7m/s air flowWith extended temperature peripherals: -20 ~ 60 °C (-4 ~ 140 °F) with 0.7m/s air flow; With 2.5-inch hard disk 0 ~ 40 °C (32 ~ 104 °F) with 0.7m/s air flowWith extended temperature peripherals: -20 ~ 60 °C (-4 ~ 140 °F) with 0.7m/s air flow; With 2.5-inch hard disk 0 ~ 40 °C (32 ~ 104 °F) with 0.7m/s air flow
Storage Temperature-40 ~ 85 °C (-40 ~ 185 °F)-40 ~ 85 °C (-40 ~ 185 °F)-40 ~ 85 °C (-40 ~ 185 °F)-40 ~ 85 °C (-40 ~ 185 °F)
Relative Humidity95% @ 40 °C (non-condensing)95% @ 40 °C (non-condensing)95% @ 40 °C (non-condensing)95% @ 40 °C (non-condensing)
Vibration During OperationWith SSD: 3 Grms, IEC 60068-2-64, random, 5~500 Hz, 1 hr/axis.With SSD: 3 Grms, IEC 60068-2-64, random, 5~500 Hz, 1 hr/axis.With SSD: 3 Grms, IEC 60068-2-64, random, 5~500 Hz, 1 hr/axis.With SSD: 3 Grms, IEC 60068-2-64, random, 5~500 Hz, 1 hr/axis.
Shock During OperationWith SSD: 30 G, IEC 60068-2-27, half sine, 11 ms durationWith SSD: 30 G, IEC 60068-2-27, half sine, 11 ms durationWith SSD: 30 G, IEC 60068-2-27, half sine, 11 ms durationWith SSD: 30 G, IEC 60068-2-27, half sine, 11 ms duration
EMCCE/FCC Class B, CCC, BSMICE/FCC Class B, CCC, BSMICE/FCC Class B, CCC, BSMICE/FCC Class B, CCC, BSMI
Safety CertificationsUL, CCC, BSMIUL, CCC, BSMIUL, CCC, BSMIUL, CCC, BSMI

#1 SIM holder is the hardware interfaces for wireless communication integration only. System level RF certification is not available.

Dimensions

The dimensions diagram illustrates the physical size of the ARK-2250L A2 unit. It shows three orthogonal views:

  • Front/Rear View: Width of 260.00 mm, Height of 54.00 mm.
  • Side View: Width of 88.60 mm (for a specific section), Height of 140.20 mm.
  • Overall Depth View: 288.00 mm (including rear connectors).

Front Panel I/O Layout

The front panel provides external connectivity including: USB 3.0 ports (USB3, USB1), USB 2.0 ports (USB4, USB2), a VGA port, an HDMI port, and two Gigabit Ethernet LAN ports (LAN1, LAN2). A DC INPUT connector is also present. An optional power input module may be fitted here.

Rear Panel I/O Layout

The rear panel offers additional connectivity and indicators: connectors for a Display Module, COM1, Digital IO, and an ON/OFF switch. It also features an iDoor Module connector, a MIC input, COM2, COM4, a LINE-OUT port, USB 5, USB 6, COM3, and status LEDs for Power (PWR LED) and Hard Disk Drive (HDD LED).

Ordering Information

Part No.CPUVGAHDMIGbEUSB 2.0USB 3.0RS-232/ 422/485DIOAudioFull-size MiniPCIeSIMmSATA2.5" SATA II HDD BayPower InputOperating Temp.
ARK-2250L-U6A2Intel Core i7-6600UYesYes2441Lin-out, Mic-in211112 VDC-20~60 °C
ARK-2250L-U3A2Intel Core i3-6100UYesYes2441Lin-out, Mic-in211112 VDC-20~60 °C
ARK-2250L-U8A2Intel Core i7-7600UYesYes2441Lin-out, Mic-in211112 VDC-20~60 °C
ARK-2250L-U4A2Intel Core i3-7100UYesYes2441Lin-out, Mic-in211112 VDC-20~60 °C
ARK-2250L-U6A3Intel Core i7-6600UYesYes2441N/A211112 VDC-20~60 °C
ARK-2250L-U3A3Intel Core i3-6100UYesYes2441N/A211112 VDC-20~60 °C

Note: Memory, storage and operating system bundled by request. * i5-6300U/i5-7300U are supported by T-P/N with MOQ 30 pcs.

Packing List

  • 1 x ARK-2250L Unit
  • 1 x User Manual (Simplified Chinese)
  • 1 x China RoHS
  • 2 x Wall mounting bracket
  • 2 x LAN Clip

Expansion Options

Optional Embedded OS

Part NumberDescription
20706WE7PM0023WES7P 64bit 10MUI (only for ARK-2250L-U6A2 and ARK-2250L-U3A2)
2070014959Win Emb 8.1_64bit US/DE/ES/FR/JP/KR/LT/RU/CN/TW (only for ARK-2250L-U6A2 and ARK-2250L-U3A2)
20706WX9HS0092WIN10 IoT 2019 64bit_EN for ARK-2250L-U6A2
20706WX9VS0096WIN10 IoT 2019 64bit_EN for ARK-2250L-U3A2
20706WX9HS0117WIN10 IoT 64bit_EN for ARK-2250L-U8A2
20706WX9VS0121WIN10 IoT 64bit_EN for ARK-2250L-U4A2

Note: Default BIOS is for 64bit OS support only. 32bit OS will need to update BIOS.

Optional Item for Default SKU

Part NumberDescription
96PSA-A60W12W7-3AC-to-DC Adapter, DC12V/5A 60W
1702002600Power cable 3-pin 183cm, USA type
1702002605Power cable 3-pin 183cm, EU type
1702031801Power cable 3-pin 183cm, UK type
AMK-V019EVESA mount kits
AMK-R005EDIN Rail mount kits

Optional MOS modules for iDoor Expansion

Part NumberDescription
MOS-2230-Z1201ECANBus module, 2-Ch, USB Interface
MOS-2220-X1101EParallel LPT module, 1-Ch, USB Interface
MOS-2110Z-1201EUSB module, 2-Ch, PCIe Interface
MOS-2120-Z1101EGiga LAN Ethernet module, 1-Ch, PCIe Interface
MOS-1120Y-0202EIsolated RS-232, 2-Ch, DB9, PCIe Interface
MOS-1121Y-0202EIsolated RS-422/485, 2-Ch, DB9, PCIe Interface
MOS-1120Y-1402ENon-Isolated RS-232, DB37, 4-Ch, PCIe Interface
MOS-1121Y-1402ENon-Isolated RS-422/485, DB37, 4-Ch, PCIe Interface
MOS-1130Y-0201EIsolated CANBus, 2-Ch, DB9, PCIe Interface
MOS-1110Y-0101EIsolated 16 DI/8 DO, 1-Ch, DB37, PCIe Interface
MOS-2120-Z1201GigaLAN Ethernet module, mPCIe, RJ45 2-Ch, PCIe I/F

* When configuring with MOS-2120-Z1201, please update BIOS with Advantech part number 1420048565.

Optional 9-36V DC Power module

Part NumberDescription
MIOE-PWR2-00A1E9-36V DC input power module
96PSA-A65W19P2-1AC-to-DC Adapter, DC19V/3.42A 65W (for MIOe-PWR2)
1700001524Power cable 3-pin 183cm, USA type (for MIOe-PWR2)
170203183CPower cable 3-pin 183cm, EU type (for MIOe-PWR2)
170203180APower cable 3-pin 183cm, UK type (for MIOe-PWR2)

Optional Display Module

Part NumberDescription
AMO-D002EDP module
AMO-D003EHDMI module

ARK Plus Extended Modules

AMO-2201E

4 x RS232/422/485 + removable 2.5" drive bay

SpecificationsDetails
General Bus interfaceMIOe
Ports4 x RS232/422/485 (set up by jumper)
OthersRemovable 2.5" drive bay
Mechanical Dimension260 x 34.6 x 140.2 mm (10.24" x 1.36" x 5.52")
Environment Operating Temp0 ~ 40 °C
Ordering Information
P/NDescription
AMO-2201E4 x RS232/422/485 + removable 2.5" drive bay

AMO-2202E

4 x 10/100/1000Base T(X) PoE

SpecificationsDetails
General Bus interfaceMIOe
Ports4 x RJ45 10/100/1000 Mbps PoE ports; Each port 15W, Max 60W
CompatibilityIEEE 802.3, IEEE 802.3u, IEEE802.3ab, IEEE802.3x, IEEE802.3af; Powered Device (PD) auto detection and classification Supports IEEE 802.3u Auto-Negotiation
Power Input12 VDC power input (Change System Power input Cable)
Output PoE Power15W at 48 VDC per PoE port
Mechanical Dimension260 x 34.6 x 140.2 mm (10.24" x 1.36" x 5.52")
Environment Operating Temp0 ~ 40 °C
Ordering Information
P/NDescription
AMO-2202E4 x 10/100/1000Base T(X) PoE

AMO-2203E

2-Port isolated CAN-Bus

SpecificationsDetails
General Bus interfaceMIOe
Ports2 x DB9 isolated CAN-Bus
Communications Signal SupportCAN_H, CAN_L
ProtocolCAN 2.0 A/B
Data Transfer RateProgrammable up to 1Mbps
CAN Frequency16MHz
Protection Isolation Protection2,500 VDC
Mechanical Dimension260 x 34.6 x 140.2 mm (10.24" x 1.36" x 5.52")
Environment Operating Temp0 ~ 40 °C
Ordering Information
P/NDescription
AMO-2203E2-Port isolated CAN-Bus

AMO-2204E

3-Port GbE + iDoor

SpecificationsDetails
General Bus interfaceMIOe
Ports3 x RJ45 10/100/1000 Mbps ports
ChipsetIntel 82583V Gigabit Ethernet Controller
Other1 x iDoor
Mechanical Dimension260 x 34.6 x 140.2 mm (10.24" x 1.36" x 5.52")
Environment Operating Temp0 ~ 40 °C
Ordering Information
P/NDescription
AMO-2204E3-Port GbE + iDoor

* 2nd iDoor supported. Please refer to "Optional MOS modules for iDoor Expansion".

Online Download: www.advantech.com/products

Last updated: 15-Apr-2021
