Firma 100A ESC Programming Guide - Spektrum

Parameter Options. 1. 2. 3. 4. 5. 6. 7. 1. Battery Type. LiPo. NiMH. 2. Punch. Level 1. Level 2. Level 3. Level 4. Level 5. 3. Brake Force. 25%. 37.50%. 50%. 62.50 ...

100A Brushless Smart ESC Programmable Options

Programmable Items Parameter Options 1 2 3 4 5 6 7 1.Battery Type LiPo NiMH 2.Punch Level 1 Level 2 Level 3 Level 4 Level 5 3.Brake Force 25% 37.50% 50% 62.50% 75% 87 ...

Full PDF Document

If the inline viewer fails, it will open the original document in compatibility mode automatically. You can also open the file directly.

Extracted Text

Programmable Items
1. Battery Type 2. Punch 3. Brake Force 4. Running Mode 5. Motor Rotation 6. BEC

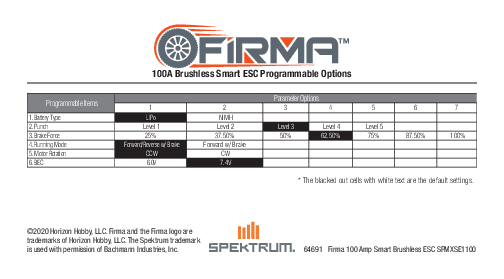

100A Brushless Smart ESC Programmable Options

1
LiPo Level 1 25% Forward/Reverse w/ Brake CCW
6.0V

2
NiMH Level 2 37.50% Forward w/ Brake
CW 7.4V

Parameter Options

3

4

Level 3 50%

Level 4 62.50%

5
Level 5 75%

6 87.50%

7 100%

* The blacked out cells with white text are the default settings.

�2020 Horizon Hobby, LLC. Firma and the Firma logo are trademarks of Horizon Hobby, LLC. The Spektrum trademark is used with permission of Bachmann Industries, Inc.

64691 Firma 100 Amp Smart Brushless ESC SPMXSE1100

Continuous Current Burst Current Input Voltage BEC Output Size / Weight

100A Brushless Smart ESC Specifications

SPMXSE1100

100A 650A 2 - 3S LiPo / 5 - 9S NiMH 6V/7.4V @ 4A 43 x 39 (54.5 @ tabs) x 33.3 mm / 139g

Battery Connector(s) Motor Connector Motor Type Waterproof Telemetry

IC5 (EC5 Compatible) 4mm Female Bullet Sensorless Brushless
IP67 Rated SRXL2 Compatible Spektrum Smart Technology
