LIGHT DIFFUSING TUFFAK Lumen XT sheet is a translucent polycarbonate product with a textured surface on one side specifically designed for lighting lenses.
Full PDF Document
If the inline viewer fails, it will open the original document in compatibility mode automatically. You can also open the file directly.
Extracted Text

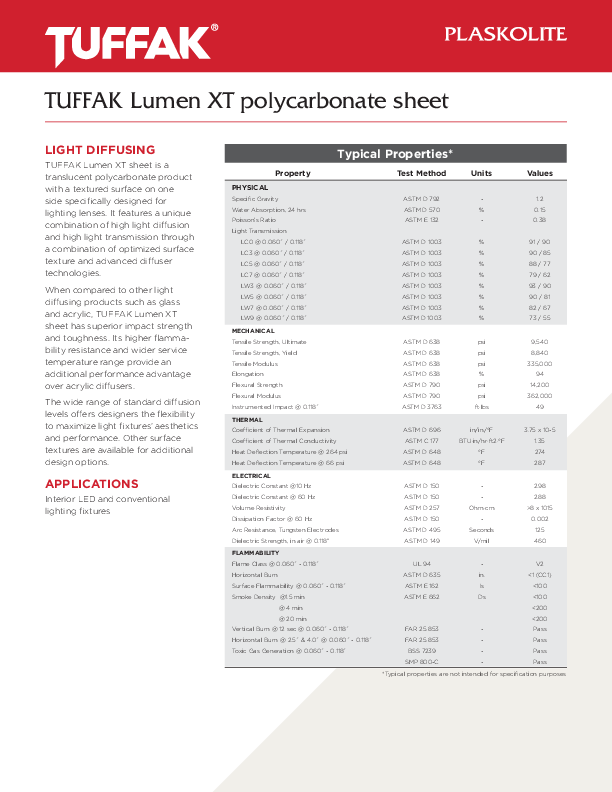

TUFFAK Lumen XT polycarbonate sheet LIGHT DIFFUSING TUFFAK Lumen XT sheet is a translucent polycarbonate product with a textured surface on one side specifically designed for lighting lenses. It features a unique combination of high light diffusion and high light transmission through a combination of optimized surface texture and advanced diffuser technologies. When compared to other light diffusing products such as glass and acrylic, TUFFAK Lumen XT sheet has superior impact strength and toughness. Its higher flammability resistance and wider service temperature range provide an additional performance advantage over acrylic diffusers. The wide range of standard diffusion levels offers designers the flexibility to maximize light fixtures' aesthetics and performance. Other surface textures are available for additional design options. APPLICATIONS Interior LED and conventional lighting fixtures Typical Properties* Property PHYSICAL Specific Gravity Water Absorption, 24 hrs Poisson's Ratio Light Transmission LC0 @ 0.060 / 0.118 LC3 @ 0.060 / 0.118 LC5 @ 0.060 / 0.118 LC7 @ 0.060 / 0.118 LW3 @ 0.060 / 0.118 LW5 @ 0.060 / 0.118 LW7 @ 0.060 / 0.118 LW9 @ 0.060 / 0.118 MECHANICAL Tensile Strength, Ultimate Tensile Strength, Yield Tensile Modulus Elongation Flexural Strength Flexural Modulus Instrumented Impact @ 0.118 THERMAL Coefficient of Thermal Expansion Coefficient of Thermal Conductivity Heat Deflection Temperature @ 264 psi Heat Deflection Temperature @ 66 psi ELECTRICAL Dielectric Constant @10 Hz Dielectric Constant @ 60 Hz Volume Resistivity Dissipation Factor @ 60 Hz Arc Resistance, Tungsten Electrodes Dielectric Strength, in air @ 0.118" FLAMMABILITY Flame Class @ 0.060 - 0.118 Horizontal Burn Surface Flammability @ 0.060 - 0.118 Smoke Density @1.5 min @ 4 min @ 20 min Vertical Burn @ 12 sec @ 0.060 - 0.118 Horizontal Burn @ 2.5 & 4.0 @ 0.060 - 0.118 Toxic Gas Generation @ 0.060 - 0.118 Test Method Units Values ASTM D 792 - ASTMD 570 % ASTME 132 - ASTM D 1003 % ASTM D 1003 % ASTM D 1003 % ASTM D 1003 % ASTM D 1003 % ASTM D 1003 % ASTM D 1003 % ASTMD 1003 % 1.2 0.15 0.38 91 / 90 90 / 85 88 / 77 79 / 62 93 / 90 90 / 81 82 / 67 73 / 55 ASTM D 638 ASTMD 638 ASTMD 638 ASTMD 638 ASTM D 790 ASTMD 790 ASTMD 3763 psi psi psi % psi psi ft�lbs 9,540 8,840 335,000 94 14,200 362,000 49 ASTM D 696 ASTMC 177 ASTM D 648 ASTM D 648 in/in/�F BTU�in/hr�ft2��F �F �F 3.75 x 10-5 1.35 274 287 ASTM D 150 ASTMD 150 ASTMD 257 ASTMD 150 ASTMD 495 ASTMD 149 Ohm�cm Seconds V/mil 2.98 2.88 >8 x 1015 0.002 125 460 UL94 - V2 ASTM D 635 in. <1 (CC1) ASTME 162 Is <100 ASTME 662 Ds <100 <200 <200 FAR 25.853 - Pass FAR 25.853 - Pass BSS 7239 - Pass SMP 800-C - Pass *Typical properties are not intended for specification purposes TUFFAK Lumen XT polycarbonate sheet Diffusion and Transmission Lumen XT Grade LC0 LC3 LC5 LC7 LW3 LW5 LW7 LW9 DIFFUSION (FWHM, degrees) 0.060 thickness 0.118 thickness 14 13 38 53 53 77 86 135 38 53 53 77 86 135 146 166 % TRANSMISSION (ASTM D 1003) 0.060 thickness 0.118 thickness 91 90 90 85 88 77 79 62 93 90 90 81 82 67 73 55 Shift in CCT (K) Correlated Color Temperature Shift for a 3000 K LED 200 100 0 -100 -200 -300 -400 Shift in CCT (K) Correlated Color Temperature Shift for a 6000 K LED 200 100 0 -100 -200 -300 -400 LC3 - 0.060 LC5 - 0.060 LC7 - 0.060 LC3 - 0.118 LC5 - 0.118 LC7 - 0.118 LW3 - 0.060 LW5 - 0.060 LW7 - 0.060 LW9 - 0.060 LW3 - 0.118 LW5 - 0.118 LW7 - 0.118 Lumen XT Di usion Grade and Thickness These graphs show measured shifts in Correlated Color Temperature (CCT) of light from an LED light fixture with a diffuser sheet vs. the same LED fixture without a diffuser. The LED fixtures' CCT without a diffuser is 3000 K and 6000 K. Lumen XT Di usion Grade and Thickness LC3 - 0.060 LC5 - 0.060 LC7 - 0.060 LC3 - 0.118 LC5 - 0.118 LC7 - 0.118 LW3 - 0.060 LW5 - 0.060 LW7 - 0.060 LW9 - 0.060 LW3 - 0.118 LW5 - 0.118 LW7 - 0.118 1-888-CURBELL www.curbellplastics.com Curbell Plastics is a proud supplier of Plaskolite materials. These suggestions and data are based on information we believe to be reliable. They are offered in good faith, but without guarantee, as conditions and methods of use are beyond our control. We recommend that the prospective user determine the suitability of our materials and suggestions before adopting them on a commercial scale. � 2018 PLASKOLITE, LLC 082018 TUFFAK� is a registered trademark of Plaskolite LLC PLASKOLITE 400 Nationwide Blvd, Suite 400 Columbus, OH 43215 800.254.1707 � Fax: 800.457.3553 plaskolite@plaskolite.com www.plaskolite.com PDS112
