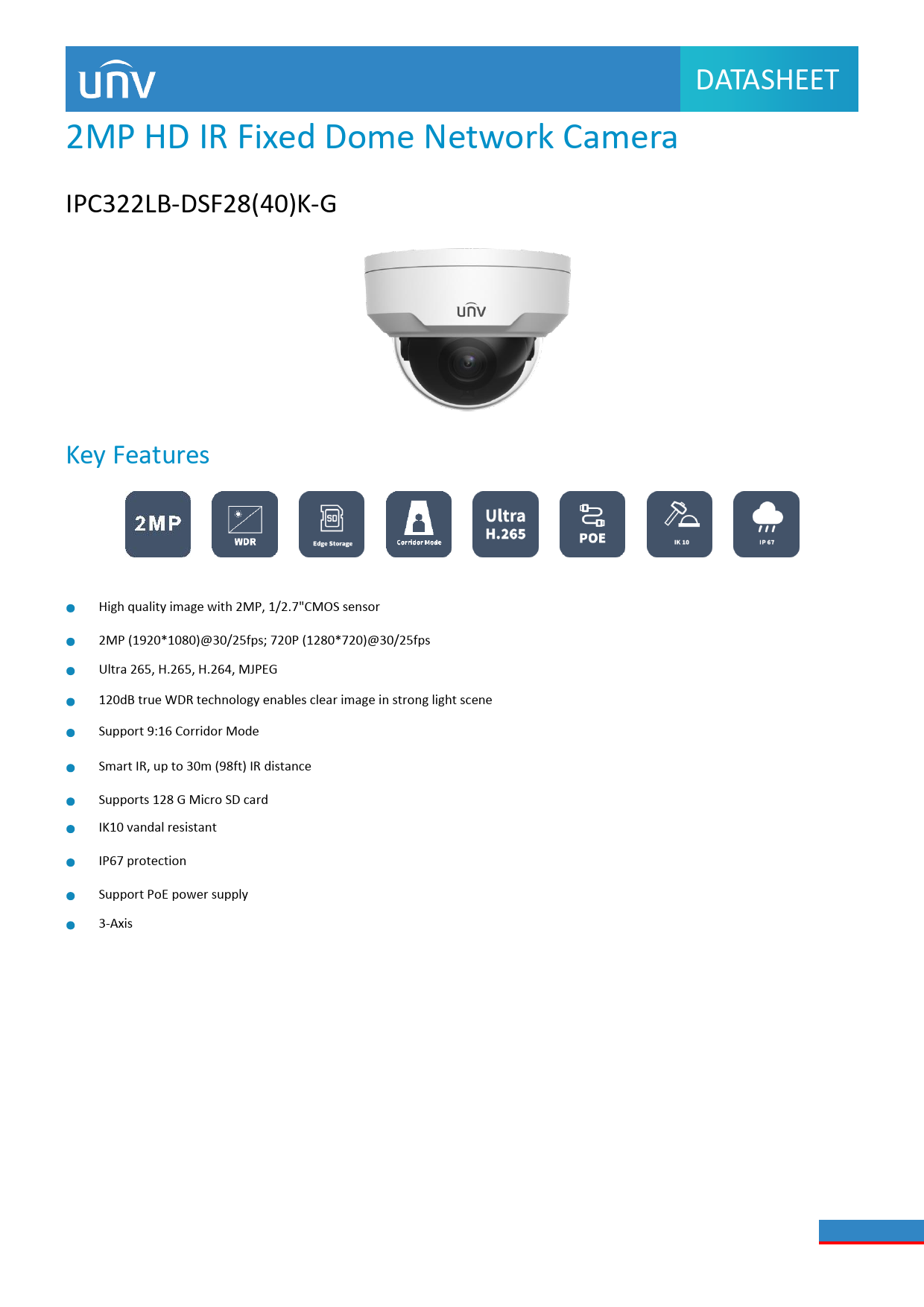

DATASHEET
2MP HD IR Fixed Dome Network Camera
IPC322LB-DSF28(40)K-G
Key Features
High quality image with 2MP, 1/2.7"CMOS sensor 2MP (1920*1080)@30/25fps; 720P (1280*720)@30/25fps Ultra 265, H.265, H.264, MJPEG 120dB true WDR technology enables clear image in strong light scene Support 9:16 Corridor Mode Smart IR, up to 30m (98ft) IR distance Supports 128 G Micro SD card IK10 vandal resistant IP67 protection Support PoE power supply 3-Axis
1

Specifications

DATASHEET

Camera Sensor Lens
DORI Distance
Angle of View (H) Angle of View (V) Angle of View (O) Adjustment angle Shutter
Minimum Illumination
Day/Night Digital noise reduction S/N IR Range Wavelength IR On/Off Control Defog WDR Video Video Compression H.264 code profile
Frame Rate
Video Bit Rate OSD Privacy Mask ROI Motion Detection Image White Balance Digital noise reduction Smart IR Flip Dewarping HLC BLC

IPC322LB-DSF28K-G

IPC322LB-DSF40K-G

1/2.7", 2.0 megapixel, progressive scan, CMOS

2.8mm@F2.0

4.0mm@F2.0

Lens (mm)

Detect (m)

Observe (m)

Recognize (m)

Identify (m)

2.8

42

16.8

8.4

4.2

4.0

60

24

12

6

112.9�

91.2�

59.1�

47.9�

121.2�

95.9�

Pan: 3�~ 360�

Tilt: 0�~ 68�

Rotate: 3�~ 360�

Auto/Manual, 1 ~ 1/100000s

Colour: 0.01Lux ( F2.0, AGC ON) 0Lux with IR

IR-cut filter with auto switch (ICR)

2D/3D DNR

>52dB

Up to 30m (98ft) IR range

850nm

Auto/Manual

Digital Defog

120dB

Ultra 265, H.265, H.264, MJPEG Baseline profile, Main profile, High profile Main Stream: 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; 128 Kbps~16 Mbps Up to 4 OSDs Up to 4 areas Up to 8 areas Up to 4 areas

Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 2D/3D DNR Supported Normal/Vertical/Horizontal/180� N/A Supported Supported

2

Network Protocols Compatible Integration
Client
Storage Edge Storage Network Storage Interface Network Certifications
Certifications
General
Power
Dimensions (� x H) Weight Material Working Environment Strorage Environment Surge Protection Ingress Protection Vandal Resistant Reset Button

DATASHEET
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, QoS, SSL, SNMP ONVIF (Profile S, Profile G, Profile T), API EZStation EZView EZLive
Micro SD, up to 128GB ANR,NAS(NFS)
10/100M Base-TX Ethernet
CE: EN 60950-1 UL: UL60950-1 FCC: FCC Part 15
DC 12V�25%, PoE (IEEE 802.3af) Power consumption: Max 5.0W 108.7 x 81mm (� 4.3" x 3.2") 0.36kg (0.79lb) Metal + plastic -30�C ~ 60�C (-22�F ~ 140�F), Humidity: 95% RH (non-condensing) -30�C ~ 60�C (-22�F ~ 140�F), Humidity: 95% RH (non-condensing) 2KV IP67 IK10 N/A

3

Dimensions

DATASHEET

Accessories

TR-JB03-G-IN

TR-JB07/WM03-G-IN

TR-WM03-D-IN

TR-UM06-E-IN

TR-UP06-IN

TR-A01-IN

TR-SE24-IN

TR-SE24-A-IN

TR-CM24-IN

4

Junction Mount TR-JB03-G-IN
TR-UM06-E-IN
TR-CM24-IN+TR-JB03-G-IN

Pole Mount TR-JB07/WM03-G-IN

DATASHEET

TR-JB07/WM03-G-IN+TR-UP06-IN

Zhejiang Uniview Technologies Co., Ltd. Building No.10, Wanlun Science Park, Jiangling Road 88, Binjiang District, Hangzhou, Zhejiang, China (310051) Email: overseasbusiness@uniview.com; globalsupport@uniview.com http://www.uniview.com � 2020 Zhejiang Uniview Technologies Co., Ltd. All rights reserved. *Product specifications and availability are subject to change without notice.
